Type	Bi-color flexible LED light panel
Model	PortaSun RBF-20
LED Count	672 (336 daylight + 336 tungsten)
Color Temperature Range	2750 K – 6500 K (adjustable in 100 K increments)
Color Accuracy	CRI ≥ 95, TLCI ≥ 96
Output Power	150 W
Lumens	500 lm
Beam Angle	120°
Dimming Range	10% – 100% (in 5% increments)
Expected Lamp Life	50,000 hours
Cooling System	Passive (none)
AC Input Power	100 – 240 V AC, 50/60 Hz
DC Input Power	12 V, 15 A DC
Power Source Options	AC adapter (included) or V-mount battery (not included)
Battery Plate	V-mount
Fixture Mount	5/8" receiver
Included Bracket	Metal X-bracket with 180° tilt
Dimensions (Light Outer Diameter)	20.5 in (51.5 cm)
Dimensions (Controller)	2 × 8 × 3.9 in (5.1 × 20.3 × 10 cm)
Weight (Light Only)	1 lb (453.6 g)
Weight (Controller)	1.8 lb (814 g)
Weight (AC Adapter)	1.4 lb (615 g)
Included Accessories	X-bracket, V-mount strap, safety cable, softbox, diffuser, grid, collapsible diffuser, carry bag, AC adapter, AC power cord
Care & Cleaning	Use only a soft, dry cloth. Keep away from water and flammable gases.
Safety Warnings	Do not stare at light when on; do not disassemble; use correct voltage.
Warranty	1-year limited warranty

Frequently Asked Questions - PortaSun RBF-20 Genaray

How do I mount the RBF-20 on a light stand?

Spread the X-bracket arms, attach them to the bracket sleeves on the back of the light, then place the assembly onto a light stand with a 5/8-inch stud and tighten the locking knob.

Can I power the RBF-20 with a battery?

Yes. Attach a V-mount battery to the controller's V-mount plate, then connect the controller to the light using the 4-pin cable. Battery percentage will appear on the LCD screen.

What is the difference between Auto mode and Manual mode?

In Auto mode, the daylight and tungsten LEDs adjust automatically as you change color temperature. In Manual mode, you can set the brightness of the daylight (CW) and tungsten (WW) LEDs independently using the two knobs.

How do I attach the diffuser?

Unfold the diffuser and press its touch-connect fabric onto the touch-connect strips on the edge of the light. Make sure there are no gaps to prevent light spill.

How do I attach the softbox and grid?

Form a ring with the softbox (silver interior) and press its touch-connect strips together. Then attach the softbox to the light. Attach the diffuser to the inner touch-connect strip, and if using the grid, attach it over the diffuser to the outer strip.

What are the dimensions and weight of the RBF-20?

The light itself is 20.5 inches in diameter and weighs 1 lb (453.6 g). The controller weighs 1.8 lb (814 g) and the AC adapter weighs 1.4 lb (615 g).

What color temperature range does it support?

The RBF-20 supports a bi-color range from 2750 K (tungsten) to 6500 K (daylight), adjustable in 100 K increments.

Is the RBF-20 compatible with DMX?

No, the RBF-20 does not have DMX connectivity.

How should I clean the RBF-20?

Use only a soft, dry cloth to clean the unit. Never use water or solvents, and keep it away from flammable gases or liquids.

What is the warranty period for the Genaray PortaSun RBF-20?

Genaray offers a one-year limited warranty against defects in materials and workmanship from the original purchase date. Contact Genaray customer service for warranty claims.

USER MANUAL PortaSun RBF-20 Genaray

Circular LED array with white dots on a dark base against a warm-toned golden background (no text or symbols)

genaray®

PortaSun Series INTRODUCTION

THANK YOU FOR CHOOSING GENARAY

The Genaray RBF-20 flexible LED is a unique lighting solution for photographers on the go. The feather-light 20-inch diameter array features a 672-count of daylight and tungsten LEDs that provide up to 500 lumens of bicolor light. The LED array mounts onto a light stand or tripod with its included X-bracket and ballhead mount. But it's also designed with rings and touch-connect strips so it can hang on a wall or a picture hook.

PRECAUTIONS

• Please read and follow these instructions, and keep this manual in a safe place.
• Keep this unit away from water and any flammable gases or liquids.
• Make sure the unit is powered off when plugging it into a power source.
• Use only the correct, recommended voltage.

• Handle the unit with care.

• Do not attempt to disassemble or repair the equipment. Doing so will void the warranty, and Genaray will not be responsible for any damage.

• Do not stare directly at the light when it's powered on.
• Clean the unit with only a soft, dry cloth.
• Images are for illustrative purposes only.

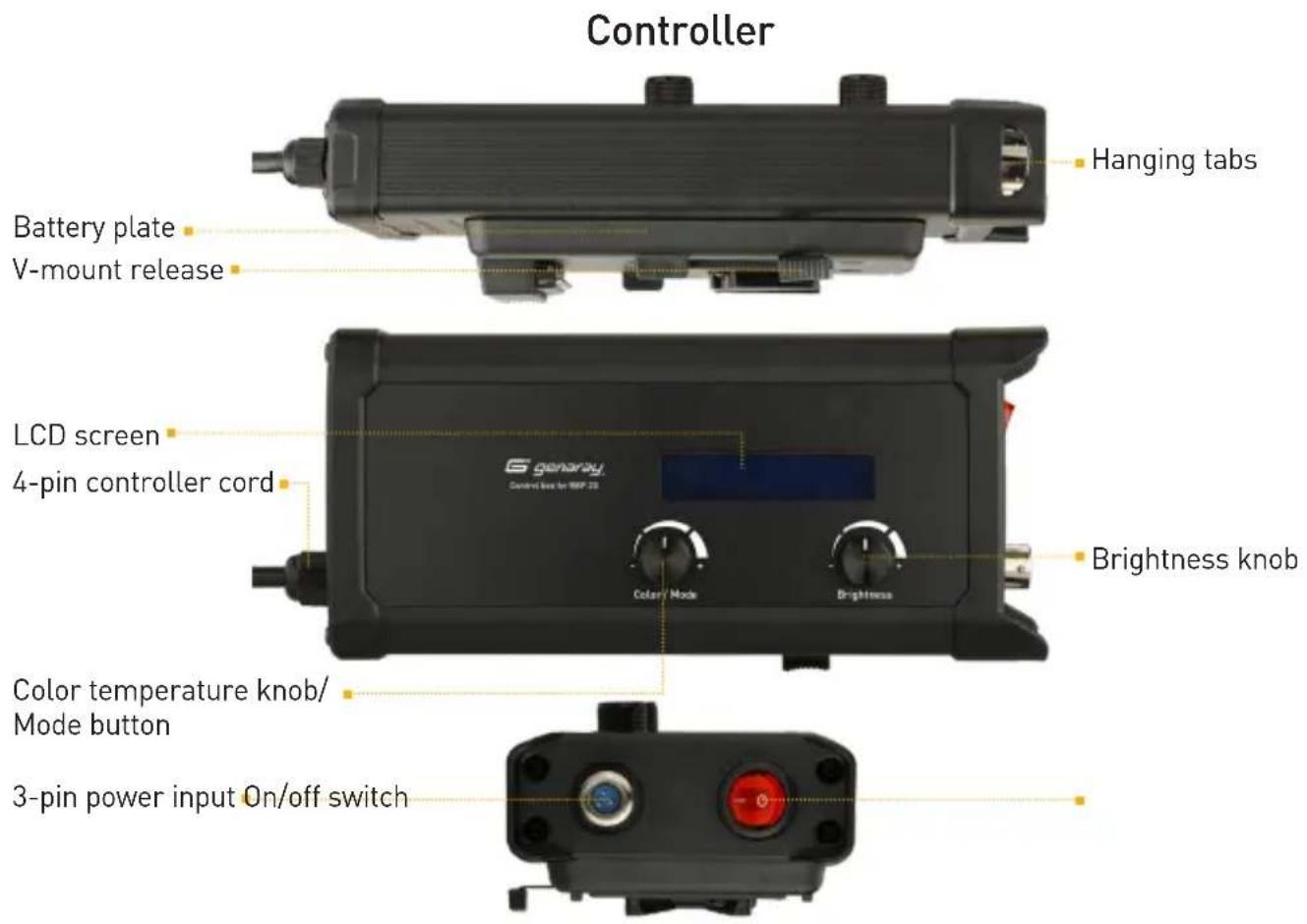

Controller LCD Screen

• Flexible LED array
• Controller
• Power adapter
• AC power cord
• X-bracket
• V-mount strap
• Safety cable
• Softbox
  . Diffuser
  Grid
  • Collapsible diffuser and carry pouch
• Carry bag

ASSEMBLING AND MOUNTING THE RBF-20CONTENTS I

1. Spread the arms of the X-bracket so they form right angles, and tighten the bracket locking knob until secure.
2. Place the LED facedown on a soft surface.
3. Fit each bracket arm into the corresponding bracket sleeves on the back of the light. Slightly bend the last two arms in order to fit them into the sleeves so the light is tightly spread across the bracket.

Close-up of a black mechanical component with a yellow arrow pointing to a small rectangular cutout (no text or symbols visible)

1. Loosen the locking knob, and place the light and bracket assembly onto a light stand with a 5/8-inch stud.
2. Tighten the locking knob until secure.

Close-up of a black cylindrical device with yellow cable and orange ring attached, no visible text or symbols

USING THE RBF-20 WITHOUT THE BRACKET

Use the rings on the back of the light to hang the light on a nail or picture hook.

Alternatively, use the touch-connect strips on the outside of the bracket sleeves to attach the light to another touch-connect strip on a wall or other surface.

POWERING THE RBF-20

AC POWER

Important Ⓐ️

The RBF-20 is a multivoltage fixture capable of running on 100 to 240 V, 50/60 Hz. The included cable has a 120 V, 50 Hz. To use this fixture with other voltages, you must use a plug adapter (sold separately).

1. Use the AC power cord to connect the AC adapter to an outlet.
2. Align the 3-pin connector with the controller's power input. Make sure the notches on the connectors match up. Insert the 3-pin AC adapter output cable into the controller's port until it clicks.
3. Connect the 4-pin controller output cable to the light's power cord, and turn the locking ring until secure.

To move the controller and AC adapter out of the way, wrap the V-mount strap around the AC power adapter, and insert it into the controller's battery plate. Use the included safety cable to hang them from your light stand.

BATTERY POWER

1. Attach a V-mount battery to the controller by sliding the battery into the V-mount plate until it locks.
2. Make the same connection from the controller to the light as described in step 3 of AC Power.
3. Connect the 4-pin controller output cable to the light's power cord, and turn the locking ring until secure.

The percentage of remaining battery power will appear on the controller's LED screen.

AUTO MODE MANUAL MODE

In auto mode, the levels of the daylight and tungsten LEDs adjust automatically as the color temperature changes.

When it's first powered on, the RBF-20 defaults to auto mode.

The color temperature knob controls the setting from 2750 to 6500 K in 100 K increments.

The brightness knob controls the power output from 10% to 100% in 5% increments.

In manual mode, the brightness level of the daylight and tungsten LEDs can be adjusted independently.

Press the color temperature button. The LCD switches to the manual mode screen.

• The tungsten LED's brightness level (WW) is controlled by the color temperature knob.
• The daylight LED's brightness level (CW) is controlled by the brightness knob.

To exit manual mode, press the color temperature knob, and the auto mode screen will appear. The light will return to the most recent settings.

ATTACHING THE DIFFUSER

1. Remove the diffuser from its carry pouch, and unfold it.
2. Press the diffuser's touch-connect fabric to the touch-connect strip on the edge of the light.
3. Close any gaps along the edge of the diffuser to prevent light spill.

ATTACHING THE SOFTBOX, DIFFUSER, AND GRID

1. Form a ring with the softbox, putting the silver material on the interior, and press the touch-connect strips together.
2. Attach the softbox to the light by pressing the touch-connect material on the edge of the softbox to the touch-connect strip on the edge of the light.

Circular white object with black frame and black handle, resembling a studio lamp or camera (no text or symbols visible)

Circular black-and-white photo of a flat-screen light bulb with grid pattern, mounted on a stand (no text or symbols visible)

1. Adjust the softbox to close any gaps in the connection and prevent light spill.
2. Attach the diffuser to the wide touch-connect strip around the interior of the softbox.

Note: If you plan on using the grid with this setup, attach the diffuser to the inner portion of the touch-connect strip to leave room for the grid.

1. Attach the grid by pressing its touch-connect fabric to the touch-connect strip around the interior of the softbox.

Black and white studio lighting bulb with adjustable arm and stand (no text or symbols visible)

Circular black-and-white striped device with a coiled cable, no visible text or symbols

PRODUCT SPECIFICATIONS

LIGHT FIXTURE

LED Count: 672 (336 Daylight, 336 Tungsten)

Output Power: 150 W

Beam Angle: 120^irc

Color Temperature: 2750 to 6500 K

Color Accuracy Standard: CR≥ 95 TLCI:≥96

Cooling System: None

Dimming: 10% to 100%

Lumens: 500

Photometrics (@5600 K): 5460 lx @ 3 ft.

4424 lx @ 1 m

492 lx @ 3 m

177 lx @ 5 m

Expected Lamp Life: 50,000 hr.

Dimensions (H × W × D):

Light: 20.5 in. (51.5 cm) outer diameter

Softbox : 5.3 in. (13.5 cm) depth

Controller: 2 × 8 × 3.9 in. (5.1 × 20.3 × 10 cm)

Power adapter: 1.5 × 2.75 × 6.75 in.

(3. 8 × 7 × 1 7. 1 cm)

Weight: LED only: 1 lb. (453.6 g)

Controller: 1.8 lb. (814 g)

AC power adapter: 1.4 lb. (615 g)

CONNECTORS

Battery Plate: V-mount

Power Input Connector: 4 pin

DMX Connector: No

Service Connector: No

MOUNTING

Fixture Mount: 5/8 in. receiver

MOUNTING BRACKET

Bracket Material: Metal

Bracket Type: X-bracket

Tilt: 180^irc

POWER

AC Input Power: 100 to 240 V AC, 50/60 Hz

DC Input Power: 12 V, 15 A DC

Power Source: AC adapter, V-mount battery

Max Power Consumption: 150 W

Power Pass-Thru: None

ONE-YEAR LIMITED WARRANTY

This Genaray product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. Genaray's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at Genaray's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by Genaray. If the product has been discontinued, Genaray reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, GENARAY MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Genaray Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Genaray along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.

For more information, or to arrange service, visit www.genaray.com or contact us at [e-mail].

© 2019 Genaray. All Rights Reserved.
