USER MANUAL LED-FA038i2 NEC

Installation and Maintenance manual

LED Module/LED Display

[Models for indoor use]

LED-FA009i2

LED-FA015i2

LED-FA019i2

LED-FA012i2

LED-FA025i2

LED-FA031i2

LED-FA038i2

LED-FA012i2-SB

LED-FA015i2-SB

LED-FE009i2

LED-FE012i2

LED-FE015i2

LED-FE019i2

LED-FE025i2

LED-FE031i2

LED-FE038i2

LED-FE012i2-E

LED-FE015i2-E

LED-FE019i2-E

LED Display Kit

[Models for indoor use]

LED-FA012i2-110

LED-FA019i2-110

LED-FA015i2-137

LED-FA009i2-165

LED-FA019i2-165

LED-FA012i2-220

LED-FA025i2-220

LED-FA038i2-220

LED-FE012i2-110

LED-FE019i2-110

LED-FE015i2-137

LED-FE009i2-165

LED-FE019i2-165

LED-FE012i2-220

LED-FE025i2-220

LED-FE038i2-220

LED-FE012i2-E11

LED-FE019i2-E11

LED-FE015i2-E13

LED-FE019i2-E16

LED-FE012i2-E22

LED Display Kit

[Models for indoor use]

LED-FA012i2-11N

LED-FA019i2-11N

LED-FA015i2-13N

LED-FA009i2-16N

LED-FA019i2-16N

LED-FA012i2-22N

LED-FA025i2-22N

LED-FA038i2-22N

LED-FE012i2-11N

LED-FE019i2-11N

LED-FE015i2-13N

LED-FA009i2-16N

LED-FE019i2-16N

LED-FE012i2-22N

LED-FE025i2-22N

LED-FE038i2-22N

LED-FE012i2-EFN

LED-FE019i2-EHN

LED-FE015i2-EFN

LED-FE019i2-EFN

LED-FE012i2-EUN

MODEL: LED-FA009i2, LED-FA012i2, LED-FA015i2, LED-FA019i2, LED-FA025i2, LED-FA031i2, LED-FA038i2

LED-FE009i2, LED-FE012i2, LED-FE015i2, LED-FE019i2, LED-FE025i2, LED-FE031i2, LED-FE038i2

Important Information......English-1

Parts Name ....English-5

Model name list....English-8

Contents....English-9

Installation Example ......English-16

1. Installation location.... 16
2. Handle 18

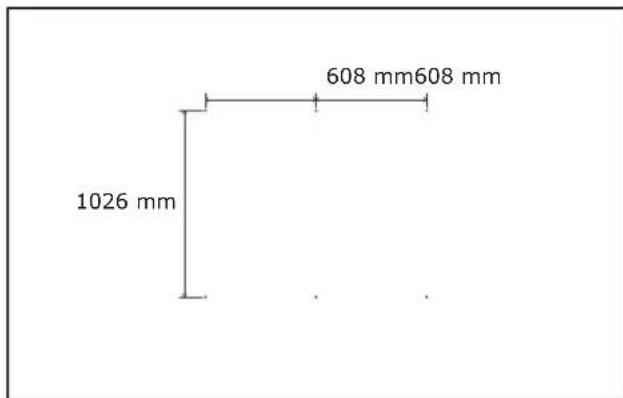

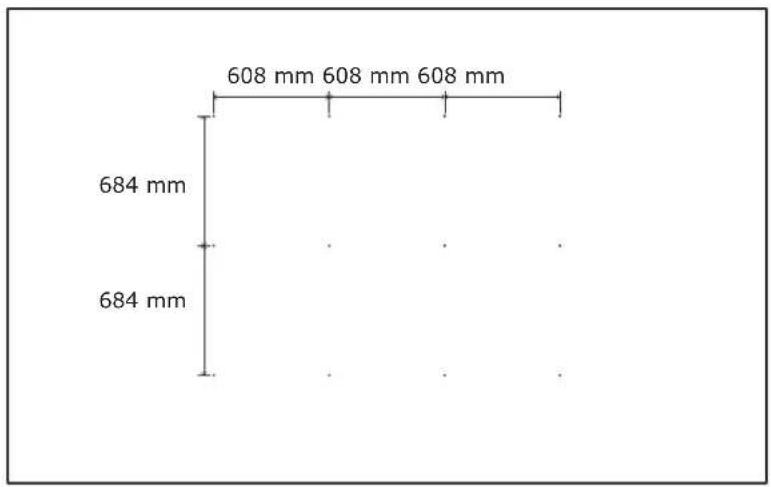

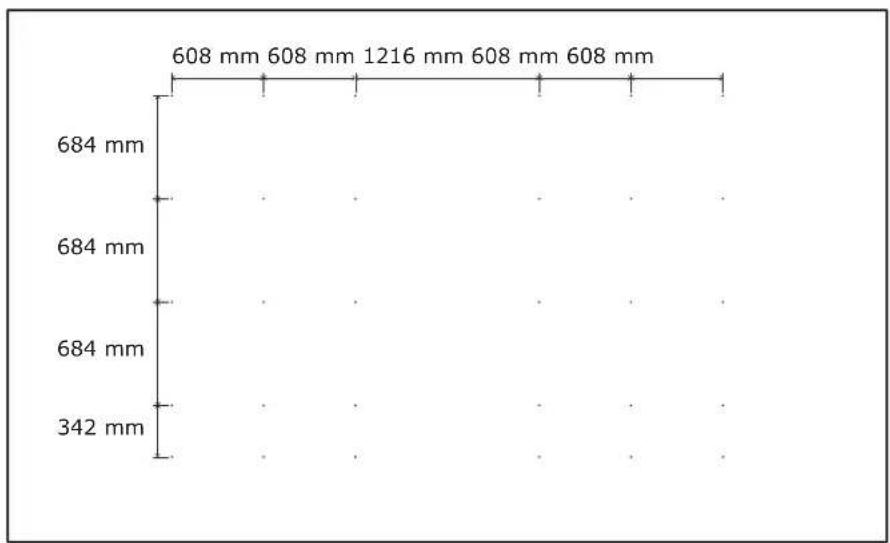

3. Mark the positions of the anchor points on the wall 18
4. Make the holes at the anchor positions 20

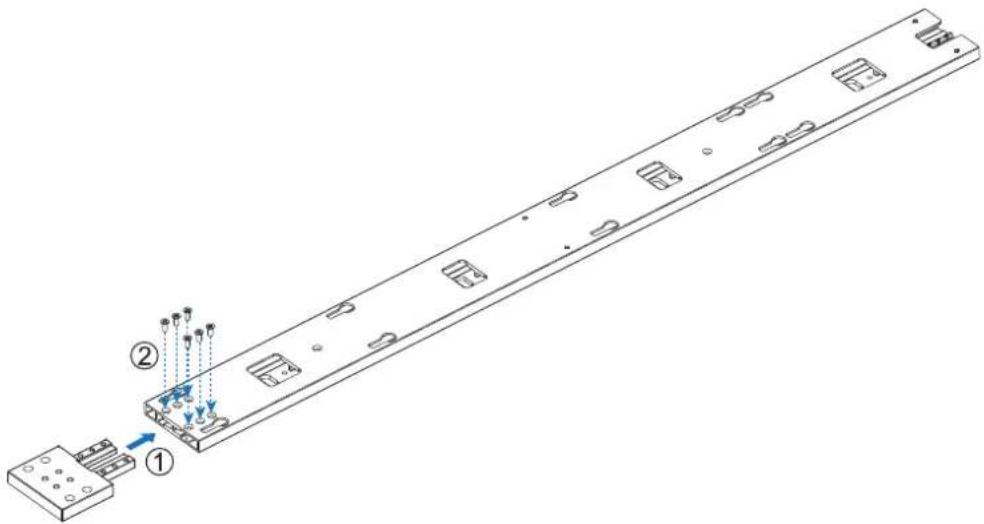

5. Preparing mounting bar 21

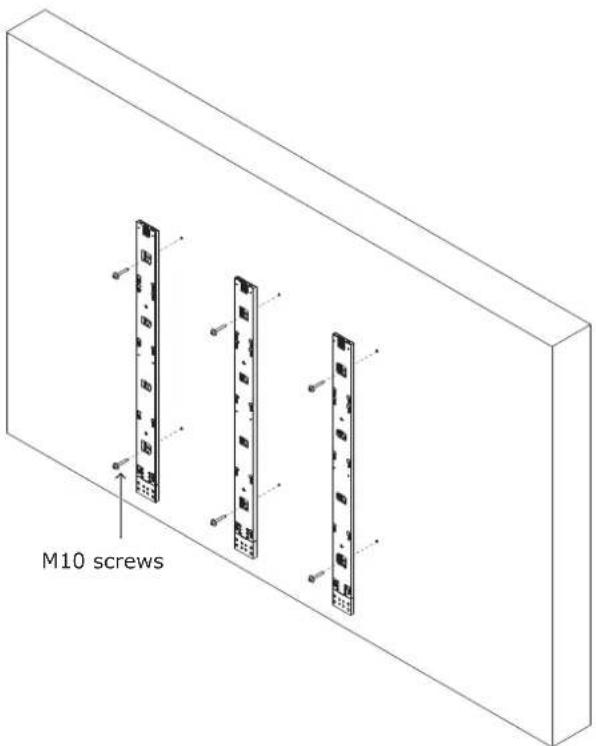

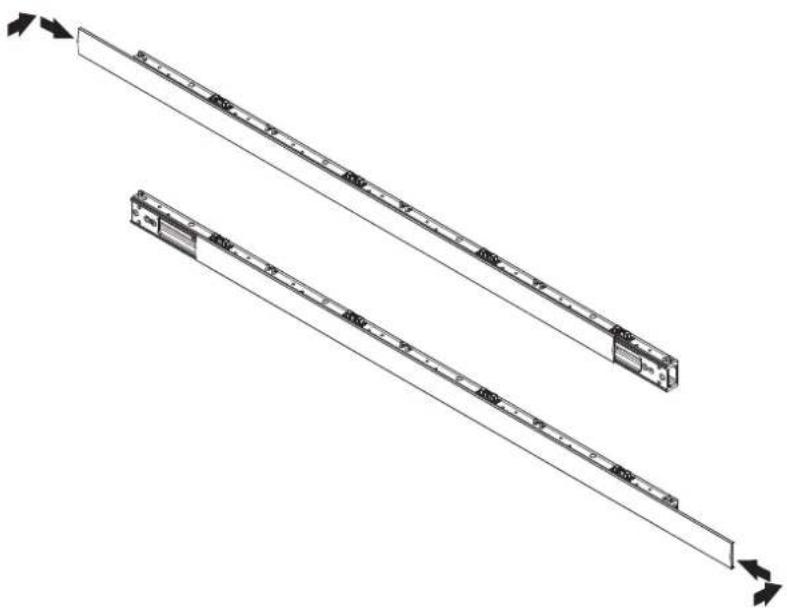

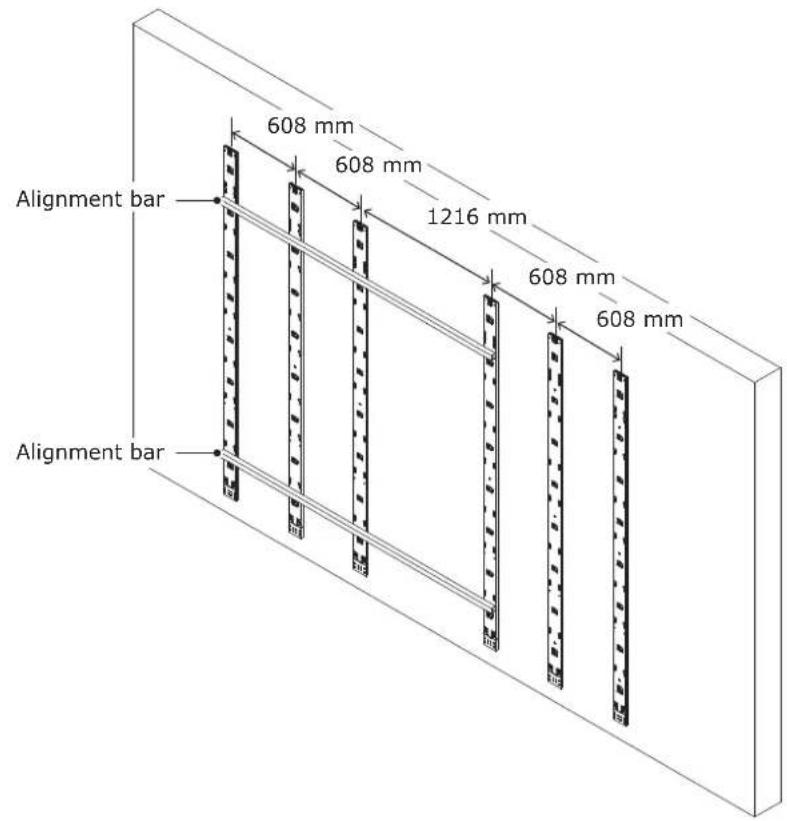

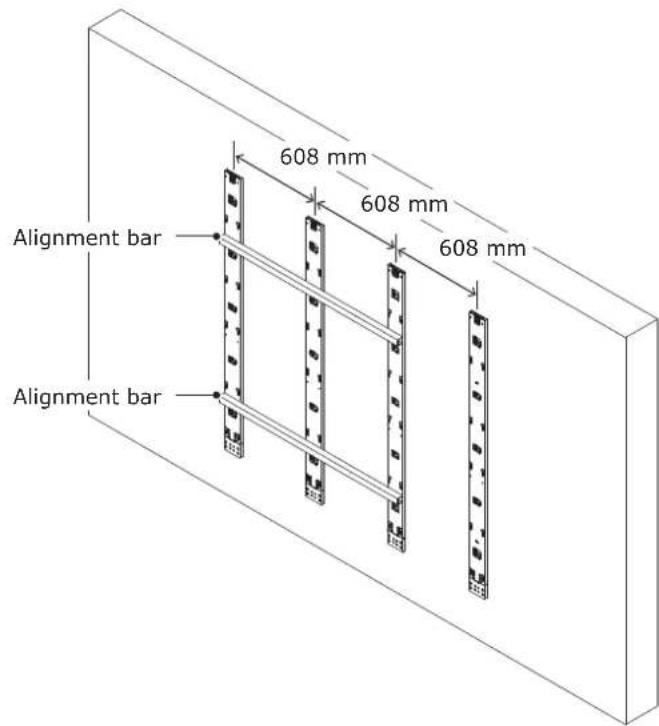

6. Install the mounting bars.... 22

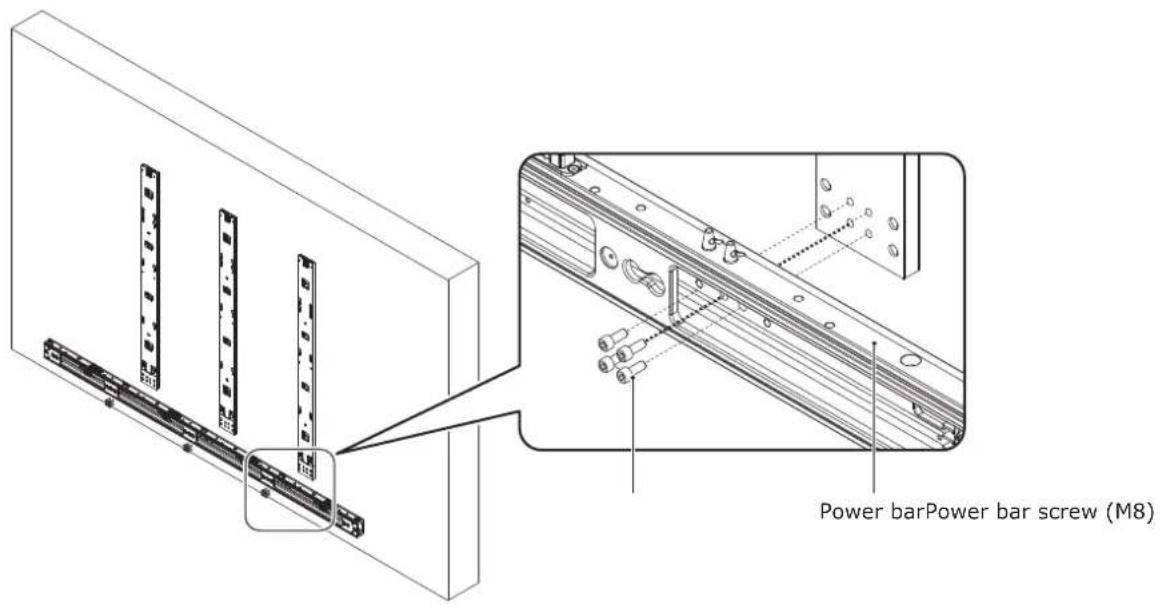

7. Install the power bar.... 24

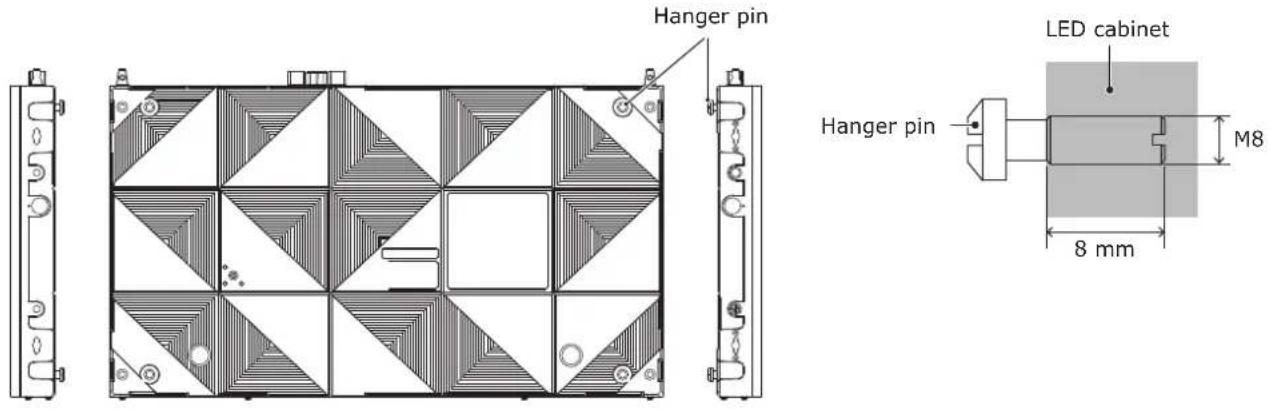

8. Install the cabinet hanger pins to the back of the cabinets.... 26

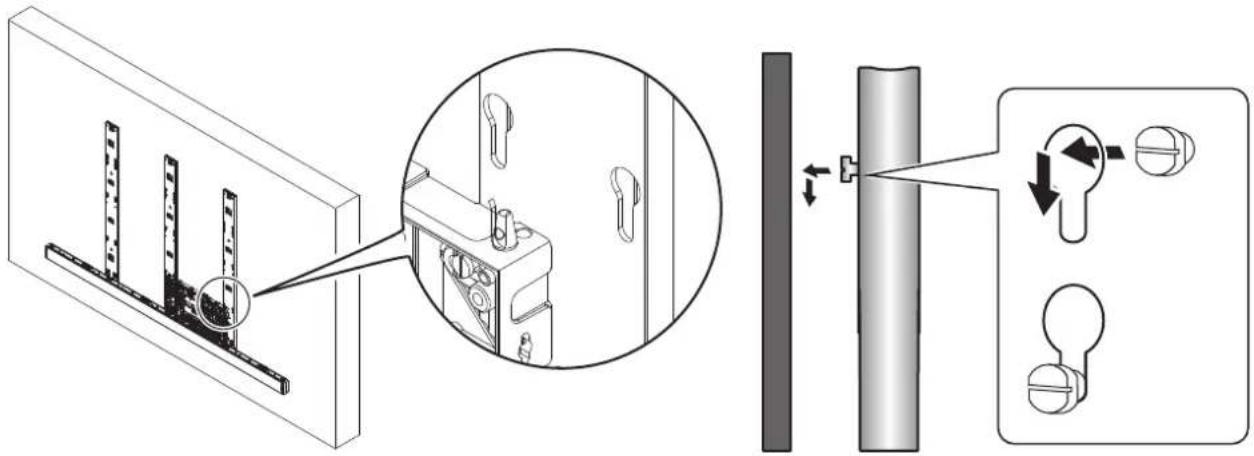

9. Install the cabinets 28

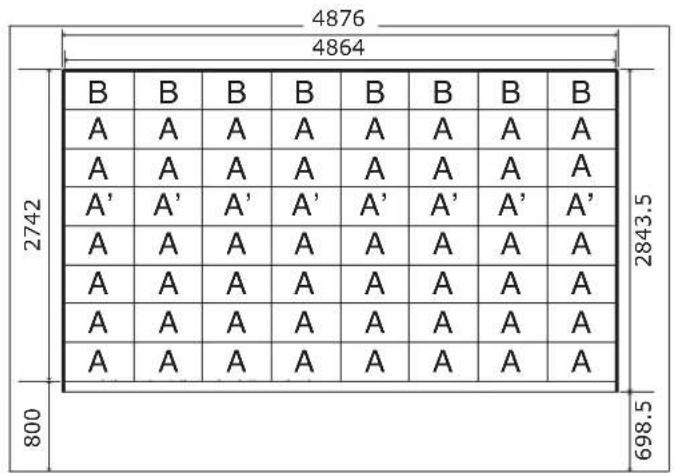

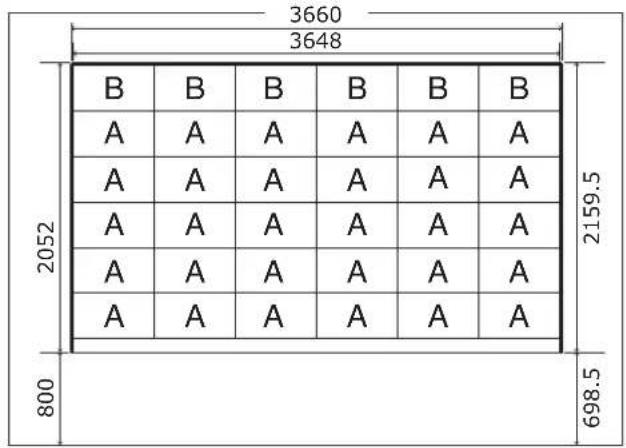

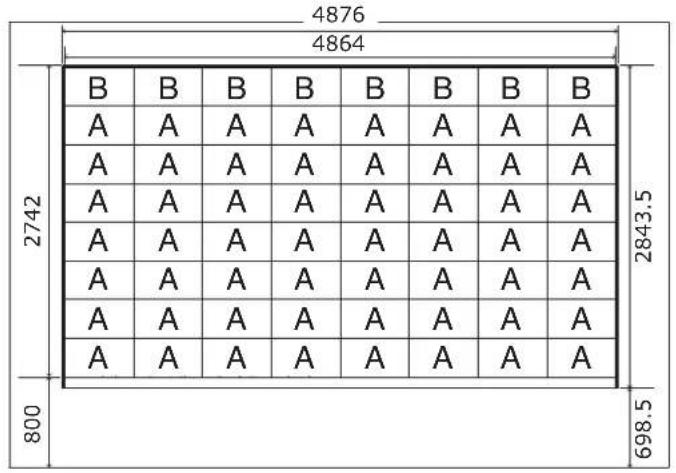

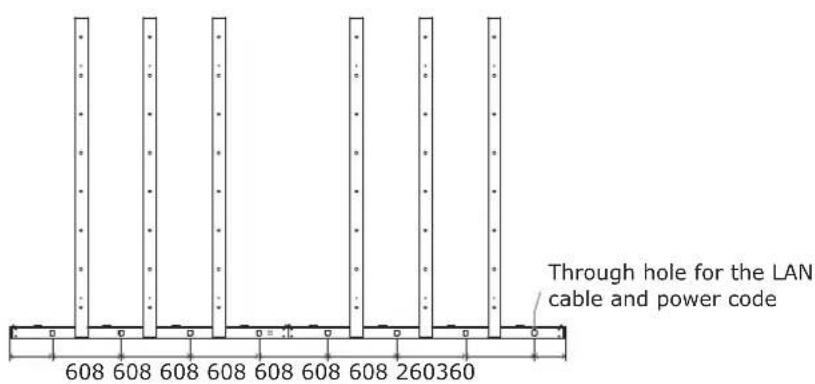

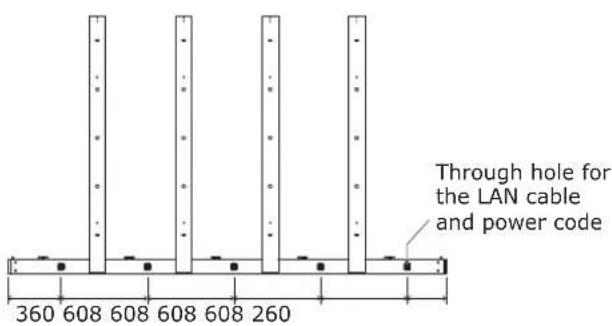

10. Assembly diagrams ...... 34
    11.Installation without a frame set.... 37
    12.Wiring 38
11. Installing the pixel card.... 58

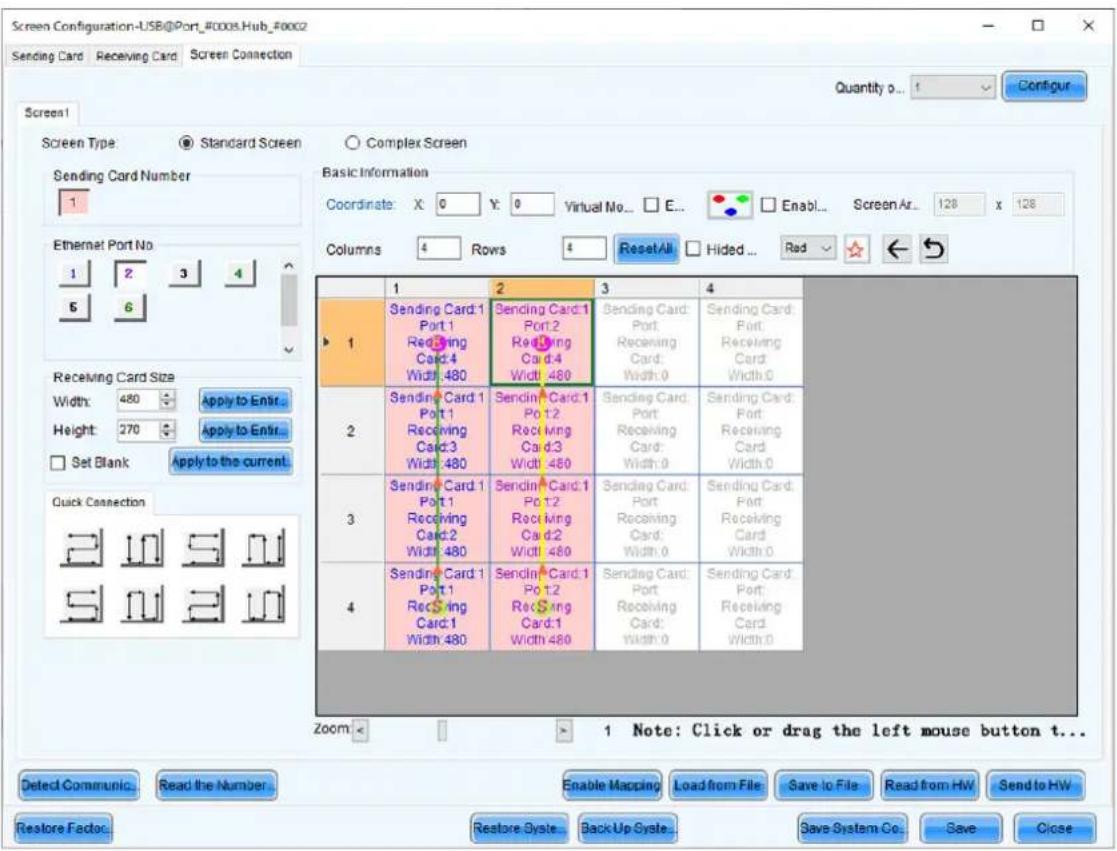

Screen Configuration....English-60

Image Setting ....English-71

Cleaning ....English-81

Maintenance....English-82

Troubleshooting ....English-87

1. Display problems....87

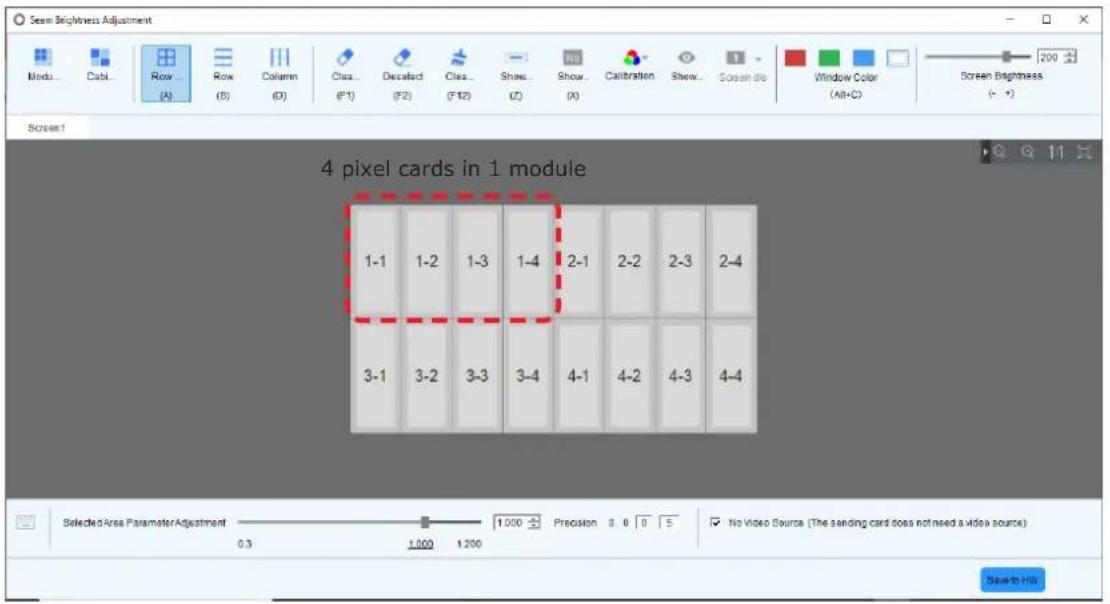

2. Adjusting the colors on a part of the screen....88

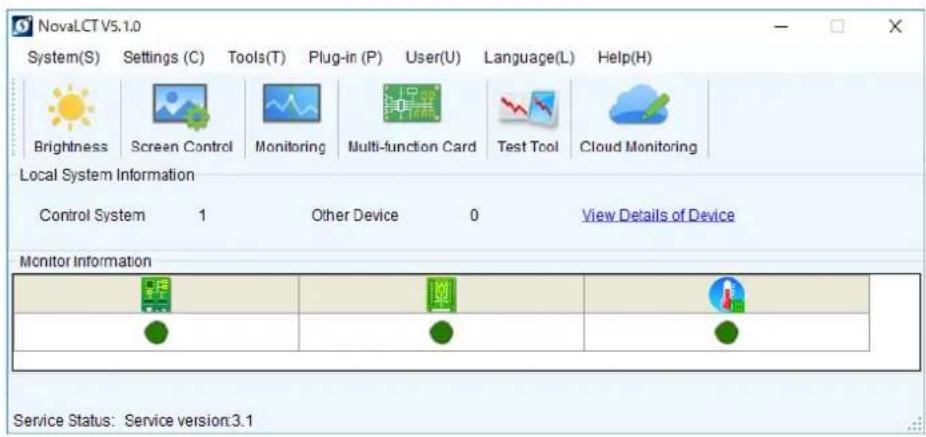

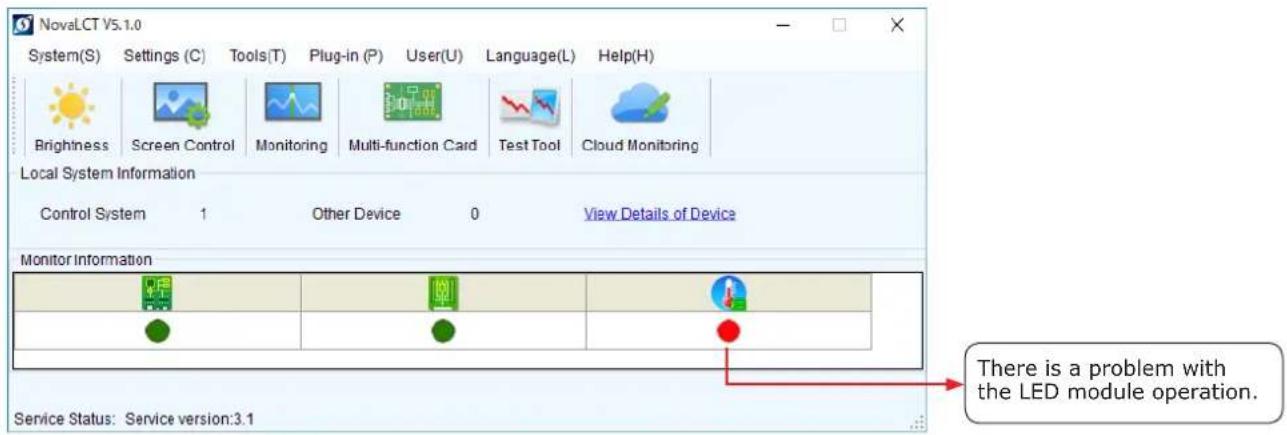

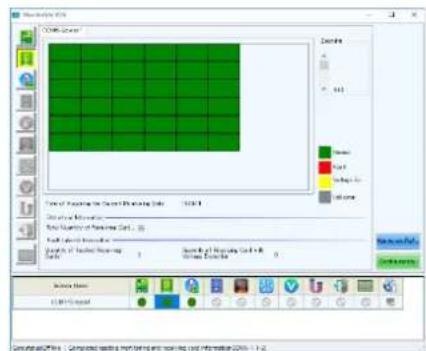

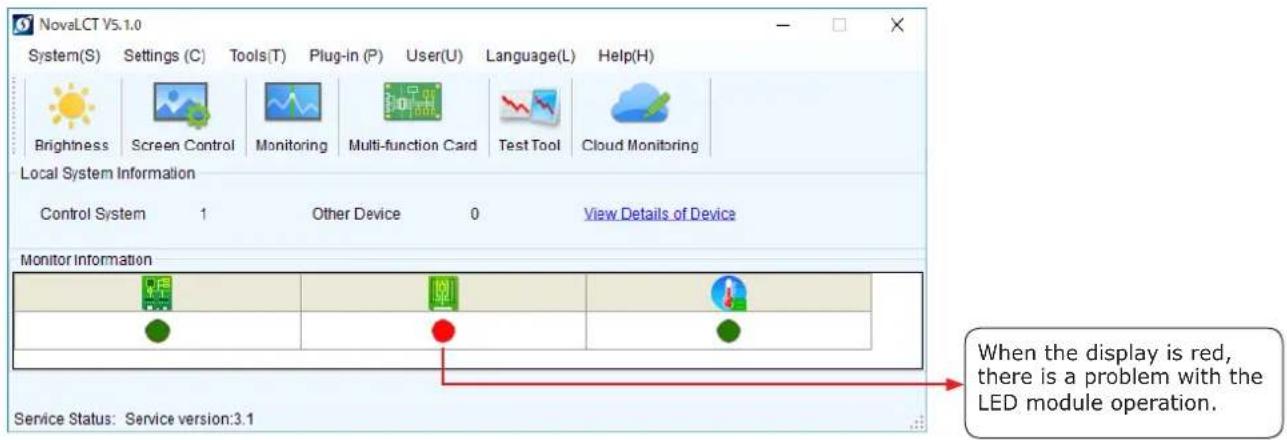

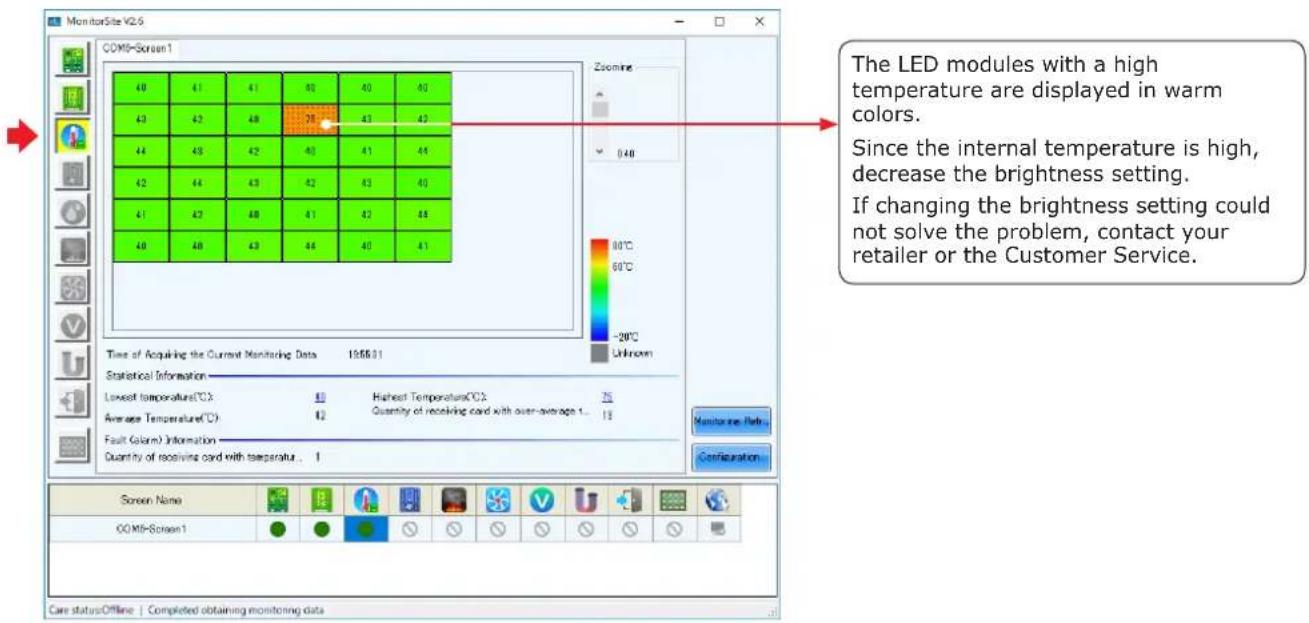

3. State monitoring using the software....94

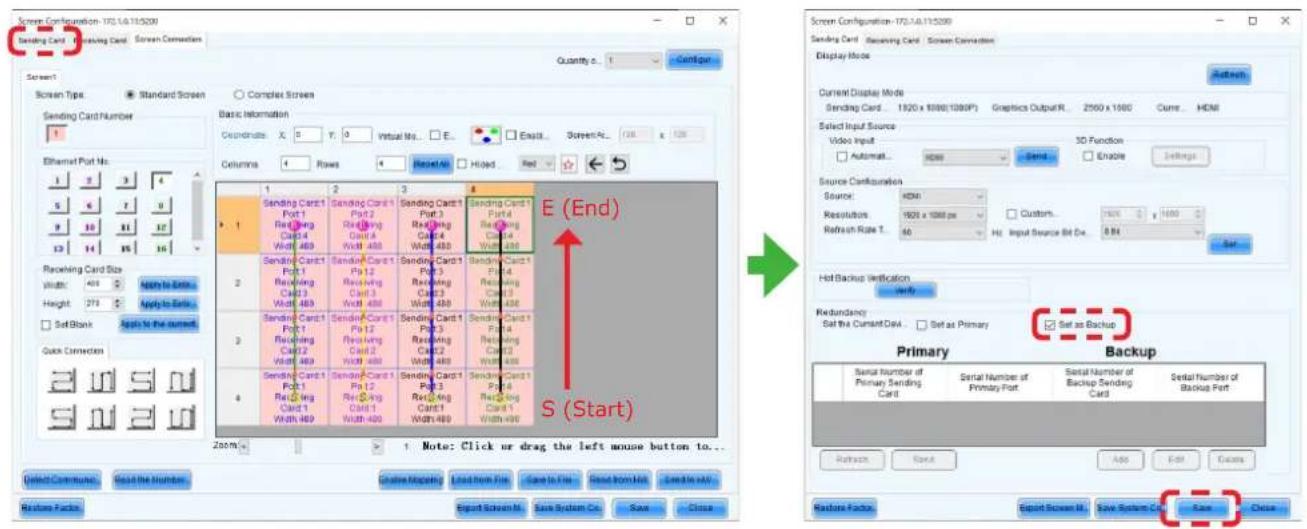

4. Redundancy setting method 99

Specifications (FA series)......English-117

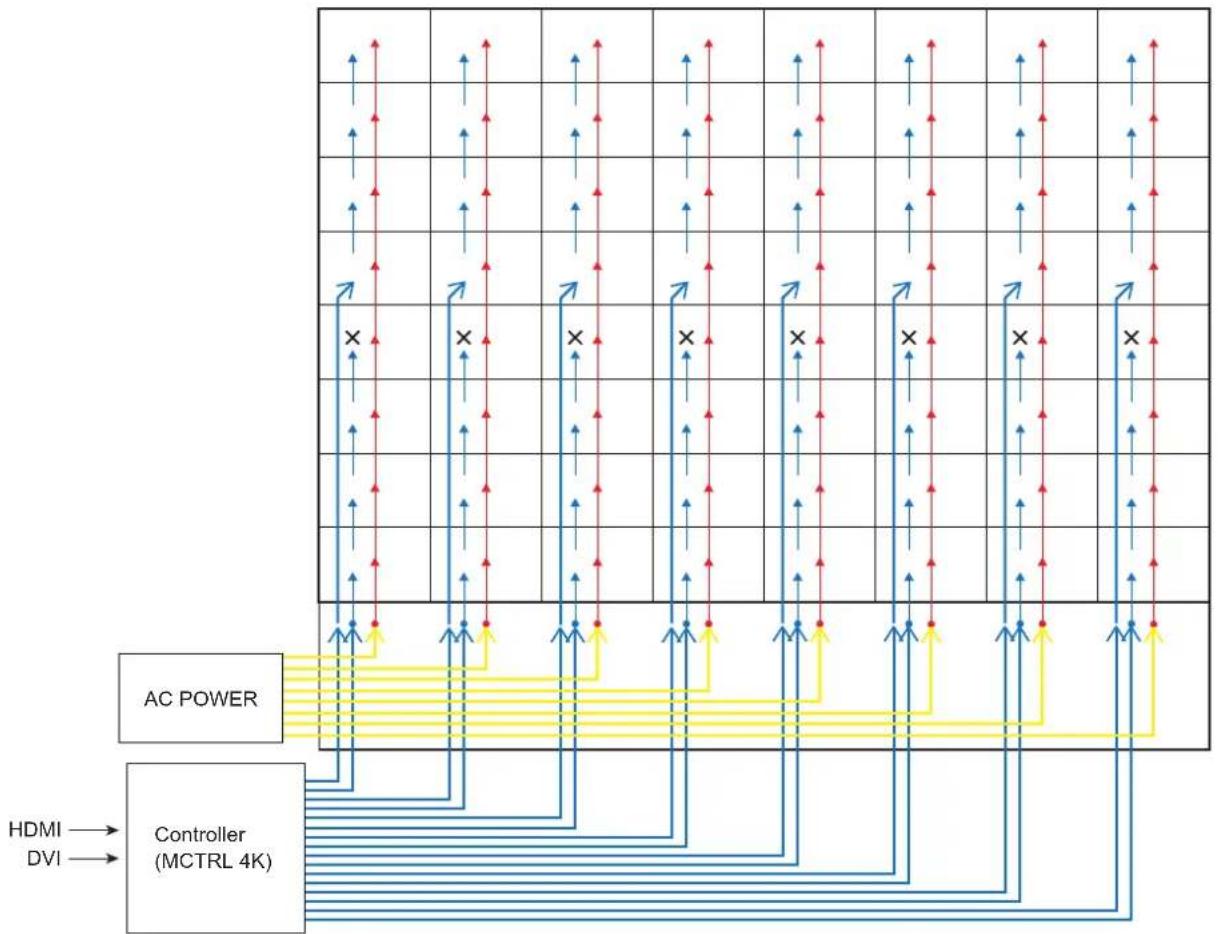

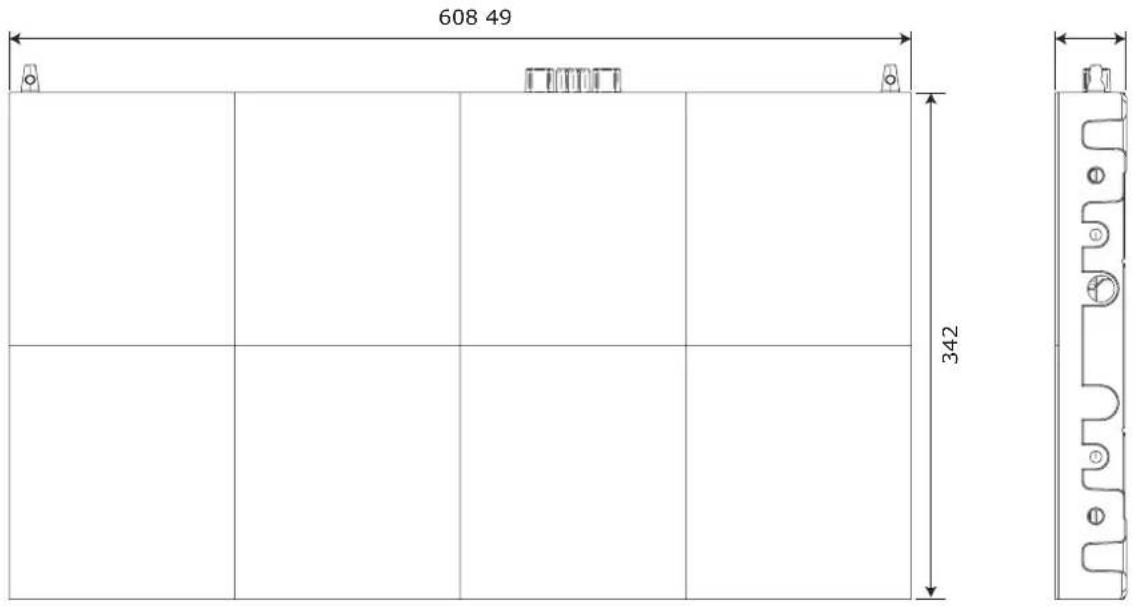

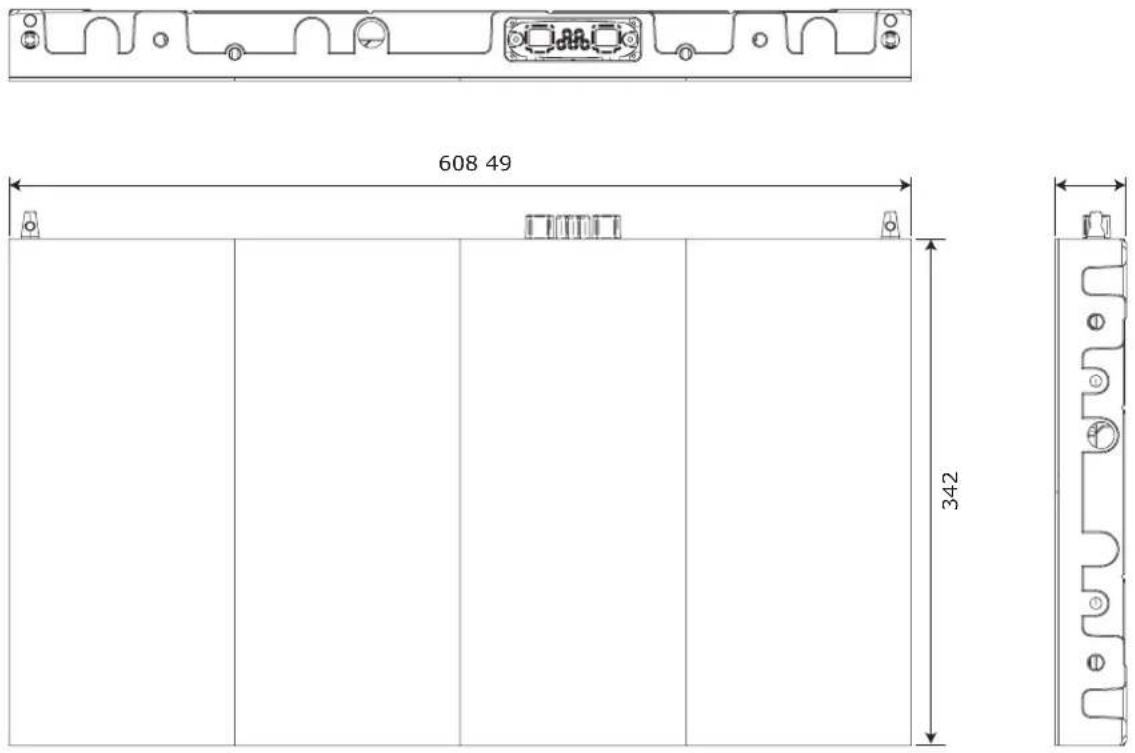

Specifications (FE series) ...... English-121

Diagram ......English-127

NOTE: (1) The contents of this manual may not be reprinted in part or whole without permission.

(2) The contents of this manual are subject to change without notice.
(3) Great care has been taken in the preparation of this manual; however, should you notice any questionable points, errors or omissions, please contact us.
(4) The image shown in this manual is indicative only. If there is inconsistency between the image and the actual product, the actual product shall govern.
(5) Notwithstanding articles (3) and (4), we will not be responsible for any claims on loss of profit or other matters deemed to result from using this device.

The company names and product names mentioned in this manual are trademarks or registered trademarks of respective companies.

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE

THE FOLLOWING WHEN SETTING UP AND

USING THE LED DISPLAY SYSTEM:

About the Symbols

To ensure safe and proper use of the product, this manual uses a number of symbols to prevent injury to you and others as well as damage to property. The symbols and their meanings are described below. Be sure to understand them thoroughly before reading this manual.

WARNING	Failing to heed this symbol and handling the product incorrectly could result in accidents leading to major injury or death.
CAUTION	Failing to heed this symbol and handling the product incorrectly could result in personal injury or damage to surrounding property.

Examples of symbols

	△ Indicates a warning or caution.This symbol indicates you should be careful of electric shocks.
	⊗ Indicates a prohibited action.This symbol indicates something that must be prohibited.
	● Indicates a mandatory action.This symbol indicates that the power cord should be unplugged from the power outlet.

- Be sure to read the following before using the product to use it correctly and safely.

WARNING

Do not apply vibrations or shocks to the product.

Do not install the product to unstable locations or locations subject to vibrations.

Always ask a technician to perform the installation.

Do not connect the cables with wet hands. Otherwise, it may cause an injury or an electrical shock.

Do not repair or modify the product yourself. Otherwise, it may cause an injury, a fire or an electrical shock.

In case of thunder, do not touch the power cord. Otherwise, it may cause an electrical shock.

Connect the product to the correct voltage. If the product is connected to a voltage other than the specified voltage, it may lead to a fire or an electrical shock.

In case of a malfunction (nothing is displayed on the screen, etc.) or if smoke, abnormal heat, or a strange sound or odor is generated, turn the power off and immediately ask a technician or your retailer for repair.

Install the product so that the vents are not obstructed.

Make sure there are enough people available to ensure safety (at least two people) when installing or moving the product. Otherwise, it may lead to an injury.

Be sure to ground the product. If the product is not grounded, there is a risk of electrical shock in case a malfunction occurs.

In case foreign matter has entered into the product, immediately disconnect the power supply and stop using the product.

After the installation, if a problem such as loose screws occurs, immediately ask a technician or your retailer for repair.

Do not put objects into the product. Otherwise, it may cause a fire or an electrical shock.

In case the product is in contact with water or another liquid, immediately disconnect the power supply and stop using the product. If you continue using the product in that state, it may lead to a malfunction, a fire, or an electrical shock.

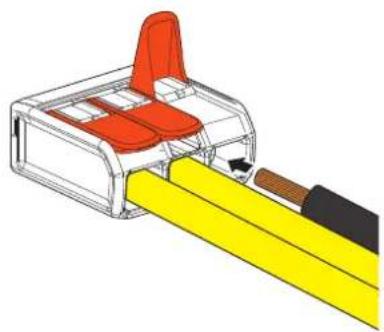

When using the power connector (WAGO), do not use it outdoors or in a humid environment. Otherwise, it may cause a fire or an electrical shock.

CAUTION

When connecting the power cord to the product's AC IN terminal, make sure the connector is fully and firmly inserted.

Do not damage the power cord. Do not put heavy objects on it, place it near heaters, pull it with excessive strength, or apply a strong force on it while it is bent. A damaged power cord may cause a fire or an electrical shock.

Do not install the product in narrow places where heat tends to build up.

Do not use the product in an environment with low heat dissipation. Otherwise, it may cause a malfunction.

The RJ-45 port of the product is for use with the product only. Do not connect it to a network. Connecting this port to a network that may receive over-voltage current may cause damage to the product or an electrical shock.

Do not use the product in a vehicle or another means of transportation.

Do not place the product under direct sunlight or near heaters.

This product is designed to be used indoors. Do not use it outdoors. Otherwise, it may cause a malfunction.

Do not use or store the product in the following places.

- Near heaters

- Places with lots of humidity or dust, or places subject to oily smoke

- Places where water or oil may splash

- Places with lots of corrosive gases, such as near hot springs

- Places where the product may freeze

- Do not place the product on its side, face down, or upside down.

- Places with lots of vibrations

If you will not be using the product for a long time, disconnect it from the power distributor for safety purposes.

Disconnect the power supply when performing the maintenance.

Install the product in accordance with the local laws and regulations.

Use ESD gloves when handling Pixel cards to prevent static electricity from the human body and contamination due to finger oils, perspiration salts, flaking skin, and/or other forms of human excretory secretions. The LED modules and their electrical components are sensitive to biological agents and exposure to such risks degradation of materials and performance.

Eliminate any static electricity from your body before touching the Pixel cards by touching an aluminum sash, a door knob, or some other metal object.

This product can only be serviced in the country where it was purchased.

Recommended Use & Maintenance

About the LED lamps

The surface of the pixel card is vulnerable to shocks, so do not press or hit the surface.

LED lamps are sensitive to static electricity and surge voltage, which may damage their components and decrease their reliability.

Take measures against static electricity during the installation. Do not touch the LED display areas.

When you install the product or when you use it for the first time after leaving it unused for a long time, follow the instructions below.

The LED lamps may absorb and hold moisture during the LED module installation or if not used for a long time. Therefore, in such cases, the brightness must be increased gradually during a break-in period before setting the normal brightness.

If the LED lamps are lit with 100% brightness while moisture is retained, the temperature will rise very quickly and the water inside the lamps will evaporate and expand. This will cause the encapsulating resin to expand, which may lead to separation of the boundary surface inside the LED lamps. This separation can cause the LED lamps not to light up properly.

Lamp break-in

Configure the brightness settings as shown below with a video displayed on the LED module.

After a break-in period of approximately 3 hours, the LED module can be used under normal conditions.

About the Pixel card

The surface of the pixel card is easily scratched, so handle it with care so as not to push or rub it with a hard object. Be careful not to stain the surface of the pixel card with your fingers. If the surface of the pixel card becomes dirty, wipe it gently with a dry cloth. Also, use a clean cloth and avoid using the same cloth repeatedly.

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ FrontRear

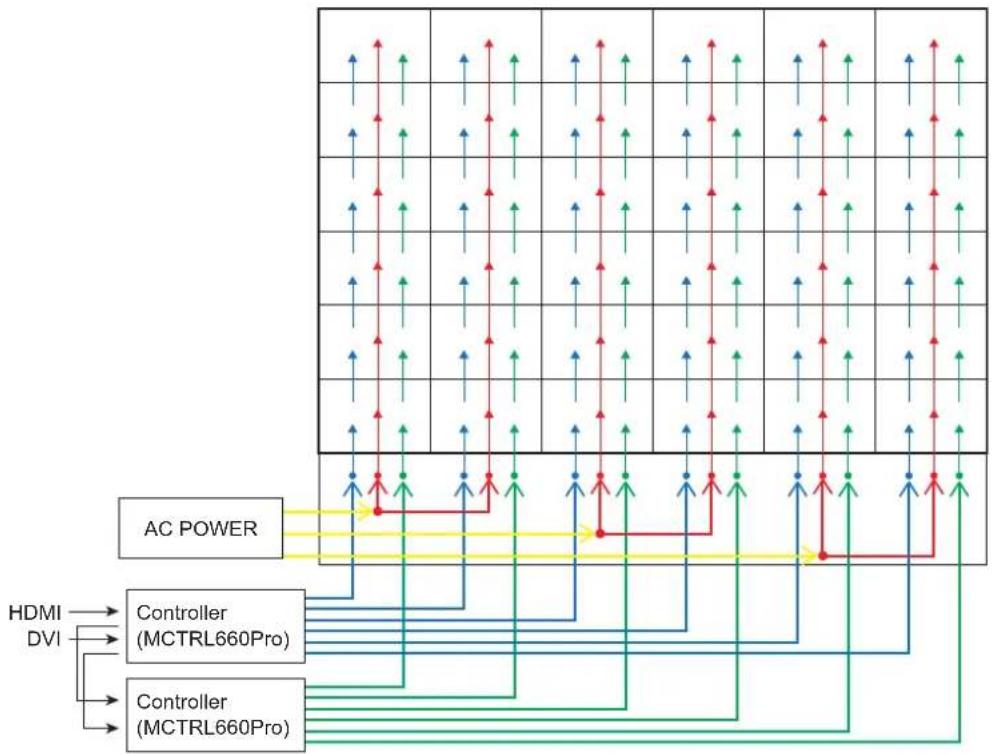

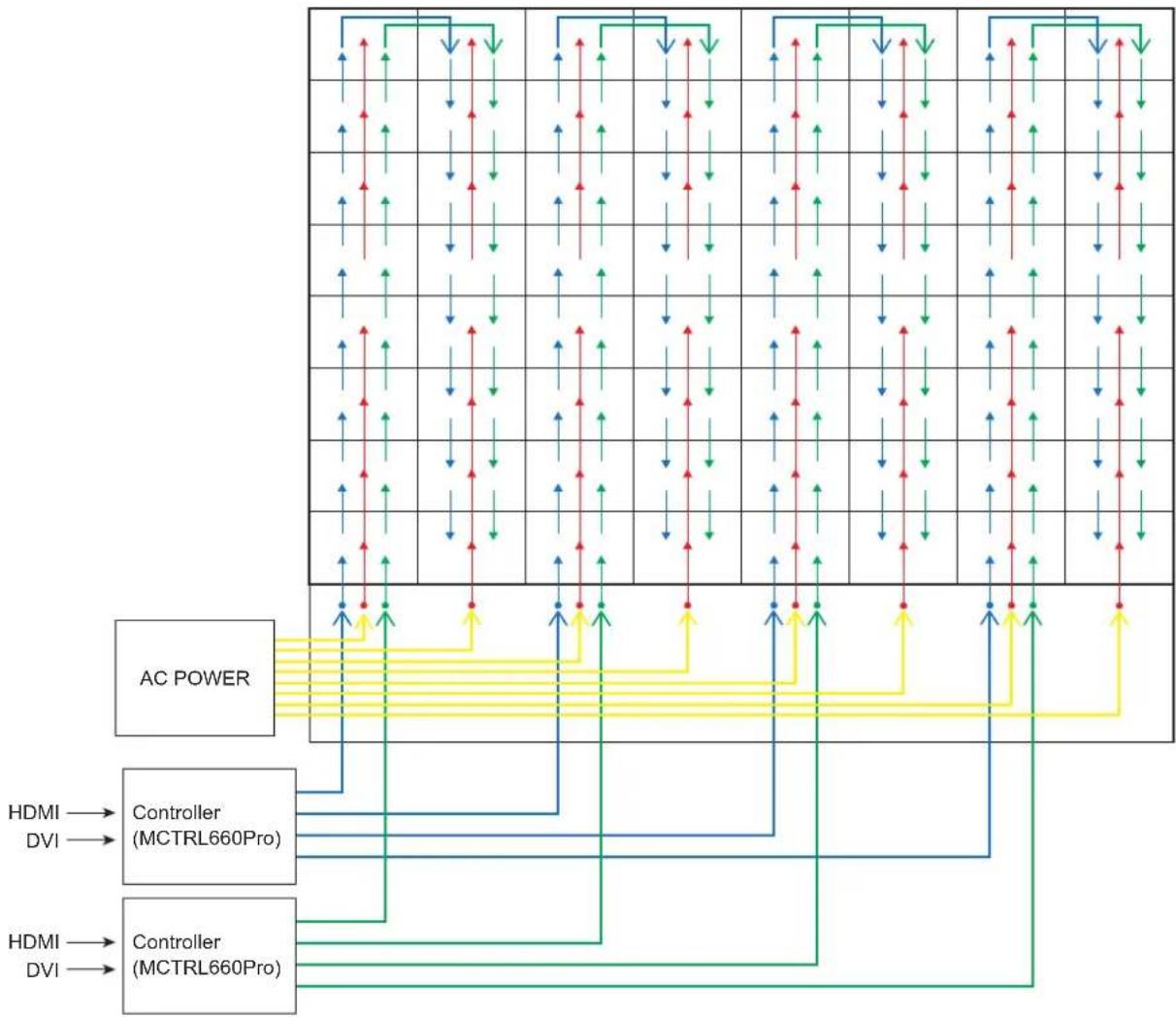

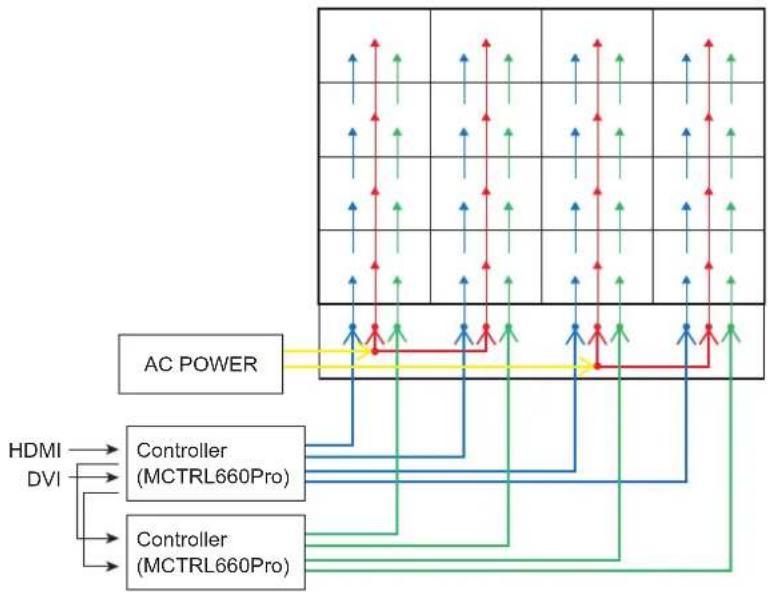

FA series

Name Description
Interface connectors Input and output connectors for the signal and AC power.
	12 Signal input/output (master)	To input the signal from the LED controller or the previous LED module.When a signal is input into 1, the signal is output from 2.When a signal is input into 2, the signal is output from 1.
	34 Signal input/output (slave)	To input signal from LED controller or previous LED module.When a signal is input to 3, the signal is output from 4.When a signal is input to 4, the signal is output from 3.Used to duplicate the image display.
	56 Power input (output)	When AC power is input into 5, AC power is output from 6.When AC power is input into 6, AC power is output from 5.Do not input AC power into both 5 and 6.
7 Status lamp (red)		Lights up when power is on.
8 Status lamp (blue)		Blinks when images are displayed using signals from the slave.
9 Status lamp (green)		Flashes at intervals of about 1 second when displaying images with signals from the master.Flashes at intervals of approximately 4 seconds when neither master nor slave signal is input.
10 Test button		Used to display the test patterns. The displayed pattern changes each time the test button is pressed.The signal from the LED controller must be interrupted to display a test pattern.
11 Handle		Use the handles when carrying and installing the cabinet.
12 Guide pin		Used to align the cabinets when installing them on top of each other.

FE series

Name Description
Interface connectors Input and output connectors for the signal and AC power.
	12 Signal input/output	To input the signal from the LED controller or the previous LED module.When a signal is input into 1, the signal is output from 2.When a signal is input into 2, the signal is output from 1.
	34 Power input (output)	When AC power is input into 3, AC power is output from 4.When AC power is input into 4, AC power is output from 3.Do not input AC power into both 3 and 4.
5 Status lamp (red)		Lights up when power is on.
6 Status lamp (blue)		Not functioning with this device.
7 Status lamp (green)		Flashes at intervals of approximately 4 seconds when no signal is input.Flashes at intervals of about 1 second when a signal is being input.
8 Test button		Used to display the test patterns. The displayed pattern changes each time the test button is pressed.The signal from the LED controller must be interrupted to display a test pattern.
9 Handle		Use the handles when carrying and installing the cabinet.
10 Guide pin		Used to align the cabinets when installing them on top of each other.

There are three types of cabinets.

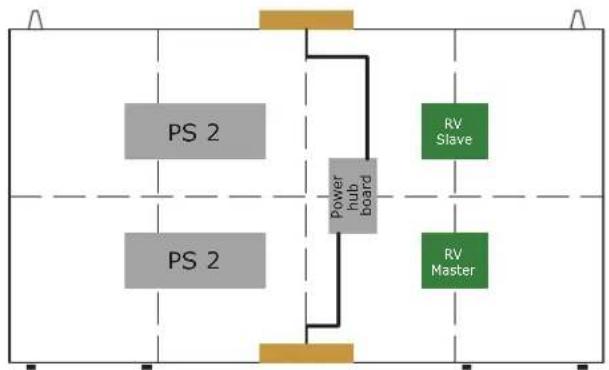

(1) When using other than the top (Type A)

The connectors are equipped on the top and bottom sides. There are guide pins on the top.

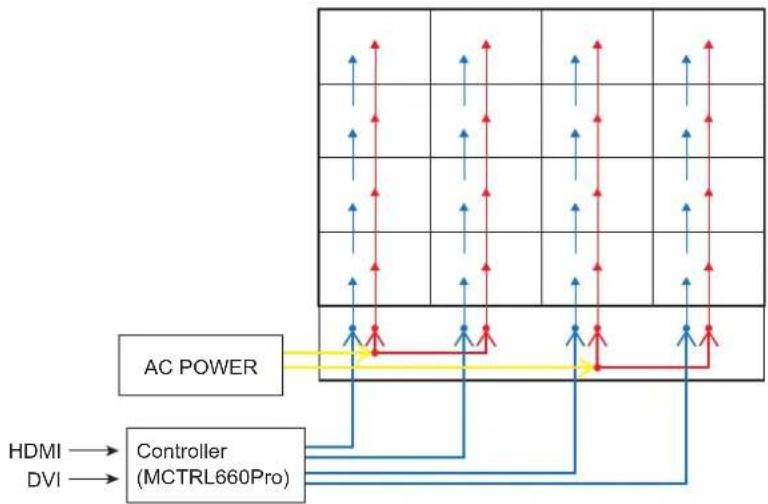

FA series FE series


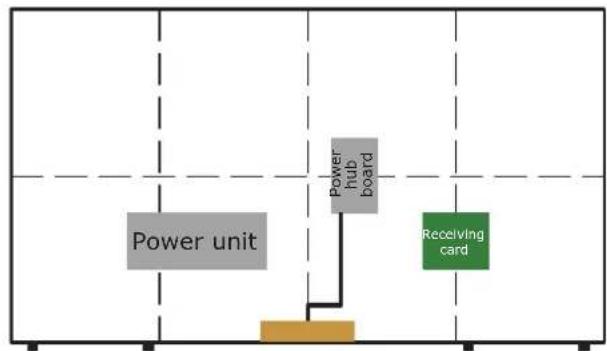

(2) When used at the top (Type B)

There are no connectors on the top side. There are no guide pins.

FA series FE series


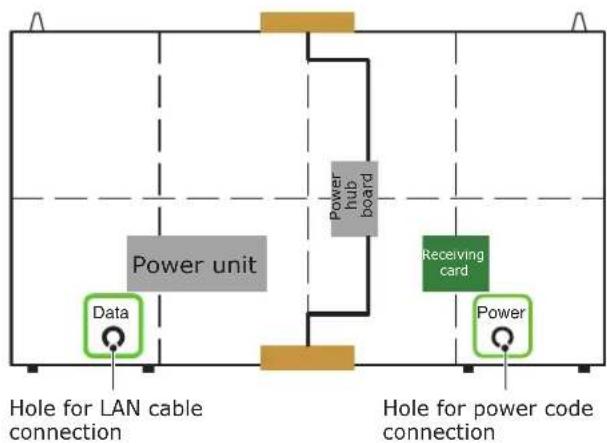

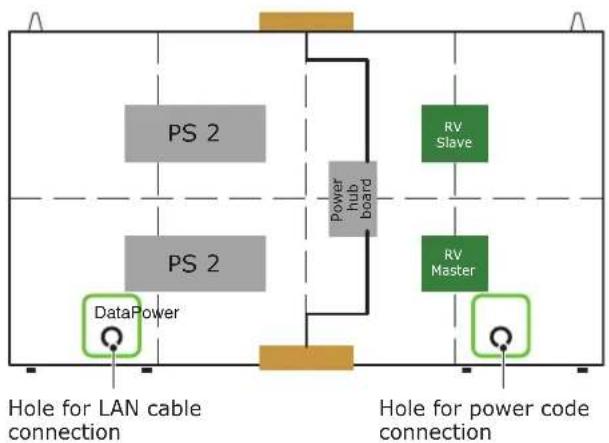

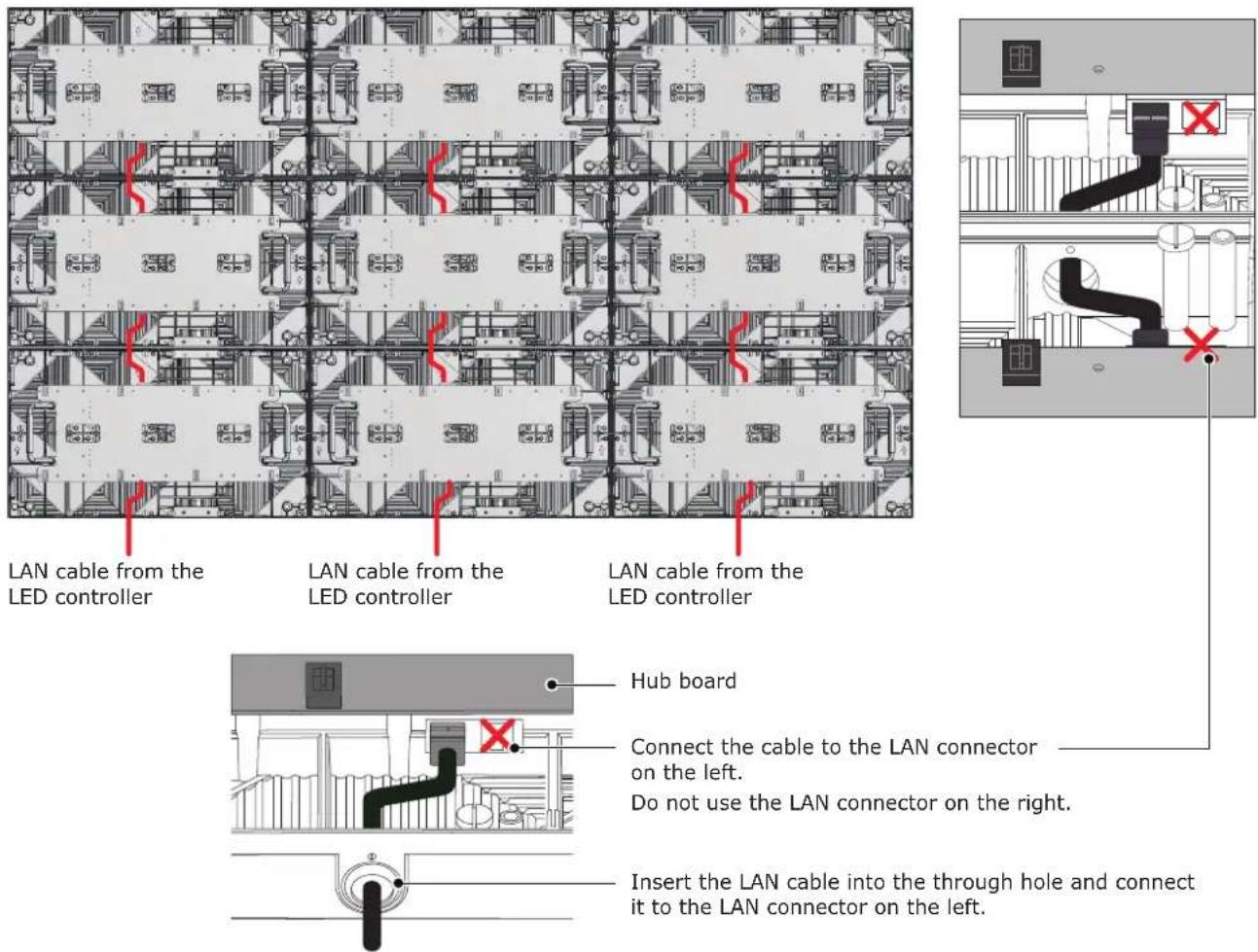

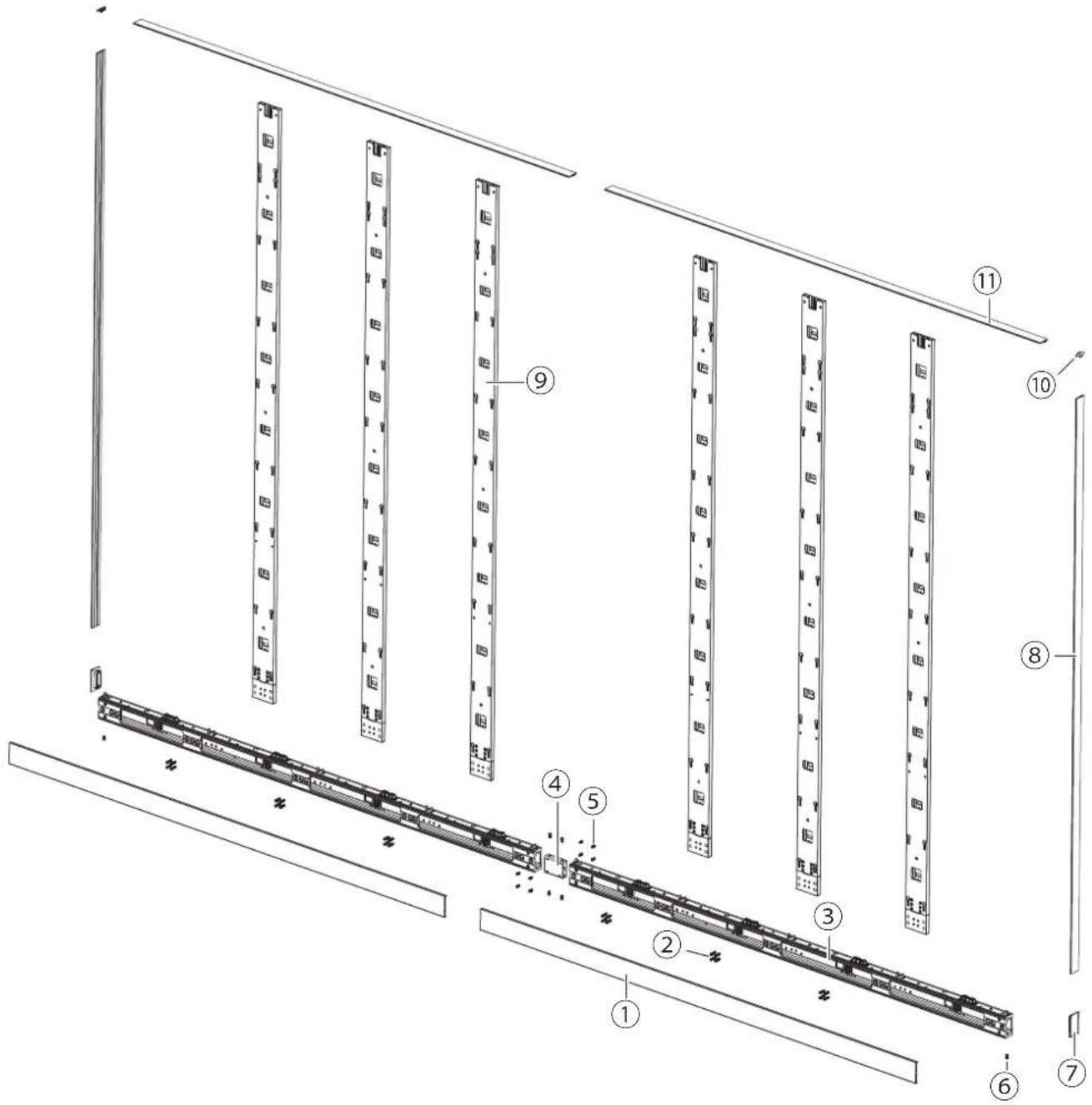

(3) When connecting a LAN cable from the middle (Type A')

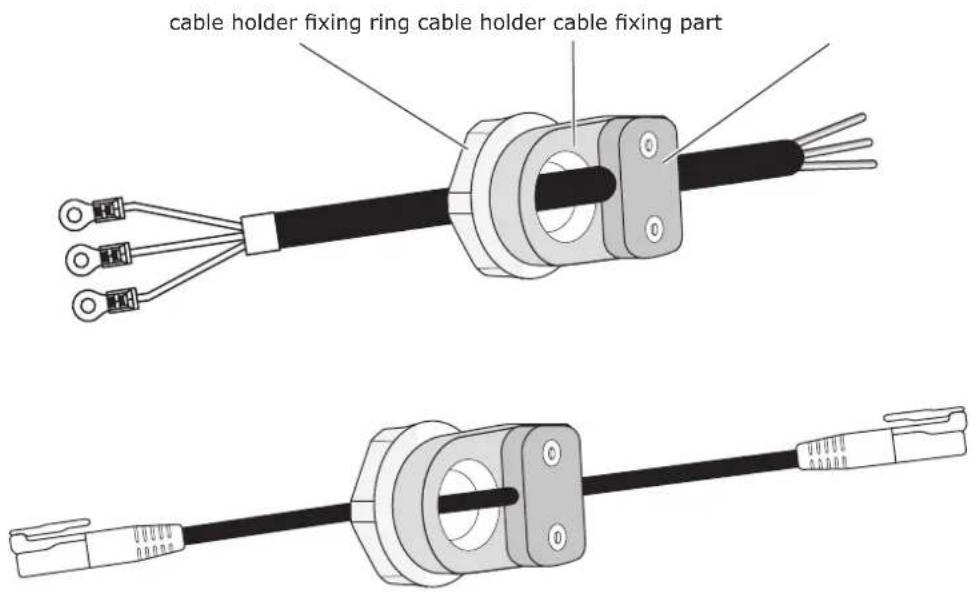

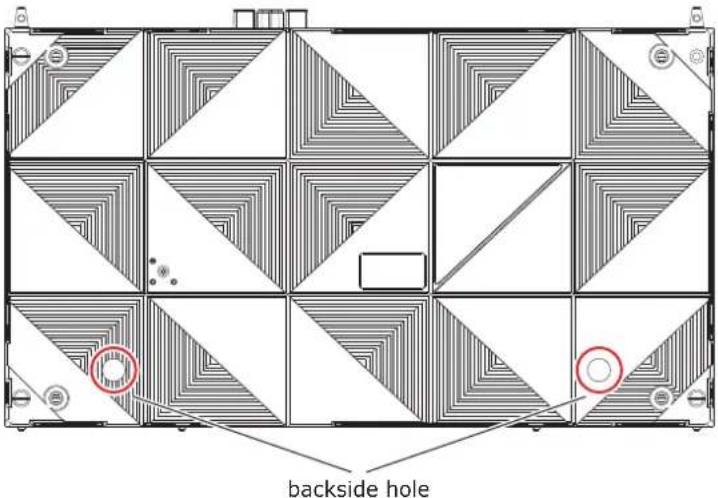

There is a hole for LAN cable connection on the rear.

FA series FE series
    note1["Hole for LAN cable connection"]
    note2["Hole for power code connection"]
    note1 -.-> A
    note2 -.-> C

4 X 4 frame set LED-FA012i2-110	/LED-FA012i2-11N
	LED-FE012i2-110/LED-FE012i2-11N,
	LED-FA019i2-110/LED-FA019i2-11N
	LED-FE019i2-110/LED-FE019i2-11N,
	LED-FE012i2-E11/LED-FE012i2-EFN,
	LED-FE019i2-E11/LED-FE019i2-EHN
5 X 5 frame set LED-FA015i2-137	/LED-FA015i2-13N
	LED-FE015i2-137/LED-FE015i2-13N,
	LED-FE015i2-E13/LED-FE015i2-EFN
6 X 6 frame set (0.9mm pitch) LED	/LED-FA009i2-165/LED-FA009i2-16N
	LED-FE009i2-165/LED-FA009i2-16N
6 X 6 frame set (1.9mm pitch) LED	/LED-FA019i2-165/LED-FA019i2-16N
	LED-FE019i2-165/LED-FE019i2-16N,
	LED-FE019i2-E16/LED-FE019i2-EFN
8 X 8 frame set (1.2mm pitch) LED	/LED-FA012i2-220/LED-FA012i2-22N
	LED-FE012i2-220/LED-FE012i2-22N,
	LED-FE012i2-E22/LED-FE012i2-EUN
8 X 8 frame set (2.5mm pitch) LED	/LED-FA025i2-220/LED-FA025i2-22N
	LED-FE025i2-220/LED-FE025i2-22N
8 X 8 frame set (3.8mm pitch) LED	/LED-FA038i2-220/LED-FA038i2-22N
	LED-FE038i2-220/LED-FE038i2-22N

No.	Parts Specifications	Quantity
		4 x 4 frame set	5 x 5 frame set	6 x 6 frame set (0.9 mm pitch)	6 x 6 frame set (1.9 mm pitch)
	Pixel card pitch 1.2, 1.5, 1.9, 3.8	152 x 171 mm 128 200 288	288
	Pixel card pitch 2.5	152 x 342 mm - - - -
	Cabinet 608 x 342 mm 16	25 36 36
	Cabinet hanger pin Head diameter 15mm, thickness 5 mm, M8 external dental pattern, axis length 17 mm, stainless steel color	35 (30+5*1)	45 (40+5*1)	75 (70+5*1)	75 (70+5*1)
1	Power bar cover plate 1 1 1	1
2	Power bar screw (M8×20)	Hexagon socket head screw	17 (12+5*1)	21 (16+5*1)	25 (20+5*1)
3	Power bar 1 1 1 1
4	Power bar connecting part		- - -	-
5	Screw for Power bar connecting		- - -	-
6	Screw for corner frame bottom (M6×12)	Hexagon socket head screw	7 (2+5*1)	7 (2+5*1)	7 (2+5*1)
7	Corner frame bottom (left, right)		2 2 2	2
8	Overframe (left, right) 2 2 2	2

*1: Spare parts

No.	Parts Specifications	Quantity
		4 x 4 frame set	5 x 5 frame set	6 x 6 frame set (0.9 mm pitch)	6 x 6 frame set (1.9 mm pitch)
9 Mounting bar 3 4 5 5
	Washer 17		(12+5*1)	25 (20+5*1)	35 (30+5*1)	35 (30+5*1)
10 Corner frame top(left, right)			2 2 2	2
11 Overframe (top) 1 1 1 1
	Slot nut 15		(10+5*1)	17 (12+5*1)	17 (12+5*1)	17 (12+5*1)
	Screw for overframe(M4×4)	Hexagon socket head screw	8 (3+5*1)	9 (4+5*1)	9 (4+5*1)	9 (4+5*1)
	Screw for overframe(M4×8)	Hexagon socket head screw	12 (7+5*1)	13 (8+5*1)	13 (8+5*1)	13 (8+5*1)
	Screw for cabinet(to Power bar)(M8×16)	Hexagon socket head screw	13 (8+5*1)	15 (10+5*1)	17 (12+5*1)	17 (12+5*1)
	Adjustment plate 10 12 14	14
	Screw for Adjustment plates (M8×25)	Hexagon socket head screw	45 (40+5*1)	53 (48+5*1)	61 (56+5*1)	61 (56+5*1)
	Screw for connecting cabinets (M8×25)		53 (48+5*1)	85 (80+5*1)	125 (120+5*1)	125 (120+5*1)
	LAN cable for the LED modules (FA series)	120 mm 12 20 18 30
		135 mm 12 20 18 30
		1 m - - - -
	LAN cable for the LED modules (FE series)	120 mm 12 20 18 30
		1 m	- - - -	-
	Alignment bar 2 2 2 2
	USB flash memory 1 1 1 1
	Safety Manual 1 1 1 1
	LED controller*2(FA series)	Novastar MCTRL660 PRO	2 2 -	2
		Novastar MCTRL4K	- - 4	-
	LED controller*2(FE series)	Novastar MCTRL660 PRO	1 1 -	1
		Novastar MCTRL4K	- - 2	-

*1: Spare parts
*2: Kit model only (except for LED-FA012i2-11N, LED-FA019i2-11N, LED-FA015i2-13N, LED-FA009i2-16N, LED-FA019i2-16N, LED-FA012i2-22N, LED-FA025i2-22N, LED-FA038i2-22N, LED-FE012i2-11N, LED-FE019i2-11N, LED-FE015i2-13N, LED-FA009i2-16N, LED-FE019i2-16N, LED-FE012i2-22N, LED-FE025i2-22N, LED-FE038i2-22N, LED-FE012i2-EFN, LED-FE019i2-EHN, LED-FE015i2-EFN, LED-FE019i2-EFN, LED-FE012i2-EUN)

No.	Parts Specifications	Quantity
		4 x 4 frame set	5 x 5 frame set	6 x 6 frame set (0.9 mm pitch)	6 x 6 frame set (1.9 mm pitch)
	LAN cable between LED controller and module*2 (FA series)	20000 mm 8 10 36 12
		24000 mm - - - -
	LAN cable between LED controller and module*2 (FA series)	20000 mm	4 5 18 6
		24000 mm - - - -
	Power cord for the LED controller*2 (FA series)		2 2 2 2
	Power cord for the LED controller*2 (FE series)		1 1 2 1
	Power cord*3		*3	*3	*3	*3

*1: Spare parts
*2: Kit model only (except for LED-FA012i2-11N, LED-FA019i2-11N, LED-FA015i2-13N, LED-FA009i2-16N, LED-FA019i2-16N, LED-FA012i2-22N, LED-FA025i2-22N, LED-FA038i2-22N, LED-FE012i2-11N, LED-FE019i2-11N, LED-FE015i2-13N, LED-FA009i2-16N, LED-FE019i2-16N, LED-FE012i2-22N, LED-FE025i2-22N, LED-FE038i2-22N, LED-FE012i2-EFN, LED-FE019i2-EHN, LED-FE015i2-EFN, LED-FE019i2-EFN, LED-FE012i2-EUN)
*3: Can be ordered by optional

Four different wall-mount frames can be used depending on the system size. Ask your retailer for more details.

For other configurations, the number of contents will vary. Please contact your retailer for more information.

No.	Parts Specifications	Quantity
		8 x 8 frame set(1.2 mm pitch)	8 x 8 frame set(2.5 mm pitch)	8 x 8 frame set(3.8 mm pitch)
	Pixel cardpitch 1.2, 1.5, 1.9, 3.8	152 x 171 mm 512 - 512
	Pixel cardpitch 2.5	152 x 342 mm - 256 -
	Cabinet 608 x 342 mm 64	64 64
	Cabinet hanger pin Head	diameter 15mm,thickness 5 mm,M8 external dental pattern,axis length 17 mm,stainless steel color	113(108+5*1)	113(108+5*1)	113(108+5*1)
1	Power bar cover plate 2 2 2
2	Power bar screw(M8×20)	Hexagon socket head screw	29(24+5*1)	29(24+5*1)	29(24+5*1)
3	Power bar 2 2 2
4	Power bar connecting part		1 1 1
5	Screw for Power bar connecting		17(12+5*1)	17(12+5*1)	17(12+5*1)
6	Screw for corner frame bottom(M6×12)	Hexagon socket head screw	7(2+5*1)	7(2+5*1)	7(2+5*1)
7	Corner frame bottom(left, right)		2 2 2
8	Overframe (left, right) 2 2 2
9	Mounting bar 6 6 6

*1: Spare parts

No.	Parts Specifications	Quantity
		8 x 8 frame set(1.2 mm pitch)	8 x 8 frame set(2.5 mm pitch)	8 x 8 frame set(3.8 mm pitch)
	Washer 53		(48+5^*1)	53 (48+5^*1)	53 (48+5^*1)
10	Corner frame top(left, right)		2 2 2
11	Overframe (top) 2 2 2
	Slot nut 21		(16+5^*1)	21 (16+5^*1)	21 (16+5^*1)
	Screw for overframe(M4×4)	Hexagon socket head screw	9 (4+5^*1)	9 (4+5^*1)	9 (4+5^*1)
	Screw for overframe(M4×8)	Hexagon socket head screw	17 (12+5^*1)	17 (12+5^*1)	17 (12+5^*1)
	Screw for cabinet(to Power bar)(M8×16)	Hexagon socket head screw	21 (16+5^*1)	21 (16+5^*1)	21 (16+5^*1)
	Adjustment plate 18 18 18
	Screw for Adjustment plates(M8×25)	Hexagon socket head screw	77 (72+5^*1)	77 (72+5^*1)	77 (72+5^*1)
	Screw for connecting cabinets(M8×25)		229 (224+5^*1)	229 (224+5^*1)	229 (224+5^*1)
	LAN cable for the LED modules (FA series)	120 mm	48 56 56
		135 mm	48 56 56
		1 m - 8 8
	LAN cable for the LED modules (FE series)	120 mm	48 56 56
		1 m	- 4 4
	Alignment bar 2 2 2
	USB flash memory 1 1 1
	Safety Manual 1 1 1
	LED controller*2(FA series)	Novastar MCTRL660 PRO -	2 2
		Novastar MCTRL4K 2 - -
	LED controller*2(FE series)	Novastar MCTRL660 PRO -	1 1
		Novastar MCTRL4K 1 - -

*1: Spare parts
*2: Kit model only (except for LED-FA012i2-11N, LED-FA019i2-11N, LED-FA015i2-13N, LED-FA009i2-16N, LED-FA019i2-16N, LED-FA012i2-22N, LED-FA025i2-22N, LED-FA038i2-22N, LED-FE012i2-11N, LED-FE019i2-11N, LED-FE015i2-13N, LED-FA009i2-16N, LED-FE019i2-16N, LED-FE012i2-22N, LED-FE025i2-22N, LED-FE038i2-22N, LED-FE012i2-EFN, LED-FE019i2-EHN, LED-FE015i2-EFN, LED-FE019i2-EFN, LED-FE012i2-EUN)

No.	Parts Specifications	Quantity
		8 x 8 frame set (1.2 mm pitch)	8 x 8 frame set (2.5 mm pitch)	8 x 8 frame set (3.8 mm pitch)
	LAN cable between LED controller and module*2 (FA series)	20000 mm 16 8 8
		24000 mm 16 --
	LAN cable between LED controller and module*2 (FA series)	20000 mm 8 4 4
		24000 mm 8 --
	Power cord for the LED controller*2 (FA series)		2 2 2
	Power cord for the LED controller*2 (FE series)		1 1 1
	Power cord*3		*3	*3	*3

*1: Spare parts
*2: Kit model only (except for LED-FA012i2-11N, LED-FA019i2-11N, LED-FA015i2-13N, LED-FA009i2-16N, LED-FA019i2-16N, LED-FA012i2-22N, LED-FA025i2-22N, LED-FA038i2-22N, LED-FE012i2-11N, LED-FE019i2-11N, LED-FE015i2-13N, LED-FA009i2-16N, LED-FE019i2-16N, LED-FE012i2-22N, LED-FE025i2-22N, LED-FE038i2-22N, LED-FE012i2-EFN, LED-FE019i2-EHN, LED-FE015i2-EFN, LED-FE019i2-EFN, LED-FE012i2-EUN)
*3: Can be ordered by optional

Four different wall-mount frames can be used depending on the system size. Ask your retailer for more details. For other configurations, the number of contents will vary. Please contact your retailer for more information.

8 x 8 frame set

Technical diagram of a multi-panel server rack system with numbered components and structural details

1. Installation location

Before the installation, be sure to review the following safety precautions to ensure proper and safe installation.

CAUTION

• Ask a technician to perform the installation.
• Make sure the product is moved and installed by enough people to ensure safety.
• Make sure that the beams or the other structures to which the product is installed have enough strength to support the weight of the product, and make sure that the product is securely fixed.
• Do not install directly the product to a surface that has not enough strength.

- When installing the product in an environment with much dust or dirt, be careful to prevent such material from adhering to the connectors on the hub board and pixel card.

Adhesion of dust or dirt to the connectors may cause poor contact, leading to abnormalities of video display.

- When installing the product in a narrow place (in a wall, etc.), leave enough gaps around the LED screens to prevent an increase in the temperature.

Make sure to use the product lower than the normal operating temperature.

The top of the LED module should always be installed so that the temperature is below 40^ C.

Pay particular attention to the installation environment (heat from the external environment, direct sunlight, heat generated by the number of displays) in order to facilitate cooling of the LED modules. If cooling is not sufficient, take measures, such as increasing the distance from the walls or installing a forced-air cooling system.

Ask a technician or your retailer for more details.

There is an example for setting.

In wall setting

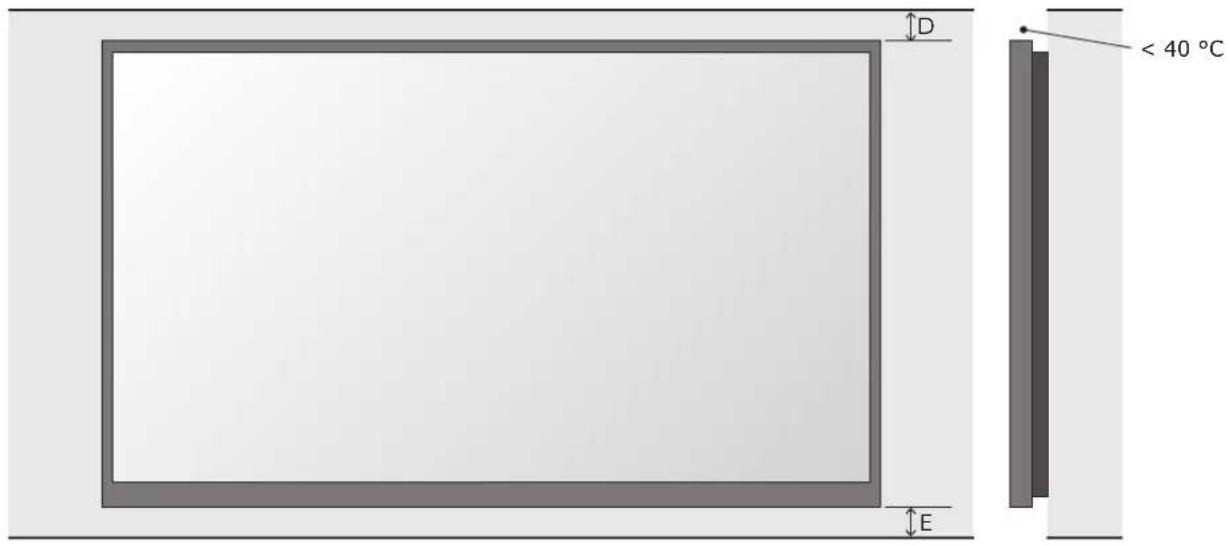

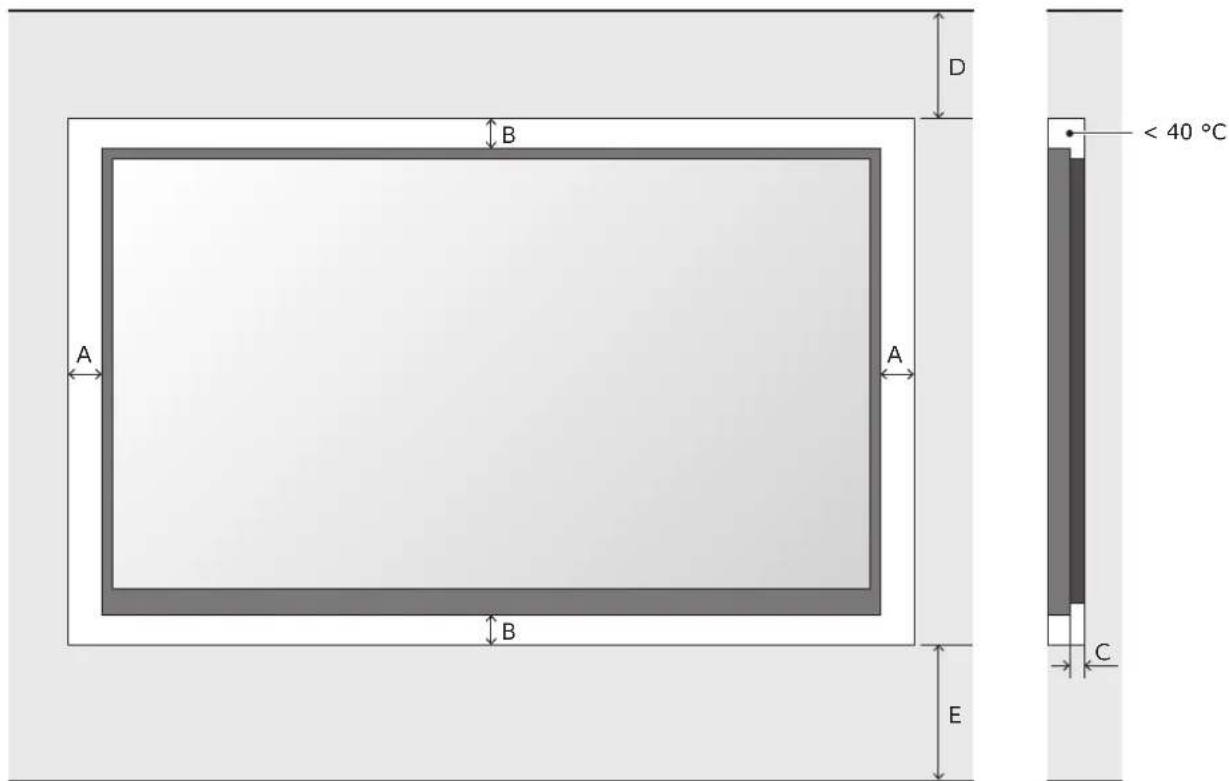

D B A A B E C < 40 °C

A B C
min. distance to sides	min. distance to top and bottom min. distance between wall and system
60 mm 60 mm	20 mm

D	E
Recommended distance to ceiling	Recommended distance to floor
500 mm* 500 mm*

*: Depending on the temperature condition.

Wall mounting setting

D < 40 °C E

D	E
Recommended distance to ceiling	Recommended distance to floor
500 mm* 500 mm*

*: Depending on the temperature condition.

If the distances are lower than these value, the cooling might not sufficient. Take measures, such as increasing the distance from the walls or installing a forced-air cooling system.

2. Handle

Use the handles when carrying and installing the cabinet.

Put the handles in their original positions after the installation work has been completed.

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

When carrying or installing the cabinet, pull out the handles on both sides.

Technical line drawing of a mechanical assembly with mounting holes and internal components (no text or symbols)

Put the handles back after the work has been completed.

3. Mark the positions of the anchor points on the wall

- Mark the positions of the holes you will make for the anchor points (refer to the figures below and the "Anchor points number and positions" table on the next page).

- Before making the holes, check the verticality of the marks using a spirit level or a laser line level. (We recommend using a laser line level is recommended for accuracy.)

Anchor points positions: 4 x 4 frame set

1026 mm 608 mm608 mm

Anchor points positions: 5 x 5 frame set

608 mm 608 mm 608 mm 684 mm 684 mm

Anchor points positions: 6 x 6 frame set

608 mm 608 mm 608 mm 608 mm 1026 mm 684 mm

Anchor points positions: 8 x 8 frame set

Anchor points number and positions

Frame set 4×4	5×5 6×6 8×8
Anchor points (horizontal x vertical)	3×2 4×3 5×3 6×5
Horizontal distance	608 mm 608 mm	608 mm Distance center:		1216 mmOthers: 608 equally
Vertical distance 1	026 mm 684 mm	equally Distance	top row - middle row: 1026 mmDistance middle row - bottom row: 684 mm	Distance Bottom row: 342 mm,others 684 mmequally
Anchor size ∅10	mm ∅10 mm ∅	10 mm ∅10 mm

4. Make the holes at the anchor positions

• Make holes at the anchor positions using a suitable tool.
• Use screw anchors/anchor plugs as required.
• Remove the dust or dirt, and wipe off any drilling chips and dust.

5. Preparing mounting bar

Attaching mounting bar connector

Insert the mounting bar connector and tighten it securely with 6 screws (M6 x 14).

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating assembly steps.

Removing mounting bar connector

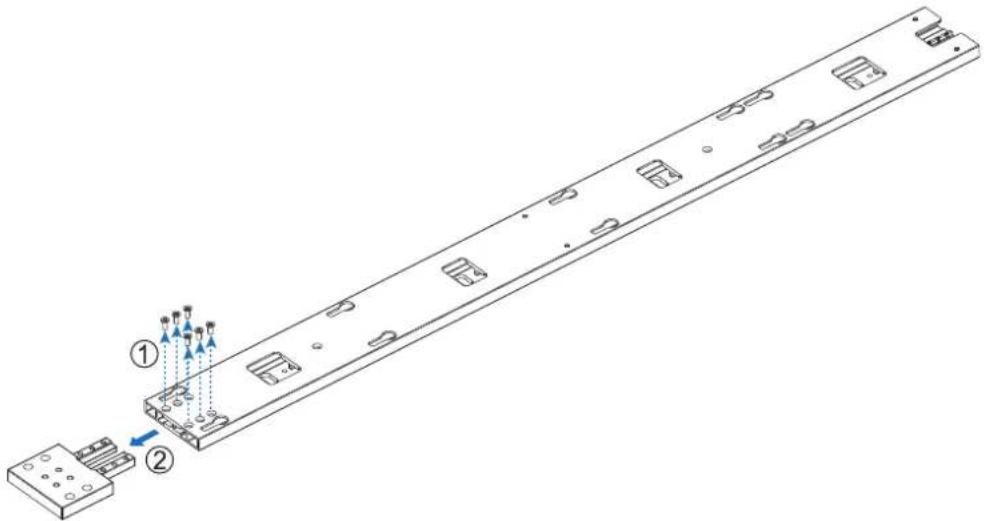

Remove the 6 screws (M6 x 14) holding the mounting bar connector, and pull out the mounting bar connector.

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating assembly steps.

6. Install the mounting bars

(1) Install the mounting bars on the anchor points on the wall.

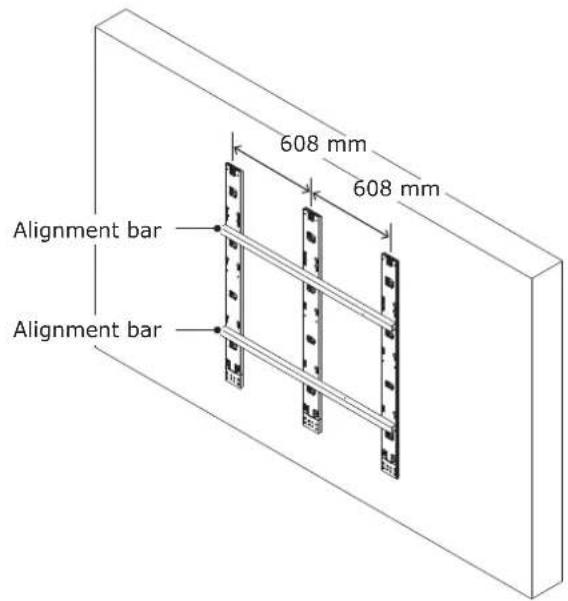

(2) Check the distance between the mounting bars using the alignment bars.

4 x 4 frame set

608 mm 608 mm Alignment bar Alignment bar

5 x 5 frame set

608 mm 608 mm 608 mm Alignment bar Alignment bar

6 x 6 frame set

608 mm 608 mm 608 mm 608 mm Alignment bar Alignment bar

8 x 8 frame set

608 mm 608 mm 1216 mm 608 mm 608 mm Alignment bar Alignment bar

(3) Check the evenness using a spirit level or a laser line level and the alignment bars together. Adjust the positions if required.

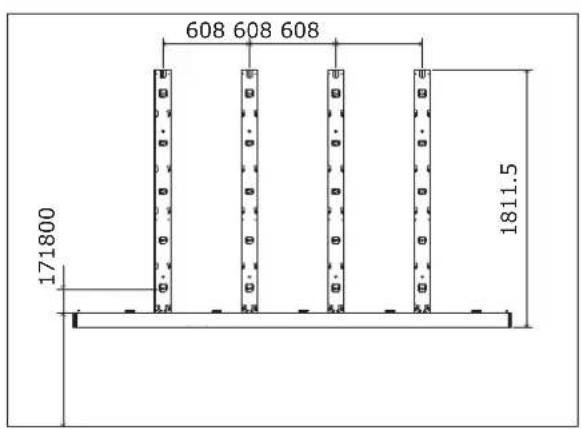

Wall mounted: Mounting bar installation (4 x 4 frame set)

M10 screws

7. Install the power bar

Remove the power bar cover and install the power bar using Power bar screw (M8) screws.

How to remove the power bar cover

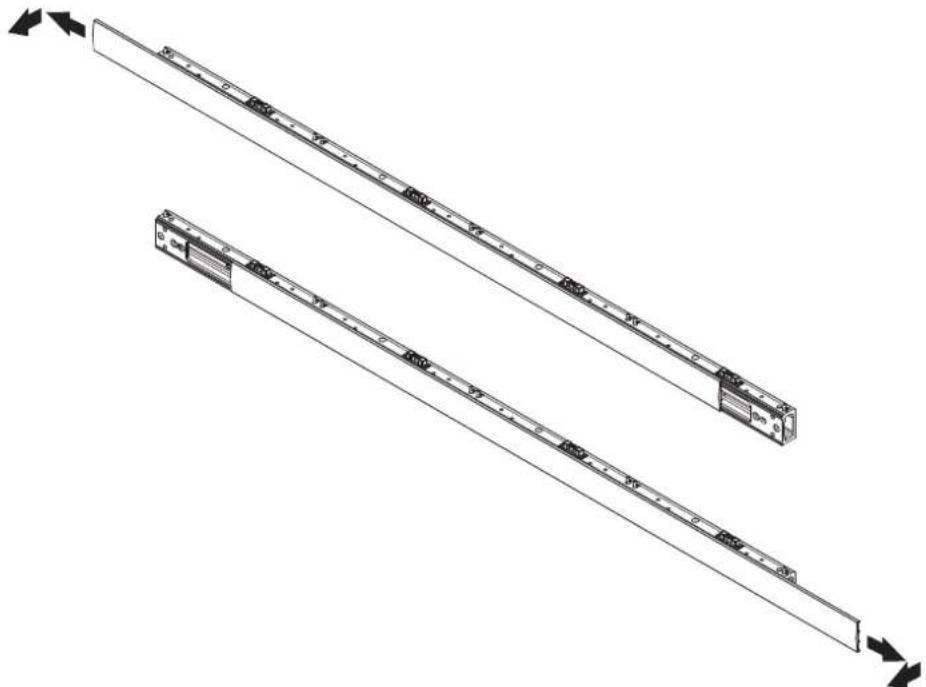

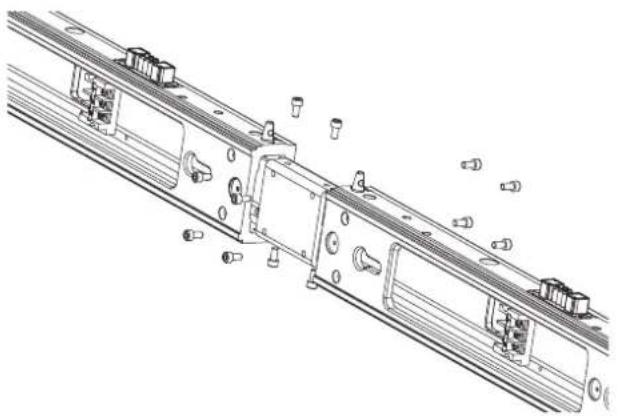

Sliding the power bar cover for removing. Power bar cover can slide left or right.

Technical line drawing of two parallel mechanical components with mounting holes and housing (no text or symbols)

Power bar Power bar screw (M8)

When using the 8 x 8 frame set, use the power bar connecting part to install the power bar.

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

8. Install the cabinet hanger pins to the back of the cabinets

The following drawings indicate where Hangar pins are required. Insert the Hangar pins until the pitch of the screws is no longer visible.

Hanger pin LED cabinet Hanger pin M8 8 mm

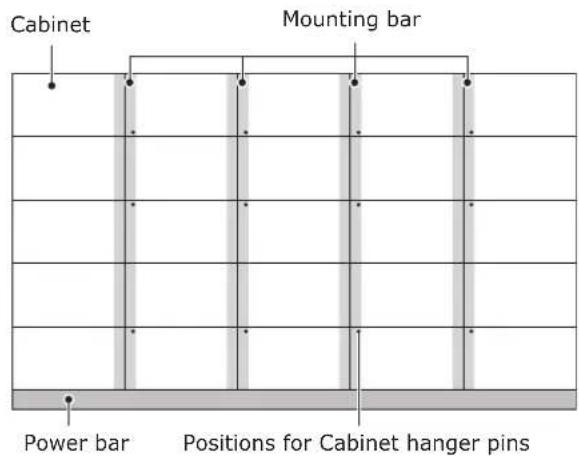

Cabinet hanger pins installation position

4 x 4 frame set 5 x 5 frame set

Cabinet Mounting bar Power bar Positions for Cabinet hanger pins

Cabinet Mounting bar Power bar Positions for Cabinet hanger pins

6 x 6 frame set

Cabinet Mounting bar Power bar Positions for Cabinet hanger pins

8 x 8 frame set

Cabinet Mounting bar Mounting bar Power bar Positions for Cabinet hanger pins

9. Install the cabinets

Hook the hanger pins, which have been inserted into the cabinets, into the holes on the mounting bars starting from the lowest row.

Diagram illustrating door lock mechanism with labeled components and directional arrows indicating assembly or repair steps.

Fix temporarily the cabinets of the first row to the power bar.

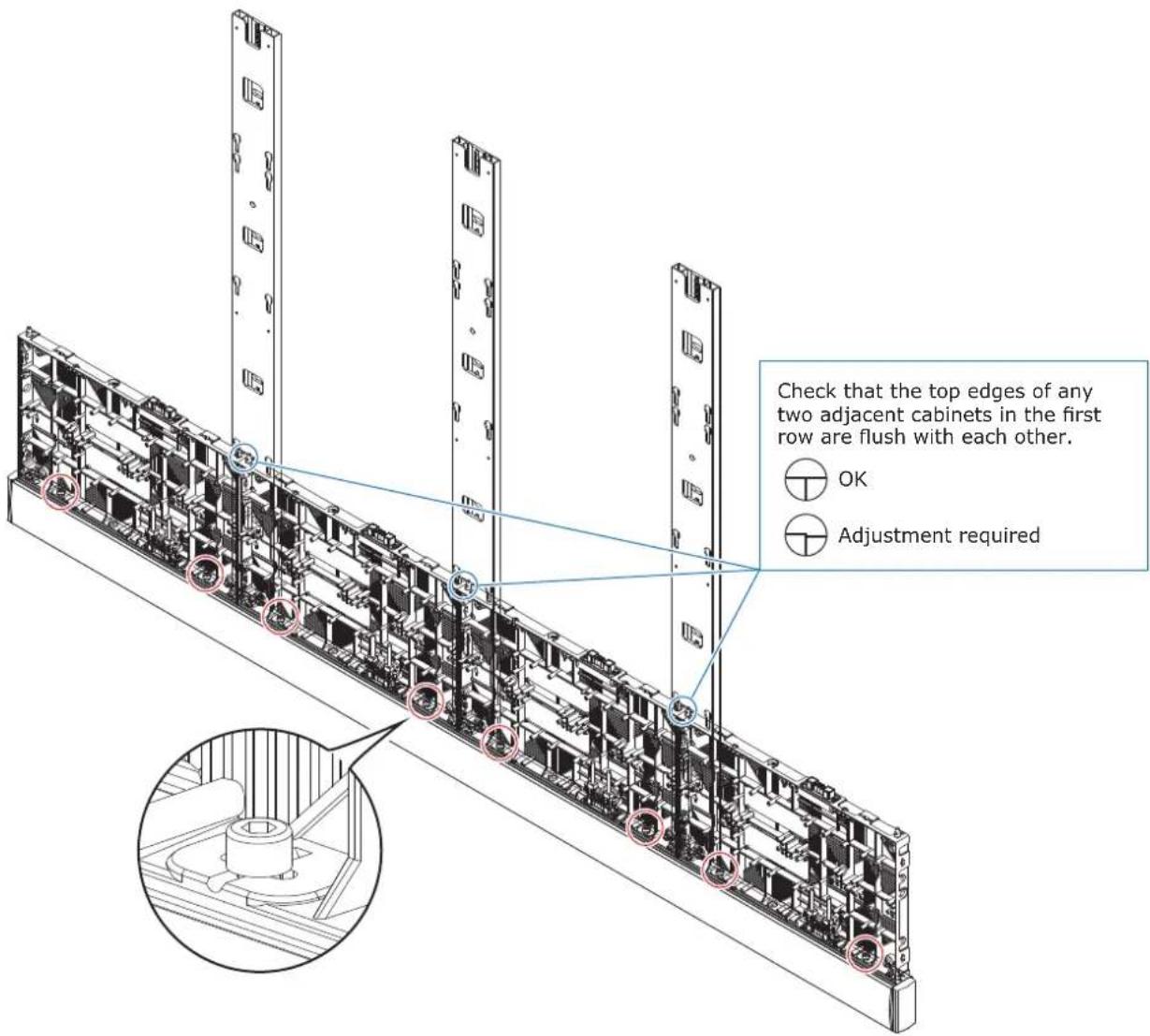

Check that the top edges of any two adjacent cabinets in the first row are flush with each other. OK Adjustment required

Hook the hanger pins of the cabinets of the second row to the mounting bars.

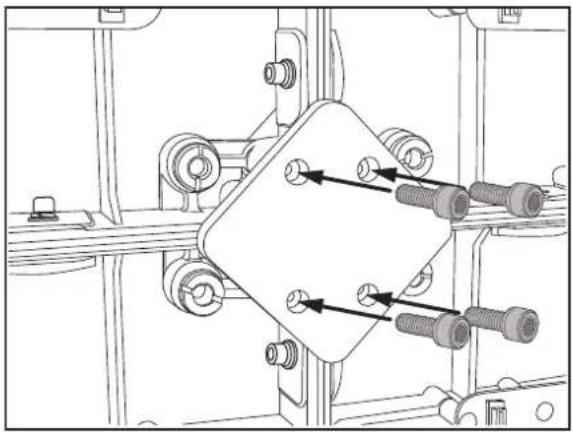

Secure the LED cabinets together using screws for connecting cabinets. Do not tighten the screws completely.

Top-down diagram of a mechanical or electrical component layout with four circular annotations highlighting specific components (no text or symbols present)

After you have installed two rows of cabinets, align the surfaces of the cabinets using the Adjustment plates.

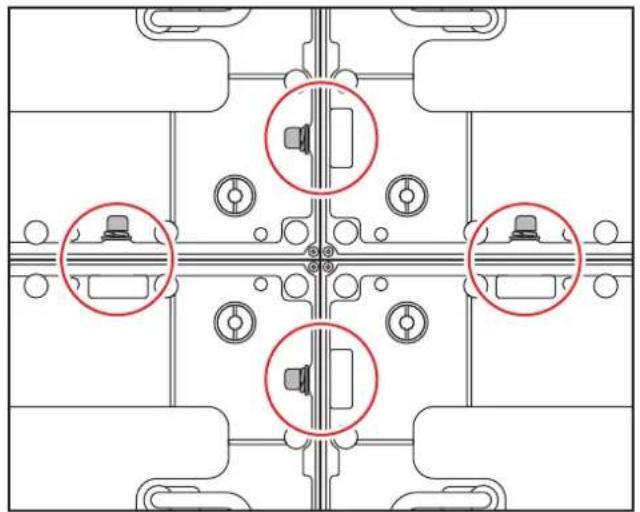

Technical line drawing of a mechanical assembly with bolts and brackets (no text or symbols)

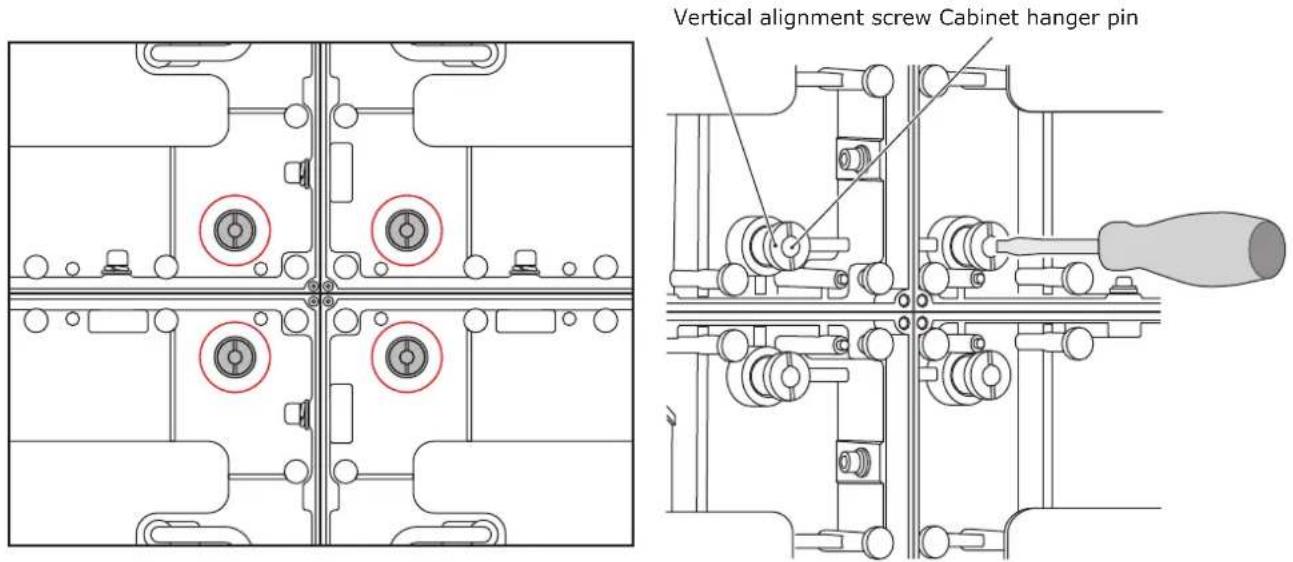

Adjust the position of the cabinet by turning the vertical alignment screw and the back in the center of the vertical alignment screw (cabinet hanger pin) with a flathead screwdriver.

Vertical alignment screw Cabinet hanger pin

When the cabinets' surfaces are aligned, securely tighten the cabinets of the first row to the power bar, the cabinets of the first row together, as well as the cabinets of the first row with the cabinets of the second row.

Remove the Adjustment plates after the screws have been tightened.

Follow the same procedure to install the next row of cabinets and align their surfaces.

Connect the power cord and the LAN cable from the opening at the back of the power bar.

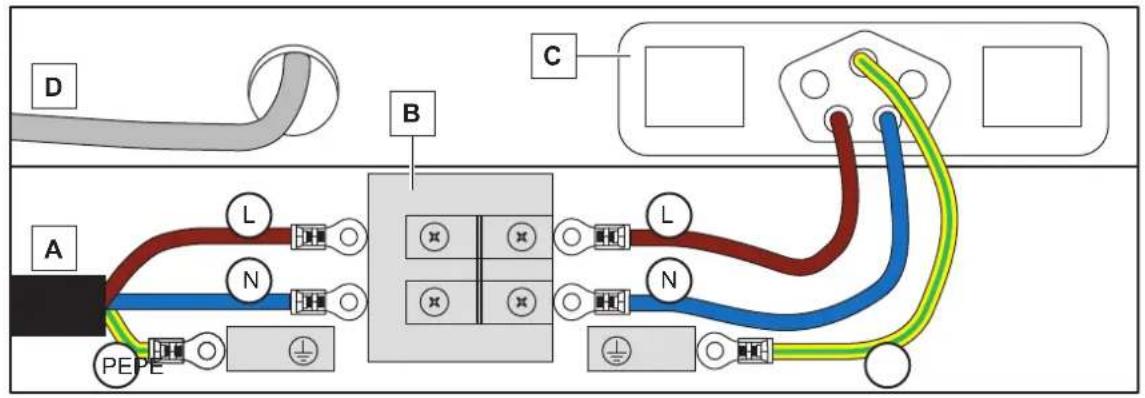

How to connect the power cord (FA series)

C C1 C2 B D1 D2 A L N PE L N PE

A External power input

B Terminal in Power bar

C1 Ethernet port main data

C2 Ethernet port backup data

D1 Data cable main

D2 Data cable backup

Connect the D1 main data cable to the left LAN port (C1 Ethernet port main data) and the D2 backup data cable to the right LAN port (C2 LAN Ethernet port backup data) of the power bar.

How to connect the power cord (FE series)

D B C A L N PEPE L N

A External power input

B Terminal in Power bar

C Power supply socket in Power bar

D Data cable

WARNING

Pay attention to the wire colors of the power cord when connecting the cord. If the cables are not connected correctly, it may lead to a fire or an electrical shock.

Blue (N)

Brown (L)

Yellow green (Ground)

CAUTION:

When attaching two cables with one screw, place the ring terminals of the cables back to back.

OK NG

Install the power bar cover.

Technical line drawing of two parallel mechanical components with directional arrows indicating movement (no text or symbols)

Insert the slot nut into the overframe and align it with the marking line and fix them with screw for overframe screws.

Use overframe screws (M4 x 4) for the right side and overframe screws (M4 x 8) for the rest.

Technical diagram of a multi-panel server rack with numbered components and an inset view of internal mechanical assembly.

Install the corner parts to the corner frame top and install it on the top of the cabinets.

Slot nut installation locations

Grid pattern with red and blue dots at intersections (no text or symbols)

4 x 4 frame set

Grid pattern with red and blue dots at intersections (no text or symbols)

5 x 5 frame set

Grid layout with red and blue dots at intersections (no text or symbols)

6 x 6 frame set

Grid pattern with red and blue dots at intersections (no text or symbols)

8 x 8 frame set

Screw for overframe M4×4
Screw for overframe M4×8

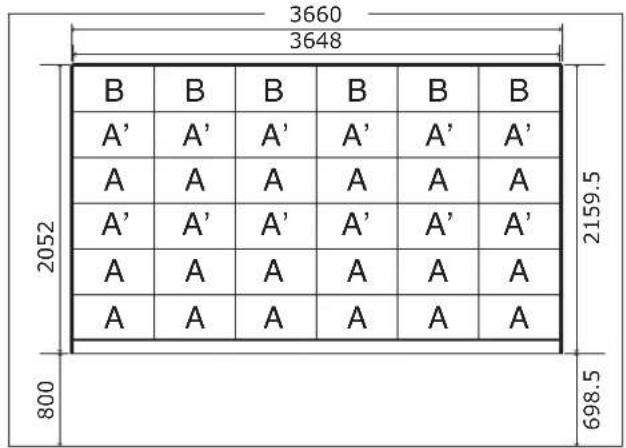

10. Assembly diagrams

4 x 4 frame set

608 608 1469.5 800 171

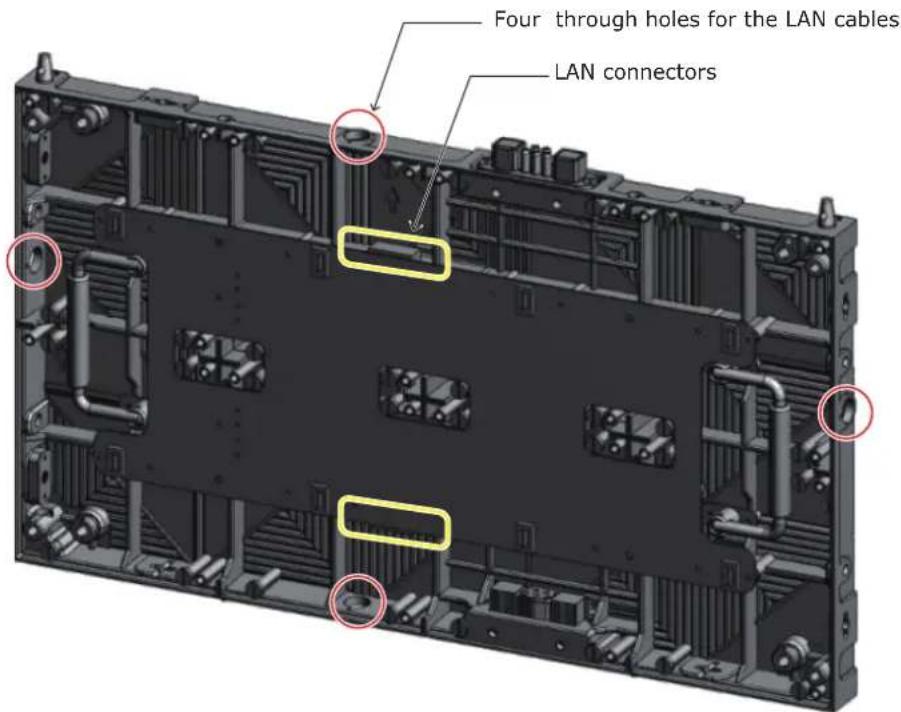

Through hole for the LAN cable and power code 608608608360 260

5 x 5 frame set

608 608 608 171800 1811.5

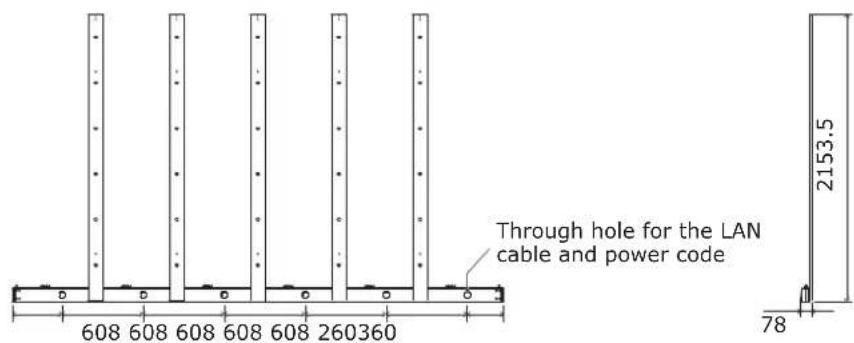

Through hole for the LAN cable and power code 360 608 608 608 608 260

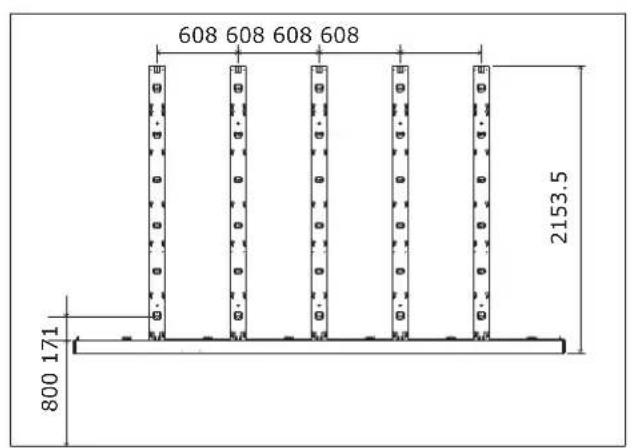

6 x 6 frame set (1.9 mm pitch)

608 608 608 608 2153.5 800 171

Through hole for the LAN cable and power code 2153.5 78

6 x 6 frame set (0.9 mm pitch)

608 608 608 608 2153.5 800 171

Through hole for the LAN cable and power code 2153.5 78

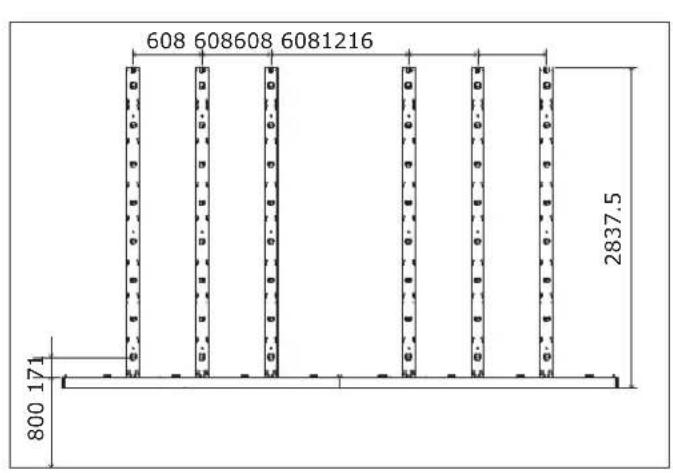

8 x 8 frame set (2.5 mm pitch, 3.8 mm pitch)

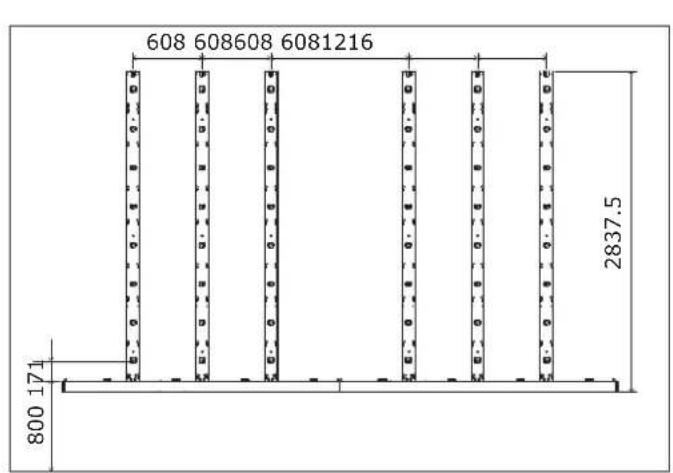

608 608608 6081216 2837.5 800 174

Through hole for the LAN cable and power code

8 x 8 frame set (1.2 mm pitch)

608 608608 6081216 2837.5 800 17

Through hole for the LAN cable and power code 608 608 608 608 608 608 608 260360

11. Installation without a frame set

A recommended example of installation when using the brackets is shown below. Please prepare the bracket by yourself. Ask a technician or your retailer for the installation procedure when not using the brackets.

Install the brackets to the frame as shown in the figure below.

Use screws with a length adapted to the cabinet thickness (30 mm). Use also brackets with a sufficient thickness to hold the screws.

Frame Bracket 4-M6 48 mm* 88 mm* Bracket Cabinet Frame 30 mm Installation example *: Please check Diagram (English-127) for dimensions. 564 mm* 564 mm*608 mm 608 mm 608 mm 342 mm 342 mm 342 mm 342 mm 342 mm Adjust the horizontality of the lowest row.

For installation, please refer to the "9. Install the cabinets".

12. Wiring

(1) Maximum number of signal connections

The maximum number of connections per LAN cable is shown below.

Product name Maximum number of connections	Product name Maximum number of connections
LED-FA009i2 2 modules LED-FE009i2 2 modules
LED-FA012i2 5 modules LED-FE012i2 5 modules
LED-FA012i2-SB 5 modules LED-FE015i2 7 modules
LED-FA015i2 7 modules LED-FE019i2 10 modules
LED-FA015i2-SB 7 modules LED-FE025i2 20 modules
LED-FA019i2 10 modules LED-FE031i2 30 modules
LED-FA025i2 20 modules LED-FE038i2 40 modules
LED-FA031i2 30 modules LED-FE012i2-E 5 modules
LED-FA038i2 40 modules LED-FE015i2-E 7 modules
	LED-FE019i2-E 10 modules

CAUTION

The maximum number of connections may differ depending on the connected LED controller. Therefore, check the specifications of the LED controller you are using.

Ask a technician or your retailer for more details.

(2) Maximum number of power connections

CAUTION

Exceeding the maximum capacity may generate smoke or cause a fire.

Check the voltage used and do not exceed the connection limits shown below.

Except Taiwan, Korea and India:

Product name 100	- 120 V AC 200 - 240 V AC
LED-FA009i2 10 modules 18 modules
LED-FA012i2 13 modules 25 modules
LED-FA012i2-SB 13 modules 25 modules
LED-FA015i2 13 modules 25 modules
LED-FA015i2-SB 13 modules 25 modules
LED-FA019i2 13 modules 25 modules
LED-FA025i2 13 modules 25 modules
LED-FA031i2 13 modules 25 modules
LED-FA038i2 13 modules 25 modules

Product name 100	- 120 V AC 200 - 240 V AC
LED-FE009i2 10 modules 18 modules
LED-FE012i2 13 modules 25 modules
LED-FE015i2 13 modules 25 modules
LED-FE019i2 13 modules 25 modules
LED-FE025i2 13 modules 25 modules
LED-FE031i2 13 modules 25 modules
LED-FE038i2 13 modules 25 modules
LED-FE012i2-E 13 modules	25 modules
LED-FE015i2-E 13 modules	25 modules
LED-FE019i2-E 13 modules	25 modules

For Taiwan, Korea and India:

Product name 100 - 120 V AC 200 - 240 V AC
LED-FA009i2 10 modules 18 modules
LED-FA012i2 10 modules 20 modules
LED-FA012i2-SB 10 modules 20 modules
LED-FA015i2 10 modules 20 modules
LED-FA015i2-SB 10 modules 20 modules
LED-FA019i2 10 modules 20 modules
LED-FA025i2 10 modules 20 modules
LED-FA031i2 10 modules 20 modules
LED-FA038i2 10 modules 20 modules
LED-FA009i2 8 modules 14 modules

Product name 100	- 120 V AC 200 - 240 V AC
LED-FE009i2 10 modules 18 modules
LED-FE012i2 10 modules 20 modules
LED-FE015i2 10 modules 20 modules
LED-FE019i2 10 modules 20 modules
LED-FE025i2 10 modules 20 modules
LED-FE031i2 10 modules 20 modules
LED-FE038i2 10 modules 20 modules
LED-FE009i2 8 modules 14 modules
LED-FE012i2-E 10 modules 20 modules
LED-FE015i2-E 10 modules 20 modules
LED-FE019i2-E 10 modules 20 modules

(3) Connection when using a wall-mount frame

This connection is an example of connection when using the maximum capacity.

The power cable corresponding to the yellow part needs to be prepared by the customer.

Please connect considering the capacity of the switchboard and the inrush current specification.

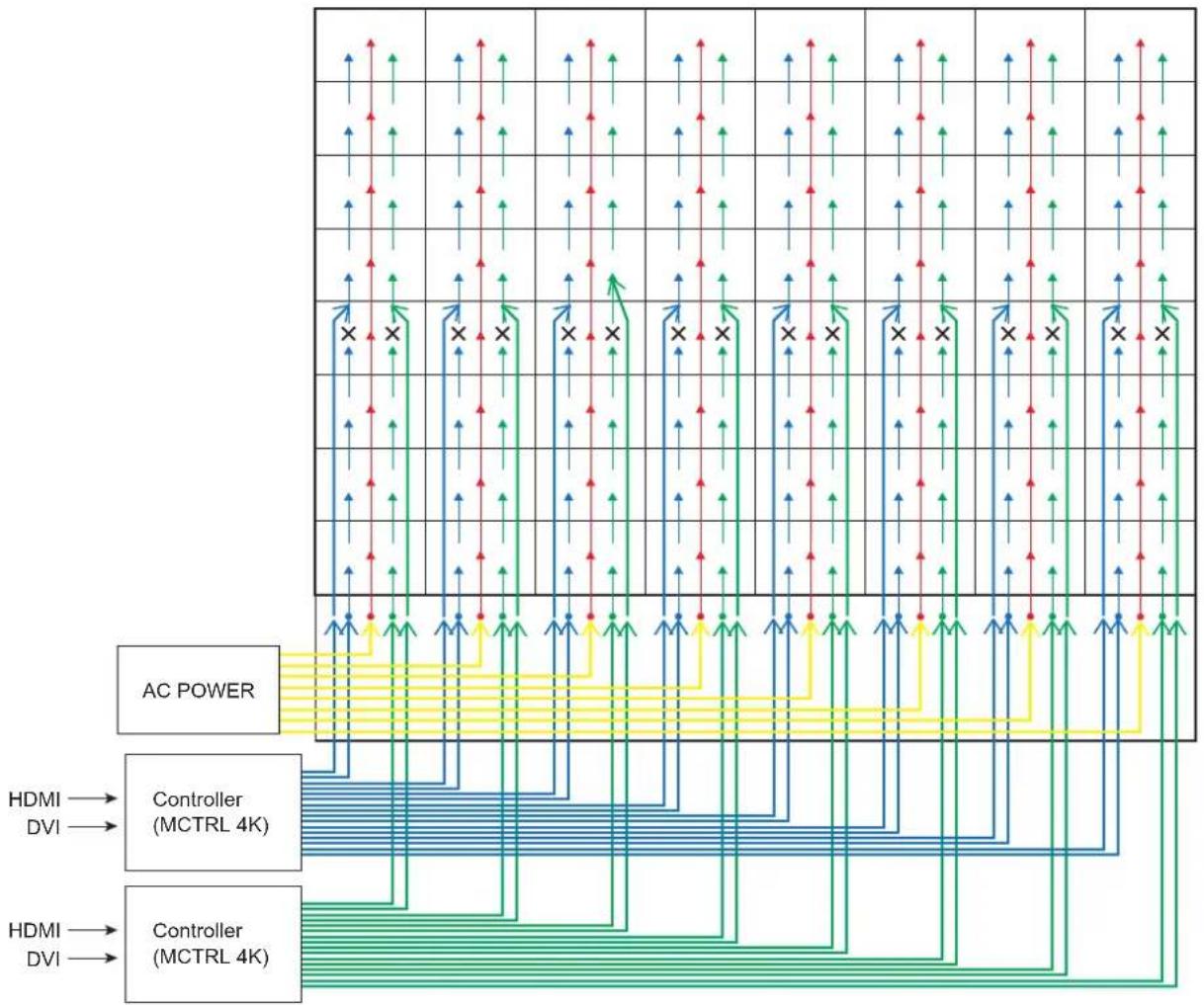

FA series

4 x 4 frame set

4×4 frame set AC 100V AC 200V
Number of power system		2	2
Current rating per 1 mod	dule	1.5 A 0.8 A
	per power system	12.0 A 6.4 A
	per frame set	24.0 A 12.8 A
Inrush current per 1 mod	dule	100 A 200 A
25°C Cold start	per power system	800 A 1600 A
Pulse width: 3ms	per frame set	1600 A 3200 A

5 x 5 frame set

5×5 frame set AC 100V AC 200V
Number of power system		3	3
Current rating per 1 mod	dule 1.5 A 0.8 A
	per power system 7.5 A (1 System)15.0 A (2 Systems)		4.0 A (1 System)8.0 A (2 Systems)
	per frame set 37.5 A 20.0 A
Inrush current per 1 mod25°C Cold startPulse width: 3ms	dule 100 A 200 A
	per power system 500 A (1 System)1000 A (2 Systems)		1000 A (1 System)2000 A (2 Systems)
	per frame set 2500 A 5000 A

6 x 6 frame set (0.9 mm pitch)

6×6 frame set (0.9 mm pitch) AC 100V AC 200V
Number of power system		3	3
Current rating per 1 mo	dule 2.0 A 1.1 A
	per power system 24.0 A	13.2 A
	per frame set 72.0 A 39.6 A
Inrush current per 1 mo	dule 100 A 200 A
25°C Cold start	per power system 1200 A	2400 A
Pulse width: 3ms	per frame set 3600 A 7200 A

6 x 6 frame set (1.9 mm pitch)

6×6 frame set (1.9 mm pitch) AC 100V AC 200V
Number of power system		3	3
Current rating per 1 mod	dule 1.5 A 0.8 A
	per power system 18.0 A	9.6 A
	per frame set 54.0 A 28.8 A
Inrush current per 1 mod	dule 100 A 200 A
25°C Cold start	per power system 1200 A	2400 A
Pulse width: 3ms	per frame set 3600 A 7200 A

8 x 8 frame set (1.2 mm pitch)

8×8 frame set (1.2 mm pitch) AC 100V AC 200V
Number of power system		8	8
Current rating per 1 mod	dule 1.5 A 0.8 A
	per power system 12.0 A	6.4 A
	per frame set 96.0 A 51.2 A
Inrush current per 1 mod	dule 100 A 200 A
25°C Cold start	per power system 800 A	1600 A
Pulse width: 3ms	per frame set 6400 A	12800 A

8 x 8 frame set (2.5 mm pitch, 3.8 mm pitch)

8×8 frame set (2.5 mm pitch, 3.8 mm pitch) AC		100V AC 200V
Number of power system		8	8
Current rating per 1 mo	dule 1.5 A 0.8 A
	per power system 12.0 A	6.4 A
	per frame set 96.0 A 51.2 A
Inrush current per 1 mo	dule 100 A 200 A
25°C Cold start	per power system 800 A	1600 A
Pulse width: 3ms	per frame set 6400 A	12800 A

FE series

4 x 4 frame set

4×4 frame set AC 100V AC 200V
Number of power system		2	2
Current rating per 1 mod	dule	1.5 A 0.8 A
	per power system	12.0 A 6.4 A
	per frame set	24.0 A 12.8 A
Inrush current per 1 mod	dule	50 A 100 A
25°C Cold start	per power system	400 A 800 A
Pulse width: 3ms	per frame set	800 A 1600 A

5 x 5 frame set

5×5 frame set AC 100V AC 200V
Number of power system		3	3
Current rating per 1 mod	dule 1.5 A 0.8 A
	per power system 7.5 A (1 System)15.0 A (2 Systems)		4.0 A (1 System)8.0 A (2 Systems)
	per frame set 37.5 A 20.0 A
Inrush current per 1 mod25°C Cold startPulse width: 3ms	dule 50 A 100 A
	per power system 250 A (1 System)500 A (2 Systems)		500 A (1 System)1000 A (2 Systems)
	per frame set 1250 A 2500 A

6 x 6 frame set (0.9 mm pitch)

6×6 frame set (0.9 mm pitch) AC 100V AC 200V
Number of power system		3	3
Current rating per 1 mod	dule 2.0 A 1.1 A
	per power system 24.0 A	13.2 A
	per frame set 72.0 A 39.6 A
Inrush current per 1 mod	dule 50 A 100 A
25°C Cold start	per power system 600 A	1200 A
Pulse width: 3ms	per frame set 1800 A 3600 A

6 x 6 frame set (1.9 mm pitch)

6×6 frame set (1.9 mm pitch) AC 100V AC 200V
Number of power system		3	3
Current rating per 1 mo	dule 1.5 A 0.8 A
	per power system 18.0 A	9.6 A
	per frame set 54.0 A 28.8 A
Inrush current per 1 mo	dule 50 A 100 A
25°C Cold start	per power system 600 A	1200 A
Pulse width: 3ms	per frame set 1800 A	3600 A

8 x 8 frame set (1.2 mm pitch)

8×8 frame set (1.2 mm pitch) AC 100V AC 200V
Number of power system		8	4
Current rating per 1 mod	dule 1.5 A 0.8 A
	per power system 12.0 A	6.4 A
	per frame set 96.0 A 51.2 A
Inrush current per 1 mod	dule 50 A 100 A
25°C Cold start	per power system 400 A	800 A
Pulse width: 3ms	per frame set 3200 A	6400 A

8 x 8 frame set (2.5 mm pitch, 3.8 mm pitch)

8×8 frame set (2.5 mm pitch, 3.8 mm pitch) AC		100V AC 200V
Number of power system		8	4
Current rating per 1 mod	dule 1.5 A 0.8 A
	per power system 12.0 A	6.4 A
	per frame set 96.0 A 51.2 A
Inrush current per 1 mod	dule 50 A 100 A
25°C Cold start	per power system 400 A	800 A
Pulse width: 3ms	per frame set 3200 A	6400 A

Backside hole cabinet

There are holes on the back of the cabinet for passing signal cables and power cords.

backside hole

If the hole is not drilled, place a flathead screwdriver from inside the cabinet at the edge of the round recess and tap it lightly with a hammer to make a hole.

Cables for backside hole cabinet

Power cord

cable holder fixing ring cable holder cable fixing part

Remove the cable holder fixing ring attached to the LAN cable or power cord.

Remove the cable fixing part and move the cable holder to the end of the cable.

Attach the cable holder to the backside hole of the cabinet and attach the cable holder fixing ring from the outside of the cabinet.

Insert the cables.

Pinch the cable with the cable fixing part and attach it to the cable holder.

Front

LAN cable power cord

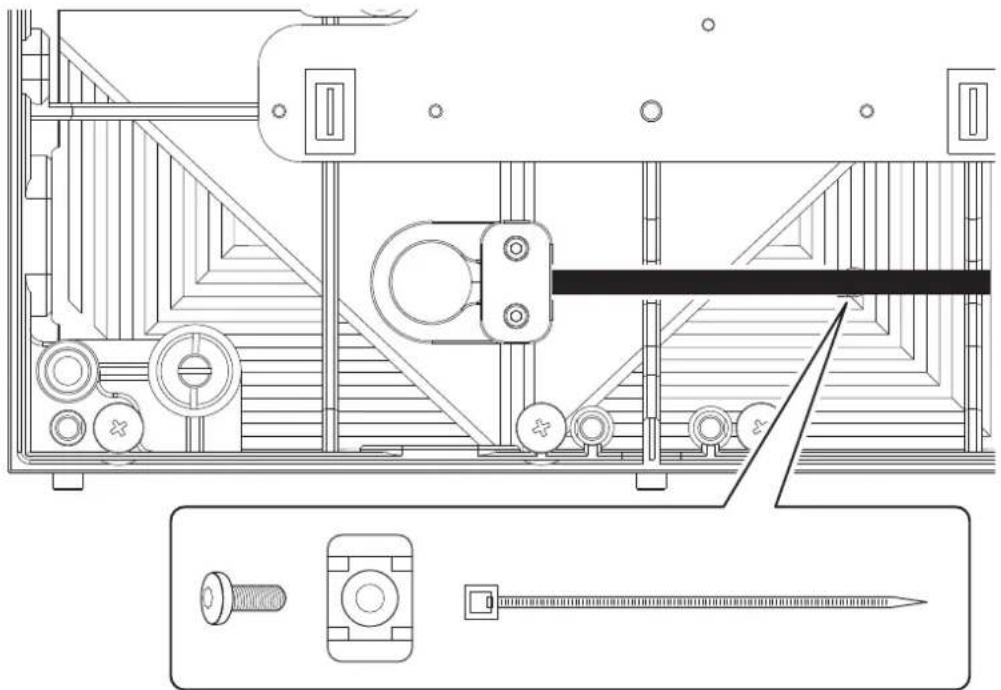

[Info] For fixing the cable

Attache the buckle by screw.

Through the fastening tie lap and fix the cable to use fastening tie lap.

Technical line drawing of a mechanical assembly with components like bolts, screws, and a screwdriver (no text or labels)

Connect the Power cable using WAGO.

Precautions on use of the power connector (WAGO)

When using the power cord connector (WAGO's product, WFR Series (WAGO 221), Models WFR-2 and WFR-3), respect the following precautions.

WAGO 221

* Visiting WAGO's homepage for more details is recommended.

WARNING

• Always use the connector indoors (in a location not affected by moisture).
- Use the connector by respecting the installation precautions. If the connector is not used correctly, it may lead to a fire or an electrical shock.

Installation precautions

- Wire sheath peeling

CAUTION

Be sure to peel off the wire sheath over the specified length.

CAUTION

Do not use the connector with the core wires being sinuous.

Diagram of a device component with numbered parts and directional arrows indicating motion or flow

Lever operation is necessary even for connection of a solid core wire.

- Wire sizes

Wire sizes compatible with the power connector (WAGO) are as follows.

Solid core: 1.6 to 2.0 mm

IV 7-stranded core: 2.0 to 3.5 mm ^2

Flexible stranded core: 2.0 to 3.5 mm 2

- When reconnecting a wire once disconnected, cut off the wire end and newly peel off the sheath.

CAUTION

• When reconnecting a wire once disconnected, cut off the wire end and newly peel off the sheath.
• If the disconnected wire is reconnected without this processing, it may heat up and burn out.

Newly peel off the sheath. End of disconnected wire: More or less damaged.

Simple diagram showing two blue rectangular blocks connected by a string, one with a black circle and the other with a red X sign.

How to connect the power cord

(1) Raise the lever. (2) Insert the wire. (3) Return the lever to its

previous position.

3D diagram of a connector with red and yellow parts, showing a yellow strip extending from a yellow cable (no text or symbols)

3D diagram of a device with red seat and yellow connector, no text or symbols present

Diagram of a connector with red and yellow components, showing a pin or connector assembly (no text or symbols)

CAUTION

Insufficient insertion may cause poor electricity conduction and heat generation.

Power code connection checking

- Perform checking for correct and proper connection.

Lightly pull on the wires one by one to check that they will not be pulled out.

Check visually

3D diagram of a device with red and blue components, showing a blue arrow pointing to a component (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

WARNING

Pay attention to the wire colors of the power cord when connecting the cord. If the cables are not connected correctly, it may lead to a fire or an electrical shock.

Blue (N)

Brown (L)

Yellow green (Ground)

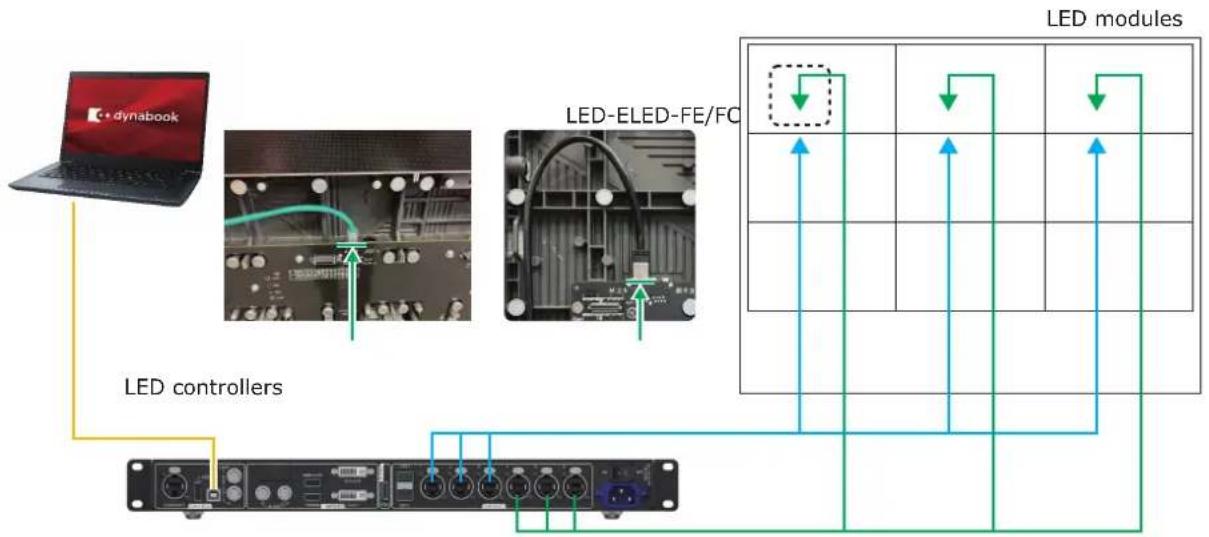

(4) LAN cable connection

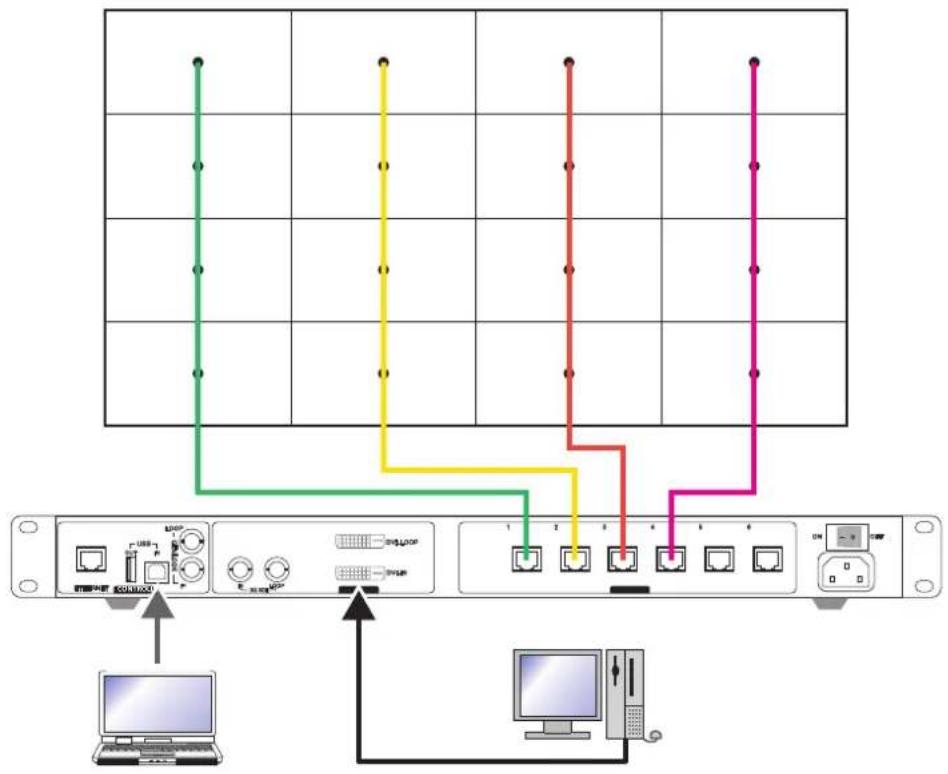

Connect the LAN cables for the signal between the LED modules. Use the through holes to pass the cables between the modules.

Four through holes for the LAN cables LAN connectors

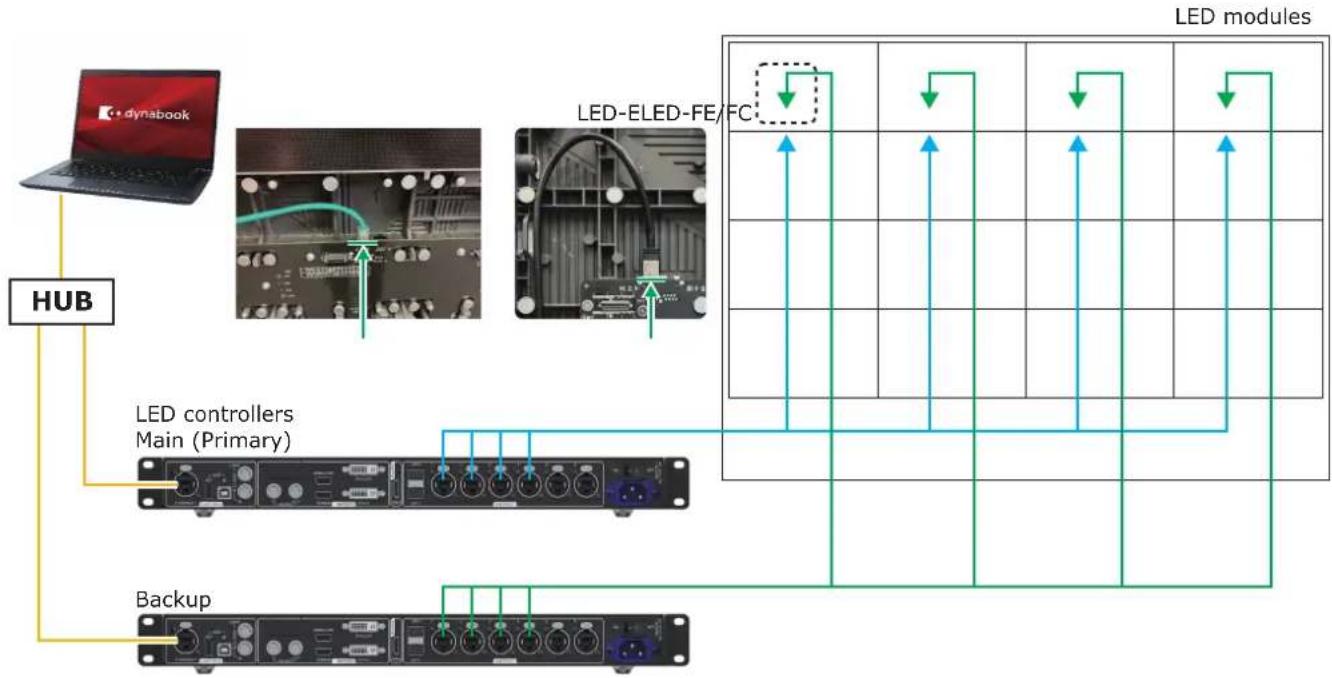

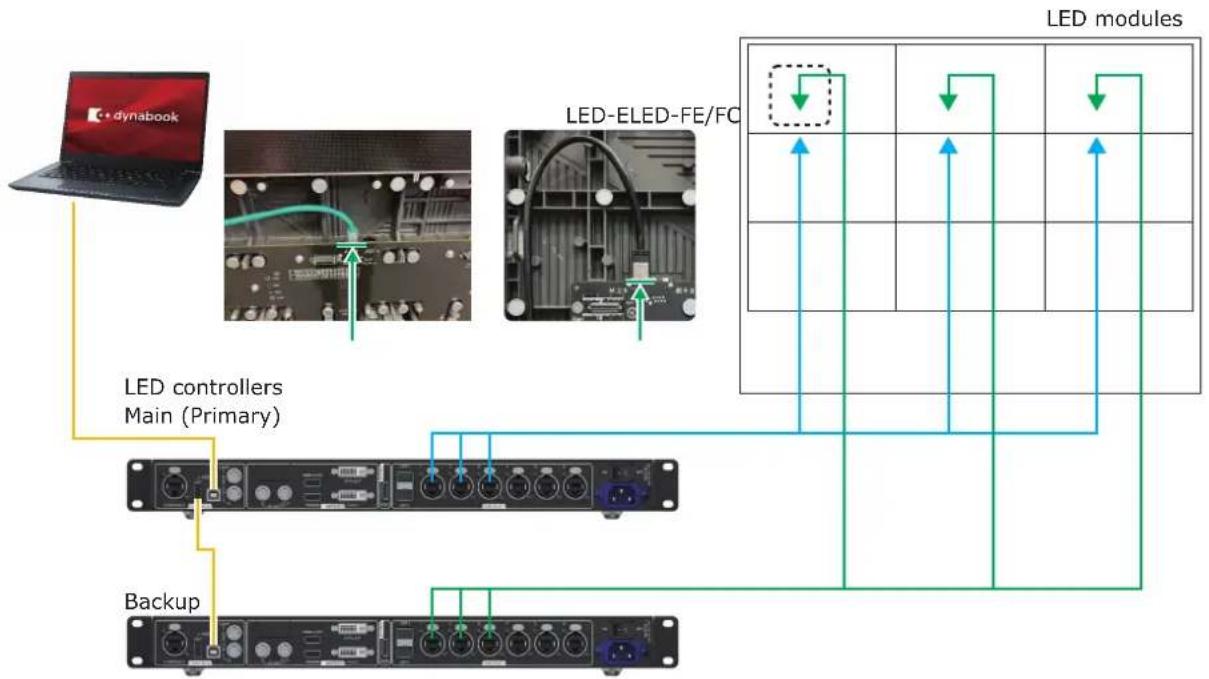

[Connection example] Connecting from bottom to top using multiple ports

FA series

Connect the master connectors of the interface connectors to the master connectors, and the slave connectors to the slave connectors.

LAN cable from the LED controller LAN cable from the LED controller LAN cable from the LED controller Hub board 120 mm 135 mm Connect the 120 mm LAN cable to the LAN connector on the left. Connect the 135 mm LAN cable to the LAN connector on the right. Insert the LAN cables into the through hole and connect it to the LAN connectors.

FE series

LAN cable from the LED controller LAN cable from the LED controller LAN cable from the LED controller Hub board Connect the cable to the LAN connector on the left. Do not use the LAN connector on the right. Insert the LAN cable into the through hole and connect it to the LAN connector on the left.

13. Installing the pixel card

CAUTION

• The pixel cards contain powerful magnets. If magnetic cards come close to the pixel cards, the data contained within may be damaged. Therefore, do not carry any magnetic card when installing the pixel cards.
• When installing the pixel cards, pay attention not to damage them against the pixel cards already installed or other objects. Otherwise, the video may not be displayed properly.
  • Take measures against static electricity when installing the pixel card. Do not touch the LED display areas and the back of the pixel card.
• Check that the power supply to the LED modules is cut before starting the work.
• Before installing or removing pixel cards, please ensure the wall has been powered off for 1 or 2 hours. Otherwise the thermal expansion of pixel cards increases the risk of damaging them during removal or insertion.
• If installation is not successful, please use the maintenance tool. (see English-82)

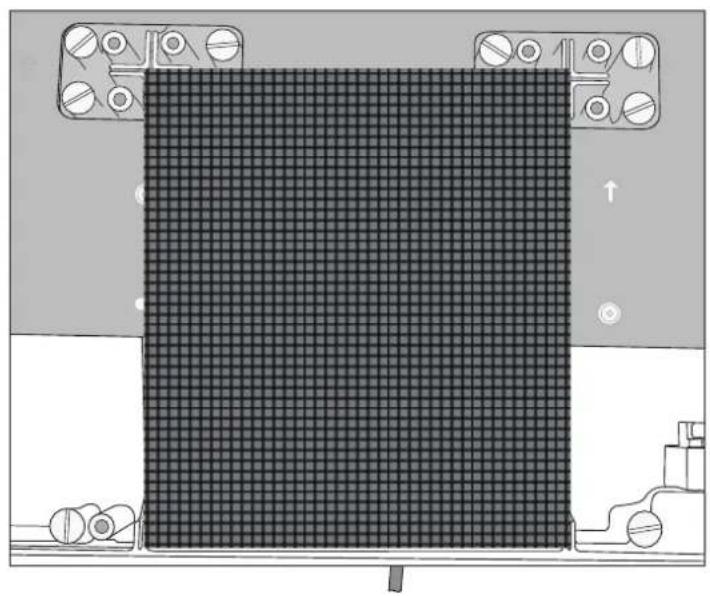

The arrows (↑) at the back of the pixel cards indicate the upper side.

Install the pixel card into the cabinet with the four guide holes of the pixel card aligned with the four guide pins of the cabinet (four pins for each pixel card). The pixel card is secured by the 4 magnets on each pixel card.

Insert into the guide holes

4 magnets 4 magnets interface

Diagram of a semiconductor device with grid pattern and surrounding components (no text or symbols)

Check that all the connections are completed, and then turn on the LED modules and the LED controller.

WARNING

Pay attention to the wire colors of the power cord when connecting the cord. If the cables are not connected correctly, it may lead to a fire or an electrical shock.

Blue (N)

Brown (L)

Yellow green (Ground)

CAUTION

When using LAN cables of 60 m to 100 m in length, the product may not operate correctly depending on the quality of the cables. In such a case, it is recommended to use optical-fiber cables. Ask a technician or your retailer for more details.

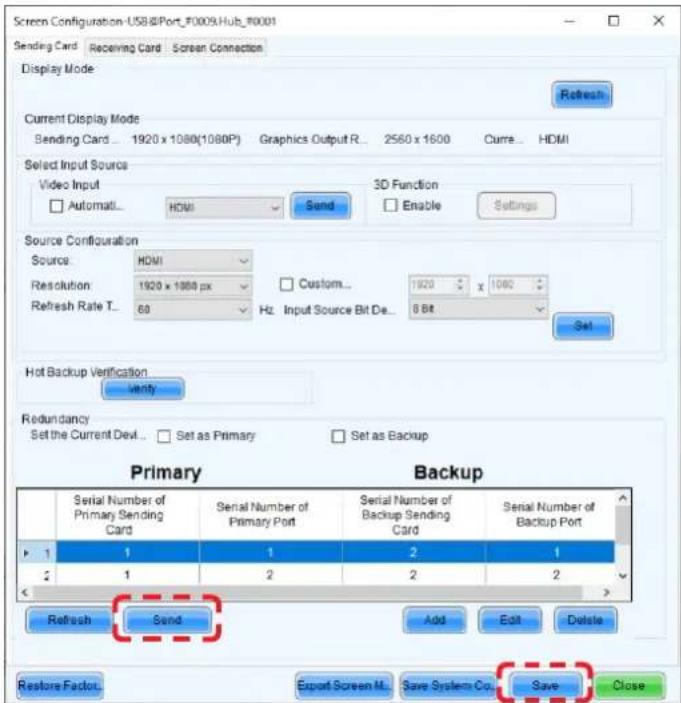

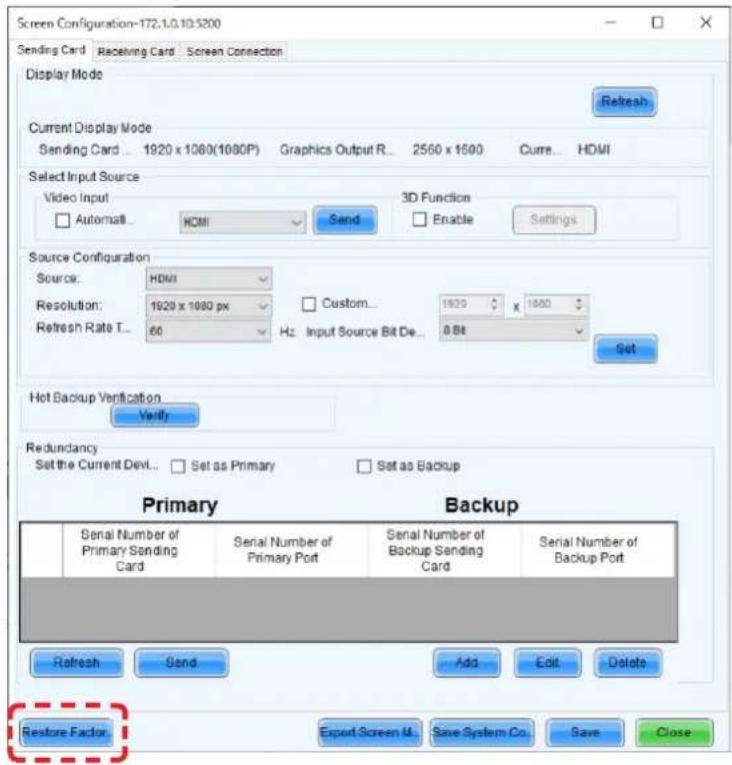

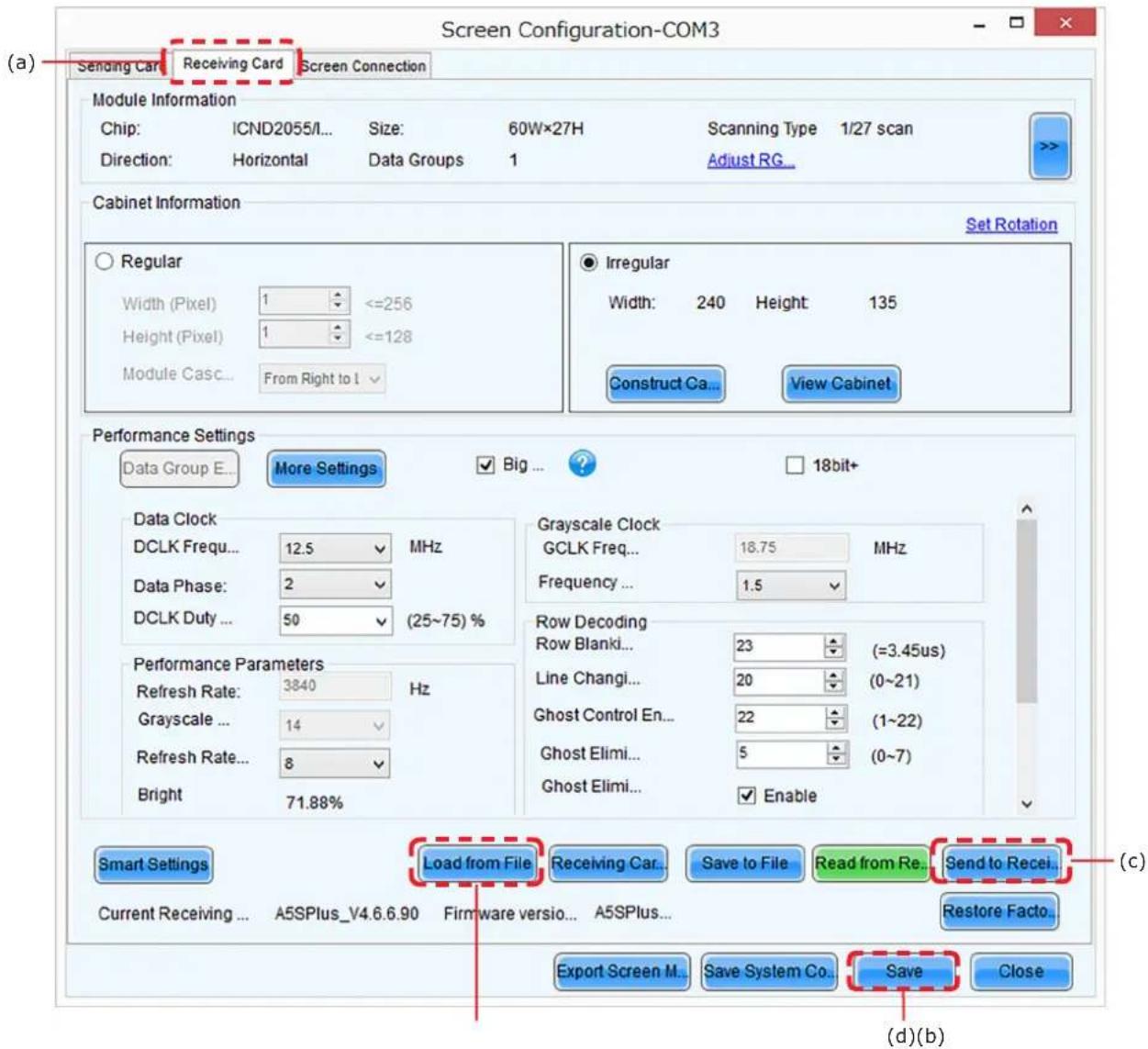

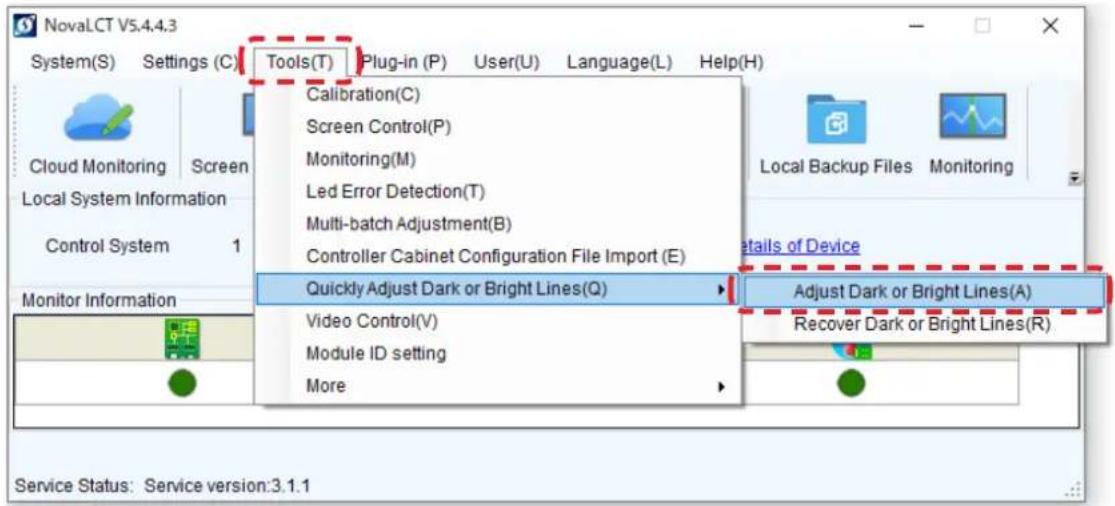

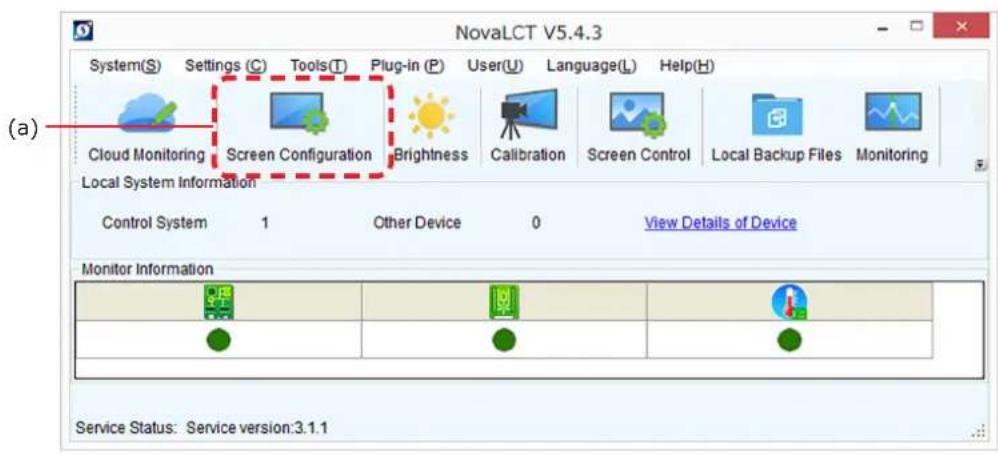

Preparingfor using NovaLCT software

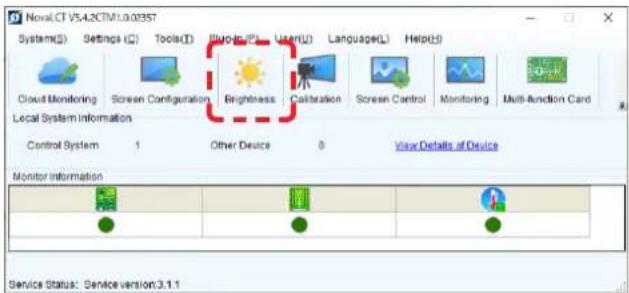

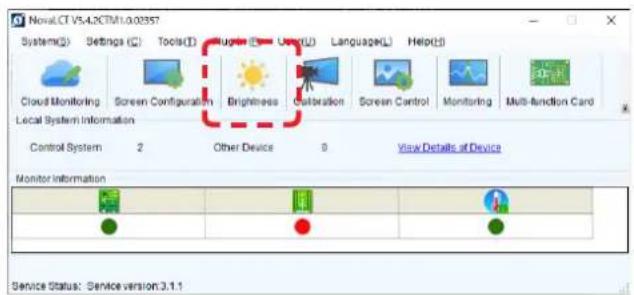

Perform the setting using the NovaLCT control software by Novastar.

Connect the supplied USB memory to the computer. Start NovaLCT*.exe.

After it has started, install it following the software instructions.

The NovaLCT preparation is complete.

CAUTION

For NovaLCT*.exe, be sure to use the file contained in the supplied USB drive.

Using a NovaLCT*.exe file different than the one in the supplied USB drive may lead to malfunction.

Log in with the administrator privileges.

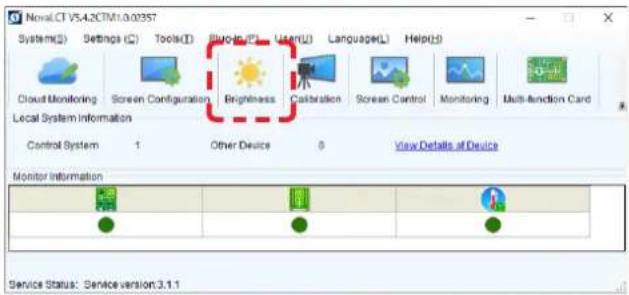

Display the login screen as follows: User(U) → Advanced Synchronous System UserLogin(A).

Enter the password ("admin" by default) to log in with the administrator privileges.

To change the password, go to User(U) → Change Password(U) with the administrator privileges.

CAUTION

Do not forget the new password after it has been changed.

Enter the screen configuration menu

(1) Click "Screen Configuration" (a).

NovaLCT V5.4.3 System(S) Settings (C) Tools(T) Plug-in (P) User(U) Language(L) Help(H) Cloud Monitoring Screen Configuration Brightness Calibration Screen Control Local Backup Files Monitoring Local System Information Control System 1 Other Device 0 View Details of Device Monitor Information Service Status: Service version:3.1.1

(2) Check the port in "Select Communication Port", and then click the "Next" button (b).

Screen Configuration Select Communication Port Current Operatio... CCM5 Configure Screen Load Config... Browse Next Close

(b)

Module connection settings

Start NovaLCT and log in with the administrator privileges.

In the Screen Configuration screen that is displayed, select the "Screen Connection" tab (a).

Screen Configuration-COM99 Sending Card Receiving Card Screen Connection (a)

CAUTION

Do not change the settings in the "Receiving Card" tab. Otherwise, the video may not be displayed properly.

Select "Standard Screen" under "Screen Type" (b).

The settings in "Sending Card Number" (c) and "Ethernet Port No." (d) vary depending on the connected LED controller.

Screen Configuration-COM4 Sending Card Receiving Card Screen Connection Quantity c... 1 Configur Screen1 (b) Screen Type: Standard Screen Complex Screen Sending Card Number Basic Information Coord... x: 0 y: 0 Virtual Mo... E... Columns 1 Rows 1 Reset/All Hided... Rad ← (d) Ethernet Port No. 1 2 3 4 5 6 (e) Receiving Card Size Width: 128 Apply to Enter... Height: 128 Apply to Enter... Set Blank Apply to the current. (g) Quick Connection 2 3 4 5 6 7 Zoom: < > 1 Note: Click or drag the left mouse button to confi... Detect Communic Read the Number Enable Mapping Load from File Save to File Read from HW Send to HW Restore Factory S Save System Con Save Close (i) (j) (h)

Enter the value in the table below under "Receiving Card Size" (e).

Product name	LED-FA009i2LED-FE009i2	LED-FA012i2LED-FA012i2-SBLED-FE012i2LEDFE012i2-E	LED-FA015i2LED-FA015i2-SBLED-FE015i2LED-FE015i2-E	LED-FA019i2LED-FE019i2LED-FE019i2-E
Pixel pitch 0.9 mm	1.2 mm 1.5 mm	1.9 mm
Number of displayed pixels (resolution/module)	Width 640Height 360	Width 480Height 270	Width 384Height 216	Width 320Height 180

Product name	LED-FA025i2LED-FE025i2	LED-FA031i2LED-FE031i2	LED-FA038i2LED-FE038i2
Pixel pitch 2.5 mm	3.1 mm 3.8 mm
Number of displayed pixels (resolution/module)	Width 240Height 135	Width 192Height 108	Width 160Height 90

[Columns/Rows] Enter the number of installed screens under "Columns/Rows" (f) (the number of vertically installed screens in Columns, and the number of horizontally installed screens in Rows).

[Configuration example]

The setting values are given for the following example where 16 are installed in a 4 (columns) x 4 (rows) configuration connecting from bottom to top using multiple ports.

(1) With a pixel pitch of 1.25 mm, enter Width=480 and Height=270 under "Receiver Card Size" (e). Do not use the buttons located next to the values.

(e) Receiving Card Size Width: 450 Height: 270 Set Blank Apply to Entir... Apply to Entir... Apply to the current.

(2) Since the configuration is 4 (columns) x 4 (rows), enter Columns=4 and Rows=4. A 4 (columns) x 4 (rows) screen configuration is displayed.

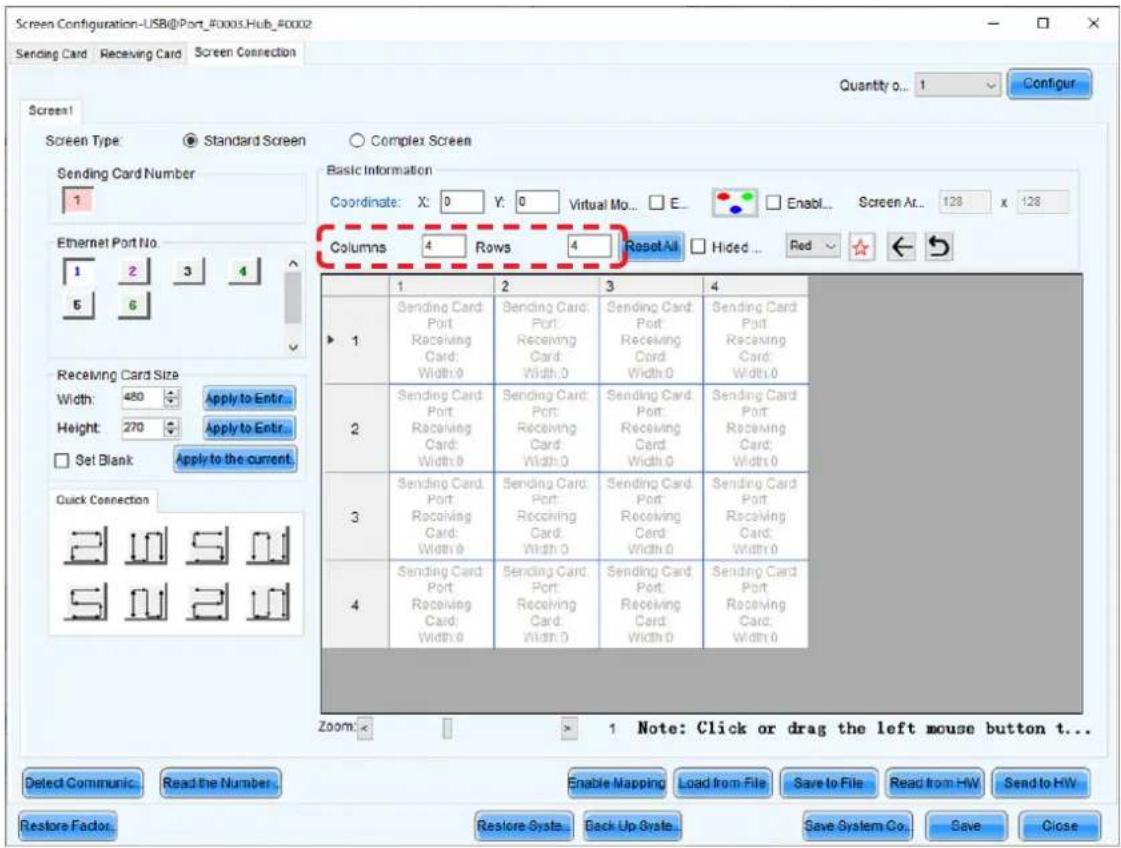

Screen Configuration-USB@Port_#0005.Hub_#0002 Sending Card Receiving Card Screen Connection Quantity 0... 1 Configur Screen! Screen Type Standard Screen Complex Screen Sending Card Number 1 Ethernet Port No. 1 2 3 4 6 6 Receiving Card Size Width: 480 Apply to Entr... Height: 270 Apply to Entr... Set Blank Apply to the current. Quick Connection Zoom: 1 2 3 4 1 Sending Card Port Receiving Card Width:0 Bending Card Port Receiving Card Width:0 Sending Card Port Receiving Card Width:0 Sending Card Port Receiving Card Width:0 Sending Card Port Receiving Card Width:0 Sending Card Port Receiving Card Width:0 Sending Card Port Receiving Card Width:0 Sending Card Port Receiving Card Width:0 Sending Card Port Receiving Card Width:0 Sending Card Port Receiving Card Width:0 Sending Card Port Receiving Card Width:0 Sending Card Port Receiving Card Width:0 Shipping System Co. Save Close Enable Mapping Load from File Save to File Read from HW Send to HW Restore Factor Restore System Back Up System Save System Co. Save Close

(3) If multiple LED controllers are used, select the number of the connected LED controllers. Since only one controller is used in this example, it is not necessary to set "Sending Card Number" (c).

(4) Configure the connection.

The system is connected to port 1 of the LED controller.

Select "1" (port 1) under "Ethernet Port No." (d).

EthernetPort No. 1 2 3 4 5 6

Select the cabinet at the bottom left with the mouse, and then select the other cabinets up to the top cabinet.

Then select Port2 and select the cabinets from the bottom to the top as you did for Port1.

Screen Configuration-USB@Port_0008.Hub_0002 Sending Card Receiving Card Screen Connection Quantity 0... 1 Configur Screen1 Screen Type Standard Screen Complex Screen Sending Card Number 1 Ethernet Port No. 1 2 3 4 6 6 Receiving Card Size Width: 480 Apply to Enter... Height: 270 Apply to Enter... Set Blank Apply to the current... Quick Connection 1 2 3 4 1 Sending Card:1 Port:1 Red Ring Card:4 Width:480 2 Sending Card:1 Port:1 Receiving Card:3 Width:480 3 Sending Card:1 Port:1 Receiving Card:2 Width:480 4 Sending Card:1 Port:1 Rec Ring Card:1 Width:480 Sending Card:1 Port:2 Red Ring Card:4 Width:480 Sending Card:1 Port:2 Receiving Card:3 Width:480 Sending Card:1 Port:2 Receiving Card:2 Width:480 Sending Card:1 Port:2 Receiving Card:1 Width:480 Sending Card:1 Port:2 Receiving Card:2 Width:480 Sending Card:1 Port:2 Receiving Card:1 Width:480 Reset All Hided ... Rad Basic Information Coordinate: X: 0 Y: 0 Virtual Mo... E... Enabl... Screen Ar... 128 x 128 Columns 4 Rows 4 Reset All Hided ... Rad Zoom < 1 Note: Click or drag the left mouse button t... Detect Communic. Read the Number . Enable Mapping Load from File Save to File Read from HW Send to HW Restore Factor . Restore Syste.. Back Up Syste.. Save System Co. Save Close

Follow the same procedure for Port3 and Port4.

Screen Configuration-USB@Port_40005.Hub_40002 Sending Card Receiving Card Screen Connection Quantity 0... 1 Configur Screen1 Screen Type Standard Screen Sending Card Number 1 Ethernet Port No. 1 2 3 4 6 6 Receiving Card Size Width: 480 Apply to Enter... Height: 270 Apply to Enter... Set Blank Apply to the current... Quick Connection 1 2 3 4 1 Sending Card:1 Port.1 Receiving Card:4 Width: 480 Sending Card:1 Port.2 Receiving Card:4 Width: 480 Sending Card:1 Port.3 Receiving Card:4 Width: 480 Sending Card:1 Port.4 Receiving Card:4 Width: 480 Sending Card:1 Port.1 Receiving Card:3 Width: 480 Sending Card:1 Port.2 Receiving Card:3 Width: 480 Sending Card:1 Port.3 Receiving Card:2 Width: 480 Sending Card:1 Port.4 Receiving Card:2 Width: 480 Sending Card:1 Port.1 Receiving Card:1 Width: 480 Sending Card:1 Port.2 Receiving Card:1 Width: 480 Sending Card:1 Port.3 Receiving Card:1 Width: 480 Send Card Number: 1 2 3 4 1 Sending Card:1 Port.1 Port.2 Receiving Card:4 Width: 480 Sending Card:1 Port.3 Receiving Card:4 Width: 480 Sending Card:1 Port.4 Receiving Card:3 Width: 480 Sending Card:1 Port.5 Receiving Card:2 Width: 480 Sending Card:1 Port.6 Receiving Card:1 Width: 480

(5) Save the settings.

(a) Click the "Send to HW" button (h). When the dialog box indicating that the process finished successfully is displayed, click OK.
(b) Check that the image is correctly displayed, and then click the "Save" button (i). When the screen indicating that the process finished successfully is displayed, click OK.

The setting of the screen configuration is complete. Click the "Close" button (j) to close the Screen Configuration screen.

Receiving card settings

(1) The Screen Configuration screen is displayed. Select the "Receiving Card" tab (a).

Screen Configuration-COM3 Sending Card Receiving Card Screen Connection Module Information Chip: ICND2055/... Size: 60W×27H Scanning Type 1/27 scan Direction: Horizontal Data Groups 1 Adjust RG. Cabinet Information Regular Width (Pixel) 1 <=256 Height (Pixel) 1 <=128 Module Casc... From Right to I Set Rotation Irregular Width: 240 Height 135 Construct Ca... View Cabinet Performance Settings Data Group E... More Settings Big ... 18bit+ Data Clock DCLK Freq... 12.5 MHz Data Phase: 2 DCLK Duty ... 50 (25~75) % Performance Parameters Refresh Rate: 3840 Hz Grayscale ... 14 Refresh Rate... 8 Bright 71.88% Grayscale Clock GCLK Freq... 18.75 MHz Frequency ... 1.5 Row Decoding Row Blanki... 23 (=3.45us) Line Changi... 20 (0~21) Ghost Control En... 22 (1~22) Ghost Elimi... 5 (0~7) Ghost Elimi... Enable Smart Settings Load from File Receiving Car... Save to File Read from Re... Send to Recei... Current Receiving ... A5SPlus_V4.6.6.90 Firmware versio... A5SPlus... Restore Facto... Export Screen M... Save System Co... Save Close (d)(b)

(2) Click "Load from File" (b).
(3) Select the configuration file (rcfgx file) you want to load to the receiving card. A screen like the following appears when the loading process is complete.

Loaded configuration file successfully! OK

(4) Click "Send to Receiving Card" (c).
(5) Click "Save" (d). Loading of the configuration file is complete.

Update the Calibration Data

(1) Login as Advanced User.
(2) Click the "Calibration" button (a). Start calibration menu.

NovaLCT V5.2.0 System(S) Settings (C) Tools(T) Plug-in (P) User(U) Language(L) Help(H) Screen Configuration Brightness Calibration Screen Control Monitoring Multi-function Card Test Tool Local System Information Control System 1 Other Device 0 View Details of Device Monitor Information Service Status: Service version:3.1

Screen Calibration Single-Screen Mode Combined-Sc Current Operation Optimization Port 182.108 M 1.500 Current Screen Screen1 Settings of Displaying Image Position to Display Image; Primary Display Extended Display Device Response Time: 100 ms Use input source for display Enable/Disable Calibration Disable Calibration Brightness Calibration Chroma Calibration Save Online Calibration Offline Calibration Manage Coefficients Double Calibration Coefficients Send by Address Send by Topology Screen:1 Starting coordinateX=0, Y=0 Size1440M×810M Full... Select by pin... Select by Topology... Select operat... Operate all pixels. Flash Check View Receiving Card Callout View Module Calibration C Save Calibration Coefficient Auto Upload Module Save to HW Return

(3) Select the "Screen1" radio button.
(4) Click on the "Manage Coefficients" tab (b).

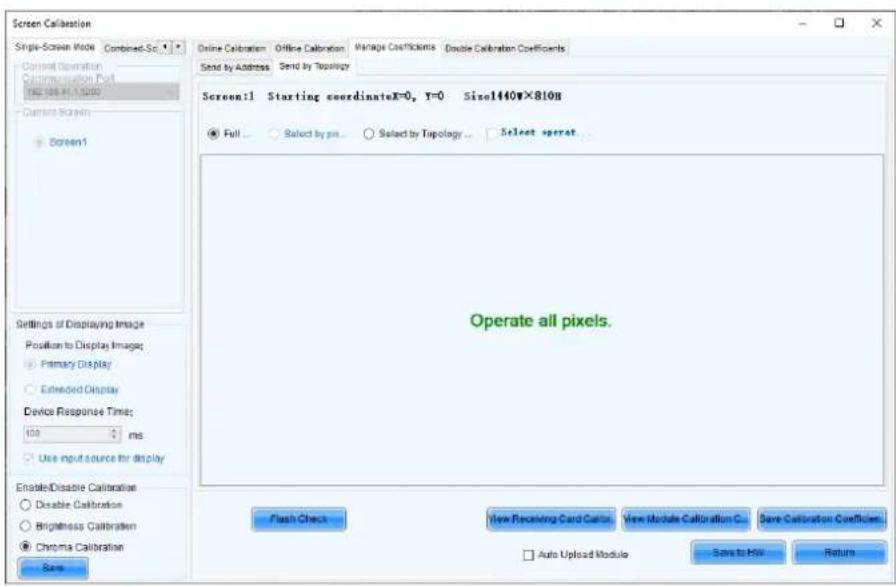

Screen Calibration Single-Source Window - Combined On Current Operation Communication Port 192 108.41.1:5200 Current Screen Screen1 Settings of Displaying Image Position to Display Image; Primary Display Extended Display Device Response Time: 100 ms Use input source for display Enable/Disable Calibration Disable Calibration Brightness Calibration Chroma Calibration Save Manage Coefficients Delete Calibration Coefficients Select Operation Upload coefficients Save calibration coefficients to database Set coefficients for a new receiving card Set coefficients for a new module Adjust coefficients (Color is uniform on screen) Erase or reload calibration coefficients Reset calibration coefficients Upload coefficients (for factory use) Module Flash

(5) Click on "Module Flash".

Result: The module flash options will appear.

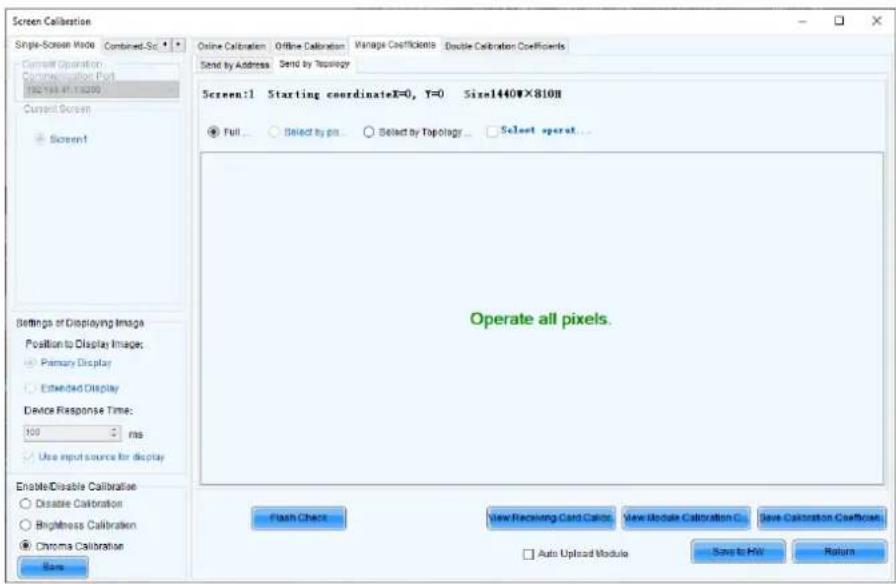

Screen Calibration Single-Screen Mode Combined Sc Current Operation Communication Port 24716.41.1300 Current Screen Screen1 Settings of Displaying Image Position to Display Image: Primary Display Extended Display Device Response Time: 100 ms Use input source for display Enable/Disable Calibration Disable Calibration Brightness Calibration Chrome Calibration Save Online Calibration Offline Calibration Manage Coefficients Double Calibration Coefficients Send by Address Send by Topology Screen:1 Starting coordinateX=0, Y=0 Size1440*810B Full Select by pin Select by Topology Select operat... Operate all pixels. Flash Check View Receiving Card Colors View Module Calibration C Save Calibration Coefficient Auto Upload Module Save to HIV Return

Select whether you want the entire screen or individual modules.

Full screen: Select this option when installing.

Module Flash (Select by Topology or list): Select this option when replacing pixel cards, etc.

If "Line calibration" or "Adjusting the colors on a part of the screen" has been performed on the area set for Module Flash, please perform it again after Module Flash.

(6) Click the "View Module Calibration Coefficients" button.

Result: Pop-up message opens.

Screen Calibration Stage Screen Mode Combined-Sc Current Operation Communication Plan Scales Output Resolution Screen1 Online Calibration Offline Calibration Manage Coefficients Double Calibration Coefficients Send by Address Send by Topology Screen:1 Starting coordinateX=0, Y=0 Size384W×384H Full... Select by rows... Select by Topology... Select repeat... Settings of Displaying Image Position to Display Image: Primary Display Extended Display Device Response Time: 100 ms Use input source for display Enable/Disable Calibration Disable Calibration Brightness Calibration Chrome Calibration Save Module calibration coefficients viewed successfully. OK Flash Check View Receiving Card Callu... View Module Calibration C Save Calibration Coefficen... Auto Upload Module Save to HIV Return

(7) Click "Save Calibration Coefficients to Receiving Card".

The pop-up message, that the data has been successfully stored to the Receiving cards, will appear. Result: The screen with the exchanged Pixel cards should look calibrated now.

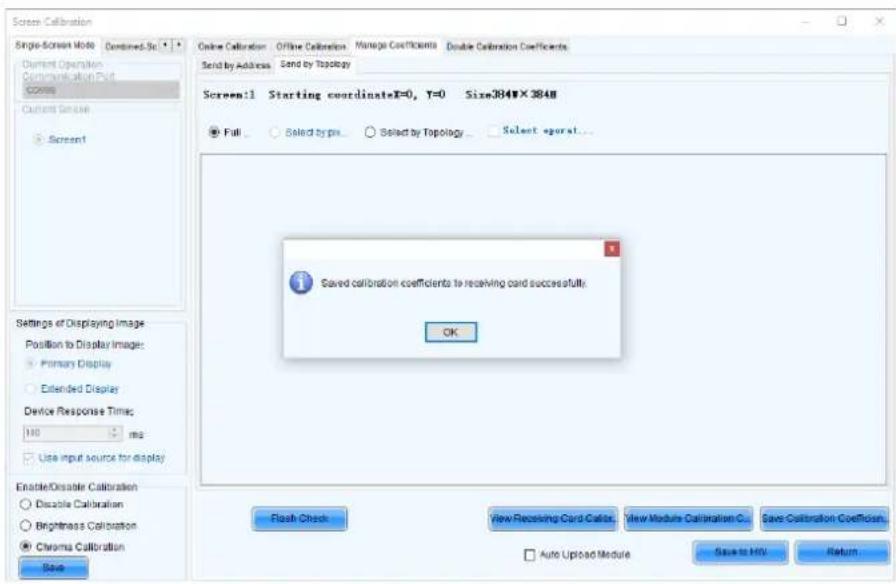

Screen Calibration Single-Screen Mode Combined.Src Current Operation Communication Port Cross Current Sense Screen Settings of Displaying Image Position to Display Image: Primary Display Extended Display Device Response Times: 100 ms Use input source for display Enable/Disable Calibration Disable Calibration Brightness Calibration Chroma Calibration Save Online Calibration Offline Calibration Manage Coefficients Double Calibration Coefficients Send by Address Send by Topology Screen:1 Starting coordinateE=0, Y=0 Size384W×384W Full Select by px Select by Topology Select operator... Saved calibration coefficients to receiving card successfully. OK Flash Check View Receiving Card Caller View Module Calibration C# Save Calibration Coefficient Auto Upload Module Save to HIV Return

(8) Click on "Save to HW" button and go back to main window by clicking "X" button.
(9) Check the calibration-state in the bottom left corner of Screen Calibration window: Enable/Disable Calibration.

Enable/Disable Calibration ● Disable Calibration ○ Brightness Calibration ○ Chroma Calibration Save

(10) If calibration-setting "Disable Calibration" is chosen, switch to "Chroma Calibration" (c) to enable calibration and click on the "Save" button (d).

Result: While switching you will already see calibration effect.

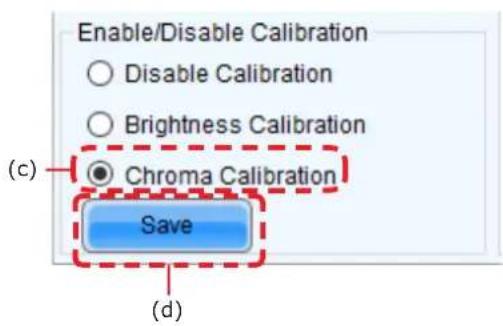

Enable/Disable Calibration ○ Disable Calibration ○ Brightness Calibration ● Chroma Calibration (c) Save (d)

(11) Close Screen Calibration windows by clicking on the "X".

Result: The Screen Calibration has been finished for both screens.

You can adjust the brightness, the gamma correction value, and the color temperature.

NovaLCT V5.1.0 System(S) Settings (C) Tools(T) Plug-in (P) User(U) Language(L) Help(H) Brightness Screen Control Monitoring Multi-function Card Test Tool Cloud Monitoring Local System Information Control System 1 Other Device 0 View Details of Device Monitor Information Service Status: Service version:3.1

Click "Brightness" on the top screen to display the following window.

Brightness Adjustment COM99-Screen1 Brightness Brightness < 255 (0.00%) (a) Click "Advanced Settings" to expand the screen. Refresh Save to HW (b) Brightness Adjustment COM99-Screen1 ● Manually Adjustment ○ Automatically Adjustment Brightness Brightness < 255 (100%) Grayscale Contrast (c) Advanced Settings Gamma ... Color Te... Color Spa... Contrast ● Gamma Valu... < 2.8 ○ Custom ... Configuration Refresh Save to HW COM99-Screen1 No color reproduction information has been set, please set

(e)

Advanced Settings Gamma... Color Te... Color Spa... Color Temperature (d) Rough Ad... < 6500 K Warm Color Cool Color PreciseA... +

English - 71

Click "Advanced Settings" (M) (a) to expand the setting screen.

(1) Brightness

Set the brightness of the screen using the slider (b).

Increasing the value increases the brightness.

(2) Gamma correction

Set the gamma correction value using the slider (c).

Increasing the value makes the dark parts of the screen darker.

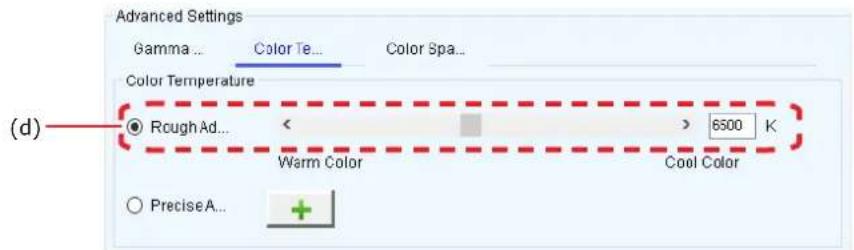

(3) Color temperature

Set the color temperature using the slider (d).

Increasing the value makes the colors more bluish, while reducing the value makes the colors more reddish.

When the setting is complete, click the "Save to HW" button to save the settings.

Line calibration

(1) Log in with the administrator privileges (English-61).
(2) On the tabs at the top of the window, click Tools > Quickly Adjust Dark or Bright Lines > Adjust Dark or Bright Lines

NovaLCT V5.4.4.3 System(S) Settings (C) Tools(T) Plug-in (P) User(U) Language(L) Help(H) Cloud Monitoring Screen Local System Information Control System 1 Monitor Information Calibration(C) Screen Control(P) Monitoring(M) Led Error Detection(T) Multi-batch Adjustment(B) Controller Cabinet Configuration File Import (E) Quickly Adjust Dark or Bright Lines(Q) Video Control(V) Module ID setting More Adjust Dark or Bright Lines(A) Recover Dark or Bright Lines(R) Service Status: Service version:3.1.1

(3) Click the "Quickly Adjust (New)" button on the right of the window that pops up.

Quickly Adjust Dark or Bright Lines Common Version Quickly Adjust Ax series, MRV308, MRV328, MRV316, MRV366,DF30, Axes V4.4.0.0 and later versions of Re... Quickly Adjust (New)

(4) A screen like the figure below is displayed. Press the Shift + E keys. The gray window moves to the LED modules.

Scan Brightness Adjustment Mode Cati Row Row Column Class Deselect Class Show Show_Calibration Show...Screen Dis Window Color Screen Brightness (A)(B)(C)(D)(E)(F)(G)(H)(I)(J)(K) (AB=0) Screen1 SHIFT+F1 Show Fiji-side prompts SHIFT+E] Extended ModelCopy Mode SHIFT+H] Show Fiji-side windows No Video Source (The sending card does not need a video source) Show to HIV

(5) Click "Module Mode" on the top left of the screen.

Scan Brightness Adjustment Modu... Cabi... Row... Row Column Class... Descalcd Class... Show... Show... Calibration Show... Screen dip Window Color (Alt+C) Screen Brightness (- - +) Screen1 1 2 3 4 Selected Area Parameter Adjustment 0.3 1.000 1.200 1.000 Precision 0 0 0 5 No Video Source (The sending card does not need a video source) Save to Hua

Enter the number of pixel cards inside one module on the screen that pops up, and then click "OK". LED-FA009i2, LED-FA012i2, LED-FA012i2-SB, LED-FA015i2, LED-FA015i2-SB, LED-FA019i2, LED-FA031i2, LED-FA038i2 LED-FE009i2, LED-FE012i2, LED-FE015i2, LED-FE019i2, LED-FE031i2, LED-FE038i2, LEDFE012i2-E, LED-FE015i2-E, LED-FE019i2-E

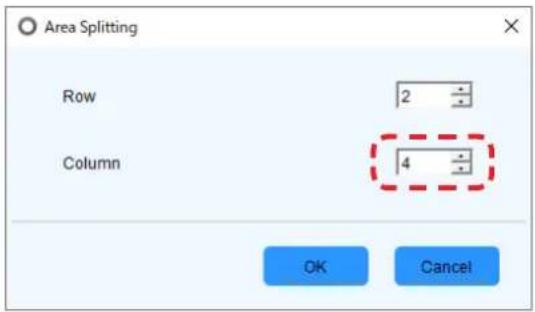

Area Splitting Row 2 Column 4 OK Cancel

LED-FA025i2, LED-FE025i2

Area Splitting Row 1 Column 4 OK Cancel

Lines separating each pixel card are displayed.

LED-FA009i2, LED-FA012i2, LED-FA012i2-SB, LED-FA015i2, LED-FA015i2-SB, LED-FA019i2, LED-FA031i2, LED-FA038i2

LED-FE009i2, LED-FE012i2, LED-FE015i2, LED-FE019i2, LED-FE031i2, LED-FE038i2, LEDFE012i2-E, LED-FE015i2-E, LED-FE019i2-E

Scan Brightness Adjustment Modu... Cabi... Raw ... Row ... Column ... Clea... Desellct Clea... Show... Show... Calibration Show... Screen dis Window Color Window Color Screen Brightness (A) (S) (D) (F1) (F2) (F12) (Z) (X) (A+B) Screen1 8 pixel cards in 1 module 1-1 1-2 1-3 1-4 2-1 2-2 2-3 2-4 1-5 1-6 1-7 1-8 2-5 2-6 2-7 2-8 3-1 3-2 3-3 3-4 4-1 4-2 4-3 4-4 3-5 3-6 3-7 3-8 4-5 4-6 4-7 4-8 Selected Area Parameter Adjustment 1.000 Precision 0.005 No Video Source (The sending card does not need a video source) 0.3 1.000 1.200 Save to HIV

LED-FA025i2, LED-FE025i2

Seam Brightness Adjustment Modu... Cabi... Row... (A) Row (B) Column (D) Class (F1) Decalact (F2) Class (F12) Show (Z) Show (X) Calibration Show Screen title Window Color (Alt+C) Screen Brightness (- +) Screen1 4 pixel cards in 1 module 1-1 1-2 1-3 1-4 2-1 2-2 2-3 2-4 3-1 3-2 3-3 3-4 4-1 4-2 4-3 4-4 Selected Area Parameter Adjustment 0.3 1.000 1.200 Precision 0 8 0 5 No Video Source (The sending card does not need a video source) Save to Hua

(6) Specify the border between the pixel cards for which you want to perform line calibration by clicking on it or specifying a range. You may also adjust multiple locations at the same time.

LED-FA009i2, LED-FA012i2, LED-FA012i2-SB, LED-FA015i2, LED-FA015i2-SB, LED-FA019i2, LED-FA031i2, LED-FA038i2

LED-FE009i2, LED-FE012i2, LED-FE015i2, LED-FE019i2, LED-FE031i2, LED-FE038i2, LEDFE012i2-E, LED-FE015i2-E, LED-FE019i2-E

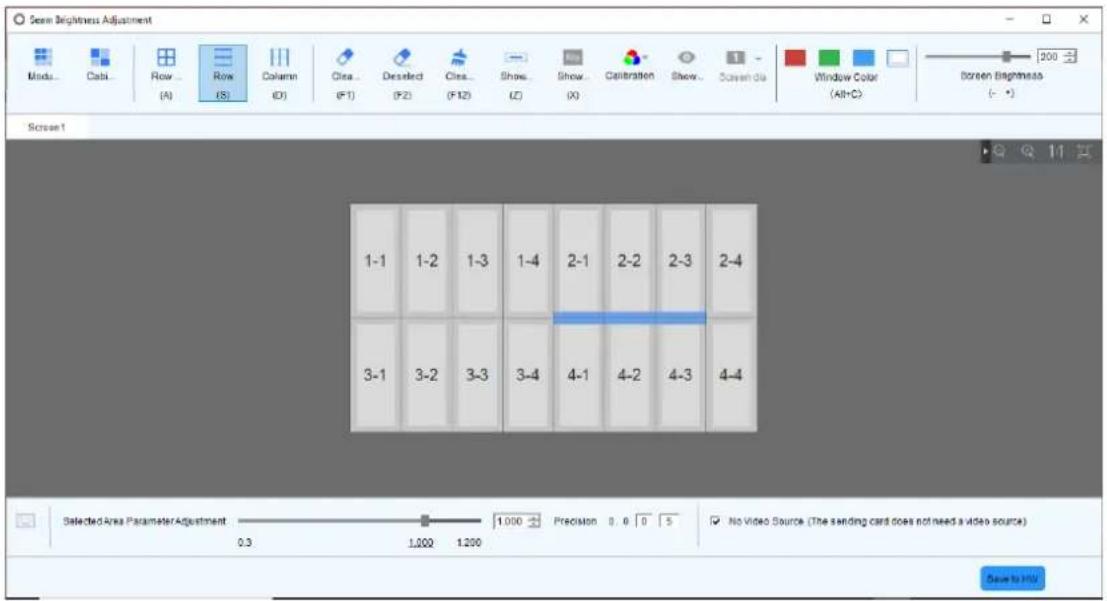

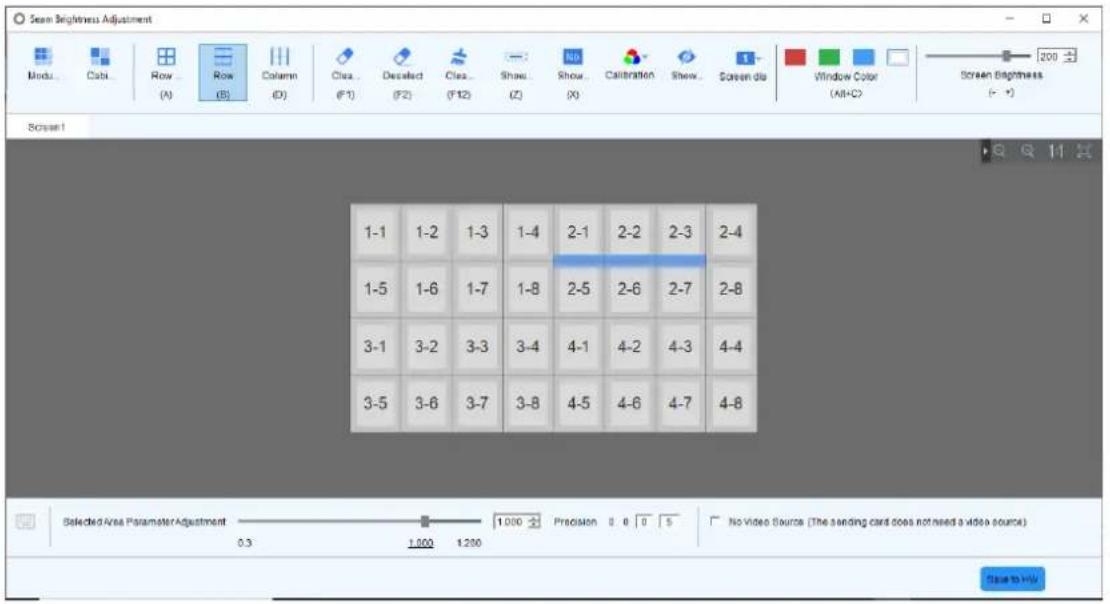

Scan Brightness Adjustment Mode Cabs Row Row Column Class Decselect Class Show Show Calibration Show Screen dim Window Color Window Color Screen Brightness (A) (B) (C) (D) (E) (F) (G) (H) (I) (J) (K) (L) (M) (N) (O) (P) (Q) (R) (S) (T) (U) (V) (W) (X) (Y) (Z) (3) (4) (5) (6) (7) (8) (9) (10) Screen 1 1-1 1-2 1-3 1-4 2-1 2-2 2-3 2-4 1-5 1-6 1-7 1-8 2-5 2-6 2-7 2-8 3-1 3-2 3-3 3-4 4-1 4-2 4-3 4-4 3-5 3-6 3-7 3-8 4-5 4-6 4-7 4-8 Selected Area Parameter Adjustment Precision 0.0 0.5 No Video Source (The sending card does not need a video source) 0.3 1.000 1.200 Use to HV

LED-FA025i2, LED-FE025i2

Scan Brightness Adjustment Mode... Cabs Row Row Column Clean ... Dissected Clean Show Show Calibration Show Scavender Window Color Screen Brightness (A) (S) (D) (F1) (F2) (F12) (Z) (X) (Alt+C) Screen 1 1-1 1-2 1-3 1-4 2-1 2-2 2-3 2-4 3-1 3-2 3-3 3-4 4-1 4-2 4-3 4-4 Selected Area Parameter Adjustment 0.3 1.000 1.200 Precision 0.0 0 5 No Video Source (The sending card does not need a video source) Save to HU

< Tool icons used to select the adjustment range >

Clear effects: Resets the line calibration in the selected range.

Deselect: Deselects the range currently selected.

Clear all effects: Resets line calibration for all locations.

The selected adjustment range is also displayed on the LED modules.

LED-FA009i2, LED-FA012i2, LED-FA012i2-SB, LED-FA015i2, LED-FA015i2-SB, LED-FA019i2, LED-FA031i2, LED-FA038i2

LED-FE009i2, LED-FE012i2, LED-FE015i2, LED-FE019i2, LED-FE031i2, LED-FE038i2, LEDFE012i2-E, LED-FE015i2-E, LED-FE019i2-E

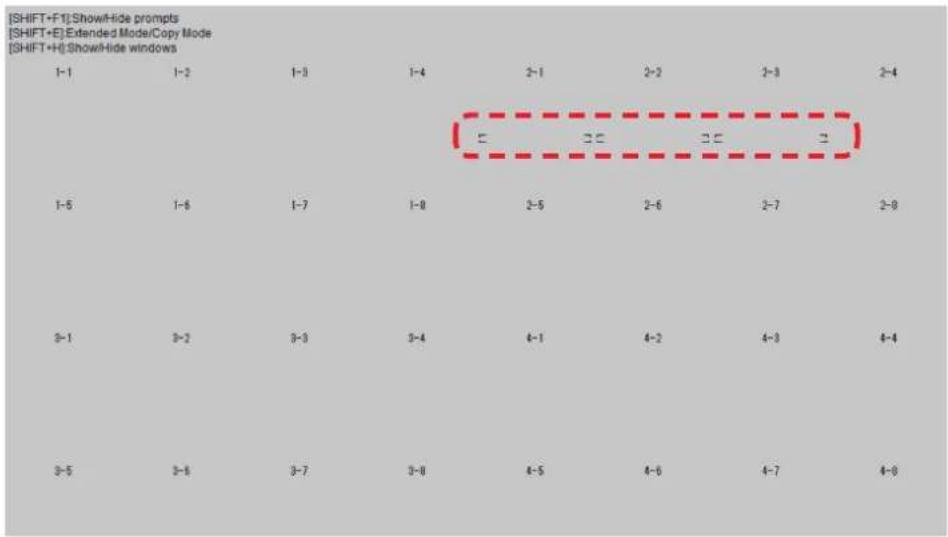

[SHIFT+F1]ShowHide prompts [SHIFT+E] Extended Mode/Copy Mode [SHIFT+H] ShowHide windows 1-1 1-2 1-3 1-4 2-1 2-2 2-3 2-4 1-5 1-6 1-7 1-8 2-5 2-6 2-7 2-8 3-1 3-2 3-3 3-4 4-1 4-2 4-3 4-4 3-5 3-6 3-7 3-8 4-5 4-6 4-7 4-8

LED-FA025i2, LED-FE025i2

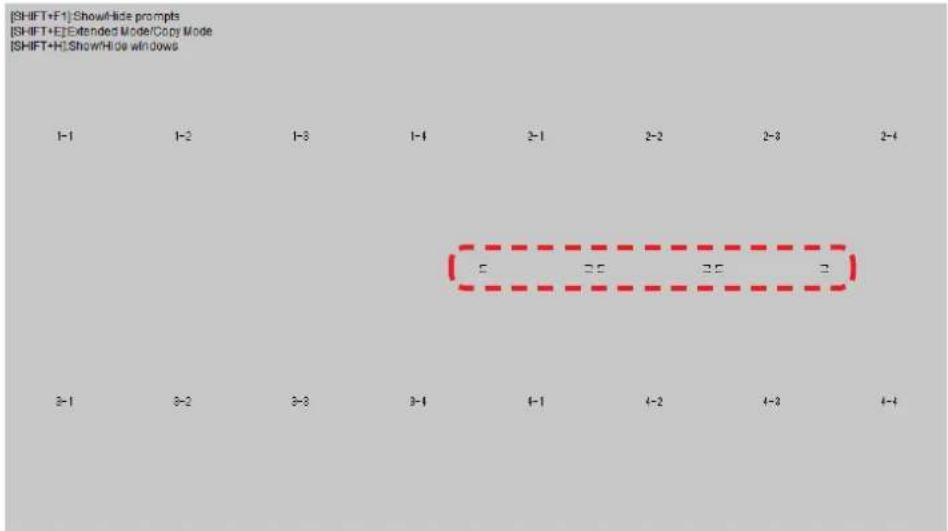

[SHIFT+F1]:ShowHide prompts [SHIFT+E]Extended Mode/Copy Mode [SHIFT+H]:ShowHide windows 1-1 1-2 1-3 1-4 2-1 2-2 2-3 2-4 5 2.5 2.5 3 3-1 3-2 3-3 3-4 4-1 4-2 4-3 4-4

(7) Click the upward and downward arrows next to the input box at the bottom of the window to adjust the brightness of the selected locations.

LED-FA009i2, LED-FA012i2, LED-FA012i2-SB, LED-FA015i2, LED-FA015i2-SB, LED-FA019i2, LED-FA031i2, LED-FA038i2

LED-FE009i2, LED-FE012i2, LED-FE015i2, LED-FE019i2, LED-FE031i2, LED-FE038i2, LEDFE012i2-E, LED-FE015i2-E, LED-FE019i2-E

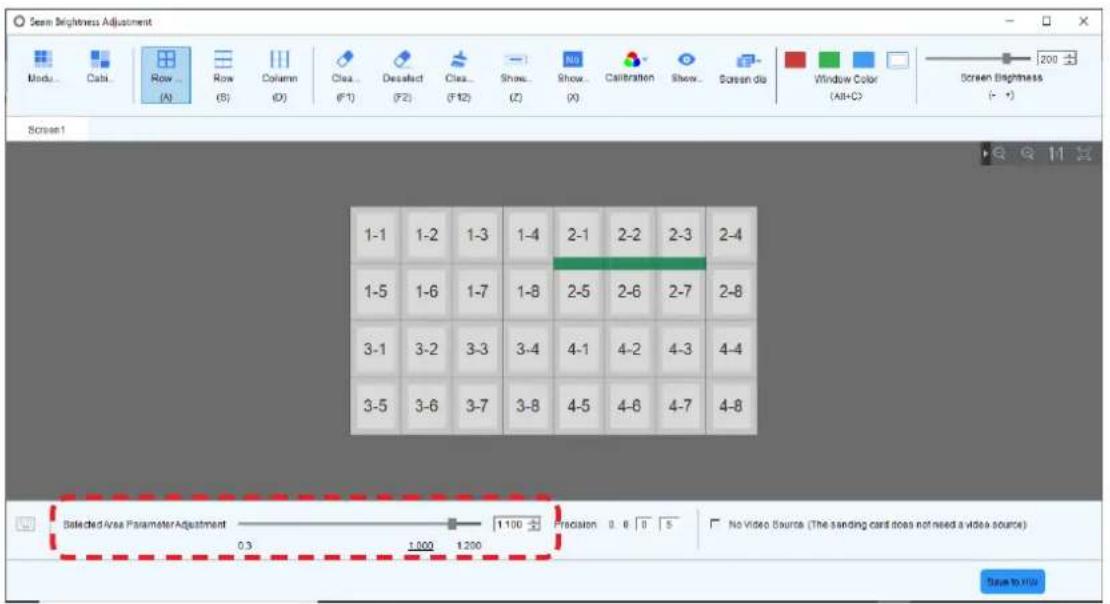

Scan Brightness Adjustment Modu... Cabi... Row (A) Row (B) Column (D) Clear... (F1) Deselect (F2) Clear... (F12) Show... (Z) Show... (X) Calibration Calibration Show... Screen clip Window Color (Alt+C) Screen Brightness (- +) Screen1 1-1 1-2 1-3 1-4 2-1 2-2 2-3 2-4 1-5 1-6 1-7 1-8 2-5 2-6 2-7 2-8 3-1 3-2 3-3 3-4 4-1 4-2 4-3 4-4 3-5 3-6 3-7 3-8 4-5 4-6 4-7 4-8 Selected Area Parameter Adjustment 1.100 Precision 0.0 0 5 No Video Source (The sending card does not need a video source) 0.3 1.000 1.200 Save to Use

Upward arrow: Increases the brightness (makes the dark lines less noticeable)
Downward arrow: Decreases the brightness (makes the bright lines less noticeable)

LED-FA025i2, LED-FE025i2

Beam Brightness Adjustment Modu... Cabi... Row... (A) Row (B) Column (D) Class (F1) Decided (F2) Class (F12) Show (Z) Show (X) Calibration Show Screen lid Window Color (Alt+C) Screen Brightness (- +) Screen1 1-1 1-2 1-3 1-4 2-1 2-2 2-3 2-4 3-1 3-2 3-3 3-4 4-1 4-2 4-3 4-4 Selected Area Parameter Adjustment 0.5 1.000 1.200 Precision 0.0 0 5 No Video Source (The sending card does not need a video source) Due to Hot

Upward arrow: Increases the brightness (makes the dark lines less noticeable)
Downward arrow: Decreases the brightness (makes the bright lines less noticeable)

(8) If you want to adjust other locations, click "Deselect" and specify again a range for the adjustment. When the adjustment is complete, click "Save to HW" at the bottom of the screen.

LED-FA009i2, LED-FA012i2, LED-FA012i2-SB, LED-FA015i2, LED-FA015i2-SB, LED-FA019i2, LED-FA031i2, LED-FA038i2

LED-FE009i2, LED-FE012i2, LED-FE015i2, LED-FE019i2, LED-FE031i2, LED-FE038i2, LEDFE012i2-E, LED-FE015i2-E, LED-FE019i2-E

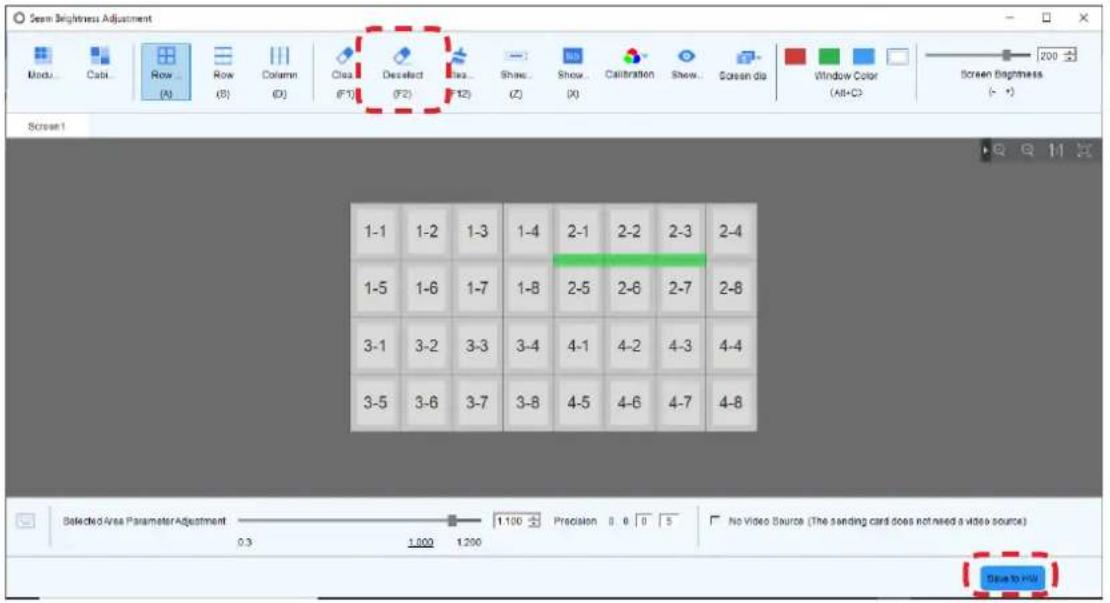

Scan Brightness Adjustment Modu... Cabi... Row (A) Row (B) Column (D) Class (F1) Decselect (F2) Extra... (F3) Show... (Z) Show... (X) Calibration (C) Show... Screen dip Window Color (All+C) Screen Brightness (- - +) Screen 1 1-1 1-2 1-3 1-4 2-1 2-2 2-3 2-4 1-5 1-6 1-7 1-8 2-5 2-6 2-7 2-8 3-1 3-2 3-3 3-4 4-1 4-2 4-3 4-4 3-5 3-6 3-7 3-8 4-5 4-6 4-7 4-8 Selected Area Parameter Adjustment 0.3 1.000 1.200 1.100 Precision 0.0 0 5 No Video Source (The sending card does not need a video source) Date to Date

LED-FA025i2, LED-FE025i2

Scan Brightness Adjustment Modu... Cabi... Row (A) Row (B) Column (D) Class (F1) Decalect (F2) Class (F12) Show (Z) Show (X) Calibration Show... Screen dia Window Color (Alt+C) Screen Brightness (- +) Screen1 1-1 1-2 1-3 1-4 2-1 2-2 2-3 2-4 3-1 3-2 3-3 3-4 4-1 4-2 4-3 4-4 Selected Area Parameter Adjustment 0.3 1.000 1.200 1.005 Precision 0.6 0.5 No Video Source (The sending card does not need a video source) Due to HND

Click "Yes" on the screen that pops up.

Tip Do you want to save to hardware? Yes No

(9) The adjustment is complete when the following screen is displayed. Click "Close" to finish.

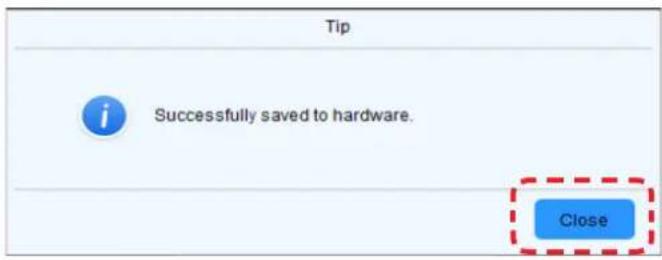

Tip i Successfully saved to hardware. Close

The screen brightness may decrease if dust or another foreign material is adhering to the surface of the pixel card.

The magnet used to install the pixel cards also attracts magnetic metal particles, such as iron powder.

Therefore, magnetic metal particles may adhere to areas near the magnet of the pixel card and the brightness homogeneity of the screen may decrease.

Cleaning should be performed regularly depending on the installation environment.

Required tools (example).

Illustration of a paintbrush with a handle and bristles (no text or symbols)

Soft brush

(animal hair brush to prevent static electricity)

Soft cloth

(that does not generate static electricity)

Line drawing of a portable air gun connected to a cylindrical tank with a pressure gauge (no text or symbols)

Air blower (compressor)

Cleaning method

a) Turn the LED displays off.
b) Use the soft brush to remove any dirt on the LED lamps and the masks. If these parts are very dirty, use the air blower to remove the dirt.
c) Use the soft cloth to remove the dirt on the screen surface.
d) Repeat the steps (b) and (c) to remove all the dirt.

CAUTION

• Do not use water or any other liquid.
• Do not use a stiff brush.
• Pay attention not to damage the LED lamps when using the soft brush, the air blower, or the soft cloth.

CAUTION

• Disconnect the power supply to the LED modules when performing the maintenance.
• Before installing or removing pixel cards, please ensure the wall has been powered off for 1 or 2 hours. Otherwise the thermal expansion of pixel cards increases the risk of damaging them during removal or insertion.
• Use the correct screwdriver for the shape of the screws when removing (loosening) or setting (tightening) the screws.
  Pay attention not to drop the screws and the other parts you have removed.
  Pay attention not to lose the removed screws since they will be reused.

Removing a pixel card

Remove the pixel card using the maintenance tool.

Technical diagram of a handheld device with labeled parts, showing internal components and mounting base.

1. Turn on the power switch.
2. Press the start button and the device will starts.
3. Put the maintenance tool flat onto the surface of the pixel card which you want to take off, make sure the device is tightly sucked with the pixel card.
4. Pull out the maintenance tool and pixel card vertically.

Technical line drawing of a wall-mounted device mounted on a panel (no text or symbols)

Diagram of a mechanical device mounted on a wall, showing a lever and directional arrow (no text or symbols)

CAUTION:

• Check that the battery of the maintenance tool is fully charged before starting the work. Pixel card falls if the battery runs out. Hold the pixel card with your hand to support in case it falls.
• Do not turn the maintenance tool off until you hold the pixel card. Otherwise, the pixel card may fall and break.

Removing and installing the hub board

(1) Removing the hub board

(a) Disconnect the LAN cable from the hub board
(b) Remove the 16 screws securing the hub board with a Phillips screwdriver (No. 1).
(c) Since the hub board is connected to the power unit with pins and connectors, remove it by raising this part, as well as the part with the positioning holes. The status board and the hub board are connected with a cable.

Pay attention not to pull the hub board.

(d) Disconnect the cable from the hub board, and then remove the hub board.

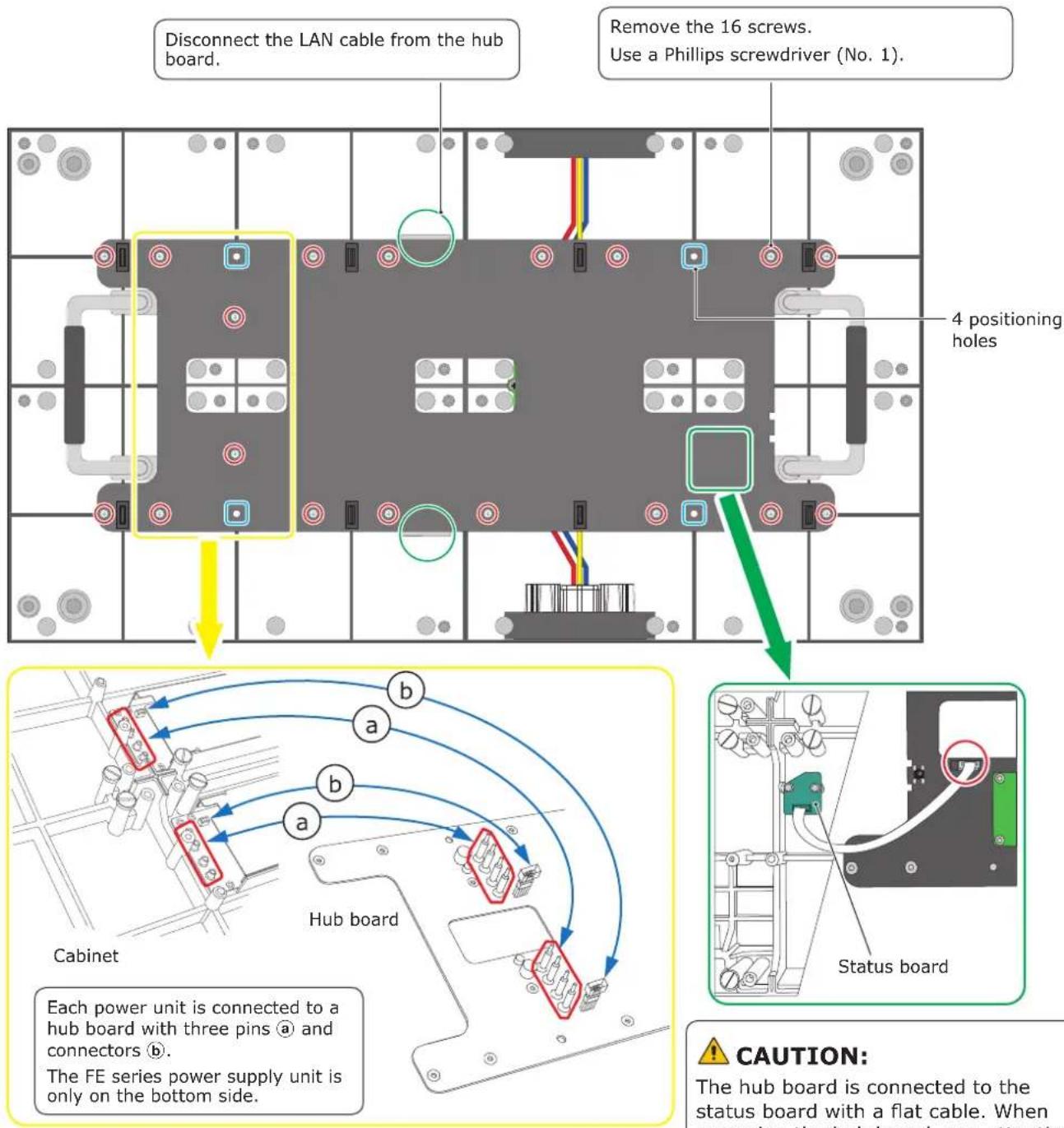

Disconnect the LAN cable from the hub board. Remove the 16 screws. Use a Phillips screwdriver (No. 1). 4 positioning holes Cabinet Hub board Each power unit is connected to a hub board with three pins ⓐ and connectors Ⓐ. The FE series power supply unit is only on the bottom side. Status board CAUTION: The hub board is connected to the status board with a flat cable. When in the hub board are attractive

CAUTION:

The hub board is connected to the status board with a flat cable. When removing the hub board, pay attention not to pull and damage the cable.

Disconnect the connector on the hub board, and then remove the hub board.

(2) Installing the hub board

Install the hub board into the cabinet following the procedure below.

(a) Connect the status board to the hub board using the cable.
(b) Install the hub board into the cabinet. Install it with the power unit pins and connectors aligned. Insert the pins and connectors completely and check that the hub board is securely attached and not bent.
(c) Tighten the 18 screws. Use a tightening torque of 3 ± 0.5 kgf·cm.
(d) Connect the LAN cable.

Replacing the power unit

The power unit dissipates heat through the cabinet. Apply some thermal paste on the back of the power unit to be replaced. Ask your retailer for more details on the types of thermal paste.

(a) Remove the hub board following the “(1) Removing the hub board” procedure on the previous page.
(b) Remove the four screws, and then remove the power hub board.
(c) Remove the two screws securing the power unit, and then replace the power unit.
(d) Install the power hub board, the protective sheet, and the hub board.
(e) Install the hub board following the "(2) Installing the hub board" procedure on the previous page.

Remove the four screws. Use a Phillips screwdriver (No. 2). Torque for installation: 3 ± 0.5 kgf•cm

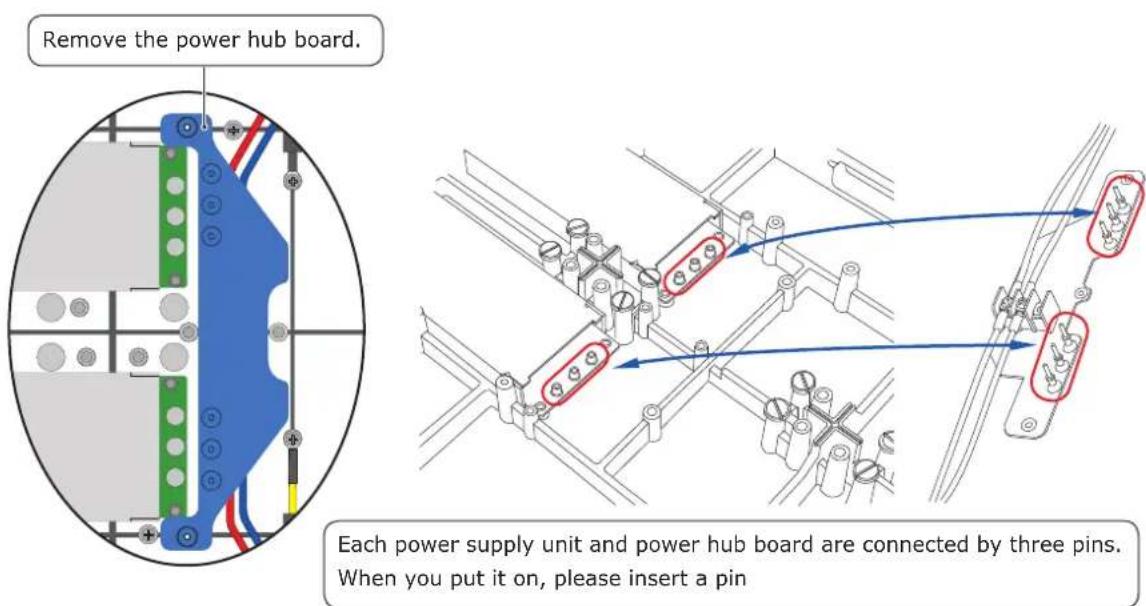

Remove the power hub board. Each power supply unit and power hub board are connected by three pins. When you put it on, please insert a pin

Replace the power unit 2 (slave). Use the screws you have removed to secure the power unit. Tightening torque: 3 ± 0.5 kgf•cm Remove the two screws securing the power unit. Use a Phillips screwdriver (No. 2). Remove the two screws securing the power unit. Use a Phillips screwdriver (No. 2). Replace the power unit 1 (master). Use the screws you have removed to secure the power unit. Tightening torque: 3 ± 0.5 kgf•cm

The FE series power supply unit is only on the bottom side.

Replacing the receiving card

Remove the receiving card from the hub board.

Remove the four screws securing the receiving card, and then remove the receiving card from the hub board.

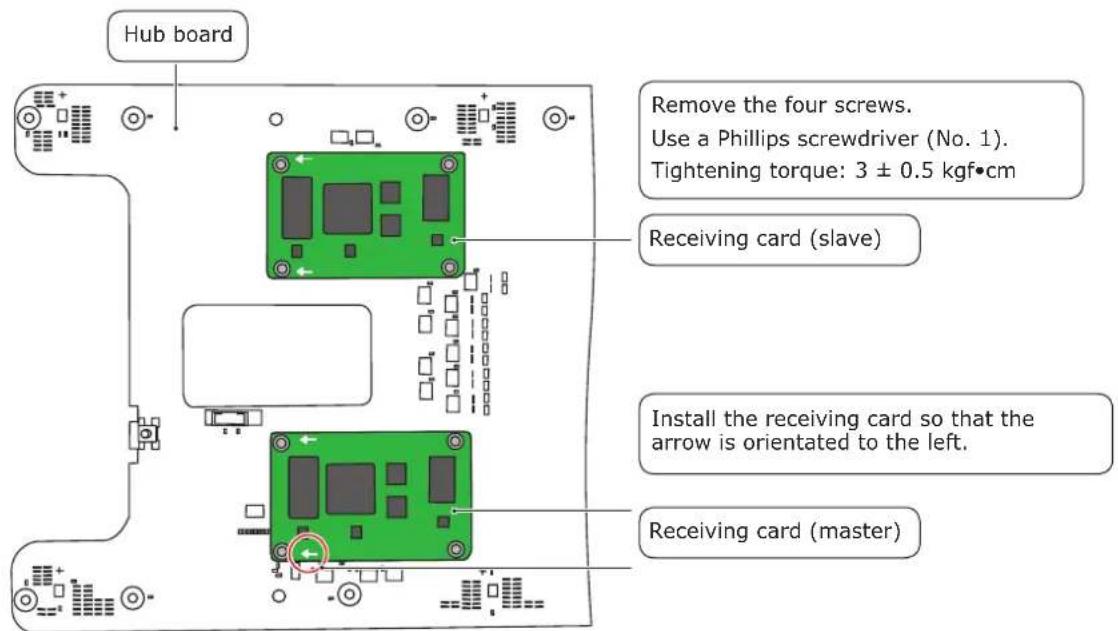

Hub board Remove the four screws. Use a Phillips screwdriver (No. 1). Tightening torque: 3 ± 0.5 kgf•cm Receiving card (slave) Install the receiving card so that the arrow is orientated to the left. Receiving card (master)

The FE series receiving card is (master) only.

1. Display problems

Problem Solution
Nothing is displayed on all the LED modules.	Check that power is being supplied to the LED modules.
	Check that the LED controller is turned on.
	Check that a video signal is being input to the LED controller.
	Check that a LAN cable is correctly connected between the LED controller and the LED module.
	Check that the brightness is not set to 0% (= not lit).
Nothing is displayed on one LED module.	Check that a LAN cable is correctly connected between the LED controller and the LED module.
	The receiving card inside the LED module may be broken.→ Check the status of the LED module by following the procedure in the next section "2 State monitoring using the software".
	The power unit inside the LED module may be broken.→ Check the status of the LED module by following the procedure in the next section "2 State monitoring using the software".
No image is displayed on one pixel card.	Check that the contacts of the pixel card are correct (contacts of the hub board).
	The pixel card may be broken. Replace it with a spare pixel card.
Control (communication) is not possible.	Check that the communication cable is correctly connected between the computer and the LED controller.
	Check that the LED controller is turned on.
	If the communication cable is a USB cable, check that the device driver runs correctly.
The colors differ on one pixel card.	Perform the "Adjusting the colors on a part of the screen" procedure. Select the adjustment range using "Select by Pixel Area" described in (5)-2.
I want to adjust the color tone of the entire screen.	Perform the "Adjusting the colors on a part of the screen" procedure. Select the adjustment range using "Screen" described in (5)-1.
Bright lines or dark lines are visible between the pixel cards or between the modules.	Perform the "Line calibration" procedure.

2. Adjusting the colors on a part of the screen

(1) Log in with the administrator privileges (English-61).
(2) Click "Calibration" (a). Start calibration menu.

NovaLCT V5.2.0 System(S) Settings (C) Tools(T) Plug-in (P) User(U) Language(L) Help(H) Screen Configuration Brightness Calibration Screen Control Monitoring Multi-function Card Test Tool Local System Information Control System 1 Other Device 0 View Details of Device Monitor Information Service Status: Service version:3.1

Screen Calibration Single-Screen Mode Combined-Sc Current Operation Communication Port 182.068.41.1300 Current Screen Screen1 Settings of Displaying Image Position to Display Image; Primary Display Extended Display Device Response Time: 100 ms Use input source for display Enable/Disable Calibration Disable Calibration Brightness Calibration Chroma Calibration Save Online Calibration Offline Calibration Manage Coefficients Double Calibration Coefficients Send by Address Send by Topology Screen:1 Starting coordinateX=0, Y=0 Size1440W×810H Full Select by pin Select by Topology Select operat... Operate all pixels. Flash Check New Recording Card Callu New Module Calibration C Save Calibration Coefficien... Auto Upload Module Save to HIV Return

(3) Check that "Chroma Calibration" (b) is selected and click the "Manage Coefficients" tab (c).

Screen Calibration Current Operation Communication Port 192.168.41 1:000 Current Screen Screen1 Screen2 Settings of Displaying Image Position to Display Image; Primary Display Extended Display Device Response Time: 103 ms Use input source for display Enable/Disable Calibration Disable Calibration Beaker Calibration Chroma Calibration (c) (d) Select Operation Upload coefficients Save calibration coefficients to database Set coefficients for a new receiving card Set coefficients for a new module Adjust coefficients (Color is uniform on screen) Erase or relaxed calibration coefficients Reset calibration coefficients Upload coefficients (for factory use) Module Flash

(4) Set "Extended Display" (d) under "Setting of Displaying Image", and then click "Adjust coefficients" (e).

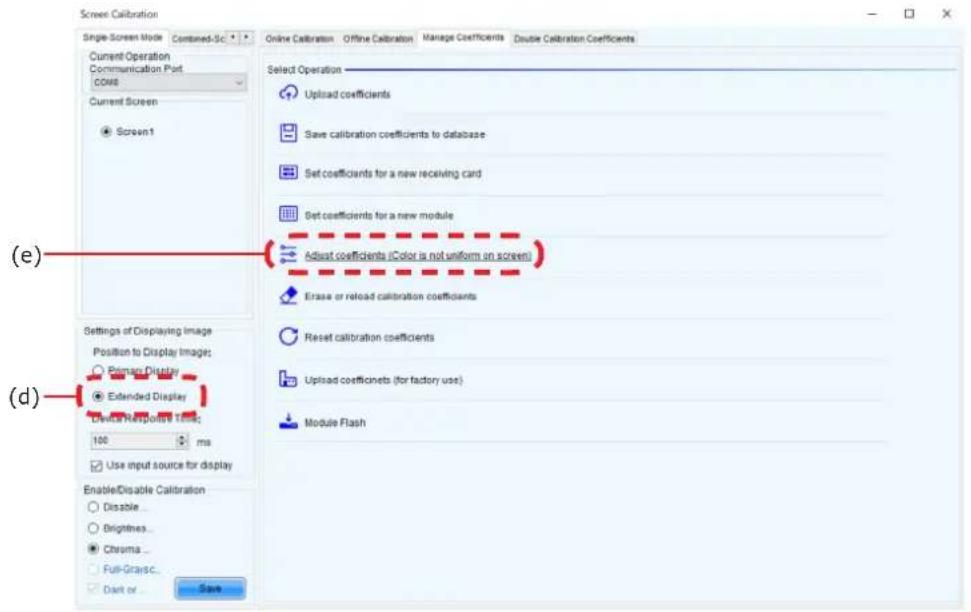

Screen Calibration Single-Screen Mode Combined-Sc Current Operation Communication Port Core Current Screen Screen1 (e) Settings of Displaying Image Position to Display Images: Eraer Display Extended Display Device/Respolat Time: 100 ms Use input source for display Enable/Disable Calibration Disable... Brightness... Chroma... Full-Grayscale... Dart or Save Online Calibration Offline Calibration Manage Coefficients Double Calibration Coefficients Select Operation Upload coefficients Save calibration coefficients to database Set coefficients for a new receiving card Set coefficients for a new module Adjust coefficients (Color is not uniform on screen) Erase or reload calibration coefficients Reset calibration coefficients Upload coefficients (for factory use) Module Flash

(5) Select the range specification method from the three available methods depending on the calibration range. After setting the range, click "Next" to display the "Adjust Coefficients" screen.

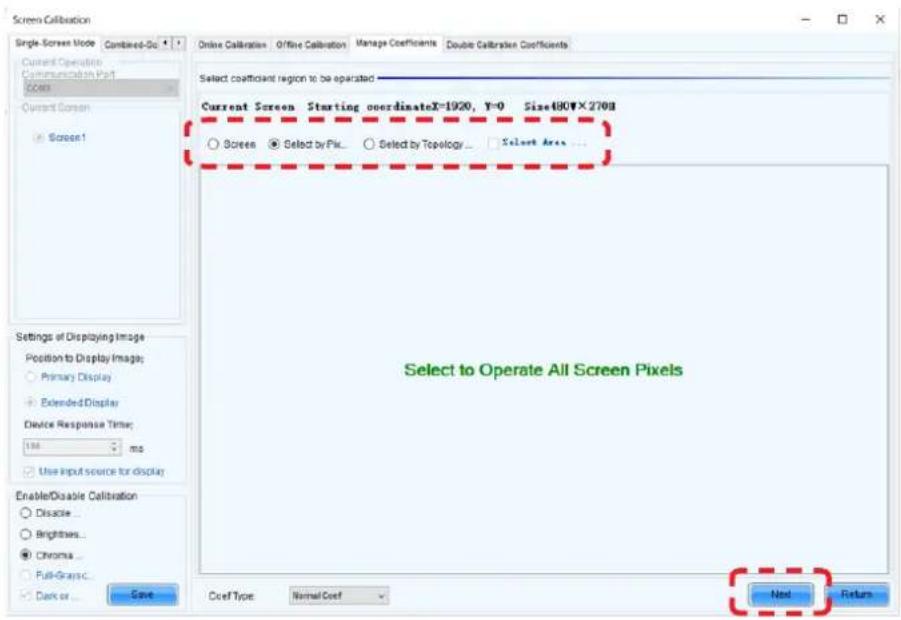

Screen Calibration Single Screen Mode Combined-Go Current Operations Communication Part1 Score Current Screen Screen1 Settings of Displaying Image Position to Display Image: Primary Display Extended Display Device Response Time: 1ms ms Use Input Source for display Enable/Disable Calibration Disable... Brightness... Chroma... Full-Grayscale... Dark or... Save Online Calibration Offline Calibration Manage Coefficients Double Calibration Coefficients Select coefficient region to be operated Current Screen Starting coordinateX=1920, Y=0 Size480V×270H Screen Select by Pick Select by Topology Select Area... Select to Operate All Screen Pixels Coef Type Normal Coef Next Return

(5)-1

Screen: Adjust the entire frame set.

The calibration settings reading starts after "Next" is clicked. A fair amount of time is required to read the data.

The "Adjust Coefficients" screen is displayed when the data has been read.

(5)-2

Select by Pixel Area: Adjust by pixels.

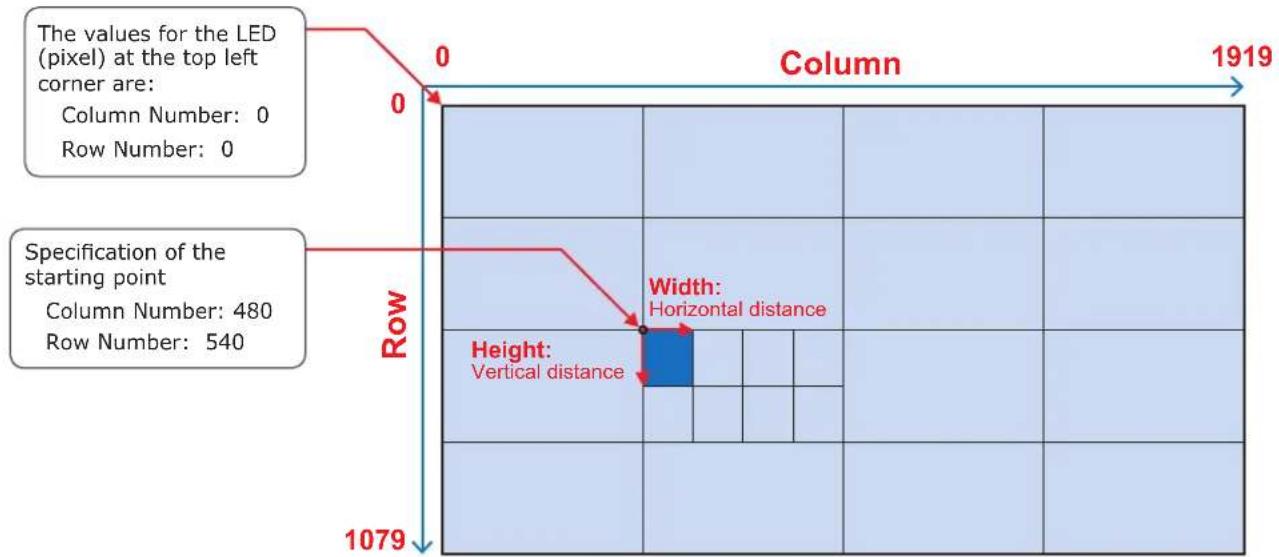

Column Number... 480 Row Number of ... 540 Width 120 Height 135

The screen used to specify the adjustment range is displayed.

Column Number: The position (pixel) on the horizontal axis of the starting point (top left) of the selection range

Row Number: The position (pixel) on the vertical axis of the starting point (top left) of the selection range

Width: The horizontal distance from the points specified with "Column Number" and "Row Number"

Height: The vertical distance from the points specified with "Column Number" and "Row Number"

For reference: When specifying one pixel card

The values for the LED (pixel) at the top left corner are: Column Number: 0 Row Number: 0 Specification of the starting point Column Number: 480 Row Number: 540 1079 0 Column 1919 Row Width: Horizontal distance Height: Vertical distance

Product name	LED-FA009i2LED-FE009i2	LED-FA012i2LED-FA012i2-SBLED-FE012i2LED-FE012i2-E	LED-FA015i2LED-FA015i2-SBLED-FE015i2LED-FE015i2-E	LED-FA019i2LED-FE019i2LED-FE019i2-E
Pixel pitch 0.9 mm	1.2 mm 1.5 mm	1.9 mm
Number of displayed pixels (resolution/module)	Width 640Height 360	Width 480Height 270	Width 384Height 216	Width 320Height 180
Number of displayed pixels (resolution/pixel card)	Width 160Height 180	Width 120Height 135	Width 96Height 108	Width 80Height 90

Product name	LED-FA025i2LED-FE025i2	LED-FA031i2LED-FE031i2	LED-FA038i2LED-FE038i2
Pixel pitch 2.5 mm	3.1 mm 3.8 mm
Number of displayed pixels (resolution/module)	Width 240Height 135	Width 192Height 108	Width 160Height 90
Number of displayed pixels (resolution/pixel card)	Width 60Height 135	Width 48Height 90	Width 40Height 45

Check that "Adjust Its Own Effect" is selected and click "Next" to start the calibration settings reading process.

The "Adjust Coefficients" screen is displayed when the data has been read.

Screen Calibration Single-Screen Mode Combined-Sci Online Calibration Offline Calibration Manage Coefficients Double Calibration Coefficients Current Operation Communication/other Part Core Current Screen Screen1 Select the main display effect Adjust its own Effect Adjust to the Same Effect as Off... Settings of Displaying Image Position to Display Image; Primary Display Extended Display Device Response Time; 100 ms Use input source for display Enable/Disable Calibration Disable... Brightness... Chrome... Full-Grayscale... Dark or... Save Adjust its own display effect Back Next Return

(5)-3

Select by Topology or List: Adjust multiple modules

A screen with the display configuration is displayed. Specify the range of the modules you want to adjust.

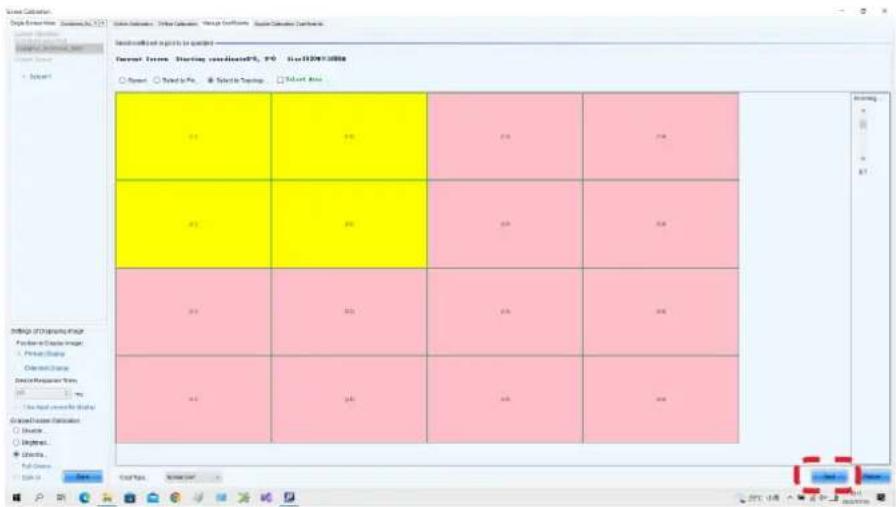

View Calculation Single Element View - Standard (A) 5.21 Visual Subtraction - Visual Calculation - Visual Transform - Visual Calculation Transform Standard values in pixels for quarter Current Version: Starting coordinate(0, 10) - Start(0)X(0)X(0) □ Select □ Select to No □ Select to Topset □ Select to Over Settings of Advertising Order Position and Create Image □ Select Display Channel Sequence Device Manager Time □ Select □ Select to Display Channel Document Destination □ Select □ Select □ Select □ Select □ Select □ Select □ Select □ Select □ Select □ Select □ Select □ Select □ Select □ Select □ Select □ Select □ Select □ Select □ Select □ Select □ Select □ Select □ Select □ Select □ Select □ Select □ Select □ Select □ Select □ Select □ Select □ Select □ Select □ Select

The calibration settings reading starts after "Next" is clicked.

The "Adjust Coefficients" screen is displayed when the data has been read.

(6) Adjust Coefficients screen

Click "Advanced Adjustment".

Screen Calibration Single-Screen Mode Combined-So Current Operation Communication Port Show Current Screen Screen1 Settings of Displaying Image Position to Display Image: Primary Display Extended Display Device Response Time: 100 ms Use input source for display Enable/Disable Calibration Disable... Brightlines... Chrome... Full-Grayscale Dark or Save Online Calibration Offline Calibration Manage Coefficients Double Calibration Coefficients Adjust Coefficients Simple Adjustment Red > 71.1 Green > 72.5 Blue > 76.4 Advanced-Adjust Hide color wind Back Next Return

(7) Adjust the "Color adjustment of red, green and blue" parameters, and then adjust the "Color matching of red, green and blue" parameters.

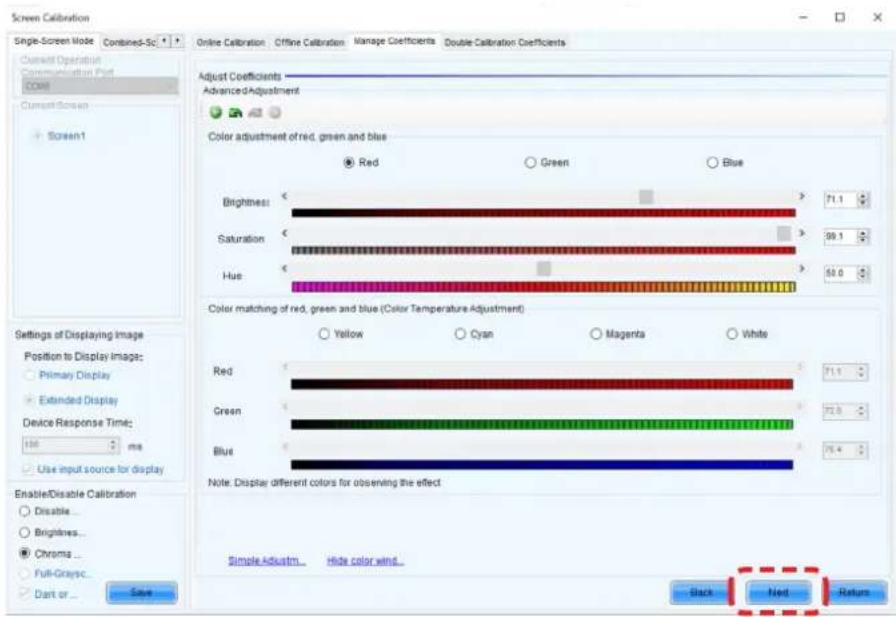

Screen Calibration Single-Screen Mode Combined-Sc Current Operation Communication Post Core Current Screen Screen1 Adjust Coefficients Advanced Adjustment Color adjustment of red, green and blue ● Red ○ Green ○ Blue Brightness < 71.1 Saturation < 39.1 Hue < 63.0 Color matching of red, green and blue (Color Temperature Adjustment) ○ Yellow ○ Cyan ○ Magenta ○ White Red 71.1 Green 72.5 Blue 75.4 Enable/Disable Calibration ○ Disable... ○ Brightness... ○ Chroma... ○ Full-Grayscale ○ Dark or... Save Note: Display different colors for observing the effect Simple Adjustm Hide color wind... Back Ned Return

Click "Next" after you have finished the adjustment.

(8) Click "Save" to save the calibration settings you have adjusted.
(9) Click "Finish" to complete the procedure.

Screen Calibration Single-Screen Mode Combined-Sc Current Operation Communication Part Other Current Screen Screen1 Settings of Displaying Image Position to Display Image: Primary Display Extended Display Device Response Time: 100 ms Use input source for display Enable/Disable Calibration Disable ... Brightness ... Chroma ... Full-Grayscale ... Dark or... Save Online Calibration Offline Calibration Manage Coefficients Double Calibration Coefficients Apply and save calibration coefficients Apply the adjustment effect to other areas Save Back Finish Return

Note

To return the calibration adjustment values to their default setting, perform the "Update the Calibration Data" procedure (English-68).

3. State monitoring using the software

In case of a problem, you will be able to determine the location where it occurred by monitoring the state of the system.

3-1 Display under normal conditions

The display is green under normal conditions.

NovaLCT V5.1.0 System(S) Settings (C) Tools(T) Plug-in (P) User(U) Language(L) Help(H) Brightness Screen Control Monitoring Multi-function Card Test Tool Cloud Monitoring Local System Information Control System 1 Other Device 0 View Details of Device Monitor Information Service Status: Service version:3.1 Click "Monitoring" to check - the state of the LED controller - the operating state of the LED modules - the temperature of the LED modules

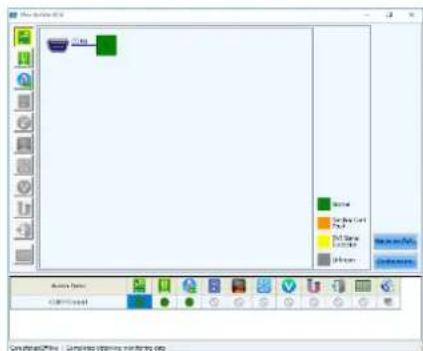

Cute Name File Edit Ctrl View Insert Edit View Control Panel Controls

Current Data Current Data Current Data Current Data Current Data Current Data Current Data Current Data Current Data Current Data Current Data Current Data Current Data Current Data Current Data Current Data Current Data Current Data Current Data Current Data Current Data Current Data Current Data Current Data Current Data Current Data Current Data Current Data Current Data Current Data Current Data Current Data Current Data Current Data Circuits & Cycles - Cycles 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% Circuits & Cycles - Cycles 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% Circuits & Cycles - Cycles (100%) 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% Circuits & Cycles - Cycles (15%) 15.5% 25.5% 35.5% 45.5% 55.5% 65.5% 75.5% 85.5% 95.5% 105.5% 115.5% 125.5% 135.5% 145.5% 155.5% 165.5% 175.5% 185.5% 195.5% 205.5% 215.5% 225.5% 235.5% 245.5% 255.5% 265.5% 275.5% 285.5% 295.5% 305.5% 315.5% 325.5% 335.5% 345.5% 355.5% 365.5% 375.5% 385.5% 395.5% 405.5% 415.5% 425.5% 435.5% 445.5% 455.5% 465.5% 475.5% 485.5% 495.5% 505.5%

COMP Screen1 Time of Analyze the Current Simulation Data (1983.0) Circuitrical Information Linear Temperature(°C) 22 kPa/°C Average Temperature(°C) 100 kPa/°C Fast Forward Simulation Ready the current signal with response: 0 Control Panel System Name COMS Screen1 Correlation Analysis Correlation Analysis Correlation Analysis Correlation Analysis Correlation Analysis Correlation Analysis Correlation Analysis Correlation Analysis Correlation Analysis Correlation Analysis Correlation Analysis Correlation Analysis Correlation Analysis Correlation Analysis Correlation Analysis Correlation Analysis Correlation Analysis Correlation Analysis Correlation Analysis Correlation Analysis Correlation Analysis Correlation Analysis Correlation Analysis Correlation Analysis Correlation Analysis Correlation Axis Correlation Axis Correlation Axis Correlation Axis Correlation Axis Correlation Axis Correlation Axis Correlation Axis Correlation Axis Correlation Axis Correlation Axis Correlation Axis Correlation Axis Correlation Axis Correlation Axis Correlation Axis Correlation Axis Correlation Axis Correlation Axis Correlation Axis Correlation Axis Correlation Axis Correlation Axis Correlation Axis Correlation Axis Correlation axis

State of the LED controller State of the LED modules Temperature of the LED modules

3-2 Display under abnormal conditions

(1) Problem with the input signal to the LED controller

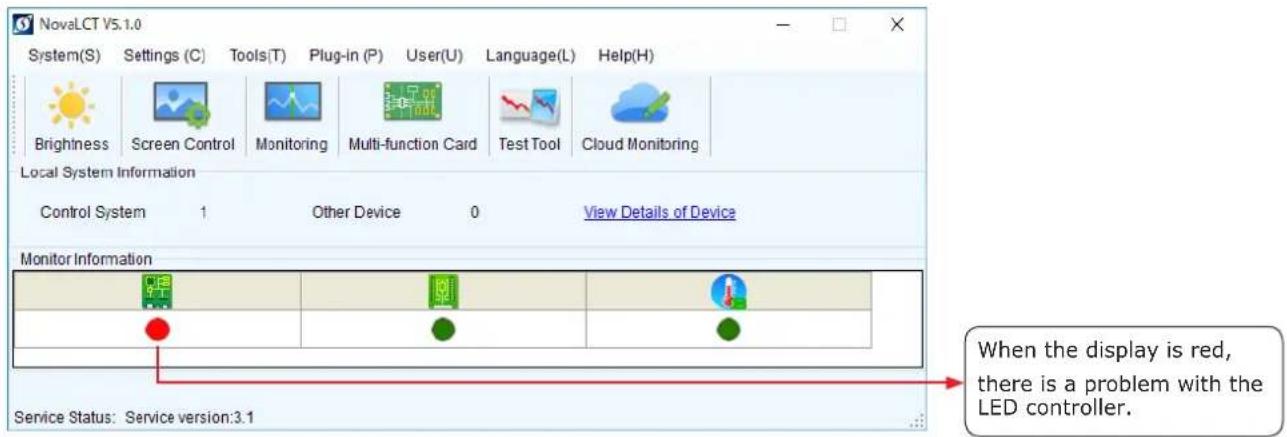

NovaLCT V5.1.0 System(S) Settings (C) Tools(T) Plug-in (P) User(U) Language(L) Help(H) Brightness Screen Control Monitoring Multi-function Card Test Tool Cloud Monitoring Local System Information Control System 1 Other Device 0 View Details of Device Monitor Information When the display is red, there is a problem with the LED controller. Service Status: Service version:3.1

To display more details, click "Monitoring", and then click "Sending card" on the screen that is displayed.

MonitorSite V2.6 COM5 1 No video signal is being input to the LED controller. - Check that the LAN cable is connected. - Check that a video signal is being output from the video output equipment. - If multiple signals are being input to the LED controller, check the input settings of the LED controller. Normal Sendline Cord Fault DVI Signal Exception Unknown Monitoring Rate Configuration Screen Name COM5-Screen1 Care status:Offline | Completed obtaining monitoring data

(2) Problem with the LED modules

NovaLCT V5.1.0 System(S) Settings (C) Tools(T) Plug-in (P) User(U) Language(L) Help(H) Brightness Screen Control Monitoring Multi-function Card Test Tool Cloud Monitoring Local System Information Control System 1 Other Device 0 View Details of Device Monitor Information When the display is red, there is a problem with the LED module operation. Service Status: Service version:3.1

To display more details, click "Monitoring", and then click "Receiving card" on the screen that is displayed.

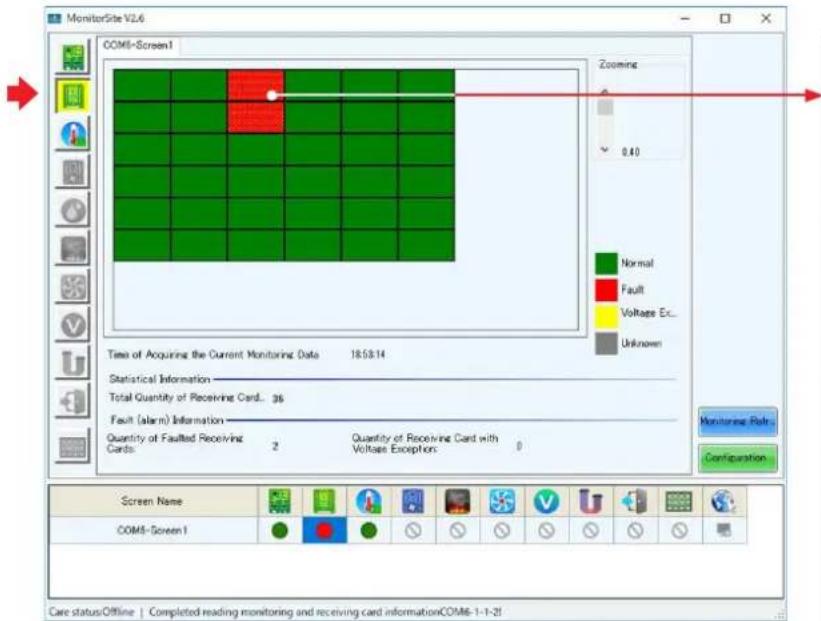

MonitorSite V2.6 COMI-Screen1 Zooming 0.40 Normal Fault Voltage Ex... Unknown Time of Acquiring the Current Monitoring Data 18:59:14 Statistical Information Total Quantity of Receiving Card... 3s Fault (alarm) Information Quantity of Faulted Receiving Cards: 2 Quantity of Receiving Card with Voltage Exception: 0 Monitorise Refs... Configuration Screen Name COMI-Screen1 Care status/Offline | Completed reading monitoring and receiving card informationCOMI6-1-1-21

In the example shown on the left, the following problems must be considered.

• Signal loss between the screen of the 3rd row 3rd column and the screen of the 2nd row 3rd column
  → Check the internal LAN cable.
• Problem with both power units of the screen of the 2nd row 3rd column → Check the rear indicator (red) to see if it is lit.

There is no problem if it is lit red.

If it is not lit, the power unit is probably broken. (Replacing the power unit)

- Problem with the receiving card of the screen of the 2nd row 3rd column

→ Check that the receiving card is securely connected. If there are no connection problems, the receiving card may malfunction. (Replacing the receiving card)

(3) Problem with the internal temperature of the LED modules

NovaLCT V5.1.0 System(S) Settings (C) Tools(T) Plug-in (P) User(U) Language(L) Help(H) Brightness Screen Control Monitoring Multi-function Card Test Tool Cloud Monitoring Local System Information Control System 1 Other Device 0 View Details of Device Monitor Information There is a problem with the LED module operation. Service Status: Service version:3.1

To display more details, click "Monitoring", and then click "Temperature" on the screen that is displayed.

MonitorSite V2.6 COMI-Screen 1 40 41 41 98 40 93 43 42 48 77 43 42 44 43 42 40 41 44 42 44 43 42 43 40 41 42 48 41 42 44 40 48 43 44 45 41 Zooming 0/40 80°C 60°C -20°C Unknown Time of Acquiring the Current Monitoring Data 19:56:1 Statistical Information Lowest temperature(°C): 10 Highest Temperature(°C): 75 Average Temperature(°C): 12 Quantity of receiving card with over-average t... 13 Fault Color(°) Information Quantity of receiving card with temperature... 1 Monitor Site Help... Configuration Screen Name COMI-Screen 1 Care status:Offline | Completed obtaining monitoring data

(4) Communication problem

NovaLCT V5.1.0(No Hardware) System(S) Settings (C) Tools(T) Plug-in (P) User(U) Language(L) Help(H) Brightness Screen Control Monitoring Multi-function Card Test Tool Cloud Monitoring Local System Information Control System 0 Other Device 0 View Details of Device Monitor Information Service Status: Service version:3.1 When the display is grey, the communication is not established. → Check that the USB cable is connected. → Check that the LED controller is turned on.

4. Redundancy setting method

4.1 Configuring the settings with two LED controllers connected to the PC using LAN cables

Connect the LED controllers and the LED modules with LAN cables.

Terminate the Backup system connection at the RJ-45 connector located top left on the last module in the daisy chain connection.

* For the MCTRL 4K LED controller, the way to make connections is similar to this example.

Start the control software NovaLCT and log in with the administrator privileges.

Display the login screen as follows: User(U) -> Advanced Synchronous System UserLogin(A). Enter the password ("admin") to log in with the administrator privileges.

Click "Screen Configuration".

NovalLCT V5.4.2CTM 1.0.02357 System(S) Settings (C) Tools (T) Play-In (P) User(U) Language(L) Help(H) Cloud Monitoring Screen Configuration Brightness Calibration Screen Control Monitoring Multi-function Card Local System Information Control System 2 Other Device 0 View Details of Device Monitor Information Service Status: Service version 3.1.1

Communication Port	Device Type	Number of Devices	SN
172.1.0.10.5200	MCTRL4K	1	002CF7010000_
172.1.0.11.5200	MCTRL4K	1	002CFD01000_

Check the port in "Select Communication Port", select the Main (Primary) and Backup system LED controllers by their IP address, and then click "Next".

Configure the settings for the Main (Primary) controller and Backup controller separately.

Screen Configuration Select Communication Port Current Operation... 172.1.0.10:5200 172.1.0.11:5200 Configure Screen Load Config... Browse Next Close

Main (Primary) Backup

Screen Configuration Select Communication Port Current Operation... 172.1.0.10:5200 Configure Screen Load Config... Browse Next Close

Screen Configuration Select Communication Port Current Operatio... 172.1.0.11:5200 Configure Screen Load Config... Browse Next Close

On the Main (Primary) side

Click the "Restore Factory Settings" button for initialization.

After initialization, configure the settings for "Select Input Source" and "Source Configuration".

If the factory setting is correctly configured and the device connection is the same as when the factory setting was configured, check the settings without performing initialization.

Screen Configuration-172.1.0.10:5200 Sending Card Receiving Card Screen Connection Display Mode Refresh Current Display Mode Sending Card ... 1920 x 1080(1080P) Graphics Output R... 2560 x 1600 Curre... HDMI Select Input Source Video Input □ Automat8... HDMI Send 3D Function □ Enable Settings Source Configuration Source: HDMI Resolution: 1920 x 1080 px □ Custom... 1920 x 1080 Refresh Rate T... 66 Hz: Input Source Bit De... 0 Bit Set Hot Backup Verification Verify Redundancy Set the Current Devi... □ Set as Primary □ Set as Backup Primary Backup Serial Number of Primary Sending Card Serial Number of Primary Port Serial Number of Backup Sending Card Serial Number of Backup Port Refresh Send Add Edit Delete Restore Factor Export Screen M. Save System Co. Save Close

Main (Primary)

Select the Screen Connection tab.

Select/enter the value for "Screen Type", "Receiving Card Size", "Columns" and "Rows", and use "Ethernet Port No." and the screen configuration section to configure the connection.

* For details of the configuration procedure, refer to the User's Manual.

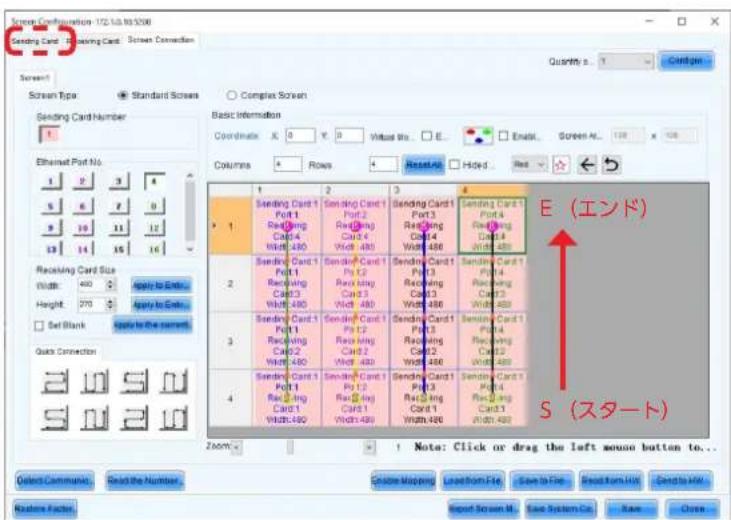

Next, select the Sending Card tab.

Go to "Redundancy", select the checkbox for "Set as Primary" and click "Save".

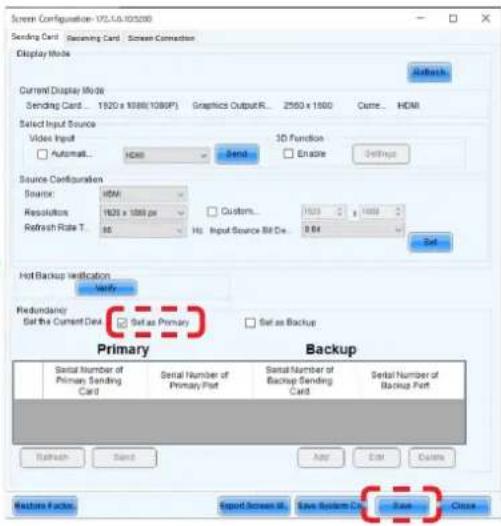

Screen Configuration: 172.53.10.53.00 Sending Card - Sending Card - Screen Connection Screen1 Screen Type Standard Screens Complex Screen Ethernet Port No. 1 2 3 4 6 7 8 9 10 11 12 13 14 15 16 Sending Card Number 1 2 3 4 Sending Card-1 Port-1 Receiving Card-1 Width: 400 Apply to Entry Height: 270 Apply to Entry Set Blank Apply to the current Quick Connection 1 2 3 4 Sending Card-1 Port-1 Receiving Card-1 Width: 400 Apply to Entry 2 Sending Card-1 Port-1 Receiving Card-1 Width: 400 Apply to Entry 3 Sending Card-1 Port-1 Receiving Card-1 Width: 400 Apply to Entry 4 Sending Card-1 Port-1 Receiving Card-1 Width: 400 Apply to Entry E (エンド) Sending Card-1 Port-1 Receiving Card-1 Width: 400 Apply to Entry Sending Card-1 Port-4 Receiving Card-4 Width: 400 Apply to Entry Sending Card-1 Port-4 Receiving Card-4 Width: 400 Apply to Entry Sending Card-1 Port-4 Receiving Card-4 Width: 400 Apply to Entry Sending Card-1 Port-4 Receiving Card-4 Width: 400 Apply to Entry S (スタート) Zoom: Note: Click or drag the left mouse button to... Select Commune Read the Number... Create Mapping Save from File Save to File Read From Use Send To Use... Read Time Factor... Report Screen M... Save System Co... Save... Close

Screen Configuration: V2.4.0.103200 Sending Card Shipping Card Screen Connection Display Mode Current Display Mode Sending Card... 1920 x 1088(1086P) Graphics OutputR... 2560 x 1060 Case... HDMI Select Input Source Video Input Automat... HDMI Send 3D Function Enforce Settings Source Configuration Source: HDMI Resolution: HDS x 1088 px Custom... HDS Input Source Bit De: 8.64 Set Hot Backup Verification Verify Redundancy Set the Current Data Set as Primary Set as Backup Primary Backup Serial Number of Primary Sending Card Serial Number of Primary Post Serial Number of Backup Sending Card Serial Number of Backup Post Refresh Send Apply Edit Delete Mainer Factors... Export Screen ID... Save System C# Save... Close

On the Backup side

Click the "Restore Factory Settings" button for initialization.

After initialization, configure the settings for "Select Input Source" and "Source Configuration".

If the factory setting is correctly configured and the device connection is the same as when the factory setting was configured, check the settings without performing initialization.

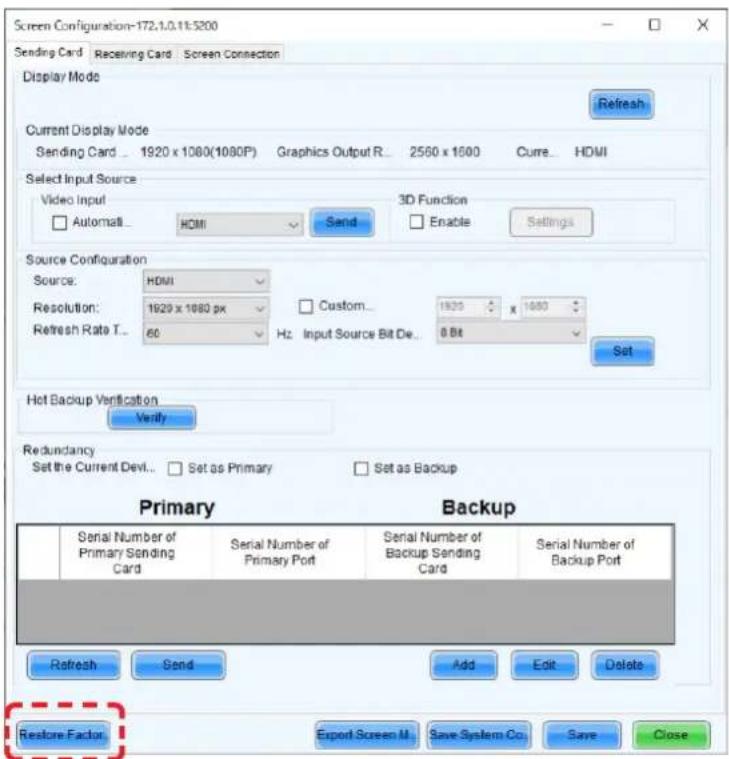

Screen Configuration-172.1.0.11:3200 Sending Card : Receiving Card : Screen Connection Display Mode Refresh Current Display Mode Sending Card .. 1920 x 1080(1080P) Graphics Output R.. 2560 x 1600 Curre... HDMI Select Input Source Video Input Automati... HDMI Send 3D Function Enable Settings Source Configuration Source: HDMI Resolution: 1929 x 1080 px Custom... 1920 x 1080 Refresh Rate T.. 60 Hz Input Source Bit De.. 0 Bit Set Hot Backup Verification Verify Redundancy Set the Current Devl.. Set as Primary Set as Backup Primary Backup Serial Number of Primary Sending Card Serial Number of Primary Port Serial Number of Backup Sending Card Serial Number of Backup Port Refresh Send Add Edit Delete Restore Factor Export Screen M Save System Co Save Close

Backup

Select the Screen Connection tab.

Configure the connection in the same way as for Main (Primary).

* The direction of connection is the same as for Main (Primary).

Next, select the Sending Card tab.

Go to "Redundancy", select the checkbox for "Set as Backup" and click "Save".

Screen Configuration-172.14.11/5209 Sending Card - Receiving Card - Screen Connection Quantity c... 1 Configure Screen Type Standard Screen Sending Card Number 1 Ethernet Port No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Receiving Card Size Width: 400 S Apply to Entry Height: 270 S Apply to Set □ Set Blank Apply to the current Quick Correction 200M 200M 1 2 3 4 E (End) S (Start) 1 Sending Card1 Port1 Receiving Card1 Port2 Port3 Port4 Receiving Card1 Port4 Port5 Port6 Port7 Port8 Port9 Port10 Port11 Port12 Port13 Port14 Port15 Port16 Port17 Port18 Port19 Port20 Port21 Port22 Port23 Port24 Port25 Port26 Port27 Port28 Port29 Port30 Port31 Port32 Port33 Port34 Port35 Port36 Port37 Port38 Port39 Port40 Port41 Port42 Port43 Port44 Port45 Port46 Port47 Port48 Port49 Port50 Port51 Port52 Port53 Port54 Port55 Port56 Port57 Port58 Port59 Port60 Port61 Port62 Port63 Port64 Port65 Port66 Port67 Port68 Port69 Port70 Port71 Port72 Port73 Port74 Port75 Port76 Port77 Port78 Port79 Port80 Port81 Port82 Port83 Port84 Port85 Port86 Port87 Port88 Port89 Port90 ① Note: Click or drag the left mouse button to... Screen Configuration-172.14.11/5209 Sending Card - Receiving Card - Screen Connection Display Mode Adjusted Current Display Mode Sending Card... 1520 x 1000(1000P) Graphics Output R... 2500 x 1500 Curr... HDMI Select Input Source Video Input Automat... HDMI Send Enable Settings Source Configuration Source: HDMI Resolution: 1000 x 1000 px Custom... Refresh Role T... HU Input Source Bit Dx... 8.84 Set Hot Backup Verification ✓ Redundancy Set as Primary ✓ Set as Backup Primary Backup Serial Number of Primary Sending Card Serial Number of Primary Port Serial Number of Backup Sending Card Serial Number of Backup Port Export Copy Save System Co Save Close Restore Factor Export Screen M Save System Co Save Close

Check the current brightness setting.

Click the "Brightness" button.

In the Brightness Adjustment screen, set the desired brightness value and click the "Save to HW" button.

Noval.CT V5.4.2CTM1.0.02357 Systems(S) Settings (C) Tools(T) Tools (S) User(U) Language(L) Help(H) Cloud Monitoring Screen Configuration Brightness Customization Screen Control Monitoring Multi-function Card Local System Information Control System 2 Other Device 0 View Details of Device Monitor Information Service Status: Service version 3.1.1

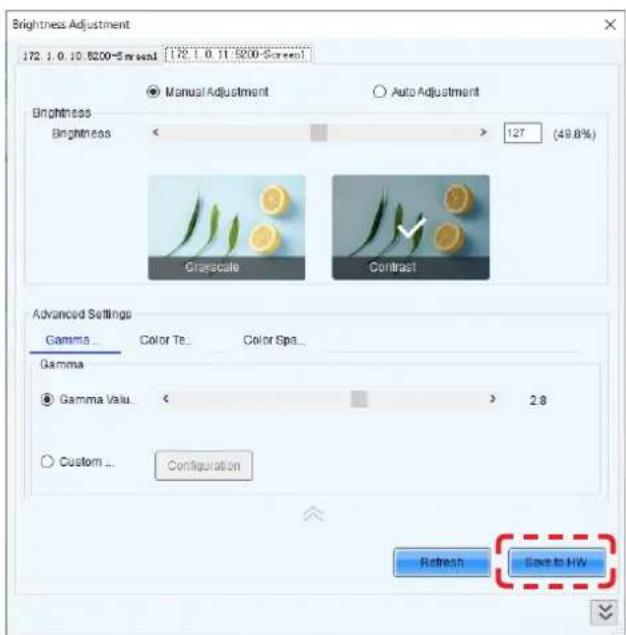

Brightness Adjustment 172.1.0.10 (5200-Screen) 172.1.0.11:5200-Screen Brightness Brightness < > 127 (49.8%) Grayscale Contrast Advanced Settings Gamma Color Te... Color Spa... Gamma Gamma Valu... < > 2.8 Custom _ Configuration Refresh Save to HIV

Brightness Adjustment 172.1.0.10.5200=5 smend 172.1.0.11.5200=Screen Brightness Brightness < > 127 (49.8%) Auto Adjustment Grayscale Contrast Advanced Settings Gamma Color Te Color Spa... Gamma ● Gamma Valu. < > 2.8 ○ Custom... Configuration Refresh Save to HW

The monitoring screens appear like below.

NovalCT V5.4.2CTM1.0.x357 Systems Settings Tools Plug-In User Language Help Cloud Monitoring Screen Configuration Brightness Calibration Screen Control Monitoring Multi-function Card Local System Information Control System 2 Other Device 6 View Details of Device Monitor Information Service Status: Service version 3.1.1

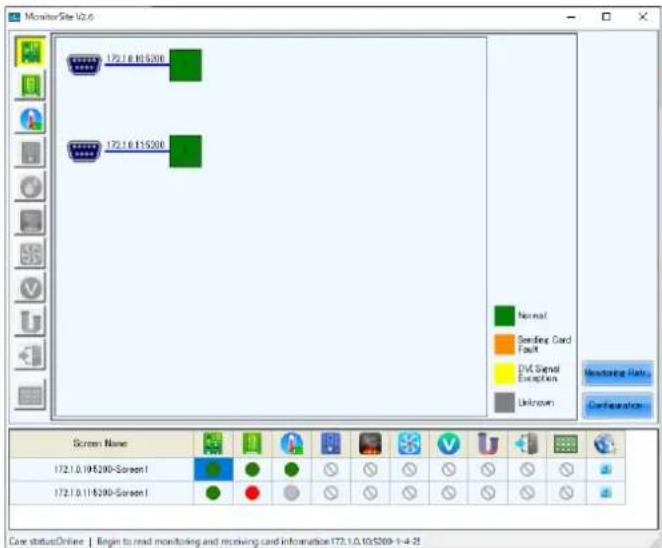

MonitorSite 12.6 172.1.0 10/5200 172.1.0 11/5200 Normal Sending Card Fault DVT Signal Exception Unknown Screen Name 172.1.0.19/5200-Screen 1 172.1.0.11/5200-Screen 1 Case status: Online | Begin to read monitoring and receiving card information:173.1.0.10/5200-1-4-25

V2.10.18 5200-Screen1 172.10.115200-Screen1 Time of Acquire the Current Monitoring Data 1249.17 Statistical Information Total Quantity of Receiving Cards... 13 Fault (Sales) Information Quantity of Paired Receiving Cards 0 Quantity of Receiving Card with Voltage Exclipters 0 Screen Name 172.10.185200-Screen1 172.10.115200-Screen1 Case statusOnline | Completed obtaining monitoring data

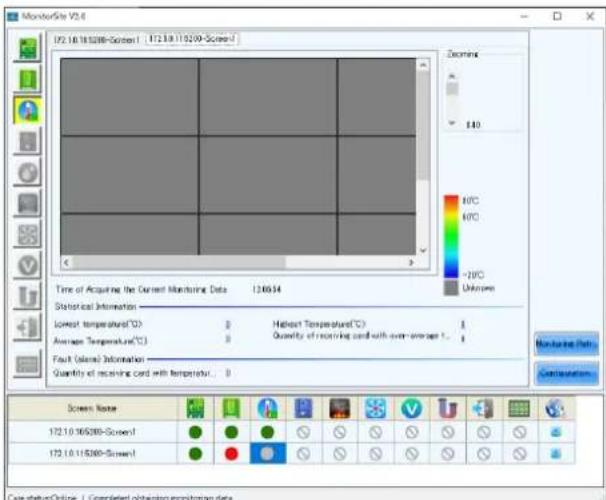

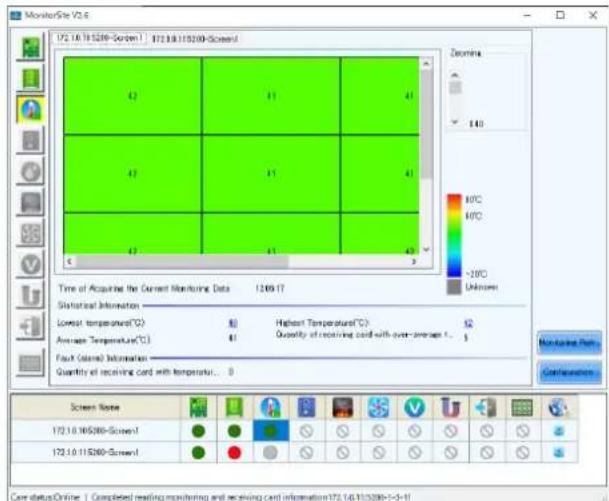

MonitorSite V0.6 172.16.19 5280-Screen1 872.16.11/3200-Screen1 42 41 41 47 41 41 42 41 43 Time of Acquiring the Current Monitoring Data 12:09:17 Historical Information Lowest temperature(°C) Highest Temperature(°C) Average Temperature(°C) Quantity of receiving card with over-screened... Fault Colorful Information Quantity of receiving card with temperature... Screen Name 172.16.19/3200-Screen1 172.16.11/3200-Screen1 Decima 840 80°C 80°C -10°C Unknown Montaster Flats Configuration Case statusOnline | Completed reading monitoring and receiving card information 172.16.11/3200-1-3-1f

MonitorSite V3.6 V3.6.10.18.5200-Screen | 172.10.11.5200-Screen | Time of Acquiring the Current Monitoring Data 12:00:24 Statistical Information Total Quantity of Receiving Card... 11 Fault (Valent) Information Quantity of Fetched Receiving Cards 11 Quantity of Receiving Card with Voltage Exception 8 Screen Name 172.10.165200-Screen 172.10.115200-Screen Case statusOnline | Completed obtaining monitoring data

MonitorSite V2.6 V2.10.18.10200-Screen1 V2.10.18.115200-Screen2 Time of Acquiring the Current Monitoring Data 13:05:54 Statistical Information Lowest temperature(°C) 0 Heliocent Temperature(°C) Average Temperature(°C) 0 Quantity of receiving card with over-average t... Fault (clear) Information 0 Quantity of receiving card with temperature... 0 Screen Name 172.10.185200-Screen1 172.10.115200-Screen1 Decining EAD -10°C -10°C -20°C Unknown Maintenance Path Configuration Care statusOnline | Completed obtaining monitoring data

Note: On the monitoring screen, the LED modules configured as "Backup" are displayed in red color (this is not an indication of a fault).

If a fault occurs on modules configured as "Main (Primary)", "Backup" modules are displayed in green color, which is an indication of normal state.

"Main (Primary)" modules are operating normally

Main (Primary) Backup

MonitorSite V0.6 182.158.1.10/200-Screen 1 182.158.1.13/200-Screen 1 Zoomed 0.21 Normal Fault Voltage Exce.. Unknown Time of Acquiring the Current Monitoring Data 18:21:17 Statistical Information Total Quantity of Receiving Cord... 16. Fault (Actual) Information Quantity of Faulted Receiving Cord 1 Quantity of Receiving Cord with Voltage Exception 6 Monitor Site Configuration Screen Name 182.183.0.19 $200-Screen 1 182.183.0.11 $200-Screen 1 Case status:OFFline | Completed reading monitoring and receiving card information(186.183.0.19/$200-1-3-3)

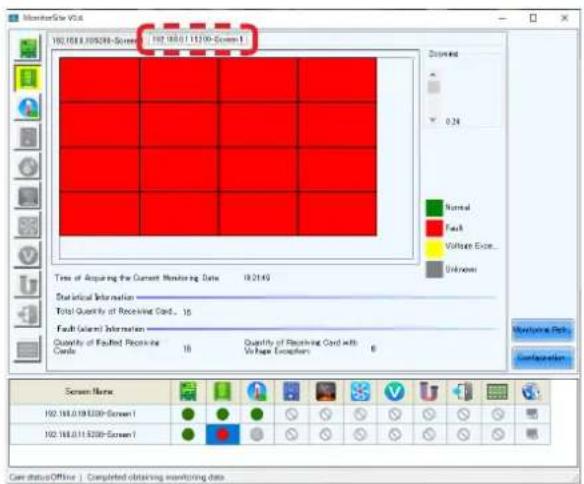

MonitorSize V6.0 102.108.8.395208-Screen 102.108.0.1.15200-Screen 1 Time of Acquiring the Current Monitoring Data 18:21:45 Statistical Information Total Quantity of Receiving Cards... 15 Fault (Select) Information Quantity of Faulted Receiving Cards 18 Quantity of Receiving Card with Voltage Exceptions 6 Screen Name 102.108.0.19.5200-Screen 1 102.108.0.11.5200-Screen 1 Case status:OFFline | Completed obtaining monitoring data

Modules connected to port 1 are operating as "Backup".

Main (Primary) Backup

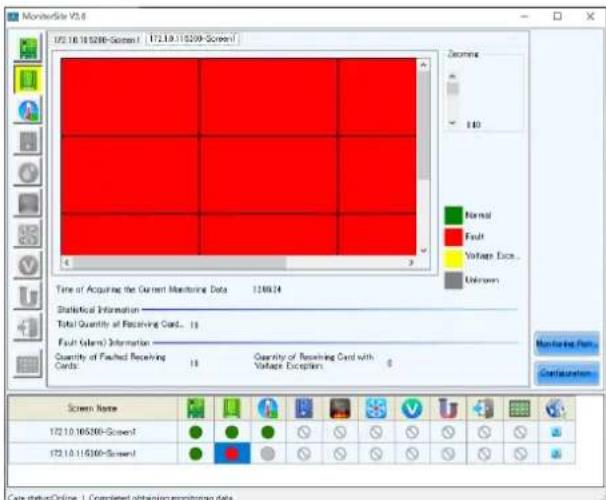

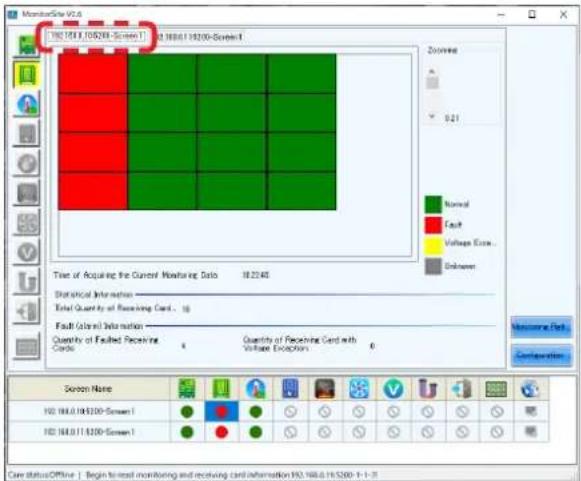

MonitorSite V2.6 100 100.0 105200-Scninfo 1 103 1080.0 10200-Screen 1 Zoomed Normal Fault Voltage Exon... Unknown Test of Acquiring the Current Monitoring Data 10:22:40 Statistical Information —— Total Quantity of Receiving Card . 16 Fault (Actual) Data motion —— Quantity of Faulted Receiving Cardo x Quantity of Receiving Card with Voltage Exception 6 Screen Name HD 100.0.11$200-Screen 1 HD 100.0.11 $200-Screen 1 Case status:OFFline | Begin to limit monitoring and receiving card information 190.168.0.11$200 - 1 - 3

182.168.3.095248-Screen 182.168.01.13200-Screen 1 Time of Acquiring the Outlier Monitoring Data 18:20:21 Statistical Information Total Quantity of Receiving Card... 16 Fault Color of Information Quantity of Faulted Receiving Cardo 12 Quantity of Receiving Card with Voltage Exception Screen Name 182.168.01.13200-Screen 1 182.168.01.13200-Screen 1 Case status: Offline | Completed obtaining monitoring data

In the start-up screen of NovaLCT, the status indicator circle for "Monitor Information" receiving card becomes red in color.

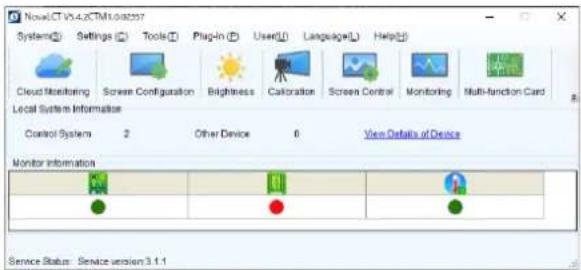

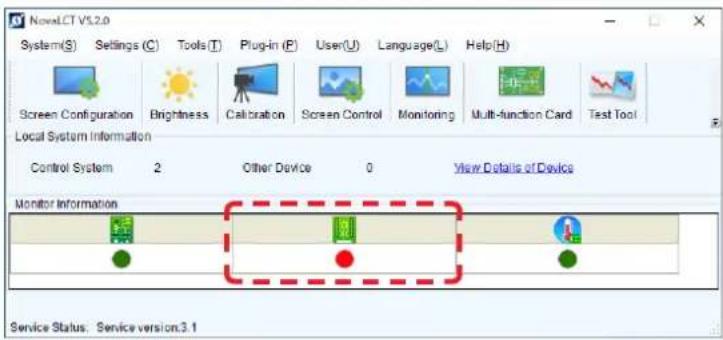

NovoLCT V5.2.0 System(S) Settings (C) Tools (T) Plug-in (E) User(U) Language(L) Help(H) Screen Configuration Brightness Calibration Screen Control Monitoring Multi-Function Card Test Tool Local System Information Control System 2 Other Device 0 View Details of Devices Monitor Information Service Status: Service version:3.1

In the case of MCTRL 4K, the display of the LED controllers is as follows.

(This example display is for the case of connection using four Ethernet cables.)

Upper: Backup

Lower: Main (Primary)

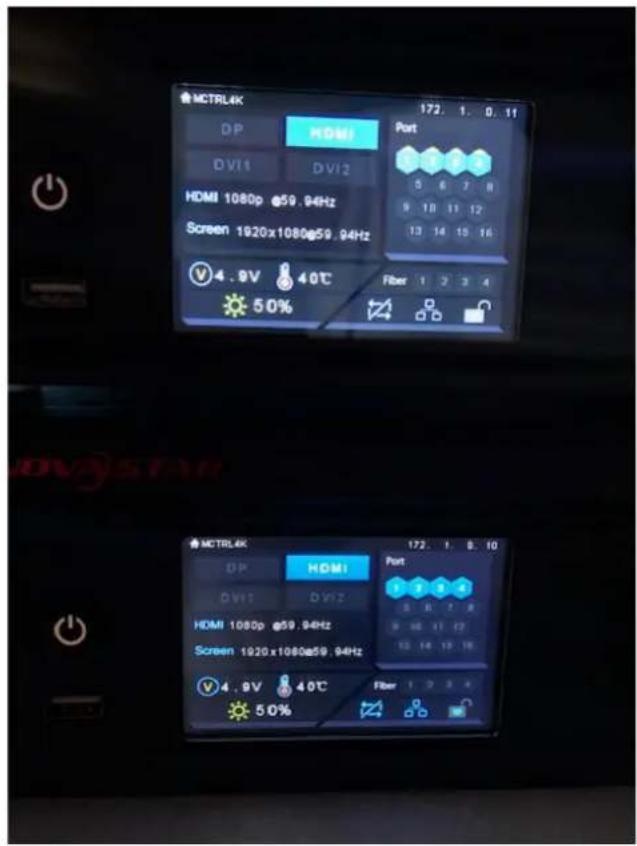

MCTRL4K DP HDMI DVI1 DVI2 HDMI 1080p @59.94Hz Screen 1920x1080@59.94Hz 4.9V 40℃ 50% Port 5 6 7 8 9 10 11 12 13 14 15 16 Fiber 1 2 3 4 MCTRL4K DP HDMI DVI1 DVI2 HDMI 1080p @59.94Hz Screen 1920x1080@59.94Hz 4.9V 40℃ 50% Port 5 6 7 8 9 10 11 12 13 14 15 16 Fibers 1 2 3 4

4.2 Configuring the settings with two LED controllers connected to the PC using USB cables

Connect the LED controllers and the LED modules with LAN cables.

Terminate the Backup system connection at the RJ-45 connector located top left on the last module in the daisy chain connection.

* For the MCTRL 4K LED controller, the way to make connections is similar to this example.

Start the control software NovaLCT and log in with the administrator privileges.

Display the login screen as follows: User(U) -> Advanced Synchronous System UserLogin(A). Enter the password ("admin") to log in with the administrator privileges.

Click "Screen Configuration".

NovaLCT V5.4.2CTM 1.0.02357 System(S) Settings (C) Tools(T) Plug-in (P) User(U) Language(L) Help(H) Cloud Monitoring Screen Configuration Brightness Calibration Screen Control Monitoring Multi-function Card Local System Information Control System 1 Other Device 0 View Details of Device Monitor Information Service Status: Service version:3.1.1

Select the port in "Select Communication Port", and then click "Next".

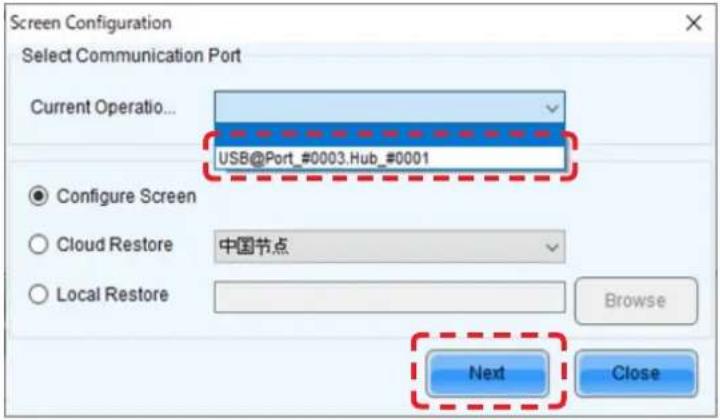

Screen Configuration Select Communication Port Current Operation... USB@Port_#0003.Hub_#0001 Configure Screen Cloud Restore 中国节点 Local Restore Browse Next Close

In the Screen Configuration screen that is displayed, select the "Sending Card" tab.

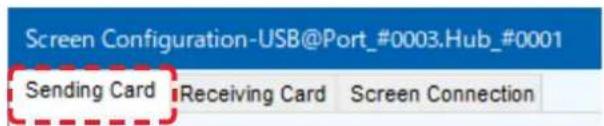

Screen Configuration-USB@Port_#0003.Hub_#0001 Sending Card Receiving Card Screen Connection

Click the "Restore Factory Settings" button for initialization.

After initialization, configure the settings for "Select Input Source" and "Source Configuration".

If the factory setting is correctly configured and the device connection is the same as when the factory setting was configured, check the settings without performing initialization.

Screen Configuration-USB@Port_0009.Hub_0001 Sending Card | Receiving Card | Screen Connection Display Mode Refresh Current Display Mode Sending Card 1920 x 1080(1080P) Graphics Output R... 2560 x 1600 Curre... HDMI Select Input Source Video Input Automati... HDMI Send 3D Function Enable Settings Source Configuration Source: HDMI Resolution: 1920 x 1080 px Custom... 2560 x 1600 Refresh Rate T... 66 Hz Input Source Bit De... 8 Bit Set Hot Backup Verification Verify Redundancy Set the Current Devi... Set as Primary Set as Backup Primary Backup Serial Number of Primary Sending Card Serial Number of Primary Port Serial Number of Backup Sending Card Serial Number of Backup Port Refresh Send Add Edit Delete Restore Factor Export Screen M. Save System Co. Save Close

Select the Screen Connection tab.

Select/enter the value for "Screen Type", "Receiving Card Size", "Columns" and "Rows", and use "Ethernet Port No." and the screen configuration section to configure the connection.

* For details of the configuration procedure, refer to the User's Manual.

Screen Configuration-USB/Port 8009 Hub 80001 Sending Card Receiving Card Screen Connection Quantity 0 1 Configure Screen1 Screen Type: Standard Screen Complex Screen Sending Card Number 1 2 Ethernet Port No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Receiving Card Size Width: 480 Apply to Enter Height: 276 Apply to Enter Set Blank Apply to the current Quick Connection 1 2 3 Sending Card:1 Port.1 Receiving Card:3 Width: 480 Sending Card:1 Port.2 Receiving Card:3 Width: 480 Sending Card:1 Port.3 Receiving Card:3 Width: 480 Sending Card:1 Port.1 Receiving Card:2 Width: 480 Sending Card:1 Port.2 Receiving Card:2 Width: 480 Sending Card:1 Port.3 Receiving Card:2 Width: 480 Sending Card:1 Port.1 Receiving Card:1 Width: 480 Sending Card:1 Port.2 Receiving Card:1 Width: 480 Sending Card:1 Port.3 Receiving Card:1 Width: 480 Sending Card:1 Port.1 Receiving Card:1 Width: 480 Sending Card:1 Port.2 Receiving Card:1 Width: 480 Sending Card:1 Port.3 Receiving Card:1 Width: 480 Sending Card:1 Port.1 Receiving Card:1 Width: 480 Sending Card:1 Port.2

Notes on the setting operation:

Perform these setting procedures prior to the redundancy settings configuration.

Make sure that the value of "Quantity of Screens" is 1.

(To change a different value to 1, click the Configur" button.)

It is not necessary to configure the settings for Sending Card 2.

When the settings configuration is complete, click the "Send to HW" button.

Select the Sending Card tab and click "Add".

The Redundancy Settings screen is displayed.

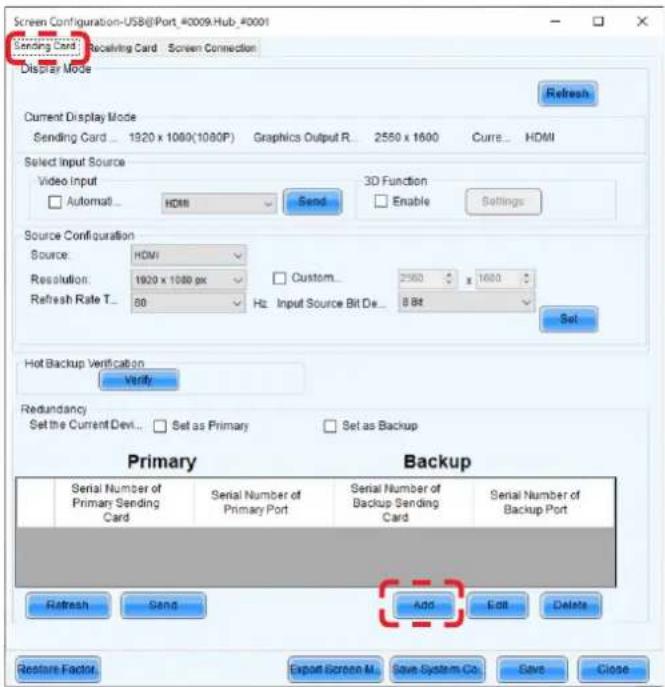

Screen Configuration-USB@Port, #0009.Hub, #0001 Sending Card : Receiving Card Screen Connection Display Mode Refresh Current Display Mode Sending Card ... 1920 x 1080(1080P) Graphics Output R... 2550 x 1600 Curre... HDMI Select Input Source Video Input Automati... HDMI Send 3D Function Enable Settings Source Configuration Source: HDMI Resolution: 1920 x 1080 px Custom... 2560 x 1600 Refresh Rate T... 50 Hz Input Source Bit De... 8 Bit Set Hot Backup Verification Verify Redundancy Set the Current Devi... Set as Primary Set as Backup Primary Backup Serial Number of Primary Sending Card Serial Number of Primary Port Serial Number of Backup Sending Card Serial Number of Backup Port Refresh Send Add Edit Delete Restore Factor Export Screen M Save System Co Save Close

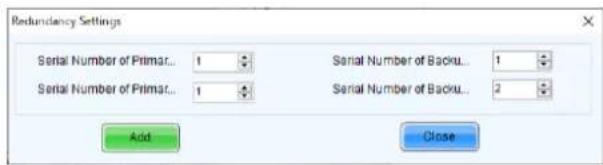

Redundancy Settings Serial Number of Primar... 1 Serial Number of Backu... 1 Serial Number of Primar... 1 Serial Number of Backu... 2 Add Close

In the Redundancy Settings screen, set the Port number of the Backup side LED controller (Sending Card) that matches the Port number of the Primary side LED controller (Sending Card).

After entering the value, click the "Add" button.

In the LED configuration example (English-99), the settings are as follows.

Serial Number of Primary Sending Card : 1

Serial Number of Primary Port : 1

Serial Number of Backup Sending Card : 2

Serial Number of Backup Port : 1

Serial Number of Primary Sending Card : 1

Serial Number of Primary Port : 2

Serial Number of Backup Sending Card : 2

Serial Number of Backup Port : 2

Serial Number of Primary Sending Card : 1

Serial Number of Primary Port : 3

Serial Number of Backup Sending Card : 2

Serial Number of Backup Port : 3

Redundancy Settings Serial Number of Primar... 1 Serial Number of Primar... 1 Add Serial Number of Backu... 2 Serial Number of Backu... 1 Close

When the settings configuration is complete, the Sending Card tab appears like below.

Click the "Send" button.

Click the "Save" button.

Screen Configuration-USB@Port_F0009.Hub_F0001 Sending Card Receiving Card Screen Connection Display Mode Refresh Current Display Mode Sending Card... 1920 x 1080(1080P) Graphics Output R... 2560 x 1600 Curre... HDMI Select Input Source Video Input □ Automati... HDMI Send 3D Function □ Enable Settings Source Configuration Source: HDMI Resolution: 1920 x 1080 px □ Custom... 1920 x 1080 Refresh Rate T... 60 Hz Input Source Bit De... 8 Bit Set Hot Backup Verification Verify Redundancy Set the Current Devl... □ Set as Primary □ Set as Backup Primary Backup Serial Number of Primary Sending Card Serial Number of Primary Port Serial Number of Backup Sending Card Serial Number of Backup Port 1 1 1 2 1 2 1 2 2 2 <_ Refresh Send Add Delete Add Edit Delete Restore Factor... Export Screen M... Save System Co... Save Close

Check the current brightness setting.

Click the "Brightness" button.

In the Brightness Adjustment screen, set the desired brightness value and click the "Save to HW" button.

NonsLCT V5.42CTM1.0.02357 System(S) Settings (C) Tools(I) Buy-in(P) User(U) Language(L) Help(H) Cloud Monitoring Screen Configuration Brightness Calibration Screen Control Monitoring Multi-function Card Local System Information Control System 1 Other Device 0 View Details of Device Monitor Information Service Status: Service version:3.1.1

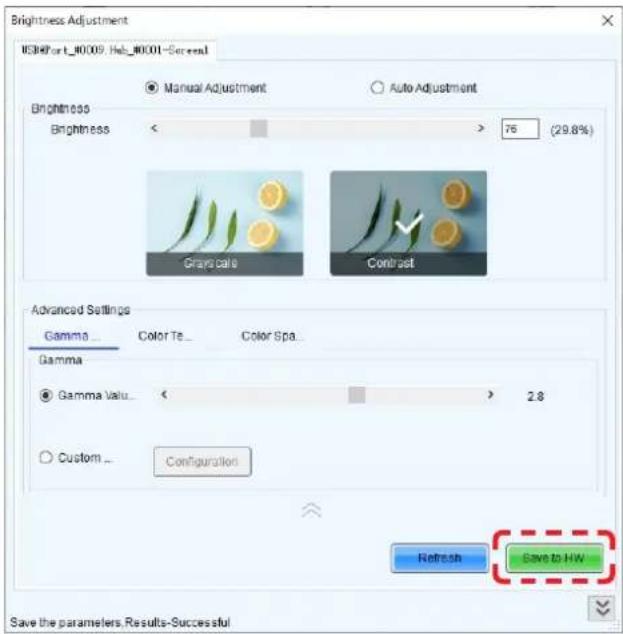

Brightness Adjustment US3HPort_0009.Hab_0001-Screen ● Manual Adjustment ○ Auto Adjustment Brightness Brightness < > 76 (29.8%) Grayscale Contrast Advanced Settings Gamma ... Color Te... Color Spa... Gamma ● Gamma Valu... < > 2.8 ○ Custom ... Configuration Refresh Save to HW Save the parameters.Results-Successful

The monitoring screens appear like below.

Noval CT V5.4.2CTM1.x0337 Systems Settings Tools Plug-in User Language Help Cloud Monitoring Screen Configuration Brightness Calibration Screen Control Monitoring Multi-function Card Local System Information Control System 1 Other Device 6 View Details of Device Monitor Information Service Status: Service version 3.1.1

Monitor Site 12.6 USBPort_0001Hub_0001 Normal Sending Card Fault DVI Signal Exception Unknown Monitoring Path Configuration Screen Name USBPort_0001Hub_0001-Screen1 Core status:Drone | Completed obtaining monitoring data

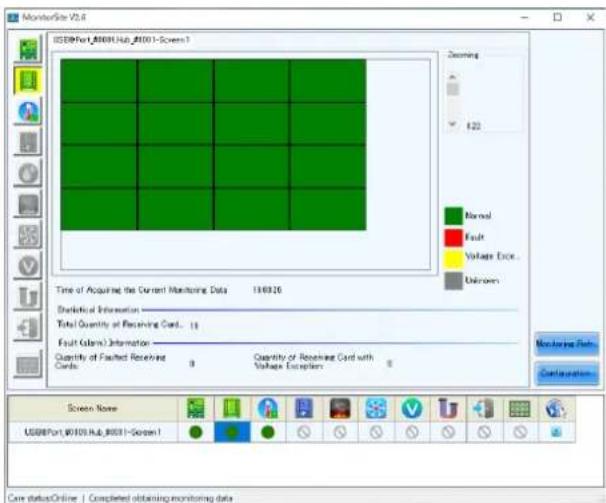

MonitorSite V2.6 USBPort_8000.Hub_8001-Screen1 Time of Acquired the Current Monitoring Data 13:09:26 Details of Information Total Quantity of Receiving Card... 14 Fault Colors Information Quantity of Faulted Receiving Card: 0 Quantity of Receiver Card with Voltage Exception 8 Screen Name USBPort_8000.Hub_8001-Screen1 Case statusOnline | Completed obtaining monitoring data

MonitorSite V2.6 USB@Port_8000.Hub_8001-Screen1 43 42 41 41 43 42 41 41 43 42 41 41 41 42 41 41 Time of Acquiring the Current Monitoring Data 11/03/16 Statistical Information Lowest temperature(°C) 45 Highest Temperature(°C) 45 Average Temperature(°C) 45 Quantity of receiving card with over-average t... 12 Fault (Panel) Information Quantity of receiving card with temperature... 0 Screen Name USB@Port_8000.Hub_8001-Screen1 Case status/Online | Completed obtaining monitoring data

In the case of MCTRL 4K, the display of the LED controllers is as follows.

(This example display is for the case of connection using four Ethernet cables.)

Upper: Backup

Lower: Main (Primary)

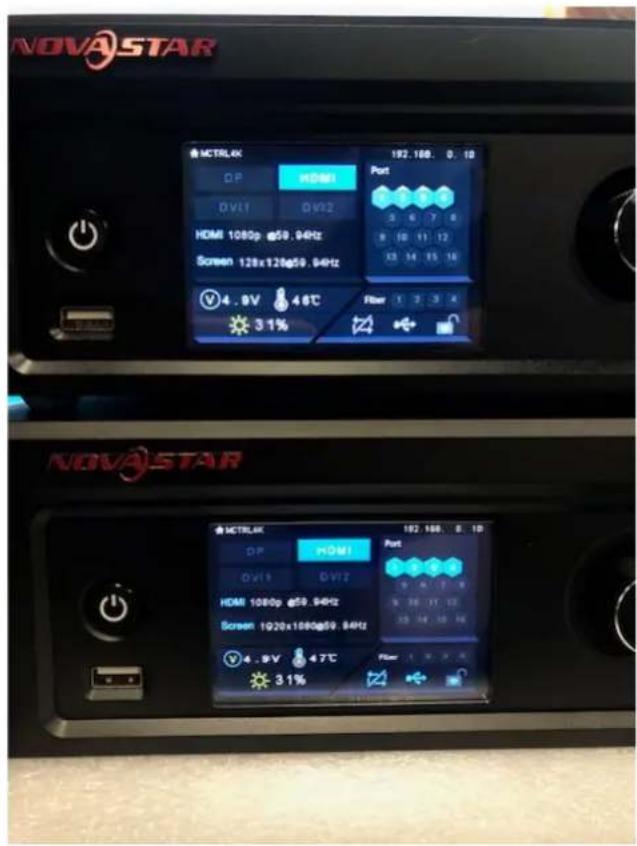

NOVA STAR MCTRL4K OP HDMI DVI1 DVI2 HDMI 1080p @59.94Hz Screen 128x128@59.94Hz 4.9V 46℃ 31% Port 1 2 3 4 Floor 1 2 3 4 NOVA STAR MCTRL4K OP HDMI DVI1 DVI2 HDMI 1080p @59.94Hz Screen 1020x1080@59.94Hz 4.9V 47℃ 31%

4.3 Configuring the settings with one LED controller connected to the PC using a USB cable

Connect the LED controllers and the LED modules with LAN cables.

Terminate the Backup system connection at the RJ-45 connector located top left on the last module in the daisy chain connection.

* For the MCTRL 4K LED controller, the way to make connections is similar to this example.

Start the control software NovaLCT and log in with the administrator privileges.

Display the login screen as follows: User(U) -> Advanced Synchronous System UserLogin(A). Enter the password ("admin") to log in with the administrator privileges.

Click "Screen Configuration".

NovaLCT V5.4.2CTM 1.0.02357 System(S) Settings (C) Tools(T) Plug-in (P) User(U) Language(L) Help(H) Cloud Monitoring Screen Configuration brightness Calibration Screen Control Monitoring Multi-function Card Local System Information Control System 1 Other Device 0 View Details of Device Monitor Information Service Status: Service version:3.1.1

Select the port in "Select Communication Port", and then click "Next".

Screen Configuration Select Communication Port Current Operation... USB@Port_0003.Hub_0001 Configure Screen Cloud Restore 中国节点 Local Restore Browse Next Close

Click the "Restore Factory Settings" button for initialization.

After initialization, configure the settings for "Select Input Source" and "Source Configuration".

If the factory setting is correctly configured and the device connection is the same as when the factory setting was configured, check the settings without performing initialization.

Screen Configuration-USB@Port_0009.Hub_0001 Sending Card | Receiving Card | Screen Connection Display Mode Refresh Current Display Mode Sending Card ... 1920 x 1080(1080P) Graphics Output R... 2560 x 1600 Curre... HDMI Select Input Source Video Input □ Automati... HDMI ▼ Send 3D Function □ Enable Settings Source Configuration Source: HDMI Resolution: 1929 x 1080 px ▼ Custom... 2560 x 1600 Refresh Rate T... 60 Hz Input Source Bit De... 8 Bit Set Hot Backup Verification Verify Redundancy Set the Current Devt... □ Set as Primary □ Set as Backup Primary Backup Serial Number of Primary Sending Card Serial Number of Primary Port Serial Number of Backup Sending Card Serial Number of Backup Port Refresh Send Add Edit Delete Restore Factor Export Screen M Save System Co Save Close

Select the Screen Connection tab.

Select/enter the value for "Screen Type", "Receiving Card Size", "Columns" and "Rows", and use "Ethernet Port No." and the screen configuration section to configure the connection.

* For details of the configuration procedure, refer to the User's Manual.

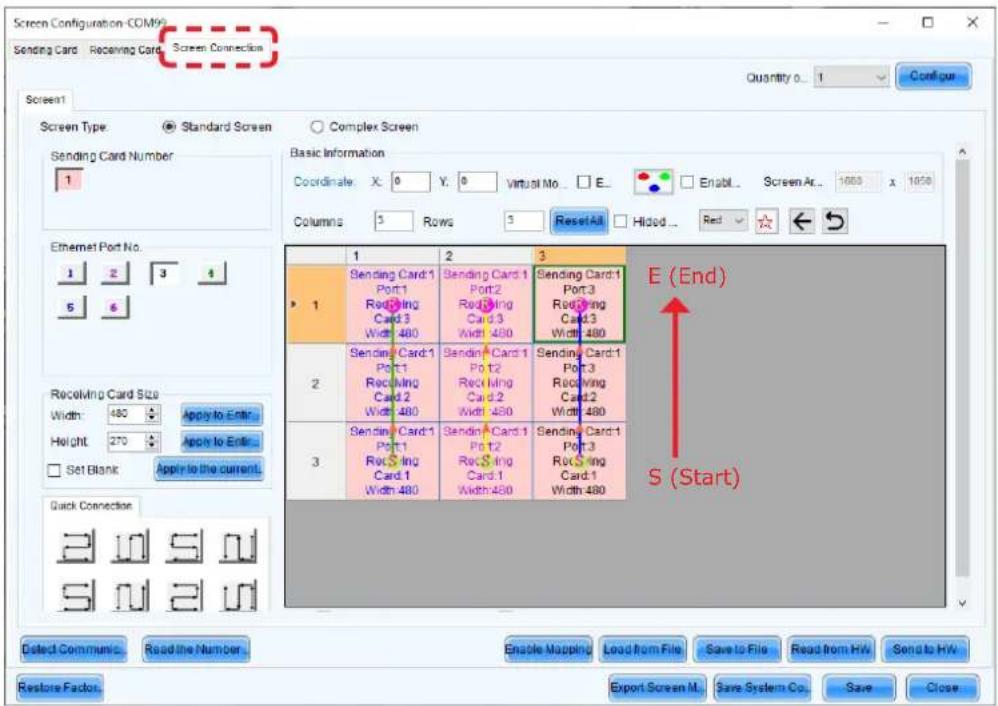

Screen Configuration COM9 Sending Card Receiving Card... Screen Connection Screen1 Screen Type: Standard Screen Complex Screen Sending Card Number 1 Ethernet Port No. 1 2 3 4 Receiving Card Size Width: 480 Apply to Enter... Height: 270 Apply to Enter... Set Blank: Apply to the current... Quick Connection 1 2 3 1 Sending Card:1 Port:1 Red String Card:3 Width: 480 2 Sending Card:1 Port:1 Reciving Card:2 Width: 480 3 Sending Card:1 Port:1 Ret String Card:1 Width: 480 E (End) S (Start) Enable Mapping Load from File Save to File Read from HW Send to HW Export Screen M Save System Co. Save Close Detect Commuic. Read the Number Restore Factor

Notes on the setting operation:

Perform these setting procedures prior to the redundancy settings configuration.

Make sure that the value of "Quantity of Screens" is 1.

(To change a different value to 1, click the Configur" button.)

It is not necessary to configure the settings for Sending Card 2.

When the settings configuration is complete, click the "Send to HW" button.

Select the Sending Card tab and click "Add".

The Redundancy Settings screen is displayed.

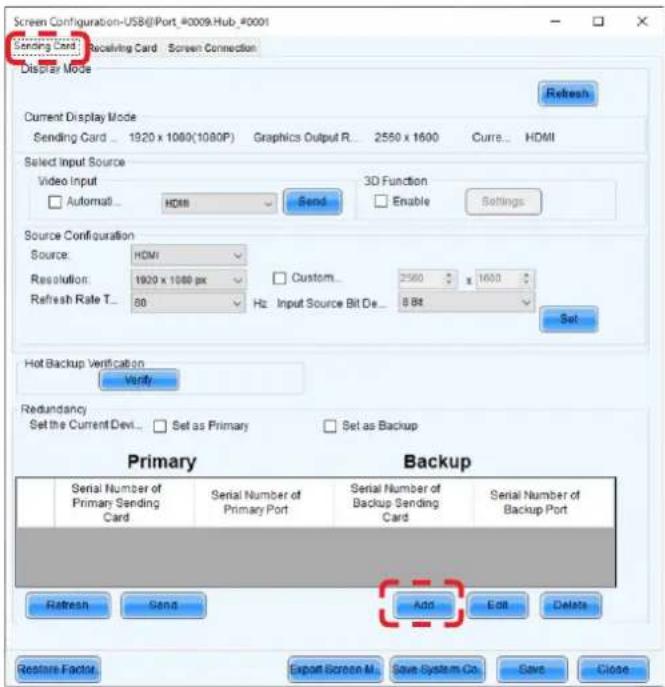

Screen Configuration-USB@Port, #0009.Hub, #0001 Sending Card : Receiving Card Screen Connection Display Mode Refresh Current Display Mode Sending Card ... 1920 x 1080(1080P) Graphics Output R... 2550 x 1600 Curre... HDMI Select Input Source Video Input □ Automati... HDMI ▼ Send 3D Function □ Enable Settings Source Configuration Source: HDMI Resolution: 1920 x 1080 px ▼ Custom... 2560 x 1600 Refresh Rate T... 50 Hz Input Source Bit De... 8 Bit Set Hot Backup Verification Verify Redundancy Set the Current Devi... □ Set as Primary □ Set as Backup Primary Backup Serial Number of Primary Sending Card Serial Number of Primary Port Serial Number of Backup Sending Card Serial Number of Backup Port Refresh Send Add Edit Delete Restore Factor Export Screen M Save System Co Save Close

Redundancy Settings Serial Number of Primar... 1 Serial Number of Backu... 1 Serial Number of Primar... 1 Serial Number of Backu... 2 Add Close

In the Redundancy Settings screen, set the Port to use on the LED controller.

In the LED configuration example (English-112), the settings are as follows. After entering the value, click the "Add" button.

Serial Number of Primary Sending Card : 1 Serial Number of Primary Port : 1 Serial Number of Backup Sending Card : 1 Serial Number of Backup Port : 4

Serial Number of Primary Sending Card : 1 Serial Number of Primary Port : 2 Serial Number of Backup Sending Card : 1 Serial Number of Backup Port : 5

Serial Number of Primary Sending Card : 1 Serial Number of Primary Port : 3 Serial Number of Backup Sending Card : 1 Serial Number of Backup Port : 6

Redundancy Settings Serial Number of Primar... 1 Serial Number of Primar... 1 Add Serial Number of Backu... 1 Serial Number of Backu... 4 Close

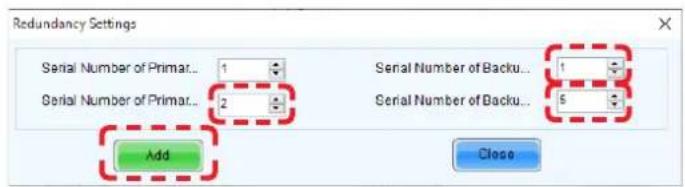

Redundancy Settings Serial Number of Primar... 1 Serial Number of Primar... 2 Add Serial Number of Backu... 1 Serial Number of Backu... 5 Close

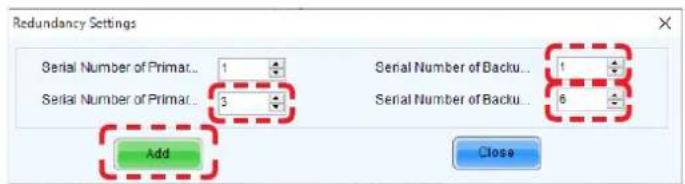

Redundancy Settings Serial Number of Primar... 1 Serial Number of Primar... 3 Add Serial Number of Backu... Serial Number of Backu... 1 6 Close

When the settings configuration is complete, the Sending Card tab appears like below.

Click the "Send" button.

Click the "Save" button.

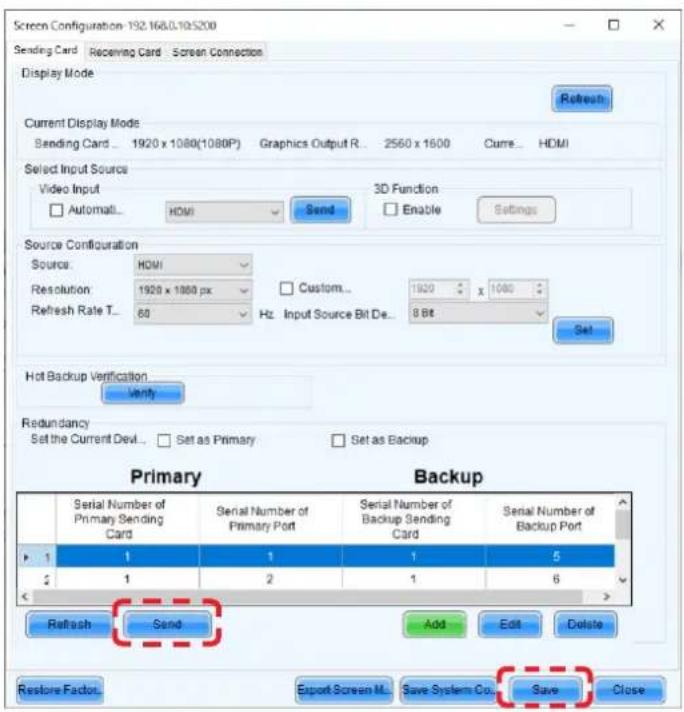

Screen Configuration: 192.168.0.10:$200 Sending Card Recerving Card Screen Connection Display Mode Refresh Current Display Mode Sending Card... 1920 x 1080(1080P) Graphics Output R... 2560 x 1600 Curre... HDMI Select Input Source Video Input Automati... HDMI Send 3D Function Enable Settings Source Configuration Source: HDMI Resolution: 1920 x 1080 px Custom... 1920 x 1080 Refresh Rate T... 60 Hz Input Source Bit De... 8 Bit Set Hot Backup Verification Verify Redundancy Set the Current Devl... Set as Primary Set as Backup Primary Backup Serial Number of Primary Sending Card Serial Number of Primary Port Serial Number of Backup Sending Card Serial Number of Backup Port 1 1 1 1 5 2 1 2 1 6 Refresh Send Add Edit Delete Restore Factor Export Screen M Save System Col Save Close

Check the current brightness setting.

Click the "Brightness" button.

In the Brightness Adjustment screen, set the desired brightness value and click the "Save to HW" button.

Noval CT V5.4.2CTM 1.0.02357 System(S) Settings (S) Tools(T) Opt-in(P) User(U) Language(L) Help(H) Cloud Monitoring Screen Configuration Brightness Calibration Screen Control Monitoring Multi-Function Card Local System Information Control System 1 Other Device 0 View Details of Device Monitor Information Service Status: Service version:3.1.1

Brightness Adjustment US3HPort_0009.Hab_0001-Screen1 Brightness Brightness Manual Adjustment Auto Adjustment 76 (29.8%) Grayscale Contrast Advanced Settings Gamma... Color Te... Color Spa... Gamma ● Gamma Valu... 2.8 ○ Custom... Configuration Refresh Save to HW Save the parameters.Results-Successful

The monitoring screens appear like below.

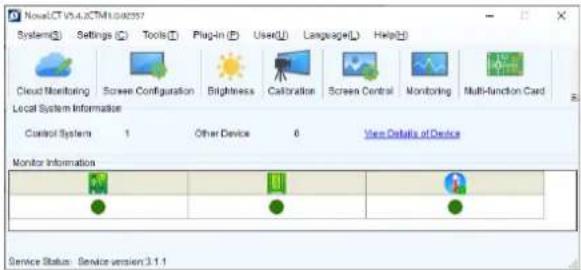

NovalCT V5.4.2CTM1.040397 System(S) Settings (T) Tools (I) Plug-in (P) User(U) Language(L) Help(E) Cloud Monitoring Screen Configuration Brightness Calibration Screen Control Monitoring Multi-function Card Local System Information Control System 1 Other Device 6 View Details of Device Monitor Information Service Status: Service version 3.1.1

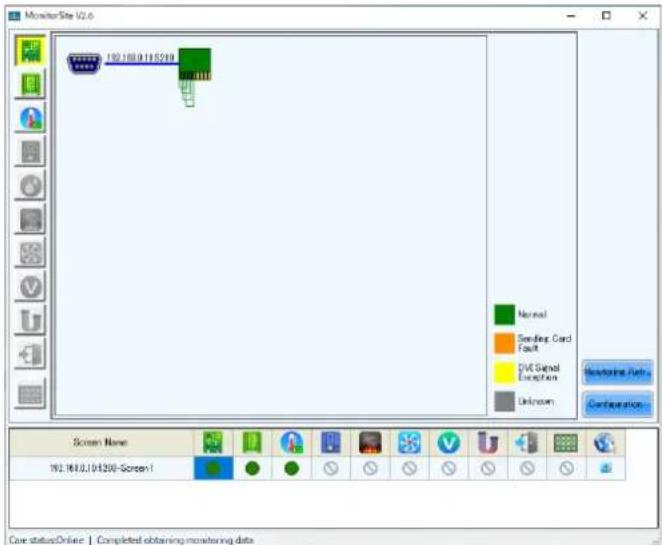

MonitorSite V2.0 192.168.0.145219 Normal Sending Card Fault DVI Signal Exception Unknown Screen Name 192.168.0.145200-Screen1 Core status:Drone | Completed obtaining monitoring data

MonitorSite V2.6 192.150.8.19$298-Screen 1 Time of Acquired the Current Monitoring Data 14:51:30 Statistical Information Total Quantity of Receiving Card... (s) Fault (Gains) Information Quantity of Faulted Receiving Card: 0 Quantity of Receiver Card with Voltage Exceptors 0 Screen Name 192.150.8.19$298-Screen 1 Case statusOnline | Completed obtaining monitoring data

MonitorSite V2.6 192.150.8.19/2008-Screen1 42 41 41 42 41 41 42 41 41 3 Time of Acquiring the Current Monitoring Data 14/02:00 Statistical Information Lowest temperature(°C) 3 Highest Temperature(°C) 42 Average Temperature(°C) 40 Quantity of receiving card with over-average 12 Fault (golden) Information Quantity of receiving card with temperature 0 Screen Name 192.150.8.19/2008-Screen1 Case statusOnline | Completed obtaining monitoring data

Specifications (FA series)

Models for indoor use

		LED-FA012i2	LED-FA015i2	LED-FA019i2	LED-	FA025i2	LED-FA	FA031i2	LED-FA0	38i2
LED configuration 3in1 SMD
Pixel pitch 1.27 mm 1.58 mm 1.90 mm 2.53 mm		3.17 mm 3.80 mm
Number of displayed pixels (resolution/module)		480×270 38	4×216 320×180	240×135 192		×108 160×90
Brightness 800 cd/m		2				1200 cd/m2
Contrast ratio 5000:1 7000:1
Brightness adjustment range 0 to 100% (256 increments)
Gamma correction 1.0 to 4.0 (default setting: 2.8)
Color temperature 3000 K to 9500 K (default setting: 6500 K)
Viewing angle Up 85°, Down 85°, Left 85°, Right 85° Up 70°, Down 70°, Left 80°, Right 80°
Signal interface S	signal input	1×RJ-45
	Signal output	1×RJ-45
Power supply		100 V AC to 240 V AC, 50 Hz/60 Hz
Power consumption (all white, 100% brightness)		125 W				120 W
IP rating		Front IP20 / Rear IP20
Maintenance		Front
Dimensions		608×342×49 mm
Weight		8.8 kg
Operating environment	Temperature	-20 to 40°C
	Humidity	10% to 80% (without condensation)
	Altitude	No more than 5000 m
Storage environment	Temperature	-20 to 45°C
	Humidity	10% to 85% (without condensation)

Specifications are subject to change without notice.

Models for indoor use

		LED-FA012i2-SB LED-FA015i2-SB LED-FA009i2
LED configuration 3in1 SMD Super Black 4in1 SMD (IMD)
Pixel pitch 1.27 mm 1.58 mm 0.95 mm
Number of displayed pixels (resolution/module)		480×270 384×216 640×360
Brightness 400 cd/m		2	600 cd/m2
Contrast ratio 5000:1
Brightness adjustment range 0 to 100% (256 increments)
Gamma correction 1.0 to 4.0 (default setting: 2.8)
Color temperature 3000 K to 9500 K (default setting: 6500 K)
Viewing angle Up 70°, Down 70°, Left 70°, Right 70°
Signal interface Signal input		1×RJ-45
Power supply		100 V AC to 240 V AC, 50 Hz/60 Hz
Power consumption (all white, 100% brightness)		125 W	150 W
IP rating		Front IP20 / Rear IP20
Maintenance		Front
Dimensions		608×342×49 mm
Weight		8.8 kg
Operating environment	Temperature	-20 to 40°C
	Humidity	10% to 80% (without condensation)
	Altitude	No more than 5000 m
Storage environment	Temperature	-20 to 45°C
	Humidity	10% to 85% (without condensation)

Specifications are subject to change without notice.

		LED-FA012i2-110LED-FA012i2-11N	LED-FA019i2-110LED-FA019i2-11N	LED-FA015i2-137LED-FA015i2-13N	LED-FA009i2-165LED-FA009i2-16N	LED-FA019i2-165LED-FA019i2-16N
Module configuration LED-FA012i2		4×4	LED-FA019i24×4	LED-FA015i25×5	LED-FA009i26×6	LED-FA019i26×6
LED configuration 3in1 SMD 4in1 SMD (IMD) 3in1 SMD
Pixel pitch 1.27 mm 1.90 mm 1.58 mm 0.95 mm 1.90 mm
Number of displayed pixels(resolution/module)		1920×1080 1280×720 1920×1080 3840×2160 1920×1080
Brightness 800 cd/m		2			600 cd/m2	800 cd/m2
Contrast ratio 5000:1
Brightness adjustment range 0 to 100% (256 increments)
Gamma correction 1.0 to 4.0 (default setting: 2.8)
Color temperature 3000 K to 9500 K (default setting: 6500 K)
Viewing angle Up 85°, Down 85°, Left 85°, Right 85°					Up 70°, Down 70°,Left 70°, Right 70°	Up 85°, Down 85°,Left 85°, Right 85°
Signal interface	Signal input	1×RJ-45
	Signal output	1×RJ-45
Power supply		100 V AC to 240 V AC, 50 Hz/60 Hz
Power consumption(all white, 100% brightness)		2000 W	2000 W	3125 W	5400 W	4500 W
IP rating		Front IP20 / Rear IP20
Maintenance		Front
Dimensions		2444×1475.5×78 mm	2444×1475.5×78 mm	3052×1817.5×78 mm	3660×2159.5×78 mm	3660×2159.5×78 mm
Weight		182 kg	182 kg	279 kg	390.8 kg	390.8 kg
Operating environment	Temperature	-20 to 40°C
	Humidity	10% to 80% (without condensation)
	Altitude	No more than 5000 m
Storage environment	Temperature	-20 to 45°C
	Humidity	10% to 85% (without condensation)

Specifications are subject to change without notice.

		LED-FA012i2-220LED-FA012i2-22N	LED-FA025i2-220LED-FA025i2-22N	LED-FA038i2-220LED-FA038i2-22N
Module configuration LED-FA012i2		8×8	LED-FA025i28×8	LED-FA038i28×8
LED configuration 3in1 SMD
Pixel pitch 1.27 mm 2.53 mm 3.80 mm
Number of displayed pixels (resolution/module)		3840×2160 1920×1080 1280×720
Brightness 800 cd/m		2
Contrast ratio 5000:1
Brightness adjustment range 0 to 100% (256 increments)
Gamma correction 1.0 to 4.0 (default setting: 2.8)
Color temperature 3000 K to 9500 K (default setting: 6500 K)
Viewing angle Up 85°, Down 85°, Left 85°, Right 85°
Signal interface Signal input 1×RJ-45
Signal output 1×RJ-45
Power supply		100 V AC to 240 V AC, 50 Hz/60 Hz
Power consumption (all white, 100% brightness)		8000 W	7680 W	7680 W
IP rating		Front IP20 / Rear IP20
Maintenance		Front
Dimensions		4876×2843.5×78 mm	4876×2843.5×78 mm	4876×2843.5×78 mm
Weight		659.2 kg	659.2 kg	659.2 kg
Operating environment	Temperature	-20 to 40°C
	Humidity	10% to 80% (without condensation)
	Altitude	No more than 5000 m
Storage environment	Temperature	-20 to 45°C
	Humidity	10% to 85% (without condensation)

Specifications are subject to change without notice.

Specifications (FE series)

Models for indoor use

		LED-FE012i2	LED-FE015i2	LED-FE019i2	LED-FE025i2	LED-FE031i2	LED-FE038i2
LED configuration 3in1 SMD
Pixel pitch 1.27 mm 1.58 mm 1.90 mm 2.53 mm		3.17 mm 3.80 mm
Number of displayed pixels (resolution/module)		480×270 38	4×216 320×180	240×135 192	×108 160×90
Brightness 700 cd/m		2			1000 cd/m2
Contrast ratio 4000:1 5000:1
Brightness adjustment range 0 to 100% (256 increments)
Gamma correction 1.0 to 4.0 (default setting: 2.8)
Color temperature 3000 K to 9500 K (default setting: 6500 K)
Viewing angle Up 80°, Down 80°, Left 80°, Right 80° Up 70°, Down 70°, Left 80°, Right 80°
Signal interface S	signal input 1×RJ-45
	Signal output	1×RJ-45
Power supply		100 V AC to 240 V AC, 50 Hz/60 Hz
Power consumption (all white, 100% brightness)		125 W			120 W
IP rating		Front IP20 / Rear IP20
Maintenance		Front
Dimensions		608×342×49 mm
Weight		8.8 kg
Operating environment	Temperature	-20 to 40°C
	Humidity	10% to 80% (without condensation)
	Altitude	No more than 5000 m
Storage environment	Temperature	-20 to 45°C
	Humidity	10% to 85% (without condensation)

Specifications are subject to change without notice.

Models for indoor use

		LED-FE009i2
LED configuration 4in1 SMD (IMD)
Pixel pitch 0.95 mm
Number of displayed pixels (resolution/module)		640×360
Brightness 600 cd/m		2
Contrast ratio 5000:1
Brightness adjustment range 0 to 100% (256 increments)
Gamma correction 1.0 to 4.0 (default setting: 2.8)
Color temperature 3000 K to 9500 K (default setting: 6500 K)
Viewing angle Up 70°, Down 70°, Left 70°, Right 70°
Signal interface Signal input 1×RJ-45
Signal output 1×RJ-45
Power supply 100 V AC to 240 V AC, 50 Hz/60 Hz
Power consumption (all white, 100% brightness)		150 W
IP rating Front IP20 / Rear IP20
Maintenance Front
Dimensions 608×342×49 mm
Weight		8.8 kg
Operating environment	Temperature	-20 to 40°C
	Humidity	10% to 80% (without condensation)
	Altitude	No more than 5000 m
Storage environment	Temperature	-20 to 45°C
	Humidity	10% to 85% (without condensation)

Specifications are subject to change without notice.

Models for indoor use

		LED-FE012i2-E	LED-FE015i2-E	LED-FE019i2-E
LED configuration 3in1 SMD
Pixel pitch 1.27 mm 1.58 mm 1.90 mm
Number of displayed pixels (resolution/module)		480×270 384	×216 320×180
Brightness 600 cd/m		2
Contrast ratio 4000:1
Brightness adjustment range 0 to 100% (256 increments)
Gamma correction 1.0 to 4.0 (default setting: 2.8)
Color temperature 3000 K to 9500 K (default setting: 6500 K)
Viewing angle Up 80°, Down 80°, Left 80°, Right 80°
Signal interface Signal input 1×RJ-45
Signal output 1×RJ-45
Power supply 100 V AC to 240 V AC, 50 Hz/60 Hz
Power consumption (all white, 100% brightness)		125 W
IP rating		Front IP20 / Rear IP20
Maintenance		Front
Dimensions		608×342×49 mm
Weight		8.8 kg
Operating environment	Temperature	-20 to 40°C
	Humidity	10% to 80% (without condensation)
	Altitude	No more than 5000 m
Storage environment	Temperature	-20 to 45°C
	Humidity	10% to 85% (without condensation)

Specifications are subject to change without notice.

		LED-FE012i2-110/LED-FE012i2-11N	LED-FE019i2-110/LED-FE019i2-11N	LED-FE015i2-137/LED-FE015i2-13N	LED-FE009i2-165/LED-FA009i2-16N	LED-FE019i2-165/LED-FE019i2-16N
Module configuration LED-FE012i2		4×4	LED-FE019i24×4	LED-FE015i25×5	LED-FE009i26×6	LED-FE019i26×6
LED configuration 3in1 SMD 4in1 SMD (IMD) 3in1 SMD
Pixel pitch 1.27 mm 1.90 mm 1.58 mm 0.95 mm 1.90 mm
Number of displayed pixels (resolution/module)		1920 × 1080 1280 × 720 1920 ×		1080 3840 × 2160	1920 × 1080
Brightness 700 cd/m		2			600 cd/m2	700 cd/m2
Contrast ratio 4000:1 5000:1 4000:1
Brightness adjustment range 0 to 100% (256 increments)
Gamma correction 1.0 to 4.0 (default setting: 2.8)
Color temperature 3000 K to 9500 K (default setting: 6500 K)
Viewing angle Up 80°, Down 80°, Left 80°, Right 80°					Up 70°, Down 70°, Left 70°, Right 70°	Up 80°, Down 80°, Left 80°, Right 80°
Signal interface	Signal input	1×RJ-45
	Signal output	1×RJ-45
Power supply		100 V AC to 240 V AC, 50 Hz/60 Hz
Power consumption (all white, 100% brightness)		2000 W	2000 W	3125 W	5400 W	4500 W
IP rating		Front IP20 / Rear IP20
Maintenance		Front
Dimensions		2444×1475.5×78 mm	2444×1475.5×78 mm	3052×1817.5×78 mm	3660×2159.5×78 mm	3660×2159.5×78 mm
Weight		182 kg	182 kg	279 kg	390.8 kg	390.8 kg
Operating environment	Temperature	-20 to 40°C
	Humidity	10% to 80% (without condensation)
	Altitude	No more than 5000 m
Storage environment	Temperature	-20 to 45°C
	Humidity	10% to 85% (without condensation)

Specifications are subject to change without notice.

		LED-FE012i2-220/LED-FE012i2-22N	LED-FE025i2-220/LED-FE025i2-22N	LED-FE038i2-220/LED-FE038i2-22N
Module configuration LED-FE012i2		8×8	LED-FE025i28×8	LED-FE038i28×8
LED configuration 3in1 SMD
Pixel pitch 1.27 mm 2.53 mm 3.80		mm
Number of displayed pixels (resolution/module)		3840 × 2160 1920 × 1080 1280 × 720
Brightness 700 cd/m		2	1000 cd/m2
Contrast ratio 4000:1 5000:1
Brightness adjustment range 0 to		100% (256 increments)
Gamma correction 1.0 to 4.0 (default setting: 2.8)
Color temperature 3000 K to 9500		K (default setting: 6500 K)
Viewing angle		Up 80°, Down 80°, Left 80°, Right 80°	Up 70°, Down 70°, Left 80°, Right 80°
Signal interface Signal input 1×RJ-45
Signal output 1×RJ-45
Power supply		100 V AC to 240 V AC, 50 Hz/60 Hz
Power consumption (all white, 100% brightness)		8000 W	7680 W	7680 W
IP rating		Front IP20 / Rear IP20
Maintenance		Front
Dimensions		4876×2843.5×78 mm	4876×2843.5×78 mm	4876×2843.5×78 mm
Weight		659.2 kg	659.2 kg	659.2 kg
Operating environment	Temperature	-20 to 40°C
	Humidity	10% to 80% (without condensation)
	Altitude	No more than 5000 m
Storage environment	Temperature	-20 to 45°C
	Humidity	10% to 85% (without condensation)

Specifications are subject to change without notice.

		LED-FE012i2-E11/LED-FE012i2-EFN	LED-FE019i2-E11/LED-FE019i2-EHN	LED-FE015i2-E13/LED-FE015i2-EFN	LED-FE019i2-E16/LED-FE019i2-EFN	LED-FE012i2-E22/LED-FE012i2-EUN
Module configuration LED-FE012i2		E4×4	LED-FE019i2-E4×4	LED-FE015i2-E5×5	LED-FE019i2-E6×6	LED-FE012i2-E8×8
LED configuration 3in1 SMD
Pixel pitch 1.27 mm 1.90 mm 1.58		mm 1.90 mm 1.27 mm
Number of displayed pixels(resolution/module)		1920 × 1080 1280 × 720 1920 ×		1080 1920 × 1080	3840 × 2160
Brightness 600 cd/m		2
Contrast ratio 4000:1
Brightness adjustment range 0 to		100% (256 increments)
Gamma correction 1.0 to 4.0 (default setting: 2.8)
Color temperature 3000 K to 9500		K (default setting: 6500 K)
Viewing angle Up 80°, Down 80°,		Left 80°, Right 80°
Signal interface Signal input 1×RJ-45
Signal output 1×RJ-45
Power supply		100 V AC to 240 V AC, 50 Hz/60 Hz
Power consumption (all white,100% brightness)		2000 W	2000 W	3125 W	4500 W	8000 W
IP rating		Front IP20 / Rear IP20
Maintenance		Front
Dimensions		2444×1475.5×78 mm	2444×1475.5×78 mm	3052×1817.5×78 mm	3660×2159.5×78 mm	4876×2843.5×78 mm
Weight		182 kg	182 kg	279 kg	390.8 kg	659.2 kg
Operating environment	Temperature	-20 to 40°C
	Humidity	10% to 80% (without condensation)
	Altitude	No more than 5000 m
Storage environment	Temperature	-20 to 45°C
	Humidity	10% to 85% (without condensation)

Specifications are subject to change without notice.

LED-FA009i2, LED-FA012i2, LED-FA012i2-SB, LED-FA015i2, LED-FA015i2-SB, LED-FA019i2, LED-FA031i2, LED-FA038i2 LED-FE009i2, LED-FE012i2, LED-FE015i2, LED-FE019i2, LED-FE031i2, LED-FE038i2, LEDFE012i2-E, LED-FE015i2-E, LED-FE019i2-E

Pure electrical circuit lines without any symbols

608 49 342

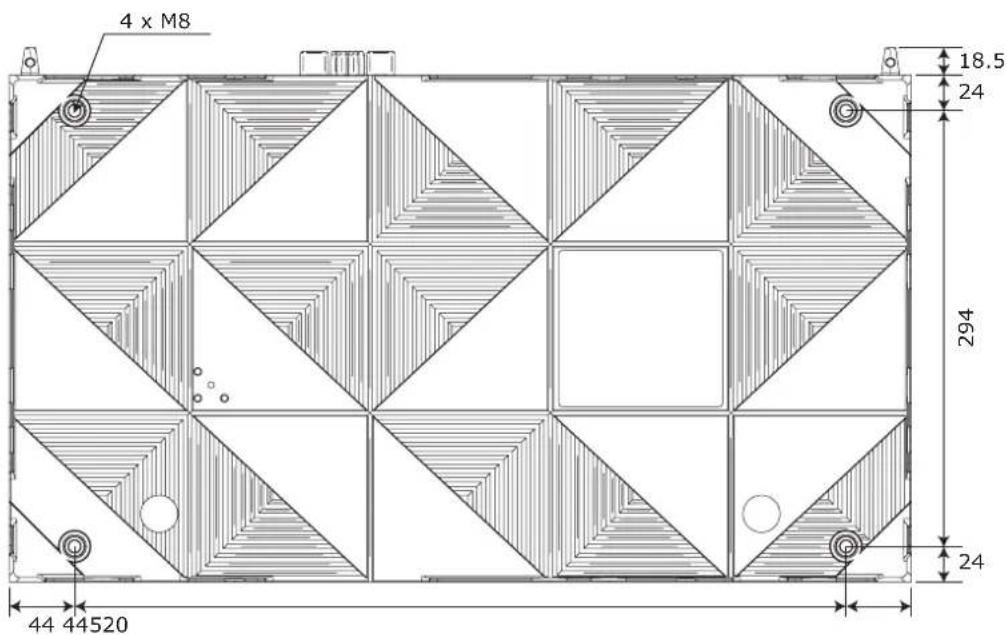

Rear

4 x M8 18.5 24 294 24 44 44520

(Unit: mm)

LED-FA025i2, LED-FE025i2

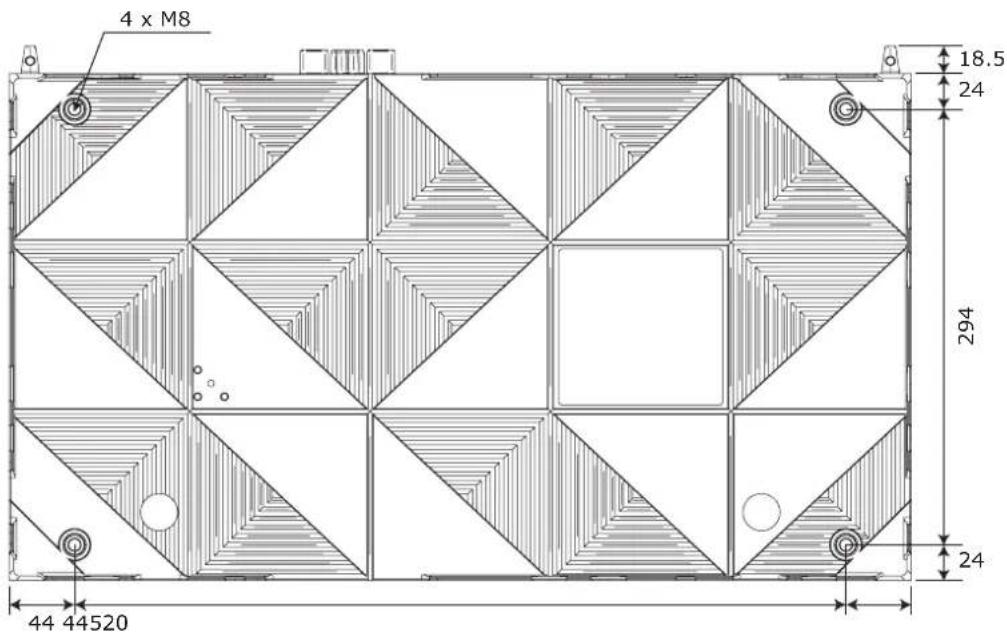

Rear

4 x M8 18.5 24 294 24 44 44520

(Unit: mm)

Adjustment plate

28 4-Φ8.5 75 75

10

(Unit: mm)
