DS-LEDTK-13VX5S - Audiovisual support Peerless-AV - Free user manual and instructions

Product Type	Audiovisual support / Trim kit for LED video walls
Brand	Peerless-AV
Model	DS-LEDTK-13VX5S
Compatibility	Designed for Unilumin UpanelS and similar LED video walls with bump-outs
Installation Surface	Plywood walls (minimum 1/2" Grade BC plywood over 2"x4" wood studs, 5/8" drywall max)
Included Components	Solid cover, perforated cover, right solid wall bracket, perforated wall bracket, corner cover assembly, nut bar, socket screws, wood screws, wall plate shim, vinyl sticker, hex nuts, self-drilling screws, 4mm allen wrench, left solid wall bracket
Cutting Tools Included	Outer cutting jig, inner cutting jig
Adhesive	VHB adhesive for corner covers
Maximum Load Capacity	Not specified; trim kit is not load-bearing, but part of mount system
Usage Environment	Indoor only
Installation Requirements	Plywood wall, minimum 1.75" screw depth, assistant or lifting equipment recommended
Adjustability	Slots for horizontal adjustment (1.25" from guide line)
Finish Options	Solid or perforated trim kits available
Warranty	Refer to peerless-av.com/warranty
Customer Support	1-800-865-2112 (US), 44 (0) 1923 200 100 (Europe)

Frequently Asked Questions - DS-LEDTK-13VX5S Peerless-AV

What type of wall is required for installing the Peerless-AV DS-LEDTK-13VX5S?

The product is designed for plywood walls with a minimum thickness of 1/2" Grade BC plywood over 2"x4" wood studs. Plywood may be covered by up to 5/8" drywall.

Can this trim kit be used outdoors?

No, this product is intended for indoor use only. Using it outdoors could lead to product failure or personal injury.

What tools are needed for assembly?

You will need a measuring tape, pencil, drill, screwdriver, saw for cutting covers, file, and an assistant or lifting equipment. Specific tools like cutting jigs are included.

Does the kit include hardware for mounting?

Yes, the kit includes wood screws, socket screws, hex nuts, self-drilling screws, and an allen wrench. All necessary hardware for plywood installation is provided.

What is the maximum weight capacity of this mount?

The manual does not specify a maximum load capacity for this trim kit. It is primarily an aesthetic cover; the actual load is supported by separate wall mounts.

Can I cut the covers to fit my video wall?

Yes, the covers can be cut. Use the included outer and inner cutting jigs to mark and cut along the desired line. Ensure not to clamp on the wrong side.

How do I attach the corner covers?

After cutting, file sharp edges, remove adhesive backing, clean the surfaces, and attach using the VHB adhesive provided. Press firmly.

What is the difference between solid and perforated trim kits?

The kit includes both a solid cover (A) and a perforated cover (B). You can choose based on your ventilation or aesthetic preferences.

Is this kit compatible with Unilumin UpanelS displays?

Yes, the manual includes specific steps for Unilumin UpanelS sides with bump-outs.

Where can I get warranty or support?

Visit peerless-av.com/warranty or call customer care at 1-800-865-2112 (US) or [phone] (Europe).

USER MANUAL DS-LEDTK-13VX5S Peerless-AV

WARNING

ENG - This product is designed to be installed on plywood walls. Hardware is included for plywood installation. This product is designed to be installed on flat, unobstructed, vertical walls. Do not install on curved or angled walls. Before installing make sure the supporting surface will support the combined load of the equipment and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail. Never exceed the Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to safely lift and position equipment. This product is intended for indoor use only. Use of this product outdoors could lead to product failure or personal injury. Be careful not to pinch fingers when operating the mount. For support please call customer care at 1-800-865-2112.

ENG Tools Needed for Assembly.

ENG Parts (Before beginning, make sure you have all parts shown below).

Parts List
Description Part #

A solid cover -
B perforated cover -
C right solid wall bracket -
D perforated wall bracket -
E corner cover assembly 147-1876
F nut bar 147-T1881
G 1/4-20 x 0.375" socket screw 10007616
H solid wall bracket spacer 147-T1880
I outer cutting jig 147-T1882
J inner cutting jig 147-T1883
K wall plate shim 147-1891
L 1/4-20 x 25mm screw	521-0710
M #14-10 x 1.75" wood screw	521-1688
N M3 x 8mm phillips	521-0711
O 1/4-20 x 1/2" socket screw	520-1169
P vinyl sticker	580-0535
Q 1/4-20 hex nut	10010403
R #8-18 X 3/4" self drilling screw	521-0714
S 4mm allen wrench	560-9646
T left solid wall bracket	-

1

Standard steps for solid or perforated trim kits.

Steps for Unilumin UpanelS sides with bump-outs.

1a-1

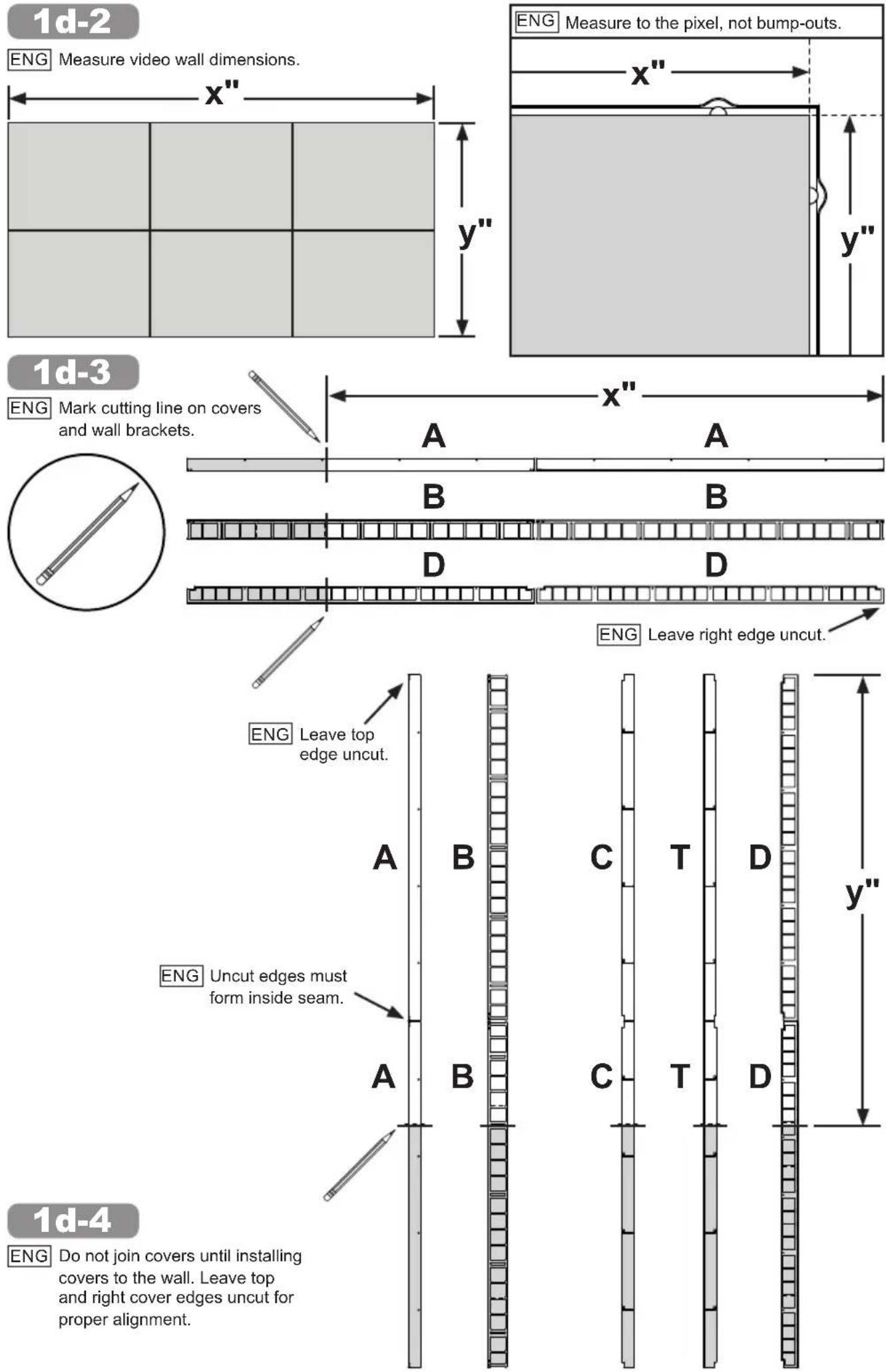

ENG Measure video wall dimensions.

1a-2

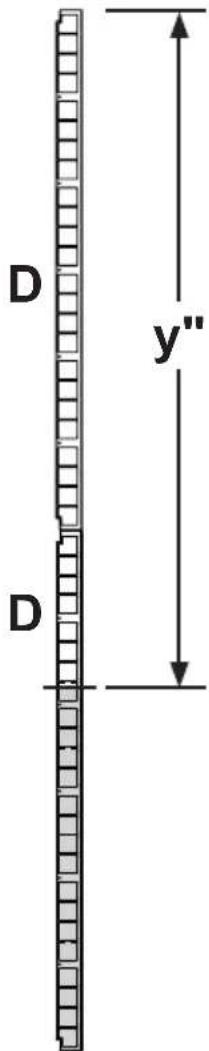

ENG Mark cutting line on covers and wall brackets.

1a-3

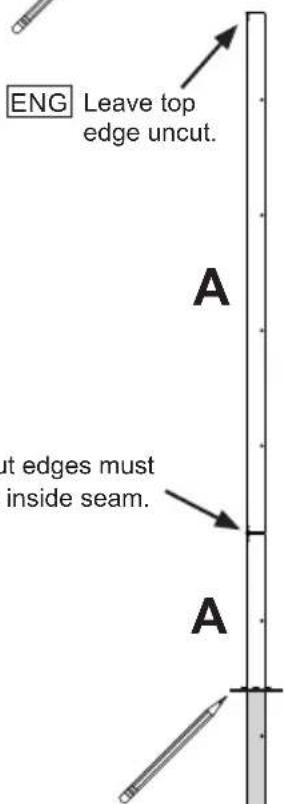

ENG Do not join covers until installing covers to the wall. Leave top and right cover edges uncut for proper alignment.

2a-1

ENG

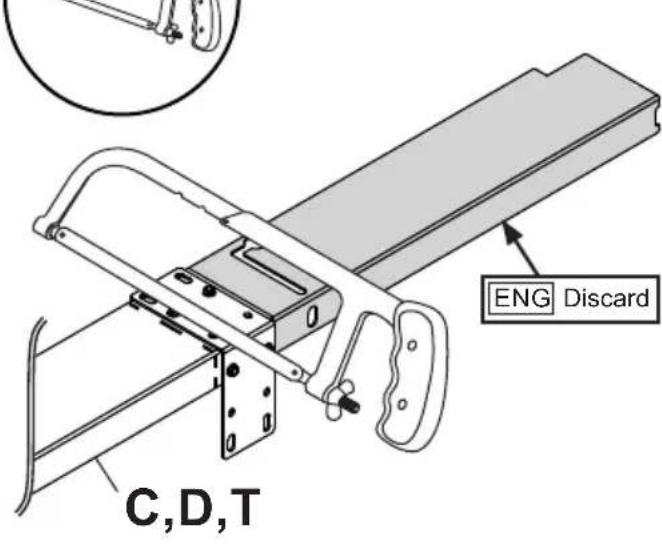

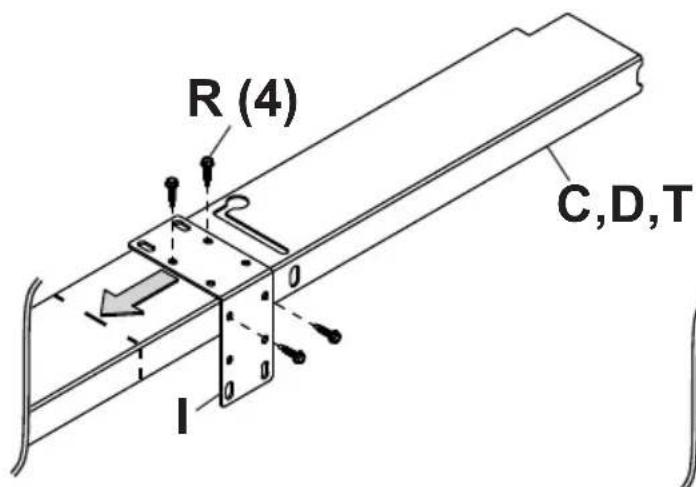

Optional: Clamp or fasten cutting fixture to side of wall bracket or cover being discarded.

R (4)

2a-2

WARNING

ENG - When installing Peerless wall mounts on a wood stud wall covered with plywood, verify that the wood studs are a minimum of 2" x 4" nominal size and plywood is a minimum Grade BC, 1/2" (13mm) thick. Plywood may be covered by gypsum board (drywall) up to 5/8" thick.

3a-1

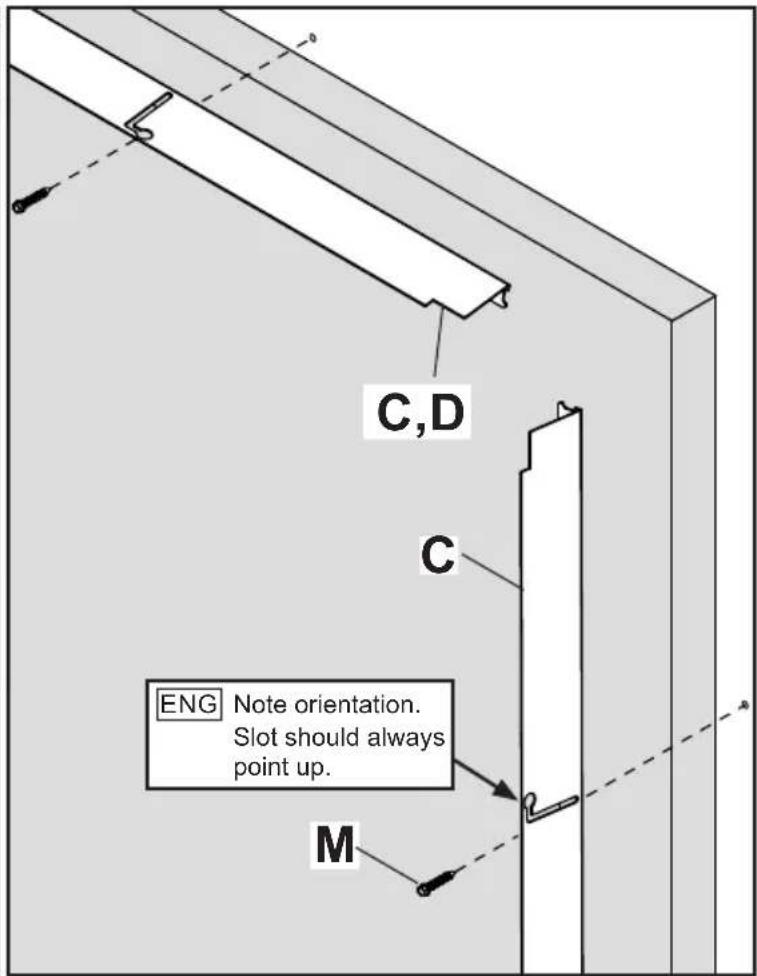

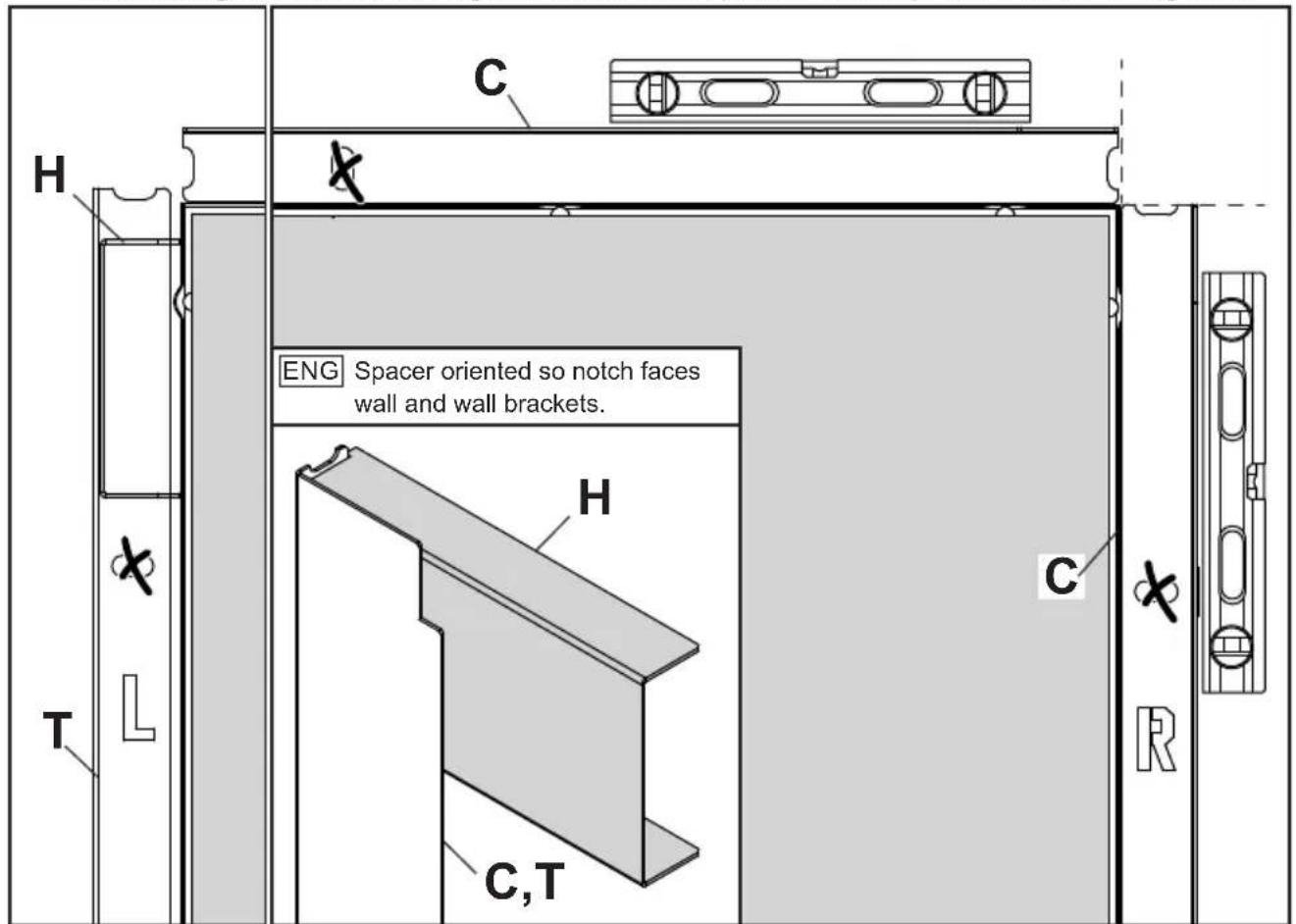

ENG Align wall bracket with edge of video wall. Use spacer to set final position. Mark mounting holes.

3a-2

ENG Drill mounting holes into supporting surface (1.75" (44mm) minimum depth required).

3a-3

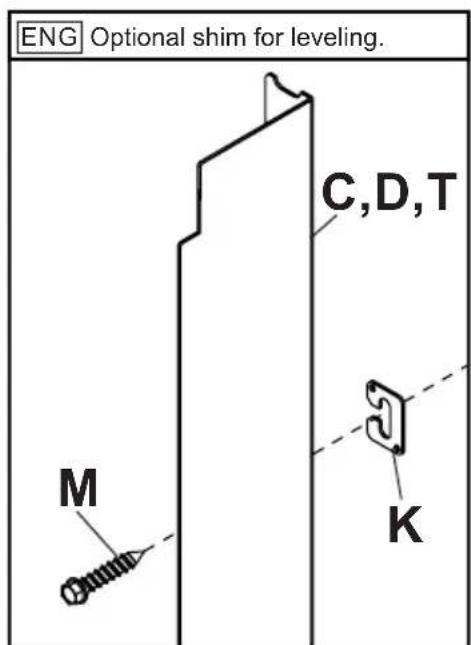

ENG Install using wood screws provided. Use spacer to set final position of wall bracket.

4

Follow steps for solid or perforated trim kits.

4a-1

ENG Do not tighten hardware to solid cover.

4a-2

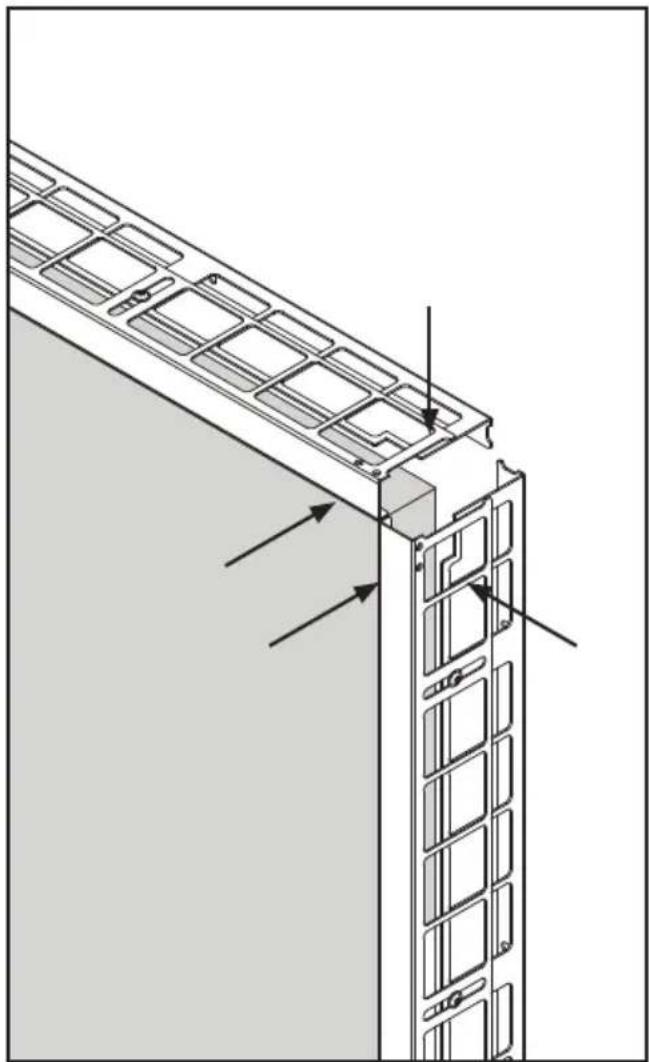

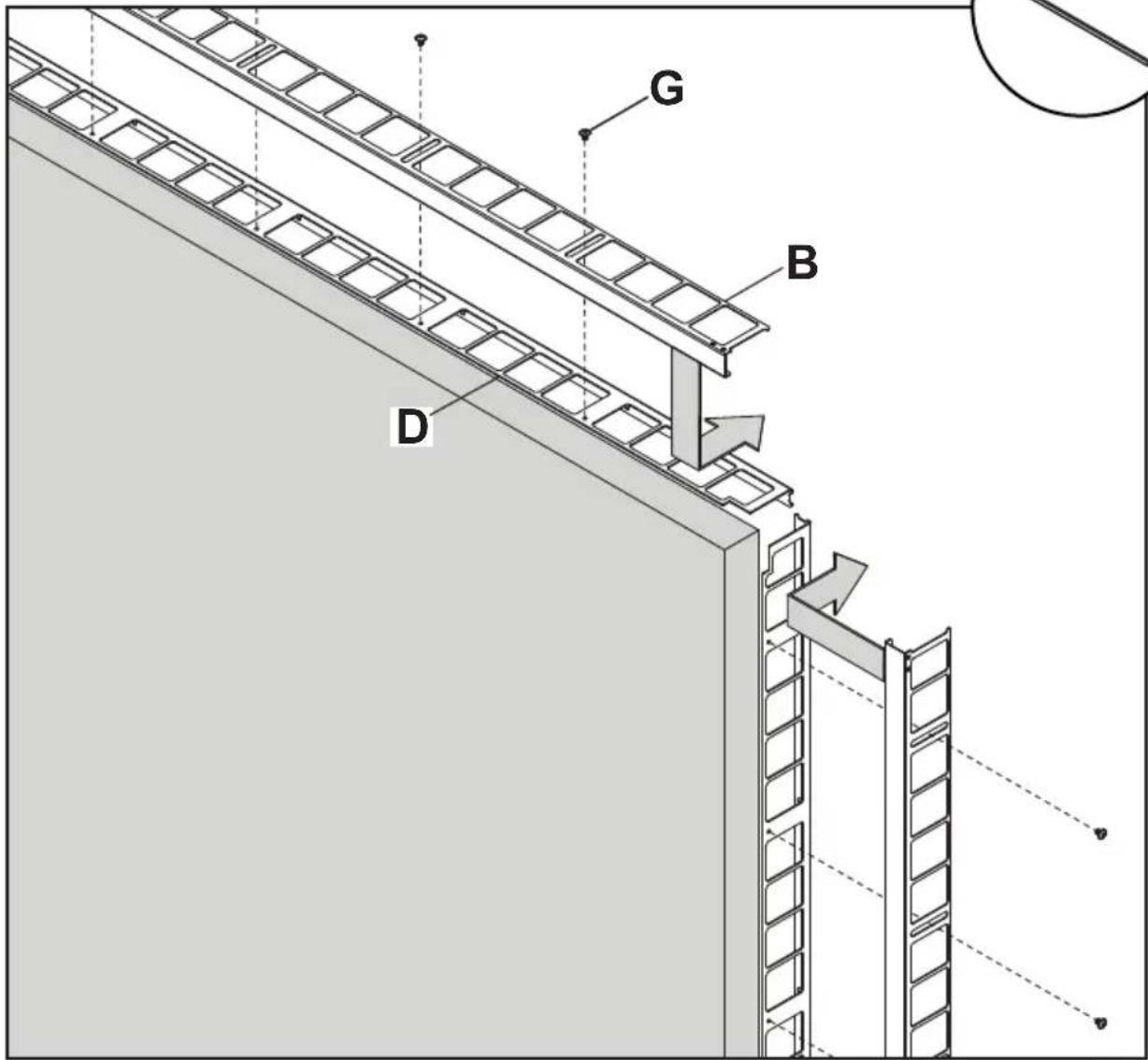

ENG Place wall plate cover over wall bracket. Slide back until flush with front of video wall.

4a-3

ENG

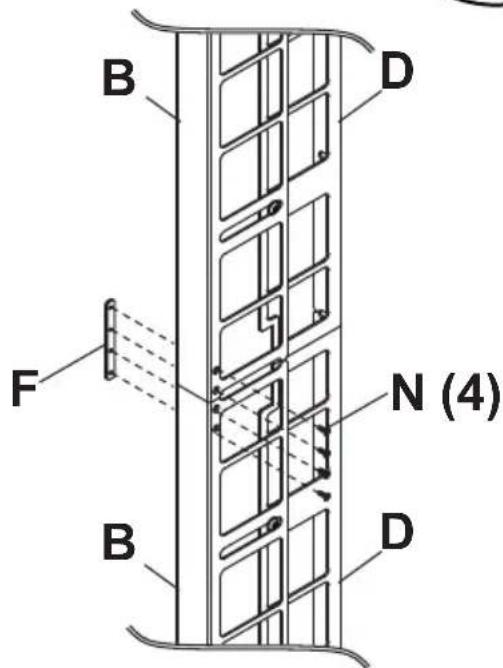

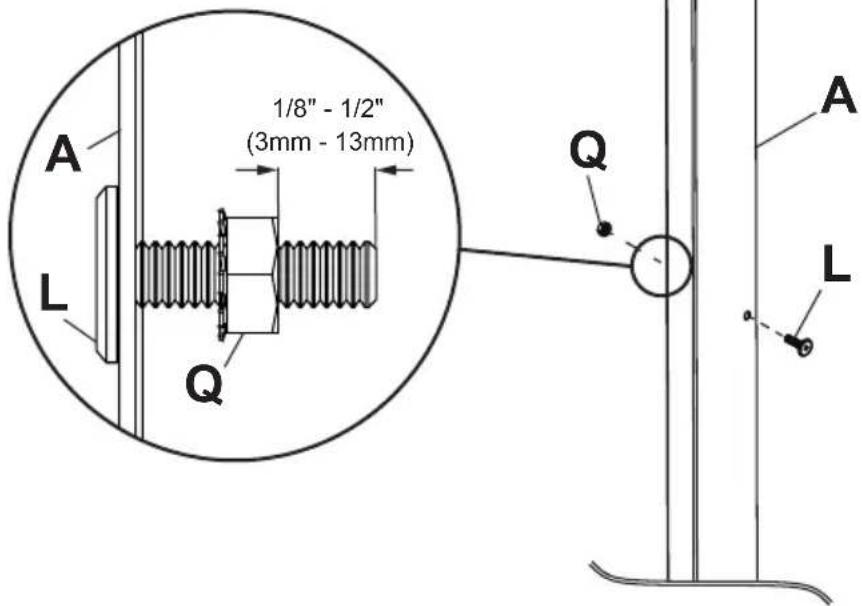

Attach covers with nut bar inside cover. Displays not shown for clarity.

4a-4

ENG

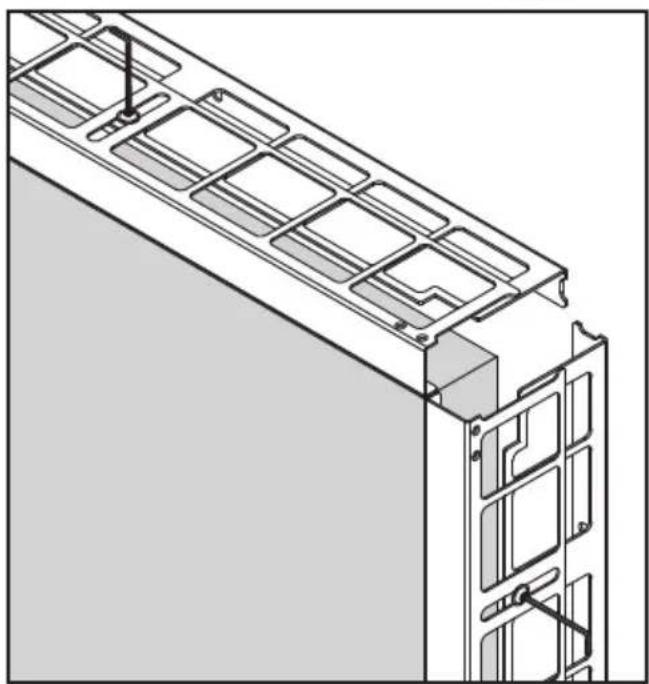

Slide cover back flush with video wall. Tighten screws.

4a-5

4b-1

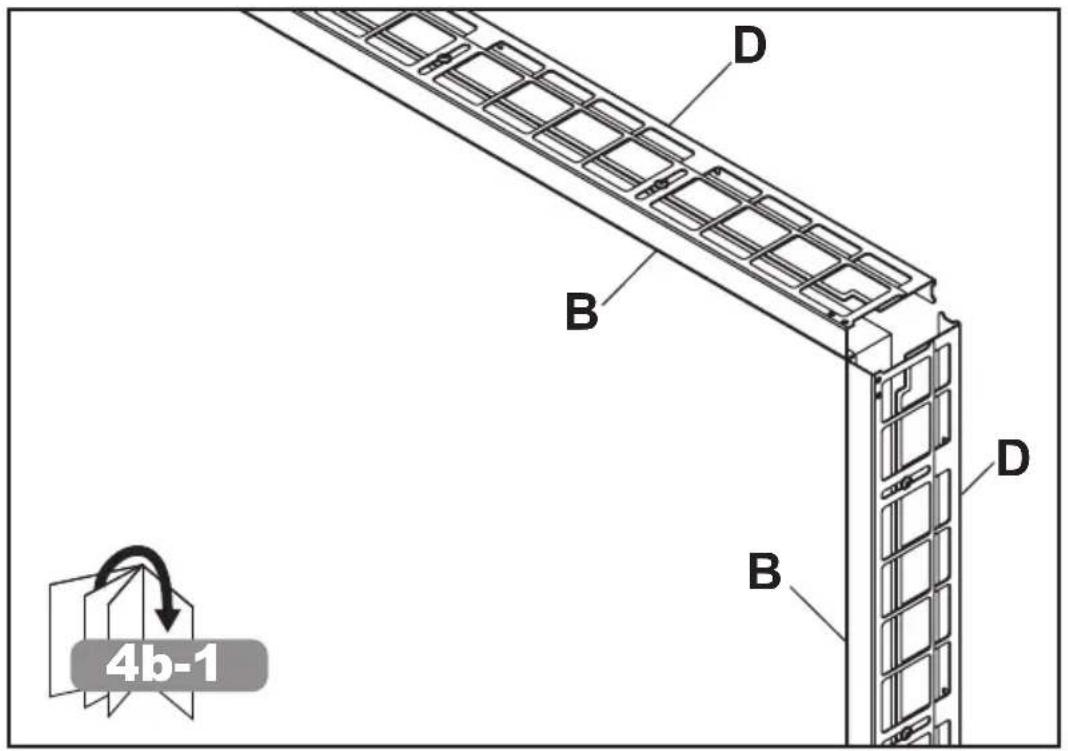

ENG Place cover over wall bracket. Slide back until flush with front of video wall.

4b-2

Attach covers with nut bar inside cover. Displays not shown for clarity.

4b-3

Tighten screws.

4b-4

ENG

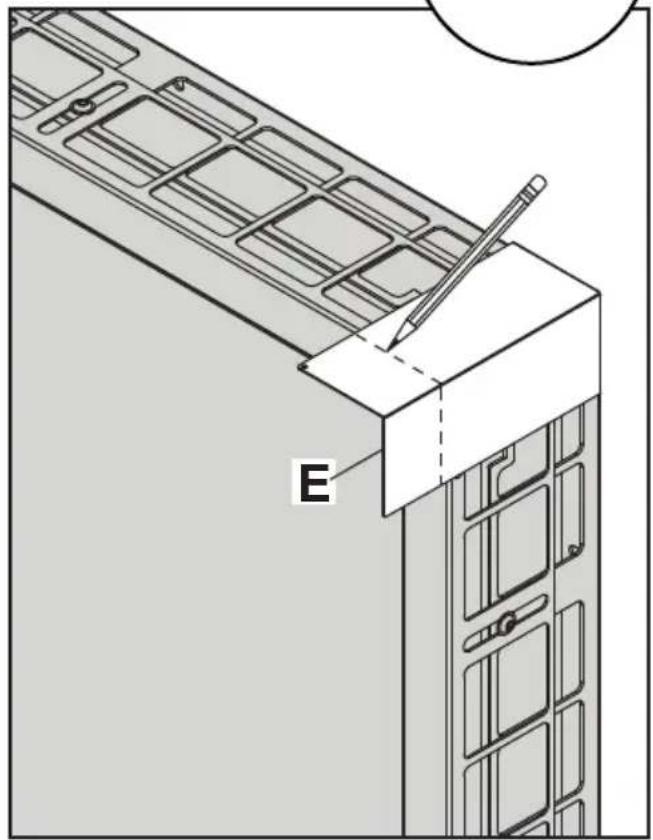

Place corner cover against wall and mark cutting line.

4b-5

ENG

Slide corner cutting fixture into place and clamp onto side of cover being discarded.

4b-6

ENG

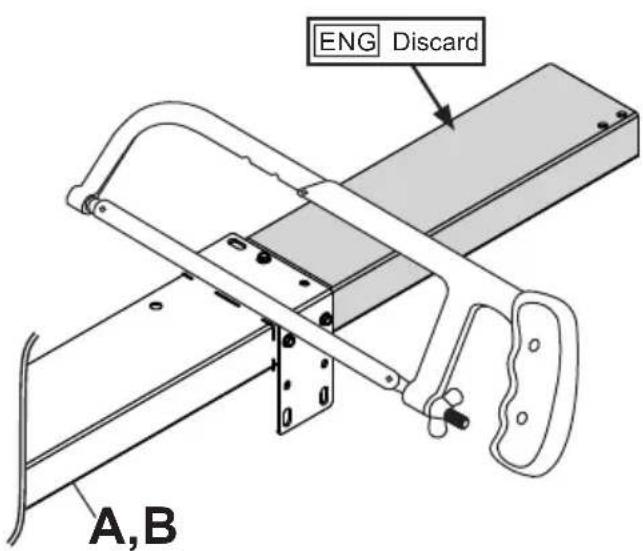

Cut excess corner cover off.

Do not clamp fixture on wrong side of cutting line.

4b-7

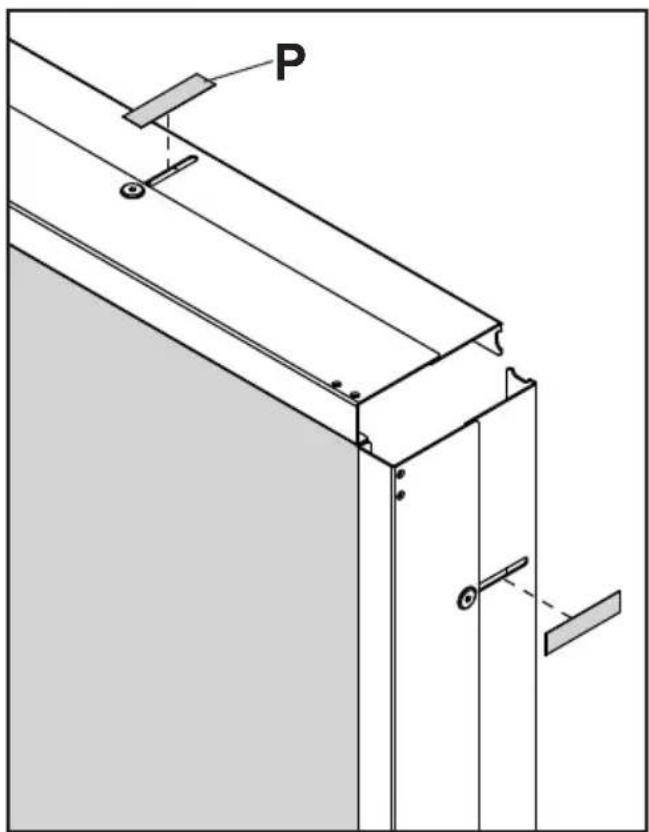

File sharp edges of corner cover. Remove adhesive backing.

x4

4b-84

Clean surfaces before applying VHB.

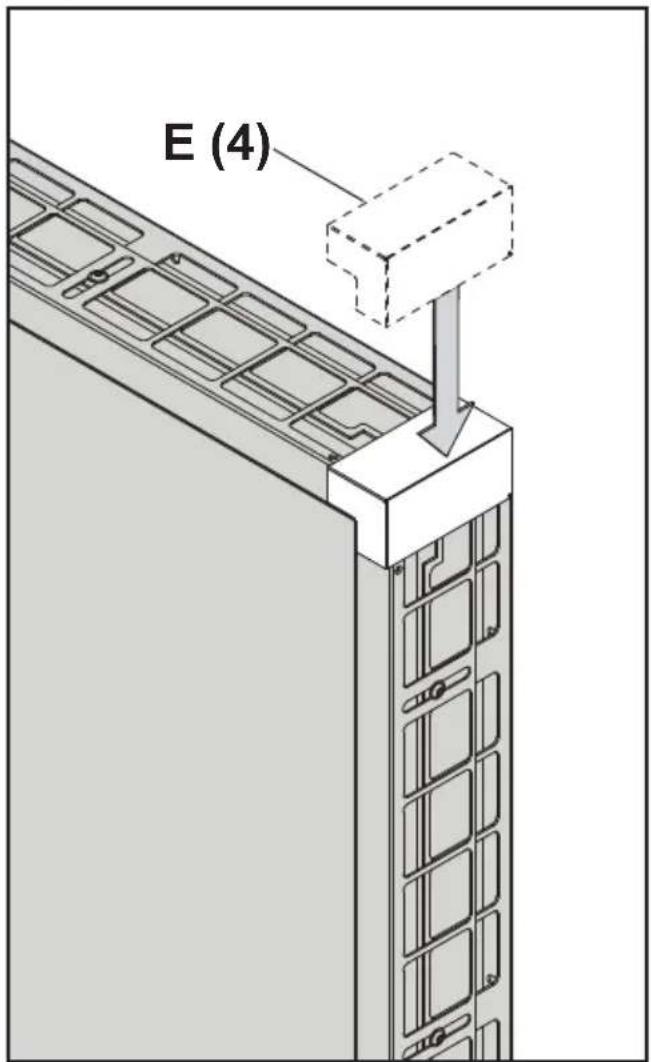

Attach four corner covers with VHB.

ENG This page intentionally left blank.

ENG This page intentionally left blank.

Alternate steps for Unilumin UpanelS sides with bump-outs

1d-1

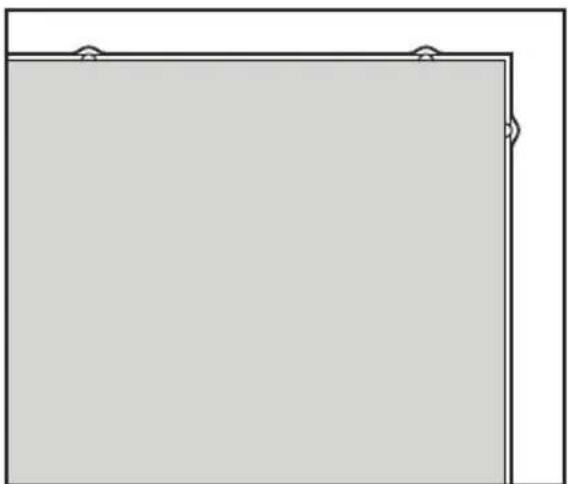

ENG To begin installing solid trim on Unilumin UpanelS edges with bump-outs, create guiding line for the top and right side of the unit using spacer provided.

2d-1

ENG

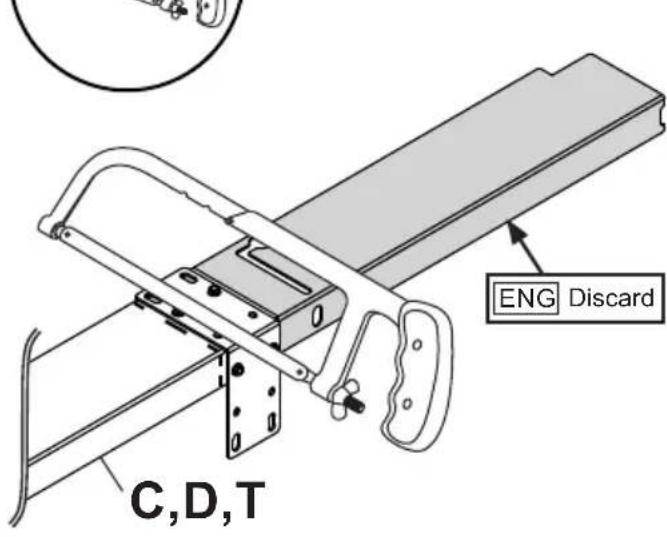

Optional: Clamp or fasten cutting fixture to side of wall bracket or cover being discarded.

2d-2

3d

WARNING

ENG - When installing Peerless wall mounts on a wood stud wall covered with plywood, verify that the wood studs are a minimum of 2" x 4" nominal size and plywood is a minimum Grade BC, 1/2" (13mm) thick. Plywood may be covered by gypsum board (drywall) up to 5/8" thick.

3d-1

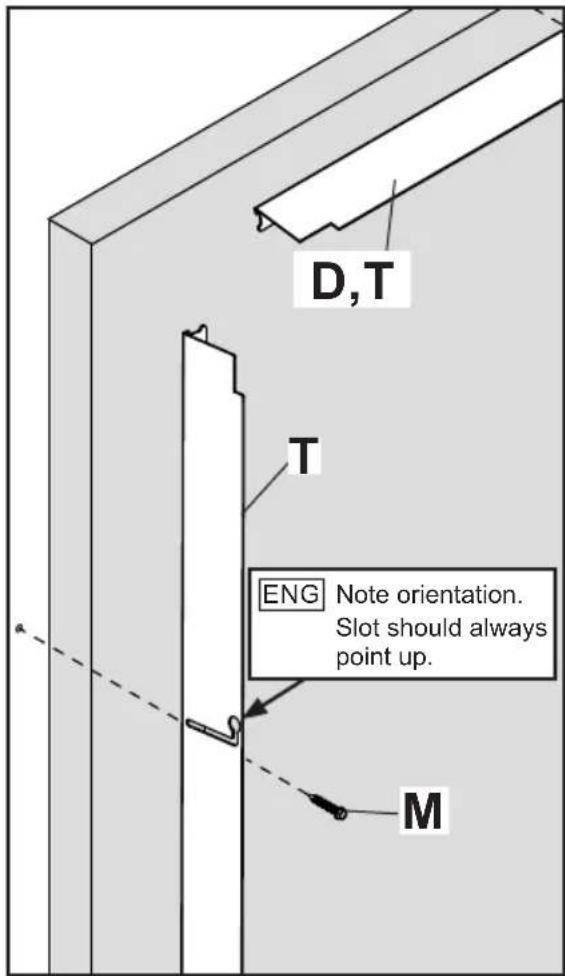

ENG Align top and right wall brackets with display guiding lines. Mark mounting holes. For left and bottom wall brackets, align wall bracket with edge of video wall. Use spacer to set final position. Mark mounting holes.

3d-2

ENG Drill mounting holes into supporting surface (1.75" (44mm) minimum depth required).

3d-3

ENG Install using wood screws provided. Do not fully tighten.

ENG Slide wall brackets in slot until they sit 1.25" from display guiding lines. Level and tighten wood screws. Repeat for left side.

4

Follow steps for solid or perforated trim kits.

4a-1

ENG Do not tighten hardware to solid cover.

4a-2

ENG Place wall plate cover over wall bracket. Slide back until flush with front of video wall.

4a-3

ENG

Attach covers with nut bar inside cover. Displays not shown for clarity.

4a-4

ENG
Slide cover back flush with video wall. Tighten screws.

4a-5

4b-1

ENG Place cover over wall bracket. Slide back until flush with front of video wall.

4b-2

Attach covers with nut bar inside cover. Displays not shown for clarity.

4b-3

Tighten screws.

4b-4

ENG

Place corner cover against wall and mark cutting line.

4b-5

ENG

Slide corner cutting fixture into place and clamp onto side of cover being discarded.

4b-6

ENG

Cut excess corner cover off.

Do not clamp fixture on wrong side of cutting line.

4b-7

File sharp edges of corner cover. Remove adhesive backing.

x4

4b-84

Clean surfaces before applying VHB.

Attach four corner covers with VHB.
