Type	Satcom/TV PowerTower Mount
Model	SATPT-40
Brand	Scanstrut
Category	Nautical Accessory
Compatible Antennas	Satcom and TV antennas with standard mounting pattern
Mounting Hardware Required	4 x M10 Stainless Steel bolts, large washers, nuts (not included)
Drill Size for Bolts	10.5 mm
Cable Exit Hole Diameter	50 mm (2 inches) or 60 mm (2.4 inches)
Kit Contents	1 x SATPT-40, 1 x Base Seal (19050), 4 x Nylon Shouldered Washers (64004)
Material	Marine-grade stainless steel and UV-stabilized plastic
Finish	White dome top, black/grey base
Weight	Approximately 1.5 kg (3.3 lbs)
Height	Approximately 200 mm (7.9 inches)
Base Diameter	Approximately 150 mm (5.9 inches)
Color	White with red Scanstrut branding
Installation Type	Deck or arch mount
Maintenance	Regularly check bolt torque and clean with fresh water
Warranty	2 years (standard Scanstrut warranty)
Country of Origin	United Kingdom
Includes Instructions	Yes, installation guide

Frequently Asked Questions - SATPT-40 Scanstrut

What tools are needed to install the SATPT-40?

You will need a 10.5 mm drill for mounting holes, a 50 mm or 60 mm hole cutter for the cable loom, and a socket set for M10 bolts.

Does the SATPT-40 include mounting bolts?

No, the kit does not include bolts. You need to purchase 4 x M10 stainless steel bolts, large washers, and nuts separately.

What is the maximum cable diameter that fits through the cable exit?

The cable exit hole should be cut to 50 mm (2 inches) or 60 mm (2.4 inches) in diameter, accommodating most marine cable looms.

Can the SATPT-40 be mounted on a curved surface?

The base is flat; for curved surfaces, you may need a custom shim or mount to ensure a watertight seal.

How do I ensure a waterproof seal during installation?

Use the included foam Base Seal (part 19050) between the mount and mounting surface. Apply marine sealant around bolt holes for extra protection.

What is the recommended torque for the M10 bolts?

Tighten bolts to 15-20 Nm (11-15 ft-lbs) or as recommended by your deck/arch manufacturer. Over-tightening may damage the base.

Is the SATPT-40 compatible with Starlink antennas?

The SATPT-40 is designed for satcom and TV antennas with standard mounting patterns. Check your antenna's bolt pattern; adapters may be needed.

How often should I inspect the mount?

Inspect at least every 3 months for corrosion, loose bolts, or damage. After storms or heavy use, check sooner.

Can I use the SATPT-40 for a radar antenna?

No, the SATPT-40 is specifically for satcom and TV antennas. For radar, use a dedicated Radar PowerTower model.

What is the height of the SATPT-40?

The height is approximately 200 mm (7.9 inches) from base to top plate.

USER MANUAL SATPT-40 Scanstrut

Satcom/TV PowerTower - SATPT-33, SATPT-40

Installation Instructions

White dome-shaped device with red 'SCONSTRUT' label, mounted on a cylindrical base against blue background (no other text or symbols)

White dome-shaped radar or satellite mounted on a stand with 'SCANSTRUT' branding, against a blue background (no other text or symbols visible)

SATPT kit contents

[ ] 1 x SATPT
[ ] 1 x SATPT Base Seal [19050]
[ ] 4 x Nylon Shouldered Washers [64004]

Also Required:

• 4 x M10 Stainless Steel bolts, large washers and nuts to attach SATPT to deck/arch. Length to suit deck/arch thickness.
• 10.5mm Drill.
  • Hole Cutter for cable loom; approx 50[2"] or 60[2.4"]mm dia.

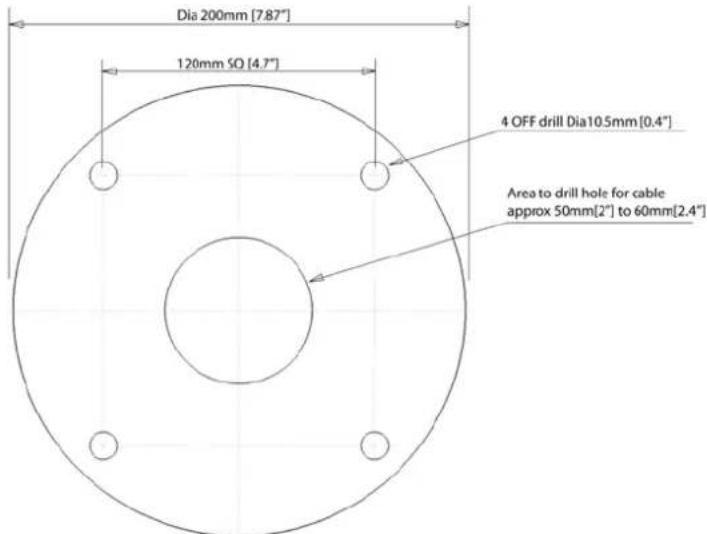

Drilling Guide

1:1 drilling guide follows below.

Fitting SATPT

1. Drill holes in arch to match SATPT base and a central cable exit - See drilling guide.
2. Thread the cable loom up through the arch, base seal and into the SATPT.
3. Pull enough cable through the SATPT and through the antenna's base seal to reach the antenna.
4. Once enough cable has been pulled through fasten the SATPT to the arch, ensuring foam Base Seal is positioned under the SATPT base.
5. With antenna sitting on it's base seal, fasten the antenna to the top plate with the bolts supplied and attach cable.

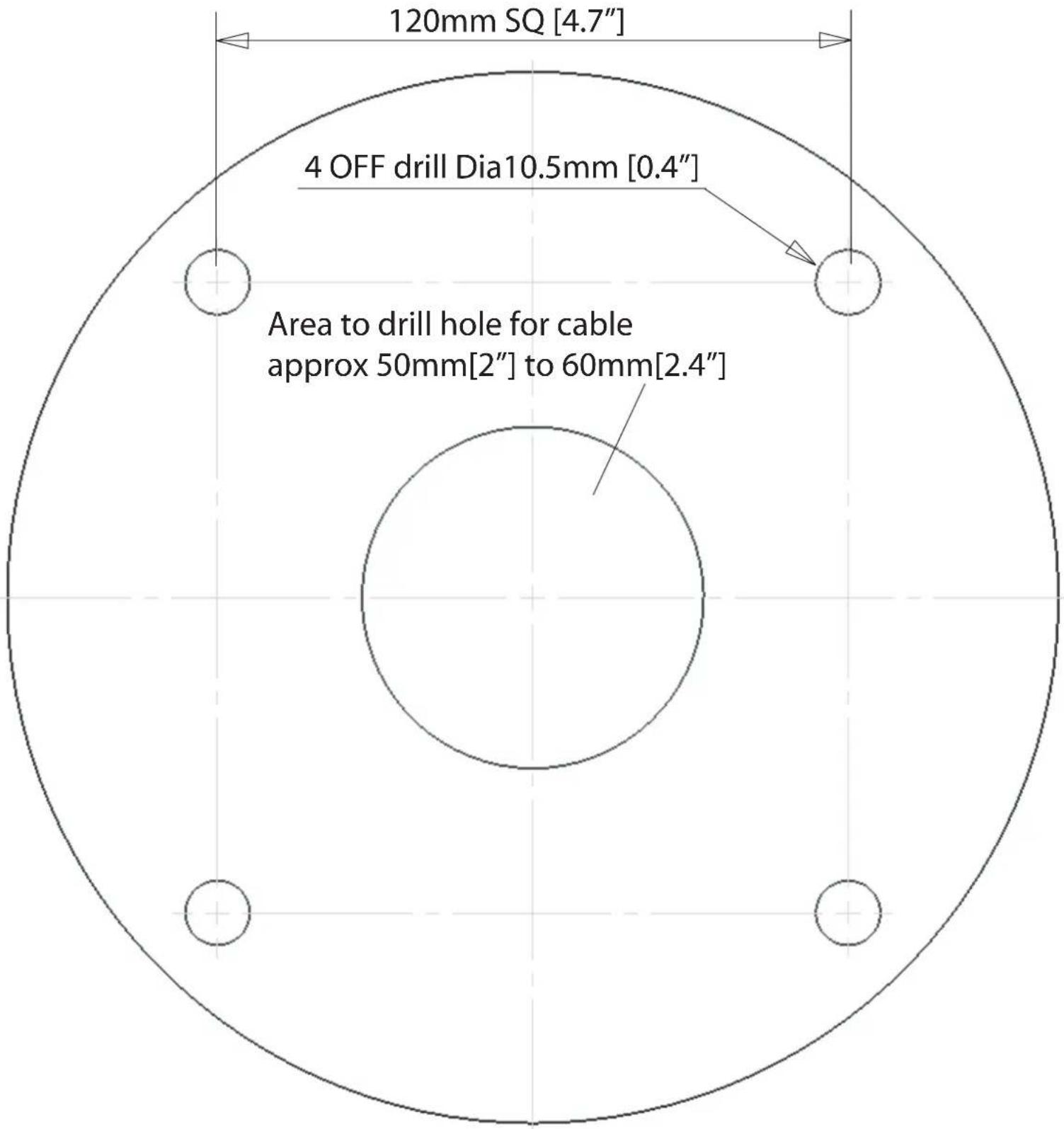

Drilling template for SATPT-33, SATPT-40 Base at 1:1 NOTE: Do not scale when printing, always print at 100%

SCANSTRUT®

INSTALLATION SOLUTIONS FOR MARINE ELECTRONICS™

Satcom/TV PowerTower - SATPT-60

Installation Instructions

Technical line drawing of a circular mechanical component with flanged base and central hole (no text or symbols)

SATPT-60 kit contents

[ ] 1 × SATPT-60
[ ] 1 x Base Seal [19083]
[ ] 4 x Nylon Shouldered Washers [64004]
[ ] 2 x Scanstrut stickers [40113]

Also Required:

• 4 x M8 Stainless Steel bolts, large washers and nuts to attach SATPT to deck/arch. Length to suit deck/arch thickness.
• 8.5mm Drill.
  • Hole Cutter for cable loom; 65mm[2.5"] dia.

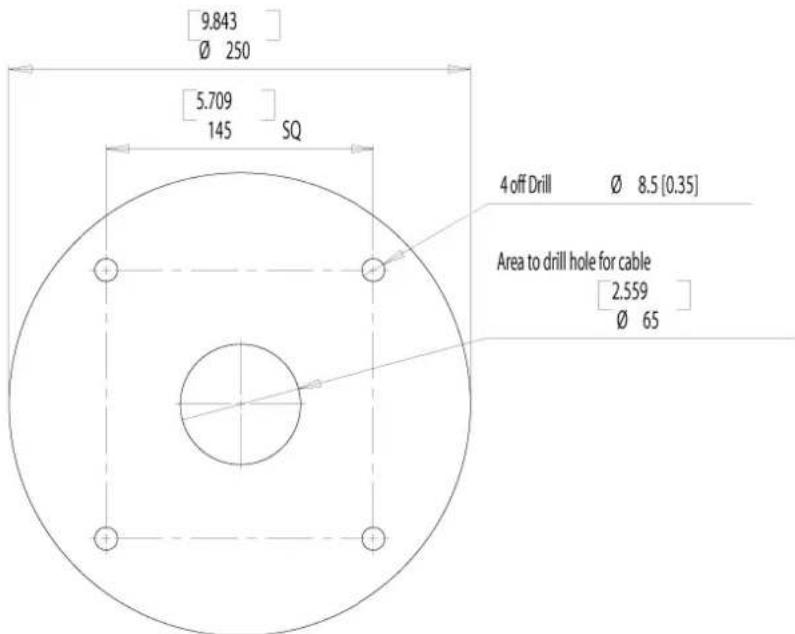

Drilling Guide

Fitting SATPT-60

1. Drill holes in arch to match SATPT-60 base and a central cable exit – See drilling guide.
2. Thread the cable loom up through the arch, base seal and into the SATPT-60.
3. Pull enough cable through the SATPT-60 and through the antenna's base seal to reach the antenna.
4. Once enough cable has been pulled through fasten the SATPT-60 to the arch, ensuring foam Base Seal is positioned under the SATPT-60 base.
5. With antenna sitting on it's base seal, fasten the antenna to the top plate with the bolts supplied and attach cable.
