KAMFRWARSSA - Milk Kogan - Free user manual and instructions

Product Type	Milk Frother and Warmer
Brand	Kogan
Model	KAMFRWARSSA
Dimensions	170 x 135 x 200 mm
Weight	Approximately 1.2 kg
Power Supply	220–240V, 50–60Hz
Power Consumption	585–685 W
Capacity	Up to 350 ml (max 250 ml for frothing functions)
Functions	Cold, Latte, Cappuccino, Hot Chocolate
Discs Included	Magnetic frothing disc and magnetic mixing disc
Material	Stainless steel jug, plastic lid with silicone seal, plastic power base
Cleaning	Jug dishwasher safe up to 70°C; discs and lid hand wash; power base wipe only
Safety Features	Auto shut-off, cool-touch handle, residual heat warning, child safety warnings
Warranty	Contact Kogan support for warranty details
Repairability	Do not attempt to repair; contact help.kogan.com
Intended Use	Household and similar environments (staff kitchens, farmhouses, hotels)

Frequently Asked Questions - KAMFRWARSSA Kogan

How do I use the milk frother?

Place the frother on a dry surface, plug in, and select the desired disc (frothing or mixing). Pour milk up to the MAX line, secure the lid, place jug on base, and press the function button to choose Cold, Latte, Capp, or Hot Choc. The frother will beep when done.

What type of milk should I use for best froth?

For optimal froth, use fresh cold milk at 2–8°C. Whole milk produces the thickest foam, but plant-based milks can also work. Ensure milk is not spoiled.

Why is my milk not frothing?

Check that the magnetic frothing disc is securely attached to the shaft inside the jug and not damaged. Ensure the milk is fresh and cold (2–8°C). Also verify the jug is properly placed on the power base and the function is set correctly.

How do I clean the milk frother?

After each use, wash the jug in a dishwasher (max 70°C) or by hand. Hand wash the discs and lid with mild detergent. Wipe the power base with a dry cloth. Never immerse the power base in water.

Can I heat other liquids like soup or cream?

No, the frother is designed only for milk and dairy alternatives. Do not use it to thicken or heat other foods like cream, custards, soups, or gravies, as this can cause damage or injury.

What is the difference between the frothing disc and mixing disc?

The frothing disc is used for cappuccino, latte, and cold functions to create foam. The mixing disc is used for hot chocolate and hot milk to stir without foaming. Select the disc based on the desired function.

What happens if I overfill the jug?

Do not exceed the MAX line (250 ml for most functions, 350 ml for hot milk with mixing disc). Overfilling can cause milk to overflow during operation, creating a mess and potential safety hazard.

Why is my frother making strange noises?

Ensure the jug is properly secured onto the power base. If the noise persists, check that the disc is correctly mounted and not damaged. If the problem continues, stop use and contact help.Kogan.com.

What do the indicator lights mean?

When you select a function, the corresponding light (Cold, Latte, Capp, Hot Choc) will illuminate. The light will flash for 2 seconds before operation begins. If no light appears, check power connection and jug placement.

How should I store the milk frother?

Store the frother in a cool, dry place out of reach of children. The magnetic frothing disc can be stored in the compartment on the underside of the power base. Keep the jug and lid separated to prevent odor buildup.

USER MANUAL KAMFRWARSSA Kogan

Line drawing of a modern kitchen water heater with labeled buttons (latte, capo, hot choc) and control knob (no text or symbols beyond branding)

MILK FROTHER AND WARMER

KAMFRWARBKA, KAMFRWARSSA

SAFETY & WARNINGS

Ensure to read all instructions in this user guide prior to first use. Retain this user guide for future reference.

• Discard all packaging when removing the frother out of the box as the packaging may cause a hazard to children.
• Discard the protective cover on the power plug as this may cause a choking hazard to children.
• This frother cannot be used by persons (including children) with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the frother, by a person responsible for their safety.
• The magnetic frothing disc and magnetic mixing disc can be choking hazards. Adult supervision is required at all times when children are around the appliance.
• Do not allow children to play with the appliance.

• The appliance is intended for households and for similar uses such as:

• Staff kitchen areas in shops, offices, and other working environments.
  o Farmhouses

• By clients in hotels, motels, bed and breakfasts, and other residential type environments.

- Do not use the frother outdoors. Using the frother in environments other than those stated in this user guide may lead to misuse and injuries.

- The milk frother is intended for the purpose of foaming milk and other dairy milk alternatives. It is not intended to thicken or heat other foods (for example, cream, custards, soups, gravies).

- If the frother is damaged, stop use immediately and contact help.Kogan.com for assistance. Using a damaged frother can lead to electric shocks, burns, and fires.

- If the power cord is damaged, stop use immediately and contact help.Kogan.com for assistance.

- Do not modify or attempt to repair the frother yourself.

- Do not immerse the power base into water or any other liquids.

- Do not pour water or any other liquid into the power base as this may lead to electric shock.

- Do not place the frother on or near hot surfaces (for example, gas burners, hot plates).

- The heat plate is subject to residual heat after use. Do not touch the heat plate as this may cause injuries.

• The power base can only be used with the jug of this frother. Do not use other jugs with this power base.
• Do not place metal or any other hard objects into the jug as this may cause damage and affect the operation of this frother.
• This jug becomes hot during use and touching it may cause injuries. Instead, use the handle to hold the jug.
• Do not operate the milk frother if there is no milk or water in the jug.
• Ensure the bottom and exterior of the jug is dry before placing it onto the power base.
• When pouring, do not exceed the MAX line marked on the inside of the jug.
• When in use, do not place the hot jug near or on the power cord.

COMPONENTS

1 Lid with silicon seal
2 Jug
3 Magnetic frothing disc
4 Magnetic mixing disc
5 Function indicator lights

6 Storage compartment
7 Handle
8 Heat plate
9 Power base
10 Function button

OPERATION

1. Place the milk frother on a dry and stable surface. Insert the power plug into a socket and switch the socket on. The frother will then enter standby.
2. Depending on the desired drink, insert the magnetic frothing or mixing disc onto the shaft inside the jug.

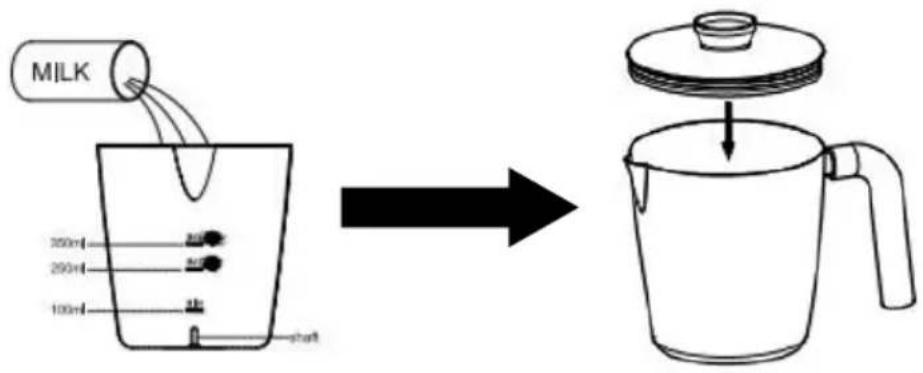

Line drawing of a cooking pot with a lid and arrow indicating downward motion (no text or symbols)

1. Pour the required amount of milk into the jug, then place the lid on top of the jug, ensuring it is securely sealed.

Notes:

• When pouring milk, do not exceed the MAX line indicated on the jug.
  Exceeding this line may cause milk to overflow when the frother is operating.

• For the optimal froth, use fresh cold milk (2–8°C).

• Place the jug onto the power base. Press the function button repeatedly to cycle through the desired function (Cold, Latte, Capp, Hot Choc).

The respective function indicator light will illuminate with the chosen function. The function indicator light will then flash for 2 seconds before the frother starts operating.

Line drawing showing a coffee maker being placed on its side of a larger kettle, with no text or symbols present.

Note:

If milk is spilled, remove the jug immediately and unplug the power cord.

1. Once complete, the milk frother will stop automatically and beep three times.
2. Using the handle, carefully remove the jug off the power base and place onto a stable surface. Take off the lid and pour out the contents.

Functions

The table below shows each function's estimated operating temperature range, running time, and disc required depending on the amount of milk placed into the jug.

Function	Milk (ml)	Temp (°C)	Time (mins)	Disc required	Perfect for
Capp	100 (min)	60-70	3-4	Frothing disc	Cappuccino
	250 (max)	60-65	4-6
Latte	100 (min)	60-70	3-4		Latte
	250 (max)	60-65	4-6
Cold	100 (min)	N/A	2		Iced coffee or flavoured milk
	250 (max)	N/A	2
Hot Choc	100 (min)	60-70	3-4		Hot chocolate
	250 (max)	60-65	4-6
Hot Choc	100 (min)	60-70	3-4	Mixing disc	Hot milk
	250	60-65	4-5
	350 (max)	60-65	5-6

Notes:

• Temperatures and times may vary depending on the initial temperature/type/amount of milk used.
• If making hot chocolate, it is recommended to combine milk with either cocoa powder, or a chocolate block cut into small pieces to allow for easy melting.

CLEANING & CARE

Cleaning

The jug, discs, and lid with silicon seal should be cleaned after each use to prevent build-up of milk residue. The jug may be used in a dishwasher or be hand washed. The remaining components must be hand washed.

WARNING: The jug should not be washed at more than 70^ C in the dishwasher.

Hand wash the components with detergent then rinse with warm/hot water.

Wipe the exterior of the power base with a dry cloth.

Notes:

• Do not use harsh or abrasive materials when cleaning the components as this may lead to damage.
• Do not immerse the power base into water or any other liquids.

Insert the magnetic mixing disc onto the shaft inside the jug then place the lid on.

Turn the power base over and secure the magnetic frothing disc inside the storage compartment.

Storage

Store the frother in a cool dry place, out of reach from children.

TROUBLESHOOTING

Problem Solution
The frother does not heat up when operating.	·Ensure the frother is plugged in and power is switched on at the socket.·Ensure the jug is properly secured onto the power base.
When operating, the function indicator lights illuminate but the magnetic frothing/mixing disc is not working.	·Ensure the frothing/mixing disc is securely mounted onto the shaft inside the jug.·Ensure the frothing/mixing disc is not damaged. If damaged, stop use immediately and contact help.Kogan.com for assistance.
There is too little/too much milk foam.	·For the optimal level of foam, ensure the milk is fresh and cold (2-8°C).·Ensure the milk has not spoiled.·Ensure the magnetic frothing disc is being used with when frothing milk.
The frother is making strange noises when operating.	Ensure the jug is properly secured onto the power base.

SPECIFICATIONS

Power input 220–240V, 50–60Hz

Rated power 585-685W

Dimensions 170 x 135 x 200mm

NOTES

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com

kogan.com
