USER MANUAL AT-3GSDI-14 Atlona

Exterior view of a black ATLASDA-16 broadband device with gold connectors and red logo (no readable text or symbols beyond branding)

Electronic device with black and orange body, gold connector, and brass connectors (no visible text or symbols)

TABLE OF CONTENTS

1. INTRODUCTION ...... 1
2. PACKAGE CONTENTS 1
3. FEATURES 1
4. SPECIFICATIONS 2
5. PANEL DESCRIPTIONS 3

5.1. Transmitting Module 3
5.1.1. Front Panel 3
5.1.2. Rear Panel 3

1. CONNECTION DIAGRAM 4
2. INSTALLATION 4
3. SAFETY INFORMATION 5
4. WARRANTY 6
5. ATLONA PRODUCT REGISTRATION 7
6. SIGNAL MEASUREMENT 8

INTRODUCTION:

The AT-3GSDI-14 1x4 3G/HD/SD-SDI distribution amplifier with Reclocking, receives one SDI input signal, perfectly duplicates it, and re-transmits to four SDI outputs for a real time multi-viewing. The Atlona 3G HD-SDI, HD-SD, SDI Distribution Amplifier is a perfect solution for those who want to split a signal from a camera, Video Card or a Mixer to 4 Outputs. The Atlona unit will not introduce any delay to the video signal and therefore perfect for professional broadcast applications.

PACKAGE CONTENTS:

• 1xAT-3GSDI-14
• 1x5V universal power supply
• 1x User's manual

FEATURES:

• Compatible with full resolution 3G HD-SDI and SDI
• Four separately buffered and reclocked outputs
• Equalized output allows up to 300ft 3G HD-SDI Extension on all outputs and up to 1000ft for SDI signal
• Full Data transmission without any changes
- Locking power supply for better fixedness'

SPECIFICATIONS

Technical
Role of usage		1 X 4 Distribution Amplifier (Splitter)
SDI standards SD-SDI, HD-SDI, 3G-SDI
Auto 3G/HD/SD detectionY es
Supported protocolsS MPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE 425M
Video bandwidth [2.97Gpbs & 2.97/1.001Gbps]
Data rates 270 / 1483 / 1485 / 2967/ 2970 Mbps
Output impedance		75Ω
Reclocking functionY es
Cable equalization		[3G] up to 90m (300ft) [HD] up to 150m (500ft) [SD] up to 300m (1000ft)
Audio supportY es
RP-198 pathological patternsl mmune
Input 1x BNC [SDI]
Output 4x BNC [SDI]
BNC connector		75Ω inter-locked socket
Eye pattern characteristics		Amplitude: Within 800mV 3% (<10%) Rise overshoot: Less than 2% (<10%) Fall overshoot: Less than 2% (<10%) Long time jitter: 0.195g (<1.0 UI) Timing jitter: 0.195g (<1.0 UI) Alignment jitter: 0.127g (<0.2 UI)
Mechanical
Housing Metal enclosure
Dimensions[L x W x H]	Model	5.7" x 3.2" x 1" (145 x 80 x 25mm)
	Package	10.6" x 6.9" x 3.2" (270 x 175 x 80mm)
	Carton	15.7" x 12.6" x 11.8" (450 x 370 x 300mm)
Weight	Model	10.9oz (310g)
	Package	1.7lbs (785g)
Fixedness Inter-locked power supply
Power supply 5V 4A DC
Power consumption		10 Watt (max)
Operation temperature		32~104°F (0~40°C)
Storage temperature		-4~140°F (-20~60°C)
Relative humidity		20~90% RH (no condensation)

PANEL DESCRIPTIONS

5.1. Transmitting Module

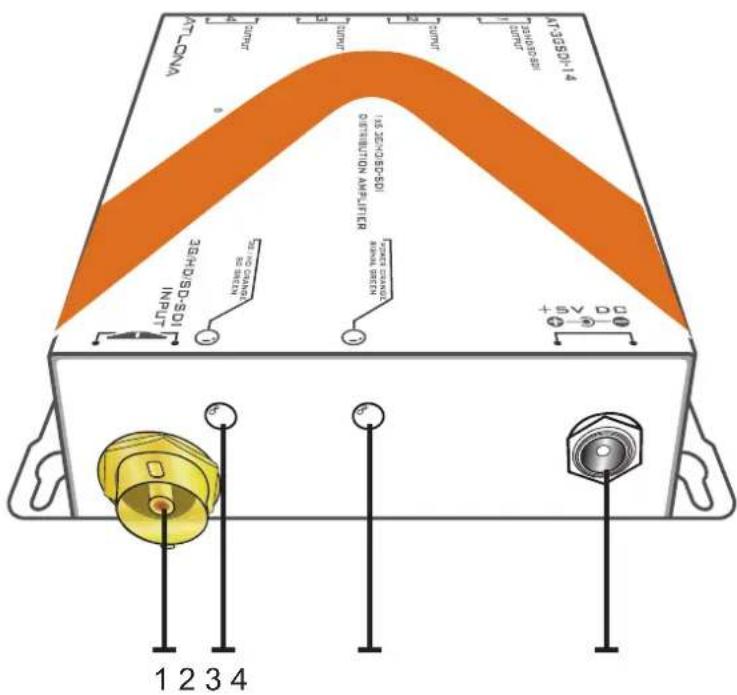

5.1.1. Front Panel

AT3G5D-14 INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU

1. 3G/HD/SD-SDI input
2. LED - Orange: 3G/HD-SDI Green: SD-SDI
3. LED - Orange: Power status Green: Signal status
4. 5V DC power jack

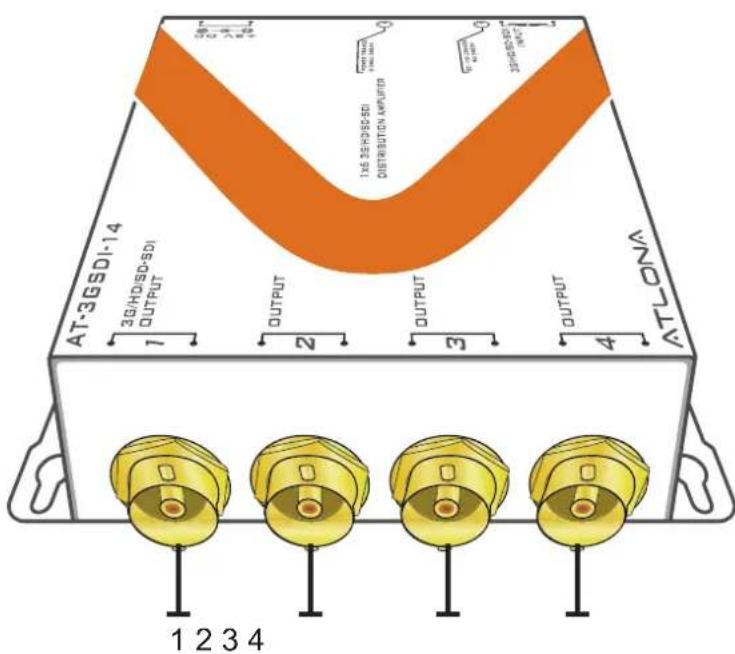

5.1.2. Rear Panel

1. 3G/HD/SD-SDI output 1
2. 3G/HD/SD-SDI output 2
3. 3G/HD/SD-SDI output 3
4. 3G/HD/SD-SDI output 4

AT-3GSDI-14 OUTPUT 3G/HOSO-SDI 1 2 3 4 ATLONA 1 2 3 4 DISTRIBUTION LINPUTS OUTPUT OUTPUT 116.3G/HOSO-SDI 300V/100V 300V/100V 300V/100V 12 3 4

CONNECTION DIAGRAM

INSTALLATION:

1. Connect a camera or other SDI source to 3G/HD/SD-SDI input.
2. Connect SDI displays or devices to 3G/HD/SD-SDI outputs.
3. Screw the 5V power supply unit to the locking power jack.

SAFETY INFORMATION

Safeguards

To reduce the risk of electric shock, do not expose this product to rain or moisture

If the wall plug does not fit into your local power socket, hire an electrician to replace your obsolete socket.

Do not modify the wall plug. Doing so will void the warranty and safety features.

This equipment should be installed near the socket outlet and the device should be easily accessible in the case it requires disconnection.

Precautions

FCC regulations state that any unauthorized changes or modifications to this equipment, not expressly approved by the manufacturer, could void the user's authority to operate this equipment.

Operate this product using only the included external power supply. Use of other power supplies could impair performance, damage the product, or cause fires.

In the event of an electrostatic discharge this device may automatically turn off. If this occurs, unplug the device and plug it back in.

Protect and route power cords so they will not be stepped on or pinched by anything placed on or against them. Be especially careful of plug-ins or cord exit points from this product.

Avoid excessive humidity, sudden temperature changes or temperature extremes.

Keep this product away from wet locations such as bathtubs, sinks, laundries, wet basements, fish tanks, and swimming pools.

Use only accessories recommended by Atlona to avoid fire, shock, or other hazards.

Unplug the product before cleaning. Use a damp cloth for cleaning and not cleaning fluid or aerosols. Such products could enter the unit and cause damage, fire, or electric shock. Some substances may also mar the finish of the product.

Never open, remove unit panels, or make any adjustments not described in this manual. Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-3GSDI-14. Opening the product will void the warranty.

Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.

WARRANTY

Limited Warranty

Atlona Technologies warrants that (a) its products (the AT-3GSDI-14) will perform substantially in accordance with the accompanying written materials for a period of 3 years from the date of receipt and (b) that the product will be free from defects in materials and workmanship under normal use and service for a period of 3 years. In the event applicable law imposes any implied warranties, the implied warranty period is limited to 3 years from the date of receipt. Some jurisdictions do not allow such limitations on duration of an implied warranty, so the above limitation may not apply to customers that fall within those areas.

Customer Remedies

Atlona Technologies' and its suppliers' entire liability and Customer's exclusive remedy shall be, at Atlona Technologies' decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer's receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. In example but not limited to: power surges (electrical storms, local power outage), dropping the product (or items on the product), contact with fluids, and physical misconduct (i.e. kicking or punching). Any replacement product will be warranted for the remainder of the original warranty period.

No other warranties

To the maximum extent permitted by applicable law, Atlona Technologies and its suppliers disclaim all other warranties, either expressed or implied, including, but not limited to, implied warranties of merchantability and fitness for a particular purpose, with regard to the product and any related written materials. This Limited Warranty gives customer specific legal rights. Customers may have other rights depending on the jurisdiction.

No liability for damages

To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, incidental, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. Atlona Technologies' and its suppliers' entire liability under any provision of this agreement shall be limited to the amount actually paid by you for the product. Some Jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damage. The above limitations may not apply to you in such jurisdictional cases.

ATLONA PRODUCT REGISTRATION

Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase.

Registration creates an ownership record if your product is lost or stolen and helps ensure you'll receive notification of performance issues and firmware updates.

At Atlona, we respect and protect your privacy, assuring you that your registration information is completely secure. Atlona product registration is completely voluntary and failure to register will not diminish your limited warranty rights.

To register go to: http://www.atlona.com/registration

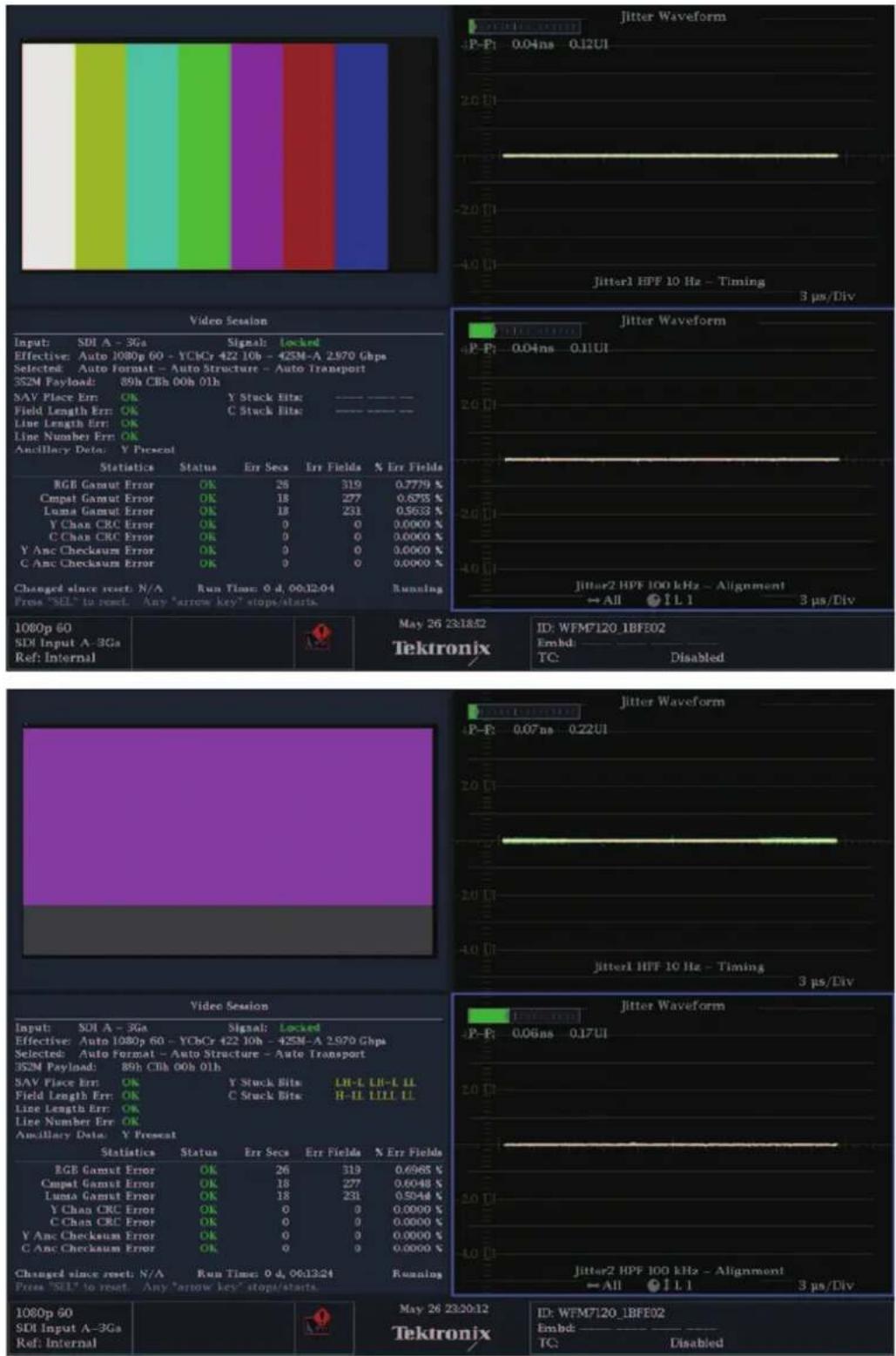

SIGNAL MEASUREMENT

Jitter Waveform P-P: 0.04ns 0.12UI Jitter1 HPF 10 Hz - Timing 3 µs/Div Video Session Input: SDI A - 3Ga Signal: Locked Effective: Auto 1080p 60 - YCbCr 422 10h - 425M-A 2.970 Gbps Selected: Auto Format - Auto Structure - Auto Transport SS2M Payload: 89h CBh 00h 01h SAV Place Err: OK Y Stuck Err: ---- -- Field Length Err: OK C Stuck Err: ---- -- Line Length Err: OK Line Number Err: OK Ancillary Data: Y Present Statistical Status Err Secs Err Fields % Err Fields RGB Gamut Error OK 28 319 0.7779 % Cmpat Gamut Error OK 18 277 0.6795 % Luma Gamut Error OK 18 231 0.5653 % Y Chan CRC Error OK 0 0 0.0000 % C Chan CRC Error OK 0 0 0.0000 % Y Anc Checksum Error OK 0 0 0.0000 % C Anc Checksum Error OK 0 0 0.0000 % Changed since reset: N/A Run Time: 0 d, 00:12:04 Running Prea "SEL" to reset. Any "arrow key" stops/starts. Jitter Waveform P-P: 0.04ns 0.11UI Jitter2 HPF 100 kHz - Alignment → All IL I 3 µs/Div 1080p 60 SDI Input A-3Ga Ref: Internal May 26 23:18:52 ID: WFM7120_1BFE02 Tektronix Embd: TC: Disabled May 26 23:18:52 Tektronix Jitter Waveform P-P: 0.07ns 0.22UI Jitter1 HPF 10 Hz - Timing 3 µs/Div Video Session Input: SDI A - 3Ga Signal: Locked Effective: Auto 1080p 60 - YCbCr 422 10h - 425M-A 2.970 Gbps Selected: Auto Format - Auto Structure - Auto Transport SS2M Payload: 89h CBh OOh 01h SAV Place Err: OK Y Stuck Bits LH-L LH-L LL Field Length Err: OK C Stuck Bits H-LL LILLL LL Line Length Err: OK Line Number Err: OK Ancillary Data: Y Present Statistics Status Err Secs Err Fields % Err Fields RGB Gamut Error OK 26 319 0.6965 % Cmpat Gamut Error OK 18 277 0.6048 % Luma Gamut Error OK 18 231 0.5044 % Y Chan CRC Error OK 0 0 0.0000 % C Chan CRC Error OK 0 0 0.0000 % Y Anc Checksum Error OK 0 0 0.0000 % C Anc Checksum Error OK 0 0 0.0000 % Changed since reset: N/A Run Time: 0 d, 06:13:24 Running Prea "SEL" to reset. Any "arrow key" stops/starts. Jitter Waveform P-P: 0.06ns 0.17UI Jitter2 HPF 100 kHz - Alignment → All IL I 3 µs/Div ID: WFM7120_1BFE02 Embd: TC: Disabled May 26 23:20:12 Tektronix 1080p 60 SDI Input A-3Ga Ref: Internal
