USER MANUAL AT-PRO2HDREC-DA Atlona

HDMI Extender over Single CAT5e/6/7 W/Audio De-embedding

AT-PRO2HDREC-DA

ATLONA® Recomer for HDMI Matrix Switch Over Switched Pair HDMI OUT STEREO OUT SP/ PDIF OUT RS-232 WARMUT VOD if set www.10.108.com

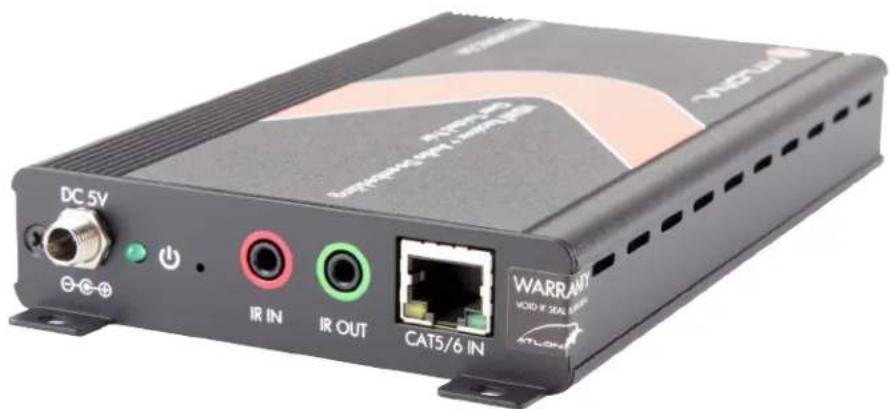

DC 5V IR IN IR OUT CAT5/6 IN WARRANT VOD IF SEA ATLONE

User Manual

Table of Contents

1. Introduction 3
2. Package Contents 3
3. Features
4. Specifications 3
5. Panel Descriptions

a. Front Panel 4
b. Rear Panel 4
6. Connection and Installation 5
7. Safety Information 6
8. Warranty 7
9. Atlona Product Registration 8

Introduction

The Atlona HDMI Extender over single CAT5e/6/7 extends IR, RS-232, audio and video content between sources and displays when used in tandem with PRO2HD matrix switchers. With pass through support of up to 1080p or 1920x1200, 3D, 2Channel and Multi-channel audio, bidirectional RS-232 and IR signals. The AT-PRO2HDREC-DA allows almost any audio/visual system set up to be used.

Package Contents

• 1 x AT-PRO2HD1616M-RX
  • 1 x 5V/2.6A Universal DC adaptor
• 1 x IR 3.5mm Receiver
• 1 x IR 3.5mm Emitter
• 1 x User Manual

Features

• Extends IR, RS-232, audio and visual content up to 330ft over a single high quality CAT5e/6/7 cable
• Audio de-embedding allows 2Channel and Multichannel audio to be passed to an amp through 3.5mm S/PDIF or Stereo Audio ports
  • Supports resolutions up to 1080p or 1920x1200 on pass through
  • 2Channel and Multi-channel audio pass through ensures the highest quality signals are preserved
  • Supports 3D pass through
• HDCP compliant

Specifications

Bandwidth frequency 6.75 Gbps
Input Ports		1	x	CAT5e/6/7
	1	x	IR	3.5mm
Output Ports	1 x HDMI (Female type)
	1	x	IR	3.5mm
	1	x	RS-232
	1	x	Stereo	audio
	1	x	S/PDIF
Resolution outputs	Video: up to 1080p@60Hz
	Vesa:	up	to	1920x1200
Dimensions (HxWxD)	.98x4.02x7.09 (inch) or 25x102x180 (mm)
Weight	.8lbs	or	.36kg
Temperature	-4°F to 158°F or -20°C to 70°C
Power consumption		6.5W

Panel Description

Front Panel

ATLONA® Receiver for HDMI Matrix Switch Over Twisted Pair HDMI OUT STEREO OUT S/PDIF OUT RS-232 1 2 3 4

1. HDMI Out - Transfers video and audio signal to display
2. Stereo Out - Analog audio de-embedding, pass stereo audio out to a display or AVR
3. S/PDIF Out - Digital audio de-embedding, pass digital (Dolby Digital/DTS) audio out to an AVR.
4. RS-232 - Passes RS-232 control signal from matrix CAT5e/6/7 input

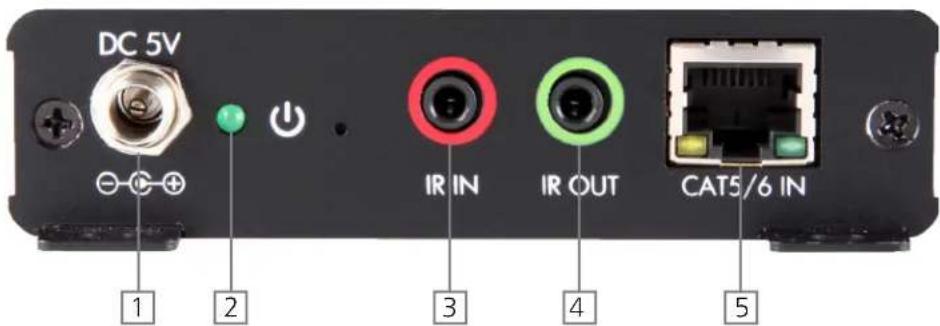

Back Panel

DC 5V IR IN IR OUT CAT5/6 IN 1 2 3 4 5

1. 5V/2.6A DC - connect included 5V/2.6A Universal DC adaptor into this port then the outlet to power the HDMI extender or use the optional USB power adapter (AT-PWUSB-L) with compatible displays.
2. Power indicator - Green LED will light up when unit is connected to a power source.
3. IR In - Connect IR receiver module to send signal back through the bidirectional CAT5e/6/7 connection.
4. IR Out - Connect IR Emitter to send a signal to the display for 3rd party control
5. CAT5e/6/7 In - Connect cable from Matrix switcher for bidirectional signal. Signal indicating lights will remain solid unless there is a connection issue, at which point they will start blinking.

Connection and Installation

Note: When using an IR remote control all sources can be controlled as well as the local display.

Note: 3.5mm 3 conductor (stereo) cables are not compatible. Please use 2 conductor (mono) IR cables with IR input ports.

Safety Information

Safeguards

To reduce the risk of electric shock, do not expose this product to rain or moisture

If the wall plug does not fit into your local power socket, hire an electrician to replace your obsolete socket.

Do not modify the wall plug. Doing so will void the warranty and safety features.

This equipment should be installed near the socket outlet and the device should be easily accessible in the case it requires disconnection.

Precautions

FCC regulations state that any unauthorized changes or modifications to this equipment, not expressly approved by the manufacturer, could void the user's authority to operate this equipment.

Operate this product using only the included external power supply. Use of other power supplies could impair performance, damage the product, or cause fires.

In the event of an electrostatic discharge this device may automatically turn off. If this occurs, unplug the device and plug it back in.

Protect and route power cords so they will not be stepped on or pinched by anything placed on or against them. Be especially careful of plug-ins or cord exit points from this product.

Avoid excessive humidity, sudden temperature changes or temperature extremes.

Keep this product away from wet locations such as bathtubs, sinks, laundries, wet basements, fish tanks, and swimming pools.

Use only accessories recommended by Atlona to avoid fire, shock, or other hazards.

Unplug the product before cleaning. Use a damp cloth for cleaning and not cleaning fluid or aerosols. Such products could enter the unit and cause damage, fire, or electric shock. Some substances may also mar the finish of the product.

Never open, remove unit panels, or make any adjustments not described in this manual. Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-PRO2HDREC-DA. Opening the product will void the warranty.

Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.

Warranty

Limited Warranty

Atlona Technologies warrants that (a) its products (the AT-PRO2HDREC-DA) will perform substantially in accordance with the accompanying written materials for a period of 3 years from the date of receipt and (b) that the product will be free from defects in materials and workmanship under normal use and service for a period of 3 years. In the event applicable law imposes any implied warranties, the implied warranty period is limited to 3 years from the date of receipt. Some jurisdictions do not allow such limitations on duration of an implied warranty, so the above limitation may not apply to customers that fall within those areas.

Customer Remedies

Atlona Technologies' and its suppliers' entire liability and Customer's exclusive remedy shall be, at Atlona Technologies' decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer's receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. In example but not limited to: power surges (electrical storms, local power outage), dropping the product (or items on the product), contact with fluids, and physical misconduct (i.e. kicking or punching). Any replacement product will be warranted for the remainder of the original warranty period.

No other warranties

To the maximum extent permitted by applicable law, Atlona Technologies and its suppliers disclaim all other warranties, either expressed or implied, including, but not limited to, implied warranties of merchantability and fitness for a particular purpose, with regard to the product and any related written materials. This Limited Warranty gives customer specific legal rights. Customers may have other rights depending on the jurisdiction.

No liability for damages

To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, incidental, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. Atlona Technologies' and its suppliers' entire liability under any provision of this agreement shall be limited to the amount actually paid by you for the product. Some Jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damage. The above limitations may not apply to you in such jurisdictional cases.

Atlona Product Registration

Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase.

Registration creates an ownership record if your product is lost or stolen and helps ensure you'll receive notification of performance issues and firmware updates.

At Atlona, we respect and protect your privacy, assuring you that your registration information is completely secure. Atlona product registration is completely voluntary and failure to register will not diminish your limited warranty rights.

To register http://www.atlona.com/registration
