Atlona HDMI to HDBaseT Receiver Wall Plate w/RS-232, IR, and Ethernet

AT-HDWP-RSNET-UK

ATLONA® HDMI OUT ETHERNET PWR IR ÷ - + IR IN IR OUT LINK RX TX ÷ RS232 FW AT-HDWP-RSNET-UK

User Manual

Table of Contents

1. Introduction 3
2. Package Contents 3
3. Features
4. Panel Descriptions 4
5. Electrical Box 4
6. Wall plate installation 5-6
7. Captive Screw 7
8. Connection 8-9
9. Specifications 10
10. Safety Information 11
11. Warranty 12-13
12. Atlona Product Registration 13

Introduction

Go the distance of up to 328ft (100m) at 4Kx2K with the Atlona HDBaseT Receiver Wall Plate. With pass through support of up to 4Kx2K, IR, RS-232, Ethernet, as well as lossy and lossless audio signals over a single category cable, the HDWP-RSNET-UK provides an affordable high quality solution for your audio/video and control needs.

Package Contents

• 1 x AT-HDWP-RSNET-UK
- 2 x Female Captive Screw Connector (3 pin: RS-232 and 5 pin: IR)
- 2 x 30mm screws for the electrical box
- 4 x 4mm screws for the face plate
- 1 x Face Plate
- 1 x IR Emitter
- 1 x IR Receiver
• 1 x User Manual

Features

• Extends IR, RS-232, Ethernet, and audio/visual content up to 328ft over a single category cable
• Supports resolutions up to 4Kx2K (four times 1080p) or 1920x1200 on pass through
• Built to be hidden, the wall plate form allows the receiver to be hidden behind wall mounted TVs
- USB updating for easy, in the field, firmware updates
- Captive Screw connectors for RS-232 and IR for better connection reliability and wire management.
- IR ports for emitting and receiving IR control signals for use with IR remote controls and 3rd party IR controller boxes
• Bi-directional Ethernet pass through for smart TVs, AVRs, and other Internet devices
- PoCc (Power over category cable) from compatible transmitters (Ex. AT-HDTX-RSNET)
- Lossy, and lossless multi-channel audio formats pass through (including Dolby TrueHD and DTS-HD Master Audio)
• Full 3D pass through
• HDCP compliant

Panel Description

ATLONA HDMI OUT ETHERNET AT-HDWP-RSNET-UK 1 2 3 4 5 PWR LINK IR IN IR OUT TX RX RS232 FW 6 7 8 9

1. HDMI Out Port: Connect HDMI or DVI (with adapter - Ex. AT14040) display here.
2. IR IN Port: Connect included IR receiver to this port.
3. IR OUT Port: Use the included IR Emitter for this port.
4. Green Power LED: Power indicator. If plugged in, light will remain solid. If LED starts blinking power is intermittent or there is a problem with the cable. If LED is off, no power is passing from the transmitter (check the outlet on the transmitter or check the CAT cable).
5. Yellow Link LED: Signal Indicator for the CAT5e/6/7 IN port. LED will remain solid, unless there is an issue with the cable or signal, then it will blink.
6. Ethernet Port: Bi-directional Ethernet pass through, send signal from a router to a source or to a display.
7. RS-232 Port: Receive signal from a control system or PC.
8. Firmware Update Port: Use Mini USB to USB cable to connect to a Windows computer to update.
9. CAT5e/6/7 IN Port: Connect category cable from here to a compatible transmitter.
   Ex. AT-HDTX-RSNET (recommended), AT-HDCAT-8ED, etc.

Electrical Box

With so many electrical back boxes it is hard to know which to purchase with any wall plate. For convenience Atlona has compiled recommended electrical boxes to use with the HDWP-RSNET-UK.

For 9.5mm up to 12.5mm walls: Red/Grey 2 Gang box or mud ring is best

For 12.5mm walls: Appleby 2 gang box or mud ring is best

Note: All electrical back boxes must be at least 30mm deep.

UK Wall Plate Installation

A B C AT HDMI-8NET-V6 HDMI OUT FTH-8NET HDMI HDMI HDMI HDMI HDMI HDMI

There are four pieces that will need to be interconnected in order for the AT-HDWP-RSNET-UK to be installed in the wall. The electrical box (picture A), the wall plate back box (picture B), the face plate (picture C) and the CAT cable.

AT-HDMP-RNET-UK HOME OUT ETHENSIT POWER PWM 1/2 - + RUN RUN OUT RUT 1/2 RUN 1/2 RUT 1/2 RUT 1/2 RUT 1/2

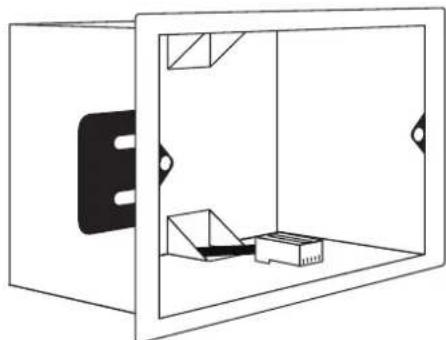

The first step in installation is to remove the face plate from the wall plate. To do this, remove the four included 4mm screws on the sides (as pictured above).

Note: Avoid contact with the PCB board in the wall plate back box, electrostatic discharge (ESD) may damage sensitive chips.

Simple line drawing of a closed electrical cabinet with an open door and internal compartments (no text or symbols)

The second step is to route the CAT cable through the electrical box (as seen above) and connect it to the back of the wall plate back box (see picture on top of page 6).

Technical diagram of an electronic device showing internal components and wiring connections, with labeled parts and dashed lines indicating assembly or connection.

Install the wall plate back box to the electrical box, use the two supplied 30mm screws. Thread the screws through the wall plate back box into the electrical box (as seen above).

Note: Do not overtighten the screw or the wall plate back box may warp. Once a small amount of resistance is felt stop tightening.

AT/HDMI-RSNET-UK HOME OUT ETHRNET HOME POWER ÷ - + IN IN BOUT KEY + RSNET BROWARE

Replace the four 4mm screws (as seen above).

Note: If the four holes on the face plate do not line up with the back box, loosen the 30mm screws on the wall plate back box.

Captive Screw

Captive screw connectors are an added feature on the HD Extender Wall Plates. The Captive screw connectors allow you to cut cables down to a suitable length, reducing cable clutter while providing a more reliable connection.

Connecting

When connecting the cables to the female captive screw connector it is important that the wires be terminated correctly. The female captive screw connector (see picture A) has a contact plate at the top and must have the wires touching it for signal to pass. When wired correctly (see picture B) the signal will pass, incorrectly (see picture C) no signal will pass.

The captive screw connectors have a contact bar that is adjusted to compress the wire against the top contact plate. Use the screws at the top of the connector to compress the wire against the contact plate.

Clockwise

Turn the screws clockwise to raise the contact bar to the upper contact plate and hold the wires in place.

Counter Clockwise

Turn the screws counter clockwise to lower the contact bar to release the wires.

Green electronic component with four slots and a label 'A' in the top left corner (no other text or symbols visible)

For your convenience the cables do not come pre-terminated. Each item, whether it's an IR receiver (see picture 1), or IR emitter (see picture 2), will have exposed wires. Each wire is encased in a different colored cover. Female captive screw connectors are included: IR (see picture 3) and RS-232 (see picture 4).

Close-up of a black electrical cable with two exposed wires (red and gray), no text or symbols visible

Close-up of a black cable with two exposed wires, one red and one gray, labeled with number 2 (no text or symbols on the wires themselves)

Green electrical terminal block with six pins and a labeled 'IR' (no text or symbols on the component itself)

Green electrical terminal block with three leads and three terminals (no text or symbols visible)

IR pin outs have been included for the included IR emitter and IR receiver (see pictures 5 & 6). The wires are colored for each pin (see pictures 7 & 8).

5 Emitter - + - +

White: - Red: +

6 Receiver PWR IR ±

Red: PWR White: IR Black: ⊥

Close-up of a green terminal block with three red and black wires, no visible text or symbols

8 IR ÷ - + IR IN IR OUT

RS-232 pin out will be determined by the RS-232 cable and will connect as Rx (receiver), Tx (transmitter), and ± (ground). (See pictures 9 & 10)

Green terminal block with three red, green, and black wires (no text or symbols visible)

10 RX TX ÷ RS232

Pin out color will differ per RS-232 cable.

Connection

Connection Cont.

Specifications

Bandwidth 10.2Gbps
PortsVideo inputVideo outputRS-232IREthernetFirmware update	1 x RJ451 x HDMI1 x Captive Screw (3 pin)1 x Captive Screw (5 pin)1 x RJ451 x Mini USB
Power Consumption 11.8W (paired with HDTX-RSNET)
Audio Passes up to Dolby	TrueHDor DTS-HD Master Audio
Resolution Video: up to	4Kx2KVESA: up to 1920x1200
Distance 328ft @ 4Kx2K	over CAT6a/7328ft @ 1080p over CAT5e/6230ft @ 4Kx2K over CAT5e/6
Dimensions	2 Gang
Weight	0.49 lbs0.22 kg
Temperature Operating	32°F to 104°F0°C to 40°C	Storage-4°F to 140°F20°C to 60°C
Certifications CE, FCC, RoHS, cULus for power supplies
