AT-HD15SRS - Unspecified Atlona - Free user manual and instructions

Product Type	HDMI over Single Cat5/6 Receiver
Brand	Atlona
Model	AT-HD15SRS
Function	Extends HDMI signals over Cat5/6 cabling with high-resolution audio and video
Video Resolution	Up to 1080p or 1920x1200
Video Bandwidth	165 MHz
Audio Support	Supports up to 5.1 and 7.1 digital audio
HDCP Compliance	Yes
EDID Management	Supports default HDMI EDID and records display EDID
Input	1 x RJ45
Output	1 x HDMI male
Cable Type	Single Cat5/6
Max Distance	Up to 50 ft at 1080p
Power	Self-powered (no external power supply required)
Dimensions (W x D x H)	1.8" x 1" x 0.8"
Weight	0.1 lbs
Warranty	3 years (parts and labor)
Compatible Models	AT-HDMI40SRS, AT-HD-V40SRS, AT-HD50RSL, AT-HD50SS, AT-HD19SS, AT-HDRS, AT-HD44M-SR, AT-HD88M-SR, AT-HD14SS
Safety	Avoid moisture, use only included power supply, do not modify plug
Cleaning	Unplug before cleaning; use a damp cloth only; no cleaning fluids or aerosols
Installation	Easy plug-and-play; no configuration required

Frequently Asked Questions - AT-HD15SRS Atlona

What is the Atlona AT-HD15SRS used for?

The AT-HD15SRS is an HDMI over Single Cat5/6 receiver that extends high-resolution audio and video up to 1080p at distances up to 50 feet.

Does the AT-HD15SRS require an external power supply?

No, it is self-powered and draws power from the HDMI source or the connected transmitter, eliminating the need for an external power adapter.

What type of cable should I use with the AT-HD15SRS?

Use a single Cat5e or Cat6 Ethernet cable between the transmitter and the AT-HD15SRS receiver for optimal performance.

What is the maximum video resolution supported?

The AT-HD15SRS supports resolutions up to 1080p or 1920x1200 with a video bandwidth of 165 MHz.

Is the AT-HD15SRS compatible with HDCP?

Yes, it is HDCP compliant, ensuring compatibility with protected content from sources like Blu-ray players and cable boxes.

Which Atlona transmitters are compatible with the AT-HD15SRS?

Compatible transmitters include AT-HDMI40SRS, AT-HD-V40SRS, AT-HD50RSL, AT-HD50SS, AT-HD19SS, AT-HDRS, AT-HD44M-SR, AT-HD88M-SR, and AT-HD14SS.

How do I clean the AT-HD15SRS?

Unplug the device before cleaning. Use a soft, damp cloth only. Do not use cleaning fluids or aerosols as they may damage the unit.

What should I do if the device turns off due to electrostatic discharge?

In case of electrostatic discharge, unplug the device and plug it back in. This should restore normal operation.

What is the warranty period for the AT-HD15SRS?

Atlona provides a 3-year limited warranty covering parts and labor from the date of receipt.

Can I use the AT-HD15SRS with a non-Atlona HDMI transmitter?

The AT-HD15SRS is designed to work specifically with compatible Atlona transmitters for guaranteed performance. Using other brands may not function correctly.

USER MANUAL AT-HD15SRS Atlona

TO BE USED WITH AT-HD19SS OR AT-HD50SS

USER MANUAL

AT-HD15SRS

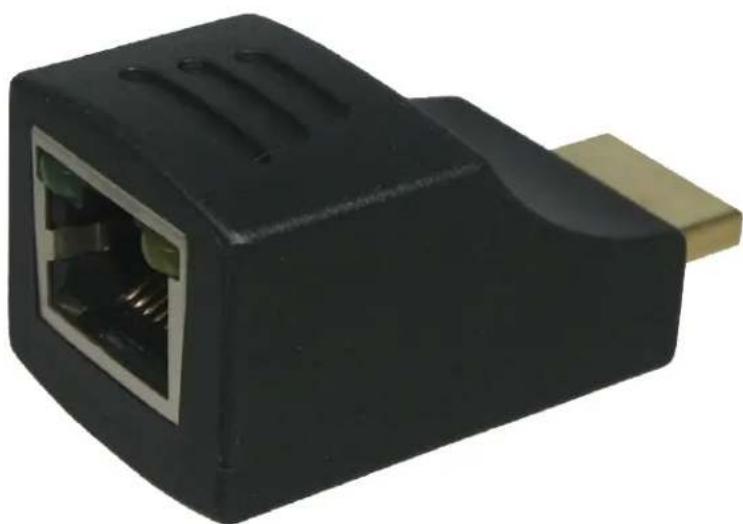

Black USB connector with network ports, no visible text or symbols

FEATURES:

• HDMI over Single Cat5/6 (High Resolution Audio and Video)
- HDCP compliant
• 1080p@50ft
• Supports up to 5.1 and 7.1 Digital audio
- Silicon Image Chip-Sets allow %99.99 compatibility with all the AV gear (we only use Best)
• Supports default HDMI EDID and records the EDID of each display
- Easy installation

TECHNICAL SPECIFICATIONS:

• Video Bandwidth: 165 MHz
- Resolutions up to 1080p or 1920x1200
• Power: Self Powered
- Dimensions: 1.8 "W x 1 "D x 0.8 "H
• Shipping Weight: 0.1 lbs.

INPUTS/OUTPUTS:

• Input: 1 x RJ45
  • Output: 1 x HDMI male

PACKAGE INCLUDES:

• 1x AT-HD15SRS
- 1 x User Manual

WARRANTY:

3 year manufacture warranty (parts and labor)

COMPATIBLE WITH:

• AT-HDMI40SRS
• AT-HD-V40SRS
• AT-HD50RSL
• AT-HD50SS
• AT-HD19SS
• AT-HDRS
• AT-HD44M-SR
• AT-HD88M-SR
• AT-HD14SS

SAFETY INFORMATION

Safeguards

To reduce the risk of electric shock, do not expose this product to rain or moisture.

If the wall plug does not fit into your local power socket, hire an electrician to replace your obsolete socket.

Do not modify the wall plug. Doing so will void the warranty and safety features.

This equipment should be installed near the socket outlet and the device should be easily accessible in case it requires disconnection.

Precautions

FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment.

Operate this product using only the included external power supply. Use of other power supplies could impair performance, damage the product or cause fires.

In the event of an electrostatic discharge, this device may automatically turn off. If this occurs, unplug the device, and plug it back in.

Protect and route power cords so they will not be stepped on or pinched by anything placed on or against them. Be especially careful of plug-ins, or cord exit points from this product.

Avoid excessive humidity, sudden temperature changes or temperature extremes.

Keep this product away from wet locations such as bathtubs, sinks, laundries, wet basements and swimming pools.

Use only accessories recommended by ATLONA to avoid fire, shock or other hazards.

Unplug the product before cleaning. Use a damp cloth for cleaning. Do not use cleaning fluid or aerosols, which could enter the unit and cause damage, fire or electrical shock. Some substances may also mar the finish of the product.

Never open or remove unit panels or make any adjustments not described in this manual. Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-HD15SRS. Opening the product will void the warranty.

Do not attempt to service the unit. Instead disconnect it and contact your Authorized ATLONA reseller or contact ATLONA directly.

WARRANTY

1. LIMITED WARRANTY

Atlona Technologies warrants that (a) its products (the "Product") will perform substantially in accordance with the accompanying written materials for a period of 3 YEARS from the date of receipt and (b) that the Product will be free from defects in materials and workmanship under normal use and service for a period of 3 years. In the event applicable law imposes any implied warranties, the implied warranty period is limited to 3 years from the date of receipt. Some jurisdictions do not allow such limitations on duration of an implied warranty, so the above limitation may not apply to Customer.

2. CUSTOMER REMEDIES

Atlona Technologies and its suppliers' entire liability and Customer's exclusive remedy shall be, at Atlona Technologies' option, either return of the price paid for the Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer's receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. Any replacement Product will be warranted for the remainder of the original warranty period or 3 year, whichever is longer.

3. NO OTHER WARRANTIES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ATLONA TECHNOLOGIES AND ITS SUPPLIERS DISCLAIM ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE PRODUCT AND ANY RELATED WRITTEN MATERIALS. THIS LIMITED WARRANTY GIVES CUSTOMER SPECIFIC LEGAL RIGHTS. CUSTOMER MAY HAVE OTHER RIGHTS DEPENDING ON THE JURISDICTION.

4. NO LIABILITY FOR DAMAGES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ATLONA TECHNOLOGIES OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING WITHOUT LIMITATION, SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR INDIRECT DAMAGES FOR PERSONAL INJURY, LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS PRODUCT, EVEN IF ATLONA TECHNOLOGIES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN ANY CASE, ATLONA TECHNOLOGIES' AND ITS SUPPLIERS' ENTIRE LIABILITY UNDER ANY PROVISION OF THIS AGREEMENT SHALL BE LIMITED TO THE AMOUNT ACTUALLY PAID BY YOU FOR THE PRODUCT. BECAUSE SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

ATLONA

2151 O'toole Ave, Ste D

San Jose CA 95131

Toll Free: 1-877-536-3976

International: 408-954-8782

FAX: [phone]

Website: www.atlona.com

E-MAIL: [e-mail]

Thank you for purchasing this Atlona product — we hope you'll enjoy it.

We also hope that you'll take a few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you'll receive notification of performance issues and firmware updates.

At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights.

To register go to www.atlona.com/registration
