USER MANUAL AT-3GSDI20SR Atlona

Miniature Fiber Optic 3G/HD/SD-SDI Digital Video Extension Kit up to 1200ft. AT-3GSDI20SR

Receiver

White electronic device with attached black cable and metallic connector (no visible text or symbols)

Close-up of a metallic sensor device with attached black cable and metallic connector (no visible text or symbols)

Sender

Close-up of a metallic BNP508 sensor device with coaxial connectors and a black cable (no visible text or symbols on body)

Close-up of a white scientific instrument with attached black cable and metallic connector (no visible text or symbols)

User Manual

TABLE OF CONTENTS

1. Introduction 2
2. Features 2
3. Package Contents 2
4. Applications 2
5. Specifications 3
6. Operation 3
7. Connection Diagram 4
8. Safety Information 5
9. Warranty 6
10. Atlona Product Registration 7

INTRODUCTION

Atlona Technologies' new 3G SDI over fiber optic extender, the AT-3GSDI20SR, is one of the world's smallest 3G/HD-SDI baluns ever. This UL/CE approved unit allows users to transfer 1080P HDSDI signal at 3Gb/s, supporting a single channel SMPTE-424M 3G HD-SDI, SMPTE-292M HD or SMPTE-259M serial digital video signal, over single or multi mode fiber. This feature rich extender requires no adjustments from users, making setup quick and painless. The AT-3GSDI20SR supports a wide variety of video formats including SDI, DVB-ASI, HD-SDI, and 3G-SDI. This balun connects to inputs through a BNC type connector, fiber is connected through ST-type fiber optic cable. Multiple signals can be installed in a single conduit without crosstalk. The power connector has a latch-locking mechanism, thus no power disruption due to mis-handling problem.

FEATURES

• Support Multi-rate 3G/HD/SD-SDI Signal
• Video Over Fiber
• Video Pathological Test Code Compliant
- Latch-Locking Power Connector
- Compatible for either Multimode or Single-mode Fiber

PACKAGE CONTENTS

• AT-3GSDI20S x 1
• AT-3GSDI20R x 1
• Power supply x 2
  • Operation Manual x 1

APPLICATIONS

• Remote 3Gb/s HD-SDI Video Transport
  • ENG/EFP 3Gb/s HD-SDI Video Transmission
  • Pre-production and Post-production 3Gb/s HD-SDI Video Links

SPECIFICATIONS

Digital Video

Signal Format SMPTE-424M 3G HD-SDI
	SMPTE-292M HD-SDI or SMPTE-259M SDI Digital Video and many others
Data Rate 3 Gbps
Signal Level 800mVp-p +/- 10%
Return Loss >15 dB
Connector 75 Ohm BNC
Optical
Fiber Type Multimode and Singlemode
Number of Fibers 1
Fiber Optic Connector ST (Multimode and Singlemode)
Physical
Dimension: (H x W x D) 0.75" x 0.65" x 2.0"
Power Level +5 VDC @ 0.5 A
Operating Temperature 0 to +50 °C
Humidity 0 to 95% RH, non-condensing

OPERATION

1. Make sure, if plugged into a source, the power is off before proceeding with the fiber optic installation.
2. Connect (SC type) Multimode fiber from Sender unit to Receiver by connecting one unit's fiber optical port to the others.
3. Connect the AT-3GSDI20SR (Transmitter) HD-SDI video input to the BNC connection
4. Next, connect the AT-3GSDISR (Receiver) HD-SDI video output directly to the BNC connection.

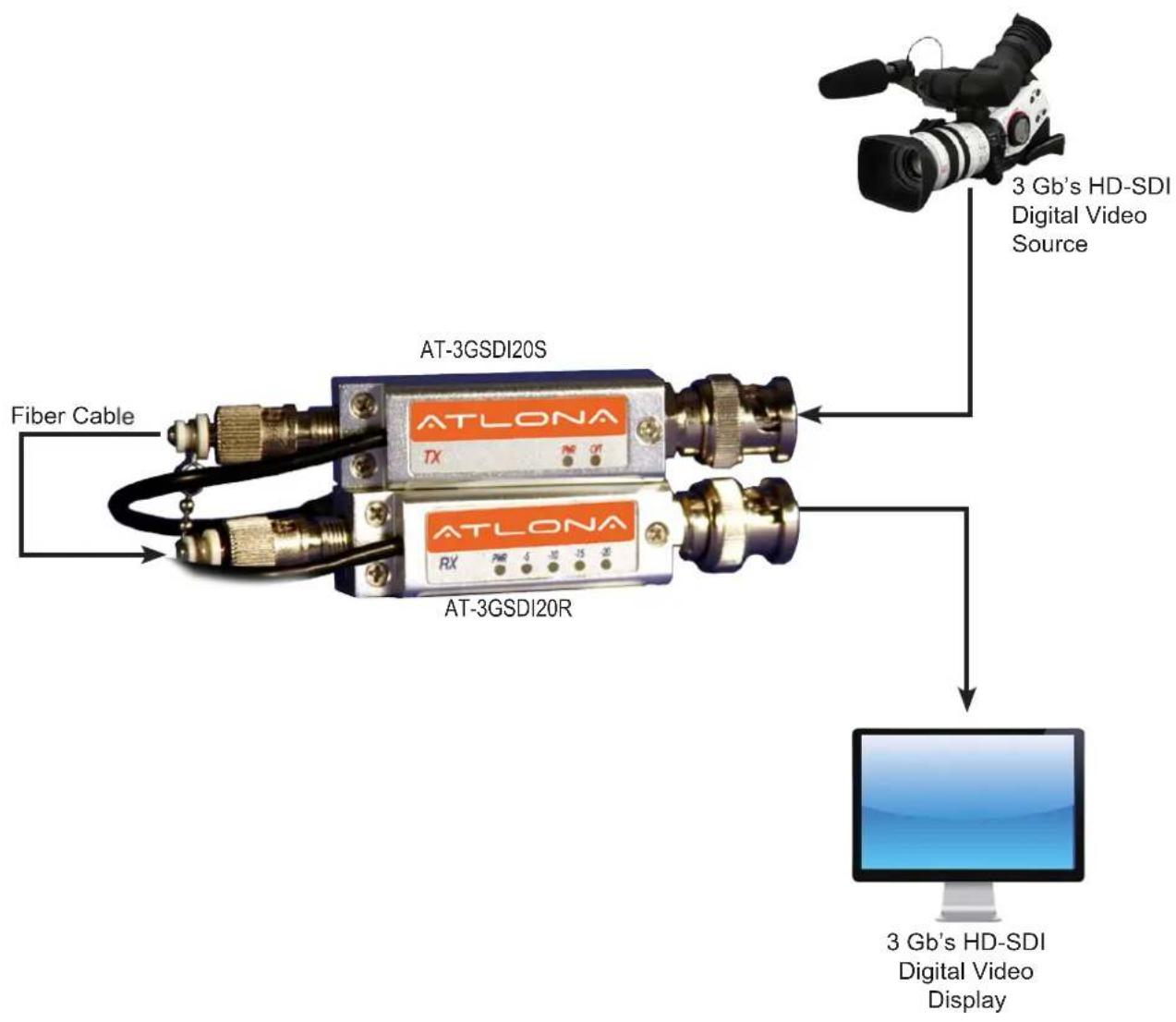

CONNECTION DIAGRAM

SAFETY INFORMATION

Safeguards

To reduce the risk of electric shock, do not expose this product to rain or moisture void the warranty and safety features. Do not modify the wall plug. Doing so will

If the wall plug does not fit into your local power socket, hire an electrician to replace your obsolete socket. be easily accessible in the case it requires This equipment should be installed near the socket outlet and the device should disconnection.

Precautions

FCC regulations state that any unauthorized changes or modifications to this equipment, not expressly approved by the manufacturer, could void the user's authority to operate this equipment.

Operate this product using only the included external power supply. Use of other power supplies could impair performance, damage the product, or cause fires.

In the event of an electrostatic discharge this device may automatically turn off. If this occurs, unplug the device and plug it back in.

Protect and route power cords so they will not be stepped on or pinched by anything placed on or against them. Be especially careful of plug-ins or cord exit points from this product.

Avoid excessive humidity, sudden temperature changes or temperature extremes.

Keep this product away from wet locations such as bathtubs, sinks, laundries, wet basements, fish tanks, and swimming pools.

Use only accessories recommended by Atlona to avoid fire, shock, or other hazards.

Unplug the product before cleaning. Use a damp cloth for cleaning and not cleaning fluid or aerosols.

Such products could enter the unit and cause damage, fire, or electric shock. Some substances may also mar the finish of the product.

Never open, remove unit panels, or make any adjustments not described in this manual. Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-3GS-DI20SR. Opening the product will void the warranty.

Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.

WARRANTY

Limited Warranty

Atlona Technologies warrants that (a) its products (the AT-3GSDI20SR) will perform substantially in accordance with the accompanying written materials for a period of 3 years from the date of receipt and (b) that the product will be free from defects in materials and workmanship under normal use and service for a period of 3 years. In the event applicable law imposes any implied warranties, the implied warranty period is limited to 3 years from the date of receipt. Some jurisdictions do not allow such limitations on duration of an implied warranty, so the above limitation may not apply to customers that fall within those areas.

Customer Remedies

Atlona Technologies' and its suppliers' entire liability and Customer's exclusive remedy shall be, at Atlona Technologies' decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer's receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. In example but not limited to: power surges (electrical storms, local power outage), dropping the product (or items on the product), contact with fluids, and physical misconduct (i.e. kicking or punching). Any replacement product will be warranted for the remainder of the original warranty period.

No other warranties

To the maximum extent permitted by applicable law, Atlona Technologies and its suppliers disclaim all other warranties, either expressed or implied, including, but not limited to, implied warranties of merchantability and fitness for a particular purpose, with regard to the product and any related written materials. This Limited Warranty gives customer specific legal rights. Customers may have other rights depending on the jurisdiction.

No liability for damages

To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, incidental, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss.

Atlona Technologies' and its suppliers' entire liability under any provision of this agreement shall be limited to the amount actually paid by you for the product. Some Jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damage. The above limitations may not apply to you in such jurisdictional cases.

ATLONA PRODUCT REGISTRATION

Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase.

Registration creates an ownership record if your product is lost or stolen and helps ensure you'll receive notification of performance issues and firmware updates.

At Atlona, we respect and protect your privacy, assuring you that your registration information is completely secure. Atlona product registration is completely voluntary and failure to register will not diminish your limited warranty rights.

To register go to: http://www.atlona.com/registration
