Product Type USB Sound Adapter
Brand Sabrent
Model AU-DDAS
Color Black
Material Plastic
Dimensions Approx. 2.75 x 1.5 x 0.5 in (7 x 3.8 x 1.3 cm)
Weight 0.35 oz (10 g)
Power Source USB Bus Powered
Connection Type USB 2.0 Type-A
Audio Input 1 x 3.5mm Microphone Jack (Pink)
Audio Output 1 x 3.5mm Headphone/Speaker Jack (Green)
Compatibility Windows and Mac OS
Plug and Play Yes, no driver installation required
Sampling Rate Up to 48 kHz (typical)
Bit Depth 16-bit (typical)
Cable Length Approx. 6 inches (15 cm)
LED Indicator No
Package Contents USB Sound Adapter, User Manual
Warranty 1 Year Limited Warranty
Operating System Support Windows 7/8/10/11, Mac OS X 10.6+
Use Case Add headphone and microphone jacks to PC/laptop

Frequently Asked Questions - AU-DDAS Sabrent

How do I install the Sabrent AU-DDAS USB Sound Adapter?
Simply plug the adapter into an available USB port on your Windows or Mac computer. It is plug-and-play, so no additional drivers are needed. For Windows, you may need to set it as the default device in Sound settings.
Why is there no sound from my headphones?
Ensure the headphones are firmly connected to the green jack. On Windows, right-click the speaker icon, select 'Playback devices', right-click 'Speakers USB' and set as default. On Mac, go to System Preferences > Sound > Output and select 'USB Headphone Set'.
Does the adapter support a microphone?
Yes, the pink jack is for microphones. Connect your microphone, then on Windows set 'Microphone USB' as the default recording device. On Mac, go to System Preferences > Sound > Input and select 'USB Headphone Set'.
Will this work with a PS4 or Xbox?
The adapter is designed for Windows and Mac computers. It may not be compatible with gaming consoles like PS4 or Xbox without additional adapters.
Can I use both microphone and headphones simultaneously?
Yes, the adapter has separate jacks for microphone (pink) and headphones (green). Connect both, and set them as default devices in your sound settings.
Does the adapter support 5.1 surround sound?
No, it is a stereo sound adapter (2 channels). It does not support surround sound formats.
Why is my microphone not being detected?
Ensure the microphone is plugged into the pink jack. Check that it is not muted and is set as the default recording device in your operating system's sound settings. Also, test with another microphone to rule out hardware issues.
Is the adapter compatible with Linux?
It may work with Linux as a generic USB audio device, but it is officially supported only for Windows and Mac. Some Linux distributions may require configuration.
What is the maximum sample rate?
The adapter typically supports up to 48 kHz sampling rate with 16-bit depth, which is sufficient for most voice and music applications.
How do I clean the adapter?
Disconnect it from the computer. Use a soft, dry cloth to wipe the exterior. Do not use liquids or abrasive cleaners. Avoid inserting objects into the jacks.

User questions about AU-DDAS Sabrent

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Unspecified in PDF format for free! Find your manual AU-DDAS - Sabrent and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AU-DDAS by Sabrent.

USER MANUAL AU-DDAS Sabrent

SABRENT Connecting Differently™

USB Sound Adapters

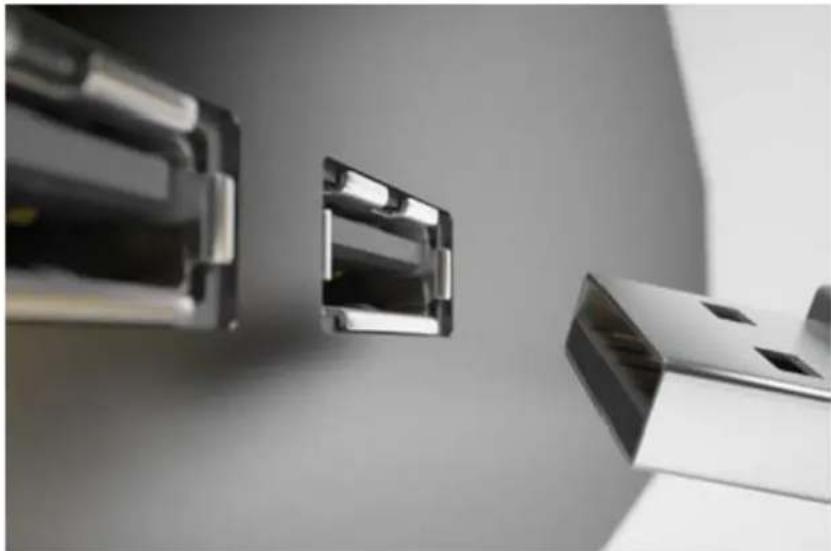

16 Connect Sound Adapter to available USB port on your Windows or Mac OS computer6

Sabrent AU-DDAS - USB Sound Adapters - 1

natural_image Close-up of three metallic USB connectors with reflective surfaces, no visible text or symbols

26 Connect a Microphone to the Pink hole when using with Microphone6

Sabrent AU-DDAS - USB Sound Adapters - 2

natural_image Simple black silhouette of a microphone (no text or symbols)

36 Connect Speaker/Headphone to the Green hole when using with Speaker/Headphone6

Sabrent AU-DDAS - USB Sound Adapters - 3

natural_image Black headset icon on white background (no text or symbols)

Speakers/Headphone setup on Windows

16 Right click on the Speaker icon on your taskbar6

Sabrent AU-DDAS - Speakers/Headphone setup on Windows - 1

26 Left click on Playback devices6

Open Volume Mixer Playback devices Recording devices Sounds Volume control options

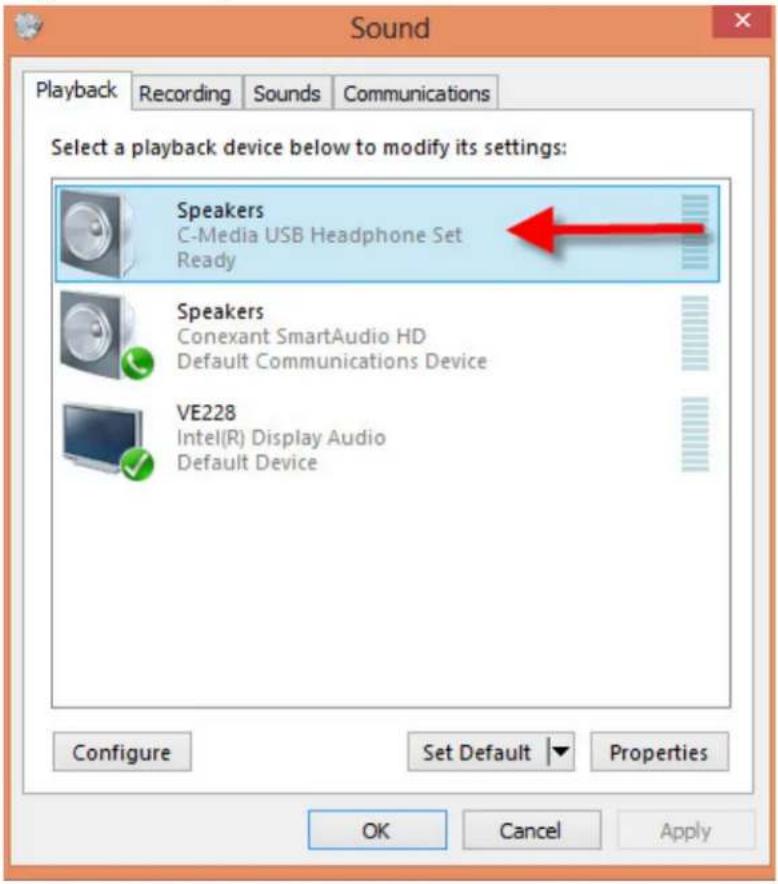

Right click on Speakers USB6

Sound Playback Recording Sounds Communications Select a playback device below to modify its settings: Speakers C-Media USB Headphone Set Ready Speakers Conexant SmartAudio HD Default Communications Device VE228 Intel(R) Display Audio Default Device Configure Set Default Properties OK Cancel Apply

Left click on Set as Default Device6

Sound Playback Recording Sounds Communications Select a playback device below to modify its settings: Speakers C-Media USB Headphone Set Ready Configure Speakers Test Disable Speakers Conexant SmartAudio Default Communication Set as Default Device VE228 Intel(R) Display Audi Default Device Set as Default Communication D ✓ Show Disabled Devices ✓ Show Disconnected Devices Properties Configure Set Default Properties OK Cancel Apply

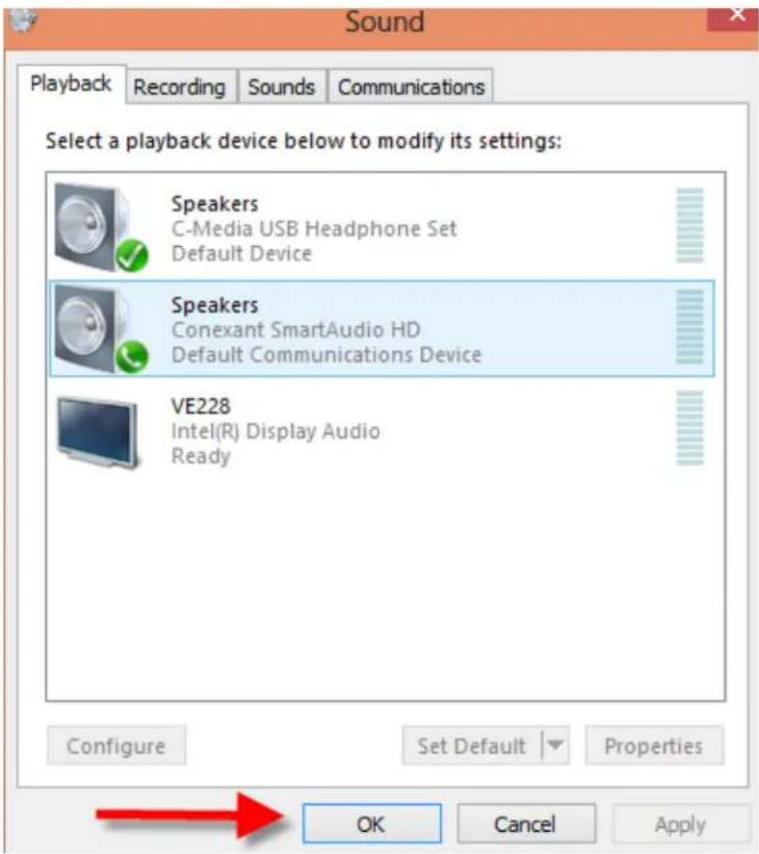

5. Left click on OK.

Sound Playback Recording Sounds Communications Select a playback device below to modify its settings: Speakers C-Media USB Headphone Set Default Device Speakers Conexant SmartAudio HD Default Communications Device VE228 Intel(R) Display Audio Ready Configure Set Default Properties OK Cancel Apply

  1. You are ready to use this adapter.

Microphone setup on Windows

  1. Right click on the Speaker icon on your taskbar.

Sabrent AU-DDAS - Microphone setup on Windows - 1

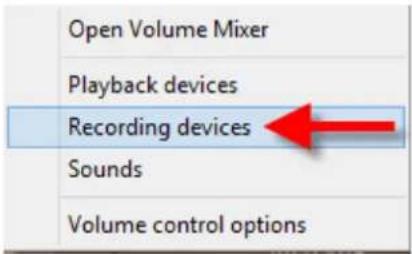

26 Left click on Recording Devices6

Open Volume Mixer Playback devices Recording devices Sounds Volume control options

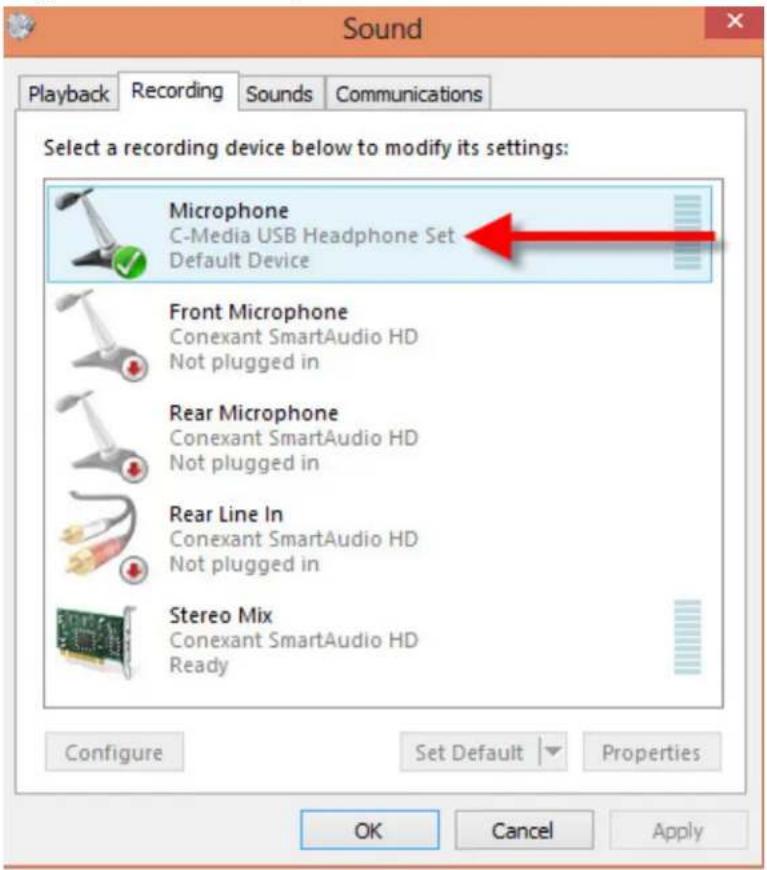

36 Right click on Microphone USB6

Sound Playback Recording Sounds Communications Select a recording device below to modify its settings: Microphone C-Media USB Headphone Set Default Device Front Microphone Conexant SmartAudio HD Not plugged in Rear Microphone Conexant SmartAudio HD Not plugged in Rear Line In Conexant SmartAudio HD Not plugged in Stereo Mix Conexant SmartAudio HD Ready Configure Set Default Properties OK Cancel Apply

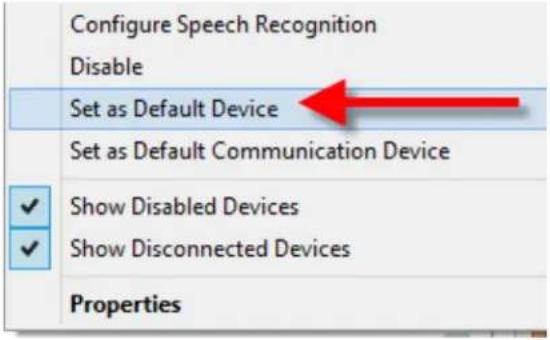

  1. Left click on Set as Default Device.

Configure Speech Recognition Disable Set as Default Device Set as Default Communication Device ✓ Show Disabled Devices ✓ Show Disconnected Devices Properties

  1. Left Click on OK.

Sound Playback Recording Sounds Communications Select a recording device below to modify its settings: Microphone C-Media USB Headphone Set Default Device Front Microphone Conexant SmartAudio HD Not plugged in Rear Microphone Conexant SmartAudio HD Not plugged in Rear Line In Conexant SmartAudio HD Not plugged in Stereo Mix Conexant SmartAudio HD Default Communications Device Configure Set Default Properties OK Cancel Apply

  1. You are ready to use this adapter.

Speaker/Headphone setup on Mac

16 Click on System Preferences on your Taskbar6

Sabrent AU-DDAS - Speaker/Headphone setup on Mac - 1

natural_image Close-up of a metallic gear with visible teeth and central hub (no text or symbols)

Click on Sound6
System Preferences General Desktop & Screen Saver Dock Mission Control Language & Region Security & Privacy Spotlight Notifications Displays Energy Saver Keyboard Mouse Trackpad Printers & Scanners Sound iCloud Internet Accounts Extensions Network Bluetooth Sharing Users & Groups Parental Controls App Store Dictation & Speech Date & Time Startup Disk Time Machine Accessibility

Click on USB Headphone Set6

Sound Sound Effects Output.Input Select a device for sound output: Name Way Internal Speakers Built-in VE228 HDMI C_Media USB Headphone Set USB Settings for the selected device: Balance: left right Output volume: Mute Show volume in menu bar

46 You are ready to use this adapter6

Microphone setup on Mac

16 Click on System Preferences on your Taskbar6

Sabrent AU-DDAS - Microphone setup on Mac - 1

natural_image Close-up of a metallic gear with visible teeth and central hub (no text or symbols)

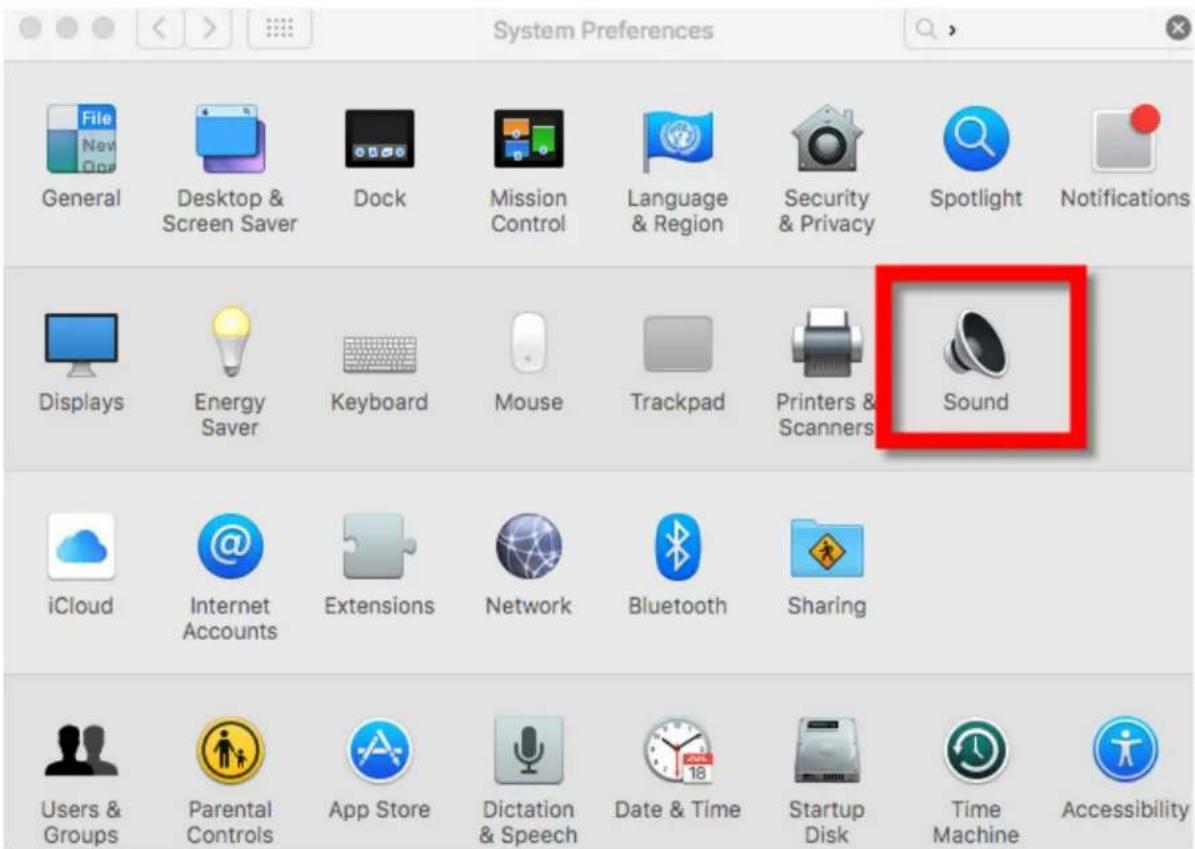

Click on Sound6
System Preferences General Desktop & Screen Saver Dock Mission Control Language & Region Security & Privacy Spotlight Notifications Displays Energy Saver Keyboard Mouse Trackpad Printers & Scanners Sound iCloud Internet Accounts Extensions Network Bluetooth Sharing Users & Groups Parental Controls App Store Dictation & Speech Date & Time Startup Disk Time Machine Accessibility

Click on Input6

Sound Effects Output Input Select a device for sound input: Name Type Line In Audio line-in port C_Media USB Headphone Set USB Settings for the selected device: Input volume: Input level: Output volume: Mute Show volume in menu bar

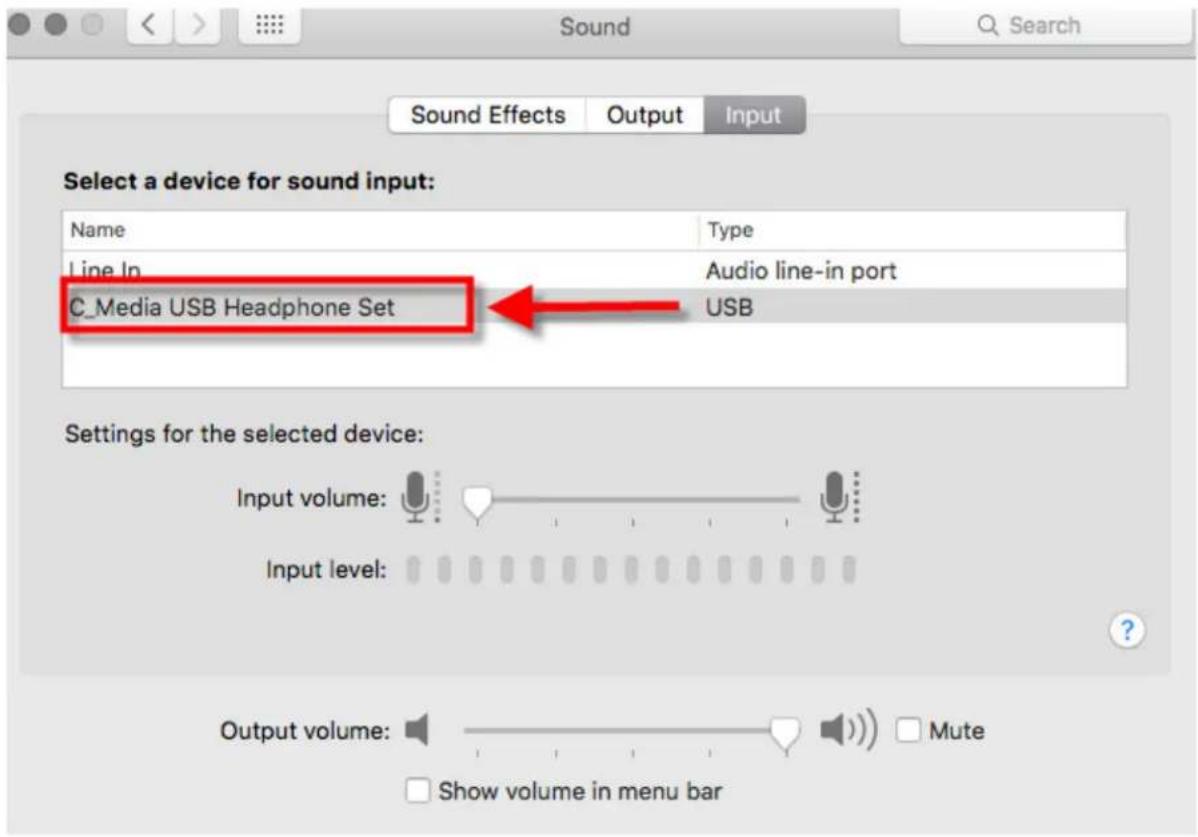

Click on USB Headphone Set6

Sound Effects Output Input Select a device for sound input: Name Type Line In Audio line-in port C_Media USB Headphone Set USB Settings for the selected device: Input volume: Input level: Output volume: Mute Show volume in menu bar

You are ready to use this adapter6
