USER MANUAL EGD-LPS Angler
angler™
Introduction
Congratulations on your purchase of an Angler Beauty Reflector Mounting Adapter.
The Angler Beauty Reflector Mounting Adapter will allow you to mount your Angler Beauty Reflector onto your strobe light.
The Angler Beauty Reflector reflects and diffuses light to create a shadowless effect that offers greater contrast and texture than a softbox or an umbrella. Because beauty reflectors produce a natural-looking catchlight, they are ideal for fashion and portrait photography.
| MOUNTING ADAPTERCATALOG NUMBER | COMPATIBILITY |
| EGD-DOL | PAUL C. BUFF ALIEN BEE, EINSTEIN,WHITE LIGHTNING, AND ZEUS;BALCAR; FLASHPOINT |
| EGD-HOL | ELINCHROM; IMPACT EX; CALUMETGENESIS; INTERFIT EX |
| EGD-LPS | IMPACT; BOWENS; CALUMETTRAVELITE; COWBOY; INTERFITSTELLAR; JTL; PHOTOFLEX; RIME LITE;WESTCOTT |
| EGD-SUR PROFOTO |
Mounting adapter
User manual
HighlightsContents
Steel or aluminum construction
Mounts quickly onto the flash head
Allows use of Angler 16", 20", 22", and 27" Beauty Reflectors


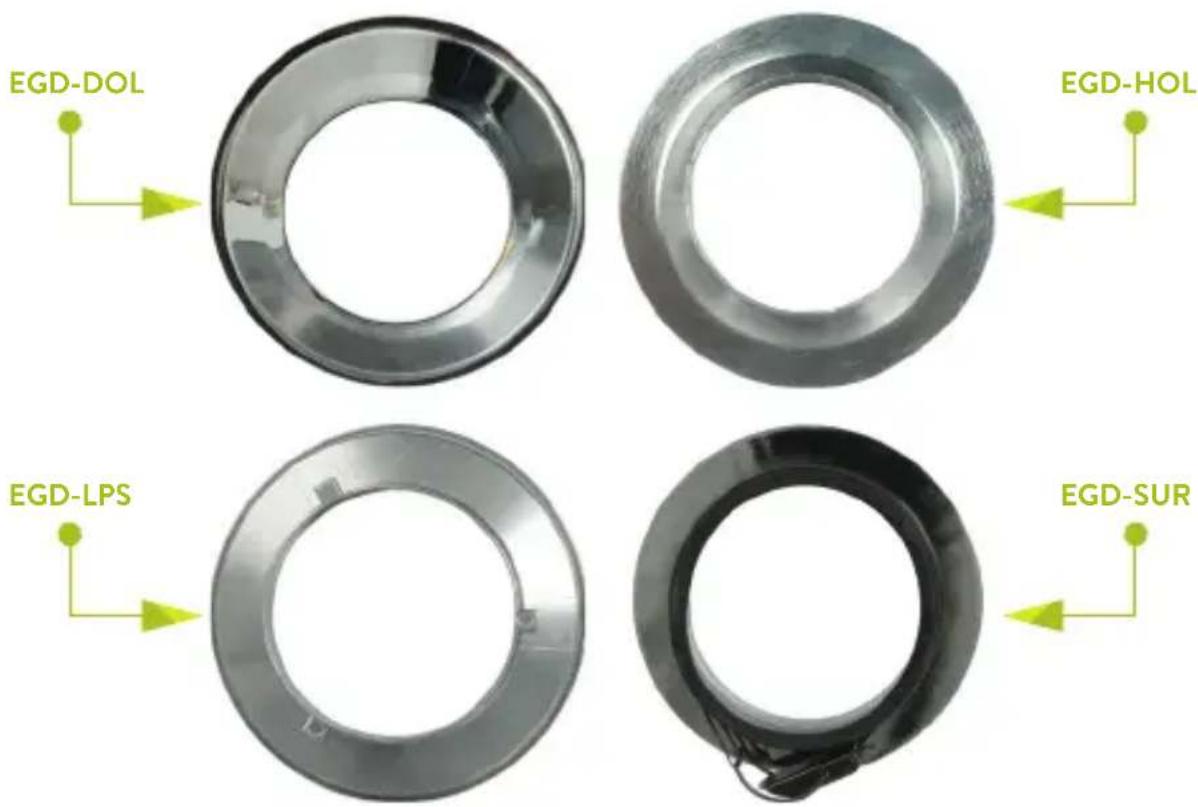

EGD-DOL EGD-HOL EGD-LPS EGD-SURAll photos are for illustrative purposes only. Flash units, lamps, and lightstands are not included with the Angler Beauty Reflector Adapter unless purchased as a kit.
Setting up the Beauty Reflector
In order to mount your Angler Beauty Reflector, you will need to purchase and install the proper mounting adapter.

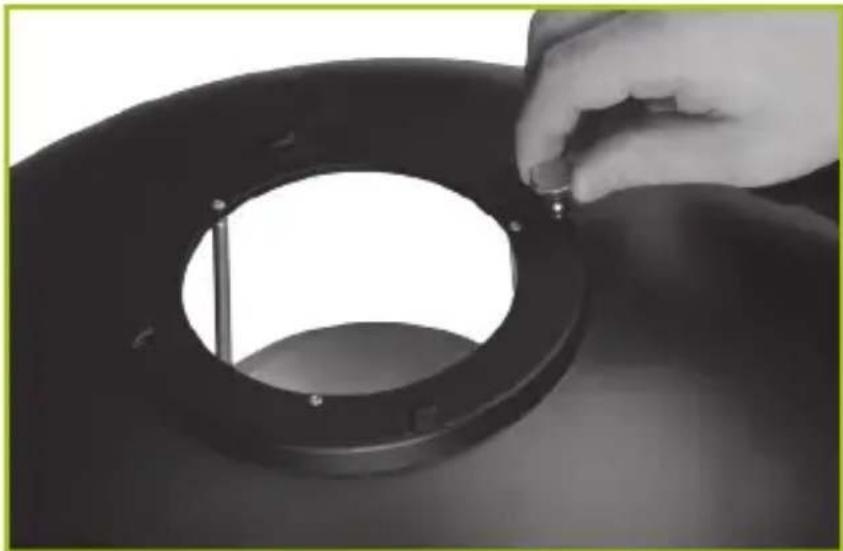

- Remove the thumbscrew and washer by rotating the thumbscrew.


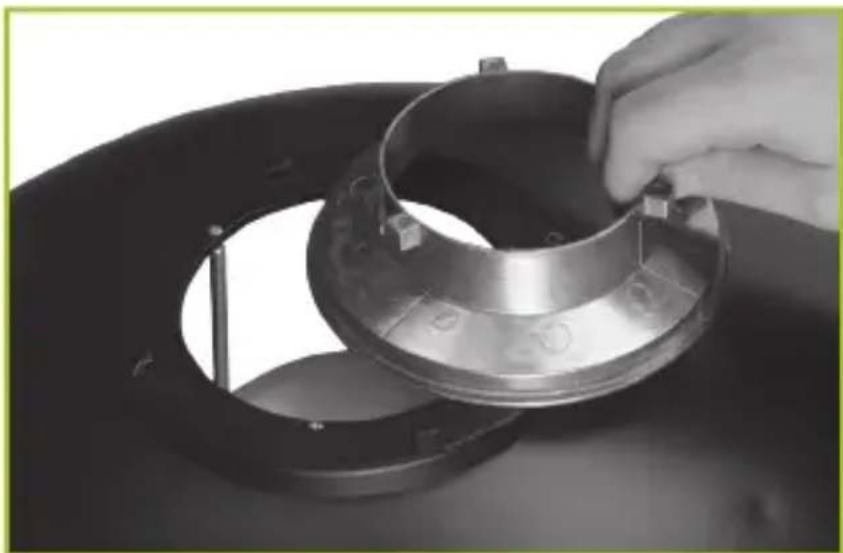

Close-up of a hand adjusting a circular mechanical component with a hole, no visible text or symbols- Slide the mounting adapter into the brackets on the back of the Beauty Reflector.


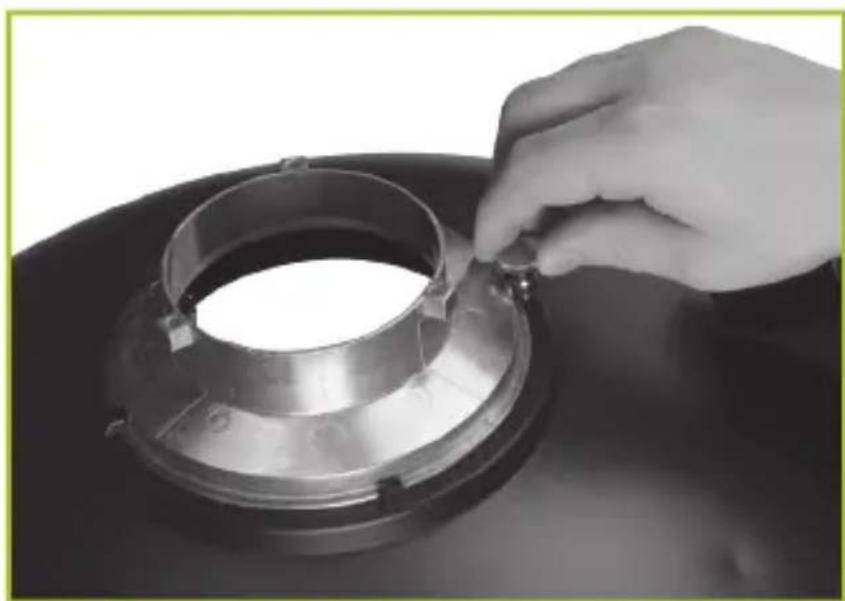

Close-up of a hand adjusting a metallic mechanical component with a circular opening (no text or symbols visible)- Insert the thumbscrew and washer into the threaded hole and rotate clockwise to tighten.
Specifications
| EGD-DOL EGD-HOL EGD-LPS EGD-SUR | ||||
| CONSTRUCTION | STEEL | ALUMINUM ALLOY | ALUMINUM ALLOY | STEEL AND RUBBER |
| WEIGHT | 0.5 LB.(227 G) | 0.3 LB.(136 G) | 0.4 LB.(181 G) | 0.65 LB.(295 G) |
One-Year Limited Warranty
This Angler product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.
This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.
To obtain warranty coverage, contact the Angler Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Angler along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.
For more information or to arrange service, visit www.anglerlights.com or call Customer Service at 212-594-2353.
Product warranty provided by the Gradus Group. www.gradusgroup.com
Angler is a registered trademark of the Gradus Group.
© 2015 Gradus Group LLC. All Rights Reserved.
