Product Type	AC Power Strip with Remote Power Control
Model	ACS-1510-RPC
Power Rating	120VAC, 60Hz, 15A
Circuit Breaker Protection	Yes
Chassis Dimensions	30 x 2 x 2 inches (762 x 51 x 51 mm)
Chassis Finish	Steel with black powder epoxy finish
Input Cord	Detachable 6 ft (1.8 m) IEC cord with NEMA 5-15P plug
Total Outlets	10 NEMA 5-15R receptacles (5 duplex)
Unswitched Outlets	1 duplex (always on when powered)
Switched Outlets	4 duplexes (controlled by remote switch/sequencer via RPC terminal)
Remote Control Interface	Low-voltage RPC terminal (SW, Com, V+ Out)
Compatible Remote Switches	RPSW-P, RPSW-KP, RPSB-R, PRSB-KR (up to 24VDC)
Compatible Sequencers	SEQ-4, SEQ-8, SEQR-4, SEQR-4K, SEQR-8, SEQR-8K
Status Indication	Green LED (On), Red LED (Power), Test button
Mounting	Universal brackets for rack (adjustable/fixed rails), wall, or under desk
Certification	ETL Listed for US and Canada
Country of Origin	Assembled in USA with global components

Frequently Asked Questions - ACS-1510-RPC Lowell

What is the ACS-1510-RPC used for?

The ACS-1510-RPC is an AC power strip with remote power control, designed to distribute power to multiple devices and allow remote switching via a low-voltage connection.

How do I connect a remote switch?

Use low-voltage cable to connect the switch to the RPC terminal (SW and Com pins). Ensure the switch is rated for 24V operation. Compatible models include RPSW-P, RPSW-KP, etc.

Can I control the outlets with a sequencer?

Yes, the ACS-1510-RPC works with Lowell SEQ and SEQR series sequencers (e.g., SEQ-4, SEQR-8K) for sequential power-up/down.

What do the LED indicators mean?

The green LED (On) indicates the switched outlets are powered. The red LED (Power) indicates AC input is present. The Test button activates outlets momentarily.

Is the power strip surge protected?

No, this model does not include surge protection. It provides remote power control only. For surge protection, consider other ACS models.

How many outlets are always on?

One duplex (2 outlets) is unswitched and remains powered as long as the unit is connected to AC. The other four duplexes (8 outlets) are switched.

Can I mount it in a server rack?

Yes, the universal brackets allow mounting on adjustable or fixed rails using included hardware. You can also mount it to a wall or under a desk.

What is the maximum load?

The total load must not exceed 15A (1800W at 120V). The circuit breaker protects against overload.

What type of plug does it use?

It comes with a detachable 6 ft. IEC C13 to NEMA 5-15P power cord. The inlet is a standard IEC C14.

Where is it manufactured?

The ACS-1510-RPC is assembled in the USA using global components, ensuring quality and reliability.

USER MANUAL ACS-1510-RPC Lowell

ACS Series Model No.

ACS-1510-RPC

AC Power Strip w/Remote Power Control

The corded power strip with ten 15A receptacles (five duplex) and remote power control function (RPC) can be combined with a variety of remote switches or sequencers to provide a low-voltage method of turning specific equipment on and off from a remote location. The ability to safely control AC power distribution without directly accessing equipment adds convenience, while minimizing the potential for unauthorized system modifications.

FEATURES

POWERRATING: 120VAC 60Hz 15A

CHASSIS: 30" x 2" x 2" steel chassis with black powder epoxy finish

TERMINATION: Detachable six-ft. IEC cord with NEMA 5-15P plug

RECEPTACLES: Total of ten NEMA 5-15R receptacles (five duplex). One duplex is un-switched (always on when supplied with power). Four duplexes are switched (controlled by a remote switch or sequencer through the RPC terminal).

UNIVERSAL MOUNTING BRACKETS: The universal brackets allow for power strip installation in a variety of applications with receptacles facing front, center or rear. Brackets are engineered with multiple mounting points and include two types of hardware to facilitate easy installation in a rack with adjustable or fixed rails, to a wall, or under a desk/counter. The brackets can be mounted so they are exposed for easy access or concealed beneath the power strip for an aesthetically cleaner installation.

CERTIFICATION: ETL Listed in U.S./Canada

ORIGIN: Assembled in the U.S.A. with global components.

INSTALLATION

Use the universal mounting brackets to install the power strip near the equipment. Use low-voltage cable to connect the RPC terminal to a remote switch or sequencer (required).

A&E SPECIFICATIONS

The ETL Listed power strip with low-voltage remote power control shall be Lowell model ACS-1510-RPC, which shall have a power rating of 120VAC 60Hz 15A with circuit breaker protection. The chassis shall be steel with black powder epoxy finish, measuring 30" x 2" x 2". It shall feature one unswitched and four switched NEMA 5-15R duplex receptacles. The four switched duplexes shall be controlled by an external power switch or sequencer (ordered separately) that is connected to the power strip's remote power control terminal. The power strip shall be made in the U.S.A. with global components. It shall terminate with a detachable 6 ft. IEC cord with NEMA 5-15P plug, and include universal mounting brackets with hardware to mount to a rack, wall or desk.

REMOTE POWER CONTROL: Use low-voltage cable to connect the RPC terminal to an external switch or sequencer.

RPC Terminal:

On: Green LED indicates AC power is applied to receptacles.

Power: Red LED indicates AC power is available.

Test: Test applies power to receptacles independent of remote switch or sequencer.

SW, Com: Connection between Switch and Common terminals activates internal relay and applies power to receptacles.

V+ Out: +24VDC output. Use only with RPS Series switches

Connection to Remote Switch
(wall or rackmount):

COMPATIBLE Switches & Sequencers: Order separately. See individual product spec sheets for more information.

Model No.	Description
RPSW-P	SPST switch w/maintained closure, one-gang white wall plate, rocker switch
RPSW-KP	SPST switch w/maintained closure, one-gang white wall plate, key switch
RPSB-R	SPST switch w/maintained closure, 1U rackmount panel, rocker switch
PRSB-KR	SPST switch w/maintained closure, 1U rackmount panel, key switch
SEQ-4	Four-step sequencer
SEQ-8	Eight-step sequencer
SEQR-4	Four-step rackmount sequencer w/rocker switch, 1U
SEQR-4K	Four-step rackmount sequencer w/key switch, 1U
SEQR-8	Eight-step rackmount sequencer w/rocker switch, 1U
SEQR-8K	Eight-step rackmount sequencer w/key switch, 1U

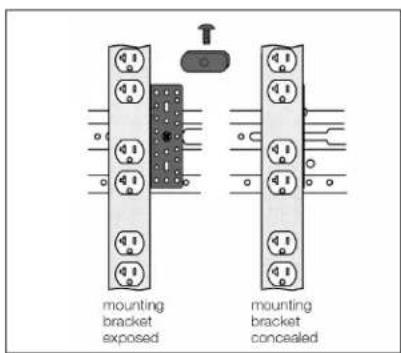

UNIVERSAL MOUNTING BRACKETS: The brackets can be mounted exposed for easy access or concealed for a cleaner install. Includes

variety of hardware for versatile installation.

(2) Brackets

TT

(2) 1/4"-20 x 1/2" screws

(2) flat nuts

TT

(2) 10-32 x 1/2" screws

图

(2) cage nuts

RACK w/ ADJUSTABLE RAILS

(side mount): Mount to horizontal side supports with universal brackets, 1/4"-20 screws, flat nuts.

RACK w/ ADJUSTABLE RAILS

(rear mount): Mount to rear rail with universal brackets, 10-32 screws.

RACK w/ FIXED POSITION RAILS

(and rear Z-angle bracket): Mount to Z-angle with universal brackets, 10-32 screws, cage nuts.

SERIES SUMMARY

Power NEMA Model No.

Chassis Rating

Chassis Rating

Go/Off Surge

Remote Mounting Receptacles

Country Circuits

Length

Profile

Termination

Switch

Suppression

Power Control

Aids

of Origin

ACS-1505-SW

15A

5 (15A)

1

12"

Standard

6' Det. cord

Yes

---

---

Brackets

U.S.

ACS-1505-SW-SD

15A

5 (15A)

1

12"

Standard

6' Det. cord

Yes

2-stage

---

Brackets

U.S.

ACS-1506

15A

6 (15A)

1

20"

Low

6' Fixed cord

---

1-stage

---

Clips

China

ACS-1506-WW

15A

6 (15A)

1

12"

Low

6' Fixed cord

---

---

---

Screws

U.S.

ACS-1507

15A

7 (15A)

1

12"

Low

6' Det. cord

---

---

---

Screws

U.S.

ACS-1512

15A

12 (15A)

1

32"

Low

12' Fixed cord

---

1-stage

---

Clips

China

ACS-1524

15A

24 (15A)

1

60"

Low

12' Fixed cord

---

1-stage

---

Clips

China

ACS-1524-2C

15A

24 (15A)

2

70"

Low

Pigtail leads

---

---

---

Clips

China

ACS-2012

20A

8 (15A) + 4 (20A)

1

32"

Low

12' Fixed cord

---

1-stage

---

Clips

China

ACS-2024

20A

16 (15A) + 8 (20A)

1

70"

Low

12' Fixed cord

---

1-stage

---

Clips

China

ACS-2014-HW

20A

14 (20A)

1

30"

Standard

6' Conduit

---

---

---

Brackets

U.S.

ACS-2014-2C-HW

20A

8 (15A) + 6 (20A)

2

30"

Standard

6' Conduit

---

---

---

Brackets

U.S.

ACS-2020-6C-HW

20A

20 (20A)

6

60"

Standard

6' Conduit

---

---

---

Brackets

U.S.

ACS-2020-IG-6C-HW

20A

20 (I.G. 20A)

6

60"

Standard

6' Conduit

---

---

---

Brackets

U.S.

ACS-2020-IG-10C-HW

20A

20 (I.G. 20A)

10

60"

Standard

6' Conduit

---

---

---

Brackets

U.S.

ACS-2024-2C

20A

24 (20A)

2

70"

Low

Pigtail leads

---

---

---

Clips

China

ACS-1510-RPC

15A

10 (15A)

1

30"

Standard

6' Det. cord

---

---

Yes

Brackets

U.S.

ACS-2010-RPC-HW

20A

10 (20A)

1

30"

Standard

6' Conduit

---

---

Yes

Brackets

U.S.

ACS-2018-5C-RPC-HW

20A

18 (20A)

5

60"

Standard

6' Conduit

---

---

Yes

Brackets

U.S.

ACS-2018-5C-RPCP-HW

20A

18 (20A)

5

60"

Standard

6' Conduit

---

1-stage

Yes (P)

Brackets

U.S.

THIS SPEC

Chassis Profile = Standard profile (2" x 2"), Low profile (1.625" x 1.375")

Termination = Det. cord (detachable cord). Fixed cord (cord is attached—cannot be removed). Conduit (non-metallic flexible whip w/pigtail leads), Pigtail leads (leads at ends of chassis—no whip) Switch = Yes (On/off rocker switch)

Surge Suppression = 1-stage (basic surge protection), 2-stage (surge protection with backup)

Remote Power Control = Some receptacles are controlled by a remote switch or sequencer (ordered separately); (P) indicates compatibility with Lowell P-Series pass-through sequencers.

Mounting Aids = Brackets (multi-hole brackets with hardware), Clips (clips and screws with wire tires), or Screws (power strips can mount to rear of US or USV Series shelves).
