DW-PRTD - Portable Cart Accessory Proaim - Free user manual and instructions

Brand	Proaim
Model	DW-PRTD
Product Type	Portable Dolly Track Wheel Set
Compatibility	Proaim Heavy Duty Portable Floor Dolly (not included)
Number of Wheels	3
Wheel Material	Steel hub with rubber or plastic tread (estimated)
Wheel Diameter	Approx. 10 cm (4 inches)
Wheel Width	Approx. 3 cm (1.2 inches)
Total Weight (set)	Approx. 1.5 kg (3.3 lbs)
Track Compatibility	Straight and curved tracks (tracks not included)
Installation	Insert into dolly leg holder and tighten with grub screw using Allen key (included)
Included Accessories	3 track wheels, 3 grub screws, 1 Allen key
Primary Function	Converts portable floor dolly into a track dolly for smooth camera movements
Warranty	1 year (parts and labor, excluding shipping and misuse)
Liability	Not liable for damage from misuse or third-party service
Maintenance	Periodically check grub screw tightness; clean wheels with damp cloth
Safety	Ensure wheels are securely attached before use; use on stable tracks only
Repairability	Contact Proaim for replacement parts; warranty repairs evaluated by manufacturer
Contact	Proaim customer support (details in manual)

Frequently Asked Questions - DW-PRTD Proaim

What does the Proaim DW-PRTD track wheel set include?

The set includes 3 track wheels, 3 grub screws, and an Allen key for installation.

Is the Proaim DW-PRTD compatible with any dolly?

It is designed for Proaim Heavy Duty Portable Floor Dolly. Compatibility with other dollies is not guaranteed.

How do I install the track wheels on my dolly?

Insert each track wheel into the wheel foot holder on the dolly leg, then insert the grub screw and tighten securely using the provided Allen key.

Can I use these wheels on curved tracks?

Yes, the wheels are designed to work on both straight and curved tracks (tracks not included).

What track size do these wheels fit?

The wheels are designed to fit standard dolly tracks with a profile suitable for the wheel diameter and width. Exact dimensions not specified; typical tracks are around 10-15 cm wide.

How do I maintain the track wheels?

Regularly check that the grub screws are tight. Clean the wheels with a damp cloth to remove dirt. Avoid using harsh chemicals.

Is there a warranty for the DW-PRTD?

Yes, Proaim offers a 1-year warranty covering parts and labor, excluding shipping costs, misuse, or accidental damage.

Can I get replacement parts if a wheel breaks?

Contact Proaim customer support for replacement parts. Warranty repairs are subject to manufacturer inspection.

Do the wheels include bearings?

The manual does not specify bearing type, but track wheels typically include sealed bearings for smooth rolling.

What is the maximum load capacity of the track wheel set?

Load capacity is not specified in the manual. It depends on the dolly itself. The wheels are built for standard camera setups.

USER MANUAL DW-PRTD Proaim

Three different types of robotic vehicles with black wheels and metallic components, displayed against a white background (no text or symbols visible)

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed below.

Three identical mechanical wheels with black and metallic components, displayed against a white background (no text or symbols visible)

Proaim 3 x Track Wheel

Track Wheel Setup

- Insert the track wheel into the portable dolly's wheel feet holder, as shown in the image.

Note: Portable Dolly Track Wheel Set converts Heavy Duty Portable Floor dolly into a Track Dolly.

- After inserting the track wheel, insert the grub screw and securely tighten it with the help of the Allen Key.

- Then, following the same steps, attach the other 2 track wheels to the remaining legs of the portable dolly.

- The track wheels have been securely attached to the portable dolly.

- The Track wheels can be used on straight as well as curved tracks (Not Included).

Close-up of a hand adjusting a black mechanical lever with a red 'AVISA' tag (no visible text or symbols)

Close-up of a robotic arm gripping a black mechanical component, with a hand adjusting the part (no visible text or symbols)

Close-up of a hand holding a black mechanical device with a red circle highlighting a small component (no text or symbols visible)

Close-up of a robotic arm with a hand adjusting a small yellow tool, no visible text or symbols

Close-up of a hand adjusting a small mechanical component with a red circle highlighting a detail (no text or symbols visible)

Close-up of a robotic arm with a yellow tool inserted, showing a mechanical component and a red circle highlighting a specific part (no text or symbols visible)

Black quadcopter drone with four wheels and red head (no text or symbols visible)

Close-up of a black mechanical linkage system with four arms and mounting brackets (no text or symbols visible)

Close-up of a black tripod-mounted device with four wheels and a cylindrical top, mounted on a white surface (no text or symbols visible)

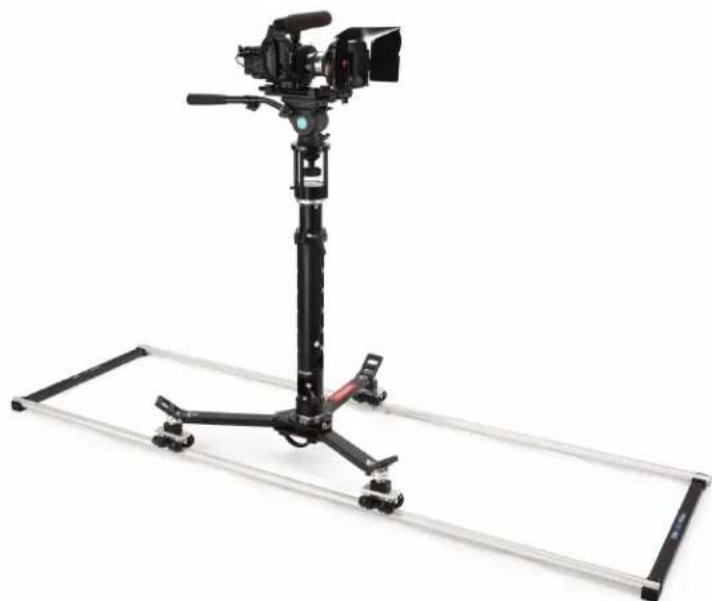

YOUR PROAIM TRACK WHEEL SET FOR PROAIM PORTABLE DOLLY ALL DRESSED UP AND READY TO GO!

Professional camera setup with tripod-mounted frame and mounted camera (no visible text or symbols)

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn't cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

Contact Us: In case of any kind of dissatisfaction, please Contact us immediately and we promise our utmost support and care until you use our product.
