Product Type	Universal Support Stand with Baby Pin Mount
Brand	Proaim
Model	TP-ALPA-01
Mount Type	5/8" Baby Pin Mount
Maximum Height	Approximately 72 inches (183 cm)
Minimum Height	Approximately 24 inches (61 cm)
Number of Leg Sections	3
Leg Lock Type	Quick-release locking knobs
Weight Capacity	Up to 11 lbs (5 kg)
Weight	Approximately 4.5 lbs (2 kg)
Material	Aluminum alloy and steel
Color	Black
Compatible Devices	Cameras, stabilizers, gimbals, lights, reflectors, softboxes, monitors
Main Functions	Supports photo/video equipment with adjustable height and secure mounting
Setup	Spread legs, secure with knobs, adjust height via central post
Care and Cleaning	Wipe with a dry cloth; avoid harsh chemicals
Safety	Do not exceed weight capacity; ensure knobs are tightened
Spare Parts	Contact Proaim for replacement knobs, leg parts
Repairability	Warranty covers labor and parts; user should not disassemble
Warranty	1 year from date of purchase

Frequently Asked Questions - TP-ALPA-01 Proaim

How do I set up the Alpha Docking Universal Support Stand?

Loosen the knob of the Alpha stand and spread its legs on the floor as required. Secure the legs with the knobs at the top and bottom. Then loosen the height adjustment knob, set the desired height, and tighten the knob back.

What equipment can I mount on this stand?

The stand supports photo and lighting equipment such as cameras, stabilizers, gimbals, reflectors, softboxes, lights, utility trays, and workstations. It has a 5/8" baby pin mount for attaching camera stabilizer systems.

What is the weight capacity of the TP-ALPA-01?

The stand can support up to approximately 11 lbs (5 kg). Do not exceed this limit to ensure safety.

How do I adjust the height of the stand?

Loosen the knob on the central post, raise or lower the post to the desired height, then tighten the knob securely. The stand has three sections for height adjustment.

Does the stand come with a warranty?

Yes, Proaim offers a one-year warranty from the date of purchase. It covers labor and parts for defects, but not transportation costs or damage from misuse.

How do I clean and maintain the stand?

Wipe the stand with a dry cloth to remove dust. Avoid using harsh chemicals or abrasive cleaners. Periodically check that all knobs are tight.

Can I use this stand outdoors?

Yes, the stand is suitable for both indoor and outdoor use. However, avoid exposure to rain or extreme conditions to prevent damage.

What is the maximum height of the TP-ALPA-01?

The stand extends to a maximum height of approximately 72 inches (183 cm) when fully extended.

Is the baby pin mount removable?

The 5/8" baby pin mount is integrated at the top of the central post. It is not designed to be removed but can be used to attach compatible accessories.

What should I do if a part is missing or damaged?

Contact Proaim customer support immediately. They provide replacement parts and repair services under warranty. Keep proof of purchase handy.

USER MANUAL TP-ALPA-01 Proaim

PROAIM Alpha Docking Universal Support Stand with 5/8" Baby Pin Mount (TP-ALPA-01)

Assembly Manua I

Black tripod-mounted camera or antenna stand with adjustable arm and base (no text or symbols visible)

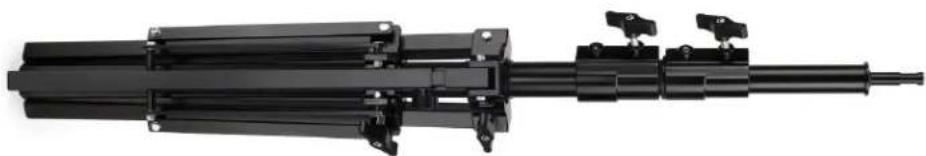

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed below.

Mechanical assembly with black cylindrical components and mounting brackets (no visible text or symbols)

Alpha Docking Universal Support Stand with 5/8" Baby Pin Mount

All rights reserved.

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.

Alpha Stand Setup

• Loosen the knob of the Alpha stand and spread its legs on the floor (as per your requirement).
• Secure the legs with the help of knobs at the top and bottom.
• Loosen the knob to adjust the stand height as per your need and tighten the knob back, as shown in the image.

Note: The Alpha Stand has 3 sections to adjust the height with quick & secure locking knobs. The central main post of the stand is adjustable, through which you can change its height as you require.

- Mount the Lights on Alpha Stand and properly secure with the provided knob as shown in the picture.

- Alpha Camera Stand also supports photo equipment & lighting accessories like reflectors, softboxes, lights, utility trays, workstations, and many more.

Note: The Stand has 5/8" baby pin mount on the top to attach the camera stabilizer system & gimbals with their support accessories.

Close-up of a hand adjusting a black tripod mount with a red circle highlighting the mount (no text or symbols visible)

Close-up of hands operating a tripod stand with black metal legs (no text or symbols visible)

Close-up of a hand adjusting a black triangular frame structure with a red circle highlighting the component (no text or symbols visible)

Hand holding a black tripod frame with a red circle highlighting the base (no text or symbols visible)

Close-up of hands adjusting a black mechanical component (no visible text or symbols)

Diagram of a tall tripod-mounted tower with a vertical red arrow indicating upward motion (no text or symbols)

Three identical black-and-white diagrams of a tower structure with red arrows indicating vertical motion or force direction (no text or symbols)

Person holding a camera lens next to a black fabric lamp (no text or symbols visible)

Close-up of a camera module being held by a hand, with no visible text or symbols on the device itself.

Black tripod-mounted stand with a monitor on top, isolated on white background (no text or symbols)

YOUR PROAIM ALPHA DOCKING UNIVERSAL SUPPORT STAND ALL DRESSED UP AND READY TO GO!

Professional photography setup with tripod-mounted equipment and a central screen (no visible text or symbols)

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn't cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

Contact Us: In case of any kind of dissatisfaction, please contact us immediately and we promise our utmost support and care until you use our product.
