PCM-2000 Series

A modular mini-PCIe system for selected industry applications

Copyright

The documentation and the software included with this product are copyrighted 2014 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. However, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringements of the rights of third parties, which may result from its use.

Acknowledgements

Intel and Pentium are trademarks of Intel Corporation.

Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.

All other product names or trademarks are properties of their respective owners.

Product Warranty (5 years)

Advantech warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship for two years from the date of purchase.

This warranty does not apply to any products which have been repaired or altered by persons other than repair personnel authorized by Advantech, or which have been subject to misuse, abuse, accident or improper installation. Advantech assumes no liability under the terms of this warranty as a consequence of such events.

Because of Advantech's high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defective, it will be repaired or replaced at no charge during the warranty period. For out-of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight. Please consult your dealer for more details.

If you think you have a defective product, follow these steps:

1. Collect all the information about the problem encountered. (For example, CPU speed, Advantech products used, other hardware and software used, etc.) Note anything abnormal and list any onscreen messages you get when the problem occurs.

2. Call your dealer and describe the problem. Please have your manual, product, and any helpful information readily available.

3. If your product is diagnosed as defective, obtain an RMA (return merchandise authorization) number from your dealer. This allows us to process your return more quickly.

4. Carefully pack the defective product, a fully-completed Repair and Replacement Order Card and a photocopy proof of purchase date (such as your sales receipt) in a shippable container. A product returned without proof of the purchase date is not eligible for warranty service.

5. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer.

Part No. 2003P20000 Edition 1

Printed in Taiwan May 2015

Declaration of Conformity

CE

This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cable is available from Advantech. Please contact your local supplier for ordering information.

FCC Class A

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Technical Support and Assistance

1. Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product.

2. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call:

– Product name and serial number
– Description of your peripheral attachments
– Description of your software (operating system, version, application software, etc.)
– A complete description of the problem
– The exact wording of any error messages

Warnings, Cations and Notes

Warning! Warnings indicate conditions, which if not observed, can cause personal injury!

Caution! Cautions are included to help you avoid damaging hardware or losing

data. e.g.

There is a danger of a new battery exploding if it is incorrectly installed. Do not attempt to recharge, force open, or heat the battery. Replace the battery only with the same or equivalent type recommended by the manufacturer.

Discard used batteries according to the manufacturer's instructions.

Note! Notes provide optional additional information.

Document Feedback

To assist us in making improvements to this manual, we would welcome comments and constructive criticism. Please send all such - in writing to: [e-mail]

Packing List

Before setting up the system, check that the items listed in each chapter are included and in good condition. If any item does not accord with the table, please contact your dealer immediately.

Safety Instructions

1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall may cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting the equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not place anything over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.
13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.
14. If one of the following situations arises, get the equipment checked by service personnel:
15. The power cord or plug is damaged.
16. Liquid has penetrated into the equipment.
17. The equipment has been exposed to moisture.
18. The equipment does not work well, or you cannot get it to work according to the user's manual.
19. The equipment has been dropped and damaged.
20. The equipment has obvious signs of breakage.
21. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE THE STORAGE TEMPERATURE MAY GO BELOW -20^ C ( -4^ F) OR ABOVE 60^ C ( 140^ F). THIS COULD DAMAGE THE EQUIPMENT. THE EQUIPMENT SHOULD BE IN A CONTROLLED ENVIRONMENT.
22. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER, DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER'S INSTRUCTIONS.
23. The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A).
    DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.

Safety Precaution - Static Electricity

Follow these simple precautions to protect yourself from harm and the products from damage.

To avoid electrical shock, always disconnect the power from your PC chassis before you work on it. Don't touch any components on the CPU card or other cards while the PC is on.

- Disconnect power before making any configuration changes. The sudden rush of power as you connect a jumper or install a card may damage sensitive electronic components.

Contents

Chapter 1 Introduction......1

1.1 Description ...... 2
1.2 PCM Support Summary 2

Chapter 2 PCM-2300MR-AE....3

2.1 Initial Inspection 4
2.2 Driver Setup & Installation- Advantech Device Manager Installation ..... 5
2.3 Format....7

2.3.1 Windows Format 7
2.3.2 Advantech provides MRAM driver format 8

Chapter 3 PCM-24DxRx-AE 11

3.1 Initial Inspection 12
3.2 Jumper and Switch Settings.... 13

3.2.1 PCM-24D2R4 Settings.... 13

Table 3.1: Master/Slave Settings.... 13

Table 3.2: Terminal Resistor Settings ...... 13

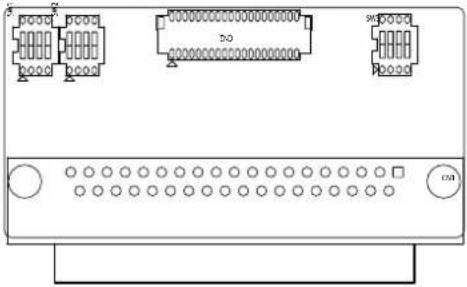

3.2.2 PCM-24D4R4 Settings.... 14
Table 3.3: Master/Slave Settings.... 14
Table 3.4: Terminal Resistor Settings 14

3.3 Driver Setup & Installation.... 15

3.3.1 Introduction ...... 15
3.3.2 Driver Setup 15
3.3.3 Steps for Operating System Driver Setup.... 15
3.3.4 Driver Uninstall.... 16

3.4 Pin Assignments 17

3.4.1 PCM-24D2R2.... 17
Table 3.5: PCM-24D2R2 Male DB9 on iDoor bracket ..... 17
3.4.2 PCM-24D2R4.... 17
Table 3.6: PCM-24D2R4 Male DB9 on iDoor Bracket.... 17
3.4.3 PCM-24D4R2.... 18
Table 3.7: PCM-24D4R2 Male DB9 on Cable 18
Table 3.8: PCM-24D4R2 Female DB37 on iDoor bracket..... 18
3.4.4 PCM-24D4R4.... 19
Table 3.9: PCM-24D4R4 Male DB9 on Cable 19
Table 3.10:PCM-24D4R4 Female DB37 on iDoor bracket..... 19

3.5 Wiring 20

3.5.1 RS-232 Signal Wiring.... 20
Table 3.11: Terminal or PC (DTE) Connections.... 20
Table 3.12:Modem Connections.... 20
Table 3.13: Terminal without Handshake 21
3.5.2 RS-422 Signal Wiring.... 21
Table 3.14: RS-422 DB9 Pin Assignment 21
3.5.3 RS-485 Signal Wiring 22
Figure 3.1 RS-485 Wiring Topology ...... 22

Chapter 4 PCM-26D2CA....23

4.1 Initial Inspection 24
4.2 Driver and Advantech Device Manager Installation 25

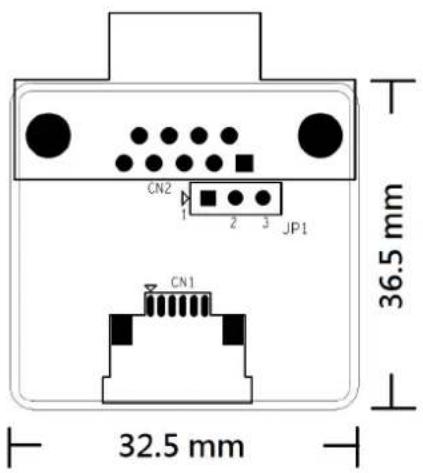

4.3 Jumper and Switch Settings 27 Figure 4.1 CAN-bus transceiver board silk screen 27

4.3.1 How to Set Jumpers .... 27 Figure 4.2 How to set the jumpers.... 27

4.3.2 Terminator Resistor Setup (JP1) 27 Table 4.1: PCM-26D2CA Terminator Resistor Jumper Setting. 27

4.4 Pin Assignments 28

Figure 4.3 PCM-26D2CA DB-9 connector pin assignments..... 28

Figure 4.4 PCM-26D2CA DB-9 connector schematics.... 28

Table 4.2: PCM-26D2CA Pin Description 28

4.5 Wiring....29

Figure 4.5 FPC cable wiring 29

Figure 4.6 Wiring on module side.... 29

Chapter 5 PCM-23U1DG-AE....31

5.1 Initial Inspection 32

5.2 Driver Setup & Installation- Advantech Device Manager Installation..... 32

5.3 Pin Assignment and Wiring.... 33

5.3.1 Pin Assignment.... 33

5.3.2 Wiring.... 33

Chapter 6 PCM-2300TP-AE 35

6.1 Initial Inspection 36

6.2 Driver Setup & Installation- Advantech Device Manager Installation..... 36

6.3 Pin Assignment and Wiring.... 36

Chapter 7 PCM-23C1CF-AE 37

7.1 Initial Inspection 38

7.2 Driver Setup & Installation- Advantech Device Manager Installation..... 38

7.3 Pin Assignment and Wiring.... 39

7.3.1 Pin Assignment.... 39

7.3.2 Wiring....40

Chapter 8 PCM-24R1TP-AE 41

8.1 Initial Inspection 42

8.2 Driver Setup & Installation- Advantech Device Manager Installation..... 43

8.2.1 Introduction 43

8.2.2 Installation.... 43

8.3 Pin Assignment and Wiring.... 46

8.3.1 Pin Assignment.... 46

8.3.2 Wiring....47

Chapter 9 PCM-24R2PE-AE 49

Chapter 9 PCM-24R2GL-AE 49

9.1 Initial Inspection 50

9.2 Driver Setup & Installation- Advantech Device Manager Installation..... 51

9.2.1 Introduction....51

9.2.2 Installation.... 51

9.2.3 Uninstall 54

9.3 Pin Assignment and Wiring 56

9.3.1 Pin Assignment 56

9.3.2 Wiring....57

Chapter 10 PCM-24U2U3....59

10.1 Initial Inspection 60

10.2 Driver Setup & Installation- Advantech Device Manager Installation ..... 61

10.2.1 Introduction 61

10.2.2 Installation....61

10.2.3 Uninstall 63

10.3 Pin Assignment and Wiring 64

10.3.1 Pin Assignment 64

10.3.2 Wiring....64

Appendix A PCM-2300MR-AE....67

A.1 Initial Inspection 68

A.2 Diagnostic LEDs....70

Table A.1: Diagnostic LED Definitions 70

Chapter 1

Introduction

This chapter provides a general description of the PCM modules description and support summary.

Sections include:

Description
■ PCM Support Summary

1.1 Description

Advantech designed iDoor technology by support for the flexible optional connector arrangement for the Advantech embedded Automation computing platform including connector, internal cabling and a wide range of I/O and communication Modules.

Supporting:

• Optional WLAN and GPRS modules including Antenna, RT Ethernet and serial Fieldbus options
  ■ Non-volatile Memory options
  ■ Optical isolated Serial Ports RS232/422/485
  ■ LAN ports supporting IEEE-1588 PTP
  ■ I/O extension modules
  ■ Wireless IO communication

1.2 PCM Support Summary

Model Manual Drivers Datasheet Startup
PCM-2300MR-AE Chapter 2 Refer to DVD Refer to DVD Refer to DVD
PCM-24D2R4-AE Chapter 3 Refer to DVD Refer to DVD Refer to DVD
PCM-24D2R2-AE Chapter 3 Refer to DVD Refer to DVD Refer to DVD
PCM-24D4R4-AE Chapter 3 Refer to DVD Refer to DVD Refer to DVD
PCM-24D4R2-AE Chapter 3 Refer to DVD Refer to DVD Refer to DVD
PCM-26D2CA-AE Chapter 4 Refer to DVD Refer to DVD Refer to DVD
PCM-26D1PB-AE	Refer to DVD	From Hilscher	Refer to DVD	Refer to DVD
PCM-23U1DG-AE	Chapter 5 Refer to DVD Refer to DVD Refer to DVD
PCM-2300TP-AE	Chapter 6 Refer to Advantech PCA-TPM-00A1E product information for Driver, Datasheet, Manual and Startup
PCM-23C1CF-AE	Chapter 7 Refer to DVD Refer to DVD Refer to DVD
PCM-24R1TP-AE	Chapter 8 Refer to DVD Refer to DVD Refer to DVD
PCM-24R2PE-AE PCM-24R2GL-AE	Chapter 9 Refer to DVD Refer to DVD Refer to DVD

Chapter 2

PCM-2300MR-AE

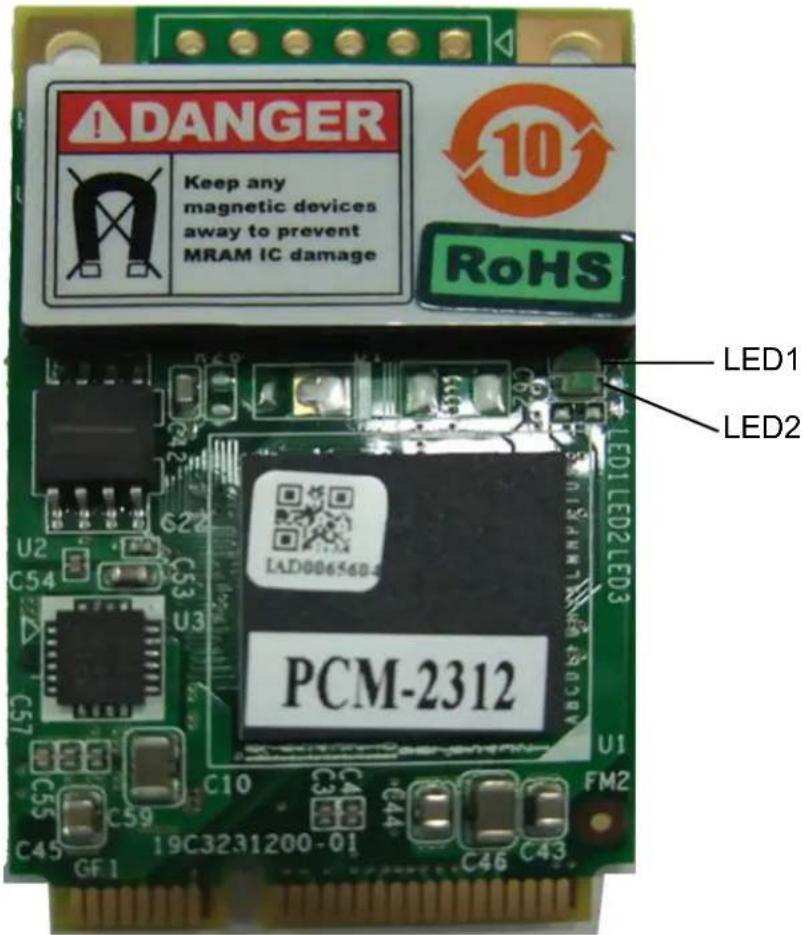

2MB MRAM mini-PCIe card

This chapter shows how to install the driver and Advantech Device Manager.

Sections include:

Initial Inspection
■ Driver Setup & Installation-Advantech Device Manager Installation
Format

2.1 Initial Inspection

You should find the following items inside the package:

■ Mini-PCIe communication interface card
Industrial Communication Driver, Utility and mini-PCIe communication card user's manual in PCM-2000 DVD-ROM

The PCM-2300MR was carefully inspected mechanically and electrically before it was shipped. It should be free of marks and scratches and in perfect working order when received.

As you unpack the PCM-2300MR, check for signs of shipping damage (damaged box, scratches, dents, etc.). If it is damaged or it fails to meet specifications, notify our service department or your local sales representative immediately. Also notify the carrier. Retain the shipping carton and packing material for inspection by the carrier. After inspection we will make arrangements to repair or replace the unit.

When you handle the PCM-2300MR, remove it from its protective packaging by grasping the rear metal panel. Keep the anti-vibration packing. Whenever you remove the card from the PC, store it in this package for protection.

Warning!

Discharge your body's static electric charge by touching the back of the grounded chassis of the system unit (metal) before handling the board. You should avoid contact with materials that hold a static charge such as plastic, vinyl and Styrofoam. Handle the board only by its edges to avoid static damage to its integrated circuits. Avoid touching the exposed circuit connectors. We also recommend that you use a grounded wrist strap and place the card on a static dissipative mat whenever you work with it.

2.2 Driver Setup & Installation- Advantech Device Manager Installation

Advantech provides WDM MRAM driver that allows you to configure your hardware and store the settings in your Windows registry. You must install the WDM MRAM driver if you want to add and manage Advantech MRAM cards.

Follow the steps below to install Advantech MRAM WDM Driver.

1. Select "Next" to continue the installation.

AdvNVRAMDisk - InstallShield Wizard Welcome to the InstallShield Wizard for AdvNVRAMDisk The InstallShield Wizard will install AdvNVRAMDisk on your computer. To continue, click Next. < Back Next > Cancel

1. Select "Install" to continue the installation.

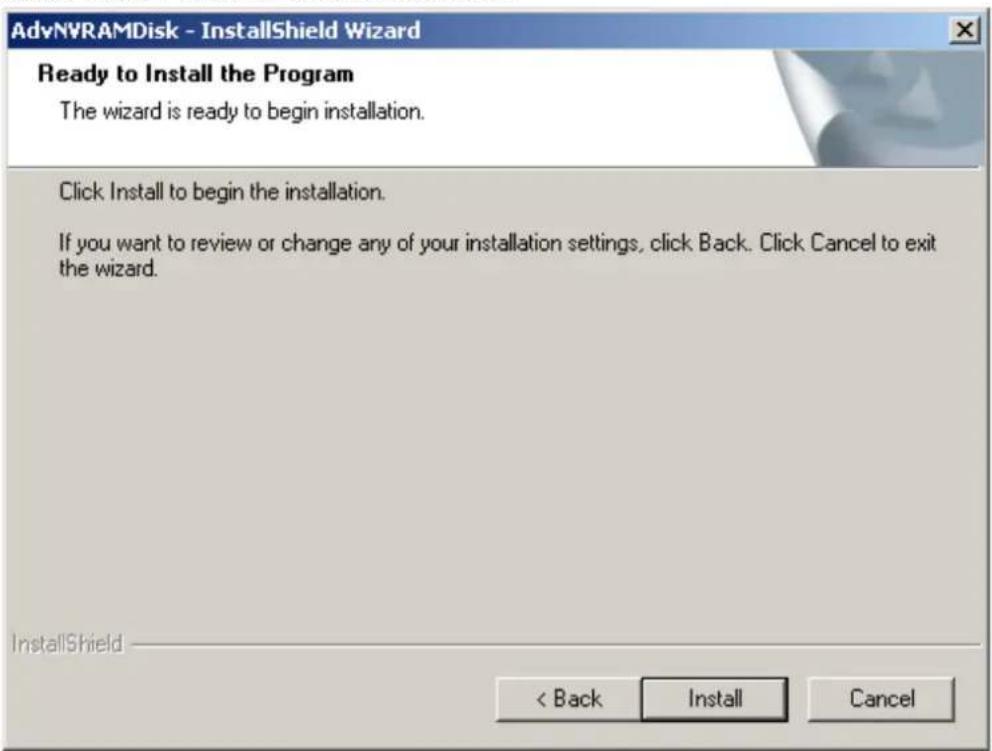

AdvNVRAMDisk - InstallShield Wizard Ready to Install the Program The wizard is ready to begin installation. Click Install to begin the installation. If you want to review or change any of your installation settings, click Back. Click Cancel to exit the wizard. InstallShield < Back Install Cancel

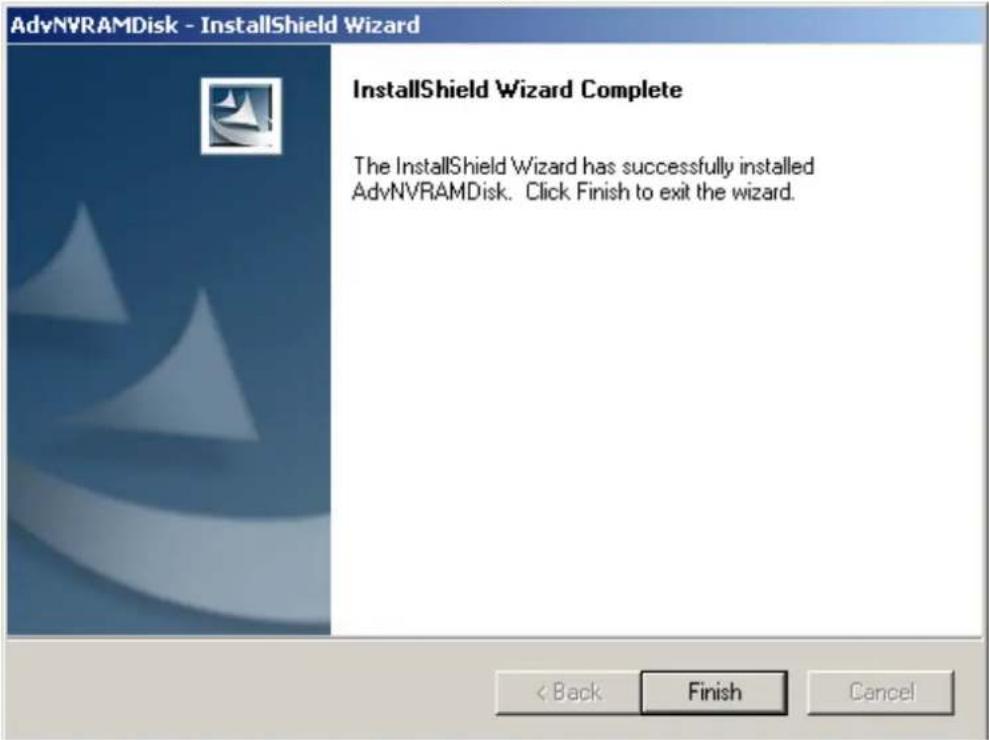

1. After a while, the installation will be complete.

AdvNVRAMDisk - InstallShield Wizard InstallShield Wizard Complete The InstallShield Wizard has successfully installed AdvNVRAMDisk. Click Finish to exit the wizard. < Back Finish Cancel

1. Select OK to Restart your computer.

Restarting Windows Setup has finished copying files to your computer. Before you can use the program, you must restart your computer. Select one of the following options and click OK to finish setup. Yes, I want to restart my computer now. No, I will restart my computer later. OK

1. After the physical hardware has been installed, the card will be automatically detected.

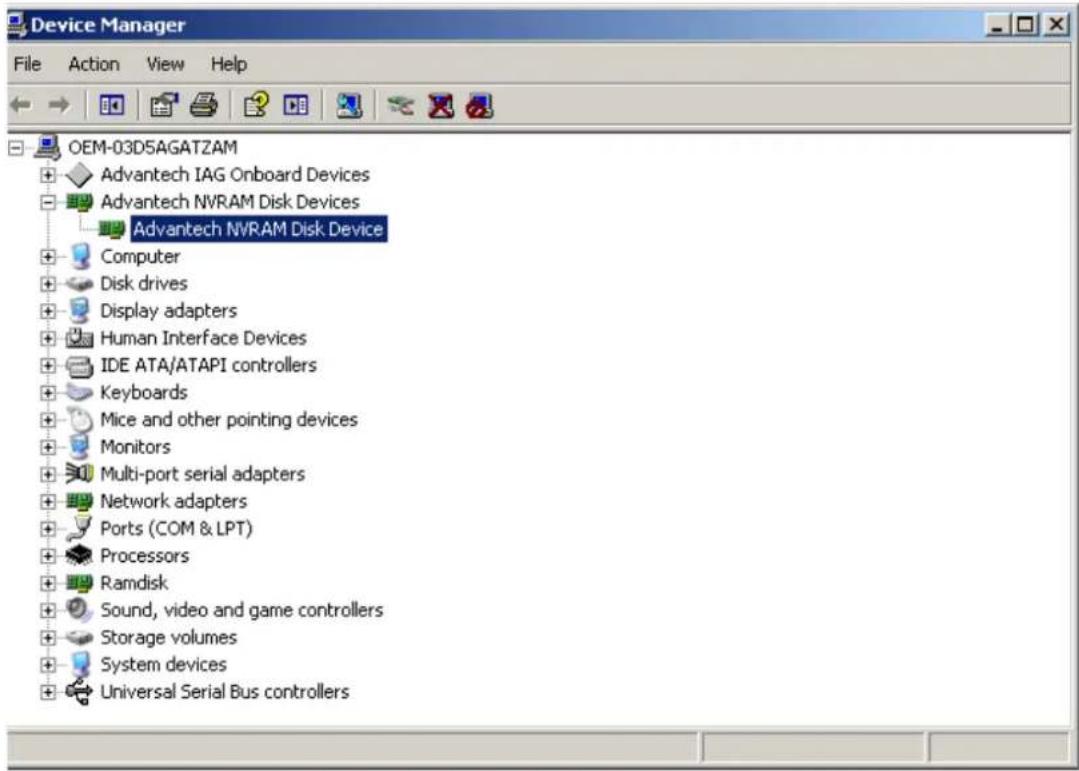

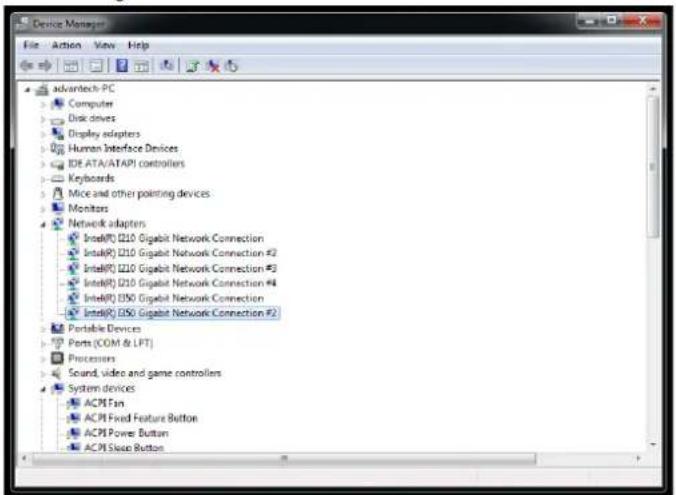

Device Manager File Action View Help OEM-03D5AGATZAM + Advantech IAG Onboard Devices + Advantech NVRAM Disk Devices + Advantech NVRAM Disk Device + Computer + Disk drives + Display adapters + Human Interface Devices + IDE ATA/ATAPI controllers + Keyboards + Mice and other pointing devices + Monitors + Multi-port serial adapters + Network adapters + Ports (COM & LPT) + Processors + Ramdisk + Sound, video and game controllers + Storage volumes + System devices + Universal Serial Bus controllers

2.3 Format

2.3.1 Windows Format

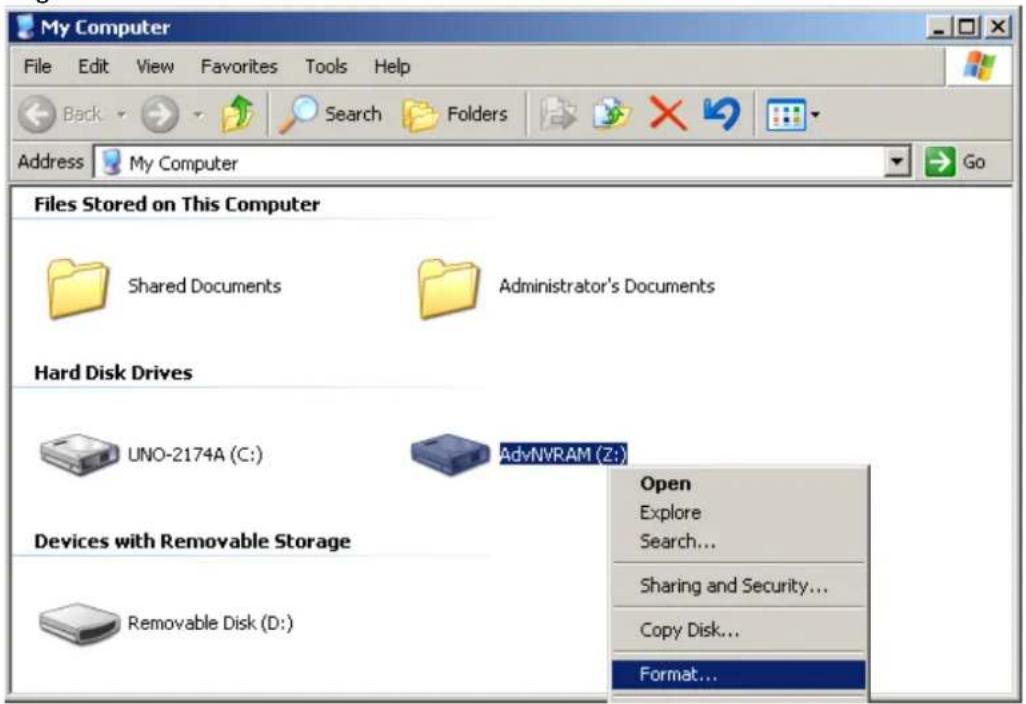

1. Right click the mouse to select "format"

My Computer File Edit View Favorites Tools Help Back Search Folders Address My Computer Go Files Stored on This Computer Shared Documents Administrator's Documents Hard Disk Drives UNO-2174A (C:) AdvNVRAM (Z:) Devices with Removable Storage Open Explore Search... Sharing and Security... Copy Disk... Removable Disk (D:) Format...

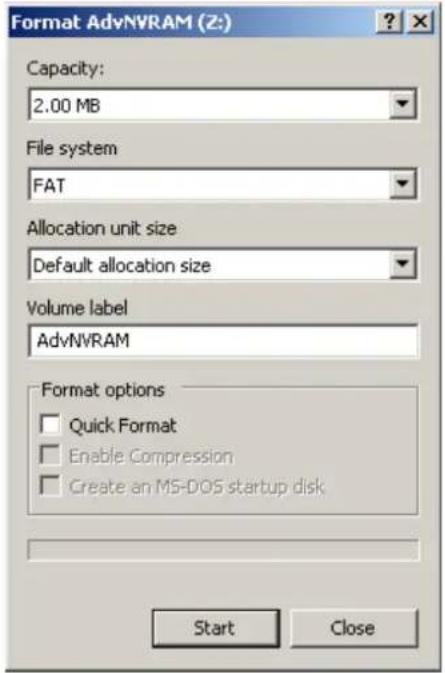

1. Select "Start" to complete MRAM format.

Format AdvNVRAM (Z:) Capacity: 2.00 MB File system FAT Allocation unit size Default allocation size Volume label AdvNVRAM Format options Quick Format Enable Compression Create an MS-DOS startup disk Start Close

2.3.2 Advantech provides MRAM driver format

1. Use Device Manager....

Device Manager File Action View Help OEM-03DSAGATZAM + Advantech IAG Onboard Devices + Advantech NVRAM Disk Devices + Advantech NVRAM Disk + Computer + Disk drives + Display adapters + Human Interface Devices + IDE ATA/ATAPI controllers + Keyboards + Mice and other pointing devices + Monitors + Multi-port serial adapters + Network adapters + Ports (COM & LPT) + Processors + Ramdisk + Sound, video and game controllers + Storage volumes + System devices + Universal Serial Bus controllers Update Driver... Disable Uninstall Scan for hardware changes Properties Opens property sheet for the current selection.

1. Select "Settings" page and then click "Clear data" button to format MRAM disk.

Advantech NVRAM Disk Device Properties General Settings Driver Details Resources NVRAM Disk Total Size: 2 MB Change Size: 2048 KB Change Drive Letter: Clear Data OK Cancel

Chapter 3

PCM-24DxRx-AE

PCM-24D2R4-AE, PCM-24D2R2-AE, PCM-24D4R4-AE, PCM-24D4R2-AE

Industrial Serial Communication Cards

This chapter covers inspection and installation of hardware and drivers.

Sections include:

Ordering Information
Initial Inspection
■ Jumper and Switch Settings
Driver Setup & Installation
Pin Assignment
Wiring

Ordering information:

Product Description

PCM-24D2R2-AE 2-Ports Isolated RS-232 mini-PCIe, DB9

PCM-24D2R4-AE 2-Ports Isolated RS-422/485 mini-PCIe, DB9

PCM-24D4R2-AE 4-Ports Non-Isolated RS-232 mini-PCIe, DB37

PCM-24D4R4-AE 4-Ports Non-Isolated RS-422/485 mini-PCIe, DB37

3.1 Initial Inspection

1. PCM-2400 Communication card including:

A. PCM-2400 mini-PCIe Card
B. I/O plate.
C. Wire cable
D. DB37 to DB9(4 ports) cable (For PCM-24D4R4-AE only)

1. PCM-2000 DVD-ROM including:

A. User manual
B. Industrial Communication Driver

We carefully inspect our PCM-2400 communication card mechanically and electrically before shipping. It should be free of marks and scratches and in perfect working condition on receipt.

As you unpack, check for any signs of shipping damage (damaged box, scratches, dents, etc.). Should any damage is found or it fail to meet specifications, please notify our service department or your local sales representative immediately. Also the carrier should be notified. Retain the shipping carton and packing material for further inspections by the carrier.

After inspection we will make arrangements to repair or replace the unit.

When you handle the communication card, remove it from its protective packaging by grasping the rear metal panel. Keep the anti-vibration packaging for further storage, as the card was removed from the PC.

Warning! Discharge your body's static electric charge by touching the back of the grounded chassis of the system unit (metal) before handling the board. You should avoid contact with materials that hold a static charge such as plastic, vinyl and Styrofoam. Handle the board only by its edges to avoid static damage to its integrated circuits. Avoid touching the exposed circuit connectors. We also recommend that you use a grounded wrist strap and place the card on a static dissipative mat whenever you work with it.

3.2 Jumper and Switch Settings

3.2.1 PCM-24D2R4 Settings

CN2 CN3 SW1 CN1

Table 3.1: Master/Slave Settings

Jumper Pin Description
CN2	1-2 RS-422 Master
	2-3 RS-485/RS-422 Slave (Default)

Table 3.2: Terminal Resistor Settings

Switch Terminal Resistor Switch Setting
SW1		1(D+/-) on
	120 ohm	2(RX+/-) on
		3,4 off
	300 ohm	3(D+/-) on
		4(RX+/-) on
		1,2 off

3.2.2 PCM-24D4R4 Settings

Front view of a network switch device with three ports and a control panel (no text or symbols visible)

Table 3.3: Master/Slave Settings
COM Port Switch Pin Setting Description

COM 1	SW1	1	ON RS-422 Master
			OFF RS-485/RS-422 Slave (Default)
COM 2 2			ON RS-422 Master
			OFF RS-485/RS-422 Slave (Default)
COM 3 3			ON RS-422 Master
			OFF RS-485/RS-422 Slave (Default)
COM 4 4			ON RS-422 Master
			OFF RS-485/RS-422 Slave (Default)

Table 3.4: Terminal Resistor Settings
COM Port Switch Pin Setting RS-422 Description RS-485 Description

COM 1	SW2	1	ON	120 Ohm between Tx+/Tx-	120 Ohm between Data+/Data-
			OFF Open (Default)
		2	ON	120 Ohm between Rx+/Rx-	Invalid
			OFF Open (Default)
COM 2		3	ON	120 Ohm between Tx+/Tx-	120 Ohm between Data+/Data-
			OFF Open (Default)
		4	ON	120 Ohm between Rx+/Rx-	Invalid
			OFF Open (Default)
COM 3	SW3	1	ON	120 Ohm between Tx+/Tx-	120 Ohm between Data+/Data-
			OFF Open (Default)
		2	ON	120 Ohm between Rx+/Rx-	Invalid
			OFF Open (Default)
COM 4		3	ON	120 Ohm between Tx+/Tx-	120 Ohm between Data+/Data-
			OFF Open (Default)
		4	ON	120 Ohm between Rx+/Rx-	Invalid
			OFF Open (Default)

3.3 Driver Setup & Installation

3.3.1 Introduction

This chapter describes the driver installation, configuration and removal procedures for the for the afore mentioned Windows operating system. We strongly recommend that you install the software driver before you install the hardware into your system, since this will guarantee a smooth and trouble-free installation process.

3.3.2 Driver Setup

Windows operating system supports COM1 to COM256, meaning up to 256 serial ports. In order to fully utilize the advanced features of Windows operating system, such as multi-process and multi-thread, pure 32-bit Windows 2K/XP/Vista/7 and others, as afore indicated, device drivers are provided for the PCI/PCIe communication cards. All these drivers conform to the Win32 COMM API standard.

3.3.3 Steps for Operating System Driver Setup

Before you install the card into your system, we recommend you install the driver first. Follow the steps below for the PCI/PCIe communication cards' windows operating system driver installation.

1. Insert your companion DVD-ROM disc into your DVD-ROM drive.
2. Double click the .exe file from the DVD-ROM, then the driver will begin to setup. For example, PCM-24DxRx\Driver\xx.exe.

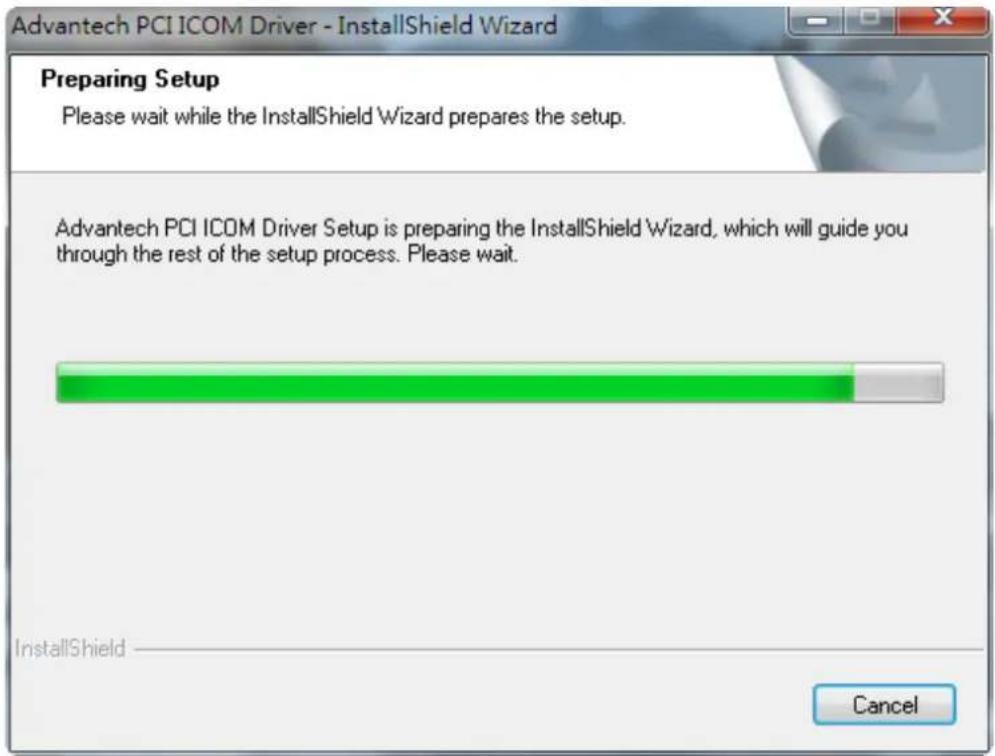

Advantech PCI ICOM Driver - InstallShield Wizard Preparing Setup Please wait while the InstallShield Wizard prepares the setup. Advantech PCI ICOM Driver Setup is preparing the InstallShield Wizard, which will guide you through the rest of the setup process. Please wait. InstallShield Cancel

3.3.4 Driver Uninstall

1. In the Control Panel, click Advantech PCI ICOM Driver then uninstall.

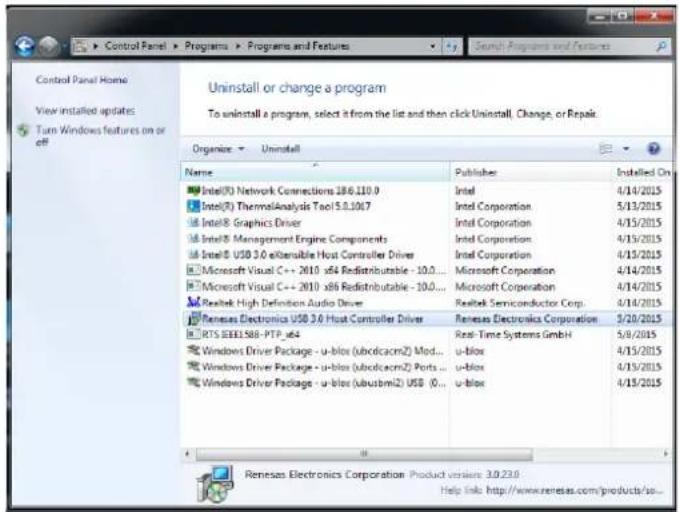

Add or Remove Programs Currently installed programs: Show updates Sort by: Name Advantech DiagAnywhere Server Size 0.11MB Advantech PCI ICOM Driver Size 1.21MB Click here for support information. Used rarely To change this program, click Change. Change

1. Choose "Remove" then click "Next" then start to remove all installed components.

Advantech Setup Welcome Modify, repair, or remove the program. Welcome to the Advantech PCI ICOM Driver Setup Maintenance program. This program lets you modify the current installation. Click one of the options below. Modify Select new program features to add or select currently installed features to remove. Repair Reinstall all program features installed by the previous setup. Remove Remove all installed features. InstallShield < Back Next > Cancel

3.4 Pin Assignments

3.4.1 PCM-24D2R2

The following table and figure shows the pin assignments of two male DB9 connectors on the iDoor bracket for PCM-24D2R2 card in RS-232 Mode.

Table 3.5: PCM-24D2R2 Male DB9 on iDoor bracket

Pin RS-232
1	DCD
2	RxD
3	TxD
4	DTR
5	GND
6	DSR
7	RTS
8	CTS
9	RI

3.4.2 PCM-24D2R4

The following table and figure shows the pin assignments of two male DB9 connectors on the iDoor bracket for PCM-24D2R4 card in RS-422 and RS-485 Modes.

Table 3.6: PCM-24D2R4 Male DB9 on iDoor Bracket

Pin RS-422 RS-485
1 Tx-	Data-
2	Tx+	Data+
3	R	x+	-
4	Rx-	-
5	G	N	D
6	RTS-	-
7	RTS+	-
8	CTS+	-
9	CTS-	-

3.4.3 PCM-24D4R2

The following tables and figures show the pin assignments of 1 female DB37 connector one the iDoor bracket to male DB9 for PCM-24D4R2 card in RS-232 mode.

Table 3.7: PCM-24D4R2 Male DB9 on Cable

Pin RS-232
1 DCD
2	RxD
3	TxD
4	DTR
5	GND
6	DSR
7	RTS
8	CTS
9	RI

Table 3.8: PCM-24D4R2 Female DB37 on iDoor bracket

Pin RS-232 Pin RS-232
1	-	20	3_RI
2	3_DCD	21	3_DTR
3	3_GND	22	3_DSR
4	3_CTS	23	3_RTS
5	3_RxD	24	3_TxD
6	4_RI	25	4_DCD
7	4_DTR	26	4_GND
8	4_DSR	27	4_CTS
9	4_RTS	28	4_RxD
10	4_TxD
		29	2_RI
11	2_DCD	30	2_DTR
12	2_GND	31	2_DSR
13	2_CTS	32	2_RTS
14	2_RxD	33	2_TxD
15	1_RI	34	1_DCD
16	1_DTR	35	1_GND
17	1_DTS	36	1_CTS
18	1_RTS	37	1_RxD
19	1_TxD

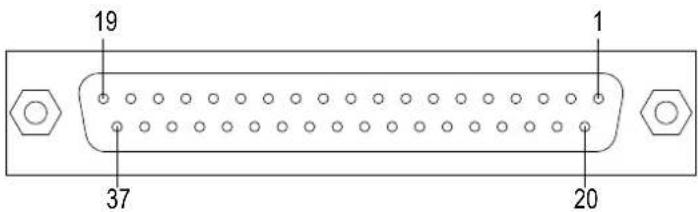

19 37 1 20

3.4.4 PCM-24D4R4

The following tables and figures show the pin assignments of 1 female DB37 connector one the iDoor bracket to male DB9 for PCM-24D4R4 card in RS-422 and RS-485 modes.

Table 3.9: PCM-24D4R4 Male DB9 on Cable

Pin RS-422 RS-485
1 Tx- Data-
2	T	x	+
3	R	x	+
4	R	x	-
5	G	N	D
6			-
7			-
8			-
9			-

Table 3.10: PCM-24D4R4 Female DB37 on iDoor bracket

Pin	RS-422	RS-485	Pin	RS-422	RS-485
1	-	-	20	-	-
2	3_TxD-	3_Data-	21	3_RxD-	-
3	3_GND	3_GND	22	-	-
4	-	-	23	-	-
5	3_TxD+	3_Data+	24	3_RxD+	-
6	-	-	25	4_TxD-	4_Data-
7	4_RxD-	-	26	4_GND	4_GND
8	-	-	27	-	-
9	-	-	28	4_TxD+	4_Data+
10	4_RxD+	-
			29	-	-
11	2_TxD-	2_Data-	30	2_RxD-	-
12	2_GND	2_GND	31	-	-
13	-	-	32	-	-
14	2_TxD+	2_Data+	33	2_RxD+	-
15	-	-	34	1_TxD-	1_Data-
16	1_RxD-	-	35	1_GND	1_GND
17	-	-	36	-	-
18	-	-	37	1_TxD+	1_Data+
19	1_RxD+	-

19 37 1 20

3.5 Wiring

3.5.1 RS-232 Signal Wiring

Since the RS-232 interface is not strictly defined, many devices have their own connection methods which may ignore some signal lines or define reserved lines for other functions. It is best to refer to the user's manual for your device for installation instructions. You may find the following helpful.

In general, DTE (Data Terminal Equipment) refers to the device that is leading the communication. Examples include PC's, terminals and some printers. DCE refers to the device being communicated with or controlled. Examples include modems, DSU's (digital service units), printers and lab/factory equipment.

In some situations you may be able to get by with just three lines: data on TXD, a signal ground and a handshaking line. Examples are printer or plotter connections, troubleshooting and situations where you require only one-wire communication.

Table 3.11: Terminal or PC (DTE) Connections

DB-25 Male DB-25 Male or Female: Terminal
Pin Signal Pin Signal
2	T	x	D	3
3 RxD 2 TxD
4 RTS 5 CTS
5 CTS 4 RTS
6	D	S	R	2
7	G	N	D	7
20	DTR	6 DSR
8 DCD	8 DCD

Table 3.12: Modem Connections

DB-25 Male		Modem (DCE)
Pin Signal Pin Signal
2	T	x	D
3 RxD 2 TxD
4 RTS 5 CTS
5 CTS 4 RTS
6	D	S	R
7	G	N	D
20	DTR	6 DSR
8 DCD	8 DCD

For DTE to DCE connections, use a straight through cable (i.e., you don't have to reverse lines 2 and 3, lines 4 and 5, and lines 6 and 20 since, in general, the DCE RS-232 interfaces are reversed themselves).

Table 3.13: Terminal without Handshake

DB-25 Male Terminal, PC (DTE)
Pin Signal Pin Signal
2	T	x	D	3
3	R	x	D	2
4	RTS
5	CTS
7	G	N	D	7
6	DSR
20 DTR
8	DCD

Therefore, if you are not using CTS, RTS, DSR, DTR and DCD signals, short pins 4 and 5 together, and please short pins 6, 8, and 20 together.

3.5.2 RS-422 Signal Wiring

The RS-422 interface wiring is based on one-to-one principles. The transmit lines on one side connect to the receive lines on the other side, and vice versa. With RS-422, you can transmit and receive data simultaneously (full duplex). The connections are as follows:

Table 3.14: RS-422 DB9 Pin Assignment

DTE (Male DB-9) Terminal DTE
Pin Signal Pin Signal
1	T	x	D	-
2	T	x	D	+
3	R	x	D	+
4	R	x	D	-
5	G	N	D	5
6	R	T	S	-
7	R	T	S	+
8	C	T	S	+
9	C	T	S	-

Terminator Resistors Setup

The signals DSR, DTR and DCD are shorted internally on the PCM-24D2R4/24D4R4 cards when operating in RS-422 mode.

A user can solder in termination resistors if necessary for impedance matching. The card has two mounting spaces for termination resistors, but no resistors are installed at the factory. Each pair of signal lines has a separate resistor (RxD+/-, TxD+/-).

3.5.3 RS-485 Signal Wiring

The RS-485 standard supports half-duplex communication. This means that just two wires are needed to both transmit and receive data. Handshaking signals (such as RTS, Request To Send) are normally used to control the direction of the data flow and to switch the transmission accordingly. In RS-485 mode, the PCM-24D2R4/24D4R4 cards automatically sense the direction of the data flow and switch the transmission direction — no handshaking is necessary. This means a user can build an RS-485 network with just two wires. This RS-485 control is completely transparent to the user. The software written for half duplex RS-232 works without any modification.

Figure 3.1 RS-485 Wiring Topology

Termination Resistor Setup

You can install termination resistors if necessary for impedance matching. The card has mounting spaces for termination resistors, but no resistors are installed at the factory. Depending on your application you may need to solder in a single resistor to handle the DATA+/DATA- pair (and a corresponding resistor on the other end of the connection). The value of the resistor should equal the characteristic impedance of the signal wires (approximately 120 Ohms or 300 Ohms).

Chapter 4

PCM-26D2CA

2-Ports Isolated CANBus mini-PCIe, CANOpen, DB9

This chapter covers the pin assignment for the CAN connector, and the wiring of the two transmission wires.

Sections include:

■ Initial Inspection
Driver and Advantech Device Manager Installation
■ Jumper and Switch Settings
Pin Assignment
Wiring

4.1 Initial Inspection

You should find the following items inside the shipping package:

■ Mini-PCIe communication interface card
Industrial Communication Driver, Utility and mini-PCIe communication card user's manual in PCM-2000 DVD-ROM

PCM-26D2CA was carefully inspected mechanically and electrically before it was shipped. It should be free of marks and scratches and in perfect working order when received.

As you unpack the PCM Module, check for signs of shipping damage (damaged box, scratches, dents, etc.). If it is damaged or it fails to meet specifications, notify our service department or your local sales representative immediately. Also notify the carrier.

Retain the shipping carton and packing material for inspection by the carrier.

After inspection we will make arrangements to repair or replace the unit.

When you handle the PCM Module, remove it from its protective packaging by grasping the rear metal panel. Keep the anti-vibration packing. Whenever you remove the card from the PC, store it in this package for protection.

Warning! Discharge your body's static electric charge by touching the back of the grounded chassis of the system unit (metal) before handling the board. You should avoid contact with materials that hold a static charge such as plastic, vinyl and Styrofoam. Handle the board only by its edges to avoid static damage to its integrated circuits. Avoid touching the exposed circuit connectors. We also recommend that you use a grounded wrist strap and place the card on a static dissipative mat whenever you work with it.

4.2 Driver and Advantech Device Manager Installation

Advantech provides WDM CAN driver that allows you to configure your hardware and store the settings in your Windows registry. You must install the WDM CAN driver if you want to add and manage Advantech CAN cards.

Please follow the steps below to install Advantech CAN WDM Driver.

1. Select "Next" to continue the installation.

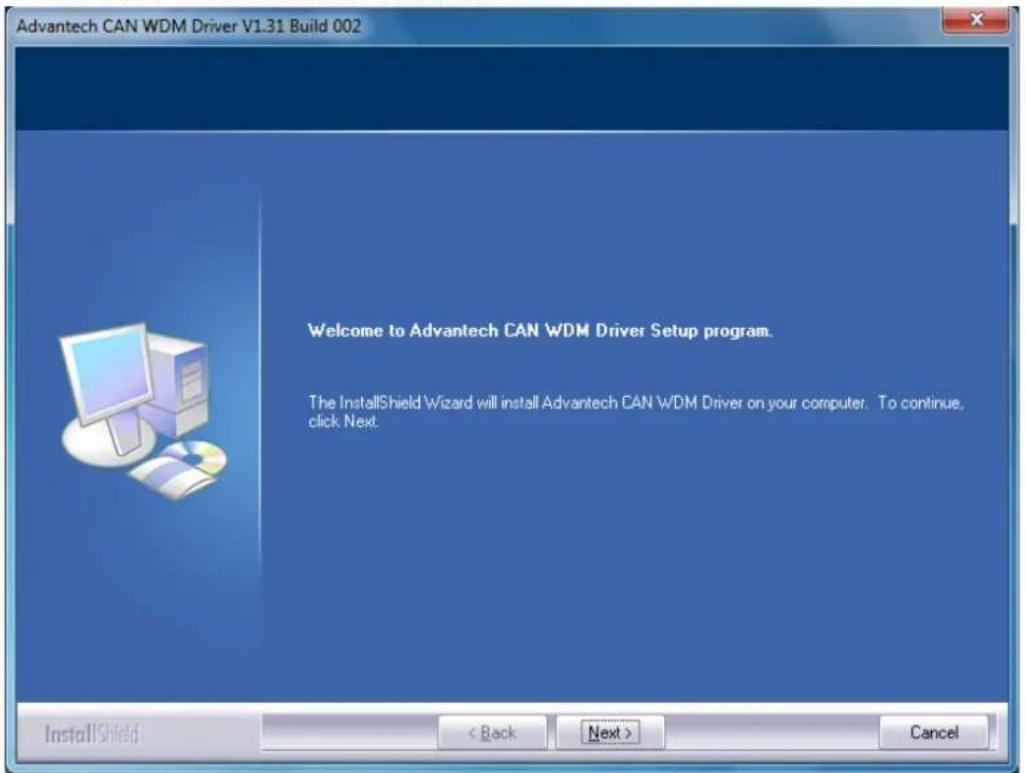

Advantech CAN WDM Driver V1.31 Build 002 Welcome to Advantech CAN WDM Driver Setup program. The InstallShield Wizard will install Advantech CAN WDM Driver on your computer. To continue, click Next.

1. After a while, the installation will be complete.

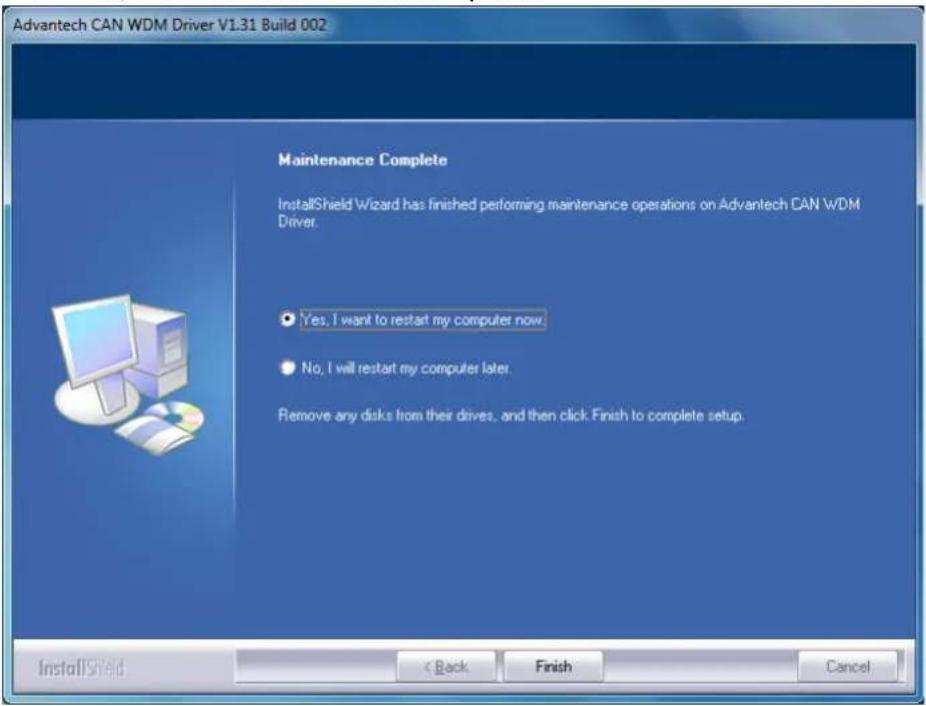

Advantech CAN WDM Driver V1.31 Build 002 Maintenance Complete InstallShield Wizard has finished performing maintenance operations on Advantech CAN WDM Driver. Yes, I want to restart my computer now. No, I will restart my computer later. Remove any disks from their drives, and then click Finish to complete setup. InstallShield < Back Finish Cancel

1. After the physical hardware has been installed, the card will be automatically detected.

Device Manager File Action View Help UNO2184G Advantech IAG Onboard Devices Advantech ICOM CAN cards ADVANTECH C302 CAN card ( 2 PORT,support CANopen ) Computer Disk drives Display adapters IDE ATA/ATAPI controllers Keyboards Mice and other pointing devices Monitors Network adapters Portable Devices Ports (Advantech PCI & ISA CAN Ports) eAutomation CAN port (CAN1) eAutomation CAN port (CAN2) Ports (COM & LPT) Processors Ramdisk Sound, video and game controllers System devices Universal Serial Bus controllers

4.3 Jumper and Switch Settings

CN2 1 2 3 JP1 CN1 36.5 mm 32.5 mm

Figure 4.1 CAN-bus transceiver board silk screen

4.3.1 How to Set Jumpers

You configure your card to match the needs of your application by setting jumpers. A jumper is the simplest kind of electric switch. It consists of two metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them. To "close" a jumper you connect the pins with the clip. To "open" a jumper you remove the clip.

Two 3D mechanical component diagrams showing pin configurations (no text or symbols)

Figure 4.2 How to set the jumpers

4.3.2 Terminator Resistor Setup (JP1)

You can set the terminator resistor if necessary to match impedance. Each port has a separate resistor located on its own transceiver board.

Table 4.1: PCM-26D2CA Terminator Resistor Jumper Setting

Status Value of Terminator Resistor (Ohm)

Pin 2-3 Open mode None

Pin 1-2 Close mode 120 Ohms

Note! is suggested to set the terminator resistor to 120 Ohm to maintain a satisfactory baud rate performance.

4.4 Pin Assignments

Figure 4.3 shows the pin assignment for the card's male DB-9 connectors and corresponding pin assignments of female DB-9 connectors of the cable.

CAN_L GND 1 6 2 7 3 8 4 9 5

Female DB9 Connector

GND CAN_L 5 9 4 8 3 7 2 6 1 CAN_H

Male DB9 Connector

Figure 4.3 PCM-26D2CA DB-9 connector pin assignments

GND_ISO C8 D0.88uF 100V R1 3 5% 5 CN2 11 GND_ISO CN CAN H CN CAN L 7 2 0 1 DSUB_9(MH) 1D C9 1000pF 5kV GND_ISO

Figure 4.4 PCM-26D2CA DB-9 connector schematics

The CAN standard supports half–duplex communication. This means that just two wires are used to transmit and receive data.

Table 4.2: PCM-26D2CA Pin Description
Pin Signal Description

2 CAN_L LOW-level CAN voltage input/output

3 GND Ground

7 CAN_H HIGH-level CAN voltage input/output

4.5 Wiring

CAN-bus main board has two FPC connectors for wiring to two CAN-bus transceiver boards through FPC cables. Please ensure to follow Figure 4.5 and Figure 4.6 for appropriate wiring in between.

Three electronic circuit boards with connectors and connectors, shown in a row (no text or symbols visible)

Figure 4.5 FPC cable wiring

Two electronic circuit boards with visible components and connectors, one showing a flexible cable and the other showing a multi-chambered network (no text or symbols)

Figure 4.6 Wiring on module side

Chapter 5

PCM-23U1DG-AE

USB Slot w/ Lock for USB Dongle Sections include:

Initial Inspection
Driver Setup and Installation
Pin Assignment
Wiring

5.1 Initial Inspection

You should find the following items inside the shipped package:

■ PCM-2300 Storage Module:

• I/O plate.
• Wire cable

■ PCM-2000 DVD-ROM including:

- A. Industrial Communication Driver, Utility and mini-PCIe communication card

The PCM-23U1DG was carefully inspected mechanically and electrically before it was shipped. It should be free of marks and scratches and in perfect working order when received.

As you unpack the PCM-23U1DG, check for signs of shipping damage (damaged box, scratches, dents, etc.). If it is damaged or it fails to meet specifications, notify our service department or your local sales representative immediately. Also notify the carrier. Retain the shipping carton and packing material for inspection by the carrier. After inspection we will make arrangements to repair or replace the unit. When you handle the PCM-23U1DG, remove it from its protective packaging by grasping the rear metal panel. Keep the anti-vibration packing. Whenever you remove the card from the PC, store it in this package for protection.

Warning!

Discharge your body's static electric charge by touching the back of the grounded chassis of the system unit (metal) before handling the board. You should avoid contact with materials that hold a static charge such as plastic, vinyl and Styrofoam. Handle the board only by its edges to avoid static damage to its integrated circuits. Avoid touching the exposed circuit connectors. We also recommend that you use a grounded wrist strap and place the card on a static dissipative mat whenever you work with it.

5.2 Driver Setup & Installation- Advantech Device Manager Installation

The Advantech PCM-23U1DG is an internal USB with locked interface for security dongle disk or storage. The driver is based on the storage and there is no need for a driver on the PCM-23U1DG.

5.3 Pin Assignment and Wiring

5.3.1 Pin Assignment

The following table and figure shows the pin assignments of connector on the iDoor I/O module for the PCM-23U1DG.

Cable PIN assignment
CN1, USB w/locked CN2, Internal cable for USB
PIN1 5V PIN1 5V
PIN2 D- PIN2 D-
PIN3 D+ PIN3 D+
PIN4 GND PIN4 GND
	PIN5 GND_IO

5.3.2 Wiring

PCM-23U1DG is using flat cable to connect from IO plate to internal USB pin-header. The PIN assignment in the below table

Cable PIN assignment
CN2, Internal cable for USB Cable head for the system PIN header
PIN1 5V PIN2	5V
PIN2 D-	PIN4	D-
PIN3 D+	PIN6	D+
PIN4 GND PIN8	GND

The PIN assignment of the cable may different from the current system pin definition. Advantech can help to customize the cable for different pin assignments.

Chapter 6

PCM-2300TP-AE

Sections include:

■ Initial Inspection
Driver Setup and Installation
Pin Assignment
Wiring

6.1 Initial Inspection

You should find the following items inside the shipped package:

■ PCM-2300 Storage Module:

• I/O plate.
• Wire cable

■ PCM-2000 DVD-ROM including:

– Industrial Communication Driver, Utility and mini-PCIe communication card

The PCM-2300TP was carefully inspected mechanically and electrically before it was shipped. It should be free of marks and scratches and in perfect working order when received.

As you unpack the PCM-2300TP, check for signs of shipping damage (damaged box, scratches, dents, etc.). If it is damaged or it fails to meet specifications, notify our service department or your local sales representative immediately. Also notify the carrier. Retain the shipping carton and packing material for inspection by the carrier. After inspection we will make arrangements to repair or replace the unit. When you handle the PCM-2300TP, remove it from its protective packaging by grasping the rear metal panel. Keep the anti-vibration packing. Whenever you remove the card from the PC, store it in this package for protection.

Warning!

Discharge your body's static electric charge by touching the back of the grounded chassis of the system unit (metal) before handling the board. You should avoid contact with materials that hold a static charge such as plastic, vinyl and Styrofoam. Handle the board only by its edges to avoid static damage to its integrated circuits. Avoid touching the exposed circuit connectors. We also recommend that you use a grounded wrist strap and place the card on a static dissipative mat whenever you work with it.

6.2 Driver Setup & Installation- Advantech Device Manager Installation

For details about Advantech's PCM-2300TP Driver Setup and Device Manager Installation, refer to Advantech PCA-TPM-00A1E product information on the DVD.

6.3 Pin Assignment and Wiring

For details about Advantech's PCM-2300TP Pin Assignment and Wiring, please refer to the user manual from Advantech PCA-TPM-00A1E product information

The PIN assignment of the cable may different from the current system pin definition. Advantech can help to customize the cable for different pin assignments.

Chapter 7

PCM-23C1CF-AE

SATAII to CFast

Sections include:

Initial Inspection
Driver Setup and Installation
Pin Assignment
Wiring

7.1 Initial Inspection

You should find the following items inside the shipped package:

■ PCM-2300 Storage Module:
- I/O plate.
■ PCM-2000 DVD-ROM including:
– A. Industrial Communication Driver, Utility and mini-PCIe communication card

The PCM-23C1CF was carefully inspected mechanically and electrically before it was shipped. It should be free of marks and scratches and in perfect working order when received.

As you unpack the PCM-23C1CF, check for signs of shipping damage (damaged box, scratches, dents, etc.). If it is damaged or it fails to meet specifications, notify our service department or your local sales representative immediately. Also notify the carrier. Retain the shipping carton and packing material for inspection by the carrier. After inspection we will make arrangements to repair or replace the unit. When you handle the PCM-23C1CF, remove it from its protective packaging by grasping the rear metal panel. Keep the anti-vibration packing. Whenever you remove the card from the PC, store it in this package for protection.

Warning!

Discharge your body's static electric charge by touching the back of the grounded chassis of the system unit (metal) before handling the board. You should avoid contact with materials that hold a static charge such as plastic, vinyl and Styrofoam. Handle the board only by its edges to avoid static damage to its integrated circuits. Avoid touching the exposed circuit connectors. We also recommend that you use a grounded wrist strap and place the card on a static dissipative mat whenever you work with it.

7.2 Driver Setup & Installation- Advantech Device Manager Installation

Advantech's PCM-23C1CF is a SATAII 3G/Sec to CFast interface for storage. The driver is on the storage device and no need driver is required.

7.3 Pin Assignment and Wiring

7.3.1 Pin Assignment

The following table and figure shows the pin assignments of CFast connector on the iDoor IO module for PCM-23C1CF.

Description of PIN Use - CN2, CFast Connector
PINS1 GND PIN	PC6 NC
PINS2 SATA_TX+ PINPC7 GND
PINS3 SATA_TX- PINPC8 NC
PINS4 GND PIN	PC9 NC
PINS5 SATA_RX- PINPC10 NC
PINS6 SATA_RX+ PINPC11 NC
PINS7 GND PIN	PC12 NC
PINPC1	NC	PINPC13 3.3V
PINPC2	GND PINPC14 3.3V
PINPC3	NC	PINPC15 GND
PINPC4	NC	PINPC16 GND
PINPC5	NC	PINPC17 NC

01 ND1 + - R14 R12 C10 CN2 R13 RL1 C9 PS1 R17 C58 C54 C53 C52 C51 C11 R1 C8 R3 R1 R6 R1 15 U1 11 R3 R7 R2 R4 C12 H2 H1 FME2 H3 02 FN1 + - R102 02

7.3.2 Wiring

The PCM-23C1CF uses a flat cable to connect from the I/O plate to the internal SATA HDD connector. The PIN assignment is in the below table.

Description of PIN Use- CN1
PINS1 GND PINP5 GND
PINS2 SATA_TX+ PINP6 GND
PINS3 SATA_TX- PINP7 5V
PINS4 GND PINP8 5V
PINS5 SATA_RX- PINP9 5V
PINS6 SATA_RX+ PINP10 GND
PINS7 GND PINP11 NC
PINP1 3.3V PINP12 GND
PINP2 3.3V PINP13 NC
PINP3 3.3V PINP14 NC
PINP4 GND PINP15 NC

Front view of a device rear panel with connectors and ports (no text or symbols visible)

The existing SATA cable length may not be enough. Advantech can help to customize the cable for your system requirements.

Chapter 8

PCM-24R1TP-AE

1 port Giga LAN mPCIe, RJ45

Sections include:

Initial Inspection
Driver and Advantech Device Manager Installation
■ Pin Assignment and Wiring

8.1 Initial Inspection

You should find the following items inside the shipped package:

■ PCM-2400 Communication Module:

• PCM-2400 mini-PCIe Card
• I/O plate.
• Flat Cable

■ PCM-2000 DVD-ROM including:

– Industrial Communication Driver, Utility and mini-PCIe communication card

The PCM-24R1TP was carefully inspected mechanically and electrically before it was shipped. It should be free of marks and scratches and in perfect working order when received.

As you unpack the PCM-24R1TP, check for signs of shipping damage (damaged box, scratches, dents, etc.). If it is damaged or it fails to meet specifications, notify our service department or your local sales representative immediately. Also notify the carrier. Retain the shipping carton and packing material for inspection by the carrier. After inspection we will make arrangements to repair or replace the unit. When you handle the PCM-24R1TP, remove it from its protective packaging by grasping the rear metal panel. Keep the anti-vibration packing. Whenever you remove the card from the PC, store it in this package for protection.

Warning!

Discharge your body's static electric charge by touching the back of the grounded chassis of the system unit (metal) before handling the board. You should avoid contact with materials that hold a static charge such as plastic, vinyl and Styrofoam. Handle the board only by its edges to avoid static damage to its integrated circuits. Avoid touching the exposed circuit connectors. We also recommend that you use a grounded wrist strap and place the card on a static dissipative mat whenever you work with it.

8.2 Driver Setup & Installation- Advantech Device Manager Installation

8.2.1 Introduction

This chapter describes the driver installation, configuration and removal procedures for the mentioned Windows operating system. We strongly recommend that you install the software driver before you install the hardware into your system.

8.2.2 Installation

Follow the steps below to install Advantech PCM-24R1TP Driver.

1. Select "Next" to continue the installation.

Intel(R) Network Connections Install Wizard Welcome to the install wizard for Intel(R) Network Connections Installs drivers, Intel(R) Network Connections, and Advanced Networking Services. WARNING: This program is protected by copyright law and international treaties. < Back Next > Cancel

1. Select "I agree" to continue the installation.

Intel(R) Network Connections Install Wizard License Agreement Please read the following license agreement carefully. intel INTEL SOFTWARE LICENSE AGREEMENT IMPORTANT - READ BEFORE COPYING, INSTALLING OR USING. Do not copy, install, or use this software and any associated materials (collectively, the "Software") provided under this license agreement ("Agreement") until you have carefully read the following terms and conditions. By copying, installing, or otherwise using the Software, you agree to be bound by the terms of this Agreement. If you do not agree to the terms of this Agreement, do not accept, install, or use the Software. I accept the terms in the license agreement I do not accept the terms in the license agreement Print < Back Next > Cancel

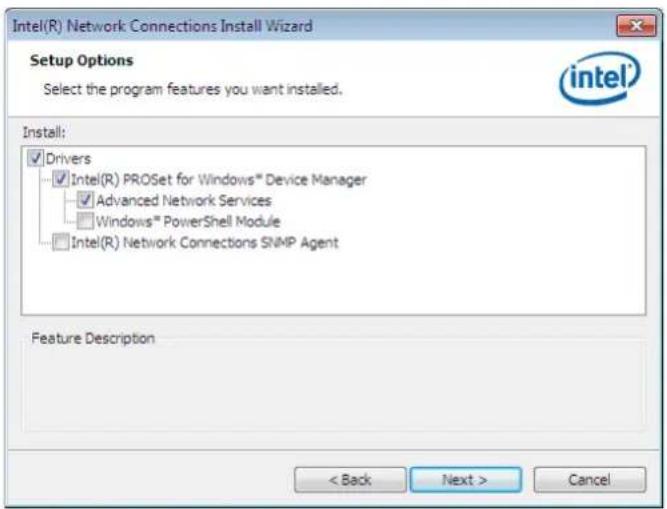

1. Select "Driver for Windows Device Manager Intel® PROSet" to continue the installation.

Intel(R) Network Connections Install Wizard Setup Options Select the program features you want installed. Install: ✓ Drivers ✓ Intel(R) PROSet for Windows™ Device Manager ✓ Advanced Network Services □ Windows™ PowerShell Module □ Intel(R) Network Connections SNMP Agent Feature Description < Back Next > Cancel

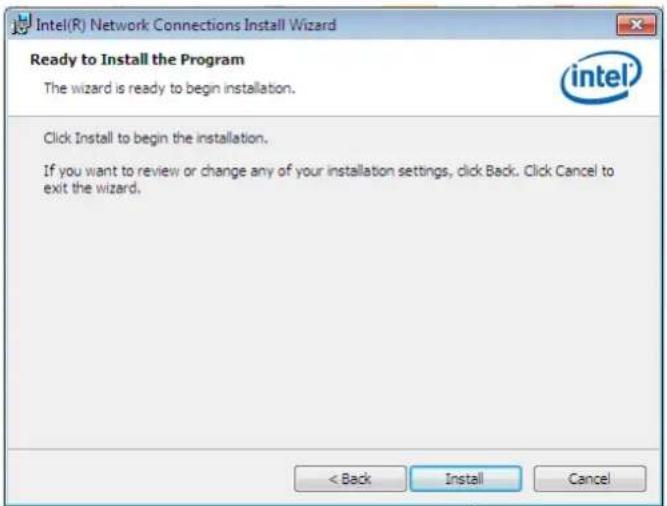

1. Select "Install" and start to installation

Intel(R) Network Connections Install Wizard Ready to Install the Program The wizard is ready to begin installation. Click Install to begin the installation. If you want to review or change any of your installation settings, click Back. Click Cancel to exit the wizard. < Back Install Cancel

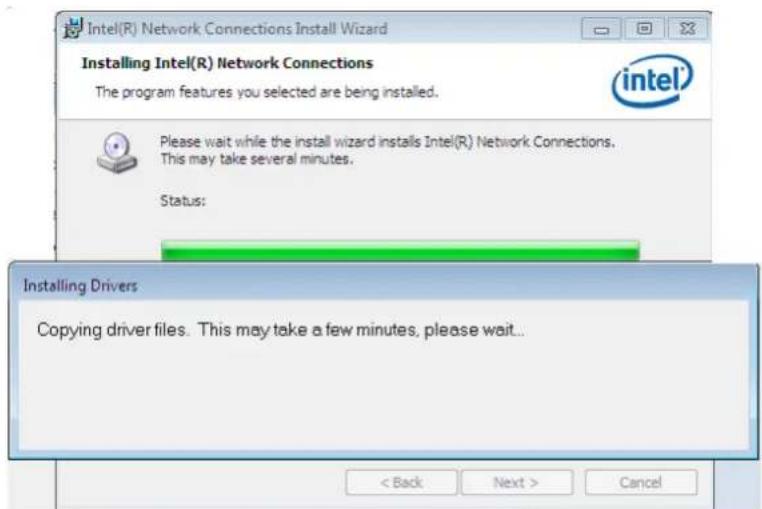

1. Driver is being installed.

Intel(R) Network Connections Install Wizard Installing Intel(R) Network Connections The program features you selected are being installed. Please wait while the install wizard installs Intel(R) Network Connections. This may take several minutes. Status: Installing Drivers Copying driver files. This may take a few minutes, please wait... < Back Next > Cancel

1. Select "Finish" to complete the installation.

Intel(R) Network Connections Install Wizard Install wizard Completed intel To access new features, open Device Manager, and view the properties of the network adapters. < Back Finish Cancel

1. After the hardware has been installed, the card will be automatically detected. Open Device Manager to check it.

Device Manager File Action View Help DQA-PC Computer Disk drives Display adapters Human Interface Devices IDE ATA/ATAPI controllers Keyboards Mice and other pointing devices Monitors Network adapters Intel(R) 82574L Gigabit Network Connection Intel(R) Ethernet Connection I218-LM Intel(R) I210 Gigabit Network Connection Other devices Portable Devices Ports (COM & LPT) Processors Sound, video and game controllers System devices Universal Serial Bus controllers

8.3 Pin Assignment and Wiring

8.3.1 Pin Assignment

The following table and figure shows the pin assignments of the LAN connector on the iDoor I/O module for PCM-24R1TP.

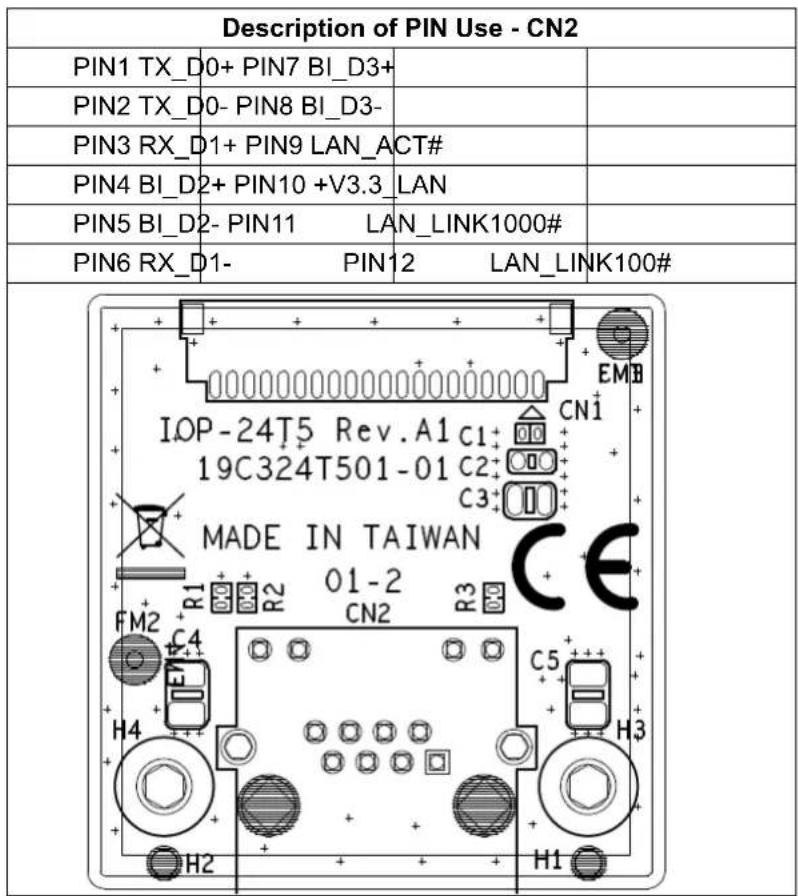

Description of PIN Use - CN2 PIN1 TX_D0+ PIN7 BI_D3+ PIN2 TX_D0- PIN8 BI_D3- PIN3 RX_D1+ PIN9 LAN_ACT# PIN4 BI_D2+ PIN10 +V3.3_LAN PIN5 BI_D2- PIN11 LAN_LINK1000# PIN6 RX_D1- PIN12 LAN_LINK100# IOP-24T5 Rev.A1 C1 19C324T501-01 C2 MADE IN TAIWAN FM2 R1 R2 O1-2 CN2 R3 H4 H2 H1

8.3.2 Wiring

The PCM-24R1TP uses a wired cable to connect from the I/O plate tothe mPCIe module. The PIN assignment is below.

Description of PIN Use - CN1
PIN1 GND PIN9	NC
PIN2 +V3.3_LAN PIN10 NC
PIN3 NC PIN11	LAN_MDI0+
PIN4 NC PIN12	LAN_MDI0-
PIN5 LAN_LINK	1000# PIN13 LAN_MDI1+
PIN6 +V1.9_LAN PIN14 LAN_MDI1-
PIN7 LAN_ACT# PIN15 LAN_MDI2+
PIN8 LAN_LINK	100# PIN16 LAN_MDI2-

The existing cable length may not enough. Advantech can help to customize the cable for system inquires.

Chapter 9

PCM-24R2PE-AE

2 Port Giga LAN/w PoE mPCIe, RJ45

PCM-24R2GL-AE

2 Port Giga LAN mPCIe, RJ45

Sections include:

Initial Inspection
■ Driver and Advantech Device Manager Installation
■ Pin Assignment and Wiring

9.1 Initial Inspection

You should find the following items inside the shipped package:

■ PCM-2400 Communication Module:

• PCM-2400 mini-PCIe Card
• I/O plate
  – Power board (For PCM-24R2PE-AE only)
• Wire Cable

■ PCM-2000 DVD-ROM including:

• User Manual
  – Industrial Communication Driver, Utility and mini-PCIe communication card

The PCM-24R2PE was carefully inspected mechanically and electrically before it was shipped. It should be free of marks and scratches and in perfect working order when received.

As you unpack the PCM-24R2PE, check for signs of shipping damage (damaged box, scratches, dents, etc.). If it is damaged or it fails to meet specifications, notify our service department or your local sales representative immediately. Also notify the carrier. Retain the shipping carton and packing material for inspection by the carrier. After inspection we will make arrangements to repair or replace the unit. When you handle the PCM-24R2PE, remove it from its protective packaging by grasping the rear metal panel. Keep the anti-vibration packing. Whenever you remove the card from the PC, store it in this package for protection.

Warning!

Discharge your body's static electric charge by touching the back of the grounded chassis of the system unit (metal) before handling the board. You should avoid contact with materials that hold a static charge such as plastic, vinyl and Styrofoam. Handle the board only by its edges to avoid static damage to its integrated circuits. Avoid touching the exposed circuit connectors. We also recommend that you use a grounded wrist strap and place the card on a static dissipative mat whenever you work with it.

9.2 Driver Setup & Installation- Advantech Device Manager Installation

9.2.1 Introduction

This chapter describes the driver installation, configuration and removal procedures for the mentioned Windows operating system. We strongly recommend that you install the software driver before you install the hardware into your system.

9.2.2 Installation

When you follow the startup manual to install the module appropriated. Please follow the steps below to install Advantech PCM-24R2PE Driver.

1. Go to Device Manager and you will find an error in "Other devices"

Device Managers File Action View Help advantech-PC Computer Disk drives Display adapters Human Interface Devices IDE ATA/ATAPI controllers Keyboards Mice and other pointing devices Monitors Other devices Ethernet Controller Ethernet Controller Ethernet Controller Ethernet Controller Ethernet Controller Ports (COM & LPT) Processors Sound, video and game controllers System devices ACPU Fan ACPU Fixed Feature Button ACPU Power Button ACPU Sleep Button ACPU Thermal Zone

1. Get the driver from the DVD or Intel website, click it, then run the driver and select "I agree" to continue the installation.

Welcome to the install wizard for Intel(R) Network Connections Intel(R) Network Connections Do you want to close the following applications and continue with Intel(R) Network Connections software configuration? Microsoft Management Console Yes No < Back Next > Cancel

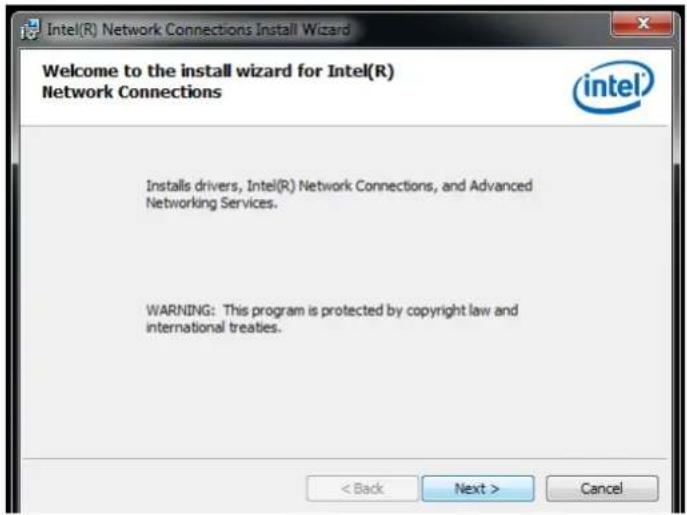

1. Select "Next" to continue installation.

Intel(R) Network Connections Install Wizard Welcome to the install wizard for Intel(R) Network Connections Installs drivers, Intel(R) Network Connections, and Advanced Networking Services. WARNING: This program is protected by copyright law and international treaties. < Back Next > Cancel

1. Select "I accept the terms in the license agreement" to continue installation and click "Next"

Intel(R) Network Connections Install Wizard License Agreement Please read the following license agreement carefully. INTEL SOFTWARE LICENSE AGREEMENT IMPORTANT - READ BEFORE COPYING, INSTALLING OR USING. Do not copy, install, or use this software and any associated materials (collectively, the "Software") provided under this license agreement ("Agreement") until you have carefully read the following terms and conditions. By copying, installing, or otherwise using the Software, you agree to be bound by the terms of this Agreement. If you do not agree to the terms of this Agreement, do not copy, install, or use the Software. I accept the terms in the license agreement I do not accept the terms in the license agreement Print < Back Next > Cancel

1. Select "Driver for Windows Device Manager Intel ^ PROSet" to continue the installation.

Intel(R) Network Connections Setup Options Select the program features you want installed. Install: ✓ Drivers ✓ Intel(R) PROSet for Windows® Device Manager ✓ Advanced Network Services Windows® PowerShell Module Intel(R) Network Connections SNMP Agent Feature Description < Back Next > Cancel

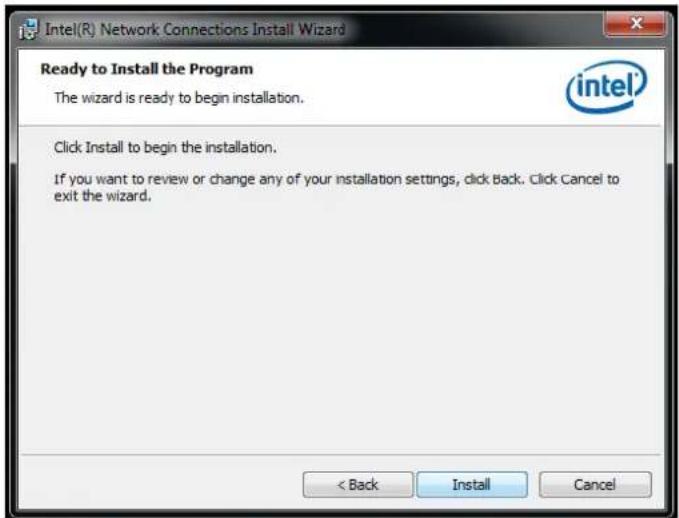

1. Select "Install" and start to installation.

Intel(R) Network Connections Install Wizard Ready to Install the Program The wizard is ready to begin installation. Click Install to begin the installation. If you want to review or change any of your installation settings, click Back. Click Cancel to exit the wizard. < Back Install Cancel

1. Select "Finish" to complete the installation.

Intel(R) Network Connections Install Wizard Install wizard Completed intel To access new features, open Device Manager, and view the properties of the network adapters. < Back Finish Cancel

1. After the hardware has been installed, the card will be automatically detected. Open Device Manager to check it.

Device Manager File Action View Help advantech-PC Computer Disk drives Display adapters Human Interface Devices IDE ATA/ATAPI controllers Keyboards Mice and other pointing devices Monitors Network adapters Intel(R) E210 Gigabit Network Connection Intel(R) E210 Gigabit Network Connection #2 Intel(R) E210 Gigabit Network Connection #3 Intel(R) E210 Gigabit Network Connection #4 Intel(R) E50 Gigabit Network Connection Intel(R) E50 Gigabit Network Connection #2 Portable Devices Ports (COM & LFT) Processors Sound, video and game controllers System devices ACPI Fan ACPI Fixed Feature Button ACPI Power Button ACPI Slice Button

9.2.3 Uninstall

Go to Device Manager to check the device you want to remove.

Device Manager File Action View Help advantech PC Computer Disk drives Display adapters Human Interface Devices IDE ATA/ATAPI controllers Keyboards Mice and other pointing devices Monitors Network adapters Intel(R) E210 Gigabit Network Connection Intel(R) E210 Gigabit Network Connection #2 Intel(R) E210 Gigabit Network Connection #3 Intel(R) E210 Gigabit Network Connection #4 Intel(R) E350 Gigabit Network Connection Intel(R) E350 Gigabit Network Connection #2 Ports (COM & LPT) Processors Sound, video and game controllers System devices ACPI Fan ACPI Fixed Feature Button ACPI Power Button ACPI Sleep Button ACPI Thermal Zone

1. Go to Control Panel and select "Intel® Network Connections 19.1.51.0" and click "Uninstall"

Uninstall or change a program To install a program, select if from the list and then click Microsoft, Change, or Update Organize Uninstall Name Publisher Installed Co Sat Veans Bench/Start of 1 Pro Renmark Software 1/11/2012 38.4 MB 7.1 Total Power Thermal Utility Total Corporation 5/7/2014 1.2 Bench/OS Network Connections: 88.3.10 Total 5/1/2012 24.3 MB 38.3.10 Bench/OS Thermal Analysis Tool: 6.4.1200 Total Corporation 5/7/2014 Bench/OS Computer Drive Total Corporation 1/1/2012 16.1 MB 86.35E-2013 Bench/OS Trained Even Active Engine Total Corporation 5/1/2012 1.0.69MB Bench/OS U-65 Online Real Container Drive Total Corporation 1/1/2012 38.4 MB 10.6.30 BMW Product version: 88.3.10.Supports: https://www.cind.com http://www.cind.com.cn.Scn: 26.1.MR

1. Select "Yes" to continue the removal process.

Control Panel Name View installed updates Tues wireless network install Name BandNet-OS 2.3 Pro Total Power Thermal Kit Intel® Network Connection Intel® Thermal Analysis Intel® Computer OS Intel® Software Services Intel® USB 10.xt available Uninstall or Change a program To install the program, select it from desktop and then click Uninstall, Change, or Repair Welcome to the Install available for Intel® Network Connections Intel® Network Connections Install Wizard 7.1 1.2 162.80 MIL13.0001 1.04.0005 304.01 Welcome to the Install available for Intel® Network Connections Intel® Vehicle Connections Do you want to close the following applications and continue with Intel® Network Connections installed configuration? Microsoft Management Console OK No Cancel Internet Project server: 16.1.197 Support Web: https://www.mtl.com/ Help/Help: http://www.mtl.com/s... User: 24.1488

1. In "Remove Options" panel, just select "Remove" to continue the process.

Intel(R) Network Connections Remove Options Select the program features you want to remove. Remove: ✓ Drivers ...✓ Intel(R) PROSet for Windows® Device Manager ...✓ Advanced Network Services Feature Description < Back Remove Cancel

1. Select "Yes" to continue the removal process.

Intel(R) Network Connections Remove Options Select the program features you want to remove. Remove: Drivers Intel(R) Network Connections - Remove Software Are you sure you want to remove the selected components from your computer? Yes No < Back Remove Cancel

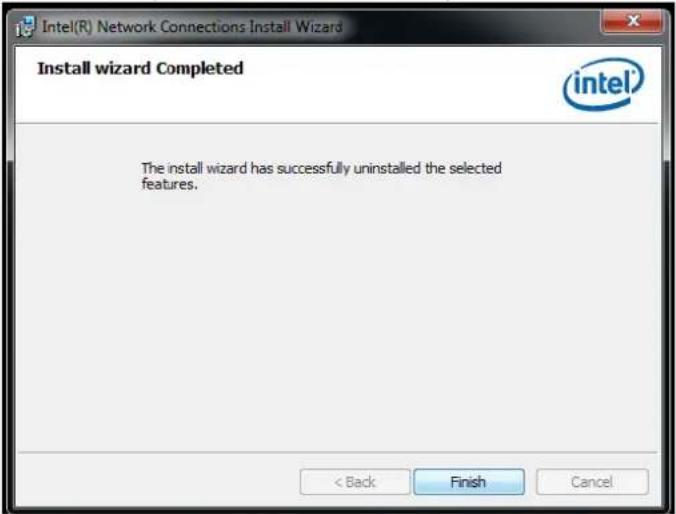

1. Select "Finish" to complete the uninstallation process.

Intel(R) Network Connections Install Wizard Install wizard Completed The install wizard has successfully uninstalled the selected features. < Back Finish Cancel

9.3 Pin Assignment and Wiring

9.3.1 Pin Assignment

The following table and figure shows the pin assignments of the LANs connector on the iDoor IO module for PCM-24R2PE and PCM-24R2GL

Description of PIN Use

PIN1 MDIO+ PIN7 MDI3+

PIN2 MDIO- PIN8 MDI3-

PIN3 MDI1+ PIN9 LED3_LINK1000#

PIN4 MDI2+ PIN10 LED2_LINK100#

PIN5 MDI2- PIN11 +V3.3SB

PIN6 MDI1- PIN12 LED1_ACT#

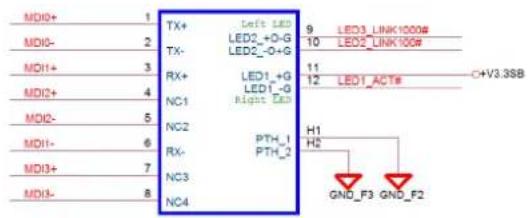

MD10+ 1 TX+ Left LED 9 LED3_LINK1000# MD10- 2 TX- LED2_+G 10 LED3_LINK100# MD11+ 3 RX+ LED1_+G 11 MD12+ 4 NC1 LED1_+G 12 LED1_ACT# MD12- 5 NC2 Right Cap C+V3.3SB MD11- 6 RX- PTH_1 H1 MD13+ 7 NC3 PTH_2 H2 NC4 GND_F3 GND_F2

9.3.2 Wiring

PCM-24R2PE and 24R2GL is using wired cable to connect from I/O plate to mPCIe module. The PIN assignment is below.

Description of PIN Use
PIN1 +V3.3SB	PIN16 LAN0_LED2_LINK100#
PIN2 PLTRST#	PIN17 LAN1_LED1_ACT#
PIN3 MDI_1_3	N PIN18 LAN0_LED1_ACT#
PIN4 MDI_1_2	P PIN19 GND
PIN5 MDI_1_3	P PIN20 GND
PIN6 MDI_1_2	N PIN21 MDI_0_2P
PIN7 GND PIN	22 MDI_0_3P
PIN8 GND PIN	23 MDI_0_2N
PIN9 MDI_1_0	N PIN24 MDI_0_3N
PIN10 MDI_1_	1N PIN25 GND
PIN11 MDI_1_	0P PIN26 GND
PIN12 MDI_1_	1P PIN27 MDI_0_0P
PIN13 LAN1_L	ED3_LINK1000# PIN28 MDI_0_1N
PIN14 LAN0_L	ED3_LINK1000# PIN29 MDI_0_0N
PIN15 LAN1_L	ED2_LINK100# PIN30 MDI_0_1P

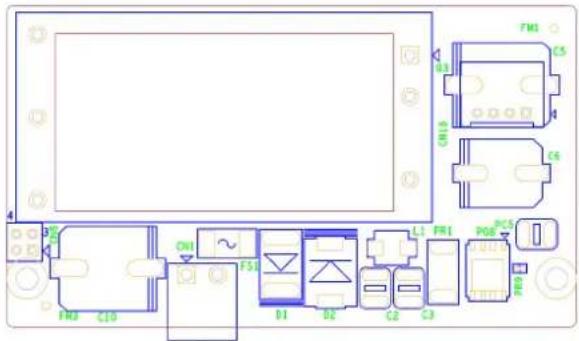

Technical schematic diagram of a device layout with labeled components and connectors

The PCM-24R2PE will need an additional 24VDC from the internal power source, refer to the PIN assignment on the power board as shown in the table below. The PCM-24R2PE power board supports an external power connector on CN1 as an option,

Description of PIN Use
PIN1 DCIN24V	PIN3	GND
PIN2 DCIN24V	PIN4	GND

Chapter 10

PCM-24U2U3

Sections include:

■ Initial Inspection
■ Driver and Advantech Device Manager Installation

Pin Assignment and Wiring

10.1 Initial Inspection

You should find the following items inside the shipped package:

■ PCM-24U2U3 Communication Module:

• PCM-24U2U3 PCI Express Mini Card
• 2-port USB3.0 I/O plate
  – Wired signal Cable
• Wired power Cable

■ PCM-2000 DVD-ROM including:

• User Manual
  – Industrial Communication Driver, Utility and mini-PCIe communication card

The PCM-24U2U3 was carefully inspected mechanically and electrically before it was shipped. It should be free of marks and scratches and in perfect working order when received.

As you unpack the PCM-24U2U3, check for signs of shipping damage (damaged box, scratches, dents, etc.). If it is damaged or it fails to meet specifications, notify our service department or your local sales representative immediately. Also notify the carrier. Retain the shipping carton and packing material for inspection by the carrier. After inspection we will make arrangements to repair or replace the unit. When you handle the PCM-24U2U3, remove it from its protective packaging by grasping the rear metal panel. Keep the anti-vibration packing. Whenever you remove the card from the PC, store it in this package for protection.

Warning!

Discharge your body's static electric charge by touching the back of the grounded chassis of the system unit (metal) before handling the board. You should avoid contact with materials that hold a static charge such as plastic, vinyl and Styrofoam. Handle the board only by its edges to avoid static damage to its integrated circuits. Avoid touching the exposed circuit connectors. We also recommend that you use a grounded wrist strap and place the card on a static dissipative mat whenever you work with it.

Note! 1. Power requirements: 5 \~ 24 VDC, 10 W (Max)

1. Power consumption: 5 V @ 900 mA (Max)
2. Full-size PCI Express Mini Card Revision TM 2.0
3. With xHCI specification compliance
4. Universal Serial Bus 3.0 specification Rev. 1.0 compliant
5. Operating Temperature: - 20 \~ 60°C (- 4 \~ 140°F)

10.2 Driver Setup & Installation- Advantech Device Manager Installation

10.2.1 Introduction

This chapter describes the driver installation, configuration and removal procedures for the mentioned Windows operating system. We strongly recommend that you install the software driver before you install the hardware into your system.

10.2.2 Installation

When you follow the startup manual to install the module appropriated. Please follow the steps below to install Advantech PCM-24U2U3 Driver.

1. Select "Next" to continue the installation.

Renesas Electronics USB 3.0 Host Controller Driver - InstallShield Wizard Welcome to the InstallShield Wizard for Renesas Electronics USB 3.0 Host Controller Driver The InstallShield Wizard will install Renesas Electronics USB 3.0 Host Controller Driver on your computer. To continue, click Next. < Back Next > Cancel

1. Select "I accept the terms of the license agreement", and then click "Next" to continue the installation.

Renesas Electronics USB 3.0 Host Controller Driver - InstallShield Wizard License Agreement Please read the following license agreement carefully. End User License Agreement IMPORTANT - READ CAREFULLY: This End User License Agreement ("EULA") is a legal agreement between you (either an individual or an entity) and RENESAS Electronics Corporation ("RENESAS") for USB3.0 Software ("Software"). YOU AGREE TO BE BOUND BY THE TERMS AND CONDITIONS OF THIS EULA BY INSTALLING, COPYING OR OTHERWISE USING SOFTWARE. IF YOU DO NOT AGREE THE TERMS AND I accept the terms of the license agreement I do not accept the terms of the license agreement Print < Back Next > Cancel

1. Select "Install" to continue the installation.

Renesas Electronics USB 3.0 Host Controller Driver - InstallShield Wizard Ready to Install the Program The wizard is ready to begin installation. Click Install to begin the installation. If you want to review or change any of your installation settings, click Back. Click Cancel to exit the wizard. InstallShield < Back Install Cancel

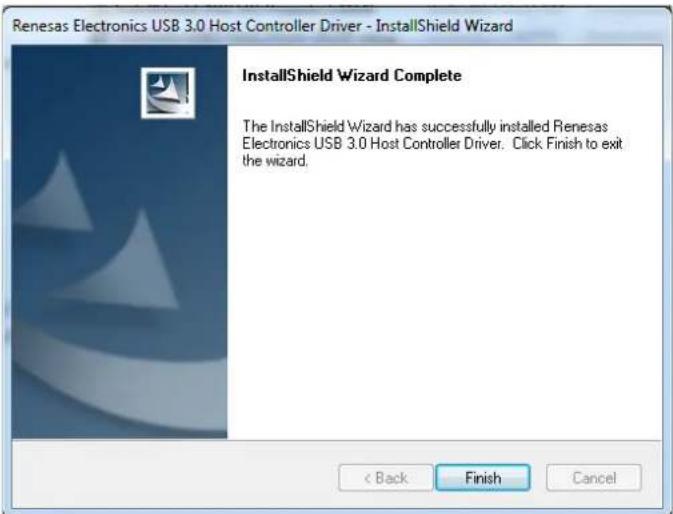

1. After a while, the installation will be complete.

Renesas Electronics USB 3.0 Host Controller Driver - InstallShield Wizard InstallShield Wizard Complete The InstallShield Wizard has successfully installed Renesas Electronics USB 3.0 Host Controller Driver. Click Finish to exit the wizard. < Back Finish Cancel

1. After the hardware has been installed, the card will be automatically detected.

Device Manager File Action View Help Computer Disk drives Display adapters Human Interface Devices IDE ATA/ATAPI controllers Keyboards Mice and other pointing devices Monitors Network adapters Other devices Portable Devices Ports (COM & LIFT) Processors Sound, video and game controllers System devices Universal Serial Bus controllers Generic USB Hub Intel(R) 8 Series USB Enhanced Host Controller #1 - NC26 Intel(R) USB 3.0 Altensible Host Controller Intel(R) USB 3.0 Root Hub Renewas Electronics USB 3.0 Host Controller Renewas Electronics USB 3.0 Root Hub USB Composite Device USB Mass Storage Device USB Root Hub

10.2.3 Uninstall

1. In the Control Panel, click "Renesas Electronics USB 3.0 Host Controller Driver" then uninstall.

Control Panel Home View installed updates: Turn Windows features on or off Uninstall or change a program To uninstall a program, select it from the list and then click Uninstall, Change, or Repair. Organize: Uninstall Name Intel(I) Network Connections 186.110.0 Intel(I) ThermalAnalysis Tool 5.0.1017 IntelII Graphics Driver IntelII Management Engine Components IntelII USB 3.0 x4tensible Host Controller Driver Microsoft Visual C++ 2010 x84 Redistributable - 10.0... Microsoft Visual C++ 2010 x86 Redistributable - 10.0... Realtek High Definition Audio Driver Renesas Electronics USB 3.0 Host Controller Driver RTS IEEE 588-PTP x64 Windows Driver Package - u-blox (ubdcacm2) Mod... Windows Driver Package - u-blox (ubdcacm2) Ports ... Windows Driver Package - u-blox (ubusbmi2) USB (0... Publisher Intel Intel Corporation Intel Corporation Intel Corporation Intel Corporation Microsoft Corporation Microsoft Corporation Realtek Semiconductor Corp. Renesas Electronics Corporation Real-Time Systems GmbH u-blox u-blox u-blox Renesas Electronics Corporation Product versions 3.0.23.0 Help link: http://www.renesas.com/products/sx...

1. After a while, the uninstallation will be complete.

Renesas Electronics USB 3.0 Host Controller Driver - InstallShield Wizard Uninstall Complete InstallShield Wizard has finished uninstalling Renesas Electronics USB 3.0 Host Controller Driver. < Back Finish Cancel

10.3 Pin Assignment and Wiring

10.3.1 Pin Assignment

The following table and figure shows the pin assignments of the USB connector on the iDoor IO module for PCM-24U2U3.

PIN Assignment of USB Type-A Connector (9-Pin)

Description of PIN Use
PIN1 VBUS PIN6 SSRX+
PIN2 D- PIN7 GND
PIN3 D+ PIN8 SSTX-
PIN4 GND PIN9 SSTX+
PIN5 SSRX-

9 8 7 6 5 1 2 3 4

10.3.2 Wiring

The PCM-24U2U3 utilizes wired cable to connect I/O plate and mPCIe module. The PIN assignments are listed below.

I/O board overview

VEN1 PL1 PC16 PC20 PC22 PC23 PC24 PC25 PC26 PC27 PC28 PC29 PC30 PC31 PC32 PC33 PC34 PC35 PC36 PC37 PC38 PC39 PC40 PC41 PC42 PC43 PC44 PC45 PC46 PC47 PC48 PC49 PC50 PC51 PC52 PC53 PC54 PC55 PC56 PC57 PC58 PC59 PC60 PC61 PC62 PC63 PC64 PC65 PC66 PC67 PC68 PC69 PC70 PC71 PC72 PC73 PC74 PC75 PC76 PC77 PC78 PC79 PC80 C12 PRB H1 H3 CN1_1 CN1_2

CN1_1 - I/O board to mPCIe Cabling

Description of PIN Use
PIN2 NC PIN1	3 USB3_y_TXDP2
PIN3 NC PIN1	4 GND
PIN4 USB3_RXDP1 PIN15 GND
PIN5 USB3_RXDN2 PIN16 USB2_DM1
PIN6 USB3_RXDP1 PIN17 USB2_DM2
PIN7 USB3_RXDP2 PIN18 USB2_DP1
PIN8 GND PIN19 USB2_DP2
PIN9 GND PIN20 NC
PIN10 USB3_y_TXDN1
PIN11 USB3_y_TXDN2
PIN12 USB3_y_TXDP1

CN1 USB2_DP1 20 19 USB2_DP2 USB2_DM1 18 17 USB2_DM2 USB3_y_TXDP1 16 15 USB3_y_TXDN1 14 13 USB3_y_TXDP2 USB3_RXDP1 12 11 USB3_y_TXDN2 USB3_RXDP1 10 9 USB3_RXDP2 USB3_RXDN1 8 7 USB3_RXDN2 USB3_RXDN1 6 5 2 3 PH_10x2H_2.0mm

VIN1- Internal Power Cabling

Description of PIN Use
PIN1 +VIN (5V)	~24V) PIN3 GND
PIN2 +VIN (5V)	~24V) PIN4 GND

Appendix A

PCM-2300MR-AE

A.1 Initial Inspection

// * Program : CheckZ.cpp
// * Description : Demo program for file access
// *
// * APIs used : GetLogicalDrives, fopen_s, fscanf_s, fprintf, fclose
// *
// * Date : 1/31/2013 Advantech Co., Ltd.
//*****
//
#include "stdafx.h"
#include <windows.h>

// The default drive letter of NVRAM Disk is 'Z'
#define DEFAULT_HD_LETTER 'Z'

int _tmain(int argc, _TCHAR* argv[])
{
DWORD dw;
dw = GetLogicalDrives();
char ch = DEFAULT_HD_LETTER;
int n;
char pathInOut[50] = {0};
char bufferOut[] = "0123456789abcdefghijklmnopqrstuvwxyz";
char bufferInput[50] = {0};
errno_t ErrRet = 0;
FILE *fp_r = NULL;
FILE *fp_w = NULL;

n = ch - 'A';

// Step 1: To check if Z drive exists.
printf("\nStep 1: Check %c Drive.\n", ch);
if( (dw != 0) && (dw >>= n) != 0 )
{
    printf("There is a %c drive.\n", ch);
}
else
{
    printf("There is NO %c drive.\n", ch);
    exit(1);
}

// Step 2: Prepares the path for Input and Output
printf("\nStep 2: Prepares the path....\n");
sprintf_s(pathInOut, 100, "%c:\\inout.txt", ch);
printf("PATH for Input and Output: %s\n", pathInOut);

// Step 3: Writes something to a file....
printf("\nStep 3: Writes something to a file....\n");
ErrRet = fopen_s(&fp_w, pathInOut, "w");
if( ErrRet != 0 )
{
    printf("Failed to open %s !!\n", pathInOut);
    exit(1);
}
else
{
    // Output data to the text file.

fprintf(fp_w, "%s", bufferOut);
// Close file handle.
fclose(fp_w);
fp_w = NULL;
}

// Step 4: Reads a file and displays its content on the screen.
printf("\nStep 4: Reads a file and displays its content.....\n");
ErrRet = fopen_s(&fp_r, pathInOut, "r");
if( ErrRet != 0 )
{
    printf("Failed to open %s !!!\n", pathInOut);
    exit();
}
else
{
    // Reads the content and shows it to console.
    fscanf_s(fp_r, "%s", bufferInput);
    printf("%s\n", bufferInput);

    // Close file handle.
    fclose(fp_r);
    fp_r = NULL;
}

system("pause");
return 0;

A.2 Diagnostic LEDs

DANGER Keep any magnetic devices away to prevent MRAM IC damage 10 RoHS LED1 LED2 PCM-2312 U2 C54 C53 U3 C57 C55 C59 C10 C34 C44 C46 C43 19C3231200-01 CF1 ABCDC+GND LNR+RUS LED1 LED2 LED3 FM2

Table A.1: Diagnostic LED Definitions

LED Light On Light Off

LED 1 - Chip Status It's working It's not working

LED 2 - MRAM Access Status MRAM is being accessed MRAM isn't being accessed

www.advantech.com

Please verify specifications before quoting. This guide is intended for reference purposes only.

All product specifications are subject to change without notice.

No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permission of the publisher.

All brand and product names are trademarks or registered trademarks of their respective companies.

© Advantech Co., Ltd. 2014
