AFR4RA - Computers and Peripherals Panduit - Free user manual and instructions

Product Type	Cable Raceway Channel & Fittings System
Brand	Panduit
Model	AFR4RA
Application	Power, Data, and Audio/Video Cable Management
Channel Dimensions (approx.)	Outer channels: 0.111" (THN), 0.13", 0.164" fill; Inner channels: 0.24", 0.3", 0.24" fill
Maximum Cable Fill	40% or 60% depending on cable type (THN, Cat6, Cat6A)
Cable Types Supported	THN/THWN/T90 14-24 AWG, Cat6, Cat6A, Cat6A SD
Mounting Surface	Concrete, drywall, wood (appropriate hardware required)
Included Hardware	Concrete screws (5/32" drill bit needed)
Additional Components (sold separately)	Couplers, End Caps, Junction Boxes, Wall Transitions, Table Legs
Installation Method	Screw mount (adhesive strip only for positioning)
Cover Type	Tamper-proof, not intended for easy removal
Material	PVC or similar thermoplastic (assumed)
Color	White or light grey (typical)
Operating Temperature	Indoor use, 0-50°C (typical)
Compliance	UL Temperature Rise Test (as per manual)
Maintenance	Wipe with damp cloth, no harsh chemicals

Frequently Asked Questions - AFR4RA Panduit

What is the Panduit AFR4RA used for?

The AFR4RA is a raceway channel system designed for routing and organizing power cables (THN/THWN/T90) and data cables (Cat6, Cat6A) in commercial or industrial environments.

Can the AFR4RA be mounted on drywall?

Yes, for Greenfield applications (new construction), the channel can be mounted on 1/2" or 5/8" drywall using the provided standoff. For existing installations, follow Brownfield instructions to cut a hole in drywall between studs.

What tools are needed for installation?

You will need a 5/32" concrete drill bit for concrete screws, a screwdriver or drill, and possibly a level. For drywall, a drywall saw or hole cutter is required.

How many cables can I put in the AFR4RA?

Fill capacity depends on cable type. For example, THN 14 AWG can fill up to 40% of the outer or inner channel. Cat6A can fill up to 60%. Refer to the fill tables in the manual for exact numbers.

Is the adhesive strip sufficient to hold the raceway?

No, the adhesive strip is only a positioning aid during installation. The raceway must be secured with mechanical fasteners (screws) into the mounting surface.

Can I use this raceway under a table for a desk?

Yes, the AFR4RA includes a table leg transition fitting for mounting under a table. The channel should be cut 3-1/2" to 4" shorter than the distance from floor to table underside.

Are covers removable after installation?

Covers are tamper-proof and not intended for easy removal. Route cables before installing covers, as they snap into place securely.

What is the maximum allowable gap between base and cover for the end cap?

When installing the end cap, the base can extend beyond the cover by a maximum of 0.3" (7.6 mm) to ensure proper engagement.

Does the AFR4RA support both power and data cables in the same channel?

Yes, the divided insert application allows separating power and data cables. The manual shows configurations for power/data, data-only, and power-only applications.

Where can I find replacement fittings for the AFR4RA?

Replacement fittings such as couplers, end caps, junction boxes, and transitions are available from Panduit or authorized distributors. Check the Panduit website for part numbers.

USER MANUAL AFR4RA Panduit

Raceway Channel	See Fig.	Electrical Cables			Data Grade Cables
		14	12	10	24 AWG		24 AWG		24 AWG
		THN/THWN/T90			Cat 6		Cat 6A		Cat 6A (SD)
		0.111	0.13	0.164	0.24		0.3		0.24
		Fill			Fill		Fill		Fill
		Max	Max	Max	Spec	Max	Spec	Max	Spec	Max
		UL Temp Rise Test			40%	60%	40%	60%	40%	60%
Outer Channels (with screws installed)	A	21	15	10	3	4	2	3	3	4
Inner Channels	B	24	17	11	3	5	2	3	3	5

Three views of a bolt with different threaded designs, shown in circular illustrations (no text or symbols)

Themountinghardwareusedtosecure theracewayshallbeappropriateforthe mountingsurface.

Screwsprovidedwithracewayare intendedforinstallationonaconcrete surface.

NOTES:

• An adhesive strip may serve only as a positioning aid during the installation process. The raceway shall be secured by mechanical fasteningmeans.
• Holes for mounting raceway and associated fittings should be predrilled into infrastructure prior to the installation of the mounting hardware.
  •A5/32"concretedrillbitisneededfortheprovidedconcretescrews.

BASE&COVER

COUPLER

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Simple line drawing of a rectangular object with a circular element above it (no text or symbols)

Technical line drawing of a structural component with an arrow indicating direction (no text or symbols)

Staggerbase jointandcover couplingjointto strengthen assembly.

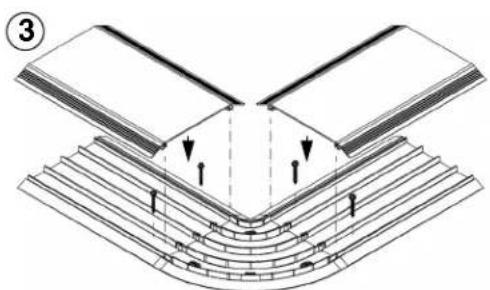

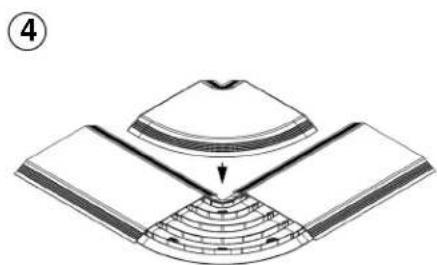

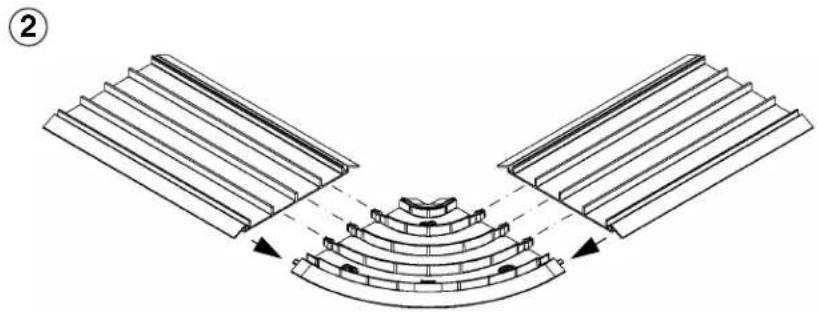

RIGHTANGLE

Technical line drawing of a multi-tiered mechanical component with screw holes and mounting holes (no text or symbols)

Diagram of a mechanical or structural assembly with two symmetrical components and directional arrows indicating flow or movement (no text or symbols)

Technical diagram of layered structural components with arrows indicating force or movement (no text or symbols)

Pure technical line drawing of a V-shaped component without any text, numbers, or symbols

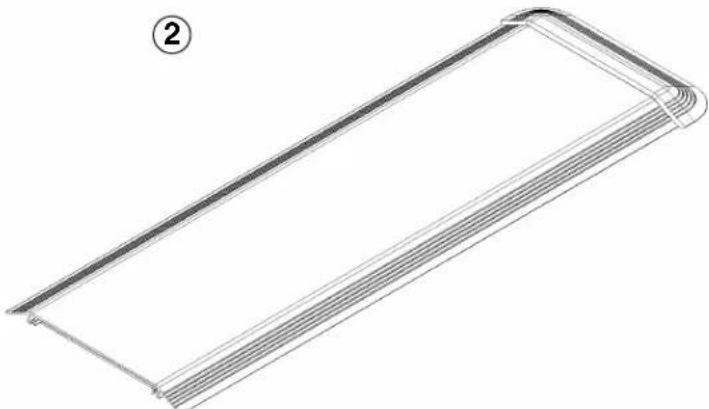

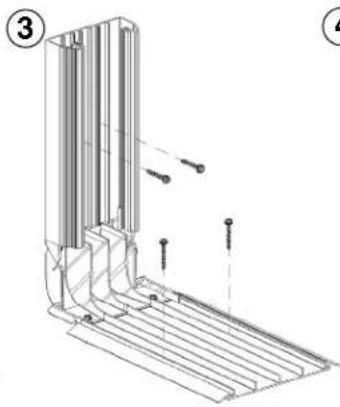

TRANSITIONTOT70

Technical diagram showing a structural assembly with arrows indicating direction (no text or symbols present)

Technical line drawing of a mechanical assembly with numbered components (no text or symbols)

Technical diagram of a mechanical assembly with directional arrows indicating movement or force (no text or symbols present)

Technical line drawing of a vertical structural component with a base and side panel (no text or symbols)

ENDCAP

1a

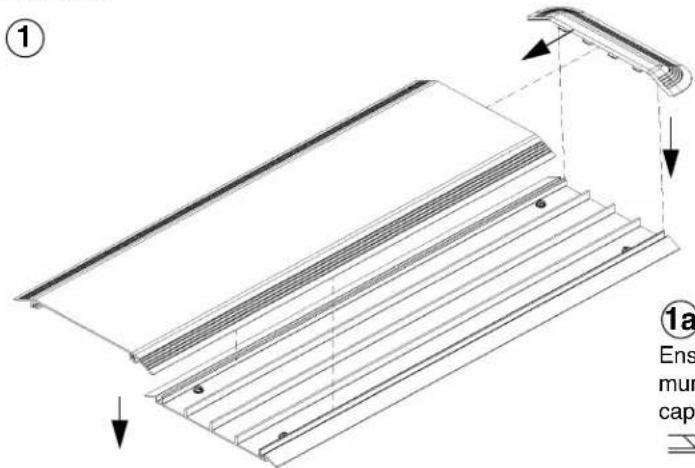

Ensureendcapandcoverarefullyengagedasshown.0.3"ismaximumallowabledistancebasecanextendbeyondcoverwheninstalling cap.

Line drawing of a rectangular metal frame with internal grooves and ridges, labeled with number 2 (no text or symbols on the frame itself)

JUNCTIONBOX
①

Technical line drawing of a mechanical housing assembly with mounting brackets and internal components (no text or symbols)

Technical line drawing of a rectangular electronic device with internal components and a magnified inset showing a close-up view (no text or symbols)

1a
Ensureendcapand coupler(s)connectto junctionboxcoveras shown[8places]
Note: JunctionBoxcanbeassembledbetweenworacewaypathswiththeuseoftwocouplerfittings. Endcapinstallationsshownasreference.

②

Technical line drawing of a mechanical assembly with a bracket and mounting base (no text or symbols)

③

Technical line drawing of a metal beam assembly with mounting holes and internal circular components (no text or symbols)

BREAKOUTSFORCONDUITAPPLICATIONS

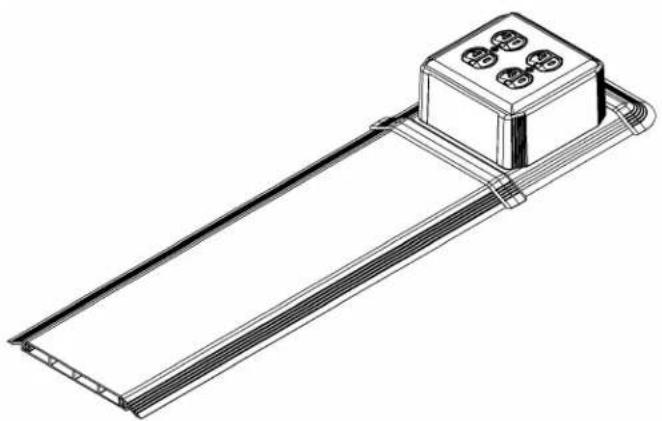

DIVIDEDINSERTAPPLICATIONPOWER/DATAAPPLICATIONDATAAPPLICATIONPOWERAPPLICATION

4

5

6

Technical line drawing of a mechanical device with a control panel and roller assembly (no text or symbols)

Technical line drawing of a mechanical component with a rectangular base and a small rectangular housing (no text or symbols)

WALLTRANSITION

GREENFIELDAPPLICATIONS-NEWCONSTRUCTION

1/2"drywallapplication5/8"drywallapplication
Determine if you will use 1/2" or 5/8" drywall. Orient standoffasshownfordesiredapplication.
lfinstallingintoexistinginfrastructure,continuetoBrownfieldapplicationinstructions.
Securebasetosoleboardandroute cablesandwiringasdesired.Donot overtightenscrewsasflooringinstallationmayrequireadjustments.
Adjustwalltransitionfittingbaseheight duringflooringinstallation.Afterdrywall andflooringhavebeeninstalled,secure transitionfittingbasetothefloorusing appropriatehardware.
ContinuewithStep4ofBrownfieldapplicationinstructions.

**OnlyusestandofforGreenfield applications**

BROWNFIELDAPPLICATIONS-EXISTINGINFRASTRUCTURE

Cutholeindrywallbetweenstudstothe dimensionsshown.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Simple line drawing of a corner bracket with a diagonal line extending from it, no text or symbols present.

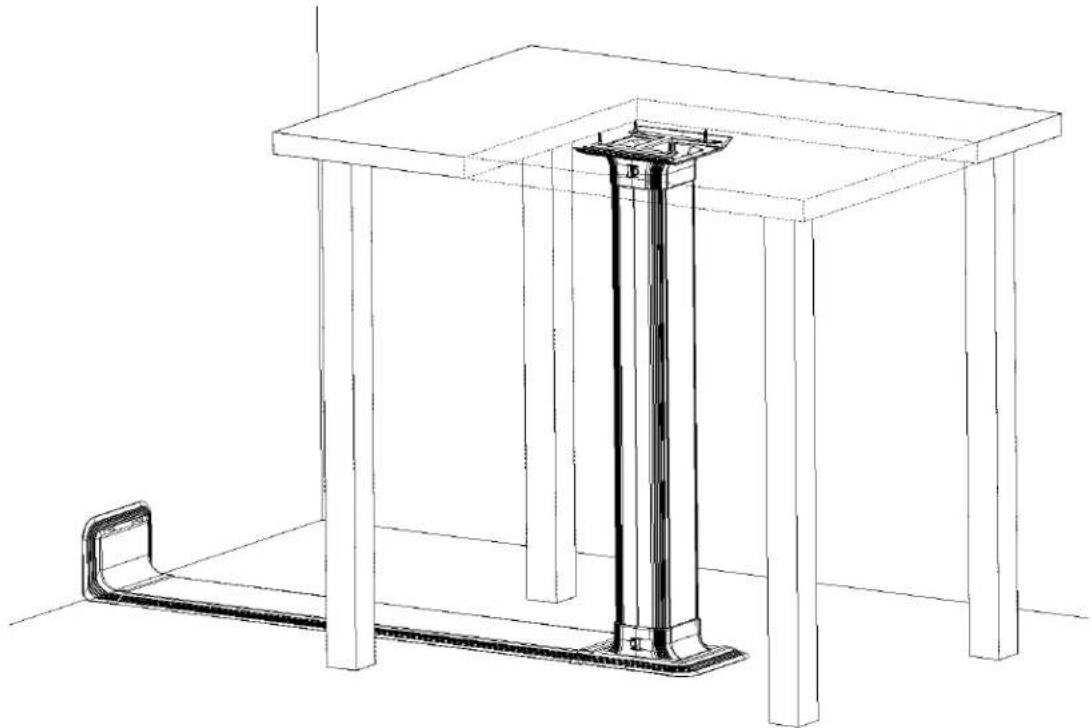

TABLELEG

INSTALLATIONBETWEEN2RACEWAYCHANNELS

Technical line drawing of a structural support frame with vertical and horizontal components (no text or symbols)

①

Centeroftablelegtransitionfittingwillsitapproximately3-1/4"fromtheedgeoftheracewaycover.
Routecablespriortoinstallingtheracewaycover.
NOTE: Desired hole in table should be offset from table leg center to accommodate proper mountingoftableleg.
Measuretheheight fromthefloortothe undersideofthetable. Channelshouldbe between3-1/2"to4" shorterthanthemeasuredheight.Ifnecessary,cutchannelfrom bottomedgetoaccommodate.

2

③

④

Securemountingbrackettotopofchannelusingprovidedhardware. Usethetopholeofthechannelforassembly.Donotfullytightenthe mountingbracketatthistime.

5

Technical line drawing of a mechanical assembly with no visible text or symbols

5A

Technical line drawing of a mechanical bracket with mounting holes and a close-up inset showing a control panel (no text or symbols)

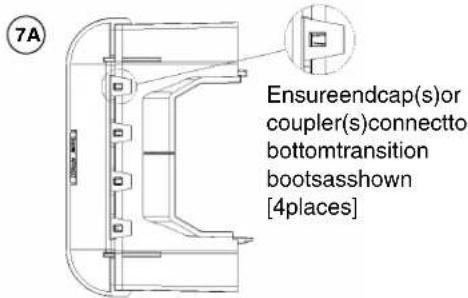

Ensurecouplersconnecttobottomtransition bootsasshown. [4Places]

6

Technical line drawing of a mechanical assembly with no visible text or symbols

Routecablespriortoinstallingcovers.Coversaretamper-proof andarenotintendedforeasyremoval.

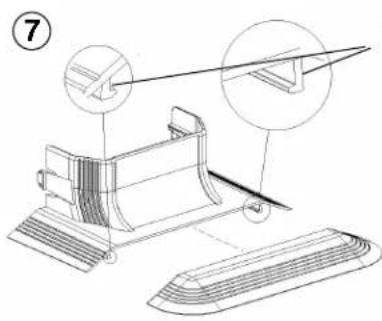

Assembletoptransitionbootstoeachother. Transitionbootlatcheswill mounttothesteppedflangesofthemountingbracket.
Ifaddedstiffnessisdesired,securebottomofchannelusingprovidedhardwareinthelowermostholesofthechannel.

11

Technical line drawing of a simple structural frame with columns and a vertical column, no text or symbols present

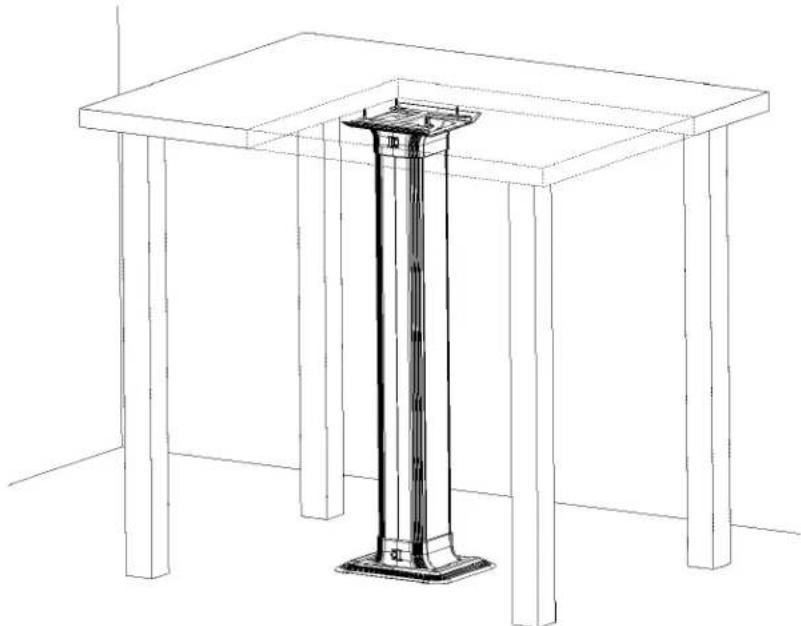

INSTALLATIONASSTANDALONEORWITHSINGLESIDERACEWAYCHANNEL

Technical line drawing of a table with columns and a vertical support structure (no text or symbols)

NOTE: For single side raceway application; above floor raceway should be mounted prior to table leg installation. Centeroftablelegwillsitapproximately3-1/4"fromtheedgeoftheracewaycover.Routecablespriorto installingtheracewaycover.

Line drawing of a simple table with four legs and a vertical metal column (no text or symbols)

NOTE: Desired hole in table should be offset from table leg center to accommodate proper mounting of table leg.

NOTE: Desired hole in table should be offset from table leg center to accommodate proper mounting of table leg.

©PanduitCorp.2019

INSTALLATIONINSTRUCTIONS

PN616B

4

Securemountingbracketstotopandbottomofchannelusingprovided hardware. Usetheholesclosesttotheendsofthechannelforassembly. Donotfullytightenthemountingbracketatthistime.

Pre-drillholesininfrastructureifnecessary.Secure bottommountingbrackettofloorwithproperhardware.(Concretescrewsprovided)

6

Ensurechannelislevel.Securetopmounting brackettoundersideoftableusingprovided hardware.

TransitionBootLatch

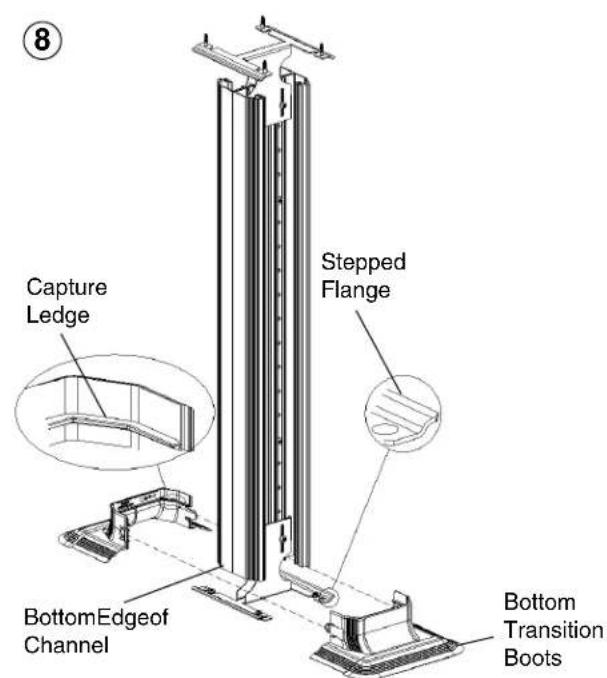

Assemblebottomtransitionbootstogether.Transitionboot latches(showninstep7)willmountosteppedflangesofthe mountingbrackets.Placebottomofchannelontopofcap-tureledgeoftransitionboots.
Tightenallmountingbracketscrewstothechannelatthis time.

Routecablespriortoinstallingcovers.Coversaretamper proofandarenotintendedforeasyremoval.

11

Line drawing of a simple table with four legs and a vertical cylindrical structure on top (no text or symbols)
