Product Type	Low Profile TV Wall Mount
Brand	Bauhn
Model	ALPB80-0724
VESA Compatibility (max)	800 x 400 mm
Maximum TV Weight	65 kg
Suitable TV Size	42" to 80" (106-203 cm)
Distance from Wall	Approx. 30 mm
Product Weight (with accessories)	2.4 kg
Material	Steel (black powder-coated)
Mounting Types	Brick/Concrete wall or Wood stud wall
Included in Box	Wall mount plate, installation pack (screws, plugs, washers, spacers, bolts), installation guide, warranty card, safety warnings
Required Tools (not included)	Pencil, Phillips head screwdriver, stud detector, measuring tape, hammer, power drill, 10 mm masonry bit, 6 mm drill bit
Warranty	1 year
Intended Use	Indoor domestic use only
Safety Note	Installation requires two people; ensure wall is structurally sound; avoid drilling into mortar joints or near electrical/gas/water lines.
Compliance	Australian Consumer Law, RoHS

Frequently Asked Questions - ALPB80-0724 Bauhn

What is the maximum TV size and weight this mount can support?

The mount supports TVs from 42" to 80" (106-203 cm) and up to 65 kg.

What VESA patterns are compatible?

It supports VESA patterns up to 800 x 400 mm.

How far from the wall will the TV be?

The mount is a low-profile design, extending only 30 mm (approx.) from the wall.

Can I install this mount on a brick or concrete wall?

Yes, the mount includes masonry plugs and self-tapping screws for brick or concrete walls. Follow the preparation steps in the manual.

What tools are required for installation?

You will need a pencil, Phillips head screwdriver, stud detector, measuring tape, hammer, power drill, a 10 mm masonry bit (for brick/concrete) or a 6 mm drill bit (for wood studs).

Is it safe to install this mount alone?

No, the manual explicitly recommends two people for safe installation to avoid injury or incorrect assembly.

What is the weight of the mount itself?

The product weight including accessories is 2.4 kg.

Does the mount come with all necessary hardware?

Yes, the box includes the wall plate, an installation pack with various screws, bolts, washers, and spacers to fit most TVs.

How do I determine the correct bolt size for my TV?

Check your TV's manual for the thread size. The mount includes M5, M6, and M8 bolts in two lengths (12/25 mm or 15/30 mm). Use the flat washers and plastic spacers if needed.

What should I do if I have issues or need help?

Contact Bauhn After Sales Support at 1300 002 534 (AU) or visit tempo.org/support. You can also return the product to your nearest ALDI store within 60 days for a full refund.

USER MANUAL ALPB80-0724 Bauhn

Low Profile TV Wall Mount

Black metal shelving unit with vertical supports and a green indicator marker (no text or symbols)

MODEL: ALPB80-0724

Installation Guide

Welcome

Congratulations on your purchase!

This installation guide tells you all you need to know about using your new BAUHN® product.

Please take special note of any important safety and usage information presented with the ⚠ symbol.

All products brought to you by BAUHN ^® are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 1 Year Warranty.

Domestic use only: This product is intended for indoor domestic use only. It is not suitable for commercial, industrial or outdoor use. Do not use this product for anything other that its intended purpose, and only use it as described in this guide.

We hope you will enjoy using your purchase for many years to come.

WARNING

Fixing a TV to a wall mount requires specialist knowledge. We assume no liability for any injury or material damage incurred due to incorrect assembly or use. Make sure to follow all instructions and if you require professional advice, please consult a relevant tradesperson.

Contents

Welcome 2

Unpack and Prepare 4

What's in The Box 4

Parts List 5

Product Overview 5

Installation Pack (Assembly Hardware) 6

Installation 7

Preparation (for a Brick or Concrete Wall) 8

Preparation (for a Wood Stud Wall) 10

Attaching the Monitor Brackets to the TV 12

Securing the TV 13

Specifications 14

Compliance and

Responsible Disposal 15

Warranty Information 16

Repair and Refurbished

Goods or Parts Notice 17

Unpack and Prepare

What's in The Box

Simple line drawing of a two-segment cable structure with no text or symbols

Before setting up your new product, check you have everything:

A. Low Profile TV Wall Mount
B. Installation Pack (see page 6 for information)
C. Installation Guide
D. Warranty Certificate
E. General Safety Warnings

Parts List

Product Overview

• Supports 800 x 400mm max VESA Hole pattern.
- Suitable for TVs sized 42-80" (106-203cm), weighing up to 65kg.
- Low profile, extending only 30mm (approx.) from the wall.

PARTS LIST| 5

Installation Pack (Assembly Hardware)

The illustration below shows the contents of the installation pack. These are the parts that you will need to assemble this wall mount. Some parts are not shown at the same scale.

(A)
Self-Tapping Screw ST8 x 50mm (6pcs)

(B)
Masonry Plug 10 x 50mm (6pcs)

(C)
Flat Washer M5-M6-M8 (4pcs)

(D)
Plastic Spacer D8 x 3mm (4pcs) D8 x 14mm (4pcs)

(E)
Washer ø 20 x ø 8.51 x 1.6mm (6pcs)

(F)
Bolt M5 x 12mm (4pcs)

(G)
Bolt M5 x 25mm (4pcs)

(H)
Bolt M6 x 12mm (4pcs)

(1)
Bolt M6 x 25mm (4pcs)

(J)
Bolt M8 x 15mm (4pcs)

(K)
Bolt M8 x 30mm (4pcs)

Installation

Make sure you read and understand all instructions. Handle and use all materials strictly according to the instructions. If you do not understand these directions, or have any questions in relation to the safety of the installation, we recommend you contact a qualified professional.

Installation steps:

1 Preparation
2 Drilling the holes
3 Attaching to the wall
4 Attaching the Monitor Brackets to the TV
5 Securing the TV

TIP: Installation of the Wall Mount will be easier with two people.

WARNING: Be sure to choose a structurally sound wall area that is strong enough to hold the weight of the TV as well as the wall mount. Mount the wall plate far away from any water source and direct sunlight.

WARNING: DO NOT attach the wall mount to a hollow wall or decorative cardboard.

Tools Required: To complete the following steps you will need:

A. Pencil
B. Phillips Head Screwdriver
C. Stud Detector
D. Measuring Tape
E. Hammer
F. Power Drill
G. Masonry Bit (10mm)
H. Drill Bit (6mm)

INSTALLATION | 7

1A

Preparation (for a Brick or Concrete Wall)

Using the wall base plate as a template, mark six holes in locations as shown above.

NOTE: Ensure that you align the bracket so that the spirit level is flat and even.

Attaching to the Wall

3A

Hold the wall plate against the wall and align the holes in the plate to the holes drilled into the wall.

Screw the wall plate to the wall with the self-tapping screws (A): insert them through the washers (E) into each masonry plug (B) in the wall and then tighten the screws.

2A

Drilling the Holes

On the marked holes, drill holes of 50mm depth into the concrete or brick wall.

Wedge the masonry plugs (B) into the holes, gently tap each plug with a hammer until they are flush with the wall as illustrated on the left.

WARNING: Do not drill into mortar joints. Please pay attention to the electrical lines and also the location of gas and water lines when drilling holes.

1B

Preparation (for a Wood Stud Wall)

Use a stud detector to locate the centre of the framing studs.

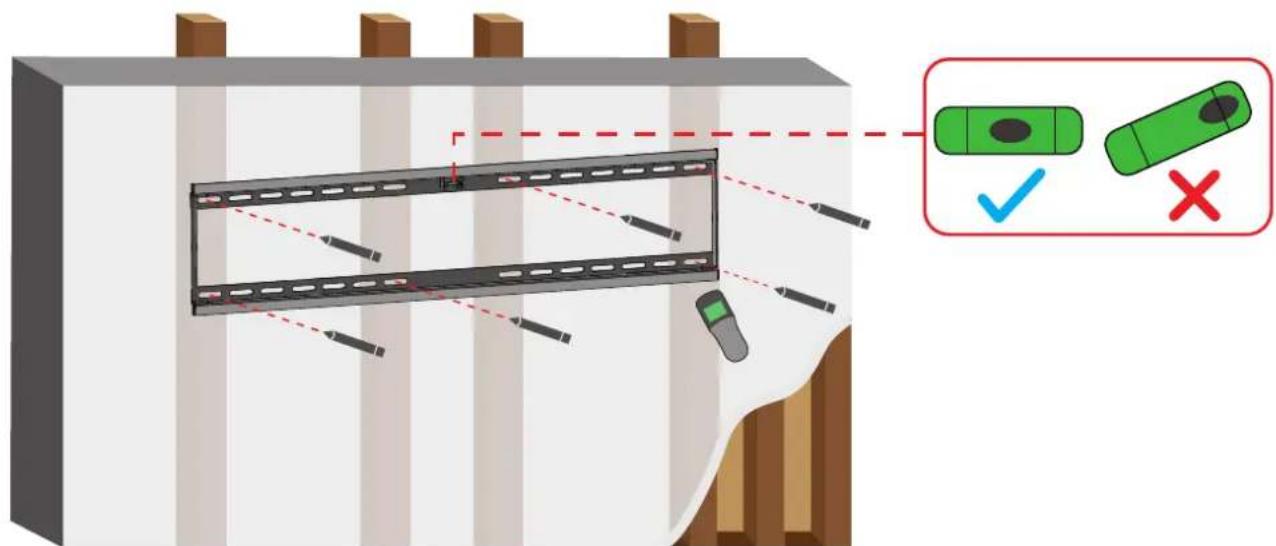

Mark six holes in the locations as shown above. Use the wall base plate as a template.

NOTE: When you are installing the wall mount to a wood stud wall, consult your builder for advice. The wall must be strong enough for the weight of the wall mount and the TV.

WARNING: You must spread the wall plate across two studs.

Hold the wall plate to the wall and align the holes in the plate to the holes drilled into the wall.

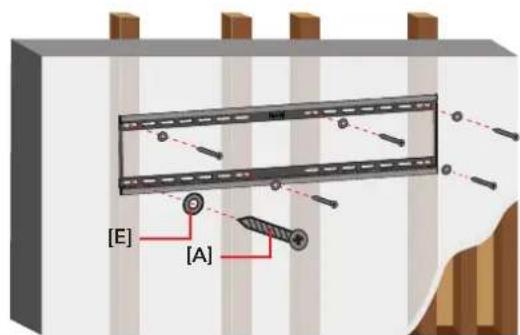

Screw the wall plate to the wall with the self-tapping screws (A), inserting them through the washers (E).

Make sure the upper and lower raised sections of the plate sit away from the wall.

Attaching to the Wall

3B

2B

Drilling the Holes

Illustration of a handheld electric drill with light rays projecting onto a screen (no text or symbols)

On the marked holes, drill small diameter pilot holes into the wood stud wall.

WARNING: Please pay attention to the electrical lines and also the location of gas and water lines when drilling holes.

Attaching the Monitor Brackets to the TV

1. Lay the TV face down. Check the back of the TV to find the appropriate mounting pattern.
2. Select the appropriate bolts (F/G/H/I/J/K) that fit the thread holes at the back of the TV (refer to the TVs manual to determine the correct bolt sizes). Due to the many varieties of TVs, you may need to visit your local hardware supplier to find the correct bolt and washer sizes.
3. Position the left and right bracket over the thread holes, ensuring the hooks of the bracket (with the square holes in either side) are towards the top of the TV (see illustration on the right).
4. Insert the correct bolts through the flat washers (C), as illustrated on the right. Use the plastic spacers (D) if necessary (check the TV's back panel).
5. Tighten the bolts and ensure the brackets are firmly bolted into place.
6. When affixing the monitor brackets, make sure that the sides of the brackets with the hooks are towards the top of the display. Use the holes in the centre, ensuring that the mounting holes are at the same level.

5

Securing the TV

1. Loosen the bolts on the bracket so that the bracket can sit securely on the wall plate.
2. Safely lift the TV and hook the mounting brackets onto the top edge of the wall plate.
3. Gently allow the screen to sit against the wall plate.
4. Tighten the bolts on the brackets to lock it to the wall plate.

NOTE: At least two people are required to finish this mounting procedure. Do not attempt to assemble this wall mount independently, as it may result in incorrect assembly or injury.

Two stylized human figures holding a rectangular block with a warning triangle (no text or symbols)

Specifications

VESA Support Max. 800 x 400mm
Maximum Load 65kg
Distance From Wall 30mm Approx.
Product Weight (including accessories)	2.4kg

Compliance and Responsible Disposal

Packaging

The packaging of your product has been selected from environmentally friendly materials and can usually be recycled. Please ensure these are disposed of correctly. Plastic wrapping can be a suffocation hazard for babies and young children, please ensure all packaging materials are out of reach and are safely disposed of. Please recycle these materials rather than throwing them away.

Product

At the end of its working life, do not throw this product out with your household rubbish. An environmentally friendly method of disposal will ensure that valuable raw materials can be recycled. Electrical and electronic items contain materials and substances which, if handled or disposed of incorrectly, could potentially be hazardous to the environment and human health.

BAUHN®

Warranty Information

The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour. The benefits conferred by this warranty are in addition to all rights and remedies in respect of the product that the consumer has under the Competition and Consumer Act 2010 and similar state and territory laws.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and to compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

BAUHN®

Repair and Refurbished Goods or Parts Notice

Unfortunately, sometimes faulty products are manufactured, which need to be returned to the supplier for repair.

Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost. We recommend you save this data elsewhere prior to sending the product for repair.

You should also be aware that rather than repairing goods, we may replace them with refurbished goods of the same type or use refurbished parts in the repair process.

Please be assured though, refurbished parts or replacements are only used where they meet ALDI's stringent quality specifications.

If at any time you feel your repair is being handled unsatisfactorily, you may escalate your complaint. Please telephone us on 1300 002 534 or write to us at:

Tempo (Aust) Pty Ltd ABN 70 106 100 252

PO BOX 6097, North Sydney NSW 2059, Australia

Telephone: [phone] (Aust) Fax: [phone]

Tempo Help Desk: 1300 002 534 (Aust)

(Operating Hours: Mon-Fri 8:30am-6pm; Sat 9am-6pm AEST)

Email: tempo.org/support

Notes

Notes

Online support

Visit bauhn.com.au for the latest Installation Guide for information on the updated features.

Warranty returns

Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product.

Product does not work?

If you encounter problems with this product, or if it fails to perform to your expectations, please contact our After Sales Support Centre on 1300 002 534.

ALDI guarantees that our products are developed to our stringent quality specifications. If you are not entirely satisfied with this product, please return it to your nearest ALDI store within 60 days from the date of purchase for a full refund or replacement, or take advantage of our after sales support by calling the supplier's Customer Service Hotline.

Green icon showing a person reading a document with an exclamation mark, no text or symbols present.

Please read the guide

It will help you get the best out of your product.

Still have questions?

Call After Sales Support

1300 002 534

Or visit tempo.org/support
