CONTENTS

The Basics......4

Getting Started....6

AM/FM Radio....8

Bluetooth Phone....9

Pairing a Device....10

BT Device Settings.....11

Contacts/Call Log.....12

Bluetooth Music....13

SiriusXM ^® 14

SiriusXM Replay™....17

SiriusXM Lock Code.....18

USB Media....19

Apple CarPlay ^® 20

Android Auto™......21

iPod....22

HDMI....23

AV In....23

Cameras....24

Navigation....25

Display Off....25

Settings.....26

Clock....26

System Settings.....26

Illumination....27

Backgrounds.....28

Display....28

Tabs....28

Camera....29

Audio Settings....30

Equalizer....31

Factory EQ....31

Crossover....32

Time Correction....33

Toslink....34

Gain/Volume....34

Reset Button....35

Trouble Shooting....36

Specifications....38

THE BASICS

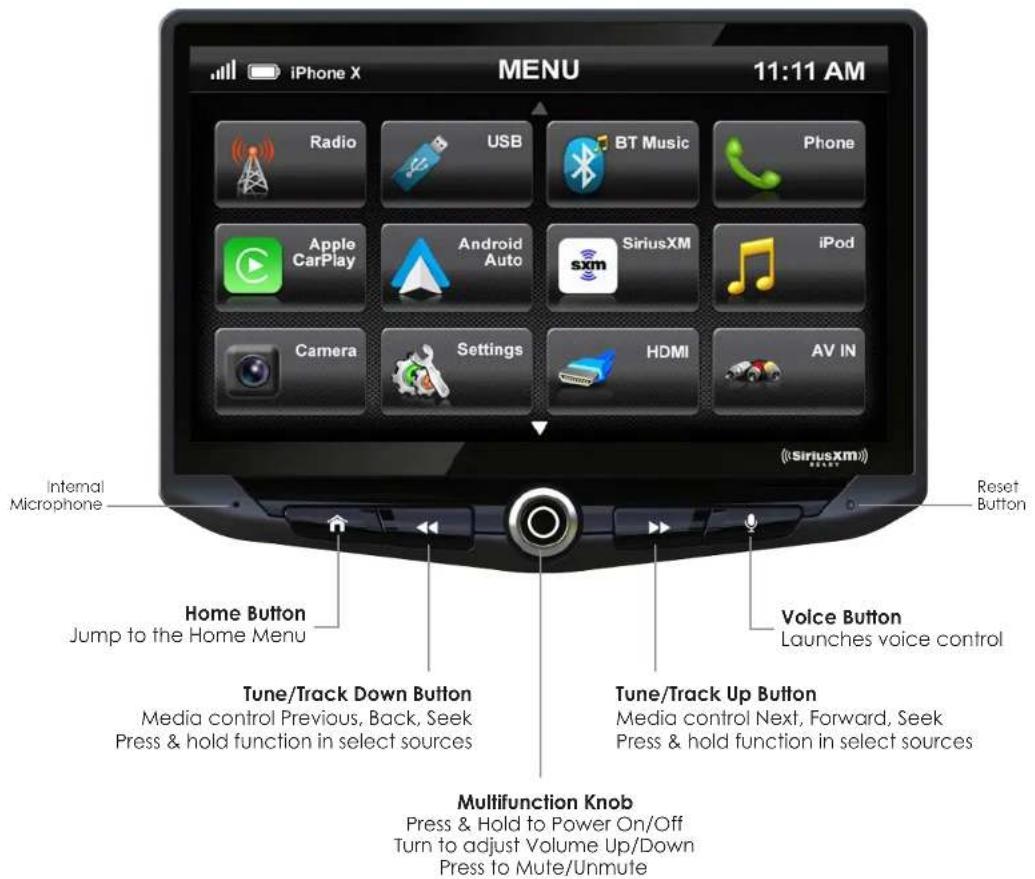

iPhone X MENU 11:11 AM Radio USB BT Music Phone Apple CarPlay Android Auto SiriusXM iPod Camera Settings HDMI AV IN Internal Microphone Home Button Jump to the Home Menu Tune/Track Down Button Media control Previous, Back, Seek Press & hold function in select sources Voice Button Launches voice control Tune/Track Up Button Media control Next, Forward, Seek Press & hold function in select sources Multifunction Knob Press & Hold to Power On/Off Turn to adjust Volume Up/Down Press to Mute/Unmute

HEIGH10·

GETTING STARTED

Information Bar Source/Info Time Radio 09:36 AM 105.1 ST FM1 Go Country 1051 COUNTRY AM/FM AUTO PRESET ON 97.5 99.1 99.9 100.3 101.1 101.9 (HoSystem) HOME Button Power ON/OFF Swipe Up To Open TABS

POWER UP!

With vehicle ignition in the ON or ACC position, Press and Hold the knob for 2 seconds to power ON/OFF.

The source will automatically default to the last source used prior to powering down.

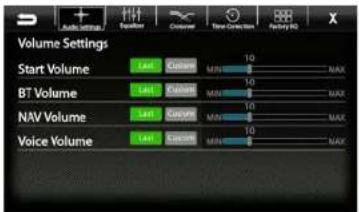

You can adjust the audio volume at start-up in Sound Settings on page 34.

The Information Bar is located at the top of the screen. Depending on the SOURCE, it will provide information or content sensitive controls. Also, displays time, phone info and may contain BACK ARROW and EXIT buttons.

Customizable TABS can be accessed by swiping the up arrow ▲ at the bottom of the screen. Tabs give direct access to sources/settings and can be customized in Settings > Tabs on page 28.

The active Tab will be highlighted and sources that are not available will be dimmed out. Once the Tabs are opened, the will auto-close after 5 seconds or press the down arrow ▼ to close the tabs.

SELECTING A SOURCE

To select a source, press the HOME button.

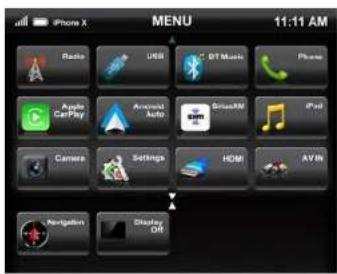

The HOME MENU displays all Sources, along with Settings, Audio, Display and Camera options.

SOURCES that are not currently available are grayed out.

QUICK TIP

There are multiple ways to scroll... Swipling Up/Down, Up/Down Arrows

iPhone X MENU 11:11 AM Radio USB BT Music Phone Apple CarPlay Analog Auto Brau3M iPad Camera Settings HDMI AV In Navigation Display Off

SETTING THE TIME

1) Touch and Hold the Time Display on the Information Bar for 2 seconds to access the clock settings.
2) Swipe or click arrows to set time and format.
3) Touch the BACK ARROW or EXIT to save and exit.

Back Arrow Exit

SETTINGS Main Settings 3 0 2 0 2 1 0 1 3 0 1 2 4 OK Finish

HEIGH10·

AM/FM RADIO

Radio 105.1 Go Country 1051 COUNTRY AM/FM AUTO PRESET DX 97.5 99.1 99.9 100.3 101.1 101.9 4 5 6 09:36 AM 7 8 9 10 3 2 1 11

Bluetooth PHONE

6 Galaxy 510x Phone 02:11 PM 5 4 Clear 3 2 1 Favorites Contacts Call Log Settings 9 10

Press the HOME BUTTON > Radio to select the Radio

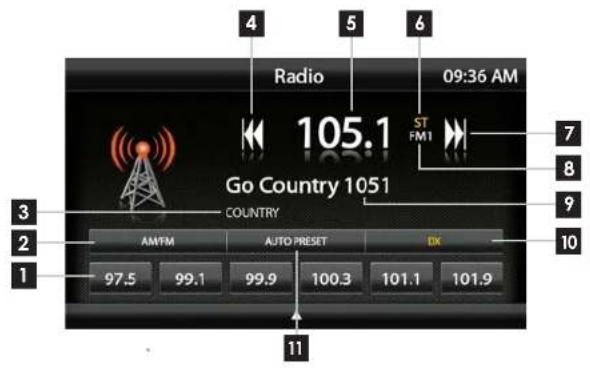

1 Station Presets - To assign a preset, go to desired station, press and hold a preset location until preset button highlights and station frequency appears. A total of 18 FM and 12 AM stations can be stored in memory.
2 AM/FM - Press to cycle through AM/FM presets (FM1-FM2-FM3-AM1-AM2)
3 PTY Program Type - Indicates radio station type.
4 Tune/Seek Down - Press and release to Tune Down. Press and hold to Seek the next available radio station.
5 Station Display - Displays current frequency.

6 ST Indicator - Indicates when current radio station is in Stereo.
7 Tune/Seek Up - Press and release to Tune Up. Press and hold to Seek the next available radio station.
8 Preset Bank - Indicates current preset bank.
9 RT Info- station/title/artist information
10 DX/LOC - changes the radio tuner sensitivity. Touch to toggle between Distant (DX) and Local (LOC).
11 Auto Preset - Touch to automatically set the 6 presets with current location radio stations.

Press the HOME BUTTON > Phone to select the Phone

1 Number Pad - Touch to launch the number pad for dialing phone numbers.
2 Speaker/Phone - Switches phone calls between the car speakers and the phone handset.
3 Clear - Clear/delete last number entered.
4 Call/Answer - Dials the number entered on the phone or on the number pod. Answers incoming call.
5 End/Decline - Press to end active call or decline incoming call.

6 Device Info - Displays the name of the currently paired device, signal strength and battery status.
7 Favorites - Customizable list of favorite contacts.
8 Contacts - List of contacts from paired phone. Not supported by all phones.
Settings - List of devices and settings. Add or Delete devices.
10 Call Log - Recent Dialed, Received and Missed calls.

HEIGH10·

Bluetooth PHONE Bluetooth PHONE

Pairing a Device

1 Select Settings from the Phone main menu to go to BT Device Settings.
2 Select Devices ▶ on the BT Device settings page.
Place your device in Discoverable Mode.
3 Select ADD on the Devices page
4 Select your device from the list.

NOTE!

If your device does not appear in the device list, confirm it is discoverable and select Retry

5 Select Connect to initiate pairing

Phone 09:31 AM Clear Settings

1

Phone 10:06 AM BT Device Settings Devices Auto Connect Pin Code 12.34 Change Microphone 2 Microphone Gain AEBF51:26100820_e753

2

Phone 11:23 AM Devices AVG AVG AVG AVG

3

5

Phone 02:28 PM Find Complete File merchandise disposable mode Phone Connect Retry

4

6 Select Pair when prompted.

Confirm Key Code on device and select Pair on device.

If prompted, select Allow to share contacts

Phone 02:28 PM Bluetooth pairing request Top order until Phone Make sure the device is showing this key/912189 Cancel Par Close

6

NOTE!

Once a device is paired, it will automatically connect whenever the system is turned on and the device is within range. To manually connect or connect to a different device go to Phone > Settings > Devices

BT Device Settings

Once a device is paired and connected, settings can be set on the BT Device Settings page.

Devices ▶

Access list of all devices in memory. Connect/Add/Delete devices.

Auto Connect [ON/OFF]

Set to ON if you want the device to automatically connect when the system is turned on.

Pin Code [CHANGE]

Change the pin code for Bluetooth connection. The default pin code is "1234"

Microphone [Internal/External]

Set to External if external microphone is installed. Set to internal to use the microphone located on the front of the display.

Microphone Gain [0-6]

Adjusts the volume (sensitivity) of the microphone when using hands free phone.

BT Device Settings Devices Auto Connect Pin Code 1234 Microphone Internal External Microphone Gain Min MAX Version A6EF51.20190820_r6753

HEIGH10·

Bluetooth PHONE

Bluetooth MUSIC

Contacts

While a device is paired, Contacts can be accessed by selecting Contacts from the Phone main menu. It may take several minutes to load all contacts. When a contact is selected from the list, all associated numbers (Home/Work/Mobile) will be displayed on the left side of the screen. Touch the number you want to dial.

To add a contact number to the Favorites list, touch FAVORITES next to the contact phone number and it will be added to your Favorites list.

The Favorites list can be accessed from the Phone main menu.

To Search your contact list, select the keyboard icon on the Information Bar.

Call Log

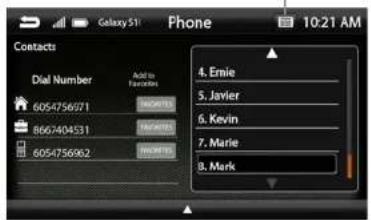

The Call Log lists recently Dialed, Received and Missed calls. Touch the contact or phone number to dial a number.

Search Contacts

Contacts Dial Number 6054756971 8667404531 6054756962 Add to Functions 4. Emie 5. Javier 6. Kevin 7. Marie 8. Mark

Contacts Dial Number Added to 6054756962 4. Emie 5. Javier 6. Kevin 7. Marie 8. Mark 10:16 AM

Call Log Dialled Calls Received Calls Missed Calls Contacts Favorites 1. Emie 7272650436 2. Mark 6054756962 3. Marie 6054756959 4. Kevin 8054756984 5. Dave 8667662267 Phone 10:25 AM

4

iPhone Bluetooth 02:11 PM Aculeus Changing The Game Stinger 3 2 1

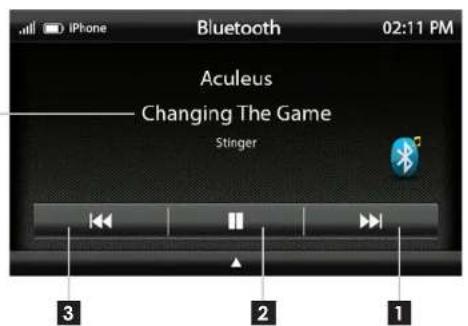

Press the HOME BUTTON > BT Music to select the BT Music source

1 Next Track/Program - Touch to advance to the Next track/Program.
2 Play/Pause - Touch to play or pause the audio.
3 Previous Track/Program - Touch once to restart current track, touch again for Previous track.
4 Song/Program Information - Displays information for the current track.

HEIGH10·

®Satelite Radio (OPTIONAL)

Only SiriusXM brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and Subscription are required. For more information, visit www.siriusxm.com

Activating your SiriusXM Subscription

After installing your SiriusXM Connect Vehicle Tuner and antenna, power on your radio and select SiriusXM mode. You should be able to hear the SiriusXM preview channel on Channel 1. If you cannot hear the preview channel, please check the installation instructions to make sure your SiriusXM Connect tuner is properly installed.

After you can hear the preview channel, tune to Channel 0 to find the Radio ID of your tuner. In addition, the Radio ID is located on the bottom of the SiriusXM Connect Vehicle Tuner and its packaging. You will need this number to activate your subscription. Write the number down for reference.

Note: the SiriusXM Radio ID does not include the letters I, O, S or F.

In the USA, you can activate online or by calling SiriusXM Listener care:

- Visit www.siriusxm.com/activatenow

• Call SiriusXM Listener Care at 1-866-635-2349

For Canadian Subscriptions, please contact:

- Visit www.siriusxm.ca/activatexm

• Call XM customer Care at 1-877-438-9677

As part of the activation process, the SiriusXM satellites will send an activation message to your tuner. When your radio detects that the tuner has received the activation message, your radio will display: Subscription Updated. Once subscribed, you can tune to channels in your subscription plan. Note, the activation process usually takes 10 to 15 minutes, but may take up to an hour. Your radio will need to be powered on and receiving the SiriusXM signal to receive the activation message.

SiriusXM Satellite RadioSiri

SiriusXM 10:20 AM 50s on 5 Ricky Nelson Never Be Anyone Else But Pop CH 005 SXM1 5 6 7 8 13 12 11 9 Hits 1 xLPndora 50s on 5 70s on 7 60s on 6 Preview

Press the HOME BUTTON > SiriusXM to select the SiriusXM source.

1 Channel Presets - To assign a preset, go to desired channel, press and hold a preset location until preset button highlights and channel name appears. A total of 18 channels can be stored in memory.
2 Channel Down/Up- Touch to go to previous channel / advance to next channel. Touching and holding either button will rapidly browse through the channels.
3 Signal Strength - Displays tuner signal strength, 0-3 bars.
4 Keypad - Touch to display keypad for direct channel number entry.
5 SiriusXM Info - Displays current channel category, channel number and preset bank number.
6 Channel Info- Displays channel name, song/content info.

7 Pause/Play - Pause live broadcast / Play stored audio

8 LIVE- Select to return to live broadcast when listening to stored audio.

9 Fast Forward/Track Up- Move forward through stored audio

10 Rewind/Track Down - Move backwards through stored audio

11 CAT - Touch to display a list of channel Categories.

12 CH - Touch to display a list of available channels with channel information.

13 BAND - Press to cycle through SXM preset banks [SXM1-SXM2-SXM3]

HEIGH10·

SiriusXM Satellite Radio SiriusXM

Satelite Radio

Channels [CH]

Displays a list of available SiriusXM channels in numerical order. Swipe up/down to navigate, touch to select desired channel. Selecting Content Info, Artist or Song buttons will toggle the information displayed.

Return to SiriusXM main screen Channel Artist Song Costent Info 001 SXM Preview 002 Hits 1 003 xL Pandora Now 004 SoulCycle Radio 005 50's on 5

Categories [CAT]

Displays a list of channel categories. When a category is selected, a list of matching channels will display. Selecting All Channels will display all channels in numerical order.

Category All Channels Pop Rock Hip-Hop/R&B3 Dance/Electronic

Direct Tuning

Selecting the Keypad Icon on the Information Bar will launch a numeric keypad for direct channel number entry. (See Page 18 for Parental Control function)

Keyboard SiriusXM 10:52 AM Enter Channel Number Parental Control 1 2 3 4 5 6 7 8 9 0 OK

SiriusXM Replay™

Replay allows you to pause, rewind and replay up to 1 hour of live SiriusXM Satellite Radio.

Pressing Pause or Rewind while listening to a live broadcast will enable Replay mode.

The Replay Time Bar will appear when Replay is active.

When you reach the end of the stored audio buffer, you will return to the live broadcast. Or, touch the LIVE button in the Replay view to return to the live broadcast of the current channel.

Replay Controls

Touch for Previous Song Touch & Hold for Rewind

Touch for Next Song Touch & Hold for Fast Forward

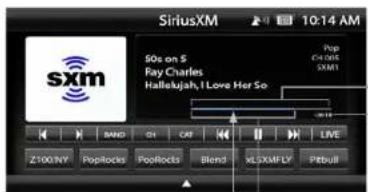

SiriusXM 10:14 AM 50s on 5 Ray Charles Halloukiah, I Love Her So Pop Cockout SXM1 Z100/NY PopRocks PopRocks Blend xLSXMFLY Pitbull

1 2

① Current Replay Point
2 Buffer Range (Light Blue line)
3 Replay Range
4 Time to Live

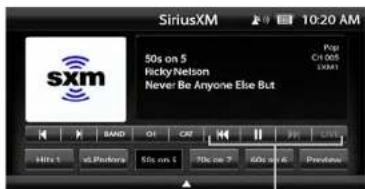

SiriusXM 10:20 AM 50s on 5 Ricky Nelson Never Be Anyone Else But Pop Cit CD5 JXM1 BAND OT CAT LIVE Hits 1 vs Platform 60s on 5 70s on 7 60s on 8 Preview

Replay Controls

HEIGH10·

SiriusXM Satellite Radio

USB Media

Parental Control

The SiriusXM Parental Control feature allows you to prevent access to inappropriate mature content for a younger listener. When enabled, the Parental Control feature requires you to enter a passcode to access the channels that are rated as Mature Channels.

By default, all channels are Unlocked and the Lock Code is 1234

Lock Mature Channels:

1. Touch the Keyboard icon on the Information Bar.
2. Touch the Parental Control button.
3. Select Lock Mature Channels
4. Enter 4 digit lock code.

Unlock Mature Channels:

1. Touch the Keyboard icon on the Information Bar.
2. Touch the Parental Control button.
3. Select Unlock Mature Channels
4. Enter 4 digit lock code.

Set/Change Lock Code:

Select Sel Lock Code, enter old code and then enter new code.

Reset Lock Code:

To reset the Lock Code to default code (1234) Go to System Settings > Load Defaults. The reset process takes 5-7 minutes and will reset ALL saved settings to factory default.

Keyboard Icon

SiriusXM 10:52 AM Enter Channel Number Personal Control 1 2 3 4 5 6 7 8 9 0 OK

Parental Control

SiriusXM 12:44 PM To restrict access to channels with Mature Content, such the Lock Mature Channels button before. Doing so will require a lock code to be entered to unlock these channels. Lock Mature Channels Set Lock Code

SiriusXM 10:45 AM Mixture channels are currently locked. To disable this feature, touch the Unlock Motion Channels button below and enter the valid lock code. Unlock Nature Channels Set Lock Code

SiriusXM 09:58 AM Enter your lock code 1 2 3 4 5 6 7 8 9 0 OK

USB 11:45 AM Aculeus Changing The Game Stinger 00:31 00:59 1 4 7

With a USB drive plugged in - press the HOME BUTTON > USB to select USB.

From the USB Root Menu you can browse Audio, Video and Image files. See page 39 for a list of supported file types.

Touch to select a file to view/play.

1 Previous Track - Touch once to restart current track, touch again for Previous track.
2 Play/Pause - Touch to play or pause the audio.
3 Next Track - Touch to advance to the Next track.
4 Browse - browse artist, album or songs.
5 Keyboard - direct input song search
6 Repeat - Press once to repeat the current track (1), press again to repeat album/folder (F).
7 Shuffle - Plays tracks in random order.

USB Root Menu

USB 11:24 AM Audio Video Picture

Video / Image Files

USB 11:07 AM 10:30 42.05

HEIGH10·

Apple CarPlay®

Set up Apple CarPlay

You can use Apple CarPlay to get directions, make calls, send and receive messages, and more.

You need an iPhone 5 or later to use Apple CarPlay. Also, make sure that you're in an area that supports Apple CarPlay and that Siri is on. To turn on Siri on your phone, go to Settings > Siri & Search.

With the your vehicle running, plug your iPhone into the Apple CarPlay USB port. Apple CarPlay will launch automatically.

If your iPhone is already plugged into the USB, press the HOME BUTTON > Apple CarPlay to launch Apple CarPlay.

NOTE: If Apple CarPlay will not launch, see Troubleshooting.

The display will show available apps. Only apps that are supported by Apple CarPlay will appear.

To add, remove, or customize the order that the apps are in on your iOS device:

1. Go to Settings > General, and tap CarPlay.

2. Select UN1880

3. Select Customize

4. Use the add or delete icons to add or remove apps. Tap and drag an app to change the icon order.

To exit Apple CarPlay, press the Slinger Main Menu icon.

For details about Apple CarPlay, visit https://support.apple.com/en-us/HT205634

CarPlay Home

10:24 all LTI Phone Music Maps Messages New-Playing Main Menu Podcasts Audiobooks Calendar Settings

Toggle CarPlay Home / Dashboard

CarPlay Dashboard

10:27 Get LTE Home E Friends E Friends... Changing The Game BLOGAT

Press & Hold for Siri

Ask Siri for what you need. Press the Voice Control button or The Home/

Dashboard button in Apple CarPlay until Siri appears on the display, then say what you need.

Make sure your phone is running Android 5.0 (Lollipop) or later. Download the Android Auto app from Google Play on your device. Once the app is installed, open the app and follow the setup steps.

Connect your phone

Before you connect your phone for the first time, turn on your car. Make sure it's in park (P) and that you have time to set up Android Auto.

1. Unlock your phone's screen.

2. Connect your phone using a USB cable.

3. Your phone might ask you to download or update certain apps, like Google Maps.

4. Review the Safety Information and Android Auto permissions to access your apps.

5. Tum on notifications for Android Auto. For the best experience, we recommend accepting all requests.

Your phone's Bluetooth will be turned on automatically when Android Auto is connected to the car via USB.

To exit Android Auto, touch the Exit icon.

For details about AndroidAuto, visit https://www.android.com/auto/

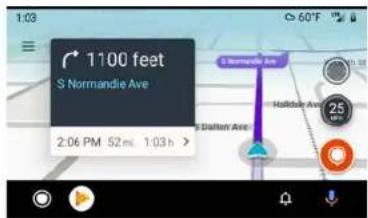

1:51 Waze TIDAL Play Music Phone Exit Amazon Mu... Apple Music Calendar

1 Home Button

2 Audio Controls

3 Notifications

4 Voice Command

Contacts E Ernie Mobile J Javier Mobile K Kevin Mobile

1:03 1100 feet S Normandie Ave 2:06 PM 52 m. 1:03 h > S Normandie Ave Hallibur Ave 25 Daften Ave

HEIGH10·

iPod®

HDMI INPUT

iPod 12:45 PM Aculeus Changing The Game Stinger 00:02 00:59 Track Detail View 1 4 7

Press the HOME BUTTON > HDMI to switch to the HDMI input.

The HDMI input can be used for an external DVD player, streaming sticks, media players, smartphone mirroring.

You can only view HDMI content with the vehicle in Park and the parking brake ON.

When viewing HDMI content, the Information Bar will auto-hide. To access the Information Bar, touch anywhere on the screen.

Scenic river landscape at dusk with hills and bridge, no visible text or symbols

AV IN

Press MENU > iPod to select iPod as the source.

1 Previous Track - Touch once to restart current track, touch again for Previous track.
2 Play/Pause - Touch to play or pause the audio.
3 Next Track - Touch to advance to the Next track.
4 Browse - browse artist, album or songs.
5 Keyboard - direct input song search
6 Repeat - Press once to repeat the current track (1), press again to repeat album/folder (F).
7 Shuffle - Plays tracks in random order.

iPod Root Menu

iPod 12:46 PM Playlists Artists Albums Songs Podcasts

Return to Track Detail View

iPod 12:45 PM Songs Robbins Are IloadBill On Route 37 2 On (feat. Schkoofboy O) 2.4K Maps 3030 5 Feet 7 Foxt (feat. Cory Guard)

Browse and Select by
Artists, Albums, Playlists, Songs...

Press the HOME BUTTON > AV IN to switch to the AV input.

You can only view the AV input with the vehicle in Park and the parking brake ON.

When viewing the AV IN, the Information Bar will auto-hide. To access the Information Bar, touch anywhere on the screen.

AVIN 05:11 AM 30000 490

WARNING!

Driver is prohibited by law from viewing a video signal on any In-dash monitor while the vehicle is in motion.

HEIGH10·

CAMERAS

Press the HOME BUTTON > Cameras to access Cameras

If there are optional cameras installed, you may view them at anytime using the camera selection bar at the bottom of the screen.

To Exit camera view, touch the Back Arrow.

Note: For Irigerred side cameras that turn on automatically with the turn signals, you can override and close the camera view by touching the screen.

Mute On Reverse

The Mute on Reverse feature will mute all audio while in Reverse, touch the speaker icon to toggle between mute ON/OFF.

Settings > Camera Settings

Cam1-4 Label

[REAR-OUTSIDE-AUX-INSIDE-BED-TRAILER] Allows custom labeling for multiple cameras

Cam 1-3 Trigger [ON-OFF]

Set individual camera triggers ON/OFF

Cam 4 Trigger [ON-OFF-VSS]

Set Camera 4 trigger ON, OFF or Vehicle Speed Sense.

Use VSS Mode when parallel parking aid is desired (front camera and VSS wire need to be connected).

On VSS Mode, the front camera will turn on after shifting from Reverse gear and remain On until the speed reaches above SMPH or the display is touched.

Reverse Camera Audio [ON-OFF]

When set to ON and a microphone is connected, back up camera audio will be heard through the vehicle's speakers.

Front view of a highway with navigation controls (Left, Front, Rear, Right) and vehicle icons on the road (no readable text or symbols)

Mute On Reverse Active

Mobile app Camera Settings

SETTINGS Camera Settings Cam 1 New Current Auto Stroke Beef Trigger On Cam 2 Left Current Auto Stroke Beef Trigger Off Cam 3 Right Current Auto Stroke Beef Trigger Off Cam 4 Left Current Auto Stroke Beef Trigger Off Camera 4 Trigger OFF ON VSS Reverse Camera Audio

iGO NAVIGATION (OPTIONAL)

To access the optional Navigation, press the NAVIGATION BUTTON on the side of the display or press the HOME BUTTON >Navigation

The User Manual for iGO Navigation can be found on StingerElectronics.com

To add navigation, ask your dealer about Stinger's pre-loaded iGO Navigation SD Card (Part Number: SE-P14).

Press the HOME BUTTON > Display Off to turn off LCD.

This is useful at night to prevent eye fatigue.

Tap the screen anywhere to return to regular display.

W Tropicana Ave W Tropicana Ave Dean Martin Dr

DISPLAY OFF

Completely black image with no visible content or text.

HEIGH10·

SETTINGS

SETTINGS

Press the HOME BUTTON > Settings

to access the Settings main menu.

Clock

System Settings

Illumination

Background

Display Settings

Sound Settings

Tabs

Camera Settings

EXIT current screen

SETTINGS Clock System Settings Brightness Background Camera Settings Sound Settings Video Camera Settings

Settings > System Settings > Apple CarPlay

Device Mode [OFF-CarPlay-iPod]

Determines how iPhone will be used when plugged into USB port. OFF is charging only

Mic Gain [LOW-MED-HIGH]

Sets microphone gain (sensitivity) when using Apple CarPlay.

SETTINGS iPhone Settings Device Mode OK Off Cancel Mic Gain OK Off Cancel

Settings > Clock

Clock Settings [OFF-12HR-24HR]

Select time format. Swipe or click answers to set time.

-BACK to previous screen

SETTINGS Clock Settings 0 2 : 0 2 1 0 : 1 3 0 1 : 2 4

Settings > System Settings > Android Auto

Android Auto [ON-OFF]

Set to OFF for charging only with Android devices.

Auto Launch [ON-OFF]

When set to ON, Android Auto will automatically launch when compatible Android device is plugged into USB port.

SETTINGS Android Auto Settings Android Auto Auto Launch

Settings > System Settings

Beep [OFF-LOW-MED-HIGH]

Sets volume of confirmation beeps.

Language [ENGLISH FRENCH SPANISH] Set display language

Apple CarPlay [See Page 27]

Android Auto [See Page 27]

Load Defaults [RESET]

Selecting Reset will reset all settings to factory defaults. This process takes 5-7 minutes and system must NOT be shut down during the reset.

Installer Settings [ENTER]

See Installation Guide or Firmware Update

Instructions for more information.

SETTINGS Main Settings Beep OFF LIFE NEW HORN Language English CHORN MY Speech Apple Carplay Android Auto Load Defaults Read Installer Settings Read

Settings > Illumination

Illumination[OFF-ON-AUTO]

Turn button illumination ON/OFF. Set to AUTO for buttons to illuminate only when vehicle lights are on.

Illumination Brightness[0-20]

Set brightness of button illumination

Highlight Colors

[AMBER-RED-AQUA-GREEN-BLUE-WHITE] Set on-screen highlight color.

Illumination Color

[AMBER-RED-AQUA-GREEN-BLUE-WHITE] Set button illumination color.

Custom Illumination [OFF-ON]

When Custom illumination is set to ON, allows custom illumination color based on RGB values.

SETTINGS Illumination Settings Illumination 20 Illumination Brightness Highlight Colors Illumination Color Custom Illumination

SETTINGS Illumination Settings Illumination 50% 3% 40% Illumination Brightness Highlight Colors 100% Illumination Color Custom Illumination Red 255 Green 255 Blue 255 +

Stinger

HEIGH10·

SETTINGSSE1

Settings > Background

Allows you to change the background image. Touch image thumbnail to select. You can upload up to 3 of your own images. To upload an image(s), copy images onto a USB thumb drive and connect drive to one of the USB ports. Touch the @ symbol and select file. Images should be JPG or PNG file format and 1024*600 resolution

SETTINGS

Settings > Display Settings

Brightness [0-20]

Adjust Day and Night brightness of LCD display. To adjust Night brightness level, turn on vehicles lights and then adjust brightness.

Auto Brightness [ON-OFF]

When set to ON, display screen will automatically dim when vehicle lights are turned on.

AV [OFF-USB-AV]

Determines which source is routed to the AV outputs.

SETTINGS Display Settings Brightness 18 MAX Auto Brightness AV Out OFF OK BY

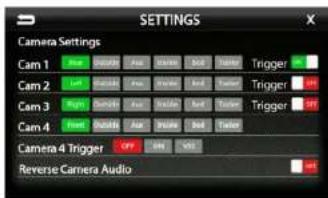

Settings > Camera Settings

Com1-4 Label

[REAR-OUTSIDE-AUX-INSIDE-BED-TRAILER] Allows custom labeling for multiple cameras

Cam 1-3 Trigger [ON-OFF]

Set individual camera triggers ON/OFF

Set Camera 4 Trigger ON, OFF or Vehicle Speed Sense.

Use VSS Mode when parallel parking aid is desired (front camera and VSS wire need to be connected).

On VSS Mode, the front camera will turn on after shifting from Reverse gear and remain On until the speed reaches above 5MPH or the display is touched.

Reverse Camera Audio [ON-OFF]

When set to ON and a microphone is connected, back up camera audio will be heard through the vehicle's speakers.

SETTINGS Camera Settings Cam 1 Cam 2 Cam 3 Cam 4 Camera 4 Trigger Reverse Camera Audio

Settings > Tabs

The Tabs are customizable and can be configured to include favorite sources or settings.

To Program a Tab:

1) Select a Tab position (1-7) on the bottom row 2) Select the desired source or setting from the options on the top rows.

TABS Audio USB BT Music Camera Smartbox iPod Audio Contacts Favorites Call log Phone HTML Air Inv SETTINGS Audio Favorites BT Music Camera Phone iPod Audio

HEIGH10·

SOUND SETTINGS

SOUND SETTINGS

4

Audio Settings Equation Cross/WR Time Connection Factory EQ BAL:0 FAD:0 Advanced Settings Loudness Subwoofer Phase Sub. Level MIN MAX 3 2 1 5 6 7 8 9

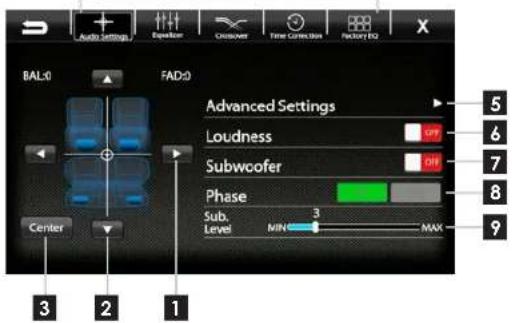

Settings > Sound Settings

1 Balance [-9 - 0 - 9] Using the Left and Right arrows, adjusts the speaker balance Left/Right.
2 Fader [-9 - 0 - 9] Using the Up and Down arrows fades the speakers Front/Rear.
3 Center Press to set balance and fade to zero (0)
4 Audio Menu Bar Access to Equalizers, Crossovers and Time Correction

5 Advanced Settings Access to gain/volume settings. Toslink, microphone settings. (See page 34)
6 Loudness [ON-OFF] When ON, boosts low and high frequencies when listening at lower volume
7 Subwoofer [ON-OFF] Turns subwoofer output ON/OFF
8 Phase [0°-180°] Changes phase of subwoofer signal.
9 Sub Level [0-15] Adjusts volume level of subwoofer output.

Sound Settings > Equalizer

Selecting Equalizer from the Audio Menu Bar will bring up the 15 band graphic equalizer and presets. Frequency adjustments can be made by touching and sliding the frequency sliders up/cown. Once the desired sound is achieved, it can be saved as a Preset.

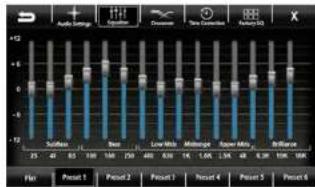

Saving EQ Settings

There are 6 user Presets that can be used to save EQ settings. This is useful for having EQ settings for different types of music, volume levels or for different sources.

When you are done adjusting the EQ, touch and hold a Preset location to save the settings. The Preset will highlight.

Audio Record Soundbox Real Low Mix Moshcape Open Mix Billiton 40 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 45 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170 175 180 185 190 195 200 205 210 215 220 225 230 235 240 245 250 255 260 265 270 275 280 285 290 295 300 305 310 315 320 325 330 335 340 345 350 355 360 365 370 375 380 385 390 395 400 405 410 415 420 425 430 435 440 445 450 455 460 465 470 475 480 485 490 495 500 505 510 515 520 525 530 535 540 545 550 555 560 565 570

Sound Settings > Factory EQ

Selecting Factory EQ from the Audio Menu Bar will access factory equalizer presets for different music types.

Rock - Hip-Hop - Electronic - Jazz - Pop

When a Factory EQ preset is selected, it can be fine-tuned using the Equalizer and then re-saved as a User Preset.

Audio Settings Radio Options New Comps Audio Sup X Rock Hip-Hop Electronic Jazz Pop Flat

HEIGH10·

SOUND SETTINGS SOUND SETTINGS

Sound Settings > Crossover

Selecting Crossover from the Audio Menu Bar will access the internal electronic variable crossover. Crossover settings can be saved and recalled via Presets.

Front / Rear / Subwoofer Channels Select Front, Rear or Subwoofer to set crossover.

Slope [6dB-12dB-18dB]

Adjusts the slope of the crossover.

Frequency

[BYPASS-25-40-63-80-100-160-250Hz] Adjusts crossover frequency. Front and Rear channels are High Pass and Subwoofer is Low Pass.

Level [-12 - 0]

Adjusts signal level. Channel levels can be adjusted regardless of crossover settings.

Saving Crossover Settings

There are 6 user Presets that can be used to save Crossover settings.

When you are done adjusting the Crossover, touch and hold a Preset location to save the settings. The Preset will highlight.

Graphical representation of crossover Slope, Frequency and Level.

Front Near Subwoofer Slope 12dB Frequency 80Hz Level -5 Flat Preset 1 Preset 2 Preset 3 Preset 4 Preset 5 Preset 6

Front Channel = Blue Rear Channel = Orange Subwoofer = Green Active(Selected) = Yellow

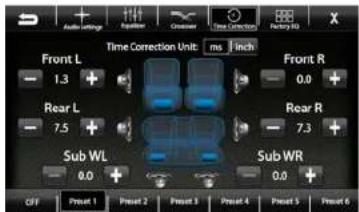

Sound Settings > Time Correction

Selecting Time Correction from the Audio Menu Bar will access the Time Correction settings. Time Correction settings can be saved and recalled via Presets.

Time Correction compensates for the uneven distances between the speakers and a listeners ears. Time Correction delays signals from the closest speaker(s), so that all the sound arrives at the listening position at the same time, giving the listener a more accurate, life like stereo image.

To set Time Correction, select a listening position, for example the drivers seat headrest. Then measure from each speaker to the listening position. Set Units to inch and input speaker distance values into the appropriate positions using the +/- buttons.

Saving Time Correction Settings

There are 6 user Presets that can be used to save settings. When you are done adjusting the Time Correction, touch and hold a Preset location to save the settings. The Preset will highlight.

Select milliseconds or inches

Auto setting Number Current Time Correction History 10 Time Correction Unit ms inch Front L 17 Front R 0 Rear L 101 Rear R 97 Sub WL 0 Sub WR 0 OFF Preset 1 Preset 2 Preset 3 Preset 4 Preset 5 Preset 6

Auto setting Rearer Crossover Time Correction Factory KG Front L Time Correction Unit ms Inch Front R 1.3 0.0 Rear L 7.5 Rear R 7.3 Sub WL 0.0 Sub WR 0.0 OFF Preset 1 Preset 2 Preset 3 Preset 4 Preset 5 Preset 6

HEIGH10·

SOUND SETTINGS

Settings > Sound Settings > Advanced Settings

Selecting Advanced Settings ▶ from the Audio Settings screen will access the following settings:

Defeat [ON-OFF]

When set to ON, this will defeat/bypass all equalizer, crossover, speakers settings. This is useful when connecting to a DSP.

Default Audio Settings [Reset] Press to reset all audio settings to default.

Toslink(Optical Out) [ON-OFF]

Turns variable digital output ON/OFF

Microphone Selection [INTERNAL-EXTERNAL] Select External if external microphone is installed. Select internal to use built-in microphone.

Audio Settings Defeat Default Audio Settings Toslink(Optical Out) Microphone Selection Source Gain Volume Settings

Source Gain Settings ▶

Selecting Source Gain from the Advanced Audio Settings will allow gain/volume adjustments for individual sources. For example, if AM/FM is much louder than BT Music, lower AM/FM and/or raise BT Music to even out volume levels.

Source Gain Settings AM/FM MIN MAX Reverse Camera MIN 11 MAX Android Auto MIN 11 MAX Apple CarPlay MIN 9 MAX USB Audio MIN 11 MAX USB Video MIN 12 MAX

Volume Settings ▶

Selecting Volume Settings from the Advanced Audio Settings will access the following Volume settings:

Arrow down for additional sources

Start Volume [LAST-CUSTOM]

LAST will be same level as when unit was shut off. CUSTOM will be a preset level adjusted below.

Volume Slider [0-40]

Adjusts CUSTOM volume level to specific level.

The Volume Mode is adjustable for Bluetooth(BI). Navigation(NAV) and Voice using the same procedure.

Volume Settings Start Volume BT Volume NAV Volume Voice Volume

Reset Button

The Reset Button is located on the lower right hand corner of the display. To reset the unit the power must be on, use a paper clip or similar to push the reset button for 2 seconds and release. The reset will take a few minutes, do not turn of power during this time.

GPS HDMI AV IN (SiriusXM3)

Reset Button

HEIGH10·

TROUBLE SHOOTING

Black Screen with Audio

Touch the screen anywhere as it may have been turned off, see page 25. Ensure the cables on the back of the screen are fully locked into place and also properly connected at the back of the radio module. Check for damaged/kinked cables.

Display Image Is Inverted

Press and Hold the HOME BUTTON for 5 seconds. The Display Orientation page will appear, select desired orientation.

Bluetooth

Device will not Pair

Ensure Bluetooth is turned ON in your device settings. Delete all unused devices. Delete any "Slinger" device. Restar1/Reboot device and try pairing again. (Page: 10)

Music Volume is low

• Turn up volume on device
• Turn up volume on head unit.
• Turn up BT Volume Gain (Page: 34)

Phone Volume is low

• Tum up volume on device
• Turn up volume on head unit.
• Tum up BT Volume Gain (Page: 34)
• Turn up Mic Gain (Page: 11)

Video/Cameras

Rear Camera not displaying in reverse - Make sure rear camera trigger is ON (Page: 29)

• If display is showing NO SIGNAL in reverse,
  ensure camera RCA is plugged into
  correct RCA input (CAMERA IN).
• Confirm camera has power and ground.
• Confirm camera trigger is receiving positive12V.
  Note: NTSC and PAL video formats only.

SiriusXM Satellite RadioGene

Check Antenna

The radio has detected a fault with the SiriusXM antenna. The antenna cable may be either disconnected or damaged. - Verify that the antenna cable is connected to the SiriusXM Connect Vehicle Tuner. - Inspect the antenna cable for damage and kinks.

Replace the antenna if the cable is damaged. SiriusXM products are available at your local car audio retailer or online at www.shop.siriusxm.com.

Check Tuner

The radio is having difficulty communicating with the SiriusXM Connect Vehicle Tuner. The tuner may be disconnected or damaged. - Verify that the SiriusXM Connect Vehicle Tuner cable is securely connected to the radio.

No Signal

The SiriusXM Connect Vehicle Tuner is having difficulty receiving the SiriusXM satellite signal.
- Verify that your vehicle is outdoors with a clear view of the sky.
- Verify that the SiriusXM magnetic mount antenna is mounted on a metal surface on the outside of the vehicle.
- Move the SiriusXM antenna away from any obstructions. Inspect the antenna cable for damage and kinks.
- Consult the SiriusXM Connect Vehicle tuner installation manual for more information on antenna installation.

Replace the antenna if the cable is damaged. SiriusXM products are available at your local car audio retailer or online at www.shop.siriusxm.com.

Channel Locked

The channel that you have requested is Locked by the radio Parental Control feature. See the Parental Control section on Page 18 for more information on the Parental Control feature and how to access locked channels.

Subscription Updated

The radio has detected a change in your SiriusXM subscription status.
- Press anywhere on the screen to clear the message.
In the U.S.A., visit www.siriusxm.com or call 1-866-635-2349 if you have questions about your subscription. In Canada, visit www.
siriusxm.ca or call 1-877-438-9677 if you have questions about your subscription.

Channel Unavailable

The channel that you have requested is not a valid SiriusXM channel or the channel that you were listening to is no longer available. You may also see this message briefly when first connecting a new SiriusXM Connect Vehicle tuner. Visit www.siriusxm.com for more information about the SiriusXM channel lineup. title, exists.

Memory End

This message will display when the beginning of stored audio has been reached. You cannot rewind any further.

Memory Full

The stored audio memory has become full while audio was paused. Resume playback.

Channel Unsubscribed

The channel that you have requested is not included in your SiriusXM subscription package or the channel that you were listening to is no longer included in your SiriusXM subscription package.

In the U.S.A., visit www.siriusxm.com or call 1-866-635-2349 if you have questions about your subscription package or would like to subscribe to this channel. In Canada, visit www.siriusxm.ca or call 1-877-438-9677.

TROUBLE SHOOTING

Apple CarPlaySiriusXM Satellit

Apple CarPlay will not start/launch

• Ensure you are using a Apple certified cable
• Make sure you are plugged into USB #1(top)
• Make sure Apple CarPlay is turned ON (Page 20)

Android Auto

Android Auto

• Ensure you are using a USB certified cable
• Make sure Android Auto app is
  downloaded and installed on your device.
• Make sure you are plugged into USB #1(top)
• Make sure Android Auto is turned ON (Page 21)

HEIGH10·

SPECIFICATIONS SPECIFICATIONS

GENERAL

Operating Voltage: 9.0VDC to 18VDC

Grounding system; Negative Ground

Max current consumption; 10A fused

DIMENSIONS

Radio Module:

178 mm x 100 mm x 116 mm (W x H x D)

Display:

247.2 mm x 180.6 mm x 48.5 mm (W x H x D)

DISPLAY

10-inch Diagonal

16:9 aspect ratio

1024×600

Pixels: 1,843,200

Active area 222.72 (W) x 125.28 (H) mm

Operating Temperature (C) -20° to 70°

AUDIO

Peak power output: 50W x 4ch/4Ω

Load impedance: 4Ω nominal / 2Ω allowable

Continuous power output:

25W x 4ch/4Ω 20Hz to 20KHz,

1%THD of 14.4V

Audio output level (max): 4.0V preout

EQ: (15-band)

25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/

630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/

10KHz/16KHz

Gain: ±12dB (2dB/slep)

HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz

Slope: 6dB, 12dB, 18dB

AUDIO (CONT)

Subwoofer Preout

LPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz

Slope: 6dB, 12dB, 18dB

Gain: -14dB to 7dB (1dB/step)

Phase: 0 or 180

Speaker level: ±9dB (1dB/slop)

Time Alignment: 0 to 133 step (inch/ms)

USB

USB 2.0

Max current supply 1.5A

USB Class:

MSC (Mass Storage Class),

MTP (Media Transfer Protocol)

File system: FAT32, NTFS

BLUETOOTH

V4.2 dual

4dBm Class2

2.4GHz to 2.48GHz

FM TUNER

87.9MHz to 107.9MHz

Usable sensitive 0dB (mono S/N: 30dB)

SNR: 65dB

AM TUNER

530KHz to 1710KHz

Usable sensitive 0dB (mono S/N:20dB)

SNR 58dB

CAMERA(S) VIDEO INPUTS

NTSC OR PAL video formats

HDMI INPUT

Supported HDMI Resolutions:

640*480p, 720*480p, 1280*720p,

1920*1080i, 1920^1080p

TOSLINK (OPTICAL)

Output: 48khz Variable

BACKGROUND IMAGE (USER)

File Format: JPG / PNG

Resolution: 1024 x 600

File size is not limited

AUDIO/VIDEO FORMATS

AUDIO

MPEG-1 Audio Layer-3 (.mp3)

FLAC (.flac)

MPEG-2 Advanced Audio (.aac)

MPEG-4 Audio (.m4a)

Windows Audio (.wav)

OGG Audio (.ogg)

VIDEO

QuickTime (.mov)

MPEG-4 Video (.mp4)

Microsoft AVI (.avi)

MPG Video (.mpg)

MPEG Video 1/2 (.mpeg)

VOB DVD (.vob)

Flash Video (.lv)


JPEG (.jpg)

CompuServe GIF (.gif)

PNG (.png)

JPEG (jpeg)

Bitmap (.bmp)

HEIGH10®

FEATURES

■ 10-Inch 1024 x 600 HD Digital Touchscreen with 16.7M colors

Apple CarPlay®

Google Android Auto™

SiriusXM-Ready® with Replay (SiriusXM Connect Vehicle Tuner and Subscription required)

■ AM/FM Radio - PTY / RT information

■ High power 4 x 50W (peak) built-in amplifier

■ 4V 6ch RCA audio outputs with subwoofer control

■ Toslink (Optical) Variable Audio Output

■ 15 Band Adjustable EQ with 6 user presets

■ 1 HDMI rear input

■ 2 USB rear inputs 1.5amp output

- Handsfree Bluetooth® 4.2 A2DP with aptX™

■ Built-in MicroSD card slot for optional iGO Navigation

■ 4 Camera Video inputs with wired triggers

■ Rear camera input with Mic Audio input

■ Hardwired remote control ready

- Customizable display backgrounds

■ Shallow 1-DIN chassis mounting design
