Product Type	Wireless USB Drive (WiFi Mirroring Interface)
Brand	CRUX
Model	WVICH-03
Power Supply	12V DC (ACC)
WiFi Bands	Dual Band 2.4GHz and 5GHz
Video Output	HDMI and Composite RCA
Video Input	Composite RCA (for camera or external source)
Audio Input	Left and Right RCA
USB Input	Yes, for media files (audio, video, photos)
Wireless Mirroring	Supports iOS (AirPlay) and Android (Miracast/Quick Connect)
Virtual Remote Control	Via web browser at 192.168.59.254 when connected to Crux WiFi
Compatible Vehicles	Dodge Durango (2014-2015), Ram 1500/2500/3500 (2013-2016), Jeep Grand Cherokee (2014-2016) with Uconnect 5" or 8.4" radio
DIP Switch Settings	DIP4 ON to enable AV Input; DIP1 OFF for toggle switch mode; DIP6 ON for CAN termination fix
AV Input Trigger	Blue wire to +12V (recommended with toggle switch)
Parts Included	CAN Module, A/V Harness, WiFi Module, Extension AV Cable, Power Harness, Dual Antennas, AV Out Harness, AV In/Video Out Harness
Installation	Professional installation recommended; T-harness connects to factory radio
Compatible Apps	Facetime, Maps, Skype, YouTube, and other non-DRM apps
DRM Restriction	Does not support Netflix or DRM-protected content on iOS
Dimensions (Module)	Approx. 3.5 x 2.5 x 1 in (estimated)
Weight	Approx. 0.5 lbs (estimated)
Cleaning	Use dry cloth; keep away from moisture
Safety	Operate within vehicle's electrical system; avoid short circuits
Repairability	No user-serviceable parts; contact CRUX support for issues

Frequently Asked Questions - WVICH-03 CRUX

How do I mirror my iPhone to the CRUX WVICH-03?

Connect your iPhone to the WiFi network named Crux WiFi ***. Then open Control Center, tap Screen Mirroring, and select Crux WiFi ***.

Why is my screen showing a blue screen when I switch to AV input?

A blue screen indicates no video signal on the AV input. Ensure a video source (camera or external device) is connected and powered. Press BACK or turn off the toggle switch to exit.

How do I switch to the AV input on my radio?

Press the BACK button on the factory radio. If your radio lacks a BACK button, connect a toggle switch between the GREEN wire and +12V, then toggle it to switch. Ensure DIP switch #1 is set to OFF for toggle mode.

Can I stream Netflix or other DRM-protected content from my iPhone?

No. Due to Apple restrictions, the CRUX WVICH-03 does not support Netflix or any DRM-protected content on iOS devices. Use non-DRM apps like YouTube, Facetime, or Maps.

How do I access the virtual remote control?

Ensure your phone is connected to the Crux WiFi *** network. Open a web browser and go to 192.168.59.254. The virtual remote control page will load, allowing you to play/pause, skip tracks, adjust volume, and select media sources.

Which vehicles are compatible with the WVICH-03?

Compatible models include Dodge Durango (2014-2015), Ram 1500/2500/3500 (2013-2016) (excluding trucks with factory backup/cargo cameras), and Jeep Grand Cherokee (2014-2016) with 5" or 8.4" Uconnect radios.

How should I set the DIP switches on the CAN module?

For standard operation, set DIP #4 to ON to enable AV input. DIP #1 should be ON for VIM enable or OFF if using a toggle switch. DIP #5 and #6 are for CAN termination; set DIP #6 to ON if the radio freezes. Refer to the manual for full settings.

Do I need an active internet connection for mirroring?

No. Mirroring uses a direct WiFi connection between your device and the WVI-H module. No internet is required.

Can I connect a reversing camera to the WVICH-03?

Yes. The A/V input can be used to connect a camera. You will need to trigger the input using the BLUE wire connected to +12V, optionally via a toggle switch.

How do I update the firmware on the WVICH-03?

The manual does not mention firmware updates. For any updates or issues, contact CRUX support at [phone] or visit www.cruxinterfacing.com.

USER MANUAL WVICH-03 CRUX

• Enables wireless (Wi-Fi) Audio/Video mirroring from mobile devices to the OEM screen.
• Provides an audio/video input which can also be used to add a camera.
• Includes a USB input to play audio and video files.
• Provides a virtual remote control via a smartphone wifi connection.
• Dual band (5GHz and 2.4GHz) Wifi capability for clear connection.
• Includes HMDI output for high quality video.
• Works with Facetime, Maps, Skype, YouTube, and other apps.

WORKS WITH:

iOS

iOS 7 and newer

OS 4.2 and newer

PARTS INCLUDED:

Coiled network cable with connectors and multimeter head (no text or symbols visible)

WVICH-03B CAN Module WVICH-03B A/V Harness

Black cable with multiple colored audio/video connectors (no text or symbols visible)

WVI-H WiFi Module Extension AV Cable Power Harness

Coiled black cable with multiple colored connectors (no text or symbols visible)

Coiled black cable with two yellow connectors and red connectors (no text or symbols visible)

Dual Antennas WiFi AV Out Harness AV In / Video Out Harness

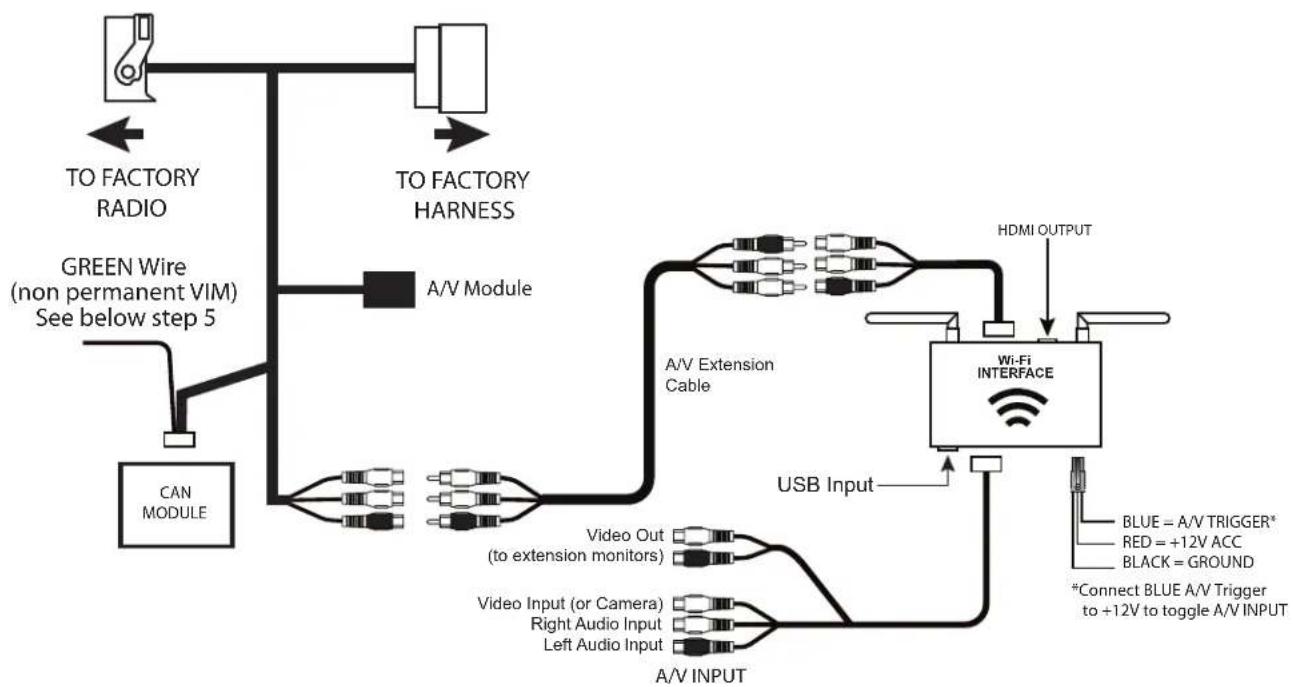

INSTALLATION DIAGRAM:

INSTALLATION INSTRUCTIONS:

THE AV INTERFACE:

1. Remove the factory radio from the dashboard.
2. Unplug the factory connectors from behind the factory radio.
3. Mate the WVICH-03B T-Harness connections to the factory connectors. (Make sure all connectors are properly seated into the interface and into the radio.)
4. On the CAN Module, set DIP switch number 4 to ON to enable AV Input.
5. Switch to the new AV input by pressing the BACK button on the radio. If the radio does not have a BACK button use the GREEN wire option to toggle the AV source by connecting it to +12V. We recommend using a toggle switch to use this feature. (See page 3)

THE WIFI INTERFACE:

1. Connect the 18-Pin power/video cable to the Wi-Fi Interface module.
2. Connect the antenna leads to the module.
3. Connect the RED power lead to +12V ACC and the BLACK wire to Ground.
4. Connect the BLUE A/V Input wire to +12V to trigger the optional A/V input feature. The video input can also be connected to a camera source instead. A toggle switch (not included), wired between the BLUE wire and +12V can be used to switch ON or OFF the A/V input feature.
5. If the USB input feature will be used, you can use the virtual remote control on your smartphone to control the USB functions. See VIRTUAL REMOTE section for details. Extended a USB cable to an easily accessible location.
6. Plug in the Composite RCA output of the WVI-H harness to the WVICH-03B AV input.
7. Switch to the new AV input by pressing the BACK button on the radio or the middle button on the SWC. (See below)
8. Test the interface and re-install the radio into the dash.

DIP SWITCH SETTINGS ON THE MODULES:

Make sure the DIP#4 is set to the ON position. This sets the programming to the vehicle.

DIP 1	ON	VIM Enable	OFF	VIM Disable
DIP 2	OFF	Not Used
DIP 3	OFF	Not Used
DIP 4	ON	AV Input Enable	OFF	AV Input Disable
DIP 5	OFF	CAN Termination	Car Side
DIP 6	OFF	CAN Termination	Radio Side

NOTE:

1. Set DIP#6 to ON if you experience the radio freezing or not responding properly.

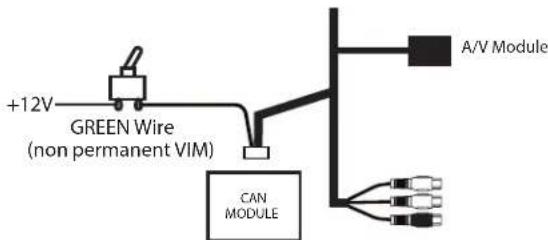

SWITCHING TO THE A/V INPUT

Press the BACK button once to switch to the AV source.

For vehicles without a BACK button, user has the option of using a toggle switch between the GREEN wire and +12V to switch to AV mode. Make sure to turn DIP# 1 to OFF.

NOTE: If there is no video signal flowing through the AV input, there will be a BLUE screen present. To exit, simply press the BACK or turn off the toggle switch.

SETTING YOUR DEVICE:

With the WVI-H module ON and READY:

For iOS Devices:

NOTES:

1. Does not support Netflix and any DRM protected files on iOS devices due to Restrictions by Apple.

Open settings > Select Wi-Fi > Under 'Choose Network' Select "Crux WiFi ***"

After connecting to Crux Wifi, select "SCREEN MIRRORING" from the Control Center and tap Crux Wifi *** . To access Control Center, on iPhone X, pull down from the upper right corner of the screen, on other iPhone models, pull up from the bottom of the screen.

For Android Devices:

From the drop down drawer, press "Quick Connect" > Select "Crux Wifi ***"

Notes:

1) Make sure the "Power Saving Mode" is turned off.
2) Make sure Quick Connect is updated to the latest version.

MIRRORING:

The mirroring connection uses a direct Wi-Fi connection to transfer the Audio and Video from your device to the WVI-H module. This does not require an active network. If your smartphone has the Screen Time Out enabled and your display goes to sleep mode, you will no longer see the image on the screen. Deactivate this feature for continuous viewing

VIRTUAL REMOTE CONTROL:

The WVI-H comes with a Virtual Remote Control via a Wifi connection. To access the virtual remote control, make sure that the phone is connected to Crux Wifi *** . Open your web browser and type in the following on the address bar: 192.168.59.254

The Virtual Remote control will open. Use the virutal remote control to PLAY, PAUSE, STOP, TRACK UP/DOWN, VOLUME UP/DOWN, etc.

Plug in a USB thumb drive to the USB cable port of the WVI-H. Tap OPTIONS on the Virtual Remote Control to select MOVIES, PHOTOS, MUSIC, etc. Use the remote to play/pause or skip tracks.

Tap SETUP to change settings on VIDEO, SYSTEM, NETWORK, and AUDIO. We recommend NOT to change any SYSTEM settings as this would interfere with the WVI-H functionality.

RADIO COMPATIBILITY:

DODGE

2014 – 2015 Durango

RAM\*

2013-2016 1500

2013-2016 2500

2013-2016 3500

JEEP

2014 - 2016 Grand Cherokee

*NOT compatible on RAM trucks with factory installed backup and cargo cameras.

Interior view of a car dashboard with digital display and control knobs (no visible text or symbols)

8.4" Uconnect Radio (1-Piece Radio) 5" Uconnect Radio (1-Piece Radio)

rev.0312215 of 5

Crux Interfacing Solutions • Chatsworth, CA 91311 phone: [phone] • fax: [phone] • www.cruxinterfacing.com
