USER MANUAL ACS-2020-IG-10C-HW Lowell
ACS-2020-IG-10C-HW
AC Power Strip w/Ten Circuits
Ten-circuit power strip with twenty NEMA 20A insulated ground receptacles (10 duplex), for installations requiring multiple AC power circuits, includes universal mounting brackets with hardware.
FEATURES
POWER RATING: 120VAC, 60Hz, 20A (each circuit)
CHASSIS: 60" x 2" x 2" steel chassis with black powder epoxy finish
TERMINATION: Hardwired 6 ft. non-metallic flexible conduit (whip) rotates in any direction. It can be trimmed in the field if needed.
CIRCUITS & RECEPTACLES: A total of 20 insulated ground (isolated ground, I.G.) receptacles (10 duplex) are wired into 10 independent circuits.
• Each circuit powers one (1) NEMA 5-20R I.G. duplex receptacle
- Connections are made via numbered pigtail leads.
UNIVERSAL MOUNTING BRACKETS: The universal brackets allow for power strip installation in a variety of applications with receptacles facing front, center or rear. Brackets are engineered with multiple mounting points and include two types of hardware to facilitate easy installation in a rack with adjustable or fixed rails, to a wall, or under a desk/counter. The brackets can be mounted so they are exposed for easy access or concealed beneath the power strip for an aesthetically cleaner installation.
CERTIFICATION: ETL Listed in U.S./Canada
ORIGIN: Assembled in U.S.A. with U.S. steel chassis and global components
A&E SPECIFICATIONS
The 20A power strip with 10 independent circuits shall be Lowell model ACS-2020-IG-10C-HW. It shall feature 20 isolated ground (I.G.) NEMA 5-20R receptacles (10 duplex). The power strip shall terminate via a six-foot non-metallic flexible conduit with a rotating connector and pigtail leads tagged for circuits 1-10. The power strip chassis shall measure 60" x 2" x 2" and shall be steel with black powder epoxy finish. It shall include universal mounting brackets. The power strip shall be made in the U.S.A. with global components.
UNIVERSAL MOUNTING BRACKETS: The brackets can be mounted exposed for easy access or concealed for a cleaner install. Includes variety of hardware for versatile installation.
(4) Brackets


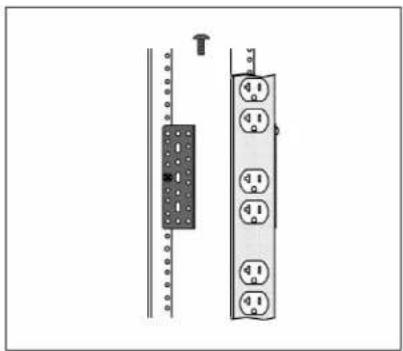

mounting bracket exposed mounting bracket concealedRACK w/ ADJUSTABLE RAILS
(side mount): Mount to horizontal side supports with universal brackets, 1/4"-20 screws, flat nuts.
(rear mount): Mount to rear rail with universal brackets, 10-32 screws.
(and rear Z-angle bracket): Mount to Z-angle with universal brackets, 10-32 screws, cage nuts.
HOW TO TRIM THE CONDUIT: The 6 ft. non-metallic flexible conduit can be trimmed in the field.
Snip reinforcing rib at desired length. Bend the conduit to expose the cut and carefully cut around the conduit without cutting the wires inside. Remove excess length.
2)REMOVECONNECTOR:
Carefully snip the last rib(s) to loosen the connector from the excess length, then twist/pull to remove it.
3) REATTACH CONNECTOR:
Twist/push the connector to attach it to the shortened conduit.
SERIES SUMMARY
| Power NEMA Chassis Chassis Model No. | Chassis Rating | Chassis Surge Rating | Mounting Country Receptacles | Circuits | Length | Profile | Termination | Switch | Suppression | Power Control | Aids | of Origin |
| ACS-1505-SW | 15A | 5 (15A) | 1 | 12" | Standard | 6' Det. cord | Yes | --- | --- | Brackets | U.S. | |
| ACS-1505-SW-SD | 15A | 5 (15A) | 1 | 12" | Standard | 6' Det. cord | Yes | 2-stage | --- | Brackets | U.S. | |
| ACS-1506 | 15A | 6 (15A) | 1 | 20" | Low | 6' Fixed cord | --- | 1-stage | --- | Clips | China | |
| ACS-1506-WW | 15A | 6 (15A) | 1 | 12" | Low | 6' Fixed cord | --- | --- | --- | Screws | U.S. | |
| ACS-1507 | 15A | 7 (15A) | 1 | 12" | Low | 6' Det. cord | --- | --- | --- | Screws | U.S. | |
| ACS-1512 | 15A | 12 (15A) | 1 | 32" | Low | 12' Fixed cord | --- | 1-stage | --- | Clips | China | |
| ACS-1524 | 15A | 24 (15A) | 1 | 60" | Low | 12' Fixed cord | --- | 1-stage | --- | Clips | China | |
| ACS-1524-2C | 15A | 24 (15A) | 2 | 70" | Low | Pigtail leads | --- | --- | --- | Clips | China | |
| ACS-2012 | 20A | 8 (15A) + 4 (20A) | 1 | 32" | Low | 12' Fixed cord | --- | 1-stage | --- | Clips | China | |
| ACS-2024 | 20A | 16 (15A) + 8 (20A) | 1 | 70" | Low | 12' Fixed cord | --- | 1-stage | --- | Clips | China | |
| ACS-2014-HW | 20A | 14 (20A) | 1 | 30" | Standard | 6' Conduit | --- | --- | --- | Brackets | U.S. | |
| ACS-2014-2C-HW | 20A | 8 (15A) + 6 (20A) | 2 | 30" | Standard | 6' Conduit | --- | --- | --- | Brackets | U.S. | |
| ACS-2020-6C-HW | 20A | 20 (20A) | 6 | 60" | Standard | 6' Conduit | --- | --- | --- | Brackets | U.S. | |
| ACS-2020-IG-6C-HW | 20A | 20 (I.G. 20A) | 6 | 60" | Standard | 6' Conduit | --- | --- | --- | Brackets | U.S. | |
| ACS-2020-IG-10C-HW | 20A | 20 (I.G. 20A) | 10 | 60" | Standard | 6' Conduit | --- | --- | --- | Brackets | U.S. | |
| ACS-2024-2C | 20A | 24 (20A) | 2 | 70" | Low | Pigtail leads | --- | --- | --- | Clips | China | |
| ACS-1510-RPC | 15A | 10 (15A) | 1 | 30" | Standard | 6' Det. cord | --- | --- | Yes | Brackets | U.S. | |
| ACS-2010-RPC-HW | 20A | 10 (20A) | 1 | 30" | Standard | 6' Conduit | --- | --- | Yes | Brackets | U.S. | |
| ACS-2018-5C-RPC-HW | 20A | 18 (20A) | 5 | 60" | Standard | 6' Conduit | --- | --- | Yes | Brackets | U.S. | |
| ACS-2018-5C-RPCP-HW | 20A | 18 (20A) | 5 | 60" | Standard | 6' Conduit | --- | 1-stage | Yes (P) | Brackets | U.S. |
Chassis Profile = Standard profile (2" x 2"). Low profile (1.625" x 1.375")
Termination = Det. cord (detachable cord), Fixed cord (cord is attached—cannot be removed), Conduit (non-metallic flexible whip w/pigtail leads), Pigtail leads (leads at ends of chassis—no whip)
Switch = Yes (On/off rocker switch)
Surge Suppression = 1-stage (basic surge protection), 2-stage (surge protection with backup)
Remote Power Control = Some receptacles are controlled by a remote switch or sequencer (ordered separately); (P) indicates compatibility with Lowell P-Series pass-through sequencers.
Mounting Aids = Brackets (multi-hole brackets with hardware), Clips (clips and screws with wire tires), or Screws (power strips can mount to rear of US or USV Series shelves).
