Product Type	Mitchell Hi-Hat Tripod (Scaffold Hi-Hat)
Brand	Proaim
Model	THT-MTCL-01
Mount Type	Mitchell Mount
Leg Length	6" and 12" Scaffold Legs (interchangeable)
Material	Aluminum / Steel (industrial grade)
Weight Capacity	Up to 50 lbs (22.7 kg)
Net Weight	Approx. 7 lbs (3.2 kg)
Dimensions (folded)	20" x 12" x 4" (51 x 30 x 10 cm)
Adjustability	Knob-operated leg and arm adjustments
Included Accessories	Mitchell Mount Plate, 12" scaffold legs (3), 6" scaffold legs (3), clamps (3)
Warranty	1 year labor and parts
Intended Use	Professional camera support for film and video
Assembly Required	Yes, simple knob tightening
Maintenance	Keep knobs tight; wipe with dry cloth
Safety Notice	Ensure all knobs are tightened before use

Frequently Asked Questions - THT-MTCL-01 Proaim

What is the Proaim THT-MTCL-01?

It is a Mitchell Hi-Hat tripod also known as a Scaffold Hi-Hat, designed for professional camera support.

What is included in the box?

The box includes: Mitchell Mount Plate, three 12-inch scaffold legs, three 6-inch scaffold legs, and three clamps.

How do I assemble the hi-hat?

Loosen the knobs, spread the legs on the floor, then tighten all knobs securely to lock the position. Refer to the assembly manual for detailed steps.

Can I change the leg length?

Yes, you can swap between the included 6-inch and 12-inch scaffold legs by loosening the knobs and reattaching the desired legs.

What is the weight capacity of this tripod?

The maximum load capacity is up to 50 lbs (22.7 kg), suitable for most professional cinema cameras.

How do I adjust the arms or legs?

Simply loosen the corresponding knob, reposition the arm or leg to your desired angle or length, then tighten the knob firmly.

What is the warranty on this product?

Proaim offers a 1-year warranty covering labor and parts. Transportation costs and damages from misuse are not covered.

How should I clean and maintain the hi-hat?

Wipe the surface with a dry cloth. Avoid using harsh chemicals. Periodically check and tighten all knobs to ensure stability.

Is this hi-hat compatible with standard Mitchell heads?

Yes, it features a standard Mitchell mount and is compatible with most Mitchell-based camera heads and accessories.

What should I do if I encounter a problem?

Contact Proaim customer support immediately. They promise utmost support and care until you are satisfied with the product.

USER MANUAL THT-MTCL-01 Proaim

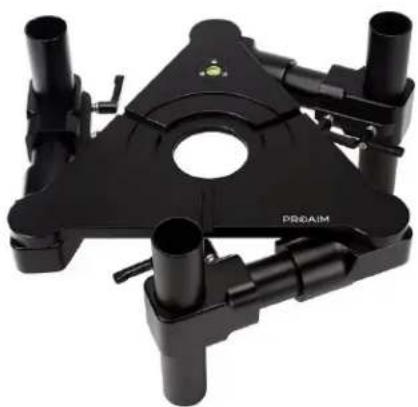

PROAIM Mitchell Cyrus Hi-Hat (Scaffold Hi-Hat) Versatile Camera Support (THT-MTCL-01)

Assembly Manual

Black industrial component with four cylindrical ports and a central circular hole (no visible text or symbols)

What's In Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed below.

Black triangular mechanical component with three ports and a central hole, no visible text or symbols

Mitchell Mount Plate

Three parallel cylindrical black rods arranged horizontally (no text or symbols visible)

12" scaffold Legs

Three identical black plastic electronic components with metal brackets, arranged horizontally (no text or symbols visible)

Clamps

Three parallel cylindrical objects with no visible text or markings

6" scaffold Legs

All rights reserved.

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.

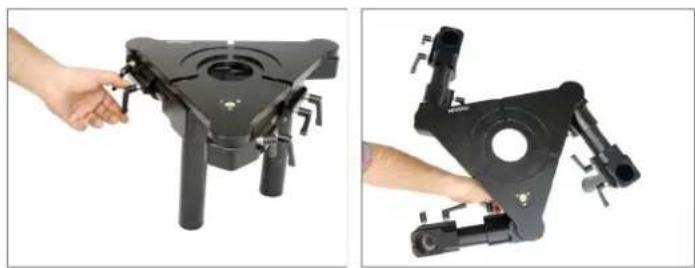

Mitchell Cyrus Hi-Hat Setup

- Loosen the knobs and spread it on the floor. Then tighten the knobs of Mitchell triohat again to secure appropriately.

Two views of a black mechanical device with adjustable arms and handle, shown from different angles (no text or symbols visible)

NOTE: Be sure all knobs are tight before and after any adjustments.

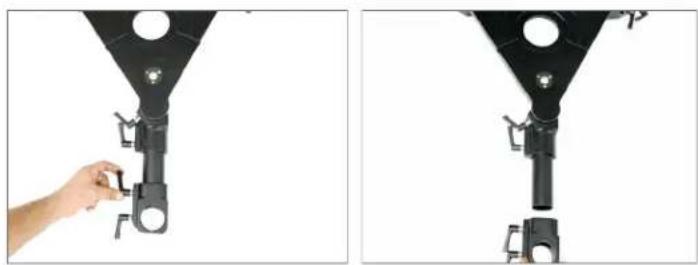

If, You Detach the legs

- Loosen the knobs & Remove the 6" scaffold leg into the Mitchell mount plate.

Two-step installation of a black tripod-mounted device with hands adjusting the base (no text or symbols visible)

• Similarly loosen the knobs of clamp & Remove it from their location as shown in the image

Two-panel image showing a hand adjusting a mechanical component, no text or symbols visible

- Loosen the knobs & Remove the 6" Scaffold legs.

Two-step photo showing a hand adjusting a black mechanical component with a cylindrical base (no text or symbols visible)

NOTE: You can Adjust the legs & Arms also by loosening the provided knob.

Two black mechanical components with cylindrical and rectangular features, shown from different angles (no text or symbols visible)

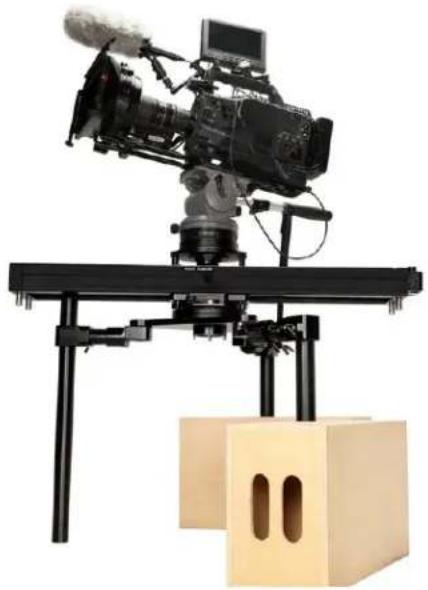

YOUR PROAIM MITCHELL TRIOHAT VERSATILE CAMERA SUPPORT ALL DRESSED UP AND READY TO GO!

Professional video camera on a black platform with cardboard boxes at the base (no visible text or symbols)

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn't cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

Contact Us: In case of any kind of dissatisfaction, please Contact us immediately and we promise our utmost support and care until you use our product.
