ACS-2010-RPC-HW - Radiator Lowell - Free user manual and instructions

Product Type	AC Power Strip with Remote Power Control
Model	ACS-2010-RPC-HW
Brand	Lowell
Power Rating	120VAC, 60Hz, 20A
Receptacles	10 NEMA 5-20R (5 duplex): 1 unswitched, 4 switched
Chassis Dimensions	30" x 2" x 2"
Chassis Material	Steel with black powder epoxy finish
Termination	6 ft. non-metallic flexible conduit with pigtail leads
Mounting	Universal brackets for rack, wall, or under-desk; adjustable or fixed rails
Remote Power Control	Low-voltage connection to external switch or sequencer via RPC terminal (SW, Com, V+ Out, Test)
Indicator LEDs	Green (power to receptacles), Red (AC power available)
Certification	ETL Listed (US/Canada)
Country of Origin	Assembled in USA with global components
Compatible Accessories	Lowell RPSW-P, RPSW-KP, RPSB-R, PRSB-KR switches; SEQ-4, SEQ-8, SEQR-4, SEQR-4K, SEQR-8, SEQR-8K sequencers (order separately)
Surge Suppression	None

Frequently Asked Questions - ACS-2010-RPC-HW Lowell

How do I install the ACS-2010-RPC-HW power strip?

Use the included universal mounting brackets to attach the power strip to a rack, wall, or under a desk. Connect the RPC terminal to a remote switch or sequencer using low-voltage cable. The unit is hardwired via the 6 ft. conduit; ensure power is off before installation.

Can I trim the conduit to a shorter length?

Yes, the 6 ft. non-metallic flexible conduit can be trimmed. Snip the reinforcing rib at the desired length, cut the conduit carefully without damaging wires, then remove the connector and reattach it to the shortened conduit.

How do I connect a remote switch or sequencer?

Connect low-voltage cable between the SW and Com terminals on the RPC block. For sequencers, use a dry contact closure. The V+ Out terminal provides +24VDC for compatible RPS Series switches.

What do the LEDs on the RPC terminal indicate?

The green LED lights when AC power is applied to the receptacles. The red LED indicates that AC power is available at the unit.

How many receptacles are switched vs. unswitched?

One duplex (2 receptacles) is unswitched and always powered when the unit is supplied. The remaining four duplexes (8 receptacles) are switched and controlled by the remote switch or sequencer.

What mounting options does the universal bracket support?

The brackets can be mounted exposed for easy access or concealed for a cleaner look. They support adjustable rails (side or rear), fixed-position rails with Z-angle brackets, and wall or under-desk mounting.

Is the ACS-2010-RPC-HW compatible with 15A circuits?

The unit is rated for 20A, but it can be used on a 15A circuit as long as the total load does not exceed 15A. However, the NEMA 5-20R receptacles accept both 15A and 20A plugs.

How do I use the Test function?

The Test switch applies power to the receptacles independently of the remote switch or sequencer. This is useful for troubleshooting or temporarily powering equipment without the remote control.

What is the difference between ACS-2010-RPC-HW and ACS-2010-RPC?

The -HW model has a hardwired termination (6 ft. conduit with pigtail leads), while the standard model uses a detachable power cord. Both have the same receptacle configuration and remote power control.

Can I use this power strip in a home theater setup?

Yes, it is suitable for home theater, AV racks, or any application requiring remote power control of multiple devices. The ETL listing ensures safety, and the universal brackets make installation flexible.

USER MANUAL ACS-2010-RPC-HW Lowell

ACS Series Model No.

ACS-2010-RPC-HW

AC Power Strip w/Remote Power Control

Hardwired power strip with ten 20A receptacles (five duplex) and remote power control function (RPC) can be combined with a variety of remote switches or sequencers to provide a low-voltage method of turning specific equipment on and off from a remote location. The ability to safely control AC power distribution without directly accessing equipment adds convenience, while minimizing the potential for unauthorized system modifications.

FEATURES

POWERRATING: 120VAC 60Hz 20A

CHASSIS: 30" x 2" x 2" steel chassis with black powder epoxy finish

TERMINATION: Hardwired non-metallic flexible conduit (whip) with pigtail leads. The six ft. conduit can be trimmed in the field if needed.

RECEPTACLES: Total of ten NEMA 5-20R receptacles (five duplex). One duplex is un-switched (always on when the unit is supplied with power). Four duplexes are switched (controlled by a remote switch or sequencer through the RPC terminal).

UNIVERSAL MOUNTING BRACKETS: The universal brackets allow for power strip installation in a variety of applications with receptacles facing front, center or rear. Brackets are engineered with multiple mounting points and include two types of hardware to facilitate easy installation in a rack with adjustable or fixed rails, to a wall, or under a desk/counter. The brackets can be mounted so they are exposed for easy access or concealed beneath the power strip for an aesthetically cleaner installation.

CERTIFICATION: ETL Listed in U.S./Canada

ORIGIN: Assembled in the U.S.A. with global components.

INSTALLATION

Use the universal mounting brackets to install the power strip near the equipment. Use low-voltage cable to connect the RPC terminal to a remote switch or sequencer.

A&E SPECIFICATIONS

The ETL Listed power strip with remote power control shall be Lowell model ACS-2010-RPC-HW, which shall have a power rating of 120VAC 60Hz 20A. The chassis shall be steel with black powder epoxy finish, measuring 30" x 2" x 2". It shall feature one unswitched and four switched NEMA 5-20R duplex receptacles. The four switched duplexes shall be controlled by an external power switch or sequencer (ordered separately) that is connected to the power strip's remote power control terminal. The power strip shall be made in the U.S.A. with global components. It shall terminate with a six ft. non-metallic flexible conduit with pigtail leads, and include universal mounting brackets with hardware to mount to a rack, wall or desk.

REMOTE POWER CONTROL: Use low-voltage cable to connect the RPC terminal to an external switch or sequencer.

RPC Terminal:

On: Green LED indicates AC power is applied to receptacles.

Power: Red LED indicates AC power is available.

Test: Test applies power to receptacles independent of remote switch or sequencer.

SW, Com: Connection between Switch and Common terminals activates internal relay and applies power to receptacles.

V+ Out: +24VDC output. Use only with RPS Series switches

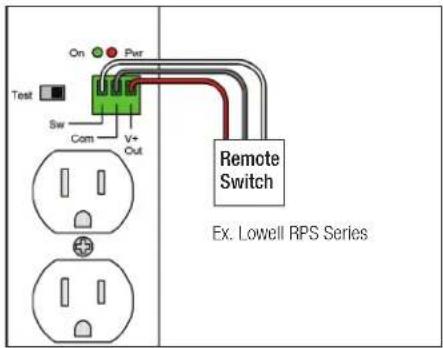

Connection to Remote Switch (wall or rackmount):

Connection to Sequencer or Control System with dry contact closure:

COMPATIBLE Switches & Sequencers: Order separately. See individual product spec sheets for more information.

Model No.	Description
RPSW-P	SPST switch w/maintained closure, one-gang white wall plate, rocker switch
RPSW-KP	SPST switch w/maintained closure, one-gang white wall plate, key switch
RPSB-R	SPST switch w/maintained closure, 1U rackmount panel, rocker switch
PRSB-KR	SPST switch w/maintained closure, 1U rackmount panel, key switch
SEQ-4	Four-step sequencer
SEQ-8	Eight-step sequencer
SEQR-4	Four-step rackmount sequencer w/rocker switch, 1U
SEQR-4K	Four-step rackmount sequencer w/key switch, 1U
SEQR-8	Eight-step rackmount sequencer w/rocker switch, 1U
SEQR-8K	Eight-step rackmount sequencer w/key switch, 1U

HOW TO TRIM THE CONDUIT: The 6 ft. non-metallic flexible conduit can be trimmed in the field.

Diagram showing a pliers applying material to coiled fibers, with an arrow indicating direction (no text or symbols)

1) REMOVE EXCESS LENGTH:

Snip reinforcing rib at desired length. Bend the conduit to expose the cut and carefully cut around the conduit without cutting the wires inside. Remove excess length.

2) REMOVE CONNECTOR:

Carefully snip the last rib(s) to loosen the connector from the excess length, then twist/pull to remove it.

3) REATTACH CONNECTOR:

Twist/push the connector to attach it to the shortened conduit.

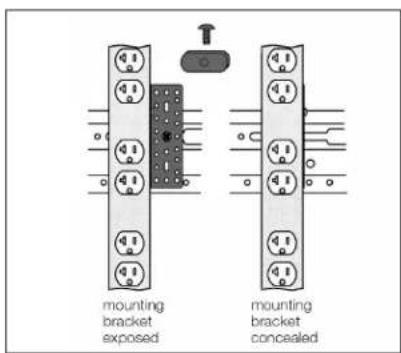

UNIVERSAL MOUNTING BRACKETS: The brackets can be mounted exposed for easy access or concealed for a cleaner install. Includes variety of hardware for versatile installation.

(2) Brackets

TT

(2) 1/4"-20 x 1/2" screws

(2) flat nuts

TT

(2) 10-32 x 1/2" screws

图

(2) cage nuts

RACK w/ ADJUSTABLE RAILS

(side mount): Mount to horizontal side supports with universal brackets, 1/4"-20 screws, flat nuts.

Diagram of two electrical panel layouts with circuit breakers and a switch, no text or symbols present

RACK w/ ADJUSTABLE RAILS

(rear mount): Mount to rear rail with universal brackets, 10-32 screws.

RACK w/ FIXED POSITION RAILS

(and rear Z-angle bracket): Mount to Z-angle with universal brackets, 10-32 screws, cage nuts.

SERIES SUMMARY

Power NEIMA Model No.

Chassis Rating

Chassis Rating

Go/Off Surge

Remote Mounting Receptacles

Country Circuits

Length

Profile

Termination

Switch

Suppression

Power Control

Aids

of Origin

ACS-1505-SW

15A

5 (15A)

1

12"

Standard

6' Det. cord

Yes

---

---

Brackets

U.S.

ACS-1505-SW-SD

15A

5 (15A)

1

12"

Standard

6' Det. cord

Yes

2-stage

---

Brackets

U.S.

ACS-1506

15A

6 (15A)

1

20"

Low

6' Fixed cord

---

1-stage

---

Clips

China

ACS-1506-WW

15A

6 (15A)

1

12"

Low

6' Fixed cord

---

---

---

Screws

U.S.

ACS-1507

15A

7 (15A)

1

12"

Low

6' Det. cord

---

---

---

Screws

U.S.

ACS-1512

15A

12 (15A)

1

32"

Low

12' Fixed cord

---

1-stage

---

Clips

China

ACS-1524

15A

24 (15A)

1

60"

Low

12' Fixed cord

---

1-stage

---

Clips

China

ACS-1524-2C

15A

24 (15A)

2

70"

Low

Pigtail leads

---

---

---

Clips

China

ACS-2012

20A

8 (15A) + 4 (20A)

1

32"

Low

12' Fixed cord

---

1-stage

---

Clips

China

ACS-2024

20A

16 (15A) + 8 (20A)

1

70"

Low

12' Fixed cord

---

1-stage

---

Clips

China

ACS-2014-HW

20A

14 (20A)

1

30"

Standard

6' Conduit

---

---

---

Brackets

U.S.

ACS-2014-2C-HW

20A

8 (15A) + 6 (20A)

2

30"

Standard

6' Conduit

---

---

---

Brackets

U.S.

ACS-2020-6C-HW

20A

20 (20A)

6

60"

Standard

6' Conduit

---

---

---

Brackets

U.S.

ACS-2020-IG-6C-HW

20A

20 (I.G. 20A)

6

60"

Standard

6' Conduit

---

---

---

Brackets

U.S.

ACS-2020-IG-10C-HW

20A

20 (I.G. 20A)

10

60"

Standard

6' Conduit

---

---

---

Brackets

U.S.

ACS-2024-2C

20A

24 (20A)

2

70"

Low

Pigtail leads

---

---

---

Clips

China

ACS-1510-RPC

15A

10 (15A)

1

30"

Standard

6' Det. cord

---

---

Yes

Brackets

U.S.

ACS-2010-RPC-HW

20A

10 (20A)

1

30"

Standard

6' Conduit

---

---

Yes

Brackets

U.S.

ACS-2018-5C-RPC-HW

20A

18 (20A)

5

60"

Standard

6' Conduit

---

---

Yes

Brackets

U.S.

ACS-2018-5C-RPCP-HW

20A

18 (20A)

5

60"

Standard

6' Conduit

---

1-stage

Yes (P)

Brackets

U.S.

Chassis Profile = Standard profile (2" x 2"), Low profile (1.625" x 1.375")
Termination = Det. cord (detachable cord). Fixed cord (cord is attached—cannot be removed). Conduit (non-metallic flexible whip w/pigtail leads), Pigtail leads (leads at ends of chassis—no whip) Switch = Yes (On/off rocker switch)
Surge Suppression = 1-stage (basic surge protection), 2-stage (surge protection with backup)
Remote Power Control = Some receptacles are controlled by a remote switch or sequencer (ordered separately); (P) indicates compatibility with Lowell P-Series pass-through sequencers.
Mounting Aids = Brackets (multi-hole brackets with hardware), Clips (clips and screws with wire tires), or Screws (power strips can mount to rear of US or USV Series shelves).
