USER MANUAL KASTRLTPRJA Kogan

Line drawing of a cylindrical mechanical device with concentric circles and a handle (no text or symbols)

KOGAN SMARTERHOME™ GALAXY & STAR LIGHT PROJECTOR

KASTRLTPRJA

SAFETY & WARNINGS

• Read all of the following instructions before use. Keep this user guide for future reference.
• Place the device away from fire source.
• Keep the device away from water source to avoid damage.
  • Children must use it under an adult supervision.
• Disconnect from power supply when not in use.
• Do not look directly at the laser light to avoid hurting your eyes.
• Do not point the light into the sky within 10 nautical miles (18.5km) of airport.
• Do not disassemble and assemble the device by yourself. Contact Kogan.com
• For indoor use only. This device works better in a dark environment.

COMPONENTS LIST

• Smart Star Projector
• USB Cable
• Adapter
• User Guide

1 2 3

1 Laser light
2 Projector light
3 Switch button

SETUP

1. Remove the protective sticker from the laser light.
2. Connect the projector to a power supply. The projector will turn on.
3. Press the switch button to cycle through different modes. The switch button will work as follows:

Button	Projector Power	Projector Light	Laser Light
Press once On Blue	On
Press twice On Red	On
Press three times On Green On
Press four times	On	Multi-colour	On
Press five times	On	Off	On
Press six times	Off	Off	Off

CONNECT TO SMARTERHOME™ APP

Install App

Download the "Kogan SmarterHome" app from the Play Store (Android) or App Store (iOS).

Register

If you do not have a Kogan SmarterHome™ account, register or sign in with a verification code sent by SMS.

To register:

1. Tap to enter registration page.
2. The system automatically recognises your country/area. You can also select your country code manually. Enter your email address and tap 'Next.'
3. Alternatively, you can select 'Register by mobile number' and enter the verification code sent to you by SMS.
4. Create a profile on the next page to define your location and room.

10:54 Email Mobile Number Register by Email Australia +61 [e-mail] Get Verification Code Agree Service Agreement and Privacy Policy

10:55 Email Mobile Number Register by Mobile Number Australia [phone] Get Verification Code I Agree Service Agreement and Privacy Policy

Set device in pairing mode

When the device is first turned on, it may automatically enter pairing mode which is indicated by blue light blinking rapidly.

If not automatically in pairing mode when powered on, you can manually set the device in pairing mode by pressing and holding the switch button for 6 seconds until the blue light begins blinking rapidly.

Add device through network

1. Once registered, tap "+" in the upper right corner of the app's home page to add a new device through the network.
2. Select the product type from the list of options in the app (Lighting > Star Light).
3. Ensure that the device is in pairing mode, with the projector light blinking blue, and tap "Confirm indicator rapidly blink".

3:54 Home Light Rain 19°C Outdoor Temper. 80.0% Outdoor Humidity 1006.8kPa Outdoor Air Press... All Devices Living Room Master Bedrow No devices, please add Add Device Home Save Use

11:57 Cancel Add Manually Auto Scan Lighting Electrical Home Security Hearing & Cooling Air Treatment Cleaning Appliance... Kitchen Appliance... Other

3:12 Cancel Reset the device first. Power on the device and confirm that indicator light rapidly blinks Resetting Devices > Confirm indicator rapidly blink

1. Upon successfully confirming pairing mode, enter your Wi-Fi details. It is important that your SmarterHome™ device and the app are connected to the same Wi-Fi network during setup.
2. The device will commence the pairing process and connect to the app. Ensure your Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close until connection is complete.

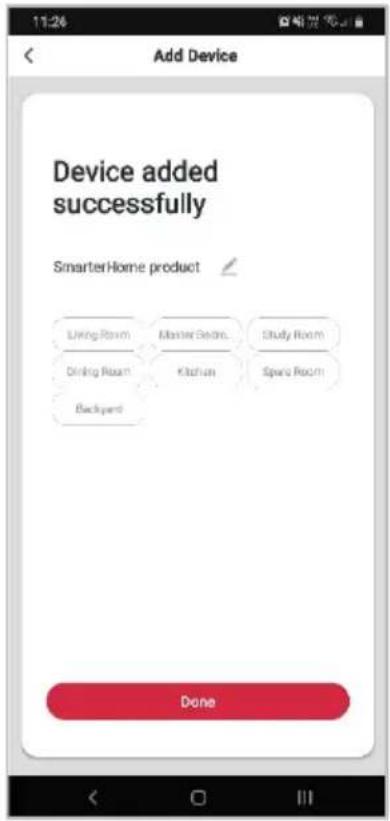

3. After successfully being added, you will have the option to rename the device and assign it to a location. It will now be listed on the app's home page. Tap the device listing to enter its control page.

3:39 Cancel Enter Wi-Fi Password 2.4GHz 5GHz ✓ ✗ Only 2.40 WiFi networks are supported > Your Network Name Password Confirm

11:26 Add Device Connecting... Place your router, mobile phone, and device as close as possible 15% • Device found • Register Device to Smart Cloud • Initiating device...

11:26 Add Device Device added successfully SmarterHome product Living Room Master Beds. Study Room Drinking Room Kitchen Spots Room Backyard Done

Notes:

• The device and the app have to use the same Wi-Fi network.
• The device is only compatible with 2.4Ghz networks.

GOOGLE HOME CONTROL

Note:

You will need to have set up a Google Home account prior to linking your Kogan SmarterHome™ device.

Adding "SmarterHome" to the Google Home app

1. From the home page of the Google Home app, select the "+" icon to access the 'Add and manage' page.
2. Select 'Set up device', then under the Works with Google banner, select 'Have something already set up?'
3. Select the search bar and type 'Smarter Home' to locate the Kogan SmarterHome™ service.

10:17 Home Visits Real Time Settings

10:17 Add and manage Add to home Set up device Invite home member Create speaker group Create new home Manage services Music and audio Videos and photos Offers Offers

10:17 Start time 2:00 AM Set up Set up new devices or add existing devices and services to your home New devices Set up new devices in your home Google Home, Smart Displays, devices installed Made for Google, like C by GE smart bu be, and Philips Hua Bluetooth (without His Bridge) Works with Google Have something already set up? Unit your smart home services the Philips Hua (with His Bridge) and TP-Link

1. Tap 'Authorise' to grant Google permission to access the SmarterHome™ app and your devices.
2. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.

10:18 ← smarter home Add new Smarter Home homes home homeless 1 2 3 4 5 6 7 8 9 0 q w e r t y u i o p @ v & + - + - ( ) a s d f g h j k l z x c v b n m 123 , 17 .

10:20 pk1.tuyaus.com Google will be able to: Receive your public profile Control your devices over internet Authorize You can revoke permission at any time.

1. Once connected, the app will display any compatible devices linked to your SmarterHome™ account. From here you can assign them to rooms and set up any routines.
2. Tap on any of the devices to view a list of available commands.

10:21 Add smart home devices Select devices and add to a room Devices connected within the SmarterHome™ app will appear here if compatible ADD TO A ROOM

10:23 + Home ▼ Media Routines Settings Back garden 2 devices Dog Cam (Backyard) Dog Cam (Undercover) Kitchen 1 device Cat Cam (Kitchen) Other cast devices 8 devices

Note:

Please note that Google Home can only control the base/core functions of any compatible SmarterHome™ devices. To make full use of this product's smart functionality, please use the Kogan SmarterHome™ app.

AMAZON ALEXA CONTROL

Note:

You will need to have set up an Alexa account prior to linking your Kogan SmarterHome™ device.

Adding "SmarterHome" to the Alexa app

1. From the home page of the Alexa app, select the “≡” icon in the top-right and select Skills & Games from the sidebar.
2. Select the search bar and type 'Smarter Home' to locate the Kogan SmarterHome™ skill.

10:28 Good Morning SOUTH WELBO LIME A##wai#e.com 28° 30° 22° Call and message from your Alexa devices Add your phone number to get started.

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games Activity Help & Feedback Settings

10:29 SEARCH Search anwarter home Result Sort Reference Smart Home "Alaws, set bathroom light to cool white." Smart Home

1. Tap 'Enable to Use' to add the Kogan SmarterHome™ skill to Alexa.
2. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.
3. Tap 'Authorise' to grant Alexa permission to access the SmarterHome™ app and your devices.

10:29 SMARTER HOME Smarter Home Kogan.com Reted: Guidance Suggested ENABLE TO USE Account Linking required If you have any problem when you use this skill, you can contact us with email: [e-mail] Amazon Alexa and the Kogan smart home products work together to help you control home appliance nice and easy.... See More Start By Saying English [AU] "Alexa, set bedroom light to cool white." "Alexa, dim the bedroom light to 50%." "Alexa, turn on my livingroom heater." About Note Save Home This will move here for your PLAY Citation

10:30 Account Binding https://pxy1.tuyears.com/pl/?client_id=amzn1... Alexa by Amazon will be able to: Receive your public profile Control your devices over internet Authorize You can revoke permission at any time.

1. Once connected, the app will perform a search and display the devices linked to your SmarterHome™ account.

2. When your devices have successfully connected to the Alexa app, you will be able to control your Kogan SmarterHome™ devices via Alexa's voice commands.

Alexa is looking for devices to connect... This may take up to 45 seconds.

10:45 ALL DEVICES Cat Cam (Study) • New Device Alexa on this Phone Online Cat Cam (Kitchen) Fish Cam Light 1 Plug 1

Note:

Please note that Alexa can only control the base/core functions of any compatible SmarterHome™ devices. To make full use of this product's smart functionality, please use the Kogan SmarterHome™ app.

TROUBLESHOOTING

Problem	Possible Solution
Why I cannot access the device via app?	·Ensure the device is within the range of both your router and connected smartphone.·Ensure the projector and your smartphone are both connected to the 2.4Ghz network. 5Ghz networks are not compatible for SmarterHomeTM connection.·Wi-Fi is not connected, reset device by long pressing the switch for 6 seconds. Reconnect it with the app. Check the Connect to SmarterhomeTM App section of this user guide.
Can I share the device with family members?	Enable the Device Sharing in the app settings.
Can the Kogan SmarterHomeTM app be installed on any smartphone?	The app can work with both iOS and Android smartphones.
Can I control this device with a 2G/3G/4G connection?	The device must be registered first on a 2.4GhzWi-Fi network. After you have successfully connected it, then the device can be controlled by your smartphone with 2G/3G/4G networks.
Will the device cause fire or any other hazard when kept on all night?	The device is safe to be on all night. If required, adjust the light brightness on the app.
Can the laser light damage eyes?	Yes, do not look directly into the laser light.
What are the dimensions of the projected image?	It depends on the placement of the device.

SPECIFICATIONS

Power Input	100~240V AC
Power Output	<1mW per beamlet
Classification of Lasers	Class 1
Work Temperature	-10~40°C
Wireless Type	Wi-Fi 2.4G 1T1R
Laser Colour	Green, 515-520nm
Nebula Colour	Colourful, 450nm
Shell Material	Flame Retardant V0 Class ABS
Application	Indoor (Home/Cafe/Bar/motor homes)
Certificate	FDA, FCC, CE, ROHS
Control By	Full Control: Kogan SmarterHomeTM appVoice Control: Amazon Alexa and Google Home
Iiming	Flexible Iiming
Dimensions (L X W X H)	16.2 x 6.8 x 16.2cm
Net Weight	0.5kg
Power Cord Length	1.8m

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
