USER MANUAL Frame 8 Heritage Audio

Front view of a server rack unit with labeled ports and connectors (no readable text or symbols beyond component labels)

Heritage Audio

USER MANUAL

Thank you for choosing the FRAME 8. Heritage Audio is dedicated to bringing you 'the sound of yesterday for tomorrow'. We specialize in capturing that unique, enticing sound that everybody has fallen in love with. For years engineers, producers and musicians have been yearning for that classic vibe. Usually the only option is to search for old, used original equipment that is almost always in a questionable state of operation. This brings with it a whole lot of other issues, making the experience less than desirable. Not to mention the very high prices asked for this equipment, which makes them virtually unobtainable for the great majority. Now it's possible to obtain that same sound with a brand new piece that will give you all the problem-free, heavy-duty use you'll need for years of music making history.

Peter Rodriguez

CEO

Heritage Audio - Madrid, Spain

© 2022 Heritage Audio S.L. is the sole owner of the copyright of all information and drawings contained in this manual which are not to be copied or reproduced by any means or disclosed in part or whole to any third party without written permission.

Heritage Audio reserves the right to alter specifications without notice. The information in this manual has been carefully checked and is believed to be accurate at the time of publication. However, no responsibility is taken by us for inaccuracies, errors or omissions nor any liability assumed for any loss or damage resulting either directly or indirectly from use of the information contained within it.

TABLE OF CONTENTS

INTRODUCTION	2
CONTENTS	2
DESCRIPTION	3
APPLICATIONS	6
SPECIFICATIONS	9
TROUBLE SHOOTING	9
WARRANTY STATEMENT	10
REGISTRATION	10
RECALL SHEETS	11

CONTENTS • FRAME 8 • AC POWER CORD EU & US • POWER SUPPLY HA-PSU08

Our FRAME 8 is handmade in the EU employing the same exact ISEP mechanical components used in the Series 80 consoles with aluminium rails, guides, etc. This will ensure your original vintage modules, as well as any of the currently made modules, will fit like a glove.

Every channel has its own output control to attenuate the signal before the output transformer as well as an illuminated phantom switch to provide 48 V.

The FRAME 8 is also ready for linking up to eight 2264E (Legacy Product) compressors.

The back panel features Neutrik gold plated XLR connectors for MIC and LINE inputs, as well as LINE outputs for connecting equipment.

External Power Supply Unit is connected by a Neutrik gold plated 4-pin XLR. It is configurable for 220-240 V or 110 V. The power supply is included.

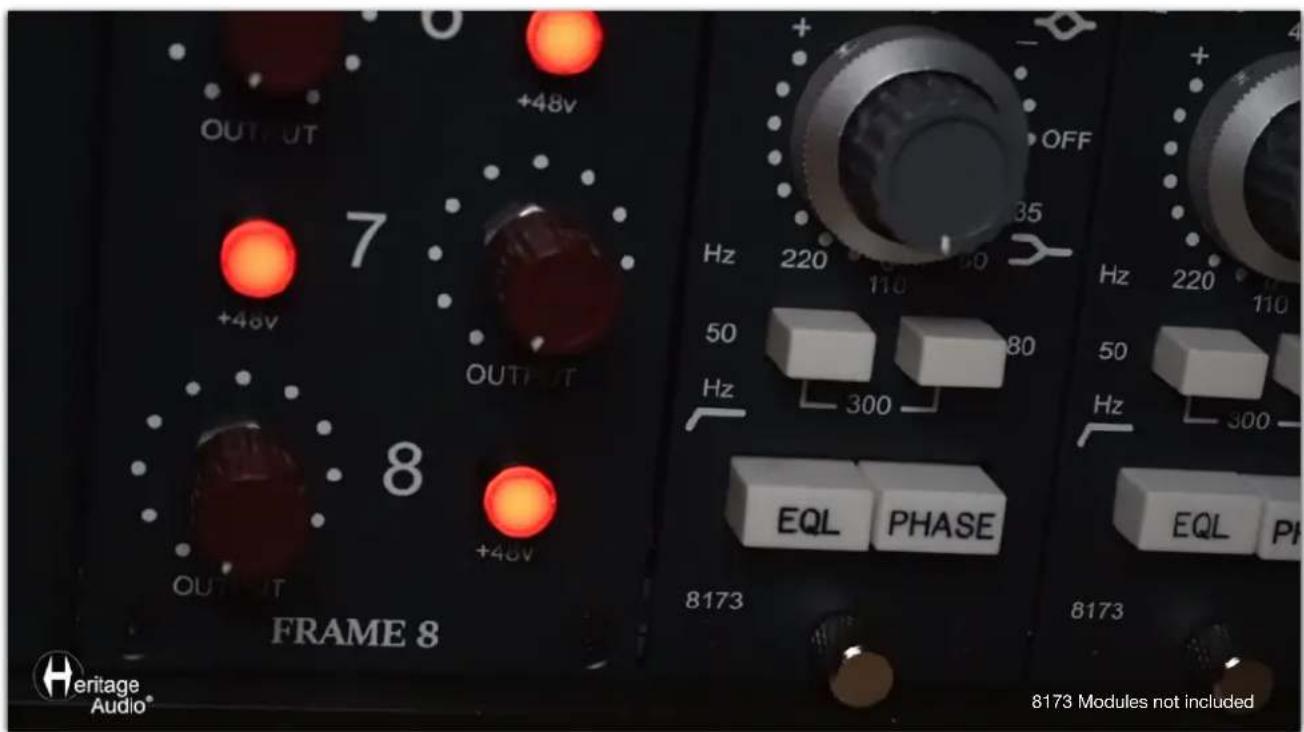

OUTPUT +48V 7 +48V OUTPUT 8 FRAME 8 8173 EQL PHASE EQL PH OFF 35 Hz 220 110 Hz 220 110 50 Hz 300 80 Hz 300 EQL PHASE 8173 Modules not included Heritage Audio®

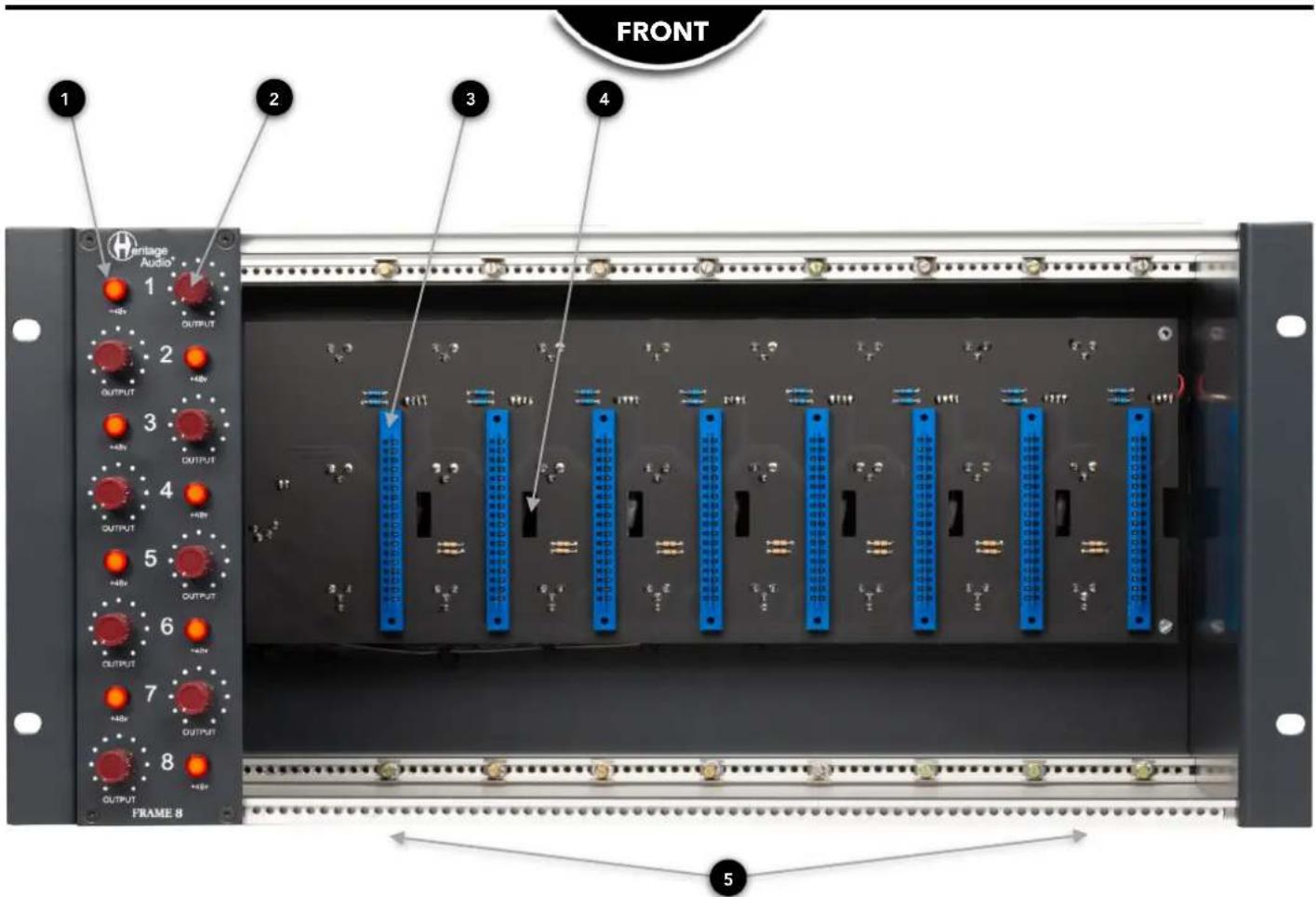

FRONT 1 2 3 4 Heritage Audio OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT FRAME 8 5

1	2	3	4	5
PHANTOM POWER SWITCHActivates the 48 V power for Condenser MICs.	OUTPUT ATTENUATORAttenuates from 0 to infinity	8 x EDGE CONNECTORTo connect and power the 80 Series Modules.	Impedance Switch SpaceOpening to allow the Impedance Switch through.	RAILTo fasten and secure the 80 Series Modules in place.

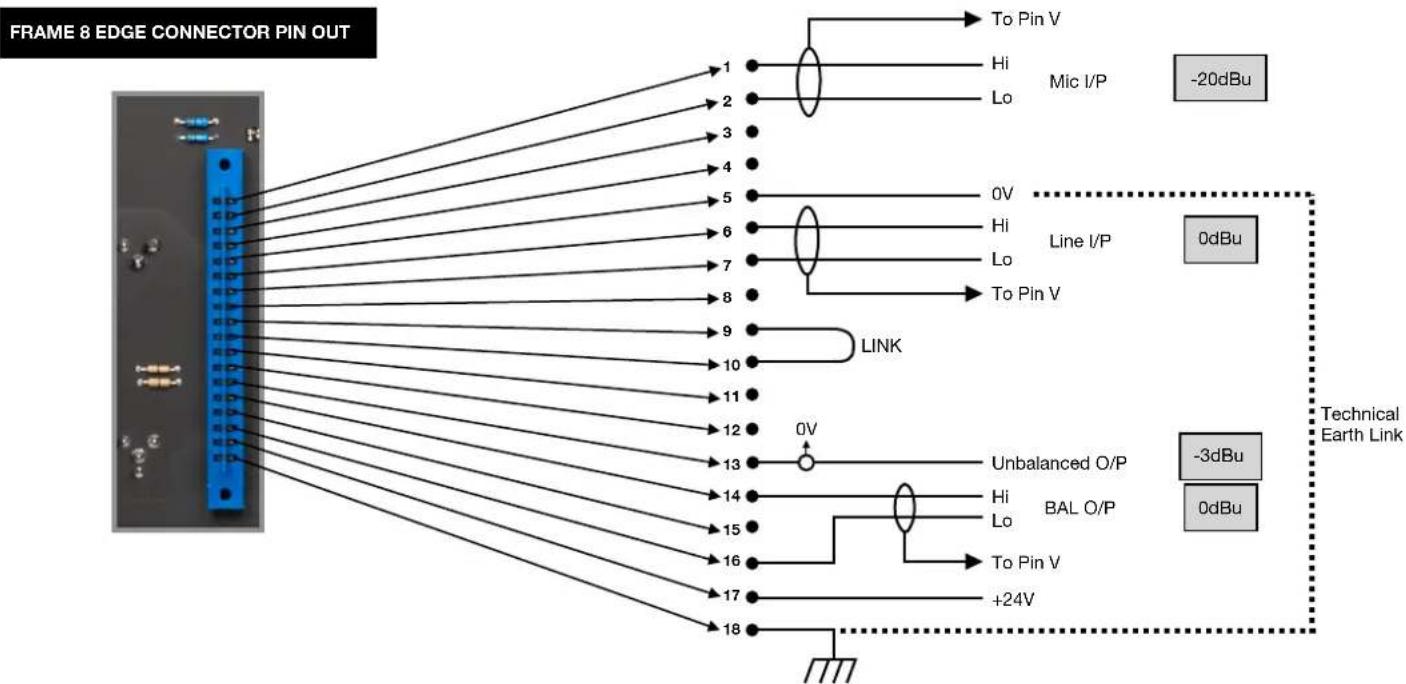


REAR

MIC 8 MIC 7 MIC 6 MIC 5 MIC 4 MIC 3 MIC 2 MIC 1 LINE 8 LINE 7 LINE 6 LINE 5 LINE 4 LINE 3 LINE 2 LINE 1 PSU OUTPUT 8 OUTPUT 7 OUTPUT 6 OUTPUT 5 OUTPUT 4 OUTPUT 3 OUTPUT 2 OUTPUT 1 PINOUT 1: 0v 2: +24v 3: +48v 4: EARTH www.heritageaudio.net SERIAL No. FRAME 8 MANUFACTURED IN THE E.U. CE 1 2 3 4

1	2	3	4
MIC INPUT8 x Female XLR, Gold Plated.	LINE INPUT8 x Female XLR, Gold Plated.	LINE OUTPUT8 x Male XLR, Gold Plated.	POWER CONNECTORNeutrik gold plated 4-pin XLR.

All XLRs are:Pin 1: GNDPin 2: HotPin 3: Cold	MALE XLR	FEMALE XLR
	GNDHot (+)Cold (-)

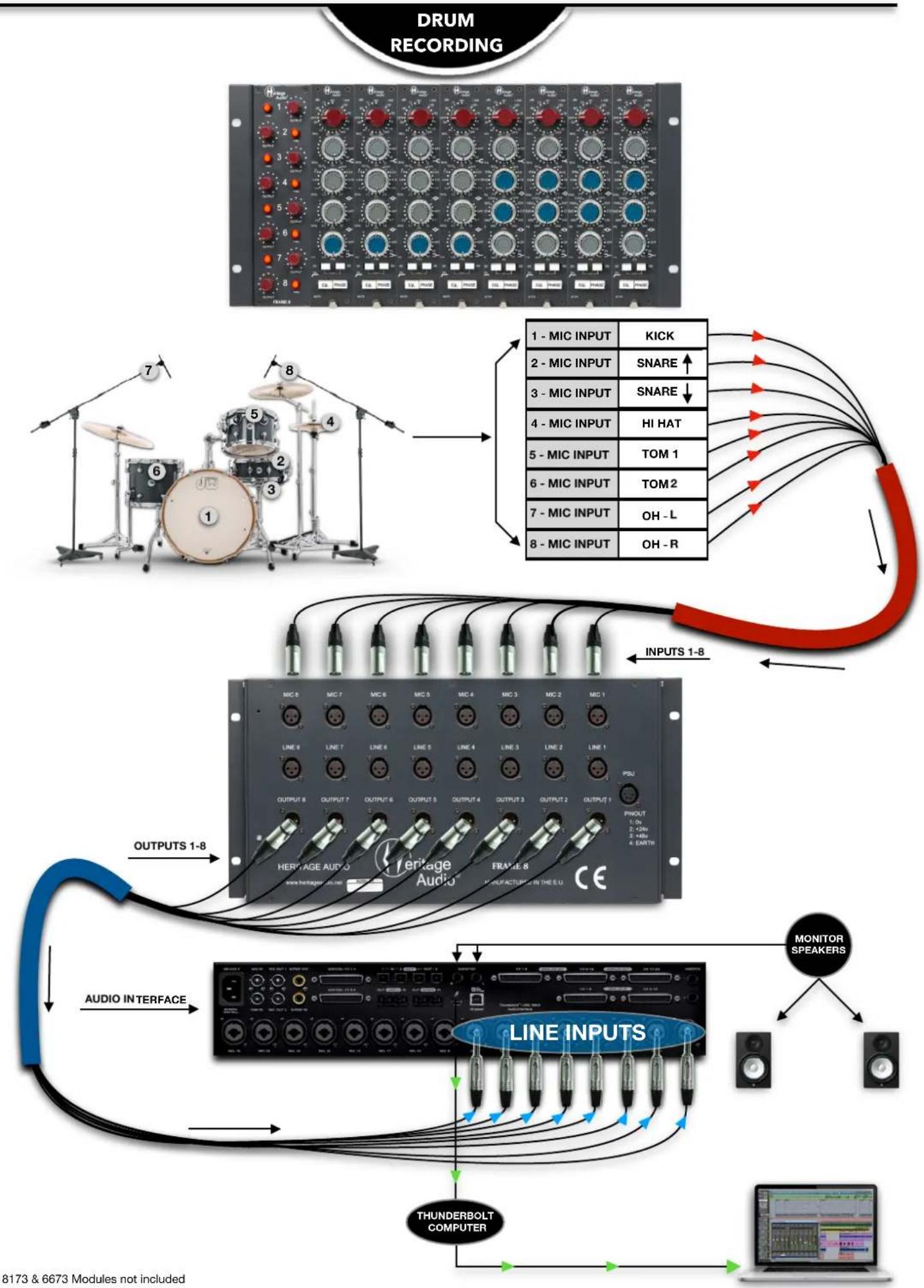


LINE

i

• Handcrafted in the EU employing the same mechanical components used in vintage Series 80 consoles.
• Neutrik gold-plated XLRs for Mic and Line inputs.
• Neutrik gold plated XLRs outputs.
• Illuminated red pushbuttons for +48 V phantom power (Less than 260 mA @ 48 V DC).
  • Prepared for Compression Linking of buses A and B.
• Separate output controls per slot.
• Dimensions (W x H x L): 315 mm x 230 mm (6U) x 482 mm.

TROUBLE SHOOTING

Abstract black-and-white graphic of a human head silhouette with a question mark and a small symbol (no text or numbers)

Illustration of a glowing incandescent light bulb with a stylized 'H' symbol on its side (no text or labels)

PROBLEMS	SOLUTIONS
There doesn’t seem to be any power feeding the FRAME 8.	Make sure it has been connected to its power supply.It is configurable for 220-240 V or 110 V
I’m trying to use a condenser microphone but it doesn seem to recognise it.	Make sure you have activated the 48 V button for the corresponding channel.
I’m getting too much signal at my DAW.	Try reducing the OUTPUT with the red knob on the right.
I’d like to change the Impedance from 1200 to 300 Ω but don’t know how.	There is a switch on the back of the modules that will allow this. You will have to remove the module first to access it.

* For any further doubts or questions please get in contact with us at: [e-mail]

LIMITED 2 YEAR WARRANTY

Heritage Audio FRAME 8 is warranted by Heritage Audio SL to be free from defects in materials and workmanship for the period of 2 years to the original purchaser. In the event of such defects, the product will be repaired without charge or, at our option, replaced with a new one if delivered to Heritage Audio prepaid, together with a copy of the sales slip or other proof of purchase date. The warranty excludes problems due to normal wear, abuse, shipping damage or failure to use the product in accordance with the specifications.

Heritage Audio shall not be liable for damages based upon inconvenience, loss of use of the product, loss of time, interrupted operation or commercial loss or any other damages, whether incidental, consequential or otherwise.

This warranty is not transferable.

FRAME 8 8-slot 80 Series chassis Heritage Audio

REGISTRATION

Please visit our website: https://heritageaudio.com/registration/

Heritage Audio 1 +40V OUTPUT 2 +80V OUTPUT 3 +40V OUTPUT 4 +80V OUTPUT 5 +40V OUTPUT 6 +80V OUTPUT 7 +40V OUTPUT 8 +80V FRAME 8

Session / Title: ____ Track: ____ Connected Equipment: ____

Switch

ON

口

Date: ____ Instrument: ____ Notes: ____ □ Switch OFF □

Heritage Audio 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8 OUTPUT FRAME 8

Session / Title: ____ Track: ____ Connected Equipment: ____

Switch

ON

□

Date: ____ Instrument: ____ Notes: ____ □ Switch OFF □
