USER MANUAL KAM338TMSFA Kogan

Exterior view of a modern stainless steel refrigerator with two doors and a side shelf (no visible text or symbols)

338L TOP MOUNT FRIDGE

(KAM338TMSFA, KAM338TMSFB, KAM338TMSFC)

Safety & Warnings 3

Overview 6

Installation 9

Operation 10

Functions 11

Cleaning & Care 14

Troubleshooting 17

Notes 19

SAFETY & WARNINGS

Thank you for buying this Kogan product. Please read all safety instructions before using this refrigerator.

WARNING: Before using this product, read this user guide carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement.

Warning:

Warning: Risk of fire / flammable materials

THIS appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar nonretail applications.

THIS appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.) Children should be supervised to ensure that they do not play with the appliance.

IF the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

DO not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

THE appliance must be unplugged after use and before carrying out user maintenance on the appliance.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Only dispose of the refrigerator according to local regulations, as it uses flammable blowing gas and refrigerant.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

DO not use extension cords or ungrounded (two prong) adapters.

DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

• Take off the doors.
- Leave the shelves in place so that children may not easily climb inside.

THE refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory.

REFRIGERANT and cyclopentane foaming material used for the appliance are flammable. Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

CHILDREN should be supervised to ensure that they do not play with the appliance.

WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

WARNING: Connect to potable water supply only. (Suitable for ice making machine)

TO prevent a child from being entrapped, keep out of reach of children and not in the vicinity of freezer or refrigerator.

Electricity related warnings

• Do not pull the power cord when pulling the power plug of the refrigerator. Firmly grasp the plug and pull out it from the socket directly.
• To ensure safe use, do not damage the power cord or use the power cord when it is damaged or worn.
• Use a dedicated power socket and the power socket shall not be shared with other electrical appliances. The power plug should be firmly contacted with the socket or else fires might be caused.
• Ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.
• Turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the refrigerator and other electrical appliances considering that spark may cause a fire.

- Do not use electrical appliances on the top of the appliance, unless they are of the type recommended by the manufacturer.

Warnings for using

• Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist
• Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.
• The gaps between refrigerator doors and between doors and refrigerator body are small, be noted not to put your hand in these areas to prevent from squeezing the finger. Always be gentle when close the refrigerator door to avoid falling articles.
• Do not pick foods or containers with wet hands in the freezing chamber when the refrigerator is running, especially metal containers in order to avoid frostbite.
• Do not allow any child to get into or climb the refrigerator; otherwise suffocation or falling injury of the child may be caused.
• Do not place heavy objects on the top of the refrigerator considering that objects may fall when close or open the door and accidental injuries might be caused.
• Pull out the plug-in case of power failure or cleaning. Do not connect the refrigerator to power supply within five minutes to prevent damages to the compressor due to successive starts.

Warnings for placement

• Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents.
• Do not place flammable items near the refrigerator to avoid fires.
• The refrigerator is intended for household use, such as storage of foods; it shall not be used for other purposes, such as storage of blood, drugs or biological products, etc.
• Do not store beer, beverage or other fluid contained in bottles or enclosed containers in the freezing chamber of the refrigerator; or otherwise the bottles or enclosed containers may crack due to freezing to cause damages.

Warnings for energy

1. Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period below the cold end of the range of temperatures for which the refrigerating appliance is designed.

2. The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets and that some products such as water ices should not be consumed too cold;

3. The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage compartments or cabinets;

4. The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.
5. The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.
6. The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside.

Meaning of safety warning symbols:

Prohibition symbol

This is a prohibition symbol. Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user.

Warning symbol

This is a warning symbol. It is required to operate in strict observance of instructions marked with this symbol; or otherwise damage to the product or personal injury may be caused.

Caution symbol

This is a cautioning symbol. Instructions marked with this symbol require special caution. Insufficient caution may result in slight or moderate injury or damage to the product.

This user guide contains important safety information which shall be observed by the users.

OVERVIEW

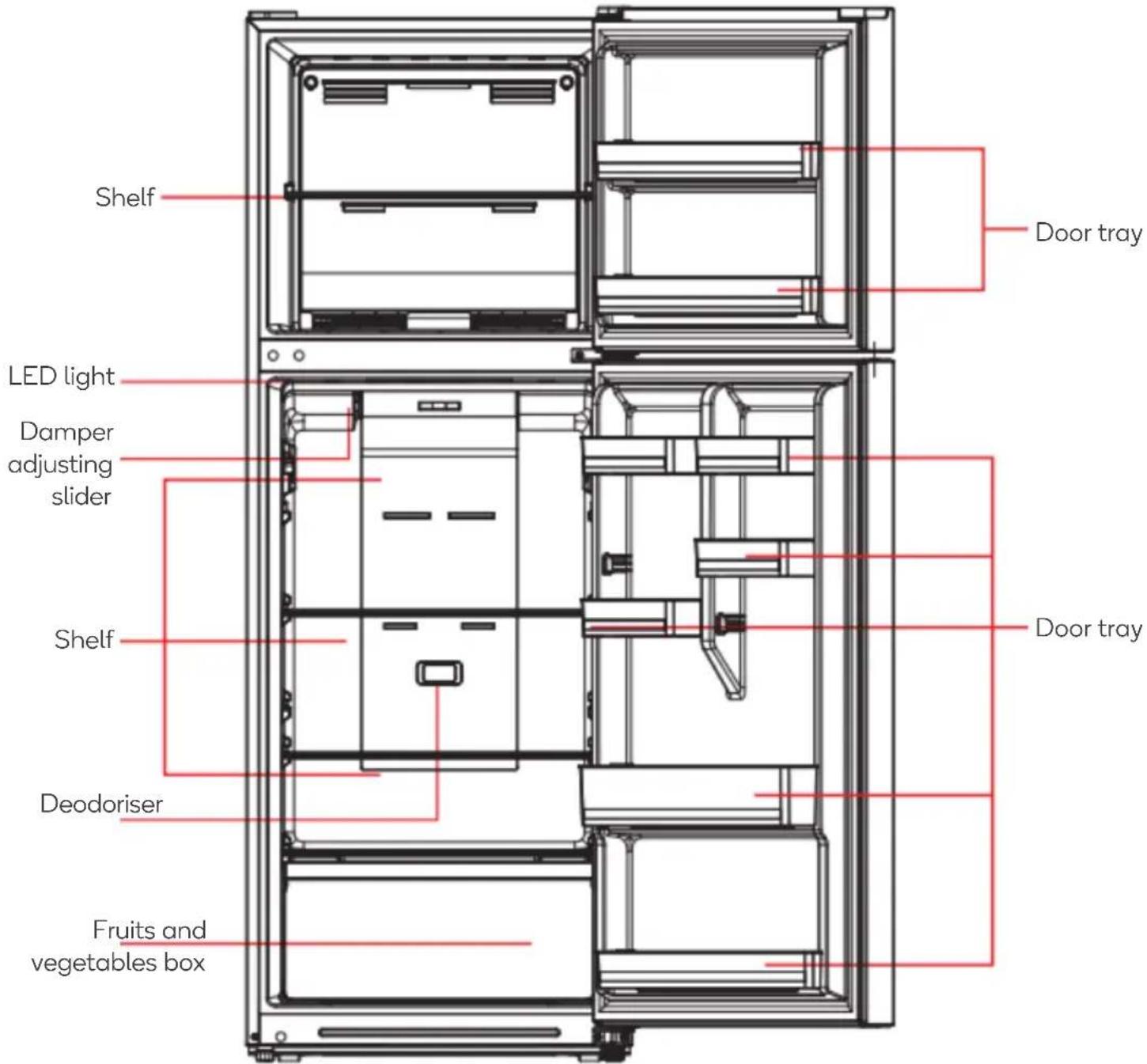

Shelf LED light Damper adjusting slider Shelf Deodoriser Fruits and vegetables box Door tray Door tray

The picture above is only for reference and may differ to the actual product.

Refrigerating chamber

- The refrigerating chamber is suitable for storage of a variety of fruits, vegetables beverages and other food consumed in the short term.

- Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature.

- Foods are recommended to be sealed up before putting into the refrigerator.

- The glass shelves can be adjusted up or down for a reasonable amount of storage space and easy use.

- For better use of the refrigerator, it is recommended to push the slider of manual air damper to top position; If it is not cool enough in the refrigerator room, check this slider and try to push it to top position if not.

Freezing chamber

- The low temperature freezing chamber may keep food fresh for a long time and it is mainly used to store frozen foods and making ice.

- The freezing chamber is suitable for storage of meat, fish, rice balls and other foods not to be consumed in short term.

- Chunks of meat are preferably to be divided into small pieces for quick freezing and easy access. Note that food shall be consumed within the shelf time.

Placement

• Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body.
• Keep away from heat and avoid direct sunlight. Do not place the refrigerator in moist or watery places to prevent rust or reduction of insulating effect.
• Do not spray or wash the refrigerator; do not put the refrigerator in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the refrigerator.
• The refrigerator is placed in a well-ventilated indoor place; the ground shall be flat and sturdy (rotate left or right to adjust the wheel for levelling if unstable).
• The top space of the refrigerator shall be greater than 30cm and the refrigerator should be placed against a wall with a free distance more than 10cm to facilitate heat dissipation.

Precautions before installation:

Before installation or adjusting of accessories, it shall be ensured that the refrigerator is disconnected from power.

Precautions shall be taken to prevent fall of the handle from causing any personal injury.

Levelling Feet

Adjusting procedures:

• Turn the feet clockwise to raise the refrigerator;
• Turn the feet counterclockwise to lower the refrigerator;
• Adjust the right and left feet based on the procedures above to a horizontal level.

The picture shown is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

OPERATION

Changing the Light

Any replacement or maintenance of the LED lamps must be made by kogan.com, an authorised service agent or similar qualified person. Do not repair or replace LED lamps yourself.

Starting

• Before initial start, keep the refrigerator still for two hours before connecting it to power supply.
• Before putting any fresh or frozen foods, the refrigerator shall have run for 2-3 hours or for above 4 hours in summer when the ambient temperature is high.
• Spare enough space for convenient opening of the doors and/or drawers.

595mm 600mm 135° 1137mm 997mm

Energy saving tips

• The appliance should be in the coolest area of the room, away from heat producing appliances or heating ducts and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality or spoil.
• Be sure to wrap foods properly and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
• Appliance storage bin should not be lined with aluminium foil, wax paper or paper towelling. Liners interfere with cold air circulation, making the appliance less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time and close the door as soon as possible.

FUNCTIONS

TEMP ZONE COLD ① ② ③ ④ COLDEST SUPER COOL SETTING 3 sec-Unlock A

A	Setting button
LED 1	Temp 1 (Cold)	LED 4	Temp 4 (Coldest)
LED 2	Temp 2 (Mid)	LED 5	“Super cool” mode

Notes:

The images above are only for reference and the actual product may differ.

Display

When powering on the refrigerator for the first time, the display screen shines fully for 3 seconds and then the refrigerator runs according to setting 3. In case of a failure, the corresponding LED blinks. In case of no failures, it shows the temperature setting of refrigerators.

Fault Code Fault Description
Indicator setting 4 and setting 3	Refrigerator temperature sensor
Indicator setting 4 and setting 2 Freezer defrost sensor
Indicator setting 4 and setting 1 Ambient temperature sensor

Temperature setting

Each time the temperature setting button A is pressed once, the temperature setting changes one time. After the temperature setting has been completed, the refrigerator will run according to the set value after 15s.

The shift regulation is:

Lock/Unlock

When the temperature control panel is in lock state, it needs to long press temperature setting key for 3 seconds for unlocking the panel, all LEDs will blink for 2 seconds when panel is unlocked. When the temperature control panel is in unlock state, if there is no operation on control panel within 15 seconds, it will enter lock state automatically.

Damper adjusting slider

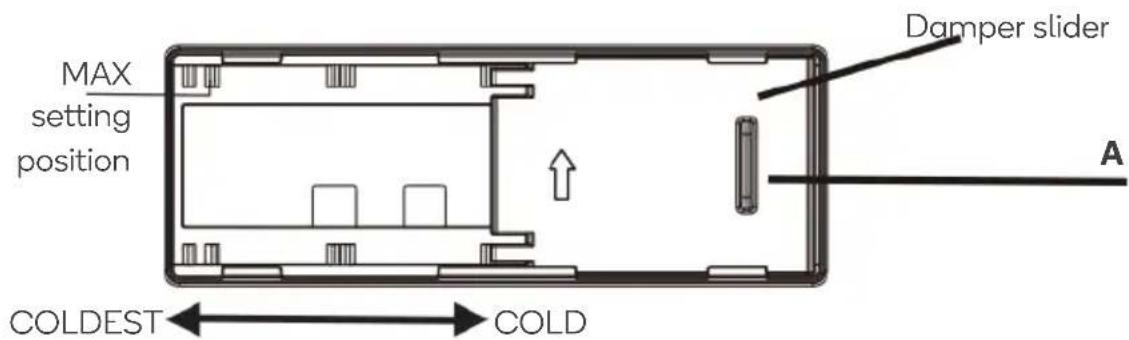

MAX setting position ↑ Damper slider A COLDEST ←→ COLD

The temperature inside the freezer can be adjusted by changing the position of the damper slider. The initial position of the damper slider is at position A. If lower temperature inside the freezer is required, you can adjust the damper slider from the position A to left side.

For better use of the refrigerator, it is recommended to keep the damper slider at initial position.

CLEANING & CARE

Overall cleaning

- Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.

- Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.

- The interior of the refrigerator should be cleaned regularly to avoid odour.

- Always turn off the power before cleaning interior, remove all foods, drinks, shelves, drawers, etc.

- Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.

- For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterial accumulation in these areas.

- Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odours in the interior of the refrigerator or contaminated food.

- Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally. Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and

- Wipe the outer surface of the refrigerator with a soft cloth dampened with soap water, detergent, etc. and then wipe dry.

- Do not use hard brushes, clean steel balls, wire brushes, abrasives (such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the fridge surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.

- Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

Illustration of various household items including a gas cylinder, alcohol lamp, and teapot (no text or symbols)

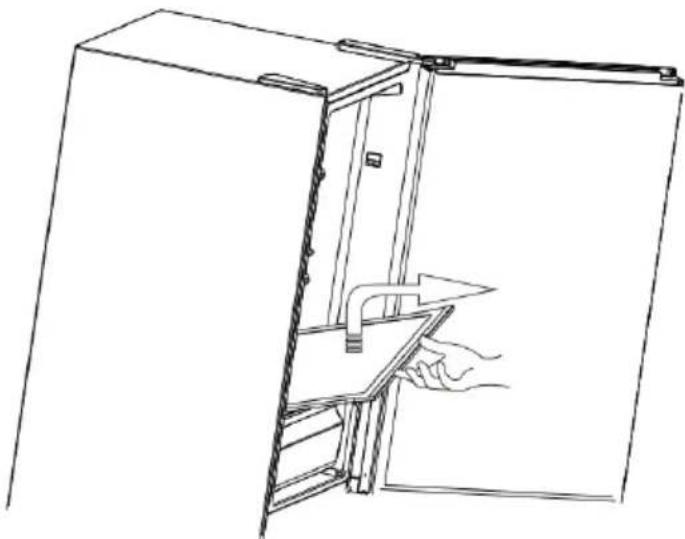

Cleaning the glass shelf

• Lift the front of glass shelf and then pull out;
• Remove the glass shelf and clean as needed;
• The reverse operation is for installation of glass shelf

Line drawing of a cabinet with an open door and a hand inserting a valve into the tray (no text or symbols)

Defrosting

- The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel.

WARNING: Ensure refrigerator is unplugged during defrosting and cleaning.

Out of operation

• Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced and no more fresh food shall be put into the appliance.
• Long-time non-use: The appliance shall be unplugged and then cleaned; then the doors are left open to prevent odour.
• Moving: Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers etc. with tape and tighten the levelling feet; close the doors and fix them with tape.
• During moving, the appliance shall not be laid upside down or horizontally or be vibrated; the inclination during movement shall be no more than 45°.

WARNING: The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted; otherwise the service life may be impaired.

TROUBLESHOOTING

Failed operation	·Check whether the appliance is connected to power or whether the plug is in well contact. ·Check whether the voltage is too low. ·Check whether there is a power failure or partial circuits have tripped.
Odour	·Odorous foods shall be tightly wrapped. ·Check whether there is any rotten food. ·Clean the inside of the refrigerator.
Long-time operation of the compressor	·Long operation of the refrigerator is normal in summer when the ambient temperature is high. ·It is not recommended having too much food in the appliance at the same time. ·Food shall get cool before being put into the appliance. ·The doors are opened too frequently.
Light not turning on	·Check whether the refrigerator is connected to power supply and whether the illuminating light is damaged.
Doors cannot be properly closed	·The door is stuck by food packages. ·The refrigerator is tilted.
Loud noise	·Check whether the floor is level and whether the refrigerator is placed stably. ·Check whether accessories are placed at proper locations.
Door seal fails to be tight	·Remove foreign matters on the door seal. ·Heat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating).
Water pan overflows	There is too much food in the chamber or food stored contains too much water, resulting in heavy defrosting.The doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting.
Hot housing	Heat dissipation of the built-in condenser via the housing, which is normal.When housing becomes hot due to high ambient temperature and storage of too much food, it is recommended to provide sound ventilation to facilitate heat dissipation.
Surface condensation	Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.
Abnormal noise	Buzz: The compressor may produce buzzes during operation and the buzzes are loud particularly upon start or stop. This is normal.Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal.

Contact help.kogan.com for further assistance.

Disposal

This marking indicates that this appliance should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

NOTES

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com

kogan.com
