USER MANUAL MBQJ-48C MB QUART

Assembly Instructions

Model:	Jeep JL (Wrangler) & JT (Gladiator)
Description:	MB Quart Jeep JL Wrangler and JT Gladiator 8” Soundbar
Disclaimer:	Currently not compatible with Jeep Sky One-Touch Power Roof
Part Number:	MBQJ-48HRGB - Horn w/ RGB EnclosureMBQJ-48CRGB - Coaxial w/ RGB EnclosureMBQJ-48H - Horn EnclosureMBQJ-48C - Coaxial EnclosureMBQJ-48E - Unloaded Enclosure
Assembly Time:	120 Minutes (2-Hours)

Before you begin, read through these instructions and check that all parts are present. Please note that MB Quart cannot assume any responsibility for damage resulting from incorrect installation.

Parts List
No.	Component Name Qty
1	Soundbar 1
2	Transparent Grill (MBQJ-48HRGB & MBQJ-48CRGB Only) 4
3	Silver Grill (MBQJ-48H, MBQJ-48C Only) 4
4	Black Grill 4
5	ST4.2 x 50mm Screws (Unloaded) 16
6	MB Quart Speaker Logo Badge (Excluding Unloaded) 4
7	MB Quart Sticker 2

Tools Required

1 Bojo or Panel Tool

2 Long Flat Head Screwdriver

3 10 mm Socket & Rachet

4 T25 Torx Driver

Disassembly Instructions

• Disconnect negative battery terminal.

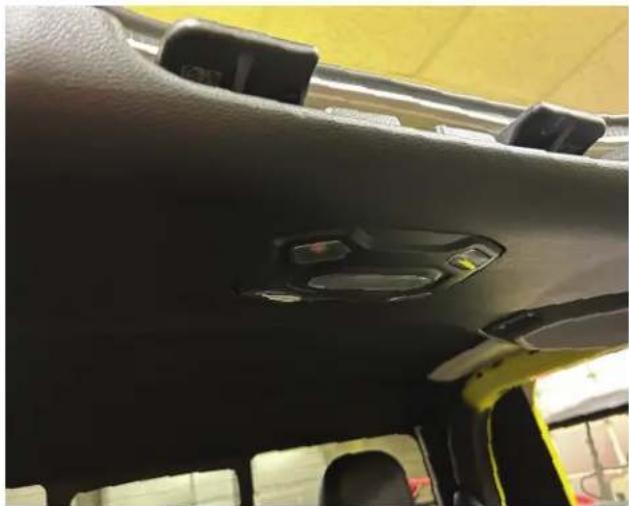

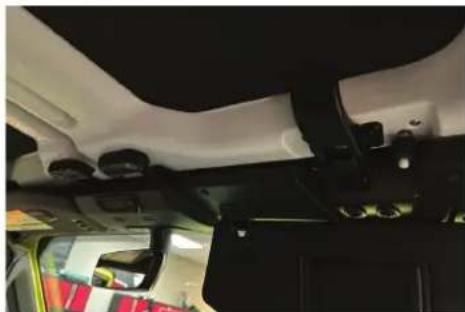

• Remove driver and passenger front roof panels per the vehicles owner manual.

Interior view of a vehicle showing the roof, dashboard, and seat area (no visible text or symbols)

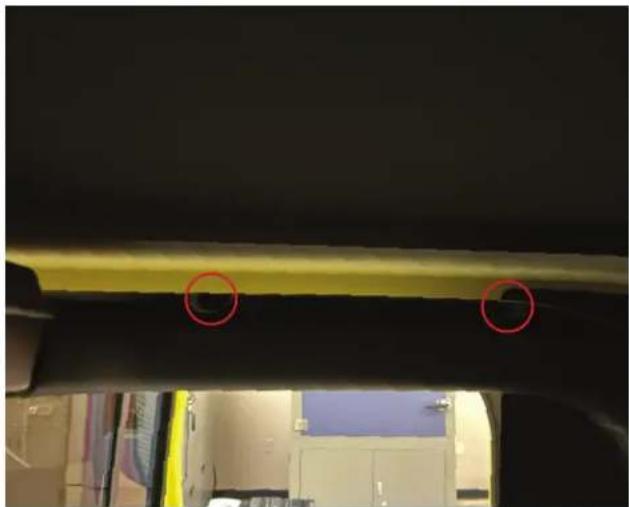

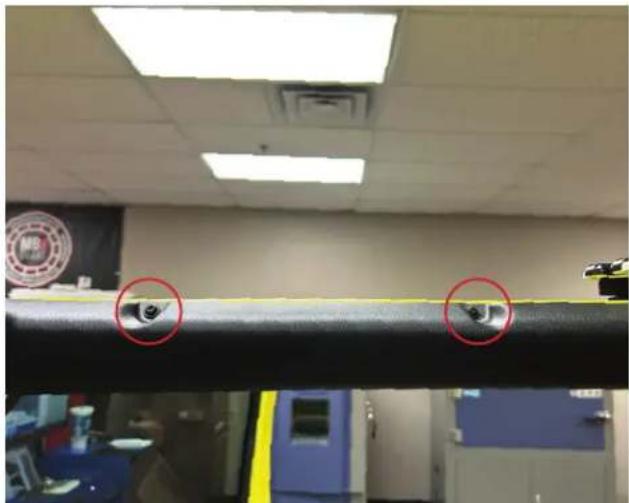

- Remove four T25 Torx from the passenger side front ROPs (Rollover Protection System) and then carefully unclip and remove from vehicle and set aside (Repeat on driver side).

Interior view of a car showing white leather seatbelt and black dashboard (no visible text or symbols)

Interior view of a vehicle showing a yellow safety guard with two red-circled points, no visible text or symbols.

Interior view of a laboratory or lab facility with a black cylindrical object and two red-circled eyes on a yellow horizontal line (no visible text or symbols)

Disassembly Instructions

- Remove three or four T25 Torx from the passenger side rear lower ROPs.

Interior view of a yellow truck cab with red circular annotations highlighting structural components (no visible text or symbols)

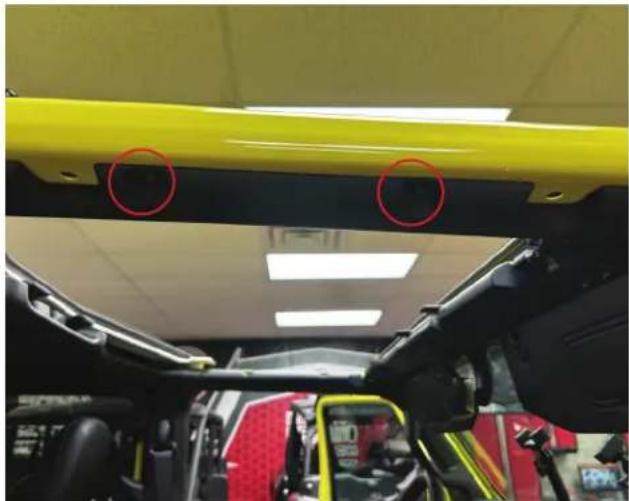

- Remove two T25 Torx from the passenger inside rear ROPs. Then carefully unclip and remove from the vehicle. Repeat the previous two steps on the driver side.

Close-up of a black cylindrical object with two red-circled features, possibly indicating points of interest or damage (no text or symbols visible)

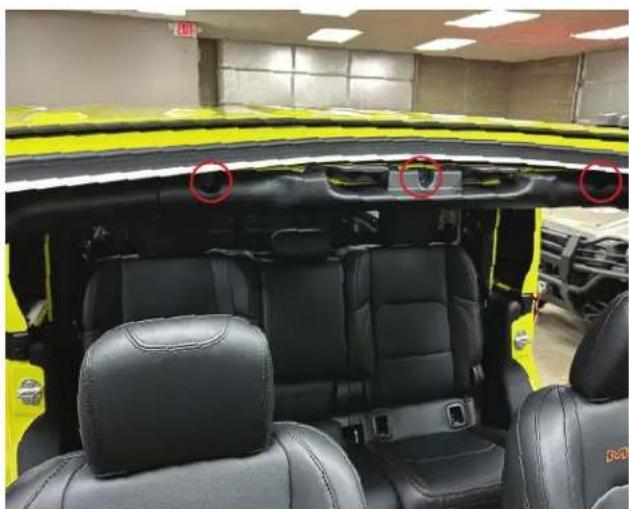

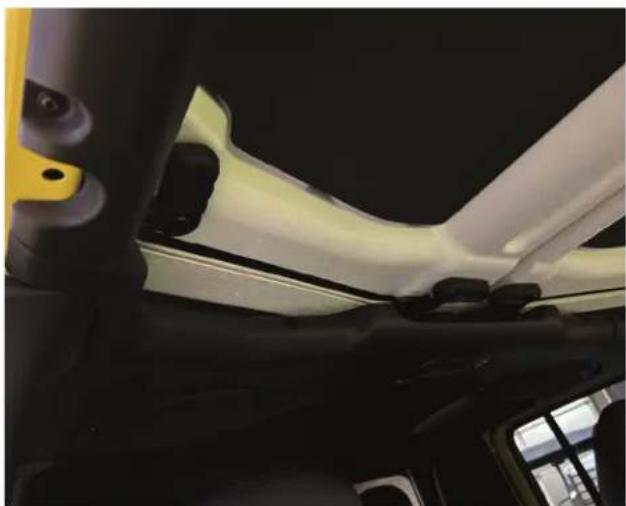

- Remove three T25 Torx from the front of the middle ROPs cover.

Interior view of a yellow vehicle showing rear seats, dashboard, and seatbelt (no visible text or symbols)

Disassembly Instructions

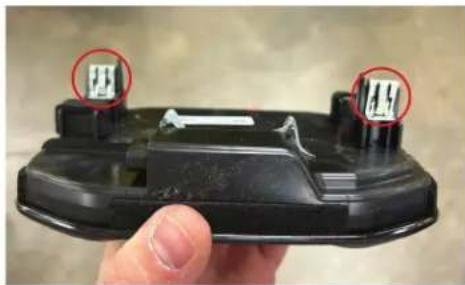

- Carefully remove dome light. Try to use a long flat head screwdriver to depress the clips on either side of the metal clips.

Unclip the wire connector and remove from vehicle.

Close-up of a black plastic electronic device with two red circular annotations pointing to internal components (no readable text or symbols)

Interior view of a car showing the backrest, dashboard, and seat area (no text or symbols visible)

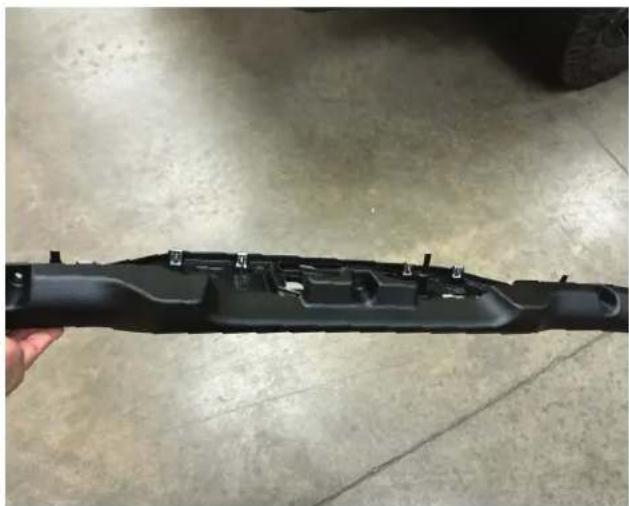

- Carefully unclip the middle ROPs cover from the OEM soundbar and remove from the vehicle

Close-up of a black mechanical component with internal cutouts and mounting brackets, held in hand against a concrete floor (no text or symbols visible)

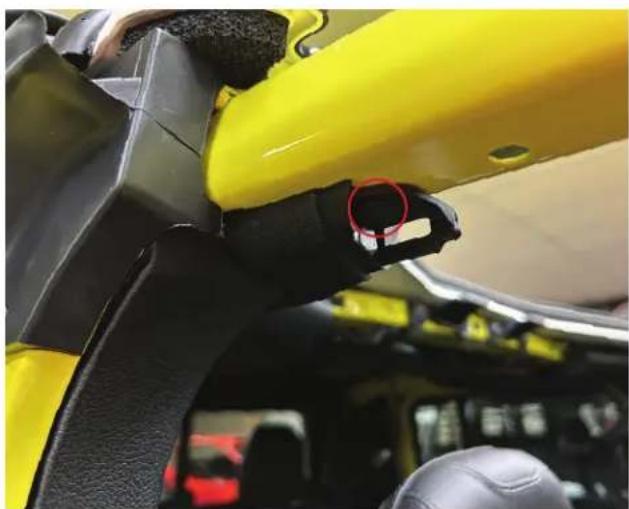

- Using a panel popper, remove the fir tree body clip on the front corner edge on the passenger side ROPs. Then carefully unclip the panel and remove from the vehicle. Repeat process on driver side.

NOTE - Some vehicles may have noise canceling microphone mounted to these panels that will need to be disconnected.

Close-up of a yellow and black automotive seatbelt component with a red circular marker on the side (no visible text or symbols)

Disassembly Instructions

- Unclip the two panels on the b-pillar sill panel.

Close-up of a car seatbelt and seatbelt mechanism, showing black and red components with no visible text or symbols

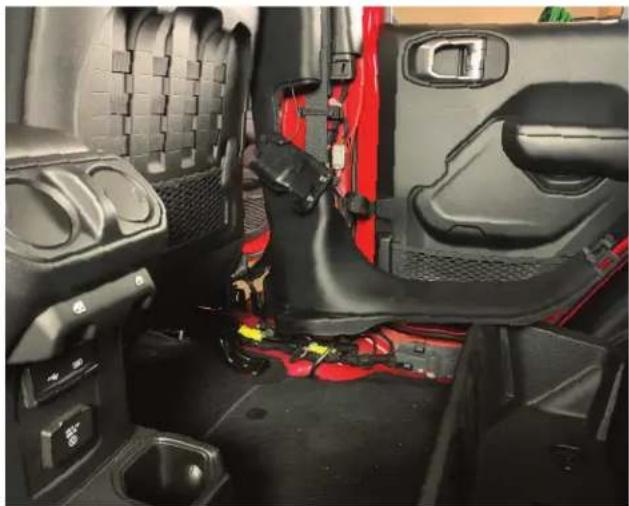

- Unclip the b-pillar sill panel.

Interior view of a vehicle showing red seat, black seats, and wiring (no visible text or symbols)

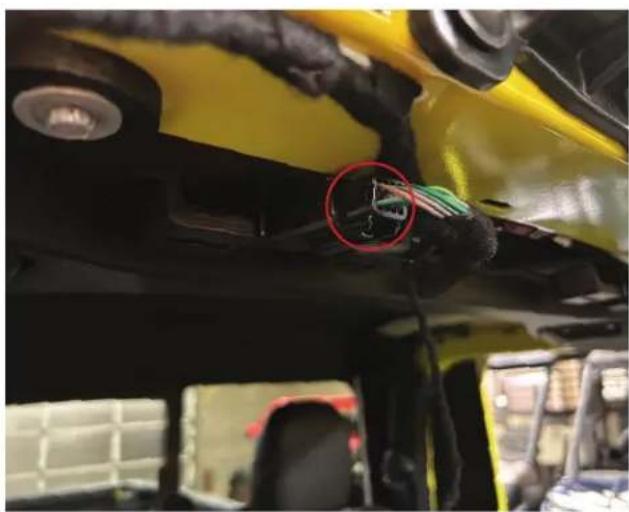

- Disconnect the OEM wiring connector from the OEM soundbar.

Close-up of a yellow car's wheel assembly with a red circle highlighting a component (no visible text or symbols)

Installation Instructions

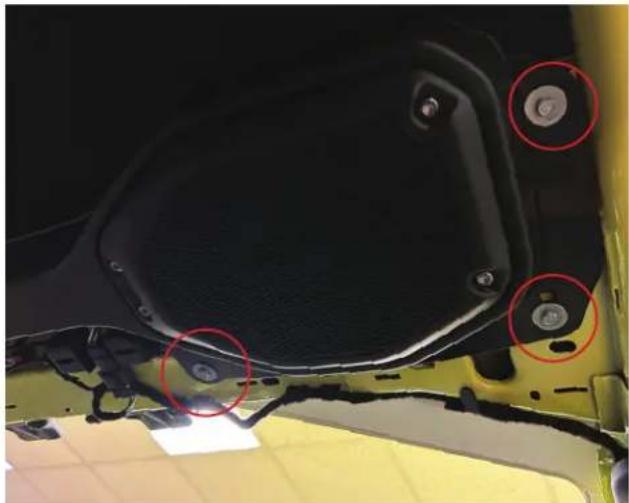

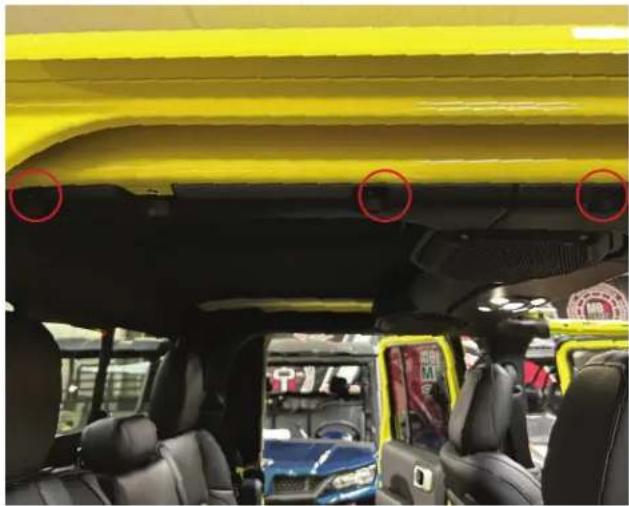

• Remove three bolts with a 10mm socket on the passenger side. Repeat on driver side.
• Then remove soundbar from vehicle.

NOTE - We recommend having additional helping hands for this step

Close-up of a yellow car body panel with black components and red circular annotations highlighting specific parts (no text or symbols present)

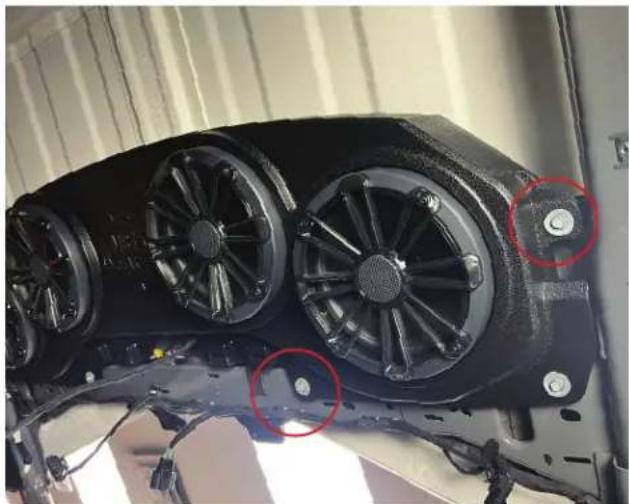

- Install the MB Quart Soundbar using the bolts from the previous step. Loosely install three bolts on the passenger side and repeat on driver side. Once all six bolts are installed - go back and tighten with a 10mm socket.

Close-up of a mechanical fan assembly with three blades and mounting holes, no visible text or symbols

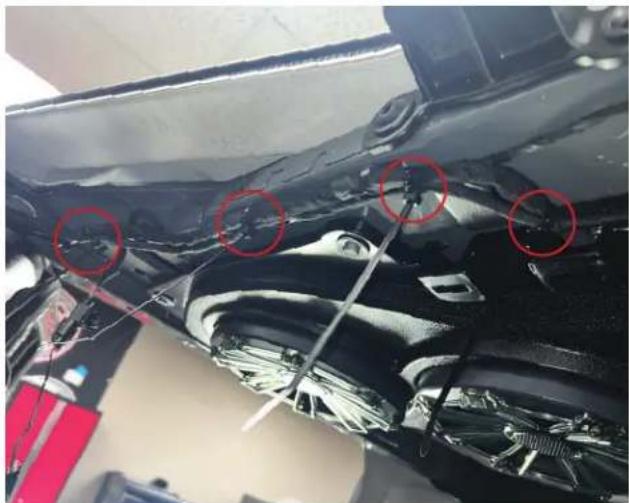

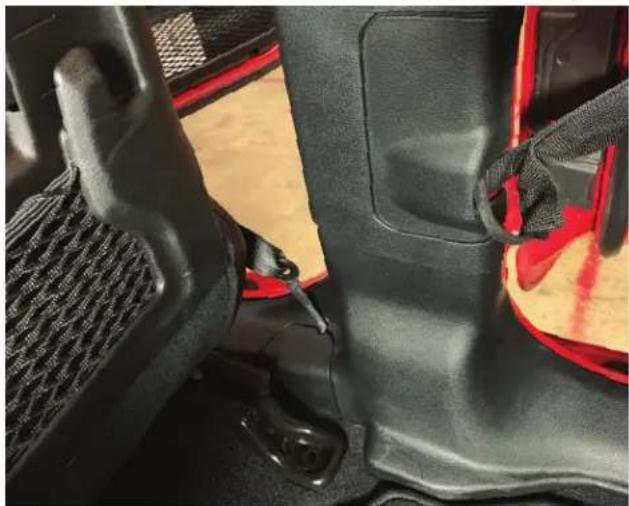

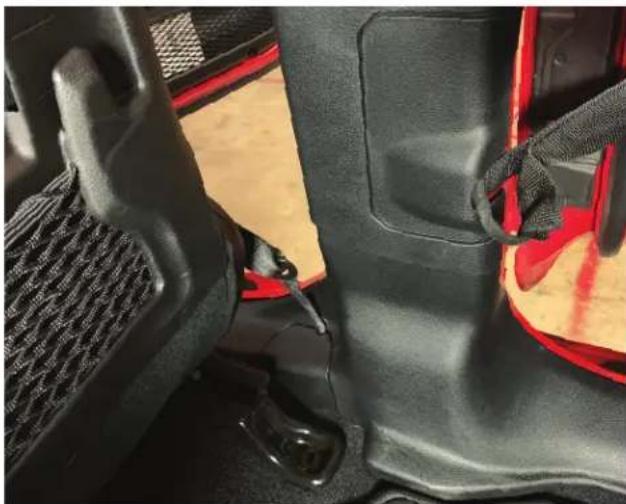

- Route the soundbar wiring along the OEM wiring toward the passenger b-pillar sill panel and then down to the floor. Secure wiring with zip ties.

Close-up of a damaged car interior with visible structural damage and red-circled annotations (no text or symbols)

Installation Instructions

- With wiring secured down the b-pillar, route wiring toward your amplifier and make appropriate wiring connections.

Interior view of a vehicle showing red seat, black dashboard, and rear seats with visible wiring (no text or symbols)

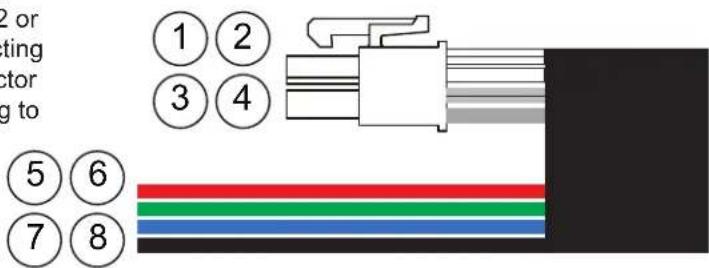

- All of the MB Quart Soundbars are designed to plug into a NA2-400.2 or NA2-400.2RC amplifier. If connecting to a different amplifier, the connector can be cut off and wired according to the diagram on the right.

2 or ating ctor g to ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Line No.	Color Function
1	White Left Speakers, Positive (+)
2	White/Black Left Speakers, Negative (-)
3	Gray Right Speakers, Positive (+)
4	Gray/Black Right Speakers, Negative (-)
5	Red LED, Negative (-)
6	Green Green LED, Negative (-)
7	Blue	Blue LED, Negative (-)
8	Black	LED, Positive (+) +12v

Installation Instructions

- If your MB Quart Soundbar has the RGB lighting option, then the Black wire will be connected to a positive +12 volt source. The Red, Green, and Blue wires would need to see a negative (-) or ground for that color(s) to be shown and the chart to the right gives you different combinations. For the best control and choices, it is recommended to connect to an external RGB controller.

Wire Color Connected to Negative (-)	LED Color Shown
Red Red
Green Green
Blue Blue
Red & Green Yellow
Red & Blue Purple
Green & Blue Aqua
Red, Green, & Blue White

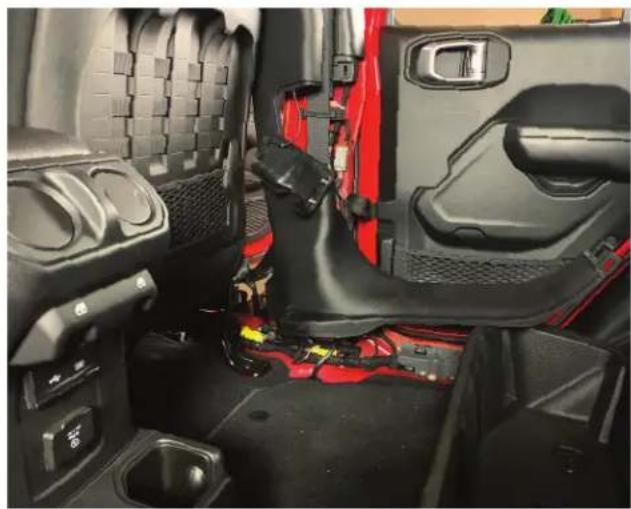

• Install the b-pillar sill panel in the vehicle.

- Clip the two panels back into the b-pillar sill panel.

- Install passenger side corner panel by clipping back into the vehicle. Then install the fir tree clip. Repeat process on driver side.

Close-up of a car seatbelt and rear bumper with visible red accents and black mesh (no text or symbols)

NOTE - If your vehicle has the noise canceling microphone reinstall and connect.

Close-up of a yellow and black car seatbelt component in a vehicle interior (no visible text or symbols)

Installation Instructions

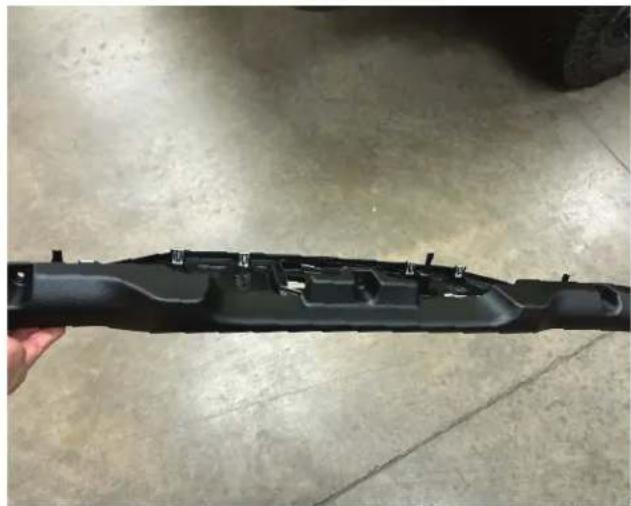

- Pass the dome light connector through the dome light hole on the middle ROPs cover. Then clip the middle ROPs cover to the soundbar.

Close-up of a black mechanical component with internal cutouts, placed on a concrete floor (no text or symbols visible)

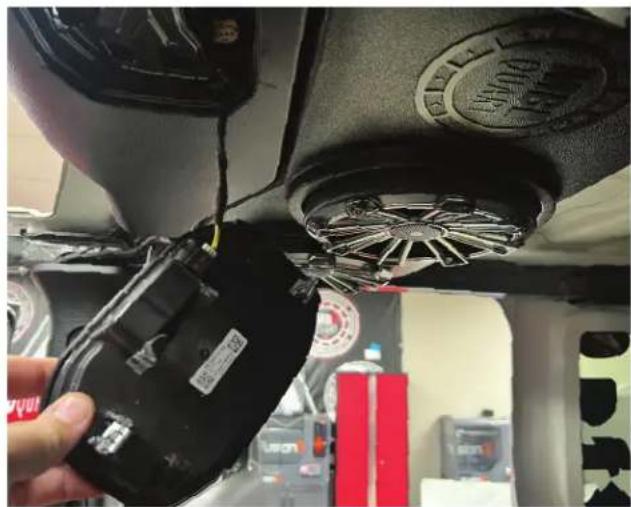

• Install dome light wiring connector into the dome light and then clip the dome light into the middle ROPs cover.

Close-up of a hand holding a black electronic device with visible wiring and a circular component, inside a vehicle (no text or symbols)

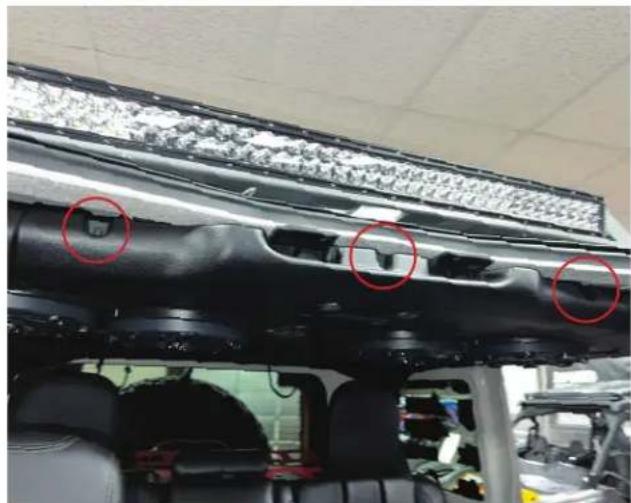

• Install three screws into the front of the middle ROPs cover.

Close-up of a damaged vehicle trunk with red circles highlighting specific areas (no text or symbols visible)

Installation Instructions

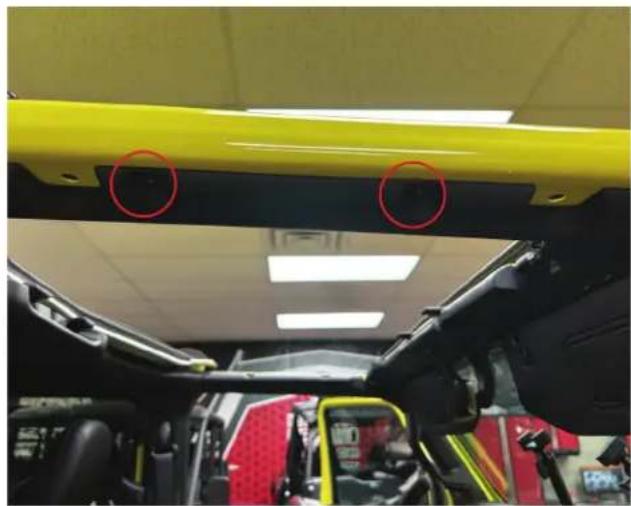

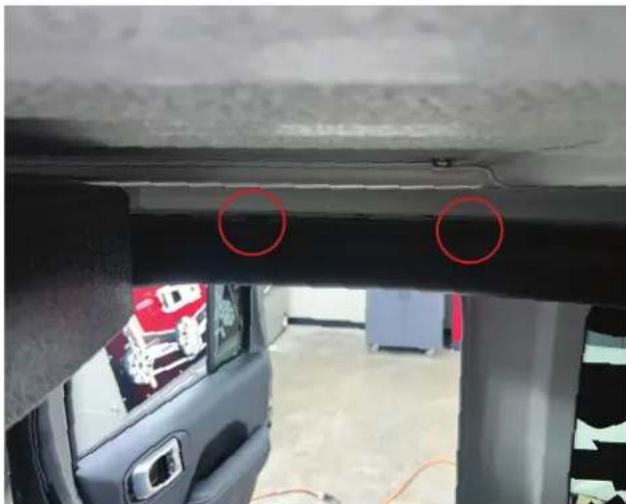

- Install the passenger side ROPs panel by carefully sliding into place and then clipping. After, secure with two T25 Torx.

Close-up of a car's lower body and roof structure with two red circles highlighting the points of interest (no text or symbols visible)

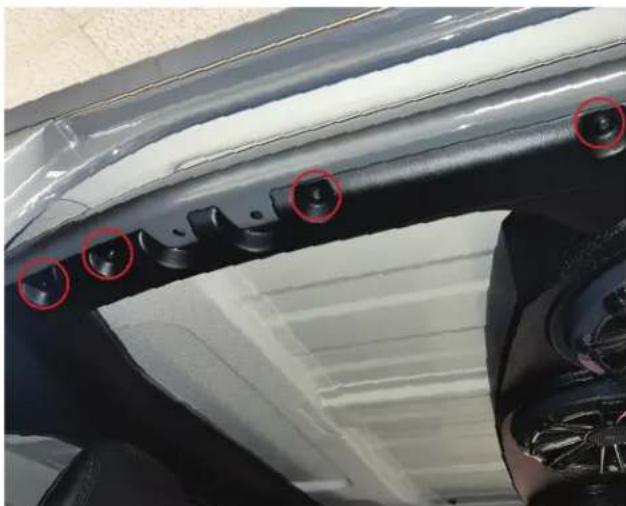

• Install three or four T25 Torx on the passenger side rear ROPs. Repeat the last two steps on the driver side.

Close-up of a car's side panel with red circular markers highlighting specific points of interest (no text or symbols visible)

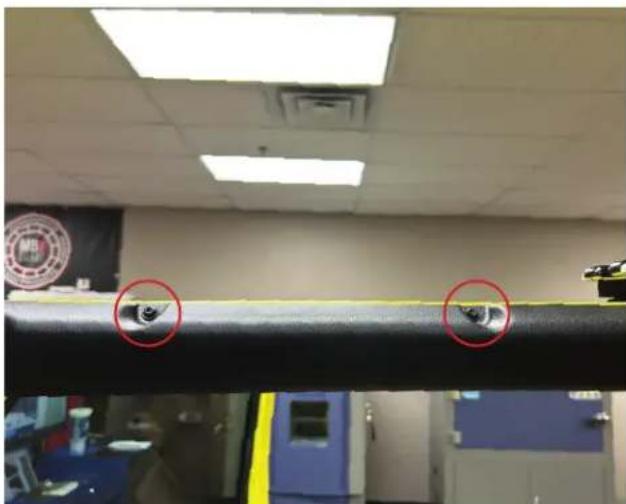

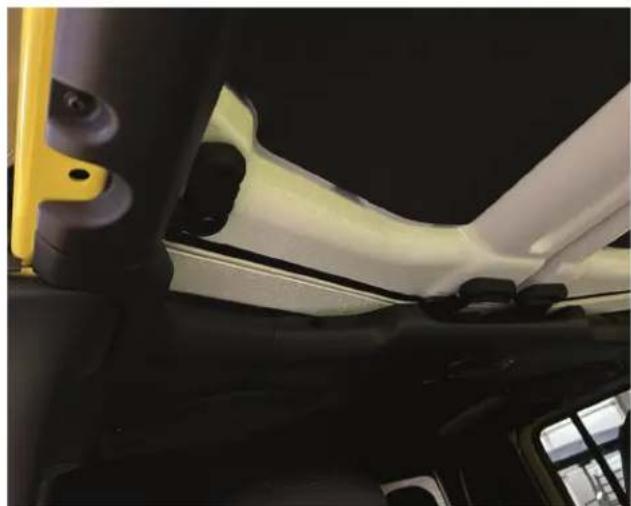

- Carefully install the passenger side front ROPs panel by sliding into place then snapping the clips into the final position. Install two T25 Torx screws.

Interior view of a laboratory or industrial facility with a black cylindrical object and two red-circled eyes, no visible text or symbols.

Installation Instructions

• Install two T25 Torx screws on passenger side front ROPs panel. Repeat last two steps on driver side.

Interior view of a vehicle showing a yellow overhead structure with two red-circled annotations, no visible text or symbols.

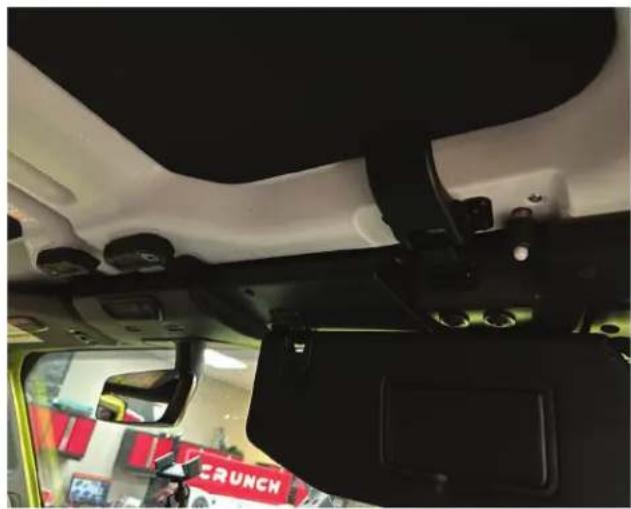

• Install the driver and passenger side front roof per vehicles owner manual.
- Reconnect the negative battery terminal.

Interior view of a vehicle's undercarriage showing seatbelt, dashboard, and front-mounted sensors (no visible text or symbols)

Interior view of a car showing the seatbelt and dashboard (no visible text or symbols)

MBQuart.com

#MUSIC DEFINED

WARRANTY

Maxxsonics, LLC. warrants this product, to the original consumer purchaser, to be free from defects in material and workmanship for a period of one (1) year from the date of purchase. Maxxsonics, LLC. will, at its discretion, repair or replace defective products during the warranty period. Components that prove to be defective in materials and workmanship under proper installation and use must be returned to the original authorized Maxxsonics, LLC. retailer from where it was purchased. A photocopy of the original receipt must accompany the product being returned. The costs associated with removal, re-installation and freight are not the responsibility of Maxxsonics, LLC. This warranty is limited to defective parts and specifically excludes any incidental or consequential damages connected therewith. To view the full warranty, please visit the website.

MB Quart products are designed and engineered in the USA by

MAXXSONICS®

www.maxxsonics.com

MBQJ-48HRGB - MBQJ-48CRGB MBQJ-48H - MBQJ-48C - MBQJ-48E REV 01
