CT-VNGD-CS4 - Floor Plate Support Proaim - Free user manual and instructions

Product Type	Vanguard Cart for C-Stand
Model	CT-VNGD-CS4
Brand	Proaim
Capacity	Up to 10 C-stands
Holding Plate	Unique plate with 10 holes for C-stand extensions
Hand Grips	Non-slip rubber hand grips
Wheels	2 pneumatic rear wheels for smooth movement
Rotatable Clamp	360° rotatable grip clamp (not included)
Included Components	Cart tray, 4 rods, 2 spanners (19 & 13), 4 bolts & 5mm Allen key, 2 pneumatic wheels
Material	Steel frame with powder coat finish
Overall Dimensions (approx.)	40 x 30 x 36 in (102 x 76 x 91 cm)
Weight (approx.)	33 lbs (15 kg)
Power Source	None (manual cart)
Assembly Required	Yes, with included tools
Warranty	1 year from date of purchase
Maintenance	Wipe clean with damp cloth; regularly check and tighten bolts
Safety Features	Secure bolt tightening; non-slip grips; stable wheel base
Spare Parts Availability	Bolts, washers, wheels, and rods available from Proaim

Frequently Asked Questions - CT-VNGD-CS4 Proaim

How many C-stands can the Vanguard Cart hold?

The Proaim CT-VNGD-CS4 Vanguard Cart can hold up to 10 C-stands simultaneously, using the grip clamp (not included) for extra security.

What tools are included for assembly?

The cart comes with 2 spanners (19 & 13), 4 bolts, a 5mm Allen key, and 4 rods. All tools needed for assembly are provided.

Is the 360° rotatable grip clamp included?

No, the 360° rotatable grip clamp is not included. It must be purchased separately to secure C-stands on the rods.

What type of wheels does the cart have?

The cart features 2 pneumatic rear wheels that provide incredibly smooth movement across various surfaces, even on uneven terrain.

How do I attach the pneumatic wheels?

Remove the bolts and washers from the wheel using the spanner, insert the wheel onto the rod, then replace and tighten the bolts and washers with the spanner.

What is the holding plate for?

The unique holding plate has 10 holes designed for C-stand extensions, allowing versatile mounting and adjustment of equipment.

Can I use the cart without the grip clamp?

Yes, but for secure transport, it is recommended to use the grip clamp to prevent C-stands from falling during movement.

How do I clean and maintain the cart?

Wipe the cart with a damp cloth to remove dust. Periodically check and tighten all bolts to ensure stability. Lubricate wheel bearings if needed.

What is the warranty coverage?

Proaim offers a 1-year warranty from date of purchase covering labor and parts. Transportation costs and damage from misuse or accident are not covered.

Are spare parts available for this cart?

Yes, spare parts such as bolts, washers, pneumatic wheels, and rods can be ordered directly from Proaim or authorized dealers.

USER MANUAL CT-VNGD-CS4 Proaim

Vanguard cart for C-stand CS4 (CT-VNGD-CS4)

Assembly Manual

Exterior view of a silver multi-lane hand truck with black wheels and red side arm (no text or symbols visible)

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed below.

Metallic rack-mounted device with a red horizontal bar and black handle (no visible text or symbols)

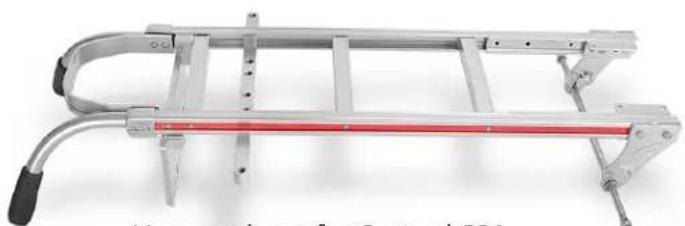

Vanguard cart for C-stand CS4

Three parallel horizontal gray bars with no text or symbols, arranged horizontally (no visible labels or symbols)

4 x Rods

Black rectangular object with a small oval cutout on the front, placed on a white surface (no visible text or symbols)

Cart Tray

The image contains no text or characters.
2 x Spanner Size: (19 & 13)
4 x Bolts & 5mm Allen Key

Two black plastic tires with central hub and side holes, shown from different angles (no text or symbols visible)

2 x Pneumatic Wheels

All rights reserved.

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.

FUNCTION

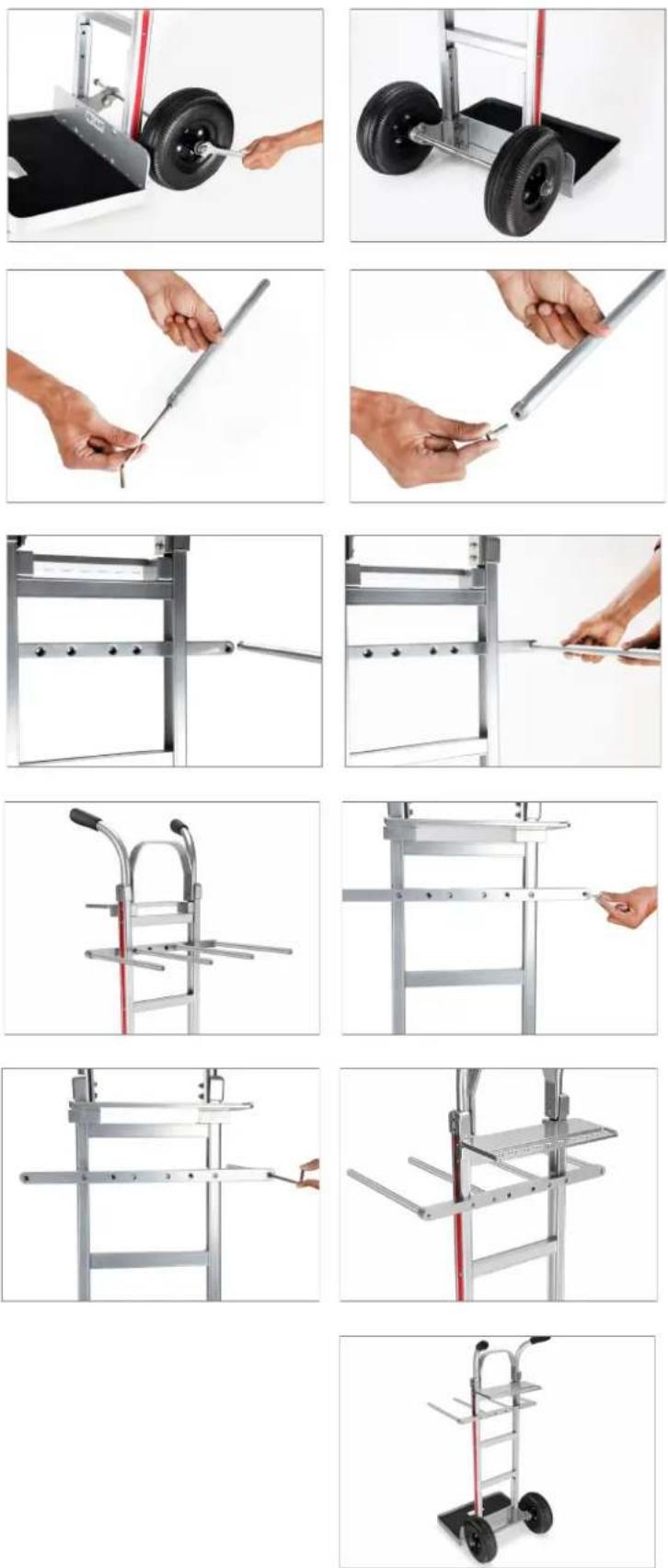

Vanguard Cart for C-Stand Setup

- To attach the Vanguard cart to the tray, first remove the bolt by loosening the nut.

Close-up of hands holding a small transparent object against a plain background (no text or symbols visible)

Close-up of two hands holding small metallic objects, no visible text or symbols

- To properly attach the Vanguard cart to the tray, match and insert the bolts from the bottom, as shown in the image.

Close-up of a hand using a tool to adjust or install a metal mechanical component, with no visible text or symbols.

Close-up of a hand holding a small white object near a kitchen appliance (no visible text or symbols)

- After inserting the bolt, tighten it and secure it using the spanner.

Close-up of hands installing or adjusting a metal frame with a small component (no visible text or symbols)

Close-up of a hand using a tool to adjust or install a mechanical component (no visible text or symbols)

- To attach the pneumatic wheel, remove the bolts and washers from the wheel using the spanner.

Close-up of a hand using a wrench to lift a black laptop cover (no text or symbols visible)

Close-up of hands using a tool to adjust or install a component, no visible text or symbols

- Now, insert the wheel in the rod and repeat the same process for the second wheel.

Close-up of a hand holding a black tire mounted on a mechanical support (no visible text or symbols)

Close-up of a hand adjusting a tire on a machine (no visible text or symbols)

• After attaching the wheels, insert back the bolts and washers to completely secure the wheels.

Close-up of a hand adjusting a black tire on a machine (no visible text or symbols)

Close-up of a hand adjusting a black tire on a wheeled platform (no visible text or symbols)

• After attaching the wheels, secure them using the spanner.

NOTE: Enjoy hassle free transportation with pneumatic rear wheels that provide incredibly smooth movement.

- To remove the bolt from the rod, use an Allen key.

• To insert the rod in the Vanguard Cart, tighten it by twisting them around, as shown in the image.
• Repeat the same process for the remaining three rods.

• After inserting the bolts, tighten them using the Allen key.

Feature: It features a unique holding plate with ten holes for c-stand extensions.

• After inserting all four rods, insert bolts from the backside of the cart, as shown in the image.

Feature: With its non-slip rubber hand grips, you can maintain a secure and comfortable grip.

- All rods are securely inserted on the Vanguard cart for C-Stand.

- Loosen the knob of the 360° Rotatable Grip Clamp (Not Included).

- Hang the C-Stand on the rod and insert the clamp.

Feature: Effortlessly carry C-stands around the set with Vanguard cart for C-stand, designed to simultaneously maneuver up to 10 stands.

- The Vanguard Cart can hold up to 10 C-stands with extra protection using the Grip Clamp (Not Included).

NOTE: It has a 360-degree locking design with 12mm or 16mm holes that allow you to mount your equipment in variable positions.

- The image shows 10 C-Stands securely hung on the Vanguard Cart.

Close-up of hands holding a black camera module against a white background (no text or symbols visible)

Close-up of hands holding a black mechanical component (no visible text or symbols)

Close-up of a hand holding a metallic cylindrical tool with a handle (no visible text or symbols)

Close-up of a hand holding a black mechanical clamp or fixture, adjusting metal rods inside a metal-framed cabinet (no text or symbols visible)

Person using a metal ladder to lift a vehicle (no visible text or symbols)

Close-up of hands adjusting a black mechanical component mounted on a metal frame (no visible text or symbols)

Mechanical assembly with clamps and levers (no visible text or symbols)

YOUR PROAIM VANGUARD CART FOR C-STAND CS4 ALL DRESSED UP AND READY TO GO!

Exterior view of a silver multi-lane hulafter with metal frame and wheels (no text or symbols visible)

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn't cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

Contact Us: In case of any kind of dissatisfaction, please Contact us immediately and we promise our utmost support and care until you use our product.
