USER MANUAL LRP-822CS Planet

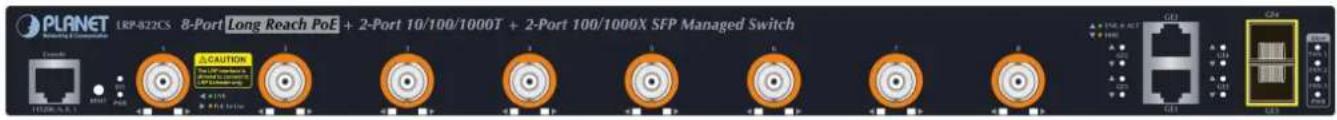

Front view of a network switch device with multiple ports and connectors (no visible text or labels)

L2/L4 Long Reach PoE Managed Switch

LRP-822CS
LRP-1622CS

Wind turbines in a green field under a blue sky with clouds, no visible text or symbols

Trademarks

Copyright © PLANET Technology Corp. 2015.

Contents are subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners.

Disclaimer

PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose. PLANET has made every effort to ensure that this User's Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred.

Information in this User's Manual is subject to change without notice and does not represent a commitment on the part of PLANET. PLANET assumes no responsibility for any inaccuracies that may be contained in this User's Manual. PLANET makes no commitment to update or keep current the information in this User's Manual, and reserves the right to make improvements to this User's Manual and/or to the products described in this User's Manual, at any time without notice.

If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate your comments and suggestions.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the Instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

Energy Saving Note of the Device

This power required device does not support Standby mode operation. For energy saving, please remove the power cable to disconnect the device from the power circuit. In view of saving the energy and reducing the unnecessary power consumption, it is strongly suggested to remove the power connection for the device if this device is not intended to be active.

WEEE Warning

To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately.

Revision

PLANET Multi-port Coax + 2-port 10/100/1000T + 2-port 100/1000X SFP Long Reach PoE over Coaxial Switch User's Manual

For Model: LRP-822CS/LRP-1622CS

Revision: 1.1 (Jul. 2015)

Part No: EM-LRP-822CS_LRP-1622CS_v1.1

TABLE OF CONTENTS

1. INTRODUCTION.... 10

1.1 Packet Contents .... 10
1.2 Product Description....11
1.3 How to Use This Manual....16
1.4 Product Features....16
1.5 Product Specifications .... 19

2. INSTALLATION 23

2.1 Hardware Description ....23

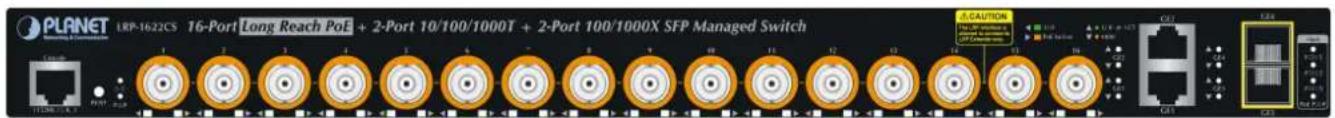

2.1.1 Switch Front Panel 23
2.1.2 LED Indications .... 25

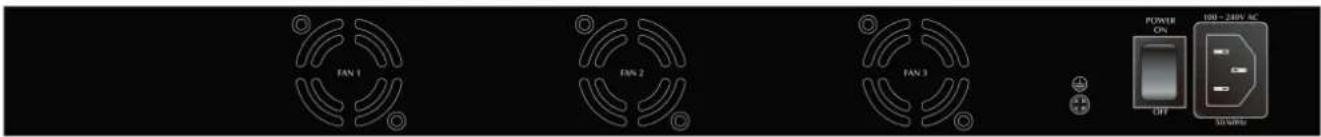

2.1.3 Switch Rear Panel 27

2.2 Installing the Switch....28

2.2.1 Desktop Installation ....28

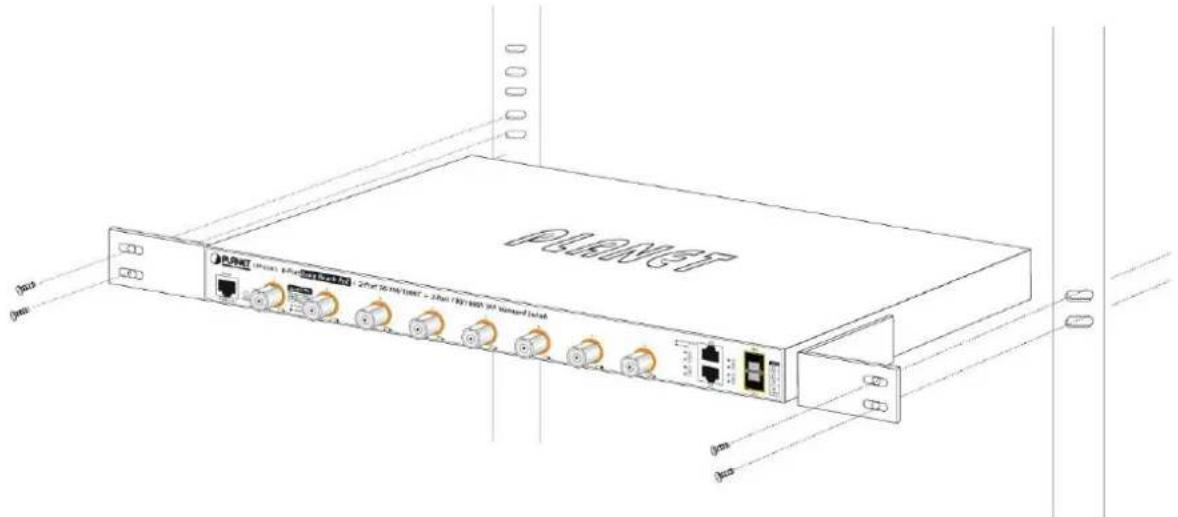

2.2.2 Rack Mounting....29
2.2.3 Installing the SFP transceiver .... 30
2.2.4 Installing the Long Reach PoE Communication....33

3. SWITCH MANAGEMENT .... 37

3.1 Requirements....37
3.2 Management Access Overview....38
3.3 Administration Console....39
3.4 Web Management....40
3.5 SNMP-based Network Management ....41
3.6 PLANET Smart Discovery Utility ....41

4. WEB CONFIGURATION.... 43

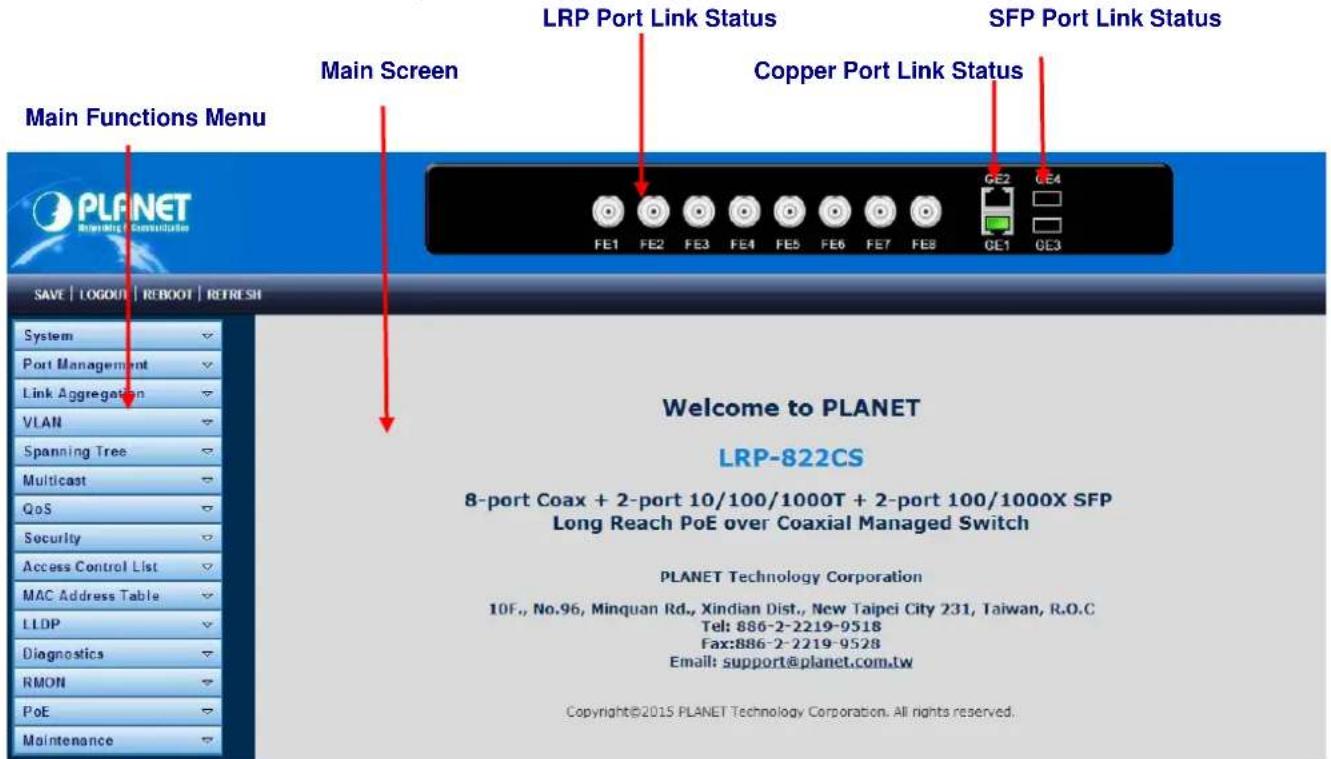

4.1 Main Web Page 46

4.1.1 Save Button....47
4.1.2 Configuration Manager 48

4.1.2.1 Saving Configuration 49

4.2 System....50

4.2.1 System Information....50
4.2.2 IP Configurations....51
4.2.3 IPv6 Configuration 53

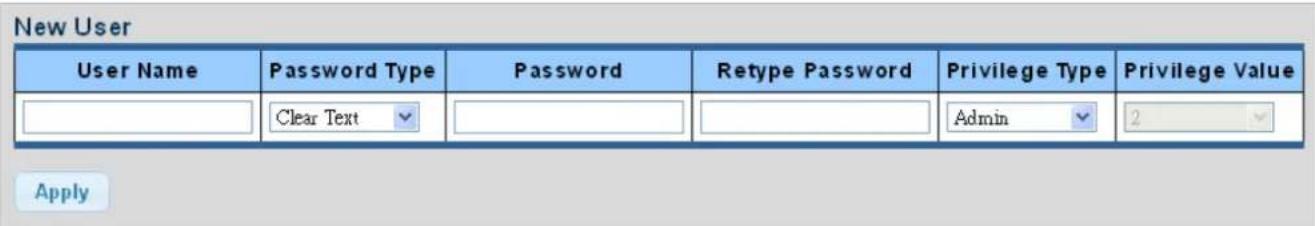

4.2.4 User Configuration....55
4.2.5 Time Settings....56

4.2.5.1 System Time....56
4.2.5.2 SNTP Server Settings ....59

4.2.6 Log Management....60

4.2.6.1 Local Log 60
4.2.6.2 Local Log 61

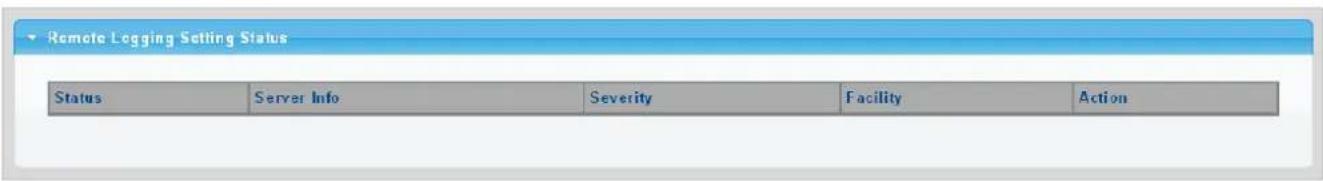

4.2.6.3 Remote Syslog 63

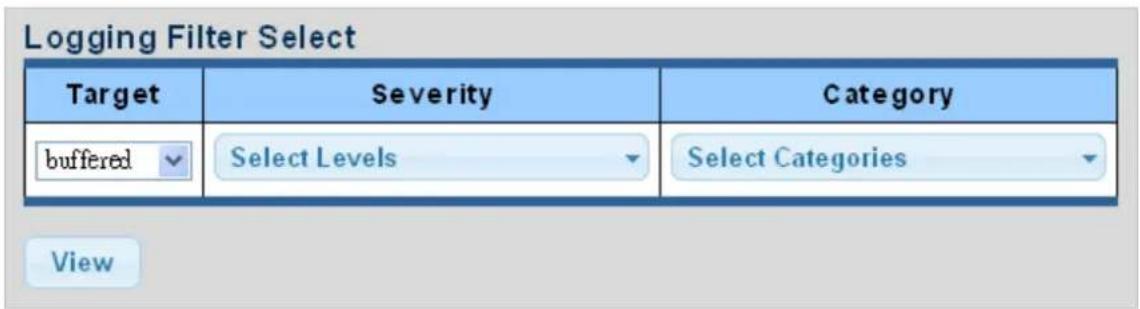

4.2.6.4 Log Message....64

4.2.7 SNMP Management ....67

4.2.7.1 SNMP Overview....67

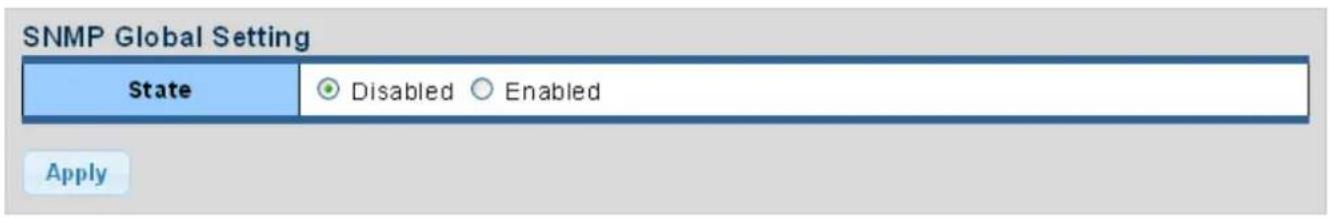

4.2.7.2 SNMP System Information 68

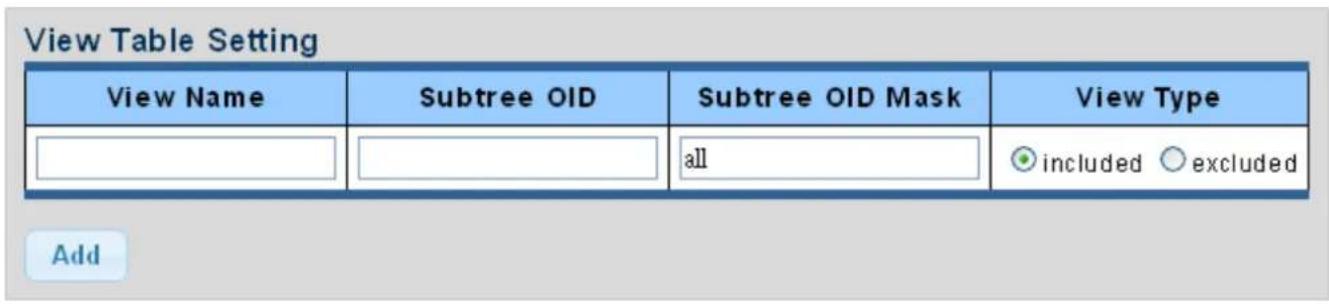

4.2.7.3 SNMP View 69
4.2.7.4 SNMP Access Group....71
4.2.7.5 SNMP Community 72

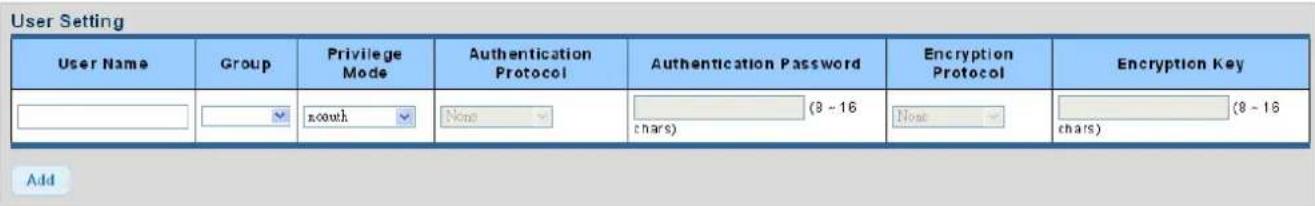

4.2.7.6 SNMP User....74
4.2.7.7 SNMPv1, 2 Notification Recipients ..... 75

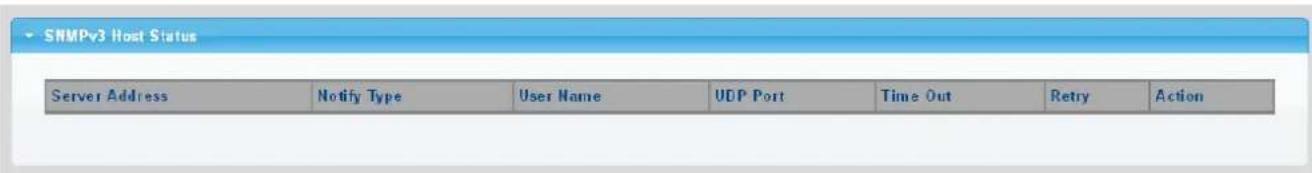

4.2.7.9 SNMPv3 Notification Recipients ....77
4.2.7.10 SNMP Engine ID 78
4.2.7.11 SNMP Remote Engine ID 79

4.3 Port Management 80

4.3.1 Port Configuration....80
4.3.2 LRP Port Configuration....82

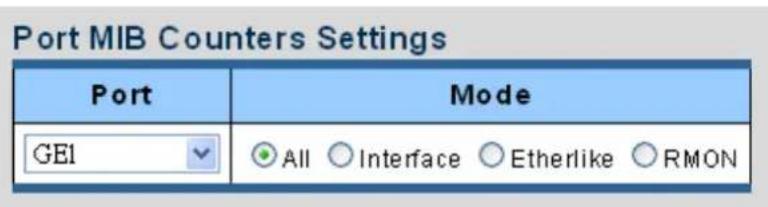

4.3.3 Port Counters 84
4.3.4 Bandwidth Utilization 89
4.3.5 Port Mirroring....90
4.3.6 Jumbo Frame 92
4.3.7 Port Error Disabled Configuration....93
4.3.8 Port Error Disabled 95
4.3.9 Protected Ports 95
4.3.10 EEE 98
4.3.11 SFP Module Information 99

4.3.11.1 SFP Module Status 99
4.3.11.1 SFP Module Detail Status....101

4.4 Link Aggregation....102

4.4.1 LAG Setting....104
4.4.2 LAG Management ....105
4.4.3 LAG Port Setting....106
4.4.4 LACP Setting 108
4.4.5 LACP Port Setting....109
4.4.6 LAG Status 110

4.5 VLAN....113

4.5.1 VLAN Overview 113
4.5.2 IEEE 802.1Q VLAN 114

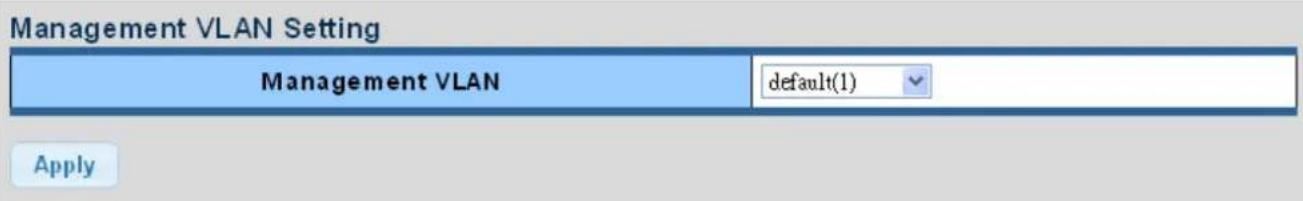

4.5.3 Management VLAN 117
4.5.4 Create VLAN 118
4.5.5 Interface Settings....119
4.5.6 Port to VLAN....124
4.5.7 Port VLAN Membership....125

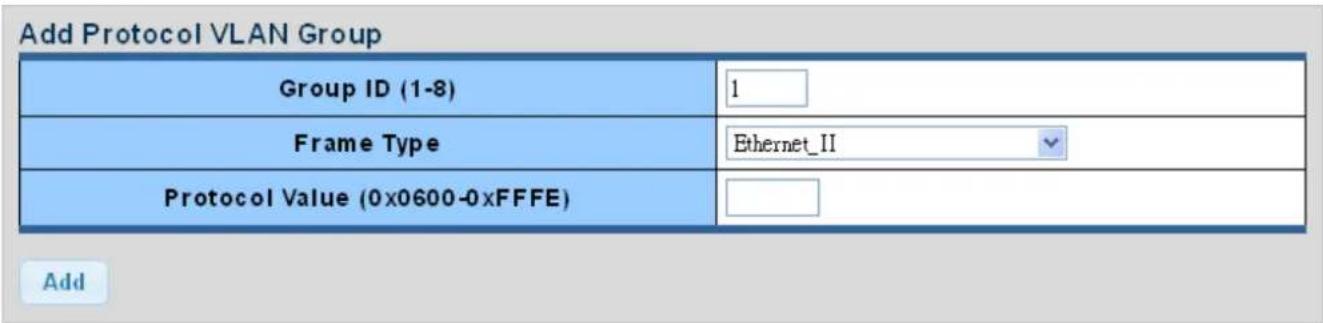

4.5.8 Protocol VLAN Group Setting....126
4.5.9 Protocol VLAN Port Setting 127
4.5.10 GVRP Setting 129

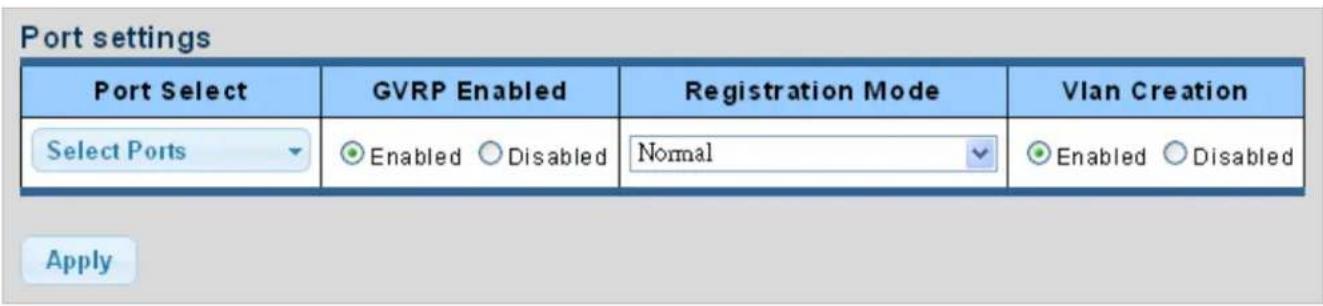

4.5.11 GVRP Port Setting....131
4.5.12 GVRP VLAN....133
4.5.13 GVRP Statistics 133
4.5.14 VLAN Setting Example: 135
4.5.14.1 Two Separate 802.1Q VLANs....135
4.5.14.2 VLAN Trunking between Two 802.1Q Aware Switches .....138

4.6 Spanning Tree Protocol....141

4.6.1 Theory ...... 141
4.6.2 STP Global Settings 147
4.6.3 STP Port Setting....149
4.6.4 CIST Instance Setting....152
4.6.5 CIST Port Setting....154
4.6.6 MST Instance Configuration 156
4.6.7 MST Port Setting 159
4.6.8 STP Statistics ....161

4.7 Multicast....162

4.7.1 Properties 162

4.7.2 IGMP Snooping....164

4.7.2.1 IGMP Setting....168

4.7.2.2 IGMP Querier Setting 170

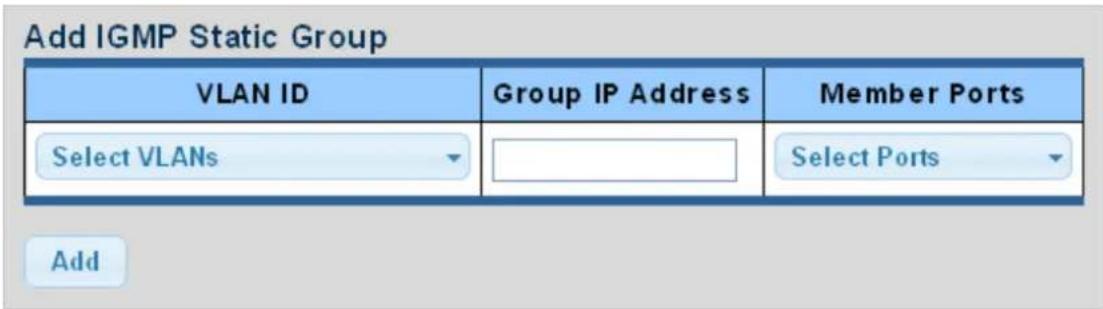

4.7.2.3 IGMP Static Group....171
4.7.2.4 IGMP Group Table....172
4.7.2.5 IGMP Router Setting 173
4.7.2.6 IGMP Router Table 174
4.7.2.7 IGMP Forward All 175

4.7.3 IGMP Snooping Statics....176

4.7.4 MLD Snooping....178

4.7.4.1 MLD Setting....178
4.7.4.2 MLD Static Group 180
4.7.4.3 MLD Group Table 181
4.7.4.4 MLD Router Setting....181
4.7.4.5 MLD Router Table....183
4.7.4.6 MLD Forward All 184

4.7.5 MLD Snooping Statics 185
4.7.6 Multicast Throttling Setting 187
4.7.7 Multicast Filter 188

4.7.7.1 Multicast Profile Setting....189
4.7.7.2 IGMP Filter Setting....190
4.7.7.3 MLD Filter Setting....191

4.8 Quality of Service....193

4.8.1 Understand QoS....193
4.8.2 General....194

4.8.2.1 QoS Properties....194
4.8.2.2 QoS Port Settings....195
4.8.2.3 Queue Settings....196
4.8.2.4 CoS Mapping....197
4.8.2.5 DSCP Mapping....199
4.8.2.6 IP Precedence Mapping ....201

4.8.3 QoS Basic Mode....202

4.8.3.1 Global Settings 202
4.8.3.2 Port Settings....203

4.8.4 Rate Limit 204

4.8.4.1 Ingress Bandwidth Control ....204
4.8.4.2 Egress Bandwidth Control 206
4.8.4.3 Egress Queue 207

4.8.5 Voice VLAN 209

4.5.8.1 Introduction to Voice VLAN....209
4.8.5.2 Properties 209
4.8.5.3 Telephony OUI MAC Setting....211

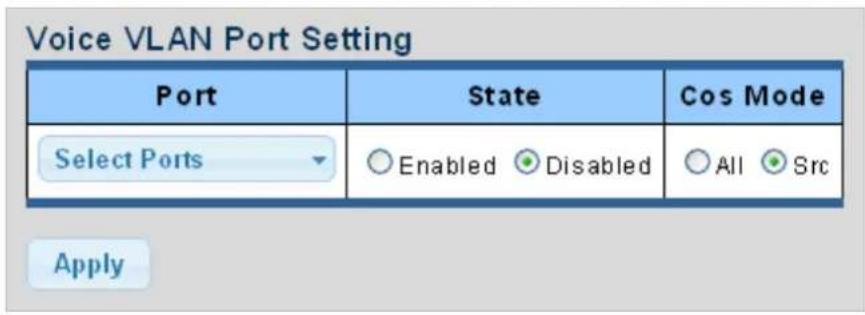

4.8.5.4 Telephony OUI Port Setting 213

4.9 Security ......215

4.9.1 802.1X....215

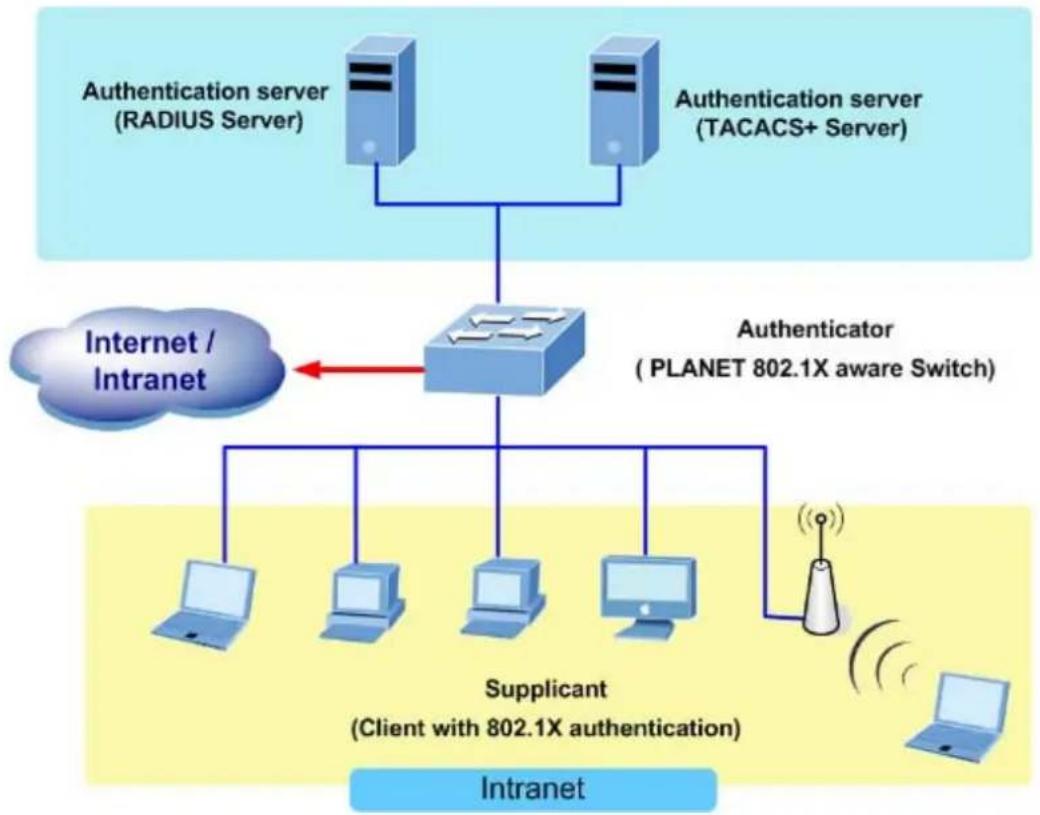

4.9.1.1 Understanding IEEE 802.1X Port-based Authentication....216

4.9.1.2 802.1X Setting....219

4.9.1.3 802.1X Port Setting ....220

4.9.1.4 Guest VLAN Setting 222

4.9.1.5 Authenticated Host 225

4.9.2 RADIUS Server 225

4.9.3 TACACS+ Server....228

4.9.4 AAA 231

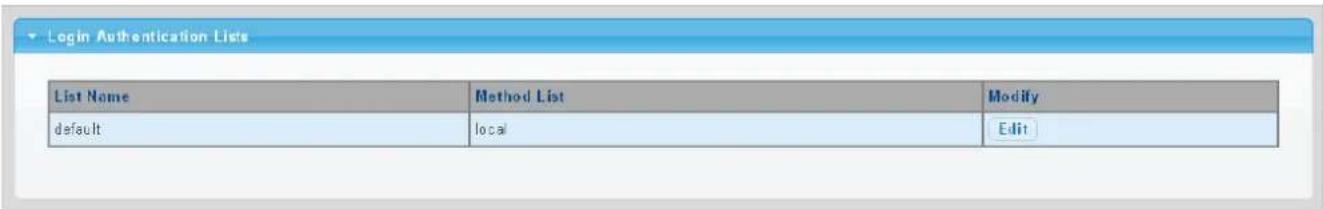

4.9.4.1 Login List....232

4.9.4.2 Enable List....233

4.9.5 Access 234

4.9.5.1 Telnet 234

4.9.5.2 SSH....235

4.9.5.3 HTTP 237

4.9.5.4 HTTPS 239

4.9.6 Management Access Method ....240

4.9.6.1 Profile Rules 240

4.9.6.2 Access Rules....241

4.9.7 DHCP Snooping 243

4.9.7.1 DHCP Snooping Overview 243

4.9.7.2 Global Setting....244

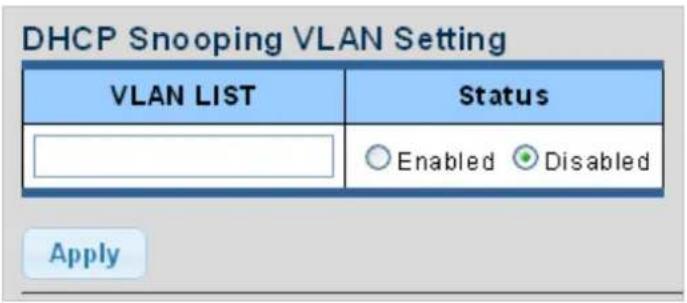

4.9.7.3 VLAN Setting 245

4.9.7.4 Port Setting....247

4.9.7.5 Statistics 248

4.9.7.6 Database Agent....249

4.9.7.7 Rate Limit 251

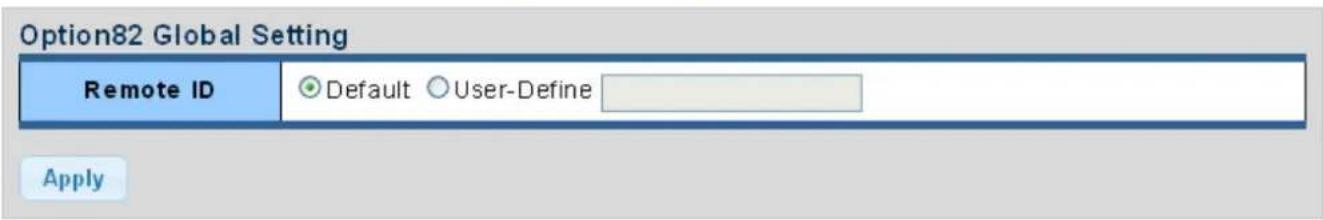

4.9.7.8 Option 82 Global Setting ....253

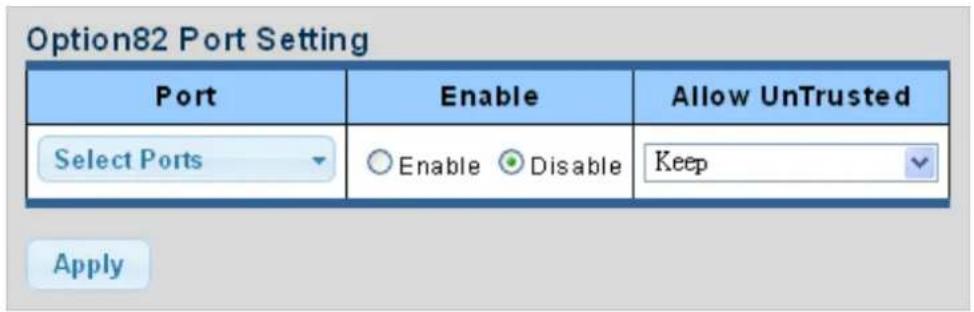

4.9.7.9 Option 82 Port Setting ....254

4.9.7.10 Option 82 Circuit-ID Setting....256

4.9.8 Dynamic ARP Inspection 257

4.9.8.1 Global Setting....257

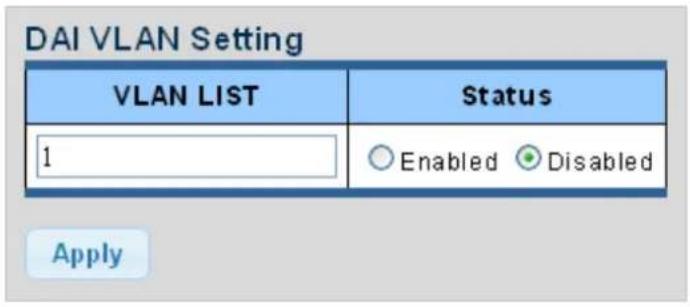

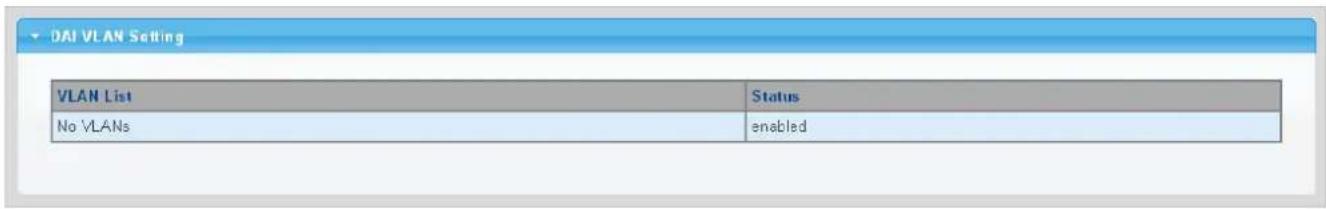

4.9.8.2 VLAN Setting 258

4.9.8.3 Port Setting....259

4.9.8.4 Statistics 261

4.9.8.5 Rate Limit 262

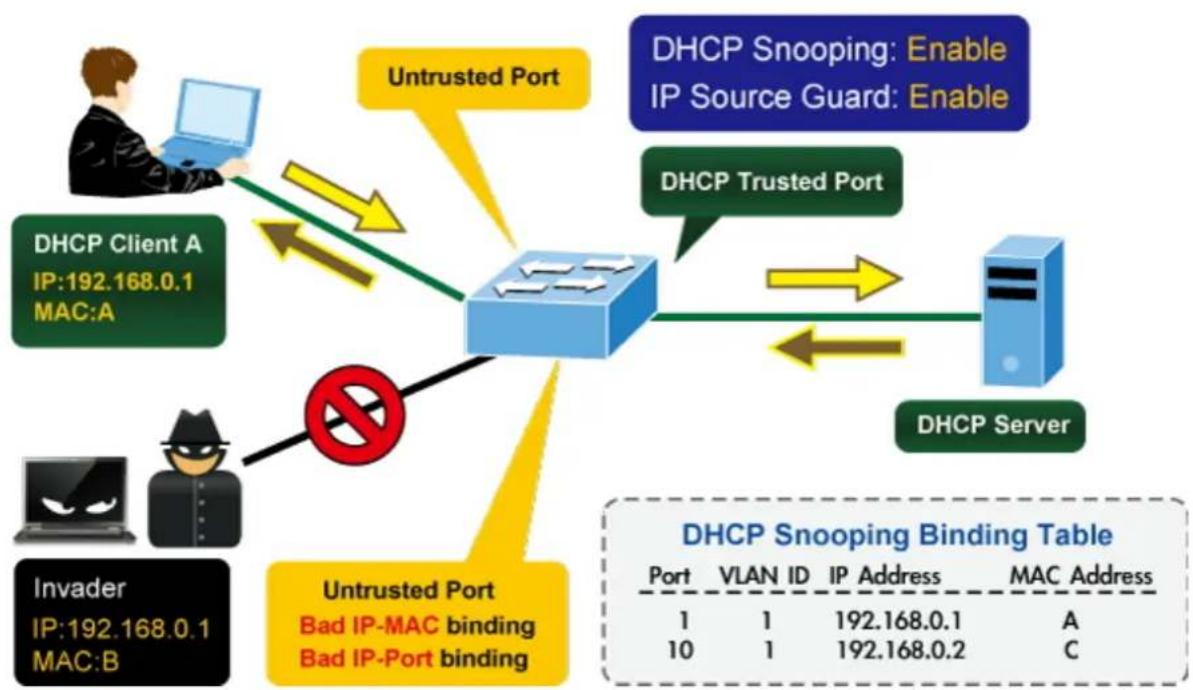

4.9.9 IP Source Guard....263

4.9.9.1 Port Settings....264

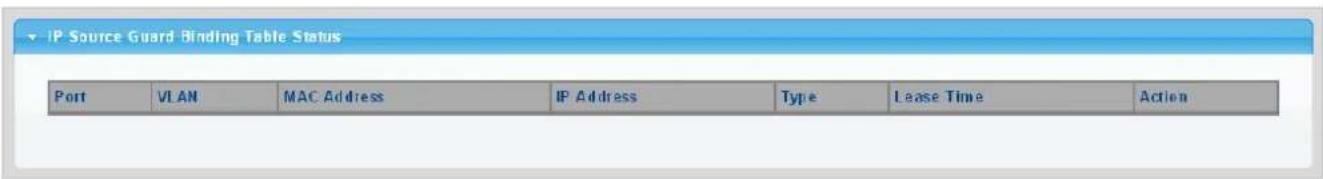

4.9.9.2 Binding Table....265

4.9.10 Port Security 267

4.9.11 DoS....269

4.9.11.1 Global DoS Setting 269

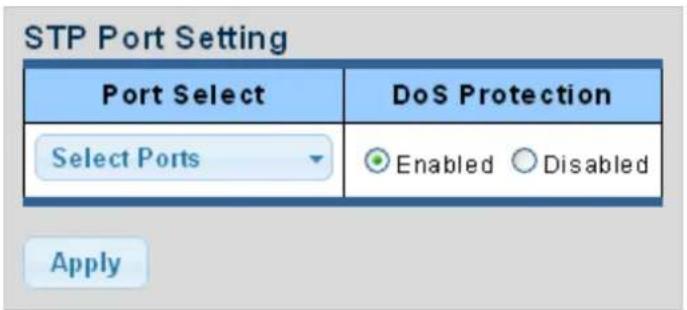

4.9.11.2 DoS Port Setting 272

4.9.12 Storm Control....274

4.9.12.1 Global Setting....274
4.9.12.2 Port Setting....275

4.10 ACL 277

4.10.1 MAC-based ACL....277
4.10.2 MAC-based ACE 278
4.10.3 IPv4-based ACL....281
4.10.4 IPv4-based ACE 281
4.10.5 IPv6-based ACL....287
4.10.6 IPv6-based ACE 287

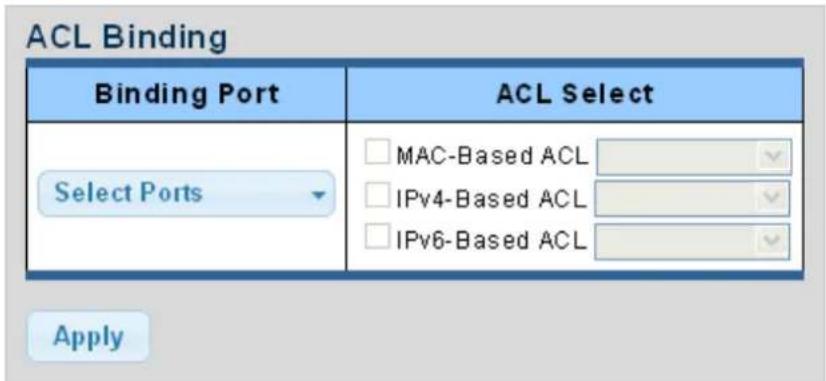

4.10.7 ACL Binding 293

4.11 MAC Address Table....294

4.11.1 Static MAC Setting....294

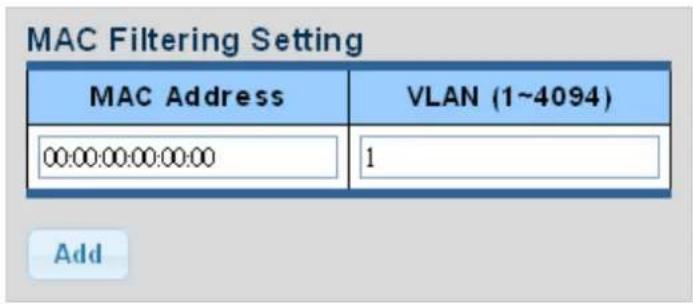

4.11.2 MAC Filtering....295

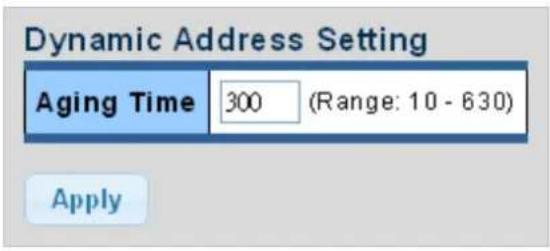

4.11.3 Dynamic Address Setting....296
4.11.4 Dynamically Learned 297

4.12 LLDP 299

4.12.1 Link Layer Discovery Protocol 299
4.12.2 LLDP Global Setting 299

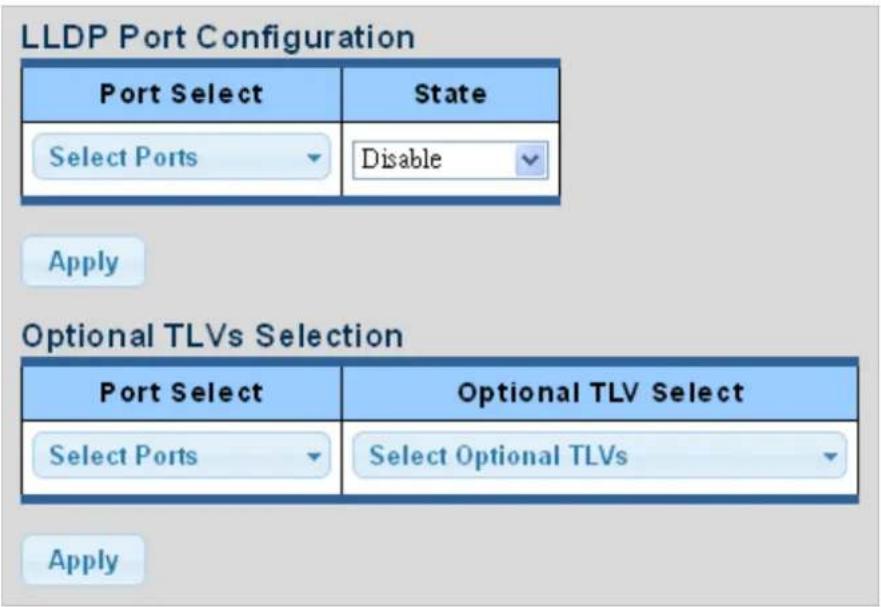

4.12.3 LLDP Port Setting....302
4.12.4 LLDP Local Device 305

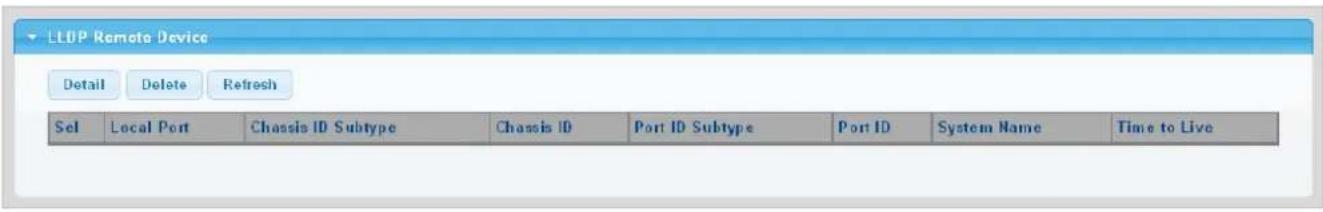

4.12.5 LLDP Remote Device 306

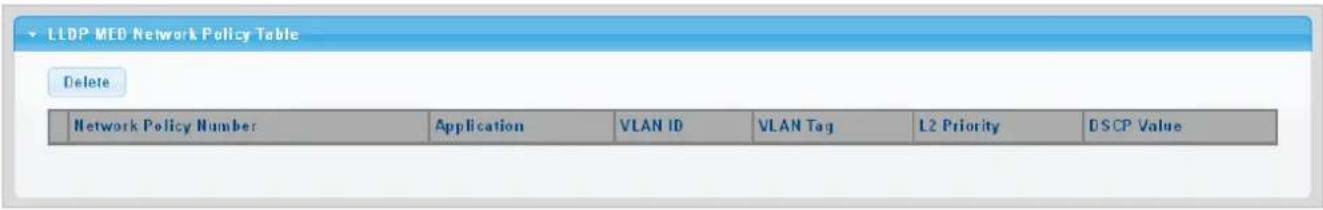

4.12.6 MED Network Policy 308
4.12.7 MED Port Setting....311
4.12.8 LLDP Overloading 314
4.12.9 LLDP Statistics....315

4.13 Diagnostics....317

4.13.1 Cable Diagnostics....317
4.13.2 Ping 319
4.13.3 Ping Test....319

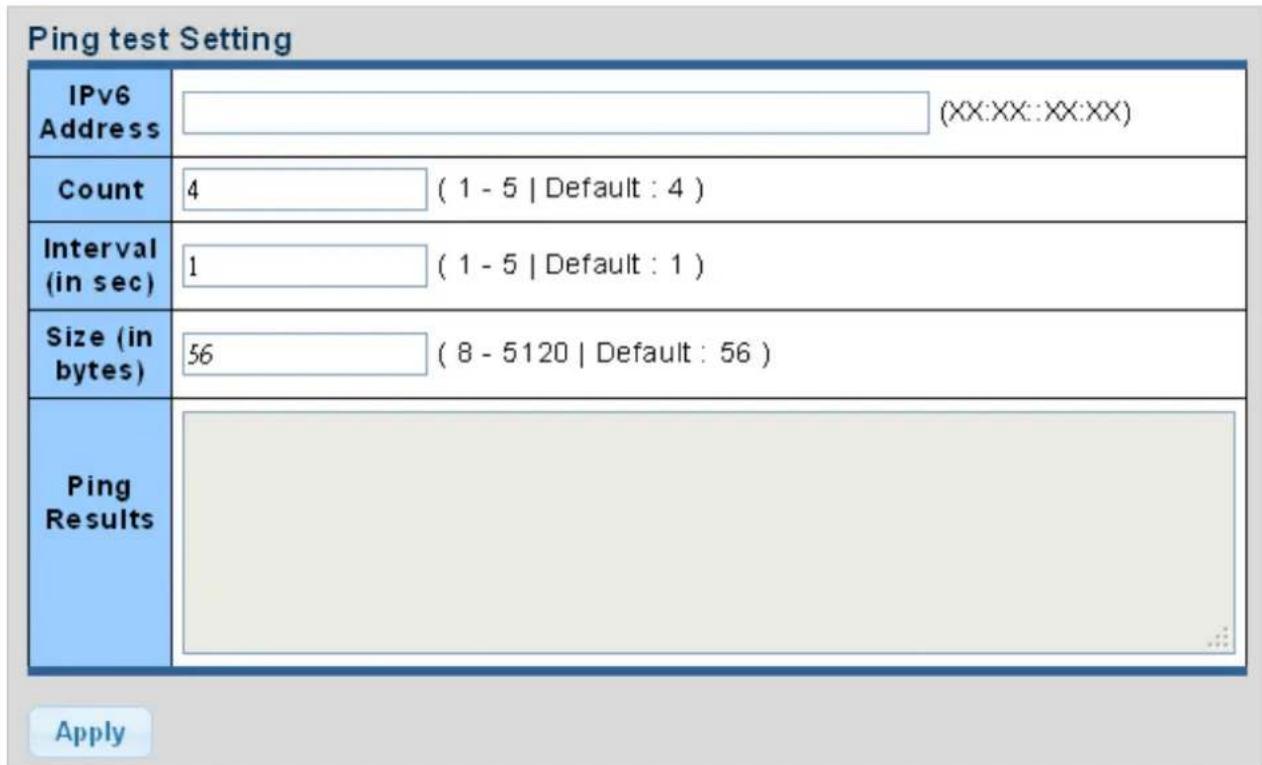

4.13.4 IPv6 Ping Test....320

4.14 RMON....321

4.14.1 RMON Statistics ....321
4.14.2 RMON Event 323

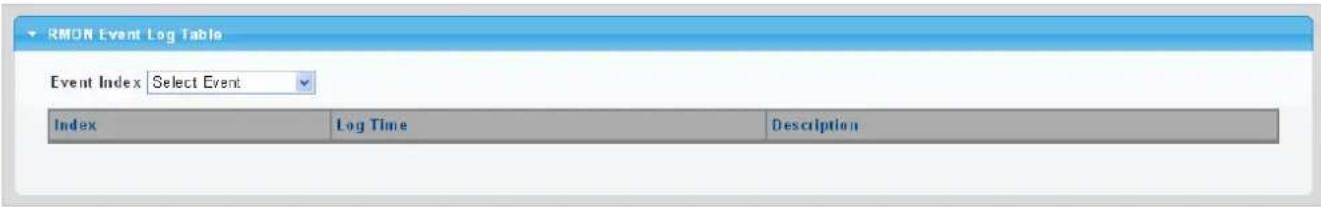

4.14.3 RMON Event Log 324
4.14.4 RMON Alarm 325
4.14.5 RMON History 328
4.14.6 RMON History Log 329

4.15 Power over Ethernet 330

4.15.1 Long Reach Power over Ethernet Powered Device....331
4.15.2 System Configuration 332
4.15.3 Power over Ethernet Configuration....332

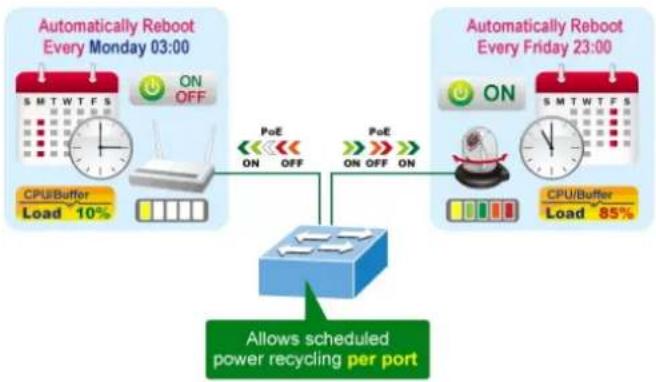

4.15.4 PoE Schedule 335
4.15.5 PoE Alive Check Configuration....338

4.16 Maintenance....340

4.16.1 Factory Default 340
4.16.2 Reboot Switch 341
4.16.3 Backup Manager ....341
4.16.4 Upgrade Manager....342
4.16.5 Dual Image 343

5. SWITCH OPERATION 344

5.1 Address Table 344
5.2 Learning ....344
5.3 Forwarding & Filtering....344
5.4 Store-and-Forward 344
5.5 Auto-Negotiation ....345

6. TROUBLESHOOTING.... 346

APPENDIX A 348

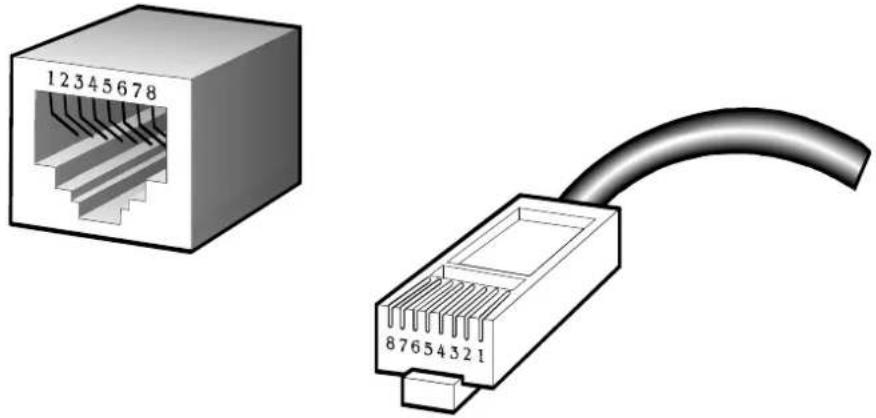

A.1 Switch's RJ45 Pin Assignments....348

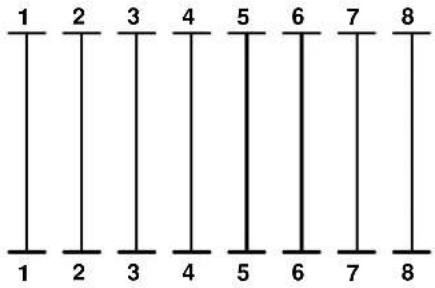

A.2 10/100Mbps, 10/100BASE-TX....348

1. INTRODUCTION

Thank you for purchasing PLANET LRP Managed Switch series, which comes with multiple Long Reach PoE female BNC, Gigabit Ethernet copper and SFP fiber optic connectivity, and robust layer 2 and layer 4 features. The description of this model is shown below:

LRP-822CS

8-port Coax + 2-port 10/100/1000T + 2-port 100/1000X SFP Long Reach PoE over Coaxial Managed Switch

LRP-1622CS

16-port Coax + 2-port 10/100/1000T + 2-port 100/1000X SFP Long Reach PoE over Coaxial Managed Switch

"LRP Managed Switch" is used as an alternative name in this user's manual.

1.1 Packet Contents

Open the box of the LRP Managed Switch and carefully unpack it. The box should contain the following items:

◆ The LRP Managed Switch x 1
◆ Quick Installation Guide x 1
◆ Rubber Feet x 4
◆ Power Cord x 1
◆ RS232 to RJ45 Console Cable x 1
◆ SFP Dust Cap x 2
◆ BNC Female Dust Cap x 8 (LRP-822CS)
◆ BNC Female Dust Cap x 16 (LRP-1622CS)
◆ Warning Sticker x 8 (LRP-822CS)
◆ Warning Sticker x 16 (LRP-1622CS)
◆ Rack-mount Accessory Kit x 1

If any item is found missing or damaged, please contact your local reseller for replacement.

1.2 Product Description

PLANET Long Reach PoE Solution enables all enterprises and network service providers to set up an IP infrastructure in a remote location where 802.3af/at PoE compliant powered devices can receive both data and power via PLANET switches, and PLANET LRP extenders and injectors over a long distance but not limited to the normal 100 meters.

Intelligent Long Reach PoE Switch on Coaxial-based Network

PLANET LRP Managed Switch series, a brand-new Multi-channel Long Reach PoE Switch, features an extended Ethernet and PoE networking of up to 1,000 meters over the existing coaxial cables going to multiple PoE IP cameras. It provides IPv6 / IPv4 dual stack management and built-in L2/L4 Gigabit Switching engine along with multi-BNC ports with Long Reach PoE Injector function, 2 Gigabit copper ports and 2 extra 100/1000BASE-X SFP fiber slots. As an advanced PoE switch, the PLANET LRP Managed Switch features intelligent PoE functions to improve the availability of critical applications. It provides a quick, safe and cost-effective PoE network solution to upgrading the existing coaxial cable infrastructure from the analog system to the HD IP surveillance system.

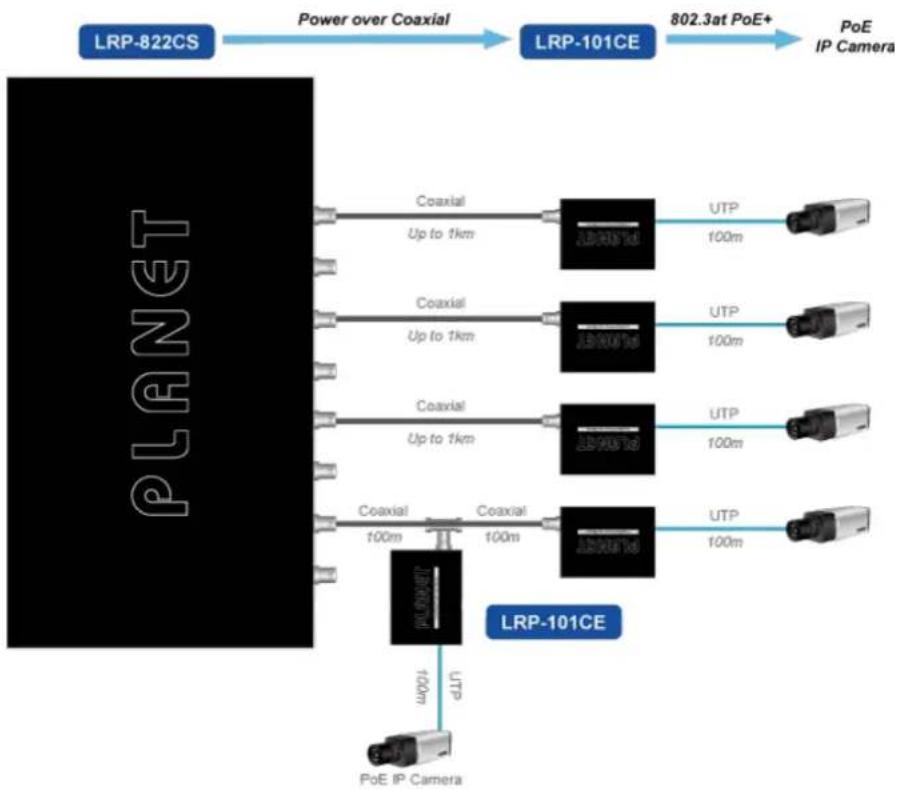

Multi-channel Long Reach Power over Ethernet

To support the enterprises in easily building a multi-channel and centrally-controlled Long Reach PoE system, the LRP-822CS works with the Long Reach PoE Extenders, LRP-101CE, via its BNC ports being the Long Reach PoE injectors for all connected LRP Extenders. Each of the BNC port features long range data and power transmission for distance up to 1,000m (3,280ft) over coaxial cable to the LRP Extender, and another 100m over Ethernet cable to remote PoE IP camera, PoE wireless AP or access control systems complied with 802.3af/at PoE.

Centralized Power Management

PLANET LRP Managed Switch eliminates the need for an additional remote site power while allowing a single power source to provide power to both LRP extenders and the PoE powered devices at long range. The Long Reach PoE capabilities provided help to reduce installation time and deployment costs for network devices as a result of freeing from restrictions of power outlet locations.

Daisy-chaining Multiple Nodes

PLANET Long Reach PoE solution can easily build a power system for centrally-controlled IP cameras in a high availability network infrastructure. It gives users the flexibility to expand small area network with BNC T-connector for sharing four nodes per port when needed.

Built-in Unique PoE Functions for Powered Devices Management

As a managed PoE switch for surveillance, wireless and VoIP networks, the PLANET LRP Managed Switch particularly features the following special PoE Management functions to accomplish a highly-efficient Long Reach network:

■ PD Alive Check
■ Scheduled Power Recycling
■ PoE Schedule
■ PoE Usage Monitoring

Intelligent Powered Device Alive Check

The PLANET LRP Managed Switch can be configured to monitor connected PD (Powered Device) status in real time via ping action. Once the PD stops working and responding, the PLANET LRP Managed Switch will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD's power source and reducing administrator management burden.

Step 2 No Response...... Ping Request Check alive status for 3 times

Scheduled Power Recycling

PLANET LRP Managed Switch allows each of the connected PoE IP cameras or PoE wireless access points via the LRP-101CE to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or wireless AP crash resulting from buffer overflow.

PoE Schedule for Energy Saving

Under the trend of energy saving worldwide and contributing to environmental protection, the PLANET LRP Managed Switch can effectively control the power supply besides its capability of giving high watts power. The "PoE schedule" function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. It also increases security by powering off PDs that should not be in use during non-business hours.
    note right of B: Save 24 watts/hr during off-business hours
        Total Saved = 10800 Watts/month
    end

PoE Usage Monitoring

Via the power usage chart in the web management interface, PLANET LRP Managed Switch enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities.

PoE Over-temperature Protection System

The over-temperature protection of PLANET LRP Managed Switch offers a safe and stable PoE operation by limiting the output power in order to avoid destructive breakdown due to unexpected overheating.

Environment-friendly, Smart Fan Design for Silent Operation

PLANET LRP Managed Switch features a 19-inch metal housing, a low noise design and an effective ventilation system. It supports the smart fan technology to automatically control the speed of the built-in fan to reduce noise and maintain the temperature of the PoE switch for optimal power output capability. PLANET LRP Managed Switch is able to operate reliably, stably and quietly in any environment without affecting its performance.

IPv6 / IPv4 Dual Stack

Supporting both IPv6 and IPv4 protocols, PLANET LRP Managed Switch enables SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.

Robust Layer 2 Features

PLANET LRP Managed Switch can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Loop and BPDU Guard, IGMP Snooping, and MLD Snooping. Via the link aggregation, PLANET LRP Managed Switch allows the operation of a high-speed trunk to combine with multiple ports such as an 8Gbps fat pipe, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 Protocol included to help discover basic information about neighboring devices on the local broadcast domain.

Efficient Traffic Control

PLANET LRP Managed Switch is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast storm control, per port bandwidth control, IP DSCP QoS priority and remarking. It guarantees the best performance for VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.

Powerful Security

PLANET LRP Managed Switch offers comprehensive IPv4 / IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the Protected Port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, Port Security function allows to limit the number of network devices on a given port.

Advanced Network Security

PLANET LRP Managed Switch also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now build highly-secured corporate networks with considerably less time and effort than before.

Friendly and Secure Management

For efficient management, PLANET LRP Managed Switch is equipped with console, Web, Telnet and SNMP management interfaces. With the built-in Web-based management interface, PLANET LRP Managed Switch offers an easy-to-use, platform-independent management and configuration facility. By supporting the standard Simple Network Management Protocol (SNMP), the switch can be managed via any standard management software. For text-based management, the switch can be accessed via Telnet and the console port. Moreover, PLANET LRP Managed Switch offers secure remote management by supporting SSH, SSL and SNMP v3 connections which encrypt the packet content at each session.

Flexibility and Long-distance Extension Solution

PLANET LRP Managed Switch provides two Gigabit TP interfaces supporting 10/100/1000BASE-T RJ45 copper to be connected with surveillance network devices such as NVR, Video Streaming Server or NAS to facilitate surveillance management. Or through another two dual-speed fiber SFP slots, it can connect with

the 100BASE-FX/1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver to uplink to backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and up to 10/20/30/40/50/70/120 kilometers (single-mode fiber or WDM fiber). The LRP Managed Switch is well suited for applications within the enterprise data centers and distributions.

Intelligent SFP Diagnosis Mechanism

PLANET LRP Managed Switch also supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for network administrator, such as optical output power, optical input power, temperature, laser bias current and transceiver supply voltage.

1.3 How to Use This Manual

This User Manual is structured as follows:

Section 2, INSTALLATION

The section explains the functions of the Switch and how to physically install the LRP Managed Switch.

Section 3, SWITCH MANAGEMENT

The section contains the information about the software function of the LRP Managed Switch.

Section 4, WEB CONFIGURATION

The section explains how to manage the LRP Managed Switch by Web interface.

Section 5, SWITCH OPERATION

The chapter explains how to do the switch operation of the LRP Managed Switch.

Section 6, TROUBLESHOOTING

The chapter explains how to troubleshoot the LRP Managed Switch.

Appendix A

The section contains cable information of the LRP Managed Switch.

1.4 Product Features

▶ Physical Port

■ 100Mbps BNC female ports with Long Reach PoE Injector function
■ 2 10/100/1000BASE-T Gigabit RJ45 copper ports
■ 2 100/1000BASE-X mini-GBIC/SFP slots
■ RJ45 console interface for switch basic management and setup

▶ Long Reach Power over Ethernet

■ Supports PoE power up to 36 watts for each PoE port
■ Remote power feeding up to 1 kilometer with 5C2V/RG6 75Ω coaxial cable
■ Long Reach PoE Management
- Total Long Reach PoE power budget control
- Per port Long Reach PoE function enable/disable
- Long Reach PoE port power feeding priority
- Per Long Reach PoE port power limitation
- Long Reach PD alive check
- Long Reach PoE schedule

▶ Layer 2 Features

■ Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
■ High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering that eliminates erroneous packets to optimize the network bandwidth
■ Supports VLAN

• IEEE 802.1Q tagged VLAN
• Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
• Protocol VLAN
• Voice VLAN
• Private VLAN
• Management VLAN
• GVRP

■ Supports Spanning Tree Protocol

• STP (Spanning Tree Protocol)
• RSTP (Rapid Spanning Tree Protocol)
• MSTP (Multiple Spanning Tree Protocol)
• STP BPDU Guard, BPDU Filtering and BPDU Forwarding

■ Supports Link Aggregation

• IEEE 802.3ad Link Aggregation Control Protocol (LACP)
  – Cisco ether-channel (static trunk)
• Maximum 4 trunk groups, up to 4 ports per trunk group

■ Provides port mirror (many-to-1)
■ Loop protection to avoid broadcast loops

Quality of Service

■ Ingress/Egress rate limit per port bandwidth control
■ Storm control support

- Broadcast/Unknown unicast/Unknown multicast

■ Traffic classification

• IEEE 802.1p CoS
• ToS/DSCP/IP Precedence of IPv4/IPv6 packets

■ Strict priority and Weighted Round Robin (WRR) CoS policies

Multicast

■ Supports IGMP snooping v2 and v3
■ Supports MLD snooping v1, v2
■ IGMP querier mode support
■ IGMP snooping port filtering
■ MLD snooping port filtering

Security

Authentication

• IEEE 802.1x port-based network access authentication
• Built-in RADIUS client to co-operate with the RADIUS servers
• RADIUS/TACACS+ login user access authentication

■ Access Control List

• IPv4/IPv6 IP-based ACL
• MAC-based ACL

MAC Security

• Static MAC
• MAC filtering

■ Port security for source MAC address entries filtering

■ DHCP snooping to filter untrusted DHCP messages

■ Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding

■ IP source guard prevents IP spoofing attacks

■ DoS attack prevention

■ SSH / SSL

▶ Management

■ IPv4 and IPv6 dual stack management

■ Switch management interface

• Web switch management
• Telnet command line interface
• SNMP v1, v2c and v3
• SSH / SSL secure access

■ User privilege levels control

■ Built-in Trivial File Transfer Protocol (TFTP) client

■ BOOTP and DHCP for IP address assignment

■ System maintenance

• Firmware upload/download via HTTP/TFTP
• Configuration upload/download through Web interface
• Dual images
• Hardware reset button for system reboot or reset to factory default

■ SNTP Network Time Protocol

■ Cable diagnostics

■ Link Layer Discovery Protocol (LLDP) and LLDP-MED

■ SNMP trap for interface linkup and linkdown notification

■ Event message logging to remote Syslog server

■ Four RMON groups (history, statistics, alarms and events)

■ PLANET Smart Discovery utility

■ Smart fan with speed control

1.5 Product Specifications

Model LRP-822CS		LRP-1622CS
Hardware Specifications
Ethernet Interfaces	Copper	2 x 10/100/1000BASE-T RJ45Auto-negotiation/ Auto-MDI/MDI-X
	Fiber Optic	2 x 100/1000BASE-X SFP slotSupports 100/1000Mbps dual mode and DDM
	Jumbo Frame	10Kbytes with GE1 to GE4
Long Reach PoE Interfaces	Connectivity	8 x BNC female connectors 16 x BNC female connectors
		Long Reach PoE over coaxial PSE (Power Source Equipment)■ BNC center pole : DC+ / Hi■ BNC shield : DC - / Lo
	Power Output	Per port 54V DC, 36 watts max. Per port 52V DC, 36 watts max.
	Total Power Budget	240 watts (max.) 440 watts (max.)
	Cabling	Coaxial cable: 75 ohmRG-6/U cable (Recommended)
	Maximum Distance	Max. 200m with PoE+ output (656ft.)Max. 400m with PoE output (1,312ft.)Max. 1000m with PoE output (3,280ft.)Max. 1200m without PoE output (3,937ft.)
	Long Reach Ethernet Standard	IEEE 1901
	Modulation Type Wavelet-OFDM
	Security 128-bit AES encryption
	Frequency Band 2 ~ 28MHz
	Performance	[LRP-822CS]
		Distance	CableType	Data Rate*	LRP-101CEPoE Output*
				TX** RX**
		200m	RG6	91.8Mbps	81.1Mbps
		400m	RG6	85.5Mbps	66.9Mbps
		600m	RG6	76.5Mbps	54.2Mbps
		800m	RG6	67.9Mbps	49.2Mbps
		1000m	RG6	26.6Mbps	25.6Mbps
		1200m	RG6	25.6Mbps	25.0Mbps

		[LRP-1622CS]
		Distance	Cable Type	Data Rate*		LRP-101CE PoE Output*
				TX** RX**
		200m	RG6	74.8Mbps	81.7Mbps	19.8W
		400m	RG6	62.5Mbps	75.2Mbps	15.8W
		600m	RG6	57.8Mbps	70.3Mbps	11.8W
		800m	RG6	41.7Mbps	67.1Mbps	7.9W
		1000m	RG6	31.7Mbps	58.8Mbps	6.7W
		1200m	RG6	14.9Mbps	22.5Mbps	---
		* The actual data rate and PoE output vary on the quality of the copper wire and environmental factors. The performance result above is based on the testing via the RG-6/U coaxial cable. ** TX: LRP-822CS to LRP-101CE; RX: LRP-101CE to LRP-822CS.
	Multiple Nodes	Up to 4 LRP extenders within 1km RG-6/U coaxial cable* * The actual extender nodes vary on the quality of the copper wire and environmental factors.
	LRP Compatibility	LRP-101CE: 1-Port 10/100TX PoE PSE + 1-Port Coax Long Reach PoE Extender
Console 1 x RS232-to-RJ45 serial port (1)		115200, 8, N, 1)
Switch Architecture Store-and-Forward
Switch Fabric 9.6Gbps / non-blocking 1		1.2Gbps / non-blocking
Address Table 8K entries
Shared Data Buffer 4.1 megabits
Flow Control		IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex
Reset Button		< 5 sec: System reboot > 5 sec: Factory default
LED		PWR, SYS, LNK, PoE-in-Use, 1000, LNK/ACK, Fan 1 Alert, Fan 2 Alert, PoE PWR Alert
Dimensions (W x D x H)		440 x 300 x 44.5 mm, 1U height
Weight		4282g		4430g
Power Requirements		AC 100~240V, 50/60Hz, auto-sensing
ESD Protection 6KV DC
Power Consumption		320 watts / 1091.8 BTU		540watts / 1843BTU
Enclosure		Metal
Layer 2 Functions
Port Mirroring		TX / RX / both
		Many-to-1 monitor
VLAN		802.1Q tagged-based VLANUp to 256 VLAN groups, out of 4094 VLAN IDs802.1ad Q-in-Q tunnelingVoice VLANProtocol VLANPrivate VLAN (Protected port)GVRP
Link Aggregation		IEEE 802.3ad LACP and static trunkSupports 4 groups of 4-port trunk
Spanning Tree Protocol STP / RSTP / MSTP
IGMP Snooping		IGMP (v2/v3) SnoopingIGMP QuerierUp to 256 multicast groups
MLD Snooping		MLD (v1/v2) Snooping, up to 256 multicast groups
Access Control List		IPv4/IPv6 IP-based ACL / MAC-based ACL
QoS		8 mapping ID to 8 level priority queues- Port number- 802.1p priority- 802.1Q VLAN tag- DSCP field in IP packetTraffic classification based, strict priority and WRR
Security		IEEE 802.1X– Port-based authenticationBuilt-in RADIUS client to co-operate with RADIUS serverRADIUS / TACACS+ user access authenticationIP-MAC port bindingMAC filterStatic MAC addressDHCP Snooping and DHCP Option 82STP BPDU guard, BPDU filtering and BPDU forwardingDoS attack preventionARP inspectionIP source guard
Management Functions
Basic Management Interfaces		Web browser / Telnet / SNMP v1, v2cFirmware upgrade by HTTP / TFTP protocol through Ethernet networkRemote / Local SyslogSystem logLLDP protocolSNTP
Secure Management Interfaces		SSH, SSL, SNMP v3
SNMP MIBs		RFC 1213 MIB-IIRFC 1215 Generic TrapsRFC 1493 Bridge MIBRFC 2674 Bridge MIB ExtensionsRFC 2737 Entity MIB (Version 2)RFC 2819 RMON (1, 2, 3, 9)RFC 2863 Interface Group MIBRFC 3635 Ethernet-like MIB
Standards Conformance
Regulation Compliance		FCC Part 15 Class A, CE
Standards Compliance		IEEE 1901 Broadband Power LineIEEE 802.3 10BASE-TIEEE 802.3u 100BASE-TX/100BASE-FXIEEE 802.3z Gigabit SX/LXIEEE 802.3ab Gigabit 1000TIEEE 802.3x flow control and back pressureIEEE 802.3ad port trunk with LACPIEEE 802.1D Spanning Tree ProtocolIEEE 802.1w Rapid Spanning Tree ProtocolIEEE 802.1s Multiple Spanning Tree ProtocolIEEE 802.1p Class of ServiceIEEE 802.1Q VLAN taggingIEEE 802.1X Port Authentication Network ControlIEEE 802.1ab LLDPRFC 768 UDPRFC 793 TFTPRFC 791 IPRFC 792 ICMPRFC 2068 HTTPRFC 1112 IGMP version 1RFC 2236 IGMP version 2RFC 3376 IGMP version 3RFC 2710 MLD version 1RFC 3810 MLD version 2
Environment
Operating		Temperature: 0 ~ 50 degrees CRelative Humidity: 5 ~ 95% (non-condensing)
Storage		Temperature: -10 ~ 70 degrees CRelative Humidity: 5 ~ 95% (non-condensing)

2. INSTALLATION

This section describes the hardware features and installation of the LRP Managed Switch on the desktop or rack mount. For easier management and control of the LRP Managed Switch, familiarize yourself with its display indicators, and ports. Front panel illustrations in this chapter display the unit LED indicators. Before connecting any network device to the LRP Managed Switch, please read this chapter completely.

2.1 Hardware Description

2.1.1 Switch Front Panel

The front panel provides a simple interface monitoring of the LRP Managed Switch. Figures 2-1-1A and 2-1-1B show the front panels of the LRP Managed Switches.

Front Panel

PLANET LRP-822CS 8-Port Long Reach PoE + 2-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch CAUTION The SFP Manager is the SFP Manager is the SFP Manager is the SFP Manager is the SFP Manager is the SFP Manager is the SFP Manager is the SFP Manager is the SFP Manager is the SFP Manager is the SFP Manager is the SFP Manager is the SFP Manager is the SFP Manager is the SFP Manager is the SFP Manager is the SFP Manager is the SFP Manager是 the SFP Manager是 the SFP Manager是 the SFP Manager是 the SFP Manager是 the SFP Manager是 the SFP Manager是 the SFP Manager是 the SFP Manager是 the SFP Manager是 the SFP Manager是 the SFP Manager是 the SFP Manager是 the SFP Manager是 the SFP Manager是 the SFP Manager是 the SFP Manager是 the SFRS A/B C D E F G H I J K L M N O X P Q R T U V W X X Y Z

Figure 2-1-1A LRP-822CS Front Panel

Front Panel

PLANET LRP-1622CS 16-Port Long Reach PoE + 2-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch CAUTION U.S. Open port U.S. Open port SFP Control C35 C34 C33 C32 C31 C30 C29 C28 C27 C26 C25 C24 C23 C22 C21 C20 C19 C18 C17 C16 C15 C14 C13 C12 C11 C10 C9 C8 C7 C6 C5 C4 C3 C2 C1 CPA CPB CPG CPH CPI CPJ CPK CPL CPM CPN CPQ CPR CPS CPA CPB CPG CPH CPI CPJ CPK CPL CPM CPN CPQ CPR CPS CPA CPB CPG CPH CPI CPJ CPK CPL CPM CPQ CPR CPS CPA CPB CPG CPH CPI CPJ CPK CPL CPM CPQ CPR CPS CPA CPB CPG CPH CPI CPJ CPK CPL CPM CPQ CPR CPS CPA CPB CPG CPH CPI CPJ

Figure 2-1-1B LRP-1622CS Front Panel

■ Long Reach PoE BNC Interface

BNC female port, 5C2V/RG6 75Ω coaxial cable: Up to 1 kilometer.

Gigabit TP Interface

10/100/1000BASE-T Copper, RJ45 Twisted-pair: Up to 100 meters.

100/1000BASE-X SFP Slots

Each of the SFP (Small Form-factor Pluggable) slots supports dual-speed, 1000BASE-SX / LX or 100BASE-FX

• For 1000BASE-SX/LX SFP transceiver module: From 550 meters (multi-mode fiber) to 10/30/50/70/120 kilometers (single-mode fiber).
• For 100BASE-FX SFP transceiver module: From 2 kilometers (multi-mode fiber) to 20/40/60 kilometers (single-mode fiber).

Console Port

The console port is a RJ45 port connector. It is an interface for connecting a terminal directly. Through the console port, it provides rich diagnostic information including IP Address setting, factory reset, port management, link status and system setting.

Users can use the attached DB9 to RJ45 console cable in the package and connect to the console port on the device. After the connection, users can run any terminal emulation program (Hyper Terminal, ProComm Plus, Telix, Winterm and so on) to enter the startup screen of the device.

Reset Button

On the left of the front panel, the reset button is designed to reboot the LRP Managed Switch without turning off and on the power. The following is the summary table of the Reset button functions:

Reset Button Pressed and Released Function
< 5 sec: System Reboot Reboot the LRP	Managed Switch.
> 5 sec: Factory Default	Reset the LRP Managed Switch to the Factory Default configuration. The LRP Managed Switch will then reboot and load the default settings shown below:Default Username: adminDefault Password: adminDefault IP Address: 192.168.0.100Subnet Mask: 255.255.255.0Default Gateway: 192.168.0.254

2.1.2 LED Indications

The front panel LEDs indicates instant status of port links, data activity and system power; it helps monitor and troubleshoot when needed. Figures 2-1-2A and 2-1-2B show the LED indications of these LRP Managed Switches.

LRP-822CS LED Indication

PLANET Networking & Communication LRP-822CS 8-Port Long Console 115200, N, 8, 1 SYS RESET PWR 1 CAUTION The LRP Interface is allowed to connect in LRP Extended copy. LINE Pot In-Use ENK ACT 1000 GE2 GE2 GE1 GE4 GE3 GE4 GE3 Alert FAN 1 FAN 2 FAN 3 PWR

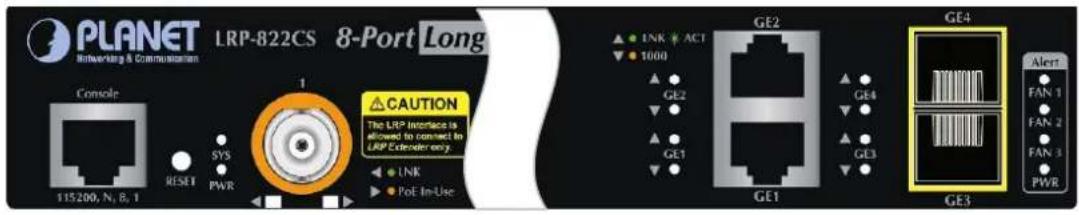

Figure 2-1-2 LRP-822CS LED Panel

System / Alert

LED Color Function
PWR Green	Lights to indicate that the Switch has power.
SYS Green	Lights to indicate the system is working.Off to indicate the system is booting.
FAN 1 Red	Lights to indicate that Fan 1 is down.
FAN 2 Red	Lights to indicate that Fan 2 is down.
FAN 3 Red	Lights to indicate that Fan 3 is down.
PWR Red	Lights to indicate that the PoE Power is down.

■ Long Reach PoE Interfaces (Port-1 to Port-8)

LED Color Function
LNK Green Lights	To indicate the link through that port is successfully established.
PoE Orange	Lights To indicate the port is providing DC in-line power.

■ 10/100/1000BASE-T Interfaces (GE1 to GE2)

LED Color Function
LNK/ACT	Green	Lights To indicate the link through that port is successfully established.Blinking To indicate that the switch is actively sending or receiving data over that port.
1000	Orange	Lights To indicate that the port is operating at 1000Mbps.
		Lights When LNK/ACT LED lights up, it indicates that the port is operating at 10/100Mbps.Off When LNK/ACT LED is off, it indicates that the port is linkdown.

1000BASE-SX/LX SFP Interfaces (GE3 to GE4)

LED Color Function
LNK/ACT Green		Lights To indicate the link through that port is successfully established.Blinking To indicate that the switch is actively sending or receiving data over that port.
1000	Orange	Lights To indicate that the port is operating at 1000Mbps.
		Lights When LNK/ACT LED lights up, it indicates that the port is operating at 10/100Mbps.Off When LNK/ACT LED is off, it indicates that the port is linkdown.

LRP-1622CS LED Indication

PLANET LRP-1622CS 16-Port Lon Networking & Communication Console 115200, 11, 8, 1 RESET SYS PAP GE2 ACT 1000 GE2 GE3 GE1 GE4 GE3 GE4 Alert FAN 1 FAN 2 FAN 3 PWR

Figure 2-1-2B LRP-1622CS LED Panel

System / Alert

LED Color Function
PWR Green		Lights to indicate that the Switch has power.
SYS Green		Lights to indicate the system is working.Off to indicate the system is booting.
FAN 1	Red	Lights to indicate that Fan 1 is down.
FAN 2	Red	Lights to indicate that Fan 2 is down.
FAN 3	Red	Lights to indicate that Fan 3 is down.
PWR	Red	Lights to indicate that the PoE Power is down.

Long Reach PoE Interfaces (Port-1 to Port-16)

LED Color Function
LNK	Green	Lights	To indicate the link through that port is successfully established.
PoE	Orange	Lights	To indicate the port is providing DC in-line power.

10/100/1000BASE-T Interfaces (GE1 to GE2)

LED Color Function
LNK/ACT	Green	Lights To indicate the link through that port is successfully established.Blinking To indicate that the switch is actively sending or receiving data over that port.
1000	Orange	Lights To indicate that the port is operating at 1000Mbps.

		Lights	If LNK/ACT LED lights up, it indicates that the port is operating at 10/100Mbps.
		Off	If LNK/ACT LED is off, it indicates that the port is linkdown.

■ 1000BASE-SX/LX SFP Interfaces (GE3 to GE4)

LED Color Function
LNK/ACT Green		Lights	To indicate the link through that port is successfully established.
		Blinking	To indicate that the switch is actively sending or receiving data over that port.
1000 Orange		Lights	To indicate that the port is operating at 1000Mbps.
		Lights	If LNK/ACT LED lights up, it indicates that the port is operating at 100Mbps.
		Off	If LNK/ACT LED is off, it indicates that the port is linkdown.

2.1.3 Switch Rear Panel

The rear panel of the LRP Managed Switch has an AC power socket, which accepts voltage from 100 to 240V AC at 50-60Hz.

Figure 2-1-3 shows the rear panel of these LRP Managed Switches.

Rear Panel

FAN 1 FAN 2 FAN 3 POWER ON OFF 100 - 200V AC SUPPORT

Figure 2-1-3 Rear Panel of LRP-822CS/LRP-1622CS

■ AC Power Receptacle

For compatibility with electric service in most areas of the world, the LRP Managed Switch's power supply automatically adjusts to line power in the range of 100-240V AC at 50/60 Hz.

Plug the female end of the power cord firmly into the receptacle on the rear panel of the LRP Managed Switch. Plug the other end of the power cord into an electrical outlet and the power will be ready.

The device is a power-required device, which means it will not work till it is powered. If your networks Power Notice: should be active all the time, please consider using UPS (Uninterrupted Power Supply) for your device. It will prevent you from network data loss or network downtime.

Power Notice: In some areas, installing a surge suppression device may also help to protect your LRP Managed Switch from being damaged by unregulated surge or current to the LRP Managed Switch.

2.2 Installing the Switch

This section describes how to install your LRP Managed Switch and make connections to the LRP Managed Switch. Please read the following topics and perform the procedures in the order being presented. To install your LRP Managed Switch on a desktop or shelf, simply complete the following steps.

2.2.1 Desktop Installation

To install the LRP Managed Switch on desktop or shelf, please follow these steps:

Step 1: Attach the rubber feet to the recessed areas on the bottom of the LRP Managed Switch.

Step 2: Place the LRP Managed Switch on the desktop or the shelf near an AC power source, as shown in Figure 2-1-4.

POWERNET POWERNET (40bit) / 16bit/10bit (10bit) + 24bit 10/70bit (10bit) + 24bit 100/100bit (IP-32/32/32/32) ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↑

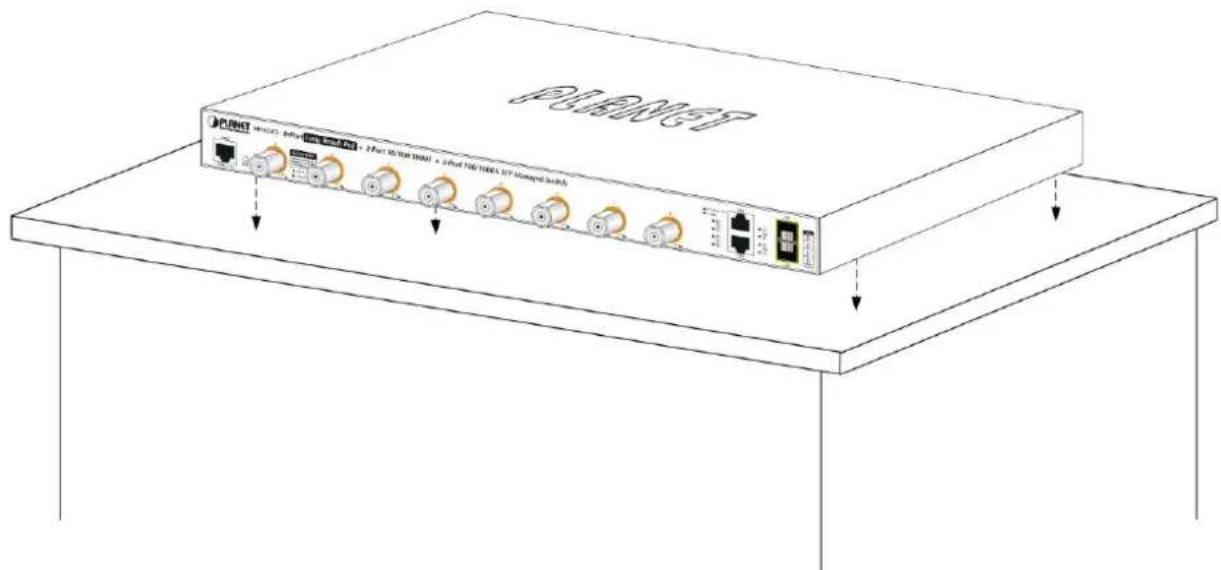

Figure 2-1-4 Place the LRP Managed Switch on the desktop

Step 3: Keep enough ventilation space between the LRP Managed Switch and the surrounding objects.

When choosing a location, please keep in mind the environmental restrictions discussed in Chapter 1, Section 4 under specifications.

Step 4: Connect the LRP Managed Switch to network devices.

Connect one end of a standard network cable to the 10/100/1000 RJ45 ports and standard coaxial cable to LRP ports on the front of the LRP Managed Switch. Connect the other end of the cable to the network devices such as printer server, workstation or router.

Connection to the LRP Managed Switch requires UTP Category 5 network cabling with RJ45 tips. For more information, please see the Cabling Specification in Appendix A.

Step 5: Supply power to the LRP Managed Switch.

Connect one end of the power cable to the LRP Managed Switch. Connect the power plug of the power cable to a standard wall outlet. When the LRP Managed Switch receives power, the Power LED should remain solid Green.

2.2.2 Rack Mounting

To install the LRP Managed Switch in a 19-inch standard rack, please follow the instructions described below.

Step 1: Place the LRP Managed Switch on a hard flat surface, with the front panel positioned towards the front side.

Step 2: Attach the rack-mount bracket to each side of the LRP Managed Switch with supplied screws attached to the package.

Figure 2-1-5 shows how to attach brackets to one side of the LRP Managed Switch.

PULBOSPT PULBOSPT (4 Port/100/100/100/100/100/100/100/100/100/100/100/100/100/100/100/100/100/100/100/100/100/100/100/100/100/10 -82 -82 -82 -82 -82 -82 -82 -82 -82 -82 -82 -82 -82 -82 -82 -82 -82 -82 -82 -82 -82 -82 -82 -82 -82 -83 -83 -83 -83 -83 -83 -83 -83 -83 -83 -83 -83 -83 -83 -83 -83 -83 -83 -83 -83 -83 -83 -83 -83 -83 -84 -84 -84 -84 -84 -84 -84 -84 -84 -84 -84 -84 -84 -84 -84 -84 -84 -84 -84 -84 -84 -84 -85 -85 -85 -85 -85 -85 -85 -85 -85 -85 -85 -85 -85 -85 -85 -85 -85 -85 -85 -85 -85 -85 -85 -85 -85 -86 -86 -86 -86 -86 -86 -86 -86 -86 -86 -86 -86 -86 -86 -86 -86 -86 -86 -86 -86 -86 -86 -86

Figure 2-1-5 Attach Brackets to the LRP Managed Switch.

You must use the screws supplied with the mounting brackets. Damage caused to the parts by using incorrect screws would invalidate the warranty.

Step 3: Secure the brackets tightly.

Step 4: Follow the same steps to attach the second bracket to the opposite side.

Step 5: After the brackets are attached to the LRP Managed Switch, use suitable screws to securely attach the brackets to the rack, as shown in Figure 2-1-6.

PL62VET PL62VET (Windows 9.0/100/1000) - 2Port to 100/1000T - 2Port H87/1000T W/ Standard Node Data Gpm Gpm Gpm Gpm

Figure 2-1-6 Mounting LRP Managed Switch in a Rack

Step 6: Proceeds with Steps 4 and 5 of session 2.2.1 Desktop Installation to connect the network cabling and supply power to the LRP Managed Switch.

2.2.3 Installing the SFP transceiver

The sections describe how to insert an SFP transceiver into an SFP slot. The SFP transceivers are hot-pluggable and hot-swappable. You can plug in and out the transceiver to/from any SFP port without having to power down the LRP Managed Switch as Figure 2-1-7 shows.

1 MGB-SX/LX 2 1000Base-SX/LX LC Fiber

Figure 2-1-7 Plug in the SFP transceiver

■ Approved PLANET SFP Transceivers

PLANET LRP Managed Switch supports both single mode and multi-mode SFP transceivers. The following list of approved PLANET SFP transceivers is correct at the time of publication:

Gigabit SFP Transceiver Modules

■ MGB-GT SFP-Port 1000BASE-T Module
■ MGB-SX SFP-Port 1000BASE-SX mini-GBIC module
■ MGB-LX SFP-Port 1000BASE-LX mini-GBIC module
■ MGB-L50 SFP-Port 1000BASE-LX mini-GBIC module – 50km
■ MGB-L70 SFP-Port 1000BASE-LX mini-GBIC module – 70km
■ MGB-L120 SFP-Port 1000BASE-LX mini-GBIC module – 120km
■ MGB-LA10 SFP-Port 1000BASE-LX (WDM,TX:1310nm) – 10km
■ MGB-LA20 SFP-Port 1000BASE-LX (WDM,TX:1310nm) – 20km
■ MGB-LB20 SFP-Port 1000BASE-LX (WDM,TX:1550nm) – 20km
■ MGB-LA40 SFP-Port 1000BASE-LX (WDM,TX:1310nm) – 40km
■ MGB-LB40 SFP-Port 1000BASE-LX (WDM,TX:1550nm) – 40km

Fast Ethernet SFP Transceiver Modules

■ MFB-FX SFP-Port 100BASE-FX Transceiver – 2km
■ MFB-F20 SFP-Port 100BASE-FX Transceiver – 20km
■ MFB-F60 SFP-Port 100BASE-FX Transceiver – 60km
■ MFB-FA20 SFP-Port 100BASE-BX Transceiver (WDM,TX:1310nm) – 20km
■ MFB-FB20 SFP-Port 100BASE-BX Transceiver (WDM,TX:1550nm) – 20km

It is recommended to use PLANET SFP on the LRP Managed Switch. If you insert an SFP transceiver that is not supported, the LRP Managed Switch will not recognize it.

In the installation steps below, this Manual uses Gigabit SFP transceiver as an example. However, the steps for Fast Ethernet SFP transceiver are similar.

1. Before we connect LRP Managed Switch to the other network device, we have to make sure both sides of the SFP transceivers are with the same media type, for example, 1000BASE-SX to 1000BASE-SX, 1000BASE-LX to 1000BASE-LX.

2. Check whether the fiber-optic cable type matches with the SFP transceiver requirement.

To connect to 1000BASE-SX SFP transceiver, please use the multi-mode fiber cable with one side being the male duplex LC connector type.
To connect to 1000BASE-LX SFP transceiver, please use the single-mode fiber cable with one side being the male duplex LC connector type.

■ Connect the Fiber Cable

1. Insert the duplex LC connector into the SFP transceiver.
2. Connect the other end of the cable to a device with SFP transceiver installed.
3. Check the LNK/ACT LED of the SFP slot on the front of the LRP Managed Switch. Ensure that the SFP transceiver is operating correctly.
4. Check the Link mode of the SFP port if the link fails. To function with some fiber-NICs or media converters, user has to set the port Link mode to "1000 Force" or "100 Force".

■ Remove the Transceiver Module

1. Make sure there is no network activity anymore.
2. Remove the fiber-optic cable gently.
3. Lift up the lever of the MGB module and turn it to a horizontal position.
4. Pull out the module gently through the lever.

MGB-SX/LX 1 2

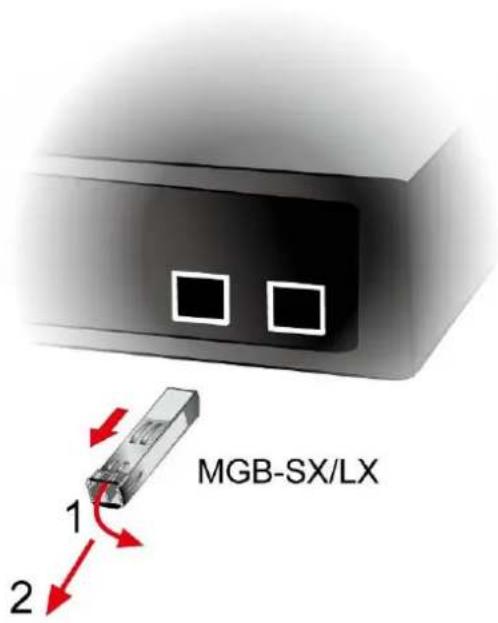

Figure 2-1-8 How to Pull Out the SFP Transceiver

Note

Never pull out the module without lifting up the lever of the module and turning it into a horizontal position. Directly pulling out the module could damage the module and the SFP module slot of the LRP Managed Switch.

2.2.4 Installing the Long Reach PoE Communication

The sections describe how to insert a coaxial cable into a BNC female port. You can plug in and out the coaxial cable to/from any BNC female port without having to power down the LRP Managed Switch.

■ Approved PLANET Long Reach PoE Extenders

The following list of approved PLANET Long Reach PoE extenders is correct at the time of publication:

Long Reach Ethernet Coaxial Extenders

■ LRP-101CE

1-Port 10/100TX PoE PSE + 1-Port Coax Long Reach PoE Extender

It is recommended to use PLANET Long Reach Ethernet coaxial extenders on the LRP Managed Switch. If you insert a coaxial extender that is not supported, the LRP Managed Switch may damage it.

1. Before we connect LRP Managed Switch to the other network device, we have to make sure both sides of the Long Reach Ethernet coaxial extender/transceiver are with the same media type.
2. Check whether the coaxial cable type matches with the Long Reach Ethernet coaxial extender/transceiver requirement.

To connect to LRP Managed Switch, please use the coaxial cable with 75Ω BNC plug with one side being the BNC plug connector type.
To connect to Long Reach Ethernet coaxial extenders, please use the coaxial cable with one side being the 75Ω BNC plug connector type.

Because there are various resistance values in the category of RG-59/U or RG-6/U cables, please take care of the conditions of the resistance value of cables as follows:

Coaxial Cable Type
RG-59/U	Less	than	30Ω/1000 ft.
RG-6/U	Less	than	12Ω/1000 ft

In the installation steps below, this Manual uses Long Reach Ethernet coaxial extender as an example.

■ Connect the Coaxial Cable

1. Insert the coaxial cable with one side being the 75Ω BNC plug connector into the Long Reach Ethernet coaxial interface.
2. Connect the other end of the cable to a device with Long Reach Ethernet coaxial extender installed.

3. Tighten the BNC male connector gently.

PLANT LRP-822CS 1 2 5C2V/RG6 75Ω Coaxial Cable PLANT LRP-101CE RJ45 PoE PT Camera

Figure 2-1-8 How to insert the coaxial cable from LRP Managed Switch

4. Enable Long Reach Power over Ethernet function for the all LRP ports from WebUI

SAVE | LOGOUT | REBOOT | REFRESH System Port Management Link Aggregation VLAN Spanning Tree Multicast QoS Security Access Control List MAC Address Table LLDP Diagnostics RMON PoE PoE Configuration PoE Schedule PD Alive Check Maintenance PoE Configuration System PoE Admin Mode Enable ▼ Enable Disable 2 PoE Management Mode Temperature Threshold 54 Degrees C PoE Temperature 35°C / 95°F Power Allocation 0 W / 240 W Port PoE Mode Schedule Priority Current Used [mA] Power Used [W] Power Allocation [W] 1 Enable Profile 1 Critical 0 0 30.8 2 Enable Profile 1 Critical 0 0 30.8 3 Enable Profile 1 Critical 0 0 30.8 4 Enable Profile 1 Critical 0 0 30.8 5 Enable Profile 1 Critical 0 0 30.8 6 Enable Profile 1 Critical 0 0 30.8 7 Enable Profile 1 Critical 0 0 30.8 8 Enable Profile 1 Critical 0 0 30.8 Total 0 0 0 Apply 3

5. Check the LNK LED of the Long Reach Power over Ethernet interface on the front of the LRP Managed Switch. Ensure that the Long Reach Power over Ethernet interface is operating correctly.

■ Remove the connected the Coaxial Cable

1. Make sure there is no network activity anymore.
2. Disable Long Reach Power over Ethernet function for the all LRP ports from WebUI.

SAVE | LOGOUT | REBOOT | REFRESH System Port Management Link Aggregation VLAN Spanning Tree Multicast QoS Security Access Control List MAC Address Table LLDP Diagnostics RMON PoE PoE Configuration PoE Schedule PD Alive Check Maintenance PoE Configuration System PoE Admin Mode PoE Management Mode Temperature Threshold PoE Temperature PoE System PoE Admin Mode PoE Management Mode PoE Management Mode PoE Management Mode PoE Management Mode PoE Management Mode PoE Management Mode PoE Management Mode PoE Management Mode PoE Management Mode PoE Management Mode PoE Management Mode PoE Management Mode PoE Management Mode PoE Management Mode PoE Management Mode PoE Management Mode PoE Management Mode PoE Management Mode PoE Management Mode PoE Management Mode PoE Administration 0 W / 240 W Power Allocation 0 W / 240 W Port PoE Mode Schedule Priority Current Used [mA] Power Used [W] Power Allocation [W] 1 Enable Profile 1 Critical 0 0 30.8 2 Enable Profile 1 Critical 0 0 30.8 3 Enable Profile 1 Critical 0 0 30.8 4 Enable Profile 1 Critical 0 0 30.8 5 Enable Profile 1 Critical 0 0 30.8 6 Enable Profile 1 Critical 0 0 30.8 7 Enable Profile 1 Critical 0 0 30.8 8 Enable Profile 1 Critical 0 0 30.8 Total 0 0 0 Apply 3

. Loosen the BNC male connector gently. 3
4. Pull out the coaxial cable gently.

PLNET LRP-822CS 1 2 5C2V/RG6 75Ω Coaxial Cable PLNET LRP-101CE RJ45 PoE PT Camera

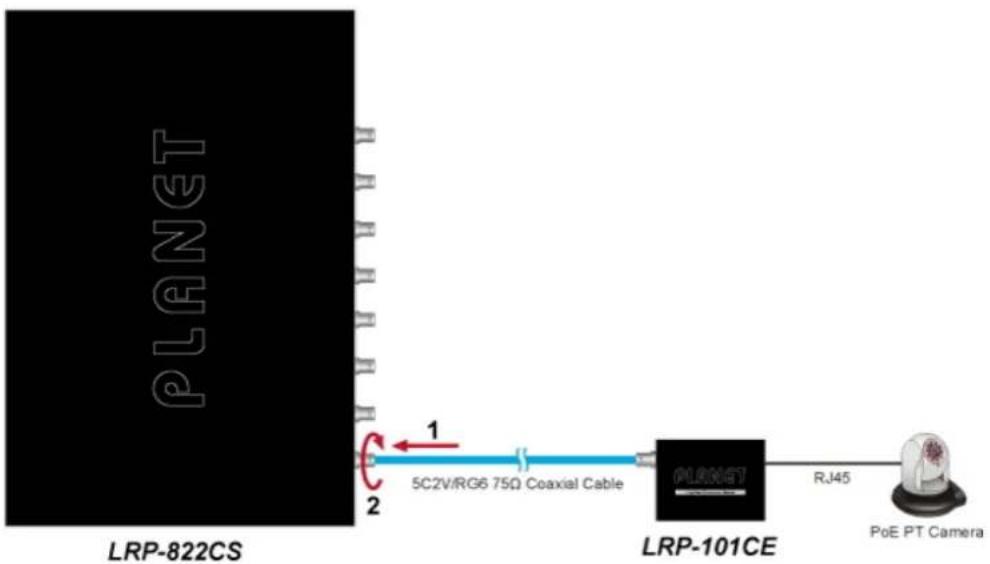

Figure 2-1-8 How to pull out the coaxial cable from LRP Managed Switch

Note

Never pull out the coaxial cable without disabling Long Reach Power over Ethernet function for the port from WebUI. Directly pulling out the coaxial cable could damage the Long Reach Ethernet coaxial extender and the BNC female connector of the LRP Managed Switch.

1. The package contains eight warning stickers, which should be stuck on the coaxial cable connector before using PLANET LRP Managed Switch and LRP extender. If connected with non-PLANET LRP series extender equipment, it might cause damage to the equipment.

Please stick the sticker on the connector going to the LRP Extender

Warning: This side of connector contains electric power. Please be careful before plugging into the device.

Warning: This side of connector contains electric power. Please be careful before plugging into the device.

1. After the LRP export is enabled, the pin center of the coaxial cable has electri the pin center or connect this end to any non- PLANET LRP equipment.

Do Not Touch the Center Pin

3. SWITCH MANAGEMENT

This chapter explains the methods that you can use to configure management access to the LRP Managed Switch. It describes the types of management applications and the communication and management protocols that deliver data between your management device (workstation or personal computer) and the system. It also contains information about port connection options.

This chapter covers the following topics:

• Requirements
  ■ Management Access Overview
  ■ Administration Console Access
  ■ Web Management Access
  SNMP Access
  ■ Standards, Protocols, and Related Reading

3.1 Requirements

■ Workstations running Windows 2000/XP, 2003, Vista/7/8, 2008, MAC OS9 or later, Linux, UNIX or other platforms are compatible with TCP/IP protocols.
■ Workstation is installed with Ethernet NIC (Network Interface Card)
■ Serial Port connect (Terminal)
- The above PC with COM Port (DB9 / RS232) or USB-to-RS232 converter
■ Ethernet Port connection
- Network cables -- Use standard network (UTP) cables with RJ45 connectors.
■ The above Workstation is installed with Web browser and JAVA runtime environment plug-in

It is recommended to use Internet Explore 8.0 or above to access LRP Managed Switch.

3.2 Management Access Overview

The LRP Managed Switch gives you the flexibility to access and manage it using any or all of the following methods:

■ An administration console
■ Web browser interface
■ An external SNMP-based network management application

The administration console and Web browser interface support are embedded in the LRP Managed Switch software and are available for immediate use. Each of these management methods has their own advantages. Table 3-1 compares the three management methods.

Method Advantages Disadvantages
Console	No IP address or subnet neededText-basedTelnet functionality and HyperTerminal built into Windows95/98/NT/2000/ME/XP operating systemsSecure	Must be near the switch or use dial-up connectionNot convenient for remote usersModem connection may prove to be unreliable or slow
Web Browser	Ideal for configuring the switch remotelyCompatible with all popular browsersCan be accessed from any locationMost visually appealing	Security can be compromised (hackers need only know the IP address and subnet mask)May encounter lag times on poor connections
SNMP Agent	Communicates with switch functions at the MIB levelBased on open standards	Requires SNMP manager softwareLeast visually appealing of all three methodsSome settings require calculationsSecurity can be compromised (hackers only unity name) need to kno

Table 3-1 Comparison of Management Methods

3.3 Administration Console

The administration console is an internal, character-oriented, and command line user interface for performing system administration such as displaying statistics or changing option settings. Using this method, you can view the administration console from a terminal, personal computer, Apple Macintosh, or workstation connected to the LRP Managed Switch's console port.

Figure 3-1-1: Console Management

Direct Access

Direct access to trade is achieved by directly connecting a terminal or a PC equipped with a

terminal-emulation program (such as HyperTerminal) to the LRP Managed Switch console (serial) port. When using this management method, a straight RS232 to RJ45 cable is required to connect the switch to the PC. After making this

connection, configur

wing parameters: e the terminal-emulation program to use the follo

The default parameters are:

■ 115200 bps
■ 8 data bits
■ No parity
■ 1 stop bit

COM1 Properties Port Settings Bits per second: 115200 Data bits: 8 Parity: None Stop bits: 1 Flow control: None Restore Defaults OK Cancel Apply

Figure 3-1-2: Terminal Parameter Settings

You can change these settings, if desired, after you log on. This management method is often preferred because you can remain connected and monitor the system during system reboots. Also, certain error messages are sent to the serial port,

regardless of the interface through which the associated action was initiated. A Macintosh or PC attachment can use any terminal-emulation program for connecting to the terminal serial port. A workstation attachment under UNIX can use an emulator such as TIP.

3.4 Web Management

The LRP Managed Switch offers management features that allow users to manage the LRP Managed Switch from anywhere on the network through a standard browser such as Microsoft Internet Explorer. After you set up your IP address for the switch, you can access the LRP Managed Switch's Web interface applications directly in your Web browser by entering the IP address of the LRP Managed Switch.


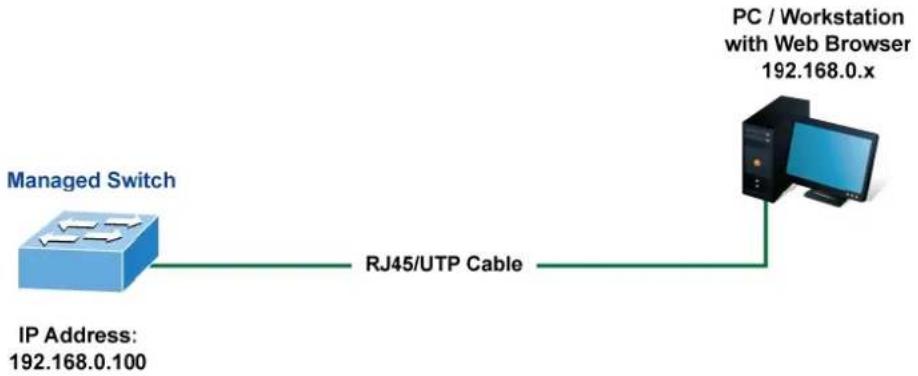

Figure 3-1-3 Web Management

You can then use your Web browser to list and manage the LRP Managed Switch configuration parameters from one central location, just as if you were directly connected to the LRP Managed Switch's console port. Web Management requires either Microsoft Internet Explorer 8.0 or later, Google Chrome, Safari or Mozilla Firefox 1.5, or later.

PLANET Networking & Communication FE1 FE2 FE3 FE4 FE5 FE6 FE7 FE8 GE2 GE4 GE1 GE2 GE3 GE4 SAVE | LOGOUT | REBOOT | REFRESH System Port Management Link Aggregation VLAN Spanning Tree Multicast QoS Security Access Control List MAC Address Table LLDP Diagnostics RMON PoE Maintenance Welcome to PLANET LRP-822CS 8-port Coax + 2-port 10/100/1000T + 2-port 100/1000X SFP Long Reach PoE over Coaxial Managed Switch PLANET Technology Corporation 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan, R.O.C Tel: [phone] Fax:[phone] Email: [e-mail] Copyright©2015 PLANET Technology Corporation. All rights reserved.

Figure 3-1-4 Web Main Screen of LRP Managed Switch

3.5 SNMP-based Network Management

You can use an external SNMP-based application to configure and manage the LRP Managed Switch, such as SNMP Network Manager, HP Openview Network Node Management (NNM) or What's Up Gold. This management method requires the SNMP agent on the switch and the SNMP Network Management Station to use the same community string. This management method, in fact, uses two community strings: the get community string and the set community string. If the SNMP Net-work management Station only knows the set community string, it can read and write to the MIBs. However, if it only knows the get community string, it can only read MIBs. The default gets and sets community strings for the LRP Managed Switch are public.

Figure 3-1-5 SNMP management

3.6 PLANET Smart Discovery Utility

For easily listing the LRP Managed Switch in your Ethernet environment, the Planet Smart Discovery Utility from user's manual CD-ROM is an ideal solution. The following installation instructions are to guide you to running the Planet Smart Discovery Utility.

1. Deposit the Planet Smart Discovery Utility in administrator PC.
2. Run this utility as the following screen appears.

PLANET Smart Discovery Lite File Option Help Refresh Exit PLANET Networking & Communication MAC Address Device Name Version DeviceIP NewPassword IP Address NetMask Gateway Description 1 Select Adapter: 169.254.82.237 (50:26:90:AA:3E:D6) Control Packet Force Broadcast Update Device Update Multi Update All Connect to Device

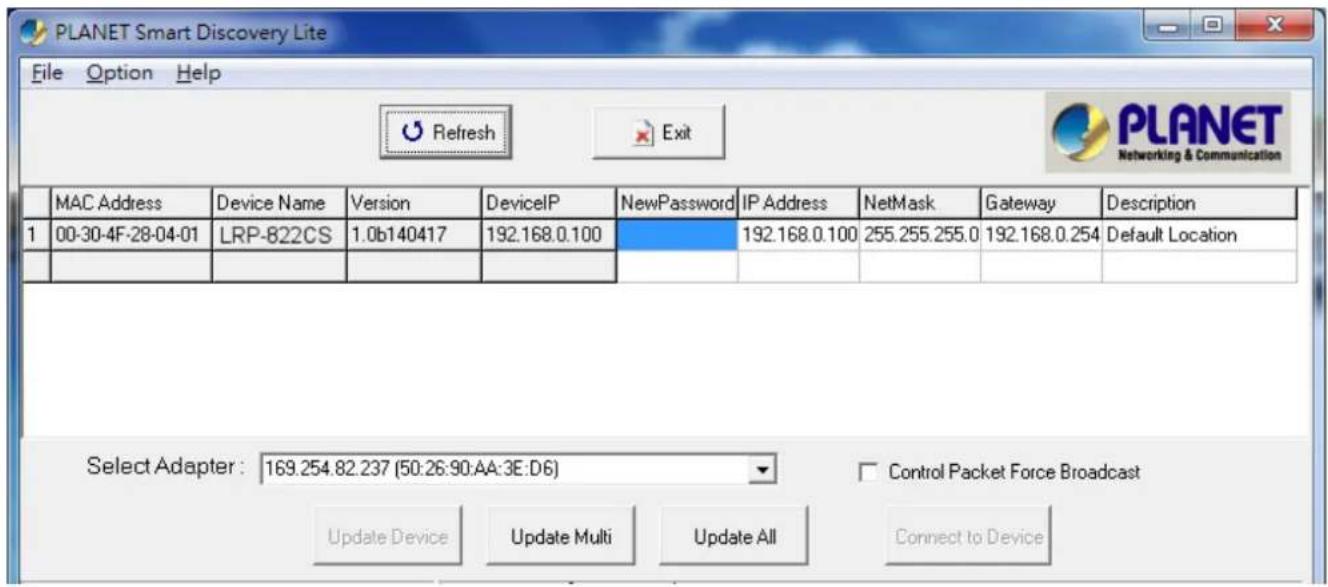

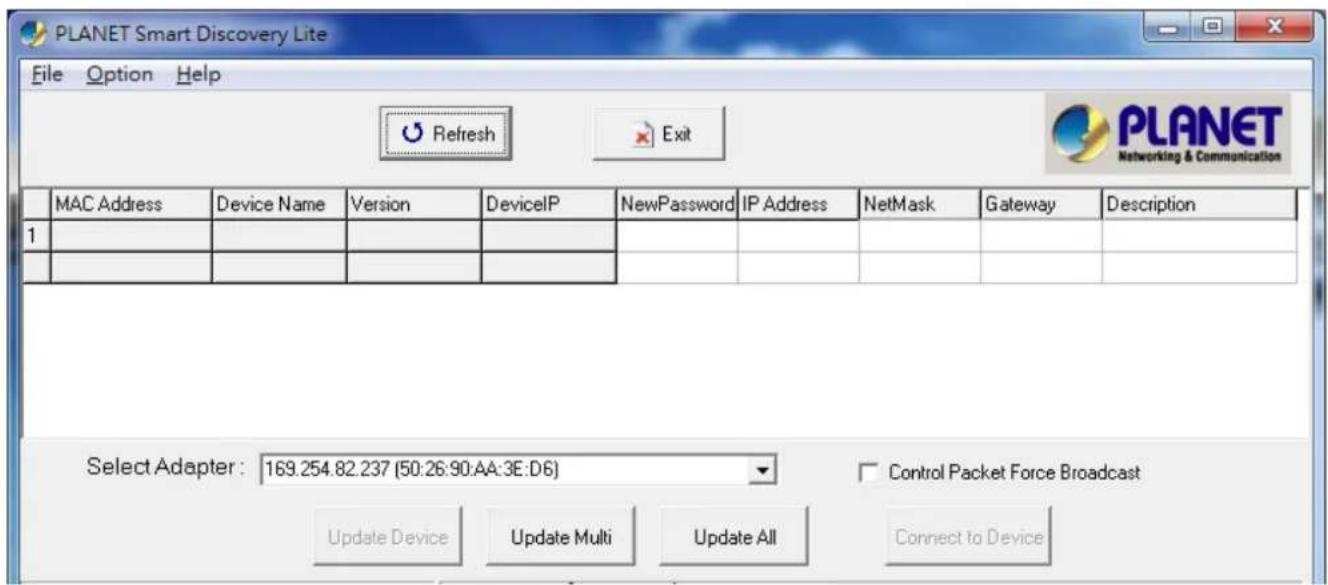

Figure 3-1-6: Planet Smart Discovery Utility Screen

If there are two LAN cards or above in the same administrator PC, choose a different LAN card by using the "Select Adapter" tool.

1. Press the "Refresh" button for the currently connected devices in the discovery list as the screen shows below:

PLANET Smart Discovery Lite File Option Help Refresh Exit PLANET Networking & Communication MAC Address Device Name Version DeviceIP NewPassword IP Address NetMask Gateway Description 1 00-30-4F-28-04-01 LRP-822CS 1.0b140417 192.168.0.100 192.168.0.100 255.255.255.0 192.168.0.254 Default Location Select Adapter: 169.254.82.237 (50:26:90:AA:3E:D6) Control Packet Force Broadcast Update Device Update Multi Update All Connect to Device

Figure 3-1-7: Planet Smart Discovery Utility Screen

1. This utility shows all necessary information from the devices, such as MAC Address, Device Name, firmware version and Device IP Subnet address. It can also assign new password, IP subnet address and description to the devices.
2. After setup is completed, press the "Update Device", "Update Multi" or "Update All" button to take effect. The meaning of the 3 buttons above are shown below:

■ Update Device: use the current setting on one single device.
■ Update Multi: use the current setting on multi-devices.
■ Update All: use the current setting on whole devices in the list.

The same functions mentioned above also can be found in "Option" tools bar.

1. To click the "Control Packet Force Broadcast" function, it allows you to assign a new setting value to the Web Smart Switch under a different IP subnet address.
2. Press the "Connect to Device" button and the Web login screen appears in Figure 3-1-4.
3. Press the "Exit" button to shut down the Planet Smart Discovery Utility.

This section introduces the configuration and functions of the Web-based management.

About Web-based Management

The LRP Managed Switch offers management features that allow users to manage the LRP Managed Switch from anywhere on the network through a standard browser such as Microsoft Internet Explorer.

The Web-based Management supports Internet Explorer 8.0. It is based on Java Applets with an aim to reduce network bandwidth consumption, enhance access speed and present an easy viewing screen.

By default, IE8.0 or later version does not allow Java Applets to open sockets. The user has to explicitly modify the browser setting to enable Java Applets to use network ports.

The LRP Managed Switch can be configured through an Ethernet connection, making sure the manager PC must be set on the same IP subnet address as the LRP Managed Switch.

For example, the default IP address of the LRP Managed Switch is 192.168.0.100, then the manager PC should be set at 192.168.0.x (where x is a number between 1 and 254, except 100), and the default subnet mask is 255.255.255.0.

If you have changed the default IP address of the LRP Managed Switch to 192.168.1.1 with subnet mask 255.255.255.0 via console, then the manager PC should be set at 192.168.1.x (where x is a number between 2 and 254) to do the relative configuration on manager PC.

Figure 4-1-1 Web Management

■ Logging on the switch

1. Use Internet Explorer 8.0 or above Web browser. Enter the factory-default IP address to access the Web interface. The factory-default IP address is as follows:

http://192.168.0.100

1. When the following login screen appears, please enter the default username "admin" with password "admin" (or the username/password you have changed via console) to login the main screen of LRP Managed Switch. The login screen in Figure 4-1-2 appears.

PLANET Networking & Communication Username: Password: LOGIN

Figure 4-1-2 Login screen

Default User Name: admin

Default Password: admin

After entering the username and password, the main screen appears as Figure 4-1-3.

PLANET Networking & Communication FE1 FE2 FE3 FE4 FE5 FE6 FE7 FE8 GE2 GE4 GE1 GE3 SAVE | LOGOUT | REBOOT | REFRESH System Port Management Link Aggregation VLAN Spanning Tree Multicast QoS Security Access Control List MAC Address Table LLDP Diagnostics RMON PoE Maintenance Welcome to PLANET LRP-822CS 8-port Coax + 2-port 10/100/1000T + 2-port 100/1000X SFP Long Reach PoE over Coaxial Managed Switch PLANET Technology Corporation 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan, R.O.C Tel: [phone] Fax:[phone] Email: [e-mail] Copyright©2015 PLANET Technology Corporation. All rights reserved.

Figure 4-1-3 Default Main Page

Now, you can use the Web management interface to continue the switch management or manage the LRP Managed Switch by Web interface. The Switch Menu on the left of the web page lets you access all the commands and statistics the LRP Managed Switch provides.

It is recommended to use Internet Explore 8.0 or above to access LRP Managed Switch.
The changed IP address takes effect immediately after clicking on the Save button. You need to use the new IP address to access the Web interface.

For security reason, please change and memorize the new password after this first setup.
■ Only accept command in lowercase letter under Web interface.

4.1 Main Web Page

The LRP Managed Switch provides a Web-based browser interface for configuring and managing it. This interface allows you to access the LRP Managed Switch using the Web browser of your choice. This chapter describes how to use the LRP Managed Switch's Web browser interface to configure and manage it.

Main Functions Menu PLANET MAIN Screen LRP Port Link Status Copper Port Link Status SFP Port Link Status FE1 FE2 FE3 FE4 FE5 FE6 FE7 FE8 GE2 GE4 GE1 GE3 SAVE | LOGOUT | REBOOT | REFRESH System Port Management Link Aggregation VLAN Spanning Tree Multicast QoS Security Access Control List MAC Address Table LLDP Diagnostics RMON PoE Maintenance Welcome to PLANET LRP-822CS 8-port Coax + 2-port 10/100/1000T + 2-port 100/1000X SFP Long Reach PoE over Coaxial Managed Switch PLANET Technology Corporation 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan, R.O.C Tel: [phone] Fax:[phone] Email: [e-mail] Copyright©2015 PLANET Technology Corporation. All rights reserved.

Figure 4-1-4 Main Page

Panel Display

The Web agent displays an image of the LRP Managed Switch's ports. The Mode can be set to display different information for the ports, including Link up or Link down. Clicking on the image of a port opens the Port Statistics page.

The port states are illustrated as follows:

State Disabled Down Link LRP Ports RJ45 Ports SFP Ports

Main Menu

Using the onboard Web agent, you can define system parameters, manage and control the LRP Managed Switch, and all its ports, or monitor network conditions. Via the Web-Management, the administrator can set up the LRP Managed Switch by selecting the functions those listed in the Main Function. The screen in Figure 4-1-5 appears.

System Port Management Link Aggregation VLAN Spanning Tree Multicast QoS Security Access Control List MAC Address Table LLDP Diagnostics RMON PoE Maintenance

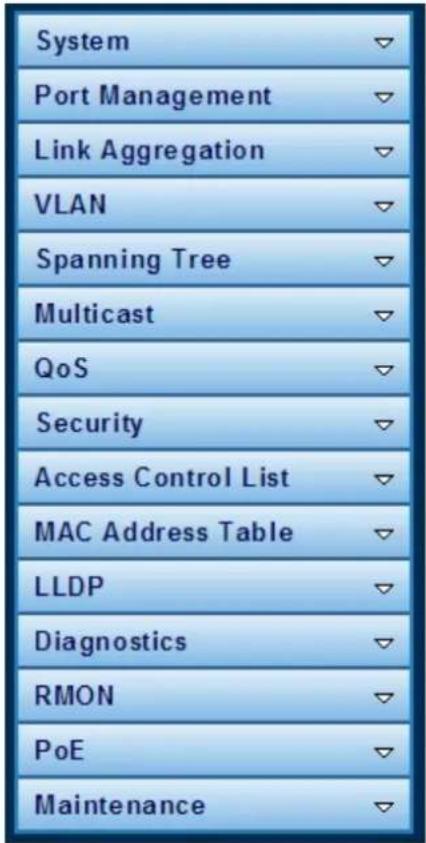

Figure 4-1-5 LRP Managed Switch Main Functions Menu

Buttons

SAVE

: Click to save changes or reset to default.

LOGOUT

Click to logout the LRP Managed Switch.

REBOOT

Click to reboot the LRP Managed Switch.

REFRESH

: Click to refresh the page.

4.1.1 Save Button

This save button allows save the running pstartup / back configuration o eset switch in default parameter. The screen in Figure 4-1-6 appears.

SAVE | LOGOUT | REBOOT | REFRESH Save Configurations to FLASH Restore to Defaults

Figure 4-1-6 Save Button Screenshot

The page includes the following fields:

Object Description
• Save Configuration to FLASH	Click to save the configuration. For more detailed information, please refer to chapter 4.1.2
• Restore to Default	Click to reset switch in default parameter. For more detailed information, please refer to chapter 4.15.1

4.1.2 Configuration Manager

The system file folder contains configuration settings. The screen in Figure 4-1-7 appears.

Save Configuration

Source File	Running configurationStartup configurationBackup configuration
Destination File	Startup configurationBackup configuration

Apply

Figure 4-1-7 Save Button Screenshot

The page includes the following fields:

Object Description
• Running Configuration	Refers to the running configuration sequence use in the switch. In switch, the running configuration file stores in the RAM. In the current version, the running configuration sequence running-config can be saved from the RAM to FLASH by saving “Source File = Running Configuration” to “Destination File = Startup Configuration”, so that the running configuration sequence becomes the startup configuration file, which is called configuration save. To prevent illicit file upload and easier configuration, switch mandates the name of running configuration file to be running-config.
• Startup Configuration	Refers to the configuration sequence used in switch startup. Startup configuration file stores in nonvolatile storage, corresponding to the so-called configuration save. If the device supports multi-config file, name the configuration file to be .cfg file, the default is startup.cfg. If the device does not support multi-config file, mandates the name of startup configuration file to be startup-config.
• Backup Configuration	The backup configuration is empty in FLASH; please save the backup configuration first by “Maintenance > Backup Manager”.

Buttons

Apply

: Click to save configuration.

4.1.2.1 Saving Configuration

In the LRP Managed Switch, the running configuration file stores in the RAM. In the current version, the running configuration sequence of running-config can be saved from the RAM to FLASH by "Save Configurations to FLASH" function, so that the running configuration sequence becomes the startup configuration file, which is called configuration save.

To save all applied changes and set the current configuration as a startup configuration. The startup-configuration file will be loaded automatically across a system reboot.

1. Click "Save > Save Configurations to FLASH" to login the "Configuration Manager" page.

SAVE | LOGOUT | REBOOT | REFRESH Save Configurations to FLASH Restore to Defaults

1. Select "Source File = Running Configuration" and "Destination File = Startup Configuration".

Save Configuration

Source File	Running configurationStartup configurationBackup configuration
Destination File	Startup configurationBackup configuration

Apply

1. Press the "Apply" button to save running configuration to start up configuration.

4.2 System

Use the System menu items to display and configure basic administrative details of the LRP Managed Switch. Under System the following topic via provided system configuration. This section has the following items:

System Information The switch system information is provided here.
IP Configurations Configure the switch-managed IP information on this page.
■ IPv6 Configuration Configure the switch-managed IPv6 information on this page.
■ User Configuration Configure new user name and password on this page.

■ Time Settings Configure SNTP on this page.

Log Management The switch log information is provided here.

SNMP Management Configure SNMP on this page.

4.2.1 System Information

The System Info page provides information for the current device information. System Info page helps a switch administrator to identify the hardware MAC address, software version and system uptime. The screens in Figure 4-2-1 & Figure 4-2-2 appear.

Information Name	Information Value
System Name	Edit LRP-822CS
System Location	Edit Default Location
System Contact	Edit Default Contact
MAC Address	00:30:4F:00:00:00
IP Address	192.168.0.100
Subnet Mask	255.255.255.0
Gateway	192.168.0.254
Loader Version	2011.12.46351
Loader Date	Apr 16 2014 - 14:51:06
Firmware Version	1.0b150417
Firmware Date	Wed May 7 15:41:06 UZT 2015
System Object ID	1.3.6.1.4.1.10456.1.1509
System Up Time	0 days, 2 hours, 6 mins, 32 secs
PCB/HW Version	V1

Figure 4-2-1 System Information Page Screenshot

e following fields: The page includes th

Object Description
• System Name	Display the current system name
• System Location	Display the current system location
• System Contact	Display the current system contact
• MAC Address	The MAC address of this LRP Managed Switch.
• IP Address	The IP address of this LRP Managed Switch.
• Subnet Mask	Managed Switch. The subnet mask of this LRP
• Gateway	The gateway of this LRP Managed Switch.
• Loader Version	The loader version of this LRP Managed Switch.
• Loader Date	The loader date of this LRP Managed Switch.
• Firmware Version	The firmware version of this LRP Managed Switch.
• Firmware Date	The firmware date of this LRP Managed Switch.
• System Object ID	The system object ID of the LRP Managed Switch.
• System Up Time	The period of time the device has been operational.
• PCN/HW Version	The hardware version of this LRP Managed Switch.

Buttons

Edit

Click to edit parameter.

4.2.2 IP Configurations

The IP Configuration includes the IP Address, Subnet Mask and Gateway. The configured column is used to view or change the IP configuration. Fill out the IP Address, Subnet Mask and Gateway for the device. The screens in Figure 4-2-2 & Figure 4-2-3 appear.

IP Address Setting

Mode	Static DHCP
IP Address	192.168.1.1
Subnet Mask	255.255.255.0
Gateway	192.168.1.254
DNS Server 1	168.95.1.1
DNS Server 2	168.95.192.1

Apply

Figure 4-2-2 IP Address Setting Page Screenshot

The page includes the following fields:

Object Description
• Mode	Indicates the IP address mode operation. Possible modes are:Static: Enable NTP mode operation.When enabling NTP mode operation, the agent forwards and transfersNTP messages between the clients and the server when they are not onthe same subnet domain.DHCP: Enable DHCP client mode operation.Enable the DHCP client by checking this box. If DHCP fails and theconfigured IP address is zero, DHCP will retry. If DHCP fails and theconfigured IP address is non-zero, DHCP will stop and the configured IPsettings will be used. The DHCP client will announce the configuredSystem Name as hostname to provide DNS lookup.
• IP Address	Provide the IP address of this switch in dotted decimal notation.
• Subnet Mask	Provide the subnet mask of this switch in dotted decimal notation.
• Gateway	Provide the IP address of the router in dotted decimal notation.
• DNS Server 1/2	Provide the IP address of the DNS Server in dotted decimal notation.

Buttons

Apply

Click to apply changes.

Information Name	Information Value
DHCP State	Disabled
Static IP Address	192.168.1.1
Static Subnet Mask	255.255.255.0
Static Gateway	192.168.1.254
Static DNS Server 1	168.95.1.1
Static DNS Server 2	168.95.192.1

Figure 4-2-3 IP Information Page Screenshot

The page includes the following fields:

Object Description
DHCP State	Display the current DHCP state.
IP Address	Display the current IP address.
Subnet Mask	Display the current subnet mask.
Gateway	Display the current gateway.
DNS Server 1/2	Display the current DNS server.

4.2.3 IPv6 Configuration

The IPv6 Configuration includes Auto Configuration, IPv6 Address and Gateway. The configured column is used to view or change the IPv6 configuration. Fill out the Auto Configuration, IPv6 Address and Gateway for the device. The screens in Figure 4-2-4 & Figure 4-2-5 appear.

IPv6 Address Setting Auto Configuration Disable Enable IPv6 Address / 0 Gateway DHCPv6 Client Disable Enable Apply

Figure 4-2-4 IPv6 Address Setting Page Screenshot

The page includes the following fields:

Object Description
• Auto Configuration	Enable IPv6 auto-configuration by checking this box.If it fails, the configured IPv6 address is zero. The router may delay responding to a router solicitation for a few seconds; the total time needed to complete nfiguration can be significantly longer. auto-co
• IPv6 Address	Provide the IPv6 address of this switch.IPv6 address is in 128-bit records represented as eight fields of up to four hexadecimal digits with a colon separating each field ():. For example,'fe80::215:c5ff:fe03:4dc7'.The symbol '::' is a special syntax that can be used as a shorthand way of representing multiple 16-bit groups of contiguous zeros; but it can only appear once. It also uses the following legally IPv4 address. For example, ':192.1.2.34'.Provide the IPv6 Prefix of this switch. The allowed range is 1 through 128.
• Gateway	Provide the IPv6 gateway address of this switch.
• DHCPv6 Client	To enable this LRP Managed Switch to accept a configuration from a Dynamic Host Configuration Protocol version 6 (DHCPv6) server. By default, the LRP Managed Switch does not perform DHCPv6 client actions. DHCPv6 clients request the delegation of long-lived prefixes that they can push to individual local hosts.

Buttons

Apply

: Click to apply changes.

IPv6 Information

Information Name	Information Value
Auto Configuration	Enabled
IPv6 In Use Address	fe80::2e0:4cff:fe00:0 / 64
IPv6 In Use Router	::
IPv6 Static Address	fe80::2e0:4cff:fe00:0 / 0
IPv6 Static Router	::
DHCPv6 Client	Disabled

Figure 4-2-5 IPv6 Information Page Screenshot

elds: The page includes the following fi

Object Description
• Auto Configuration	Display the current auto configuration state
• IPv6 In Use Address	Display the current IPv6 in-use address
• IPv6 In Use Router	Display the current in-use gateway
• IPv6 Static Address	Display the current IPv6 static address
• IPv6 Static Router	Display the current IPv6 static gateway
• DHCPv6 Client	atus Display the current DHCPv6 client st

4.2.4 User Configuration

This page provides an overview of the current users and privilege type. Currently the only way to login as another user on the Web server is to close and reopen the browser. After the setup is completed, please press the "Apply" button to take effect. Please login Web interface with a new user name and password; the screens in Figure 4-2-6 & Figure 4-2-7 appear.

New User User Name Password Type Password Retype Password Privilege Type Privilege Value Clear Text Admin 2 Apply

Figure 4-2-6 Local User Information Page Screenshot

The page includes the following fields:

Object Description
•Username	The name identifying the user.Maximum length: 32 characters;Maximum number of users: 8
•Password Type	type for the user. The password
•Password	Enter the user's new password here.(Range: 0-32 characters plain text, case sensitive)
•Retype Password	Please enter the user's new password here again to confirm.
•Privilege Type	The privilege type for the user.Options:AdminUserOther

Buttons

Apply

Click to apply changes.

User Name	Password Type	Privilege Type	Privilege Value	Modify
admin	Encrypted	Admin	15

Figure 4-2-7 Local User Page Screenshot

The page includes the following fields:

Object Description
•Username	Display the current username
•Password Type	Display the current password type
•Privilege Type	Display the current privilege type
•Modify	Click to modify the local user entryDelete: Delete the current user

4.2.5 Time Settings

4.2.5.1 System Time

Configure SNTP on this page.

SNTP is an acronym for Simple Network Time Protocol, a network protocol for synchronizing the clocks of computer systems. You can specify SNTP Servers and set GMT Time zone. The SNTP Configuration screens in Figure 4-2-8 & Figure 4-2-9 appear.

System Time Setting Enable SNTP Disable Enable Manual Time Year 2000 Month Jan Day 1 Hours 0 Minutes 0 Seconds 0 Time Zone None Daylight Saving Time Disable Daylight Saving Time Offset 60 (1 - 1440) Minutes Recurring From Day Sun Week 1 Month Jan Hours 0 Minutes 0 Recurring To Day Sun Week 1 Month Jan Hours 0 Minutes 0 Non-recurring From Year 2000 Month Jan Date 1 Hours 0 Minutes 0 Non-recurring To Year 2000 Month Jan Date 1 Hours 0 Minutes 0 Apply

Figure 4-2-8 SNTP Setup Page Screenshot

The page includes the following fields:

Object Description
• Enable SNTP	Enabled: Enable SNTP mode operation.When enabling SNTP mode operation, the agent forwards and transfersSNTP messages between the clients and the server when they are not on the same subnet domain. Disabled: Disable SNTP mode operation.
• Manual Time	To set time manually.■ Year - Select the starting Y ear.■ Month - Select the starting month.■ Day - Select the starting day.■ hours - Select the starting minutes - Select the starting minute.■ Seconds - Select the starting seconds.
• Time Zone	Allows to select the time zone according to the current location of switch.
• Daylight Saving Time	This is used to set the clock forward or backward according to the configurations set below for a defined Daylight Saving Time duration. Select 'Disable' to disable the Daylight Saving Time configuration. Select 'Recurring' and configure the Daylight Saving Time duration to repeat the configuration every year. Select 'Non-Recurring' and configure the Daylight Saving Time duration for single time configuration. (Default : Disabled ).
• Daylight Saving Time Offset	Enter the number of minutes to add during Daylight Saving Time. ( Range: 1 to 1440 )
• Recurring From	• Week - Select the starting week number.· Day - Select the starting day.· Month - Select the starting month.· Hours - Select the starting hour.· Minutes - Select the starting minute.
• Recurring To	• Week - Select the starting week number.· Day - Select the starting day.· Month - Select the starting month.· Hours - Select the starting hour.· Minutes - Select the starting minute.
• Non-recurring From	• Week - Select the starting week number.· Day - Select the starting day.· Month - Select the starting month.· Hours - Select the starting hour.· Minutes - Select the starting minute.
• Non-recurring To	• Week - Select the starting week number.· Day - Select the starting day.· Month - Select the starting month.· Hours - Select the starting hour.· Minutes - Select the starting minute.

Buttons

Apply

: Click to apply changes.

System Time Informations

Information Name	Information Value
Current Date/Time	09:13:10 DFL(UTC+8) Jan 01 2000
SNTP	Disabled
Time zone	UTC+8
Daylight Saving Time	Disabled
Daylight Saving Time Offset
From
To

Figure 4-2-9 Time Information Page Screenshot

ds: The page includes the following fiel

Object Description
• Current Data/Time	Display the current data/time
• SNTP	Display the current SNTP state
• Time Zone	Display the current time zone
• Daylight Saving Time	Display the current daylight saving time state
• Daylight Saving Time Offset	Display the current daylight saving time offset state
• From	Display the current daylight saving time from
• To	Display the current daylight saving time to

4.2.5.2 SNTP Server Settings

The SNTP Server Configuration screens in Figure 4-2-10 & Figure 4-2-11 appear.

SNTP Server Settings SNTP Server Address (X.X.X.X or Hostname) Server Port 123 ( 1 - 65535 | Default : 123 ) Apply

Figure 4-2-10 SNTP Setup Page Screenshot

The page includes the following fields:

Object Description
• SNTP Server Address	Type the IP address or domain name of the SNTP server
• Server Port	Type the port number of the SNTP

Buttons

Apply

: Click to apply changes.

Information Name	Information Value
SNTP Server Address
SNTP Server Port	123

Figure 42:1nshGNTP Server Information Page S

The page includes the following fields:

Object Description
• SNTP Server Address	Display the current SNTP server address
• Server Port	Display the current SNTP server port

4.2.6 Log Management

The LRP Managed Switch log management is provided here. The local logs allow you to configure and limit system messages that are logged to flash or RAM memory. The default is for event levels 0 to 3 to be logged to flash and levels 0 to 6 to be logged to RAM. The following table lists the event levels of the LRP Managed Switch:

Level Severity Name Description
7	Debug	Debugging messages
6	Informational	Informational messages only
5	Notice	Normal but significant condition, such as cold start
4	Warning	Warning conditions (e.g., return false, unexpected return)
3	Error	Error conditions (e.g., invalid input, default used)
2	Critical	Critical conditions (e.g., memory allocation, or free memory error - resource exhausted)
1	Alert	Im eded mediate action ne
0	Emergency	System unusable

4.2.6.1 Local Log

The switch system local log information is provided here. The local Log screens in Figure 4-2-12 & Figure 4-2-13 appear.

Logging Settings Logging Service Enabled Disabled Apply

Figure 4-2-12 Logging Settings Page Screenshot

The page includes the following fields:

Object Description
• Logging Service	Enabled: Enable logging service operation.
	Disabled: Disable logging service operation.

Buttons

Apply

: Click to apply changes.

Information Name	Information Value
Logging Service	enabled

Figure 4-2-13 Logging Information Page Screenshot

The page includes the foll wing fields: o

Object Description
• gg Lo ing Service	Display the current logging service status

4.2.6.2 Local Log

The switch system local log information is provided here. The local Log screens in Figure 4-2-14 & Figure 4-2-15 appear.

Local Logging Setting Target Severity Select Targets emerg Apply

Figure 4-2-14 Local Log Target Setting Page Screenshot

The page includes the following fields:

Object Description
• Target	The target of the local log entry. The following target types are supported:Buffered: Target the buffer of the local log.File: Target the file of the local log.
• Severity	The severity of the local log entry. The following severity types are supported:emerg: Emergency level of the system unstable for local log.alert: Alert level of the immediate action needed for local log.crit: Critical level of the critical conditions for local log.error: Error level of the error conditions for local log.warning: Warning level of the warning conditions for local log.notice: Notice level of the normal but significant conditions for local log.info: Informational level of the informational messages for local log.debug: Debug level of the debugging messages for local log.

Buttons

Apply

: Click to apply changes.

Status	Target	Soverity	Action
enabled	buffered	emerg, alert, crit, error, warning, notice	Delete

Figural 4.2g15elting Status Page Screenshot

The page includes the following fields:

Object Description
• Status	Display the current local log state
• Target	Display the current local log target
• Severity	Display the current local log severity
• Action	Delete: Delete the current status

4.2.6.3 Remote Syslog

Configure remote syslog on this page. The Remote Syslog page allows you to configure the logging of messages that are sent to syslog servers or other management stations. You can also limit the event messages sent to only those messages below a specified level.

The Remote Syslog screens in Figure 4-2-16 & Figure 4-2-17 appear.

Remote Logging Setting Server Address Server Port Severity Facility 514 (1-65535)(emerg WALocal0 Apply

Figure 4-2-16 Remote Log Target Page Screenshot

The page includes the following fields:

Object Description
• Server Address	Provide the remote syslog IP address of this switch.
• Server Port	Provide the port number of remote syslog server.Default Port no.: 514
• Severity	The severity of the local log entry. The following severity types are supported:■ emerg: Emergency level of the system unstable for local log.■ alert: Alert level of the immediate action needed for local log.■crit: Critical level of the critical conditions for local log.■error: Error level of the error conditions for local log.■warning: Warning level of the warning conditions for local log.■notice: Notice level of the normal but significant conditions for local log.■info: Informational level of the informational messages for local log.■debug: Debug level of the debugging messages for local log.
• Facility	Local0~7: local user 0~7

Buttons

Apply

Click to apply changes.

Remote Logging Setting Status Status Server Info Severity Facility Action

Figure 4-2-17 Remote Log Setting Status Page Screenshot

The page includes the following fields:

Object Description
• Status	Display the current remote syslog state
• Server Info	Display the current remote syslog server information
• Severity	Display the current remote syslog severity
• Facility	Display the current remote syslog facility
• Action	Delete: Delete the remote server entry

4.2.6.4 Log Message

The switch log view is provided here. The Log View screens in Figure 4-2-18, Figure 4-2-19 & Figure 4-2-20 appear.

Logging Filter Select Target Severity Category buffered Select Levels Select Categories View

Figure 4-2-18 Log Information Select Page Screenshot

The page includes the following fields:

Object Description
• Target	The target of the log view entry. The following target types are supported:Buffered: Target the buffered of the log view.File: Target the file of the log view.
• Severity	The severit entry. The following severity types are supported: y of the log viewemerg: Emergency level of the system unstable for log view.alert: Alert level of the immediate action needed for log view.crit: Critical level of the critical conditions for log view.error: Error level of the error conditions for log view.warning: Warning level of the warning conditions for log view.notice: Notice level of the normal but significant conditions for log view.info: Informational level of the informational messages for log view.debug: Debug level of the debugging messages for log view.
• Category	The category of the log view includes:AAA, ACL, CABLE_DIAG, DAI, DHCP_SNOOPING, Dd1X, GVRP,IGMP_SNOOPING, IPSG, L2, LLDP, Mirror, MLD_SNOOPING, Platform, PM,Port, PORT_SECURITY, QoS, Rate, SNMP and STP

Buttons

View

Click to view log.

Information Name	Information Value
Target	buffered
Severity	emerg, alert, crit, error, warning, notice
Category	AAA, ACL, CABLE_DIAG, DAI, DHCP_SNOOPING, Dot1X, GVRP, IGMP_SNOOPING, IPSG, L2, LLDP, Mirror, MLD_SNOOPING, Platform, PM, Port, PORT_SECURITY, QoS, Rate, SNMP, STP, Security-suite, System, Trunk, VLAN
Total Entries	1

Figure 4-2-19 Logging Information Page Screenshot

The page includes the following fields:

Object Description
• Target	Display the current log target
• Severity	Display the current log severity
• Category	Display the current log category
• Total Entries	Display the current log entries

Logging Messages Clear buffered messages Refresh 1 No. Timestamp Category Severity Message 1 Jan 01 2000 08.00.19 Port notice Port gi1 link up

Figure 4-2-20 Logging Messages Page Screenshot

The page includes the following fields:

Object Description
• No.	This is the number for logs
• Timestamp	Display the time of log
• Category	Display the category type
• Severity	Display the severity type
• Message	Display the log message

Buttons

Clear

Click to clear the log.

Refresh

Click to refresh the log.

4.2.7 SNMP Management

4.2.7.1 SNMP Overview

The Simple Network Management Protocol (SNMP) is an application layer protocol that facilitates the exchange of management information between network devices. It is part of the Transmission Control Protocol/Internet Protocol (TCP/IP) protocol suite. SNMP enables network administrators to manage network performance, find and solve network problems, and plan for network growth.

An SNMP-managed network consists of four components: Network management stations (NMSs), SNMP agent, management information (MB) and network-ma tocol: nagement pro

Network management stations (NMSs): Sometimes called consoles, these devices execute management applications that monitor and control network elements usually engineering workstation-caliber computers with fast CPUs, megapixel color displays, substack style and one NMS must be present in each managed environment.
Agents : Agents are software modules that re-ride in collector and store management information such as the number of error packets received by a network element.
Management information base (MIB) : A MIB is a collection of managed objects residing in a virtual information store. Collections of related managed objects are defined in specific MIB modules.
Network-management protocol : A management protocol is used to convey management information between agents and NMSs. SNMP is the Internet community's de facto standard management protocol.

SNMP Operations

SNMP itself is a simple request/response protocol. NMSs can send multiple requests without receiving a response.

• Get -- Allows the NMS to retrieve an object instance from the agent.
  Set -- Allows the NMS to set values for object instances within an agent.
  Trap -- Used by the agent to asynchronously inform the NMS of some event. The SNMPv2 trap message is designed to replace the SNMPv1 trap message.

SNMP Community

An SNMP community is the group that devices and management stations running SNMP belong to. It helps define where information is sent. The community name is used to identify the group. An SNMP device or agent may belong to more than one SNMP community. It will not respond to requests from management stations that do not belong to one of its communities.

SNMP default communities are:

Write = private
Read = public

4.2.7.2 SNMP System Information

Configure SNMP setting on this page. The SNMP System global setting screens in Figure 4-2-21 & Figure 4-2-22 appear.

SNMP Global Setting State Disabled Enabled Apply

Figure 4-2-21 SNMP Global Setting Page Screenshot

The page includes the following fields:

Object Description
• Status	Indicates the SNMP mode operation. Possible modes are:Enabled: Enable SNMP mode operation levelDisabled: Disable SNMP mode operation.

Buttons

Apply

: Click to apply changes.

Information Name	Information Value
SNMP	Disabled

Figure 4-2-22 SNMP Information Page Screenshot

The page includes the following fields:

Object Description
• SNMP	Display the current SNMP status

4.2.7.3 SNMP View

Configure SNMPv3 view table on this page. The entry index keys are View Name and OID Subtree. The SNMPv3 View Table Setting screens in Figure 4-2-23 and Figure 4-2-24 appear.

View Table Setting View Name Subtree OID Subtree OID Mask View Type all included excluded Add

Figure 4-2-23 SNMPv3 View Table Setting Page Screenshot

The page includes the following fields:

Object Description
• View Name	A string identifying the view name that this entry should belong to.The allowed string length is 1 to 16.
• Subtree OID	The OID defining the root of the subtree to add to the named view.The allowed string content is digital number or asterisk(*).
• Subtree OID Mask	The bitmask identifies which positions in the specified object identifier are to be regarded as "wildcards" for the purpose of pattern-matching.
• View Type	Indicates the view type that this entry should belong to. Possible view type are:included: An optional flag to indicate that this view subtree should be included.excluded: An optional flag to indicate that this view subtree should be excluded.General, if a view entry's view type is 'excluded', it should exist another view entry in which view type is 'included' and its OID subtree oversteps the 'excluded' view entry.

uttons B

Add

: Click to add a new view entry.

View Table Status

View Name	Subtree OID	OID Mask	View Type	Action
all	.1	all	included

Figure 4-2-24 SNMP View Table Status Page Screenshot

The page includes the following fields:

Object Description
• View Name	Display the current SNMP view name
• Subtree OID	Display the current SNMP subtree OID
• OID Mask	rrent SNMP OID mask Display the cu
• View Type	Display the current SNMP view type
• Action	Delete: Delete the view table entry.

4.2.7.4 SNMP Access Group

Configure SNMPv3 access group on this page. The entry index keys are Group Name, Security Model and Security Level.

The SNMPv3 Access Group Setting screens in Figure 4-2-25 & Figure 4-2-26 appear.

Access Group Setting Group Name Security Model Security Level Read View Name.Write View NameNotify View Name v1=noauth=all None None Add

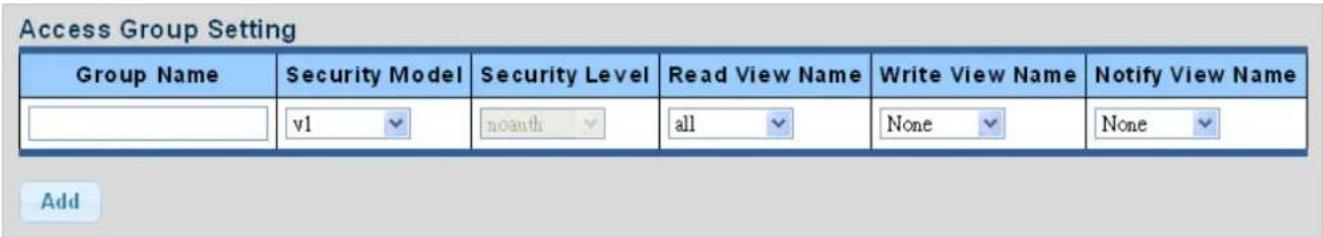

Figure 4-2-25 SNMPv3 Access Group Setting Page Screenshot

lowing fields: The page includes the fol

Object Description
• Group Name	A string identifying the group name that this entry should belong to.The allowed string length is 1 to 16.
• Security Model	Indicates the security model that this entry should belong to.Possible security models are:■ v1: Reserved for SNMPv1.■ v2c: Reserved for SNMPv2c.■ V3: Reserved for SNMPv3 or User-based Security Model (USM)
• Security Level	Indicates the security model that this entry should belong to.Possible security models are:■ Noauth: None authentication and none privacy security levels are assigned to the group.■ auth: Authentication and none privacy.■ priv: Authentication and privacy.Note: The Security Level applies to SNNPv3 only.
• Read View Name	Read view name is the name of the view in which you can only view the contents of the agent.The allowed string length is 1 to 16.
• Write View Name	Write view name is the name of the view in which you enter data and configure the contents of the agent.The allowed string length is 1 to 16.
• Notify View Name	Notify view name is the name of the view in which you specify a notify, inform, or trap.

Buttons

: Click to add a new access entry.

: Check to delete the entry.

Access Group Status Group Name Security Model Security Level Read View Name Write View Name Notify View Name Action

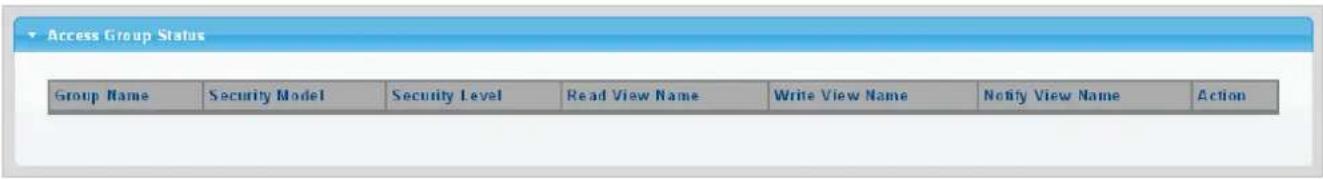

Figure 4-2-26 SNMP View Table Status Page Screenshot

The page includes the following fields:

Object Description
• Group Name	Display the current SNMP access group name
• Security Model	Display the current security model
• Security Level	Display the current security level
• Read View Name	Display the current read view name
• Write View Name	Display the current write view name
• Notify View Name	Display the current notify view name
• Action	Delete: Delete the access group entry.

4.2.7.5 SNMP Community

Configure SNMP Community on this page. The SNMP Community screens in Figure 4-2-27 & Figure 4-2-28 appear.

Community Setting Community Name Community Mode Group Name View Name Access Right Basic =all ro Add

Figure 4-2-27 Community Setting Page Screenshot

includes the following fields: The page

Object Description
Community Name	Indicates the community read/write access string to permit access to SNMP agent.The allowed string length is 0 to 16.
Community Mode	Indicates the SNMP community supported mode. Possible versions are:■ Basic: Set SNMP community mode supported version 1 and 2c.■ Advanced: Set SNMP community mode supported version 3.
Group Name	A string identifying the group name that this entry should belong to.The allowed string length is 1 to 16.
View Name	A string identifying the view name that this entry should belong to.The allowed string length is 1 to 16.
Access Right	community type operation. Possible types are: Indicates the SNMPRO=Read-Only: Set access string type in read-only mode.RW=Read-Write: Set access string type in read-write mode.

Buttons

Apply

Click to apply changes.

Community Status

Community Name	Group Name	View Name	Access Right	Action
public		all	rw	Delete

Figure 4-2-28 Community Status Page Screenshot

The page includes the following fields:

Object Description
Community Name	Display the current community type
Group Name	Display the current SNMP access group's name
View Name	Display the current view name
Access Right	Display the current access type
Delete	Delete: Delete the community entry

4.2.7.6 SNMP

Configure SNMPv3 users table on this page each SNMPv3 user is defined by a unique name. Users must be configu specific security level and assigned to a group. The SNMPv3 group restricts users to a specific read, write, and notify view. The entry index key is User Name. The SNMPv3 User Setting screens in Figure 4-2-29 & Figure 4-2-30 appear.

User Setting User Name Group Privilege Mode Authentication Protocol Authentication Password Encryption Protocol Encryption Key # south None (8 - 16 chars) Now (8 - 16 chars) Add

Figure 4 Page 29 SdnMrsBdUsers Configuration

The page includes the following fields:

Object Description
User Name	A string identifying the user name that this entry should belong to.The allowed string length is 1 to 16.
Group	The SNMP Access Group. A string identifying the group name that this entry should belong to.
Privilege Mode	Indicates the security model that this entry should belong to. Possible security models are:NoAuth: None authentication and none privacy.Auth: Authentication and none privacy.Priv: Authentication and privacy.The value of security level cannot be modified if entry already exists. That means you must first ensure that the value is set correctly.
Authentication Protocol	Indicates the authentication protocol that this entry should belong to. Possible authentication protocols are:None: None authentication protocol.MD5: An optional flag to indicate that this user using MD5 authentication protocol.SHA: An optional flag to indicate that this user using SHA authentication protocol.The value of security level cannot be modified if entry already exist. That means you must first ensure that the value is set correctly.
Authentication Password	A string identifying the authentication pass phrase. For both MD5 and SHA authentication protocol, the allowed string length is 8 to 16.
Encryption Protocol	Indicates the privacy protocol that this entry should belong to. Possible privacyprotocol are:■ None: None privacy protocol.■ DES: An optional flag to indicate that this user using DES authentication protocol.
• Encryption Key	A string identifying the privacy pass phrase.The allowed string length is 8 to 16.

Buttons

Add

: Click to add a new user entry.

User Status User Name Group Privilege Mode-Augentication Protocol Encryption Protocol Access Right Action

Figure 432-80 Status Page Screenshot

The page includes the following fields:

Object Description
User Name	Display the current user name
Group	current group Display the c
Privilege Mode	Display the current privilege mode
Authentication Protocol	Display the current authentication protocol
Encryption Protocol	Display the current encryption protocol
Access Right	Display the current access right
Action	Delete: Delete the user entry

4.2.7.7 SNMPv1, 2 Notification Recipients

Configure SNMPv1 and 2 notification recipients on this page. The SNMPv1, 2 Notification Recipients screens in Figure 4-2-31 & Figure 4-2-32 appear.

SNMPv1.2 Host Setting

Server Address	SNMP Version	Notify Type	Community Name	UDP Port	TimeOut	Retries
	v1	Traps	public	162 (1-65535)	15 (1-300)	3 (1-255)

Figure 4-2-31 SNMPv1, 2 Notification Recipients Page Screenshot

The page includes the following fields:

Object Description
• Server Address	Indicates the SNMP trap destination address. It allow a valid IP address in dotted decimal notation ('x.y.z.w'). It can also represent a legally valid IPv4 address. For example, ‘::192.1.2.34’.
• SNMP Version	Indicates the SNMP trap supported version. Possible versions are: ■ SNMP v1: Set SNMP trap supported version 1. ■ SNMP v2c: Set SNMP trap supported version 2c.
• Notify Type	Set the notify type in traps or informs.
• Community Name	Indicates the community access string when send SNMP trap packet.
• UDP Port	Indicates the SNMP trap destination port. SNMP Agent will send SNMP message via this port, the port range is 1~65535.
• Time Out	Indicates the SNMP trap inform timeout. The allowed range is 1 to 300.
• Retries	Indicates the SNMP trap inform retry times. The allowed range is 1 to 255.

Buttons

Add

: Click to add a new SNMPv1, 2 host entry.

SNMPV1.2 Host Status Server Address SNMP Version Notify Type Community Name UDP Port TimeOut Retry Action

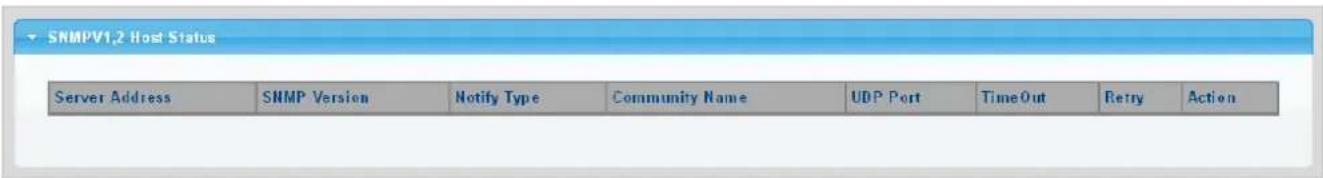

Figure 4e2-32 SNMPv1, 2 Host Status Page S

The page includes the following fields:

Object Description
• Server Address	Display the current server address
• SNMP Version	Display the current SNMP version
• Notify Type	Display the current notify type
• Community Name	Display the current community name
• UDP Port	Display the current UDP port
• Time Out	Display the current time out
• Retries	Display the current retry times
• Action	Delete: Delete the SNMPv1, 2 host entry.

4.2.7.9 SNMPv3 Notification Recipients

Configure SNMPv3 notification recipients on this page. The SNMPv1, 2 Notification Recipients screens in Figure 4-2-33 &

Figure 4-2-34 appear.
SNMPv3 Host Setting

Server Address	Notify Type	User Name	UDP Port	TimeOut	Retries
	Traps		162 (1-65535)	15 (1-300)	3 (1-255)

Add

Figure 4 Page Software Notification Recipients

The page includes the following fields:

Object Description
• Server Address	Indicates the SNMP trap destination address. It allows a valid IP address in dotted decimal notation ('x.y.z.w'). It can also represent a legally valid IPv4 address. For example, ':192.1.2.34'.
• Notify Type	Set the notify type in traps or informs.
• User Name	Indicates the user string when send SNMP trap packet.
• UDP Port	Indicates the SNMP trap destination port. SNMP Agent will send SNMP message via this port, the port range is 1~65535.
• Time Out	Indicates the SNMP trap inform timeout. The allowed range is 1 to 300.
• Retries	Indicates the SNMP trap inform retry times. The allowed range is 1 to 255.

Buttons

Add

: Click to add a new SNMPv3 host entry.

SNMPv3 Host Status Server Address Notify Type User Name UDP Port Time Out Retry Action

Figuser4-2-34oSNMPv3 Host Status Pag

The page includes the following fields:

Object Description
• Server Address	Display the current server address
• Notify Type	Display the current notify type
User Name	Display the current user name
UDP Port	Display the current UDP port
Time Out	Display the current time out
Retries	Display the current retry times
Action	Delete: Delete the SNMPv3 host entry

4.2.7.10 SNMP Engine ID

Configure SNMPv3 Engine ID on this page. The entry index key is Engine ID. The remote engine ID is used to compute the security digest for authenticating and encrypting packets sent to a user on the remote host. The SNMPv3 Engine ID Setting screens in Figure 6-appe & Figure 4-2-3

Engine ID Settings

Use Default	Enabled Disabled
Engine ID	80006a92030000304F1122 (10-64)

Apply

Figure 2t35 SNMPv3 Engine ID Setting Page Scree
The page includes the following fields:

Object Description
• Engine ID	An octet string identifying the engine ID that this entry should belong to. The string must contain an even number between 10 and 64 hexadecimal digits, but I-'F's are not allowed. all-zeros and al

Buttons

Apply

: Click to apply changes.

Engine ID Status

Information Name	Information Value
Use Default	Enabled
Engine ID	80006a92030000304f1122

Figure 4s2-36 S1Me0sEngine ID St

llowing fields: The page includes the fo

Object Description
• User Default	Display the current status
• Engine ID	Display the current engine ID

4.2.7.11 SNMP Remote Engine ID

Configure SNMPv3 remote Engine ID on this page. The SNMPv3 Remote Engine ID Setting screens in Figure 4-2-37 & Figure 4-2-38 appear.

Remote EngineID Setting Remote IP Address Engine ID Add

Figure 4-2-37 SNMPv3 Remote Engine ID Setting Page Screenshot

The page includes the following fields:

Object Description
• Remote IP Address	Indicates the SNMP remote engine ID address. It allows a valid IP address in dotted decimal notation ('x.y.z.w').
• Engine ID	y should belong to. An octet string identifying

Buttons

Apply

: Click to apply changes.

Remote Engine ID Status Remote IP Address Remote Engine ID Action

Figure 4-2-38 SNMPv3 Remote Engine ID Status Page Screenshot

The page includes the following fields:

Object Description
• Remote IP Address	IP address Display the current remote
• Engine ID	Display the current engine ID
• Action	Delete: Delete the remote IP address entry

4.3 Port Management

Use the Port Menu to display or configure the LRP Managed Switch's ports. This section has the following items:

■ Port Configuration Configures port configuration settings
■ LRP Port Configuration Configures LRP port configuration settings
■ Port Counters Lists Ethernet and RMON port statistics
■ Bandwidth Utilization Displays current bandwidth utilization
■ Port Mirroring Sets the source and target ports for mirroring
■ Jumbo Frame Sets the jumbo frame on the switch
■ Port Error Disable Configuration Configures port error disable settings
■ Port Error Disabled Status Disables port error status
■ Protected Ports Configures protected ports settings
■ EEE Configures EEE settings
■ SFR module Information Displays SFP module information.

4.3.1 Port Configuration

This page displays current port configurations and status. Ports can also be configured here. The table has one row for each port on the selected switch in a number of columns, which are:

The Port Configuration screens in Figure 4-3-1A & Figure 4-3-2A appear.

Port settings

Port Select	Enabled	Speed	Duplex	Flow Control
Select Ports	EnabledDisabled	Auto	Auto	EnabledDisabled
Fiber Ports	EnabledDisabled	Auto-1000M	Full	EnabledDisabled

Apply

Figure 4-3-1A Port Settings Page Screenshot

The page includes the following fields:

Object Description
• Port Select	Select port number from this drop-down list.
• Enabled	Indicates the port state operation. Possible states are:Enabled - Start up the port manually.Disabled – Shut down the port manually.
• Speed	Select any available link speed for the given switch port. Draw the menu bar to select the mode.Auto - Setup Auto negotiation.Auto-10M - Setup 10M Auto negotiation.Auto-100M - Setup 100M Auto negotiation.Auto-1000M - Setup 1000M Auto negotiation.Auto-10/100M - Setup 10/100M Auto negotiation.10M - Setup 10M Force mode.100M - Setup 100M Force mode.1000M - Setup 1000M Force mode.
• Duplex	Select any available link duplex for the given switch port. Draw the menu bar to select the mode.Auto - Setup Auto negotiation.Full - Force sets Full-Duplex mode.Half - Force sets Half-Duplex mode.
• Flow Control	When SelectSpeed is selected for control, this capability that is advertised to the link partner. When a fixed-speed setting is selected, that is what is used. Current Rx column indicates whether pause frames on the port are obeyed. Current Tx column indicates whether pause frames on the port are transmitted. The Rx and Tx settings are determined by the result of the last Auto-Negotiation. Check the configured column to use flow control. This setting is related to the setting for Configured Link Speed.

Buttons

Apply

Click to apply changes.

Port	Description	Enable State	Link Status	Speed	Duplex	FlowCtrl Config	FlowCtrl Status
GE1	Edit	Enabled	UP	A-1000M	A-Full	Disabled	Disabled
GE2	Edit	Enabled	DOWN	Auto	Auto	Disabled	Disabled
GE3	Edit	Enabled	DOWN	Auto	Auto	Disabled	Disabled
GE4	Edit	Enabled	DOWN	Auto	Auto	Disabled	Disabled

Figure 4-3-2A Port Status Page Screenshot

The page includes the following fiel sd :

Object Description
• Port	row This is the logical port number for this
• Description	Click Edit to indicate the port name
• Enable State	Display the current port state
• Link Status	current link status Display the c
• Speed	e port Display the current speed status of th
• Duplex	rt Display the current duplex status of the po
• Flow Control Configuration	Display the current flow control configuration of the port
• Flow Control Status	Display the current flow control status of the port

4.3.2 LRP Port Configuration

This page displays current LRP port configurations and status. Ports can also be configured here. The table has one row for each port on the selected switch in a number of columns, which are:

The Port Configuration screens in Figure 4-3-1B & Figure 4-3-2B appear.

Port settings Port Select Enabled Select Ports ● Enabled ○ Disabled Apply

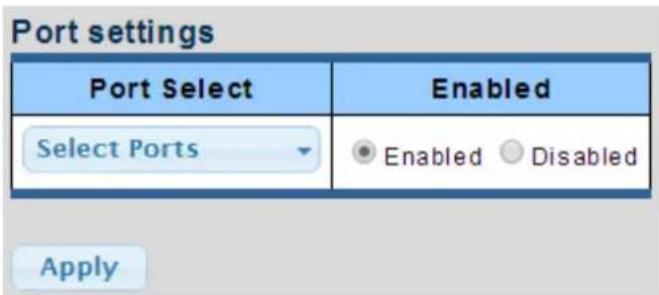

Figure 4-3-1B LRP Port Settings Page Screenshot

The page includes the following fields:

Object Description
• Port Select	Select port number from this drop-down list.
• Enabled	Indicates the port state operation. Possible state are:Enabled- Start up the port manually.Disabled– Shut down the port manually.

Buttons

Apply

Click to apply changes.

Port	Description	Enable State	Link Status
FE1	Edit	Enabled	DOWN
FE2	Edit	Enabled	DOWN
FE3	Edit	Enabled	DOWN
FE4	Edit	Enabled	DOWN
FE5	Edit	Enabled	DOWN
FE6	Edit	Enabled	DOWN
FE7	Edit	Enabled	DOWN
FE8	Edit	Enabled	DOWN

Figure 4-3-2B Port Status Page Screenshot

The page includes the following fields:

Object Description
• Port	This is the logical port number for this row
• Description	Click Edit to indicate the port name
• Enable State	Display the current port state
• Link Status	Display the current link status

4.3.3 Port Counters

This page provides a review of traffic

atistics for all switch ports. The Port Statistics screens in Figure 4-3-3,

Figure 4-3-4, Figure 4-3-5 & Figure 4-3-6 appear.

Port MIB Counters Settings Port Mode GE1 All Interface Etherlike RMON

Figure 4-3-3 Port MIB Counters Page Screenshot

The page includes the following fields:

Object Description
• Port	Select port number from this drop-down list.
• Mode	Select port counters mode.Option:AllInterfaceEther-linkRMON

Interface Counters	Counters Value
Received Octets	0
Received Unicast Packets	0
Received Unknown Unicast Packets	0
Received Discards Packets	0
Transmit Octets	0
Transmit Unicast Packets	0
Transmit Unknown Unicast Packets	0
Transmit Discards Packets	0
Received Multicast Packets	0
Received Broadcast Packets	0
Transmit Multicast Packets	0
Transmit Broadcast Packets	0
Object Description
Received Octets	The total number of octets received on the interface, including framing characters.
Received Unicast Packets	The number of subnetwork-unicast packets delivered to a higher-layer protocol.
Received Unknown Unicast Packets	The number of packets received via the interface which is discarded because of an unknown or unsupported protocol.
Received Discarded Packets	The number of inbound packets which were chosen to be discarded even though no errors had been detected to prevent their being deliverable to a higher-layer protocol. One possible reason for discarding such a packet could be to free up buffer space.
Transmit Octets	The total number of octets transmitted out of the interface, including framing characters.
Transmit Unicast Packets	The total number of packets that higher-level protocols requested is transmitted to a subnetwork-unicast address, including those that were discarded or not sent.
Transmit Unknown Unicast Packets	The total number of packets that higher-level protocols requested is transmitted to a subnetwork-unicast address, including those that were discarded or not sent.
Transmit Discarded Packets	The number of inbound packets which is chosen to be discarded even though no errors have been detected to prevent from being delivered to a higher-layer protocol. One possible reason for discarding such a packet could be to free up buffer space.
Received Multicast Packets	The number of packets, delivered by this sub-layer to a higher (sub-) layer, is addressed to a multicast address at this sub-layer.
Received Broadcast Packets	The number of packets, delivered by this sub-layer to a higher (sub-) layer, addressed to a broadcast address at this sub-layer.
Transmit Multicast Packets	The total number of packets that higher-level protocols requested is transmitted and is addressed to a multicast address at this sub-layer, including those that were discarded or not sent.
Transmit Broadcast Packets	The total number of packets that higher-level protocols requested is transmitted, and addressed to a broadcast address at this sub-layer, including those that were discarded or not sent.
Ethernet-link Counters	Counters Value
Alignment Errors	0
FCS Errors	0
Single Collision Frames	0
Multiple Collision Frames	0
Deferred Transmissions	0
Late Collision	0
Excessive Collision	0
Frame Too Longs	0
Symbol Errors	0
Control In Unknow Opcodes	0
In Pause Frames	0
Out Pause Frames	0

Figure 4-3-4 Interface Counters Page Screenshot

Figure 4-3-5 Ethernet link Counters Page Screenshot

Object Description
• Alignment Errors	The number of alignment errors (missynchronized data packets).
• FCS Errors	A count of frames received on a particular interface that are an integral number of octets in length but do not pass the FCS check. This count does not include frames received with frame-too-long or frame-too-short error.
• Single Collision Frames	The number of successfully transmitted frames for which transmission is inhibited by exactly one collision.
• Multiple Collision Frames	A count of successfully transmitted frames for which transmission is inhibited by more than one collision.
• Deferred Transmissions	A count of frames for which the first transmission attempt on a particular interface is delayed because the medium was busy.
• Late Collision	The number of times that a collision is detected later than 512 bit-times into the transmission of a packet.
• Excessive Collision	A count of frames for which transmission on a particular interface fails due to excessive collisions. This counter does not increase when the interface is operating in full-duplex mode.
• Frame Too Long	A count of frames received on a particular interface that exceeds the maximum permitted frame size.
• Symbol Errors	The number of received and transmitted symbol errors
• Control In Unknown Opcodes	The number of received control unknown opcodes
• In Pause Frames	The number of received pause frames
• Out Pause Frames	The number of transmitted pause frames
RMON Counters	Counters Value
Drop Events	0
Octets	0
Packets	0
Broadcast Packets	0
Multicast Packets	0
CRC / Alignment Errors	0
Undersize Packets	0
Oversize Packets	0
Fragments	0
Jabbers	0
Collisions	0
64 Bytes Frame	0
65-127 Byte Frames	0
128-255 Byte Frames	0
256-511 Byte Frames	0
512-1023 Byte Frames	0
1024-1518 Byte Frames	0

Figure 4-3-6 RMON Counters Page Screenshot

Object Description
• Drop Events	s in which packets were dropped due to lack of The total number of event resources.
• Octets	The total number of octets received and transmitted on the interface, including framing characters.
• Packets	The total number of packets received and transmitted on the interface.
• Broadcast Packets	The total number of good frames received that were directed to the broadcast address. Note that this does not include multicast packets.
• Multicast Packets	The total number of good frames received that were directed to this multicast address.
• CRC / Alignment Errors	The number of CRC/alignment errors (FCS or alignment errors).
• Undersize Packets	The total number of frames received that were less than 64 octets long (excluding framing bits, but including FCS octets) and were otherwise well formed.
• Oversize Packets	The total number of frames received that were longer than 1518 octets (excluding framing bits, but including FCS octets) and were otherwise well formed.

• Fragments	The total number of frames received that were less than 64 octets in length (excluding framing bits, but including FCS octets) and had either an FCS or alignment error.
• Jabbers	The total number of frames received that were longer than 1518 octets (excluding framing bits, but including FCS octets), and had either an FCS or alignment error.
• Collisions	The best estimate of the total number of collisions on this Ethernet segment.
• 64 Bytes Frames	The total number of frames (including bad packets) received and transmitted that were 64 octets in length (excluding framing bits but including FCS octets).
• 65-127 Byte Frames128-255 Byte Frames256-511 Byte Frames512-1023 Byte Frames1024-1518 ByteFrames	The total number of frames (including bad packets) received and transmitted where the number of octets falls within the specified range (excluding framing bits but including FCS octets).

4.3.4 Bandwidth Utilization

The Bandwidth Utilization page displays the percentage of the total available bandwidth being used on the ports. Bandwidth utilization statistics can be viewed using a line graph. The Bandwidth Utilization screen in Figure 4-3-7 appears.

To view the port utilization, click on the Port Management folder and then the Bandwidth Utilization link:

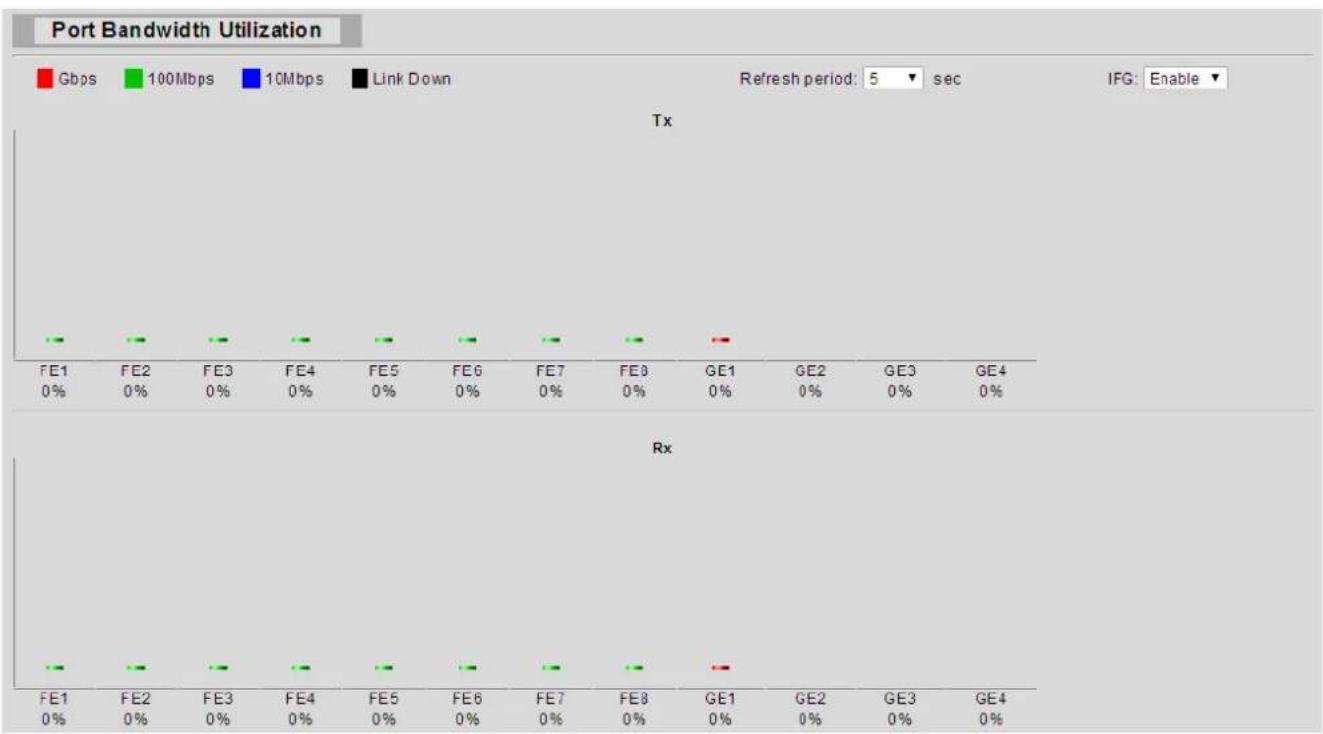

Figure 4-3-7 Port Bandwidth Utilization Page Screenshot

The page includes the following fields:

Object Description
• Refresh Period	This shows the period interval between last and next refresh. Options: ■ 2 sec ■ 5 sec ■ 10 sec
• IFG	Allow user to enable or disable this function

4.3.5 Port Mirroring

Configure port Mirroring on this page. This function provides monitoring of network traffic that forwards a copy of each incoming or outgoing packet from one port of a network switch to another port where the packet can be studied. It enables the manager to keep close track of switch performance and alter it if necessary.

• To debug network problems, selected traffic can be copied, or mirrored, to a mirror port where a frame analyzer can be attached to analyze the frame flow.
• The LRP Managed Switch can unobtrusively mirror traffic from any port to a monitor port. You can then attach a protocol analyzer or RMON probe to this port to perform traffic analysis and verify connection integrity.

Port Mirror Application


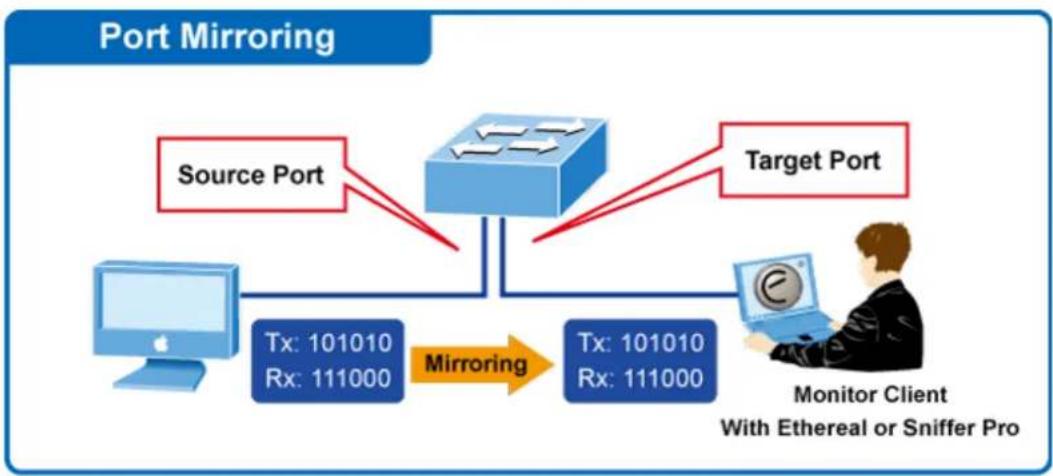

Figure 4-3-8 Port Mirror Application

The traffic to be copied to the mirror port is selected as follows:

• All frames received on a given port (also known as ingress or source mirroring).
• All frames transmitted on a given port (also known as egress or destination mirroring).

Mirror Port Configuration

The Port Mirror Configuration screens in Figure 4-3-9 & Figure 4-3-10 appear.

Mirror Setting

Session ID	Select Session
Monitor session state	Disable
Destination Port	GE1
allow-ingress	Disable
Sniffer RX Ports	Select RX Ports
Sniffer TX Ports	Select TX Ports

Apply

Figure 4-3-9 Port Mirroring Settings Page Screenshot

The page includes the following fields:

Object Description
• Session ID	Set the port mirror session ID. Possible ID are: 1 to 4.
• Monitor Session State	Enable or disable the port mirroring function.
• Destination Port	Select the port to mirror destination port.
• Allow-ingress	Frames from ports that have either source (RX) or destination (TX) mirroring enabled are mirrored to this port.
• Sniffer TX Ports	Frames transmitted from these ports are mirrored to the mirroring port. Frames received are not mirrored.
• Sniffer RX Ports	Frames received at these ports are mirrored to the mirroring port. Frames transmitted are not mirrored.

Buttons

Apply

: Click to apply changes.

Session ID	Destination Port	Ingress State	Source TX Port	Source RX Port
1	N/A	N/A	N/A	N/A
2	N/A	N/A	N/A	N/A
3	N/A	N/A	N/A	N/A
4	N/A	N/A	N/A	N/A

Figure 4-3-10 Mirroring Status Page Screenshot

The page includes the following fields:

Object Description
• Session ID	Display the session ID
• Destination Port	This is the mirroring port entry
• Ingress State	Display the ingress state
• Source TX Port	Display the current TX ports
• Source RX Port	Display the current RX ports

4.3.6 Jumbo Frame

This page provides to select the maximum frame size allowed for the switch port. The Jumbo Frame screens in Figure 4-3-11 & Figure 4-3-12 appear.

Jumbo Frame Setting Jumbo Frame (Bytes) 1522 (64-9216) Apply

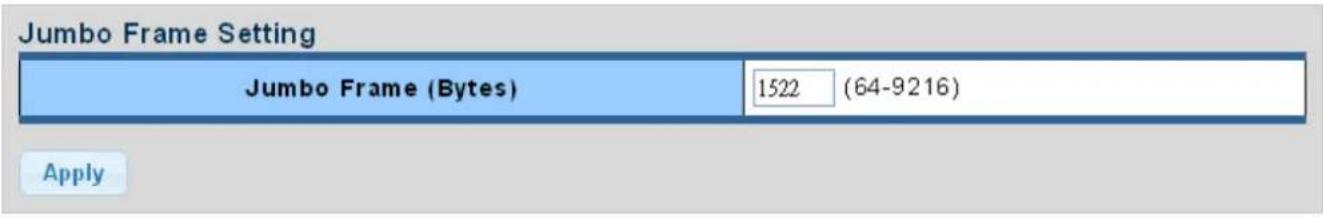

Figure 4-3-11 Jumbo Frame Setting Page Screenshot

The page includes the following fields

Object Description
• Jumbo Frame (Bytes)	Enter the maximum frame size allowed for the switch port, including FCS. The allowed range is 64 bytes to 9216 bytes.

Buttons

Apply

Click to apply changes.

Information Name	Information Value
Jumbo Frame (Bytes)	1522

Figure 4-3-12 Jumbo Frame Information Page Screenshot

The page includes the following fields:

Object Description
• Jumbo	Display the current maximum frame size

Jumbo Frame is av 1\~GE4 only. ailable for GE

4.3.7 Port Error Disabled Configuration

This page provides to set port error disable function. The Port Error Disable Configuration screens in Figure 4-3-13 & Figure -3-14 appear. 4

Error Disabled Recovery

Recovery Interval	300 (Seconds)
BPDU Guard	○ Enabled ● Disabled
Self Loop	○ Enabled ● Disabled
Broadcast Flood	○ Enabled ● Disabled
Unknown Multicast Flood	○ Enabled ● Disabled
Unicast Flood	○ Enabled ● Disabled
ACL	○ Enabled ● Disabled
Port Security Violation	○ Enabled ● Disabled
DHCP rate limit	○ Enabled ● Disabled
ARP rate limit	○ Enabled ● Disabled

Apply

Figure 4-3-13 Error Disabled Recovery Page Screenshot

The page includes the following fields:

Object Description
• Recovery Interval	The period (in seconds) for which a port will be kept disabled in the event of a port error is detected (and the port action shuts down the port).
• BPDU Guard	Enable or disable the port error disabled function to check status by BPDU guard.
• Self Loop	Enable or disable the port error disabled function to check status by self loop.
• Broadcast Flood	Enable or disable the port error disabled function to check status by broadcast flood.
• Unknown Multicast Flood	Enable or disable the port error disabled function to check status by unknown multicast flood.
• Unicast Flood	Enable or disable the port error disabled function to check status by unicast flood.
• ACL	Enable or disable the port error disabled function to check status by ACL.
• Port Security	Enable or disable the port error disabled function to check status by port security
Violation violation.
• DHCP Rate Limit	Enable or disable the port error disabled function to check status by DHCP rate limit
• ARP Rate Limit	Enable or disable the port error disabled function to check status by ARP rate limit

Buttons

Apply

Click to apply changes.

Error Disable Information

Information Name	Information Value
Recovery Interval	300
BPDU Guard	disabled
Self Loop	disabled
Broadcast Flood	disabled
Unknown Multicast Flood	disabled
Unicast Flood	disabled
ACL	disabled
Port Security Violation	disabled
DHCP rate limit	disabled
ARP rate limit	disabled

Figure 4-3-14 Error Disabled Information Page Screenshot

The page includes the following fields:

Object Description
• Recovery Interval	Display the current recovery interval time
• BPDU Guard	Display the current BPDU guard status
• Self Loop	Display the current self loop status
• Broadcast Flood	Display the current broadcast flood status
• Unknown Multicast Flood	Display the current unknown multicast flood status
• Unicast Flood	ay the current unicast flood status Displ
• ACL	Display the current ACL status
• Port Security Violation	Display the current port security violation status
• DHCP Rate Limit	Display the current DHCP rate limit status
• ARP Rate Limit	Display the current ARP rate limit status

4.3.8 Port Error Disabled

This page provides disable that transitions a port into error disable and the recovery options. The ports were disabled by some protocols such as BPDU Guard, Loopback and UDLD. The Port Error Disable screen in Figure 4-3-15 appears.

Port Error Disabled Status Port Name Error Disabled Reason Time Left (Seconds)

Figure 4-3-15 Port Error Disable Page Screenshot

The displayed counters are:

Object Description
• Port Name	Display the port for error disable
• Error Disable Reason	Display the error disabled reason of the port
• Time Left (Seconds)	Display the time left

4.3.9 Protected Ports

Overview

When a switch port is configured to be a member of protected group (also called Private VLAN), communication between protected ports within that group can be prevented. Two application examples are provided in t

• Customers connected to an ISP can be members of the protected group, but they are not allowed to communicate with each other within that VLAN.
• Servers in a farm of web servers in a Demilitarized Zone (DMZ) are allowed to communicate with the outside world and with data as enterprises that are not allowed to communicate with each other

For protected port group to be applied, the LRP Managed Switch must first be configured for standard VLAN operation. Ports in a protected port group fall into one of these two groups:

■ Promiscuous (Unprotected) ports

— Ports from which traffic can be forwarded to all ports in the private VLAN
— Ports which can receive traffic from all ports in the private VLAN

■ Isolated (Protected) ports

— Ports from which traffic can only be forwarded to promiscuous ports in the private VLAN
— Ports which can receive traffic from only promiscuous ports in the private VLAN

The configuration of promiscuous and isolated ports applies to all private VLANs. When traffic comes in on a promiscuous port in a private VLAN, the VLAN mask from the VLAN table is applied. When traffic comes in on an isolated port, the private VLAN mask is applied in addition to the VLAN mask from the VLAN table. This reduces the ports to which forwarding can be done to just the promiscuous ports within the private VLAN.

The port settings relate to the currently unit, as reflected by the page header. The Port Isolation Configuration screens in Figure 4-3-16 & Figure 4-3-17 appear.

Protected Ports Settings Port List Port Type Select Protected Port ● Unprotected ○ Protected Apply

Figure 4-3-16 Protected Ports Settings Page Screenshot

The page includes the following fields:

Object Description
• Port List	Select port number from this drop-down list.
• Port Type	Displays protected port types.-Protected:A single stand-alone VLAN that contains one promiscuous port and one or more isolated (or host) ports. This VLAN conveys traffic between the isolated ports and a lone promiscuous port.-Unprotected:A promiscuous port can communicate with all the interfaces within a private VLAN. This is the default setting.

Buttons

Apply

: Click to apply changes.

Protected Type	Port List
Protected Ports
Unprotected Ports	all

Figure 4-3-17 Port Isolation Status Page Screenshot

The page includes the following fields:

Object Description
• Protected Ports	Display the current protected ports
• Unprotected Ports	Display the current unprotected ports

4.3.10 EEE

What is EEE

EEE is a power saving option that reduces the power usage when there is low or no traffic utilization. EEE works by powering down circuits when there is no traffic. When a port gets data to be transmitted all circuits are powered up. The time it takes to power up the circuits is named wakeup time. The default wakeup time is 17 us for 1Gbit links and 30 us for other link speeds.

EEE devices must agree upon the value of the wakeup time in order to make sure that both the receiving and transmitting device has all circuits powered up when traffic is transmitted. The devices can exchange wakeup time information using the LLDP protocol. EEE works for ports in auto-negotiation mode, where the port is negotiated to either 1G or 100 Mbit full duplex mode. For ports that are not EEE-capable the corresponding EEE checkboxes are grayed out and thus impossible to enable EEE for. The EEE port settings remain effective as reflected by the page h

When a port is powered down for saving power, outgoing traffic is stored in a buffer until the port is powered up again. Because there are some overhead in turning the target down and up, more power can be saved if the traffic can be buffered up until burst of traffic can be transmitted. Buffering traffic will give some latency in the traffic.

The EEE Port Settings screens in Figure 4-3-18 & Figure 4-3-19 appear.

EEE Port Settings Port Enable Select Ports ○ Enabled ● Disabled Apply

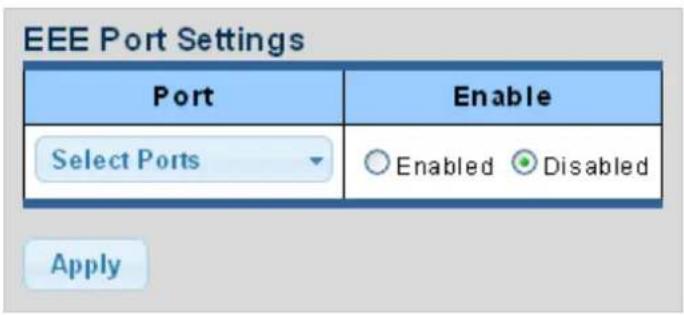

Figure 4-3-18 EEE Port Settings Page Screenshot

The page includes the following fields:

Object Description
• Port	Select port number from this drop-down list
• Enable	Enable or disable the EEE function

Buttons

Apply

: Click to apply changes.

Port	EEE State
GE1	Disabled
GE2	Disabled

Figure 4-3-19 EEE Enable Status Page Screenshot

The page includes the following fields:

Object Description
• Port	The switch port number of the logical port
• EEE State	Display the current EEE state

EEE is available for GE1\~GE2 only.

4.3.11 SFP Module Information

LRP Managed Switch has supported the SFP module with digital diagnostics monitoring (DDM) function, this feature is also known as digital optical monitoring (DOM). You can check the physical or operational status of an SFP module via the SFP Module Information Page. This Page shows the operational status, such as the transceiver type, speed, wavelength, optical output power, optical input power, temperature, laser bias current and transceiver supply voltage in real time. You can also use the hyperlink of port no. to check the statistics on a specific interface.

4.3.11.10SEReStatus

The SFP Module Status screens in Figure 4-3-20 & Figure 4-3-21 appear.

Port Fiber Status Port Selected Port GE1 1

Figure 4-3-20 Port Selected Page Screenshot with Sample Switch

The page includes the following fields:

Object Description
• Port	Select port number from this drop-down list

GE11 Fiber Port Status

Fiber Status	Status Value
OE-Present	Insert
LOS	Loss
Transceiver Type	SFP/SFP+
Hot Plug	Support
Connect Type	LC
Fiber Type	Single Mode
Eth Compliance	1000BASE-LX
TX Distance	0(m)
Wave Length	1310(nm)
Baud Rate	1000M
Vendor OUI	0-90-65
Vendor Name	SANOANOCNOC OC
Vendor PN	SJ13J1311312312-
Vendor Rev
Vendor SN	SJ13J1311312312-
Data Code	13-08-12
Temperature	64.718(°C)
Voltage	3.35(V)
Current	30.70(A)
Output power	0.27(mW)
Input power	0.00(mW)

Figure 4-3-21 Fiber Port Status Page Screenshot

The page includes the following fields:

Object Description
• OE-Present	Display the current SFP OE-present
• LOS	Display the current SFP LOS

4.3.11.1 SFP Module Detail Status

The SFP Module Detail Status screen in Figure 4-3-22 appears.

Port	Temperature	Voltage	Current	Output Power	Input Power	Transmitter Fault	Loss of Signal
GE12	0.00	0.00	0.00	0.00	0.00	N/S	N/S

Figure 4-3-22 SFP Module Detail Status Page Screenshot with Sample Switch

The page includes the following fields:

Object Description
• Port	The logical port for the settings contained in the same row
• Temperature	Display the current SFP temperature
• Voltage	Display the current SFP voltage
• Current	Display the current SFP current
• Output Power	Display the current SFP output power
• Input Power	Display the current SFP input power
• Transmit Fault	Display the current SFP transmit fault
• Loss of Signal	Display the current SFP loss of signal.
• Rate Ready	Display the current SFP rate ready.

4.4 Link Aggregation

Port Aggregation optimizes port usage by linking a group of ports together to form a single Link Aggregated Groups (LAGs).

Port Aggregation multiplies the bandwidth between the devices, increases port flexibility, and provides link redundancy.

Each LAG is composed of ports of the same speed, set to full-duplex operations. Ports in a LAG can be of different media types (UTP/Fiber, or different fiber types) provided they operate at the same speed.

Aggregated Links can be assigned manually (Port Trunk) or automatically by enabling Link Aggregation Control Protocol (LACP) on the relevant links.

Aggregated Links are treated by the system as a single logical port. Specifically, the Aggregated Link has similar port attributes to a non-aggregated port, including auto-negotiation, speed, suplex setting, etc.

The devices stopfollegation Algrs :

■ Static LAGs (Port Trunk) – Force aggregated selected ports to be a trunk group.
■ Link Aggregation Control Protogot (LACP) Legated PodRinks with other LACP ports located via different device AOPsports, the devices establish a LAG between them.
    note right of B: Link Aggregation 4 Port Link Aggregation (Up to 4 Gbps)

Figure 4-4-1 Link Aggregation

The Link Aggregation Control Protocol (LACP) provides a standardized means for exchanging information between Partner Systems that require high-speed redundant links. Link aggregation lets you group up to eight consecutive ports into a single dedicated connection. This feature can expand bandwidth to a device on the network. LACP operation requires full-duplex mode. For more detailed information, refer to the IEEE 802.3ad standard.

Port link aggregations can be used to increase the bandwidth of a network connection or to ensure fault recovery. Link aggregation lets you group up to 8 consecutive ports into a single dedicated connection between any two the Switch or other Layer 2 switches. However, before making any physical connections between devices, use the Link Aggregation Configuration menu to specify the link aggregation on the devices at both ends. When using a port link aggregation, note that:

• The ports used in a link aggregation must all be of the same media type (RJ45, 100 Mbps fiber).
• The ports that can be assigned to the same link aggregation have certain other restrictions (see below).
• Ports can only be assigned to one link aggregation.
• The ports at both ends of a connection must be configured as link aggregation ports.
• None of the ports in a link aggregation can be configured as a mirror source port or a mirror target port.
• All of the ports in a link aggregation have to be treated as a whole when moved from/to, added or deleted from a VLAN.
• The Spanning Tree Protocol will treat all the ports in a link aggregation as a whole.
• Enable the link aggregation prior to connecting any cable between the switches to avoid creating a data loop.
• Disconnect all link aggregation port cables or disable the link aggregation ports before removing a port link aggregation to avoid creating a data loop.

It allows a maximum of 8 ports to be aggregated at the same time. The LRP Managed Switch supports Gigabit Ethernet ports (up to 8 groups). If the group is defined as an LACP static link aggregation group, then any extra ports selected are placed in a standby mode for redundancy if one of the other ports fails. If the group is defined as a local static link aggregation group, then the number of ports must be the same as the group member ports.

Use the Link Aggregation Menu to display or configure the Trunk function. This section has the following items:

■ LAG Setting Configures load balance algorithm configuration settings
■ LAG Management Configures LAG configuration settings
■ LAG Port Setting Configures LAG port settings
■ LACP Setting Configures LACP priority settings
■ LACP Port Setting Configures LACP configuration settings
■ LAG Status Displays LAG status / LACP information

4.4.1 LAG Setting

This page allows configuring load balance algorithm configuration settings. The LAG Setting screens in Figure 4-4-2 & Figure 4-4-3 appear.

LAG Setting Load Balance Algorithm MAC Address IP/MAC Address Apply

Figure 4-4-2 LAG Setting Page Screenshot

The page includes the following fields:

Object Description
Load Balance Algorithm	Select load balance algorithm mode:■ MAC Address: The MAC address can be used to calculate the port for the frame.■ IP/MAC Address: The IP and MAC address can be used to calculate the port for the frame.

Buttons

Apply

: Click to apply changes.

Information Name	Information Value
Load Balance Algorithm	src-dst-mac

Figure 4-4-3 LAG Information Page Screenshot

he page includes the following fields: T

Object Description
• Load Balance Algorithm	Display the current load balance algorithm

4.4.2 LAG Management

This page is used to configure the LAG management. The LAG Management screens in Figure 4-4-4 & Figure 4-4-5 appear.

LAG Management LAG Name Type Ports LAG1 Static ○ LACP Select Ports Apply

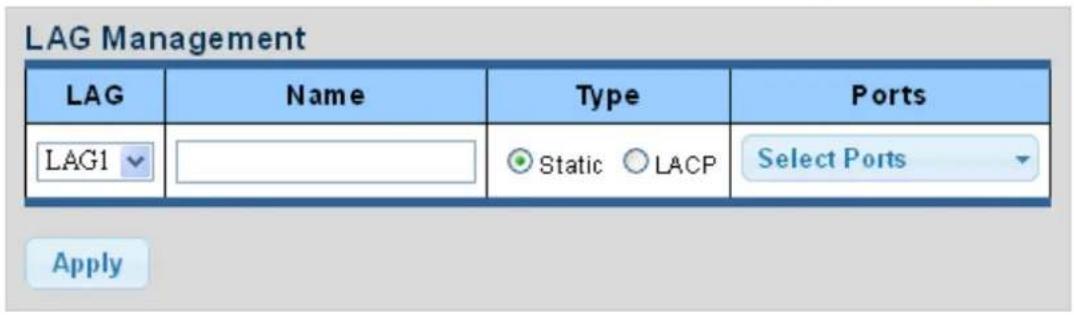

Figure 4-4-4 LAG Management Page Screensh

The page includes the following fields:

Object Description
• LAG	Select LAG number from this drop-down list
• Name	Indicates each LAG name
• Type	trunk type Indicates theStatic: Force aggregated selected ports to be a trunk group.LACP: LACP LAG negotiate Aggregated Port links with other LACP ports located on a different device. If the other device ports are also LACP ports, the devices establish a LAG between them.
• Ports	Select port number from this drop-down list to establish Link Aggregation

LAG	Name	Type	Link State	Active Member	Standby Member	Modify
LAG1		-	Not Present	-	-	Edit
LAG2		-	Not Present	-	-	Edit
LAG3		-	Not Present	-	-	Edit
LAG4		-	Not Present	-	-	Edit

Figure 4-4-5 LAG Management Information Page Screenshot

The page includes the following fields:

Object Description
• LAG	The ow LAG for the settings contained in the same r
• Name	Display the current name
• Type	Display the current type
• Link State	Display the link state
• Active Member	Display the active member
• Standby Member	Display the standby member
• Modify	Click Edit to modify LAG configuration

4.4.3 LAG Port Setting

This page allows setting configuration for each LAG. The LAG Port Setting screens in Figure 4-4-6 & Figure 4-4-7 appear.

LAG Port settings

LAG Select	Enabled	Speed	Flow Control
Select LAGs	Enabled Disabled	Auto	Enabled Disabled

Figure 4-4-6 LAG Port Setting Information Page Screenshot

The page includes the following fields:

Object Description
LAG Select	Select LAG number from this drop-down list.
Enable	Indicates the LAG state operation. Possible states are:Enabled - Start up the LAG manually.Disabled - Shut down the LAG manually.
Speed	Select any available link speed for the given switch port. Draw the menu bar to select the mode.■ Auto - Set up Auto negotiation.■ Auto-10M - Set up 10M Auto negotiation.■ Auto-100M - Set up 100M Auto negotiation.■ Auto-1000M - Set up 1000M Auto negotiation.■ Auto-10/100M - Set up 10/100M Auto negotiation.■ 10M - Set up 10M Force mode.■ 100M - Set up 100M Force mode.■ 1000M - Set up 1000M Force mode.
6throIC	When Auto Speed is selected for a port, this section indicates the flow control capability that is advertised to the link partner. When a fixed-speed setting is selected, that is what is used. The current RX column indicates whether pause frames on the port are obeyed. The current TX column indicates whether pauseframes on the port are transmitted. The RX and TX settings are determined by the result of the last Auto-Negotiation. Check the configured column to use flow control. This setting is related to the setting for Configured Link Speed.

Buttons

Apply

Click to apply changes.

LAG	Description	Port Type	Enable State	Link Status	Speed	Duplex	FlowCtrl Config	FlowCtrl Status
LAG1			Enabled		Auto	Auto	Disabled	Disabled
LAG2			Enabled		Auto	Auto	Disabled	Disabled
LAG3			Enabled		Auto	Auto	Disabled	Disabled
LAG4			Enabled		Auto	Auto	Disabled	Disabled

Figure 4-4-7 LAG Port Status Page Screenshot

The page includes the following fields:

Object Description
• LAG	The LAG for the settings contained in the same row
• Description	rrent description Display the cu
• Port Type	Display the current port type
• Enable State	Display the current enable state
• Speed	Display the current speed
• Duplex	Display the current duplex mode
• Flow Control Config	Display the current flow control configuration
• Flow Control Status	w control status Display the current flo

LACP is available for GE1\~ E4. G

4.4.4 LACP Setting

This page is used to configure the LACP system priority setting. The LACP Setting screens in Figure 4-4-8 & Figure 4-4-appear.

LACP Setting System Priority 32768 (1-65535) Apply

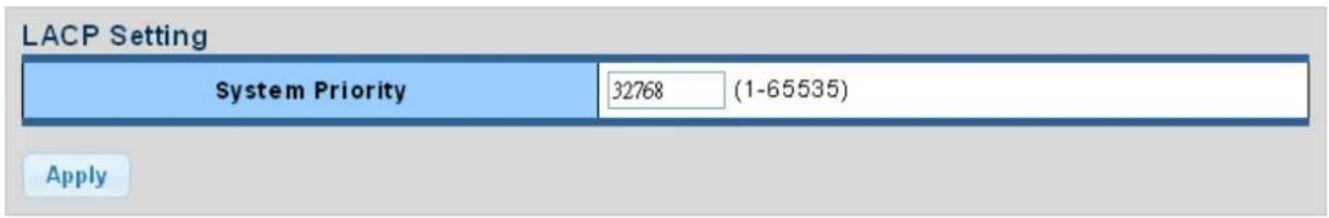

Figure 4-4-8 LACP Setting Page Screenshot

The page includes the following fields:

Object Description
• System Priority	A value which is used to identify the active LACP. The LRP Managed Switch with the lowest value has the highest priority and is selected as the active LACP peer of the trunk group.

Buttons

Apply

: Click to apply changes.

Information Name	Information Value
System Priority	32768

Figuset-4-9 LACP Information Page Scre

The page includes the following fields:

Object Description
• SystemPriority	Display the current system priority.

4.4.5 LACP Port Setting

This page is used to configure the LACP port setting. The LACP Port Setting screens in Figure 4-4-10 & Figure 4-4-11 appear.

LACP Port Settings Port Select Priority Timeout Select Ports 1 (1-65535) ● Long ○ Short Apply

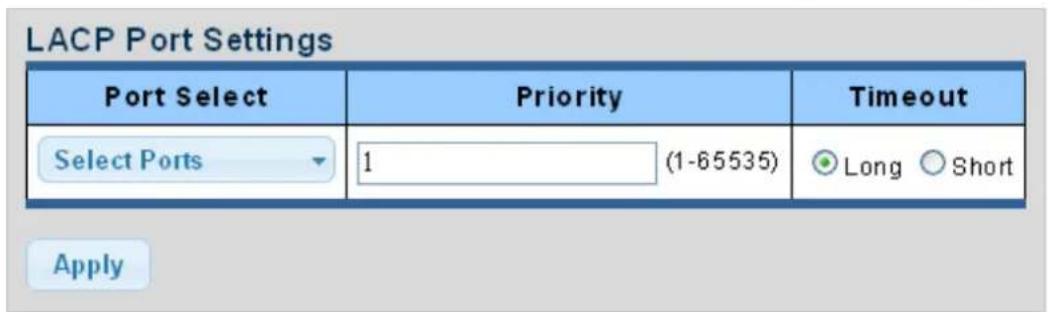

Figure 4-4-10 LACP Port Setting Page Screenshot

The pag s the following fields: e include

Object Description
• Port Select	Select port number from this drop-down list to set LACP port setting.
• Priority	The Priority controls the priority of the port. If the LACP partner wants to form a larger group than is supported by this device, then this parameter will control which ports will be active and which ports will be in a backup role.ower number means greater priority. L
• Timeout	The Timeout controls the period between BPDU transmissions. Short will transmit LACP packets each second, while Long will wait for 30 seconds before sending an LACP packet.

Buttons

Apply

: Click to apply changes.

LACP Port Information

Port Name	Priority	Timeout
GE1	1	Long
GE2	1	Long
GE3	1	Long
GE4	1	Long

Figure 4-4-11 LACP Port Information Page Screenshot

ds: The page includes the following fiel

Object Description
• Port Name	The switch port number of the logical port
• Priority	Display the current LACP priority parameter
• Timeout	Display the current timeout parameter

4.4.6 LAG Status

This page displays LAG status. The LAG Status screens in Figure 4-4-12 & Figure 4-4-13 appear.

LAG Status

LAG	Name	Type	Link State	Active Member	Standby Member
LAG1		---	Not Present	-	-
LAG2		---	Not Present	-	-
LAG3		---	Not Present	-	-
LAG4		---	Not Present	-	-

Figure 4-4-12 LAG Status Page Screenshot

he page includes the following fields: T

Object Description
• LAG	Display the current trunk entry
• Name	Display the current LAG name
• Type	Display the current trunk type
• Link State	Display the current link state
• Active Member	Display the current active member
• Standby Member	Display the current standby member

LACP information

LAG	Port	PartnerSysId	PnKey	AtKey	Sel	Mux	Receiv	PrdTx	AtState	PnState
LAG1	GE1	000000000000	03e8	03e8	U	DETACH	DFLT	FstPRD	A_G__F_	_TG_C_F_
LAG1	GE2	000000000000	03e8	03e8	U	DETACH	DFLT	FstPRD	A_G__F_	_TG_C_F_

Figure 4-4-13 LACP Information Page Screenshot

he page includes the following fields: T

Object Description
Trunk	rrent trunk ID Display the cu
Port	Display the current port number
PartnerSysId	The system ID of link partner. This field would be updated when the port receives LACP PDU from link partner
PnKey	Port key of partner. This field would be updated when the port receives LACP PDU from link partner
AtKey	Port key of actor. The key is designed to be the same as trunk ID.
Sel	LACP selection logic status of the port■ “S” means selected■ “U” means unselected■ “D” means standby
Mux	LACP mux state machine status of the port■ “DETACH” means the port is in detached state■ “WAIT” means waiting state■ “ATTACH” means attach state■ “CLLCT” means collecting state■ “DSTRBT” means distributing state
Receiv	LACP receive state machine status of the port■ “INIT” means the port is in initialize state■ “PORTds” means port disabled state■ “EXPR” means expired state■ “LACPds” means LACP disabled state■ “DFLT” means defaulted state■ “CRRNT” means current state
PrdTx	LACP periodic transmission state machine status of the port■ “no P RD” means the port is in no periodic state■ “FstPRD” means fast p eriodic state■ “SlwPRD” means slow pe riodic state■ “PrdTX” means period ic TX state
AtState	The actor state field of LACP PDU description.The field from left to right describes: “LACP_Activity”, “LACP_Timeout”, “Aggregation”, “Synchronization”, “Collecting”, “Distributing”, “Defaulted”, and “Expired”.The contents could be true or false. If the contents are false, the web shows “_”; if the contents are true, the web shows “A”, “T”, “G”, “S”, “C”, “D”, “F” and “E” for each content respectively.
PnState	The partner state field of LACP PDU description.The field from left to right describes: “LACP_Activity”, “LACP_Timeout”, “Aggregation”, “Synchronization”, “Collecting”, “Distributing”, “Defaulted”, and
	"Expired".The contents could be true or false. If the contents are false, the web will show “_”; if the contents are true, the Web shows “A”, “T”, “G”, “S”, “C”, “D”, “F” and “E” for each content respectively.

4.5 VLAN

4.5.1 VLAN Overview

A Virtual Local Area Network (VLAN) is a network topology configured according to a logical scheme rather than the physical layout. VLAN can be used to combine any collection of LAN segments into an autonomous user group that appears as a single LAN. VLAN also logically segment the network into different broadcast domains so that packets are forwarded only between ports within the VLAN. Typically, a VLAN corresponds to a particular subnet, although not necessarily.

VLAN can enhance performance by conserving bandwidth, and improve security by limiting traffic to specific domains.

A VLAN is a collection of end nodes grouped by logic instead of physical location. End nodes that frequently communicate with each other are assigned to the same VLAN, regardless of where they are physically on the network. Logically, a VLAN can be equated to a broadcast domain, because broadcast packets are forwarded to only members of the VLAN on which the broadcast was initiated.

VLAN Overview
        PC1["PC-1 (Untagged)"]
        PC2["PC-2 (Untagged)"]
        PC3["PC-3 (Tagged)"]
    end
    subgraph VLAN 3
        PC4["PC-4 (Untagged)"]
        PC5["PC-5 (Untagged)"]
        PC6["PC-6 (Tagged)"]
    end
    PC1 --> VLAN2
    PC2 --> VLAN2
    PC3 --> VLAN2
    PC4 --> VLAN3
    PC5 --> VLAN3
    PC6 --> VLAN3

1. No matter what basis is used to uniquely identify end nodes and assign these nodes VLAN membership, packets cannot cross VLAN without a network device performing a routing function between the VLAN.

1. The LRP Managed Switch supports IEEE 802.1Q VLAN. The port untagging function can be used to remove the 802.1 tag from packet headers to maintain compatibility with devices that are tag-unaware.

2. The LRP Managed Switch's default is to assign all ports to a single 802.1Q VLAN named DEFAULT_VLAN. As new VLAN is created, the member ports assigned to the new VLAN will be removed from the DEFAULT_VLAN port member list. The DEFAULT_VLAN has a VID = 1.

This section has the following items:

■ Management VLA N	Configures the management VLAN
■ Create VLAN	Creates the VLAN group
■ Interface Settings	Configures mode and PVID on the VLAN port
■ Port to VLAN	Configures the VLAN membership
■ Port VLAN Membership	Displays the VLAN membership
■ Protocol VLAN Group Setting	Configures the protocol VLAN group
■ Protocol VLAN Port Setting	Configures the protocol VLAN port setting
■ GVRP Setting	Configures GVRP global setting
■ GVRP Port Setting	Configures GVRP port setting
■ GVRP VLAN	Displays the GVRP VLAN database
■ GVRP Statistics	Displays the GVRP port statistics

4.5.2 IEEE 802.1Q VLAN

In large networks, routers are used to isolate broadcast traffic for each subnet into separate domains. This LRP Managed Switch provides a similar service at Layer 2 by using VLANs to organize any group of network nodes into separate broadcast domains. VLANs confine broadcast traffic to the originating group, and can eliminate broadcast storms in large networks. This also provides a more secure and cleaner network environment.

An IEEE 802.1Q VLAN is a group of ports that can be located anywhere in the network, but communicate as though they belong to the same physical segment.

VLANs help to simplify network management by allowing you to move devices to a new VLAN without having to change any physical connections. VLANs can be easily organized to reflect departmental groups (such as Marketing or R&D), usage groups (such as e-mail), or multicast groups (used for multimedia applications such as videoconferencing).

VLANs provide greater network efficiency by reducing broadcast traffic, and allow you to make network changes without having to update IP addresses or IP subnets. VLANs inherently provide a high level of network security since traffic must pass through a configured Layer 3 link to reach a different VLAN.

This LRP Managed Switch supports the following VLAN features:

■ Up to 255 V LANs based on the IEEE 802.1Q standard
■ Port overla rt tppiagtcibareing multiple VLANs
■ End stations can belong to multiple VLANs
■ Passin g traffic between VLAN-aware and VLAN-unaware devices

IEEE 802.1Q Standard

IEEE 802.1Q (tagged) VLAN are implemented on the Switch. 802.1Q VLAN require tagging, which enables them to span the entire network (assuming all switches on the network are IEEE 802.1Q-compliant

VLAN allow a network to be segmented in order to reduce the size of broadcast domains. All packets entering a VLAN will only be forwarded to the stations (over IEEE 802.1Q enabled switches) that are members of that VLAN, and this includes broadcast, multicast and unicast packets from unknown sources.

VLAN can also provide a level of security to your network. IEEE 802.1Q VLAN will only deliver packets between stations that are members of the VLAN. Any port can be configured as either tagging or untagging.:

■ The untagging feature of IEEE 802.1Q VLAN allows VLAN to work with legacy switches that don't recognize VLAN tags in packet headers.
■ The tagging feature allows VLAN to switch multiple through using physical connection and allows Spanning Tree to allow panel and work normally.

Some relevant terms:

• Tagging - The act of putting 802.1Q VLAN information into the header of a packet.
• Untagging - The act of stripping 802.1Q VLAN information out of the packet header.

802.1Q VLAN Tags

The figure below shows the 802.1Q VLAN tag. There are four additional octets inserted after the source MAC address. Their presence is indicated by a value of 0x8100 in the Ether Type field. When a packet's Ether Type field is equal to 0x8100, the packet carries the IEEE 802.1Q/802.1p tag. The tag is contained in the following two octets and consists of 3 bits of user priority, 1 bit of Canonical Format Identifier (CFI - used for encapsulating Token Ring packets so they can be carried across Ethernet backbones), and 12 bits of VLAN ID (VID). The 3 bits of user priority are used by 802.1p. The VID is the VLAN identifier and is used by the 802.1Q standard. Because the VID is 12 bits long, 4094 unique VLAN can be identified.

The tag is inserted into the packet header making the entire packet longer by 4 octets. All of the information originally contained in the packet is retained.

802.1Q Tag

The Ether Type and VLAN ID are inserted after the MAC source address, but before the original Ether Type/Length or Logical Link Control. Because the packet is now a bit longer than it was originally, the Cyclic Redundancy Check (CRC) must be recalculated.

Adding an IEEE802.1Q Tag

Port VLAN ID

Packets that are tagged (are carrying the 802.1Q VID information) can be transmitted from one 802.1Q compliant network device to another with the VLAN information intact. This allows 802.1Q VLAN to span network devices (and indeed, the entire network – if all network devices are 802.1Q compliant).

Every physical port on a switch has a PVID. 802.1Q ports are also assigned a PVID, for use within the switch. If no VLAN are defined on the switch, all ports are then assigned to a default VLAN with a PVID equal to 1. Untagged packets are assigned the PVID of the port on which they were received. Forwarding decisions are based upon this PVID, in so far as VLAN are concerned. Tagged packets are forwarded according to the VID contained within the tag. Tagged packets are also assigned a PVID, but the PVID is not used to make packet forwarding decisions, the VID is.

Tag-aware switches must keep a table to relate PVID within the switch to VID on the network. The switch will compare the VID of a packet to be transmitted to the VID of the port that is to transmit the packet. If the two VID are different the switch will drop the packet. Because of the existence of the PVID for untagged packets and the VID for tagged packets, tag-aware and tag-unaware network devices can coexist on the same network.

A switch port can have only one PVID, but can have as many VID as the switch has memory in its VLAN table to store them.

Because some devices on a network may bestag-ataareheperten a tagransatredeide before

packets are transmitted – should the packet to be transmitted have a tag or not? If the transmitting port is connected to a tag-unaware device, the packet should be untagged. If the transmitting port is connected to a tag-aware device, the packet should be tagged.

Default VLANs

The Switch initially configures one VLAN, VID = 1, called "default." The factory default setting assigns all ports on the Switch to the "default". As new VLAN are configured in Port-based mode, their respective member ports are removed from the "default."

- Assigning Ports to VLANs

Before enabling VLANs for the switch, you must first assign each port to the VLAN group(s) in which it will participate. By default all ports are assigned to VLAN 1 as untagged ports. Add a port as a tagged port if you want it to carry traffic for one or more VLANs, and any intermediate network devices or the host at the other end of the connection supports VLANs. Then assign ports on the other VLAN-aware network devices along the path that will carry this traffic to the same VLAN(s), either manually or dynamically using GVRP. However, if you want a port on this switch to participate in one or more VLANs, but none of the intermediated two e-supports Vleansthatperboth end of onnection ANs, then you should the VLAN as an untagged port.

VLAN-tagged frames can pass through VLAN-aware or VLAN-unaware network interconnection devices, but the VLAN tags should be stripped off before passing it on to any end-node host that does not support VLAN tagging.

VLAN Classification

When the switch receives a frame, it classifies the frame in one of two ways. If the frame is untagged, the switch assigns the frame to an associated VLAN (based on the default VLAN ID of the receiving port). But if the frame is tagged, the switch uses the tagged VLAN ID to identify the port broadcast domain of the frame.

Port Overlapping

Port overlapping can be used to allow access to commonly shared network resources among different VLAN groups, such as file servers or printers. Note that if you implement VLANs which do not overlap, but still need to communicate, you can connect them by enabled routing on this switch.

■ Untagged VLANs

Untagged (or static) VLANs are typically used to reduce broadcast traffic and to increase security. A group of network users assigned to a VLAN form a broadcast domain that is separate from other VLANs configured on the switch. Packets are forwarded only between ports that are designated for the same VLAN. Untagged VLANs can be used to manually isolate user groups or subnets.

4.5.3 Management VLAN

Configure Management VLAN on this page. The screens in Figure 4-5-1 & Figure 4-5-2 appear.

Management VLAN Setting Management VLAN default(1) Apply

Figure 4-5-1 Management VLAN Setting Page Screenshot

The page includes the following fields:

Object Description
• Management VLAN	Provide the managed VLAN ID

Buttons

Apply

Click to apply changes.

Config Name	Config Value
Management VLAN	1

Figure 4-5-2 Management VLAN State Page Screenshot

The page includes the following fields:

Object Description
• Management VLAN	Display the current management VLAN.

4.5.4 Create VLAN

Create/delete VLAN on this page. The screens in Figure 4-5-3 & Figure 4-5-4 appear.

VLAN Setting VLAN LIST VLAN Action VLAN Name Prefix Add Delete Apply

Figure 4-5-3 VLAN Setting Page Screenshot

The page includes the following fields:

Object Description
• VLAN List	Indicates the ID of this particular VLAN.
• VLAN Action	This column allows users to add or delete VLAN s.
• VLAN Name Prefix	Indicates the name of this particular VLAN.

uttons B

Apply

: Click to apply changes.

VLAN ID	VLAN Name	VLAN Typo	Modify
1	default	Default	Edit

Figure 4-5-4 VLAN Table Page Screenshot

The page includes the following fields:

Object Description
• VLAN ID	Display the current VLAN ID entry
• VLAN Name	Display the current VLAN ID name
• VLAN Type	Display the current VLAN ID type
• Modify	Click Edit to modify VLAN configuration

4.5.5 Interface Settings

This page is used for configuring the LRP Managed Switch port VLAN. The VLAN per Port Configuration Page contains fields for managing ports that are part of a VLAN. The port default VLAN ID (PVID) is configured on the VLAN Port Configuration Page. All untagged packets arriving to the device are tagged by the ports PVID.

Understand nomenclature of the Switch

IEEE 802.1Q Tagged and Untagged

Every port on an 802.1Q compliant switch can be configured as tagged or untagged.

• Tagged: Ports with tagging enabled will put the VID number, priority and other VLAN information into the header of all packets that flow into those ports. If a packet has previously been tagged, the port will not alter the packet, thus keeping the VLAN information intact. The VLAN information in the tag edrbythe802.the networkartdevices on packet-for-revisioning

- Untagged: Ports with untaggedlets with strip when 802.1Q tag from all ports. If the packet doesn't have an 802.1Q VLAN tag, the port will not alter the packet. Thus, all packets received by and forwarded by an untagging port will have no 802.1Q VLAN information. (Remember that the PVID is only used internally within the Switch). Untagging is used to send packets from an 802.1Q-compliant network device to a non-compliant network device.

Frame Income Frame Leave	Income Frame is tagged	Income Frame is untagged
Leave port is tagged Frame remains tagged Tag is inserted
Leave port is untagged Tag is removed Frame remain untagged

Table 4-5-1: Ingress / Egress Port with VLAN VID Tag / Untag Table

IEEE 802.1Q Tunneling (Q-in-Q)

IEEE 802.1Q Tunneling (QinQ) is designed for service providers carrying traffic for multiple customers across their networks. QinQ tunneling is used to maintain customer-specific VLAN and Layer 2 protocol configurations even when different customers use the same internal VLAN IDs. This is accomplished by inserting Service Provider VLAN (SPVLAN) tags into the customer's frames when they enter the service provider's network, and then stripping the tags when the frames leave the network.

A service provider's customers may have specific requirements for their internal VLAN IDs and number of VLANs supported. VLAN ranges required by different customers in the same service-provider network might easily overlap, and traffic passing through the infrastructure might be mixed. Assigning a unique range of VLAN IDs to each customer would restrict customer configurations, require intensive processing of VLAN mapping tables, and could easily exceed the maximum VLAN limit of 4096.
    subgraph_Customer_A_s_LAN_Headquarters["Customer A's LAN Headquarters"]
        A1["VLAN 1-20"] --> B1["Network"]
        A2["VLAN 1-30"] --> B2["Network"]
    end

    subgraph_Customer_B_s_LAN_Headquarters["Customer B's LAN Headquarters"]
        B1 --> C1["Network"]
        B2 --> C2["Network"]
    end

    subgraph_Customer_B_s_LAN_BranchOffice["Customer A's LAN Branch Office"]
        C1 --> D1["Network"]
        C2 --> D2["Network"]
    end

    subgraph_Customer_B_s_LAN_Factory["Customer B's LAN Factory"]
        D1 --> E1["Network"]
        D2 --> E2["Network"]
    end

    B1 --> F1["MAN Edge Switch"]
    B2 --> F2["MAN Edge Switch"]
    F1 --> G1["Q-in-Q TUNNEL"]
    F2 --> G2["Q-in-Q TUNNEL"]
    G1 --> H1["Q-in-Q TUNNEL"]
    G2 --> H2["Q-in-Q TUNNEL"]

    style Customer_A_s_LAN_Headquarters fill:#f9f,stroke:#333
    style Customer_B_s_LAN_BranchOffice fill:#bbf,stroke:#333
    style Customer_B_s_LAN_Factory fill:#dfd,stroke:#333

The LRP Managed Switch supports multiple VLAN tags and can therefore be used in MAN applications as a provider bridge,

aggregating prefilefromo bhenhANs(Mdce. Onetofustomer LANs

etro Access Network) sp

purposes of the provider bridge is to be recognized and use VLAN tags so that the VLANs in the MAN s

independent of the customers' VLANs. This is accomplished by adding a VLAN tag with a MAN-related VID for frames entering the MAN. When leaving the MAN, the tag is stripped and the original VLAN tag with the customer-related VID is again available.

This provides a tunneling mechanism to connect remote costumer VLANs through a common MAN space without interfering with the VLAN tags. All tags use EtherType 0x8100 or 0x88A8, where 0x8100 is used for customer tags and 0x88A8 are used for service provider tags.

In cases where a given service VLAN only has two member ports on the switch, the learning can be disabled for the particular VLAN and can therefore rely on flooding as the forwarding mechanism between the two ports. This way, the MAC table requirements is reduced.

Edit Interface Setting

The Edit Interface Setting/Status screens in Figure 4-5-5 & Figure 4-5-6 appear.

Edit Interface Setting Port Select Interface VLAN Mode PVID Accepted Type Ingress Filtering Uplink TPID Select Ports ● Hybrid ○ Access ○ Trunk ○ Tunnel 1 (1 - 4094) ● All ○ Tag Only ○ Untag Only ● Enabled ○ Disabled ○ Enabled ○ Disabled 0x8100 Apply

Figure 4-5-5 Edit Interface Setting Page Screenshot

The page includes the following fields:

Object Description
• Port Select	Select port number from this drop-down list to set VLAN port setting.
• Interface VLAN Mode	Set the port in access, trunk, hybrid and tunnel mode.■ Trunk means the port allows traffic of multiple VLANs.■ Access indicates the port belongs to one VLAN only.■ Hybrid means the port allows the traffic of multi-VLANs to pass in tag or untag mode.■ Tunnel configures IEEE 802.1Q tunneling for a downlink port to another device within the customer network.
• PVID	Allows you to assign PVID to selected port.The PVID will be inserted into all untagged frames entering the ingress port. The PVID must be the same as the VLAN ID that the port belongs to VLAN group, or the untagged traffic will be dropped.The range for the PVID is 1-4094.
• Accepted Type	Determines whether the port accepts all frames or only tagged frames. This parameter affects VLAN ingress processing. If the port only accepts tagged frames, untagged frames received on the port are discarded.Options:■ All■ Tag Only■ Untag OnlyBy default, the field is set to All.
• Ingress Filtering	• If ingress filtering is enabled (checkbox is checked), frames classified to a VLAN that the port is not a member of get discarded.• If ingress filtering is disabled, frames classified to a VLAN that the port is not a member of are accepted and forwarded to the switch engine.However, the port will never transmit frames classified to VLANs that it is not a member of.
• Uplink	Enable/disable uplink function in trunk port.
• TPID	Configure the type (TPID) of the protocol of switch trunk port.

Buttons

Apply

: Click to apply changes.

▼ Port VLAN Status

Port	Interface VLAN Mode	PVID	Accept Frame Type	Ingress Filtering	Uplink	TPID
GE1	Trunk	1	ALL	Enabled	Disabled	0x8100
GE2	Trunk	1	ALL	Enabled	Disabled	0x8100
GE3	Trunk	1	ALL	Enabled	Disabled	0x8100
		1	ALL		Disabled	0x8100

LAG6	Trunk	1	ALL	Enabled	Disabled	0x8100
LAG7	Trunk	1	ALL	Enabled	Disabled	0x8100
LAG8	Trunk	1	ALL	Enabled	Disabled	0x8100

Figure 345-6s Edtt Interface Setting Pa

The page includes the following fields:

Object Description
• Port	number of the logical port The switch port
• Interface VLAN Mode	iD s la the current interface VLAN mode
• PVID	Display the current PVID
• Accepted Frame Type	Display the current access frame type
• Ingress Filtering	Display the current ingress filtering
• Uplink	Display the current uplink mode
• TPID	Display the current TPID

4.5.6 Port to VLAN

Use the VLAN Static Table to configure port members for the selected VLAN index. This page allows you to add and delete port members of each VLAN. The screen in Figure 4-5-7 appears.

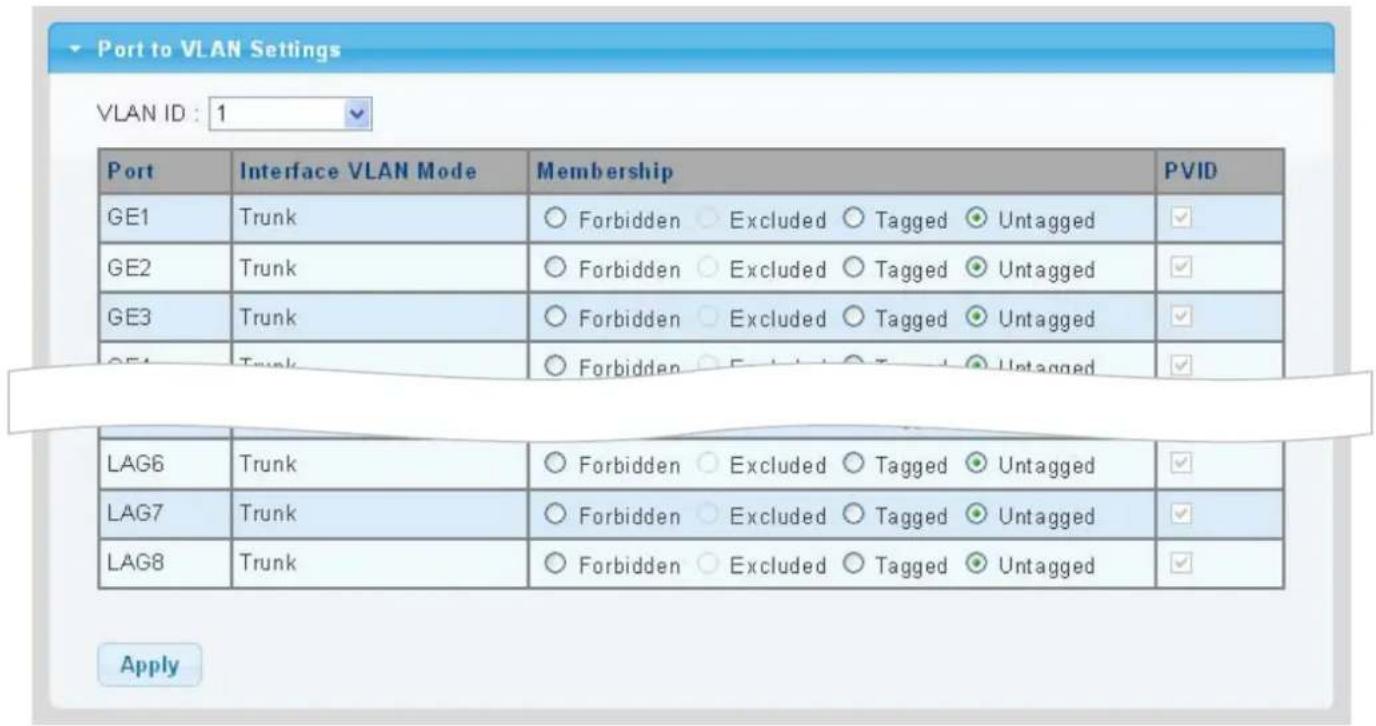

Figure 4-5-7 Port to VLAN Setting Page Screenshot

The page includes the following fields:

Object Description
• VLAN ID	Select VLAN ID from this drop-down list to assign VLAN membership.
• Port	The switch port number of the logical port.
• Interface VLAN Mode	e. Display the current interface VLAN mod
• Membership	Select VLAN membership for each interface by marking the appropriate radio button for a port or trunk:
	Forbidden:	Interface is forbidden from automatically joining the VLAN via GVRP.
	Excluded:	Interface is not a member of the VLAN. Packets associated with this VLAN will not be transmitted by the interface.
	Tagged:	Interface is a member of the VLAN. All packets transmitted by the port will be tagged, that is, carry a tag and therefore carry VLAN or CoS information.
	Untagged:	Interface is a member of the VLAN. All packets transmitted by the port will be untagged, that is, not carry a tag and therefore notcarry VLAN or CoS information. Note that an interface must be assigned to at least one group as an untagged port.
• PVID	Display the current PVID

Buttons

Apply

: Click to apply changes.

4.5.7 Port VLAN Membership

This page provides an overview of membership status for VLAN users. The VLAN Membership Status screen in Figure 4-5-8 appears.

▼ Port VLAN Membership Table

Port	Mode	Administrative VLANs	Operational VLANs	Modify
GE1	Trunk	1UP	1UP	Edit
GE2	Trunk	1UP	1UP	Edit
GE3	Trunk	1UP	1UP	Edit
	Trunk	1UP		Edit

LAG6	Trunk	1UP	1UP	Edit
LAG7	Trunk	1UP	1UP	Edit
LAG8	Trunk	1UP	1UP	Edit

Figure 4-5-8 EoshoLAN Membership Table Page Scre

The page includes the following fields:

Object Description
• Port	The switch po r of the logical port rt numbe
• Mode	Display the current VLAN mode
• Administrative VLANs	e cuDisplay th rrent administrative VLANs
• Operational VLANs	Display the current operational VLANs
• Modify	Click Edit to modify VLAN membership

4.5.8 Protocol VLAN Group Setting

The network devices required to choose careneasily grouped into a common VLAN. This may require

non-standard devices to pass traffic between different VLANs in order to encompass all the devices participating in a specific protocol. This kind of configuration deprives users of the basic benefits of VLANs, including security and easy accessibility.

To avoid these problems, you can configure this LRP Managed Switch with protocol-based VLANs that divide the physical network into logical VLAN groups for each required protocol. When a frame is received at a port, its VLAN membership can then be determined based on the protocol type being used by the inbound packets.

Command Usage

To configure protocol-based VLANs, follow these steps:

1. First configure VLAN groups for the protocols you want to use. Although not mandatory, we suggest configuring a separate VLAN for each major protocol running on your network. Do not add port members at this time.
2. Create a protocol group for each of the protocols you want to assign to a VLAN using the Protocol VLAN Configuration page.
3. Then map the protocol for each interface to the appropriate VLAN using the Protocol VLAN Port Configuration page.

This page allows you to configure protocol-based VLAN Group Setting. The protocol-based VLAN screens in Figure 4-5-9 &

Figure 4-5-10 appear.

Add Protocol VLAN Group Group ID (1-8) 1 Frame Type Ethernet_Ⅱ Protocol Value (0x0600-0xFFFE) Add

Figure 4-5-9 Add Protocol VLAN Group Page Screenshot

The page includes the following fields:

Object Description
• Group ID	Protocol VLAN Group. Protocol Group ID assigned to the
• Frame Type	following values: Frame Type can have one of the■ Ethernet II■ IEEE802.3_LLC_Other■ RFC_1042Note: On changing the Frame type field, valid value of the following text field willependin lected. vary d g on the new frame type you se
• Protocol Value	Valid value that can be entered in this text field depends on the option selected

(0x0600-0xFFFE)

from the preceding Frame Type selection menu. Valid values for frame type ranges from 0x0600-0xfffe

Buttons

Apply

: Click to apply changes.

Protocol VLAN Group State
Group ID	Frame Type	Protocol Value	Delete

Figure 4-5-10 Protocol VLAN Group State Page Screenshot

The page includes the following fields:

Object Description
• Group ID	Display the current group ID
• Frame Type	Display the current frame type
• Protocol Value	Display the current protocol value
• Delete	Click to delete the group ID entry

4.5.9 Protocol VLAN Port Setting

This page allows you to map an already configured Group Name to a VLAN/port for the switch. The Protocol VLAN Port Setting/State screens in Figure 4-5-11 & 2 appear.

Protocol VLAN Port Setting Port Group VLAN Select Ports ● Group ID ○ VLAN ID(1-4094) 1 Add

Figure 4-5-11 Protocol VLAN Port Setting Page Screenshot

T fields: he page includes the following

Object Description
• Port	Select port from this drop-down list to assign protocol VLAN port
• Group	Select group ID from this drop-down list to protocol VLAN group
• VLAN	VLAN ID assigned to the Special Protocol VLAN Group

Buttons

Add

: Click to add protocol VLAN port entry.

Protocol VLAN Port State

Port

Group ID

VLAN ID

Delete

Figure State PageScoreViewLAN Port
The page includes the following fields:

Object Description
• Port	y the currenDispla t port
• Group ID	Display the current group ID
• VLAN ID	Display the current VLAN ID
• Delete	ClickDeleteto delete the group ID entry

4.5.10 GVRP Setting

GARP VLAN RegistryndPhiatocol (G

VLAN members on works across the net

a way for switches to exchange VLAN information in order to register

VLANs are dynamically configured based on join messages issued by host devices and propagated throughout the network. GVRP must be enabled to permit automatic VLAN registration, and to support VLANs which extend beyond the local switch.

The GVRP Global Setting/Information screens in Figure 4-5-13 & Figure 4-5-14 appear.

GVRP Global Setting

GVRP	Disable Enable
Join Timeout	20 (20-16375 centiseconds)
Leave Timeout	60 (45-32760 centiseconds)
LeaveAll Timeout	1000 (65-32765 centiseconds)

Apply

Figure 4-5-13 GVRP Global Setting Page Screenshot

ds: The page includes the following fiel

Object Description
• GVRP	Controls whether GVRP is enabled or disabled on this switch.
• Join Timeout	The interval between transmitting requests/queries to participate in a VLAN group.Range: 20-16375 centisecondsDefault: 20 centiseconds
• Leave Timeout	The interval a port waits before leaving a VLAN group. This time should be set to more than twice the join time. This ensures that after a Leave or LeaveAll message has been issued, the applicants can rejoin before the port actually leaves the group.Range: 45-32760 centisecondsDefault: 60 centiseconds
• LeaveAll Timeout	The interval between sending out a LeaveAll query message for VLAN group participants and the port leaving the group. This interval should be considerably larger than the Leave Time to minimize the amount of traffic generated by nodes rejoining the group.Range: 65-32765 centiseconds;Default: 1000 centiseconds

Note

Timer settings must follow this rule:

2 x (join timer) < leave timer < leaveAll timer

Buttons

Apply

Click to apply changes.

GVRP Informations

Information Name	Information Value
GVRP Status	Disabled
Join Timeout	200 millisecond
Leave Timeout	600 millisecond
LeaveAll Timeout	10000 millisecond

Figure 4-5-14 GVRP Global Setting Page Screenshot

The page includes the following fields:

Object Description
• GVRP Status	Display the current GVRP status
• Join Timeout	Display the current join timeout parameter
• Leave Timeout	he current leave timeout parameter Display t
• LeaveAll Timeout	ll timeout parameter Display the current leavea

4.5.11 GVRP Port Setting

The GVRP Port Setting/Status screens in Figure 4-5-15 & Figure 4-5-16 appear.

Port settings Port Select GVRP Enabled Registration Mode Vlan Creation Select Ports Enabled Disabled Normal Enabled Disabled Apply

Figure 4-5-15 GVRP Global Setting Page Screenshot

The page includes the following fields:

Object Description
• Port Select	Select port from this drop-down list to assign protocol VLAN port
• GVRP Enabled	Controls whether GVRP is enabled or disabled on port
• Registration Mode	By default GVRP ports are in normal registration mode. These ports use GVRP join messages from neighboring switches to prune the VLANs running across the 802.1Q trunk link. If the device on the other side is not capable of sending GVRP messages, or if you do not want to allow the switch to prune any of the VLANs, use the fixed mode. Fixed mode ports will forward for all VLANs that exist in the switch database. Ports in forbidden mode forward only for VLAN 1.
• VLAN Creation	GVRP can dynamically create VLANs on switches for trunking purposes. By enabling GVRP dynamic VLAN creation, a switch will add VLANs to its database when it receives GVRP join messages about VLANs it does not have.

Buttons

Apply

: Click to apply changes.

Port	Enable State	Registration Mode	Vlan Creation State
GE1	Disabled	Normal	Enabled
GE2	Disabled	Normal	Enabled
GE3	Disabled	Normal	Enabled
GE4	Disabled	Normal	Enabled
LAG6	Disabled	Normal	Enabled
LAG7	Disabled	Normal	Enabled
LAG8	Disabled	Normal	Enabled

Figure 4-5-16 GVRP Port Status Page Screenshot

The page includes the following fields:

Object Description
• Port	The switch port number of the logical port
• Enable Status	rent GVRP port state Display the cur
• Registration Mode	Display the current registration mode
• VLAN Creation Status	Display the current VLAN creation status

4.5.12 GVRP VLAN

The GVRP VLAN Database screen in Figure 4-5-17 appears.

GVRP VLAN Database VLAN ID Member Ports Bynamic Ports VLAN Type

Figure 4-5-17 GVRP VLAN Database Status Page Screenshot

The page includes the following fields:

Object Description
• VLAN ID	Display the current VLAN ID
• Member Ports	Display the current member ports
• Dynamic Ports	Display the current dynamic ports
• VLAN Type	Display the current VLAN type

4.5.13 GVRP Statistics

The GVRP Port Statistics and Error Statistics screens in Figure 4-5-18 & Figure 4-5-19 appear.

Figure 4-5-18 GVRP Port Statistics Page Screenshot

The page includes the following fields:

Object Description
• Port	The switch port number of the logical port
• Join Empty (Rx/Tx)	Display the current join empty (TX/RX) packets
• Empty (Rx/Tx)	Display the current empty (TX/RX) packets
• Leave Empty (Rx/Tx)	Display the current leave empty (TX/RX) packets
• Join In (Rx/Tx)	Display the current join in (TX/RX) packets
• Leave In (Rx/Tx)	Display the current leave in (TX/RX) packets
• LeaveAll (Rx/Tx)	Display the current leaveall (TX/RX) packets

GVRP Port Error Statistics Clear Refresh Port Invalid Protocol ID Invalid Attribute Type Invalid Attribute Value Invalid Attribute Length Invalid Event GE1 0 0 0 0 0 GE2 0 0 0 0 0 GE3 0 0 0 0 0 E108 0 0 0 0 LAG7 0 0 0 0 0 LAG8 0 0 0 0 0

Figure 4-5-19 GVRP Port Error Statistics Page Screenshot

elds: The page includes the following fi

Object Description
• Port	The switch port number of the logical port.
• Invalid Protocol ID	Display the current invalid protocol ID
• Invalid Attribute Type	Display the current invalid attribute type
• Invalid Attribute Value	Display the current invalid attribute value
• Invalid Attribute Length	Display the current invalid attribute length
• Invalid Event	Display the current invalid event.

Buttons

Clear

Click to clear the GVRP Error Statistics.

Refresh

: Click to refresh the GVRP Error Statistics.

4.5.14 VLAN setting b×amp

• Separate VLANs
• 802.1Q VLAN Trunk

4.5.14.1 Two Separate 802L1QNs

The diagram shows how the LRP Managed Switch handles Tagged and Untagged traffic flow for two VLANs. VLAN Group 2 and VLAN Group 3 are separated VLANs. Each VLAN isolates network traffic so only members of the VLAN receive traffic from the same VLAN members. The screen in Figure 4-5-20 appears and Table 4-5-2 describes the port configuration of the LRP Managed Switches.

VLAN Overview
        PC1["PC-1 (Untagged)"]
        PC2["PC-2 (Untagged)"]
        PC3["PC-3 (Tagged)"]
    end
    subgraph VLAN 3
        PC4["PC-4 (Untagged)"]
        PC5["PC-5 (Untagged)"]
        PC6["PC-6 (Tagged)"]
    end
    PC1 --> PC2
    PC2 --> PC3
    PC3 --> PC4
    PC4 --> PC5
    PC5 --> PC6
    PC1 -.-> PC2
    PC2 -.-> PC3
    PC3 -.-> PC4
    PC4 -.-> PC5
    PC5 -.-> PC6

Figure 4-5-20 Two Separate VLAN Diagrams

VLAN Group	VID	Untagged Members	Tagged Members
VLAN Group 1 N/A	1 Port-7~Port-8
VLAN Group 2 2	Port-1,Port-2	Port-3
VLAN Group 3 3	Port-4,Port-5	Port-6

Table 4-5-2 VLAN and Port Configuration

The scenario described as follows:

Untagged packet entering VLAN 2

1. While [PC-1] transmits an untagged packet enters Port-1, the LRP Managed Switch will tag it with a VLAN Tag=2. [PC-2] and [PC-3] will receive the packet through Port-2 and Port-3.

2. [PC-4], [PC-5] and [PC-6] receive no packet.

3. While the packet leaves Port-2, it will be stripped away its tag becoming an untagged packet.
4. While the packet leaves Port-3, it will be kept as a tagged packet with VLAN Tag=2.

■ Tagged packet entering VLAN 2

1. While [PC-3] transmits a tagged packet with VLAN Tag=2 entering Port-3. [PC-1] and [PC-2] will receive the packet through Port-1 and Port-2.
2. While the packet leaves Port-1 and Port-2, it will be stripped away its tag becoming an untagged packet.

■ Untagged packet entering VLAN 3

1. While [PC-4] transmits an untagged packet enters Port-4, the switch will tag it with a VLAN Tag=3. [PC-5] and [PC-6] will receive the packet through Port-5 and Port-6.
2. While the packet leaves Port-5, it will be stripped away its tag becoming an untagged packet.
3. While the packet leaves Port-6, it will be kept as a tagged packet with VLAN Tag=3.

In this example, VLAN Group 1 is set as default VLAN, but only focuses on VLAN 2 and VLAN 3 traffic flow.

Setup Steps

1. Create VLAN Group 2 and 3

Add VLAN group 2 and group 3

VLAN ID	VLAN Name	VLAN Type
1	default	Default
2	20002	Static
3	30003	Static

2. Assign VLAN mode and PVID to each port:

Port-1, Port-2 and Port-3 : VLAN Mode = Hybrid, PVID=2

Port-4, Port-5 and Port-6 : VLAN Mode = Hybrid, PVID=3

▼ Port VLAN Status

Port	Interface VLAN Mode	PVID	Accept Frame Type
GE1	Hybrid	2	ALL
GE2	Hybrid	2	ALL
GE3	Hybrid	2	ALL
GE4	Hybrid	3	ALL
GE5	Hybrid	3	ALL
GE6	Hybrid	3	ALL

3. Assign Tagged/Untagged to each port:

VLAN ID = 2:

Port-1 & 2 = Untagged,

Port-3 = Tagged,

Port -4\~6 = Excluded.

Port to VLAN Settings

Port	Interface VLAN Mode	Membership	PVID
GE1	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged	☑
GE2	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged	☑
GE3	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged	☑
GE4	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged	☐
GE5	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged	☐
GE6	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged	☐

VLAN ID = 3:

Port-4 & 5 = Untagged,

Port -6 = Tagged,

Port-1\~3 = Excluded.

Port to VLAN Settings

Port	Interface VLAN Mode	Membership	PVID
GE1	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged
GE2	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged
GE3	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged
GE4	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged
GE5	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged
GE6	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged

4.5.14.2 VLAN Trunking between Two 802.1Q Aware Switches

In most cases, separately also different Uplinkies, but they interested to access

other switches2 wappets same VLAN group. The screen in Figur

Setup steps

1. te Clean Group 2 and 3

Add VLAN group 2 and group 3

VLAN ID	VLAN Name	VLAN Type
1	default	Default
2	20002	Static
3	30003	Static

2. Assign VLAN mode and PVID to each port:

Port-1, Port-2 and Port-3 : VLAN Mode = Hybrid, PVID=2

Port-4, Port-5 and Port-6 : VLAN Mode = Hybrid, PVID=3

Port-7 : VLAN Mode = Hybrid, PVID=1

▼ Port VLAN Status

Port	Interface VLAN Mode	PVID	Accept Frame Type
GE1	Hybrid	2	ALL
GE2	Hybrid	2	ALL
GE3	Hybrid	2	ALL
GE4	Hybrid	3	ALL
GE5	Hybrid	3	ALL
GE6	Hybrid	3	ALL
GE7	Hybrid	1	ALL

3. Assign Tagged/Untagged to each port:

VLAN ID = 1:

Port-1\~6 = Untagged,

Port -7 = Excluded.

Port to VLAN Settings

Port	Interface VLAN Mode	Membership	PVID
GE1	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged
GE2	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged
GE3	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged
GE4	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged
GE5	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged
GE6	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged
GE7	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged

VLAN ID = 2:

Port-1 & 2 = Untagged,

Port-3 & 7 = Tagged,

Port -4\~6 = Excluded.

▼ Port to VLAN Settings

VLAN ID: 2

Port	Interface VLAN Mode	Membership	PVID
GE1	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged	☑
GE2	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged	☑
GE3	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged	☑
GE4	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged	☐
GE5	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged	☐
GE6	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged	☐
GE7	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged	☐

VLAN ID = 3:

Port-4 & 5 = Untagged,

Port -6 & 7= Tagged,

Port-1\~3 = Excluded.

Port to VLAN Settings

VLAN ID: 3

Port	Interface VLAN Mode	Membership	PVID
GE1	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged
GE2	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged
GE3	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged
GE4	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged
GE5	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged
GE6	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged
GE7	Hybrid	○ Forbidden ○ Excluded ○ Tagged ○ Untagged

4.6 Spanning Tree Protocol

4.6.1 Theory

The Spanning Tree Protocol can be used to detect and disable network loops, and to provide backup links between switches, bridges or routers. This allows the switch to interact with other bridging devices in your network to ensure that only one route exists between any two stations on the network, and provide backup links which automatically take over when a primary link goes down. The spanning tree algorithms supported by this switch include these versions:

■ STP – Spanning Tree Protocol (IEEE 802.1D)
■ RSTP – R apid Spanning Tree Protocol (IEEE 802.1w)
■ MSTP – Multiple Sp anning Tree Protocol (IEEE 802.1s)

The IEEE 802.1D Spanning Tree Protocol and IEEE 802.1w Rapid Spanning Tree Protocol allow for the blocking of links between switches that form loops within the network. When multiple links between switches are detected, a primary link is established. Duplicated links are blocked from use and become standby links. The protocol allows for the duplicate links to be used in the event of a failure of the primary link. Once the Spanning Tree Protocol is configured and enabled, primary links are established and duplicated links are blocked automatically. The reactivation of the blocked links (at the time of a primary link failure) is also accomplished automatically without operator intervention.

This automatic network reconfiguration provides maximum uptime to network users. However, the concepts of the Spanning Tree Algorithm and protocol are a complicated and complex subject and must be fully researched and understood. It is possible to cause serious degradation of the performance of the network if the Spanning Tree is incorrectly configured. Please read the following before making any changes from the default values.

The Switch STP performs the following functions:

■ Creates a single spanning tree from any combination of switching or bridging elements.
- Creates multiple spanning trees – from any combination of ports contained within a single switch, in user specified groups.
■ Automatically reconfigures the spanning tree to compensate for the failure, addition, or removal of any element in the tree.
■ Reconfigures the spanning tree without operator intervention.

Bridge Protocol Data Units

For STP to arrive at a stable network topology, the following information is used:

■ The unique switch identifier
■ The path cost to the root associated with each switch port
■ The port identifier

STP communicates between switches on the network using Bridge Protocol Data Units (BPDUs). Each BPDU contains the following information:

■ The unique identifier of the switch that the transmitting switch currently believes is the root switch

■ The path cost to the root from the t transmitting port
■ The port identifier of the transmittin g port

The switch sends BPDUs to communicate and construct the spanning-tree topology. All switches connected to the LAN on which the packet is transmitted will receive the BPDU. BPDUs are not directly forwarded by the switch, but the receiving switch uses the information in the frame to calculate a BPDU, and, if the topology changes, initiates a BPDU transmission.

The communication between switches via BPDUs results in the following:

■ One switch is elected as the root switch
■ The shortest distance to the root switch is calculated for each switch
■ A designated switch is selected. This is the sw itch closest to the root switch through which packets will be forwarded to the root.
A port for each switch is selected. This is the port providing the best path from the switch to the root switch.
■ Ports included in the STP are selected.

Creating a Stable STP Topology

It is to make the root port a fastest link. If all switches have STP enabled with default settings, the switch with the lowest MAC address in the network will become the root switch. By increasing the priority (lowering the priority number) of the best switch, STP can be forced to select the best switch as the root switch.

When STP is enabled using the default parameters, the path between source and destination stations in a switched network might not be ideal. For instance, connecting higher-speed links to a port that has a higher number than the current root port can cause a root-port change.

STP Port States

The BPDUs take some time to pass through a network. This propagation delay can result in topology changes where a port that transitioned directly from a Blocking state to a Forwarding state could create temporary data loops. Ports must wait for new network topology information to propagate throughout the network before starting to forward packets. They must also wait for the packet lifetime to expire for BPDU packets that were forwarded based on the old topology. The forward delay timer is used to allow the network topology to stabilize after a topology change. In addition, STP specifies a series of states a port must transition through to further ensure that a stable network topology is created after a topology change.

Each port on a switch using STP exists is in one of the following five states:

■ Blocking – the port is blocked from forwarding or receiving packets
■ Listening – the port is waiting to receive BPDU packets that may tell the port to go back to the blocking state
■ Learning – the port is adding addresses to its forwarding database, but not yet forwarding packets
■ Forwarding – the port is forwarding packets
■ Disabled – the port only responds to network management messages and must return to the blocking state first

A port transitions from one state to another as follows:

■ From initialization (switch boot) to blocking
■ From block ing to listening or to disabled
■ From listening to learning or to disabled

■ From learning to forwarding or to disabled
■ From forwarding to disabled
■ From disabled to blocking

Figure 4-6-1 STP Port State Transitions

You can modify each port state by using management software. When you enable STP, every port on every switch in the network goes through the blocking state and then transitions through the states of listening and learning at power up. If properly configured, each port stabilizes to the forwarding or blocking state. No packets (except BPDUs) are forwarded from, or received by, STP enabled ports until the forwarding state is enabled for that port.

2. STP Parameters

STP Operation Levels

The Switch allows for two levels of operation: the switch level and the port level. The switch level forms a spanning tree consisting of links between one or more switches. The port level constructs a spanning tree consisting of groups of one or more ports. The STP operates in much the same way for both levels.

On the switch level, STP calculates the Bridge Identifier for each switch and then sets the Root Bridge and the Designated Bridges. On the port level, STP sets the Root Port and the Designated Ports.

Parameter Description Default Value
Bridge Identifier (Not user configurable except by setting priority below)	A combination of the User-set priority and the switch's MAC address.The Bridge Identifier consists of two parts:a 16-bit priority and a 48-bit Ethernet MAC address32768 + MAC	32768 + MAC
Priority	A relative priority for each switch – lower numbers give a higher priority and a greater chance of a given switch being elected as the root bridge	32768
Hello Time	The length of time between broadcasts of the hello message by the switch	2 seconds
Maximum Age Timer	Measures the age of a received BPDU for a port and ensures that the BPDU is discarded when its age exceeds the value of the maximum age timer.	20 seconds
Forward Delay Timer	The amount time spent by a port in the learning and listening states waiting for a BPDU that may return the port to the blocking state.	15 seconds

The following are the user-configurable STP parameters for the port or port group level:

Variable Description Default Value
Port Priority	A relative priority for each port –lower numbers give a higher priority and a greater chance of a given port being elected as the root port	128
Port Cost	A value used by STP to evaluate paths – STP calculates path costs and selects the path with the minimum cost as the active path	200,000-100Mbps Fast Ethernet ports20,000-1000Mbps Gigabit Ethernet ports0 - Auto

Default Spanning-Tree Configuration

Feature Default Value
Enable state STP disabled for all ports
Port priority 128
Port cost 0
Bridge priority 32,768

User-Changeable STA Parameters

The Switch's factory default setting should cover the majority of installations. However, it is advisable to keep the default settings as set at the factory; unless, it is absolutely necessary. The user changeable parameters in the Switch are as follows:

Priority – A Priority for the switch can be set from 0 to 65535. 0 is equal to the highest Priority.

Hello Title: Time dan lobe froms doinds.the ionte of B Between two transmis ackets

sent by the Root Bridge to tell all othe witches that it is indeed the Root Bridge. If you set a Hel me for your Sw is not the Root Bridge, the e Switch becomes the Root Bridge.

The Hello Time cannot be longer than the Max. Age. Otherwise, a configuration error will occur.

Max. Age – The Max Age can be from 6 to 40 seconds. At the end of the Max Age, if a BPDU has still not been received from the Root Bridge, your Switch will start sending its own BPDU to all other Switches for permission to become the Root Bridge. If it turns out that your Switch has the lowest Bridge Identifier, it will become the Root Bridge.

Forward Delay Timer – The Forward Delay can be from 4 to 30 seconds. This is the time any port on the

Switch spends in the listening state while moving from the blocking state to the forwarding state.

Observe the following formulas when setting the above parameters:

Max. Age _ 2 x (Forward Delay - 1 second)

Max. Age _ 2 x (Hello Time + 1 second)

Port Priority – A Port Priority can be from 0 to 240. The lower the number, the greater the probability the port will be chosen as the Root Port.

Port Cost – A Port Cost can be set from 0 to 200000000. The lower the number, the greater the probability the port will be chosen to forward packets.

3. Illustration of STP

A simple illustration of three switches connected in a loop is depicted in the below diagram. In this example, you can anticipate some major network problems if the STP assistance is not applied.

If switch A broadcasts a packet to switch B, switch B will broadcast it to switch C, and switch C will broadcast it to back to switch A and so on. The broadcast packet will be passed indefinitely in a loop, potentially causing a network failure. In this example, STP breaks the loop by blocking the connection between switch B and C. The decision to block a particular connection is based on the STP calculation of the most current Bridge and Port settings.

Now, if switch A broadcasts a packet to switch C, then switch C will drop the packet at port 2 and the broadcast will end there. Setting-up STP using values other than the defaults, can be complex. Therefore, you are advised to keep the default factory settings and STP will automatically assign root bridges/ports and block loop connections. Influencing STP to choose a particular switch as the root bridge using the Priority setting, or influencing STP to choose a particular port to block using the Port Priority and Port Cost settings is, however, relatively straight forward.


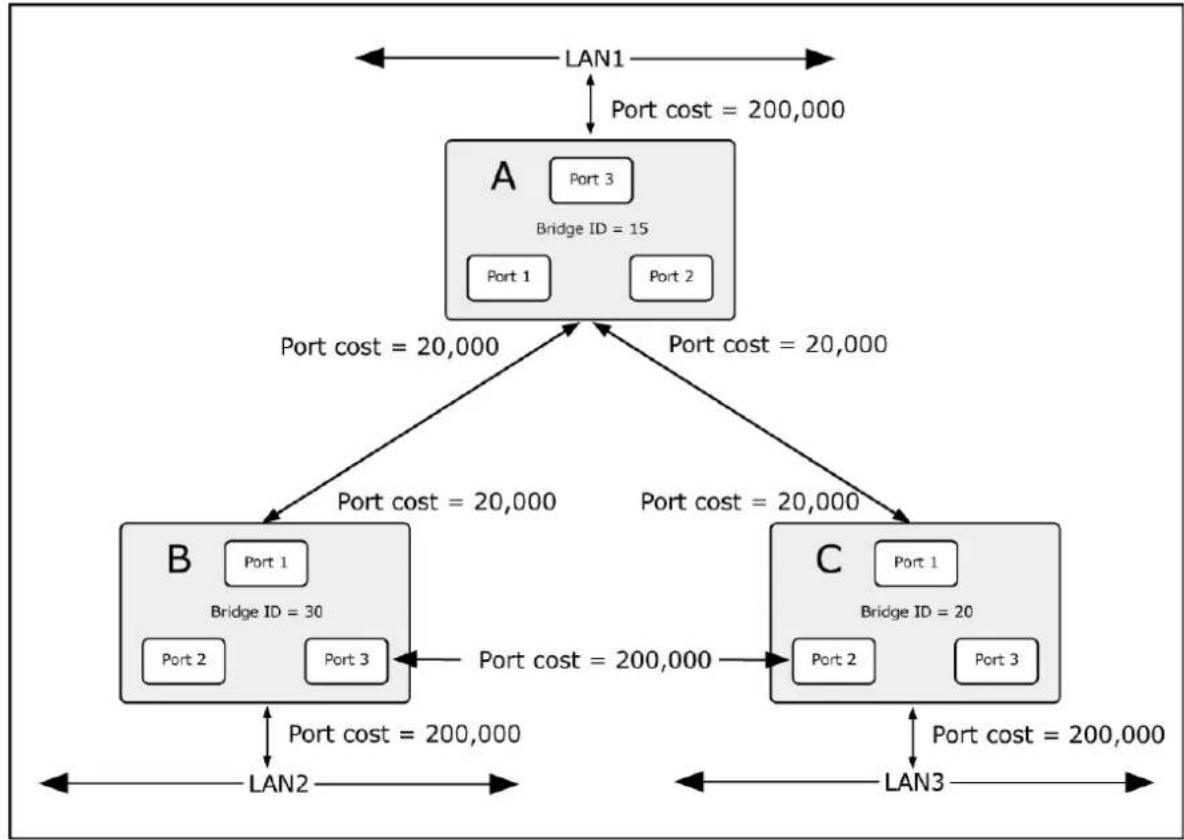

Figure 4-6-2 Before Applying the STA Rules

In this example, only the default STP values are used.

Figure 4-6-3 After Applying the STA Rules

The switch with the lowest Bridge ID (switch C) was elected the root bridge, and the ports were selected to give a high port cost between switches B and C. The two (optional) Gigabit ports (default port cost = 20,000) on switch A are connected to one (optional) Gigabit port on both switch B and C. The redundant link between switch B and C is deliberately chosen as a 100 Mbps Fast Ethernet link (default port cost = 200,000). Gigabit ports could be used, but the port cost should be increased from the default to ensure that the link between switch B and switch C is the blocked link.

This section has the following items:

■ STP Global Setting Configures STP system settings
■ STP Port Setting Configures per port STP setting
■ CIST Instance Setting Configures system configuration
■ CIST Port Setting Configures CIST port setting
■ MST Instance Setting Configures each MST instance setting
■ MST Port Setting Configures per port MST setting
■ STP Statistics Displays the STP statistics

4.6.2 STP Global Settings

This page allows you to configure STP system, Bridging station settings, Service and They all ST

LRP Managed Switch support the following Spanning Tree Protocols:

• Compatible -- Spanning Tree Protocol (STP): Provides a single path between end stations, avoiding and eliminating loops.
• Normal -- Rapid Spanning Tree Protocol (RSTP): Detects and uses network topologies that provide faster spanning tree convergence, without creating forwarding loops.
• Extension – Multiple Spanning Tree Protocol (MSTP): Defines an extension to RSTP to further develop the usefulness of virtual LANs (VLANs). This "Per-VLAN" Multiple Spanning Tree Protocol configures a separate Spanning Tree for each VLAN group and blocks all but one of the possible alternate paths within each Spanning Tree.

The STP Global Settings screens in Figure 4-6-4 & Figure 4-6-5 appear.

Global Setting

Enabled	○Enabled ○Disabled
BPDU Forward	○flooding ○filtering
PathCost Method	○short ○long
Force Version	RSTP-Operation ▼
Configuration Name	00:00:30:4F:11:22 (Max.32 character)
Configuration Revision	0 (0 - 65535)

Apply

Figureo4-6-4 Global Settings Page Screens
The page includes the follow

Object Description
Enable	Enable or disable the STP function. The default value is "Disabled".
BPDU Forward	Set the BPDU forward method.
PathCost Method	The path cost method is used to determine the best path between devices.Therefore, lower values should be assigned to ports attached to faster media,and higher values assigned to ports with slower media.
Force Version	The STP protocol version setting. Valid values areSTP-Compatible,RSTP-OperationandMSTP-Operation.
Configuration Name	Identifier used to identify the configuration currently being used.
Configuration Revision	Identifier used to identify the configuration currently being used. The valuesallowed are between 0 and 65535.The default value is0.

Buttons

Apply

: Click to apply changes.

STP Informations

Information Name	Information Value
STP	Disabled
BPDU Forward	flooding
Cost Method	long
Force Version	RSTP-Operation
Configuration Name	00:00:30 4F:11:22
Configuration Revision	0

Figure 4-6-5 STP Information Page Screenshot

The page includes the following fields:

Object Description
• STP	Display the current STP state
• BPDU Forward	Display the current BPDU forward mode
• Cost Method	Display the current cost method
• Force Version	Display the current force version
• Configuration Name	Display the current configuration name
• Configuration Revision	Display the current configuration revision

4.6.3 STP Port Setting

This page allows you to configure per port STP7session. The STP Port Setting screens in Figure 4-6-6 & Figure 4-

STP Port Setting

Port Select	External Path Cost(0 = Auto)	Edge Port	BPDU Filter	BPDU Guard	P2P MAC	Migrate
Select Ports	0	No	No	No	Yes

Figure 4-6-6 STP Port Configuration Page Screenshot

The page includes the following fields:

Object Description
• Port Select	Select port number from this drop-down list.
• External Cost (0 = Auto)	Controls the path cost incurred by the port. The Auto setting will set the path cost as appropriate by the physical link speed, using the 802.1D recommended values. Using the Specific setting, a user-defined value can be entered. The path cost is used when establishing the active topology of the network. Lower path cost ports are chosen as forwarding ports in favor of higher path cost ports. Valid values are in the range 1 to 200000000.
• Edge Port	Controls whether the operEdge flag should start as being set or cleared. (The initial operEdge state when a port is initialized).
• BPDU Filter	Control whether a port explicitly configured as Edge will transmit and receive BPDUs.
• BPDU Guard	Control whether a port explicitly configured as Edge will disable itself upon reception of a BPDU. The port will enter the error-disabled state, and will be removed from the active topology.
• P2P MAC	Controls whether the port connects to a point-to-point LAN rather than a shared medium. This can be automatically determined, or forced either true or false.Transition to the forwarding state is faster for point-to-point LANs than for shared media.(This applies to physical ports only. Aggregations are always forced Point2Point).
• Migrate	If at any time the switch detects STP BPDUs, including Configuration or Topology Change Notification BPDUs, it will automatically set the selected interface to forced STP-compatible mode. However, you can also use the Protocol Migration button to manually re-check the appropriate BPDU format (RSTP or STP-compatible) to send on the selected interfaces.(Default: Disabled)

Buttons

Apply

Click to apply changes.

By default, the system automatically detects the speed and duplex mode used on each port, and configures the path cost according to the values shown below. Path cost "0" is used to indicate auto-configuration mode. When the short path cost method is selected and the default path cost recommended by the IEEE 8021w standard exceeds 65,535, the default is set to 65,535.

Port Type	IEEE 802.1D-1998	IEEE 802.1w-2001
Ethernet	50-600	200,000-20,000,000
Fast Ethernet	10-60	20,000-2,000,000
Gigabit Ethernet	3-10	2,000-200,000

Table 4-6-1 Recommended STP Path Cost Range

Port Type	Link Type	IEEE 802.1D-1998	IEEE 802.1w-2001
Ethernet	Half Duplex	100	2,000,000
	Full Duplex	95	1,999,999
	Trunk	90	1,000,000
Fast Ethernet	Half Duplex	19	200,000
	Full Duplex	18	100,000
	Trunk 15	50,000
Gigabit Ethernet	Full Duplex	4	10,000
	Trunk 3	5,000

Table 4-6-2 Recommended STP Path Costs

	Link Type IEEE 802.1w-2001 Port Type
Ethernet	Full Duplex Trunk	2,000,000 Half Duplex 1,000,000 500,000
Fast Ethernet	Half Duplex Full Duplex 100,000 Trunk	200,000 50,000
Gigabit Ethernet	Full Duplex Trunk	10,000 5,000

Table 4-6-3 Default STP Path Costs

Port	Admin Enable	External Cost	Edge Port	BPDU Filter	BPDU Guard	P2P MAC
GE1	Enable	0	No	No	No	Yes
GE2	Enable	0	No	No	No	Yes
GE3	Enable	0	No	No	No	Yes
GE4	Enable	0	No	No	No	Yes
LAG6	Enable			No	No
LAG7	Enable	0	No	No	No	Yes
LAG8	Enable	0	No	No	No	Yes

Figure 4-6-7 STP Port Status Page Screenshot

The page includes the following fields:

Object Description
• Port	The switch port number of the logical STP port.
• Admin Enable	Display the current STP port mode status
• External Cost	y the curDispla rent external cost.
• Edge Port	Display the current edg status.
• BPDU Filter	Display the current BPDU filter configuration.
• BPDU Guard	Display the current BPDU guard configuration.
• P2P MAC	Display the current P2P MAC status.

4.6.4 CIST Instance Setting

This Page allows you to configure CI Setting and the

CIST Instance Setting and Information screens in Figure 4-6-8 &

Figure 4-6-9 appear.

CIST Instance Setting Priority 32768 Max Hops 20 (1-40) Forward Delay 15 (4-30) Max Age 20 (6-40) Tx Hold Count 6 (1-10) Hello Time 2 (1-10) Apply

Figure 4-6-8: CIST Instance Setting Page Screenshot

The page includes the following fields:

Object Description
• Priority	Controls the bridge priority. Lower numeric values have better priority. The bridge priority plus the MSTI instance number, concatenated with the 6-byte MAC address of the switch forms a Bridge Identifier.For MSTP operation, this is the priority of the CIST. Otherwise, this is the priority of the STP/RSTP bridge.
• Max Hops	This defines the initial value of remaining Hops for MSTI information generated at the boundary of an MSTI region. It defines how many bridges a root bridge can distribute its BPDU information. Valid values are in the range 6 to 40 hops.
• Forward Delay	The delay used by STP Bridges to transition Root and Designated Ports to Forwarding (used in STP compatible mode). Valid values are in the range 4 to 30 seconds-Default: 15-Minimum: The higher of 4 or [(Max. Message Age / 2) + 1]-Maximum: 30
• Max Age	The maximum age of the information transmitted by the Bridge when it is the Root Bridge. Valid values are in the range 6 to 40 seconds.-Default: 20-Minimum: The higher of 6 or [2 x (Hello Time + 1)].-Maximum: The lower of 40 or [2 x (Forward Delay -1)]
• Tx Hold Count	The number of BPDU's a bridge port can send per second. When exceeded, transmission of the next BPDU will be delayed. Valid values are in the range 1 to 10 BPDU's per second.
• Hello Time	The time that controls the switch to send out the BPDU packet to check STP current status.Enter a value between 1 through 10.

Buttons

Apply

: Click to apply changes.

CIST Instance Information

Information Name	Information Value
Priority	32768
Max Hops	20
Forward Delay	15
Max Age	20
Tx Hold Count	6
Hello Time	2

Figure 4-6-9 CIST Instance Information Page Screen

The page includes the following fields:

Object Description
• Priority	Display the current CIST priority
• Max Hop	Display the current max. hop
• Forward Delay	Display the current forward delay
• Max. Age	Display the current max. age
• Tx Hold Count	Display the current Tx hold count
• Hello Time	Di t hello time splay the curren

4.6.5 CIST Port Setting

This page allows you to configure per port CIST priority and cost. The CIST Port Setting and Status screens in Figure 4-6-10 & Figure 4-6-11 appear.

CIST Port Setting Port Select Priority Internal Path Cost (0 = Auto) Select Ports 128 0 Apply

Figure 4-6-10 CIST Port Setting Page Screenshot

The page includes the following fields:

Object Description
• Port Select	Select port number from this drop-down list.
• Priority	Controls the port priority. This can be used to control priority of ports having identical port cost. (See above).Default: 128Range: 0-240, in steps of 16
• Internal Path Cost(0 = Auto)	Controls the path cost incurred by the port. TheAutosetting will set the path cost as appropriate by the physical link speed, using the 802.1D recommended values. Using theSpecificsetting, a user-defined value can be entered. The path cost is used when establishing the active topology of the network. Lower path cost ports are chosen as forwarding ports in favor of higher path cost ports. Valid values are in the range 1 to 200000000.

Buttons

Apply

Click to apply changes.

Figure 4-6-11 CIST Port Status Page Screenshot

The pages through following fields:

Object Description
• Port	the logical STP port The switch port number of
• Identifier (Priority / Port ID)	e current identifier (Priority / Port ID) Display th
• External Path Cost Conf/Oper	Display the current external path cost conf/oper
• Internal Path Cost Conf/Oper	Display the current internal path cost/oper
• Designated Root Bridge	Display the current designated root bridge
• External Root Cost	Display the current external root cost
• Regional Root Bridge	Display the current regional root bridge
• Internal Root Cost	Display the current internal root cost
• Designated Bridge	Display the current designated bridge
• Internal Port Path Cost	Display the current internal port path cost
• Edge Port Conf/Oper	Display the current edge port conf/oper
• P2P MAC Conf/Oper	Display the current P2P MAC conf/oper
• Port Role	Display the current port role
• Port State	Display the current port state

4.6.6 MST Instance Configuration

This page allows the user to configure MST Instance Configuration. The MST Instance Setting, Information and Status screens in Figure 4-6-12, Figure 4-6-13 & Figure 4-6-14 appear.

MST Instance Setting MSTI ID (1-15) VLAN List (1-4094) Priority 1 32768 Apply

Figure 4-6-12 MST Instance Setting Page Screenshot

The page includes the following fields:

Object Description
• MSTI ID	Allow to assign MSTI ID. The range for the MSTI ID is 1-15.
• VLAN List (1-4096)	Allow to assign VLAN list to special MSTI ID. The range for the VLAN list is 1-4094.
• Priority	Controls better bridge priority Lower numerical values have bridged by with the MS-Tyres MAC number, concaten address of the switch forms a Bridge Identifier.

Buttons

Apply

: Click to apply changes.

MST Instance Setting Information MSTI Status VLAN List VLAN Count Priority

Figure 4-6-13 MS Transmission Setting Information Page Sc

The page includes the following fields:

Object Description
• MSTI	Display the current MSTI entry
• Status	Display the current MSTI status
• VLAN List	Display the current VLAN list
• VLAN Count	Display the current VLAN count
• Priority	Display the current MSTI priority

MST Instance Status

Information Name	Information Value
MSTI ID	1
Regional Root Bridge	--/--
Internal Root Cost	--/--
Designated Bridge	--/--
Root Port	--/--
Max Age	--/--
Forward Delay	--/--
Remainging Hops	--/--
Last Topology Change	--/--

Figure 4-6-14 MST Instance Status Page Screenshot

The page includes the following fields:

Object Description
• MSTI ID	Display the MSTI ID.
• Regional Root Bridge	ot bridge Display the current designated ro
• Internal Root Cost	Display the current internal root cost
• Designated Bridge	dge Display the current designated bri
• Root Port	Display the current root port.
• Max. Age	Display the current max. age.
• Forward Delay	Display the current forward delay.
• Remaining Hops	Display the current remaining hops.
• Last Topology Change	Display the current last topology change.

4.6.7 MST Port Setting

This page also works in respect to BTPM Configurations, and possibly change them as well.

A MSTI port is a virtual port, which is instantiated separately for each active CIST (physical) port for each MSTI instance configuration. This application should be selected before displaying actual MSTI port configuration options.

This page contains MSTI port settings, physical and setting gear ports. The MSTI Ports Setting screens in Figure 4-6-15 & Figure 4-6-16 appear.

MST Port Setting MST ID Port Select Priority Internal Path Cost (0 = Auto) 1 Select Ports 128 0 Apply

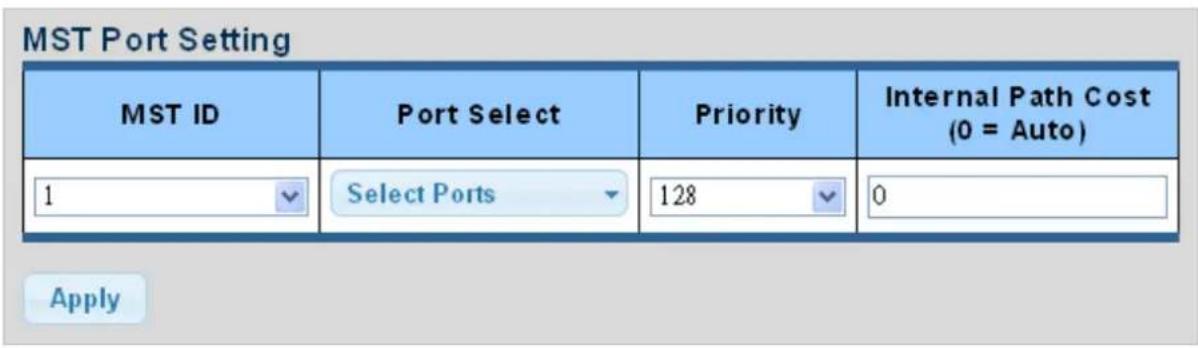

Figure 4-6-15 MST Port Configuration Page Screenshot

The page includes the following fields:

Object Description
• MST ID	Enter the special MST ID to configure path cost and priority.
• Port Select	Select port number from this drop-down list.
• Priority	Controls the port priority. This can be used to control priority of ports having identical port cost.
• Internal Path Cost (0 = Auto)	Controls the path cost incurred by the port.TheAutosetting will set the path cost as appropriate by the physical link speed, using the 802.1D recommended values. Using the Specific setting, a user-defined value can be entered.The path cost is used when establishing the active topology of the network.Lower path cost ports are chosen as forwarding ports in favor of higher path cost ports.Valid values are in the range 1 to 200000000.

Buttons

Apply

: Click to apply changes.

MSTI ID	Port	Identifier (Priority Port Id)	Internal Path Cost Conf Oper	Regional Root Bridge	Internal Root Cost	Designated Bridge	Internal Path Cost	Port Role	Port State
1	GE1	128/1	0/-	-/-	-	-/-	-	-	-
1	GE2	128/2	0/-	-/-	-	-/-	-	-	-
1	GE3	128/3	0/-	-/-	-	-/-	-	-	-
1	GE4	128/4	0/-	-/-	-	-	-	-	-
1	LAG6	128/16				-/-
1	LAG7	128/17	0/-	-/-	-	-/-	-	-	-
1	LAG8	128/18	0/-	-/-	-	-/-	-	-	-

Figure 4-6-16 MST Port Status Page Screenshot

The page includes the following fields:

Object Description
• MSTI ID	Display the current MSTI ID
• Port	The switch port number of the logical STP port
• Identifier (Priority / Port ID)	Display the current identifier (priority / port ID)
• Internal Path Cost Conf/Oper	Display the current internal path cost configuration / operation
• Regional Root Bridge	gional root bridge Display the current re
• Internal Root Cost	Display the current internal root cost
• Designated Bridge	Display the current designated bridge
• Internal Path Cost	Display the current internal path cost
• Port Role	Display the current port role
• Port State	Display the current port state

4.6.8 STP Statistics

This page displays STP statistics. The STP statistics screen in Figure 4-6-17 appears.

STP Statistics

Port	Configuration BDPUs Received	TCN BDPUs Received	MSTP BDPUs Received	Configuration BDPUs Transmitted	TCN BDPUs Transmitted	MSTP BDPUs Transmitted
GE1	0	0	0	0	0	0
GE2	0	0	0	0	0	0
GE3	0	0	0	0	0	0

LAG6	0	0	0	0	0	0
LAG7	0	0	0	0	0	0
LAG8	0	0	0	0	0	0

Figure 4-6-17 STP Statistics Page Screenshot

The page includes the following fields:

Object Description
• Port	The switch port number of the logical STP port
• Configuration BPDUs Received	Display the current configuration BPDUs received
• TCN BPDUs Received	Display the current TCN BPDUs received
• MSTP BPDUs Received	Display the current MSTP BPDUs received
• Configuration BPDUs Transmitted	Display the configuration BPDUs transmitted
• TCN BPDUs Transmitted	mitted Display the current TCN BPDUs trans
• MSTP BPDUs Transmitted	Display the current BPDUs transmitted

4.7 Multicast

This section has the following items:

■ Properties Configures multicast properties
■ IGMP Snooping Configures IGMP snooping settings
■ IGMP Snooping Statistics Displays the IGMP snooping statistics
■ MLD Snooping Configures MLD snooping settings
■ MLD Snooping Statistics Displays the MLD snooping statistics
■ Multicast Throttling Setting Configures multicast throttling setting
■ Multicast Filter Configures multicast filter

4.7.1 Properties

This page provides multicast properties related configuration.

The multicast Properties and Information screen in Figure 4-7-1 & Figure 4-7-2 appear.

PropertiesSetting

Unknown Multicast Action	○ Drop ○ Flood ○ Router Port
IPv4 Forward Method	○ MAC ○ Src-Dst-lp
IPv6 Forward Method	○ MAC ○ Src-Dst-lp

Apply

Figure 4-7-1 Properties Setting Page Screenshot

The page includes the following fields:

Object Description
• Unknown Multica st Action	Unknown multicast traffic method:Drop, flood or send to router port.
• IPv4 Forward Method	Configure the IPv4 multicast forward method
• IPv6 Forward Method	Configure the IPv6 multicast forward method

Buttons

Apply

: Click to apply changes.

Information Name	Information Value
Unknown Multicast Action	Flood
Forwarding Method For IPv4	MAC
Forwarding Method For IPv6	MAC

Figure 4-7-2 Properties Information Page Screenshot

The page includes the following fields:

Object Description
• Unknown Multicast Action	Display the current unknown multicast action status
• Forward Method For IPv4	Display the current IPv4 multicast forward method
• Forward Method For IPv6	Display the current IPv6 multicast forward method

4.7.2 IGMP Snooping

The Internet Group Management Protocol (IGMP) lets host and routers share information about multicast groups memberships. IGMP snooping is a switch feature that monitors the exchange of IGMP messages and copies them to the CPU for feature processing. The overall purpose of IGMP Snooping is to limit the forwarding of multicast frames to only ports that are a member of the multicast group.

About the Internet Group Management Protocol (IGMP) Snooping

Computers and network devices that want to receive multicast transmissions need to inform nearby routers that they will become members of a multicast group. The Internet Group Management Protocol (IGMP) is used to communicate this information. IGMP is also used to periodically check the multicast group for members that are no longer active. In the case where there is more than one multicast router. This network keeps router is elected as the

track of the membership of the multicast groups that have active members. The information received from IGMP is then used to determine if multicast packets should be forwarded to a given sub network or not. The router can check, using IGMP, to see if there is at least one member of a multicast group on a given subnet work. If there are no members on a sub network, packets will not be directed to that sub network.


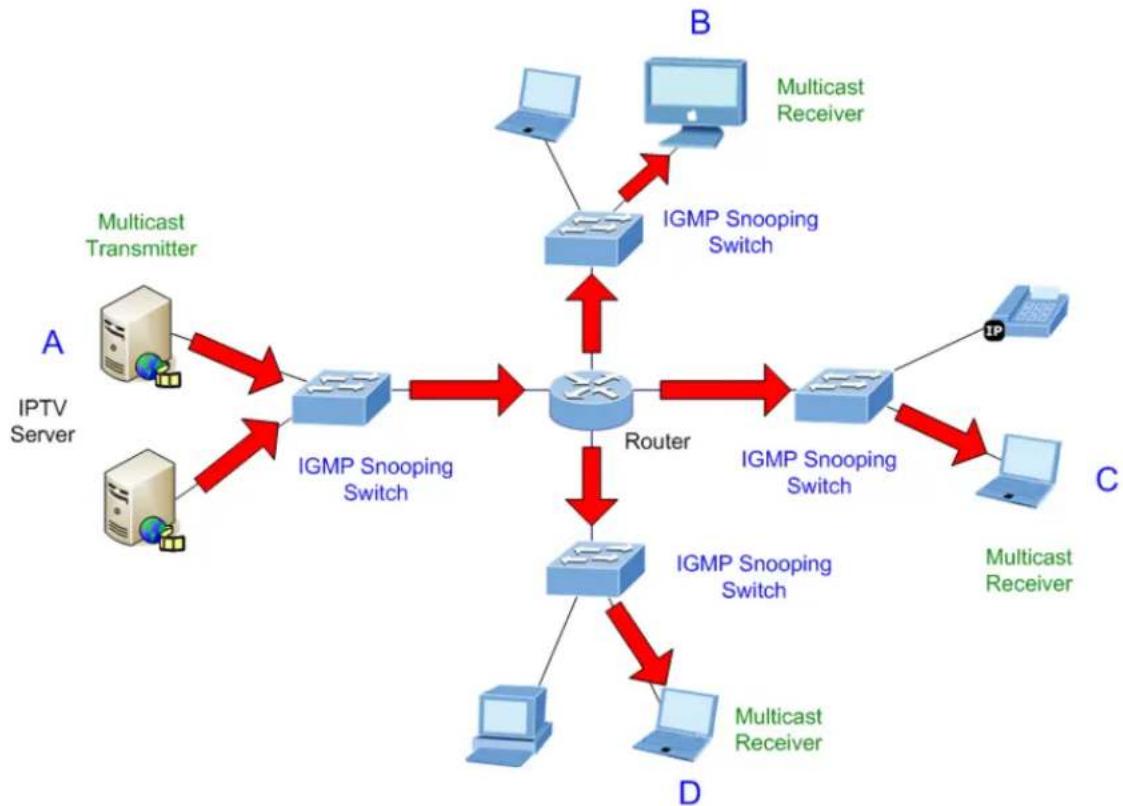

Figure 4-7-3 Multicast Service

Figure 4-7-4 Multicast Flooding

Figure 4-7-5 IGMP Snooping Multicast Stream Control

IGMP Versions 1 and 2

Multicast groups allow members to join or leave at any time. IGMP provides the method for members and multicast routers to communicate when joining or leaving a multicast group.

IGMP version 1 is defined in RFC 1112. It has a fixed packet size and no optional data.

The format of an IGMP packet is shown below:

IGMP Message Format

Octets
0	8	16		31
	Type	Response	Time	Checksum

Group Address (all zeros if this is a query)

The IGMP Type codes are shown below:

Type	Meaning
0x11	Membership Query (if Group Address is 0.0.0.0)
0x11	Specific Group Membership Query (if Group Address is Present)
0x16 Membership Report (version 2)
0x17 Leave a Group (version 2)
0x12 Membership Report (version 1)

IGMP packets enable multicast routers to keep track of the membership of multicast groups, on their respective sub networks.

The following outlines what is communicated between a multicast router and a multicast group member using IGMP.

A host sends an IGMP "report" to join a group

A host will never send a report when it wants to leave a group (for version 1).

A host will send a "leave" report when it wants to leave a group (for version 2).

Multicast routers send IGMP queries (to the all-hosts group address: 224.0.0.1) periodically to see whether any group members exist on their sub networks. If there is no response from a particular group, the router assumes that there are no group members on the network.

The Time-to-Live (TTL) field of query messages is set to 1 so that the queries will not be forwarded to other sub networks.

IGMP version 2 introduces some enhancements such as a method to elect a multicast queried for each LAN, an explicit leave

message, and query messages that are specific to a given group.

The states a computer will go through to join or to leave a multicast group are shown below:

Figure 4-7-6 IGMP State Transitions

■ IGMP Quer ier –

A router, or multicast-enabled switch, can periodically ask their hosts if they want to receive multicast traffic. If there is more than one router/switch the LAN performing IP multicasting, one of these devices is elected "querier" and assumes the role of querying the LAN for group members. It then propagates the service requests on to any upstream multicast switch/router to ensure that it will continue to receive the multicast service.

Multicast routers use this information, along with a multicast routing protocol such as

ternet. DVMRP or PIM, to support IP multicasting across the

4.7.2.1 IGMP Setting

This page provides IGMP Snooping related configuration.

Most of the settings are global, whereas the Router Port configuration is related to the current unit, as reflected by the page header. The IGMP Snooping Setting and Information screens in Figure 4-7-7, Figure 4-7-8 & Figure 4-7-9 appear.

IGMP Snooping

IGMP Snooping Status	○ Enable ○ Disable
IGMP Snooping Version	○ v2 ○ v3
IGMP Snooping Report Suppression	○ Enable ○ Disable

Apply

Figure 4-7-7 IGMP Snooping Page Screenshot

The page includes the following fields:

Object Description
• IGMP Snooping Status	Enable or disable the IGMP snooping. The default value is "Disabled".
• IGMP Snooping Version	Sets the IGMP Snooping operation version. Possible versions are: ■ v2: Set IGMP Snooping supported IGMP version 2. ■ v3: Set IGMP Snooping supported IGMP version 3.
• IGMP Snooping Report Suppression	Limits the and capable report traffic sent to mWhen you disable report suppression, all IGMP reports are sent as is to multicast-capable routers.The default is enabled.

Buttons

Apply

: Click to apply changes.

IGMP Snooping Informations

Information Name	Information Value
IGMP Snooping Status	Enable
IGMP Snooping Version	v2
IGMP Snooping V2 Report Suppression	Enable

Figure 4-7-8 IGMP Snooping Information Page Screenshot

ing fields: The page includes the follow

Object Description
• IGMP Snooping Status	Display the current IGMP snooping status.
• IGMP Snooping Version	Display the current IGMP snooping version.
• IGMP Snooping V2 Report Suppression	Display the current IGMP snooping v2 report suppression.

Entry No.	VLAN ID	IGMP Snooping Operation Status	Router Ports Auto Learn	Query Robustness	Query Interval(sec.)	Query Max Response Interval(sec.)	Last Member Query count	Last Member Query Interval(sec)	Immediate Leave	Modify
1	1	disabled	enabled	2	125	10	2	1	disabled	Edit

Figure 4-7-9 IGMP Snooping Information Page Screenshot

The p des the following fields: age inclu

Object Description
• Entry No.	Display the current entry number
• VLAN ID	Display the current VLAN ID
• IGMP Snooping Operation Status	Display the current IGMP snooping operation status
• Router Ports Auto Learn	ning Display the current router ports auto lear
• Query Robustness	y robustness Display the current quer
• Query Interval (sec.)	Display the current query interval
• Query Max Response Interval (sec.)	Display the current query max response interval
• Las t Member Query count	Display the current last member query count
• Last Member Query Interval (sec)	Display the current last member query interval
• Immediate Leave	Display the current immediate leave
• Modify	Click Edit to edit parameter

4.7.2.2 IGMP Querier Setting

This page provides IGMP Querier Setting. The IGMP Querier Setting screens in Figure 4-7-10 & Figure 4-7-11 appear.

IGMP Querier Setting VLAN ID Querier State Querier Version Select VLANs Disable Enable v2\v3 Apply

Figure 4-7-10 IGMP VLAN Setting Page Screenshot

The page includes the following fields:

Object Description
• VLAN ID	Select VLAN ID from this drop-down list.
• Querier State	Enable or disable the querier state.The default value is "Disabled".
• Querier Version	er version for compatibility with other devices on the network. Sets the queriVersion: 2 or 3;Default: 2

Buttons

Apply

: Click to apply changes.

VLAN ID	Querier State	Querier Status	Querier Version	Querier IP
1	disabled	Non-Querier	---	---

Figure 4-7-11 IGMP Querier Status Page Screenshot

The page includes the following fields:

Object Description
• VLAN ID	Display the current VLAN ID
• Querier State	Display the current querier state
• Querier Status	Display the current querier status
• Querier Version	Display the current querier version
• Querier IP	Display the current querier IP

4.7.2.3 IGMP Static Group

Multicast filtering can be dynamically configured using IGMP Snooping and IGMP Query messages as described in above sections. For certain applications that require tighter control, you may need to statically configure a multicast service on the LRP Managed Switch. First add all the ports attached to participating hosts to a common VLAN, and then assign the multicast service to that VLAN group.

• Static multicast addresses are never aged out.
• When a multicast address is assigned to an interface in a specific VLAN, the corresponding traffic can only be forwarded to ports within that VLAN.

The IGMP Static Group configuration screens in Figure 4-7-12 & Figure 4-7-13 appear.

Add IGMP Static Group VLAN ID Group IP Address Member Ports Select VLANs Select Ports Add

Figure4Static GdoupGPage Screenshot

The page includes the following fields:

Object Description
• VLAN ID	Select VLAN ID from this drop-down list
• Group IP Address	The IP address for a specific multicast service
• Member Ports	Select port number from this drop-down list

Buttons

Add

: Click to add IGMP router port entry.

IGMP Static Groups VLAN ID Group IP Address Member Ports Modify

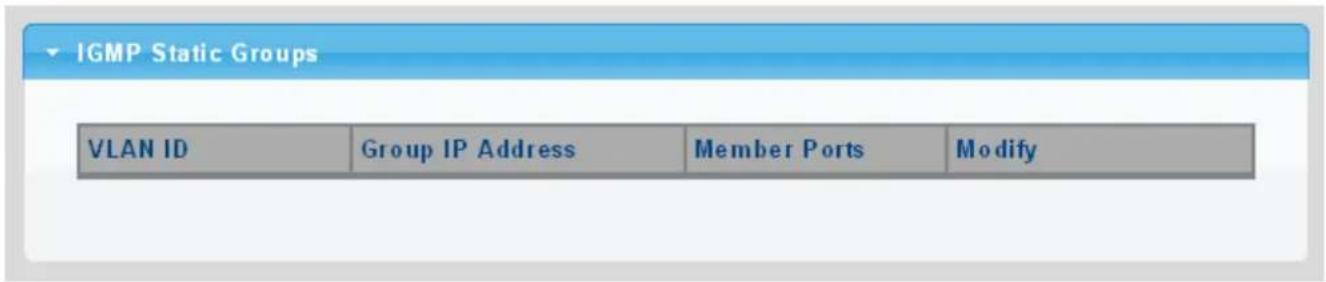

Figure 4-7-13 IGMP Static Groups Page Screenshot

The page includes the following fields:

Object Description
• VLAN ID	Display the current VLAN ID
• Group IP Address	Display the current group IP address
• Member Ports	Display the current member ports
• Modify	Click to edit parameter

4.7.2.4 IGMP Group Table

This page provides Multicast Database. The IGMP Group Table screen in Figure 4-7-14 appears.

VLAN ID

Group IP Address

Member Ports

Type

Life(Sec)

Figure 4-7-14 IGMP Group Table Page Screenshot

following fields: The page includes the

Object Description
• VLAN ID	Display the current VID
• Group IP Address	Display multicast IP address for a specific multicast service
• Member Port	Display the current member port
• Type	Member types displayed include Static or Dynamic, depending on selected options
• Life(Sec)	Display the current life

4.7.2.5 IGMP Router Setting

Depending on your network connections, IGMP snooping may not always be able to locate the IGMP querier. Therefore, if the

IGMP querier is a lanoswitchobiocast rout

ected over the network to an interface (port or trunk) on your LRP

Managed Switch, you config an additional interface (and a sp

ecified VLAN) to join all the current multicast groups

supported by the attached routercThisensure that multicast traffic is pass

ed to all the appropriate interfaces within the LRP

Managed Switch.

The IGMP Router Setting and Status screens in Figure 4-7-15 & Figure 4-7-16 appear.

Add Router Port

VLAN ID	Type	Static Ports Select	Forbid Ports Select
Select VLANs	Static Forbid	Select Static Ports	Select Forbid Ports

Add

Figure 4-7-15 Add Router Port Page Screenshot

The page includes the following fields:

Buttons

Add

Click to add IGMP router port entry.

Router Ports Status VLAN ID Static Ports Forbidden Ports Modify

Figure 4-7-16 Router Port Status Page Screenshot

The page includes the following fields:

Object Description
• VLAN ID	Display the current VLAN ID
• Static Ports	Display the current static ports
• Forbidden Ports	Display the current forbidden ports
• Modify	Click to edit parameterClick to delete the group ID entry

4.7.2.6 IGMP Router Table

This page provides Router Table. The Dynamic, Static and Forbidden Router Table screens in Figure 4-7-17, Figure 4-7-18 & Figure 4-7-19 appear.

Dynamic Router Table VLAN ID Port Expiry Time (Sec)

Figure 4-7-17 Dynamic Router Table Page Screenshot

The page includes the following fields:

Object Description
• VLAN ID	Display the current VLAN ID
• Port	Display the current dynamic router ports
• Expiry Time (Sec)	Display the current expiry time

Static Router Table VLAN ID PortMask

Figure 4-7-18 Static Router Table Page Screenshot

he page includes the following fields: T

Object Description
• VLAN ID	rrent VLAN ID Display the cu
• Port Mask	Display the current port mask

Forbidden Router Table VLAN ID PortMask

Figure 4-7rd diens Router Table Page Screen

The page includes the following fields:

Object Description
• VLAN ID	Display the current VLAN ID
• Port Mask	Display the current port mask

4.7.2.7 IGMP Forward All

This page provides IGMP Forward All. The Forward All screen in Figure 4-7-20 appears.

Forward All VLAN ID : 1 Port Membership GE1 Static Forbidden None GE2 Static Forbidden None GE3 Static Forbidden None LAG7 Static Forbidden None LAG8 Static Forbidden None Apply

Figure 4-7-20 Forward All Setting Page Screenshot

The page includes the following fields:

Object Description
• VLAN ID	Sel n list to assign IGMP membership ect VLAN ID from this drop-dow
• Port	The switch port number of the logical port
• Membership	Select IGMP membership for each interface:
	Forbidden:	Interface is forbidden from automatically joining the IGMP via MVR.
	None:	Interface is not a member of the VLAN. Packets associated with this VLAN will not be transmitted by the interface.
	Static:	Interface is a member of the IGMP.

Buttons

Apply

: Click to apply changes.

4.7.3 IGMP Snooping Static

This page provides IGMP Snooping Statics. The IGMP Snooping Statics screen in Figure 4-7-20 appears.

Statistics Packets	Counter
Total RX	18
Valid RX	8
Invalid RX	10
Other RX	0
Leave RX	0
Report RX	0
General Query RX	0
Specail Group Query RX	0
Specail Group & Source Query RX	0
Leave TX	0
Report TX	0
General Query TX	0
Specail Group Query TX	0
Specail Group & Source Query TX	0

Figure 4-7-20 Forward All Setting Page Screenshot

The page includes the following fields:

Object Description
• Total RX	rrent total RX Display cu
• Valid RX	Display current valid RX
• Invalid RX	Display current invalid RX
• Other RX	urrenDisplay c t other RX
• Leave RX	lay currenDisp t leave RX
• Report RX	ay current report RDispl X
• General Query RX	Display current general query RX
• Special Group Query RX	Display current special group query RX
• Special Group & Source Query RX	Display current special group & source query RX
• Leave TX	Display current leave TX
• Report TX	Display current report TX
• General Query TX	Display current general query TX
• Special Group Query TX	Display current special group query TX
• Special Group & Source Query TX	Display current special group & source query TX

Buttons

Clear

Click to clear the IGMP Snooping Statistics.

Refresh

Click to refresh the IGMP Snooping Statistics.

4.7.4 MLD Snooping

4.7.4.1 MLD Setting

This page provides ML deSroopfigraelan.

Most of the settings are Globter Whereasftgeration is r

elated to the current unit, as reflected by the page

header. The MLD Snooping Setting, Information and Table screens in Figure 4-7-21, Figure 4-7-22 & Figure 4-7-23 appear.

MLD Snooping

MLD Snooping Status	○ Enable ○ Disable
MLD Snooping Version	○ v1 ○ v2
MLD Snooping Report Suppression	○ Enable ○ Disable

Apply

Figure 4-7-21 MLD Snooping Page Screenshot

following fields: The page includes the

Object Description
MLD Snooping Status	The default value is "Disabled". Enable or disable the MLD sn
MLD Snooping Version	Sets the MLD Snooping operation version. Possible versions are:v1: Set MLD Snooping supported MLD version 1.v2: Set MLD Snooping supported MLD version 2.
MLD Snooping Report Suppression	Limits the membership report traffic sent to multicast-capable routers. When you disable report suppression, all MLD reports are sent as is to multicast-capable routers. The default is enabled.

Buttons

Apply

: Click to apply changes.

Information Name	Information Value
MLD Snooping Status	Disable
MLD Snooping Version	v1
MLD Snooping V2 Report Suppression	Enable

Figure 4-7-22 MLD Snooping information Page Screenshot

ds: The page includes the following fiel

Object Description
MLD Snooping Status	Display the current MLD snooping status
MLD Snooping Version	Display the current MLD snooping version
MLD Snooping Report Suppression	Display the current MLD snooping report suppression

MLD Snooping Table

Entry No.	VLAN ID	MLD Snooping Operation Status	Router Ports Auto Learn	Query Robustness	Query Interval(sec.)	Query Max Response Interval(sec.)	Last Member Query count	Last Member Query Interval(sec)	Immediate Leave	Modify
1	1	disabled	enabled	2	125	10	2	1	disabled	Edit

Figure 4-7-23 MLD Snooping Table Page Screensh

The page includes the following fields:

Object Description
• Entry No.	Display the current entry number
• VLAN ID	Display the current VLAN ID
• MLD Snooping Operation Status	Display the current MLD snooping operation status
• Router Ports Auto Learn	Display the current router ports auto learning
• Query Robustness	ess Display the current query robustn
• Query Interval (sec.)	Display the current query interval
• Query Max Response Interval (sec.)	Display the current query max response interval
• Last Member Query count	Display the current last member query count
• Last Member Query Interval (sec)	Display the current last member query interval
• Immediate Leave	Display the current immediate leave
• Modify	Click Edit to edit parameter

4.7.4.2 MLD Static Group

The MLD Static Group configuration screens in Figure 4-7-24 & Figure 4-7-25 appear.

Add Mld Static Group VLAN ID Group IP Address Member Ports Select VLANs :: Select Ports Add

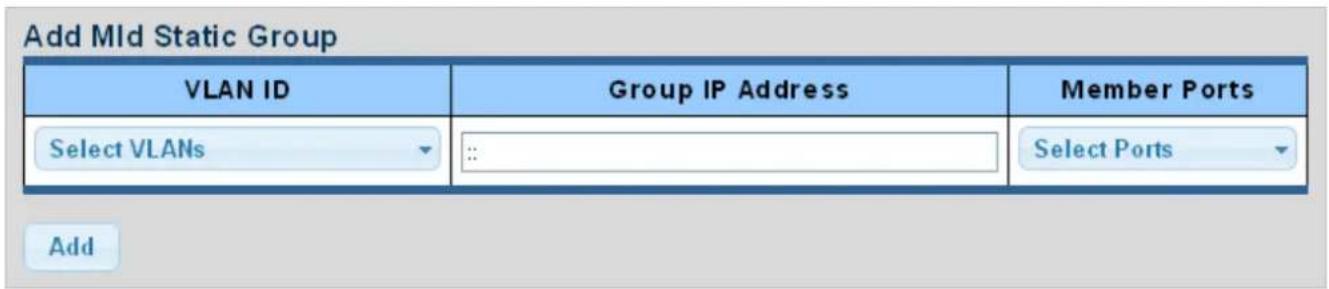

Figure 4-7-24 Add MLD Static Group Page Screenshot

The page includes the following fields:

Object Description
• VLAN ID	Select VLAN ID from this drop-down list
• Group IP Address	The IP address for a specific multicast service
• Member Ports	Select port number from this drop-down list

Buttons

Add

Click to add IGMP router port entry.

MLD Static Groups VLAN ID Group IPv6 Address Member Ports Modify

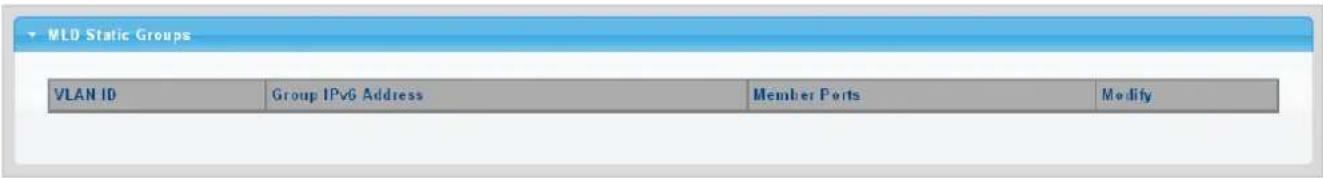

Figure 4-7-25 MLD Static Groups Page Screenshot

The page includes the following fields:

Object Description
• VLAN ID	Display the current VLAN ID
• Group IPv6 Address	s Display the current group IPv6 addres
• Member Ports	Display the current member ports
• Modify	Click Edit to edit parameter.

4.7.4.3 MLD Group Table

This page provides MLD Group Table. The MLD Group Table screen in Figure 4-7-26 appears.

MLD Group Table VLAN ID Group IP Address Member Ports Type Life(Sec)

Figure 4-7-26 MLD Group Table Page Screenshot

he page includes the following fields: T

Object Description
• VLAN ID	rrent VID Display the cu
• Group IP Address	multicast service Display multicast IP address for a speci
• Member Port	Display the current member port
• Type	Member types displayed include Static or Dynamic, depending on selected options
• Life(Sec)	Display the current life

4.7.4.4 MLD Router Setting

Depending on your network connections, MLD snooping may not always be able to locate the MLD querier. Therefore, if the MLD querier is a known multicast router/ switch connected over the network to an interface (port or trunk) on your LRP Managed Switch, you can manually configure the interface (and a specified VLAN) to join all the current multicast groups supported by the attached router. This can ensure that multicast traffic is passed to all the appropriate interfaces within the LRP Managed Switch.

The MLD Router Setting screens in Figure 4-7-27 & Figure 4-7-28 appear.

Add Router Port

VLAN ID	Type	Static Ports Select	Forbid Ports Select
Select VLANs	Static Forbid	Select Static Ports	Select Forbid Ports

Add

Figure 4-7-27 Add Router Port Page Screenshot

ds: The page includes the following fiel

Object Description
• VLAN ID	Selects the VLAN to propagate all multicast traffic coming from the attached multicast router
• Type	Sets the Router port type. The types of Router port as below:StaticForbid
• Static Ports Select	Specify which ports act as router ports. A router port is a port on the Ethernet switch that leads towards the Layer 3 multicast device or MLD querier.
• Forbid Port Select	Specify which ports un-act as router ports

Buttons

Add

: Click to add MLD router port entry.

MLD Router Ports Status VLAN ID Static Ports Forbidden Ports Modify

Figustatus 728gR SuterePrshot

The page includes the following fields:

Object Description
• VLAN ID	Display the current VLAN ID
• Static Ports	Display the current static ports
• Forbidden Ports	Display the current forbidden ports
• Modify	Click Edit to edit parameterClick Delete to delete the group ID entry

4.7.4.5 MLD Router Table

This page provides Router Table. The Dynamic, Static and Forbidden Router Table screens in Figure 4-7-29, Figure 4-7-30 &

Figure 4-7-31 appear.

Dynamic Router Table VLAN ID Port Expiry Time (Sec)

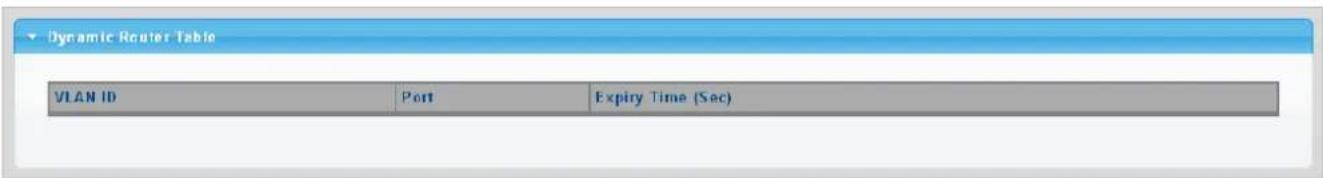

Figure 4-7-29 Dynamic Router Table Page Screenshot

The page includes the following fields:

Object Description
• VLAN ID	Display the current VLAN ID
• Port	Display the current dynamic router ports
• Expiry Time (Sec)	Display the current expiry time

Static Router Table VLAN ID PortMask

Figure 4-7-30 Static Router Table Page Screenshot

The pag s the following fields: e include

Object Description
• VLAN ID	Display the current VLAN ID
• Port Mask	Display the current port mask

Forbidden Router Table VLAN ID PortMask

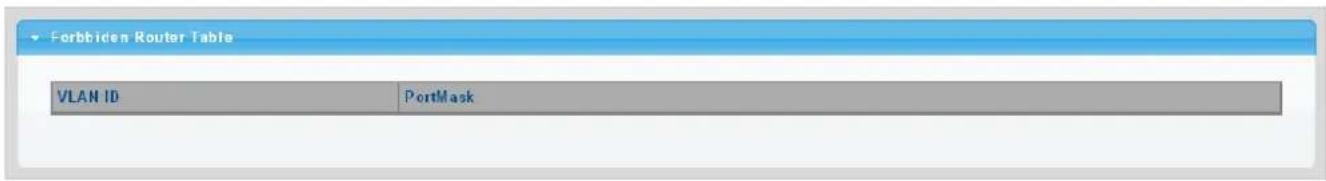

Figure 4-7-31 Forbidden Router Table Page Screenshot

ds: The page includes the following fiel

Object Description
• VLAN ID	Display the current VLAN ID
• Port Mask	Display the current port mask

4.7.4.6 MLD Forward All

This page provides MLD Forward All. The Forward All screen in Figure 4-7-32 appears.

Forward All VLAN ID : 1 Port Membership GE1 Static Forbidden None GE2 Static Forbidden None GE3 Static Forbidden None GE4 Static Forbidden None LAG6 Static Forbidden None LAG7 Static Forbidden None LAG8 Static Forbidden None Apply

Figurer4-A132 Setting Page Screenshot

The page includes the following fields:

Object Description
• VLAN ID	Select VLAN ID from this drop-down list to assign MLD membership
• Port	The switch port number of the logical port
• Membership	Select MLD membership for each interface:
	Forbidden:	Interface is forbidden from automatically joining the MLD via MVR.
	None:	Interface is not a member of the VLAN. Packets associated with this VLAN will not be transmitted by the interface.
	Static:	Interface is a member of the MLD.

Buttons

Apply

: Click to apply changes.

4.7.5 MLD Snooping Statics

This page provides MLD Snooping Statics. The MLD Snooping Statics screen in Figure 4-7-33 appears.

Statistics Packets	Counter
Total RX	0
Valid RX	0
Invalid RX	0
Other RX	0
Leave RX	0
Report RX	0
General Query RX	0
Specail Group Query RX	0
Specail Group & Source Query RX	0
Leave TX	0
Report TX	0
General Query TX	0
Specail Group Query TX	0
Specail Group & Source Query TX	0

Figure 4-7-33 Forward All Setting Page Screenshot

The page includes the following fields:

Object Description
• Total RX	Display the current total RX
• Valid RX	Display the current valid RX
• Invalid RX	Display the current invalid RX
• Other RX	Display the current other RX
• Leave RX	uDisplay the c rrent leave RX
• Report RX	he cuDisplay t rrent report RX
• General Query RX	the curDisplay rent general query RX
• Special Group QueryRX	Display the current special group query RX
• Special Group & Source Query RX	Display the current special group & source query RX
• Leave TX	Display the current leave TX
• Report TX	Display the current report TX
• General Query TX	Display the current general query TX
• Special Group Query TX	Display the current special group query TX
• Special Group & Source Query TX	Display the current special group & source query TX

Buttons

Clear

Click to clear the MLD Snooping Statistics.

Refresh

Click to refresh the MLD Snooping Statistics.

4.7.6 Multicast Throttling Setting

Multicast throttling sets a maximum number of multicast groups that a port can join at the same time. When the maximum number of groups is reached on a port, the switch can take one of two actions; either "deny" or "replace". If the action is set to deny, any new multicast jo in reports will be dropped. If the action is set to replace, the switch randomly removes an existing group and replaces it with which a groupul

Once you have configured multicast profiles, you can assign them to interfaces on the LRP Managed Switch. Also you can set the heuristic abtobisignumber TchinMAX Groupber of multicast groups an interface can j and Information screens in Figure 4-7-34 & Figure 4-7-35 appear.

Max Groups and Action Setting IP Type Port Select Max Groups Action ipv4 Select Ports 256 (0-256) Deny Replace Apply

Figure 4-7-34 Max Groups and Action Setting Page Screenshot

The page includes the following fields:

Object Description
• IP Type	Select IPv4 or IPv6 from this drop-down list
• Port Select	Select port number from this drop-down list
• Max Groups	Sets the maximum number of multicast groups an interface can join at the same time.Range: 0-256;Default: 256
• Action	Sets the action to take when the maximum number of multicast groups for the interface has been exceeded.(Default: Deny)-Deny - The new multicast group join report is dropped-Replace - The new multicast group replaces an existing group

Buttons

Apply

: Click to apply changes.

Port	Max Groups	Action
GE1	256	Deny
GE2	256	Deny
GE3	256	Deny
	256	Deny
LAG6		Deny
LAG7	256	Deny
LAG8	256	Deny

Figure 4-7-35 IGMP Port Max Groups Information Page Screenshot

The page includes the following fields:

Object Description
• Port	The switch port number of the logical port
• Max Groups	Display the current Max groups
• Action	Display the current action

4.7.7 Multicast Filter

In certain switch application, the demand to control the multicast services

that are available to end users. For

example, an IP/TV service is based on a specific function of the triple requiTenerulbigast filt

restricting access to specified multicast services on a switch port.

Multicast filtering enables you to assign a profile to a switch port that specifies multicast groups that are permitted or denied on the port. A multicast filter profile can contain one or more, or a range of multicast addresses; but only one profile can be assigned to a port. When enabled, multicast join reports received on the port are checked against the filter profile. If a requested multicast group is permitted, the multicast join report is forwarded as normal. If a requested multicast group is denied, multicast join report is dropped.

When you have created a Multicast profile filter and set the abcessonfigure the multicast groups mode.

Command Usage

• Each profile has only one access mode; either permit or deny.
- When the access mode is set to permit, multicast join reports are processed when a multicast group falls within the controlled range.
- When the access mode is set to deny, multicast join reports are only processed when the multicast group is not in the controlled range.

4.7.7.1 Multicast Profile Setting

The Add Profile and Profile Status screens in Figure 4-7-36 & Figure 4-7-37 appear.

Add Profile

Ip Type	ipv4
Profile Index	1 (1-128)
Group from
Group to
Action	Permit Deny

Figure 4-7-36 Add Profile Setting Page Screenshot

s the following fields: The page include

Object Description
• IP Type	Select IPv4 or IPv6 from this drop-down list
• Profile Index	Indicates the ID of this particular profile
• Group from	Specifies multicast groups to include in the profile. Specify a multicast group range by entering a start IP address.
• Group to	Specifies multicast groups to include in the profile. Specify a multicast group range by entering an end IP address.
• Action	Sets the access mode of the profile; either permit or deny.
	- Permit	Multicast join reports are processed when a multicast group falls within the controlled range.
	- Deny	When the access mode is set to, multicast join reports are only processed when the multicast group is not in the controlled range.

Buttons

Add

Click to add multicast profile entry.

1GMP Profile Status Index lp type Group from Group to Action Modify

Figure 4-7-37 IGMP/MLD Profile Status Page Screenshot

The page includes the following fields:

Object Description
Index	Display the current index
IP Type	Display the current IP Type
Group from	Display the current group from
Group to	Display the current group to
Action	Display the current action
Modify	Click to edit parameter.Click to delete the MLD/IGMP profile entry.

4.7.7.2 IGMP Filter Setting

The Filter Setting and Status screens in Figure 4-7-38 & Figure 4-7-39 appear.

Filter Setting Port Select Filter Profile ID Select Ports Apply

Figure 4-7-38 Filter Setting Page Screenshot

he following fielThe page includes t ds:

Object Description
• Port Select	ct port nuSele mber from this drop-down list
• Filter Profile ID	Select filter profile ID from this drop-down list

Buttons

Apply

: Click to apply changes.

Port Filter Status Port Filter Profile ID Action

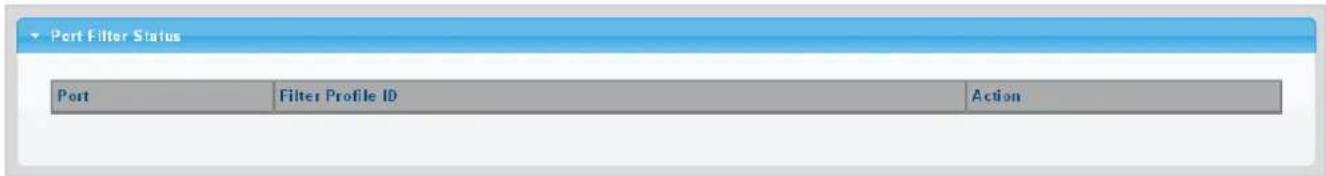

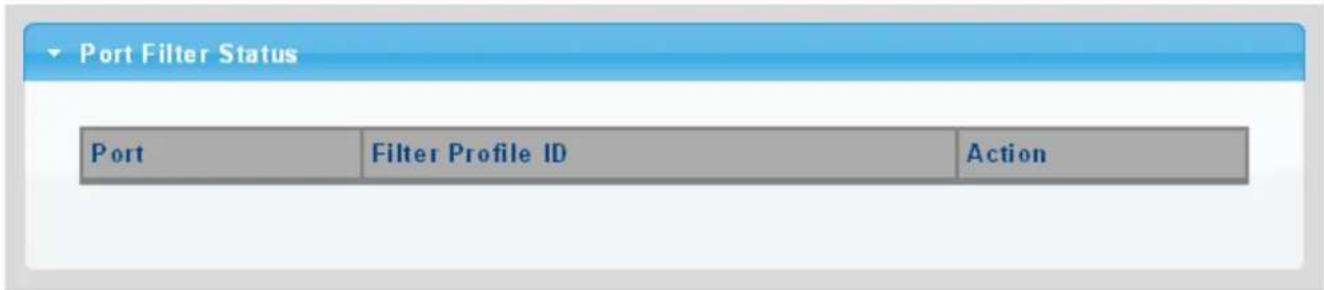

Figure 4-7-39 Port Filter Status Page Screenshot

The page includes the following fields:

Object Description
• Port	Display the current port
• Filter Profile ID	D Display the current filter profile I
• Action	Click / detail profile parameterClick to delete the IGMP filter profile entry

4.7.7.3 MLD Filter Setting

The Filter Setting and Status screens in Figure 4-7-40 & Figure 4-7-41 appear.

Filter Setting Port Select Filter Profile ID Select Ports Apply

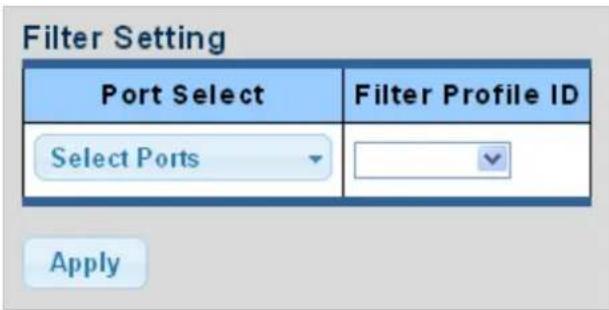

Figure 4-7-40 Filter Setting Page Screenshot

The page includes the following fields:

Object Description
• Port Select	Select port number from this drop-down list
• Filter Profile ID	ofile ID from this drop-down list Select filter pr

Buttons

Apply

: Click to apply changes.

Port Filter Status Port Filter Profile ID Action

Figure 4-7-41 Port Filter Status Page Screenshot

The page includes the following fields:

Object Description
• Port	Display the current port
• Filter Profile ID	Display the current filter profile ID
• Action	Click Show to display detail profile parameterClick Delete to delete the MLD filter profile entry

4.8 Quality of Service

4.8.1 Understand QoS

Quality of Service (QoS) is an adtraffic prioritization featu re that allows you to establish control over network traffic. QoS

enables you to assign various grades of network service to different types of traffic, such as multi-media, video, protocol-specific, time critical, and file-backup traffic.

QoS reduces bandwidth limitations, delay, loss, and jitter. It also provides increased reliability for delivery of your data and allows you to prioritize certain applications in your net u want the switch can trehe exactly how yo selected applications and types of traffic.

You can use QoS on your system to:

• Control a wide variety of network traffic by:
• Classifying traffic based on packet attributes.
- Assigning priorities to traffic (for example, to set higher priorities to time-critical or business-critical applications).
- Applying security policy through traffic filtering.
- Provide predictable throughput for multimedia applications such as video conferencing or voice over IP by minimizing delay and jitter.
- Improve performance for specific types of traffic and preserve performance as the amount of traffic grows.
- Reduce the need to constantly add bandwidth to the network.
- Manage network congestion.

To implement QoS on your network, you need to carry out the following actions:

1. Define a service level to determine the priority that will be applied to traffic.
2. Apply a classifier to determine how the incoming traffic will be classified and thus treated by the Switch.
3. Create a QoS profile which associates a service level and a classifier.
4. Apply a QoS profile to a port(s).

The QoS page of the LRP Managed Switch contains three types of QoS mode - the 802.1p mode, DSCP mode or Port-base mode can be selected. Both the three mode rely on predefined fields within the packet to determine the output queue.

■ 802.1p Tag Priority Mode –The output queue assignment is determined by the IEEE 802.1p VLAN priority tag.
■ IP DSCP Mode - The output queue assignment is determined by the TOS or DSCP field in the IP packets.
■ Port-Base Priority Mode – Any packet received from the specify high priority port will treated as a high priority packet.

The LRP Managed Switch supports eight priority level queue, the queue service rate is based on the WRR(Weight Round Robin) and WFQ (Weighted Fair Queuing) algorithm. The WRR ratio of high-priority and low-priority can be set to "4:1 and 8:1.

4.8.2 General

4.8.2.1 QoS Properties

The QoS Global Setting and Information screen in Figure 4-8-1 & Figure 4-8-2 appear.

QoS Global Setting QoS Mode Disable Basic Apply

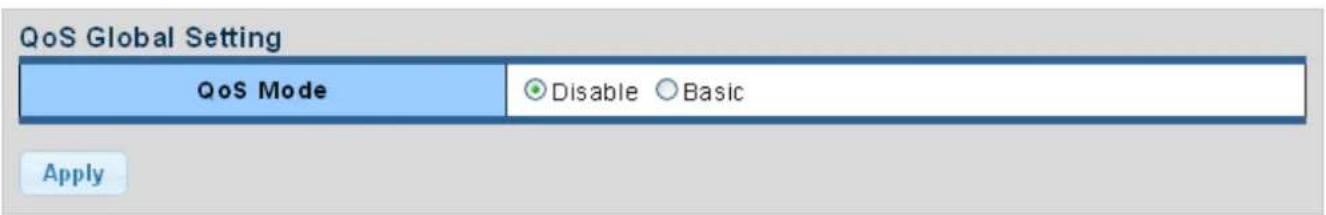

Figure 4-8-1 QoS Global Setting Page Screenshot

The page includes the following fields:

Object Description
• QoS Mode	Enable or disable QoS mode

Buttons

Apply

: Click to apply changes.

Information Name	Information Value
QoS Mode	disable

Figure 4-8-2 QoS Information Page Screenshot

The page includes the following fields:

Object Description
• QoS Mode	Display the current QoS mode

4.8.2.2 QoS Port Settings

The QoS Port Settings and Status screens in Figure 4-8-2 & Figure 4-8-3 appear.

Port Port Settings

Port	CoS Value	Remark CoS	Remark DSCP	Remark IP Precedence
Select Ports	0	Disable Enable	Disable Enable	Disable Enable

Apply

Figure 4-8-2 QoS Port Setting Page Screenshot

The page includes the following fields:

Object Description
• Port Select	mber from this drop-down list Select port nu
• CoS Value	Select CoS value from this drop-down list
• Remark CoS	Disable or enable remark CoS
• Remark DSCP	Disable or enable remark DSCP
• Remark IP Precedence	Disable or enable remark IP Precedence

Buttons

Apply

: Click to apply changes.

QoS Port Status

Port	CoS value	Remark CoS	Remark DSCP	Remark IP Precedence
GE1	0	disabled	disabled	disabled
GE2	0	disabled	disabled	disabled
GE3	0	disabled	disabled	disabled

LAG6	0	disabled	disabled	disabled
LAG7	0	disabled	disabled	disabled
LAG8	0	disabled	disabled	disabled

Figure 4-8-3 QoS Port Status Page Screenshot

The page includes the following fields:

Object Description
• Port	The switch port number of the logical port
• CoS Value	Display the current CoS value
• Remark CoS	Display the current remark CoS
• Remark DSCP	Display the current remark DSCP
• Remark IP Precedence	Display the current remark IP precedence

4.8.2.3 Queue Settings

The Queue Table and Information screens in Figure 4-8-4 & Figure 4-8-5 appear.

Queue	Scheduling Method
	Strict Priority	WRR	Weight	% of WRR Bandwidth
1		Og	1
2		Og	2
3		Og	3
4		Og	4
5		Og	5
6		Og	9
7		Og	13
8		Og	15

Figure 4-8-4 Queue Table Page Screenshot

The page includes the following fields:

Object Description
• Queue	Display the current queue ID
• Strict Priority	Controls whether the scheduler mode is "Strict Priority" on this switch port
WRR	Controls whether the scheduler mode is "Weighted" on this switch port
Weight	Controls the weight for this queue. This value is restricted to 1-100. This parameter is only shown if "Scheduler Mode" is set to "Weighted".
% of WRR Bandwidth	e Display the current bandwidth for each queu

Buttons

Apply

: Click to apply changes.

Information Name	Information Value
Strict Priority Queue Number	8

Figure 4-8-5 Queue Information Page Screenshot

The page includes the following fields:

Object Description
• Information Name	Display the current queue method information
• Information Value	Display the current queue value information

4.8.2.4 CoS Mapping

The CoS to Queue and Queue to CoS Mapping screens in Figure 4-8-6 & Figure 4-8-7 appear.

CoS to Queue Mapping

Class of Service	0	1	2	3	4	5	6	7
Queue	2	1	3	4	5	6	7	8

Queue to CoS Mapping

Queue	1	2	3	4	5	6	7	8
Class of Service	1	0	2	3	4	5	6	7

Apply

Figure 4-8-6 CoS to Queue and Queue to CoS Mapping Page Screenshot

the following fields: The page includes

Object Description
• Queue	Select Queue value from this drop-down list
• Class of Service	Select CoS value from this drop-down list

Buttons

Apply

: Click to apply changes.

CoS mapping

CoS	Mapping to Queue
0	2
1	1
2	3
3	4
4	5
5	6
6	7
7	8

Queue	Mapping to CoS
1	1
2	0
3	2
4	3
5	4
6	5
7	6
8	7

Figure 4-8-7 CoS Mapping Page Screenshot

The page includes the following fields:

Object Description
• CoS	Display the current CoS value
• Mapping to Queue	Display the current mapping to queue
• Queue	Display the current queue value
• Mapping to CoS	rrent mapping to CoS Display the cu

4.8.2.5 DSCP Mapping

The DSCP to Queue and Queue to DSCP Mapping screens in Figure 4-8-8 & Figure 4-8-9 appear.

DSCP to Queue Mapping

DSCP	Queue
Select DSCP	1

Queue to DSCP Mapping

Queue	1	2	3	4	5	6	7	8
DSCP	0	8	16	24	32	40	48	56

Apply

Figure 4-8-8 DSCP to Queue and Queue to DSCP Mapping Page Screenshot

The page includes the following fields:

Object Description
• Queue	Select Queue value from this drop-down list
• DSCP	Select DSCP value from this drop-down list

Buttons

Apply

Click to apply changes.

DSCP mapping

DSCP	Mapping to Queue
0	1
1	1
2	1
3	1
4	1

59
60	8
61	8
62	8
63	8

Queue	Mapping to DSCP
1	0
2	8
3	16
4	24
5	32
6	40
7	48
8	56

Figure 4-8-9 DSCP Mapping Page Screenshot

The page includes the following fields:

Object Description
• DSCP	Display the current CoS value
• Mapping to Queue	Display the current mapping to queue
• Queue	Display the current queue value
• Mapping to DSCP	Display the current mapping to DSCP

The IP Precedence to Queue and Queue to IP Precedence Mapping screens in Figure 4-8-10 & Figure 4-8-11 appear.

IP Precedence to Queue Mapping IP Precedence 0 1 2 3 4 5 6 7 Queue 1 2 3 4 5 6 7 8 Queue to IP Precedence Mapping Queue 1 2 3 4 5 6 7 8 IP Precedence 0 1 2 3 4 5 6 7 Apply

Figure 4-8-10 IP Precedence to Queue and Queue to IP Precedence Mapping Page Screenshot

The page includes the following fields:

Object Description
• Queue	Select Queue value from this drop-down list
• IP Precedence	Select IP Precedence value from this drop-down list

Buttons

Apply

: Click to apply changes.

IP Precedence	Mapping to Queue
0	1
1	2
2	3
3	4
4	5
5	6
6	7
7	8
Queue	Mapping to IP Precedence
1	0
2	1
3	2
4	3
5	4
6	5
7	6
8	7

Figure 4-8-11 IP Precedence Mapping Page Screenshot

The page includes the following fields:

Object Description
• IP Precedence	rrent CoS value Display the cu
• Mapping to Queue	Display the current mapping to queue
• Queue	Display the current queue value
• Mapping to IP Precedence	Display the current mapping to IP Precedence

4.8.3 QoS Basic Mode

4.8.3.1 Global Settings

The Basic Mode Global Settings and QoS Information screens in Figure 4-8-12 & Figure 4-8-13 appear.

Basic Mode Global Settings

Trust Mode CoS/802.1p ○DSCP ○CoS/802.1p-DSCP ○IP Precedence ○None Apply

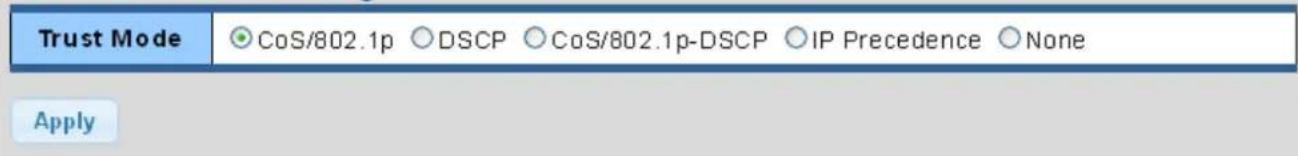

Figure 4-8-12 Basic Mode Global Settings Page Screenshot

The page includes the following fields:

Object Description
• Trust Mode	Set the QoS mode

Buttons

Apply

: Click to apply changes.

Information Name	Information Value
Trust Mode	COS

Figure 4-8-13 QoS Information Page Screenshot

The page includes the following fields:

Object Description
• Trust Mode	rrent QoS mode Display the cu

4.8.3.2 Port Settings

The QoS Port Setting and Status screens in Figure 4-8-14 & Figure 4-8-15 appear.

QoS Port Setting Port Trust Select Ports Enabled Disabled Apply

Figure 4-8-14 Basic Mode Global Settings Page Screenshot

The page includes the following fields:

Object Description
• Port	Select port number from this drop-down list
• Trust Mode	Enable or disable the trust mode

Buttons

Apply

: Click to apply changes.

Port	Trust Type
GE1	enabled
GE2	enabled
GE3	enabled
	enabled
LAG5	enabled
LAG6	enabled
LAG7	enabled
LAG8	enabled

Figure 4-8-15 QoS Port Status Page Screenshot

The page includes the following fields:

Object Description
• Port	The switch port number of the logical port
• Trust Mode	Display the current trust type

4.8.4 Rate Limit

Configure the switch port rate limit for the switch port on this page.

4.8.4.1 Ingress Bandwidth Con

This page provides to select the weightspreamble. The Ingress

Bandwidth Control Setting and Status screens in

Figure 4-8-16 & Figure 4-8-17 appear.

Ingress Bandwidth Control Settings

Port	State	Rate(Kbps)
Select Ports	Disable Enable	(0-1000000, must a multiple of 16)

Figure 4-8-16 Ingress Bandwidth Control Settings Page Screenshot

The page includes the following fields:

Object Description
• Port	Select port number from this drop-down list
• State	Enable or disable the port rate policer. The default value is "Disabled".
• Rate (Kbps)	Configure the rate for the port policer. The default value is "unlimited". Valid values are in the range 0 to 1000000.

Buttons

Apply

: Click to apply changes.

Port	Ingress RateLimit (Kbps)
GE1	off
GE2	off
GE3	off
GE4	off
E100
LAG7	off
LAG8	off

Figure 4-8-17 Ingress Bandwidth Control Status Page Screenshot

The page includes the following fields:

Object Description
• Port	The switch port number of the logical port
• Ingress Rate Limit (Kbps)	Display the current ingress rate limit

4.8.4.2 Egress Bandwidth Control

This page provides to select the egress bandwidth preamble. The Egress Bandwidth Control Setting and Status screens in

Figure 4-8-18 & Figure 4-8-19 appear.

Egress Bandwidth Control Settings

Port	State	Rate (Kbps)
Select Ports	Disable Enable	(0-1000000, must a multiple of 16)

Apply

Figure 4-8-16 Eight Control Settings Page Screenshot
The page includes the following fields:

Object Description
• Port	n list Select port number from this drop-dow
• State	Enable or disable the port rate policer.The default value is "Disabled".
• Rate (Kbps)	Configure the rate for the port policer.The default value is "unlimited".Valid values are in the range 0 to 1000000.

Buttons

Apply

: Click to apply changes.

Port	Egress RateLimit (Kbps)
GE1	off
GE2	off
GE3	off
GE4	off
LAG6	off
LAG7	off
LAG8	off

Figure 4-8-19 Egress Bandwidth Control Status Page Screenshot

The page includes the following fields:

Object Description
• Port	The switch port number of the logical port
• Egress Rate Limit (Kbps)	Display the current egress rate limit

4.8.4.3 Egress Queue

The Egress Queue Bandwidth Control Settings and Status screens in Figure 4-8-20 & Figure 4-8-21 appear.

Egress Queue Bandwidth Control Settings

Port	Queue	State	CIR(Kbps)
GEI	1	Disable Enable	(0-1000000, must a multiple of 16)

Figure 4-8-20 Engre Page Score Bandwidth Sett

The page includes the following fields:

Object Description
• Port	Select port number from this drop-down list
• Queue	Select queue number from this drop-down list
• State	Enable or disable the port rate policer. The default value is "Disabled".
• CIR (Kbps)	Configure the CIR for the port policer. The default value is "unlimited". Valid values are in the range 0 to 1000000.

uttons B

Apply

: Click to apply changes.

GE1 Egress Per Queue Status

Queue Id	Rate Limit (Kbps)
1	off
2	off
3	off
4	off
5	off
6	off
7	off
8	off

Figure 4-8-21 Egress Queue Status Page Screenshot

s the following fields: The page include

Object Description
• Queue ID	Display the current queue ID
• Rate Limit (Kbps)	Display the current rate limit

4.8.5 Voice VLAN

4.5.8.1 Introduction to Voice VLAN

Configure the switch port rate limit for the switch port on this page.

Voice VLAN is specially configured for the user voice data traffic. By setting a Voice VLAN and adding the ports of the connected voice equipments to Voice VLAN, the user will be able to configure QoS (Quality of service) service for voice data, and improve voice data traffic transmission priority to ensure the calling quality.

The switch can judge if the data traffic is the voice data traffic from specified equipment according to the source MAC address field of the data packet entering the port. The packet with the source MAC address complying with the system defined voice equipment OUI (Organizationally Unique Identifier) will be considered the voice data traffic and transmitted to the Voice VLAN.

The configuration is based on MAC address, acquiring a mechanism in which every voice equipment transmitting information through the network has got its unique MAC address. VLAN will trace the address belongs to specified MAC. By This means, VLAN allows the voice equipment always belong to Voice VLAN when relocated physically. The greatest advantage of the VLAN is the equipment can be automatically placed into Voice VLAN according to its voice traffic which will be transmitted at specified priority. Meanwhile, when voice equipment is physically relocated, it still belongs to the Voice VLAN without any further configuration modification, which is departise it is based on voice equipment other than switc

The Voice VLAN feature enables the voice traffic to forward on the Voice VLAN, and then the switch can be classified and scheduled to network traffic. It is recommended there are two VLANs on a port -- one for voice, one for data.

Before connecting the IP device to the switch, the IP phone should configure the voice VLAN ID correctly. It should be configured through its own GUI.

4.8.5.2 Properties

The Voice VLAN feature enables voice traffic to forward on the Voice VLAN, and then the switch can be classified and scheduled to network traffic. It is recommended that there are two VLANs on a port -- one for voice, one for data.

Before connecting the IP device to the switch, the IP phone should configure the voice VLAN ID correctly. It should be configured through its own GUI. This page provides to select the ingress bandwidth preamble. The Ingress Bandwidth Control Setting/Status screens in Figure 4-8-22 & Figure 4-8-23 appear.

Properties

Voice VLAN State	○Enabled ●Disabled
Voice VLAN Id
Remark Cos/802.1p	6
1p remark	○Enabled ●Disabled
Aging Time(30-65536 min)	1440

Apply

Figure 4-8-22 Properties Page Screenshot

The page includes the following fields:

Object Description
• Voice VLAN State	Indicates the Voice VLAN mode operation. We must disable MSTP feature before we enable Voice VLAN. It can avoid the conflict of ingress filter. Possible modes are:■ Enabled: Enable Voice VLAN mode operation.■ Disabled: Disable Voice VLAN mode operation
• Voice VLAN ID	Indicates the Voice VLAN ID. It should be a unique VLAN ID in the system and cannot equal each port PVID. It is conflict configuration if the value equal management VID, MVR VID, PVID, etc.The allowed range is 1 to 4095.
• Remark CoS/802.1p	Select 802.1p value from this drop-down list
• 1p Remark	Enable or disable 802.1p remark
• Aging Time (30-65536 min)	The time after which a port is removed from the Voice VLAN when VoIP traffic is no longer received on the port.(Default: 1440 minutes).

uttons B

Apply

: Click to apply changes.

Information Name	Information Value
Voice VLAN State	disabled
Voice VLAN ID	none (disable)
Remark Cos/802.1p	6
1p Remark State	disabled
Aging	1440

Figure 4-8-23 Properties Page Screenshot

The page includes the following fields:

Object Description
• Voice VLAN State	Display the current voice VLAN state.
• Voice VLAN ID	Display the current voice VLAN ID.
• Remark CoS/802.1p	Display the current remark CoS/802.1p.
• 1p Remark	Display the current 1p remark.
• Aging	Display the current aging time.

4.8.5.3 Telephony OUI MAC Setting

Configure VOICE VLAN OUI table on this Page. The Telephony OUI MAC Setting screens in Figure 4-8-24 & Figure 4-8-25 appear.

Voice VLAN OUI Setting OUI Address 00:00:00 Description Add

Figure 4-8-24 Voice VLAN OUI Settings Page Screenshot

The page includes the following fields:

Object Description
• OUI Address	A telephony OUI address is a globally unique identifier assigned to a vendor by IEEE. It must be 6 characters long and the input format is "xx:xx:xx" (x is a hexadecimal digit).
• Description	User-defined text that identifies the VoIP devices

Buttons

Add

: Click to add voice VLAN OUI setting.

Voice VLAN OUI Group

OUI Address	Description	Modify
00:E0:BB	3COM	Edit	Delete
00:03:6B	Cisco	Edit	Delete
00:E0:75	Veritel	Edit	Delete
00:D0:1E	Pingtel	Edit	Delete
00:01:E3	Siemens	Edit	Delete
00:0F:E2	H3C	Edit	Delete
00:09:6E	Avaya	Edit	Delete

Figure 4-8-25 Voice VLAN OUI Group Page Screenshot

The page includes the following fields:

Object Description
• OUI Address	Display the current OUI address
• Description	Display the current description
• Modify	Click Edit to edit voice VLAN OUI group parameterClick Delete to delete voice VLAN OUI group parameter

4.8.5.4 Telephony OUI Port Setting

The Voice VLAN feature enables voice traffic forwarding on the Voice VLAN, then the switch can classify and schedule network traffic. It is recommended that there be two VLANs on a port - one for voice and one for data. Before connecting the IP device to the switch, the IP phone should configure the voice VLAN ID correctly. It should be configured through its own GUI. The Telephony OUI MAC Setting screens in Figure 4-8-26 & Figure 4-8-27 appear.

Voice VLAN Port Setting Port State Cos Mode Select Ports ○ Enabled ● Disabled ○ All ● Src Apply

Figure 4-8-26 Voice VLAN Port Setting Page Screenshot

The page includes the following fields:

Object Description
• Port	Select port number for this drop down list
• State	Enable or disable the voice VLAN port setting. The default value is "Disabled".
• CoS Mode	Select the current CoS mode

Buttons

Apply

: Click to apply changes.

Port	State	Cos Mode
GE1	Disabled	Src
GE2	Disabled	Src
GE3	Disabled	Src
	Disabled
LAG6	Disabled	Src
LAG7	Disabled	Src
LAG8	Disabled	Src

Figure 4-8-27 Voice VLAN Port State Page Screenshot

The page includes the following fields:

Object Description
• Port	The switch port number of the logical port
• State	Display the current state
• CoS Mode	Display the current CoS mode

4.9 Security

This section is to control the access of the LRP Managed Switch, including the user access and management control.

The Security page links to intgemmapics:

■ 802.1X
■ RADIUS Server
■ TACA ■ CS+ Server
AAA
■ Access
■ Management Access Method
■ DHCP Snooping
■ Dynamic ARP Inspection
IP Source Guard
■ Port Security
DoS
■ Storm Control

4.9.1 802.1X

Overview of 802.1X (Port-based) Authentication

In the 802.1X-world, the user is called the supplicant, the switch is the authenticator, and the RADIUS server is the authentication server. The switch acts as the man-in-the-middle, forwarding requests and responses between the supplicant and the authentication server. Frames sent between the supplicant and the switch are special 802.1X frames, known as EAPOL (EAP Over LANs) frames. EAPOL frames encapsulate EAP PDUs (RFC3748). Frames sent between the switch and the RADIUS server are RADIUS packets. RADIUS packets also encapsulate EAP PDUs together with other attributes like the switch's IP address, name, and the supplicant's port number on the switch. EAP is very flexible, in that it allows for different authentication methods, like MD5-Challenge, PEAP, and TLS. The important thing is that the authenticator (the switch) doesn't need to know which authentication method the supplicant and the authentication server are using, or how many information exchange frames are needed for a particular method. The switch simply encapsulates the EAP part of the frame into the relevant type (EAPOL or RADIUS) and forwards it.

When authentication is complete, the RADIUS server sends a special packet containing a success or failure indication. Besides forwarding this decision to the supplicant, the switch uses it to open up or block traffic on the switch port connected to the supplicant.

Overview of User Authentication

It is allowed to configure the LRP Managed Switch to authenticate users logging into the system for management access using local or remote authentication methods, such as Telnet and Web browser. This LRP Managed Switch provides secure network management access using the following options:

■ Remote Authentication Dial-in User Service (RADIUS)
■ Terminal Access Controller Access Control System Plus (TACACS+)
■ Local user name and Privilege Level control

4.9.1.1 Understanding IEEE 802.1X Port-based Authentication

The IEEE 802.1X standard defines a client-server-based access control and authentication protocol that restricts unauthorized clients from connecting to a LAN through publicly accessible ports. The authentication server authenticates each client connected to a switch port before making available any services offered by the switch or the LAN.

Until the client is authenticated, 802.1X access control allows only Extensible Authentication Protocol over LAN (EAPOL) traffic through the port to which the client is connected. After authentication is successful, normal traffic can pass through the port.

This section includes this conceptual information:

• Device Roles
  • Authentication Initiation and Message Exchange
• Ports in Authorized and Unauthorized States

■ Device Role s

With 802.1X port-based authentication, the devices in the network have specific roles as shown below.

Figure 4-9-1

- Client—the device (workstation) that requests access to the LAN and switch services and responds to requests from the switch. The workstation must be running 802.1X-compliant client software such as that offered in the Microsoft Windows XP operating system. (The client is the supplicant in the IEEE 802.1X specification.)

- Authentication server—performs the actual authentication of the client. The authentication server validates the identity of the client and notifies the switch whether or not the client is authorized to access the LAN and switch services. Because the switch acts as the proxy, the authentication service is transparent to the client. In this release, the Remote Authentication Dial-In User Service (RADIUS) security system with Extensible Authentication Protocol (EAP) extensions is the only supported authentication server; it is available in Cisco Secure Access Control Server version 3.0. RADIUS operates in a client/server model in which secure authentication information is exchanged between the RADIUS server and one or more RADIUS clients.

- Switch (802.1X device)—controls the physical access to the network based on the authentication status of the client. The switch acts as an intermediary (proxy) between the client and the authentication server, requesting identity information from the client, verifying that information with the authentication server, and relaying a response to the client. The switch includes the RADIUS client, which is responsible for encapsulating and decapsulating the Extensible Authentication Protocol (EAP) frames and interacting with the authentication server. When the switch receives EAPOL frames and relays them to the authentication server, the Ethernet header is stripped and the remaining EAP frame is re-encapsulated in the RADIUS format. The EAP frames are not modified or examined during encapsulation, and the authentication server must support EAP within the native frame format. When the switch receives frames from the authentication server, the server's frame header is removed, leaving the EAP frame, which is then encapsulated for Ethernet and sent to the client.

■ Authentication Initiation and Message Exchange

The switch or the client can initiate authentication. If you enable authentication on a port by using the dot1x port-control auto interface configuration command, the switch must initiate authentication when it determines that the port link state transitions from down to up. It then sends an EAP-request/identity frame to the client to request its identity (typically, the switch sends an initial identity/request frame followed by one or more requests for authentication information). Upon receipt of the frame, the client responds with an EAP-response/identity frame.

However, if during bootup, the client does not receive an EAP-request/identity frame from the switch, the client can initiate authentication by sending an EAPOL-start frame, which prompts the switch to request the client's identity

If 802.1X is not enabled or supported on the network access device, any EAPOL frames from the client are dropped. If the client does not receive an EAP-request/identity frame after three attempts to start authentication, the client transmits frames as if the port is in the authorized state. A port in the authorized state effectively means that the client has been successfully authenticated.

When the client supplies its identity, the switch begins its role as the intermediary, passing EAP frames between the client and the authentication server until authentication succeeds or fails. If the authentication succeeds, the switch port becomes authorized.

The specific exchange of EAP frames depends on the authentication method being used. "Figure 4-9-2" shows a message exchange initiated by the client using the One-Time-Password (OTP) authentication method with a RADIUS server.

Figure 4-9-2 EAP Message Exchange

■ Ports in Authorized and Unauthorized States

The switch port state determines whether or not the client is granted access to the network. The port starts in the unauthorized state. While in this state, the port disallows all ingress and egress traffic except for 802.1X protocol packets. When a client is successfully authenticated, the port transitions to the authorized state, allowing all traffic for the client to flow normally.

If a client that does not support 802.1X is connected to an unauthorized 802.1X port, the switch requests the client's identity. In this situation, the client does not respond to the request, the port remains in the unauthorized state, and the client is not granted access to the network.

In contrast, when an 802.1X-enabled client connects to a port that is not running the 802.1X protocol, the client initiates the authentication process by sending the EAPOL-start frame. When no response is received, the client sends the request for a fixed number of times. Because no response is received, the client begins sending frames as if the port is in the authorized state

If the client is successfully authenticated (receives an Accept frame from the authentication server), the port state change authorized, and all frames from the authenticated client are allowed through the port. If the authentication fails, the port r in the unauthorized website can't authentication can be retried. If the authentication server cannot be reached, the s retransmit the request. If no response is received from the server after the specified number of attempts, authentication fails, and network access is not granted.

When a client logs off, it sends an EAPOL-logoff message, causing the switch port to transition to the unauthorized state.

If the link state of a port transitions from up to down, or if an EAPOL-logoff frame is received, the port returns to the unauthorized state.

4.9.1.2 802.1X Setting

This page allows you to configure the IEEE 802.1X authentication system.

The IEEE 802.1X standard defines a port-based access control procedure that prevents unauthorized access to a network by requiring users to first submit credentials for authentication. One or more central servers, the backend servers, determine whether the user is allowed access to the network. These backend (RADIUS) servers are configured on the "Security→802.1X Access Control→802.1X Setting" page. The IEEE802.1X standard defines port-based operation, but non-standard variants overcome security limitations as shall be explored below.

The 802.1X Setting and Information screens in Figure 4-9-3 & Figure 4-9-4 appear.

802.1x Setting 802.1X Disable Enable Apply

Figure 4-9-3 802.1X Setting Page Screenshot

The page includes the following fields:

Object Description
• 802.1X	Indicates if NAS is globally enabled or disabled on the switch. If globally disabled, all ports are allowed forwarding of frames.

Buttons

Apply

: Click to apply changes.

Information Name	Information Value
802.1X	Disabled

Figure 4-9-4 802.1X Information Page Screenshot

The page includes the following fields:

Object Description
• 802.1X	Display the current 802.1X state

4.9.1.3 802.1X Port Setting

This page allows you to configure the IEEE 802.1X Port Setting. The 802.1X Port Setting screens in Figure 4-9-5 & Figure 4-9-6 appear.

802.1x Port Setting

Port	Select Ports
Mode	No Authentication
Reauthentication Enable	Disable Enable
Reauthentication Period	3600 (Range 30 - 65535, Default: 3600)
Quiet Period	60 (Range 0 - 65535, Default: 60)
Supplicant Period	30 (Range 1 - 65535, Default: 30)
Maximum Request Retries	2 (Range 1 - 10, Default: 2)

Apply

Figure 4-9-5 802.1X Port Setting Page Screenshot

e following fields: The page includes th

Object Description
• Port	Select port from this drop-down list
• Mode	If NAS is globally enabled, this selection controls the port's authentication mode. The following modes are available:■ No Authentication■ Authentication■ Force AuthorizedIn this mode, the switch will send one EAPOL Success frame when the port link comes up, and any client on the port will be allowed network access without authentication.■ Force UnauthorizedIn this mode, the switch will send one EAPOL Failure frame when the port link comes up, and any client on the port will be disallowed network access.
• Reauthentication Enable	If checked, successfully authenticated supplicants/clients are reauthenticated after the interval specified by the Reauthentication Period. Reauthentication for802.1X-enabled ports can be used to detect if a new device is plugged into a switch port or if a supplicant is no longer attached.
• Reauthentication Period	Determines the period, in seconds, after which a connected client must be reauthenticated. This is only active if the Reauthentication Enabled checkbox is checked.Valid values are in the range 30 to 65535 seconds.
• Quiet Period	Sets time to keep silent on supplicant authentication failure.
• Supplicant Period	Sets the interval for the supplicant to re-transmit EAP request/identify frame.
• Maximum Request Retries	The number of times that the switch transmits an EAPOL Request Identity frame without response before considering entering the Guest VLAN is adjusted with this setting.The value can only be changed if the Guest VLAN option is globally enabled.

Buttons

Apply

: Click to apply changes.

802.1x Port Status

Port	Mode (pps)	Status (pps)	Periodic Reauthentication	Reauthentication Period	Quiet Period	Supplicant Timeout	Max. EAP Requests	Modify
GE1	802.1X Disabled	-	Enabled	3600	60	30	2	Edit
GE2	802.1X Disabled	-	Enabled	3600	60	30	2	Edit
GE3	802.1X Disabled	-	Enabled	3600	60	30	2	Edit
GE4	802.1X Disabled	-	Enabled	3600	60	30	2	Edit
GE5	802.1X Disabled	-	Enabled	3600	60	30	2	Edit
GE6	802.1X Disabled	-	Enabled	3600	60	30	2	Edit
GE7	802.1X Disabled	-	Enabled	3600	60	30	2	Edit
GE8	802.1X Disabled	-	Enabled	3600	60	30	2	Edit
GE9	802.1X Disabled	-	Enabled	3600	60	30	2	Edit
GE10	802.1X Disabled	-	Enabled	3600	60	30	2	Edit

Figure 4-9-6 802.1X Port Status Page Screenshot

The page includes the following fields:

Object Description
• Port	The switch port number of the logical port.
• Mode (pps)	Display the current mode.
• Status (pps)	Display the current status.
• Periodic Reauthentication	Display the current periodic reauthentication.
• Reauthentication Period	Display the current reauthentication period.
• Quiet Period	Display the current quiet period.
• Supplicant Timeout	Display the current supplicant timeout.
• Max. EAP Requests	Display the current Max. EAP requests.
• Modify	Click Edit to edit 802.1X port setting parameter.

When a Guest VLAN enabled port's link comes up, the switch starts transmitting EAPOL Request Identity frames. If the number of transmissions of such frames exceeds Max. Reauth. Count and no EAPOL frames have been received in the meantime, the switch considers entering the Guest VLAN. The interval between transmission of EAPOL Request Identity frames is configured with EAPOL Timeout. If Allow Guest VLAN if EAPOL Seen is enabled, the port will now be placed in the Guest VLAN. If disabled, the switch will first check its history to see if an EAPOL frame has previously been received on the port (this history is cleared if the port link goes down or the port's Admin State is changed), and if not, the port will be placed in the Guest VLAN. Otherwise it will not move to the Guest VLAN, but continue transmitting EAPOL Request Identity frames at the rate given by EAPOL Timeout.

Once in the Guest VLAN, the port is considered that an and its attached clients on

VLAN. The switch will not transmit an EAPOL Success frame when entering the Guest VLAN.

While in the Guest VLAN, the switch monitors the link for EAPOL frames, and if one such frame is received, the switch immediately takes the port out of the Guest VLAN and starts authenticating the supplicant according to the port mode. If an EAPOL frame is received, the port will never be able to go back into the Guest VLAN if the "Allow Guest VLAN if EAPOL Seen" is disabled.

The 802.1X Guest VLAN setting screens in Figure 4-9-7 & Figure 4-9-8 appear.

Guest VLAN Setting

Guest VLAN ID Enable

Guest VLAN port Setting

Port Select Select Ports Guest VLAN Enabled Disabled Apply

Figure 4-9-7 Guest VLAN Setting Page Screenshot

The page includes the following fields:

Object Description
• Guest VLAN ID	This is the value that a port's Port VLAN ID is set to if a port is moved into the Guest VLAN is globally enabled if the Guest VLAN optionValid values are in the range [1~4094].
• Guest VLAN Enabled	A Guest VLAN is a special VLAN - typically with limited network access - on which 802.1X-unaware clients are placed after a network administrator-defined timeout. The switch follows a set of rules for entering and leaving the Guest VLAN as listed below.The "Guest VLAN Enabled" checkbox provides a quick way to globally enable/disable Guest VLAN functionality.When checked, the individual ports' ditto setting determines whether the port can be moved into Guest VLAN.When unchecked, the ability to move to the Guest VLAN is disabled for all ports.
• Guest VLAN Port Setting	When Guest VLAN is both globally enabled and enabled (checked) for a given port, the switch considers moving the port into the Guest VLAN according to the rules outlined below.This option is only available for EAPOL-based modes, i.e.• Port-based 802.1X

Buttons

Apply

: Click to apply changes.

Port Name	Enable State	In Guest VLAN
GE1	Disabled	NO
GE2	Disabled	NO
GE3	Disabled	NO
GE4	Disabled	NO
GE5	Disabled	NO
GE6	Disabled	NO
GE7	Disabled	NO
GE8	Disabled	NO
GE9	Disabled	NO
GE10	Disabled	NO

Figure 4-9-8 Guest VLAN Status Page Screenshot

The page includes the following fields:

Object Description
• Port Name	The switch port number of the logical port
• Enable State	Display the current state
• In Guest VLAN	t guest VLAN Display the curren

4.9.1.5 Authenticated Host

The Authenticated Host Table screen in Figure 4-9-9 appears.

User Name

Port

Session Time

Authentication Method

MAC Address

Figure 4-9-9 Authenticated Host Table Page Screenshot

The page includes the following fields:

Object Description
User Name	Display the current user name
Port	Display the current port number
Session Time	Display the current session time
Authentication Method	Display the current authentication method
MAC Address	Display the current MAC address

4.9.2 RADIUS Server

This page is to configure the RADIUS server connection session parameters. The RADIUS Settings screens in Figure 4-9-10, Figure 4-9-11 & Figure 4-9-12 appears.

Use Default Parameters

IP Version	Version 6 Version 4
Retries	3	(Range 1 - 10, Default: 3)
Timeout for Reply	3	sec. (Range 1 - 30, Default: 3)
Dead Time	0	min. (Range 0 - 2000, Default: 0)
Key String		(0/63 ASCII Alphanumeric Characters Used)

Apply

Figure 4-9-10 Use Default Parameters Page Screenshot

ds: The page includes the following fiel

Object Description
Retries	Timeout is the number of seconds, in the range 1 to 10, to wait for a reply from a RADIUS server before retransmitting the request.
Timeout for Reply	Retransmit is the number of times, in the range 1 to 30, a RADIUS request is retransmitted to a server that is not responding. If the server has not responded after the last retransmit it is considered to be dead.
Dead Time	The Dead Time, which can be set to a number between 0 and 3600 seconds, is the period during which the switch will not send new requests to a server that has failed to respond to a previous request. This will stop the switch from continually trying to contact a server that it has already determined as dead.Setting the Dead Time to a value greater than 0 (zero) will enable this feature, but only if more than one server has been configured.
Key String	The secret key - up to 63 characters long - shared between the RADIUS server and the switch.

Buttons

Apply

: Click to apply changes.

New Radius Server

Server Definition	By IP address By name
Server IP
Authentication Port	1812 (0 - 65535)
Acct Port	1813 (0 - 65535)
Key String	Use Default
Timeout for Reply	Use Default (1-30) secs
Retries	Use Default (1 - 10)
Server Priority	1 (0 - 65535)
Dead Time	0 (0 - 2000)
Usage Type	Login 802.1X All

Add

Figure 4-9-11 New RADIUS Server Page Screenshot

The page includes the following fields:

Object Description
• Server Definition	Set the server definition
• Server IP	Address of the RADIUS server IP/name
• Authentication Port	The UDP port to use on the RADIUS Authentication Server. If the port is set to 0 (zero), the default port (1812) is used on the RADIUS Authentication Server.
• Acct Port	The UDP port to use on the RADIUS Accounting Server. If the port is set to 0 (zero), the default port (1813) is used on the RADIUS Accounting Server.
• Key String	The shared key - shared between the RADIUS Authentication Server and the switch.
• Timeout for Reply	The Timeout, which can be set to a number between 1 and 30 seconds, is the maximum time to wait for a reply from a server. If the server does not reply within this timeframe, we will consider it to be dead and continue with the next enabled server (if any).RADIUS servers are using the UDP protocol, which is unreliable by design. In order to cope with lost frames, the timeout interval is divided into 3 subintervals of equal length. If a reply is not received within the subinterval, the request is transmitted again. This algorithm causes the RADIUS server to be queried up to 3 times before it is considered to be dead.
• Retries	Timeout is the number of seconds, in the range 1 to 10, to wait for a reply from a RADIUS server before retransmitting the request.
• Server Priority	Set the server priority
• Dead Time	The Dead Time, which can be set to a number between 0 and 3600 seconds, is the period during which the switch will not send new requests to a server that has failed to respond to a previous request. This will stop the switch from continually trying to contact a server that it has already determined as dead.Setting the Dead Time to a value greater than 0 (zero) will enable this feature, but only if more than one server has been configured.
• Usage Type	Set the usage type. The following modes are available:■ Login■ 802.1X■ All

Buttons

Add

: Click to add RADIUS server setting.

Login Authentication Lists IP Address Auth Port Acct Port Key Timeout Retries Priority Dead Time Usage Type Modify

Figure 4-9-12 Login Authentication List Page Screenshot

The page includes the following fields:

Object Description
IP Address	ent IP address Display the curr
Auth Port	Display the current auth port
Acct Port	Display the current acct port
Key	Display the current key
Timeout	Display the current timeout
Retries	Display the current retry times
Priority	Display the current priority
Dead Time	Display the current dead time
Usage Type	Display the current usage type
Modify	Click Edit to edit login authentication list parameter.Click Delete to delete login authentication list entry.

4.9.3 TACACS+ Server

This page is to configure the RADIUS server connection session parameters. The RADIUS Settings screens in Figure 4-9-13, Figure 4-9-14 & Figure 4-9-15 appear.

Use Default Parameters

IP Version	Version 6 Version 4
Key String
Timeout for Reply	5 sec. (Range 1 - 30, Default 5)

Apply

Figure 4-9-13 Guest VLAN Setting Page Screenshot

The page includes the following fields:

Object Description
• Key String	The secret key with up to 63 characters long is shared between the TACACS+ server and the switch.
• Timeout for Reply	Retransmit is the number of times, in the range 1 to 30, a TACACS+ request is retransmitted to a server that is not responding. If the server has not responded after the last retransmit it is considered to be dead.

Buttons

Apply

: Click to apply changes.

New Tacacs+ Server

Server Definition	By IP address By name
Server IP
Server Port	49 (0 - 65535)
Server Key	Use Default
Server Timeout	Use Default (1-30) secs
Server Priority	1 (0 - 65535)

Add

Figure 4-9-14 New RADIUS Server Page Screenshot

The page includes the following fields:

Object Description
• Server Definition	Set the server definition
• Server IP	Address of the TACACS+ server IP/name
• Server Port	Network (TCP) port of TACACS+ server used for authentication messages. (Range: 1-65535; Default: 49)
• Server Key	The key is shared between the TACACS+ Authentication Server and the switch.
• Server Timeout	The number of seconds the switch waits for a reply from the server before it resends the request.
• Server Priority	Set the server priority

Buttons

Add

: Click to add RADIUS server setting.

TACACS+ Servers IP Address Port(KeyTimeout Priority.Modify

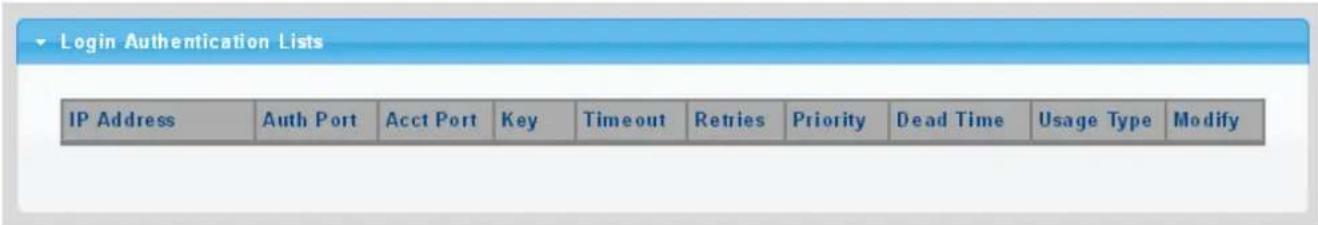

Figure 4-9-15 Login Authentication List Page Screenshot

The page includes the following fields:

Object Description
• IP Address	Display the current IP address
• Port	Display the current port
• Key	Display the current key
• Timeout	Display the current timeout
• Retries	Display the current retry times
• Priority	Display the current priority
Modify	Click Edit to edit login authentication list parameterClick Delete to delete login authentication list entry

4.9.4 AAA

Authentication, authorization, and accounting (AAA) provides a framework for configuring access control on the LRP Managed Switch. The three security system can be summarized as follows:

• Authentication — Identifies users that request access to the network.
• Authorization — Determines if users can access specific services.
• Accounting — Provides reports, auditing, and billing for services that users have accessed on the network.

The AAA functions require the use of configured RADIUS or TACACS+ servers in the network. The security servers can be defined as sequential groups that are then applied as a method for controlling user access to specified services. For example, when the switch attempts to authenticate a user, a request is sent to the first server in the defined group, if there is no response the second server will be tried, and so on. If at any point a pass or fail is returned, the process stops.

The LRP Managed Switch supports the following AAA features:

• Accounting for IEEE 802.1X authenticated users that access the network through the LRP Managed Switch.
  • Accounting for users that access management interfaces on the LRP Managed Switch through the console and Telnet.
• Accounting for commands that users enter at specific CLI privilege levels. Authorization of users that access management interfaces on the LRP Managed Switch through the console and Telnet.

To configure AAA on the LRP Managed Switch, you need to follow this general process:

1. Configure RADIUS and TACACS+ server access parameters. See "Configuring Local/Remote Logon Authentication".

2. Define RADsSengrTACACS s to support the accounting and authorization of services.

3. Define a method name for each service to which you want to apply accounting or authorization and specify the RADIUS ouTASCAUSE: Apply the method names to port or line interfaces.

This guide assumes that RADIUS and TACACS+ server software can be configured to support AAA. The configuration of RADIUS and TACACS+ server software is beyond the scope of this guide. Refer to the documentation provided with the RADIUS or TACACS+ server software.

4.9.4.1 Login List

This page is to login list parameters. The authentication list screens in Figure 4-9-17 & Figure 4-9-18 appear.

New Authentication List List Name Method 1 Method 2 Method 3 Method 4 Empty Empty Empty Empty Add

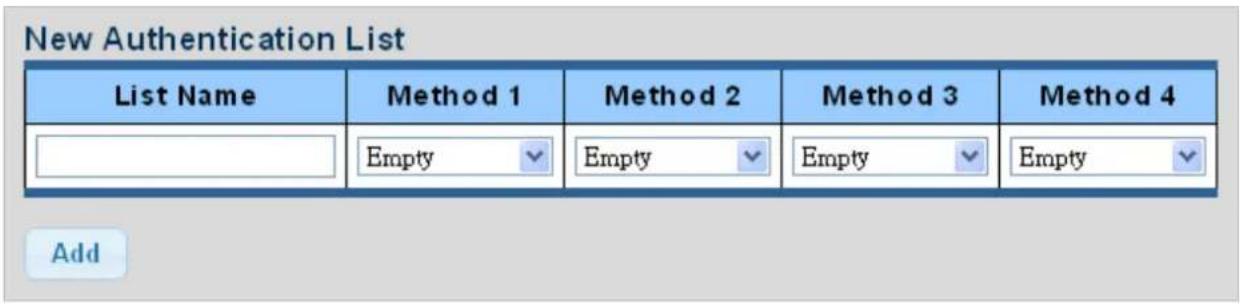

Figure 4-9-17 New Authentication List Screenshot

The page includes the following fields:

Object Description
• List Name	Defines a name for the authentication list
• Method 1-4	Set the login authentication method:Empty / None / Local / TACACS+ / RADIUS / Enable

Buttons

Add

Click to add authentication list.

Login Authentication Lists List Name Method List Modify default local Edit

Figure 4-9-18 Login Authentication List Screenshot

The page includes the following fields:

Object Description
• List Name	Display the current list name
• Method List	Display the current method list
• Modify	Click Edit to edit login authentication list parameterClick Delete to delete login authentication list entry

4.9.4.2 Enable List

This page is to login list parameters. The authentication list screens in Figure 4-9-19 & Figure 4-9-20 appear.

New Authentication List List Name Method 1 Method 2 Method 3 Empty Empty Empty Add

Figure 4-9-19 New Authentication List Screenshot

The page includes the following fields:

Object Description
• List Name	Defines a name for the authentication list
• Method 1-3	Set the login authentication method:Empty / None / Enable / TACACS+ / RADIUS

Buttons

Add

Click to add authentication list.

List Name	Method List	Modify
default	enable	Edit

Figure 4-9-20 Login Authentication List Screenshot

The page includes the following fields:

Object Description
• List Name	Display the current list name
• Method List	Display the current method list
• Modify	Click Edit to edit login authentication list parameterClick Delete to delete login authentication list entry

4.9.5 Access

This section is to control the access of the LRP Managed Switch, including the different access methods – Telnet, SSH, HTTP and HTTPS.

4.9.5.1 Telnet

The Telnet Settings and Information screens in Figure 4-9-21 & Figure 4-9-22 appear.

Telnet Settings Telnet Service Disabled Login Authentication List default Enable Authentication List default Session Timeout 10 (0-65535) minutes Password Retry Count 3 (0-120) Silent Time 0 (0-65535) seconds Apply Disconnect

Figure 4-9-21 Telnet Settings Page Screenshot

The page includes the following fields:

Object Description
Telnet Service	Disable or enable Telnet service
Login Authentication List	Select login authentication list from this drop-down list
Enable Authentication List	Select enable authentication list from this drop-down list
Session Timeout	Set the session timeout value
Password Retry Count	Set the password retry count value
Silent Time	me value Set the silent ti

Buttons

Apply

Click to apply changes

Disconnect

Click to disconnect Telnet communication

Telnet Information

Information Name	Information Value
Telnet Service	Disabled
Login Authentication List	default
Enable Authentication List	default
Session Timeout	10
Password Retry Count	3
Silent Time	0
Current Telnet Sessions Count	0

Figure 4-9-21 Telnet Information Page Screenshot

The page includes the following fields:

Object Description
Telnet Service	Display the current Telnet service
Login Authentication List	Display the current login authentication list
Enable Authentication List	Display the current enable authentication list
Session Timeout	rrent session timeout Display the cu
Password Retry Count	Display the current password retry count
Silent Time	Display the current silent time
Current Telnet Session Count	Display the current Telnet session count

4.9.5.2 SSH

Configure SSH on this page. This page shows the Port Security status. Port Security is a module with no direct configuration. Configuration comes indirectly from other modules -- the user modules. When a user module has enabled port security on a port, the port is set up for software-based learning. In this mode, frames from unknown MAC addresses are passed on to the port security module which in this reads MAC address should be forward or block it. For a

MAC address to be set in the forwarding state, all enabled user modules must unanimously agree on allowing the MAC address to forward. If only one chooses to block it, it will be blocked until that user module decides otherwise.

The SSH Settings and Information screens in Figure 4-9-23 & Figure 4-9-24 appear.

SSH Settings

SSH Service	Disabled
Login Authentication List	default
Enable Authentication List	default
Session Timeout	10 (0-65535) minutes
Password Retry Count	3 (0-120) minutes
Silent Time	0 (0-65535) seconds

Apply

Disconnect

Figure 4-9-23 SSH Settings Page Screenshot

he page includes the following fields: T

Object Description
• Edit Ser	Disable or enable SSH service
• Login Authentication List	down list Select login authentication list from this
• Enable Authentication List	Select enable authentication list from this drop-down list
• Session Timeout	Set the session timeout value
• Password Retry Count	Set the password retry count value
• Silent Time	Set the silent time value

Buttons

Apply

: Click to apply changes.

Disconnect

: Click to disconnect Telnet communication.

SSH Information

Information Name	Information Value
SSH Service	Disabled
Login Authentication List	default
Enable Authentication List	default
Session Timeout	10
Password Retry Count	3
Silent Time	0
Current SSH Sessions Count	0

Figure 4-9-24 SSH Information Page Screenshot
The page includes the following fields:

Object Description
• SSH Service	rent SSH service Display the cur
• Login Authentication List	tication list Display the current login authen
• Enable Authentication List	Display the current enable authentication list
• Session Timeout	Display the current session timeout
• Password Retry Count	Display the current password retry count
• Silent Time	Display the current silent time
• Current SSH Session Count	Display the current SSH session count

4.9.5.3 HTTP

The HTTP Settings and Information screens in Figure 4-9-25 & Figure 4-9-26 appear.

HTTP Settings

HTTP Service	Enabled Disabled
Login Authentication List	default
Session Timeout	10 (0-86400) minutes

Apply

Figure 4-9-25 HTTP Settings Page Screenshot

The page includes the following fields:

Object Description
• HTTP Service	Disable or enable HTTP service
• Login Authentication List	Select login authentication list from this drop-down list
• Session Timeout	Set the session timeout value

Buttons

Apply

: Click to apply changes.

Information Name	Information Value
HTTP Service	Enabled
Login Authentication List	default
Session Timeout	10

Figure 4-9-26 HTTP Information Page Screenshot

The page includes the following fields:

Object Description
HTTP Servic	Display the current HTTP service
Login Authentication List	Display the current login authentication list
Session Timeout	Display the current session timeout

4.9.5.4 HTTPS

The HTTPS Settings and Information screens in Figure 4-9-27 & Figure 4-9-28 appear.

HTTPS Settings

HTTPS Service	Enabled Disabled
Login Authentication List	default
Session Timeout	10 (0-86400) minutes

Apply

Figure 4-9-27 HTTPS Settings Page Screenshot

The page includes the following fields:

Object Description
HTTPS Service	Disable or enable HTTPS service
Login Authentication List	Select login authentication list from this drop-down list
Session Timeout	Set the session timeout value

uttons B

Apply

: Click to apply changes.

Information Name	Information Value
HTTPS Service	Disabled
Login Authentication List	default
Session Timeout	10

Figure 4-9-28 HTTPS Information Page Screenshot

The page includes the following fields:

Object Description
HTTPS Service	Display the current HTTPS service
Login Authentication List	Display the current login authentication list
Session Timeout	Display the current session timeout

4.9.6 Management Access Method

4.9.6.1 Profile Rules

The Profile Rule Table Setting and Table screens in Figure 4-9-29 & Figure 4-9-30 appear.

Profile Rule Table Setting Access Profile Name( 1-32 characters) Priority(1-65535) Management Method Action Port IP-Source All IPv4/Mask 0.0.0.0 0.0.0.0 IPv8/IPv9/Refx 0.0:0.0 128 Apply

Figure 4-9-29 Profile Rule Table Setting Page Screenshot

The pag s the following fields: e include

Object Description
• Access Profile Name(1-32 characters)	Indicates the access profile name
• Priority (1-65535)	Set priority. The allowed value is from 1 to 65535
• Management Method	Indicates the host can access the switch from HTTP/HTTPS/telnet/SSH/SNMP/All interface that the host IP address matched the entry.
• Action	An IP address can contain any combination of permit or deny rules.(Default: Permit rules)Sets the access mode of the profile; either permit or deny.
• Port	Select port from this drop-down list
• IP-Source	Indicates the IP address for the access management entry

Buttons

Apply

: Click to apply changes.

Access Profile Name	Priority	Management Method	Action	Port	Source IPV4	Source IPV4 Mask	Source IPV6	Source IPV6 Prefix	Modify
default	1	All	Permit	gi1-10,lag1-8					Edit Delete

Figure 4-9-30 Profile Rule Table Page Screenshot

The page includes the following fields:

Object Description
• Access Profile Name	Display the current access profile name
• Priority	Display the current priority
• Management Method	Display the current management method
• Action	Display the current action
• Port	Display the current port list
• Source IPv4	Display the current source IPv4 address
• Source IPv4 Mask	Display the current source IPv4 mask
• Source IPv6	Display the current source IPv6 address
• Source IPv6 Prefix	Display the current source IPv6 prefix
• Modify	Click to edit profile rule parameterClick to delete profile rule entry

4.9.6.2 Access Rules

The access profile screens in Figure 4-9-31 & Figure 4-9-32 appear.

Access Profile: None Active Deactive Apply

Figure 4-9-31 Access Profile Page Screenshot

The page includes the following fields:

Object Description
• Access Profile	Select access profile from this drop-down list

uttons B

Apply

: Click to apply changes.

Access Profiles Table Access Profile Name Delete default Delete

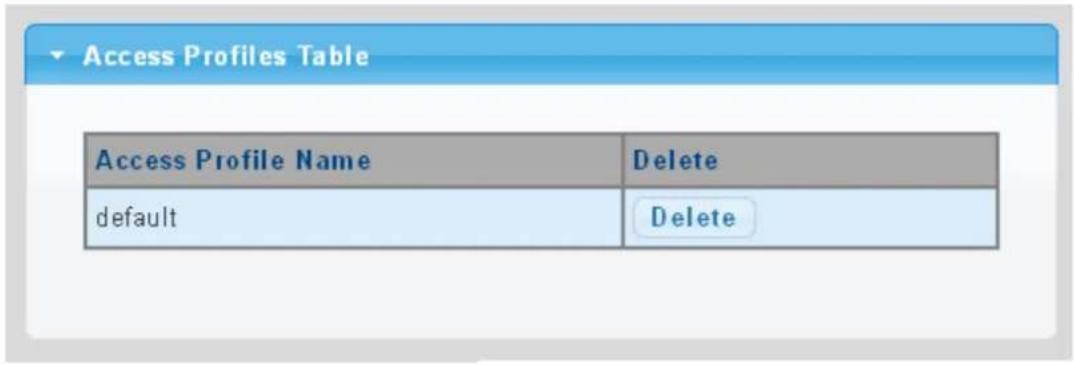

Figure 30:32 Access Profile Table Page Sc

The page includes the following fields:

Object Description
• Access Profile	y the currenDispla t access profile
• Delete	Click to delete access profile entry

4.9.7 DHCP Snooping

4.9.7.1 DHCP Snooping Overview

The addresses assigned to DHCP clients on unsecure ports can be carefully controlled using the dynamic bindings registered with DHCP Snooping. DHCP snooping allows a switch to protect a network from rogue DHCP servers or other devices which send port-related information to a DHCP server. This information can be useful in tracking an IP address back to a physical port.

DHCP Snooping Overview
    subgraph_DHCP_Client_1["DHCP Client 1"]
        A["User"] --> B["Laptop"]
        C["User"] --> D["Server"]
        E["User"] --> F["Un-Trust Port"]
    end

    subgraph_DHCP_Client_2["DHCP Client 2"]
        G["User"] --> H["Laptop"]
        I["User"] --> J["Server"]
        K["User"] --> L["Un-Trust Port"]
    end

    subgraph_DHCP_Server["DHCP Server"]
        M["User"] --> N["Server"]
        O["User"] --> P["Un-Trust Port"]
    end

    Q["VLAN ID: 192.168.0.1, IP Address: 00:30:4F:11:22:33, MAC Address: 2; 192.168.0.2, IP Address: 00:11:22:55:AA:BB"] --> Q
    Q --> R["Internet"]
    S["DHCP Client 3 MAC 00:50:77:66:55:44"] --> R
    style DHCP Client_1 fill:#d4edda,stroke:#333
    style DHCP Client_2 fill:#d4edda,stroke:#333
    style DHCP Server fill:#d4edda,stroke:#333
    style DHCP Client_3 fill:#d4edda,stroke:#333
    style DHCP Client_1 fill:#e6f7ff,stroke:#333
    style DHCP Client_2 fill:#e6f7ff,stroke:#333
    style DHCP Client_3 fill:#e6f7ff,stroke:#333
    style DHCP Server fill:#e6f7ff,stroke:#333

Command Usage

• Network traffic may be disrupted when malicious DHCP messages are received from an outside source. DHCP snooping is used to filter DHCP messages received on a non-secure interface from outside the network or firewall. When DHCP snooping is enabled globally and enabled on a VLAN interface, DHCP messages received on an untrusted interface from a device not listed in the DHCP snooping table will be dropped.
• Table entries are only learned for trusted interfaces. An entry is added or removed dynamically to the DHCP snooping table when a client receives or releases an IP address from a DHCP server. Each entry includes a MAC address, IP address, lease time, VLAN identifier, and port identifier.
• When DHCP snooping is enabled, DHCP messages entering an untrusted interface are filtered based upon dynamic entries learned via DHCP snooping.
  • Filtering rules are implemented as follows:

■ If the global DHCP sno oping is disabled, all DHCP packets are forwarded.
■ If DHCP snooping is enabled globally, and also enabled on the VLAN where the DHCP packet is received, all DHCP packets are forwarded for a trusted port. If the received packet is a DHCP ACK message, a dynamic DHCP snooping entry is also added to the binding table.
If DHCP snooping is enabled globally, and also enabled on the VLAN where the DHCP packet is received, but the port is not trusted, it is processed as follows:

If the DHCP packet is a reply packet from a DHCP server (including OFFER, ACK or NAK messages), the packet is dropped.
If the DHCP packet is from a client, such as a DECLINE or RELEASE message, the switch forwards the packet only if the corresponding entry is found in the binding table.
If the DHCP packet is from a client, such as a DISCOVER, REQUEST, INFORM, DECLINE or RELEASE message, the packet is forwarded if MAC address verification is disabled. However, if MAC address verification is enabled, then the packet will only be forwarded if the client's hardware address stored in the DHCP packet is the same as the source MAC address in the Ethernet header.
If the DHCP packet is not a recognizable type, it is dropped.

• If a DHCP packet from a client passes the filtering criteria above, it will only be forwarded to trusted ports in the same VLAN.
• If a DHCP packet is from server is received on a trusted port, it will be forwarded to both trusted and untrusted ports in the same VLAN.
• If the DHCP snooping is globally disabled, all dynamic bindings are removed from the binding table.

■ Additional considerations when the switch itself is a DHCP client – The port(s) through which the switch submits a client request to the DHCP server must be configured as trusted. Note that the switch will not add a dynamic entry for itself to the binding table when it receives an ACK message from a DHCP server. Also, when the switch sends out DHCP client packets for itself, no filtering takes place. However, when the switch receives any messages from a DHCP server, any packets received from untrusted ports are dropped.

4.9.7.2 Global Setting

DHCP Snooping is used to block intruder on the untrusted ports of switch when it tries to intervene by injecting a bogus DHCP reply packet to a legitimate conversation between the DHCP client and server. Configure DHCP Snooping on this page. The DHCP Snooping Setting and Information screens in Figure 4-9-33 & Figure 4-9-34 appear.

DHCP Snooping Setting

DHCP Snooping

○ Enabled ○ Disabled

Apply

Figure 4-9-33 DHCP Snooping Setting Page Screenshot

The page includes the following fields:

Object Description
• DHCP Snooping	Indicates the DHCP snooping mode operation. Possible modes are:■ Enabled: Enable DHCP snooping mode operation.When DHCP snooping mode operation is enabled, the request DHCP messages will be forwarded to trusted ports and only allowed reply packets from trusted ports.■ Disabled: Disable DHCP snooping mode operation.

Buttons

Apply

: Click to apply changes.

Information Name	Information Value
DHCP Snooping	disabled

Figure 4-9-34 DHCP Snooping Information Page Screenshot

The page includes the following fields:

Object Description
• DHCP Snooping	Display the current DHCP snooping status

4.9.7.3 VLAN Setting

Command Usage

• When DHCP snooping is enabled globally on the switch, and enabled on the specified VLAN, DHCP packet filtering will be performed on any untrusted ports within the VLAN.
• When the DHCP snooping is globally disabled, DHCP snooping can still be configured for specific VLANs, but the changes will not take effect until DHCP snooping is globally re-enabled.
• When DHCP snooping is globally enabled, and DHCP snooping is then disabled on a VLAN, all dynamic bindings learned for this VLAN are removed from the binding table.

The DHCP Snooping VLAN Setting screens in Figure 4-9-35 & Figure 4-9-36 appear.

DHCP Snooping VLAN Setting VLAN LIST Status Enable Disabled Apply

Figure 4-9-35 DHCP Snooping VLAN Setting Page Screenshot

The page includes the following fields:

Object Description
• VLAN List	Indicates the ID of this particular VLAN.
• Status	Indicates the DHCP snooping mode operation. Possible modes are:■ Enabled: Enable DHCP snooping mode operation.When DHCP snooping mode operation is enabled, the request DHCP messages will be forwarded to trusted ports and only allowed reply packets from trusted ports.■ Disabled: Disable DHCP snooping mode operation.

Buttons

Apply

: Click to apply changes.

VLAN List	Status
No VLANs	enabled

Figure 4-9-36 DHCP Snooping VLAN Setting Page Screenshot

The page includes the following fields:

Object Description
• VLAN List	Display the current VLAN list
• Status	Display the current DHCP snooping status

4.9.7.4 Port Setting

Configures switch ports as trusted or untrusted.

Command Usage

• A trusted interface is an interface that is configured to receive only messages from within the network. An untrusted interface is an interface that is configured to receive messages from outside the network or firewall.
• When DHCP snooping is enabled both globally and on a VLAN, DHCP packet filtering will be performed on any untrusted ports within the VLAN.
• When an untrusted port is changed to a trusted port, all the dynamic DHCP snooping bindings associated with this port are removed.
• Set all ports connected to DHCP servers within the local network or firewall to trusted state. Set all other ports outside the local network state trusted

The DHCP Snooping Port Setting screens in Figure 4-9-37 & Figure 4-9-38 appear.

DHCP Snooping Port Setting Port Type Chaddr Check Select Ports ● Un Trusted ○ Trusted ○ Enable ● Disable Apply

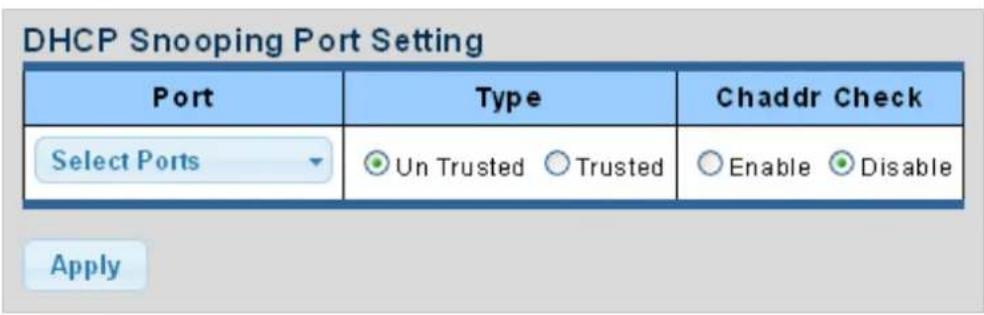

Figure 4-9-37 DHCP Snooping Port Setting Page Screenshot

he page includes the following fields: T

Object Description
• Port	Select port from this drop-down list
• Type	Indicates the DHCP snooping port mode. Possible port modes are:■ Trusted: Configures the port as trusted sources of the DHCP message.■ Untrusted: Configures the port as untrusted sources of the DHCP message.
• Chaddr Check	Indicates that the Chaddr check function is enabled on selected port.Chaddr: Client hardware address.

Buttons

Apply

: Click to apply changes.

DHCP Snooping Port Setting

Port	Type	Chaddr Check
GE1	Un Trusted	disabled
GE2	Un Trusted	disabled
GE3	Un Trusted	disabled
	Un Trusted

LAG5		disabled
LAG6	Un Trusted	disabled
LAG7	Un Trusted	disabled
LAG8	Un Trusted	disabled

Figure 4-9-38 DHCP Snooping Port Setting Page Screenshot

The page includes the following fields:

Object Description
• Port	The switch port number of the logical port
• Type	Display the current type
• Chaddr Check	Display the current chaddr check

4.9.7.5 Statistics

The DHCP Snooping Statistics 9-30 appears.

DHCP Snooping Statistics

Clear Refresh

Port	Forwarded	Chaddr Check Dropped	Untrust Port Dropped	Untrust Port With Option82 Dropped	Invalid Dropped
GE1	0	0	0	0	0
GE2	0	0	0	0	0
GE3	0	0	0	0	0
GE4	0	0	0	0	0

LAG7	0	0	0	0	0
LAG8	0	0	0	0	0

Figure 4-9-39 DHCP Snooping Statistics Page Screenshot

The page includes the following fields:

Object Description
• Port	The switch port number of the logical port
• Forwarded	Display the current forwarded
• Chaddr Check Dropped	Display the chaddr check dropped
• Untrusted Port Dropped	Display untrusted port dropped
• Untrusted Port with Option82 Dropped	Display untrusted port with option82 dropped
• Invalid Dropped	Display invalid dropped

Buttons

Clear

Click to clear the statistics.

Refresh

Click to refresh the statistics.

4.9.7.6 Database Agent

Overview of the DHCP Snooping Database Agent

When DHCP snooping is enabled, the switch uses the DHCP snooping binding database to store information about untrusted interfaces. The database can have up to 8192 bindings.

Each database entry (binding) has an IP address, an associated MAC address, the lease time (in hexadecimal format), the interface to which the binding applies, and the VLAN to which the interface belongs. A checksum value, the end of each entry, is the number of bytes from the start of the file to end of the entry. Each entry is 72 bytes, followed by a space and then the checksum value.

To keep the bindings when the switch reloads, you must use the DHCP snooping database agent. If the agent is disabled, dynamic ARP or IP source guard is enabled, and the DHCP snooping binding database has dynamic bindings, the switch loses its connectivity. If the agent is disabled and only DHCP snooping is enabled, the switch does not lose its connectivity, but DHCP snooping might not prevent DCHP spoofing attacks.

The database agent stores the bindings in a file at a configured location. When reloading, the switch reads the binding file to build the DHCP snooping binding database. The switch keeps the file current by updating it when the database changes.

When a switch learns of new binding entries in the case of bindings, the switch immediately updates th

The switch also updates the entries in the binding file. The frequency at which the file is updated is based on a configurable delay, and the updates are batched. If the file is not updated in a specified time (set by the write-delay and abort-timeout values), the update stops.

The DHCP Snooping Databases and Inform

in Figure 4-9-40 & Figure 4-9-41 appear.

DHCP Snooping Database

Database Type	None
FileName
Remote Server	(X.X.X.X or Hostname)
Write Delay	300 (15 ~ 86400 Second)
Timeout	300 (0 ~ 86400 Second)

Apply

Figure 4-9-40 DHCP Snooping Database Setting Page Screenshot

The page includes the following fields:

Object Description
Database Type	Select database type
File Name	The name of file image
Remote Server	Fill in your remote server IP address
Write Delay	Specify the duration for which the transfer should be delayed after the binding database changes. The range is from 15 to 86400 seconds. The default is 300 seconds (5 minutes).
Timeout	Specify when to stop the database transfer process after the binding database changes.The range is from 0 to 86400. Use 0 for an infinite duration. The default is 300 seconds (5 minutes).

Buttons

Apply

: Click to apply changes.

DHCP Snooping Database Informations

Information Name	Information Value
Database Type	None
FileName
Remote Server
Write Delay	300
Timeout	300

Figure 4-9-41 DHCP Snooping Database Information Page Screenshot

The page includes the following fields:

Object Description
Database Type	Display the current database type
File Name	Display the current file name
Remote Server	rrent remote server Display the cu
Write Delay	Display the current write delay
Timeout	Display the current timeout

4.9.7.7 Rate Limit

After enabling DHCP snooping, the switch will monitor all the DHCP messages and implement software transmission. The DHCP Rate Limit Setting and Config screens in Figure 4-9-42 & Figure 4-9-43 appear.

DHCP Rate Limit Setting

Port	State	Rate Limit (pps)
Select Ports	DefaultUser-Define	Unlimited(1~300 pps)

Apply

Figure 4-9-42 DHCP Rate Limit Setting Page Screenshot

The page includes the following fields:

Object Description
• Port	Select port from this drop-down list
• State	Set default or user-define
• Rate Limit (pps)	Configure the rate limit for the port policer. The default value is "unlimited". Valid values are in the range 1 to 300.

Buttons

Apply

: Click to apply changes

DHCP Rate Limit Config

Port Name	Rate Limit (pps)
GE1	Unlimited
GE2	Unlimited
GE3	Unlimited
GE4	Unlimited

LAG6	Unlimited
LAG7	Unlimited
LAG8	Unlimited

Figure 4-9-43 DHCP Rate Limit Setting Page Screenshot

The page includes the following fields:

Object Description
• Port	The switch port number of the logical port
• Rate Limit (pps)	Display the current rate limit

4.9.7.8 Option 82 Global Setting

DHCP provides a relaying mechanism for

ation about the switch and its DHCP clients to DHCP servers. Known as

DHCP Option 82, DHCPwsecoenpaablsee theinfassigting IP addresses, or to set other

services or policies fan effective to also preventi

ng malicious network attacks from attached clients on DHCP

services, such as IP Spoofing, Client Identifier Spoofing, MAC Address Spoofing, and Address Exhaustion.

The DHCP option 82 enables a DHCP relay agent to insert specific information into a DHCP request packets when forwarding client DHCP packets to a DHCP server and remove the specific information from a DHCP reply packets when forwarding server DHCP packets to a DHCP client. The DHCP server can use this information to implement IP address or other assignment policies. Specifically, the options are:

■ Circuit ID (option 1)
■ Remote ID (option 2)

The Circuit ID sub-option is supposed to include information specific to which circuit the request came in on.

The Remote ID sub-option was designed to carry information relating to the remote host end of the circuit.

The definition of Circuit ID in the switch is 4 bytes in length and the format is "vlan_id" "module_id" "port_no". The parameter of "vlan_id" is the first two bytes represent the VLAN ID. The parameter of "module_id" is the third byte for the module ID (in standalone switch it always equal 0, in switch it means switch ID). The parameter of "port_no" is the fourth byte and it means the port number.

After enabling DHCP snooping, the switch will monitor all the DHCP messages and implement software transmission. The DHCP Rate Limit Setting and Config screens in Figure 4-9-44 & Figure 4-9-45 appear.

Option82 Global Setting Remote ID Default User-Define Apply

Figure 4-9-44 Option 82 Global Setting Page Screenshot

The page includes the following fields:

Object Description
• State	Set the option 2 (remote ID option) content of option 82 added by DHCP request packets.■ Default means the default VLAN MAC format.■ User-Define means the remote-id content of option 82 specified by users

Buttons

Apply

: Click to apply changes.

Information Name	Information Value
Option82 Remote ID	0:30:4f:af:ff:81 (Byte Format)

Figure 4-9-45 Option 82 Global Setting Page Screenshot

The page includes the following fields:

Object Description
• Option 82 Remote ID	Display the current option 82 remote ID

4.9.7.9 Option 82 Port Setting

This function is used to set the retransmitting policy of the system for the received DHCP request message which contains option 82. The drop mode means that if the message has option 82, then the system will drop it without processing; keep mode means that the system will keep the original option 82 segment in the message, and forward it to the server to process; replace mode means that the system will replace the option 82 segment in the existing message with its own option 82, and forward the message to the server to process. Option 82 Port Setting screens in Figure 4-9-46 & Figure 4-9-47 appear.

Option82 Port Setting Port Enable Allow UnTrusted Select Ports ○ Enable ● Disable Keep Apply

Figure 04-0462 Global Setting Page Screenshot

includes the following fields: The page

Object Description
• Port	Select port from this drop-down list
• Enable	Enable or disable option 82 function on port
• Allow Untrusted	Select modes from this drop-down list. The following modes are available: ■ Drop ■ Keep ■ Replace

Buttons

Apply

: Click to apply changes.

Option82 Port Setting

Port	Enable	Allow UnTrusted
GE1	disabled	Drop
GE2	disabled	Drop
GE3	disabled	Drop
GE4	disabled	Drop

LAG5		Drop
LAG6	disabled	Drop
LAG7	disabled	Drop
LAG8	disabled	Drop

Figure 4-9-47 Option 82 Global Setting Page Screenshot

The page includes the following fields:

Object Description
• Port	The switch port number of the logical port
• Enable	Display the current status
• Allow Untrusted	Display the current untrusted mode

4.9.7.10 Option 82 Circuit-ID Setting

Set creation method define 82, user

e parameters of circuit-id suboption by themselves. Option 82 Circuit-ID

Setting screens in Figu4e49a46eaFigu

Option82 Port Circuit-ID Setting

Port	Vlan	Circuit ID
Select Ports	✓ 1	Default ○ User-Define
Apply

Figure 4-9-48 Option 82 Port Circuit-ID Setting Page Screenshot

The page includes the following fields:

Object Description
• Port	Select port for this drop down list
• VLAN	Indicates the ID of this particular VLAN
• Circuit ID	Set the option1 (Circuit ID) content of option 82 added by DHCP request packets

Buttons

Apply

: Click to apply changes.

Option82 Port Setting Port VLAN Circuit ID

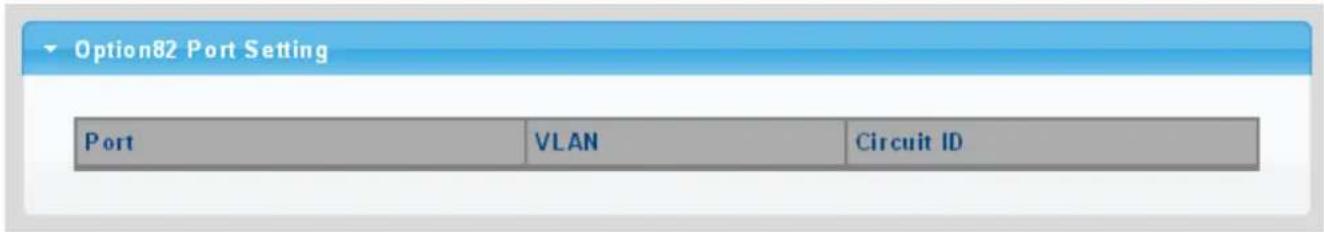

Figure 4-9-49 Option 82 Port Circuit-ID Setting Page Screenshot

The page includes the following fields:

Object Description
• Port	Display the current port
• VLAN	Display the current VLAN
• Circuit ID	Display the current circuit ID

4.9.8 Dynamic ARP Inspection

Dynamic ARP Inspection (DAI) is a secure feature. Several types of attacks can be launched against a host or devices connected to Layer 2 networks by "poisoning" the ARP caches. This feature is used to block such attacks. Only valid ARP requests and responses can go through DUT. This page provides ARP Inspection related configuration.

A Dynamic ARP prevents the untrusted ARP packets based on the DHCP Snooping Database.

4.9.8.1 Global Setting

DAI Setting and Information screens in Figure 4-9-50 & Figure 4-9-51 appear.

DAI Setting DAI Enabled Disabled Apply

Figure 4-9-50 DAI Setting Page Screenshot

The page includes the following fields:

Object Description
• DAI	Enable the Global Dynamic ARP Inspection or disable the Global ARP Inspection

Buttons

Apply

: Click to apply changes.

DAI Informations Information Name Information Value DAI Disabled

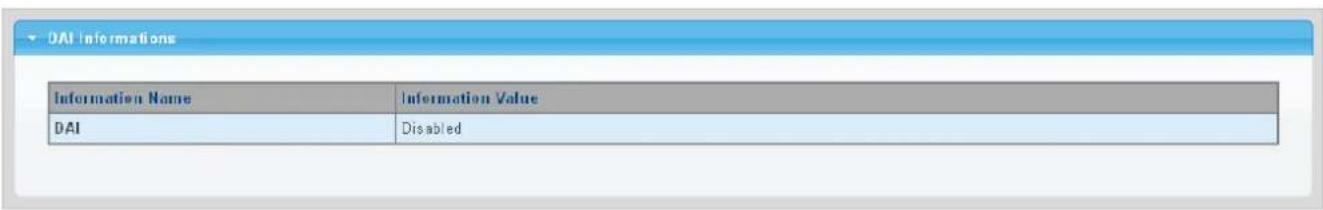

Figure 4-9-51 DAI Information Page Screenshot

The page includes the following fields:

Object Description
• DAI	Display the current DAI status

4.9.8.2 VLAN Setting

DAI VLAN Setting screens in Figure 4-9-52 & Figure 4-9-53 appear.

DAI VLAN Setting VLAN LIST Status 1 ○ Enabled ● Disabled Apply

Figure 4-9-52 DAI VLAN Setting Page Screenshot

The page includes the following fields:

Object Description
• VLAN ID	Indicates the ID of this particular VLAN
Status	Enables Dynamic ARP Inspection on the specified VLANOptions:■ Enable■ Disable

Buttons

Apply

: Click to apply changes.

DAI VLAN Setting VLAN List Status No VLANs enabled

Figure 4-9-53 DAI VLAN Setting Page Screenshot

The page includes the following fields:

Object Description
• VLAN List	Display the current VLAN list
• Status	Display the current status

4.9.8.3 Port Setting

Configures switch ports as DAI trusted or untrusted and check mode. DAI Port Setting screens in Figure 4-9-54 & Figure 4-9-55 appear.

Port	Type	Src-Mac Chk	Dst-Mac Chk	IP Chk	IP Allow Zero
Select Ports	Un Trusted Trusted	Disabled Enabled	Disabled Enabled	Disabled Enabled	Disabled Enabled
Apply

Figure 4-9-54 DAI Port Setting Page Screenshot

The page includes the following fields:

Object Description
• Port	Select port from this drop-down list
• Type	Specify ARP Inspection is enabled on which ports. Only when both Global Mode and Port Mode on a given port are enabled, ARP Inspection is enabled on this given port.Default: All interfaces are untrusted.
• Src-Mac Chk	Enable or disable to checks the source MAC address in the Ethernet header against the sender MAC address in the ARP body. This check is performed on both ARP requests and responses. When enabled, packets with different MAC addresses are classified as invalid and are dropped.
• Dst-Mac Chk	Enable or disable to checks the destination MAC address in the Ethernet header against the target MAC address in ARP body. This check is performed for ARP responses. When enabled, packets with different MAC addresses are classified as invalid and are dropped.
• IP Chk	Enable or disable to checks the source and destination IP addresses of ARP packets. The all-zero, all-one or multicast IP addresses are considered invalid and the corresponding packets are discarded.
• IP Allow Zero	Enable or disable to check all-zero IP addresses.

Buttons

Apply

: Click to apply changes.

DAI Port Setting

Port	Type	Src-Mac Chk	Dst-Mac Chk	IP Chk	IP Allow Zero
GE1	Un Trusted	disabled	disabled	disabled	disabled
GE2	Un Trusted	disabled	disabled	disabled	disabled
GE3	Un Trusted	disabled	disabled	disabled	disabled
	Un Trusted	disabled	disabled	disabled	disabled

LAG6	Un Trusted	disabled	disabled	disabled	disabled
LAG7	Un Trusted	disabled	disabled	disabled	disabled
LAG8	Un Trusted	disabled	disabled	disabled	disabled

Figure 4-9-55 DAI Port Setting Page Screenshot

The page includes the following fields:

Object Description
• Port	The switch port number of the logical port
• Type	Display the current port type
• Src-Mac Chk	Display the current Src-Mac Chk status
• Dst-Mac Chk	Display the current Dst-Mac Chk status
• IP Chk	Display the current IP Chk status
• IP Allow Zero	Display the current IP allow zero status

4.9.8.4 Statistics

Configures switch ports as DAI trusted or untrusted and check mode. DAI Port Setting screen in Figure 4-9-56 appears.

Port	Forwarded	Source MAC Failures	Dest MAC Failures	SIP Validation Failures	DIP Validation Failures	IP MAC Mismatch Failures
GE1	0	0	0	0	0	0
GE2	0	0	0	0	0	0
			0	0		0
LAG5	0	0			0
LAG6	0	0	0	0	0	0
LAG7	0	0	0	0	0	0
LAG8	0	0	0	0	0	0

Figure 4-9-56 DAI Port Setting Page Screenshot

The page includes the following fields:

Object Description
• Port	The switch port number of the logical port
• Forwarded	rrent forwarded Display the cu
Source MAC Failures	Display the current source MAC failures
• Dest MAC Failures	C failures Display the current source MA
• SIP Validation Failures	s Display the current SIP Validation failure
• DIP Validation Failures	s Display the current DIP Validation failure
• IP-MAC Mismatch Failures	Display the current IP-MAC mismatch failures

uttons B

Clear

Click to clear the statistics.

Refresh

Click to refresh the statistics.

4.9.8.5 Rate Limit

The ARP Rate Limit Setting and Config screens in Figure 4-9-57 & Figure 4-9-58 appear.

ARP Rate Limit Setting

Port	State	Rate Limit (pps)
Select Ports	DefaultUser-Define	Unlimited(up to 50 pps)

Figure 4-9-57 ARP Rate Limit Setting Page Screenshot

The page includes the following fields:

Object Description
• Port	Select port from this drop-down list
• State	Set default or user-define
• Rate Limit (pps)	Configure the rate limit for the port policer. The default value is "unlimited".

Buttons

Apply

Click to apply changes.

Port Name	Rate Limit (pps)
GE1	unlimited
GE2	unlimited
GE3	unlimited
GE4	unlimited
LAG6	unlimited
LAG7	unlimited
LAG8	unlimited

Figure 4-9-58 ARP Rate Limit Setting Page Screenshot

The page includes the following fields:

Object Description
• Port	The switch port number of the logical port
• Rate Limit (pps)	Display the current rate limit

4.9.9 IP Source Guard

IP Source Guard is a secure feature used to restrict IP traffic on DHCP snooping untrusted ports by filtering traffic based on the DHCP Snooping Table or manually configured IP Source Bindings. It helps prevent IP spoofing attacks when a host tries to spoof and use the IP address of another host.

After receiving a packet, the port looks up the key attributes (including IP address, MAC address and VLAN tag) of the packet in the binding entries of the IP source guard. If there is a matching entry, the port will forward the packet. Otherwise, the port will abandon the packet.

IP source guard filters packets based on the following types of binding entries:

■ IP-port binding entry
■ MAC-port binding entry
■ C-pB-Ninding entry

IP Source Guard Overview

4.9.9.1 Port Settings

IP Source Guard is a secure feature used to restrict IP traffic on DHCP snooping untrusted ports by filtering traffic based on the DHCP Snooping Table or manually configured IP Source Bindings. It helps prevent IP spoofing attacks when a host tries to spoof and use the IP address of another host.

The IP Source Guard Port Setting and Information screens in Figure 4-9-60 & Figure 4-9-61 appear.

IP Source Guard Port Setting

Port	Status	Verify Source	Max Binding Entry
Select Ports	EnabledDisabled	IPIP and MAC	No-limited

Figure 4-9-60 IP Source Guard Port Setting Page Screenshot

The page includes the following fields:

Object Description
• Port	Select port from this drop-down list
• Status	Enable or disable the IP source guard
• Verify Source	Configures the switch to filter inbound traffic based IP address, or IP address and MAC address.■ None Disables IP source guard filtering on the LRP Managed Switch.■ IP Enables traffic filtering based on IP addresses stored in the binding table.■ IP and MAC Enables traffic filtering based on IP addresses and corresponding MAC addresses stored in the binding table.
• Max Binding Entry	The maximum number of IP source guard that can be secured on this port

Buttons

Apply

: Click to apply changes.

IP Source Guard Port Information

Port	Status	Verify Source	Max Binding Entry	Current Binding Entry
GE1	disabled	IP	No-limited	0
GE2	disabled	IP	No-limited	0
GE3	disabled	IP	No-limited	0
GE4	disabled	IP	No-limited	0

LAG6	disabled	IP	No-limited	0
LAG7	disabled	IP	No-limited	0
LAG8	disabled	IP	No-limited	0

Figure 4-9-61 IP Source Guard Port Setting Page Screenshot

s the following fields: The page include

Object Description
• Port	The switch port number of the logical port
• Status	nt status Display the curre
• Verify Source	Display the current verify source
• Max Binding Entry	Display the current max binding entry
• Current Binding Entry	Display the current binding entry

4.9.9.2 Binding Table

The IP Source Guard Static Binding Entry and Table Status screens in Figure 4-9-62 & Figure 4-9-63 appear.

Ip Source Guard Static Binding Entry

Port	VLAN ID	MAC Address	IP Address
GE1	1 (1-4094)

Add

Figure 4-9-62 IP Source Guard Static Binding Entry Page Screenshot

includes the following fields: The page

Object Description
• Port	Select port from this drop-down list
• VLAN ID	Indicates the ID of this particular VLAN
• MAC Address	Sourcing MAC address is allowed
• IP Address	Sourcing IP address is allowed

Buttons

Add

: Click to add authentication list

IP Source Guard Binding Table Status Port VLAN MAC Address IP Address Type Lease Time Action

Figure 4-9-63 IP Source Guard Binding Table Status Page Screenshot

The pages through following fields:

Object Description
• Port	Display the current port
• VLAN ID	Display the current VLAN
• MAC Address	Display the current MAC address
• IP Address	Display the current IP Address
• Type	Display the current entry type
• Lease Time	Display the current lease time
• Action	Click to delete IP source guard binding table status entry

4.9.10 Port Security

This page allows you to configure the P

mit Control system and port settings. Limit Control allows for limiting the

number of users on is identified by a MACAddress Limit Control is enabled on a port, the

limit specifies the maximum number of users on the port. If this number is exceeded, an action is taken. The action can be one of the four as described below.

The Limit Control module is generated of modules that utilize the Port Security module, which manages MAC addresses learned on the port.

The Limit Control configuration consists of two sections, a system- and a port-wide. The IP Source Guard Static Binding Entry and Table Status screens in Figure 4-9-64 & Figure 4-9-65 appear.

Port Security Settings

Port Select	Security	Max L2 Entry	Action
Select Ports	EnabledDisabled	Unlimited	Forward

Apply

Figure 4-9-64 Port Security Setting Page Screenshot

The page includes fields:

Object	Description
• Port	Select port from this drop-down list
• Security	Enable or disable the port security
• Mac L2 Entry	The maximum number of MAC addresses that can be secured on this port. If the limit is exceeded, the corresponding action is taken.The switch is "born" with a total number of MAC addresses from which all ports draw whenever a new MAC address is seen on a Port Security-enabled port.Since all ports draw from the same pool, it may happen that a configured maximum cannot be granted, if the remaining ports have already used all available MAC addresses.
• Action	If Limit is reached, the switch can take one of the following actions:■ Forward: Do not allow more than Limit MAC addresses on the port, but take no further action.■ Shutdown: If Limit + 1 MAC addresses is seen on the port, shut down the port. This implies that all secured MAC addresses will be removed from the port, and no new will be learned. Even if the link is physically disconnectedand reconnected on the port (by disconnecting the cable), the port will remain shut down. There are three ways to re-open the port:1) Disable and re-enable Limit Control on the port or the switch,2) Click the Reopen button.■Discard: If Limit + 1 MAC addresses is seen on the port, it will trigger the action that do not learn the new MAC and drop the package.

Buttons

Apply

: Click to apply changes.

▼ Port Security Status

Port Name	Enable State	L2 Entry Num	Action
GE1	Disabled	8192	Forward
GE2	Disabled	8192	Forward
GE3	Disabled	8192	Forward
GE4	Disabled	8192	Forward

LAG6	Disabled	8192	Forward
LAG7	Disabled	8192	Forward
LAG8	Disabled	8192	Forward

Figure 4-9-65 Port Security Status Page Screenshot

The page includes the following fields:

Object Description
• Port Name	The switch port number of the logical port
• Enable State	security status Display the current per port
• L2 Entry Num	Display the current L2 entry number
• Action	on Display the current acti

4.9.11 DoS

The DoS is short for Denial of Service, whichever single DoS effective destructive attack on the internet. The s attack will drop normal user data packet due tracker-sto tar peaking to the denial of the service and worse can lead to leak of sensitive data of the server.

Security feature refers to applications such as protocol check which is for protecting the server from attacks such as DoS. The protocol check allows the user to drop matched packets based on specified conditions. The security features provide several simple and effective protections against Dos attacks while acting no influence on the linear forwarding performance of the switch.

4.9.11.1 Global DoS Setting

The Global DoS Setting and Information screens in Figure 4-9-66 & Figure 4-9-67 appear.

Global DoS Setting

DMAC = SMAC	Enabled Disabled
Land	Enabled Disabled
UDP Blat	Enabled Disabled
TCP Blat	Enabled Disabled
POD	Enabled Disabled
IPv6 Min Fragment	Enabled DisabledByte: 1240 (0-65535)
ICMP Fragments	Enabled Disabled
IPv4 Ping Max Size	Enabled Disabled
IPv6 Ping Max Size	Enabled Disabled
Ping Max Size Setting	Byte: 512 (0-65535)
Smurf Attack	Enabled DisabledNetmask Length: 0 (0-32)
TCP Min Hdr Size	Enabled DisabledBytes: 20 (0-31)
TCP-SYN(SPORT<1024)	Enabled Disabled
Null Scan Attack	Enabled Disabled
X-Mas Scan Attack	Enabled Disabled
TCP SYN-FIN Attack	Enabled Disabled
TCP SYN-RST Attack	Enabled Disabled
TCP Fragment (Offset = 1)	Enabled Disabled

Apply

Figure 4-9-66 Global DoS Setting Page Screenshot

The page includes the following fields:

Object Description
• DMAC = SMAC	Enable or disable DoS check mode by DMAC = SMAC
• Land	Enable or disable DoS check mode by land
• UDP Blat	Enable or disable DoS check mode by UDP blat
• TCP Blat	Enable or disable DoS check mode by TCP blat
• POD	Enable or disable DoS check mode by POD
• IPv6 Min Fragment	Enable or disable DoS check mode by IPv6 min fragment
• ICMP Fragments	Enable or disable DoS check mode by ICMP fragment
• IPv4 Ping Max Size	Enable or disable DoS check mode by IPv4 ping max size
• IPv6 Ping Max Size	Enable or disable DoS check mode by IPv6 ping max size
• Ping Max Size Setting	Set the max size for ping
• Smurf Attack	Enable or disable DoS check mode by smurf attack
• TCP Min Hdr Size	Enable or disable DoS check mode by TCP min hdr size
• TCP-SYN (SPORT < 1024)	Enable or disable DoS check mode by TCP-syn (sport < 1024)
• Null Scan Attack	Enable or disable DoS check mode by null scan attack
• X-mas Scan Attack	Enable or disable DoS check mode by X-mas scan attack
• TCP SYN-FIN Attack	Enable or disable DoS check mode by TCP syn-fin attack
• TCP SYN-RST Attack	Enable or disable DoS check mode by TCP syn-rst attack
• TCP Fragment (Offset = 1)	Enable or disable DoS check mode by TCP fragment (offset = 1)

Buttons

Apply

: Click to apply changes.

BeS Informations

Information Name	Information Value
DMAC - SMAC	Enabled
Land Attack	Enabled
UDP Blat	Enabled
TCP Blat	Enabled
POD (Ping of Death)	Enabled
IPv6 Min Fragment Size	Enabled (1240 Bytes)
ICMP Fragment Packets	Enabled
IPv4 Ping Max Packet Size	Enabled (512 Bytes)
IPv6 Ping Max Packet Size	Enabled (512 Bytes)
Smurf Attack	Enabled (Netmask Length: 0)
TCP Min Header Length	Enabled (20 Bytes)
TCP Syn (SPORT < 1024)	Enabled
Null Scan Attack	Enabled
X-Mas Scan Attack	Enabled
TCP SYN-FIN Attack	Enabled
TCP SYN-RST Attack	Enabled
TCP Fragment (Offset = 1)	Enabled

Figure 4-9-67 DoS Information Page Screenshot

The page includes the following fields:

Object Description
DMAC = SMAC	Display the current DMAC = SMAC status
Land Attach	Display the current land attach status
UDP Blat	Display the current UDP blat status
TCP Blat	Display the current TCP blat status
POD	Display the current POD status
IPv6 Min Fragment	Display the current IPv6 min fragment status
ICMP Fragments	Display the current ICMP fragment status
IPv4 Ping Max Size	Display the current IPv4 ping max size status
IPv6 Ping Max Size	Display the current IPv6 ping max size status
Smurf Attack	Display the current smurf attack status
TCP Min Header Length	Display the current TCP min header length
TCP-SYN (SPORT < 1024)	Display the current TCP syn status
Null Scan Attack	Display the current null scan attack status
X-mas Scan Attack	Display the current X-mas scan attack status
TCP SYN-FIN Attack	Display the current TCP syn-fin attack status
TCP SYN-RST Attack	Display the current TCP syn-rst attack status
TCP Fragment (Offset = 1)	Display the TCP fragment (offset = 1) status

The DoS Port Setting and Status screens in Figure 4-9-68 & Figure 4-9-69 appear.

STP Port Setting Port Select DoS Protection Select Ports Enabled Disabled Apply

Figure 4-9-68 Port Security Setting Page Screenshot

he page includes the following fields: T

Object Description
• Port Select	Select port from this drop-down list.
• DoS Protection	Enable or disable per port DoS protection.

Buttons

Apply

: Click to apply changes.

Port	DoS Protection
GE1	Disable
GE2	Disable
GE3	Disable
	Disable
LAG6	Disable
LAG7	Disable
LAG8	Disable

Figure 4-9-68 Port Security Setting Page Screenshot

The page includes the following fields:

Object Description
• Port	The switch port number of the logical port
• DoS Protection	Display the current DoS protection

4.9.12 Storm Control

Storm control for the switch is configured on this page

There is an unknown unicast storm rate down multicast storm ra

te control, and a broadcast storm rate control.

These only affect flooded framesies. writer of ULAINDA, DMAc deep tablet pres

4.9.12.1 Global Setting

The Storm Control Global Setting and Information screens in Figure 4-9-69 & Figure 4-9-70 appear.

Storm Control Global Setting

Unit	○ pps ● bps
Preamble & IFG	● Excluded ○ Included

Apply

Figure 4-9-69 Storm Control Global Setting Page Screenshot
The page includes the following fields:

Object Description
• Unit	Controls the unit of measure for the storm control rate as "pps" or "bps". The default value is "bps".
• Preamble & IFG	Set the excluded or included interframe gap

Buttons

Apply

Click to apply changes.

Information Name	Information Value
Unit	bps
Preamble & IFG	Excluded

Figure 4-950 StorshoControl Global Information Pag

The page includes the following fields:

Object Description
• Unit	Display the current unit
• Preamble & IFG	Display the current preamble & IFG

4.9.12.2 Port Setting

Storm control for the switch is configured on this page. There are three types of storm rate control:

■ Broadcast storm rate control
■ Unknown Unicast storm rate control
■ Unknown Multicast storm rate control

The configuration indicates the permitted packet rate for unknown unicast, unknown multicast, or broadcast traffic across the switch. The Storm Control Configuration screens in Figure 4-9-71 & Figure 4-9-72 appear.

Storm Control Setting Port Port State Action Type Enable Rate (Kbps) Select Ports Disable Enable drop Broadcast 10000 Unknown Multicast 10000 Unknown Unicast 10000 Apply

Figure409-716 Setting Page Screenshot

The page includes the following fields:

Object Description
• Port	Select port for this drop-down list.
• Port State	Enable or disable the storm control status for the given storm type.
• Action	Configures the action performed when storm control is over rate on a port. Valid values are Shutdown or Drop.
• Type Enable	The settings in a particular row apply to the frame type listed here: ■ broadcast ■ unknown unicast ■ unknown multicast
• Rate (kbps/pps)	Configure the rate for the storm control. The default value is "10,000".

Buttons

Apply

: Click to apply changes

▼ Storm Control Information

Port	Port State	Broadcast (Kbps)	Unknown Multicast (Kbps)	Unknown Unicast (Kbps)	Action
GE1	disabled	Off (10000)	Off (10000)	Off (10000)	Drop
GE2	disabled	Off (10000)	Off (10000)	Off (10000)	Drop
GE3	disabled	Off (10000)	Off (10000)	Off (10000)	Drop
GE4	disabled	Off (10000)	Off (10000)	Off (10000)	Drop
GE5	disabled	Off (10000)	Off (10000)	Off (10000)	Drop
GE6	disabled	Off (10000)	Off (10000)	Off (10000)	Drop
GE7	disabled	Off (10000)	Off (10000)	Off (10000)	Drop
GE8	disabled	Off (10000)	Off (10000)	Off (10000)	Drop
GE9	disabled	Off (10000)	Off (10000)	Off (10000)	Drop
GE10	disabled	Off (10000)	Off (10000)	Off (10000)	Drop

Figure 4-9-72 Storm Control Information Page Screenshot

The page includes the following fields:

Object Description
• Port	The switch port number of the logical port
• Port State	Display the current port state
• Broadcast (Kbps/pps)	rent broadcast storm control rate Display the cur
• Unknown Multicast (Kbps/pps)	ast storm control rate Display the current unknown multic
• Unknown Unicast (Kbps/pps)	Display the current unknown unicast storm control rate
• Action	Display the current action

4.10 ACL

ACL is an acronym for Access Control List. It is the list table of ACEs, containing access control entries that specify individual users or groups permitted or denied to specific traffic objects, such as a process or a program. Each accessible traffic object contains an identifier to its ACL. The privileges determine whether there are specific traffic object access rights.

ACL implementations can be quite complex, for example, when the ACEs are prioritized for the various situation. In networking, the ACL refers to a list of service ports or network services that are available on a host or server, each with a list of hosts or servers permitted or denied to use the service. ACL can generally be configured to control inbound traffic, and in this context, they are similar to firewalls.

ACE is an acronym for Access Control Entry. It describes access permission associated with a particular ACE ID. There are three ACE frame types (Ethernet Type, ARP, and IPv4) and two ACE actions (permit and deny). The ACE also contains many detailed, different parameter options that are available for individual application.

The ACL page contains links to the following main topics:

■ MAC-based ACL Configure MAC-based ACL setting
■ MAC-based ACE Add / Edit / Delete the MAC-based ACE (Access Control Entry) setting
■ IPv4-based ACL Configure IPv4-based ACL setting
■ IPv4-based ACE Add / Edit / Delete the IPv4-based ACE (Access Control Entry) setting
■ IPv6 -based ACL Configure IPv6-based ACL setting
■ IPv6-base d ACE Add / Edit / Delete the IPv6-based ACE (Access Control Entry) setting
■ ACL Binding Configure the ACL parameters (ACE) of each switch port.

4.10.1 MAC-based ACL

This page shows the ACL status by different ACL users. Each row describes the ACE that is defined. It is a conflict if a specific

ACE is not applied to the available base

d ACL screens in Figure 4-10-1 & Figure 4-10-2

appear.

MAC-Based ACL ACL Name Add

Figure 4-10-1 MAC-based ACL Page Screenshot

The page includes the following fields:

Object Description
• ACL Name	Create a name from MAC-based ACL list

ACI Table ACI Name Delete

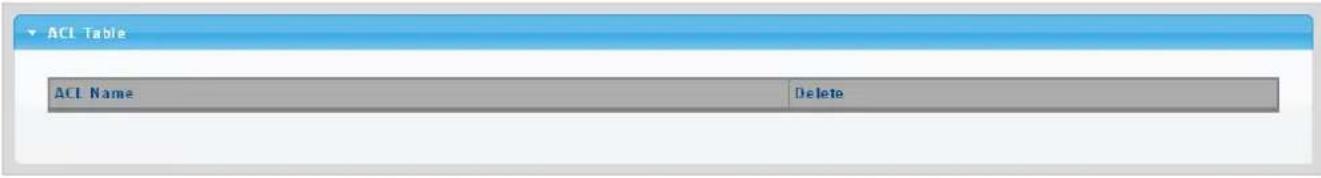

Figure 4-10-2 ACL Table Page Screenshot

The page includes the following fields:

Object Description
• Delete	Click to delete ACL name entry

4.10.2 MAC-based ACE

An ACE consists of several parameters. Different parameter options are displayed depending on the frame type that you select.

The MAC-based ACE screens in Figure 4-10-3 & Figure 4-10-4 appear.

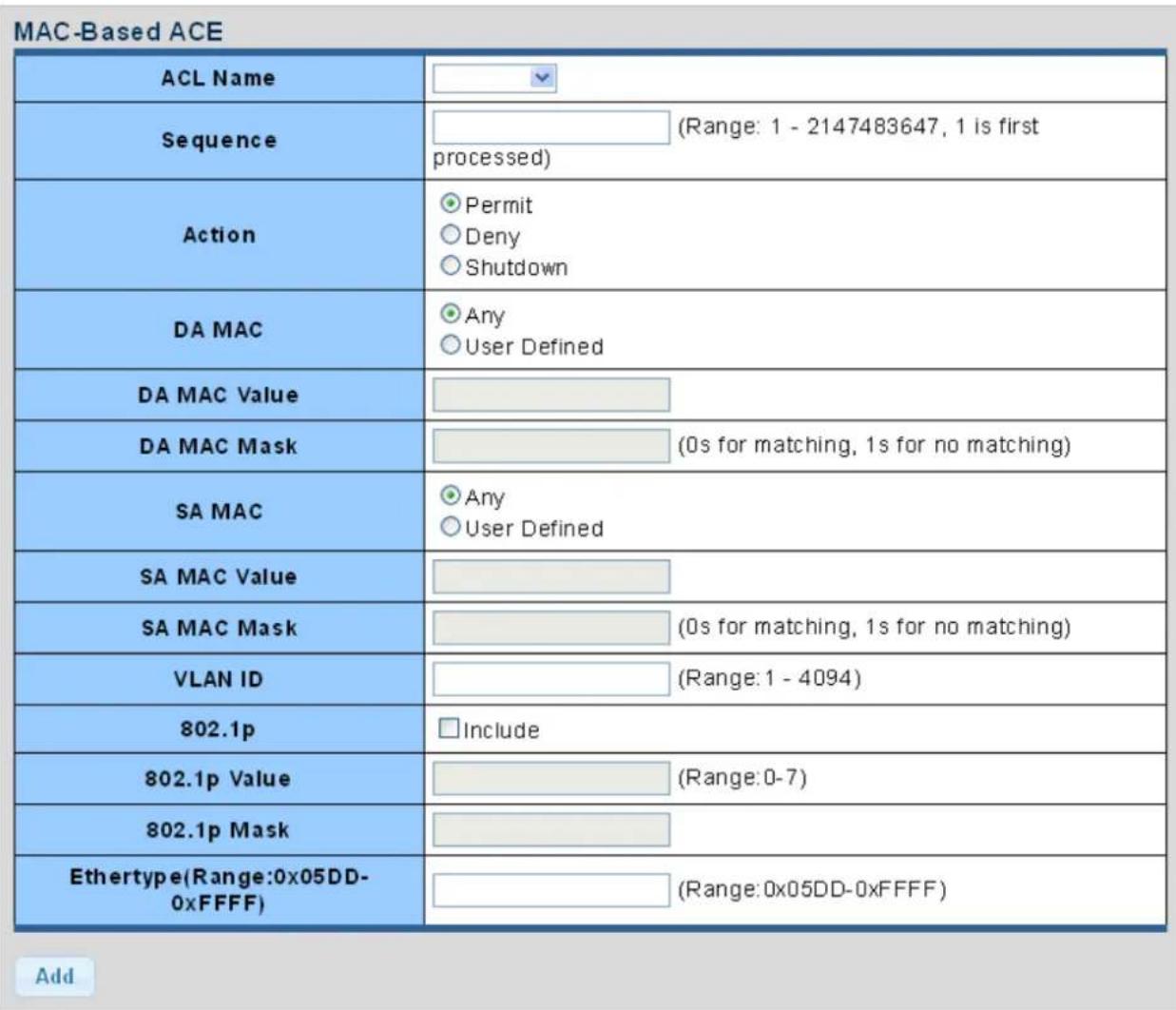

Figure 4-10-3 MAC-based ACE Page Screenshot

The page includes the following fields:

Object Description
ACL Name	Select ACL name from this drop-down list
Sequence	Set the ACL sequence
Action	Indicates the forwarding action of the ACE.■Permit: Frames matching the ACE may be forwarded and learned.■Deny: Frames matching the ACE are dropped.■Shutdown: Port shutdown is disabled for the ACE.
DA MAC	y the destin . Specif ation MAC filter for this ACE■Any: No DA MAC filter is specified.■User Defined: If you want to filter a specific destination MAC address with this ACE, choose this value. A field for entering a DA MAC value appears.
DA MAC Value	When "User Defined" is selected for the DA MAC filter, you can enter a specific destination MAC address. The legal format is "xx-xx-xx-xx-xx-xx". A frame that hits this ACE matches this DA MAC value.
DA MAC Mask	Specify whether frames can hit the action according to their sender hardware address field (SHA) settings.■0: ARP frames where SHA is not equal to the DA MAC address.■1: ARP frames where SHA is equal to the DA MAC address.
SA MAC	Specify the source MAC filter for this ACE.■Any: No SA MAC filter is specified.■User Defined: If you want to filter a specific source MAC address with this ACE, choose this value. A field for entering a SA MAC value appears.
SA MAC Value	When "User Defined" is selected for the SA MAC filter, you can enter a specific source MAC address. The legal format is "xx-xx-xx-xx-xx-xx". A frame that hits this ACE matches this SA MAC value.
SA MAC Mask	Specify whether frames can hit the action according to their sender hardware address field (SHA) settings.■0: ARP frames where SHA is not equal to the SA MAC address.■1: ARP frames where SHA is equal to the SA MAC address.
VLAN ID	Indicates the ID of this particular VLAN
802.1p	Include or exclude the 802.1p value
802.1p Value	Set the 802.1p value
802.1p Mask	■0: where frame is not equal to the 802.1p value.■1: where frame is equal to the 802.1p value.
EtherType(Range:0x05DD - 0xFFFF)	You can enter a specific EtherType value. The allowed range is 0x05DD to 0xFFFF. A frame that hits this ACE matches this EtherType value.

Buttons

Add

Click to add ACE list.

ACL Name	Sequence	Action	Destination		Source		VLAN ID	802.1p	802.1p Mask	Ethertype	Modify
			MAC Address	Wildcard Mask	MAC Address	Wildcard Mask

Figure 4-10-4 MAC-based ACE Table Page Screenshot

The page includes the following fields:

Object Description
ACL Name	Display the current ACL name
Sequence	Display the current sequence
Action	Display the current action
Destination MAC Address	Display the current destination MAC address
Destination MAC Address Mask	Display the current destination MAC address mask
Source MAC Address	Display the current source MAC address
Source MAC Address Mask	Display the current source MAC address mask
VLAN ID	Display the current VLAN ID
802.1p	Display the current 802.1p value
802.1p Mask	Display the current 802.1p mask
EtherType	Display the current EtherType
Modify	Click Edit to edit MAC-based ACL parameterClick Delete to delete MAC-based ACL entry

4.10.3 IPv4-based ACL

This page shows the ACL status by different ACL users. Each row describes the ACE that is defined. It is a conflict if a specific ACE is not applied to the hardware due to hardware limitations. IPv4-based ACL screens in Figure 4-10-5 & Figure 4-10-6 appear.

IPv4-Based ACL ACL Name Add

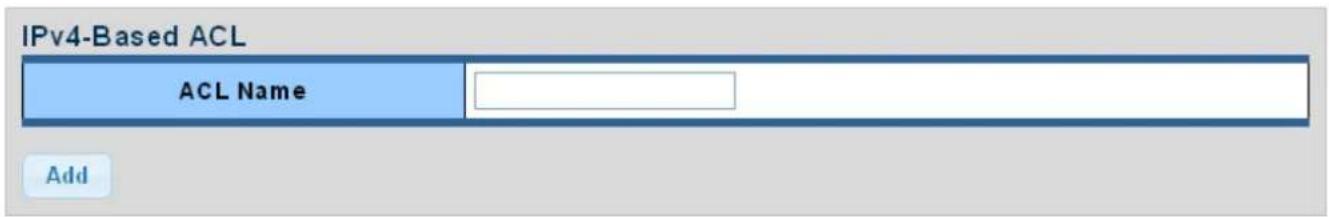

Figure 4-10-5 IPv4-based ACL Page Screenshot

The page includes the following fields:

Object Description
• ACL Name	Crea list te a name from IPv4-based ACL

Buttons

Add

Click to add ACL name list.

ACL Table ACL Name Delete

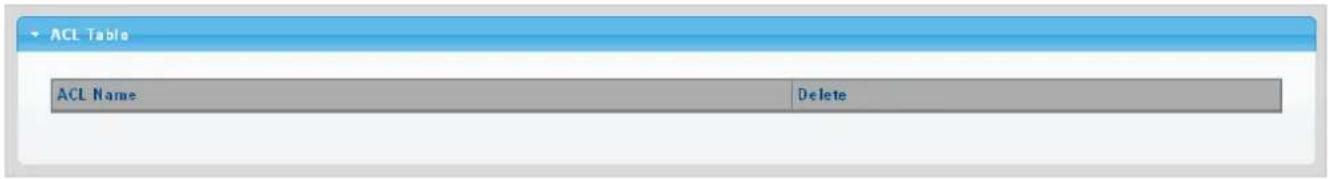

Figure 4-10-6 ACL Table Page Screens

The page includes the following fields:

Object Description
• Delete	Click to delete ACL name entry.

4.10.4 IPv4-based ACE

An ACE consists of several parameters. Different parameter options are displayed depending on the frame type that you select. The IPv4-based ACE screens in Figure 4-10-7 & Figure 4-10-8 appear.

IPv4-Based ACE

ACL Name
Sequence	(Range: 1 - 2147483647, 1 is first processed)
Action	PermitDenyShutdown
Protocol	Any(IP)Select from listampProtocol ID to match1
Source IP Address	AnyUser Defined
Source IP Address Value
Source IP Wildcard Mask	(0s for matching, 1s for no matching)
Destination IP Address	AnyUser Defined
Destination IP Address Value
Destination IP Wildcard Mask	(0s for matching, 1s for no matching)
Source Port	AnySingle0 (Range: 0 - 65535)Range0 - 65535 (Range: 0 - 65535)
Destination Port	AnySingle(Range: 0 - 65535)0 (Range: 0 - 65535)Range(Range: 0 - 65535)0 - 65535 (Range: 0 - 65535)
TCP Flags	UrgSetUnsetDon't CareAckSetUnsetDon't CarePshSetUnsetDon't CareRstSetUnsetDon't CareSynSetUnsetDon't CareFinSetUnsetDon't Care
Type of Service	AnyDSCP to match0 (Range: 0 - 63)IP Precedence to match0 (Range: 0 - 7)
ICMP	AnySelect from listEcho ReplyProtocol ID to match0 (Range: 0 - 255)
ICMP Code	AnyUser Defined0 (Range: 0 - 255)

Add

Figure 4-10-7 IP-based ACE Page Screenshot

The page includes the following fields:

Object Description
ACL Name	Select ACL name from this drop-down list.
Sequence	Set the ACL sequence.
Action	Indicates the forwarding action of the ACE.■Permit: Frames matching the ACE may be forwarded and learned.■Deny: Frames matching the ACE are dropped.■Shutdown: Port shutdown is disabled for the ACE.
Protocol	Specify the protocol filter for this ACE.■Any(IP): No protocol filter is specified.■Select from list: If you want to filter a specific protocol with this ACE, choose this value and select protocol for this drop down list.■Protocol ID to match: I If you want to filter a specific protocol with this ACE, choose this value and set correct protocol ID.
Source IP Address	Specify the Source IP address filter for this ACE.■Any: No source IP address filter is specified.■User Defined: If you want to filter a specific source IP address with this ACE, choose this value. A field for entering a source IP address value appears.
Source IP Address Value	When "User Defined" is selected for the source IP address filter, you can enter a specific source IP address. The legal format is "xxx.xxx.xxx.xxx". A frame that hits this ACE matches this source IP address value.
Source IP Wildcard Mask	When "User Defined" is selected for the source IP filter, you can enter a specific SIP mask in dotted decimal notation.
Destination IP Address	Specify the Destination IP address filter for this ACE.■Any: No destination IP address filter is specified.■User Defined: If you want to filter a specific destination IP address with this ACE, choose this value. A field for entering a source IP address value appears.
Destination IP Address Value	When "User Defined" is selected for the destination IP address filter, you can enter a specific destination IP address. The legal format is "xxx.xxx.xxx.xxx". A frame that hits this ACE matches this destination IP address value.
Destination IP Wildcard Mask	When "User Defined" is selected for the destination IP filter, you can enter a specific DIP mask in dotted decimal notation.
Source Port	Specify the source port for this ACE.■Any: No specific source port is specified (source port status is "don't-care").■Single: If you want to filter a specific source port with this ACE, you can enter a specific source port value. A field for entering a source port value appears. The allowed range is 0 to 65535. A frame that hits this ACE matches this source port value.
	■ Range: If you want to filter a specific source port range filter with this ACE, you can enter a specific source port range value. A field for entering a source port value appears. The allowed range is 0 to 65535. A frame that hits this ACE matches this source port value.
• Destination Port	ort for this ACE. Specify the destination p■ Any: No specific destination port is specified (destination port status is "don't-care").■ Single: If you want to filter a specific destination port with this ACE, you can enter a specific destination port value. A field for entering a destination port value appears. The allowed range is 0 to 65535. A frame that hits this ACE matches this destination port value.■ Range: If you want to filter a specific destination port range filter with this ACE, you can enter a specific destination port range value. A field for entering a destination port value appears.
• TCP Flags	UGR Specify the TCP "Urgent Pointer field significant" (URG) value for this ACE.■ Set: TCP frames where the URG field is set must be able to match this entry.■ Unset: TCP frames where the URG field is set must not be able to match this entry.■ Don't Care: Any value is allowed ("don't-care").
	ACK Specify the TCP "Acknowledgment field significant" (ACK) value for this ACE.■ Set: TCP frames where the ACK field is set must be able to match this entry.■ Unset: TCP frames where the ACK field is set must not be able to match this entry.■ Don't Care: Any value is allowed ("don't-care").
	PSH Specify the TCP "Push Function" (PSH) value for this ACE.■ Set: TCP frames where the PSH field is set must be able to match this entry.■ Unset: TCP frames where the PSH field is set must not be able to match this entry.■ Don't Care: Any value is allowed ("don't-care").
	RST	■ Specify the TCP "Reset t he connection" (RST) value for this ACE.■ Set: TCP frames where the RST field is set must be able to match this entry.■ Unset: TCP frames where the RST field is set must not be able to match this entry.■ Don't Care: Any value is allowed ("don't-care").
		E.S
		■ Set: TCP frames where the SYN field is set must be able to match this entry.■ Unset: TCP frames where the SYN field is set must not be able to match this entry.■ Don't Care: Any value is allowed ("don't-care").
	FIN Specify the TCP "No more data from sender" (FIN) value for this ACE.■ Set: TCP frames where the FIN field is set must be able to match this entry.■ Unset: TCP frames where the FIN field is set must not be able to match this entry.■ Don't Care: Any value is allowed ("don't-care").
• Type of Service	Specify the type of service for this ACE.■ Any: No specific type of service is specified (destination port status is on"d t-care").■ DSCP: If you want to filter a specific DSCP with this ACE, you can enter a specific DSCP value. A field for entering a DSCP value appears. The allowed range is 0 to 63. A frame that hits this ACE matches this DSCP value.■ ifRecedence: If you want to filter a specific DSCP with this ACE, you can enter a specific IP recedence value. A field for entering an IP recedence value appears. The allowed range is 0 to 7. A frame that hits this ACE matches this I recedence va
• ICMP	Specify the ICMP for this ACE.■ Any: No specific ICMP is specified (destination port status is "don't-care").■ List: If you want to filter a specific list with this ACE, you can select a specific list value.■ Protocol ID: If you want to filter a specific protocol ID filter with this ACE, you can enter a specific protocol ID value. A field for entering a protocol ID value appears. The allowed range is 0 to 255. A frame that hits this ACE matches this protocol ID value.
• ICMP Code	Specify the ICMP code filter for this ACE.■ Any: No ICMP code filter is specified (ICMP code filter status is "don't-care").■ User Defined: If you want to filter a specific ICMP code filter with this ACE, you can enter a specific ICMP code value. A field for entering an ICMP code value appears. The allowed range is 0 to 255. A frame that hits this ACE matches this ICMP code value.

Add

Click to add ACE list.

ACL Name

Sequence

Action

Protocol

Source IP Address

Destination IP Address

Source Port Range

Destination Port Range

Flag Set

DSCP

IP Precedence

ICMP Type

ICMP Code

Modify

IP Address

Wildcard Mask

IP Address

Wildcard Mask

Figure 4-10-8 IPv4-based ACE Table Page Screenshot

The page includes the following fields:

Object Description
ACL Name	name Display the current ACL
Sequence	Display the current sequence
Action	Display the current action
Protocol	Display the current protocol
Source IP Address	Display the current source IP address
Source IP Address Wildcard Mask	Display the current source IP address wildcard mask
Destination IP Address	Display the current destination IP address
Destination IP Address Wildcard Mask	address wildcard mask Display the current destination IP
Source Port Range	Display the current source port range
Destination Port Range	Display the current destination port range
Flag Set	Display the current flag set
DSCP	current DSCP Display the
IP Precedence	Display the current IP precedence
ICMP Type	Display the current ICMP Type
ICMP Code	Display the current ICMP code
Modify	Click Edit to edit IPv4-based ACL parameterClick Delete to delete IPv4-based ACL entry

4.10.5 IPv6-based ACL

This page shows the ACL status by different ACL users. Each row describes the ACE that is defined. It is a conflict if a specific ACE is not applied to the hardware due to hardware limitations. IPv6-based ACL screens in Figure 4-10-9 & Figure 4-10-10 appear.

IPv6-Based ACL ACL Name Add

Figure 4-10-9 IPv6-based ACL Page Screenshot

The page includes the following fields:

Object Description
• ACL Name	Create a name from IPv6-based ACL list

Buttons

Add

: Click to add ACL name list.

ACL Table ACL Name Delete

Figure 4-10-10 ACL Table Page Screenshot

The page includes the following fields:

Object Description
• Delete	Click to delete ACL name entry

4.10.6 IPv6-based ACE

An ACE consists of several parameters. Different options are displayed depending on

n the frame type that you select.

The IPv6-based ACE screens in Figure 4-10-11 & Figure 4-10-12 appear.

IPv6-Based ACE

ACL Name
Sequence	(Range: 1 - 2147483647, 1 is first processed)
Action	PermitDenyShutdown
Protocol	Any(IP)Select from list tcp
Source IP Address	AnyUser Defined
Source IP Address Value
Source IP Prefix Length	(Range: 0 - 128)
Destination IP Address	AnyUser Defined
Destination IP Address Value
Destination IP prefix Length	(0s for matching, 1s for no matching)
Source Port	AnySingle (Range: 0 - 65535)Range (Range: 0 - 65535)
Destination Port	AnySingle(Range: 0 - 65535) (Range: 0 - 65535)Range(Range: 0 - 65535) (Range: 0 - 65535)
TCP Flags	Urg Set Unset Don't CareAck Set Unset Don't CarePsh Set Unset Don't CareRst Set Unset Don't CareSyn Set Unset Don't CareFin Set Unset Don't Care
Type of Service	AnyDSCP to match (Range: 0 - 63)IP Precedence to match (Range: 0 - 7)
ICMP	AnySelect from list destinationProtocol ID to match (Range: 0 - 255)
ICMP Code	AnyUser Defined (Range: 0 - 255)

Figure 4-10-11 IP-based ACE Page Screenshot

The page includes the following fields:

Object Description
ACL Name	Select ACL name from this drop-down list
Sequence	Set the ACL sequence
Action	Indicates the forwarding action of the ACEPermit: Frames matching the ACE may be forwarded and learned.Deny: Frames matching the ACE are dropped.Shutdown: Port shutdown is disabled for the ACE.
Protocol	Specify the protocol filter for this ACEAny(IP): No protocol filter is specified.Select from list: If you want to filter a specific protocol with this ACE, choose this value and select protocol for this drop down list.
Source IP Address	Specify the Source IP address filter for this ACEAny: No source IP address filter is specified.User Defined: If you want to filter a specific source IP address with this ACE, choose this value. A field for entering a source IP address value appears.
Source IP Address Value	When "User Defined" is selected for the source IP address filter, you can enter a specific source IP address. The legal format is "xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx". A frame that hits this ACE matches this source IP address value.
Source IP Prefix Length	When "User Defined" is selected for the source IP filter, you can enter a specific SIP prefix length in dotted decimal notation.
Destination IP Address	Specify the Destination IP address filter for this ACE.Any: No destination IP address filter is specified.User Defined: If you want to filter a specific destination IP address with this ACE, choose this value. A field for entering a source IP address value appears.
Destination IP Address Value	When "User Defined" is selected for the destination IP address filter, you can enter a specific destination IP address. The legal format is "xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx". A frame that hits this ACE matches this destination IP address value.
Destination IP Prefix Length	When "User Defined" is selected for the destination IP filter, you can enter a specific DIP prefix length in dotted decimal notation.
Source Port	Specify the source port for this ACE.Any: No specific source port is specified (source port status is "don't-care").Single: If you want to filter a specific source port with this ACE, you can enter a specific source port value. A field for entering a source port value appears. The allowed range is 0 to 65535. A frame that hits this ACE
	matches this source port value.■Range:If you want to filter a specific source port range filter with this ACE, you can enter a specific source port range value. A field for entering a source port value appears. The allowed range is 0 to 65535. A frame that hits this source port value. ACE matches this s
• Destination Port	Specify the destination port for this ACE.■Any:No specific destination port is specified (destination port status is "don't-care").■Single:If you want to filter a specific destination port with this ACE, you can enter a specific destination port value. A field for entering a destination port value appears. The allowed range is 0 to 65535. A frame that hits this ACE matches this destination port value.■Range:If you want to filter a specific destination port range filter with this ACE, you can enter a specific destination port range value. A field for entering a destination port value appears.
• TCP Flags	UGR Specify the TCP "Urgent Pointer field significant" (URG) value for this ACE.■Set:TCP frames where the URG field is set must be able to match this entry.■Unset:TCP frames where the URG field is set must not be able to match this entry.■Don't Care:Any value is allowed ("don't-care").
	ACK Specify the TCP "Acknowledgment field significant" (ACK) value for this ACE.■Set:TCP frames where the ACK field is set must be able to match this entry.■Unset:TCP frames where the ACK field is set must not be able to match this entry.■Don't Care:Any value is allowed ("don't-care").
	PSH Specify the TCP "Push Function" (PSH) value for this ACE.■Set:TCP frames where the PSH field is set must be able to match this entry.■Unset:TCP frames where the PSH field is set must not be able to match this entry.■Don't Care:Any value is allowed ("don't-care").
	RST Specify the TCP "Reset the connection" (RST) value for this ACE.■Set:TCP frames where the RST field is set must be able to match this entry.■Unset:TCP frames where the RST field is set must not be able to
		match this entry.■ Don't Care: Any value is allowed ("don't-care").
	SYN Specify the TCP "Synchronize sequence numbers" (SYN) value for this ACE.■ Set: TCP frames where the SYN field is set must be able to match this entry.■ Unset: TCP frames where the SYN field is set must not be able to match this entry.■ Don't Care: Any value is allowed ("don't-care").
	FIN Specify the TCP "No more data from sender" (FIN) value for this ACE.■ Set: TCP frames where the FIN field is set must be able to match this entry.■ Unset: TCP frames where the FIN field is set must not be able to match this entry.■ Don't Care: Any value is allowed ("don't-care").
• Type of Service	y thSpecif e type of service for this ACE.■ Any: No specific type of service is specified (destination port status is "don't-care").■ DSCP: If you want to filter a specific DSCP with this ACE, you can enter a specific DSCP value. A field for entering a DSCP value appears. The allowed range is 0 to 63. A frame that hits this ACE matches this DSCP value.■ IP Recedence: If you want to filter a specific IP recedence with this ACE, you n eca nter a specific IP recedence value. A field for entering a IP recedence value appears. The allowed range is 0 to 7. A frame that hits this ACE matches this IP recedence value.
• ICMP	Specify the ICMP for this ACE.■ Any: No specific ICMP is specified (destination port status is "don't-care").■ List: If you want to filter a specific list with this ACE, you can select a specific list value.■ Protocol ID: If you want to filter a specific protocol ID filter with this ACE, you can enter a specific protocol ID value. A field for entering a protocol ID value appears. The allowed range is 0 to 255. A frame that hits this ACE matches this protocol ID value.
• ICMP Code	Specify the ICMP code filter for this ACE.■ Any: No ICMP code filter is specified (ICMP code filter status is "don't-care").■ User Defined: If you want to filter a specific ICMP code filter with this ACE, you can enter a specific ICMP code value. A field for entering an ICMP code value appears. The allowed range is 0 to 255. A frame that hits this ACE matches this ICMP code value.

Buttons

Add

Click to add ACE list

ACL Name

Sequence

Action

Protocol

Source IP Address

Destination IP Address

Source Port Range

Destination Port Range

Flag Set

DSCP

IP Precedence

ICMP Type

ICMP Code

Modify

IP Address

Wildcard Mask

IP Address

Wildcard Mask

Figure 4-10-12 C#6-base Page Screenshot

The page includes the following fields:

Object Description
ACL Name	Display the current ACL name
Sequence	Display the current sequence
Action	ction Display the current a
Protocol	Display the current protocol
Source IP Address	Display the current source IP address
Source IP Address Wildcard Mask	Display the current source IP address wildcard mask
Destination IP Address	Display the current destination IP address
Destination IP Address Wildcard Mask	Display the current destination IP address wildcard mask
Source Port Range	Display the current source port range
Destination Port Range	Display the current destination port range
Flag Set	Display the current flag set
DSCP	Display the current DSCP
IP Precedence	Display the current IP precedence
ICMP Type	pe Display the current ICMP Ty
ICMP Code	Display the current ICMP code
Modify	Click Edit to edit IPv6-based ACL parameter.Click Delete to delete IPv6-based ACL entry.

4.10.7 ACL Binding

This page allows you to bind the Policy content to the appropriate ACLs. The ACL Policy screens in Figure 4-10-13 & Figure 4-10-14 appear.

ACL Binding Binding Port ACL Select Select Ports □ MAC-Based ACL □ IPv4-Based ACL □ IPv6-Based ACL Apply

Figure 4-10-13 ACL Binding Page Screenshot

The page includes fields:

Object Description
• Binding Port	list Select port from this drop-down
• ACL Select	p-down list Select ACL list from this dro

Buttons

Apply

: Click to apply changes.

ACL Binding Table Post MAC ACL IPv4 ACL IPv6 ACL Modify

Figuset-10-14 ACL Binding Table Page Scre

The page includes the following fields:

Object Description
• Port	The switch port number of the logical port
• MAC ACL	Display the current MAC ACL
• IPv4 ACL	Display the current IPv4 ACL
• IPv6 ACL	y the curDispla rent IPv6 ACL
• Modify	Click Edit to edit ACL binding table parameterClick Delete to delete ACL binding entry

4.11 MAC Address Table

Switching of frames is based upon the DMAC address contained in the frame. The LRP Managed Switch builds up a table that maps MAC addresses to switch ports for knowing which ports the frames should go to (based upon the DMAC address in the frame). This table contains both static and dynamic entries. The static entries are configured by the network administrator if the administrator wants to do a fixed mapping between the DMAC address and switch ports.

The frames also contain a MAC address (SMAC address), which shows the MAC address of the equipment sending the frame. The SMAC address is used by the switch to automatically update the MAC table with these dynamic MAC addresses. Dynamic entries are removed from the MAC table if no frame with the corresponding SMAC address has been seen after a configurable age time.

4.11.1 Static MAC Setting

The static entries in the MAC table are shown in this table. The MAC table is sorted first by VLAN ID and then by MAC address. The Static MAC Setting screens in Figure 4-11-1 & Figure 4-11-2 appear.

Static MAC Setting MAC Address VLAN Port 00:00:00:00:00:00 default GE1 Add

Figure 4-11-1 Statics MAC Setting Page Screenshot

The page includes the following fields:

Object Description
• MAC Address	Physical address associated with this interface
• VLAN	Select VLAN from this drop-down list
• Port	Select port from this drop-down list

Buttons

Add

: Click to add new static MAC address.

No.	MAC Address	VLAN	Post	Delete
1	00:30:4F:AF:FF:81	default(1)	CPU

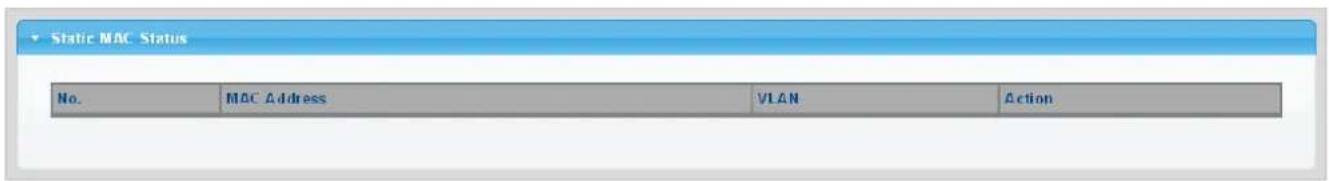

Figure 4-11-2 Statics MAC Status Page Screenshot

he page includes the following fields: T

Object Description
• No.	This is the number for entries
• MAC Address	The MAC address for the entry
• VLAN	The VLAN ID for the entry
• Port	Display the current port
• Delete	Click to delete static MAC status entry

4.11.2 MAC Filtering

By filtering MAC address, the switch can easily filter the pre-configured MAC address and reduce the un-safety. The Static MAC Setting screens in Figure 4-11-3 & Figure 4-11-4 appear.

MAC Filtering Setting MAC Address VLAN (1~4094) 00:00:00:00:00:00 1 Add

Figure 4-11-3 MAC Filtering Setting Page Screenshot

The page includes the following fields:

Object Description
• MAC Address	Physical address associated with this interface
• VLAN (1~4096)	Indicates the ID of this particular VLAN

Buttons

Add

: Click to add new MAC filtering setting.

Static MAC Status No. MAC Address VLAN Action

Figure 4-11-4 Statics MAC Status Page Screenshot

The page includes the following fields:

Object Description
• No.	This is the number for entries
• MAC Address	The MAC address for the entry
• VLAN	The VLAN ID for the entry
• Delete	Click to delete static MAC status entry.

4.11.3 Dynamic Address Setting

By default, dynamic entries are removed from the MAC table after 300 seconds. The Dynamic Address Setting/Status screens in Figure 4-11-5 & Figure 4-11-6 appear.

Dynamic Address Setting Aging Time 300 (Range: 10 - 630) Apply

Figure 4-11-5 Dynamic Addresses Setting Page Screenshot

he page includes the following fields: T

Object Description
• Aging Time	which a learned entry is discarded The time after (Range: 10-630 seconds; Default: 300 seconds)

Buttons

Apply

: Click to apply changes.

Dynamic Address Status Information Name Information Value Aging time 300

Figure 4-11-6 Dynamic Addresses Status Page Screenshot

The pages through following fields:

Object Description
• Aging Time	Display the current aging time

4.11.4 Dynamic Learned

Dynamic MAC Table

The Dynamically Learned MAC Table is shown on this page. The MAC Table is sorted first by VLAN ID and then by MAC address. The Dynamically Learned screens in Figure 4-11-6 & Figure 4-11-7 appear.

Port GE1 VLAN default MAC Address 00:00:00:00:00:00 View Clear

Figure 4-11-6 Dynamically Learned Page Screenshot

The page includes the following fields:

Object Description
• Port	Select port from this drop-down list
• VLAN	rom this drop-down list Select VLAN f
• MAC Address	Physical address associated with this interface

Buttons

View

: Refreshes the able starting from the "Start from MAC address" and "VLAN" input fields displayed t

Clear

Flushes all dynamic entries

MAC Address Information MAC Address VLAN Type Port 40:61:86:04:18:59ITCHEN default(1) Dynamic GE1 Add to Static MAC table Total Entries:1

Figure 4-11-7 MAC Address Information Page Screenshot

Object Description
• MAC Address	The MAC address of the entry
• VLAN	The VLAN ID of the entry
• Type	Indicates whether the entry is a static or dynamic entry
• Port	The ports that are members of the entry

Buttons

Add to Static MAC table

Click to add dynamic MAC address to static MAC address.

4.12 LLDP

4.12.1 Link Layer Discovery Protocol

Link Layer Discovery Protocol (LLDP) is used to discover basic information about neighboring devices on the local broadcast domain. LLDP is a Layer 2 protocol that uses periodic broadcasts to advertise information about the sending device. Advertised information is represented in Type Length Value (TLV) format according to the IEEE 802.1ab standard, and can include details such as device identification, capabilities and configuration settings. LLDP also defines how to store and maintain information gathered about the neighboring network nodes it discovers.

Link Layer Discovery Protocol - Media Endpoint Discovery (LLDP-MED) is an extension of LLDP intended for managing endpoint devices such as Voice over IP phones and network switches. The LLDP-MED TLVs advertise information such as network policy, power, inventory, and device location details. LLDP and LLDP-MED information can be used by SNMP applications to simplify troubleshoot@networketopetwork management, and maintain an accu

4.12.2 LLDP Sletbitalg

This page allows the user to inspect and configure the current LLDP port settings. The LLDP Global Setting and Config screens in Figure 4-12-1 & Figure 4-12-2 appea

Global Settings

Enabled	Enabled Disabled
LLDP PDU Disable Action	Filtering Bridging Flooding
Transmission Interval	30 (5-32768)
Holdtime Multiplier	4 (2-10)
Reinitialization Delay	2 (1-10)
Transmit Delay	2 (1-8192)
LLDP-MED Fast Start Repeat Count	3 (1-10)

Apply

Figure 4-12-1 Global Setting Page Screenshot

The page includes the following fields:

Object Description
Enable	Globally enable or disable LLDP function
LLDP PDU Disable Action	Set LLDP PDU disable action: include “Filtering”, “Bridging” and “Flooding”.■ Filtering: discard all LLDP PDUs.■ Bridging: transmit LLDP PDU in the same VLAN.■ Flooding: transmit LLDP PDU for all port.
Transmission Interval	The switch is periodically transmitting LLDP frames to its neighbors for having the network discovery information up-to-date. The interval between each LLDP frame is determined by the Transmission Interval value. Valid values are restricted to 5 - 32768 seconds.Default: 30 secondsply with the following rule: This attribute must com(Transmission Interval * Hold Time Multiplier) ≤65536, and Transmission Interval >= (4 * Delay Interval)
Holdtime Multiplier	Each LLDP frame contains information about how long the information in the LLDP frame shall be considered valid. The LLDP information valid period is set to Holdtime multiplied by Transmission Interval seconds. Valid values are restricted to 2 - 10 times.TTL in seconds is based on the following rule:(Transmission Interval * Holdtime Multiplier) ≤ 65536.Therefore, the default TTL is 4*30 = 120 seconds.
Reinitialization Delay	When a port is disabled, LLDP is disabled or the switch is rebooted a LLDP shutdown frame is transmitted to the neighboring units, signaling that the LLDP information isn't valid anymore. TX Reinit controls the amount of seconds between the shutdown frame and a new LLDP initialization. Valid values are restricted to 1 - 10 seconds.
Transmit Delay	If some configuration is changed (e.g. the IP address) a new LLDP frame is transmitted, but the time between the LLDP frames will always be at least the value of Transmit Delay seconds. Transmit Delay cannot be larger than 1/4 of the Transmission Interval value. Valid values are restricted to 1 - 8192 seconds.This attribute must comply with the rule:(4 * Delay Interval) ≤Transmission Interval
LLDP-MED Fast Start Repeat Count	Configuses the transmit during the P MED Fast Start LLDP activation process of the LLDP-MED Fast Start mechanism.Range: 1-10 packets;Default: 3 packetsThe MED Fast Start Count parameter is part of the timer which ensures that the LLDP-MED Fast Start mechanism is active for the port. LLDP-MED Fast Start is critical to the timely startup of LLDP, and therefore integral to the rapid availability of Emergency Call Service.

Buttons

Apply

: Click to apply changes.

LLDP Global Config

Config Name	Config Value
LLDP Enabled	Enabled
LLDP PDU Disable Action	Flooding
Transmission Interval	30 Secs
Holdtme Multiplier	4
Reinitialization Delay	2 Secs
Transmit Delay	2 Secs
LLDP-MED Fast Start Repeat Count	3 PDUs

Figure 4-12-2 LLDP Global Config Page Screenshot

The page includes the following fields:

Object Description
• LLDP Enable	Display the current LLDP status
• LLDP PDU Disable Action	Display the current LLDP PDU disable action
• Transmission Interval	Display the current transmission interval
• Holdtime Multiplier	Display the current holdtime multiplier
• Reinitialization Delay	Display the current reinitialization delay
• Transmit Delay	Display the current transmit delay
• LLDP-MED Fast Start Repeat Count	Di MED Fast Start Repeat Count splay the current LLDP-

4.12.3 LLDP Port Setting

Use the LLDP RargSettigutespecifydlivone interfaces, including whether messages are

transmitted, received, or both transmitted and received. The LLDP Port Configuration and Status screens in Figure 4-12-3 &

Figure 4-12-4 appear.

LLDP Port Configuration Port Select State Select Ports Disable Apply Optional TLVs Selection Port Select Optional TLV Select Select Ports Select Optional TLVs Apply

Figure 4-12-3 LLDP Port Configuration and Optional TLVs Selection Page Screenshot

he page includes the following fields: T

Object Description
• Port Select	Select port from this drop-down list
• State	Enables LLDP messages transmit and receive modes for LLDP Protocol Data Units. Options:■ TX only■ RX only■ Tx RX■ Disabled
• Port Select	Select port from this drop-down list
• Optional TLV Select	Configures the information included in the TLV field of advertised messages.■ System Name: When checked the "System Name" is included in LLDP information transmitted.■ Port Description: When checked the "Port Description" is included in LLDP information transmitted.■ System Description: When checked the "System Description" is included in LLDP information transmitted.■ System Capability: When checked the "System Capability" is included in LLDP information transmitted.■ 802.3 MAC-PHY: When checked the "802.3 MAC-PHY" is included in LLDP information transmitted.■ 802.3 Link Aggregation: When checked the "802.3 Link Aggregation" is included in LLDP information transmitted.■ 802.3 Maximum Frame Size: When checked the "802.3 Maximum Frame Size" is included in LLDP information transmitted.■ Management Address: When checked the "Management Address" is included in LLDP information transmitted.■ 802.1 PVID: When checked the "802.1 PVID" is included in LLDP information transmitted.

Buttons

Apply

: Click to apply changes

LLDP Port Status

Port	State	Selected Optional TLVs
GE1	TX&RX	802.1 PVID
GE2	TX&RX	802.1 PVID
GE3	TX&RX	802.1 PVID
GE4	TX&RX	802.1 PVID
GE5	TX&RX	802.1 PVID
GE6	TX&RX	802.1 PVID
GE7	TX&RX	802.1 PVID
GE8	TX&RX	802.1 PVID
GE9	TX&RX	802.1 PVID
GE10	TX&RX	802.1 PVID

Figure 4-12-4 LLDP Port Status Page Screenshot

The page includes the following fields:

Object Description
• Port	rt The switch port number of the logical po
• State	Display the current LLDP status
• Selected Optional TLVs	Display the current selected optional TLVs

The VLAN Name TLV VLAN Selection and LLDP Port VLAN TLV Status screens in Figure 4-12-5 & Figure 4-12-6 appear.

VLAN Name TLV VLAN Selection Port Select VLAN Select Select Ports Select VLANs Apply

rEigu 2+5RalgENskareresTibV Selecti

The page includes the following fields:

Object Description
• Port Select	Select port from this drop-down list.
• VLAN Select	Select VLAN from this drop-down list.

Buttons

Apply

: Click to apply changes.

Port	Selected VLAN
GE1
GE2
GE3
GE4
GE5
GE6
GE7
GE8
GE9
GE10

Figure 4-12-6 LLDP Port VLAN TLV Status Page Screenshot

The page includes the following fields:

Object Description
• Port	The switch port number of the logical port
• Selected VLAN	Display the current selected VLAN

4.12.4 LLDP Local Device

Use the LLDP Local Device Information screen to display information about the switch, such as its MAC address, chassis ID, management IP address, and port information. The Local Device Summary and Port Status screens in Figure 4-12-7 & Figure 4-12-8 appear.

Chassis ID Subtype	MAC Address
Chassis ID	00:30:4F:AF:FF:81
System Name	GSD-1002M
System Description	V1
Capabilities Supported	Bridge
Capabilities Enabled	Bridge
Port ID Subtype	Interface name

Figure 4-12-7 Local Device Summary Page Screenshot

The page includes the following fields:

Object Description
• Chassis ID Subtype	Display the current chassis ID subtype
• Chassis ID	Display the current chassis ID
• System Name	Display the current system name
• System Description	Display the current system description
• Capabilities Supported	Display the current capabilities supported
• Capabilities Enabled	Display the current capabilities enabled
• Port ID Subtype	Display the current port ID subtype

	Interface	LLDP Status	LLDP Med Status
○	GE1	TX & RX	Enabled
○	GE2	TX & RX	Enabled
○	GE3	TX & RX	Enabled
○	GE4	TX & RX	Enabled
○	GE5	TX & RX	Enabled
○	GE6	TX & RX	Enabled
○	GE7	TX & RX	Enabled
○	GE8	TX & RX	Enabled
○	GE9	TX & RX	Enabled
○	GE10	TX & RX	Enabled

Figure 4-12-8 Port Status Page Screenshot

The page includes the following fields:

Object Description
• Interface	The switch port number of the logical port.
• LLDP Status	rrent LLDP status Display the cu
• LLDP MED Status	Display the current LLDP MED Status

4.12.5 LLDP Remote Device

This page provides a status overview for all LLDP remote devices. The displayed table contains a row for each port on which an LLDP neighbor is detected. The LLDP Remote Device screen in Figure 4-12-9 appears.

LLDP Remote Device Detail Delete Refresh Sel Local Port Chassis ID Subtype Chassis ID Port ID Subtype Port ID System Name Time to Live

Figure 4-12-9 LLDP Remote Device Page Screenshot

The page includes the following fields:

Object Description
• Local Port	Display the current local port
• Chassis ID Subtype	Display the current chassis ID subtype
• Chassis ID	The Chassis ID is the identification of the neighbor's LLDP frames
• Port ID Subtype	Display the current port ID subtype
• Port ID	The Remote Port ID is the identification of the neighbor port
• System Name	System Name is the name advertised by the neighbor unit
• Time to Live	Display the current time to live

Buttons

Delete

: Click to delete LLDP remote device entry.

Refresh

: Click to refresh LLDP remote device.

4.12.6 MED Network Policy

Network Policy Disaffinity describes the

ry and diagnosis of mismatch issues with the VLAN configuration, along

with the associated Layer32a1b1 layer, which apply for a s

et of specific protocol applications on that port. Improper

network policy configurations are a significant reispectively result in microematurity degradation

or loss of service.

Policies are only intended for uppliatiensehabhapelisperificrealintesuch as interactive

voice and/or video services.

The network policy attributes advertised are:

1. Layer 2 VLAN ID (IEEE 802.1Q-2003)
2. Layer 2 priority value (IEEE 8002-2004)
3. Layer 3 Diffserv code point (DSCP) value (IETF RFC 2474)

This network policy is potentially advertised and associated with multiple sets of application types supported on a given port.

The application types specifically addressed are:

1. Voice
2. Guest Voice
3. Softphone Voice
4. Video Conferencing
5. Streaming Video
6. Control / Signaling (conditionally support a separate network policy for the media types above)

A large network may support multiple VoIP policies across the entire organization, and different policies per application type.

LLDP-MED allows multiple policies to be advertised per port, each corresponding to a different application type. Different ports on the same Network Connectivity Device may advertise different sets of policies, based on the authenticated user identity or port configuration.

It should be noted that LLDP-MED is not intended to run on links other than between Network Connectivity Devices and

Endpoints, and therefore does not need to advertise the multitude of network policies that frequently run on an aggregated link interior to the LAN.

The Voice Auto Mode Configuration, Network Policy Configuration and LLDP MED Network Policy Table screens in Figure 4-12-10 & Figure 4-12-11 appear.

Voice Auto Mode Configuration

LLDP MED Policy for Voice Application

Auto Manual

Apply

Network Policy Configuration

Network Policy Number	1
Application	Voice
VLAN ID	1 (1-4094)
VLAN Tag	Tagged Untagged
L2 Priority	0 (0-7)
DSCP Value	0 (0-63)

Apply

Figure 4-12-10 Voice Auto Mode Configuration and Network Policy Configuration Page Screenshot

The e following fields: page includes th

Object Description
LLDP MED Policy for Voice Application	Set the LLDP MED policy for voice application mode
Network Policy Number	Select network policy number for this drop down list
Application Type	Intended use of the application types:Voice- for use by dedicated IP Telephony handsets and other similar appliances supporting interactive voice services. These devices are typically deployed on a separate VLAN for ease of deployment and enhanced security by isolation from data applications.Voice Signaling- for use in network topologies that require a different policy for the voice signaling than for the voice media. This application type should not be advertised if all the same network policies apply as those advertised in the Voice application policy.Guest Voice- support a separate 'limited feature-set' voice service for guest users and visitors with their own IP Telephony handsets and other similar appliances supporting interactive voice services.Guest Voice Signaling- for use in network topologies that require a different policy for the guest voice signaling than for the guest voice media. This application type should not be advertised if all the same network policies apply as those advertised in the Guest Voice application policy.Softphone Voice - for use by softphone applications on typical data centric devices, such as PCs or laptops. This class of endpoints frequently does not support multiple VLANs, if at all, and are typically configured to use an 'untagged' VLAN or a single 'tagged' data specific VLAN. When a network policy is defined for use with an 'untagged' VLAN (see Tagged flag below), then the L2 priority field is ignored and only the DSCP value has relevance.Video Conferencing- for use by dedicated Video Conferencing equipment and other similar appliances supporting real-time interactive video/audio services.App Streaming Video- for use by broadcast or multicast based video content distribution and other similar applications supporting streaming video services that require specific network policy treatment. Video applications relying on TCP with buffering would not be an intended use of this application type.Video Signaling- for use in network topologies that require a separate policy for the video signaling than for the video media. This application type should not be advertised if all the same network policies apply as those advertised in the Video Conferencing application policy.
• VLAN ID	VLAN identifier (VID) for the port as defined in IEEE 802.1Q-2003
• Tag	Tag indicating whether the specified application type is using a 'tagged' or an 'untagged' VLAN.Untagged indicates that the device is using an untagged frame format and as such does not include a tag header as defined by IEEE 802.1Q-2003. In this case, both the VLAN ID and the Layer 2 priority fields are ignored and only the DSCP value has relevance.Tagged indicates that the device is using the IEEE 802.1Q tagged frame format, and that both the VLAN ID and the Layer 2 priority values are being used, as well as the DSCP value. The tagged format includes an additional field, known as the tag header. The tagged frame format also includes priority tagged frames as defined by IEEE 802.1Q-2003.
• L2 Priority	L2 Priority is the Layer 2 priority to be used for the specified application type. L2 Priority may specify one of eight priority levels (0 through 7), as defined by IEEE 802.1D-2004. A value of 0 represents use of the default priority as defined in IEEE 802.1D-2004.
• DSCP	DSCP value to be used to provide Diffserv node behavior for the specified application type as defined in IETF RFC 2474. DSCP may contain one of 64 code point values (0 through 63). A value of 0 represents use of the default DSCP value as defined in RFC 2475.

Buttons

Apply

: Click to apply changes.

LLDP MED Network Policy Table Delete Network Policy Number Application VLAN ID VLAN Tag L2 Priority DSCP Value

Figure 4-12-11 LLDP MED Network Policy Table Page Screenshot

The page includes the following fields:

Object Description
• Network Policy Number	Display the current network policy number
• Application	Display the current application
• VLAN ID	Display the current VLAN ID
• VLAN Tag	Display the current VLAN tag status
• L2 Priority	ority Display the current L2 pri
• DSCP Value	Display the current DSCP value

Buttons

Delete

Click to delete LLDP MED network policy table entry.

4.12.7 MED Port Setting

The Port LLDP MED Configuration/Port Setting Table screens in Figure 4-12-12 & Figure 4-12-13 appear.

Port LLDP MED Configuration

Port Select	MED Enable	MED Optional TLVs	MED Network Policy
Select Ports	Enable	Select Optional TLVs	Select Optional TLVs

Figure 4-12-12 enshot Port LLDP MED Configuration Page Scre

includes the following fields: The page

Object Description
• Port Select	Select port from this drop-down list
• MED Enable	Enable or disable MED configuration
• MED Optional TVLs	Configures the information included in the MED TLV field of advertised messages.-Network Policy – This option advertises network policy configuration information, aiding in the discovery and diagnosis of VLAN configuration mismatches on a port. Improper network policy configurations frequently result in voice quality degradation or complete service disruption.-Location – This option advertises location identification details.-Inventory – This option advertises device details useful for inventory management, such as manufacturer, model, software version and other pertinent information.
• MED Network Policy	Select MED network policy from this drop-down list

Buttons

Apply

: Click to apply changes.

LLDP MEO Port Setting Table

Interface	LLDP MED Status	User Defined Network Policy		Location	Inventory
		Active	Application
GE1	Enabled	Yes		No	No
GE2	Enabled	Yes		No	No
GE3	Enabled	Yes		No	No
GE4	Enabled	Yes		No	No
GE5	Enabled	Yes		No	No
GE6	Enabled	Yes		No	No
GE7	Enabled	Yes		No	No
GE8	Enabled	Yes		No	No
GE9	Enabled	Yes		No	No
GE10	Enabled	Yes		No	No

Figure 4-12-13 Port LLDP MED Configuration Page Screenshot

The page includes the following fields:

Object Description
• Interface	The switch port number of the logical port
• LLDP MED Status	Display the current LLDP MED status
• Active	Display the current active status
• Application	Display the current application
• tiona	Display the current location
• Inventory	Display the current inventory

The MED Location Configuration and LLDP MED Port Location Table screens in Figure 4-12-14 & Figure 4-12-15 appear.

MED Location Configuration

Ports	Select Ports
Location Coordinate	(16 pairs of hexadecimal characters)
Location Civic Address	(6-160 pairs of hexadecimal characters)
Location ECS ELIN	(10-25 pairs of hexadecimal characters)

Figure 4-12-14 Port LLDP MED Configuration Page Screenshot

The page includes the following fields:

Object Description
• Port	Select port from this drop-down list
• Location Coordinate	A string identifying the Location Coordinate that this entry should belong to
• Location Civic Address	A string identifying the Location Civic Address that this entry should belong to
• Location ESC ELIN	A string identifying the Location ESC ELIN that this entry should belong to

Buttons

Apply

: Click to apply changes.

▼ ILOP MED Port Location Table

Port	Coordinate	Civic Address	ECS ELIN
GE1
GE2
GE3
GE4
GE5
GE6
GE7
GE8
GE9
GE10

Figure 4-12-15 LLDP MED Port Location Table Page Screenshot

lowing fields: The page includes the fol

Object Description
• Port	The switch port number of the logical port
• Coordinate	Display the current coordinate
• Civic Address	Display the current civic address
• ESC ELIN	Display the current ESC ELIN

4.12.8 LLDP Overloading

The LLDP Port Overloading screen in Figure 4-12-16 appears.

Interface

Total(Bytes)

Left to Send(Bytes)

Status

Status

Mandatory TLVs

MED Capabilities

MED Location

MED Network Policy

MED Extended Power via MDI

802.3 TLVs

Optional TLVs

MED Inventory

802.1 TLVs

GE1

48

1440

Not Overloading

21(Transmitted)

9(Transmitted)

10(Transmitted)

6(Transmitted)

GE2

48

1440

Not Overloading

21(Transmitted)

9(Transmitted)

10(Transmitted)

6(Transmitted)

GE3

48

1440

Not Overloading

21(Transmitted)

9(Transmitted)

10(Transmitted)

6(Transmitted)

GE4

48

1440

Not Overloading

21(Tranomitted)

9(Transmitted)

10(Transmitted)

6(Transmitted)

GE5

48

1440

Not Overloading

21(Transmitted)

9(Transmitted)

10(Transmitted)

6(Transmitted)

GE6

48

1440

Not Overloading

21(Transmitted)

9(Transmitted)

10(Transmitted)

6(Transmitted)

GE7

48

1440

Not Overloading

21(Transmitted)

9(Transmitted)

10(Transmitted)

6(Transmitted)

GE8

48

1440

Not Overloading

21(Transmitted)

9(Transmitted)

10(Transmitted)

6(Transmitted)

GE9

48

1440

Not Overloading

21(Tranomitted)

9(Transmitted)

10(Transmitted)

6(Transmitted)

GE10

49

1439

Not Overloading

22(Transmitted)

9(Transmitted)

10(Transmitted)

6(Transmitted)

Figure 4-12-16 LLDP Port Overloading Table Page Screenshot

The page includes the following fields:

Object Description
• Interface	The switch port number of the logical port
• Total (Bytes)	Total number of bytes of LLDP information that is normally sent in a packet
• Left to Send (Bytes)	Total number of available bytes that can also send LLDP information in a packet

• Status	Gives the status of the TLVs
• Mandatory TLVs	Displays if the mandatory group of TLVs were transmitted or overloaded
• MED Capabilities	nsmitted or overloaded Displays if the capabilities packe
• MED Location	were transmitted or overloaded Displays if the location packets
• MED Network Policy	ckets were transmitted or overloaded Displays if the network policy
• MED Extended Power via MDI	via MDI packets were transmitted or overloaded Displays if the exte
• 802.3 TLVs	Displays if the 802.3 TLVs were transmitted or overloaded
• Optional TLVs	If the LLDP MED extended power via MDI packets were sent, or if they wereoverloaded
• MED Inventory	Displays if the mandatory group of TLVs was transmitted or overloaded
• 802.1 TLVs	Displays if the 802.1 TLVs were transmitted or overloaded

4.12.9 LLDP Statistics

Use the LLDP Device Statistics screen to general statistics for LLDP-capable devices attached to the switch, and for LLDP protocol messages transmitted or received on all local interfaces. The LLDP Global and Port Statistics screens in Figure 4-12-17 & Figure 4-12-18 appear.

TLDP Global Statistics Clear Refresh Insertions 0 Deletions 0 Drops 0 Age Outs 0

Figure 4-12-17 LLDP Global Statistics Page Screenshot

he page includes the following fields: T

Object Description
• insertio	Shows the number of new entries added since switch reboot.\
• Deletions	Shows the number of new entries deleted since switch reboot.\
• Drops	Shows the number of LLDP frames dropped due to that the entry table was full.\
• Age Outs	Shows the number of entries deleted due to Time-To-Live expiring.\

Buttons

Clear

: Click to clear the statistics

Refresh

Click to refresh the statistics

LLDP Port Statistics

Port	TX Frames	RX Frames			RX TLVs		RX Ageouts
	Total	Total	Discarded	Errors	Discarded	Unrecognized	Total
GE1	136	0	0	0	0	0	0
GE2	0	0	0	0	0	0	0
GE3	0	0	0	0	0	0	0
GE4	0	0	0	0	0	0	0
GE5	0	0	0	0	0	0	0
GE6	0	0	0	0	0	0	0
GE7	0	0	0	0	0	0	0
GE8	0	0	0	0	0	0	0
GE9	0	0	0	0	0	0	0
GE10	0	0	0	0	0	0	0

Figure 4-12-18 LLDP Port Statistics Page Screenshot

The page includes the following fields:

Object Description
• Port	The port on which LLDP frames are received or transmitted
• TX Frame – Total	The number of LLDP frames transmitted on the port
• RX Frame – Total	The number of LLDP frames received on the port
• RX Frame – Discarded	If an LLDP frame is received on a port, and the switch's internal table has run full, the LLDP frame is counted and discarded. This situation is known as "Too Many Neighbors" in the LLDP standard. LLDP frames require a new entry in the table when the Chassis ID or Remote Port ID is not already contained within the table. Entries are removed from the table when a given port links down, an LLDP shutdown frame is received, or when the entry ages out.
• RX Frame – Error	The number of received LLDP frames containing some kind of error.
• RX TLVs – Discarded	Each LLDP frame can contain multiple pieces of information, known as TLVs (TLV is short for "Type Length Value"). If a TLV is malformed, it is counted and discarded.
• RX TLVs – Unrecognized	The number of well-formed TLVs, but with an unknown type value
• RX Ageout - Total	The number of organizationally TLVs received

4.13 Diagnostics

This section provide the Physical layer and IP layer network diagnostics tools for troubleshoot. The diagnostic tools are designed for network manager to help them quickly diagnose problems between point to point and better service customers.

Use the Diagnostics brand authorised interactive tablet of the LRP Managed Switch. Under

System the following topics are provided to configure and view the system information:

This section has the following items:

■ Cable Diagnostics
■ Ping Test
■ IPv6 Ping Test
■ Trace Route

4.13.1 Cable Diagnostics

The Cable Diagnostics performs tests on copper cables. These functions have the ability to identify the cable length and operating conditions, and to isolate a variety of common faults that can occur on the cat5 twisted-pair cabling. There might be two statuses as follows:

If the link is established on the twisted-pair interface in 1000BASE-T mode, the Cable Diagnostics can run without disruption of the link or of any data transfer.
If the link BASE-T is linked in 100 0BASE-T, the Cable Diagnostics causes the link to drop while the diagnostics is running.

After the diagnostics is finished, established and the following functions are available

■ Coupling between cable pairs.
■ Cable pair termination
■ Cable length

Cable Diagnost ters. ics is only accurate for cables of length from 15 to 100 me

The copper test and test result screens in Figure 4-13-1 & Figure 4-13-2 appear.

Select the port on which to run the copper test. Port GE1 Copper Test

Figure 4-13-1 Copper Test Page Screenshot

ollowing fields: The page includes the f

Object Description
• Port	Select port from this drop-down list

Buttons

Copper Test

Click to run the diagnostics

Port	Channel A	Cable Length A	Channel B	Cable Length B	Channel C	Cable Length C	Channel D	Cable Length D	Result
GE2	NORMAL		NORMAL		NORMAL		NORMAL		PASS

Figure 4-13-2 Test Results Page Screenshot

The page includes the following fields:

Object Description
• Port	The port where you are requesting Cable Diagnostics
• Channel A~D	Display the current channel status
• Cable Length A~D	Display the current cable length
• Result	Display the test result

4.13.2 Ping

The ping and IPv6 ping allow you to issue ICMP ping packets to troubleshoot IP connectivity issues. The LRP Managed Switch transmits ICMP packets, and the sequence number and roundtrip time are displayed upon reception of a reply.

4.13.3 Ping Test

This page allows you to issue ICMP ping packets to troubleshoot IP connectivity issues. After you press "Apply", ICMP packets are transmitted, and the sequence number and roundtrip time are displayed upon reception of a reply. The page refreshes automatically until responses to all packets are received, or until a timeout occurs. The ICMP Ping screen in Figure 4-13-3 appears.

IP Address	(x.x.x.x or hostname)
Count	4 (1 - 5 | Default : 4)
Interval (in sec)	1 (1 - 5 | Default : 1)
Size (in bytes)	56 (8 - 5120 | Default : 56)
Ping Results

Figure 4-13-3 ICMP Ping Page Screenshot

owing fields: The page includes the foll

Object Description
• IP Address	The destination IP Address
• Count	Number of echo requests to send
• Interval (in sec)	Send interval for each ICMP packet
• Size (in bytes)	The payload size of the ICMP packet. Values range from 8bytes to 5120bytes.
• Ping Results	Display the current ping result.

Be sure the target IP Address is within the same network subnet of the switch, or you have to set up the correct gateway IP address.

4.13.4 IPv6 Ping Test

This page allows you to issue ICMPv6 PING packets to troubleshoot IPv6 connectivity issues. After you press "Apply", 5 ICMPv6 packets are transmitted, and the sequence number and roundtrip time are displayed upon reception of a reply. The page refreshes automatically until responses to all packets are received, or until a timeout occurs. The ICMPv6 Ping screen in Figure 4-13-4 appears.

Ping test Setting IPv6 Address (XX:XX::XX:XX) Count 4 (1 - 5 | Default : 4 ) Interval (in sec) 1 (1 - 5 | Default : 1 ) Size (in bytes) 56 (8 - 5120 | Default : 56 ) Ping Results Apply

Figure 4-13-4 ICMPv6 Ping Page Screenshot

The page includes the following fields:

Object Description
• IP Address	The destination IPv6 Address
• Count	Number of echo requests to send
• Interval (in sec)	Send interval for each ICMP packet
• Size (in bytes)	The payload size of the ICMP packet. Values range from 8bytes to 5120bytes
• Ping Results	Display the current ping result

4.14 RMON

RMON is the most important expansion of the standard SNMP. RMON is a set of MIB definitions, used to define standard network monitor functions and interfaces, enabling the communication between SNMP management terminals and remote monitors. RMON provides a highly efficient method to monitor actions inside the subnets.

MID of RMON consists of 10 groups. The switch supports the most frequently-used groups 1, 2, 3 and 9:

■ Statistics: Maintain basic usage and error statistics for each subnet monitored by the Agent.
■ History: Record periodical statistic samples available from Statistics.
- Alarm: Allow management console users to set any count or integer for sample intervals and alert thresholds for RMON Agent records.
■ Event: A list of all events generated by RMON Agent.

Alarm depends on the implementation of Event. Statistics and History display some current or history subnet statistics. Alarm and Event provide a method to monitor any integer data change in the network, and provide some alerts upon abnormal events (sending Trap or record in logs).

4.14.1 RMON Statistics

This page provides a detail of a specific RMON statistics entry; RMON Statistics screen in Figure 4-14-1 appears.

RMON Counters	Value
Drop Events	0
Octets	5192377
Packets	36210
Broadcast Packets	508
Multicast Packets	156
CRC / Alignment Errors	0
Undersize Packets	0
Oversize Packets	0
Fragments	0
Jabbers	0
Collisions	0
64 Bytes Frame	23107
65-127 Byte Frames	5685
128-255 Byte Frames	227
256-511 Byte Frames	7161
512-1023 Byte Frames	30
1024-1518 Byte Frames	0

Figure 4-14-1: RMON Statistics Detail Page Screenshot

e following fields: The page includes th

Object Description
• Port	Select port from this drop-down list
• Drop Events	The total number of events in which packets were dropped by the probe due to lack of resources
• Octets	The total number of octets of data (including those in bad packets) received on the network
• Packets	The total number of packets (including bad packets, broadcast packets, and multicast packets) received
• Broadcast Packets	The total number of good packets received that were directed to the broadcast address
• Multicast Packets	The total number of good packets received that were directed to a multicast address
• CRC/Alignment Errors	The total number of packets received that had a length (excluding framing bits, but including FCS octets) of between 64 and 1518 octets
• Undersize Packets	The total number of packets received that were less than 64 octets
• Oversize Packets	The total number of packets received that were longer than 1518 octets
• Fragments	The number of frames which size is less than 64 octets received with invalid CRC
• Jabbers	The number of frames which size is larger than 64 octets received with invalid CRC
• Collisions	The best estimate of the total number of collisions on this Ethernet segment.
• 64 Byte Frame	The total number of packets (including bad packets) received that were 64 octets in length
• 65~127 Byte Frames	The total number of packets (including bad packets) received that were between 65 to 127 octets in length
• 128~255 Byte Frames	The total number of packets (including bad packets) received that were between 128 to 255 octets in length
• 256~511 Byte Frames	The total number of packets (including bad packets) received that were between 256 to 511 octets in length
• 512~1023 Byte Frames	The total number of packets (including bad packets) received that were between 512 to 1023 octets in length
• 1024~1518 Byte Frames	The total number of packets (including bad packets) received that were between 1024 to 1518 octets in length

Buttons

Clear

: Click to clear the RMON statistics

4.14.2 RMON Event

Configure RMON Event table on this page. The RMON Event screens in Figure 4-14-2 & Figure 4-14-3 appear.

RMON Event

Select Index	Create New
Index	0 (1-65535)
Type	None
Community
Owner	(0~31 Characters)
Description	(0~127 Characters)

Figure 4-14-2: RMON Event Configuration Page Screenshot

The page includes the following fields:

Object Description
• Select Index	Select index from this drop-down list to create new index or modify index
• Index	Indi ndex of the entry. The range is from 1 to 65535 cates the i
• Type	Indicates the notification of the event, the possible types are:■ none: The total number of octets received on the interface, including framing characters.■ log: The number of uni-cast packets delivered to a higher-layer protocol.■ SNMP-Trap: The number of broad-cast and multi-cast packets delivered to a higher-layer protocol.■ Log and Trap: The number of inbound packets that are discarded even the packets are normal.
• Community	Specify the community when trap is sent, the string length is from 0 to 127, default is "public".
• Owner	Indicates the owner of this event, the string length is from 0 to 127, default is a null string
• Description	Indicates description of this event, the string length is from 0 to 127, default is a null string

Buttons

Apply

: Click to apply changes.

RMON Event Index Event Type Community Description Last Sent Time Owner Action

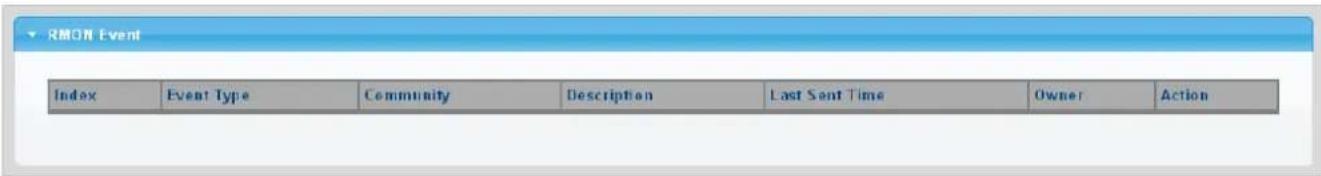

Figure 4-14-3: RMON Event Status Page Screenshot

The page includes the following fields:

Object Description
Index	Display the current event index
Event Type	Display the current event type
Community	Display the current community for SNMP trap
Description	Display the current event description
Last Sent Time	Display the current last sent time
Owner	Display the current event owner
Action	Click to delete RMON event entry

4.14.3 RMON Event Log

This page provides an overview of RMON Event Log. The RMON Event Log Table screen in Figure 4-14-4 appears.

RMON Event Log Table Event Index Select Event Index Log Time Description

Figure 4-14-4: RMON Event Log Table Page Screenshot

The page includes the following fields:

Object Description
• Select Index	index from this drop-down list Select
• Index	Indicates the index of the log entry
• Log Time	Indicates Event log time
• Description	icates the Event description Ind

4.14.4 RMON Alarm

Configure RMON Alarm table on this page. The RMON Alarm screens in Figure 4-14-5 & Figure 4-14-6 appear.

RMON Alarm

Select Index	Create New
Index	0 (1-65535)
Sample Port	GE1
Sample Variable	DropEvents
Sample Interval	0 (1-2147483647)
Sample Type	○absolute ○delta
Rising Threshold	0 (0-2147483647)
Falling Threshold	0 (0-2147483647)
Rising Event	0: None (Unassigned)
Falling Event	0: None (Unassigned)
Owner	(0~31 Characters)

Figure 4-14-5: RMON Alarm Table Page Screenshot

The page includes the following fields:

Object Description
• Select Index	Select index from this drop-down list to create the new index or modify the index
• Index	Indicates the index of the alarm entry
• Sample Port	Select port from this drop-down list
• Sample Variable	Indicates the particular variable to be sampled, the possible variables are:■ DropEvents: The total number of events in which packets were dropped due to lack of resources.■ Octets: The number of received and transmitted (good and bad) bytes.g bits. Includes FCS, but excludes framin■ Pkts: The total number of frames (bad, broadcast and multicast) received and transmitted.■ BroadcastPkts: The total number of good frames received that were directed to the broadcast address. Note that this does not include multicastpackets.■ MulticastPkts: The total number of good frames received that were directed to this multicast address.■ CRCAlignErrors: The number of CRC/alignment errors (FCS or alignment errors).■ UndersizePkts: The total number of frames received that were less than 64 octets long(excluding framing bits, but including FCS octets) and were otherwise well formed.■ OversizePkts: The total number of frames received that were longer than 1518 octets (excluding framing bits, but including FCS octets) and were otherwise well formed.■ Fragments: The total number of frames received that were less than 64 octets in length (excluding framing bits, but including FCS octets) and had either an FCS or alignment error.■ Jabbers: The total number of frames received that were longer than 1518 octets(excluding framing bits, but including FCS octets), and had either an FCS or alignment error.■ Collisions: The best estimate of the total number of collisions on this Ethernet segment.■ Pkts64Octets: The total number of frames (including bad packets) received and transmitted that were 64 octets in length (excluding framing bits but including FCS octets).■ Pkts64to172Octets: The total number of frames (including bad packets) received and transmitted where the number of octets fall within the specified range (excluding framing bits but including FCS octets).■ Pkts158to255Octets: The total number of frames (including bad packets) received and transmitted where the number of octets fall within the specified range (excluding framing bits but including FCS octets).■ Pkts256to511Octets: The total number of frames (including bad packets) received and transmitted where the number of octets fall within the specified range (excluding framing bits but including FCS octets).■ Pkts512to1023Octets: The total number of frames (including bad packets) received and transmitted where the number of octets fall within the specified range (excluding framing bits but including FCS octets).■ Pkts1024to1518Octets: The total number of frames (including bad packets) received and transmitted where the number of octets fall within the specified range (excluding framing bits but including FCS octets).
• Sample Interval	Sample interval (1–2147483647)

Sample Type	ng the selected variable and calculating the value to be The method of sampling compared against the thresholds, possible sample types are:■ Absolute: Get the sample directly (default).■ Delta: Calculate the difference between samples.
Rising Threshold	old value (0–2147483647) Rising thresh
Falling Threshold	Falling threshold value (0–2147483647)
Rising Event	threshold is crossed Event to fire when the rising
Falling Event	Event to fire when the falling threshold is crossed
Owner	Specify an owner for the alarm

Buttons

Apply

: Click to apply changes.

Rmon Alarm Index Sample Port Sample Variable Sample Interval Sample Type Rising Threshold Falling Threshold Rising Event Falling Event Owner Action

Figure 4-14-6: RMON Alarm Status Page Screenshot

The page includes the following fields:

Object Description
Index	Indicates the index of Alarm control entry
Sample Port	Display the current sample port
Sample Variable	Display the current sample variable
Sample Interval	Display the current interval
Sample Type	Display the current sample type
Rising Threshold	Display the current rising threshold
Falling Threshold	Display the current falling threshold
Rising Event	Display the current rising event
Falling Event	Display the current falling event
Owner	Display the current owner
Action	Click to delete RMON alarm entry

4.14.5 RMON History

Configure RMON History table on image page. The RMON History screens in Figure 4-14-7 & Figure 4-1

RMON History

Select Index	Create New
Index	0	(1-65535)
Sample Port	GE1
Bucket Requested	50	(1-50, Default 50)
Interval	1800	(1-3600 Default 1800)
Owner		(0~31 Characters)

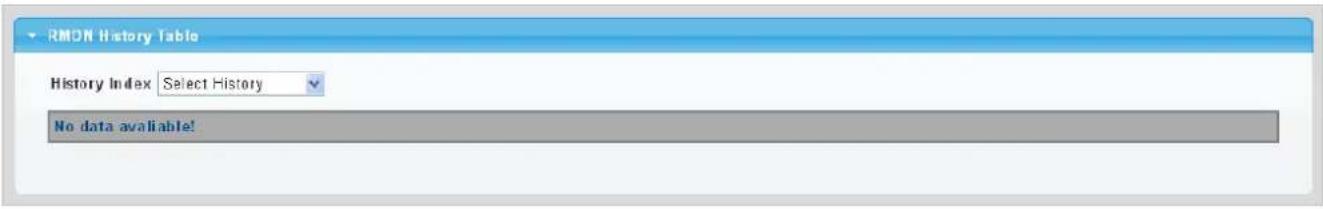

Figure 4-14-7: RMON History Table Page Screenshot

The page includes the following fields:

Object Description
• Select Index	Select index from this drop-down list to create the new index or modify the index
• Index	Indicates the index of the history entry
• Sample Port	Select port from this drop-down list
• Bucket Requested	Indicates the maximum data entries associated this History control entry stored in nge is from 1 to 50, default value is 50 RMON. The ra
• Interval	Indicates the interval in seconds for sampling the history statistics data. The range is from 1 to 3600, default value is 1800 seconds.
• Owner	Specify an owner for the history

Buttons

Apply

: Click to apply changes.

Rmon History Index Data Source Bucket Requested Interval Owner Action

Figure 4-14-8: RMON History Status Page Screenshot

The page includes the following fields:

Object Description
• Index	Display the current index
• Data Source	Display the current data source
• Bucket Requested	Display the current bucket requested
• Interval	Display the current interval
• Owner	Display the current owner
• Action	Click to delete RMON history entry.

4.14.6 RMON History Log

This page provides a detail of RMON history entries; screen in Figure 4-14-9 appears.

RMON History Table History Index Select History No data available!

Figure 3c14e9sRON History Status Pa

The page includes the following fields:

Object Description
• History	Select history index from this drop-down list

Buttons

Apply

Click to apply changes.

4.15 Power over Ethernet

The LRP Managed Switch can easily build a power central-controlled IP phone system, IP camera system and AP group for the

enterprise. Without a power packet li

P Managed Switch makes the installation of cameras or WLAN APs

easier and more efficient.

PoE Power Budget list for LRP MedSwitch

Model Name PoE Budget @ 25 degrees C PoE Budget @ 50 degrees C
LRP-822CS 240 watts 200 watts
LRP-1622CS 380 watts 440 watts

PLANET Networking & Communication FE1 FE2 FE3 FE4 FE5 FE6 FE7 FE8 GE2 GE4 GE1 GE3 SAVE | LOGOUT | REBOOT | REFRESH PoE Configuration PoE Configuration System PoE Admin Mode Enable PoE Management Mode Allocation Temperature Threshold 54 Degrees C PoE Temperature 37°C / 98°F Power Allocation 0 W / 240W Port PoE Mode Schedule Priority Current Power Power Used [mA] Used [W] Allocated [W] 1 Enable Profile 1 Critical 0 0 30.8 2 Enable Profile 1 Critical 0 0 30.8 3 Enable Profile 1 Critical 0 0 30.8 4 Enable Profile 1 Critical 0 0 30.8 Maintenance

Figure 4-16-1: Power over Ethernet Status

Ethernet Powered Device 4.15.1 Long Reach Power over

36 watts (max.)

Long Reach Power over Ethernet Extenders

Enterprise can extend IP Ethernet transmission and inject power over an existing coaxial cable for distance up to 1000m (3280ft) to PoE IP camera, PoE wireless AP and any 802.3af/at complied powered device (PD).

■ A Népřobová ReA ach PoE Extenders

The following distribution of the Dog Effectors is correct at the time of publica

Long Reach Ethernet Coaxial Extenders

■ LRP-101CE

1-Port 10/100TX PoE PSE + 1-Port Coax Long Reach PoE Extender

It is recommended to use PLANET Long Reach Ethernet coaxial extenders on the LRP Managed Switch. If you insert a coaxial extender that is not supported, the LRP Managed Switch may damage it.

4.15.2 System Configuration

In a power over Ethernet system, operating power supply applied over the power source (PSU-po

infrastructure to powered devices (PDs), which are connected to ports. Under some conditions, the total output power required

by PDs can exceed the available

e power provided by the PSU. The system with a PSU is capable of supplying less

power than the total potential pf the

mption of all the PoE ports in the system. In order to maintain the func

majority of the ports, power management is implemented.

The PSU input power consumption is monitored by measuring voltage and current. The input power consumption is equal to the system's aggregated power consumption. The power management concept allows all ports to be active and activates additional ports, as long as the aggregated power of the system is lower than the power level at which additional PDs cannot be connected .When this value besides power is digital be deactivated, according to user-defined priori

managed according to the following user-definable parameters: maximum available power, ports priority and maximum allowable power per port.

Reserved Power

There are five m e r i s g for conti g up ports/PDs may reserve power and when to shut down ports.

■ Allocation mode

In this mode, the user allocates the amount of power that each port may reserve. The allocated/reserved power for each port/PD is specified in the Maximum Power fields. The ports are shut down when total reserved power exceeds the amount of power that the power supply can deliver.

In this mode, the port power is not turned on if the PD requests more available power.

4.15.3 Power over Ethernet Configuration

This section allows the user to inspect and configure the current PoE configuration setting as screen in Figure 4-16-1 appears.

PoE Configuration

System PoE Admin Mode	Enable
PoE Management Mode	Consumption
Temperature Threshold	80 Degrees C
PoE Temperature	40°C / 104°F

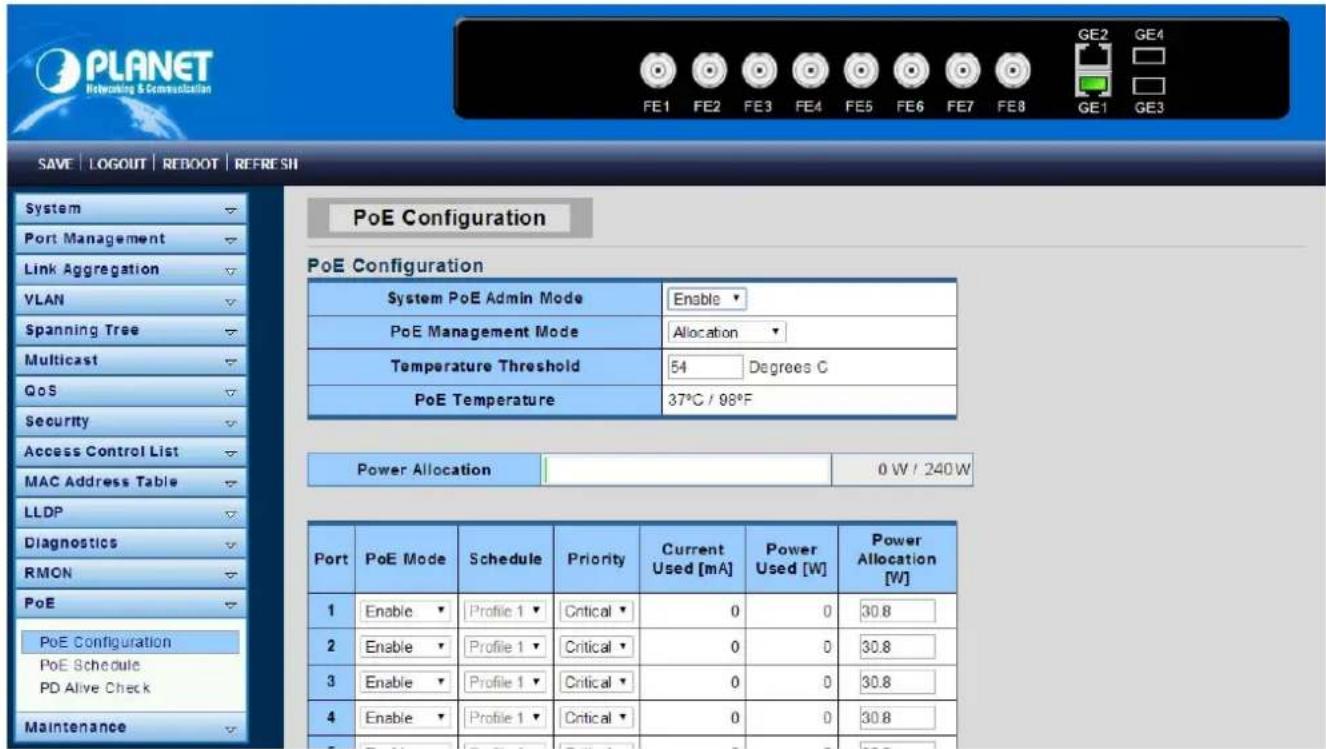

Figure 4-16-1: PoE Configuration Screenshot

The page includes the following fields:

Object Description
System PoE Admin Mode	Allows user to enable or disable PoE function. It will cause all of PoE ports to supply or not to supply power.
PoE Management Mode	There are six modes for configuring how the ports/PDs may reserve power and when to shut down ports.Consumption mode:The system offers PoE power according to PD real power consumption.Allocation mode:Users allow to assign how much PoE power to each port and the system will reserve PoE power to PD.
Temperature Threshold	Allows setting over temperature protection threshold value. If the system temperature is overly high, the system will lower the total PoE power budget automatically.
PoE Temperature	Display the PoE Chip Temperature

This section displays the PoE Power Usage of Current Power Consumption as Figure 4-16-2 shows.

Current Power Consumption

11%

27.4 W / 240 W

Figure 4-16-2: Current Power Consumption Screenshot

This section allows the user to inspect and configure the current PoE port settings as Figure 4-16-3 shows.

Port	PoE Mode	Schedule	Priority	Current Used [mA]	Power Used [W]	Power Allocation [W]
1	Enable ▼	Profile 1 ▼	Critical ▼	0	0	30.8
2	Enable ▼	Profile 1 ▼	Critical ▼	0	0	30.8

Figure 4-16-3: Power over Ethernet Configuration Screenshot

The page includes the following fields:

Object Description
PoE Mode	There are three modes for PoE mode.■ : enable PoE function. Enable■ Disable: disable PoE function.■ Schedule: enable PoE function in schedule mode.
Schedule	Indicates the scheduled profile mode. Possible profiles are:■ Profile1■ Profile2■ Profile3■ Profile4
Priority	The Priority represents PoE ports priority. There are three levels of power priority named Low, High and Critical.The priority is used in case the total power consumption is over the total power budget. In this case the port with the lowest priority will be turned off, and offer power for the port of higher priority.
Current Used [mA]	The Power Used shows how much current the PD currently is using.
Power Used [W]	The Power Used shows how much power the PD currently is using.
Power Allocation	It can limit the port PoE supply watts. Per port maximum value must be less than 30.8 watts. Total port values must be less than the Power Reservation value. Once power overload is detected, the port will auto shut down and keep in detection mode until PD's power consumption is lower than the power limit value

Buttons

Apply

: Click to apply changes.

4.15.4 PoE Schedule

This page allows the user schedule and scheduled power recycling.

PoE Schedule

Besides being used as an IP Surveillance, PoE Managed PoE switch is certainly applicable to construc

including VoIP and Wireless AHD Underenergy saving worldwide contributing to th

on the Earth, the Managed PoE switch can effectively control the power supply besides its capability of giving high watts power.

The "PoE schedule" function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMB or Enterprise save power and money.
    note right of B Save 24 watts/hr during off-business hours
        Total Saved = 10800 Watts/month

1000Base-T UTP with PoE

Scheduled Power Recycling

The Managed PoE switch allows each of the connected PoE IP cameras to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera cras ting from buffer overflow. h resul

The screen in Figure 4-16-4 appears.

PoE Schedule PoE Schedule Configuration Profile Profile 1 ▼ Delete Week Day Start Hour Start Min End Hour End Min Reboot Enable Reboot Only Reboot Hour Reboot Min Add New Rule Apply Sta Fri Thu Wed Tue Mon Sun PoE Schedule PoE Reboot 00h 01h 02h 03h 04h 05h 06h 07h 08h 09h 10h 11h 12h 13h 14h 15h 16h 17h 18h 19h 20h 21h 22h 23h 00h

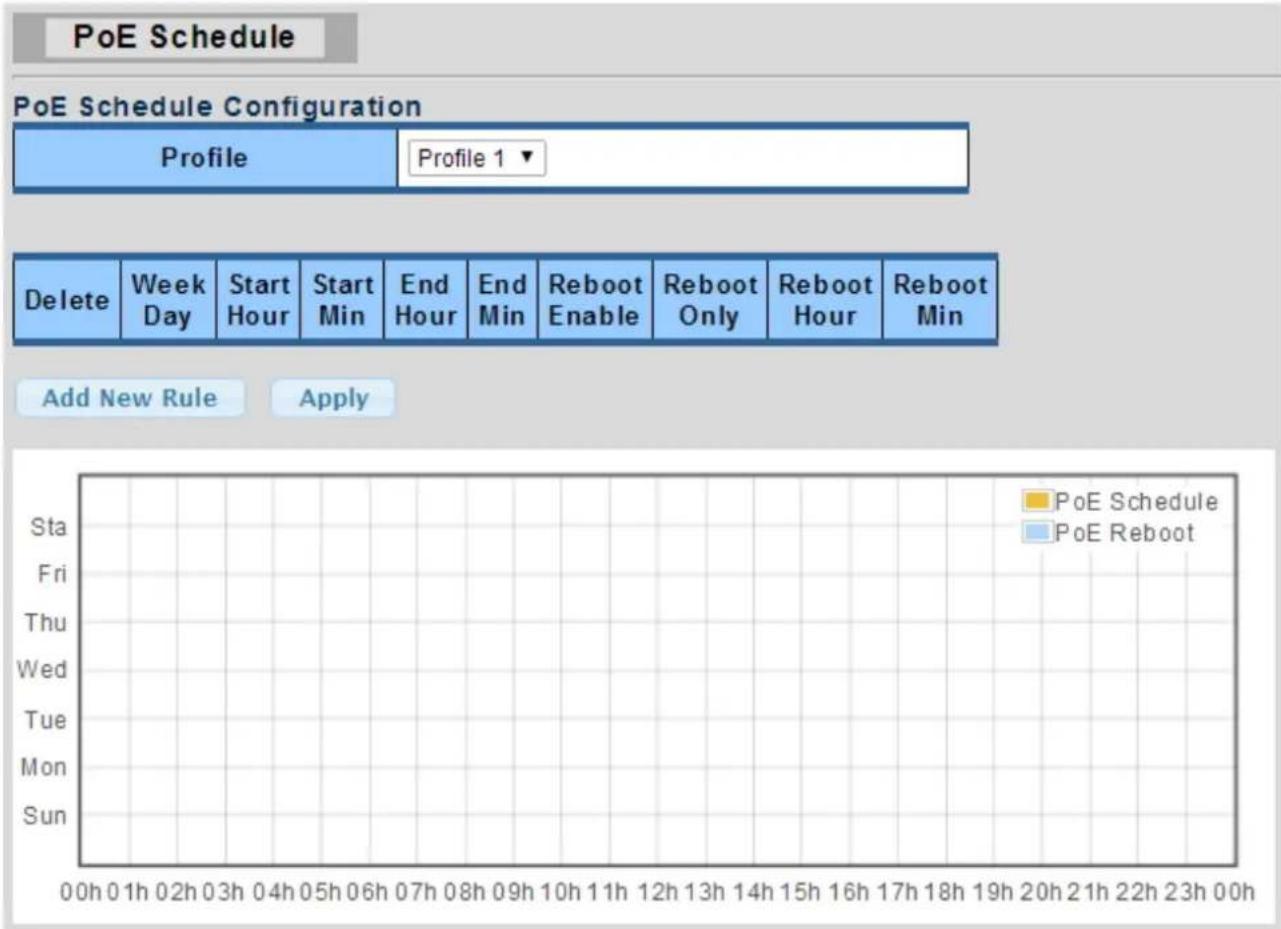

Figure 4-16-4: PoE Schedule Screenshot
Please press the Add New Rule button to start setting PoE Schedule function. You have to set PoE schedule to profile and then go back to PoE Port Configuration, and select "Schedule" mode from per port "PoE Mode" option to enable you to indicate which schedule profile could be applied to the PoE port.

The page includes the following fields:

Object Description
• Profile	Set the schedule profile mode. Possible profiles are:Profile1Profile2Profile3Profile4
• Week Day	Allows user to set week day for defining PoE function by enabling it on the day.
• Start Hour	Allows user to set what hour PoE function does by enabling it.
• Start Min	Allows user to set what minute PoE function does by enabling it.
• End Hour	Allows user to set what hour PoE function does by disabling it.
• End Min	Allows user to set what minute PoE function does by disabling it.
• Reboot Enable	Allows user to enable or disable the whole PoE port reboot by PoE reboot schedule.Please note that if you want PoE schedule and PoE reboot schedule to work at the same time, please use this function, and don't useReboot Onlyfunction. This function offers administrator to reboot PoE device at an indicated time if administrator has this kind of requirement.
• Reboot Only	Allows user to reboot PoE function by PoE reboot schedule. Please note that if administrator enables this function, PoE schedule will not set time to profile. This function is just for PoE port to reset at an indicated time.
• Reboot Hour	Allows user to set what hour PoE reboots. This function is only for PoE reboot schedule.
• Reboot Min	Allows user to set what minute PoE reboots. This function is only for PoE reboot schedule.

Buttons

Add New Rule

: Click to add new rule.

Apply

Click to apply changes

Delete

Check to delete the entry.

4.15.5 PoE Alive Operation

The PoE Switch can be configured to monitor connected PD's status in real time via ping action. Once the PD stops working and without response, the PoE Switch is going to restart PoE port power, and bring the PD back to work. It will greatly enhance the reliability and reduces administrator management burden.

Step 1

Step 2

No Response...... Ping Request

Check alive status for 3 times

Step 3
Alarm Notification

PoE ON OFF

Restart PoE device if without response

Step 4

This page provides you with how to configure PD Alive Check. The screen in Figure 4-16-5 appears.

PD Alive Check

PD Alive Check

Port Select	Mode	Interval Time(10~300s)	Retry Count(1~5)	Action	Reboot Time(30~180s)
Select Ports	EnabledDisabled	30	2	None	90

Apply

PD Alive Check Configuration

Port	Mode	Ping PD IP Address		Interval Time [s]	Retry Count	Action	Reboot Time [s]
1	Disabled	Edit	0.0.0.0	30	2	None	90
2	Disabled	Edit	0.0.0.0	30	2	None	90
3	Disabled	Edit	0.0.0.0	30	2	None	90
4	Disabled	Edit	0.0.0.0	30	2	None	90
5	Disabled	Edit	0.0.0.0	30	2	None	90
6	Disabled	Edit	0.0.0.0	30	2	None	90

Figure 4-15-5: PD Alive Check Configuration Screenshot

The page includes the following fields:

Object Description
• Mode	Allows user to enable or disable per port PD Alive Check function. By default, all ports are disabled.
• Ping PD IP Address	This column allows user to set PoE device IP address for system making ping to the PoE device. Please note that the PD's IP address must be set to the same network segment with the PoE Switch.
• Interval Time (10~300s)	This column allows user to set how long system should issue a ping request to PD for detecting whether PD is alive or dead. Interval time range is from 10 seconds to 300 seconds.
• Retry Count (1~5)	This column allows user to set the number of times system retries ping to PD. For example, if we set count 2, it means that if system retries ping to the PD and the PD doesn't response continuously, the PoE port will be reset.
• Action	Allows user to set which action will be applied if the PD is without any response. The PoE Switch offers the following 3 actions: ■ PD Reboot: It means system will reset the PoE port that is connected to the PD. ■ PD Reboot & Alarm: It means system will reset the PoE port and issue an alarm message via Syslog, SMTP. ■ Alarm: It means system will issue an alarm message via Syslog, SMTP.
• Reboot Time (30~180s)	This column allows user to set the PoE device rebooting time as there are so many kinds of PoE devices on the market and they have a different rebooting time. The PD Alive-check is not a defining standard, so the PoE device on the market doesn't report reboot done information to the PoE Switch. Thus, user has to make sure how long the PD will take to finish booting, and then set the time value to this column. System is going to check the PD again according to the reboot time. If you are not sure of the precise booting time, we suggest you set it longer.

Buttons

Apply

Click to apply changes.

4.16 Maintenance

Use the Maintenance System configuration basic configura

tions of the LRP Managed Switch. Under

maintenance, the following topics are provided to back up, upgrade, save and restore the configuration. This section has the following items:

■ Factory Default You can reset the configuration of the switch on this page.
■ Reboot Switch You can restart the switch on this page. After restart, the switch will boot normally.
■ Backup Manager You can back up the switch configuration.
■ Upgrade Manager You are switch configuration.
Dual Image lect active or backup image on this page.

4.16.1 Factory Default

You can reset the configuration of the switch on this page. Only the IP configuration is retained. The new configuration is available immediately, which means that no restart is necessary. The Factory Default screen in Figure 4-15-1 appears and click to reset the configuration to Factory Defaults.

Figure 4-15-1 Factory Default Page Screenshot

After the "Factory" button is pressed and rebooted, the system will load the default IP settings as follows:

Default IP address: 192.16 8.0.100
Subnet mask: 255.255.255 .0
Default Gateway: 192.168. 0.254
The other setting value is b ack to disable or none.

To reset the LRP Managed Switch to the factory default setting, you can also press the hardware reset button on the front panel for about 10 seconds. After the device is rebooted, you can login the management Web interface within the same subnet of 192.168.0.xx.

4.16.2 Reboot Switch

The Reboot page enables the device to be rebooted from a remote location. Once the Reboot button is pressed, user has to re-login the Web interface for about 60 seconds. The Reboot Switch screen in Figure 4-16-2 appears and click to reboot the system.

Figure 4-16-2 Reboot Switch Page Screenshot

4.16.3 Backup Manager

This function allows backup of the current image or configuration of the LRP Managed Switch to the local management station. The Backup Manager screen in Figure 4-16-3 appears.

Backup Manager Backup Method TFTP Server IP (IPv4 or IPv6 Address) Backup Type Image Running configuration Startup configuration Backup configuration Flash log Buffered log Image vmlinux_poe_test.bix (Active) vmlinux_poe_test.bix (Backup) Backup

Figure 4-16-3 Backup Manager Page Screenshot

The page includes the following fields:

Object Description
• Backup Method	Select backup method from this drop-down list.
• Server IP	Fill in your TFTP server IP address.
• Backup Type	Select backup type.
• Image	Select active or backup image.

Buttons

Backup

: Click to back up image, configuration or log.

4.16.4 Upgrade Manager

This function allows reloading of the current image or configuration of the LRP Managed Switch to the local management station. The Upgrade Manager screen in Figure 4-16-4 appears.

Upgrade Manager

Upgrade Method	TFTP
Server IP	(IPv4 or IPv6 Address)
File Name
Upgrade Type	ImageStartup ConfigurationBackup ConfigurationRunning Configuration
Image	(Active) (Backup)

Upgrade

Figure 4-16-4 Upgrade Manager Page Screenshot

The page includes the following fields:

Object Description
• Upgrade Method	Select upgrade method from this drop-down list.
• Server IP	Fill in your TFTP server IP address.
• File Name	The name of firmware image or configuration.
• Upgrade Type	Select upgrade type.
• Image	Select active or backup image.

Buttons

Upgrade

Click to upgrade image or configuration.

4.16.5 Dual Image

This page provides information about the active and backup firmware images in the device, and allows you to revert to the backup image. The web page displays two tables with information about the active and backup firmware images. The Dual Image Configuration and Information screens in Figure 4-16-5 & Figure 4-16-6 appear.

Dual Image Configuration Active Image v1.0b140225.bix(Active) v1.0b140225.bix(Backup) Apply

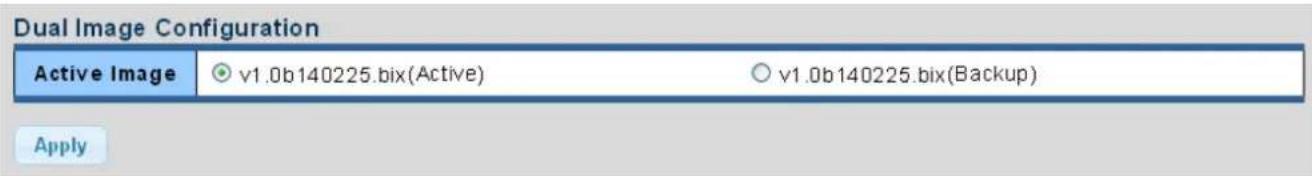

Figure 4-15-5: Dual Image Configuration Page Screenshot

The page includes the following fields:

Object Description
• Active Image	Select the active or backup image

Buttons

Apply

: Click to apply active image.

v1.0b140225.bix	Active
Flash Partition	0
Image Name	v1.0b140225.bix
Image Size	57:12633 Bytes
Created Time	2014-02-26 19:42:58 UTC
v1.0b140225.bix	Backup
Flash Partition	1
Image Name	v1.0b140225.bix
Image Size	57:12633 Bytes
Created Time	2014-02-26 19:42:58 UTC

Figure 4-16-6: Dual Image Information Page Screenshot

he page includes the following fields: T

Object Description
• Flash Partition	Display the current flash partition
• Image Name	Display the current image name
• Image Size	Display the current image size
• Created Time	Display the created time

5. SWITCH OPERATION

5.1 Address Table

The Switch is implemented with an address table. This address table is composed of many entries. Each entry is used to store the address information of some nodes on the network, including MAC address, port no, etc. This information comes from the learning process of Ethernet Switch.

5.2 Learning

When one packet comes in from any port, the Switch will record the source address, port number and the other related information in the address table. This information will be used to decide either forwarding or filtering for future packets.

5.3 Fordiagr & Filteri

When one packet comes from the Ephes and a kitching destination address besides the source

address learning. The Ethernet Switching will look up the address table for the destination address. If not found, this packet will be forwarded to all the other ports except the port, which this packet comes in. And these ports will transmit this packet to the network it connected. If found, and the destination address is located at a different port from this packet comes in, the Ethernet Switching will forward this packet to the port where this destination address is located according to the information from the address table. But, if the destination address is located at the same port with this packet, then this packet will be filtered, thereby increasing the network throughput and availability

5.4 Store-and-Forward

Store-and-Forward is one type of packet-forwarding techniques. A Store-and-Forward Ethernet Switching stores the incoming frame in an internal buffer and does the complete error checking before transmission. Therefore, no error packets occur. It is the best choice when a network needs efficiency and stability.

The Ethernet Switch scans the destination address from the packet-header, searches the routing table provided for the incoming port and forwards the packet, only if required. The fast forwarding makes the switch attractive for connecting servers directly to the network, thereby increasing throughput and availability. However, the switch is most commonly used to segment existence hubs, which nearly always can't be easily configured performance. An Ethernet Switchin

Ethernet network environment to significantly boost bandwidth using the conventional cabling and adapters.

Due to the learning function of the Ethernet switching, the source address and corresponding port number of each incoming and outgoing packed packets is stored in this ia routi information is subsequently used to filter packets whose destination address is on the same segments based on the address traffic times respective domain and reduces the overall load on the network.

The Switch performs "Store and therefore is necessary to look reliably, it reduces the re-transmission rate. No packet loss will occur.

5.5 Auto-Negotiation

The STP ports on the Switch have a built-in "Auto-negotiation". This technology automatically sets the best possible bandwidth when a connection is established with another network device (usually at Power On or Reset). This is done by detecting the modes and speeds when both devices are connected. Both 10BASE-T and 100BASE-TX devices can connect with the port in either half- or full-duplex mode.

If attached device is: 100BASE-TX port will set to:

10Mbps, without auto-negotiation 10Mbps.

10Mbps, with auto-negotiation 10/20Mbps (10BASE-T/full-duplex)

100Mbps, without auto-negotiation 100Mbps

100Mbps, with auto-negotiation 100/200Mbps (100BASE-TX/full-duplex)

6. TROUBLESHOOTING

This chapter contains information to help you solve your issue. If the LRP Managed Switch is not functioning properly, make sure the LRP Managed Switch is set up according to instructions in this manual.

■ The Link LED is not lit

Solution:

Check the cable connection and remove duplex mode of the LRP Managed Switch

■ Som stations is cannot talk to other cated on the other port

Solution:

Please check the device settings, trunk settin port enable

■ Performance is bad

Solution:

Check the full duplex status of the LRP Managed Switch. If the LRP Managed Switch is set to full duplex and the partner is set to half duplex, then the performance will be poor. Please also check the in/out rate of the port.

Why the Switch doesn't connect to the network

Solution:

1. Check the LNK/ACT LED on the LRP Managed Switch
2. Try another port on the LRP Managed Switch
3. Make sure the cable is installed properly
4. Make sure the cable is the right type
5. Turn off the power. After a while, turn on power again

■ 100BASE-TX port link LED is lit, but the traffic is irregular

Solution:

Check that the attached device is not set to full duplex. Some devices use a physical or software switch to change duplex modes. Auto-negotiation may not recognize this type of full-duplex setting.

■ Switch does not power up

Solution:

1. AC power cord is not inserted or faulty

2. Check whether the AC power cord is inserted correctly

3. Replace the power cord if the cord is inserted correctly. Check whether the AC power source is working by

connecting a different device in place of the switch.

1. If that device works, refer to the next step.
2. If that device does not work, check the AC power

APPENDIX A

A.1 Switch's RJ45 Pin Assignments

1000Mbps, 1000BASE T

Contact MDI MDI-X
1	BI_DA+	BI_DB+
2	BI_DA-	BI_DB-
3	BI_DB+	BI_DA+
4	BI_DC+	BI_DD+
5	BI_DC-	BI_DD-
6	BI_DB-	BI_DA-
7	BI_DD+	BI_DC+
8	BI_DD-	BI_DC-

Implicit implementation of the crossover function within a twisted-pair cable, or at a wiring panel, while not expressly forbidden, is beyond the scope of this standard.

A.2 10/100Mbps, 10/100BASE-TX

When connecting your 10/100Mbps Ethernet Switch to another switch, a bridge or a hub, a straight-through or crossover cable is necessary. Each port of the Switch supports auto-MDI/MDI-X detection. That means you can directly connect the Switch to any Ethernet devices without making a crossover cable. The following table and diagram show the standard RJ45 receptacle/connector and their pin assignments:

RJ45 Connector Pin Assignment
Contact	MDIMedia Dependent Interface	MDI-XMedia DependentInterface-Cross
1 Tx + (transmit) Rx + (receive)
2 Tx - (transmit) Rx - (receive)
3 Rx + (receive) Tx + (transmit)
4, 5 Not used
6 Rx - (receive) Tx - (transmit)
7, 8 Not used

The standard cable, RJ45 pin assignment

Illustration of two Ethernet ports: one shown with internal wiring and the other with a curved cable (no text or symbols)

The standard Edition

There are 8 wires on a standard UTP/STP cable and each wire is color-co of straight-through cable and crossover cable connection

he following shows the pin allocation and color

Straight-through Cable SIDE 1 SIDE 2
	SIDE 1	1 = White / Orange	1 = White / Orange
		2 = Orange	2 = Orange
		3 = White / Green	3 = White / Green
		4 = Blue	4 = Blue
		5 = White / Blue	5 = White / Blue
		6 = Green	6 = Green
		7 = White / Brown	7 = White / Brown
	SIDE 2	8 = Brown	8 = Brown
Crossover Cable SIDE 1 SIDE 2
	SIDE 1	1 = White / Orange	1 = White / Green
		2 = Orange	2 = Green
		3 = White / Green	3 = White / Orange
		4 = Blue	4 = Blue
		5 = White / Blue	5 = White / Blue
		6 = Green	6 = Orange
		7 = White / Brown	7 = White / Brown
	SIDE 2	8 = Brown	8 = Brown

Figure A-1: Straight-through and Crossover Cable

Please make sure your connectedare w cables into your network.

ith the same pin assignment and color as the above table before deploying the

EC Declaration of Conformity

For the following equipment:

*Type of Product : 8-port Coax + 2-port 10/100/1000T + 2-port 100/1000X SFP Long Reach PoE over Coaxial Managed Switch

*Model Number : LRP-822CS

* Produced by:

Manufacturer's Name : Planet Technology Corp.

Manufacturer's Address : 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.).

is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility Directive on (2004/108/EC) and Low Voltage Directive 2006/95/EC..

For the evaluation regarding the EMC, the following standards were applied:

EN 55022 (2010+AC: 2011)

EN 61000-3-2 (2006+A1:2009+A2:2009)

EN 61000-3-3 (2008)

EN 55024 (2010)

EN 61000-4-2 (2009)

EN 61000-4-3 (2006+A2:2010)

EN 61000-4-4 (2012)

EN 61000-4-5 (2006)

EN 61000-4-6 (2009)

EN 61000-4-8 (2010)

EN 61000-4-11 (2004)

EN60950-1 (2006+A11:2009+A1:2010+A12:2011+A2:2013)

Responsible for marking this declaration if the:

☒ Manufacturer ☐ Authorized representative established within the EU

Authorized representative established within the EU (if applicable):

Company Name: Planet Technology Corp.

Company Address: 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan(R.O.C.)

Person responsible for making this declaration

Name, Surname Kent Kang

Position / Title : Product Manager

Taiwan

Place

12^th , June, 2015

Date
