USER MANUAL V2v-sc4kuhd Smart-AVI

V2V-SC4KUHD HDMI	4K Converter and Scaler
PS5VD3A	5V DC, 3A (minimum) power adapter with center-pin positive polarity.
User Manual

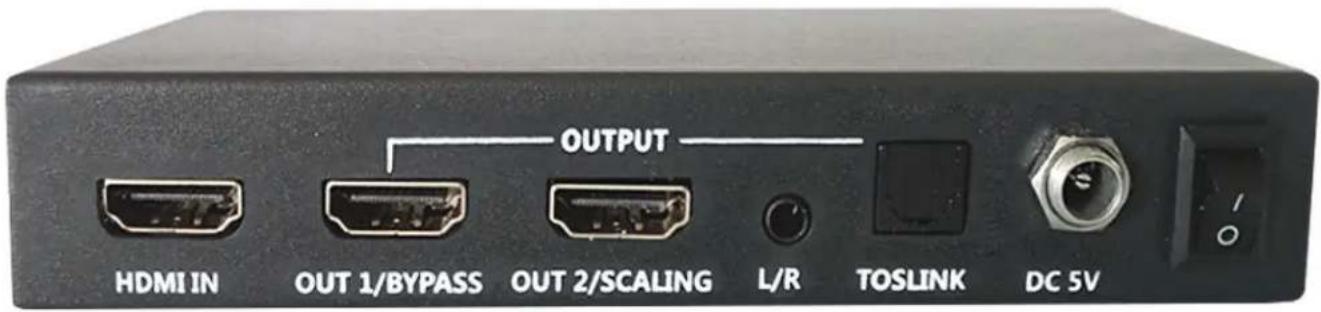

V2V-SC4KUHD REAR

OUTPUT HDMI IN OUT 1/BYPASS OUT 2/SCALING L/R TOSLINK DC 5V

V2V-SC4KUHD FRONT

Smart-AM V2V-SC4KHD IN OUT1 OUT2 4K HDCP POWER EDID RESOLUTION HDMI 4K CONVERTER AND SCALER

TABLE OF CONTENT

TECHNICAL SPECIFICATIONS 3

WHAT'S IN THE BOX? 4

SM-DVN FRONT AND REAR 4

INSTALLATION 5-8

LED's BEHAVIOR 11

SYSTEM OPERATION 12

TROUBLESHOOTING 12

TECHNICAL SUPPORT 12

LIMITED WARRANTY STATEMENT 13

TECHNICAL SPECIFICATIONS

VIDEO
Input (1) HDMI (Type A female connector)
Output	(2) HDMI (Type A female connector),(1) TOSLINK, Spdif audio output,(1) 3.5mm jacket, L/R audio output
HDMI HDMI 2.0/HDCP	2.2
Input resolution support	640 x 480 @ 60Hz, 800 x 600 @ 60Hz, 1024 x 768 @ 60Hz, 1280 x 768 @ 60 Hz,1280 x 800 @ 60 Hz, 1280 x 960 @ 60 Hz, 1280 x 1024 @ 60 Hz, 1360 x 768 @ 60 Hz,1366 x 768 @ 60 Hz, 1400 x 1050 @ 60 Hz, 1440 x 900 @ 60 Hz, 1600 x 900 @ 60 Hz
Output resolution support (bypass)	640 x 480 @ 60 Hz, 800 x 600 @ 60 Hz, 1024 x 768 @ 60Hz, 1280 x 768 @ 60 Hz,1280 x 800 @ 60 Hz, 1280 x 960 @ 60Hz, 1280 x 1024 @ 60 Hz, 1360 x 768 @ 60 Hz,1366 x 768 @ 60 Hz, 1400 x 1050 @ 60 Hz, 1440 x 900 @ 60 Hz, 1600 x 900 @ 60 Hz
Output resolution support (scaling)	1920 x 1080 @ 60 Hz, 3840 x 2160 @ 30 Hz, 3840 x 2160 @ 60 Hz, 1280 x 720 @ 60 Hz,1024 x 768 @ 60 Hz, 1366 x 768 @ 60 Hz, 1280 x 1024 @ 60 Hz, 1920 x 1200 @ 60 Hz,1280 x 1024 @ 60 Hz/DVI, 1920 x 1080 @ 60 Hz/DVI
Input Video Level	0.5~1.2 Vp-p
Input DDC Signal	5 Vp-p
Maximum Data Rate 18 Gbps
Max Pixel Clock 600 MHz
OTHER
Power Supply 100-240 VAC/ 5VDC @ 3A/15W
Dimensions	5.63" W x 3.27" H x 1.02" D
Weight	0.8 lbs
Approvals	UL, CE, ROHS Compliant
Operating Temp.	+32 to +104°F (0 to +40°C)
Storage Temp.	-4 to 140°F (-20 to +60°C)
Humidity	Up to 80% (No Condensation)
Support Warranty	1-year

INSTALLATION

1. Ensure that power is turned off or disconnected from the unit and the computers.

2. Use a HDMI cable to connect the HDMI output port from each computer to the corresponding HDMI IN ports of the unit.

3. Optionally connect a stereo audio cable (3.5mm to 3.5mm) to connect the audio output of the computers to the AUDIO IN ports of the unit.

4. Connect a monitor to the HDMI OUT console port of the unit using a HDMI cable.

5. Optionally connect stereo speakers to the AUDIO OUT port of the unit.

6. Finally, power on the V2V-SC4KUHD by connecting a 5VDC power supply to the power connector, and then turn on all the computers.

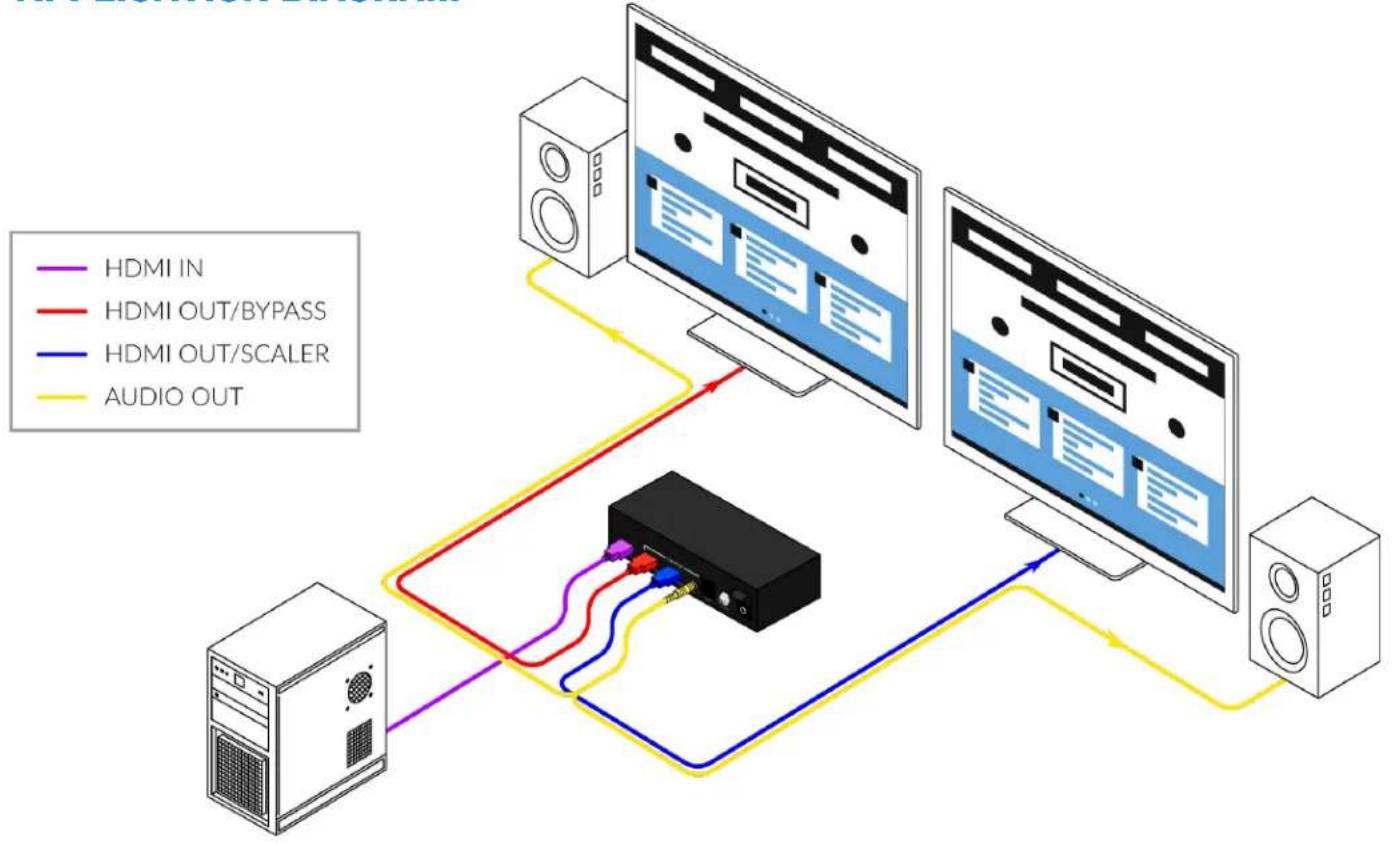

APPLICATION DIAGRAM

LEDs	NAME	DESCRIPTION
1 IN		ON: An HDMI source is connected to the splitter
		OFF: No HDMI source is connected to the splitter
2 OUT 1		ON: Display is connected to HDMI output port 1
		OFF: No display is connected to HDMI output port 1
3 OUT 2		ON: Display is connected to HDMI output port 2
		OFF: No display is connected to HDMI output port 2
4 4K		ON: 4K signal input
		OFF: None 4K signal input
5 HDCP		ON: There is HDCP encryption with input signal
		OFF: None HDCP encryption with input signal
6	POWER	ON: The splitter is power on
		OFF: The splitter is power off

EDID SWITCH

POSITION DESCRIPTION (EDID on input port)
0 Copy EDID	from OUT1
1 1920 x 1080 @ 60 Hz
2 3840 x 2160 @ 30 Hz
3 3840 x 2160 @ 60 Hz
4 1280 x 720 @ 60 Hz
5 1280 x 1024 @ 60 Hz
6 1920 x 1200 @ 60 Hz
7 Reserved
8 Reserved
9 Reserved

RESOLUTION SWITCH

POSITION DESCRIPTION (Resolution on Out 2)

0 1920 x 1080 @ 60 Hz

1 3840 x 2160 @ 30 Hz

2 3840 x 2160 @ 60 Hz

3 1280 x 720 @ 60 Hz

4 1024 x 768 @ 60 Hz

5 1366 x 768 @ 60 Hz

6 1280 x 1024 @ 60 Hz

7 1920 x 1200 @ 60 Hz

8 1280 x 1024 @ 60 Hz, DVI

9 1920 x 1080 @ 60 Hz, DVI

REAR PANEL

LEDs	NAME	DESCRIPTION
1	HDMI IN	Connects to HDMI source device
2	OUT 1	HDMI OUT 1/BYPASS
3	OUT 2	HDMI OUT 2/SCALING
4 L/R ∅	3.5mm jacket,	analog audio output
5	TOSLINK	5V DC power input, threaded port for standard or locking connection

BOTTOM MARK

POSITION	EDID with input port	POSITION	Resolution with Out 2
0	Copy EDID from OUT1	0	1920 x 1080 @ 60 Hz
1	1920 x 1080 @ 60 Hz	1	3840 x 2160 @ 30 Hz
2	3840 x 2160 @ 30 Hz	2	3840 x 2160 @ 60 Hz
3	3840 x 2160 @ 60 Hz	3	1280 x 720 @ 60 Hz
4	1280 x 720 @ 60 Hz	4	1024 x 768 @ 60 Hz
5	1280 x 1024 @ 60 Hz	5	1360 x 768 @ 60 Hz
6	1920 x 1200 @ 60 Hz	6	1280 x 1024 @ 60 Hz
7	Reserved	7	1920 x 1200 @ 60 Hz
8	Reserved	8	1280 x 1024 @ 60 Hz, DVI
9	Reserved	9	1920 x 1080 @ 60 Hz, DVI

TROUBLESHOOTING

No Power

• Make sure that the power adapter is securely connected to the power connector of the unit.
• Check the output voltage of the power supply and make sure that the voltage value is around 12VDC.
• Replace the power supply.

No Video

• Check if all the video cables are connected properly.
• Connect the computer directly to the monitor to verify that your monitor and computer are functioning properly.
• Restart the computers

Keyboard is not working

• Check if the keyboard is properly connected to the unit.
• Check if the USB cables connecting the unit and the computers are properly connected.
• Try connecting the USB on the computer to a different port.
  • Make sure that the keyboard works when directly connected to the computer.
• Replace the keyboard.

Mouse is not working

• Check if the mouse is properly connected to the unit.
• Try connecting the USB on the computer to a different port.
  • Make sure that the mouse works when directly connected to the computer.
• Replace the mouse.

No Audio

• Check if all the audio cables are connected properly.
• Connect the speakers directly to the computer to verify that the speakers and the computer audio are functioning properly.
• Check the audio settings of the computer and verify that the audio output is through the speakers.

TECHNICAL SUPPORT

For product inquiries, warranty questions, or technical questions, please contact [e-mail].

LIMITED WARRANTY STATEMENT

A. Extent of limited warranty

SmartAVI, Inc. warrants to the end-user customers that the SmartAVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. Customer is responsible for maintaining proof of date of purchase.

SmartAVI limited warranty covers only those defects which arise as a result of normal use of the product, and do not apply to any:

a. Improper or inadequate maintenance or modifications
b. Operations outside product specifications
c. Mechanical abuse and exposure to severe conditions

If SmartAVI receives, during applicable warranty period, a notice of defect, SmartAVI will at its discretion replace or repair defective product. If SmartAVI is unable to replace or repair defective product covered by the SmartAVI warranty within reasonable period of time, SmartAVI shall refund the cost of the product.

SmartAVI shall have no obligation to repair, replace or refund unit until customer returns defective product to SmartAVI.

Any replacement product could be new or like new, provided that it has functionality at least equal to that of the product being replaced.

SmartAVI limited warranty is valid in any country where the covered product is distributed by SmartAVI.

B. Limitations of warranty

To the extant allowed by local law, neither SmartAVI nor its third party suppliers make any other warranty or condition of any kind whether expressed or implied with respect to the SmartAVI product, and specifically disclaim implied warranties or conditions of merchantability, satisfactory quality, and fitness for a particular purpose.

C. Limitations of liability

To the extent allowed by local law the remedies provided in this warranty statement are the customers sole and exclusive remedies.

To the extant allowed by local law, except for the obligations specifically set forth in this warranty statement, in no event will SmartAVI or its third party suppliers be liable for direct, indirect, special, incidental, or consequential damages whether based on contract, tort or any other legal theory and whether advised of the possibility of such damages.

D. Local law

To the extent that this warranty statement is inconsistent with local law, this warranty statement shall be considered modified to be consistent with such law.

Smart-AM

SMART AUDIO VIDEO INNOVATION

NOTICE

The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material. No part of this document may be photocopied, reproduced, or translated into another language without prior written consent from SmartAVI, Inc.

20180109

Designed and Manufactured in the USA
