Product Type	Car Stereo Receiver with Cassette, CD Changer Control, and Radio
Brand	Pyle
Model	PLRG23C
Power Supply	12V DC (negative ground)
Fuse Rating	1A (red), 6A (yellow), 0.1A (blue) for memory
Radio Bands	FM1, FM2, FM3, MW1, MW2
Preset Stations	18 FM / 12 MW (6 preset buttons)
Audio Output	4 speakers (front/rear) with line out jacks
Subwoofer Output	Yes (via line out jacks)
Dimensions (Approx.)	7.08 x 7.08 x 2.0 inches (180 x 180 x 50 mm)
Weight (Approx.)	1.5 lbs (0.68 kg)
Front Panel	Detachable with release button
Display	LCD digital display showing frequency, clock, and functions
Cassette Player	Auto reverse, fast forward/rewind with auto play
CD Changer Control	Compatible with optional CD changer (disc search, repeat, scan, shuffle)
Audio Controls	Volume, Bass, Treble, Balance, Fader
Mono/Stereo Selection	Selectable for FM reception
Local/Distance (DX) Tuning	Reduces interference from strong local stations
Auto Memory Store	Automatically stores 6 strongest stations
Preset Scan	Scans memorized stations every 5 seconds
Installation	DIN size with sleeve and removal keys
Safety	Do not ground speaker wires to chassis
Maintenance	Keep front panel clean; avoid moisture

Frequently Asked Questions - PLRG23C Pyle

How do I set the clock on the Pyle PLRG23C?

Press the CLOCK button until the time flashes. Then press the √ button to set the hour and the ∧ button to set the minutes.

Can I connect a subwoofer to this unit?

Yes, the PLRG23C has LINE OUT jacks (Left/Right) that can be used to connect an external amplifier or powered subwoofer. The LINE OUT signal is affected by the fader control.

How do I detach the front panel?

Press the PANEL RELEASE button on the front. The right side will pop out; grip it and pull off. To reattach, place the left side first and press the right side until it clicks.

What is the difference between LOCAL and DX modes?

LOCAL mode reduces sensitivity to avoid strong local stations overlapping weaker ones. DX mode is for long-distance reception with normal sensitivity.

How do I store a radio station preset?

Tune to the desired station, then press and hold one of the 6 PRESET buttons for more than 2 seconds. The station frequency will be stored. Tap the button briefly to recall it.

Can I play CDs with this unit?

The PLRG23C does not have a built-in CD player but can control an optional CD CHANGER via the CD changer port. The buttons (1-6) perform disc search, repeat, scan, and shuffle functions when in CDC mode.

How do I use the auto memory store function?

Press and hold the PRE-SCAN/AUTO-STORE button for over 2 seconds. The unit will scan all frequencies and store the 6 strongest stations into presets 1-6 automatically.

What should I do if the tape deck eats my cassette?

First, turn off the unit and press EJECT to remove the cassette. If stuck, gently pull it out. Do not force. Check for any debris. The unit has auto reverse and fast forward/rewind functions.

How do I connect speakers to this receiver?

Use the wiring diagram in the manual. For 4 speakers, connect front left (white/white-black), front right (gray/gray-black), rear left (green/green-black), rear right (purple/purple-black). Never ground speaker wires to the chassis.

What is the fuse rating and where are they located?

The unit has three fuses: a 1A fuse on the red (ignition) wire, a 6A fuse on the yellow (memory) wire, and a 0.1A fuse on the blue (power antenna) wire. They are located in-line on the respective wires.

USER MANUAL PLRG23C Pyle

Press the button to turn the power "ON" or "OFF".

2. MODE CONTROL

Press this button to select in either radio or cassette or CD changer mode.

3/4. MANUAL UP / DOWN TUNING TRACK SEEK UP / DOWN CONTROL

On radio mode, press this button will tune one frequency step higher or lower. On CD mode, press this button will locate the beginning of the track being played or will locate the beginning of the next track. When pressing more than 2 seconds, it will allow you to seek up or down on the specific track.

5. EJECT BUTTON

Depressing the eject button will stop the tape play, eject the cassette and turn on the radio.

6. TAPE SLOT

Holding the cassette lengthwise insert into the tape slot. The tape mechanism will now engage into the cassette play model.

7. LCD DIGITAL DISPLAY

The unit utilizes a digital type display which shows numerical indication of station FREQUENCY and other FUNCTIONS.

8. CLOCK

During radio operation, press this button to call the time display on the incorporated quartz clock. Pressing the button again or activating any tuning function, will return the display to station frequency read-out. During the tape operation, the time display will always be shown.

SETTING CLOCK TIME

1. Press CLOCK button until the clock timing is flashing.
2. Press √ tuning button to set the HOUR or press ∧ tuning button to set MINUTES.

9. PANEL RELEASE BUTTON

This button is used to release the mechanism that holds the front panel to the chassis. To detach the front panel, press the button so that the right side of the panel is released. Grasp the released side and pull it off of the chassis. To re-attach the panel, position the left side of the panel in place first and then press the right side of the panel until the mechanism locks it into place.

10. MONO/STEREO CONTROL

Press this button to select "FM STEREO" or "MONO" reception. A display reading of "ST" indicates the "STEREO" mode is selected.

11. LOCAL/DX

Press this button to prevent strong local stations from overlapping weaker stations. For normal operation, press this button again for distance.

12. CD CHANGER / PAUSE CONTROL

Press this button to control the optional CD Changer. Press the same button again to pause the disc played and the circle disc is flashing on display.

13. BAND SELECTOR

Each time this button is pressed, the radio band is changed.

The indication "FM1", "FM2", "FM3", "MW1" or "MW2" will appear on the display panel according to your selection.

14. STATION PRESET BUTTON

The PRESET BUTTONS on the unit are used to store station frequencies which you may wish to recall. Each preset button can store FM1, FM2, FM3, MW1, MW2 station frequency. Pressing the button momentarily recalls the station frequency which was memorized. There are 6 preset buttons, giving you capability of storing 18FM/12MW. NOTE: When the preset button to be memorized is kept pressed for more than 2 seconds, the receiving station frequency will be stored in the button pressed. After this, the memorized station can be recalled by tapping that button once.

On CDC Mode

Preset knob 1, press this button to search the disc numbers ahead.

Preset knob 2, press this button to search previous disc numbers.

Preset knob 3, press this button to repeat the specific track on the currently disc "RPT".

Preset knob 4, press this button to introduce the first 10 seconds of all the tracks on the currently selected disc

Preset knob 5, press this button to select disc randomly - Disc shuffle play.

15. PRE-SCAN/AUTO-STORE BUTTON

This button allows you to enjoy "Preset Memory Scan" function by pushing it within 2 seconds, and allows you enjoy "Auto Memory" function at pushing it continuously more than 2 seconds.

* PS (PRESET MEMORY SCAN)

It calls the memorized station frequencies (from 1-6) automatically every 5 seconds.

* AS (AUTO-STORE MEMORY)

It searches all station frequencies upward and memorize automatically 6 stations by catching the frequency which has scan-stop level strong on "LO" mode, weaker signal on "DX" mode or over at the time, the memorized station is shown on LCD as "CH1...6". After memorizing, auto memory function will be changed to "Preset Memory Scan" function automatically.

16. AUDIO SELECTOR

Press this button to select "VOLUME/BASS/TREBLE/BALANCE/FADER" adjustment modes. Each time button is pressed, accessed selection is displayed and + or - to adjust level as desired.

17/18. AUDIO LEVEL Down Control (- Button) / AUDIO LEVEL Up Control (+ Button)

With the exception of VOLUME, to access all other adjustment modes "BASS/TREBLE/BAL/FAD", first press SEL button then press the + or - button for selective audio control.

• VOLUME - Press + button to increase, or - to decrease sound level.

- BASS - While "BAS" is being displayed, press + to increase or - to decrease the bass level.

- TREBLE - While "TRE" is being displayed, press + button to increase or - to decrease the treble level.

- BALANCE - While "BAL" is being displayed, press + or - button to level balance of speaker right or left.

- FADER - While "FAD" is being displayed, press the AUDIO CONTROL + or - button to level balance of front speakers and LINE OUT jacks.

19. FAST FORWARD/REWIND BUTTON

At the end of tape in fast forward or rewind, the unit will automatically select play mode. To release either fast forward or rewind button from the lock position, push in the other button approximately half-way. During cassette play, press the fast forward and rewind buttons simultaneously and the reverse side of the tape will play automatically.

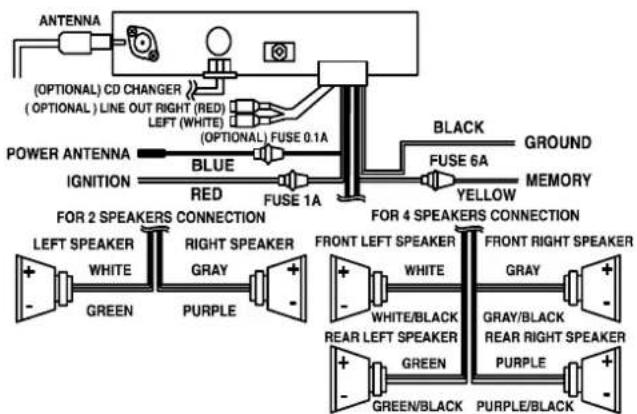

WIRING CONNECTION

CAUTION: DO NOT GROUND ANY SPEAKER WIRES TO CHASSIS (-).

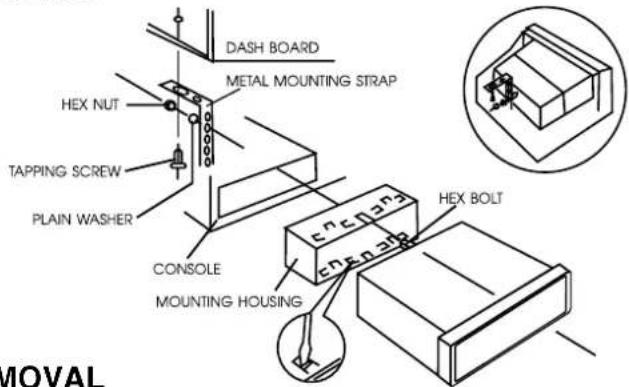

INSTALLATION

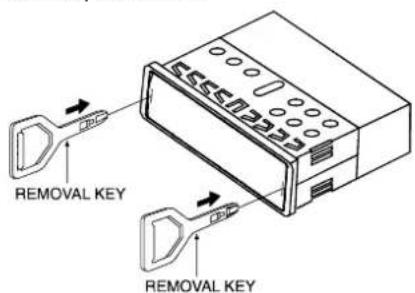

UNIT REMOVAL

1. Remove Front Control Panel.
2. Slightly insert the key into the slot and gently to release.
3. Separate the sleeve from the unit. Keep release key in a safe place as you may need for future removal of unit should it require service.
