USER MANUAL SC900WTS Scandium

SCAND Makes European Kitchen Applia 3 YR WARRANTY

European Quality

Kitchen Appliances

SCANDIUM

Makes life easier.

Introducing a range of European quality kitchen appliances from a name you can trust.

With more than 35 years of combined experience, Axis Group International have been scouring the globe, selecting high quality kitchen appliances to bring to the Australian and New Zealand market.

We seek out the best brands in Europe, with technology and development at the forefront, and recognised Awards that are peer-driven proof of excellence in the industry.

We are also motivated by a desire to deliver quality manufacturing, with intelligent and innovative design details, that customers will enjoy for a lifetime.

Best of all, we stand by our products with a 3 Year Warranty, supported by our reliable and trusted Service Team.

To explore the range visit www.scandiumappliances.com.au

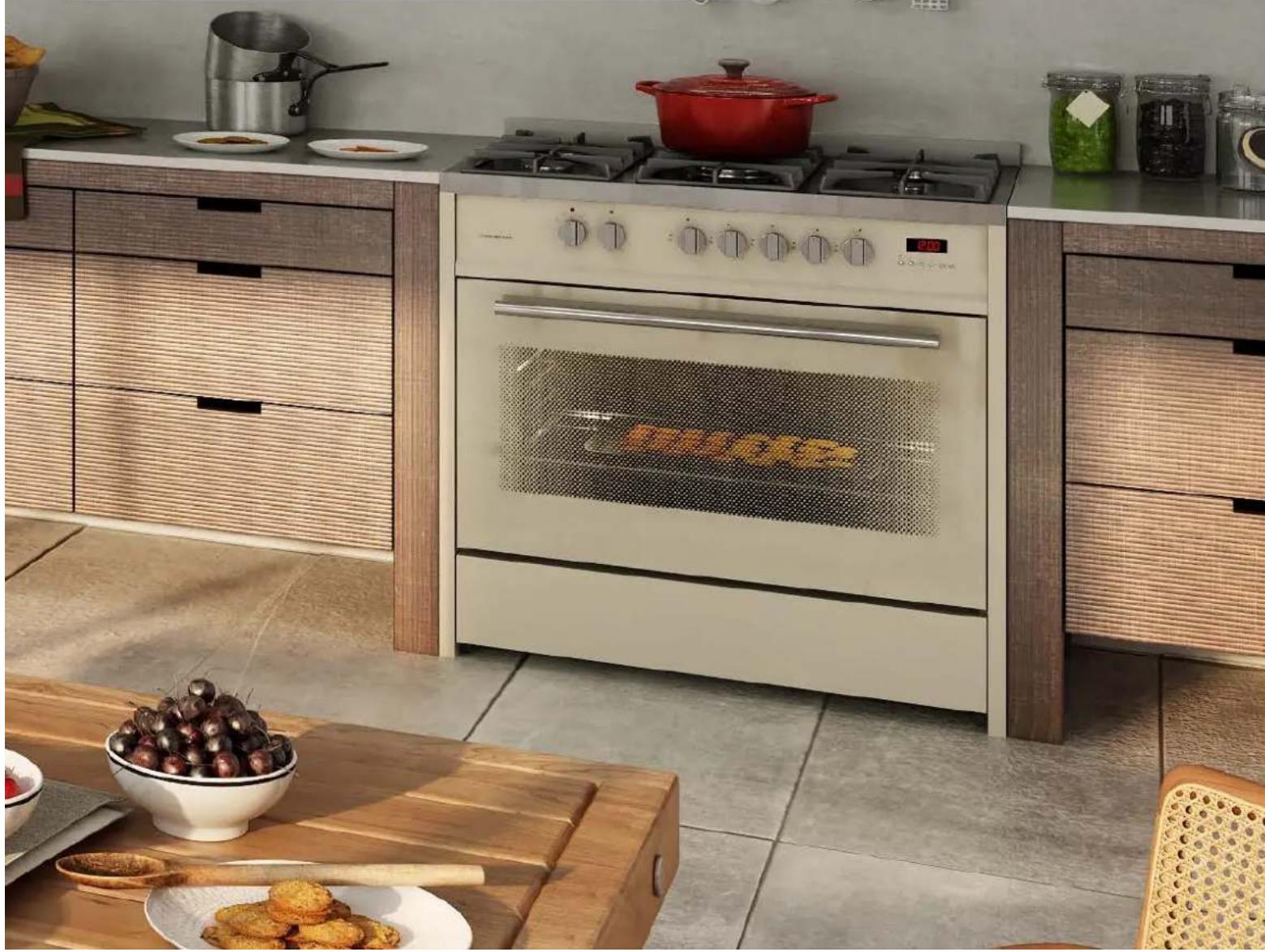

Modern kitchen interior with a white oven, wooden cabinets, and a glass jar on top (no visible text or symbols)

Modern kitchen stove with red interior, black cooking pot on top, and digital timer on front (no visible text or symbols)

An upright cooker in exciting colours.

121L UPRIGHT GAS/ELECTRIC FREE-STANDING OVEN // 90CM SCU900S/B/CR/PB/DB/LG/R/BG

■ 8 Multi-Function Oven
■ 5 Burner Gas Cooktop
■ Heavy Duty Cast Iron Supports
■ Centre Wok Burner
■ Programmable Electronic Timer
■ Triple Glazed Oven Door
■ XL Cavity - 121L Gross
■ Easy Clean Enamel
■ Twin Fans
■ Lower Warming/Storage Compartment
Child Lock
Electronic Ignition
■ Flame Failure Safety Device

121L

Exterior view of a stainless steel electric stove with multiple cabinetry (no visible text or symbols)

SCU900S Stainless Steel

Black double boiler with three fumes and control panel (no visible text or symbols)

SCU900B Black

Exterior view of a beige electric stove with multiple cabinetry (no visible text or symbols)

SCU900CR Cream

Blue electric stove with three fans and control panel (no visible text or symbols)

SCU900PB Pale Blue

Blue electric stove with three burners and a front-mounted door (no visible text or symbols)

SCU900DB Dark Blue

Exterior view of a stainless steel electric stove with multiple p Algeria fans (no visible text or symbols)

SCU900LG Light Green

Red electric stove with four burners and a black vent, no visible text or symbols

SCU900R Red SCU900BG Burgundy

Red and maroon electric stove with three fumes and a black door (no visible text or symbols)

OVEN FUNCTIONS:

Fan Forced Fan & Grill Grill Conventional

Bottom Element

Oven

DefrostingFan Assisted Fan Assist +

Front view of a modern stainless steel oven with digital display and control knobs (no visible text or symbols)

8 FUNCTION BUILT-IN ELECTRIC OVEN // 60CM SCEO08

■ 8 Multi Functions
■ Large Capacity, 73L Gross
■ Stainless Steel
Electronic Timer
Retractable Knobs
■ Rapid Pre-Heating
■ Defrosting
■ Easy Clean Enamel Interior

■ Oven Mit Hook on handle
■Enamel Baking Tray
2 Grill Racks
■Triple Glazed Door

73L

OVEN FUNCTIONS:

Top/Bottom Element + Fan Assisted

Full Grill Top Element + Grill

Defrosting (Fan Only)

Bottom Element

Rapid Pre-Heating

Top Element + Grill + Fan

Bottom Element + Fan

Front view of a stainless steel oven with digital display and control knobs (no visible text or symbols)

10 FUNCTION BUILT-IN ELECTRIC OVEN // 60CM SCEO10

■ 10 Multi Functions
■ Large Capacity, 73L Gross
■ Stainless Steel
Electronic Timer
Retractable Knobs
■ Rapid Pre-Heating
■ Defrosting

■Telescopic Guides
■Side Racks
■ Easy Clean Enamel Interior
■Enamel Baking Tray
2 Grill Racks
- Triple Glazed Door

OVEN FUNCTIONS:

Top + Bottom Element + Fan Assisted

Full Grill Top Element + Grill

Defrosting (Fan Only)

Bottom Element

Rapid Pre-Heating

Top Element + Grill + Fan

Bottom Element + Fan

Fan Forced + Circular Element + Bottom Element (Great for Pizza)

Fan Forced + Circular Element

Top-down view of a cooked fish in a pan on a stovetop, garnished with garlic, ginger, and chili slices, with additional ingredients like nuts and herbs nearby (no text or symbols visible)

Easy to use appliances with more convenient features ...

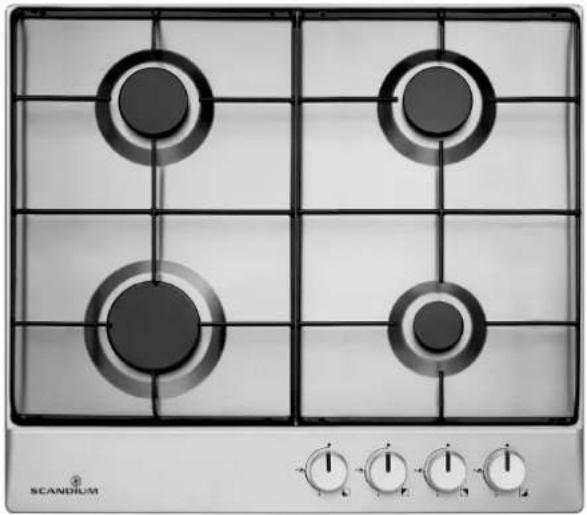

Front view of a four-gas stove with four circular vented lights on the top (no text or symbols visible)

■ Automatic Ignition on all Burners
■ Available in Natural Gas & LPG jets included

Black electrical stove burner with four white circular burners on the top (no text or symbols visible)

CERAMIC COOKTOP // 60CM SCCN60

■Vitroceramic Cooktop
■ Easy Clean Ceramic Glass
C-Cut Glass Edge Design
■Sensor Control
■ Residual Heat Indicator (over 60°C)
Child Lock
■Automatic Boil

■ 4 Hi Light Cooking Zones:

- 2 x 145mm simmer 1200W burners

- 1 x 180mm auxiliary 1800W burner

- 1 x 210mm large 2300W burner

SCHOTT CERAN®

Easy to use, and even more convenient cooking features ...

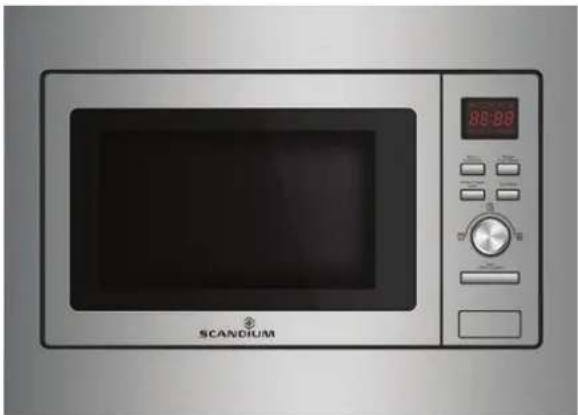

Front view of a Scandium microwave oven with control panel and display (no visible text or symbols beyond branding)

MICROWAVE // 60CM SC28LMO

■ Large Interior - 28 Litres
■ Stainless Steel Interior
■ 8 Auto Cooking Menus
Child Lock
Glass Tray

■4 Programs - Defrost By Weight, Defrost by Time, Speedy Cooking & Multi-Stage Cooking
■Led Interior Light
Grill Rack

Exterior view of a stainless steel kitchen appliance with control panel and display (no visible text or symbols)

FREESTANDING DISHWASHER // 60CM SCDW60

■ Stainless Steel Front Panel
■ Stainless Steel Filter
Electronic Push Buttons
■ Delay Start Function
■ Height Adjustable Upper Basket
■ 12 Place Settings
■ Foldable Bottom Plate Racks
■ Detergent & Rinse Aid Dispensers
■ 6 Programs - Intensive, 3-in-1, Heavy, Normal, Rinse, & Rapid
■ 4 Star WELS Rating
■ Residual Drying

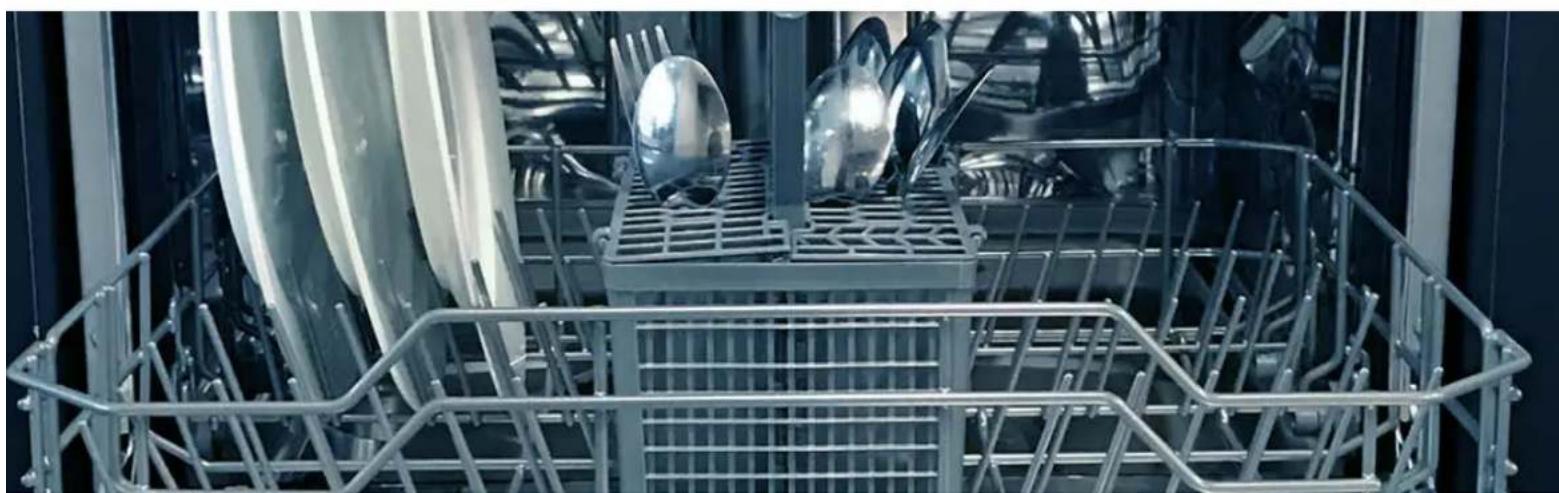

Interior view of a modern kitchen appliance with metal grilles and stainless steel utensils (no visible text or symbols)

Modern kitchen interior with wooden cabinets, white appliances, and a toaster on a black counter (no visible text or symbols)

The perfect SILENT rangehood for your Scandium cooktop.

SC900UMS SC600UMS SILENT SYSTEM

Interior view of a kitchen with exposed piping and ceiling-mounted appliances under a blue sky (no text or symbols visible)

Roof Wall Eave

The German built motor silently and efficiently extracts steam, smoke, and odours and expels it externally.

Motor mounts externally in roof, wall or eaves.

SILENT UNDERMOUNT RANGEHOOD // 60CM, 90CM

■ Stainless Steel
■ Silent, External Motor made in Germany
■ Single Speed with Switch Button Controls
Halogen Lights
■ Aluminium, Dishwasher Safe Filters
■ Motor & Ducting included - 2 boxes
■ Motor Power - 650m ^3 /hr Airflow (both models)
■ Ducting - 150mm flexi-ducting (4m)
■ Installs in Roof, Wall or Eave

Image is for illustration purposes only. Motor shown is not an exact product representation.

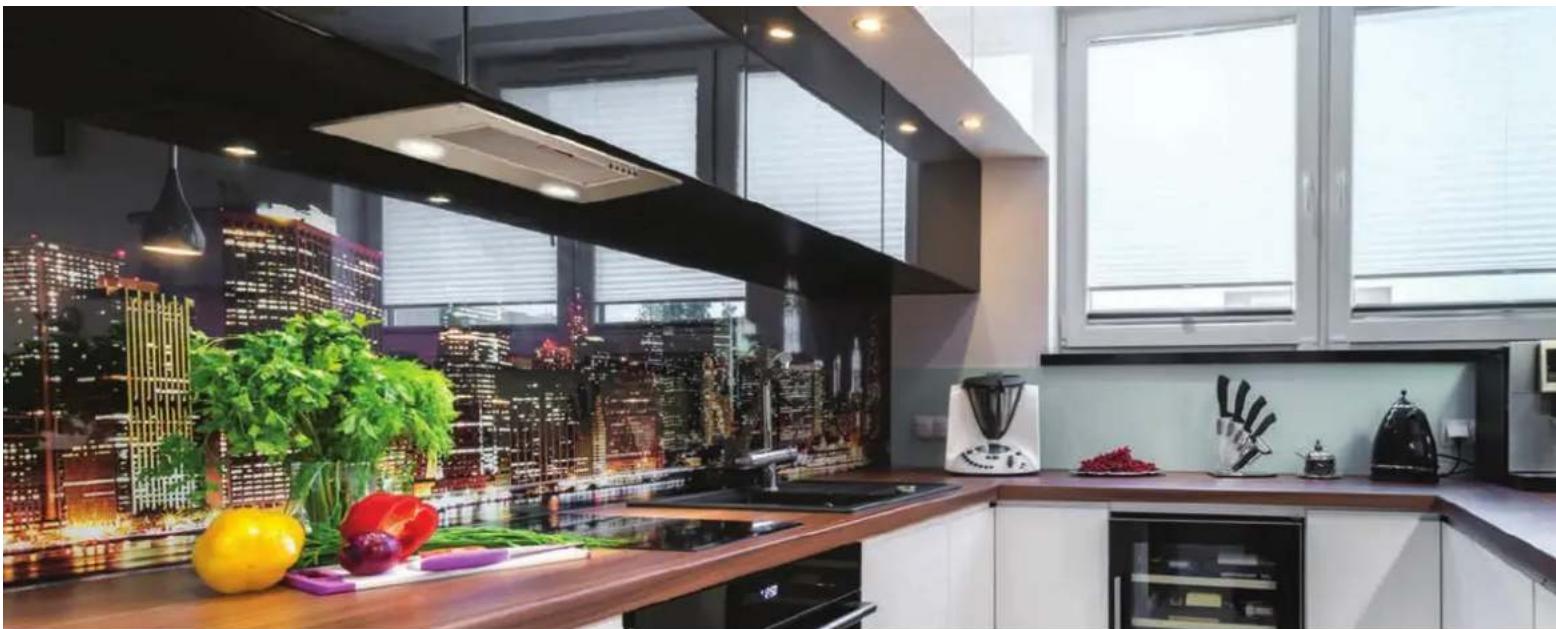

Modern kitchen interior with city skyline mural and kitchen utensils (no visible text or symbols)

Integrated designs for a fresh, clean and stylish kitchen to cook in.

Exterior view of a modern office ceiling light fixture (no signage or text)

3D rendering of a stainless steel ventilation duct with two grilles and mounting holes (no text or symbols)

UNDERMOUNT RANGEHOOD // 60CM, 90CM SCUM-6C, SCUM-9C

■Stainless Steel Fascia
■3 Speed with Push Button Controls
■GU 10 Warm LED Lights
■Aluminium, Dishwasher Safe Filters

■ Twin Internal Motor [SCUM-6C] - 760m³/hr
■ Twin Internal Motor [SCUM-9C] - 900m³/hr

3D rendering of a kitchen air vent with ventilation duct and mounting holes (no text or symbols visible)

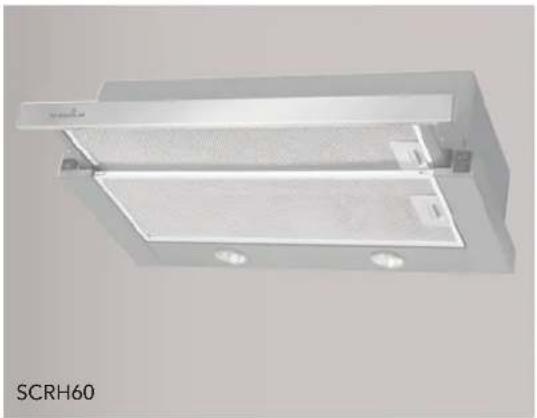

SLIDE OUT RANGEHOOD // 60CM SCRH60

■Telescopic Slide-out Rangehood - Automatic Start
■Stainless Steel Front Fascia
■2 Aluminium Grease Filters
■3 Speed with Button Controls
■Halogen Lights
■ Single Internal Motor - 250m³/hr

INSTALLATION Oven requires a dedicated 15 amp circuit from socket to main switchboard. Refer your qualified technician to our product manual. Natural Gas and LPG jets supplied.

CLEANING AND MAINTENANCE Easy clean enamel interior. Clean stainless steel using only recommended stainless steel cleaning products. No abrasives, corrosive detergents, bleaches or acids.

SCEO08, SCEO10 BUILT-IN OVEN // 60cm

25 550 540 135 585 595 595 40 Min 560 560 595

INSTALLATION Oven requires a dedicated 15 amp circuit from socket to main switchboard. Refer your qualified technician to our product manual.

CLEANING AND MAINTENANCE Easy clean enamel interior. Clean stainless steel using only recommended stainless steel cleaning products. No abrasives, corrosive detergents, bleaches or acids.

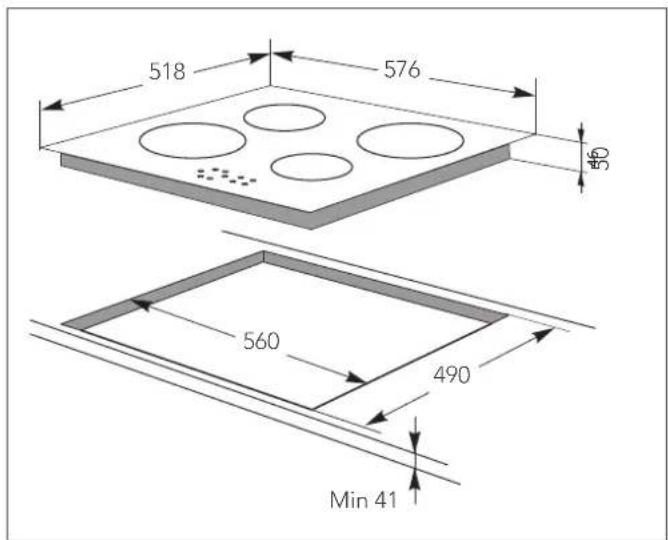

SCCN60 CERAMIC COOKTOP // 60cm

518 576 560 560 560 490 Min 41

INSTALLATION Cooktop requires a hard wired connection from the main switchboard using a 240V supply with a dedicated circuit. Refer your qualified technician to our product manual.

CLEANING AND MAINTENANCE Easy clean glass top with recommended glass cleaning products. No abrasives, corrosive detergents, bleaches or acids.

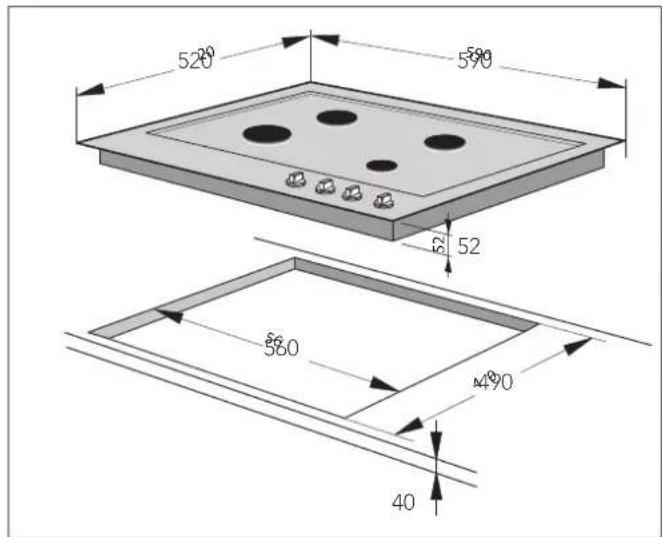

SCGT60 GAS COOKTOP // 60cm

520 590 52 52 560 490 40

INSTALLATION Cooktop is supplied with a 10 amp lead and plug. Refer your qualified technician to our product manual. Natural Gas and LPG Jets supplied.

CLEANING AND MAINTENANCE Easy clean stainless steel top. No abrasives, corrosive detergents, bleaches or acids.

INSTALLATION by a qualified, professional technician is recommended.

CLEANING AND MAINTENANCE Easy clean stainless steel fascia using only recommended stainless steel cleaning products. No abrasives, corrosive detergents, bleaches or acids.

SCDW60 FREE-STANDING DISHWASHER // 60cm

580 600 850 1175

INSTALLATION by a qualified, professional technician is recommended.

CLEANING AND MAINTENANCE Easy clean stainless steel fascia using only recommended stainless steel cleaning products. No abrasives, corrosive detergents, bleaches or acids.

SC600UMS UNDERMOUNT RANGEHOOD / SILENT // 60cm

245 261 295 566 600mm 200 30 267 237

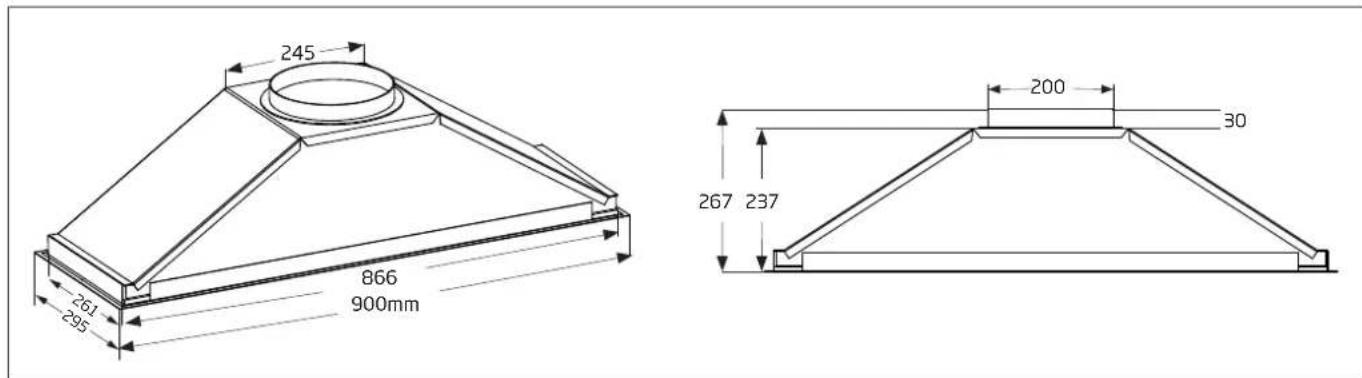

SC900UMS UNDERMOUNT RANGEHOOD / SILENT // 90cm

245 261 295 866 900mm 200 30 267 237

SCUM-6C UNDERMOUNT RANGEHOOD // 60cm

165 150 71 265mm 865mm 470 269.5 2305 25mm 890mm 9.5 325mm

SCUM-9C UNDERMOUNT RANGEHOOD // 90cm

165 150 71 245mm 865mm 865mm 269.5 280mm 890mm 9.5

SCRH60 SLIDE-OUT RANGEHOOD // 60cm

560 Ø120 270 40 173 290 310 (min) - 470 (max) Ø80 40

FOR ALL RANGEHOOD INSTALLATIONS

A qualified, professional technician is recommended.

10 amp plug supplied

CLEANING AND MAINTENANCE

Easy clean stainless steel using only recommended stainless steel cleaning products. No abrasives, corrosive detergents, bleaches or acids.

INSTALLATION NOTES

All measurements in millimetres.

All specifications and product sizes may be varied by the manufacturer without notice. Axis Group International are not responsible for any errors or omissions.

Pictures, specifications and dimensions are for illustration purposes only and cut-outs for appliances should only be physical product measurements. All dimensions and information are for indicative use only. Please refer to all technical specifications in the Installation Manual supplied with the appliance, prior to installation.

Scandium ^® European Quality Kitchen Appliances are covered by a 3 Year Warranty, and are serviced by our experienced Australian Customer Service Team.
