Product Type	Laptop Cart
Brand	Anthro
Model	AdjustaCart (36" Wide)
Width	36 inches
Height	Adjustable; shelf heights approx. 31" and 20" from floor (with standard casters)
Caster Size	2 5/8 inches
Number of Casters	4 (locking in front)
Number of Shelves	3 (recessed shelf, Adjusta shelf, caddy shelf)
Adjustable Shelf	Yes (Adjusta mechanism)
Shelf Angle	Adjustable (caddy shelf)
Warranty	Lifetime warranty against manufacturing defects
Assembly Required	Yes
Tools Included	Hex Driver, Hex Key, Rubber Mallet, 3-Way Wrench
Materials	Metal frame (probably steel)
Weight	Not specified, approx. 40 lbs (estimated)
Weight Capacity	Not specified
Mounting Options	Designed for laptop use; can accommodate other equipment
Cleaning	Wipe with a damp cloth; mild detergent
Safety Features	Locking casters for stability
Spare Parts Availability	Listed in manual (screws, end caps, supports)
Customer Service	Phone: [phone], email: [e-mail]

Frequently Asked Questions - AdjustaCart Anthro

How do I assemble the AdjustaCart?

Follow the assembly instructions in the manual. Start by assembling the Adjusta mechanism, then attach shelves, base, and casters. Use the provided tools.

What tools are included with the AdjustaCart?

Hex Driver, Hex Key, Rubber Mallet, and 3-Way Wrench. A hex driver bit for electric drill is also included.

Can I adjust the height of the shelves?

Yes, the Adjusta shelf can be positioned at different heights. The recessed shelf also has multiple mounting holes.

How do I adjust the angle of the caddy shelf?

Rotate the knob counterclockwise to loosen, reposition the shelf to the desired angle, then tighten clockwise.

What is the weight capacity of the AdjustaCart?

Not specified in the manual. It is designed for lightweight equipment like laptops.

How do I clean the AdjustaCart?

Wipe with a damp cloth using mild detergent. Do not use abrasive cleaners.

Are replacement parts available?

Yes, spare parts such as screws, end caps, and shelf supports are listed in the manual. Contact Anthro for replacements.

Does the AdjustaCart have a warranty?

Yes, it has a lifetime warranty against manufacturing defects.

Can I mount a monitor on the AdjustaCart?

The cart is designed for laptop use. Monitor mounting may require additional accessories.

How do I lock the casters?

The front casters have locking mechanisms. Push down the lever to engage the lock.

USER MANUAL AdjustaCart Anthro

Technology Furniture' Four and Friendly

Anthro Corporation® | 10450 SW Manhasse: Dr. | Tualatin, OR 97062

Toll-free: 800.325.3841 | Fax: [phone] | email: [e-mail] | anthro.com Outside the U.S. | Tel: [phone] | Fax: [phone]

[Barcode]

300-5052-00

Warranty:

This 36 ^th Wide Adjusted set has a Lifetime Warranty against manufacturing defects.

Technology Furniture and AdjustsCart are trademarks of Anthro Corporation. Anthro reserves the right to modify the design and specifications without prior notices.

36" Wide AdjustaCart

Assembly Instructions

ANTHRO

TECHNOLOGY FURNITURE®

Hello! Thank you for choosing Anthro.

Before beginning assembly of your 36" Wide AdjustaCart, please take a moment to review the parts listed below to verify that your shipment is complete.

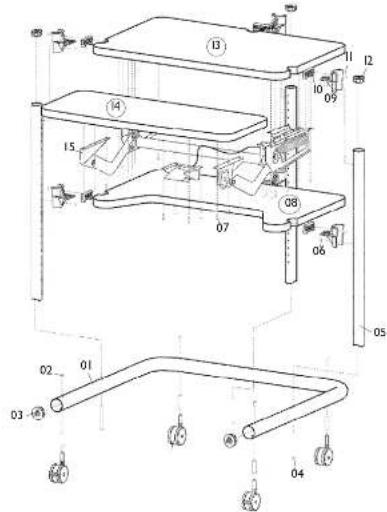

Component list for part # AJ36xx/xx

01-36"W Base Tube	Qty. 1	125-5003-xx
02-Caster Insert Screws	Qty. 4	325-5052-00
03-1.75" Large End Caps	Qty. 2	175-5021-xx
04-Base Tube Screws	Qty. 3	325-5000-00
05-26.875" Vertical Legs	Qty. 3	125-5049-xx
06-Self-threading Screws	Qty. 6	325-5010-00
07-Wood Screws	Qty. 28	325-5106-00
08-36"W Recessed Shelf	Qty. 1	100-6047-xx
09-Shelf Supports	Qty. 6	175-5060-xx
10-Shelf Clamps	Qty. 6	175-5059-xx
11-Clamp Screws	Qty. 6	325-5086-00
12-1.5" Small End Caps	Qty. 3	175-5020-xx
13-36"W Adjusta Shelf	Qty. 1	100-6167-xx

14-36"W Caddy Shelf......Qty. 1......100-6165-xx

15-36"W Adjusta Mechanism. Qty. 1......225-5317-00

(The Adjusta Mechanism is packaged separately & requires assembly)

The following Tools have been provided (but not shown above):

Hex Driver 1/2"......Qty. 1......375-5000-00

Hex Driver Bit 2/2"......Qty. 1......375-5003-00

(The Hex Driver Bit can be used in your electric drill)

Hex Key 3/2"......Qty. 1......375-5016-00

8 oz. Rubber Mallet......Qty. 1......375-5022-00

3-Way Wrench......Qty. 1......225-5196-03

All Screw quantities listed here are the minimum needed for your Cart assembly. There may be a few extra Screws included, which are not counted in the Parts List.

Anthro ² Corporation Technology Furniture 10450 SW Manhasset Drive Tualtun, Oregon 97062 anthro.com

1-800-325-3841

SAVE THESE INSTRUCTIONS!

Rev. D December 2014

36" Wide AdjustaCart

Assembly Instructions

Questions? I-800-325-3841

Step I

This Instruction will cover the AJ36xx AdjustaCart assembly and will place your Adjusta Shelf approximately 31" and your recessed shelf 20" from the floor using the standard 2 ^5/8 casters.

Before proceeding, please review the Assembly Instructions of all Anthro products you purchased and plan to include in this installation.

Step 2

Determine the best location for your AdjustaCart's recessed shelf. Your cart is designed to have the Adjusta shelf installed above the recessed shelf (as shown in these instructions).

For a recessed shelf location that is lower than 20" from the floor, refer to the illustrations shown at right to determine which hole to attach your shelf.

TIP: You may want to measure your equipment to make sure it fits between the selected shelf locations.

The Adjusted mechanism needs a minimum clearance of 10" between the shelvesto function properly. Do not install your recessed shelf any higher than the hole locations given at right.

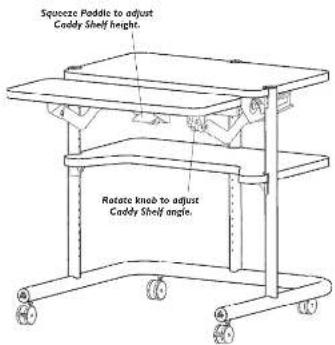

Adjusting your Caddy Shelf Height

1. Squeeze and hold the paddle.
2. Reposition the Caddy Shelf to the desired location.
3. Release the paddle.

Adjusting your Caddy Shelf Angle

1. Rotate the knob counterclockwise.
2. Reposition the Caddy Shelf to the desired angle.
3. Rotate the knob clockwise (tighten into piece).

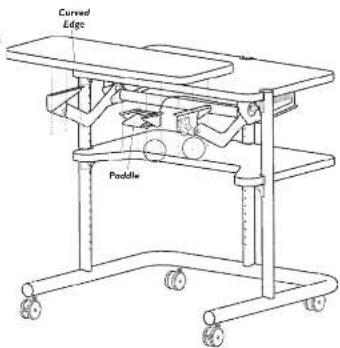

Step II

Carefully rotate your cart over onto the casters.

Place the caddy shelf onto the Adjusta mechanism. Make certain to orient the curved edge towards the front of the cart.

Align the three holes located on each end of the caddy shelf and mechanism. Secure the shelf to the mechanism using a total of six Wood Screws.

Finally, secure the paddle to the caddy shelf using four Wood Screws.

3/4" Wood Scrum 326-5106-00

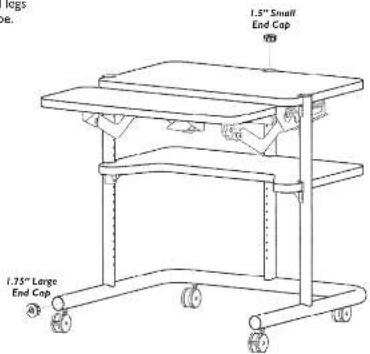

Step 12

Pop the three 1.5" small end caps into the vertical legs and the two 1.75" large end caps into the base tube.

Congratulations! Your assembly is complete.

Thank you for choosing Anthrol

Anthro® Corporation Technology Furniture 10450 SW Manhasset Drive Tualatin, Oregon 97062 anshro.com

Step 3a

Your Adjusta mechanism comes un-assembled and boxed separately inside your AdjustaCart package. Included with the Adjusta mechanism is a small bag of hardware containing: (1) Post, (1) Cotton Pin, (2) Hex Nuts, (2) Wood Screws and (2) Cable Mounts.

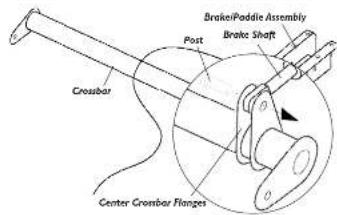

Begin to assemble the mechanism by first locating the Adjusta Crossbar and Brake/Paddle Assembly and position as shown at right. Depress the paddle once to free the brake shaft.

Next, place the brake shaft between the two center crossbar flanges. Insert the post through both center crossbar flanges and brake shaft.

Post (included with 225-53/7-00)

Step 3b

Next, install the Cotter Pin through the single opening of the post to secure into place.

Cotton Pin (included with 225-53/7-00)

Step 4 (uses the 3-Way Wrench)

Unpack the remaining Adjusta mechanism components and arrange them as shown at right.

Place one crossbar end onto the lower crossbar button and threaded bolt (located on each of the arm mechanisms). Secure the crossbar to the arm mechanism using one 2/16 " Hex Nut onto the threaded bolt.

Repeat for remaining crossbar end and arm mechanism.

2/16" Hex Nut (Included with 225-3317-00)

NOTE: it is very important that you attach the Crossbar ONLY to the Lower Crossbar Button.

Brake/Paddle Assembly

DETAIL VIEW

Questions on your AdjustaCart Assembly? Call 1-800-325-3841

Step 5

Attach three shelf supports to the Adjusta and recessed shelves. Begin by first installing a shelf clamp into the shelf notch. Be sure the pointed barbs face towards the outer shelf edge.

Next, slide a shelf support into the recesses of the shelf clamp and shelf. Push in as far as possible.

Finally, secure with a Clamp Screw.

1-5/8" SITVM 325-S085-00

Step 6

Loosely attach the Adjusta shelf to hole 2 from the top (non-coped end) of each vertical leg using one Self-threading Screw per leg.

TIP: Use the holes in the vertical legs as a ruler to ensure that your Self-threading Screws are installed into the correct locations.

Self-Drinking Screen 305-8010-00

Step 7 (requires shelf to be placed 12" from floor)

NOTE: this step requires the shelf assembly be positioned a minimum of 12" or higher off the floor to allow the Adjusta mechanism to be secured to the Adjusta shelf.

Place the mechanism onto the Adjusta shelf assembly.

Align the mechanism flanges with the predrilled holes on the shelf underside. Secure the mechanism to the shelf using a total of twelve Wood Screws.

Next, align the six holes of the brake assembly with those on the Shelf.

NOTE: it may be necessary to depress the paddle while manipulating the brake over the predrilled shelf holes.

Finally secure the brake assembly using a total of six Wood Screws.

3/4" Wood Screw 325 5106 20

Anthro® Corporation Technology Furniture 10450 SW Manhasset Drive Tualatin, Oregon 97062 anshro.com

Step 8

Carefully transfer the shelf assembly (from Step 7) onto the floor, lying on the back vertical leg as shown.

From the coped end, carefully slide the recessed shelf up into the desired location.

TIP: Use the holes in the vertical legs as a ruler to ensure that your Self-threading Screws are installed into the correct locations.

Loosely secure the recessed shelf to the vertical legs using a total of three Self-threading Screws.

Self-threading Screw 325-5010-00

REMINDER: the Adjusta Mechanism needs a minimum clearance of 10" between the Sleeves to function properly. Do not install your Recessed Shelf any higher than the hole locations given in Step 2.

Step 9

Install all four caster inserts into the base tube and secure with one Caster Insert Screw per insert.

Next, push the Casters, (locking ones in front) into the Caster Inserts.

1/2" Caster Insert Screw 325-5/6 2-00

Step 10 (uses the ^5/11 Hex Key)

Rotate the shelf assembly (from Step 8) upside down as shown. Place the base tube assembly (from Step 9) onto the vertical legs.

Attach the base tube to each leg using a total of three Base Tube Screws.

Tighten all Self-threading and Base Tube Screws.

2-102" Bolt 325-500-1-00

TIP: Use the "In:" Hex Key to tighten the Self-threading Screws located on the Adjusta shelf which are obscured by the mechanism.

Questions on your AdjustaCart Assembly? Call 1-800-325-3841
