Product Type	Dome Video Camera
Model	LV300P-B
Signal System	PAL
Pick-Up Device	6 mm Interline Color CCD (Super HAD)
Lens	Vari-Focal Lens (f=4.0-9.0 mm, F=1.6)
Iris	DC Iris
Resolution	520 TV Lines
S/N Ratio	More than 48 dB
Sensitivity	0.5 lx (F1.2)
Video Output	1 Vp-p Composite (75 Ω)
Shutter Speed	1/50 to 1/100,000 sec
White Balance	Auto
Back Light Compensation	Auto / OFF
Gain Control	Auto
Exposure	Automatic control with DC Iris motor
Power Source	DC 12 V
Power Consumption	Less than 2.3 W
Operating Temperature	-10°C to 50°C (0% to 80% RH)
Storage Temperature	-20°C to 60°C (0% to 85% RH)
Dimensions	ø 121.5 x 91 mm (H)
Net Weight	270 g
Mounting	Ceiling mount with included screws
Adjustment	Pan (left/right), Tilt (up/down), Zoom, Focus
Dip Switch Settings	ELC/ALC, Flickerless, AWB/HOLD, BLC, L/L, AGC
Included Accessories	M4 Tapping Screws (2 EA), optional Adapter (DC 12V, 300 mA)

Frequently Asked Questions - LV300P-B LG

How do I install the camera on the ceiling?

First, aim the LG logo toward the area you want to monitor. Secure the camera with the two M4 tapping screws provided. Adjust the pan (left/right) by moving the Pan Base, then tighten the screws. Loosen the Tilting Lock Screw to adjust tilt (up/down) and retighten. Use the Zoom and Focus levers for desired field of view. Finally, install the dome cover by turning it counterclockwise.

What do the 6-pin Dip Switch settings do?

The Dip Switch has six functions: ELC/ALC (Electronic or Auto Iris), FL (Flickerless to remove flicker), AWB/HOLD (Auto White Balance or Hold), BLC (Back Light Compensation off/on), L/L (Line-Lock or Internal sync), and AGC (Auto Gain Control on/off). Default settings: ALC, OFF, AWB, OFF, INT, ON.

How do I clean the dome cover?

Use a dry, soft cloth to clean the dome cover. For stubborn dirt, dampen the cloth with a mild detergent and wipe gently. Avoid strong solvents or detergents to prevent damage.

What is the day/night (D&N) function?

The D&N (Day & Night) function is activated automatically when AGC is set to ON. It enhances low-light performance by adjusting gain to make dark images lighter. This helps the camera transition from color to monochrome in low light.

Can this camera be used outdoors?

No, this camera is designed for indoor use only. It should not be exposed to rain, moisture, or extreme environmental conditions. Install in a location that is protected from water and dust.

Why is my picture quality poor?

Check if the dome cover is dirty. Clean it with a dry cloth. Adjust the focus lever for sharpness. If the background is too bright, set Back Light Compensation (BLC) to OFF. Also ensure the monitor is working correctly.

What power supply is needed?

The camera requires a DC 12 V power supply. The optional adapter is rated at 12 V, 300 mA. Use only the specified adapter to avoid damage.

How do I remove the dome cover?

Lift the Dome Cover Separatory Spring on the opposite side of the LG logo, then turn the dome cover clockwise to release it. Handle with care to avoid damage.

What is the maximum resolution?

The camera provides 520 TV lines of horizontal resolution, suitable for clear surveillance images.

Can I mount the camera on a wall?

Yes, but you will need an additional mounting bracket (not supplied) for wall installation. The included hardware is designed for ceiling mounting only.

USER MANUAL LV300P-B LG

Please read this manual carefully before operating your set and retain it for future reference.

MODEL

LV300N-B/LV300N-C

LV300P-B/LV300P-C

P/NO : MFL62723765

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING: Do not install this equipment in a confined space such as a bookcase or similar unit.

WARNING: This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

WARNING: Wiring methods shall be in accordance with the National Electric Code, ANSI/NFPA 70.

WARNING: To reduce a risk of fire or electric shock, do not expose this product to rain or moisture.

CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus.

CAUTION: This installation shall be made by a qualified service person and shall conform to all local codes.

CAUTION: To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

REGULATORY INFORMATION: FCC Part 15

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

A suitable conduit entries, knock-outs or glands shall be provided in the cable entries of this product in the end user.

• Caution: Danger of explosion if battery is incorrectly replaced. Replaced only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.
• Holes in metal, through which insulated wires pass, shall have smooth well rounded surfaces or shall be provided with brushings.

LG Electronics hereby declares that this/these product(s) is/are in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC, 2006/95/EC, and 2009/125/EC.

European representative :

LG Electronics Service Europe B.V.

Veluwezoom 15, 1327

AE Almere, The Netherlands

(Tel : [phone])

Important Safety Instructions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where

they exit from the apparatus.

1. Only use attachments/accessories specified by the manufacturer.
2. Use only the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

1. Unplug this apparatus during lightning storms or when unused for long periods of time.
2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Safety Precautions

Do not attempt to disassemble the camera.

To prevent electric shock, do not remove screws or covers. There are no user serviceable parts inside. Ask qualified service personnel for servicing.

Do not use strong solvents or detergents.

Use a dry cloth to clean the camera when it is dirty. If it is hard to remove the dirt on the camera, use a mild detergent and wipe it gently.

Before operating, please check proper temperature, humidity, and power source ratings.

Use the camera under conditions where temperature is between -10 °C to +50 °C.

Do not expose the camera to conditions such as those shown below.

Use in a room or area filled with cigarette smoke, dust, or gas.

Avoid exposing the camera to direct sunlight.

Do not aim the camera at bright objects. Never face it toward direct sunlight or other extremely bright objects. Otherwise, blooming or smear may occur.

Handle the camera with care.

Do not abuse the camera. Avoid striking, shaking, etc. The camera could be damaged by improper handling or storage.

Do not expose the camera to rain or moisture.

This product is designed for indoor use or in locations where it is protected from rain and moisture. When exposed to moisture, turn the power off immediately and ask a qualified service personnel for servicing. Moisture can damage the camera and also create the danger of electric shock.

What's in the box

M4 Tapping Screws (2 EA)

(Pan Lock Screw)

Optional

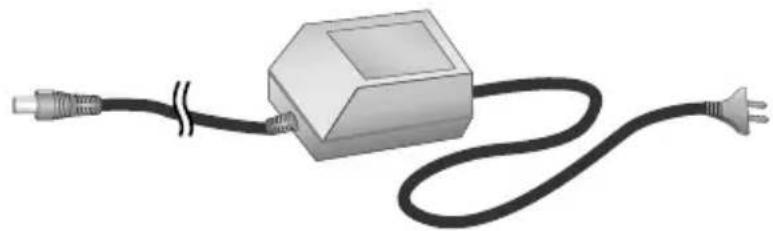

Adapter (DC 12 V, 300 mA)

Construction

Front View

Pan Base

6-pin Dip Switch

Tilt Base

Zoom Lever

Tilting Lock Screw

Focus Lever

Side View

Lens

Tilting Lock Screw

Dome Cover Separatory Spring

Installation

Camera Installation

1. Aim the LG logo of the Dome Camera to face the place that you wish to watch.
2. Tighten the M4 Tapping Screws to fix the Dome Camera on the ceiling, then adjust the Pan (Left/Right) by moving the Pan Base. Tighten the M4 Tapping Screws after adjustment.
3. Loosen the Tilting Lock Screw. Adjust the Tilt (Up/Down) by moving the Tilt Base, then tighten the Tilting Lock Screw.
4. Set the Zoom Lever to a point between "Tele" and "Wide" to choose the desired angular field of view. Set the Focus Lever to a point between "Near" and "Far" to choose the desired focus of view.
5. Install the Dome Cover to the main body by turning it counterclockwise to the end.

Hole for Fixing

Notes

• When you install the camera, handle with care. The camera could be damaged by improper handling or storage.
• If this camera is mounted on other places except the ceiling, you need an extra bracket for mounting. (not supplied)

Installation

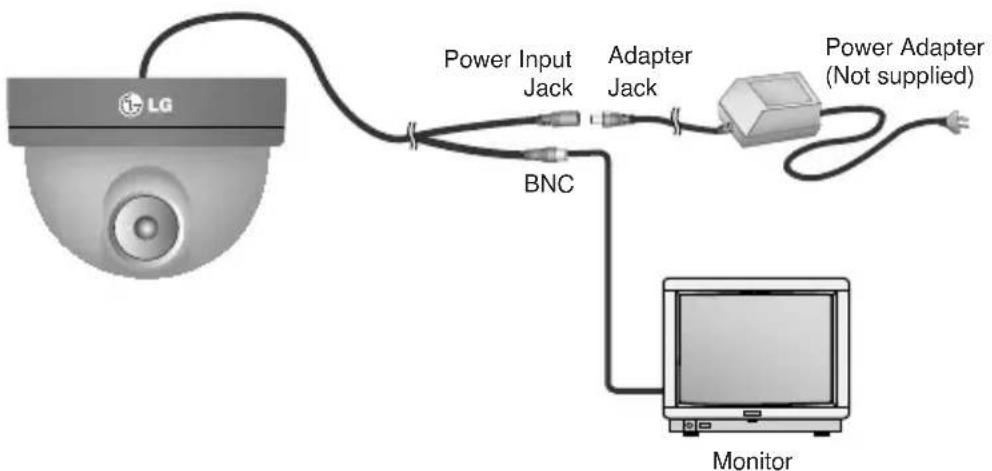

Camera Connection

Connect the Power Adapter (12 V, 300 mA; optional) to the Power Input Jack of the camera as shown below.

Installation

NOTES:

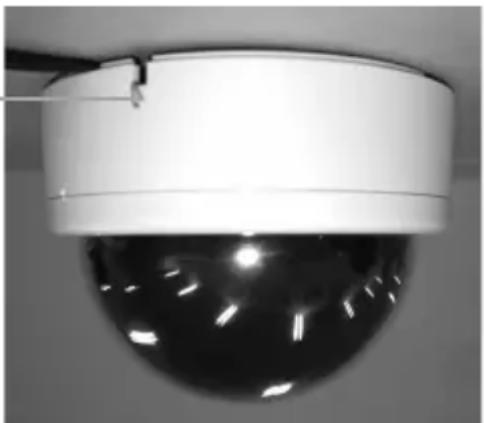

- When you disassemble the Dome Cover, lift the Dome Cover Separatory Spring on the opposite side of the LG Logo and turn the Dome Cover clockwise simultaneously.

Dome Cover Separatory Spring

• When you install the camera, handle with care. The camera could be damaged by improper handling or storage.
• If this camera is mounted in places other than the ceiling, you will need an extra bracket for mounting (not supplied).

Setup

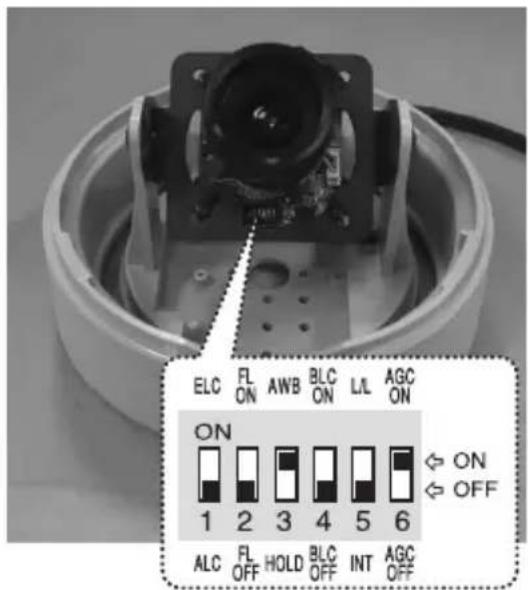

6-pin Dip Switch Setting

This camera has a 6-pin Dip Switch for setting.

1. ELC / ALC

ELC (Electronic IRIS), ALC (Auto IRIS)

The default setting is ALC.

2. FL (Flickerless)

Use for removing the flicker of picture.

The default setting is OFF.

3. AWB/HOLD

AWB (Auto White Balance), HOLD (White Balance Hold). The default setting is AWB.

4. BLC

Backlight compensation eliminates strong background light which makes the camera picture dark such as a spotlight. You can select the mode for adjusting the iris lens. The default setting is OFF.

5. L/L

Line-Lock mode, Internal Mode. Line-Lock when using AC 24 V power.

The default setting is INT.

6. AGC (Auto Gain Control)

If the image is too dark, change the maximum value to make the image lighter. The D&N function is activated automatically in AGC ON mode. The default setting is ON.

Troubleshooting

Check the following guide for the possible cause of a problem before contacting service.

The picture is poor

Does the Dome Cover have lots of dust on the surface?

• Use a dry cloth to clean the camera when it is dirty. Smear may be caused to the screen at night more than during daytime.
• Adjust the Focus by moving the Focus Lens.

Contrast of the screen is not clear.

Check the condition of the monitor. A light source such as a spot light causes burn-in on the display screen. Adjust position or angle of the camera to eliminate strong background light.

Background screen appears extremely white.

You can set the background compensation to OFF.

Dimension

Specifications

Model LV300N-B/LV300N-C LV300P-B/LV300P-C
Signal System NTSC PAL
Total / Effective Pixels	410 000 Pixel /380 000 Pixel	470 000 Pixel /440 000 Pixel
Pick-Up Device 6 mm Interline Color CCD (Super HAD)
Lens	Vari-Focal Lens(LV300N/P-B : f=4.0 mm to 9.0 mm/F=1.6LV300N/P-C : f=2.6 mm to 6.0 mm/F=1.6)
Iris DC Iris
Signal Process Digital Signal Process (SS11X)
Scanning System 2 : 1 Interlace
Sync. System Internal
Scanning Frequency 59.94 Hz(VD) 50 Hz(VD)
Resolution 520 TV Lines
S/N Ratio	More than 48 dB
Standard Illuminance	2 000 lx (3 200 K)
Sensitivity (1/3 output)	0.5 lx (F1.2)
Video Output Signal	1 Vp-p Composite (75 Ω)
Gain Control	Auto
Exposure	Automatic control with DC Iris motor
Shutter Speed	1/60 to 1/100 000 SEC	1/50 to 1/100 000 SEC
White Balance	Auto
Back Light	Compensation Auto / OFF
Power Source	DC 12 V
Power Consumption	Less than 2.3 W
Operating Temp.	-10 °C to 50 °C (Humidity : 0 % RH to 80 % RH)
Storage Temp.	-20 °C to 60 °C (Humidity : 0 % RH to 85 % RH)
Net Weight	270 g
Dimensions	ø 121.5 (Diameter) x 91 mm(H)
