USER MANUAL PFM888-AC Dahua Technology

Wireless AC Controller

User's Manual

V1.0.0

ZHEJIANG DAHUA VISION TECHNOLOGY CO.,LTD.

Copyrights

© 2017 ZHEJIANG DAHUA VISION TECHNOLOGY CO.,LTD.. All rights reserved.

Any or full contents of the user's manual cannot be copied, transmitted, distributed, partially or wholly, by any means, without the prior written notice of ZHEJIANG DAHUA VISION TECHNOLOGY CO.,LTD. (hereinafter "Dahua").

Dahua or the third party may reserve the right of the product described in this user's manual. Without the prior written approval of the corresponding party, any person cannot copy, distribute, amend, reverse compile, disassemble, decode, reverse engineering, rent, transfer or sub-license the software.

Trademark

• @Jhua, @Jhua, @Jhua and HDCVI are the trademarks or registered trademarks of the Dahua in various jurisdictions.
• HDMI logo, HDMI and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. This product has been authorized by HDMI Licensing LLC to use HDMI technology.
  • VGA is the trademark of IBM.
• Windows logo and Windows are trademarks or registered trademarks of Microsoft.
• Other trademarks and company names mentioned are the properties of their respective owners.

Update and Modification

In order to enhance the product security and provide better user experience, Dahua may improve the product via software auto update, but Dahua doesn't need to inform in advance and isn't liable to any responsibility.

Dahua reserves the right to modify any information in this document at any time, the modified contents will be added into the new version without prior announcement. There may be minor differences in some product functions after it is updated.

Aim of Manual

This manual mainly enables users to get familiar with wireless AC management platform, helps users to use it and solve some common problems when necessary.

Applied Model

DH-PFM888-AC

Symbol Definition

The following symbols may appear in the document. Please refer to the table below for the respective definition.

Symbol		Note
	Danger	It means highly potential danger. It will cause severe injury or casualties if it fails to avoid.
	Warning	It means moderate or low potential danger. It may cause slight or moderate injury if it fails to avoid.
	Caution	It means potential risk. It may cause device damage, data loss, weaker performance or other unpredictable consequences if it fails to avoid.
	Anti-static	It means electrostatic-sensitive device.
	Protection against electric shock	It means high-voltage danger.
	Laser radiation	It means intensive laser radiation.
	Tip	It means that it can help you to solve some problem or save your time.
	Note	It means the additional information, which is the emphasis and supplement of the main body.

The following description is the correct application method of the device. Please read the manual carefully before use, in order to prevent danger and property loss. Strictly conform to the manual during application and keep it properly after reading.

• Please modify default password timely after device deployment, so as not to be embezzled by others.
• Please don't place and install the device in an area exposed to direct sunlight or near heat generating device.
• Please don't install the device in a humid, dusty or fuliginous area.
• Please keep its horizontal installation, or install it at stable places, and prevent this product from falling.
• Please don't drip or splash liquids onto the device; don't put on the device anything filled with liquids, in order to prevent liquids from flowing into the device.
• Please install the device at well ventilated places; don't block its ventilation opening.
• Use the device only within rated input and output range.
• Please don't dismantle the device arbitrarily.
• Please transport, use and store the device within allowed humidity and temperature range.

• Please make sure to use batteries according to requirements; otherwise, it may result in fire, explosion or burning risks of batteries!
• To replace batteries, only the same type of batteries can be used!
• The product shall use electric wires (power wires) recommended by this area, which shall be used within its rated specification!
• Please make sure to use standard power adapter matching with the device, or the user shall undertake any resulting personnel injuries or device damages.
• Please use the power consistent with SELV (safety extra low voltage) requirements, and supply power with rated voltage of limited power source according to IEC60950-1. For specific power supply requirements, refer to labels of the device.
• Products with category I structure shall be connected to grid power output socket, which is equipped with protective grounding.
• Appliance coupler is a disconnecting device. During normal use, please keep an angle that facilitates operation.

Special Announcement

- This manual is for reference only. Please refer to the actual product for more details.

• This manual will be regularly updated according to product changes, and the updated contents will be added into the new version without prior announcement. There may be minor differences in some product functions after it is updated.
• Please contact Customer Service Department of this company for the latest program and supplementary instructions.
• The manual serves as a reference for many models of products. Specific operation of each product will not be listed. Please refer to the manual and operate according to actual circumstances.
• The manual may include technically inaccurate contents, inconsistencies with product functions and operations, or misprint. Final explanations of the company shall prevail.
• The user shall undertake any losses resulting from violation of guidance in the manual.
• Other trademarks and company names possibly mentioned in the document are the properties of their respective owners.

Legal Statement...... I

Preface....II

Important Safeguards and Warnings .... III

Table of Contents ...... V

1 Overview....1

1.1 Overview ...... 1
1.2 Features .... 1
1.3 Hardware Description .... 3
1.4 Performance Specification....3

2 Installation....4

2.1 Boot-up/Shutdown 4
2.2 Interface Specification....4
2.3 Preparations before Installation....5

2.3.1 Safety Precautions....5
2.3.2 Accessories....8
2.3.3 Check List before Installation 8

2.4 Installation of the Device....9

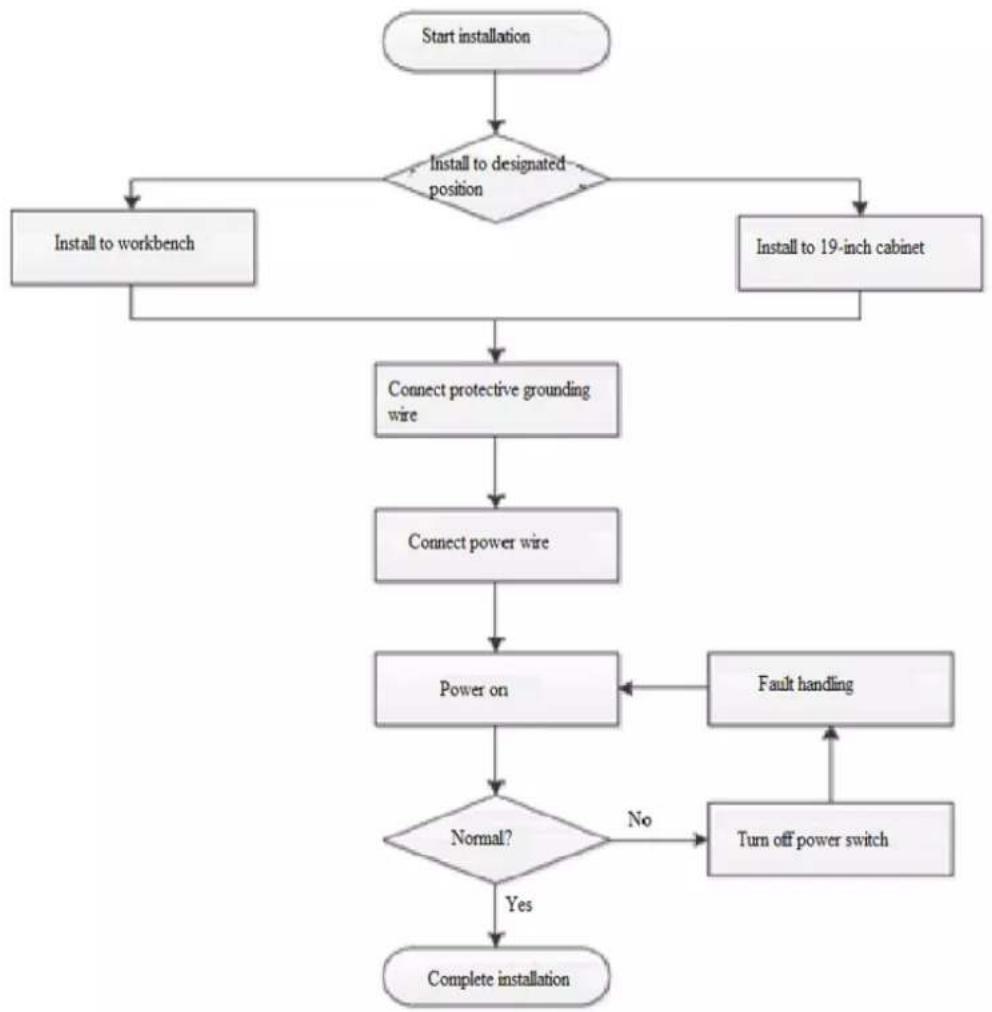

2.4.1 Installation Flow 9
2.4.2 Install the Device to Workbench....10
2.4.3 Install the Device to 19-inch Cabinet....11

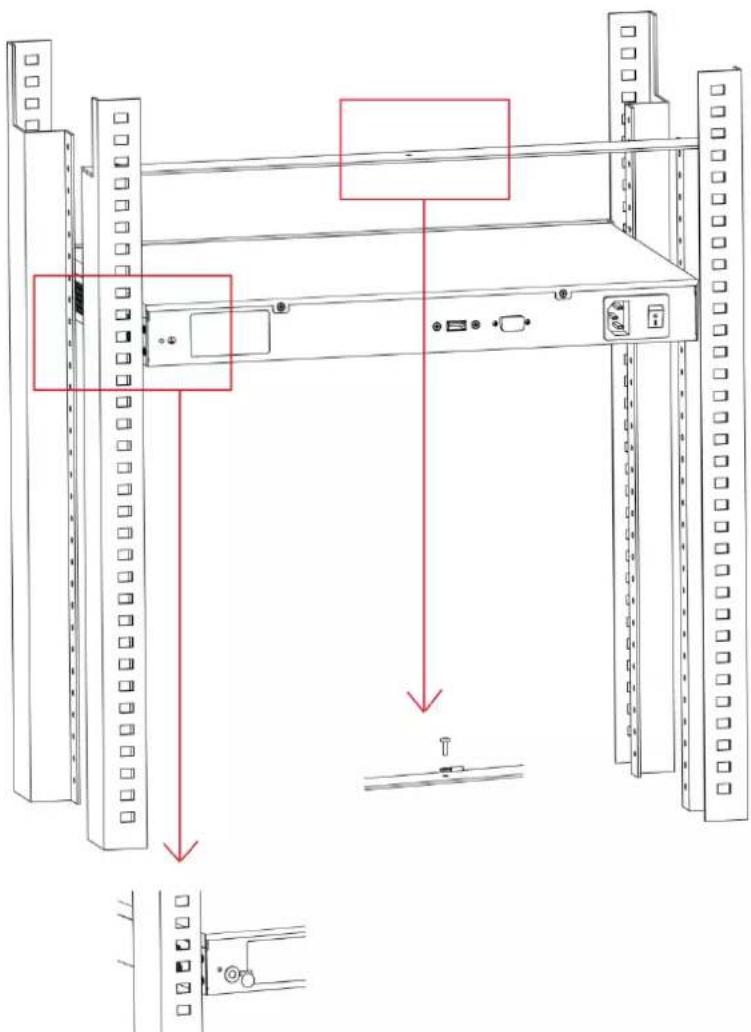

2.4.4 Connect Protective Grounding Wire 13
2.4.5 Connect Power Wire 15
2.4.6 Inspect after Installation.... 15
2.4.7 Start the Device 16

3 Device Goes Online.... 17

3.1 L2 Goes Online 17

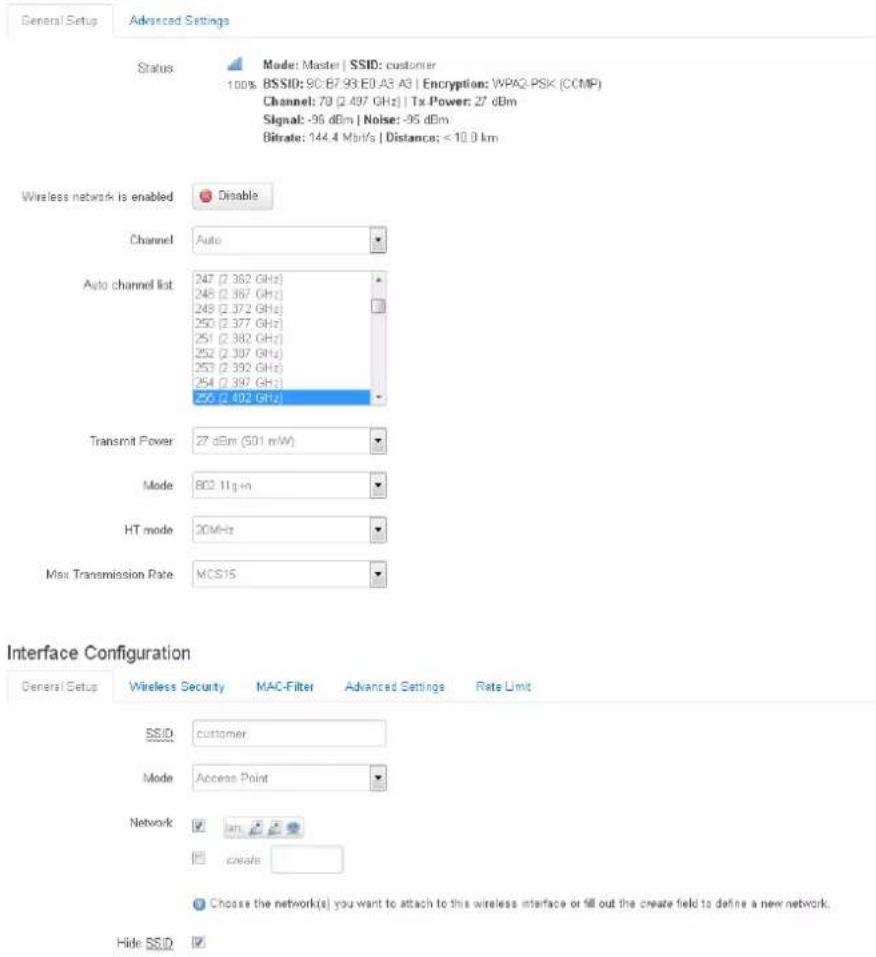

3.1.1 Access Point Device Goes Online.... 17
3.1.2 Client Device Goes Online 19

3.2 L3 Goes Online 21

3.2.1 Settings of Wireless AC Controller 21
3.2.2 Access Point Device Goes Online 22
3.2.3 Client Device Goes Online 24

4 Functional Introduction ...... 26

4.1 Login....26
4.2 Status Statistics.... 26

4.3 Device Management 27

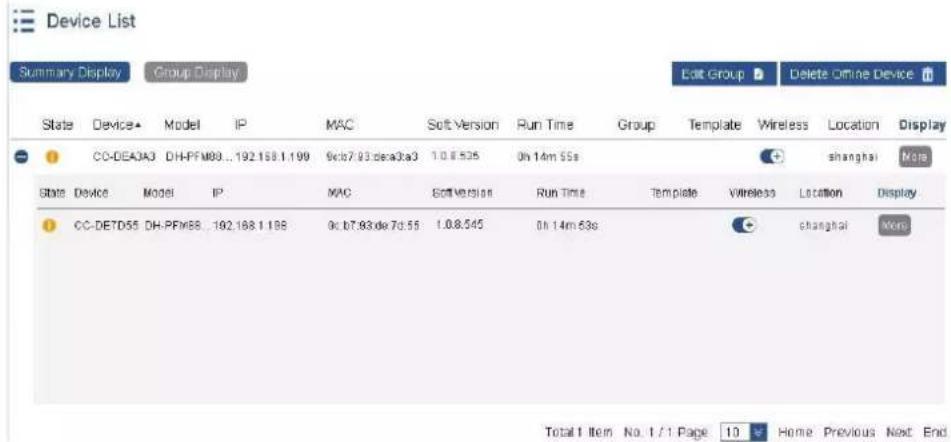

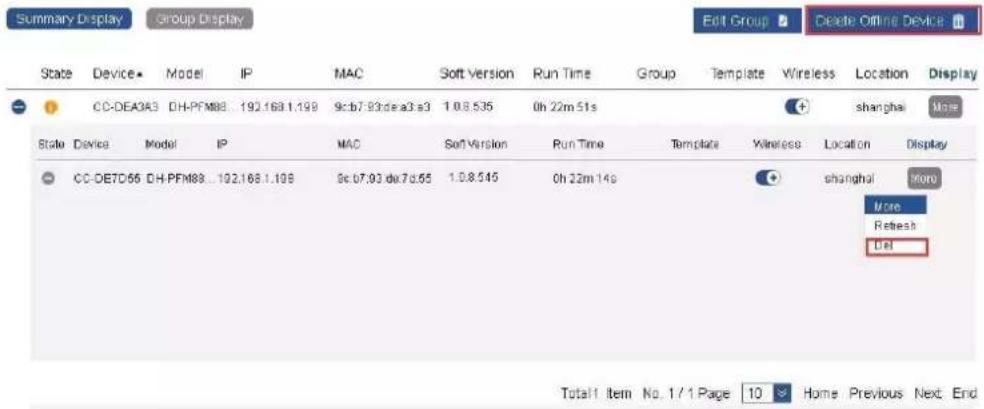

4.3.1 Device List 27

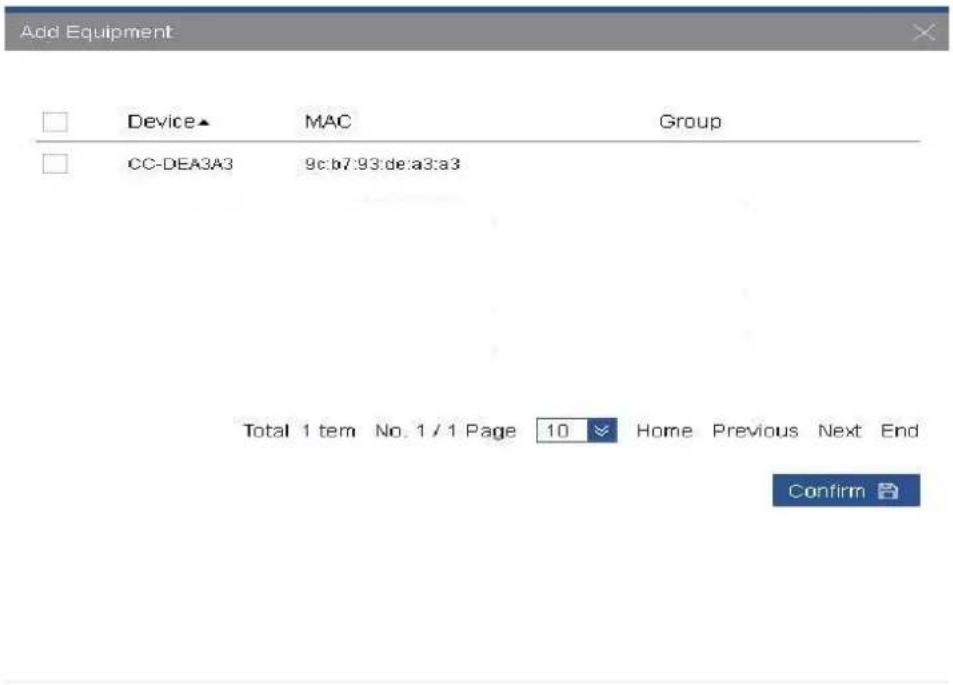

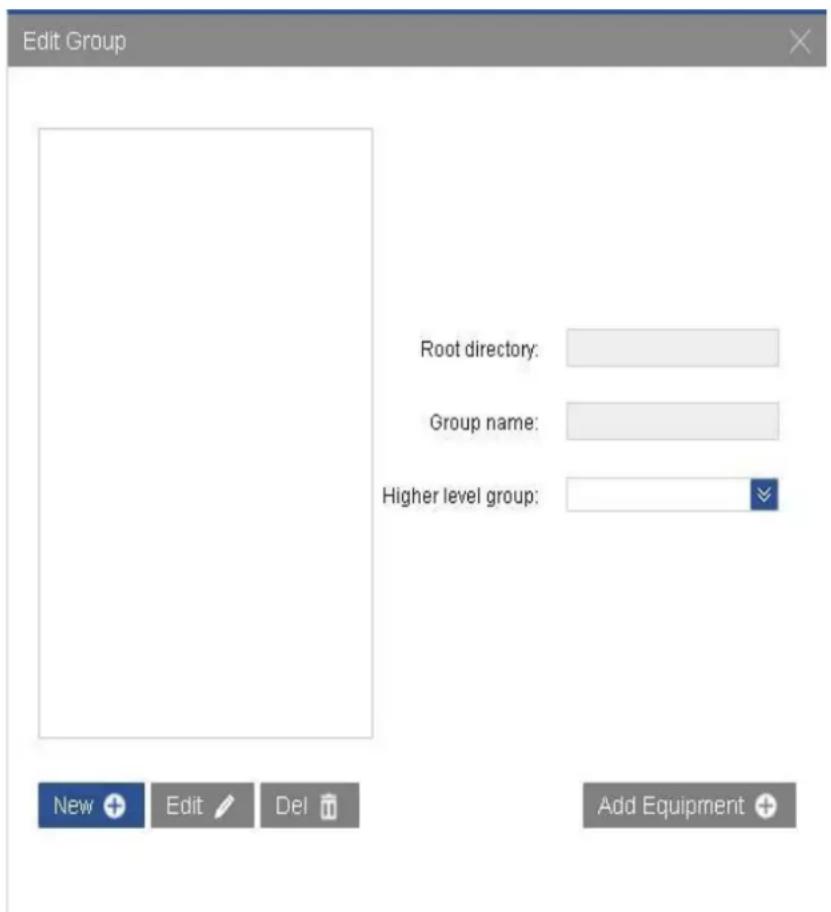

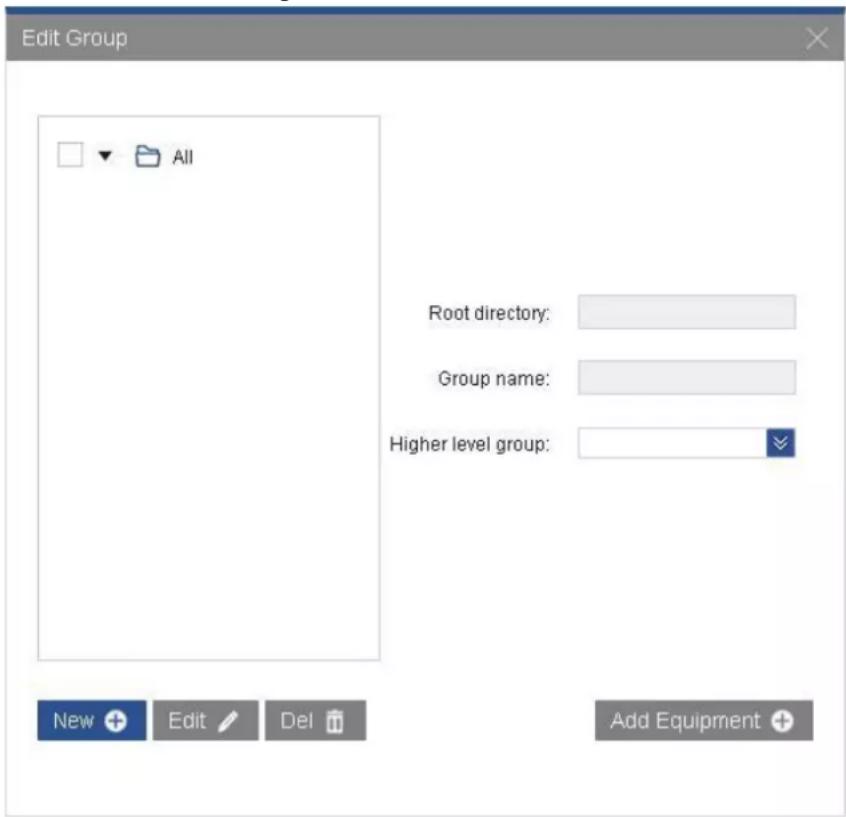

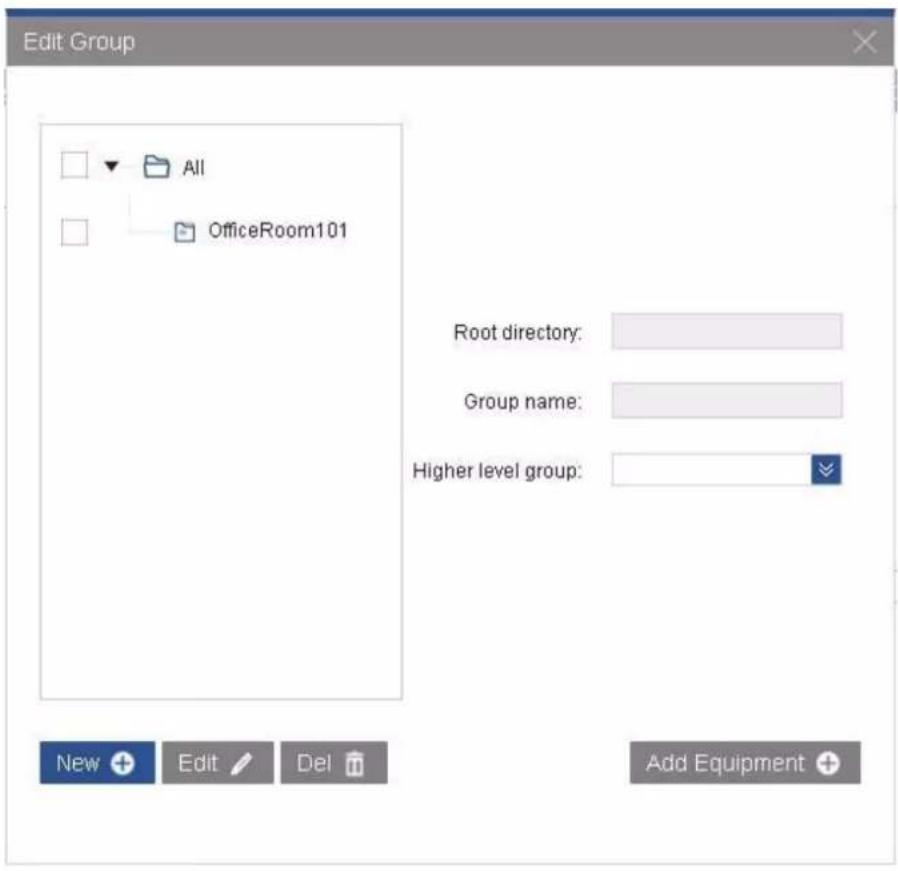

4.3.2 Edit Group....29

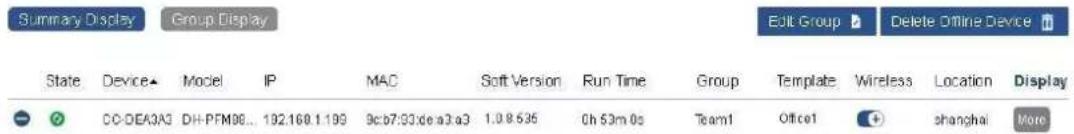

4.3.3 Issue Template.... 32

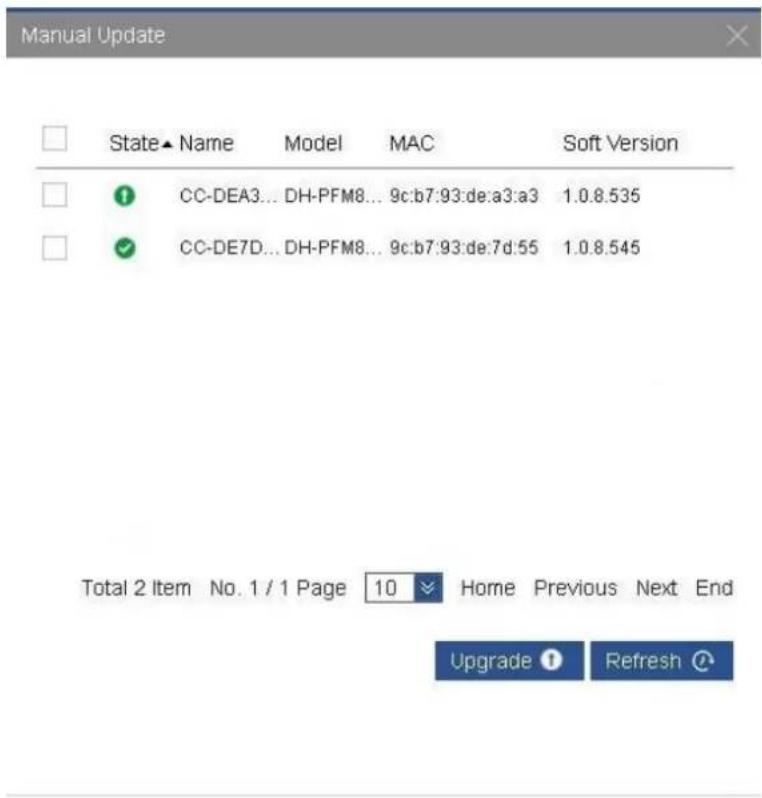

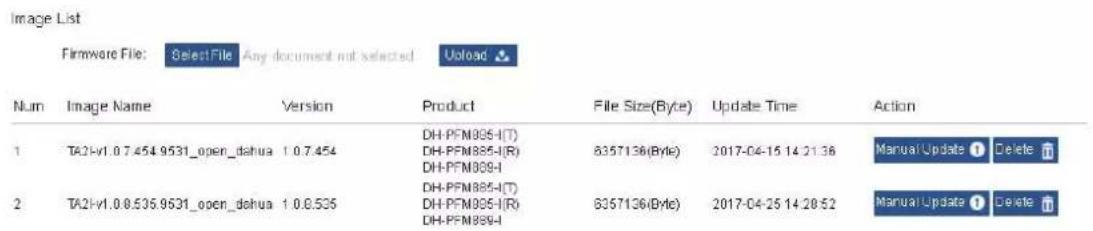

4.3.4 Device Upgrade 34

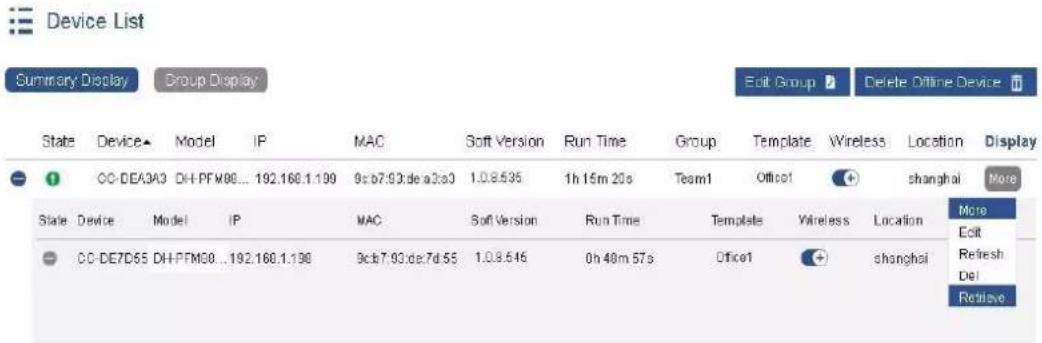

4.3.5 Retrieve the Client 36

4.4 Terminal Management ...... 37

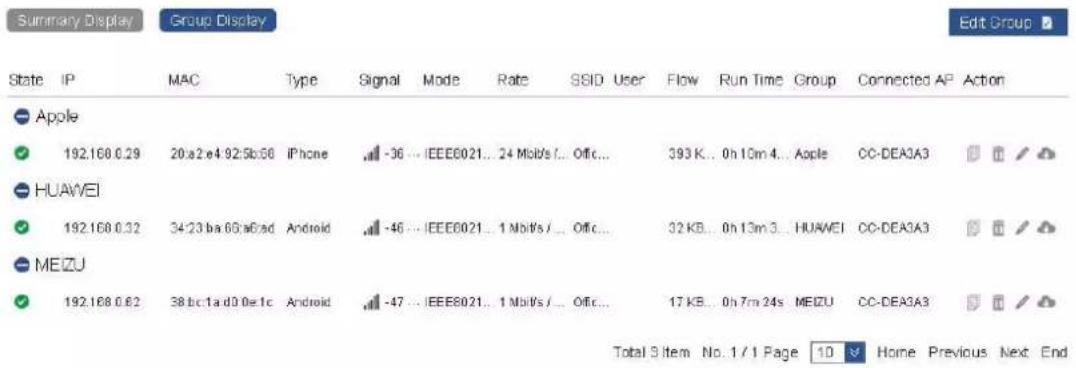

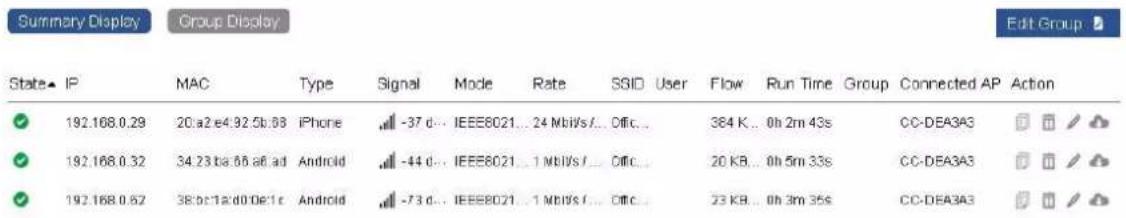

4.4.1 Terminal List.... 37

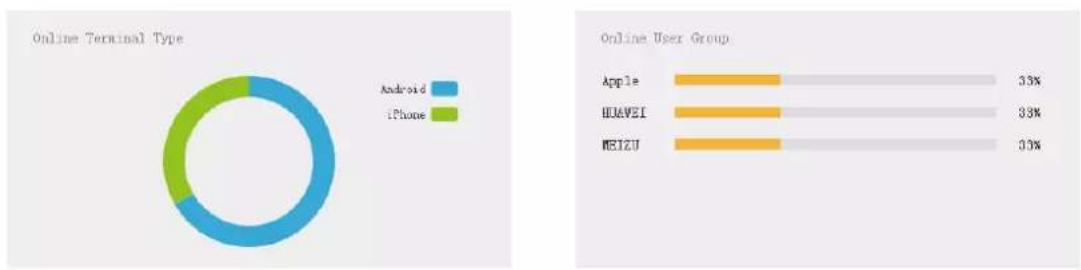

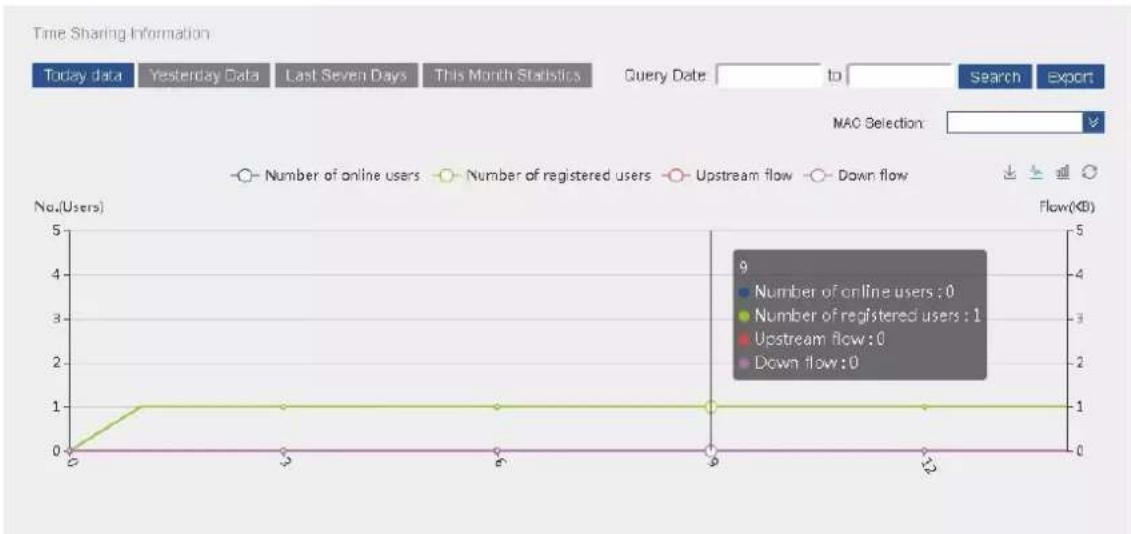

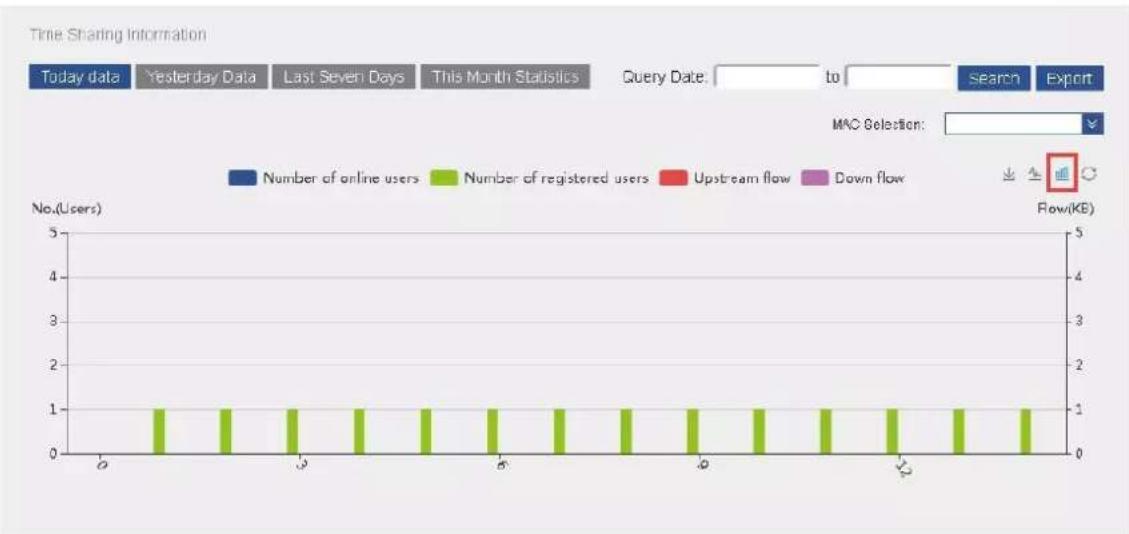

4.4.2 Information Statistics ...... 39

4.5 Advanced Management 43

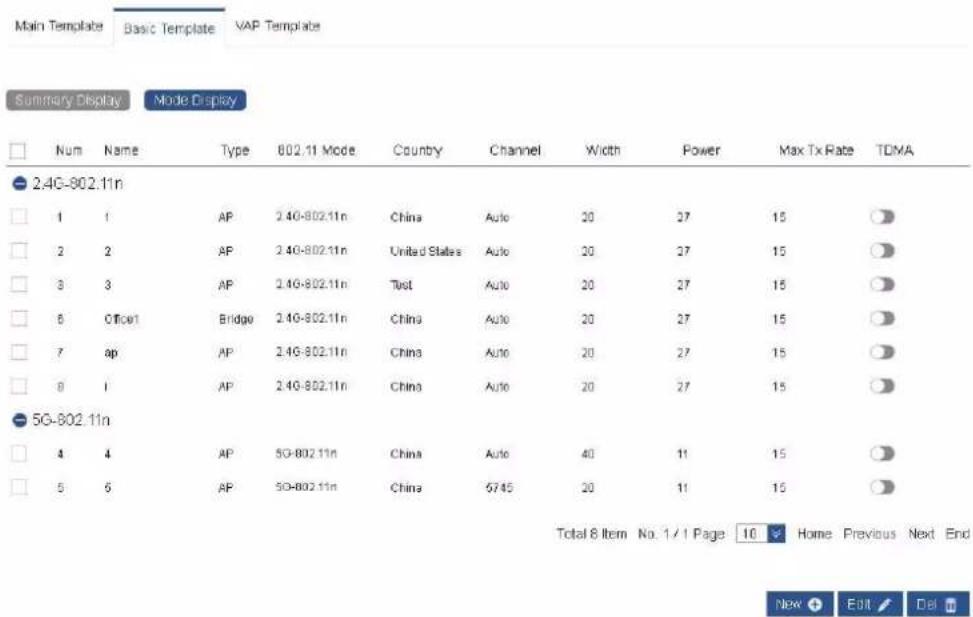

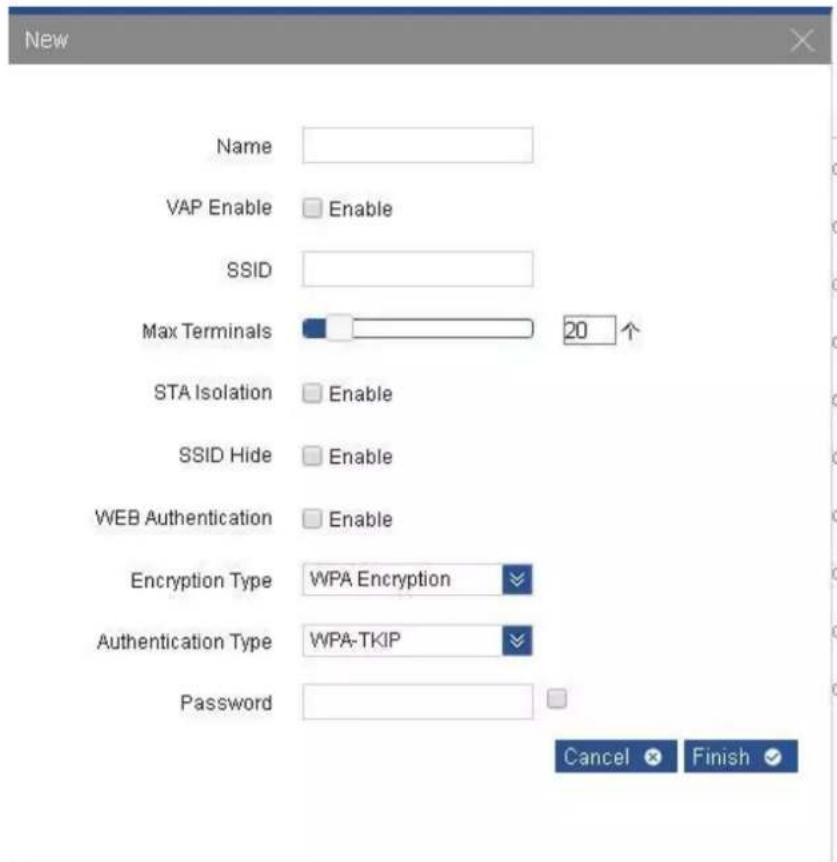

4.5.1 Template Management 43

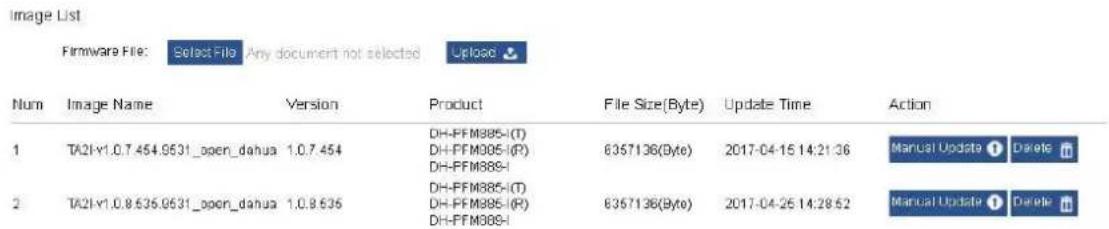

4.5.2 Image Management....49

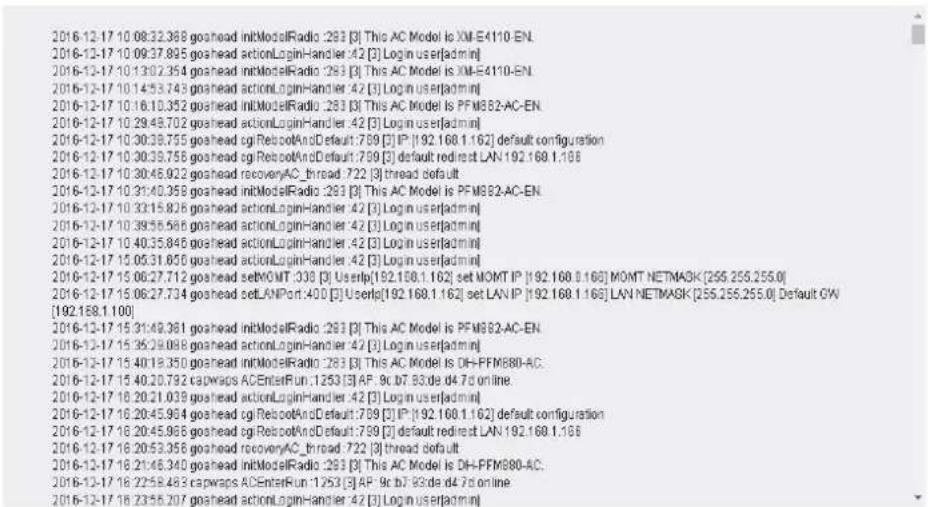

4.5.3 Log Management.... 51

4.6 System Settings 52

4.6.1 Basic Settings 52

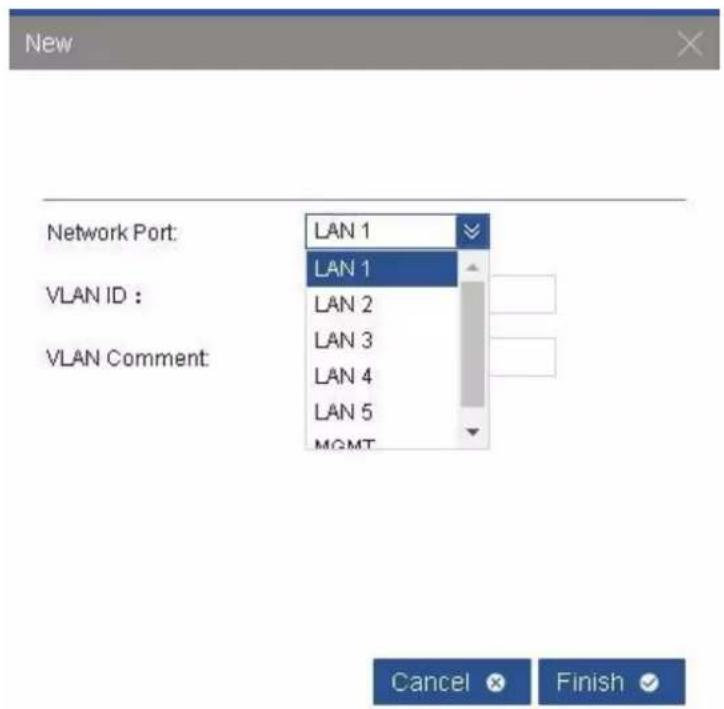

4.6.2 Network Security Settings 54
4.6.3 Upgrade Configuration Management 55

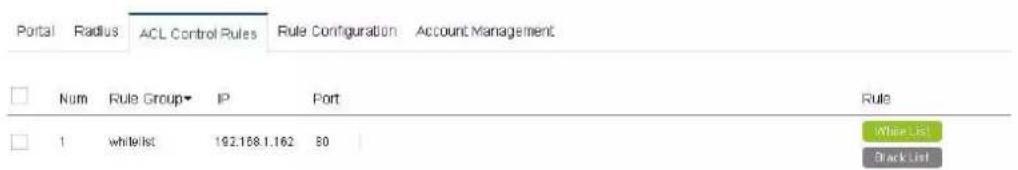

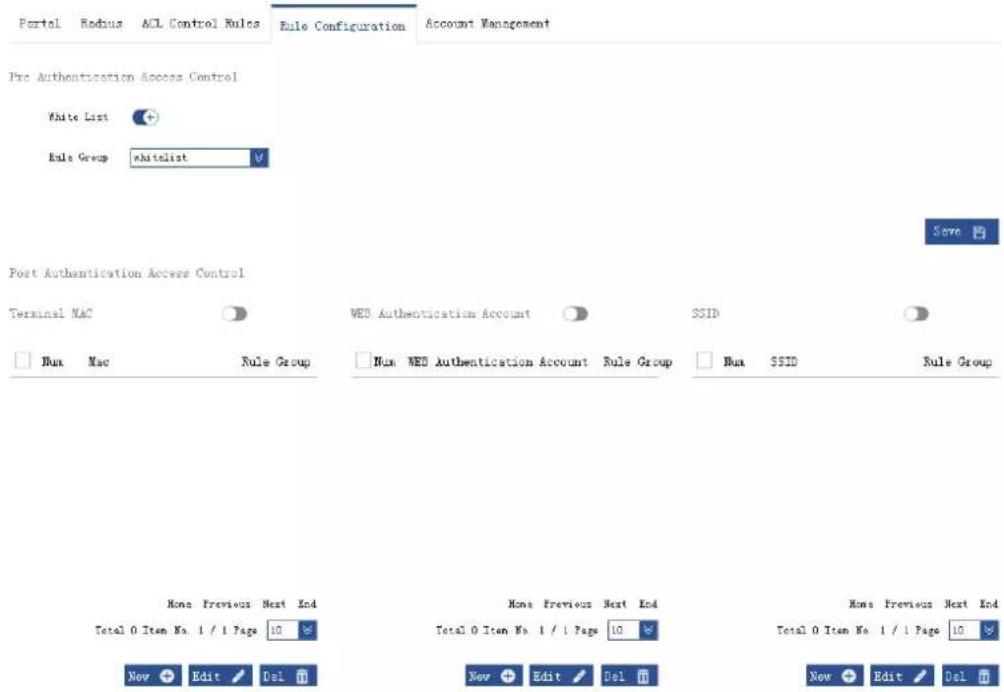

4.6.4 Access Control....57

4.7 Logout 61

1.1 Overview

Dahua wireless AC controller is a wireless access control product independently researched and developed by Dahua. With this controller, realize centralized management and configuration of AP, and solve troublesome management problems of traditional AP.

Without needs to change the structure, this controller integrates with existing network perfectly, simplifies network allocation and management greatly, and thus saves users' investment. It is able to manage 2,048 sets of equipment, so maximum amount of users reaches 65535. Its system provides campuses, large enterprises and cities with powerful hotspot coverage of WLAN access network.

It is able to upgrade automatically, issue the configuration automatically to access points and clients, realize real-time surveillance, and reduce network deployment cost and maintenance difficulty greatly.

1.2 Features

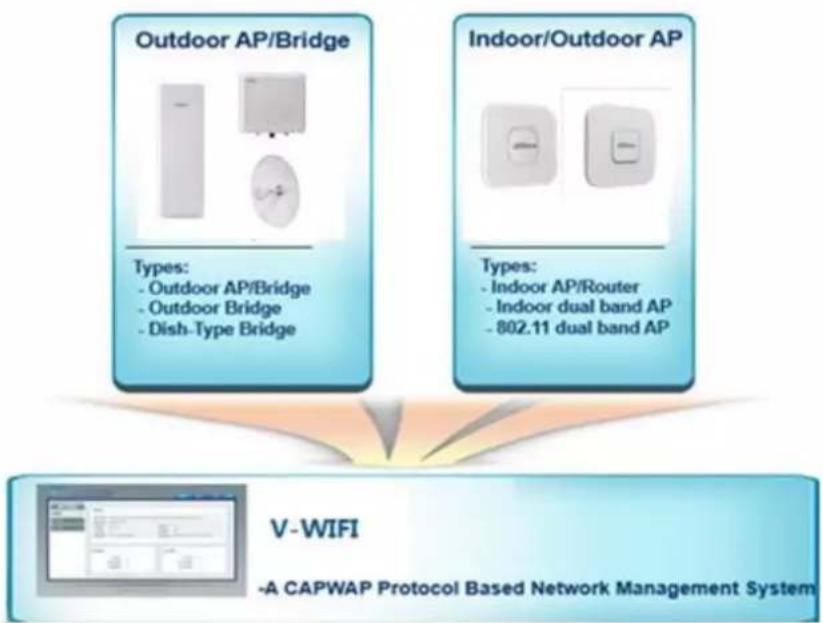

- Support multi-device management, as is shown in Figure 1-1.

Outdoor AP/Bridge Types: - Outdoor AP/Bridge - Outdoor Bridge - Dish-Type Bridge Indoor/Outdoor AP Types: - Indoor AP/Router - Indoor dual band AP - 802.11 dual band AP V-WIFI -A CAPWAP Protocol Based Network Management System

Figure 1-1

Support CAPWAP protocol. ◇

◇ Multi-level device management.

◇ Support manual and automatic upgrade of the device.

Wireless AC controller provides a friendly Web configuration interface, so as to help network administrator to complete device configuration and maintenance with the highest efficiency.

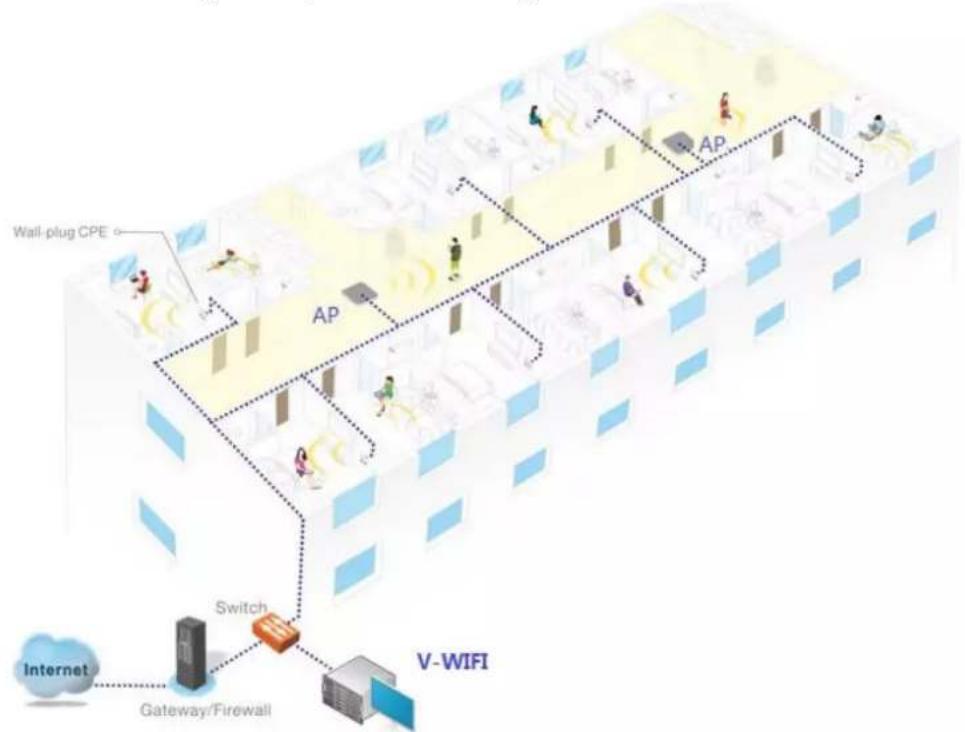

• L2/L3 network configuration, as is shown in Figure 1-2.

Figure 1-2

Find the device through static IP or automatically. ◇

◇ Issue wireless configuration module.

Wireless AC controller owns functions such as user management, smart radio frequency (RF) management and restoration. In any existing L2/L3 network, this product can realize seamless and safe wireless network configuration, without needs to interrupt present network operation.

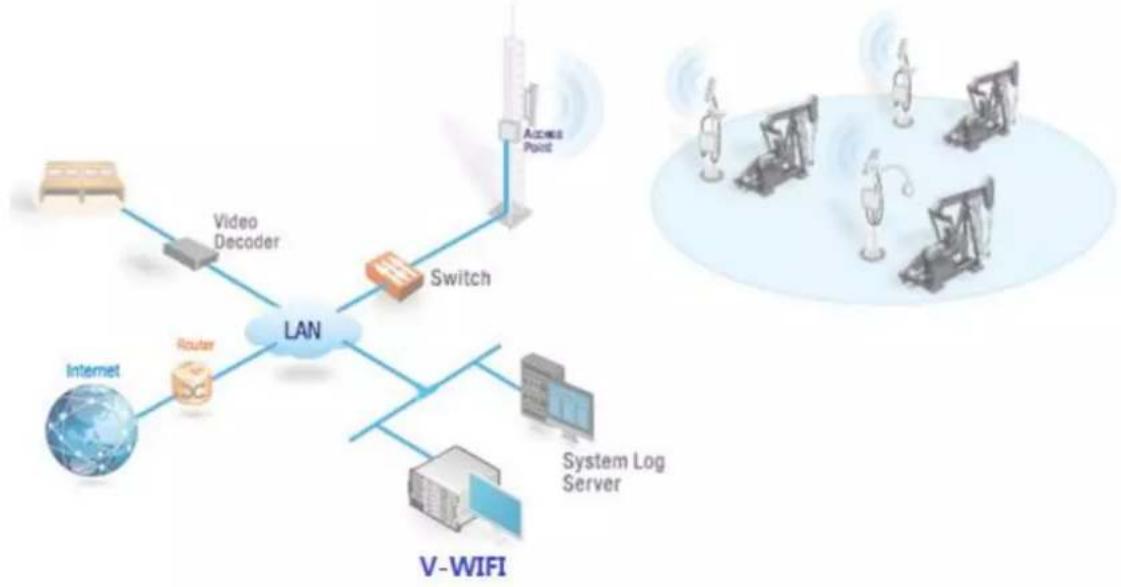

● Real-time surveillance system, as is shown in Figure 1-3.

Figure 1-3

Support many types of system information. ◇

Support many types of warning information. ◇

◇ Support system log service.

With real-time surveillance function, wireless AC controller is able to monitor the operating status of network, and timely report connection, disconnection and abnormal alarm information. Meanwhile, all records can be uploaded to log server.

- Map display device.

Support to display device location on Baidu Map. ◇

Visually display the device information on the map. ◇

With map display function, observe the distribution and operation conditions of the device.

1.3 Hardware Description

For simple hardware information about wireless AC controller, please refer to Table 1-1.

Name of Features	Description of Features
CPU	Intel Celeron J1900 quad-core processor 2GHz
Memory	DDR3 8GB
Memory of CF card	4GB
Physical interface	10/100/1000M Base-TX*6USB *2Console *1
Dimension	430 mm×300 mm×44.5mm (1U)
Power supply	220V AC 75W
Working ambient temperature	0°C~50°C
Working relative humidity	5%~95% (non-condensed)

Table 1-1

1.4 Performance Specification

For performance specification of wireless AC controller, please refer to Table 1-2.

No.	Name of Features	Realization Requirement
1	Quantity of managed devices	2048
2	Quantity of support modules	1024
3	STA	65535

Table 1-2

2.1 Boot-up/Shutdown

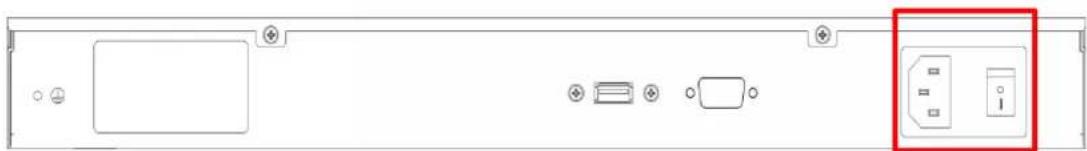

Locations of boot-up/shutdown keys are shown in Figure 2-1.

Pure electrical outlet diagram without any text, numbers, or symbols

Figure 2-1

• Boot-up: after AC device is power-on, toggle the button from "O" to "I".
• Shutdown: toggle the button from "O" to "|", and AC will shut down.

2.2 Interface Specification

Interface panel is shown in Figure 2-2. For interface specification, please refer to Table 2-1.

PWR ○ HDD CONSOLE USB ETH0 ETH1 ETH2 ETH3 ETH4 ETH5

Figure 2-2

Interface	Name of Interface	Connection and Function
Console	Control interface	Use serial port line to connect this interface; view and manage the device at the background.
USB	USB	Insert USB with License information, so as to import License.
ETH0	Management interface	After PC is connected with this interface through network cable, open the browser to input IP address of management interface, in order to visit and manage the device. Default address of management interface is 192.168.0.166.
ETH1~ETH5	Network interface	Access point device can go on line after corresponding configuration and connection with this interface through network cable. After PC isconnected with this interface through network cable, open the browser to input IP address of management interface, in order to visit and manage the device. Default address of LAN interface is 192.168.1.166.

Table 2-1

2.3 Preparations before Installation

2.3.1 Safety Precautions

2.3.1.1 General Safety Recommendations

• Please put the device in a flat and capacious place, free from vibration and intense electromagnetic interference, with excellent anti-static precautions. Don't put it in walking areas. Take anti-skid measures.
• Don't put the device on unstable boxes or desks, in order to prevent falling and serious damages of the device.
• Please keep the device clean and dust-free. Please don't put it in a humid place. Prevent liquids from entering the device.
• According to dimension and mark requirements on external packing boxes of materials, the device shall be placed in the center and crossed, without obvious deflection, in the principle of being light at the top and heavy at the bottom, small at the top and large at the bottom.
• Unplug all external cables before carrying or moving the case.
• When the device is moved from a low-temperature (below zero degree centigrade) place to a high-temperature room, open the box after at least 0.5 hour; connect power after 2 hours. Otherwise, the electronic device will condense and damage.
• Keep the room with good ventilation; keep vent hole of the device unblocked.
• The device works normally only under correct voltage. Please ensure that working voltage conforms to the voltage marked on power module of the device.
• During installation of the device, tools shall be used to fasten screws.

2.3.1.2 Electrical Safety

• Please carefully check whether there are potential dangers in your working zone, such as unearthed power supply, unreliable grounding and humid floor and so on.
• Before installation, please get familiar with locations of emergency power switches. Please cut off power supply in case of accidents. Immediately unplug the power wire of the device when necessary.
• During power-on maintenance of the device, try not to operate all alone. Before power-off operation of the device, please check carefully and make sure that the power has been turned off.

2.3.1.3 Requirement of Installation Site

The device shall be used indoors. Installation site shall meet the following requirements, so that the device works normally and prolongs its service life.

• Temperature/humidity requirement

◇ Maintain certain temperature and humidity in the machine room.
If relative humidity is too high in the machine room for a long time, insulating materials may suffer from defective insulation and even electric leakage, as well as possible changes in mechanical performance of materials, corrosion of metal parts and so on.
If relative humidity is too low in the machine room for a long time, insulating spacer may shrink; fastening screws easily loosen. Static electricity easily occurs in dry climate, which harms electric circuits on the device.
Too high temperature poses bigger dangers, because high temperature accelerates aging process of insulating materials. As a result, equipment reliability drops greatly and its service life is seriously affected.
◇ Please refer to Table 2-2 for temperature and humidity requirements of the device.

Working Ambient Temperature	Working Ambient Humidity
0°C~50°C	5%~95%

Table 2-2
- Requirement of Dust and Harmful Gas

• Dust jeopardizes operation safety of the device. Dust falling onto the machine indoors leads to electrostatic adsorption and bad contact of connector assemblies or quick contacts. Electrostatic adsorption is caused easily especially when indoor relatively humidity is too low. It affects device life, but also causes communication failure. For requirement of dust content and particle size in the machine room, please refer to Table 2-3.

Mechanical Active Material	Unit	Meaning
Dust particle	Particle/ m^3	≤ 3 × 10^4 (there is no visible dust on the desk within three days)
Note: diameter of dust particle is ≥ 5 m .

Table 2-3

Besides dust, machine room places strict requirements on salt, acid and sulfide in the air; these harmful gases accelerate metal corrosion and aging process of some components. Therefore, harmful gases, such as SO_2 , H_2S , NH_3 and Cl_2 , shall be prevented from intruding into the machine room. For specific limit value, please refer to Table 2-4.

Gas	Maximum Value (mg/m3)
Sulfur dioxide SO2	0.2
Hydrogen sulfide H2S	0.006
Ammonia gas NH3	0.05
Chlorine gas Cl2	0.01

Table 2-4

- Ventilation Requirement

Heat-dissipating method of this device is air-in in the left and air-out in the right. In order to facilitate equipment ventilation and heat dissipation, please make reasonable planning of installation site according to air flue direction of the device. Heat-dissipating method is

shown in Figure 2-3.

Illustration of a rectangular network device with ports and ventilation slots, shown with directional arrows indicating flow or movement (no text or symbols present)

Figure 2-3

Make sure that sufficient space (larger than 10cm is recommended) is reserved at the air inlet and air outlet, so as to facilitate heat dissipation of the case.

Make sure that the cabinet or workbench has its own excellent ventilation and heat dissipation system.

- Anti-static Requirement

To avoid electrostatic loss, make sure that:

The device and cabinet are earthed well. ◇

Prevent dust indoors. ◇

Keep appropriate temperature and humidity conditions. ◇

During installation of optical module, please put on anti-static wrist strap, make sure that anti-static wrist strap remains in good contact with the kin, and it is earthed well.

Before operating the device, put on anti-static working clothes, anti-static gloves and anti-static wrist strap. Take off jewelries, watches and other conductive things, in order to prevent electric shock or burn.

- Requirement of Protection against Electromagnetic Interference

The device in use may subject to interference from outside the system; these interferences may affect the device through capacity coupling, inductive coupling, electromagnetic wave radiation, common impedance (including grounding system) coupling and lead wire (power wire, signal line and output line etc.). Therefore, pay attention to the following points:

☐ AC power supply system is TN system. TN power supply system is called neutral protection system, which connects metal shell, normally uncharged metal part and working null line. Use single-phase three-wire power socket with protective earth wire, so filter circuit on the device can filter interference from power grid effectively.

Workplace of the device shall keep away from high-power radio transmitters, radar transmitters and high-frequency large-current devices.

Take electromagnetic shielding measures when necessary. For example, use shield cable as interface cable.

Interface cable shall be placed indoors, while outdoor application is not recommended, in order to protect equipment signal interface from damages by overvoltage and overcurrent from thunder and lightning. In case of outdoor application, please install lightning arrester of network interface.

- Requirement of Lightning Protection

Meet the following requirements, in order to reach better lightning protection effects:

◇ Ensure that protective grounding wire of the case keeps good contact with the ground.

◇ Ensure that grounding point of AC power socket keeps good contact with the ground.

◇ Add a lightning arrester to the output front end of power supply, which will greatly

enhance lightning protection capability of power supply.

2.3.2 Accessories

Installation accessories are shown in Figure 2-4.

M4 Screw	M3 Screw	Hanging Loop	Configuration Line	Network Line

Figure 2-4

2.3.3 Check List before Installation

For check list of preparations before installation, please refer to Table 2-5.

Item		Requirement	Qualified
Installation site	Ventilation and heat dissipation	Reserve larger than 10cm space at the air inlet and air outlet of the device.Installation site has an excellent ventilation and heat dissipation system.
	Working ambient temperature	0°C~50°C
	Working ambient humidity	5%~95% (non-condensed)
	Cleanliness requirement	Dust particle is ≤3× 10^4/m^3 (there is no visible dust on the desk within three days)
	Anti-static requirement	The device and cabinet have a good grounding.Prevent dust indoors.Meet temperature and humidity requirements.During installation of pluggable modules, please put on anti-static wrist strap, make sure that anti-static wrist strap remains in good contact with the kin, and it is earthed well.To install, dismantle, observe or move the dismantled interface modules, touch external rims of circuit board with your hands. Don't touch components on the circuit board with your hands directly.The dismantled interface modules shall be put on anti-static workbench or put intoanti-static bags, with the circuit board upwards.
	Requirement of electromagnetic environment	Take effective measures to prevent interference from power grid.Workplace of the device shall be kept away as much as possible from grounding device or lightning protection grounding device of electrical equipment.Keep away from high-power radio transmitters, radar transmitters and high-frequency large-current devices.Take electromagnetic shielding measures.
	Requirement of lightning protection	Protective grounding wire of the device keeps good grounding.Grounding point of AC power socket keeps good grounding.
	Requirement of power supply	Clarify locations of external power switches, so as to cut off power supply in case of accidents.
	Requirement of cabinet installation	Please make sure that the cabinet owns good ventilation and heat dissipation system.The cabinet is firm, sufficient to support the device and accessories.Dimension of the cabinet is suitable for device installation.Distance between front and rear of device cabinet and wall, or other devices, shall not be less than 0.8m.
Safety precautions		The device shall keep away from heat sources and humid places.Identify external power switches.
Accessories		Accessories provided with the device
Reference file		Files provided with the deviceFiles on the website

Table 2-5

2.4 Installation of the Device

2.4.1 Installation Flow

Flow chart of installation is shown in Figure 2-5.

Figure 2-5

2.4.2 Install the Device to Workbench

When the device is installed to workbench, don't place weight on the device, in order not to damage the device and reduce heat dissipation efficiency.

Without 1U standard cabinet, common way is to place the device on anti-static workbench as follows.

Step 1 Invert the device carefully, use a clean soft cloth to clean the round coining zones on baseplate of the case, and make sure to get rid of greasy dirt or dust adsorption.

Step 2 Take down four foot pads from sticker; paste them into four round coining zones on baseplate of the case.

Step 3 Restore the device to right direction and place it onto the workbench, as is shown in Figure 2-6.

Line drawing of a wooden table with a rectangular box and a separate rectangular book on top (no text or symbols)

Figure 2-6

2.4.3 Install the Device to 19-inch Cabinet

2.4.3.1 Introduction to Hanging Loop

Hanging loop is used to fix the device onto cabinet. Its shape is shown in Figure 2-7.

Technical line drawing of a mechanical bracket with multiple circular holes (no text or symbols)

Figure 2-7

2.4.3.2 Fitting and Installation of Hanging Loop

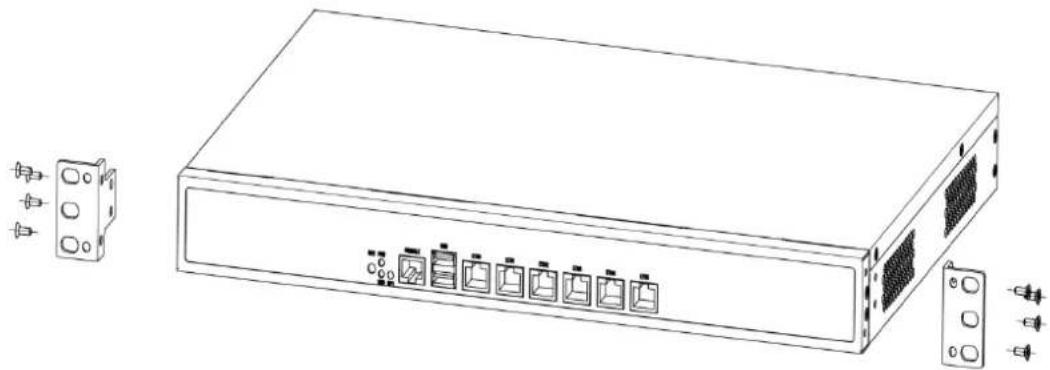

Step 1 Use screws to fix the hanging loop at both sides of the device, as is shown in Figure 2-8.

Line drawing of a server rack with multiple ports and connectors, shown with connector pins (no text or symbols present)

Figure 2-8

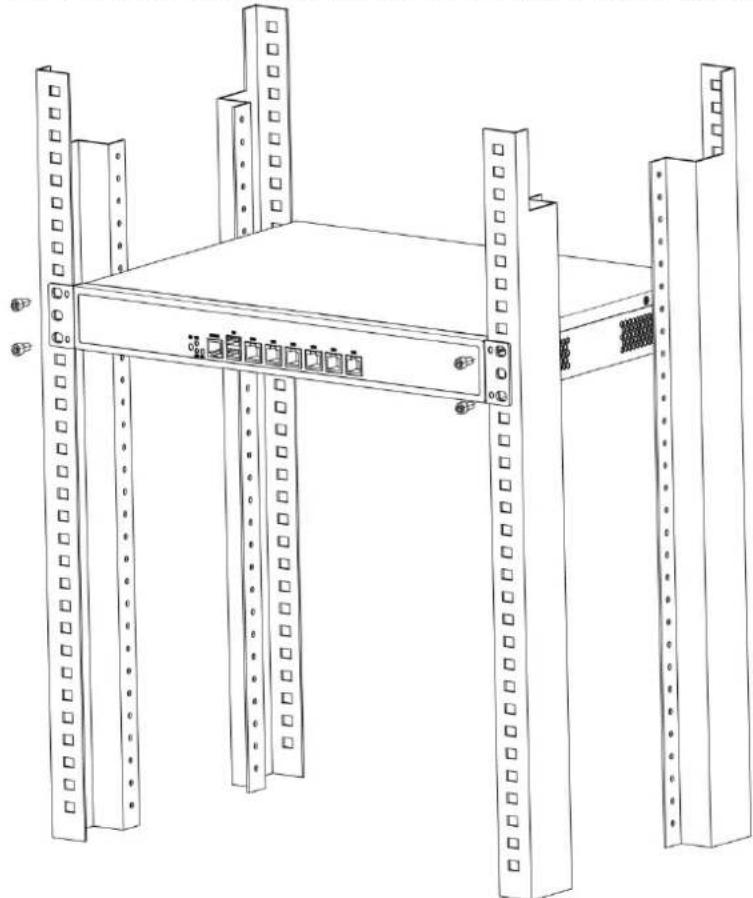

Step 2 After installation of hanging loop, lift up the device to installation position of frame, and fix the device onto the frame with screws, as is shown in Figure 2-9.

Line drawing of a server rack with multiple vertical racks and a central shelf (no text or symbols)

Figure 2-9

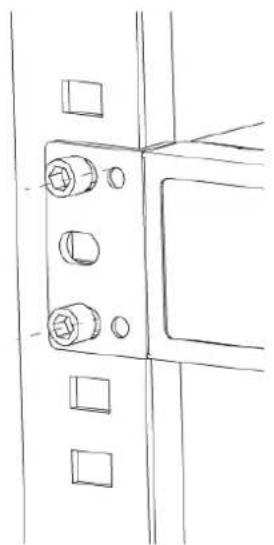

Completion effect is shown in Figure 2-10.

Technical line drawing of a mechanical bracket with bolts and mounting holes (no text or symbols)

Figure 2-10

2.4.4 Connect Protective Grounding Wire

2.4.4.1 Grounding of Workbench Device

After loosening the device screws, place the contact ring of grounding wire to screw holes, and tighten the screws, as is shown in Figure 2-11.

Technical diagram showing a device mounted on a table with a red annotation arrow pointing to its component.

Figure 2-11

2.4.4.2 Grounding of Frame Device

Install grounding wire to the device and frame respectively, as is shown in Figure 2-12.

Technical diagram showing server rack mounting with red annotations highlighting structural changes and component placement.

Figure 2-12

2.4.5 Connect Power Wire

Connect alternating current power wire into power interface on reverse side of AC; press the switch to boot up the device, as is shown in Figure 2-13.

Front panel of a computer interface showing ports, connectors, and a highlighted power outlet (no text or symbols)

Figure 2-13

2.4.6 Inspect after Installation

After equipment installation is completed, carry out installation inspection as follows.

• Inspect whether specification of power wire is consistent with device requirements;
• Inspect whether grounding wire is connected correctly;
• Inspect whether power input wire is connected correctly.

2.4.7 Start the Device

After completing installation and inspection, press the switch on reverse side of AC gently to start AC.

3.1 L2 Goes Online

Access points can directly connect LAN interface of AC to go online. To join AC, clients shall associate with access point device that has already joined AC.

3.1.1 Access Point Device Goes Online

Configuration steps are as follows.

Step 1 Open IP address page of the device to modify its IP address. For example, modify it to 192.168.1.199.

Step 2 On its wireless setting page, set the parameters as is shown in Figure 3-1.

Network name is customer, channel is automatic, and default encryption is WPA2-PSK (secret key is 1234567890abc). After the device joins AC, these parameters can be modified on AC pages.

Device Configuration

General Setup Advanced Settings Status Mode: Master | SSID: customer 100% 8SSID: 90:B7.93 E0.A3 A3 | Encryption: WPA2-PSIK (CCMP) Channel: 79 (2.497 GHz) | Tx-Power: 27 dBm Signal: -36 dBm | Noise: -35 dBm Bitrate: 144.4 Mb/s | Distance: < 10.0 km Wireless network is enabled Disable Channel Auto Auto channel list 247 (2.362 GHz) 248 (2.367 GHz) 249 (2.372 GHz) 250 (2.377 GHz) 251 (2.382 GHz) 252 (2.397 GHz) 253 (2.392 GHz) 254 (2.397 GHz) 255 (2.402 GHz) Transmit Power 27 dBm (501 mW) Mode 802.11g-in HT mode 20MHz Max Transmission Rate MCS15 Interface Configuration General Setup Wireless Security MAC-Filter Advanced Settings Rate Limit SSID: customer Mode Access Point Network lan create Choose the network(s) you want to attach to this wireless interface or fill out the create field to define a new network. Hide SSID

Figure 3-1
Step 3 Open CAPWAP interface of the equipment and start CAPWAP function, as is shown in Figure 3-2.

CAPWAP

Control And Provisioning of Wireless Access Points Protocol Specification.

CAPWAP Settings

Enable Interface lan Location shanghai Discovery mode Manual IPv4 address 192.168.1.166

Figure 3-2

- Interface: choose AC interface that your access point device wants to join.

• Location: information about device location on AC, to be filled in according to actual conditions.
• Discovery mode: it consists of manual designation and automatic mode. Device IP and IP of AC LAN interface shall be in the same network segment. In case of manual designation, fill in IP address of AC LAN interface manually; default address is 192.168.1.166. In case of automatic mode, search AC address automatically and go online. After CAPWAP function is enabled, click Save & Apply. Configuration of this function will take effect and the device will restart.
• Connect access point device with one LAN interface of AC, so the access point device will go online at AC.

3.1.2 Client Device Goes Online

Conditions of going online:

• Please go to IP address page of the device to modify its IP address. For example, modify it to 192.168.1.198.
• To join AC, client devices shall wirelessly associate with access point device that has already joined AC.

Next, set the association between the client and wireless network of access point. Please go to wireless setting page of the device, choose the access point whose network name is customer; default encryption is WPA2-PSK (secret key is 1234567890abc), as is shown in Figure 3-3.

Device Configuration

General Setup Advanced Settings Status Mode: Client | SSID: customer 100% BSSID: 9C:87:93:E0:A3:A3 | Encryption: WPA2-PSK (CCMP) Channel: 78 (2.497 GHz) | Tx-Power: 27 dBm Signal: -15(-15/-36) dBm | Noise: -95 dBm Bitrate: 144.4 Mbit/s | Distance: < 150 m Wireless network is enabled Disable Channel Auto Transmit Power 27 dBm (501 mW) Mode 802.11g+n HT mode Auto Max Transmission Rate MCS15 Interface Configuration General Setup Wireless Security Advanced Settings SSID customer Mode Client BSSID Network lan: created: Choose the network(s) you want to attach to this wireless interface or fill out the create field to define a new network.

Figure 3-3

Please go to CAPWAP page of the device and enable CAPWAP function, as is shown in Figure 3-4.

CAPWAP

Control And Provisioning of Wireless Access Points Protocol Specification.

CAPWAP Settings

Enable Interface lan Location shanghai Discovery mode Auto

Figure 3-4

Up to now, setting of access point and client has been completed, ready to join AC. Please check at ACI page. Note that client device goes online wirelessly; don't provide client with wired connection to AC.

3.2 L3 Goes Online

When AC and the device to be managed are located in different network segments in relatively complicated network environment, online environment of access point and client device is shown in Figure 3-5.

Figure 3-5

3.2.1 Settings of Wireless AC Controller

LAN interface gateway of wireless AC controller is set to be interface address of switch at higher level. For example, gateway address in this example is set to be 192.168.1.100. Configuration interface is shown in Figure 3-6.

General Settings Time Sync Interface Settings

Management Interface

IP Address: 192.168.0.166

Subnet Mask 256.255.255.0

LAN Interface

IPv4 Address: 192.168.1.166

IPv4 Subnet Mask 256.255.255.0

Default Gateway: 192.168.1.100

Figure 3-6

With network cable, connect one LAN interface of wireless AC controller with the interface of L3 switch, whose IP address is 192.168.1.100. The configuration has been completed.

3.2.2 Access Point Device Goes Online

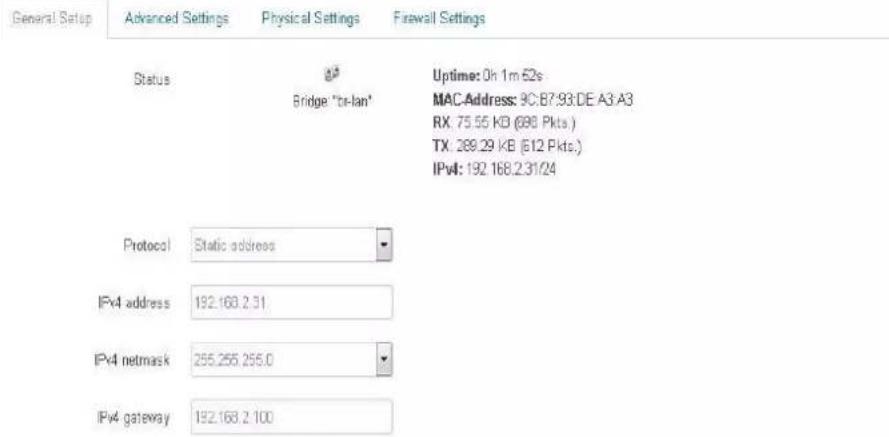

Please go to IP address page of the device to modify its IP address. For example, modify it to 192.168.2.31. Gateway is the interface address of the connected upper switch. For example, gateway in this example is set to be 192.168.2.100. Configuration page is shown in Figure 3-7, and configuration steps are as follows.

Interfaces - LAN

On this page you can configure the network interfaces. You can bridge several interfaces by ticking the "bridge interfaces" field and enter the names of several network interfaces separated by spaces. You can also use VLAN notation INTERFACE.VLANMR (e.g. et.b0.1).

Common Configuration

General Setup Advanced Settings Physical Settings Firewall Settings Status Bridge "b-lan" Uptime: 0h 1m 62s MAC-Address: 9C:87:93:DE A3 A3 RX: 75.55 KB (688 Pkts ) TX: 288.29 KB (612 Pkts.) IPv4: 192.168.2.31/24 Protocol Static address IPv4 address 192.168.2.31 IPv4 netmask 255.255.255.0 IPv4 gateway 192.168.2.100

Figure 3-7

Step 1 Set the following parameters. Network name is layer3, automatic channel, no encryption. After the device joins AC, these parameters can be modified on AC pages, as is shown in Figure 3-8.

Device Configuration

General Setup Advanced Settings Status Mode: Master | SSID: layer3 100% BSSID: 90.87.93/E0.A3/A3 | Encryption: WRA2-PSK (CCMP) Channel: 76 (2.497 GHz) | Tx-Power: 27 dBm Signal: -96 dBm | Noise: -96 dBm Bitrate: 144.4 MHz | Distance: < 10.0 km Wireless network is enabled Disable Channel Auto Auto channel list 247 (2.362 GHz) 248 (2.367 GHz) 249 (2.372 GHz) 260 (2.377 GHz) 251 (2.382 GHz) 262 (2.387 GHz) 263 (2.392 GHz) 264 (2.397 GHz) 265 (2.402 GHz) Transmit Power 27 dBm (501 mW) Mode 802.11g+n HT mode 20MHz Max Transmission Rate MCS15 Interface Configuration General Setup Wireless Security MAC-Filter Advanced Settings Rate Limit SSID layer3 Mode Access Point Network live create: Choose the network(s) you want to attach to this wireless interface or fill out the create field to define a new network. Hide SSID

Figure 3-8

Step 2 Enable CAPWAP function of the device, as is shown in Figure 3-9.

CAPWAP

Control And Provisioning of Wireless Access Points Protocol Specification

CAPWAP Settings

Enable Interface Ian Location shanghai Discovery mode Manual IPv4 address 192.160.1.166

Figure 3-9

• Interface: choose AC interface that your access point device wants to join.
• Location: information about device location on AC, to be filled in according to your

needs.

- Discovery mode: it consists of manual designation and automatic mode. Device IP and IP of AC LAN interface shall be in the same network segment. In case of manual designation, fill in IP address of AC LAN interface manually; default address is 192.168.1.166. In case of automatic mode, search AC address automatically and go online. After CAPWAP function is enabled, click Save & Apply. Configuration of this function will take effect and the device will restart.

Step 3 Connect access point device with one interface of L3 switch, whose IP address is 192.168.2.100. Access point device will go online at AC.

3.2.3 Client Device Goes Online

Please go to IP address page of the device to modify its IP address. For example, modify it to 192.168.2.32. Gateway is the interface address of the upper switch of access point device, with wireless association. For example, gateway in this example is set to be 192.168.2.100.

Before joining AC, client device shall wirelessly associate with AC access point device that has already joined; otherwise, it cannot go online. Configuration steps are as follows.

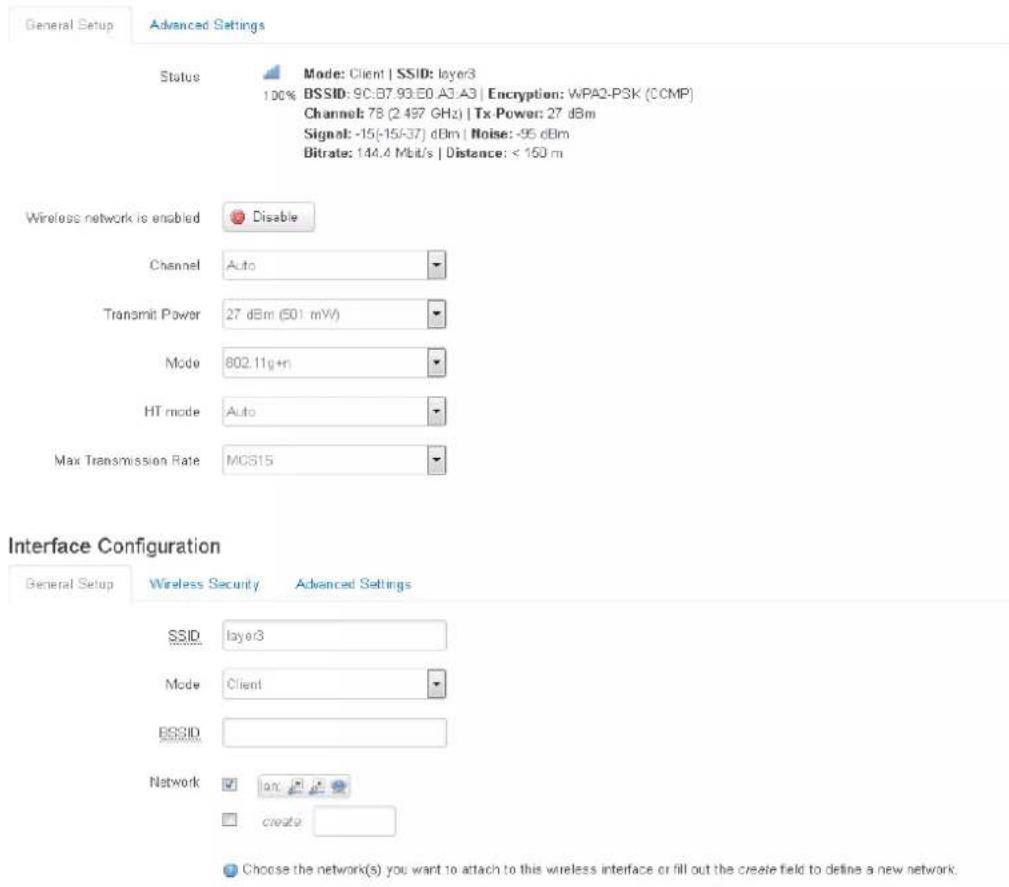

Step 1 Please go to wireless setting page of the device to choose layer3 access point; encryption setting is non-encryption. Configuration page is shown in Figure 3-10.

Device Configuration

General Setup Advanced Settings Status Mode: Client | SSID: layer3 100% BSSID: 9C:87.93.E0 A3.A3 | Encryption: WPA2-PSK (CCMP) Channel: 78 (2.497 GHz) | Tx Power: 27 dBm Signal: -15(-15/-37) dBm | Noise: -95 dBm Bitrate: 144.4 Mbit/s | Distance: < 150 m Wireless network is enabled Disable Channel Auto Transmit Power 27 dBm (501 mW) Mode 802.11g+n HT mode Auto Max Transmission Rate MCS15 Interface Configuration General Setup Wireless Security Advanced Settings SSID layer3 Mode Client BSSID Network lan create Choose the network(s) you want to attach to this wireless interface or fill out the create field to define a new network.

Figure 3-10

Step 2 Enable CAPWAP function of the device, as is shown in Figure 3-11.

CAPWAP

Control And Provisioning of Wireless Access Points Protocol Specification

CAPWAP Settings

Enable Interface lon Location shanghai Discovery mode Manual IPv4 address 192.168.1.166

Figure 3-11

Step 3 After setting of access point and client has been completed, it is ready to join AC. Please check at AC page. Note that client device goes online wirelessly; don't provide client with wired connection to AC.

4.1 Login

AC management port and LAN port are able to manage the configuration; PC can connect either port to manage.

Open the browser; in the address bar, input default address of AC management port: http://192.168.0.166 (if PC connects with LAN port, input default address of LAN port: http://192.168.1.166). Click [Enter] key and the login interface will appear as shown in Figure 4-1.

@lhua Wireless Device Management Platform User User Password Password Login Reset

Figure 4-1

Input default username admin and password admin, click Login button to enter status statistics page.

4.2 Status Statistics

Status statistics page is mainly used to display basic information about AC, device and terminal status. We see that access point and client previously set appear in device status information. Status statistics interface is shown in Figure 4-2.

Figure 4-2

For meanings of every column, please refer to Table 4-1.

Column		Meaning
Basic Information	IP Address	IP address of LAN port of AC
	Device Name	Name of AC server, which can be modified at System Settings- General Settings page.
	Soft. Version	Software version of present AC
	Run Time	Run time of AC server
	Current Time	Current clock time
	CPU Usage	CPU usage rate of AC
	Memory Usage	Memory usage rate of AC
Device Status	Online Device	Total number of online access points and client devices that are connected with AC
	Offline Device	Total number of offline access points and client devices that are connected with AC
Terminal Status	Online Device	Total number of terminals (such as mobile phone, computer and pad etc.) of online access point devices, with wireless association with AC
	Offline Device	Total number of terminals (such as mobile phone, computer and pad etc.) of online access point devices, without wireless association with AC

Table 4-1

4.3 Device Management

4.3.1 Device List

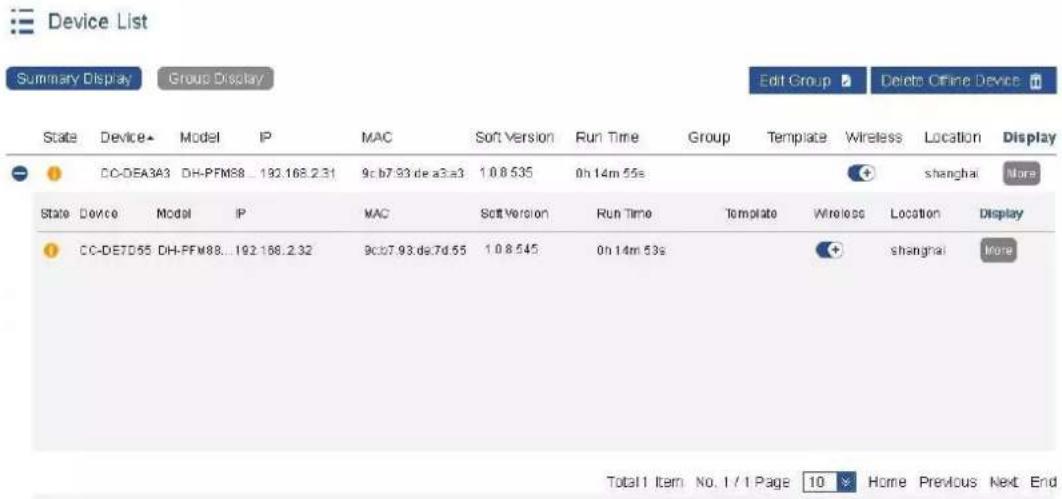

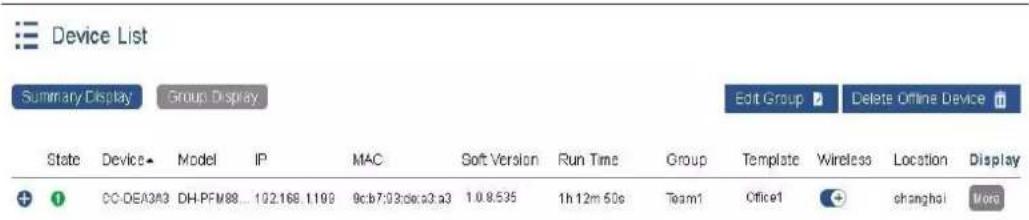

Device list page displays information about all online/offline access point devices of AC, as well

as client devices under access point devices, as is shown in Figure 4-3 and Figure 4-4.

Device List Summary Display Group Display Edit Group Delete Online Device State Device Model IP MAC Soft Version Run Time Group Template Wireless Location Display CC-DE43A3 DH-PFM09...192.168.1.199 9c:b7.93.dea3a3 1.0.8.525 0h 14m 55s shanghai More State Device Model IP MAC Soft Version Run Time Template Wireless Location Display CC-DETD55 DH-PFM68...192.168.1.198 9c:b7.93.dea7d:55 1.0.8.545 0h 14m 53s shanghai More Total Item No. 1 / 1 Page 10 Home Previous Next End

Figure 4-3

Summary Display Group Display Edit Group Delete Online Device State Device Model IP MAC Soft Version Run Time Group Template Wireless Location Display CC-DEA3A3 DH-PFM88...192.168.231 9c b7.93 de a3.e3 1.08.535 0h 14m 55s shanghai More State Device Model IP MAC Soft Version Run Time Template Wireless Location Display CC-DE7D55 DH-PFM88...192.168.232 9c b7.93 de 7d 55 1.08.545 0h 14m 53s shanghai More Total Item No. 1 / 1 Page 10 Home Previous Next End

Figure 4-4

For meanings of every column, please refer to Table 4-2.

Column	Meaning
Status	Display current status of the device, including online, offline, not configured, upgrade, configuring, upgrade fails and configuration fails.
Device Name	Name of access point or client device
Model	Product model of access point or client device
IP Address	IP address of access point or client device
MAC Address	Wired MAC address of access point or client device
Soft. Version	Software version of access point or client device
Run Time	Run time after access point or client device goes online
Group Name	Group name of access point device. In “More” in the right, choose “Edit” to configure by yourself, or configure uniformly by editing the group, which will be introduced later.
Template Name	Template name simultaneously issued to access point and associated client. The template can be configured in Advanced Management->Template Management page.
Wireless Service	Radio frequency switch of access point device. If it is turned off, radio frequency of access point device will be turned off, subordinate clientdevice will disconnect and go offline. It will enter retrieval mode after 10 minutes.
Location	Location of access point or client
[xx6]	Click in the left of access point; after unfolding, display information about client device under access point device, including status, device name, IP address, MAC address, software version, run time, signal intensity, connection rate and location.Connection rate means sending and receiving rate of client device.Signal intensity means signal intensity of client device during connection with access point device.

Table 4-2

To delete needless offline access point or client, click "More" in the right of offline device, click "Delete", and the selected offline device will be deleted. In case that many offline devices shall be deleted, click "Delete Offline Device" button directly, to delete all offline devices at the same time. Deletion interface is shown in Figure 4-5.

Only offline devices can be deleted.

Summary Display Group Display Edit Group Delete Offline Device State Device Model IP MAC Soft Version Run Time Group Template Wireless Location Display CC-DEA043 DH-PFM88 192.168.1.198 9c:b7.83.de:a3.s3 1.0.8.535 0h 22m 51s shanghai More State Device Model IP MAC Soft Version Run Time Template Wireless Location Display CC-DETD56 DH-PFM88 192.168.1.198 9c:b7.93.dx:7d:55 1.0.8.545 0h 22m 14s shanghai More Rebeesh Del Total Item No. 1/1 Page 10 Home Previous Next End

Figure 4-5

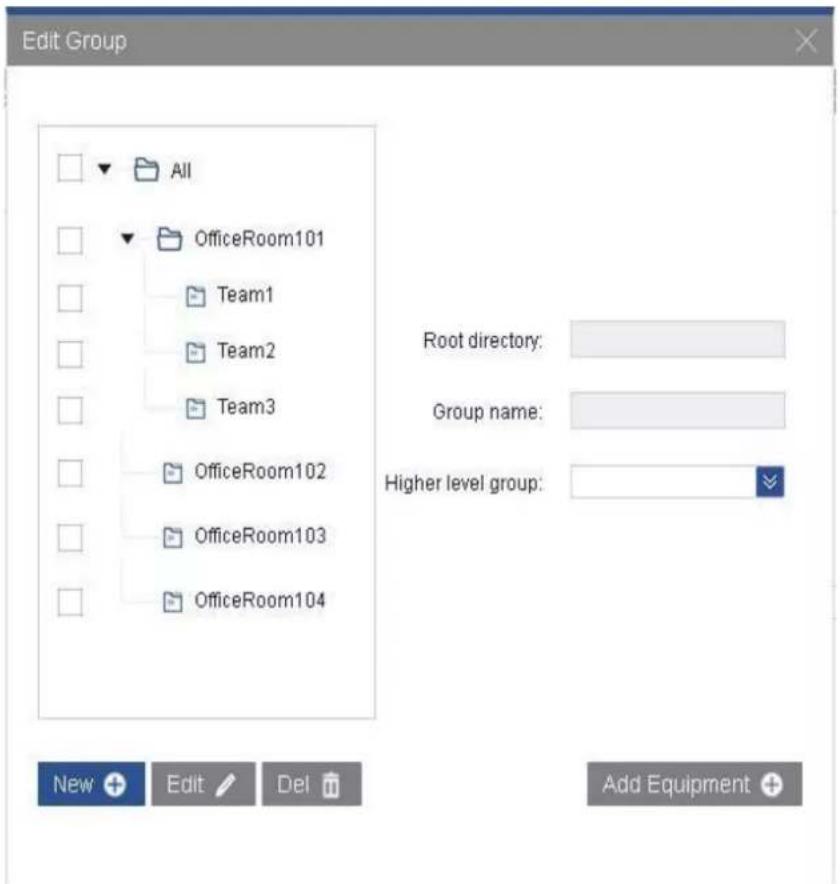

4.3.2 Edit Group

To check equipment group information conveniently, edit group name in "More" in the right of every device. Also, devices can be grouped in batches and multiple levels. Edit mode is as follows:

Step 1 Click "Edit Group" button, as is shown in Figure 4-6.

Edit Group Root directory: Group name: Higher level group:

Figure 4-6

Step 2 Click "New", fill in name of root directory, such as "All". Then, click "OK". The interface will be as shown in Figure 4-7.

Edit Group All Root directory: Group name: Higher level group:

Figure 4-7

Step 3 Click "New" button again, fill in group name such as "OfficeRoom101", choose higher level group "All", and click "OK". The secondary group of root directory "All" has been created successfully, as is shown in Figure 4-8.

Edit Group All OfficeRoom101 Root directory: Group name: Higher level group:

Figure 4-8

Step 4 Create multi-level directory (grouping mode is mentioned before). Only one root directory can be set; multi-level group can be created. The interface is shown in Figure 4-9.

Edit Group All OfficeRoom101 Team1 Team2 Team3 OfficeRoom102 OfficeRoom103 OfficeRoom104 Root directory: Group name: Higher level group: New Edit Del Add Equipment Add Equipment

Figure 4-9

Step 5 Choose one group, click "Add Device" in the lower right corner, and thus add devices to this group in batches. The interface is shown in Figure 4-10.

Add Equipment Device ▲ MAC Group CC-DEA3A3 9c:b7:93:de:a3:a3 Total 1 tem No. 1 / 1 Page 10 Home Previous Next End Confirm

Figure 4-10

4.3.3 Issue Template

In the page of device list, the template configured in the page of Advanced Management->

Template Management (for template configuration methods, please refer to 4.5 Advanced Management) can be issued to designated access point and client device. Configuration steps are as follows:

Step 1 Check access point devices that have been added to device list. Those whose status is

mean "configured", as is shown in Figure 4-11.

Device List Summary Display Group Display Edit Group : Delete Online Device State Device Model IP MAC Soft Version Run Time Group Template Wireless Location Display CC-DE403D DH-PFM88...192.168.1.199 9c b7:93 de:s3 a3 1.0 8.535 Oh 14m 55s shanghai More State Device Model IP MAC Soft Version Run Time Template Wireless Location Display CC-DE7D55 DH-PFM88...192.168.1.199 9c b7:93 de:7 d:56 1.0 8.545 Oh 14m 53s shanghai More Total! Item No 1 / 1 Page 10 Home Previous Next End

Figure 4-11

Step 2 Click "More" in the right of the corresponding access point, and choose "Edit". In drop-down box of template name, choose Office1 template that has been created in template management page. In "More" in the right, "Edit" has changed into "Save", so the template is issued, as is shown in Figure 4-12.

Device List

Summary Display Group Display Edit Group Delete Offline Device State Device Model IP MAC Soft Version Run Time Group Template Wireless Location Display CC-DE... DH-PFM88... 192.168.1.199 9:b7:93:ce:a3:s3 1.0.8.535 0h 60m 14s Team1 Shanghai More State Device Model IP MAC Soft Version Run Time Templates Wireless Location More Save CC-DE7D55 DH-PFM88... 192.168.1.199 9:b7:93:de:7d:55 1.0.8.545 0h 14m 53s Shanghai Del Retrieve Total 1 item No. 1 / 1 Page 10 Home Previous Next End

Figure 4-12

Step 3 After issuing configuration, the status will change into "Configuring", as is shown in

Figure 4-13. If access point device owns client(s), client(s) will be issued at the same time. On AC, templates cannot be directly issued to client(s). When the connected access point changes its configuration, the client will adapt to parameters of access point, so as to maintain normal communication with access point.

Device List

Summary Display Group Display Edit Group Delete Offline Device State Device Model IP MAC Soft Version Run Time Group Template Wireless Location Display CO-DEA3A3 DH-PFM90... 192.160.1.199 9c:67:93:de a3.a3 1.08.636 Ch 53m 0s Team1 Office1 Shanghai More

Figure 4-13

Step 4 When the status changes into , it means that the device has enabled the template successfully, as is shown in Figure 4-14.

Device List

Summary Display Group Display Edit Group Delete Offline Device State Device Model IP MAC Soft Version Run Time Group Template Wireless Location Display CC-DEA3A3 DH-PFM88... 192.168.1.198 9c:b7.93:de:a3:a3 1.0.9.535 0h 55m 26s Team1 Office1 Shanghai More State Device Model IP MAC Soft Version Run Time Template Wireless Location Display CC-DE7D55 DH-PFM88... 192.168.1.198 9c:b7.93:de:7d:55 1.0.9.545 0h 29m 4s Office1 Shanghai More Total 1 item No. 1/1 Page 10 Home Previous Next End

Figure 4-14

4.3.4 Device Upgrade

In the page of device list, device software can be upgraded. Upgrade of access point is operated as follows.

Step 1 If access point device doesn't have upgradeable software, pull-down list of upgrade version is null. Click to enter the page of Advanced Management-Image Management, add the image files to be upgraded. Configuration interface is shown in Figure 4-15.

alhua Wireless Device Management Status Device Terminal Advanced System Mac Image Management Product Default Version Auto Upgrade Save DH-PFM885-KT DH-PFM885-KR DH-PFM009-I DH-PFM889-IM DH-PFM881 DH-PFM880 DH-PFM890E DH-PFM000-A DH-PFM006-10 Image List Firmware File Select File Any document not selected Upload Num Image Name Version Product File Size(Byte) Update Time Action 1 TA2I-v1.0.7.454.9531_open_dahua 1.0.7.454 DH-PFM885-(T) DH-PFM885-(R) DH-PFM889-1 6357136(Byte) 2017-04-16 14:21:36 Manual Updates Delete

Figure 4-15

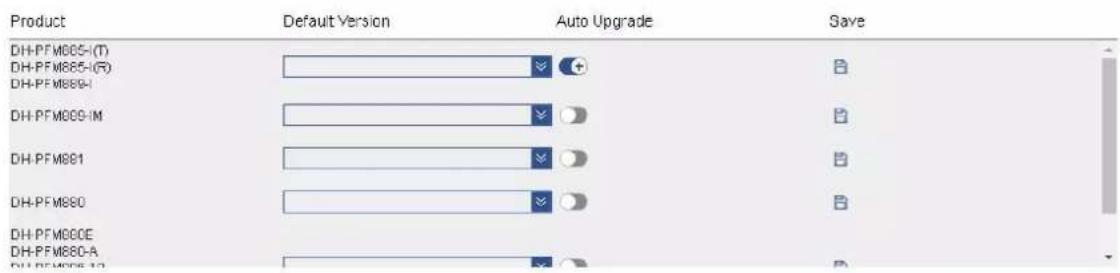

Step 2 Upload image files in image list. Different versions of image files of multiple product models can be uploaded. The interface is shown in Figure 4-16.

In pull-down list of upgrade version of every device, only versions of the same model of device will be displayed, as is shown in Figure 4-17.

Image List Firmware File: SelectFile Any document not selected Upload Num Image Name Version Product File Size(Byte) Update Time Action 1 TA2Hv1.0.7.454.9531_open_dahua 1.0.7.454 DH-PFM895-I(T) DH-PFM895-I(R) DH-PFM895-I DH-PFM895-I (T) DH-PFM895-I(R) DH-PFM895-I (T) DH-PFM895-I(R) DH-PFM895-I (T) 8357136(Byte) 2017-04-15 14:21:36 Manual Update Delete 2 TA2Hv1.0.8.536.9531_open_dahua 1.0.8.536 DH-PFM895-I(R) DH-PFM895-I (T) 8357136(Byte) 2017-04-25 14:28:52 Manual Update Delete

Figure 4-16

Device List Summary Display Group Display Edit Group Delete Offline Device State Device Model IP MAC Soft Version Run Time Group Template Wireless Location Display CC-DE... DH-PFM88..192.168.1.199 0cb7:93 dca3:a3 1.0.8.535 1h 11m 1s team1 Office1 Shanghai More 1.0.7.454 State Device Model IP MAC 1.0.8.535 Run Time Template Wireless Location Display

Figure 4-17

Step 3 Click "Save" in "More" option in the right, so AC will send the upgraded software to access point device. The status changes into upgrading . The device disconnects

from AC during upgrade. Its status becomes online √ after upgrade, which

means that upgrade has been successful, as is shown in Figure 4-18.

Device List Summary Display Group Display Edit Group Delete Offline Device State Device Model IP MAC Soft Version Run Time Group Template Wireless Location Display + 1 CC-DEA3A3 DH-PFM88... 102.168.1199 9cb7:03cpe3a3 a3 1.0.8.535 1h 12m 50s Team1 Office1 + shanghai More

Figure 4-18

Step 4 Click "Save" in "More" options in the right, so AC will send the upgraded software to access point device. The status changes into upgrade . The device disconnects

from AC during upgrade. Its status becomes online after upgrade, which means that upgrade has been successful, as is shown in Figure 4-19.

Device List

Summary Display Group Display Edit Group Delete Offline Device State▲ Device Model IP MAC Soft Version Run Time Group Template Wireless Location Display CC-DEA3A3 DH-PFM88... 192.168.1.199 9c:b7:93:de:a3:a3 1.0.8.536 0h 55m 20s Team1 Office1 shanghai More State Device Model IP MAC Soft Version Run Time Template Wireless Location Display CC-DE7D55 DH-PFM88...192.168.1.198 9c:b7:93:de:7d:55 1.0.9.535 0h 29m 4s Office1 shanghai More 1.0.7.454 1.0.9.535 Total 1 Item No. 1/1 Page 10 Home Previous Next End

Figure 4-19

• Upgrade mode of client device is the same as that of access point device. Please refer to the above-mentioned steps in case of upgrade.
• If the selected version in device list is the current version of device, it won't be upgraded.

4.3.5 Retrieve the Client

Due to features of wireless transmission, client device may sometimes subject to unsuccessful configuration, and may fail to associate access point. At the time, associate the client again through client retrieval function of access point. Operating steps are as follows:

Step 1 In case that the client fails to associate with Office1 access point for more than 10 minutes, please click "Retrieve" in "More" settings in the right of access point, as is shown in Figure 4-20.

Device List Summary Display Group Display Edit Group Delete Offline Device State Device Model IP MAC Soft Version Run Time Group Template Wireless Location Display CC-DEA3A3 DH-PFM08... 192.160.1.199 9c:b7.93:de a3:a3 1.0.8.535 1h 15m 20s Team1 Office1 Shanghai More State Device Model IP MAC Soft Version Run Time Template Wireless Location CC-DE7D55 DH-PFM08...192.160.1.198 9c:b7.93:de7d 55 1.0.8.546 0h 40m 57s Office1 Shanghai More Edit Refresh Del Retrieve

Figure 4-20

Step 2 Wait for 5 minutes. All clients once associated with access point will be associated again. Meanwhile, wireless template of access point will be changed to null, as is shown in Figure 4-21.

State	Device	Model	IP	MAC	Soft Version	Run Time	Group	Template	Wireless	Location	Display
+	CC-DEA3A3	DH-PFM88...	192.168.1.199	9c b7.93.de a3.a3	1.0.8.535	In 15m 20s	Team1		+	shanghai	more

Figure 4-21

Step 3 Choose Office1 template for access point again, and enable it.

Only those clients that have been successfully associated with access point can be retrieved.

4.4 Terminal Management

4.4.1 Terminal List

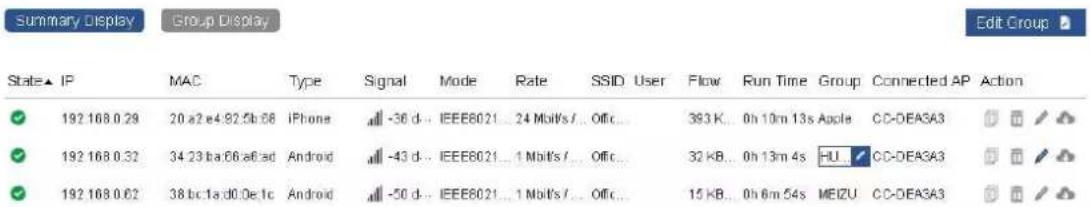

When mobile phones, notebooks and other terminals are connected with access point device, view detailed information about all terminals in terminal management list, as is shown in Figure 4-22. For meanings of all items, please refer to Table 4-3.

Terminal List

Summary Display Group Display Edit Group State ▲ IP MAC Type Signal Mode Rate SSID User Flow Run Time Group Connected AP Action ✓ 192.168.0.29 20:a2 e4.92.5b:88 iPhone -37 d... IEEE8021... 24 Mbit/s/... Offic... 384 K... 0h 2m 43s CC-DEA3A3 ✓ 192.168.0.32 34.23 ba.66 a6 ad Android -44 d... IEEE8021... 1 Mbit/s/... Offic... 20 KB... 0h 5m 33s CC-DEA3A3 ✓ 192.168.0.62 38:0c:1a:d0:0e:1c Android -73 d... IEEE8021... 1 Mbit/s/... Offic... 23 KB... 0h 3m 35s CC-DEA3A3

Total 3 Item No. 1/1 Page 10 Home Previous Next End

Figure 4-22

Item	Meaning
Status	Current status of terminal device, including online and offline.
IP Address	IP address of terminal device
MAC Address	Wireless MAC address of terminal device
Terminal Type	Reported terminal types after terminal device is associated with access point, including UNKNOWN, Windows, Windows Phone, Android, iPhone, iPod, iPad and Macintosh.
Signal Intensity	Wireless signal intensity associated with terminal device
Wireless Mode	Wireless mode of access point associated with terminal
Rate	Connection rate of access point associated with terminal
SSID	SSID of access point associated with terminal
User	User name used by terminal for Web authentication
Flow	Upstream and downstream flow rate used by terminal after associated with access point
Run Time	Run time after terminal is associated with access point
Group	Group name of terminal. Choose “Edit” in “More” in the right and configure it.
Connected AP	Name of access point device associated with terminal
Action	Action includes details, delete, edit and offline. Click “Details” to display login time, offline time and registration time of the terminal; registration time means the time when the terminal carries out Web authentication, registration and going online. Click “Delete” to delete offline terminals, whereas online terminals cannot be deleted. Click “Edit” to add or edit group name of terminal. Click “Offline”, terminals that have gone through Web authentication will be forced to go offline; terminals that haven’t gone through Web authentication cannot go offline.

Table 4-3

Click "Edit Group" button to group all terminals uniformly. For grouping method, refer to "Edit Group" method in device list. Also, click in action bar to edit group name of every terminal, as is shown in Figure 4-23.

Terminal List

Summary Display Group Display Edit Group State▲ IP MAC Type Signal Mode Rate SSID User Flow Run Time Group Connected AP Action ✓ 192.168.0.29 20 a2 e4.92.5b:38 iPhone -36 d... IEEE8021... 24 Mb/s /... Offc... 383 K... 0h 10m 13s Apple CC-DEA3A3 ✓ 192.168.0.32 34.23 ba.66.a6.ad Android -43 d... IEEE8021... 1 Mb/s /... Offc... 32 KB... 0h 13m 4s -HU... CC-DEA3A3 ✓ 192.168.0.62 38 bc.1a.d0.0e.1c Android -50 d... IEEE8021... 1 Mb/s /... Offc... 15 KB... 0h 6m 54s MEIZU CC-DEA3A3

Total 3 Item No. 1/1 Page 10 Home Previous Next End

Figure 4-23

Click "Group Display" to display terminal information according to groups, as is shown in Figure 4-24.

Terminal List

Summary Display Group Display Edit Group ▲ State IP MAC Type Signal Mode Rate SSID User Flow Run Time Group Connected AP Action Apple 192.168.0.29 20:a2:e4 92:5b:56 iPhone -36 ... IEEE8021... 24 Mb/s /... Offc... 393 K... 0h 10m 4... Apple CC-DEA3A3 HUAWEI 192.168.0.32 34:23 ba 66:a6:ad Android -46 ... IEEE8021... 1 Mb/s /... Offc... 32 KB... 0h 13m 3... HUAWEI CC-DEA3A3 MEIZU 192.168.0.62 38 bc:1a d0 0e:1c Android -47 ... IEEE8021... 1 Mb/s /... Offc... 17 KB... 0h 7m 24s MEIZU CC-DEA3A3 Total 9 item No. 1/1 Page 10 Home Previous Next End

Figure 4-24

4.4.2 Information Statistics

In the page of information statistics, view the online terminal type, online user group and time sharing information, as is shown in Figure 4-25.

Information Statistics

Figure 4-25

Display "Online Terminal Type" and "Online User Group" according to "Terminal Type" in terminal list and the edited "Group Name", as is shown in Figure 4-26.

Information Statistics

Figure 4-26

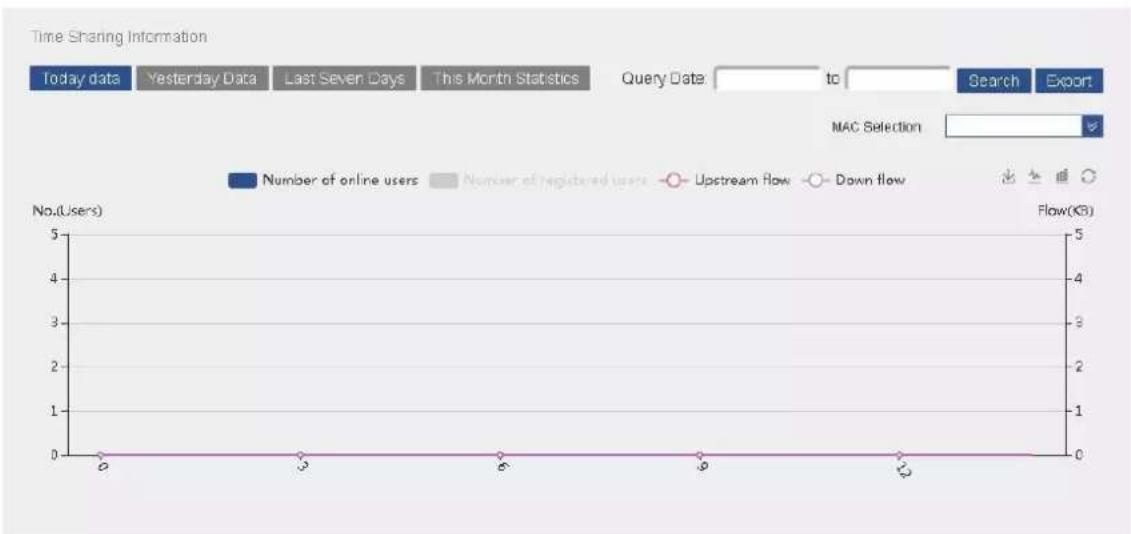

In the icon box of time sharing information, display the number of online users, number of registered users, upstream flow and downstream flow. Click the button to view data of today, yesterday, the last seven days and this month, as is shown in Figure 4-27.

Figure 4-27

Click the following icons to get rid of or display some data. In the figure, get rid of "Number of registered users", and only view the number of online users, upstream flow and downstream flow, as is shown in Figure 4-28.

Figure 4-28

Click "Download" to download the figure of present time sharing information, as is shown in Figure 4-29.

Figure 4-29

Click 🔒 “Line Chart” or 🔒 “Bar Chart” to modify display mode. In the following figure, all data is displayed with bar chart. Click 🔒 “Restore” to restore display mode to default status, as is shown in Figure 4-30.

Figure 4-30

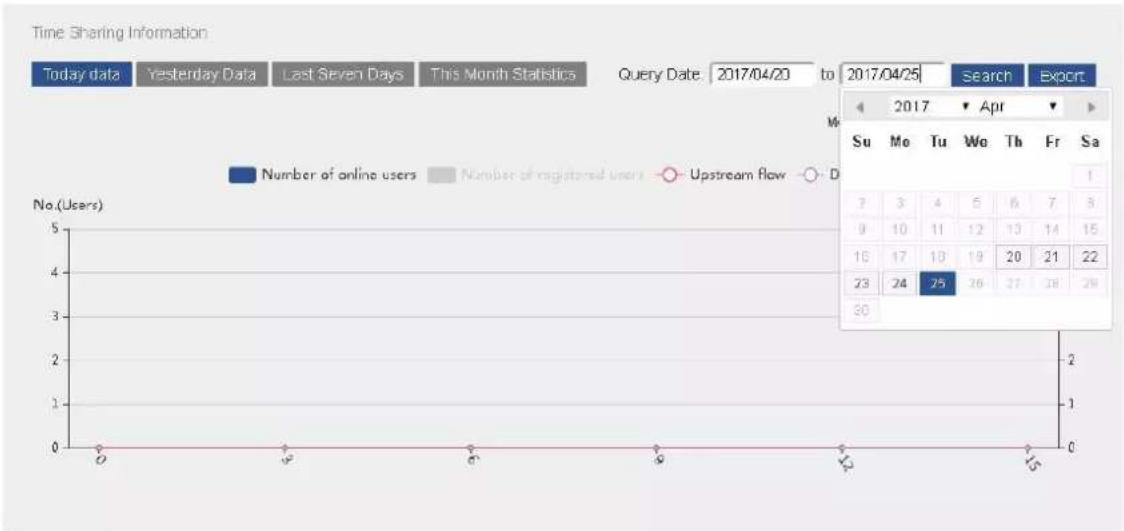

Click to choose starting date and ending date; query statistical information within a time period, as is shown in Figure 4-31.

Figure 4-31

Click "Export" button to export the selected data information in the format of Excel. The following figure is Excel form exported by choosing "Today Data", as is shown in Figure 4-32.

Worksheet
Time	number or	number or	Up flow	Down flow
0	0	0	0	0
1	0	1	0	0
2	0	1	0	0
3	0	1	0	0
4	0	1	0	0
5	0	1	0	0
6	0	1	0	0
7	0	1	0	0
8	0	1	0	0
9	0	1	0	0
10	0	1	0	0
11	0	1	0	0
12	0	1	0	0
13	0	1	0	0
14	0	1	0	0
15	0	0	0	0

Figure 4-32

Click MAC drop-down box to view time sharing information of every terminal according to MAC address, as is shown in Figure 4-33.

Figure 4-33

4.5 Advanced Management

4.5.1 Template Management

Template management page manages main template, basic template and VAP template. For the first time, create basic template and VAP template first, and then choose the main template correspondingly.

4.5.1.1 VAP Template

VAP template is shown in Figure 4-34. Click "New" to fill in the following information as required.

New Name VAP Enable Enable SSID Max Terminals 20 ↑ STA Isolation Enable SSID Hide Enable WEB Authentication Enable Encryption Type WPA Encryption Authentication Type WPA-TKIP Password Cancel Finish

Figure 4-34

Parameters are explained as follows.

• Name: name of this VAP template. Template name only supports Chinese, English or number with 1-63 digits.
• VAP Enable: choose to enable or disenable this VAP. When it is enabled, the terminal can scan and connect with this VAP.
  • SSID: name of wireless network.
• Max Terminals: by setting it, limit the quantity of terminals that are connected with access point.

• STA Isolation: by enabling this function, devices connected with the same access point cannot communicate with each other. Even IP of STA is repeated, it will not exert any effects on communication.

• SSID Hide: hide the name of wireless network (SSID). After this function is ticked, it will not be searched by others, so as not to be connected by others and affect your own use.

• WEB Authentication: after WEB authentication is enabled, WEB authentication system will redirect STA to authentication login page. The user inputs valid user name and password and submits; WEB authentication system will display successful login page, and redirect the authenticated STA to designated URL.
• Encryption Type: encrypt the wireless connection. The user can choose corresponding encryption type according to security requirements. Wireless encryption of terminals to be associated shall be set as the same; otherwise, they cannot be associated.
• WPA: a specification based on standards. Strengthen interoperability security, and thus greatly increase data protection and access control level in the existing and future wireless local area network (WLAN). Note: when WPA-PSK (TKIP) and WPA2-PSK (TKIP) are used to encrypt, the product will only reach 802.11a/g handling capacity.

The following example creates 10 VAP templates. 512 VAP templates can be created at most. Configuration interface is shown in Figure 4-35.

Summary Display Num Name VAP Enable SSID Max Terminal STA Isolation SSID Hide Encryption Authentication Web Authentication 1 br Enable br 20 Disable Disable Not Encrypted none Disable 2 1 Enable 1 20 Disable Disable Not Encrypted none Disable 3 2 Enable 2 20 Disable Disable Not Encrypted none Disable 4 3 Enable 3 20 Disable Disable Not Encrypted none Disable 5 4 Enable 4 20 Disable Disable Not Encrypted none Disable 6 5 Enable 5 20 Disable Disable Not Encrypted none Disable 7 6 Enable 6 20 Disable Disable Not Encrypted none Disable 8 66 Enable 66 20 Disable Disable Not Encrypted none Disable 9 666 Enable 666 20 Disable Disable Not Encrypted none Disable 10 6666 Enable 6666 20 Disable Disable Not Encrypted none Disable Total 31 Item No. 1/4 Page Home Previous Next End New Edit Del

Figure 4-35

Choose the template to edit or delete it. Click title bar to rank them.

4.5.1.2 Basic Template

Page of basic template is shown in Figure 4-36. Click "New" and fill in the following information as required.

New Mode 2.4G-802.11n Country China Name Device Type AP Channel Auto Width 20MHZ Tx Power High Max Tx Rate MCS 15 TDMA Enable Cancel Finish

Figure 4-36

Parameters are explained as follows.

- Mode: it consists of 2.4G-802.11n, 5G-802.11n and 5G-11AC. Choose corresponding mode according to the product. In device list, identify the template consistent with device mode.

- Country: standard channel is different in different countries or regions, which is distinguished with country code. When country is test mode, 2G frequency will expand to 2312MHz-2732MHz, whereas 5G frequency will expand to 4920MHz-5915MHz.

- Name: name of this template. It only supports Chinese (one Chinese character occupies 3 digits), English or number with 1-63 digits.

- Device Type: it consists of AP and Bridge type. With AP type, 8 VAP can be chosen in main template; with Bridge type, only one VAP can be chosen in main template.

- Channel: channel of information transmission. Before using non-standard frequency band, please check whether it conforms to local laws and regulations, as well as wireless management rules. To use non-standard frequency band, please change the country to test mode.

• Channel Width: it refers to maximum data transmission rate of the channel.

- Maximum Sending Rate: maximum sending and receiving rate of the device. By setting it, limit the maximum sending and receiving rate of the device, so as to keep stability of device performance.

- TDMA: a technology independently researched and developed by the company. Integrate TDMA, flexible configuration of 10M/20M/40M/80 MHz bandwidth, rate control, ACK time-out self-regulation and other advanced technologies in the industry. With flexible configuration of 10M/20M/40M/80 MHz bandwidth, realize balance in case of scarce wireless bandwidth resource and complicated work scenes: narrow wireless bandwidth configuration is used where there are less idle wireless channels and single user doesn't place a high requirement on wireless access rate; wide wireless bandwidth configuration is used where there are many idle wireless channels and single user places a high

requirement on wireless access rate. Moreover, narrow wireless bandwidth configuration is more effective in sheltered environment. With ACK time-out self-regulation technology, detect the distance between access point and client automatically, adjust wireless parameters and thus optimize the device performance.

- Note: when enabling TDMA function, mobile phones, notebooks and other terminals cannot be connected with AP, and other manufacturers' TDMA cannot communicate with our TDMA. When our device and other manufacturers' devices enable TDMA, both devices cannot be connected.

The following figure creates 4 basic templates. 512 basic templates can be created at most. Configuration interface is shown in Figure 4-37.

Summary Display Mode Display Num Name Type 802.11 Mode Country Channel Width Power Max Tx Rate TDMA 1 96 AP 2.4G-802.11n China Auto 20 27 15 2 1 AP 2.4G-802.11n China Auto 20 27 15 3 2 AP 2.4G-802.11n United States Auto 20 27 15 4 3 AP 2.4G-802.11n Test Auto 20 27 15 5 4 AP 5G-802.11n China Auto 40 11 15 6 5 AP 5G-802.11n China 5745 20 11 15 7 1 AP 2.4G-802.11n China Auto 20 27 15 8 Ofical Bridge 2.4G-802.11n China Auto 20 27 15 Total 8 item No. 1 / 1 Page 10 Home Previous Next End New Edit Del

Figure 4-37

Click "Mode Display" button to display basic templates according to types. Configuration interface is shown in Figure 4-38.

Summary Display Mode Display Num Name Type 802.11 Mode Country Channel Width Power Max Tx Rate TDMA 2.4G-802.11n 1 1 AP 2.4G-802.11n China Auto 20 27 15 2 2 AP 2.4G-802.11n United States Auto 20 27 15 3 3 AP 2.4G-802.11n Toot Auto 20 27 15 6 Office Bridge 2.4G-802.11n China Auto 20 27 15 7 ap AP 2.4G-802.11n China Auto 20 27 15 9 I AP 2.4G-802.11n China Auto 20 27 15 5G-802.11n 4 4 AP 5G-802.11n China Auto 40 11 15 5 6 AP 5G-802.11n China 5745 20 11 15 Total 8 Item No. 1 / 1 Page: Home Previous Next End New Edit Del

Figure 4-38

Choose the template to edit or delete it. Click title bar to rank them.

4.5.1.3 Main Template

In the page of main template, click "New"; choose previously created basic template in drop-down box of basic template. After it is chosen, display the type and mode of this basic template automatically. When the type is AP, VAP1\~VAP8 option box will appear, as is shown in Figure 4-39.

☐	Num	Name	Type	Mode	Basic	VAP1	VAP2	VAP3	VAP4	VAP5	VAP6	VAP7	VAP8
☐	1	ww	AP	2.4G-802.11n	sp	br
☐	2	1	AP	2.4G-802.11n	1	1
☐	3	2	AP	2.4G-802.11n	2	2	222
☐	4	3	AP	2.4G-802.11n	3	3	6	66	665	6665	66665	666665
☐	6	4	AP	5G-802.11n	4	4
☐	6	5	AP	5G-802.11n	5	5	55	555	5555	55555	555555	5555555	5555555
☐	7	I	AP	2.4G-802.11n	I	II	I2	I3	I4	I5	I6	I7	I8
☐	8	Office1	Bridge	2.4G-802.11n	Office1	Office1
☐	9		AP	2.4G-802.11n	1

Figure 4-39

When type of basic template is Bridge, only VAP1 choice box will appear, as is shown in Figure 4-40.

Num	Name	Type	Mode	Basic	VAP1	VAP2	VAP3	VAP4	VAP5	VAP6	VAP7	VAP8
1	ww	AP	2.4G-802.11n	ap	br
2	1	AP	2.4G-802.11n	1	1
3	2	AP	2.4G-802.11n	2	2	222
4	3	AP	2.4G-802.11n	3	3	6	66	666	6666	66666	666666
5	4	AP	5G-802.11n	4	4
6	5	AP	5G-802.11n	5	5	55	555	5555	55555	555555	5555555	5555555
7	I	AP	2.4G-802.11n	I	II	I2	I3	I4	I5	I6	I7	I8
8	Office1	Bridge	2.4G-802.11n	Office1	Office1
9		Bridge	2.4G-802.11n	Office1

Figure 4-40

Fill in template name to create main template. It only supports Chinese (one Chinese character occupies 3 digits), English or number with 1-63 digits. The following figure creates 4 main templates; 1,024 main templates can be created at most, as is shown in Figure 4-41.

Main Template Basic Template VAP Template

Summary Display Mode Display

Num	Name	Type	Mode	Basic	VAP1	VAP2	VAP3	VAP4	VAP5	VAP6	VAP7	VAP8
1	ww	AP	2.40-802.11n	ap	br
2	1	AP	2.40-802.11n	1	1
3	2	AP	2.40-802.11n	2	2	222
4	3	AP	2.40-802.11n	3	3	6	66	666	6666	66666	666666
5	4	AP	5G-802.11n	4	4
6	5	AP	5G-802.11n	5	5	55	555	5555	55555	555555	5555555	55555555
7	i	AP	2.40-802.11n	i	i1	i2	i3	i4	i5	i6	i7	i8
8	Office1	Bridge	2.40-802.11n	Office1	Office1

Total 8 Item No. 1/1 Page 10 Home Previous Next End

New Edit Do

Figure 4-41

Click "Mode Display" button to display main templates according to types, as is shown in Figure 4-42.

Main Template Basic Template VAP Template

Summary Display Mode Display

☐

Num

Name

Type

Mode

Basic

VAP1

VAP2

VAP3

VAP4

VAP5

VAP6

VAP7

VAP8

2.4G-802.11n

☐

1

1

AP

2.4G-802.11n

1

1

☐

2

2

AP

2.4G-802.11n

2

2

222

☐

3

3

AP

2.4G-802.11n

3

3

6

66

666

6666

66666

666666

☐

6

Office1

Bridge

2.4G-802.11n

Office1

Office1

☐

7

i

AP

2.4G-802.11n

i

i1

i2

i3

i4

i5

i6

i7

i8

☐

8

ww

AP

2.4G-802.11n

ap

br

5G-802.11n

☐

4

4

AP

5G-802.11n

4

4

☐

5

5

AP

5G-802.11n

5

5

55

555

5555

55555

555555

55555555

New + Edit Del

Figure 4-42

Choose the template to edit or delete it. Click title bar to rank them.

Note

• In case that modified wireless service configuration template has been applied to AP, modified configuration item will take effect on AP and associated client device immediately.
• In case that wireless service configuration template, which is planned to be deleted, has been applied to online device with V-WIFI management, the template cannot be deleted.

4.5.2 Image Management

Image management is used to manage the software version, which can be upgraded manually or automatically through software in image management list.

4.5.2.1 Automatic Upgrade

Step 1 Add software version of the device to image management list, as is shown in Figure 4-43.

Image List Firmware File: Select File Any document not selected Uplose Num Image Name Version Product File Size(Byte) Update Time Action 1 TA21v1.0.7.454.9631_open_dahua 1.0.7.454 DH-FFM885-(T) DH-FFM885-(R) DH-FFM885- 2 TA21v1.0.8.635.9631_open_dahua 1.0.8.635 DH-FFM885-(T) DH-FFM885-(R) DH-FFM885- 6357136(Byte) 2017-04-15 14:21:36 Manual Update Delete 6357136(Byte) 2017-04-25 14:28:52 Manual Update Delete

Figure 4-43

Step 2 In product information bar, find the product type that needs automatic upgrade, choose the upgrade version, click corresponding "Auto Upgrade" and the button turns blue. Click "Save", as is shown in Figure 4-44.

Image Management

Step 3 When restarting the device, or restarting AC, or a new device joins AC, device upgrade will be completed automatically in accordance with version requirements.

Step 4 Click "Auto Upgrade" button again, and the button turns gray. Click "Save" to turn off automatic upgrade function.

4.5.2.2 Manual Upgrade

Devices managed by AC can be upgraded manually in two ways. The first way is to click "Edit" in device list, and choose software version to be upgraded. The other way is to carry out manual upgrade in image management page. Configuration interface is shown as follows.

Step 1 Add software version of the device to image management list, as is shown in Figure 4-45.

Image List Firmware File: Select File Any document not selected Upload Num Image Name Version Product File Size(Byte) Update Time Action 1 TA2I-V1.0.7.454.9531_open_dahua 1.0.7.454 DH-FFM385-I(T) DH-FFM385-I(R) DH-FFM385-I DH-FFM385-I (T) 6357136(Byte) 2017-04-15 14:21:36 Manual Update Delete 2 TA2I-V1.0.8.535.9531_open_dahua 1.0.8.535 DH-FFM385-I(R) DH-FFM385-I DH-FFM385-I 6357136(Byte) 2017-04-25 14:28:52 Manual Update Delete

Figure 4-45

Step 2 Click "Manual Update" button in the right of image file to be upgraded. Online upgradeable device corresponding to image file will appear, as is shown in Figure 4-46.

Manual Update State ▲ Name Model MAC Soft Version CC-DEA3... DH-PFM8... 9c:b7:93:de:a3:a3 1.0.8.535 CC-DE7D... DH-PFM8... 9c:b7:93:de:7d:55 1.0.8.545 Total 2 Item No. 1 / 1 Page 10 Home Previous Next End Upgrade Refresh

Figure 4-46

Step 3 Choose the device which shall be upgraded, and click "Upgrade" button to upgrade. After issuing successfully, the device status changes into upgrading, as is shown in Figure 4-47.

Manual Update State ▲ Name Model MAC Soft Version CC-DEA3... DH-PFM8... 9c:b7:93:de:a3:a3 1.0.8.535 CC-DE7D... DH-PFM8... 9c:b7:93:de:7d:55 1.0.8.545 Total 2 Item No. 1 / 1 Page 10 Home Previous Next End Upgrade Refresh

Figure 4-47

4.5.3 Log Management

Page of log management keeps all log information of the system. It is able to look up relevant log information according to keywords, and help research and development personnel to troubleshoot, as is shown in Figure 4-48.

Log Management

System Log

kiry

Q

2016-12-17 10:08:32.368 goashead initModalRadio :263 [D] This AC Model is XM-E4110-EN. 2016-12-17 10:09:37.895 goashead actionLoginHandler :42 [D] Login user[admin] 2016-12-17 10:13:02.354 goashead initModalRadio :263 [D] This AC Model is XM-E4110-EN. 2016-12-17 10:14:53.743 goashead actionLoginHandler :42 [D] Login user[admin] 2016-12-17 10:16:10.352 goashead initModalRadio :263 [D] This AC Model is PFM882-AC-EN. 2016-12-17 10:29:48.702 goashead actionLoginHandler :42 [D] Login user[admin] 2016-12-17 10:30:38.755 goashead cg/RebootAndDefault:789 [D] IP [192.168.1.162] default configuration 2016-12-17 10:30:39.758 goashead cg/RebootAndDefault:789 [D] default redirect LAN 192.168.1.168 2016-12-17 10:30:46.922 goashead recoveryAC_thread :722 [D] thread default 2016-12-17 10:31:40.358 goashead initModalRadio :263 [D] This AC Model is PFM882-AC-EN. 2016-12-17 10:33:15.826 goashead actionLoginHandler :42 [D] Login user[admin] 2016-12-17 10:39:55.585 goashead actionLoginHandler :42 [D] Login user[admin] 2016-12-17 10:40:35.846 goashead actionLoginHandler :42 [D] Login user[admin] 2016-12-17 15:05:31.656 goashead actionLoginHandler :42 [D] Login user[admin] 2016-12-17 15:06:27.712 goashead setNOMT :338 [D] UserIp[192.168.1.162] set MOKT IP [192.168.1.168] MONT NETMASK [255,255,255.0] 2016-12-17 15:06:27.734 goashead setLANPort :400 [D] UserIp[192.168.1.162] set LAN IP [192.168.1.168] LAN NETMASK [255,255,255.0] Default GW [192.168.1.100] 2016-12-17 15:31:49.361 goashead initModalRadio :263 [D] This AC Model is PFM882-AC-EN. 2016-12-17 15:35:29.088 goashead actionLoginHandler :42 [D] Login user[admin] 2016-12-17 15:40:19.350 goashead initModalRadio :263 [D] This AC Model is DH-FFM880-AC. 2016-12-17 15:40:20.792 capwraps ACEnterRun :1,253 [D] AP, 9c d7, 93 de d4 7d online: 2016-12-17 16:20:21.039 goashead actionLoginHandler :42 [D] Login user[admin] 2016-12-17 16:20:45.964 goashead cg/RebootAndDefault:789 [D] IP [192.168.1.162] default configuration 2016-12-17 16:20:45.968 goashead cg/RebootAndDefault:789 [D] default redirect LAN 192.168.1.168 2016-12-17 16:20:53.358 goashead recoveryAC_thread :722 [D] thread default 2016-12-17 16:21:46.340 goashead initModalRadio :263 [D] This AC Model is DH-FFM880-AC. 2016-12-17 16:22:58.483 capwraps ACEnterRun :1,253 [D] AP, 9c d7, 93 de d4 7d online: 2016-12-17 16:23:58.207 goashead actionLoginHandler :42 [D] Login user[admin]

Figure 4-48

4.6 System Settings

Page of system settings includes basic settings, network security settings, upgrade configuration management and access control. It is mainly used to manage the platform itself.

4.6.1 Basic Settings

4.6.1.1 General Settings

Page of general settings consists of system properties and account management, as is shown in Figure 4-49.

Basic Settings

General Settings Time Sync Interface Settings System Properties Host Name: AC Language: English Account Management Modify Login: Old Password: New Password: New Password Confirmation:

Figure 4-49

Parameters are explained as follows.

- System properties include host name and language.

Host name: it is used to identify device host. Page of status statistics displays host name, which ensures its uniqueness in the network system. Host name only supports Chinese (one Chinese character occupies 3 digits), English, number or special character with 1-63 digits.

Language: system language includes Chinese and English.

- Account management is used to modify the information about webpage login account. After choosing "Modify Login", in the expanded configuration item, input the old password, new password and confirm new password again. Click "Save" button, and the configuration of webpage login account will take effect.

4.6.1.2 Time Synchronization

Configuration interface is shown in Figure 4-50.

Figure 4-50

Parameters are explained as follows.

- Time Zone: in drop-down list, choose the stipulated time zone of your location.

- Local Time: display current system time of AC.

- NTP Client: through network time protocol, AC and time server realize time synchronization. After this function is enabled, please fill in address of proper time server according to needs, such as 118.103.146.184. At this time, LAN port of AC shall be connected to public network, and configured with correct IP address and gateway.

- NTP Server IP: IP address of designated NTP server.

- NTP Server: through network time protocol, network access point/client and AC realize time synchronization.

- Time Settings: system time is a very important parameter of AC system, because NTP service of AP/STA, DHCP lease and system log need to use system time. It is suggested that time settings should be modified according to needs when logging in V-WIFI for the first time.

4.6.1.3 Interface Settings

Configuration interface is shown in Figure 4-51.

Basic Settings

General Settings

Time Sync

Interface Settings

Management Interface

IP Address: 192.168.0.166

Subnet Mask: 255.255.255.0

LAN Interface

IPv4 Address: 192.168.1.165

IPv4 Subnet Mask: 255.255.255.0

Default Gateway: 192.168.1.100

Figure 4-51

Parameters are explained as follows.

• Management Interface: Connect PC with management interface, input IP address of management interface in address bar of Web browser, and visit AC network management interface. Default IP address of management interface is 192.168.0.166.
• LAN Interface: Connect PC with management interface, input IP address of LAN port in address bar of Web browser, and visit AC network management interface. Default IP address of LAN port is 192.168.1.166. Access point device can go on line by being connected with this interface.

4.6.2 Network Security Settings

Page of network security settings can configure LAN1\~LAN5 port and VLAN of management interface MGMT, as is shown in Figure 4-52.

Network Security Settings

VLAN Settings

Network Port

VLAN D

Comment

Figure 4-52

Click "New", choose VLAN port you want to add, set VLAN ID and comment. The interface is shown in Figure 4-53.

New Network Port: LAN 1 VLAN ID : LAN 1 VLAN Comment: LAN 2 LAN 3 LAN 4 LAN 5 MGMT Cancel Finish

Figure 4-53
One port can create many VLAN, as is shown in Figure 4-54.

VLAN Settings
	Network Port	VLAN ID	Comment
	LAN 3	100	100
	LAN 1	200	VLAN200

Figure 4-54

4.6.3 Upgrade Configuration Management

Page of configuration management consists of two parts: backup/restore, upgrade of firmware and license. Configuration interface is shown in Figure 4-55.

Backup /Restore

Download Profile: Download Upload Configuration: Select File Configuration Save: Save Restore Factory: Recovery Device Robost: Reboot Update Firmware File: Select File Upgrade Licence Equipment Identification: Njg6XHQQTQAMEE6QJQENINE AF number: 2018 Web authentication user number: 65535 File upload: Select File USB automatic import: Import Any document not selected Any document not selected Any document not selected Any document not selected Any document not selected Any document not selected Any document not selected Any document not selected Any document not selected Any document not selected Any document not selected Any document not selected Any document not selected Any document not selected Any document not selected Any document not selected Any document not selected Any document not selected Any document not selected Any document not selected Any document not selection

Figure 4-55

Parameters are explained as follows.

- Backup/Restore

Download Configuration: it saves current configuration of AC, with default file name as config.db, in order to backup AC configurations.

Upload Configuration: upload config.db file to configure AC. ◇

Click "Select File" button, choose config.db file and click "Upload". Please operate according to hints on the following waiting page. If image file on AC server is inconsistent with image file information in the uploaded configuration file, at the end of waiting page, there will be hints to delete information, as is shown in Figure 4-56.

Upload Configuration... Device is uploading configuration, please stand by... keep the power on during this process...

Figure 4-56

Save Configuration: click "Save" to save all operations on the page, so as not to lose configurations in case of shutdown or outage.
◇ AC Recovery: recover initial values of AC, as is shown in Figure 4-57.

AC recovery...

AC device is recovering, please wait... During this period, be sure to keep the power supply...

Figure 4-57

☐ AC Reboot: click "Reboot", and AC will be rebooted. Please save configurations before reboot; otherwise, all configurations will be lost after AC reboot, as is shown in Figure 4-58.

AC reboot...

AC device is rebooting, please wait... During this period, be sure to keep the power supply...

Figure 4-58

- Upgrade of Firmware

Click "Select File", choose the latest firmware of AC and click "Upgrade" to upgrade AC, as is shown in Figure 4-59.

Update

Figure 4-59

4.6.4 Access Control

Page of access control is used to configure relevant parameters of Web authentication. After Web authentication is enabled, Web authentication system will redirect the client to authentication login interface. The user inputs valid username and password, and then submits. Web authentication system will show successful login interface, and redirect authenticated client to the designated URL.

4.6.4.1 Enable Web Authentication

Firstly, go to Advanced Management->Template Management page. In VAP template, create or choose the template that requires Web authentication, enable Web authentication, and then at device management page, issue this configured template to the device, as is shown in Figure 4-60.

Main Template Basic Template VAP Template Summary Display Num Name VAP Enable 21 Office1 Disable Name Office1 VAP Enable Enable SSID Office1 Max Terminals 20 个 STA Isolation Enable SSID Hide Enable WEB Authentication Enable Encryption Type Not Encrypted Cancel Finish Authentication Web Authentication none Disable 10 Home Previous Next End New Edit Edit

Figure 4-60

Different access modes have different configuration modes, which will be introduced below.

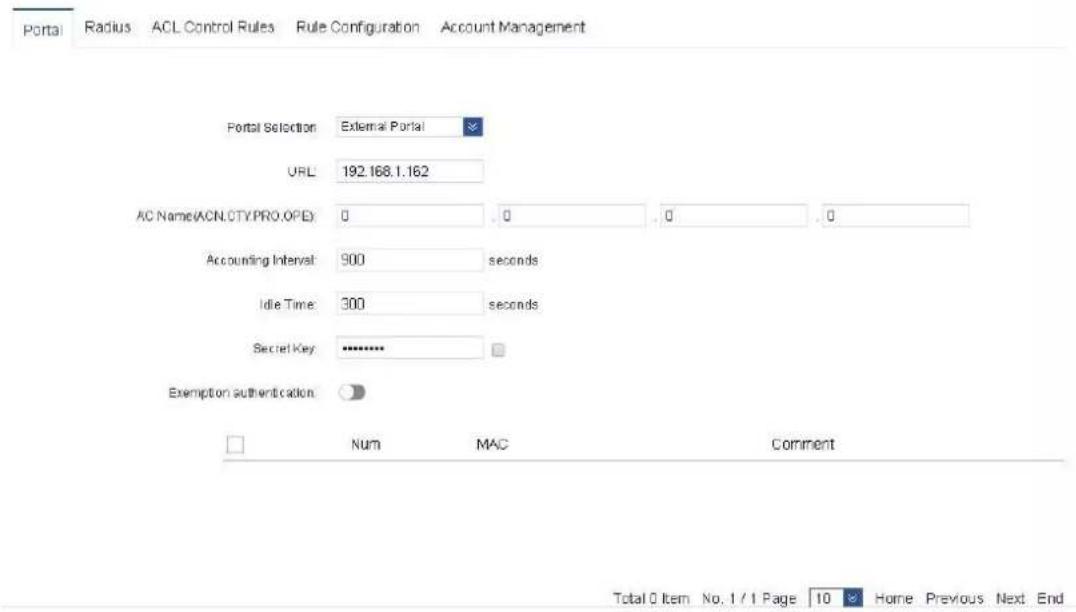

- At the page of Portal settings, when choosing external Portal, fill in address of Portal server; make sure that LAN port of AC is connected with Portal server. When choosing internal Portal, built-in Portal of AC will be used to authenticate. That is to say, Portal server is AC itself, as is shown in Figure 4-61.

Access Control

Portal Radius ACL Control Rules Rule Configuration Account Management Portal Selection External Portal URL 192.168.1.162 AC Name(ACN.CTY.PRO.OPE): 0 .0 .0 .0 Accounting Interval: 900 seconds Idle Time: 300 seconds Secret Key: ******** Exemption authentication Num MAC Comment Total 0 Item No. 1 / 1 Page 10 Home Previous Next End

Figure 4-61

Parameters are explained as follows.

Portal Selection: choose internal or external Portal. ◇

• URL: it refers to address of Portal server. It is used when external Portal is selected.
  Accounting Interval of WEB Authentication: during billing, billing server makes statistics of billing information about wireless client at set intervals.
  ◇ Idle Time: if there is no operation within stipulated time, the user will be required to re-authenticate.
  ◇ Secret Key: secret key is used when external Portal is selected and its protocol

standard is v2.0. It is unnecessary when protocol standard of external Portal is v1.0. ◇ Exemption from Authentication: After this function is enabled, some terminals can be set to exempt from authentication and can communicate directly. MAC addresses of terminals shall be added to the list of exemption from authentication.

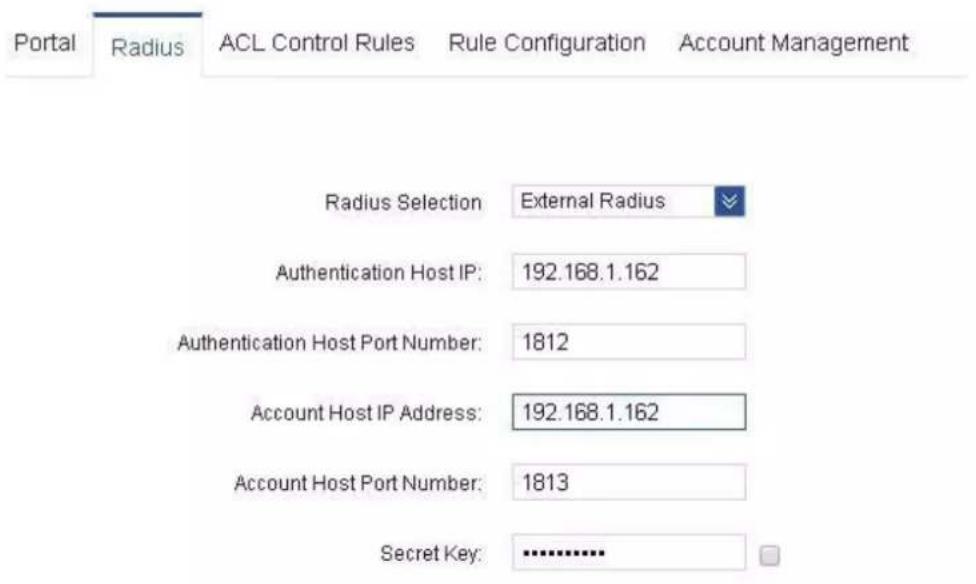

- Radius Setting: when choosing external Radius, fill in information about Radius authentication and accounting host; secret key is the shared key set on Radius server. Make sure that LAN port of AC is connected with Radius server. When choosing built-in Radius, built-in Radius of AC will be used to authenticate. That is to say, Radius server is AC itself, as is shown in Figure 4-62.

Portal Radius ACL Control Rules Rule Configuration Account Management Radius Selection External Radius Authentication Host IP: 192.168.1.162 Authentication Host Port Number: 1812 Account Host IP Address: 192.168.1.162 Account Host Port Number: 1813 Secret Key: ********

Figure 4-62

- At the page of ACL control rules, create rules of white list; add Portal server and port, as is shown in Figure 4-63.

Portal Radius ACL Control Rules Rule Configuration Account Management Num Rule Group IP Port Rule 1 whitelist 192.168.1.162 80 White List Black List

Figure 4-63

- At the page of rule configuration, enable pre-authentication access control white list, and add the previous rules to white list, as is shown in Figure 4-64.

Portal Radius ACL Control Rules Rule Configuration Account Management Pre Authentication Access Control White List Rule Group whitelist Post Authentication Access Control Terminal MAC Nun Mac Rule Group Nun NED Authentication Account Rule Group Nun SSID Rule Group None Previous Next End Total 0 Item No. 1 / 1 Page 10 None Previous Next End Total 0 Item No. 1 / 1 Page 10 None Previous Next End Total 0 Item No. 1 / 1 Page 10 Nov Edit Del New Edit Del New Edit Del

Figure 4-64

Parameters are explained as follows.

◇ Pre Authentication Access Control: IP addresses and ports that can be visited by wireless terminals before passing WEB authentication.
- White List: in case of built-in Portal, fill in IP and 80 port of AC; in case of external Portal, fill in IP of Portal server and corresponding http port (such as 80 or 8080). Blacklist rules set at the page of ACL control rules are not shown here.
- Post Authentication Access Control: it controls access right of terminals that have passed WEB authentication.
Terminal MAC: fill in the address of MAC to be controlled, and choose rules that have been set at the page of ACL control rules. This MAC address will take effect according to rules.
- WEB Authentication Account: in case of built-in Radius, fill in account of account management page; choose rules that have been set at the page of ACL control rules. Terminals that are logged in with this WEB authentication account will take effect according to rules. In case of external Radius, fill in the account on Radius server; choose rules that have been set at the page of ACL control rules. Terminals that are logged in with this WEB authentication account will take effect according to rules.
- SSID: fill in SSID to be controlled; choose rules that have been set at the page of ACL control rules. Terminals associated with this SSID wirelessly will take effect according to rules.

- Account Management: in case of built-in Radius, terminals shall fill in account and password of this page to be authenticated. In case of external Radius, terminals shall fill in account and password configured on Radius server, as is shown in Figure 4-65.

Portal	Radius	ACL Control Rules	Rule Configuration	Account Management
	Num	Account		Password	Mail
	1	1		111111111	[e-mail]

Total 1 Item No. 1 / 1 Page 10 Home Previous Next End

Figure 4-65

LAN port of AC shall be connected with public network. After mobile phones, notebooks and other wireless terminals are associated with SSID whose Web authentication is enabled, after obtaining IP address of public network, open the browser of terminal, and requests for any address will be forcibly redirected to Web authentication server. Portal server provides the user with authentication page. Input account and password (the account and password in Radius server), in order to go online.

4.7 Logout

To log out, please click the exit button in the top right corner of the page, and return to login page, as is shown in Figure 4-66.

@lhua Wireless Device Management Status Device Terminal Advanced System Map

Figure 4-66

ZHEJIANG DAHUA VISION TECHNOLOGY CO.,LTD.

Address: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China

Postcode: 310053

Tel: [phone]

Fax: [phone]

Email:[e-mail]

Website: www.dahuasecurity.com
