USER MANUAL Solar Pathlight RING

White rectangular device with a black solar panel and a circular button, no visible text or symbols.

Solar Steplight

Smart Lighting

Download the Ring app.

The app walks you through setting up and managing your Steplight.

Search for "Ring" in one of these app stores, or visit: ring.com/app

Download on the

App Store

GET IT ON

Google play

Set up your Ring Bridge.

The Bridge is required to connect your Ring Smart Lights to the Ring app and other compatible Ring devices.

To set up your Bridge, follow the instructions in the Ring app or the Bridge user manual.

White wireless router device with a small port and indicator lights (no visible text or symbols)

Slide off the mounting plate.

Slide the tabs out of the grooves and remove the plate from the rear of your Steplight.

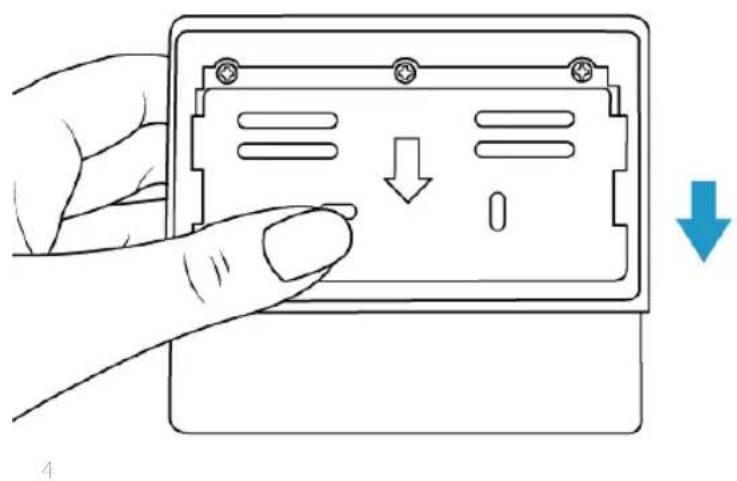

Remove the battery cover.

Press in the tab on the bottom and lift to remove.

Hand placing a component into a device casing with a blue downward arrow indicating action (no text or symbols)

Line drawing of a hand inserting a component into a device housing (no text or symbols)

Remove the battery pull-tab.

Once removed, the included lithium-ion battery will be activated and your Steplight will flash twice to indicate its powered on.

Risk of fire, explosion, or burn. Do not short circuit, crush, heat above 60^ C, incinerate, or disassemble the battery.

Line drawing of a hand inserting a card into a device panel (no text or symbols)

Charge your Steplight.

Plug the provided micro USB cord into a USB power supply (not included), then connect it to your Steplight to fully charge the battery.

The light will slowly turn on and off while charging and glow on continuously once charged.

Once charged, remove the micro USB cord.

If you can't wait to play with your Steplight, go ahead and set it up. But we recommend you fully charging it before installation.

Hand inserting a USB into a device panel (no text or symbols visible)

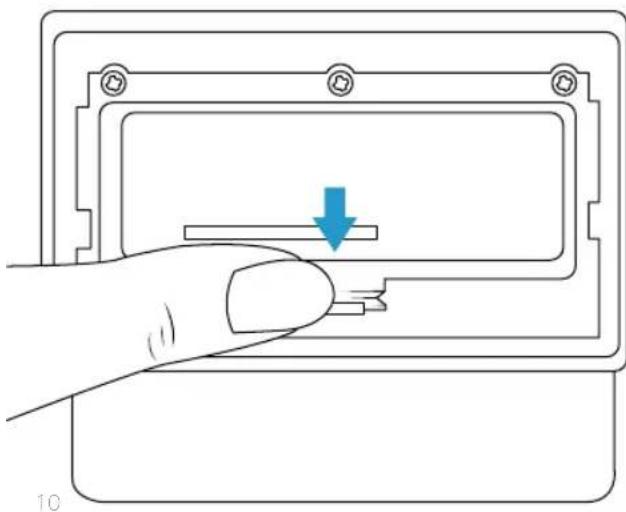

Re-attach the battery cover.

Push the battery cover back onto your Steplight, making sure the tab snaps into place.

Hand pressing a button on a device panel with a blue arrow indicating the action (no text or symbols present)

Set up your Steplight in the Ring app.

In the app, tap Set Up a Device.

When prompted, select Smart Lights and follow the in-app instructions.

Line drawing of a hand holding a smartphone (no text or symbols)

Mark the screw holes.

Use the holes in the mounting plate as a template to mark the screw locations.

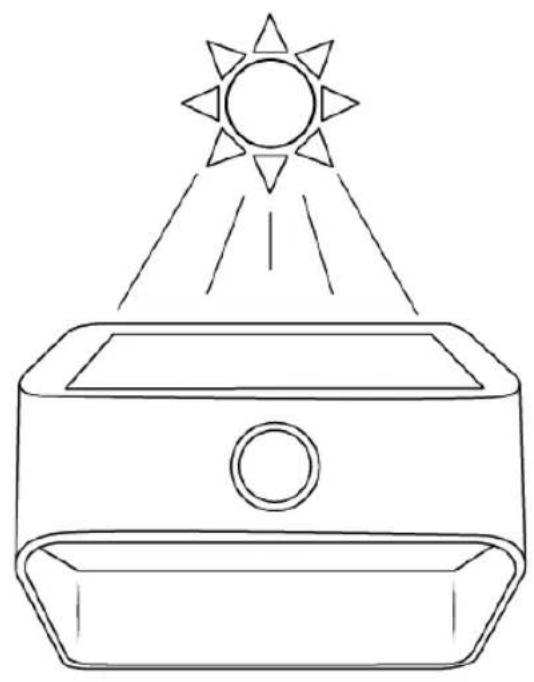

As a solar light, please ensure you install your light in an area with plenty of sun.

Simple line drawing of a sun shining over a box, with no text or symbols present.

Line drawing of a hand holding a pen inserted into a rectangular electronic component, with an upward arrow indicating motion (no text or symbols present)

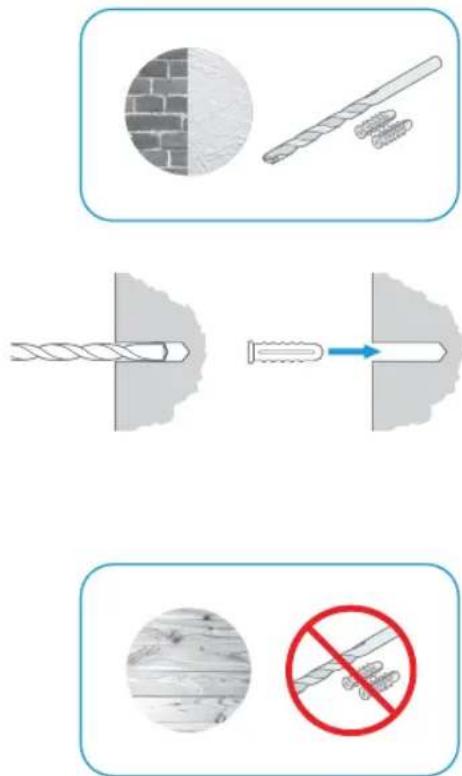

Install Wall Anchors (optional).

If installing on a hard surface (such as stucco or brick), first drill holes using a 3/16" drill bit (not included).

If installing on wood or siding, skip this step.

Diagram illustrating three types of cable and wire construction: brick wall, coiled cable, and wooden rebar with no construction.

Install the mounting plate.

Place the mounting plate against the surface, making sure the arrow is pointing upwards, and drive the two mounting screws until the mounting plate is flush against the surface.

If installing on a wood surface, you can screw the bracket directly into your wall using a Philips head screwdriver.

Line drawing of a hand holding a screwdriver to adjust a component with an arrow indicating upward motion (no text or symbols)

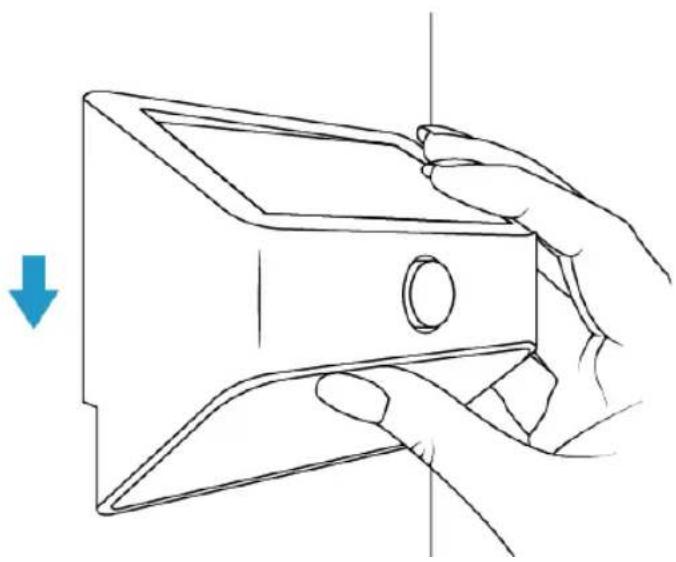

Mount your Steplight.

Place your Steplight over the mounting plate, then slide it downward to lock it in place.

Line drawing of a hand holding a device with a blue arrow indicating downward motion (no text or symbols)

Simple line drawing of a sun shining over a rectangular container (no text or symbols)

For additional help, visit: ring.com/help

Or give us a call...

US 1 800 656 1918

Canada 1 855 300 7289

Worldwide [phone]

For a list of all our customer support numbers, visit: ring.com/callus
