WGCXL2D2NEG - Unspecified HAGER - Free user manual and instructions

Product Type	Double Pole Control Switch with LED Indicator
Brand	Hager
Model	WGCXL2D2NEG
Series	Muse / Inspire
Rated Voltage	250 V~
Rated Current	20 AX (max)
Frequency	50/60 Hz
Conductor Cross-Section (Screw Terminals)	Max 3 x 2.5 mm²
Distance of Fixing Holes	60.3 mm
Mounting	Flush-mounted in standard wall boxes (recommended depth ≥ 35 mm)
Number of Gangs	2-gang
Switch Type	Double Pole (DP) control switch
Indicator	LED per rocker
Earthing	With earthing contact for bonding connected loads to protective earth
Compliance Standards	BS EN 60669-1, IEC 60669-1
Dimensions (Approx.)	Standard 2-gang switch size (approx. 70 mm x 70 mm x 40 mm)
Weight (Approx.)	0.1 kg
Installation Environment	Indoor areas with no drip or spray water
Maintenance	Clean with a dry, soft cloth. Do not use solvents or abrasive cleaners.
Safety	Installation only by qualified electrician. Disconnect power before working.
Spare Parts / Reparability	Frames and rockers are replaceable. 2-5 gang frames available for multiple combinations.

Frequently Asked Questions - WGCXL2D2NEG HAGER

What is the rated voltage and current of the Hager WGCXL2D2NEG?

The rated voltage is 250 V~ and the rated current is 20 AX maximum.

Can the switch be used in outdoor areas?

No, it is only suitable for indoor areas with no drip or spray water.

How do I wire the 2-gang double pole control switch with LED?

Follow the wiring diagrams provided in the manual (2B or 2C). Strip cables 10 mm and connect according to the diagram. Ensure the metal wall box (if used) is earthed.

What is the purpose of the LED indicator?

The LED indicator per rocker shows the switching status of the control switch.

Can I install this switch in a metal wall box?

Yes, but the metal wall box must be connected to earth directly for safety.

What is the minimum wall box depth required?

The recommended wall box depth is ≥ 35 mm.

How do I remove the frame and rockers for installation?

Carefully loosen the frame at the notches with a flat-blade screwdriver. Lift off the frame and then remove the rockers with the screwdriver.

What cable cross-section can I use?

The screw terminals accept a maximum conductor cross-section of 3 x 2.5 mm².

Is this switch compatible with other Hager frames?

Yes, 2-5 gang frames from the Muse/Inspire series are available for multiple combinations.

What should I do if the LED does not light up?

Check wiring connections and ensure power is on. If the problem persists, the LED may be defective and the switch should be replaced by a qualified electrician.

USER MANUAL WGCXL2D2NEG HAGER

20AX DP control switches

Hager Muse / Hager Inspire

Installation manual

Safety instructions

Electrical equipment must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country.

Failure to comply with these installation instructions may result in damage to the device, fire or other hazards.

Function/Correct use

• Mechanical double pole switches/control switches for electrical installations in buildings.
• For switching hard-wired electrical appliances.
• With earthing contact for bonding connected loads to protective earth.
• Control switches equipped with LED indicator per each rocker.
• For the flush-mounted installation in standard wall boxes (recommended wall box depth ≥ 35 mm). Attention: When installed in metal wall box, the box must be connected with earth directly.
• Only suitable for use in indoor areas with no drip and no spray water.

Technical data

Rated voltage: 250 V\~

Frequency: 50/60 Hz

Rated current: max. 20 AX

Conductor cross-section of screw terminals: max. 3 x 2,5 mm ^4

Distance of fixing holes: 60.3 mm

Switch compliance: BS EN 60669-1, IEC 60669-1

Information for electricians Installation and electrical connection

DANGER!

Touching live parts can result in an electric shock.

An electric shock can lead to death.

Disconnect the connecting cables before working on the device and cover all live parts in the area!

Preparing the device for installation

(for example "20AX 2gang DP switch w/LED")

1

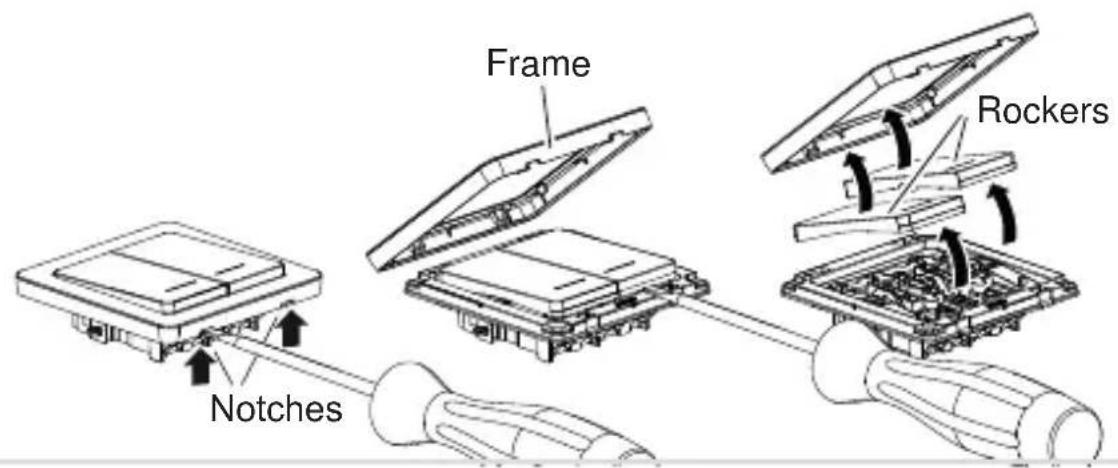

Carefully loosen the frame on the notches with a flat-blade screwdriver. Lift up and remove the frame (1).
■ Remove the rockers also with a flat-blade screwdriver.

Connecting the device

2A

1gang DP switch

Double pole switch

2gang DP switch

2B

1gang DP switch w/LED

Double pole control switch

2gang DP switch w/LED

2C

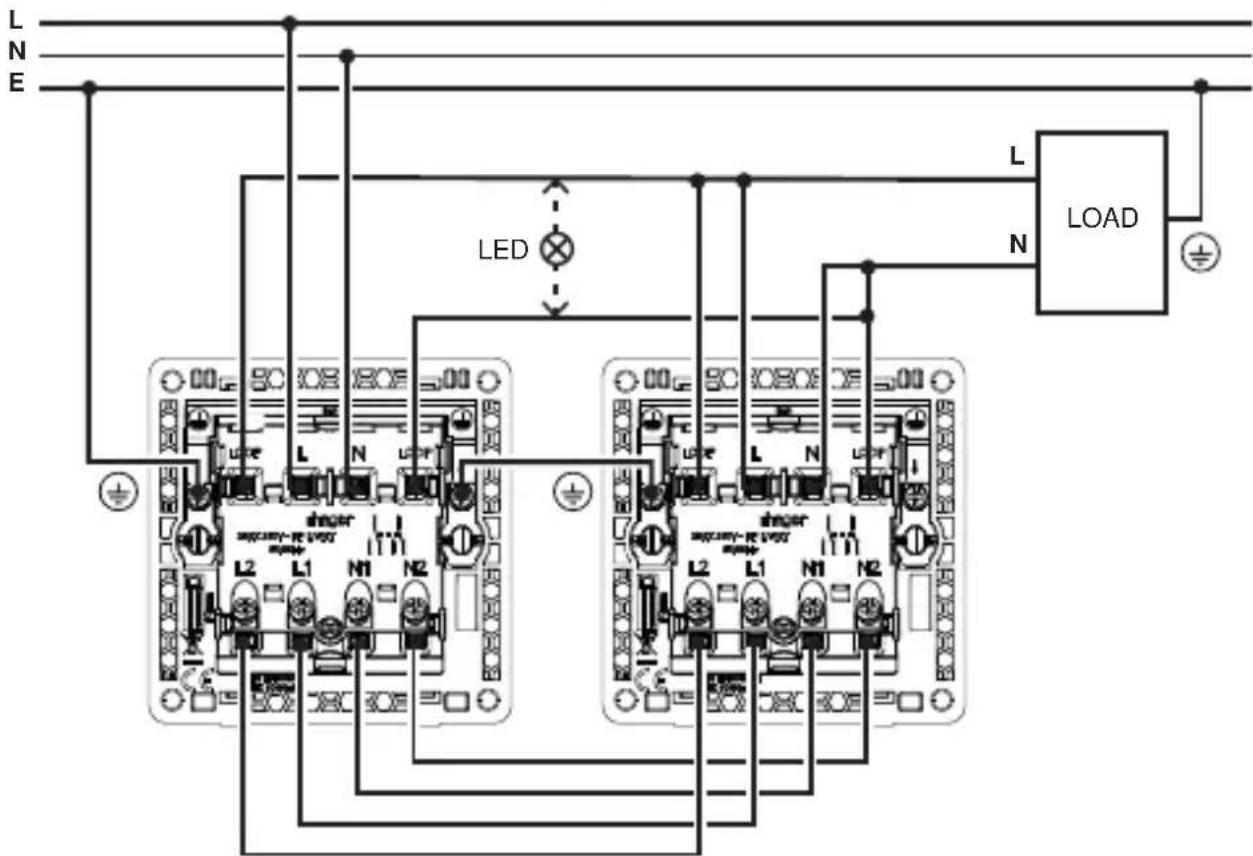

2way double pole control switch

1gang 2way
DP switch w/LED
1gang 2way
DP switch w/LED

• Strip connection cables approx. 10 mm.

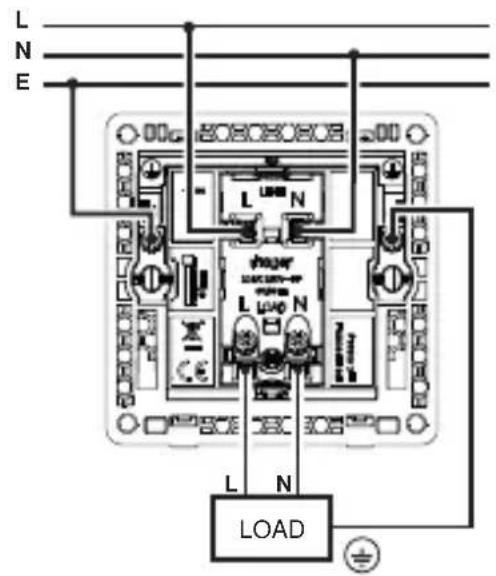

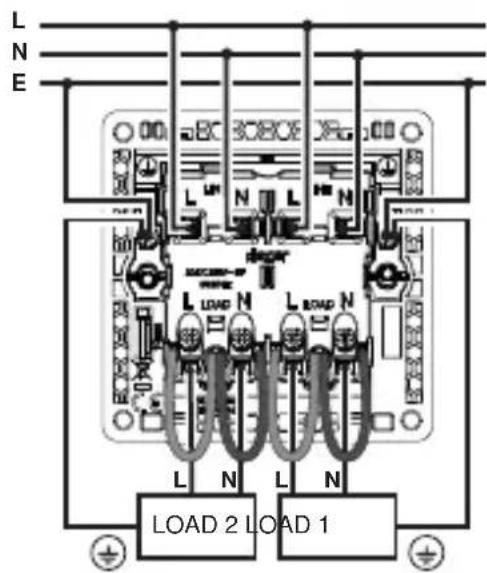

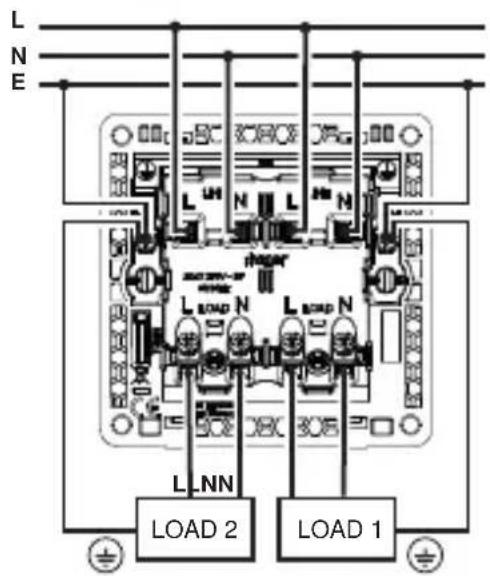

  ■ Wire the switch according to the appropriate wiring diagram (2A or 2B or 2C).

When installed in metal wall box, the box must be connected with earth directly!

Installing the device into the wall box

(for example "20AX 2gang DP switch w/LED")

3

Diagram of a cable connector with internal components and screwdriver, showing no text or symbols

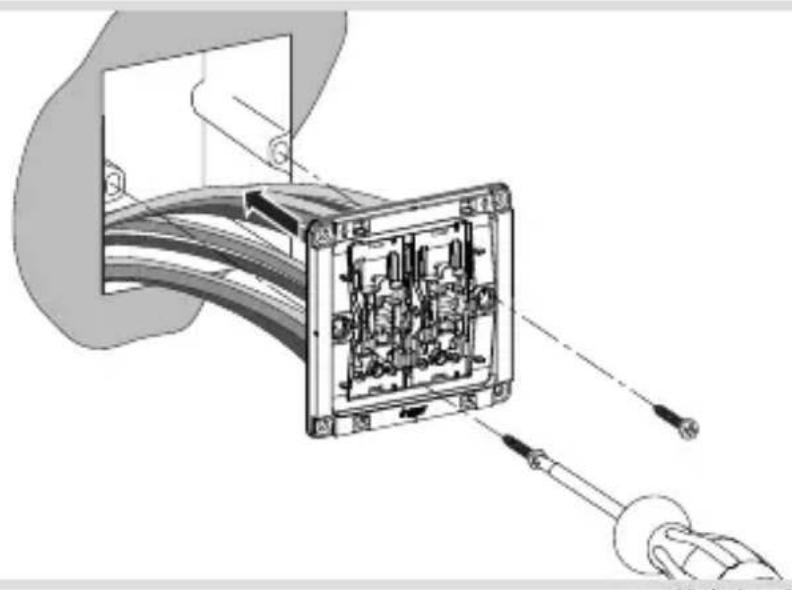

■ After wiring, fix the device with the two screws attached into the wall box (3).

Assembling the rockers and frame

(for example "20AX 2gang DP switch w/LED")

4

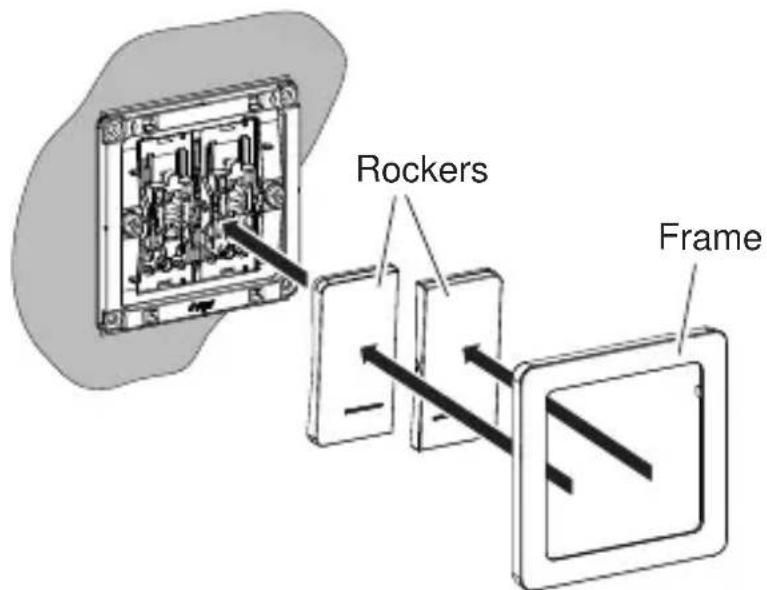

■ Fix the rockers and frame onto the device (4).

2-5gang frames are available for multiple combinations.
