Product Type	Mechanical Light Switch (flush-mounted)
Model	WGCXR112KB
Brand	Hager
Rated Voltage	250 V~
Frequency	50/60 Hz
Rated Current (1-way/2-way switches)	16 AX max.
Rated Current (intermediate switch)	10 AX max.
Conductor Cross-section (screw terminals)	max. 3 x 1.5 mm²
Distance of Fixing Holes	60.3 mm
Switch Compliance	BS EN 60669-1, IEC 60669-1
Installation Type	Flush-mounted in standard wall box (depth ≥ 35 mm)
Intended Use	Indoor areas with no drip or spray water
Safety	Disconnect power before installation; installation by qualified electrician only
Cleaning	Clean with a dry cloth; do not use water or solvents
Enclosure Material	Plastic (typical for Hager Muse/Inspire range)
Color	Not specified (likely white or black depending on variant)
Wiring	Strip cables 10–12 mm; wire per diagram (1-way, 2-way, intermediate)
Frame Compatibility	2–5 gang frames available for multiple combinations

Frequently Asked Questions - WGCXR112KB HAGER

What is the rated voltage for the Hager WGCXR112KB switch?

The rated voltage is 250 V~.

Can this switch be used outdoors?

No, it is only suitable for indoor areas with no drip or spray water.

What is the maximum current for the intermediate switch version?

The intermediate switch is rated at 10 AX max.

How do I install the switch into a wall box?

After wiring, fix the device using the two screws into a standard wall box with depth ≥ 35 mm.

What wire gauge is allowed for the screw terminals?

The maximum conductor cross-section is 3 x 1.5 mm².

Is this switch compliant with international standards?

Yes, it complies with BS EN 60669-1 and IEC 60669-1.

Can I use this switch for both 1-way and 2-way circuits?

Yes, the 16AX switches support both 1-way and 2-way wiring.

How do I remove the frame for installation?

Carefully loosen the frame at the notches with a flat-blade screwdriver, then lift it off.

What should I do before working on the switch?

Always disconnect the connecting cables and cover all live parts to avoid electric shock.

Are multiple switches combinable under one frame?

Yes, 2-5 gang frames are available for multiple combinations.

USER MANUAL WGCXR112KB HAGER

16AX switches 1way/2way 10AX intermediate switch Hager Muse / Hager Inspire

Installation manual

Safety instructions

Electrical equipment must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country.

Failure to comply with these installation instructions may result in damage to the device, fire or other hazards.

Function

Mechanical light switches for electrical installations in buildings.

Correct use

• For the flush-mounted installation in standard wall boxes (recommended wall box depth ≥ 35 mm).
• Only suitable for use in indoor areas with no drip and no spray water.

Technical data

Rated voltage: 250 V\~

Frequency: 50/60 Hz

Conductor cross-section of screw terminals: max. 3 x 1.5 mm ⁴

Distance of fixing holes: 60.3 mm

Switch compliance: BS EN 60669-1, IEC 60669-1

16AX switches 1way/2way

Rated current: max. 16 AX

10AX intermediate switch

Rated current: max. 10 AX

Information for electricians Installation and electrical connection

DANGER!

Touching live parts can result in an electric shock.

An electric shock can lead to death.

Disconnect the connecting cables before working on the device and cover all live parts in the area!

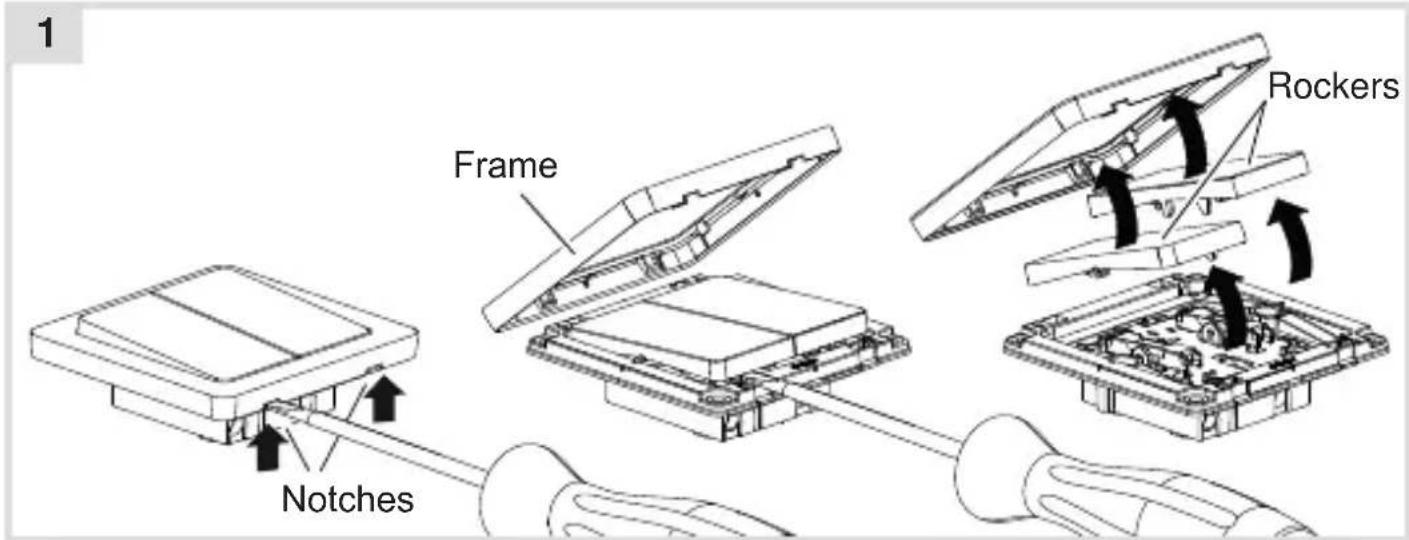

Preparing the device for installation

(for example "16AX 2gang 1way switch")

Carefully loosen the frame on the notches with a flat-blade screwdriver. Lift up and remove the frame (1).

■ Remove the rockers also with a flat-blade screwdriver.

Connecting the device

2A

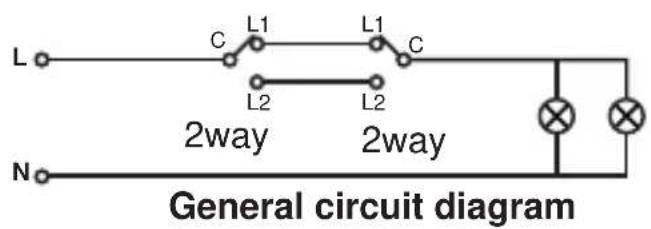

General circuit diagram

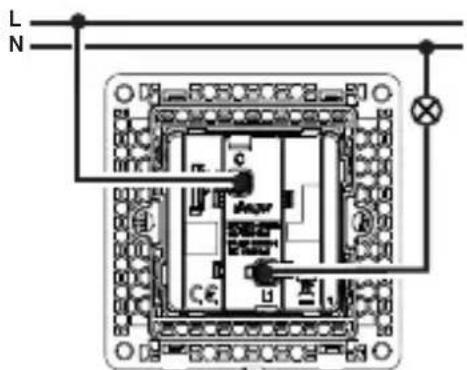

1gang 1way switch

1way switch

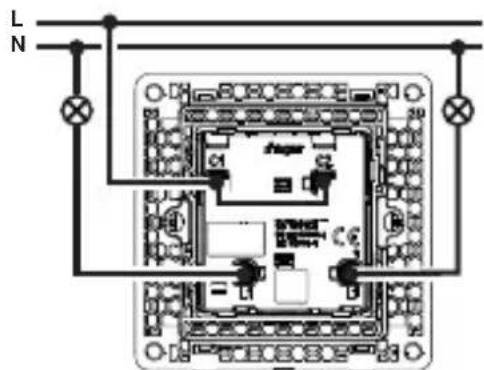

2gang 1way switch

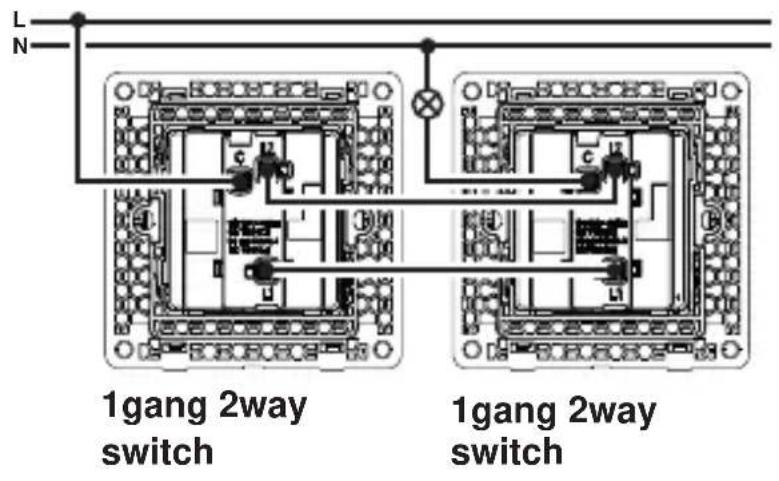

2B

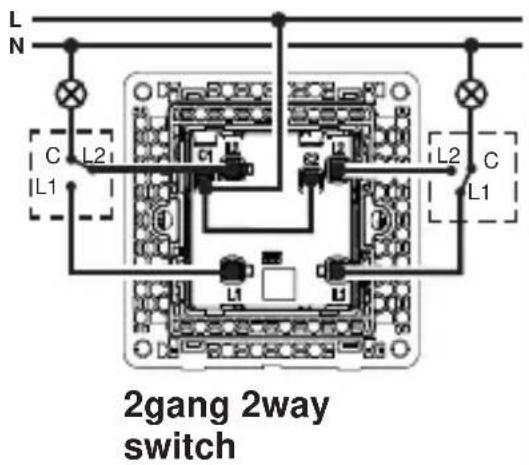

2way switch

2C

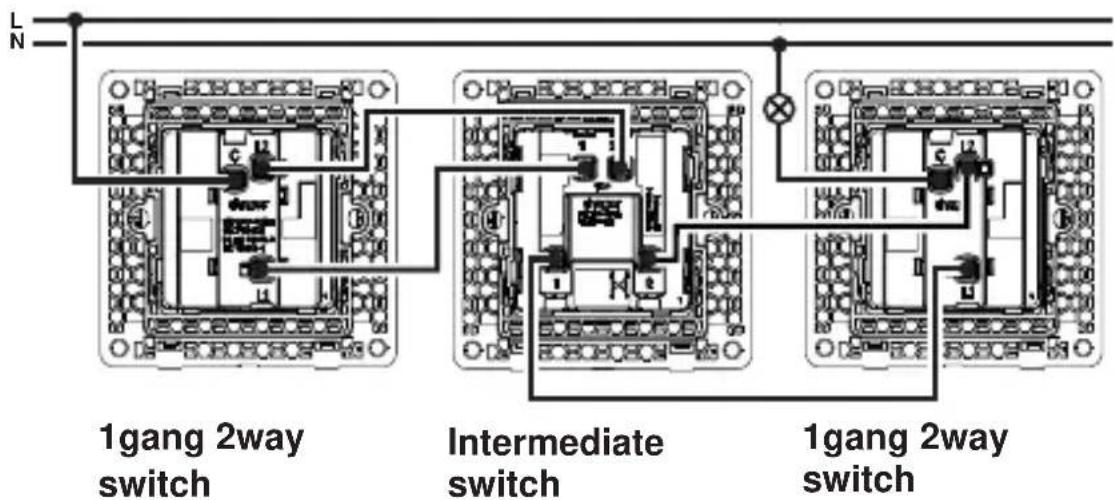

Intermediate switch

- Strip connection cables approx. 10 ... 12 mm.

■ Wire the switch according to the appropriate wiring diagram (2A or 2B or 2C).

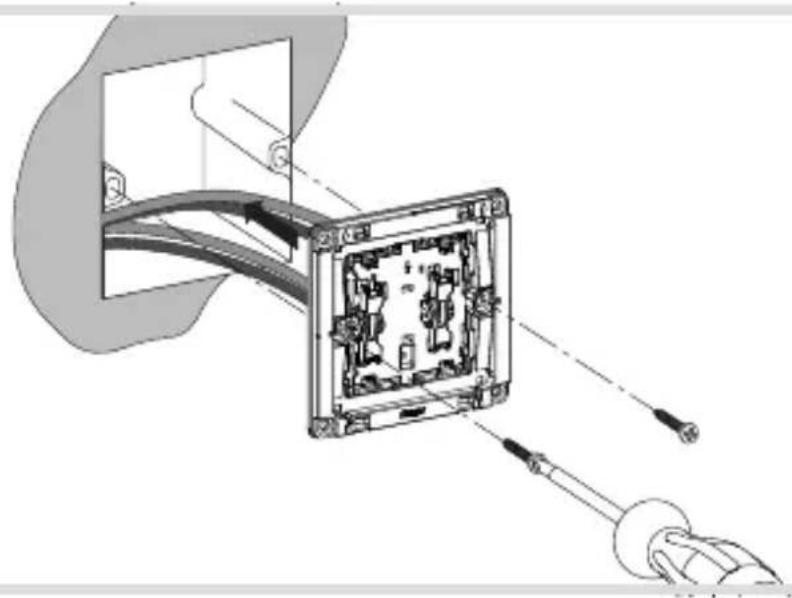

Installing the device into the wall box

(for example "16AX 2gang 1way switch")

3

Technical diagram of a cable assembly with internal components and screwdriver (no text or labels)

■ After wiring, fix the device with the two screws attached into the wall box (3).

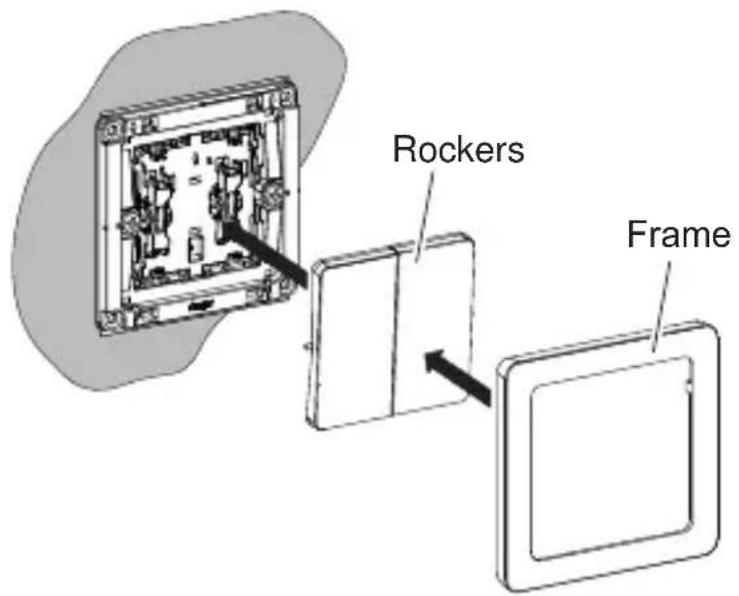

Assembling the rockers and frame

(for example "16AX 2gang 1way switch")

4

■ Fix the rockers and frame onto the device (4).

2-5gang frames are available for multiple combinations.
