WGCXL132FKB - Electrical panel HAGER - Free user manual and instructions

Brand	Hager
Model	WGCXL132FKB
Product Type	Electrical Switch (Muse/Inspire range)
Rated Voltage	250 V~
Frequency	50/60 Hz
Rated Current (1-way/2-way)	16 AX
Rated Current (Intermediate)	10 AX
Conductor Cross-Section (Screw Terminals)	Max 3 x 1.5 mm²
Distance of Fixing Holes	60.3 mm
Standards Compliance	BS EN 60669-1, IEC 60669-1
Installation Type	Flush-mounted
Required Wall Box Depth	≥ 35 mm
Environment	Indoor, no drip or spray water
Number of Gangs	Available in 1, 2, 3, 4, 5 gang (frames)
Functions	1-way, 2-way, and intermediate switching
Cleaning	Wipe with a dry, soft cloth; do not use cleaning agents
Safety	Disconnect power before installation; use qualified electrician
Reparability	Repairs must be carried out by a qualified electrician
Included Accessories	Frame and rockers (detachable)

Frequently Asked Questions - WGCXL132FKB HAGER

What is the voltage rating of the Hager WGCXL132FKB switch?

The rated voltage is 250 V~ with a frequency of 50/60 Hz.

Can I use this switch for 3-way or intermediate switching?

Yes, the switch supports 1-way, 2-way, and intermediate switching. For intermediate switching, use the 10AX rated versions.

What is the maximum current rating for the 1-way/2-way switch?

The maximum current rating is 16 AX for 1-way and 2-way switches.

What is the maximum wire size that can be connected?

The screw terminals accept a maximum conductor cross-section of 3 x 1.5 mm².

Does this switch require a minimum wall box depth?

Yes, for flush-mounted installation, the wall box must be at least 35 mm deep.

What safety precautions should I take during installation?

Always disconnect power before working on the device. Installation should be performed by a qualified electrician following local regulations.

How do I clean the switch?

Use a dry, soft cloth to wipe the surface. Avoid using water, solvents, or abrasive cleaners.

Can I replace the frame or rockers?

Yes, the frame and rockers are detachable. Carefully remove them with a flat-blade screwdriver at the notches.

Is this switch suitable for outdoor use?

No, it is only suitable for indoor areas without exposure to dripping or splashing water.

What standards does this switch comply with?

The switch complies with BS EN 60669-1 and IEC 60669-1.

USER MANUAL WGCXL132FKB HAGER

16AX switches 1way/2way 10AX intermediate switch Hager Muse / Hager Inspire

Installation manual

Safety instructions

Electrical equipment must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country.

Failure to comply with these installation instructions may result in damage to the device, fire or other hazards.

Function

Mechanical light switches for electrical installations in buildings.

Correct use

• For the flush-mounted installation in standard wall boxes (recommended wall box depth ≥ 35 mm).
• Only suitable for use in indoor areas with no drip and no spray water.

Technical data

Rated voltage: 250 V\~

Frequency: 50/60 Hz

Conductor cross-section of screw terminals: max. 3 x 1.5 mm ⁴

Distance of fixing holes: 60.3 mm

Switch compliance: BS EN 60669-1, IEC 60669-1

16AX switches 1way/2way

Rated current: max. 16 AX

10AX intermediate switch

Rated current: max. 10 AX

Information for electricians Installation and electrical connection

DANGER!

Touching live parts can result in an electric shock.

An electric shock can lead to death.

Disconnect the connecting cables before working on the device and cover all live parts in the area!

Preparing the device for installation

(for example "16AX 2gang 1way switch")

Carefully loosen the frame on the notches with a flat-blade screwdriver. Lift up and remove the frame (1).

■ Remove the rockers also with a flat-blade screwdriver.

Connecting the device

2A

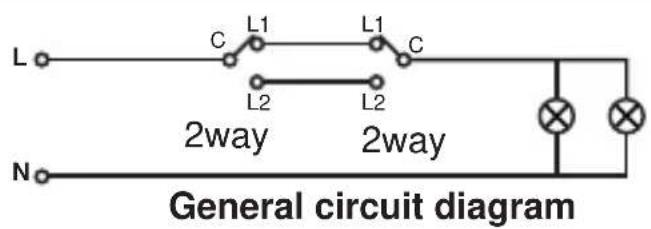

General circuit diagram

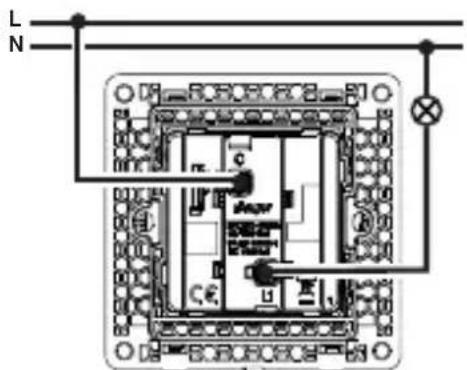

1gang 1way switch

1way switch

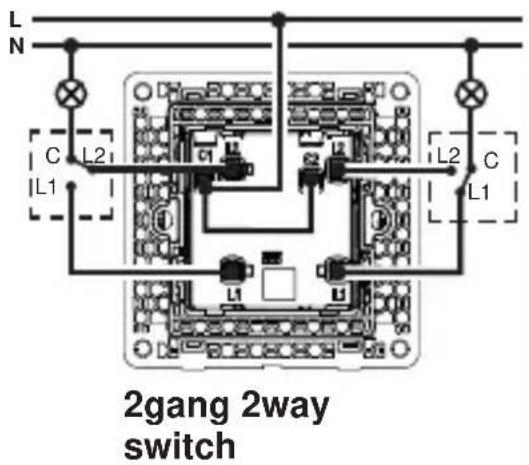

2gang 1way switch

2B

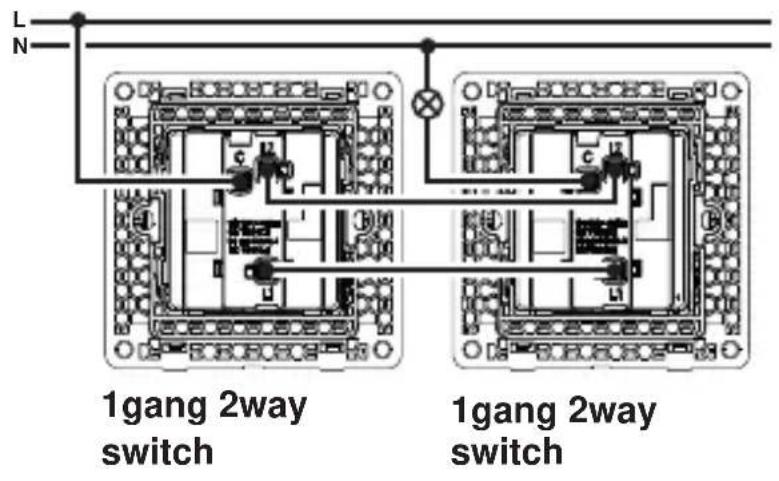

2way switch

2C

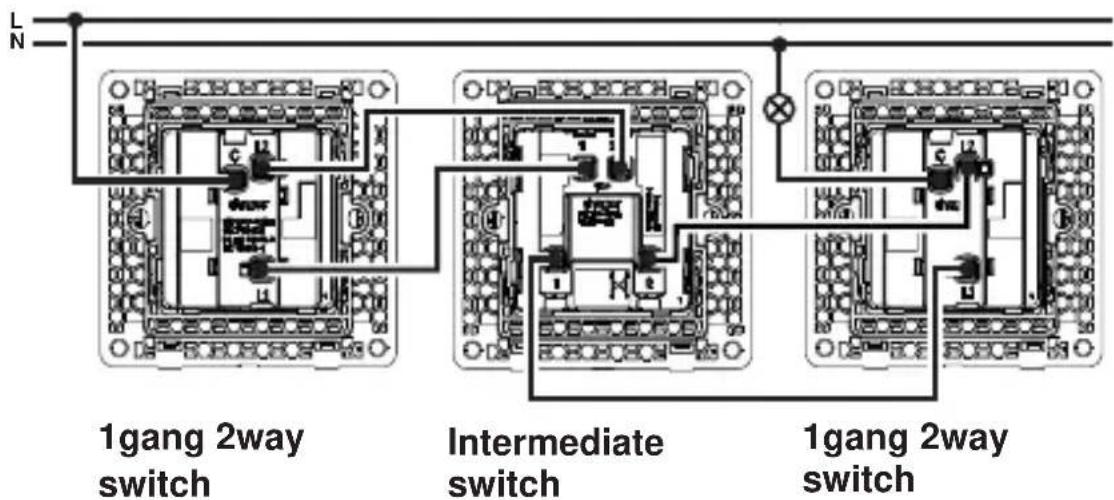

Intermediate switch

- Strip connection cables approx. 10 ... 12 mm.

■ Wire the switch according to the appropriate wiring diagram (2A or 2B or 2C).

Installing the device into the wall box

(for example "16AX 2gang 1way switch")

3

Technical diagram of a cable assembly with internal components and screwdriver (no text or labels)

■ After wiring, fix the device with the two screws attached into the wall box (3).

Assembling the rockers and frame

(for example "16AX 2gang 1way switch")

4

■ Fix the rockers and frame onto the device (4).

2-5gang frames are available for multiple combinations.
