USER MANUAL SLSPA8PST SereneLife

Portable Shower and Spray with Tent Set

[Non-Text]

Visit Our Website

QR code image containing encoded data, no visible human-readable text

SCAN ME

serenelifehome.com

About SereneLife

SereneLife products are designed to create a more comfortable living space, indoors and out. Our team presents innovative lifestyle solutions throughout the year that promote simplicity and serenity.

We're committed to delivering the most dependable products so you can live a better, more serene life.

CONTENTS

FEATURES AND TECHNICAL SPECS 4

IMPORTANT SAFETY INSTRUCTIONS 5

WARNING 5

PORTABLE SHOWER PARTS & CONTROLS 6

USAGE 7

CHARGE BUILT-IN BATTERY 8

GENERAL MAINTENANCE 9

TENT FOLDING INSTRUCTIONS 11

REGISTER PRODUCT 13

IMPORTANT:

READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT.

RETAIN THIS OWNER'S MANUAL FOR FUTURE REFERENCE.

THE SPECIFICATIONS OF THIS PRODUCT MAY VARY FROM THIS PHOTO AND ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.

WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov

Features:

• Transforms Sink or Bucket of Water into Instant Shower Stream
- Water-Resistant Unit
- Includes On and Off Switch
• Showerhead Features One Simple Flow Rate
• Comfortable Bathing Experience
- Provide Suction Cup Shower-Head Securely Sticks to Flat Surface
- Rechargeable Pump Plugs
• Full Charge Allows Up to 0.5 Hour of Continuous Use
- Compatible with 5V Adapter or Less
- Compact and Portable for Luggage and Backpack Use
- Comfortable Grip Spray
• Strong Water Pressure Nozzle
- Rust and Corrosion Resistant
• One Trigger Action Control
- Stable Construction
- Double Windows for Ventilation
- Double Zipper Structure
• Support to Roll up the Curtain
• Sun Protection and Waterproof Fabric
• Large Space and Privacy Protection
- Can be used for Clothes Changer, Showers, Beach, Picnics, Camping & Hiking

Technical Specs:

• Construction Material: Lithium + ABS + Polyester + Alloy Steel
• Shower Battery Type: 2200mAh Lithium Battery
• Battery Life: Can Use About 500 Times
• Charging Time: 3-5 hours
  • Tent Weight Capacity: 1.80 lbs.
• Portable Shower Dimensions (L x W x H): 2.20" x 3.43" x 5.51" -inches
• Spray Dimension (L x W x H): 2.20" x 3.43" x 5.51" –inches
• Tent Open Dimensions (L x W x H): 59.06" x 59.06" x 74.80" -inches
• Tent Folded Dimensions (L x W x H): 23.62" x 23.62" x 0.79" -inches

What's in the Box:

• Portable Shower
• Spray
• Pop Up Tent

Important Safety Instructions

1. Please read all instructions before using appliance
2. Follow all maintenance instructions specified in this manual
3. Use only water within the temperature range of 50^ F to 122^ F.
4. Choking hazard: Shower assembly includes small parts

WARNING

To reduce risk of injury:

1. Do not leave the appliance unattended when in use.
   Switch the unit off and remove it from water when not in use.
2. Use only as described in this manual with the manufacturer's recommended attachments and replacement parts.
3. Do not use the shower with seawater, pool water, river water, or any liquid other than water.
4. Ensure that the base of the pump is fully submerged in water before turning on the power.
5. Children should be supervised and properly instructed.
6. Recharge the pump using the specified requirements. Output: 5V, 0.5-2A.
7. Do not use a damaged power cord or plug.
8. Charge only using the correct voltage as listed on the shower plate. Using improper voltage may result in damage to the motor and possible injury to the user.
9. Before each use, ensure that there are no broken or worn parts and that all screws are fully tightened.
10. Keep the shower away from fire or heat sources.
11. Keep the shower from freezing. Extreme cold temperatures will damage the motor and cord.
12. Do not remove the cover plate or attempt to disassemble the machine. Doing so will void all warranties.

Portable Shower Parts & Controls

Exploded view diagram of a showerhead with numbered parts for identification

1. Pump
2. On/Off Switch
3. Charging Socket
4. Socket Cover
5. Filter
6. Filter Cover
7. Hose
8. Inlet Connector
9. Outlet Connector
10. O-Ring
11. Shower Head
12. Holder
13. Hook
14. Suction Cup
15. USB Charging Cable
16. Socket Cover Tool

16

Usage

Assemble Parts

Diagram of a cylindrical device with a curved arrow indicating rotation or force (no text or symbols)

Attach the inlet connector (8) to the pump (1) and tighten by turning counter-clockwise. Ensure a tight seal to avoid leakage.

Diagram of a bolt with a magnified inset showing a ring and downward arrow (no text or symbols)

Insert the 0-ring (10) into the outlet connector (9).

Diagram of a showerhead with a screw and nut, showing a circular head and a curved arrow indicating rotation (no text or symbols)

Attach the outlet connector (9) to the shower head (11) and tighten by turning counter-clockwise.

HOW TO OPERATE

Mechanical diagram showing a knob and lever mechanism with rotational arrow (no text or symbols)

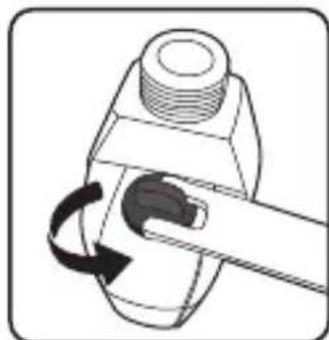

Attach and tighten the Socket Cover (4) using the Socket Cover Tool (16).

Illustration of a hand pointing at a bottle with a grid pattern, no text or symbols present

Press the On/Off switch (2) to turn on the device.

Simple line drawing of a device inside a circular frame (no text or symbols)

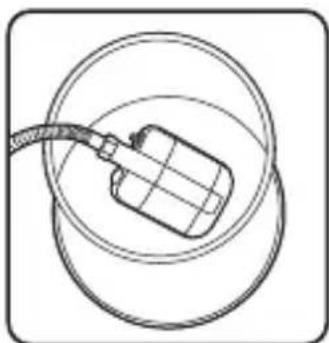

Submerge the pump (1) in water and hold the shower head (11) level with the pump.

IMPORTANT: Allow the pipe to fill up without overworking the pump mechanism. Wait until the pipe is filled with water.

Illustration showing a car being sprayed into a hose with a water spray, alongside a close-up of the hose (no text or symbols)

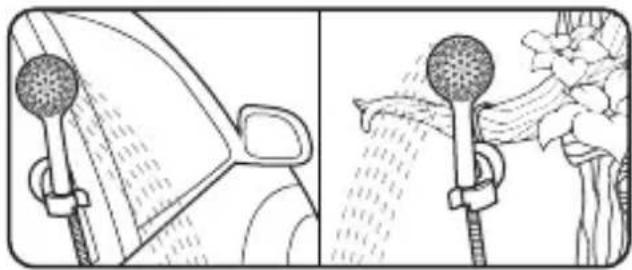

Position the shower head (11) using the included hook (13) or bracket (12).

Important: Ensure the shower head is securely positioned before use. Do not remove the pump from water while in use – power off the pump before removing.

Charge Built-In Battery

Diagram of a mechanical component with a rotating lever and threaded shaft (no text or symbols)

Loosen the Socket Cover (4) using the Socket Cover Tool (16).

Diagram of a mechanical component with a top view and an upward arrow, no text or symbols present

Open socket cover (4) by turning it clockwise.

Simple line drawing of a bottle with a plug inserted into it, showing liquid level (no text or symbols)

Insert the included USB charging cable (15) into the charging socket (3).

Illustration showing a hand inserting a plug into a laptop, with an attached USB cable (no text or symbols present)

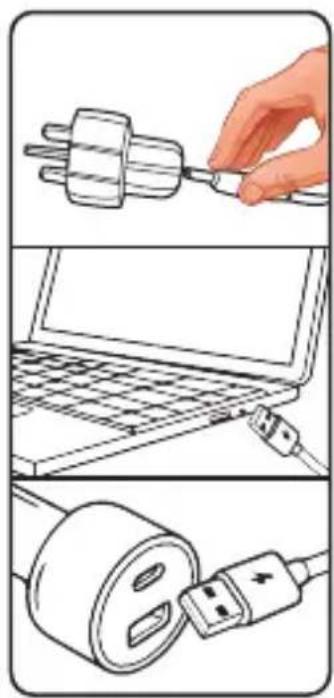

Plug the USB charging cable (15) into a mobile phone charger (2.5 hours), computer USB output, or car USB (2.5 hours (5 hours).

Automatic STOP

For battery protection, the Battery Powered Portable Shower is designed to shut off automatically in the event that voltage drops under 2.7 volts. Note: Please do not restart the shower device before recharging it.

Note: Please do not restart shower device before recharging it.

General Maintenance

Detach Shower Device

Illustration of a hand pointing at a bottle with a downward arrow indicating direction (no text or symbols)

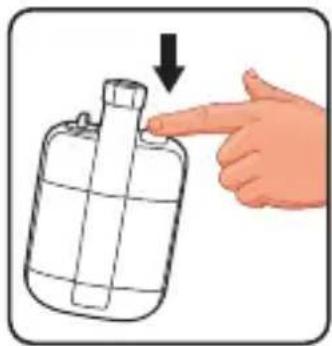

Shut off device by pressing On/Off switch (2)

Diagram showing a mechanical device with rotating components and a magnified view of the handle (no text or symbols)

Disconnect hose from pump (1) and shower head (11). Drain any water from hose.

Simple line drawing of a bolt with an upward arrow and a circular ring above it (no text or symbols)

Remove O-ring (10) from outlet connector (9) and store safely.

Important: Keep the pump away from very high or very low temperatures, and from flammable or explosive goods.

Clean Filter

Diagram showing a bottle being inserted into a small boat, with no text or symbols present.

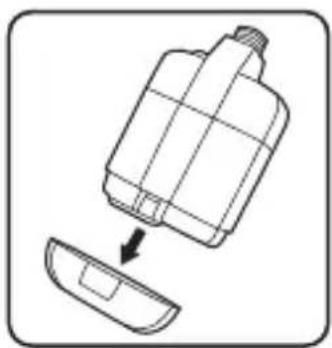

Remove filter cover (6)

Line drawing of a container with a lid and spout, no text or symbols present

Clean filter (5) and filter cover (6) using warm water and liquid soap

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

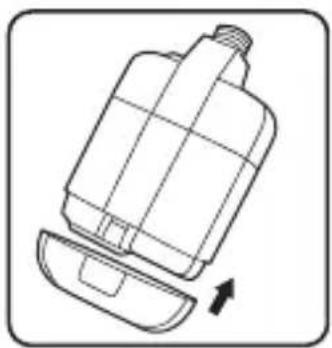

Reconnect filter (5) and filter cover (6)

Battery Care

1. Charge the battery fully before first use. Charge fully after each use to ensure maximum battery life.
2. To ensure the battery remains in a charged state, recharge the battery at least once every three months. The battery will deplete when stored for long periods.
3. Do not charge battery beyond output 5V, 0.5-2A.
4. Check the battery clamps regularly for looseness, corrosion, defects, or leakage. Maintenance may be required.
5. Store away from high temperatures and flammable or explosive goods.

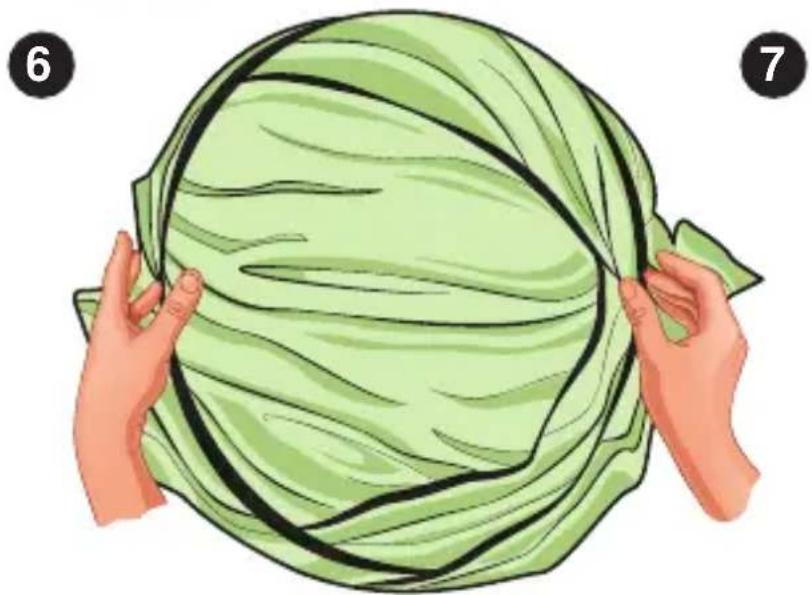

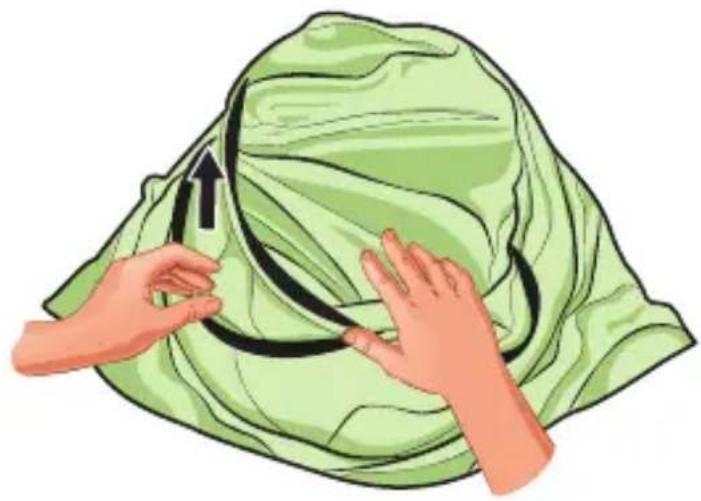

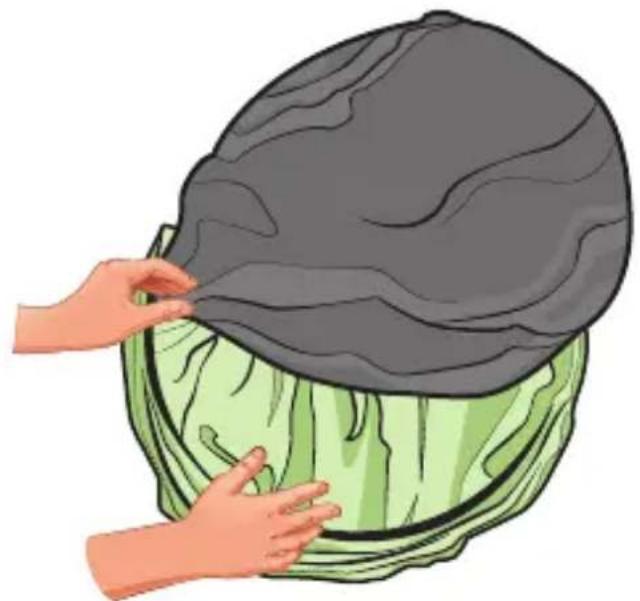

Tent Folding Instructions

Illustration of two green leafy vegetables with shaded surfaces (no text or symbols)

1

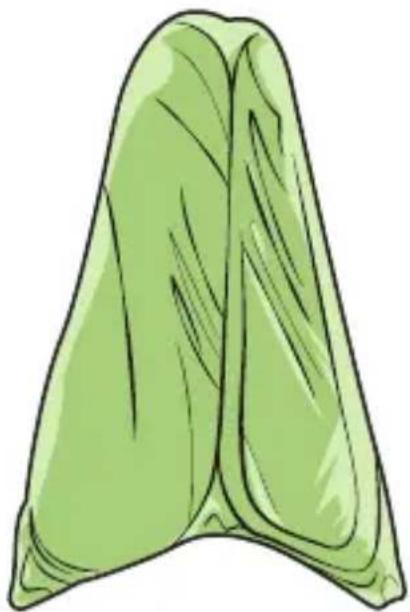

Illustration of a green leaf with visible veins, no text or symbols present

2

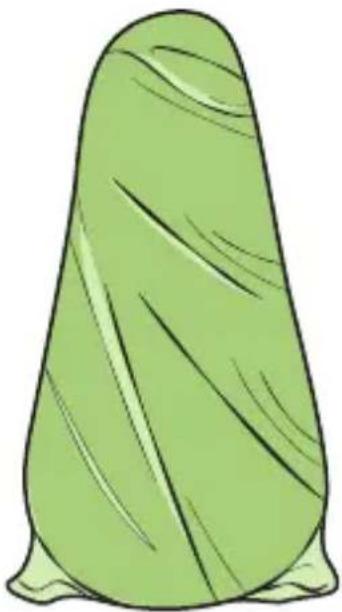

Illustration of a green, conical-shaped object with layered edges and diagonal lines (no text or symbols)

3

Illustration of a hand adjusting a green leaf with a black seam (no text or symbols)

4

Illustration of hands installing or adjusting a green fabric with arrows indicating direction (no text or symbols)

5

Illustration of hands pulling a rope over a green fabric, with arrows indicating motion direction (no text or symbols)

Illustration of hands installing a green fabric blanket with a black cord, no text or symbols present

Illustration of hands holding a green cabbage with black edges, no text or symbols present

Illustration of hands handling a large, textured object over a green surface (no text or symbols)

9

Circular grayscale illustration of a textured surface with wavy lines, no text or symbols present

●

Register Product

Thank you for choosing SereneLife. By registering your product, you ensure that you receive the full benefits of our exclusive warranty and personalized customer support.

Complete the form to access expert support and to keep your SereneLife purchase in perfect condition.

QR code image containing encoded data, no visible human-readable text

Serenelifehome.com/ register

serenelife™

QR code image containing encoded data, no visible human-readable text

Questions or Comments?

We are here to help!

Phone: [phone]

Serenelifehome.com/ContactUs
