7058 - Dishwasher Sani-Lav - Free user manual and instructions

Product Type	Wall Mount Stainless Steel Sink
Brand	Sani-Lav (Columbia Products)
Model	7058
Material	Stainless Steel
Mounting Type	Wall mount with included bracket
Compliance	NSF/ANSI 2 Food Equipment
Included Components	Sink, wall-mounting bracket, support brackets (4), mounting bolts and washers, strainer assembly with basket
Care - Cleaning	Use abrasive cleaner (Bon-Ami or Zud) or baking soda; scrub along grain; rinse with hot water; dry regularly
Care - Avoid	Harsh abrasives, corrosive chemicals, steel wool, carbon steel brushes, oily rags; do not leave salt
Care - Safety	Wear rubber gloves; do not mix cleaners; avoid solvents in closed spaces or while smoking
Warning	Faucets may contain chemicals known to cause cancer or reproductive harm (California Prop 65)
Intended Use	Food equipment; not recommended for harsh chemicals
Manufacturer Contact	800.626.2117, columbiasinks.com

Frequently Asked Questions - 7058 Sani-Lav

How do I clean the stainless steel sink?

Use an abrasive cleaner like Bon-Ami or Zud weekly or bi-weekly, scrubbing along the grain. Alternatively, use baking soda. Rinse thoroughly with hot water and dry to prevent water spots.

Can I use bleach or harsh chemicals on this sink?

No, Columbia does not recommend use with harsh chemicals. Avoid abrasive cleaners and corrosive chemicals to prevent damage.

What is the mounting procedure for the sink?

The sink comes with a wall-mounting bracket, support brackets, and bolts. Follow the wall mounting detail in the manual for proper installation.

Is this sink NSF certified?

Yes, the sink complies with NSF/ANSI 2 Food Equipment standards.

How do I prevent rust on the sink?

Regularly dry the sink after use to prevent water spots and surface rust. Do not leave salt or saltwater on the surface.

What tools are needed for installation?

Basic tools such as a drill, screwdriver, and level are typically required. The mounting bracket and bolts are included.

Can I use steel wool to clean the sink?

No, avoid abrasive scouring pads, carbon steel brushes, and steel wool as iron particles can cause rust.

What should I do if I see rust marks?

Clean with a quality stainless steel cleaner following the grain. Regular drying and proper cleaning will minimize rust.

Is this sink suitable for commercial kitchens?

Yes, it is designed for food equipment use and meets NSF standards, making it suitable for commercial applications.

How do I contact manufacturer for support?

You can reach Columbia Products at 800.626.2117 or visit columbiasinks.com.

USER MANUAL 7058 Sani-Lav

SANI-LAV® COLUMBIA PRODUCTS

Wall Mount Stainless Steel Sink

Model 7058

Metal stainless steel wall-mounted appliance with mounting bracket (no text or symbols visible)

Columbia does not recommend use with harsh chemicals.

Product Compliance

NSF/ANSI 2 Food Equipment

COLUMBIA SPECIFICATIONS

WALL MOUNT SINK

Parts List

□(1) Wall mount sink
□(1) Wall-mounting bracket
□(2) Support brackets
☐ (4) Support bracket mounting bolts and washers
□(1) Strainer assembly with basket

Top

Line drawing of a stainless steel sink with mounting feet and side rails (no text or symbols)

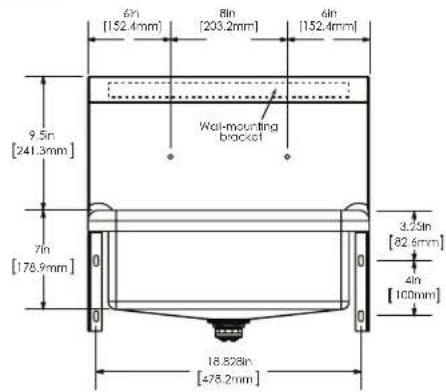

■ Wall Mounting Detail

Front

Side

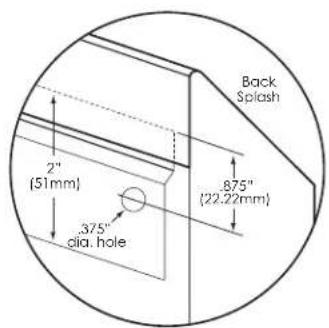

■ Hole Configurations

WARNING: Equipment that include faucets on this page may contain a chemical known to the State of California to cause cancer, birth defects or other reproductive harm.

COLUMBIA PRODUCTS

800.626.2117 • columbiasinks.com • [e-mail]

Care and Maintenance

Regular cleaning will preserve the appearance and integrity of the surface. Stainless steel can easily be cleaned and kept stain-free using various methods.

Recommendations:

• Clean with an abrasive cleaner like, Bon-Ami or Zud weekly or bi-weekly. Always scrub in the direction of the grain or polish lines. Another option is to use Baking soda. Make sure to rinse well and dry. Illustration A
• Most soaps and detergents contain chlorides, we recommend rinsing the stainless-steel sink with hot water after use, to prevent corrosion. Illustration B
  • Regularly dry your sink to prevent water and surface rust marks. Illustration C
• Do not leave salt in the sink or near a saltwater environment.
• Use a quality stainless steel cleaner and follow cleaner instructions. Wipe along the grain (NOT against). Illustration D

Things to Avoid:

• Avoid harsh abrasive cleaners and corrosive chemicals.
• Avoid abrasive scouring pads, carbon steel brushes and steel wool for cleaning as iron particles left behind can lead to rust.
• Avoid the use of oily rags or greasy cloths when wiping the surface. To avoid water spots, wipe dry after use.

Additional Tips:

• Regularly drying your sink works wonders to prevent water and surface rust marks.
- Wear rubber gloves when working with cleaners to protect your hands.
- Never mix cleaners. Some products react to create dangerous gases.
- There are thousands of blended or compound cleaners on the market. Users are advised to contact suppliers of solvents for information on their applications on stainless steel.
• DO NOT USE SOLVENTS in closed spaces or while smoking.
• Note: Columbia does not recommend use with harsh chemicals.

Close-up of a circular mechanical component with internal grooves and water droplets (no text or symbols visible)

Illustration A

Close-up of a pipe passing through a container with bubbles rising, showing fluid and bubbles (no text or symbols visible)

Illustration B

Close-up of a hand cleaning a stainless steel faucet with a cloth (no text or symbols visible)

Illustration C

Hand cleaning a surface with a cloth, next to a stainless steel pipe (no text or symbols visible)

Illustration D

COLUMBIA PRODUCTS

800.626.2117 • columbiasinks.com • [e-mail]
