USER MANUAL 5A18 Sani-Lav

SANI-LAV® COLUMBIA PRODUCTS

1-Person Wall Mount Stainless Steel Wash Station

Model 5A18

Exterior view of a stainless steel wall-mounted appliance with a clear lid and side panel (no text or symbols visible)

Columbia does not recommend use with harsh chemicals.

Product Compliance

NSF/ANSI 2 Food Equipment, ADA Compliant

COLUMBIA SPECIFICATIONS

WALL MOUNT WASH STATION

Parts List

☐(1) Wall mount wash station
□(1) Wall-mounting bracket
□(2) Support brackets
☐ (4) Support bracket mounting bolts and washers
□(1) Strainer assembly with basket

Top

Top 30" (762mm) 15" (381mm) 15" (381mm) 2" (51mm) 6" (152.4mm) 16.5" (419.1mm) 20" (508mm) 2" grain hole (50.8mm) 5" B (12.7mm) Cross-breaks to aid drainage 1.5" (38mm) 27" (685.8mm) 1.5" (38mm)

Front

Wall-mounting bracket 10" (254mm) .437" (6mm) .75" (19mm) slot .437" (6mm) dia. hole .5" R (12.7mm) 5" (127mm) 29" (736.6mm)

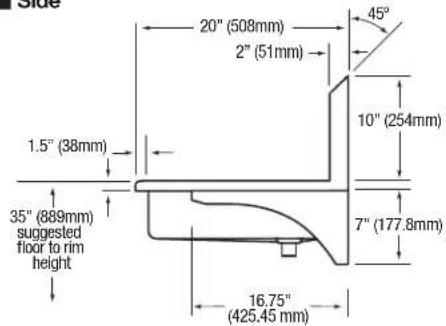

Side

Side 20" (508mm) 45° 2" (51mm) 1.5" (38mm) 10" (254mm) 35" (889mm) suggested floor to rim height 7" (177.8mm) 16.75" (425.45 mm)

■ Wall Mounting Detail

Back Splash 2° (51mm) .375° dia. hole .675° (22.22mm)

■ Hole Configurations

11" (279.4mm) → 8" (203.2mm) ← 11" (279.4mm) .875" (22mm) dia. holes (2) 6" (152.4mm)

WARNING: Equipment that include faucets on this page may contain a chemical known to the State of California to cause cancer, birth defects or other reproductive harm.

COLUMBIA PRODUCTS

800.626.2117 • columbiasinks.com • [e-mail]

Care and Maintenance

Regular cleaning will preserve the appearance and integrity of the surface. Stainless steel can easily be cleaned and kept stain-free using various methods.

Recommendations:

• Clean with an abrasive cleaner like, Bon-Ami or Zud weekly or bi-weekly. Always scrub in the direction of the grain or polish lines. Another option is to use Baking soda. Make sure to rinse well and dry. Illustration A
• Most soaps and detergents contain chlorides, we recommend rinsing the stainless-steel sink with hot water after use, to prevent corrosion. Illustration B
  • Regularly dry your sink to prevent water and surface rust marks. Illustration C
• Do not leave salt in the sink or near a saltwater environment.
• Use a quality stainless steel cleaner and follow cleaner instructions. Wipe along the grain (NOT against). Illustration D

Things to Avoid:

• Avoid harsh abrasive cleaners and corrosive chemicals.
• Avoid abrasive scouring pads, carbon steel brushes and steel wool for cleaning as iron particles left behind can lead to rust.
• Avoid the use of oily rags or greasy cloths when wiping the surface. To avoid water spots, wipe dry after use.

Additional Tips:

• Regularly drying your sink works wonders to prevent water and surface rust marks.
- Wear rubber gloves when working with cleaners to protect your hands.
- Never mix cleaners. Some products react to create dangerous gases.
- There are thousands of blended or compound cleaners on the market. Users are advised to contact suppliers of solvents for information on their applications on stainless steel.
• DO NOT USE SOLVENTS in closed spaces or while smoking.
• Note: Columbia does not recommend use with harsh chemicals.

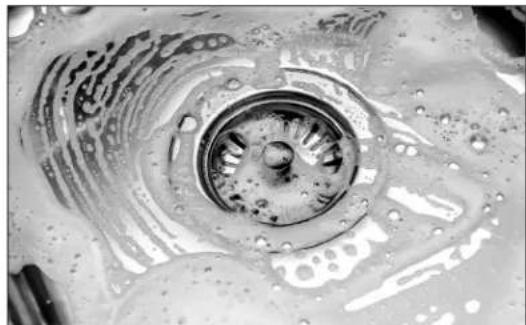

Close-up of a circular mechanical component with internal grooves and water droplets (no text or symbols visible)

Illustration A

Close-up of a pipe outlet into a container with visible liquid and bubbles (no text or symbols)

Illustration B

Close-up of a hand cleaning a stainless steel faucet with a cloth (no text or symbols visible)

Illustration C

Hand cleaning a surface with a cloth, next to a stainless steel pipe (no text or symbols visible)

Illustration D
