5A20 - Dishwasher Sani-Lav - Free user manual and instructions

Product Type	Wall-Mounted Wash Station
Model	5A20
Brand	Sani-Lav by Columbia Products
Capacity	2-Person
Material	Stainless Steel
Mounting Type	Wall Mount
Compliance	NSF/ANSI 2 Food Equipment, ADA Compliant
Included Components	Wash station, wall-mounting brackets (2), support brackets (2), mounting bolts and washers (4), strainer assembly with basket
Cleaning Recommendations	Use abrasive cleaner (Bon-Ami, Zud) or baking soda; scrub along grain; rinse with hot water; dry regularly
Avoid	Harsh abrasives, corrosive chemicals, steel wool, carbon steel brushes, oily rags, mixing cleaners, solvents in closed spaces
Additional Tips	Wear rubber gloves; never mix cleaners; avoid harsh chemicals
Contact	800.626.2117, columbiasinks.com, [e-mail]

Frequently Asked Questions - 5A20 Sani-Lav

How do I install the Sani-Lav 5A20 wash station?

The unit comes with wall-mounting and support brackets. Attach the brackets to the wall using the provided bolts and washers, then secure the wash station to the brackets. Ensure the wall can support the weight and follow local building codes.

What cleaning products are safe for the stainless steel surface?

Use abrasive cleaners like Bon-Ami or Zud, or baking soda. Always scrub along the grain. Rinse with hot water and dry thoroughly. Avoid harsh chemicals, steel wool, and chlorine-based cleaners.

Can I use this wash station with harsh chemicals?

Columbia does not recommend using harsh chemicals with this product. Stick to mild detergents and follow the care instructions.

Is the Sani-Lav 5A20 ADA compliant?

Yes, the model 5A20 is ADA compliant, making it accessible for individuals with disabilities.

What certifications does the 5A20 have?

It is NSF/ANSI 2 certified for food equipment and meets ADA standards.

How do I prevent rust on the stainless steel?

Regularly dry the surface after use to prevent water spots and surface rust. Avoid leaving salt or harsh chemicals in contact with the steel.

What is included in the box?

The package includes: wall mount wash station, two wall-mounting brackets, two support brackets, four mounting bolts and washers, and a strainer assembly with basket.

Can the strainer be removed for cleaning?

Yes, the strainer assembly with basket is removable for easy cleaning. Simply lift it out and rinse.

What is the weight capacity of the wall mount?

The manual does not specify a weight limit, but the brackets are designed to support the wash station securely. Ensure proper wall anchoring.

How do I contact Columbia for support?

You can reach Columbia Products at 800.626.2117, email [e-mail], or visit columbiasinks.com.

USER MANUAL 5A20 Sani-Lav

SANI-LAV® COLUMBIA PRODUCTS

2-Person Wall Mount Stainless Steel Wash Station

Model 5A20

Exterior view of a stainless steel wall-mounted shelf unit (no text or symbols visible)

Columbia does not recommend use with harsh chemicals.

Product Compliance

NSF/ANSI 2 Food Equipment, ADA Compliant

COLUMBIA SPECIFICATIONS

WALL MOUNT WASH STATION

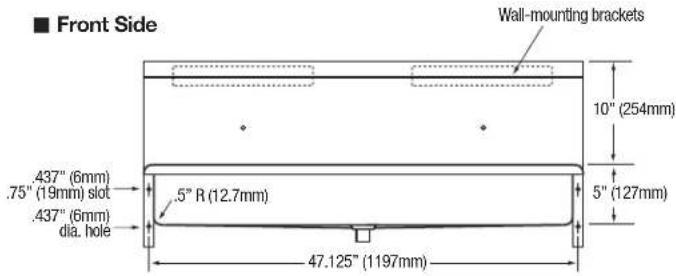

Parts List

□(1) Wall mount wash station
□(2) Wall-mounting brackets
□(2) Support brackets
☐ (4) Support bracket mounting bolts and washers
□(1) Strainer assembly with basket

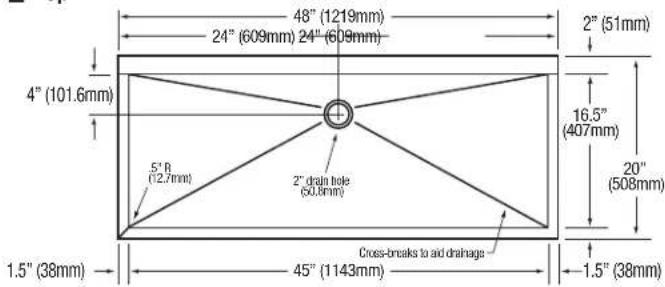

Top

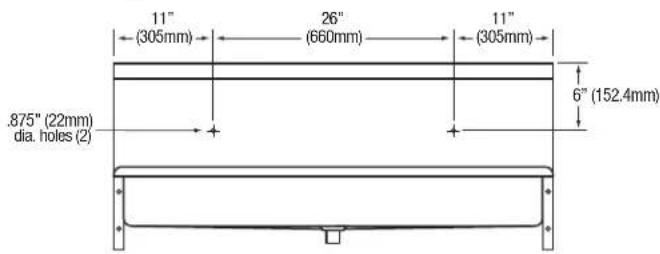

■ Hole Configurations

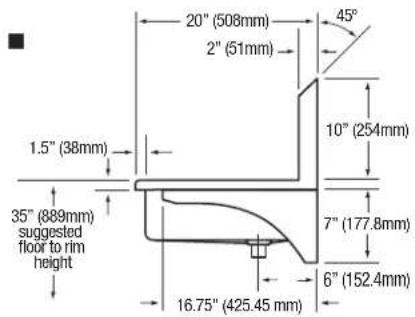

■ Wall Mounting Detail

WARNING: Equipment that include faucets on this page may contain a chemical known to the State of California to cause cancer, birth defects or other reproductive harm.

COLUMBIA PRODUCTS

800.626.2117 • columbiasinks.com • [e-mail]

Care and Maintenance

Regular cleaning will preserve the appearance and integrity of the surface. Stainless steel can easily be cleaned and kept stain-free using various methods.

Recommendations:

• Clean with an abrasive cleaner like, Bon-Ami or Zud weekly or bi-weekly. Always scrub in the direction of the grain or polish lines. Another option is to use Baking soda. Make sure to rinse well and dry. Illustration A
• Most soaps and detergents contain chlorides, we recommend rinsing the stainless-steel sink with hot water after use, to prevent corrosion. Illustration B
  • Regularly dry your sink to prevent water and surface rust marks. Illustration C
• Do not leave salt in the sink or near a saltwater environment.
• Use a quality stainless steel cleaner and follow cleaner instructions. Wipe along the grain (NOT against). Illustration D

Things to Avoid:

• Avoid harsh abrasive cleaners and corrosive chemicals.
• Avoid abrasive scouring pads, carbon steel brushes and steel wool for cleaning as iron particles left behind can lead to rust.
• Avoid the use of oily rags or greasy cloths when wiping the surface. To avoid water spots, wipe dry after use.

Additional Tips:

• Regularly drying your sink works wonders to prevent water and surface rust marks.
- Wear rubber gloves when working with cleaners to protect your hands.
- Never mix cleaners. Some products react to create dangerous gases.
- There are thousands of blended or compound cleaners on the market. Users are advised to contact suppliers of solvents for information on their applications on stainless steel.
• DO NOT USE SOLVENTS in closed spaces or while smoking.
• Note: Columbia does not recommend use with harsh chemicals.

Close-up of a circular mechanical component with internal grooves and water droplets (no text or symbols visible)

Illustration A

Close-up of a pipe passing through a container with bubbles rising, showing fluid and bubbles (no text or symbols visible)

Illustration B

Close-up of a hand cleaning a stainless steel faucet with a cloth (no text or symbols visible)

Illustration C

Hand cleaning a surface with a cloth, next to a stainless steel pipe (no text or symbols visible)

Illustration D

COLUMBIA PRODUCTS

800.626.2117 • columbiasinks.com • [e-mail]
