5070 - Dishwasher Sani-Lav - Free user manual and instructions

Product Type	Wall Mount Stainless Steel Sink
Brand	Sani-Lav (Columbia Products)
Model	5070
Material	Stainless Steel
Mounting Type	Wall-mounted
Included Components	Wall-mounting bracket, strainer assembly with basket
Compliance	NSF/ANSI 2 Food Equipment
Cleaning Recommendation	Use abrasive cleaner (Bon-Ami, Zud) or baking soda
Cleaning Direction	Scrub along the grain or polish lines
Rinsing	Rinse with hot water after use to prevent corrosion
Drying	Dry regularly to prevent water marks and surface rust
Avoid	Harsh abrasive cleaners, abrasive scouring pads, carbon steel brushes, steel wool
Chemical Warning	Do not use with harsh chemicals; Columbia does not recommend use with harsh chemicals
Cleaner Safety	Wear rubber gloves; never mix cleaners; avoid solvents in closed spaces or while smoking
Additional Tips	Use quality stainless steel cleaner; wipe along the grain; avoid oily rags
Manufacturer Contact	800.626.2117, columbiasinks.com, [e-mail]

Frequently Asked Questions - 5070 Sani-Lav

How should I clean my Sani-Lav 5070 wall mount sink?

Use an abrasive cleaner like Bon-Ami or Zud weekly or bi-weekly, scrubbing along the grain. Alternatively, use baking soda. Rinse well and dry. Rinse with hot water after each use to prevent corrosion.

What cleaning products should I avoid?

Avoid harsh abrasive cleaners, abrasive scouring pads, carbon steel brushes, and steel wool as iron particles can cause rust.

Can I use bleach or harsh chemicals on this sink?

No, Columbia does not recommend use with harsh chemicals. Avoid leaving salt in the sink or near a saltwater environment.

How do I prevent rust on my stainless steel sink?

Regularly dry your sink after use to prevent water marks and surface rust. Rinse with hot water after use to remove chlorides from soaps and detergents.

What is included with the Sani-Lav 5070?

The package includes (1) wall mount sink, (1) wall-mounting bracket, and (1) strainer assembly with basket.

Is the Sani-Lav 5070 NSF certified?

Yes, it complies with NSF/ANSI 2 Food Equipment standards.

How do I install the wall mount sink?

Use the provided wall-mounting bracket. See the 'Wall Mounting Detail' and 'Hole Configuration' diagrams in the manual for precise instructions. Ensure proper support and follow local plumbing codes.

What type of cloth should I use for cleaning?

Avoid oily rags or greasy cloths. Use a soft cloth and wipe along the grain (not against). For best results, use a dedicated stainless steel cleaner.

Can I mix different cleaners?

Never mix cleaners. Some products can react to create dangerous gases. Always use cleaners as directed.

Who manufactures the Sani-Lav 5070?

It is manufactured by Columbia Products. Contact them at 800.626.2117 or columbiasinks.com for support.

USER MANUAL 5070 Sani-Lav

SANI-LAV® COLUMBIA PRODUCTS

Wall Mount Stainless Steel Sink

Model 5070

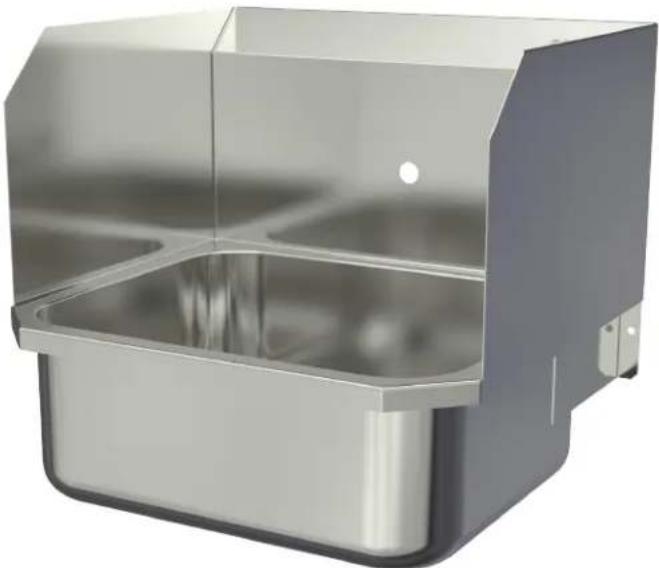

3D rendering of a stainless steel kitchen sink with open lid and side panel (no text or symbols visible)

Columbia does not recommend use with harsh chemicals.

Product Compliance

NSF/ANSI 2 Food Equipment

COLUMBIA SPECIFICATIONS

WALL MOUNT SINK

Parts List

□(1) Wall mount sink
□(1) Wall-mounting bracket
□ (1) Strainer assembly with basket

Top

Front

Side

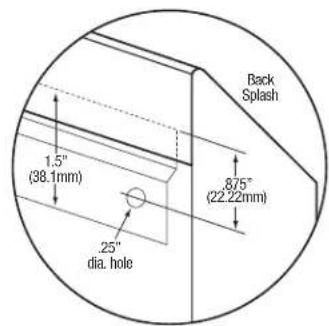

■ Wall Mounting Detail

■ Hole Configuration

Care and Maintenance

Regular cleaning will preserve the appearance and integrity of the surface. Stainless steel can easily be cleaned and kept stain-free using various methods.

Recommendations:

• Clean with an abrasive cleaner like, Bon-Ami or Zud weekly or bi-weekly. Always scrub in the direction of the grain or polish lines. Another option is to use Baking soda. Make sure to rinse well and dry. Illustration A
• Most soaps and detergents contain chlorides, we recommend rinsing the stainless-steel sink with hot water after use, to prevent corrosion. Illustration B
  • Regularly dry your sink to prevent water and surface rust marks. Illustration C
• Do not leave salt in the sink or near a saltwater environment.
• Use a quality stainless steel cleaner and follow cleaner instructions. Wipe along the grain (NOT against). Illustration D

Things to Avoid:

• Avoid harsh abrasive cleaners and corrosive chemicals.
• Avoid abrasive scouring pads, carbon steel brushes and steel wool for cleaning as iron particles left behind can lead to rust.
• Avoid the use of oily rags or greasy cloths when wiping the surface. To avoid water spots, wipe dry after use.

Additional Tips:

• Regularly drying your sink works wonders to prevent water and surface rust marks.
- Wear rubber gloves when working with cleaners to protect your hands.
- Never mix cleaners. Some products react to create dangerous gases.
- There are thousands of blended or compound cleaners on the market. Users are advised to contact suppliers of solvents for information on their applications on stainless steel.
• DO NOT USE SOLVENTS in closed spaces or while smoking.
• Note: Columbia does not recommend use with harsh chemicals.

Close-up of a circular mechanical component with internal grooves and water droplets (no text or symbols visible)

Illustration A

Close-up of a pipe passing through a container with bubbles rising, showing fluid and bubbles (no text or symbols visible)

Illustration B

Close-up of a hand cleaning a stainless steel faucet with a cloth (no text or symbols visible)

Illustration C

Hand cleaning a surface with a cloth, next to a stainless steel faucet (no text or symbols visible)

Illustration D

COLUMBIA PRODUCTS

800.626.2117 • columbiasinks.com • [e-mail]
