USER MANUAL 6088 Sani-Lav

SANI-LAV® COLUMBIA PRODUCTS

Wall Mount Stainless Steel Sink

Model 6088

Exterior view of a stainless steel appliance with a water level indicator (no text or symbols on the device itself)

Columbia does not recommend use with harsh chemicals.

Product Compliance

NSF/ANSI 2 Food Equipment

COLUMBIA SPECIFICATIONS

WALL MOUNT SINK

Parts List

□(1) Wall mount sink
□(1) Wall-mounting bracket
□(2) Support brackets
☐ (4) Support bracket mounting bolts and washers
□(1) Strainer assembly with basket

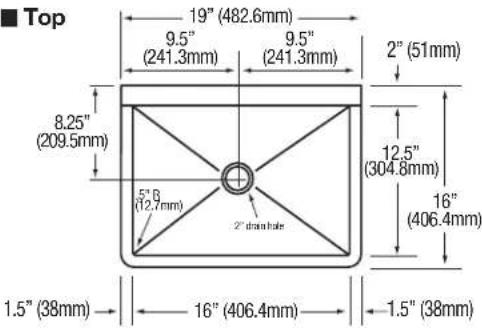

Top 19" (482.6mm) 9.5" (241.3mm) 9.5" (241.3mm) 2" (51mm) 8.25" (209.5mm) 12.5" (304.8mm) 16" (406.4mm) 5" (12.7mm) 2" drain hole 1.5" (38mm) 16" (406.4mm) 1.5" (38mm)

Front

Wall-mounting bracket 9" (228.6mm) 2" (50.8mm) 4" (101.6mm) 5" R (12.7mm) 6" (152.4mm) 18" (457.2mm)

■ Hole Configurations

5.5" (139.7mm) (203.2mm) (139.7mm) 8" 5.5" .875" (22mm) dia. holes (2) 6" (152.4mm)

■ Wall Mounting Detail

Back Splash 1.5" (38.1mm) .875" (22.22mm) .25" dia. hole

Care and Maintenance

Regular cleaning will preserve the appearance and integrity of the surface. Stainless steel can easily be cleaned and kept stain-free using various methods.

Recommendations:

• Clean with an abrasive cleaner like, Bon-Ami or Zud weekly or bi-weekly. Always scrub in the direction of the grain or polish lines. Another option is to use Baking soda. Make sure to rinse well and dry. Illustration A
• Most soaps and detergents contain chlorides, we recommend rinsing the stainless-steel sink with hot water after use, to prevent corrosion. Illustration B
  • Regularly dry your sink to prevent water and surface rust marks. Illustration C
• Do not leave salt in the sink or near a saltwater environment.
• Use a quality stainless steel cleaner and follow cleaner instructions. Wipe along the grain (NOT against). Illustration D

Things to Avoid:

• Avoid harsh abrasive cleaners and corrosive chemicals.
• Avoid abrasive scouring pads, carbon steel brushes and steel wool for cleaning as iron particles left behind can lead to rust.
• Avoid the use of oily rags or greasy cloths when wiping the surface. To avoid water spots, wipe dry after use.

Additional Tips:

• Regularly drying your sink works wonders to prevent water and surface rust marks.
- Wear rubber gloves when working with cleaners to protect your hands.
- Never mix cleaners. Some products react to create dangerous gases.
- There are thousands of blended or compound cleaners on the market. Users are advised to contact suppliers of solvents for information on their applications on stainless steel.
• DO NOT USE SOLVENTS in closed spaces or while smoking.
• Note: Columbia does not recommend use with harsh chemicals.

Close-up of a circular mechanical component with internal grooves and water droplets (no text or symbols visible)

Illustration A

Close-up of a pipe passing through a container with bubbles rising, showing fluid and bubbles (no text or symbols visible)

Illustration B

Close-up of a hand cleaning a stainless steel faucet with a cloth (no text or symbols visible)

Illustration C

Hand cleaning a surface with a cloth, next to a stainless steel faucet (no text or symbols visible)

Illustration D

COLUMBIA PRODUCTS

800.626.2117 • columbiasinks.com • [e-mail]
