Product Type	Hands-Free Wall Mount Stainless Steel Sink
Brand	Sani-Lav (Columbia Products)
Model	505L / 505L-0.5
Material	Stainless Steel
Operation	Hands-free (pedal valve)
Valve Type	Double knee pedal valve with mounting nuts
Spout	Swivel gooseneck spout with aerator
Mounting	Wall-mount with bracket (hardware not included)
Drain	Strainer assembly with basket
Compliance	NSF/ANSI 2 Food Equipment, NSF/ANSI 372 Low-Lead
Installation	Step-by-step wall mounting with level, drill, adjustable wrench
Care & Maintenance	Clean with abrasive cleaner (Bon-Ami, Zud) or baking soda; rinse and dry regularly
Things to Avoid	Harsh chemicals, abrasive pads, carbon steel brushes, steel wool, oily rags
Repair	Valve repair kit available (1061L or 1061S) for drips or leaks
Replacement Parts	Various part numbers for foot pedals, inserts, plungers, springs, brackets
Warranty / Warning	California Prop 65: Contains Chromium, Lead, Phthalates

Frequently Asked Questions - 505L Sani-Lav

What tools are required to install the Sani-Lav 505L sink?

You will need a tape measure, adjustable wrench, drill motor and bits, pipe wrench, level, safety glasses, screwdrivers (Phillips and standard), pencil, and socket wrench.

How do I mount the wall bracket for the sink?

Determine the desired height, draw a level line for the top of the backsplash, hold the bracket against the wall, mark holes, drill, and secure the bracket. Screws are not provided.

What should I do if water drips from the spout or valve stem?

The flat washer on the stem/plunger may be worn. Shut off the cold water source to determine if the leak is from hot or cold side, then install a valve repair kit (part 1061L or 1061S).

How do I repair a leaking front valve?

O-rings on the plunger are likely worn. Turn off water, remove pedal assembly with a 15/16" wrench, remove insert assembly with a 1" deep socket, replace with repair kit, and reinstall pedal.

What cleaning products are recommended for the stainless steel sink?

Use abrasive cleaners like Bon-Ami or Zud weekly or bi-weekly, scrubbing in the direction of the grain. Baking soda also works. Rinse well and dry. Avoid harsh chemicals.

Can I use bleach or chlorine-based cleaners on this sink?

Most soaps and detergents contain chlorides; rinse with hot water after use to prevent corrosion. Avoid harsh abrasive cleaners and corrosive chemicals.

What are the replacement parts available for the pedal valve?

Parts include foot pedals (1041, 1042, 1043), bolt/nut sets (1049, 1051), jam nuts (1050), brackets (1052, 1054), threaded inserts (1053, 1053S), plunger assemblies (1055, 1055S), springs (1056), valve bodies (1057, 1058), and repair kits (1061L, 1061S).

Is the sink compliant with food safety standards?

Yes, it meets NSF/ANSI 2 Food Equipment and NSF/ANSI 372 Low-Lead standards.

How do I prevent water spots and rust on the sink?

Regularly dry the sink after use to prevent water spots and surface rust marks. Do not leave salt in the sink or near saltwater.

What is the California Prop 65 warning about?

The product may expose you to chemicals including Chromium (hexavalent compounds), Lead, and Phthalates (DEHP) which are known to cause cancer and birth defects. Visit www.P65Warnings.ca.gov for more info.

USER MANUAL 505L Sani-Lav

SANI-LAV® COLUMBIA PRODUCTS

Operating Manual for Hands-Free Wall Mount Stainless Steel Sink

Models 505L and 505L-0.5

Modern stainless steel stainless steel water dispenser with handle and side legs (no text or symbols visible)

Columbia does not recommend use with harsh chemicals.

Product Compliance

NSF/ANSI 2 Food Equipment, NSF/ANSI 372 Low-Lead

COLUMBIA SPECIFICATIONS

HANDS-FREE WALL MOUNT SINK

Parts List

□(1) Wall mount sink
□ (1) Double knee pedal valve
☐ (2) Valve mounting nuts
□(1) Swivel gooseneck spout with aerator
☐ (1) Connecting tube for valve to spout connection
☐ (2) Fittings, brass, 0.375" male compression and 0.375" male NPT
□(1) Wall-mounting bracket
□(1) Strainer assembly with basket

Tools Required

□ Tape measure
□ Adjustable wrench
□ Drill motor and drill bits
□ Pipe wrench
□ Level
□ Safety glasses
□ Screw drivers: phillips and standard
□ Pencil
□ Socket wrench

Installation Instructions

Step 1

1. Establish sink location on the wall.
2. Determine desired height for the top of the backsplash from finished floor and draw a level line which will be the top edge of the wall mounting bracket.

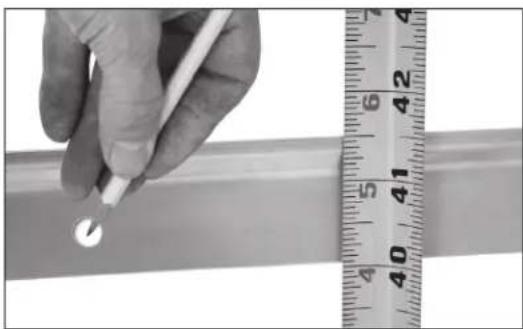

3. Hold the wall mounting bracket against the wall and mark the wall where the holes are. Drill holes and secure bracket to the wall as shown in illustration A. Screws are not provided.
4. Position the sink onto wall bracket.

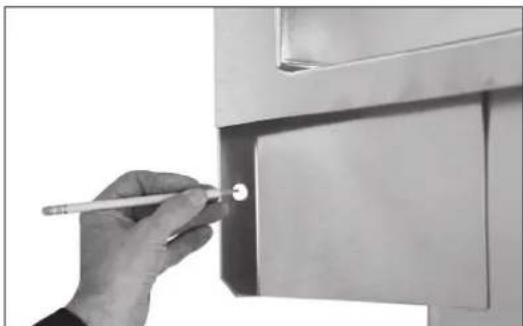

5. Mark holes for fastening side mounting brackets as shown in illustration B.
6. Remove sink from the wall bracket.
7. Drill holes in wall for securing sink to wall. Screws are not provided.

Step 2

1. Install strainer assembly at the drain hole.
2. Install spout assembly using mounting nut provided.
3. Attach the elbow fitting to the back of spout.
4. Attach the connecting tube to spout.
5. Secure sink to wall.

Step 3

1. Connect waste line or drain pipe to the strainer assembly.
2. Mount valve under sink using mounting nuts provided.
3. Attach the elbow fitting to the bottom of the valve.
4. Attach the connecting tube from spout to valve.
5. Connect hot and cold water supply to valve.

Step 4

1. Remove aerator from the spout and flush water system.
2. Check connections for leaks.
3. Replace aerator onto the spout.

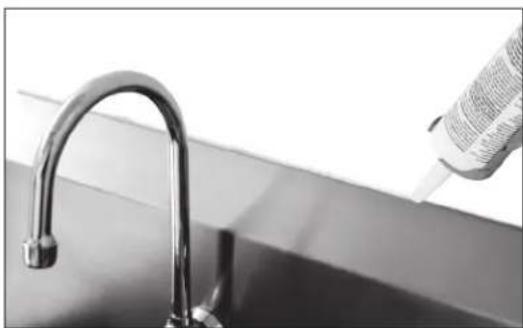

4. We recommend sealing top of backsplash to wall as shown in illustration C.

Go to columbiasinks.com for more information on replacement parts and installation videos.

Close-up of a hand holding a small white object over a metal surface next to a ruler (no visible text or symbols)

Illustration A

Hand holding a pen pointing at a small white object on a metallic cabinet (no text or symbols visible)

Illustration B

Close-up of a stainless steel faucet with a piping bag attached, no visible text or symbols

Illustration C

Notice for California Consumers

WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds),

Lead, and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects

or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

NOTE: Lead content originates from Brass components in valves and faucets and is certified under

NSF/ANSI 372 as containing less than 0.25% lead in wetted surfaces.

COLUMBIA PRODUCTS

800.626.2117 • columbiasinks.com • [e-mail]

Trouble Shooting Guide

Problem Possible Cause	To Diagnose Remedy
Water drips from spout or valve stem assembly.	Flat washer on the stem/plunger is worn.	To determine if the leak source is from the hot or cold side shut cold water source off. See if water still leaks from the spout. If leak continues then repair hot side if not repair cold side	We recommend installing valve repair kit.
Water leaks from the front of the valve.	O-Rings on the plunger are worn out.	Visually determine whether the cold or hot side is leaking. We recommend replacing threaded insert, plunger assembly & spring. See illustrations below.

Valve Repair Instructions

Note: Valves are designed to be repaired without having to be disconnected from mount or plumbing.

1. Tum off water source. Do not remove valve from sink.

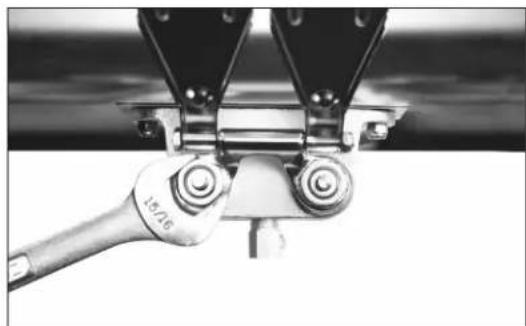

2. Remove pedal assembly using a 15/16" open end wrench or socket wrench. As shown in illustration A.
3. Using a 1" deep socket wrench or closed end wrench remove insert assembly as shown in illustration B.
4. Replace with new repair kit as shown on illustration C.
5. Reinstall pedal assembly and turn water source on.

Close-up of a mechanical clamp or bracket assembly with a wrench, no visible text or symbols

Illustration A

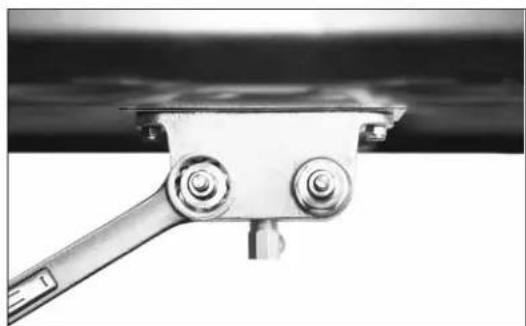

Close-up of a mechanical lever with two circular components, no visible text or symbols

Illustration B

Close-up of a hand holding a small mechanical component with threaded ports (no visible text or symbols)

Illustration C

COLUMBIA SPECIFICATIONS

HANDS-FREE WALL MOUNT SINK

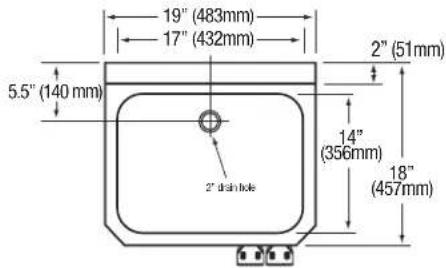

Top

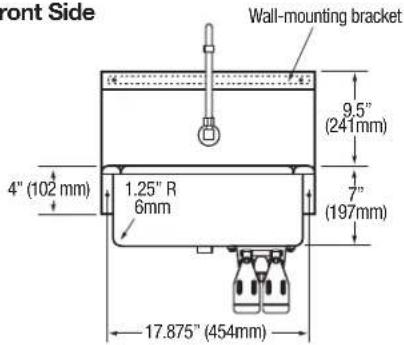

Front Side

■

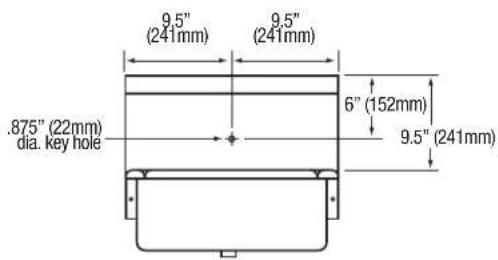

■ Hole Configuration

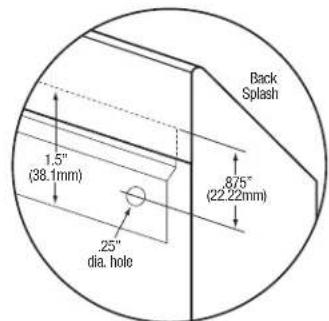

■ Wall Mounting Detail

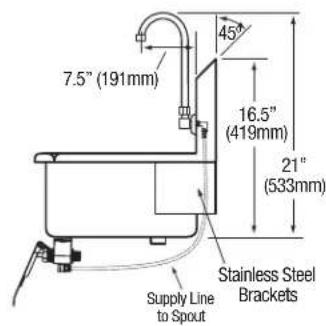

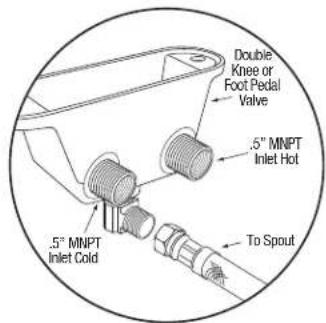

■ Supply Line Detail

Replacement Parts

Part No. Description Application

A	1041 Operated, Long Foot 103/104/105/106 (S) (L)
B	1042 Operated, Short Foot 101/102 (S) (L)
C	1043 Operated, Knee 109/110/111/112 (S) (L)
D	1049 Bolt & Nut Set (Stainless) All Single Valves
E	1050 Jam Nut (Stainless) All Valves
F	1051 Bolt & Nut Set (Stainless) All Double Valves
G	1052 Bracket All Double Valves
H	1053 Threaded Insert (Low Lead) All Valves
I	1053S Threaded Insert (Stainless) All Valves
J	1054 Bracket All Single Valves
K	1055 Plunger Assembly (Low Lead) All Valves
L	1055S Plunger Assembly (Stainless) All Valves
M	1056 Spring (Stainless) All Valves
N	1057 Body only, Double Valve (Low Lead) All Double Valves
O	1058 Body only, Single Valve All Single Valves
P	1061L Replacement Kit (Low Lead) All Valves
Q	1061S Replacement Kit (Stainless) All Valves

Double Knee or Foot Pedal

COLUMBIA PRODUCTS

800.626.2117 • columbiasinks.com • [e-mail]

Care and Maintenance

Regular cleaning will preserve the appearance and integrity of the surface. Stainless steel can easily be cleaned and kept stain-free using various methods.

Recommendations:

• Clean with an abrasive cleaner like, Bon-Ami or Zud weekly or bi-weekly. Always scrub in the direction of the grain or polish lines. Another option is to use Baking soda. Make sure to rinse well and dry. Illustration A
• Most soaps and detergents contain chlorides, we recommend rinsing the stainless-steel sink with hot water after use, to prevent corrosion. Illustration B

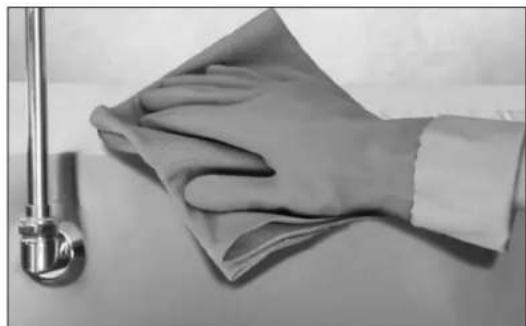

  • Regularly dry your sink to prevent water and surface rust marks. Illustration C
• Do not leave salt in the sink or near a saltwater environment.

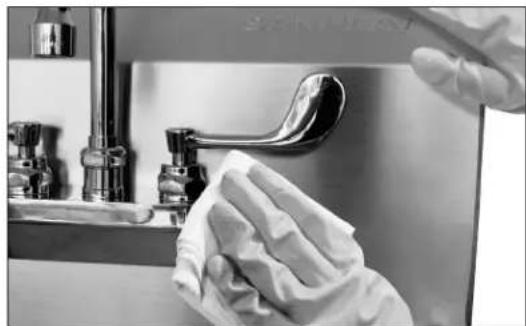

• Use a quality stainless steel cleaner and follow cleaner instructions. Wipe along the grain (NOT against). Illustration D

Things to Avoid:

• Avoid harsh abrasive cleaners and corrosive chemicals.
• Avoid abrasive scouring pads, carbon steel brushes and steel wool for cleaning as iron particles left behind can lead to rust.
• Avoid the use of oily rags or greasy cloths when wiping the surface. To avoid water spots, wipe dry after use.

Additional Tips:

• Regularly drying your sink works wonders to prevent water and surface rust marks.
- Wear rubber gloves when working with cleaners to protect your hands.
- Never mix cleaners. Some products react to create dangerous gases.
- There are thousands of blended or compound cleaners on the market. Users are advised to contact suppliers of solvents for information on their applications on stainless steel.
• DO NOT USE SOLVENTS in closed spaces or while smoking.
• Note: Columbia does not recommend use with harsh chemicals.

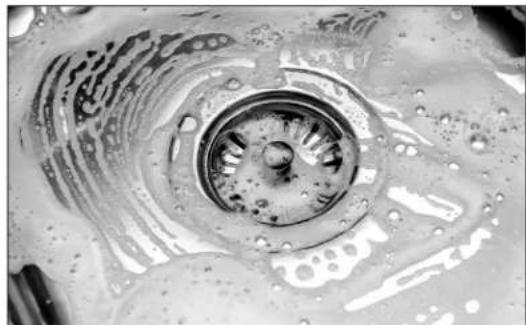

Close-up of a circular mechanical component with internal grooves and water droplets (no text or symbols visible)

Illustration A

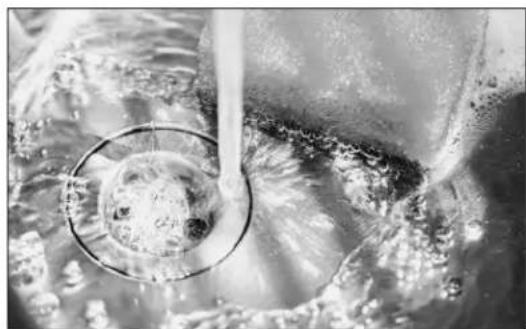

Close-up of a pipe passing through a container with bubbles rising, showing fluid and bubbles (no text or symbols visible)

Illustration B

Close-up of a hand cleaning a stainless steel faucet with a cloth (no text or symbols visible)

Illustration C

Hand cleaning a surface with a cloth, next to a stainless steel pipe (no text or symbols visible)

Illustration D
