USER MANUAL EZ-MXA20 RDL

INSTALLATION AND OPERATION MANUAL

EZ-MXA20 Model numbers: EZ-MXA20 includes power supply with North American plug EZ-MXA20X includes worldwide power supply (specify plug)

20 Watt Stereo Audio Mixer Amplifier with Tone Controls

RDL EZ Series products provide the highest level of value to A/V professionals and A/V users who demand professional quality. For long-term performance, quality and value, you have made the EZ choice. EZ products are made in the USA by RDL, the inventor of application-specific modules bringing decades of experience as the world's leading manufacturer of high-reliability performance products to the A/V industry. Visit the RDL website for hundreds of professional A/V products made in the USA by RDL.

RDL® Radio Design Labs

www.rdlnet.com

Decades of Performance, Quality and Value

RDL • 659 6th Street • Prescott, AZ • USA 86301 • Sales: 800-281-2683 • 928-443-9391 Tech Support: 800-933-1780 • 928-778-3554 • RDL Europe Sales & Support: (31) 20-6238-983

EZ-MXA20

20 Watt Stereo Audio Mixer Amplifier with Tone Controls

• Audio Amplifier with Mic and Line Input Mixer
• 10 Watts RMS Per Channel into 8 Ω
• 8 Watts RMS Per Channel into 4 Ω
- Switch-Selectable Load Impedance on Rear Panel
• Balanced Microphone Input on XLR
• Unbalanced Line Inputs on RCA Jacks
- Switch-Selectable Phantom on Mic Input
• Bass and Treble Tone Control Equalization
• Integral Overload Limiter with LED Indicator
- Limiter Controls Overloads from Clipping

The EZ-MXA20 is a stereo mixer amplifier with one mic and two line inputs. Bass and treble tone controls are included. An integral compressor/limiter allows a higher sound output level without clipping than a standard amplifier. The outputs drive 4 or 8 ohm speakers. The EZ-MXA20 is used in houses of worship, restaurants, clubs, meeting rooms and commercial sound systems.

TYPICAL APPLICATION

Computer

EZ

SERIES

Made in USA by RDL

www.rdlnet.com · · · www.rdlez.com

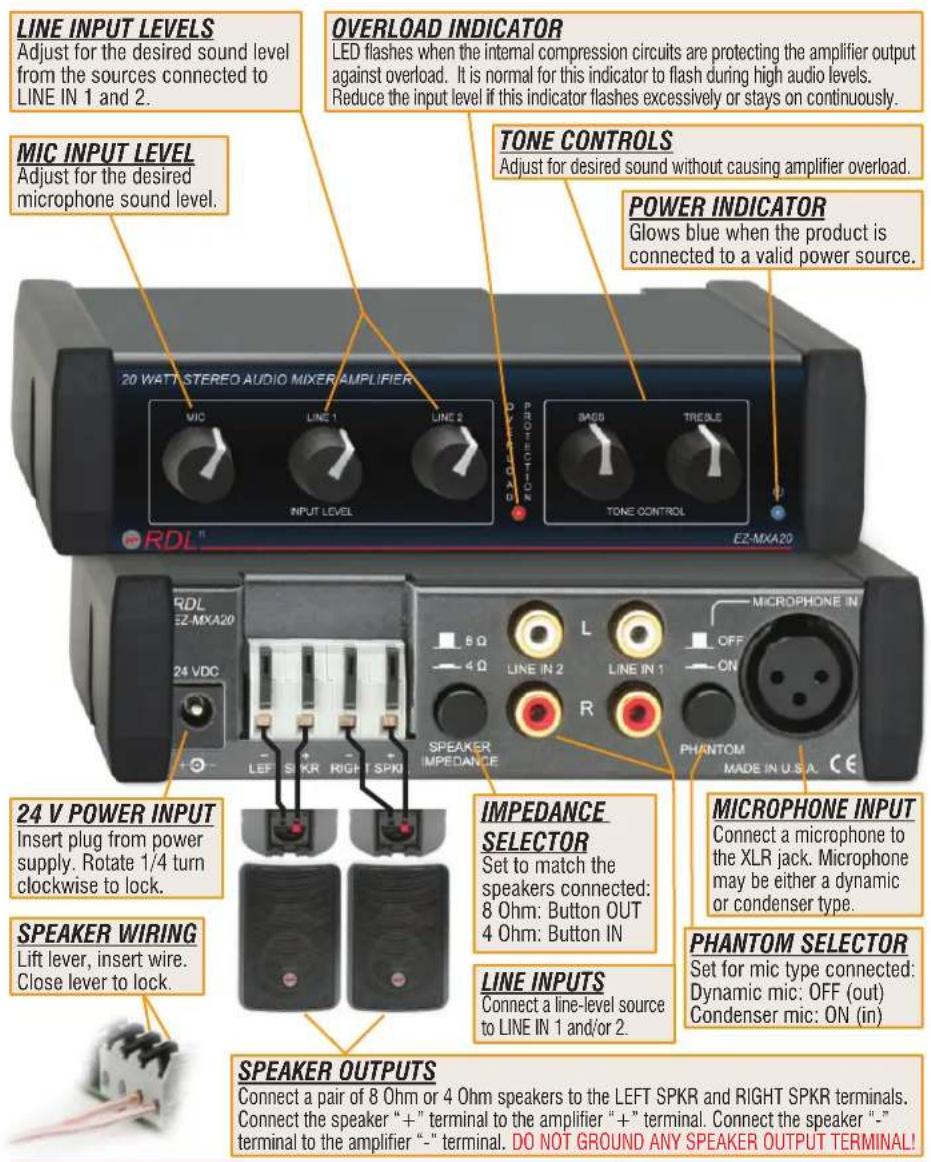

POWER CONNECTION

FIXED MOUNTING RUBBER FEET ATTACHMENT

Close-up of a mechanical component with a red arrow pointing to a circular feature, no visible text or symbols.

Recess Bottom View of chassis
Peel backing and stick the 4 rubber feet to chassis in recesses provided.

SELECTED MOUNTING ACCESSORIES Complete accessory listing available at: rdlez.com

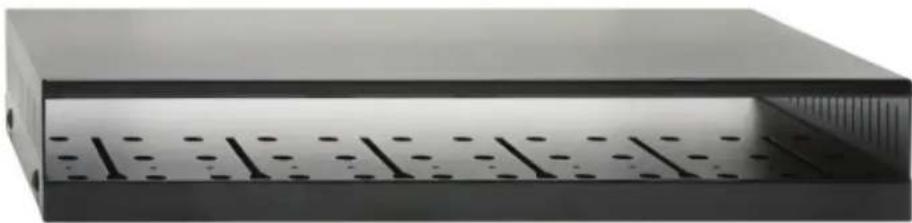

EZ-RA6

Rack Adapter for 6 Increments of 1/6 Rack Width

Front view of a black server rack with ventilation slots and mounting flanges (no text or symbols visible)

EZ-CC6

Component Chassis for 6 Increments of 1/6 Rack Width

Exterior view of a black rectangular electronic device with ventilation slots and ventilation grilles (no text or symbols visible)

EZ-SMB2

Surface Mount Bezel for 1/3 Rack Width Products

Simple black rectangular frame with four corner holes and a horizontal gray base (no text or symbols)

EZ-UCB2

Under-Counter Brackets 1/6 or 1/3 Rack Width

EZ-DC2

Desktop Chassis 1/3 Rack Width

Two gray plastic enclosure cases, one open and one closed, with no visible text or symbols.

EZ-SD2

Storage Drawer 1/3 Rack Width Holds Roapters and Cables Mounts in EZ-CC6 and EZ-RA6

Exterior view of a black electronic device with a label reading 'STRAWB210000' (no other text or symbols visible)

TYPICAL PERFORMANCE

Inputs (3) 1.2 kΩ balanced on XLR jack, mic-level, -55 dBu Min. (for 10 W out), -11 dBu max. (1);

10 kΩ, -10 dBV nominal on RCA jacks, -13 dBV Min. (for 10 W out). +22 dBV max. (2)

Gain. Off to 74 dB (mic). Off to 32 dB (line)

Outputs (2) Left and Right, 10 Watts RMS into 6 Ω per channel or 8 Watts RMS into 4 Ω per channel, switch-selectable output impedance

Equalization: -10 dB @ 10 kHz, ±9 dB @ 80 Hz

Frequency Response: 50 Hz to 20 kHz (±1.5 dB, mic input, 10 Watts). 35 Hz to 20 kHz (±1.5 dB, line input, 10 Watts)

THD+N: < 0.25%

CMRR: > -55 dB (mic)

Crosslink < -68 dB (1 kHz, line input)

Phantom: S. witch-selectable 24 V (IEC 61938, 2013)

Noise: < -70 dB (below 10 Watts, -10 dB line input). < -65 dB (below 10 Watts, -50 dB mic input)

24 Vdc power supply current: 170 mA (idle), 1000 mA (max.)

Power supply input voltage: 100 to 240 VAC

Warranty: 3 Years: contact RDL technical support department for assistance

Case dimensions: 5.75" (14.6 cm)W x 5" (12.7 cm)D

Mounting size

1/3 rack width

CE

891-1505
