USER MANUAL Water Hog 7304-230 Mytee

Commercial Pressure Sprayer

Technical line drawing of a mechanical device with wheels, gauges, and a central circular component (no text or symbols)

Dear Customer:

Congratulations on the purchase of your new Water Hog™ Commercial Pressure Sprayer. As technology continues to develop you can work confidently knowing that both Mytee Products and its employees are equally dedicated to developing with the industry and its advances.

Like any other piece of machinery or technology, the 7304 also requires proper maintenance and care to keep the product working over extended use. Neglecting your machine, abusing it or not operating it properly can void its warranty and prevent the machine from performing to the quality and standard you'd expect out of the Mytee Products line.

If you have any warranty concerns or questions, please review this manual thoroughly or do not hesitate to contact your distributor. If there are questions regarding maintenance, replacement, or ordering parts please contact an authorized Mytee Products Service Center. To see an updated list please visit our website at http://www.mytee.com/support/service-centers.

Before using your Mytee product, please read this manual thoroughly.

Sincerely,

Mytee Customer Care Dept.

Table of Contents

Important Safety Information 4....

1 At a Glance 6.

1.1 - Technical Specifications.6....
1.3 - Water Hog™ Front View.6....
1.4 - Water Hog™ Rear View 7....
1.5 - Switch Plate 8....

2 Machine Operation 9....

2.1 - Powering the Water Hog™.9....
2.2 - Connecting Hoses 9....
2.3 - Filling the Tank 9....
2.4 - Chemical Injection 10....
2.5 - Operating the Water Hog™ 10....
2.6 - Emptying the Tank 10....

3 Machine Maintenance....11

3.1 - Filter Maintenance.... 11

4 Available Accessories....12

5 Troubleshooting....13

Important Safety Information

Grounding Instructions

This machine must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electrical shock. This machine is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed in accordance with all local code and ordinances. Do not remove ground pin; if missing, replace plug before use.

DANGER

Improper installation of the equipment-grounding conductor can result in a risk of electric shock. Be sure to check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. If the plug will not fit in the outlet do not modify the plug on the machine's cord, instead have a proper outlet installed by a qualified technician.

This machine is for use on a nominal 120-volt circuit and with a grounding plug similar to the one in Figure 1 below. If a proper outlet is not available, follow the illustrations of Figure 2 & 3 to install a temporary-grounding plug. This temporary work-around should be used only until a proper outlet (Figure 1) can be installed by a qualified electrician. When and if this type of adapter is employed, screw the adapter's extended tab into place with a metal screw. However, grounding adapters are not approved for use in Canada.

Again, be sure to check the grounding pin for damages and replace if necessary.

The Green, or Green-Yellow, wire in the cord is the grounding wire. When replacing a plug, this wire must be attached to only the grounding pin.

DO NOT use extension cords.

Please Note for America use only.

Grounding Pin Grounded Outlet Metal Screw Adapter Tab for Grounding Screw

Figure 1
Figure 2 Figure 3

Parts and Service

Please contact Mytee service personnel or a Mytee authorized Service Center using Mytee original replacement parts and accessories if repairs need to be performed. When and if calling Mytee for support, please have your Model and Serial Number available for faster assistance.

Name Plate

The Model and Serial Number are located on the lower half of the back of the machine near the power plug and will be required for ordering replacement parts. You can use the space provided in this manual to note down both for future referencing.

Unpacking the Machine

When your new machine is delivered, please carefully inspect both the shipping carton and the machine for damages. If damage is evident, save both the shipping carton and machine so that the delivering carrier can inspect it. Contact the carrier immediately to file a freight claim if there has been any damage.

Caution and Warnings

Symbols

Mytee uses the symbols below to signal potentially dangerous conditions. Always read this information carefully and take the necessary steps to protect personnel and property.

DANGER

Is used to warn of immediate hazards that will cause severe personal injury or death.

WARNING

Is used to call attention to a situation that could cause severe personal injury.

Is used to call attention to a situation that could cause minor personal injury or damage to the machine or other property. When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this machine. This product is intended for commercial use only.

To reduce the risk of fire, electrical shock, or injury:

1. Read all instructions before using equipment.

2. Use only as described in this manual. Use only manufacturer's recommended attachments.

Important Safety Information

1. Always unplug power cord from electrical outlet before attempting any adjustments or repairs.
2. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
3. Do not pull or carry by cord. Do not close a door on cord or pull cord around sharp edges or corners.
4. Do not run appliance over cord. Keep cord away from heated surfaces.
5. Do not use with damaged cord or plug. If cord is damaged, repair immediately.
6. Do not use outdoors or on wet surfaces and/or standing water.
7. Always unplug or disconnect the appliance from power supply when not in use.
8. Do not allow to be used as a toy. Close attention is necessary when used by or near children.
9. Do not use in areas where flammable or combustible material may be present.
10. Do not leave the unit exposed to harsh weather elements. Temperatures below freezing may damage components and void warranty.
11. Use only the appropriate handles to move and lift unit. Do not use any other parts of this machine for this purpose.
12. Keep hair, loose clothing, fingers, and all parts of the body away from all openings and moving parts.
13. Use extra care when using on stairs.
14. To reduce the risk of fire or electric shock, do not use this machine with a solid-state speed control device.
15. The voltage and frequency indicated on the name plate must correspond to the wall receptacle supply voltage.
16. When cleaning and servicing the machine, local or national regulations may apply to the safe disposal of liquids which may contain: chemicals, grease, oil, acid, alkalines, or other dangerous liquids.
17. Do not leave operating unattended.

1 - At a Glance

1.1 - Technical Specifications

Tank	9 Gallons (approx.), faucet-fill hose, auto-fill
Pump	Adjustable 1,200 PSI (regulated to 1,000 PSI), 2 GPM
Locking Casters	3"
Power Cord	25' 12/3
Power Consumption	14 amps @ 115V 60Hz
Machine Weight	50 lbs.
Machine Dimensions	21" x 12" x 27"

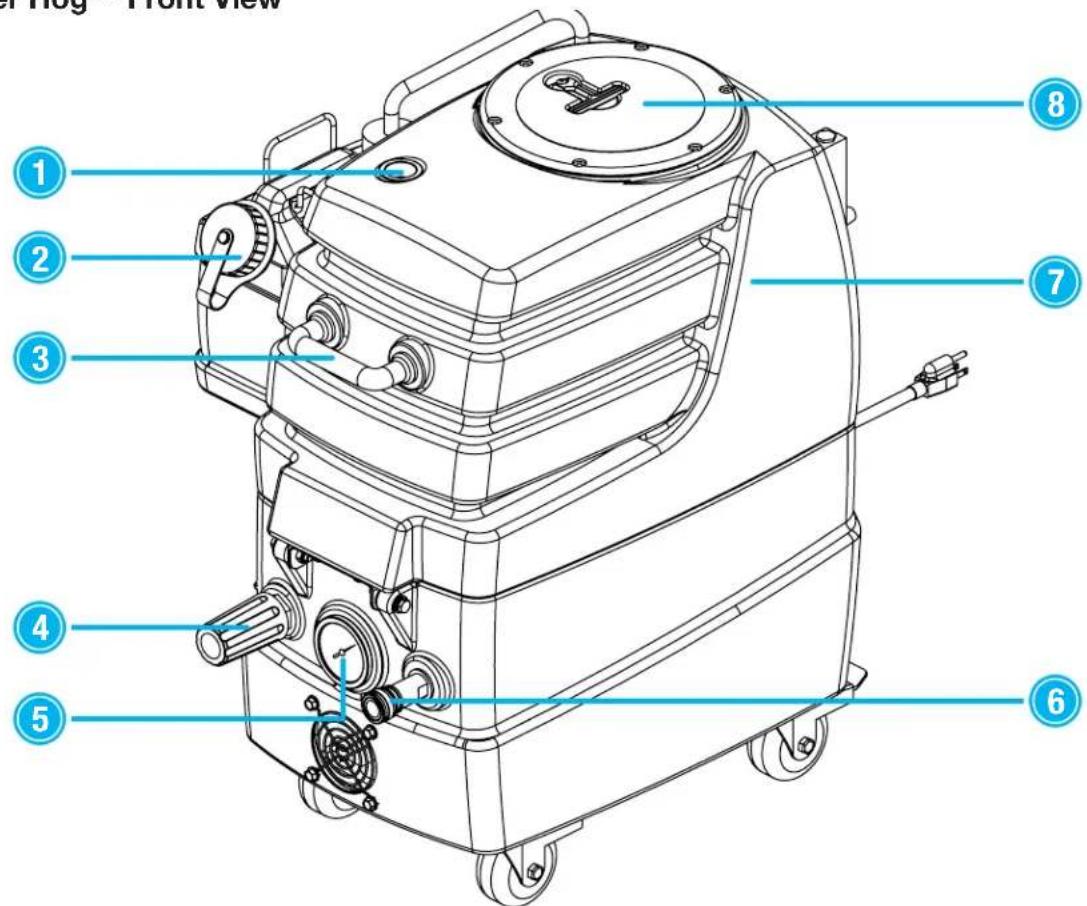

1.2 - Water Hog™ Front View

Hog - Front view ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

1. Faucet-Fill Hose
2. 5 qt. Big Mouth™ Bottle
3. Front Carrying Handle

4. Pressure Regulator

5. Pump Pressure Gauge (PSI)

6. Female Quick Connect for Output
7. 9 Gallon (approx.) Tank
8. Clear Tank Lid

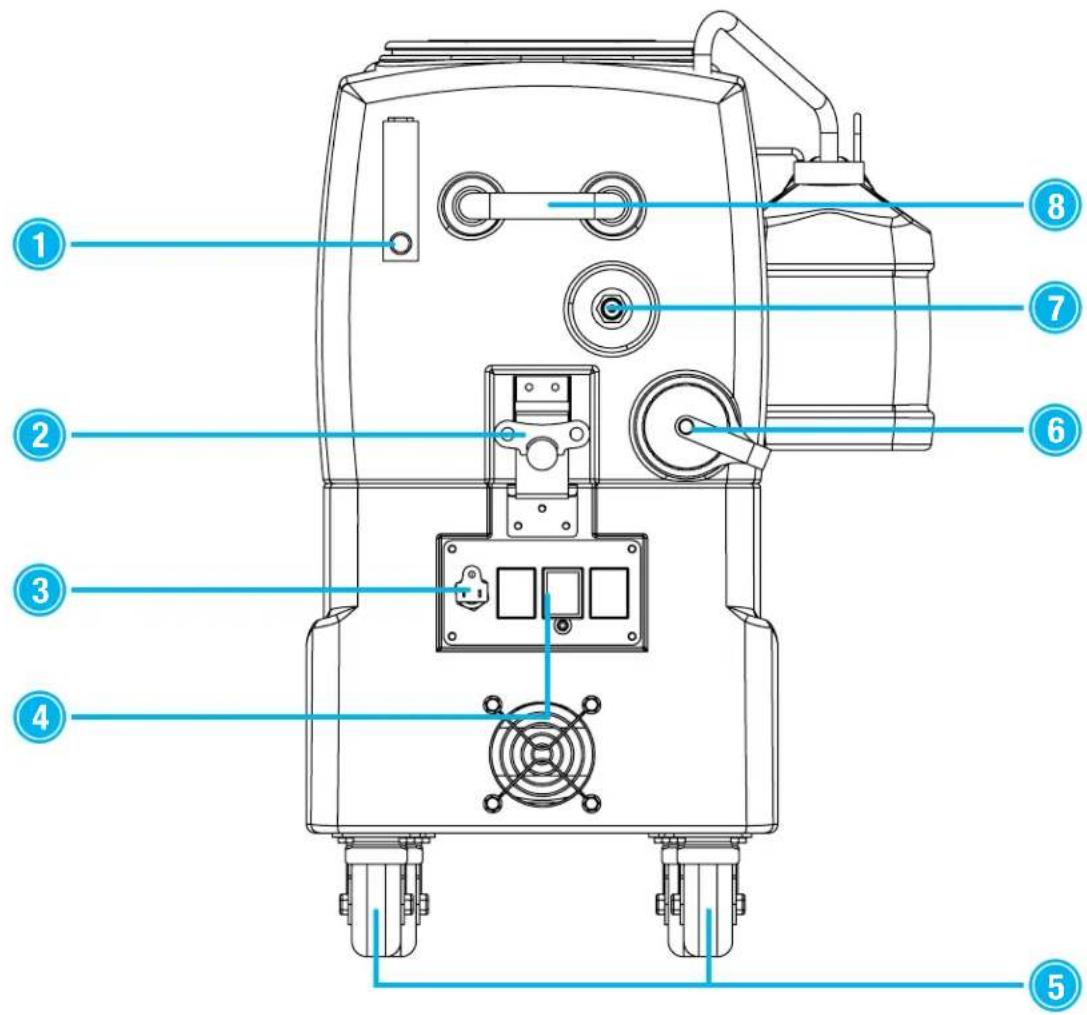

1.3 - Water Hog™ Rear View

Technical diagram of a mechanical device with numbered parts for identification

1. Chemical Injection Meter
2. Maintenance Access Latch
3. Power Cord Pigtail

4. Switch Plate

5. 3" Locking Casters

6. Solution Tank Drain Cap
7. Auto-Fill Input Connection
8. Rear Carrying Handle

1 - At a Glance

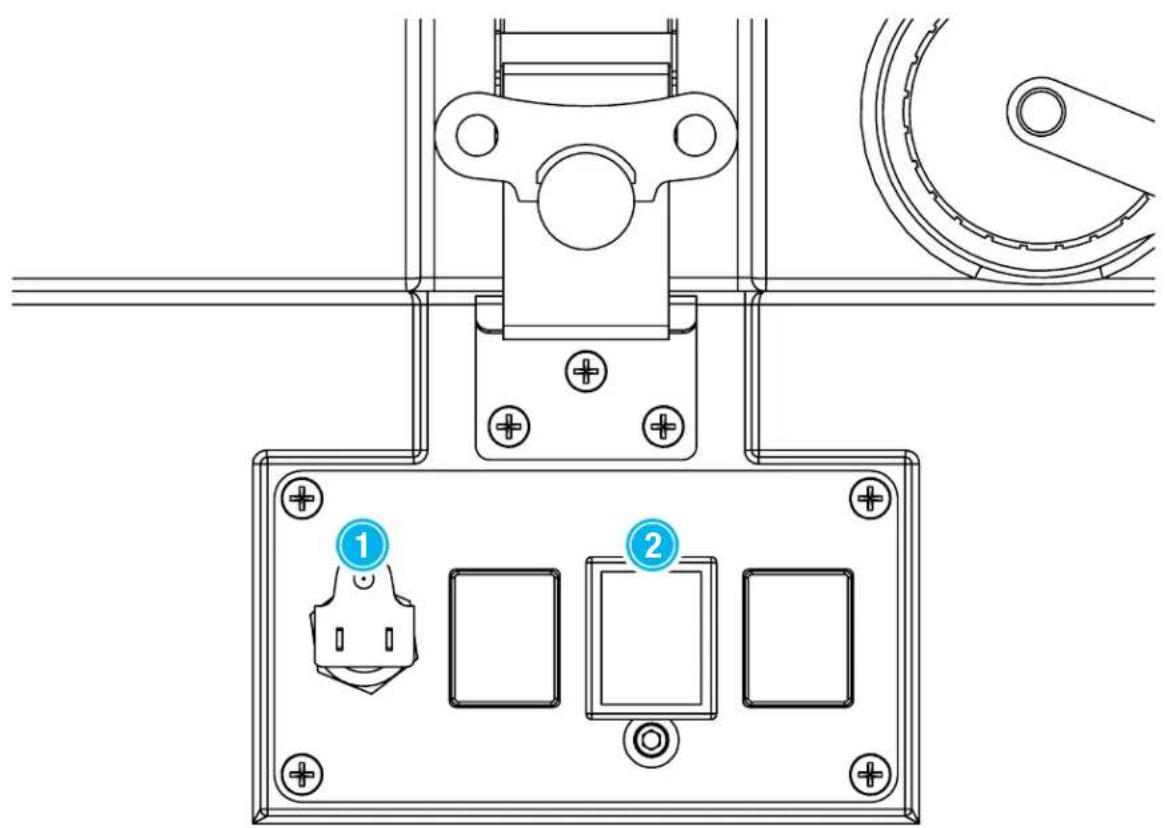

1.4 - Switch Plate

Technical diagram of a mechanical assembly with labeled components and mounting holes

1. Power Cord Pigtail

2. Power Switch

2.1 - Powering the Water Hog™

Diagram of a mechanical device with a blue cable connecting its cable to a power outlet (no text or symbols present)

The Water Hog ^™ requires a 15 amp, 115V power outlet to operate.

Plug the female end of the 25' lighted extension cord into the Water Hog's™ pigtail power cord and plug the male end of the extension cord into a wall outlet.

2.2 - Connecting Hoses

Output Input

The Water Hog™ uses a female quick connect fitting for output and a male quick connect fitting for the auto-fill input.

2.3 - Filling the Tank

There are three ways the tank can be filled: (1) with a bucket, (2) via the faucet-fill hose, and (3) via the auto-fill feature.

Technical line drawings of two industrial machines with blue components and piping (no text or symbols)

Bucket Fill

To fill the Water Hog™ using a bucket, simply remove the clear tank lid on top of the machine and pour water in.

Faucet-Fill

Pull the faucet-fill hose up from the machine and press the rubber faucet adapter onto the faucet. Turn on the water and fill to desired level.

Auto-Fill

Connect hose from water source to auto-fill fitting on the rear of the machine. Turn on the water source and allow the tank to fill. The tank will fill up to the float shut-off. The float will automatically allow more water in as needed.

2 - Machine Operation

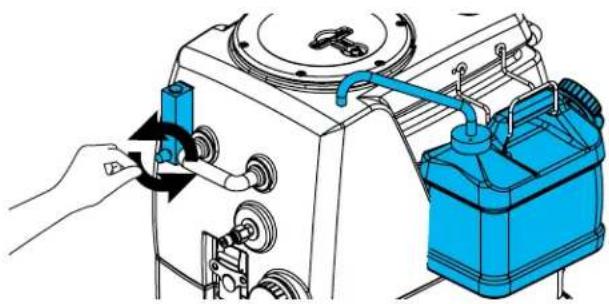

2.4 - Chemical Injection

Illustration of a hand operating a blue industrial machine with a blue bucket nearby (no text or symbols)

Fill the included 5 qt. bottle with chemical concentrate of your choice. With a cleaning tool or spray gun connected, switch on the pump and pull the trigger on your tool to keep water flowing. Turn the chemical injection knob counter-clockwise to open the valve. This allows chemical to siphon into the line. Turn the knob until you see the bubble reach the desired gallons per hour of chemical. Follow chemical manufacturer's instructions for correct ratio.

IMPORTANT: If chemical injection will not be used, make sure the chemical injector is closed by turning the knob all the way clockwise.

2.5 - Operating the Water Hog™

Technical diagram of a vehicle front view showing three circular gauges with blue indicators and directional arrows (no text or labels)

To operate the Water Hog™, connect a hose from the female quick connect on the front of the machine to a tool (spray gun, tile and grout tool, etc.) and switch on the pump. Dial in the desired pressure using the regulator to the left of the pressure gauge.

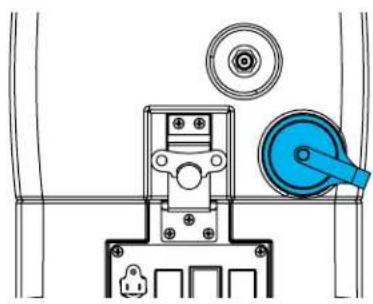

2.6 - Emptying the Tank

Technical line drawing of a mechanical assembly with a blue handle and circular component (no text or symbols)

After use, the tank can be emptied via the drain cap on the lower-right side of the rear of the machine.

3 - Machine Maintenance

In order to keep the Water Hog™ running smoothly and reduce the risk of damage to the machine and subsequent downtime, Mytee recommends following the maintenance schedule below:

Maintenance Item Daily Weekly
Clean and inspect tank.	X
Clean and inspect hoses.	X
Check and clean internal filters.	X
Check power cable.	X
Clean machine with all-purpose cleaner and cloth.	X
Lubricate wheels with water resistant oil.		X
Inspect machine for water leaks and loose hardware.		X

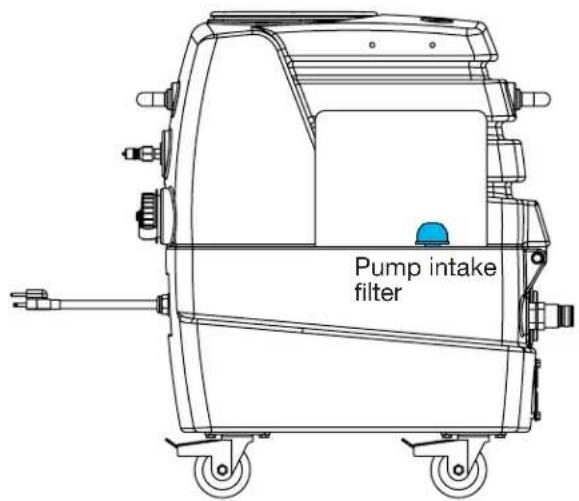

3.1 - Filter Maintenance

Pump intake filter

The Water Hog™ has a mesh filter on the intake for the pump in the tank. It is shaped like a half-sphere. This filter should be checked and cleaned after each use.

4 - Available Accessories

Line drawing of a mechanical cleaning or inspection device with wheels and control panel (no text or symbols)

Technical line drawing of a mechanical device with a circular base and articulated arm (no text or symbols)

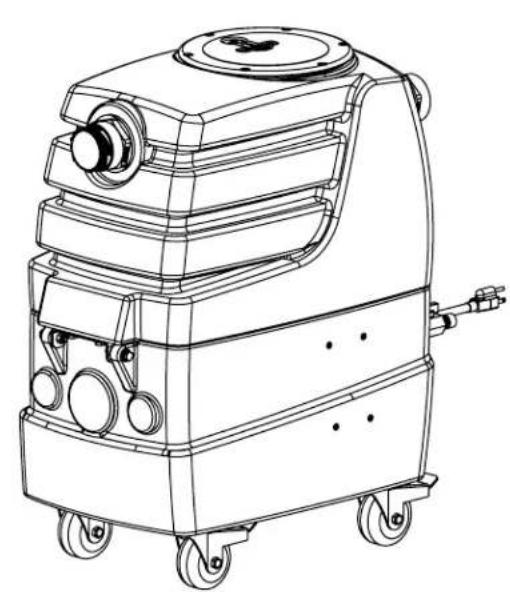

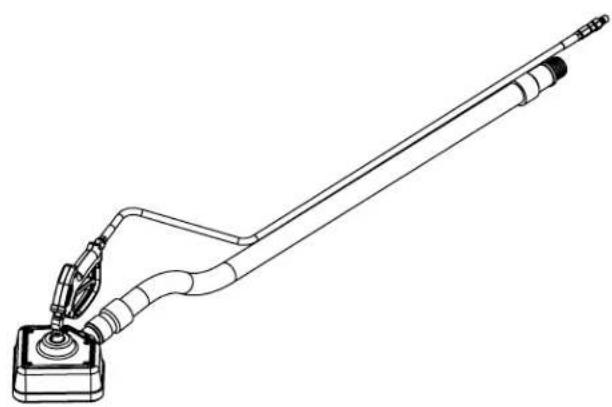

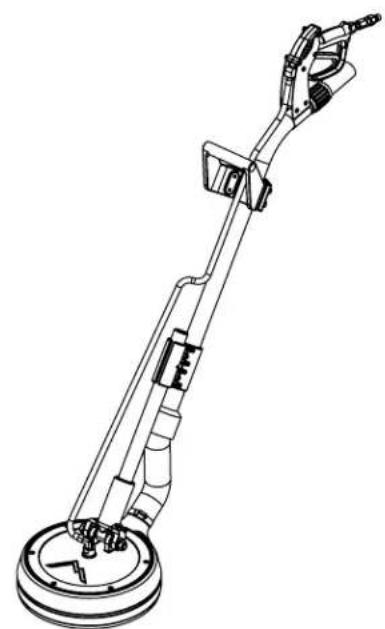

7303LX Air Hog™ Vacuum Booster 8903 Wand Style Spinner® Tile & Grout Cleaning Tool

Technical line drawing of a handheld metal detector with attached circular base (no text or symbols)

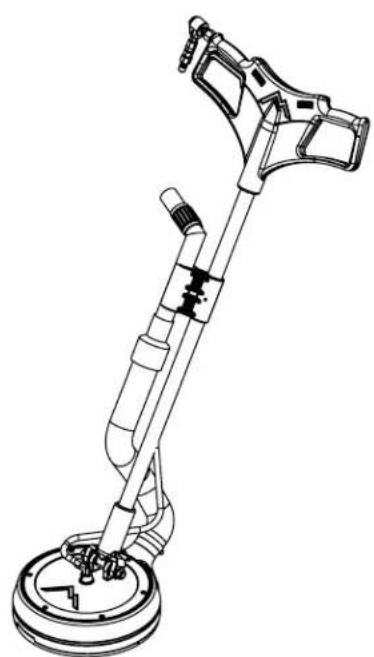

8904 T-Handle Spinner® Tile & Grout Cleaning Tool

Line drawing of a handheld industrial tool with a central component and articulated arm (no text or symbols)

8908 Counter Spinner® Tile & Grout Cleaning Tool

5 - Troubleshooting

5.1 - Pump Troubleshooting

No water flow.
Possible Causes Solutions
Tank is empty. Fill tank.
Filter is clogged. Clean the half-sphere shaped filter inside the tank.
Pump valves are clogged or damaged.	Examine valves and clean or replace.
Pump has lost prime. Follow	the priming procedure.

Motor does not operate.

Possible Causes Solutions

Blown circuit breaker. Replace circuit breaker.Check circuit for wire damage or component damage.

Leaks seen under pump.

Possible Causes Solutions

Pump seals are worn. Replace with new plunger and seals.

Low pressure.
Possible Causes Solutions	nozzle with a new one of the same size.
Nozzle is worn. Replace the	Check hose or connections. Repair/replace as needed.
Leak in high pressure hose or connections.
Filter is clogged. Clean the half-sphere shaped filter inside the tank.
Pump valves are clogged or damaged.	Examine valves and clean or replace.

Pump pulsates when spraying.
Possible Causes Solutions
Filter is clogged. Clean the half-sphere shaped filter inside the tank.
Pump valves are clogged or damaged.	Examine valves and clean or replace.
