Product Type	Type 1 Grease-Rated Kitchen Exhaust Hood
Brand	Halifax
Model	FTHP1230
Standards Listing	ANSI UL710, CAN/ULC S646-10, NFPA 96
Warranty	24 months from shipment date
Installation Type	Roof-mounted on concession truck or similar
Mounting Hardware	Concession Hood Bolt Kit included (4 bolts, 16 washers, 16 nuts, 4 ring gaskets)
Torque Specification	75 in-lbs (8.5 Nm) unless gasket deforms
Minimum Clearance from Combustibles	18 inches typical (per NFPA 96), reduction may be allowed per UL listing
Filter Type	Grease filters (shipped separately in original packaging)
Duct Connection	Welded on top of hood, hole cut in hood and truck roof
Roof Curb	Separate roof curb and curb plate required
Fan	Installed on top of roof curb, wired separately
Electrical	Wiring per electrician following full installation manual
Light Fixtures	Optional, wired per diagram
Sealant	Applied around roof curb and any holes
Shipping	Filters sometimes shipped on separate skid; inspect for damage
Safety Warning	Installation must be performed by a qualified professional

Frequently Asked Questions - FTHP1230 Halifax

What type of hood is the Halifax FTHP1230?

The Halifax FTHP1230 is a Type 1 grease-rated kitchen exhaust hood listed to ANSI UL710 and CAN/ULC S646-10, compliant with NFPA 96.

What is the warranty period for this hood?

The hood is warranted to be free from defects in materials and workmanship for 24 months from date of shipment under normal use and service.

Can I install this hood myself?

No. Installation must be performed by a qualified professional to ensure safety and compliance with codes.

What clearance is required from combustible materials?

Typically 18 inches minimum clearance is required for Type 1 hoods per NFPA 96. However, clearance reduction methods approved in the manufacturer's UL listing may be accepted by local authorities.

What hardware is included for mounting?

The Concession Hood Bolt Kit includes four 8-inch SS hex head screws, 16 washers, 16 nuts, and 4 ring gaskets. Torque to 75 in-lbs.

Are filters included with the hood?

Yes, grease filters are typically included but shipped separately in their original packaging. Do not remove packaging until just before commissioning.

How do I attach the duct to the hood?

Weld the duct connection on top of the hood at a location that does not interfere with internal bracing. Then cut a hole in the hood at the duct connection and in the truck roof as per Figure 1.

What should I do if I find damage upon delivery?

Record all damage on the bill of lading and file a claim with the final carrier. Also report hidden damage to your representative.

Can lights be installed in this hood?

Yes, light fixtures can be installed. An electrician should follow the wiring diagram provided in the full installation manual.

Is sealant required for installation?

Yes, use sealant around the roof curb and any holes made during installation to ensure weatherproofing and compliance with codes.

USER MANUAL FTHP1230 Halifax

Exterior view of a Halifax Hoods stainless steel kitchen air duct (no signage or text beyond branding)

HalifaxHoods

Receiving and Storage

Once equipment is received, check for both obvious and hidden damage. If damage is found, record all necessary information on the bill of lading and file a claim with the final carrier. Check to be sure that all parts of the shipment, including accessories, are accounted for.

UNPACKING

Verify that all required parts and the correct quantity of each item have been received. If any items are missing, report shortages to your representative to obtaining missing parts. Sometimes it is not possible that all items for the unit be shipped together due to availability of transportation and truck space. Confirmation of shipment(s) must be limited to only items on the bill of lading. Filters are typically shipped in the hood, but sometimes are shipped on a separate skid in their original packaging. Do not remove factory packaging or install filters until just prior to commissioning. Remove all other shipping/packing materials.

WARNING!!

Installation of this unit should only be performed by a qualified professional. Please read the instructions thoroughly before installing or servicing this equipment.

LISTING

This hood is listed to ANSI UL710 and CAN/ULC S646-10 and built to the "NFPA 96" National Fire Protection Association Standard

WARRANTY

This equipment is warranted to be free from defects in materials and workmanship, under normal use and service, for a period of 24 months from date of shipment – See full Installation Instructions for Details.

INSTALLATION

It is necessary to install and operate this unit with the airflow (CFM) designed for the size of hood, filters and installation based on the information provided.

HalifaxHoods

SITE PREPERATION

1. To safely lift equipment into the final installed position you must make sure the area of installation is clear. Make sure you have enough room after installation to service unit easily.

2. Verify the location that the hood will be installed so there is nothing to interfere when installing the unit.

3. Review your plans and specifications for your project.

4. Confirm and verify the supports will support the weight of the hood and fan mounted on top of the truck.

5. If installing light fixtures a. Have electrician following wiring diagram as noted in full Installation Manual

6. Weld Duct connection on top of Hood at area which does not interfere with bracing inside truck

7. Cut hole in Hood at duct connection - See Figure #1, Item #7

8. To cut the hole properly in the roof of truck - See Figure #1 a. Lift hood in the location where it will be mounted, ensuring there is adequate room available to install the hood and all ductwork to comply with proper clearances from combustible material (Item # 1) b. Bring duct in contact with top of truck (Item # 5) c. Mark location of duct on truck roof d. Lower hood back down e. Cut hole in roof of truck (Item # 7)

9. Mount Roof Curb with Curb plate on top of truck (Items # 3 & 4)

10. See attached instructions for using Concession Hood Bolt Kit to complete hood attachment

11. Curb Plate securing a. Cut Curb Plate hole where duct meets plate to ensure tight fit b. Secure Curb Plate to top of Roof Curb

12. Install and secure fan on top of Roof Curb (Item # 2)

13. Wire power to Fan

14. Use Sealant around roof curb and any holes which were made during the installation process IMC, NFPA96 and local authorities having jurisdiction may call for a minimum clearance (typically 18 inches for type 1, grease rated hoods) between the cooking hood(s), exhaust ducts, and building materials which are combustible. However, IMC and NFPA96 do outline acceptable clearance reduction methods; most local jurisdictioning authorities will accept the clearance reduction methods approved in the manufacturer's UL listing for Type 1, grease rated hoods.

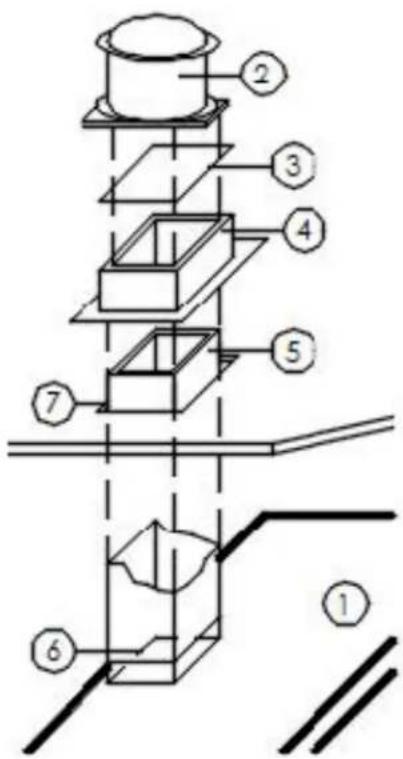

FIGURE 1

HalifaxHoods

Bolt Kit

1. Use the "Concession Hood Bolt Kit" when installing the hood. The kit includes the following:

Hardware Description Quantity (Pcs)
8" Long SS hex head screw 1⁄2"-13 TPI 4
1⁄2" SS washers 16
1⁄2"-13 TPI SS Nuts 16
Ring Gasket .531"ID, 1.250"OD, .063"THK 4

1. Mark pilot holes, 12 inches in, at each end 4" from the front and rear of the Hood

2. Drill Pilot Holes

3. Align and raise the Hood in the location where it will be mounted

4. Drill the holes through the hood and exterior roof line were the hood will be mounted

5. Lower Hood back down

6. Remove any burrs and/or metal fragments around holes

7. See Figure 1 on back side of the sheet for installation

8. Torque all hardware to 75 in-lbs, unless the Garlock washer begins to deform

9. You may remove excess screw threads. There must be at least 1/16" of threads extending past the outward face of the properly torqued nut.

FIGURE 1
