USER MANUAL V5B2M Speco Technologies
Warnings
■ If the product does not work properly, please contact the dealer or where the product was purchased. Speco Technologies is not responsible for any problems caused by improper operation or repair.
- Do not expose the unit to heavy stress, violent vibration or long-term exposure to water and humidity during transportation, storage, and/or installation.
■ Do not install near sources of heat.
■ Only install the product in environments inside the specification operating temperature and humidity range.
■ Do not install the camera near power lines, radar equipment or other electromagnetic radiation.
■ Do not block any ventilation openings if any.
■ Use all the weatherproofing hardware requirement to minimize weather intrusion.
Introduction
This camera series is the latest technology and advanced circuit design, which features high definition and sensitivity, low noise and distortion and supports HD video transmission with the common coaxial cable, ensuring the requirement of the HD monitoring in the traditional surveillance system.
- High Resolution
Adopt high performance sensor, providing high definition and clear image.
• High Transmission Performance
Real-time transmission with high speed and long distance.
• DNR
Reduce noise from brightness and color signal.
• OSD
Access the camera settings which can be clearly displayed through the main menu.
- White Balance
Adjust the color temperature according to the environment automatically.
- ICR Auto Switch
The filter will filter infrared light during the daytime and change to normal at night to ensure a high sensitivity and clear image.
• AGC
Adjust the gain of amplifier, enabling the camera to output the standard video signal in different lighting condition.
- Wide Dynamic Range (WDR)
When there are both very bright and very dark areas simultaneously in the field of view, this function will balance the brightness level and provide clear images.
- Backlight Compensation (BLC)
When the back of the captured object is too much bright, you can set BLC for the captured object to make it clearer.
Cables
Installation
Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera. Please install and use the camera in the dry environment.
You'd better install back the lens cover or lower dome less than 4 hours after removing it. The mounting types of cameras are only for reference.
▶Mounting for V5B2/V5B2M
- Drill the screw holes and the cable hole on the wall according to the drill template.


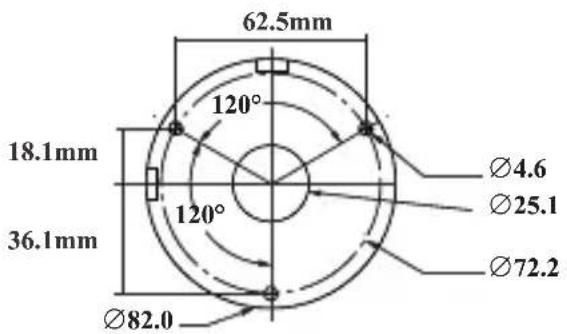

62.5mm 120° 18.1mm 36.1mm 120° Ø4.6 Ø25.1 Ø72.2 Ø82.0-
Route and connect the cables.
-
Secure the mounting base with camera to the wall with screws as shown below.


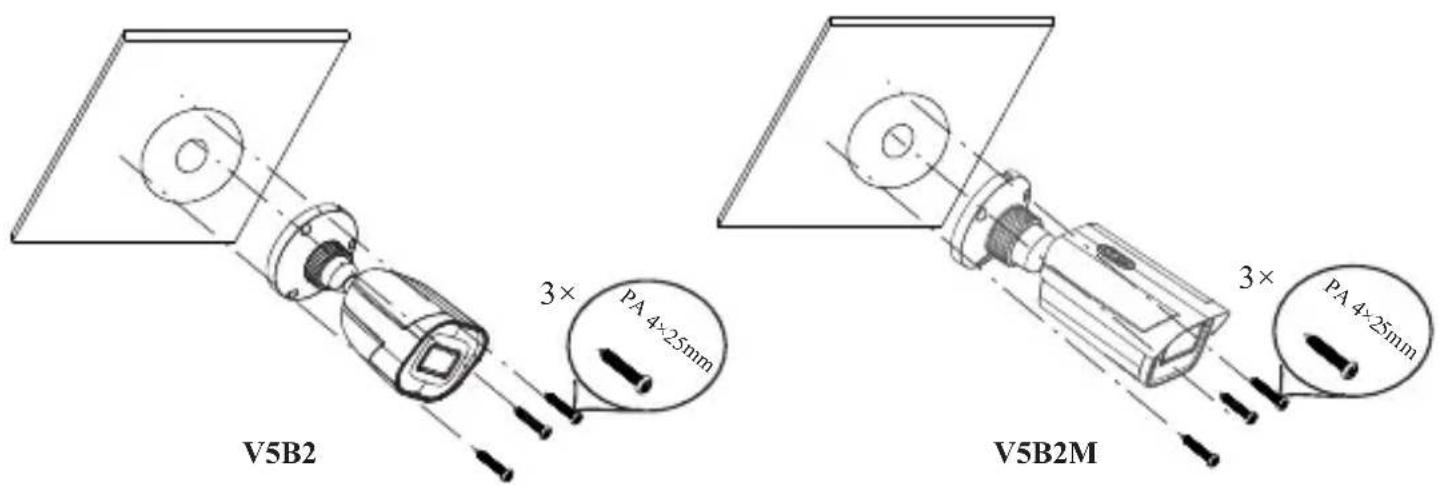

V5B2 3× PA 4×25mm V5B2M 3× PA 4×25mm- Bracket adjustment. Before adjustment, preview the image of the camera on a monitor and then loosen the fixed ring to adjust the view angle of the camera. Tighten the fixed ring after the adjustment.
- Attach the drill template to the place where you want to fix the camera and then drill the screw holes and the cable hole on the wall according to the drill template.


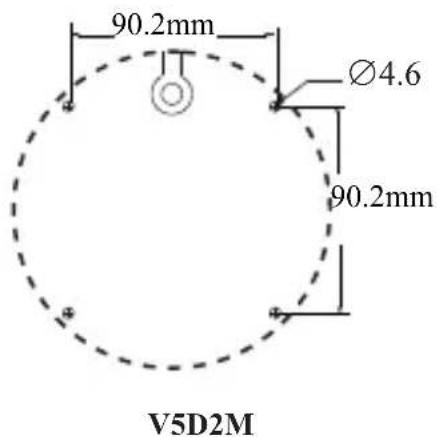

90.2mm Ø4.6 90.2mm V5D2M- Align the gap of the trim ring with the microphone by turning the trim ring with fingers. Then remove the trim ring from the gap of the camera.
- Loosen the screws to open the lower dome. Then route and connect the cables.
- Secure the camera to the wall with screws provided as shown below.


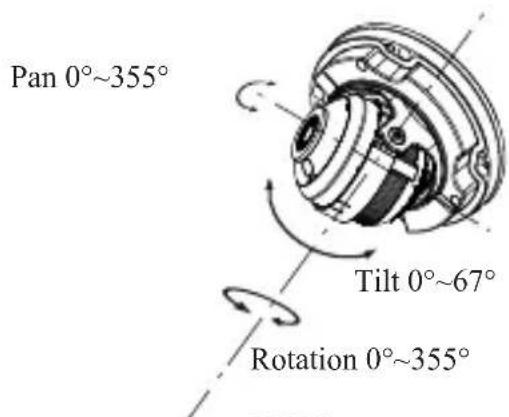

Pan 0°~355° Tilt 0°~67° Rotation 0°~355°V5D2


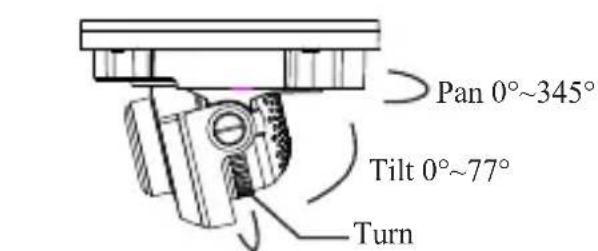

Pan 0°~345° Tilt 0°~77° TurnRotation 0^ 345^
V5D2M

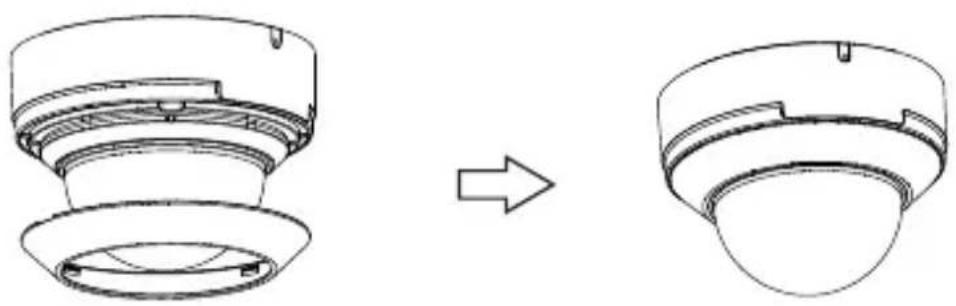

- Install the lower dome back to the camera and fix it with screws. Then put the trim ring onto the lower dome and then rotate it clockwise until it is locked. Finally, remove the protection film softly.
- Drill the screw holes and the cable hole on the wall according to the drill template.


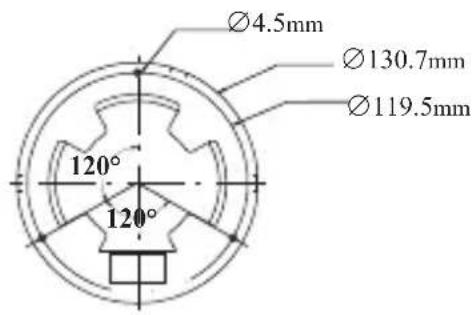

Ø4.5mm Ø130.7mm Ø119.5mm 120° 120°V5T2M
- Loosen the fixed screw to disassemble the camera.
- Route and connect the cables. Then secure the mounting base to the ceiling or wall with the screws provided.


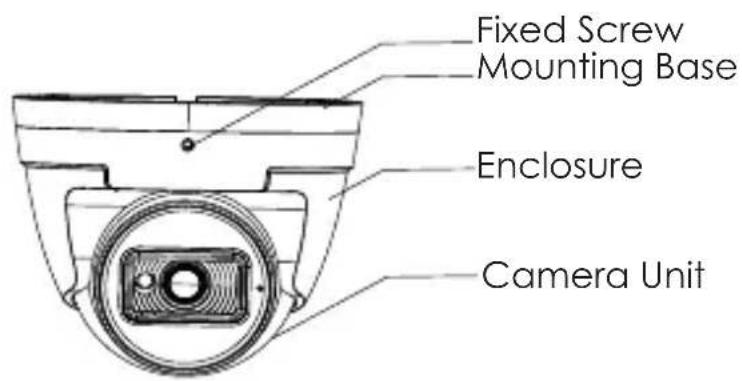

Fixed Screw Mounting Base Enclosure Camera Unit


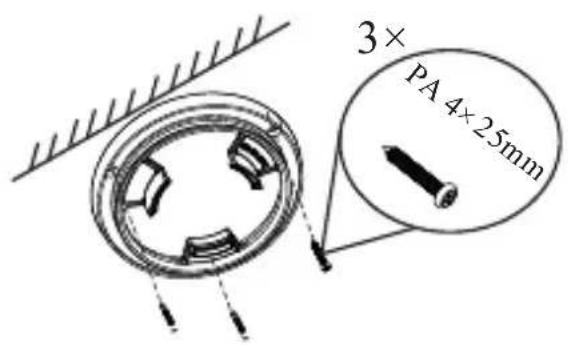

3× PA 4×25mm- Install the camera unit and enclosure to the mounting base and then adjust the dome to obtain an optimum view angle. Finally, secure the camera with the fixed screw.
| Specifications\Models | V5B2 | V5B2M | V5D2 |
| Camera | |||
| Image Sensor | 1/2.7" CMOS | ||
| Resolution | 5MP | ||
| Image size | 2560×1936 | ||
| Video Output | AHD/TVI/CVI/CVBS (*camera comes defaulted to HD-TVI) | ||
| Image System | PAL/NTSC | ||
| Electronic Shutter | Auto; 1/50s~1/100000s(PAL);1/60s~1/100000s (NTSC) | ||
| IR Distance (feet) | 65.6~98.4 | 98.4~164.0 | 65.6~98.4 |
| Frame Rate | 20fps | ||
| Min. Illumination | Color:0.01lux@F1.2, AGC ON; B/W: 0lux with IR | ||
| Lens | 2.8mm | 2.8~12mm (motorized) | 2.8mm |
| Lens Mount | M12 | D14 | M12 |
| S/N Ratio | ≥52dB(AGC OFF) | ||
| Ingress Protection | IP67 | IP67 | IP67&IK10 |
| Functions | |||
| Function Control | OSD (UTC control) | ||
| Day &Night | ICR | ||
| DWDR | Yes | ||
| Digital NR | Yes | ||
| AGC | Yes | ||
| Auto White Balance | Yes | ||
| Defog | No | ||
| BLC | Yes | ||
| LSC | Yes | ||
| Mirror | Yes | ||
| Sharpness | Yes | ||
| Smart IR | Yes | ||
| Image Setting | Yes | ||
| Defect Correction | Auto | ||
| Others | |||
| Power Supply | DC12V (± 10%) | ||
| Power Consumption | IR OFF: < 1W; IR ON : < 4W | IR OFF: < 1W; IR ON : < 6W | IR OFF: < 1W; IR ON : < 4W |
| Working Environment | -22 °F ~ 122 °F, 10 % ~ 90 %(relative humidity) | ||
| Dimensions (inch) | 6.74 3.27 3.26× × | 8.6 3.39 3.386× × | Φ4.72 3.45× |
| Specifications\Models | V5D2M | V5T2 | V5T2M |
| Camera | |||
| Image Sensor | 1/2.7" CMOS | ||
| Resolution | 5MP | ||
| Image size | 2560×1936 | ||
| Video Output | AHD/TVI/CVI/CVBS (*camera comes defaulted to HD-TVI) | ||
| Image System | PAL/NTSC | ||
| Electronic Shutter | Auto; 1/50s~1/100000s(PAL);1/60s~1/100000s (NTSC) | ||
| IR Distance (feet) | 98.4~164.0 | 65.6~98.4 | 98.4~164.0 |
| Frame Rate | 20fps | ||
| Min. Illumination | Color:0.01lux@F1.2, AGC ON; B/W: 0lux with IR | ||
| Lens | 2.8~12mm (motorized) | 2.8mm | 2.8~12mm (motorized) |
| Lens Mount | D14 | M12 | D14 |
| S/N Ratio | ≥ 52dB(AGC OFF) | ||
| Ingress Protection | IP67&IK10 | IP67 | IP67 |
| Functions | |||
| Function Control | OSD (UTC control) | ||
| Day &Night | ICR | ||
| DWDR | Yes | ||
| Digital NR | Yes | ||
| AGC | Yes | ||
| Auto White Balance | Yes | ||
| Defog | No | ||
| BLC | Yes | ||
| LSC | Yes | ||
| Mirror | Yes | ||
| Sharpness | Yes | ||
| Smart IR | Yes | ||
| Image Setting | Yes | ||
| Defect Correction | Auto | ||
| Others | |||
| Power Supply | DC12V (± 10%) | ||
| Power Consumption | IR OFF: < 1W; IR ON : < 6W | IR OFF: < 1W; IR ON : < 4W | IR OFF: < 1W; IR ON : < 6W |
| Working Environment | -22 °F ~ 122 °F, 10 % ~ 90 %(relative humidity) | ||
| Dimensions (inch) | Φ5.61 3.95× | Φ4.67 3.69× | Φ4.21 5.16× |
Model: V5B2/V5B2M/V5D2/V5D2M/V5T2/V5T2M
Federal Communications Commission (FCC) Statements
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
FCC Responsible Party:
Speco Technologies
200 New Highway
Amityville, NY 11701
www.specotech.com
